RANE AC 24 Stereo 4-Way Active Crossover - Perfect for Your JBL or Altec Project


Looks to be new in original box. Loved by the custom speaker crowd.

No longer available and hard to find these days.

Tested and working throughout.

The AC 24 stereo 4-way Crossover combines conventional analog controls and DSP signal processing. The AC 24 is ideal for those who want the features and accuracy of DSP, but prefer not to use a PC for control. One knob = one function -- no confusion.

This approach allows a full-featured, high performance product that doesn't break the bank.

The AC 24 is a truly affordable crossover that features the very best technology, with exactly the right features. The AC 24 combines Rane's exclusive phase compensated, 4-way Linkwitz-Riley-Plus crossover filters with independent time delay and limiting for each output.

Once settings are made, an included security cover guards all controls.

With these tools, it is possible to realize a well-protected sound system that exhibits unsurpassed clarity and accuracy.

Why Linkwitz-Riley-Plus?
• Absolutely flat amplitude response through out the passband.
• Steep 24 dB per octave roll-off rate after the crossover point.
• All outputs are everywhere in phase.
• Excellent transient response.
• See the RaneNote Linkwitz-Riley Crossovers for background information.

Special AC 24 Features:
• Exclusive Automatic Phase Compensation
• Independent Alignment Delays
• Independent Limiters
• CD Horn EQ on Hi-Mid and High Outputs
• Stereo Link Switch
• Summed Output Expands Uses
• Security Cover Included
• Internal Universal Power Supply

• 4-Way or 3-Way Operation
• Independent, Dual-Mono Crossover
• Linked Control, Stereo Crossover
• Split-Band Limiter
• 4-band, 4th-Order, 24 dB per Octave Tone Controls

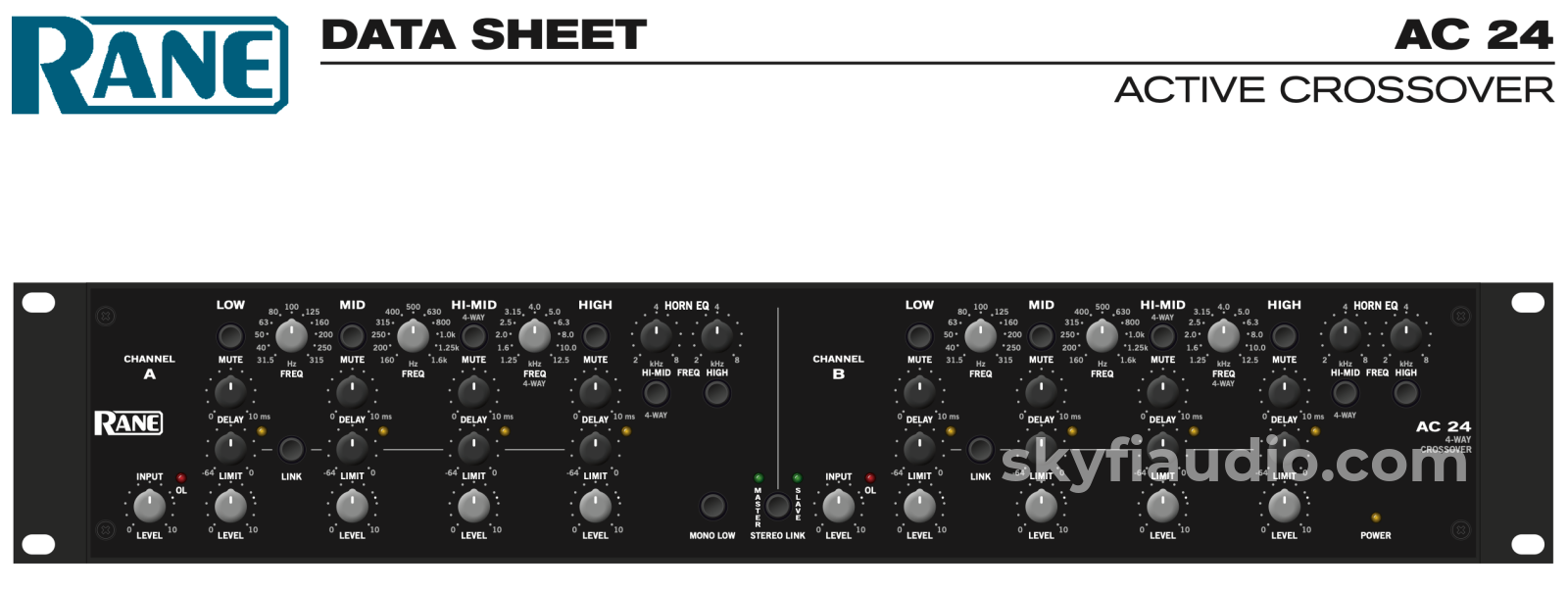

RANE AC 24 Stereo 4-Way Active Crossover - Data Sheet

RANE AC 24 Stereo 4-Way Active Crossover - Manual

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

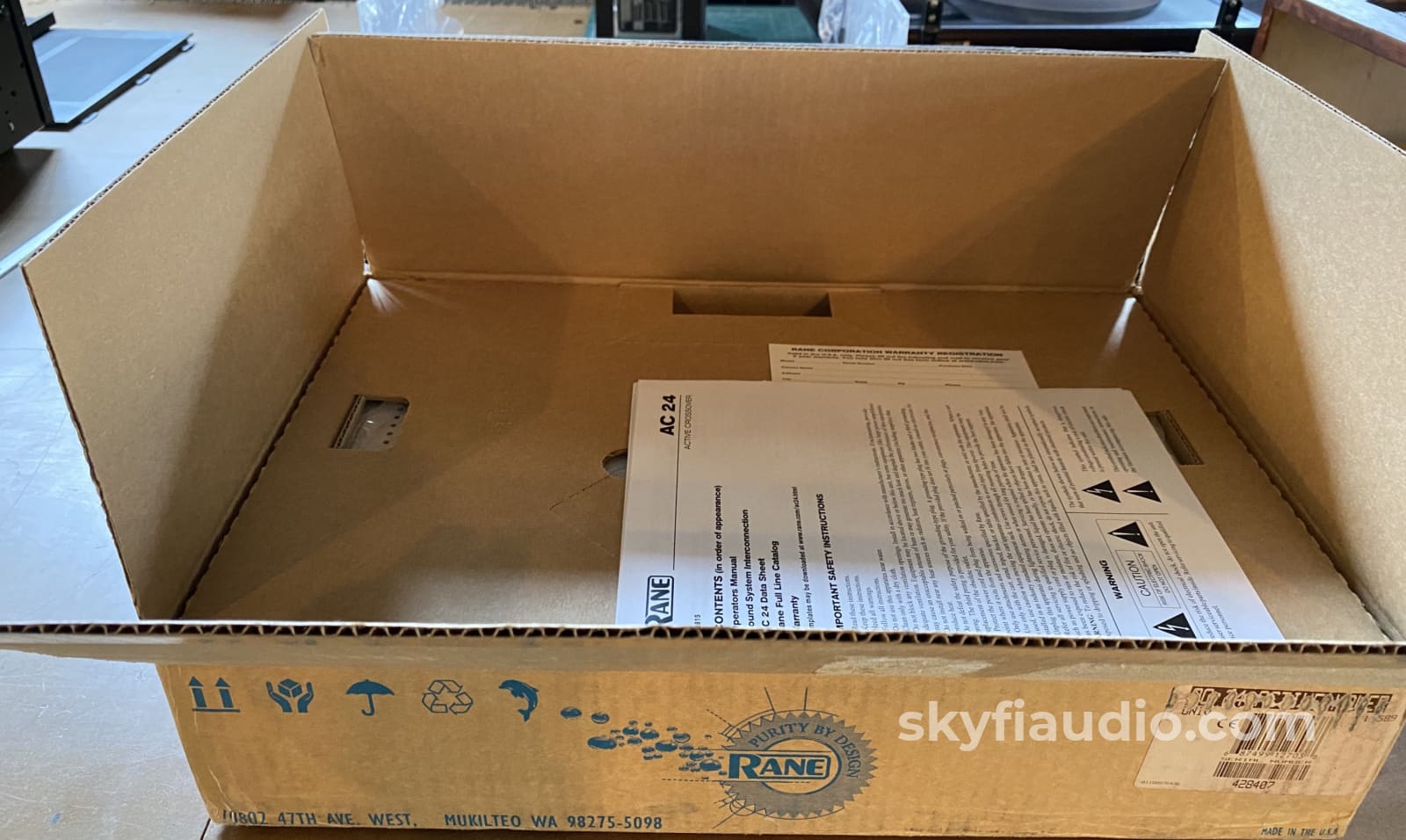

Original Box


Original Manual



Not Applicable


Yes - Power

Physical Condition


Working Condition
