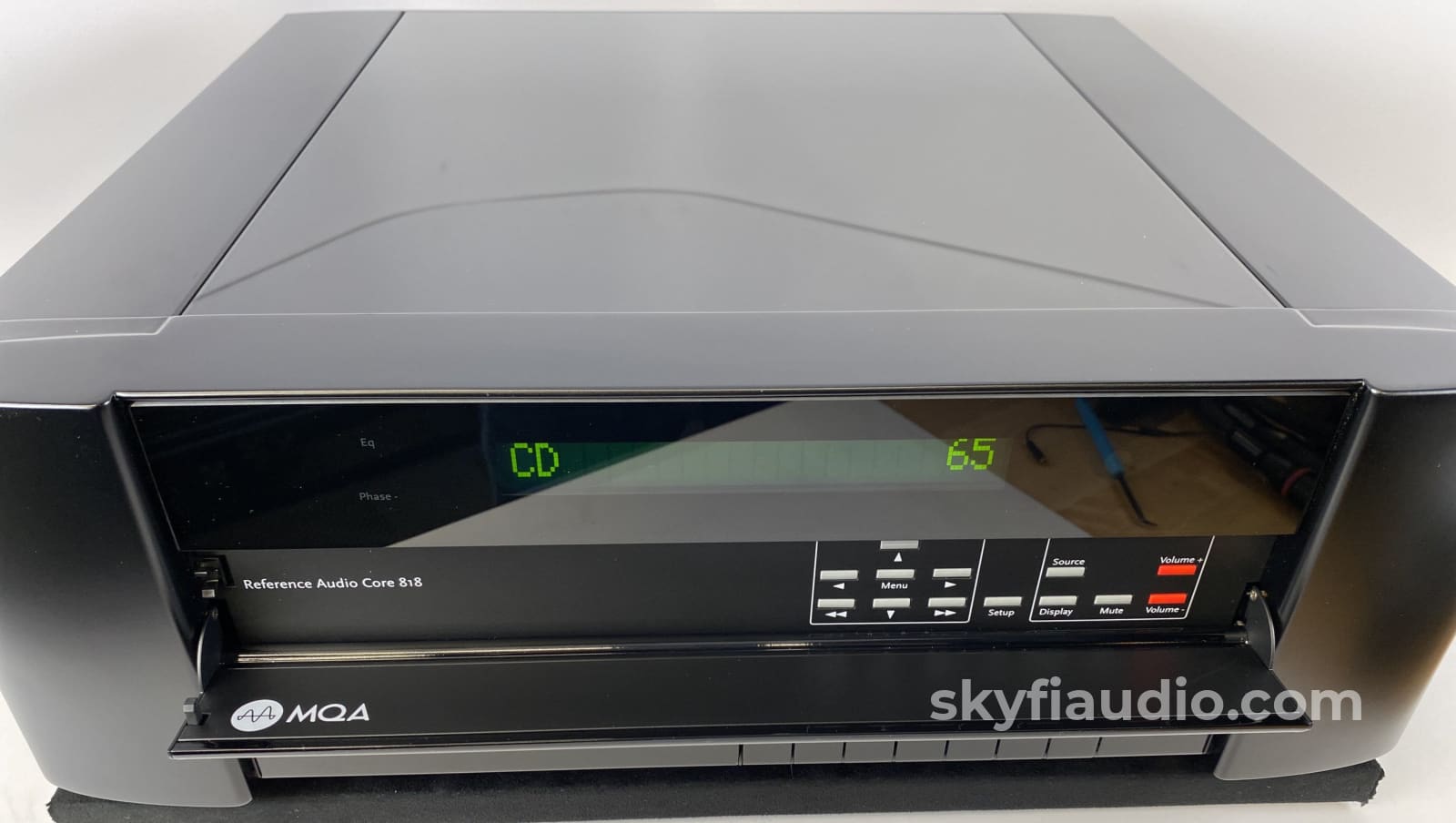

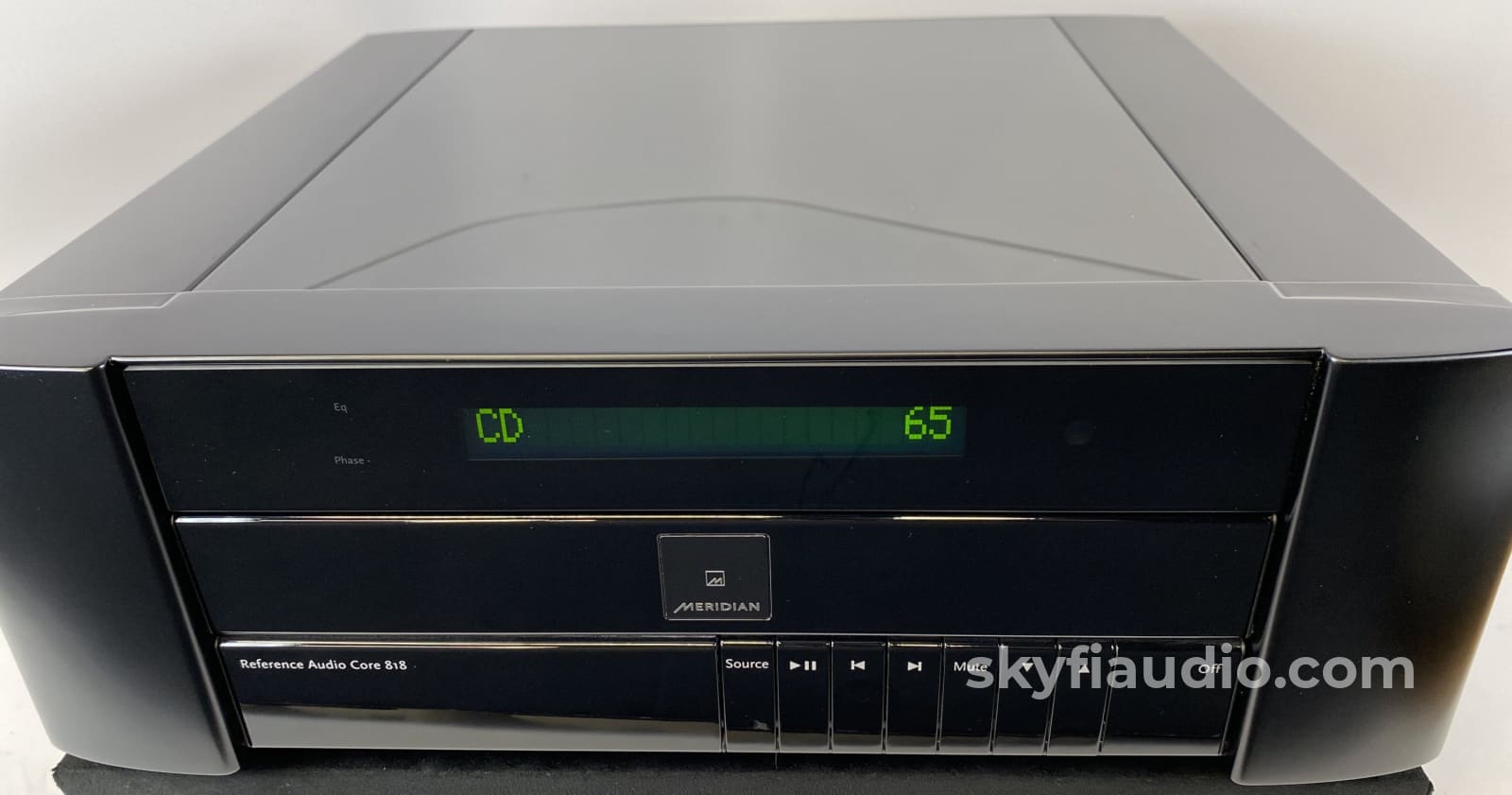

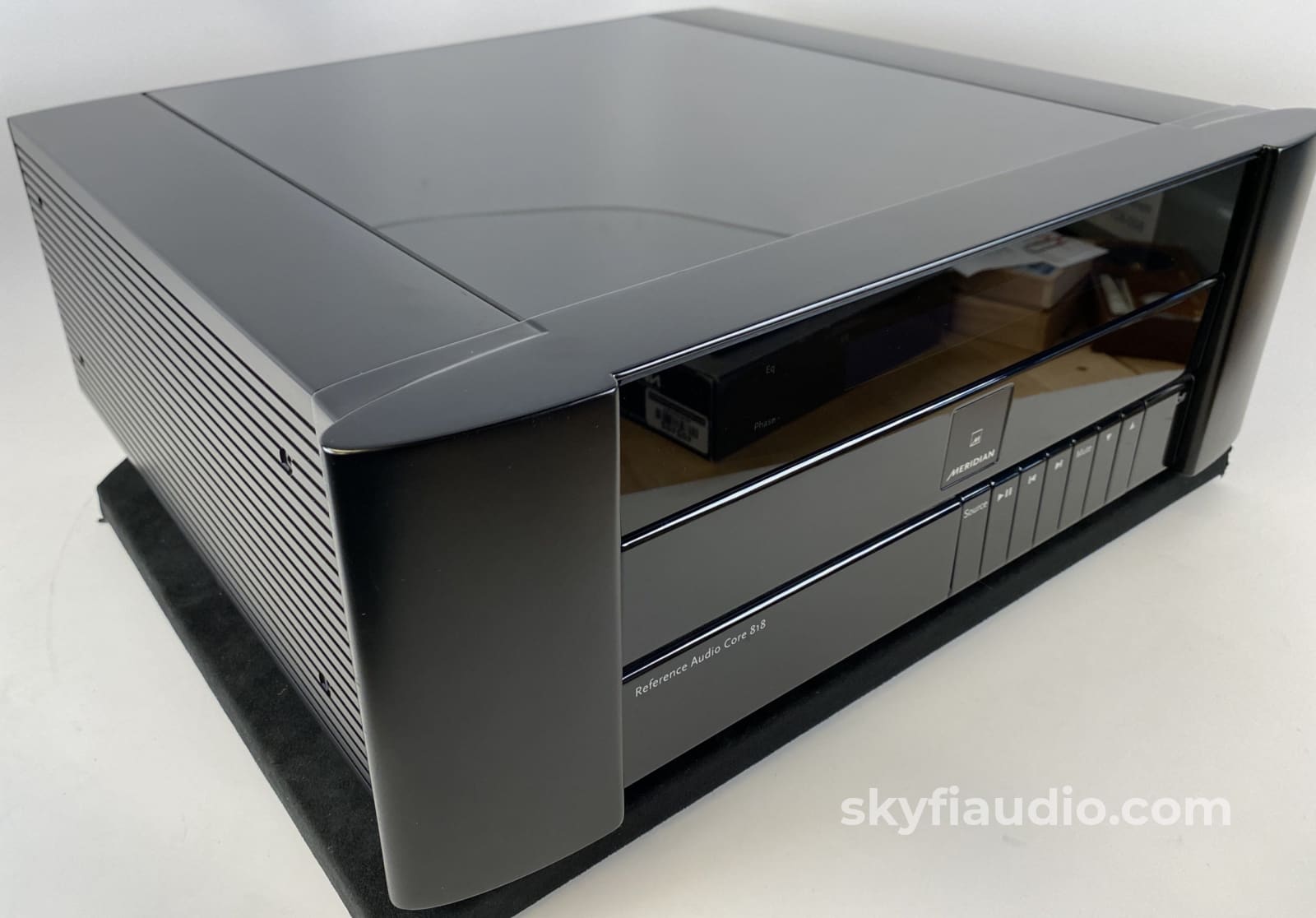

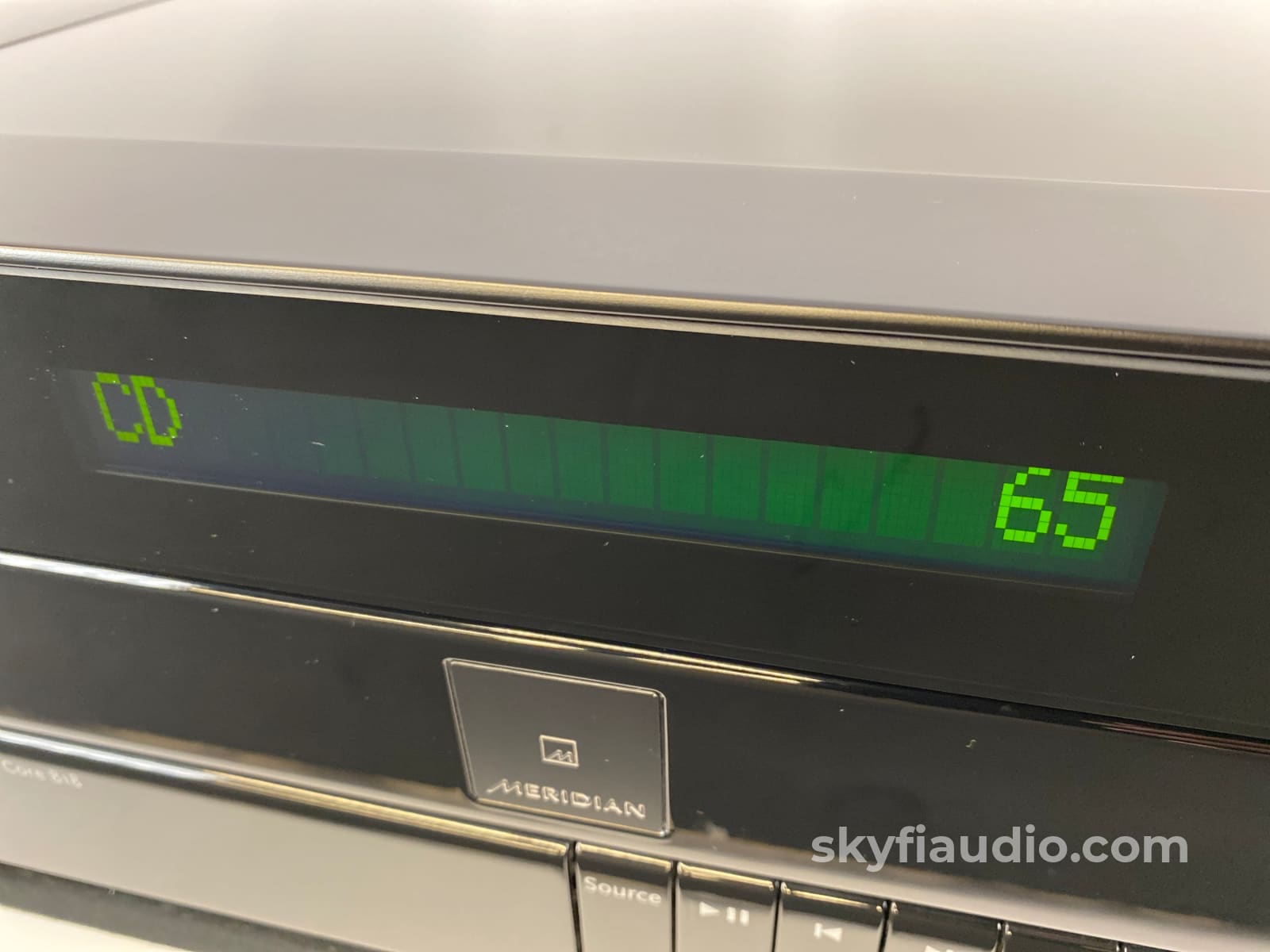

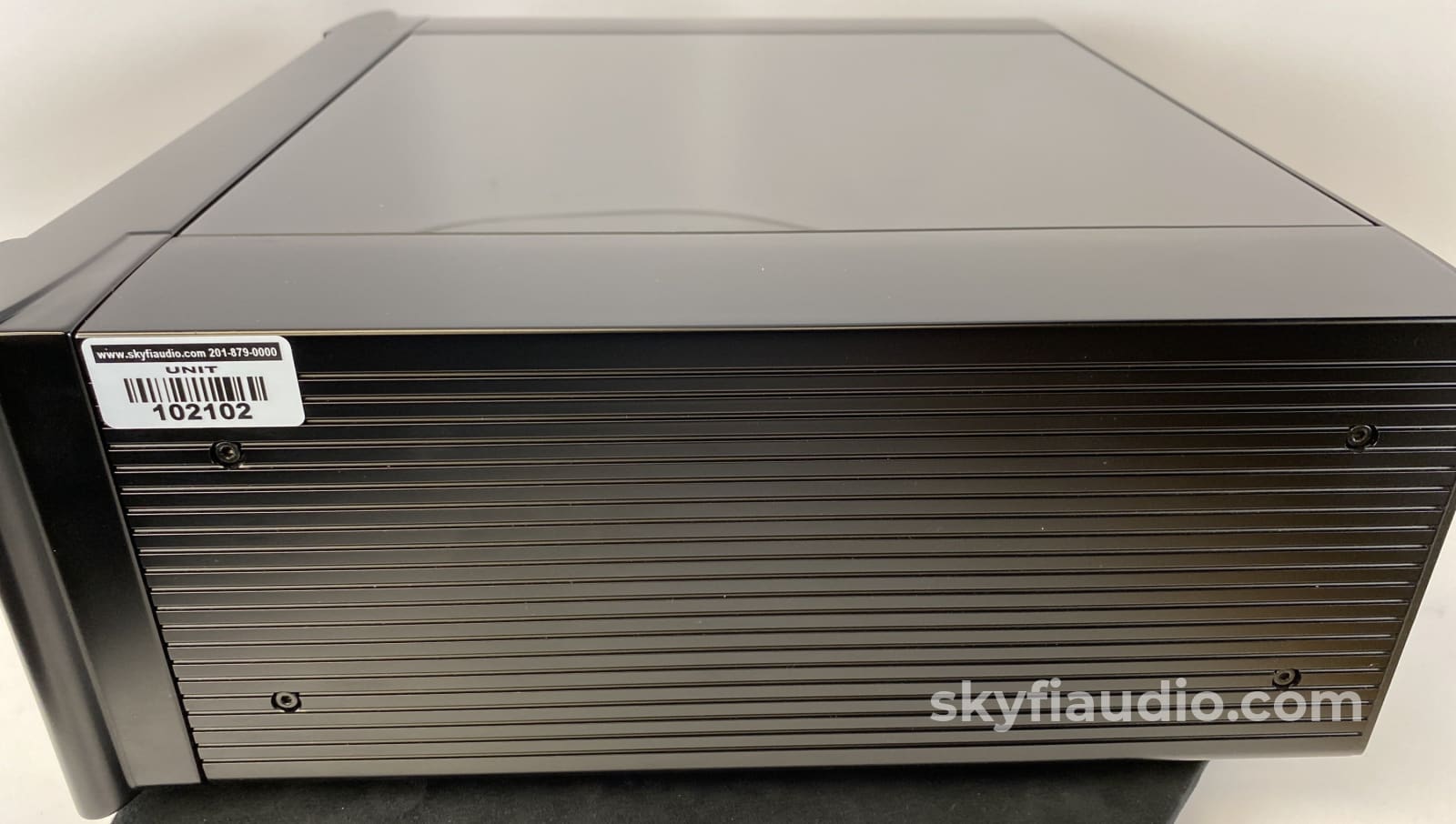

Meridian Reference Audio Core 818v3 - With MQA Hi-Res Audio

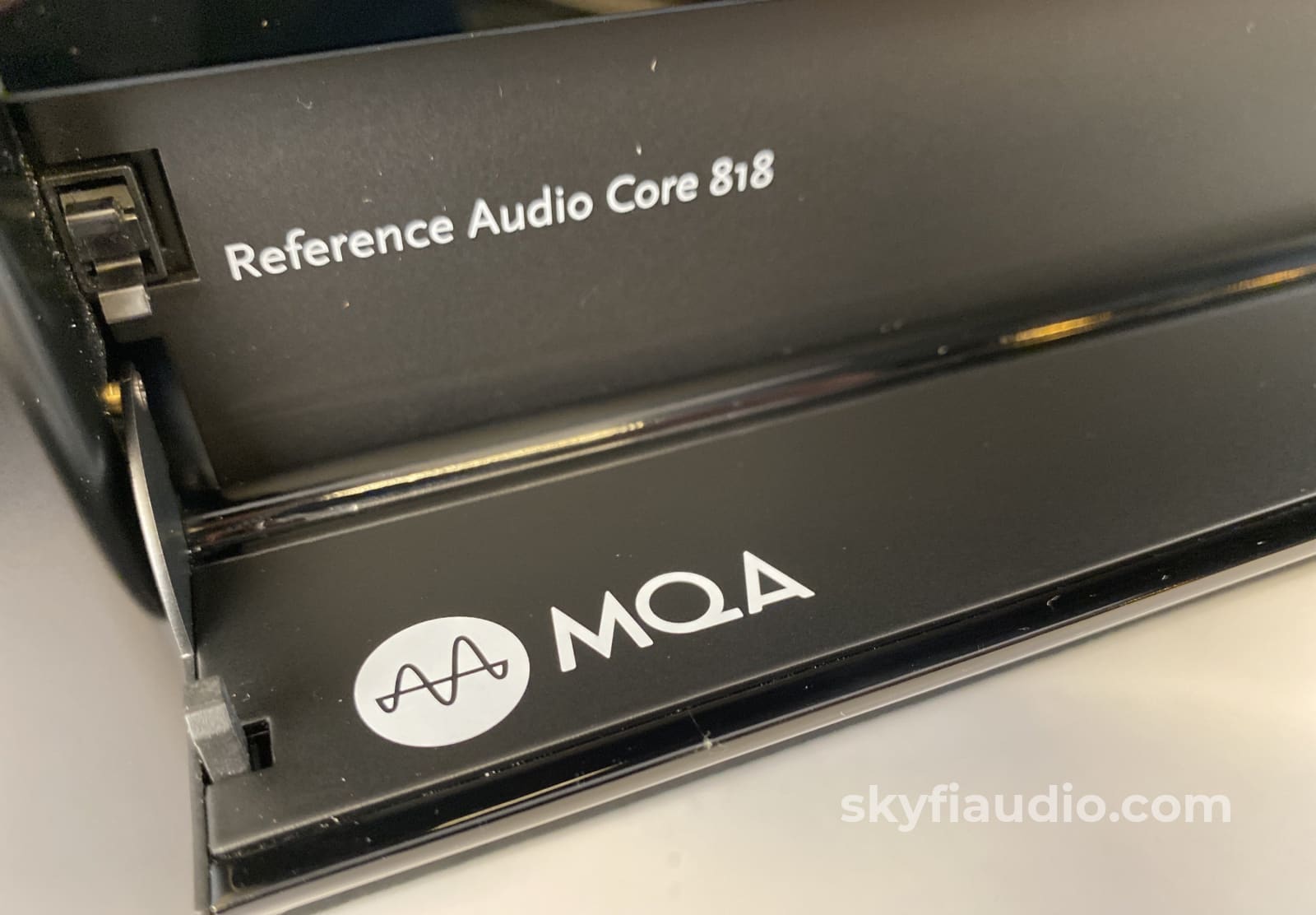

This is a like new 818v3 with MQA / Master Quality Authenticated Hi-Res processing.

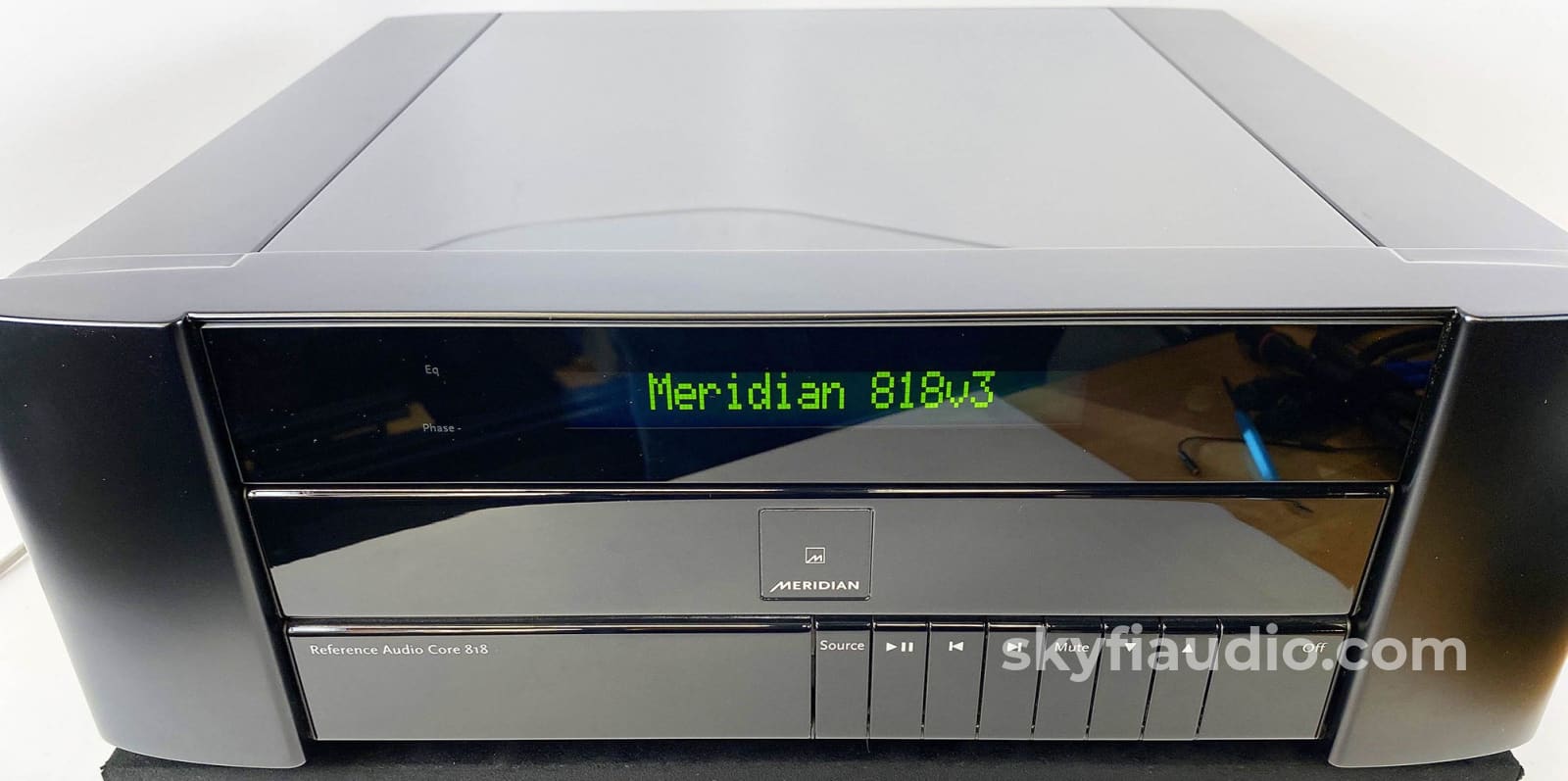

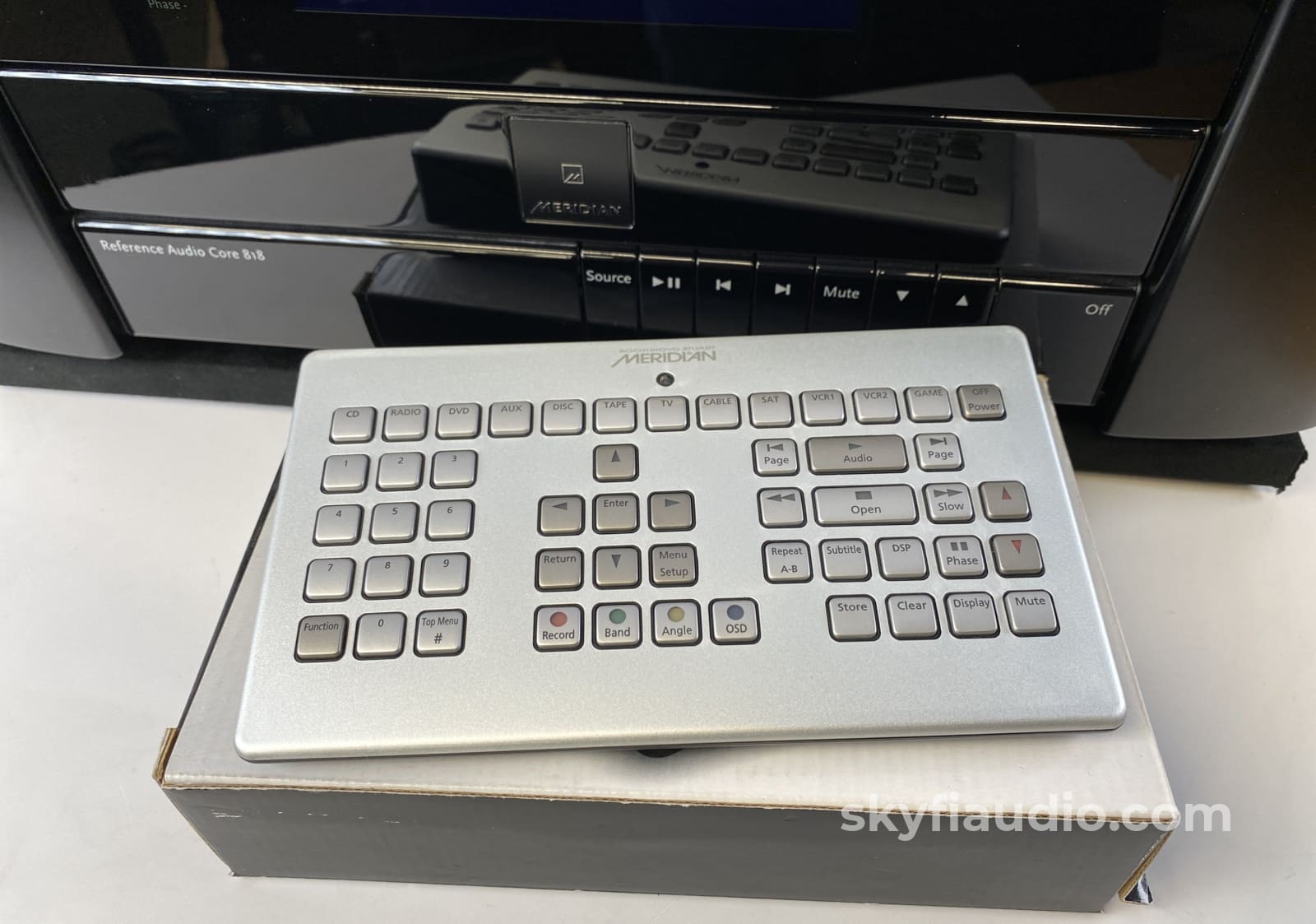

Massive reduction from MSRP. Includes brand new remote in box, and yes 818v3 is shown during the unit boot sequence.

"MQA's award-winning technology captures and authenticates the sound of the original master recording in a file small enough to stream."

Tested and working all around exactly as it should.

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

D60 Digital Coaxial Interconnect (RCA/BNC Connectors)

OPT-1 Digital Optical Interconnect (TOSLINK Connectors)

Select Series Balanced XLR Analog Interconnects (Pair)

Select Series KS1016 Copper RCA Analog Interconnects (Pair) - WBT Connectors

Ascent Series PK14 Power Cord

The ultimate home audio system hub, the 818v3 Reference Audio Core is the highest performance two-channel preamplifier manufactured by Meridian. With a full suite of the unique resolution enhancement technologies on-board and extensive connection options for all of your audio sources, the 818v3 delivers the very best listening experience.

• Multiple analogue and digital inputs enable connection to any source within a system.
• Unique Meridian High Resolution up-sampling offers the best possible performance from all of your sources.
• Re-clocking of the digital audio signal removes timing errors for superior clarity and resolution.
• 270 bespoke RAL finishes available, allowing you to integrate with any interior.

• MQA is a technology that captures the full magic of an original studio performance. Using pioneering scientific research into how people hear, MQA delivers master quality audio in a file that’s small enough to stream or download – the days of sacrificing quality for convenience are over. Visit for more information.
• Uses a complex digital filter to double the rate of samples from the source to improve resolution of the finer details in the record. This means that even with a standard source such as CD using our upsampling technology we are able to significantly enhance the listening experience.
• A patented Meridian audio format that combines high bandwidth, security and low jitter. MHR gets the highest possible sound quality in playback systems that use Meridian and enables the encoded transmission of PCM, MQA and DSD.

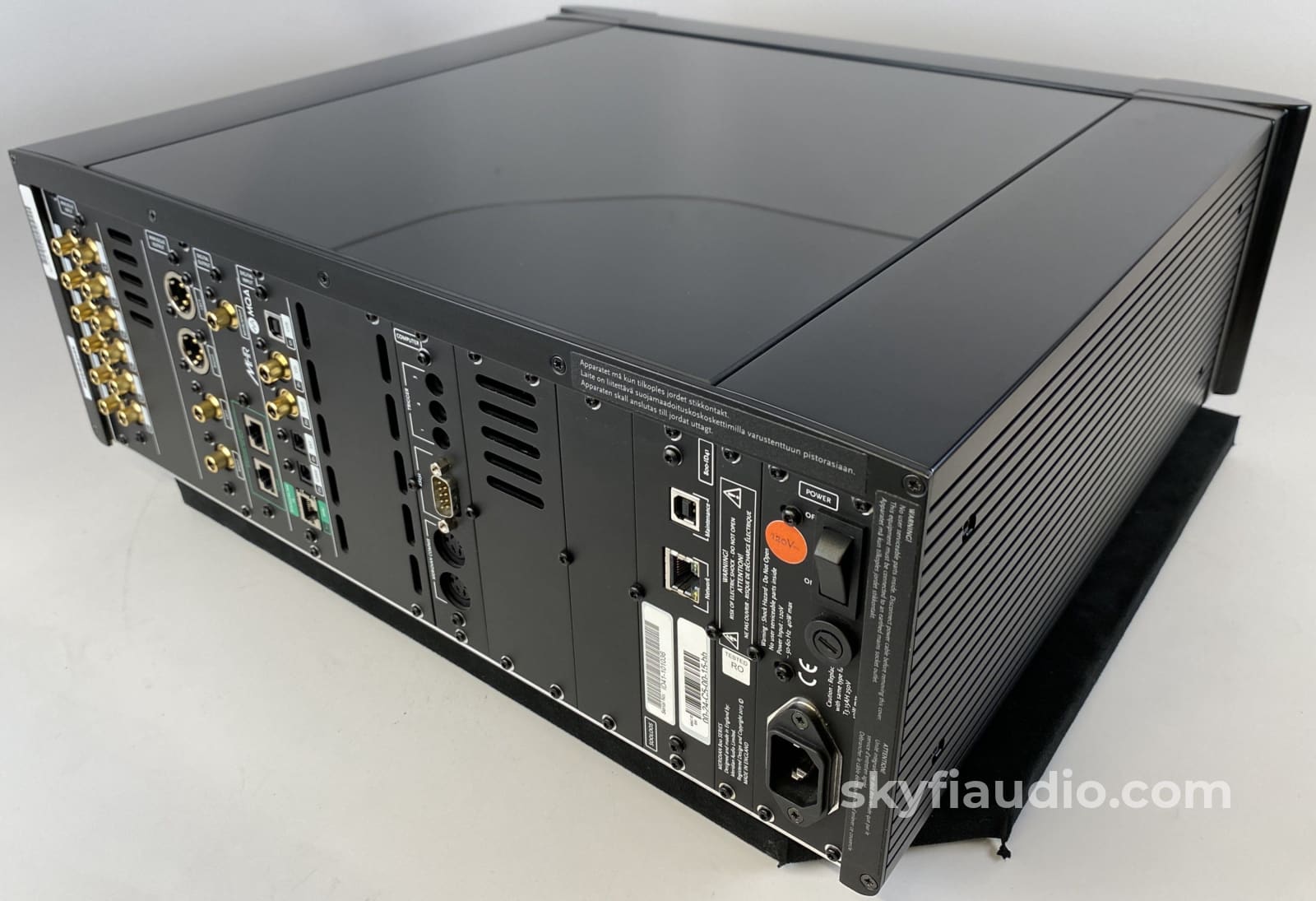

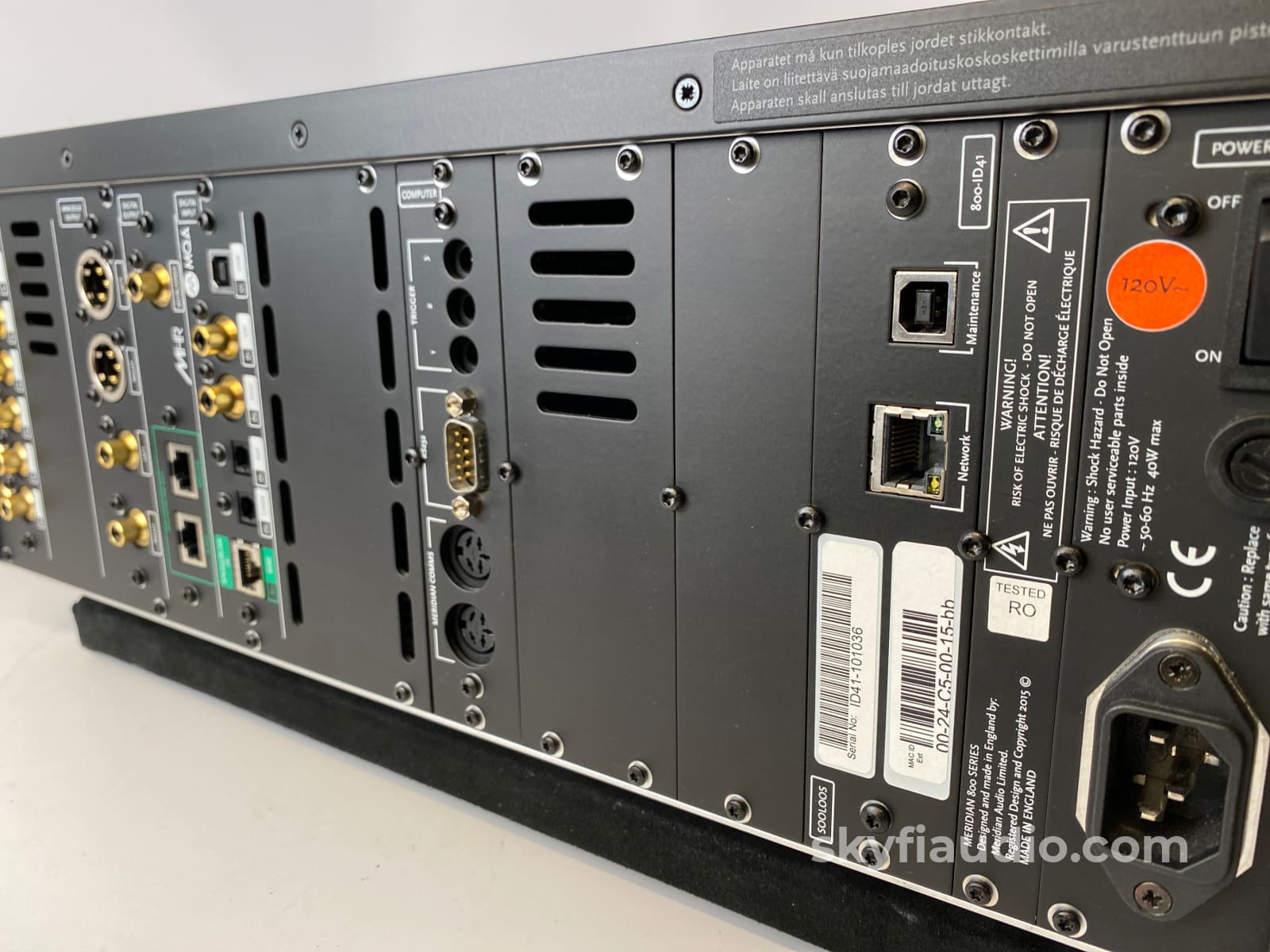

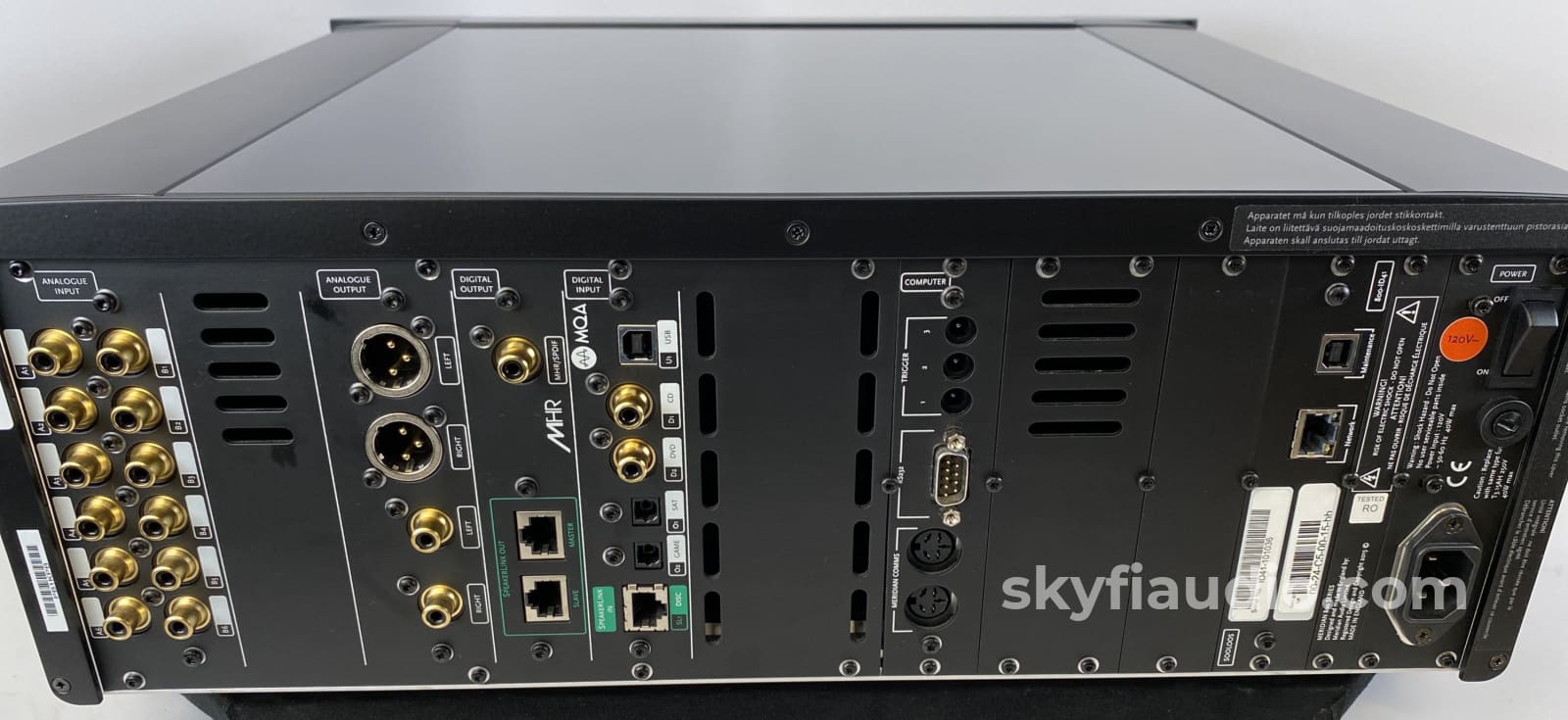

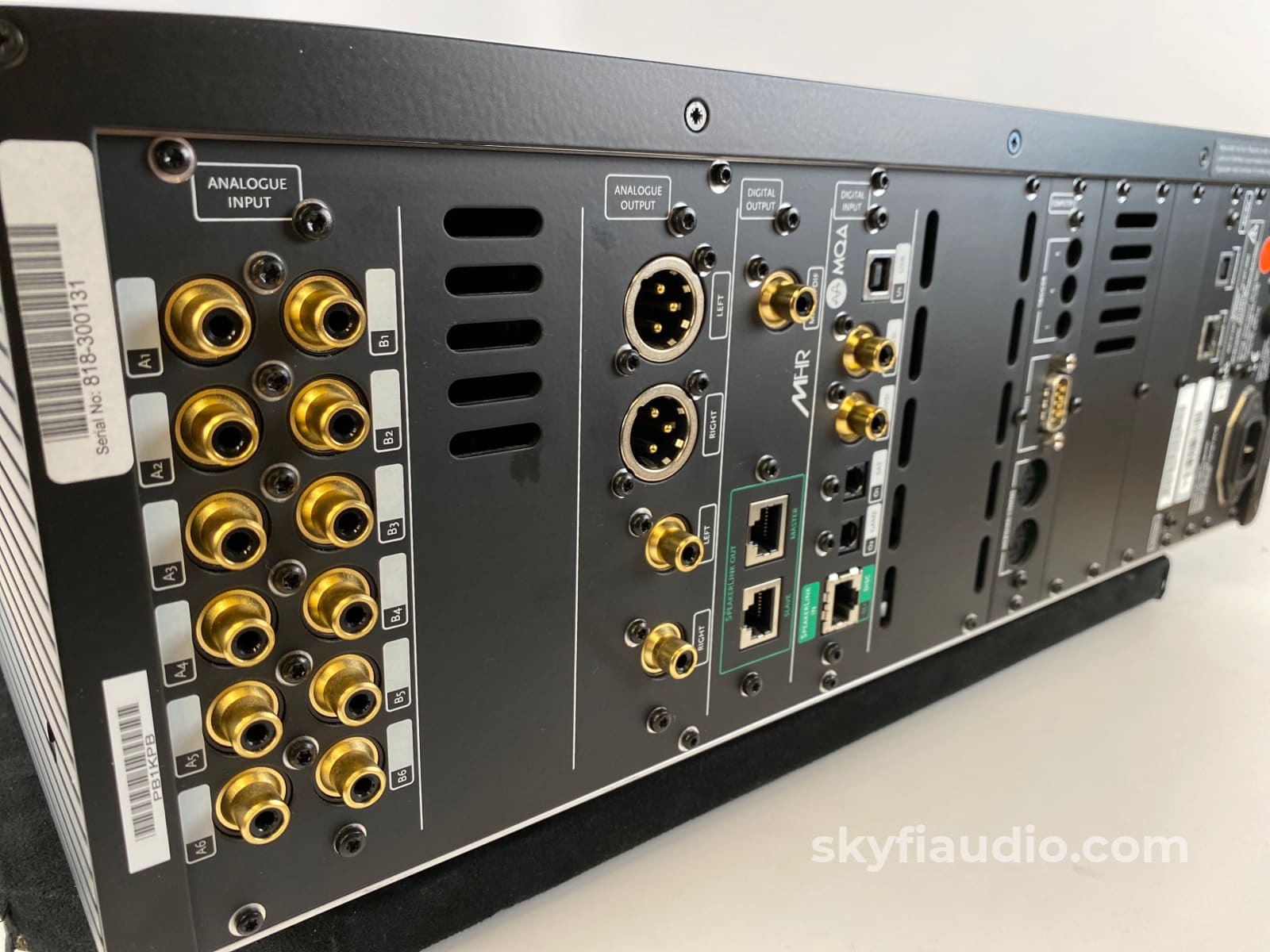

1x unbalanced on phono, 1x balanced on XLR-3M, rendering of decoded MQA streams

Coaxial S/PDIF ≤96kHz/24-bit

Twin SpeakerLink, RJ45 balanced (AES/EBU) digital interface for single-cable connection to other Meridian equipment, ≤96kHz/24-bit with MHR, and MQA signals for rendering by Meridian DSP loudspeakers

6x unbalanced on phono

2x Coaxial S/PDIF ≤192kHz/24-bit, DoP, 2x Toslink optical ≤96kHz/24-bit, 1x SpeakerLink ≤192kHz/24- bit, 1x Asynchronous USB ≤192kHz/24-bit, DoP, MQA source decoding, DSD (DoP) native decode

One network input (Ethernet) for connection to a Roon system or an alternative control interface

Meridian Comms: 2x 240 degree 5-pinDIN, 1x SpeakerLink input with Comms, 2x SpealerLink outputs with Comms

RS232: 9-pin D-sub, remote control & configuration

Triggers: 3x 12V (barrel connectors)

Front panel: Source, Play/Pause, Previous, Next, Mute, Volume+, Volume-, Off

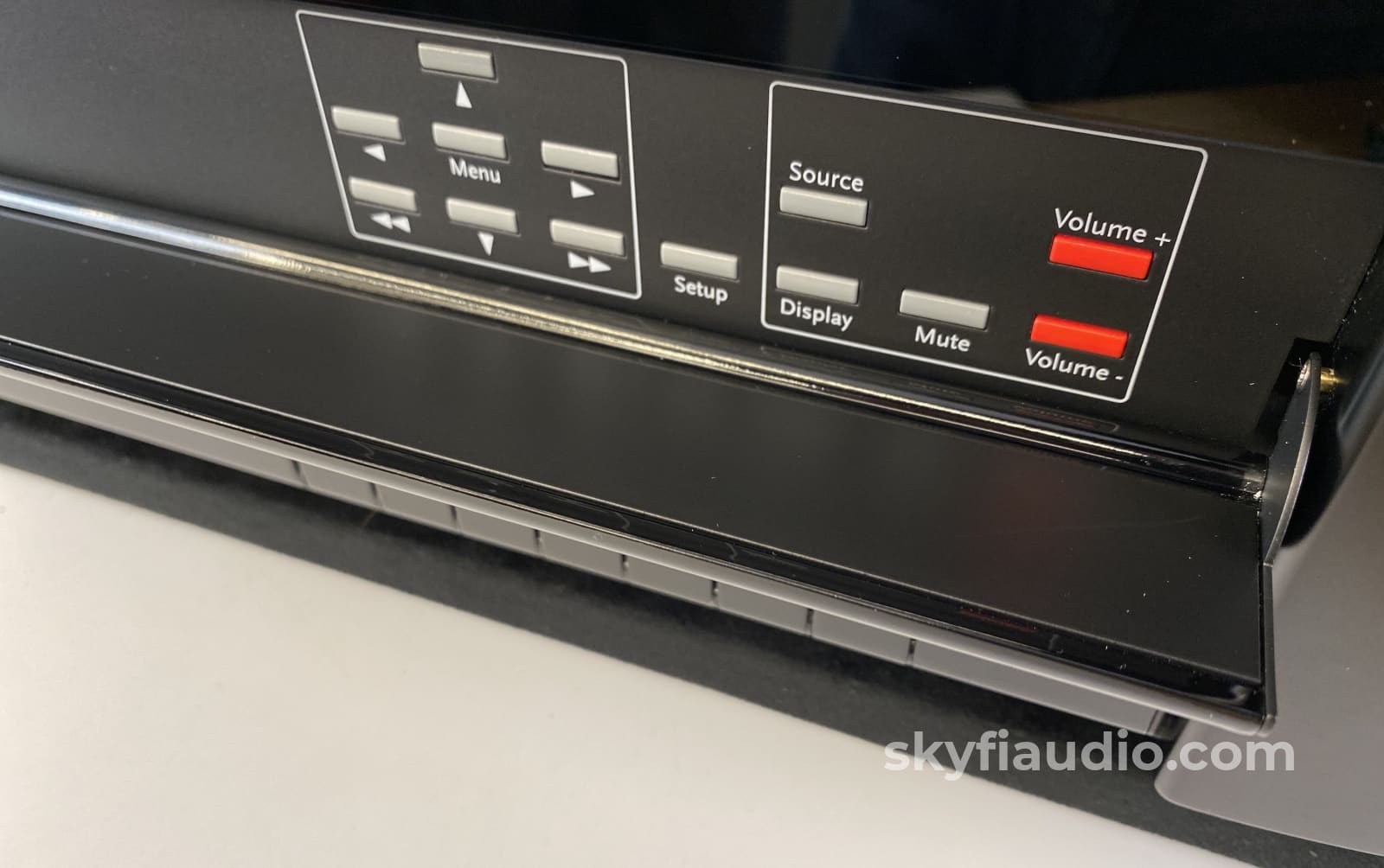

Behind long door: Menu, Up, Down, Left, Right, F-Fwd, F-Rwd, Setup, Source, Display, Mute, Volume+, Volume-

Remote Control: Via MSR+ (supplied) and RS232

HEIGHT: 175mm [6.9in]
WIDTH: 480mm [18.9in]
DEPTH: 411mm [16.2in]
WEIGHT: 16.0kg [35.2lbs]

Advanced linear power supply: 110 - 120 Volt 50/60Hz, 220 - 240 Volt 50/60Hz
Max Power Consumption: 40 Watts

Meridian 818V3 Reference Audio Core Data Sheet

Meridian 818 Reference Audio Core User Guide

The SkyFi Testing Process for Preamplifiers and Processors:
We start with a visual inspection of all internal components to make sure there are no signs of stress or aging. Capacitors are checked for telltale sings of bulging or leaking, resistors are checked for signs of overheating or cracking, and transistors are checked for signs of stress or damage. Special attention is paid to the power supply which is the most common source of failure for preamps. We then power up the unit and run a simple 1k sine wave while monitoring the low voltage output on an oscilloscope for signs of distortion or noise to get a baseline.

At this point we will lubricate and clean all switches and potentiometers (that are not sealed) with a high quality contact cleaner, and then re-test all functions for any signs of noise or scratching.

Final testing involves putting actual music through the preamplifier We have learned over time that some issues are only noticeable to a trained ear while listening to a familiar source material. Our test bench has reference vintage KEF speakers that we are super familiar with which will quickly reveal any discrepancies. Some preamps will then move into the listening room where they will be tested with our in-house reference system.



Original Box

Not Included


Online Only


Yes Brand New in Box


Yes - Power Only

Physical Condition

8 / 10

Working Condition

10 / 10
