McIntosh MC2152 70th Anniversary Tube Amplifier - 150W x 2

Click here to schedule an appointment to visit our store or call 201-879-0000.

Please note this item must be purchased in store and we will not ship under any circumstances. Click here for more information about this policy.

Please support your local McIntosh Dealer.

Check out our video walkthrough below for full details:

Featuring:
• 150 Watts x 2 Channels
• Striking new design with carbon fiber side panels
• LED's under the eight small signal tubes can be set to three different illumination settings: Off, Green, or Red.
• (8) KT88, (4) 12AX7A and (4) 12AT7 vacuum tubes
• Unity Coupled Circuit Output Transformers

McIntosh Performance Features Include:
• Power Output
The MC2152 is a Tube Power Amplifier with a capability of 150 watts per channel into 2, 4, or 8 ohm Loudspeakers with less than 0.5% distortion.

• Unity Coupled Circuitry
The MC2152 Power Amplifier uses the famous McIntosh Patented Unity Coupled Circuit which provides low distortion, extended frequency response and cool operating output tubes.

• Multifilar Wound Output Transformer
The MC2152 Output Transformer Windings are part of the Unity Coupled Circuitry. There are two bifilar wound primaries, one for the cathodes and one for the plates. The secondary winding is wound together with the primary windings. This provides very close primary to secondary coupling. The result is flat frequency response and wide power bandwidth.

• Sentry Monitor Tube Protection
McIntosh Sentry Monitor Tube Protection Circuits ensure the MC2152 will have a long and trouble free operating life.

• Vacuum Tube Sockets
Small Signal Vacuum Tubes Sockets have Ceramic Base construction with gold plated contacts, providing protection from atmospheric contamination. Output Tube Sockets include Air-Pipe cooling at their bases for long term operation.

• Special Power Supply
A regulated Power Supply, a very large core Power Transformer and large capacitors ensure stable noise free operation even though the power line varies.

• LED Tube Illumination
Tri-Color LEDs illuminate the small signal process- ing tubes of the MC2152. They indicate tube warm up, normal and sentry monitor modes of operation.

• Special Chassis
The Aluminum Extrusion Heavy Duty Chassis is a Highly Rugged Construction for the very large size of the MC2152 McIntosh Tube Power Amplifier. This type of design will retain the pristine beauty of the MC2152 for many years to come.

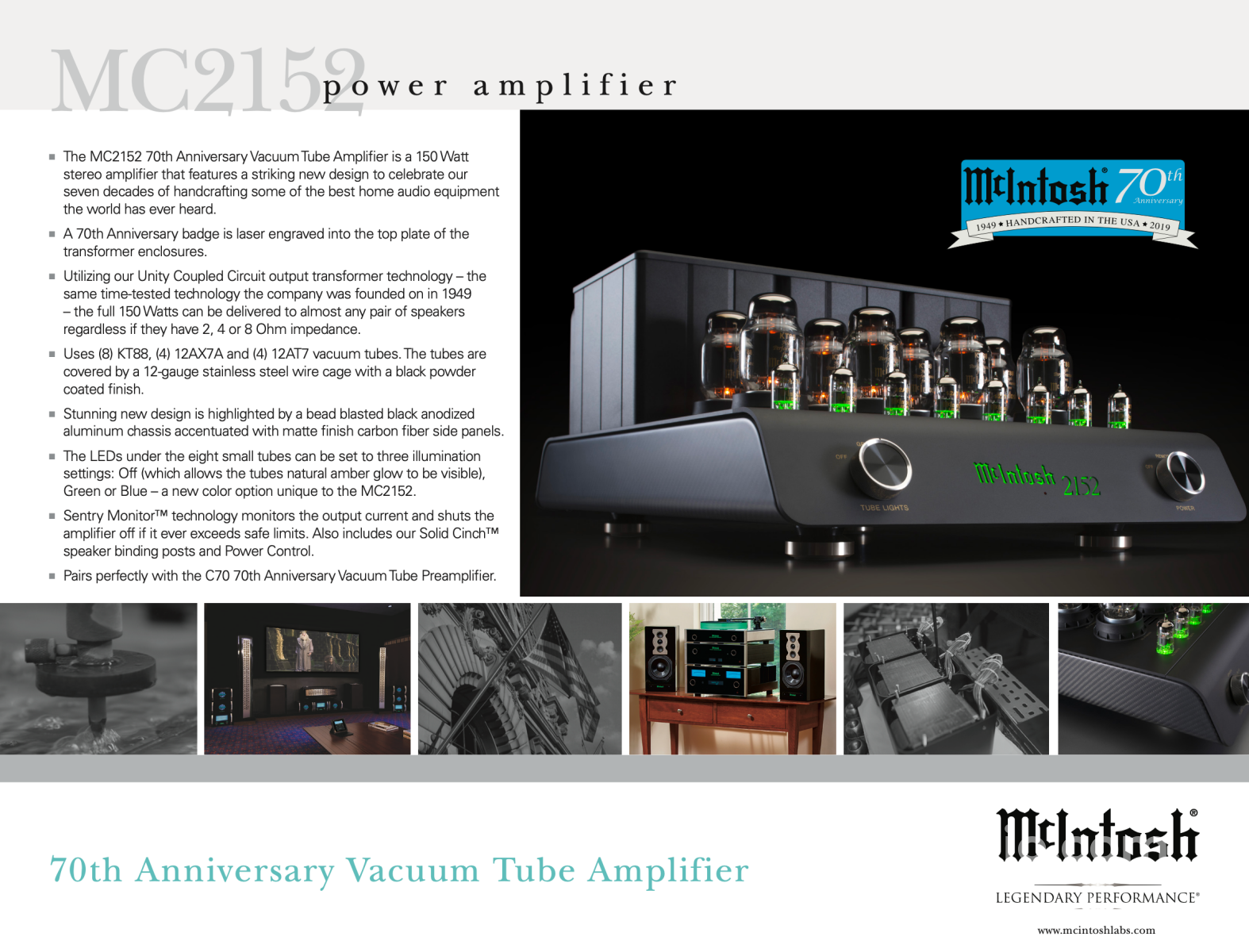

The MC2152 70th Anniversary Vacuum Tube Amplifier is a 150 Watt per channel stereo amplifier and features a striking new design to celebrate our seven decades of handcrafting some of the best home audio equipment the world has ever heard. While its design is new, the MC2152 incorporates the lessons we’ve learned and the techniques we’ve invented in our 70 years of audio engineering.

Utilizing our patented Unity Coupled Circuit output transformer technology – the same technology the company was founded on in 1949 – the full 150 Watts can be delivered to almost any pair of speakers regardless if they have 2, 4 or 8 Ohm impedance.

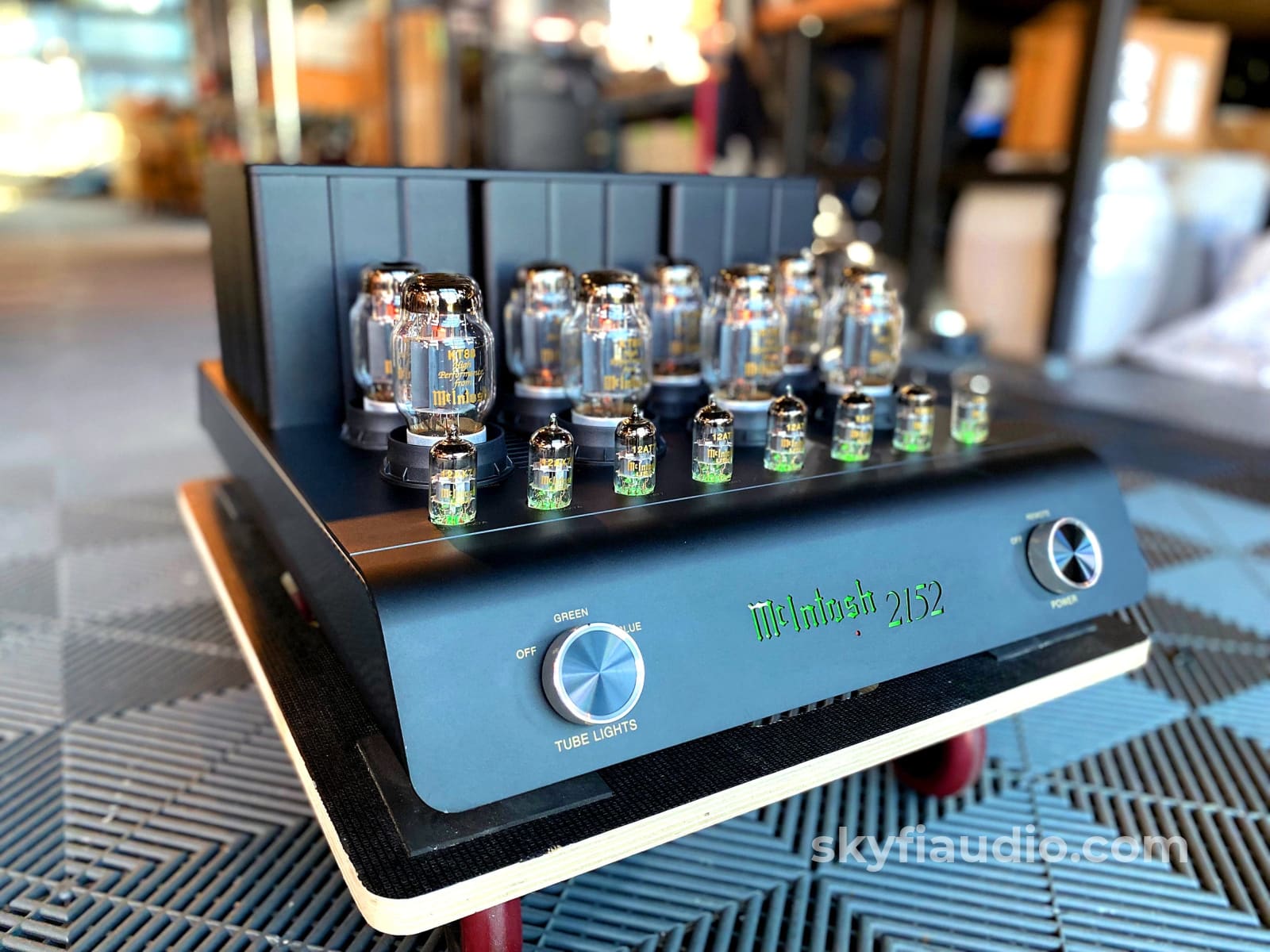

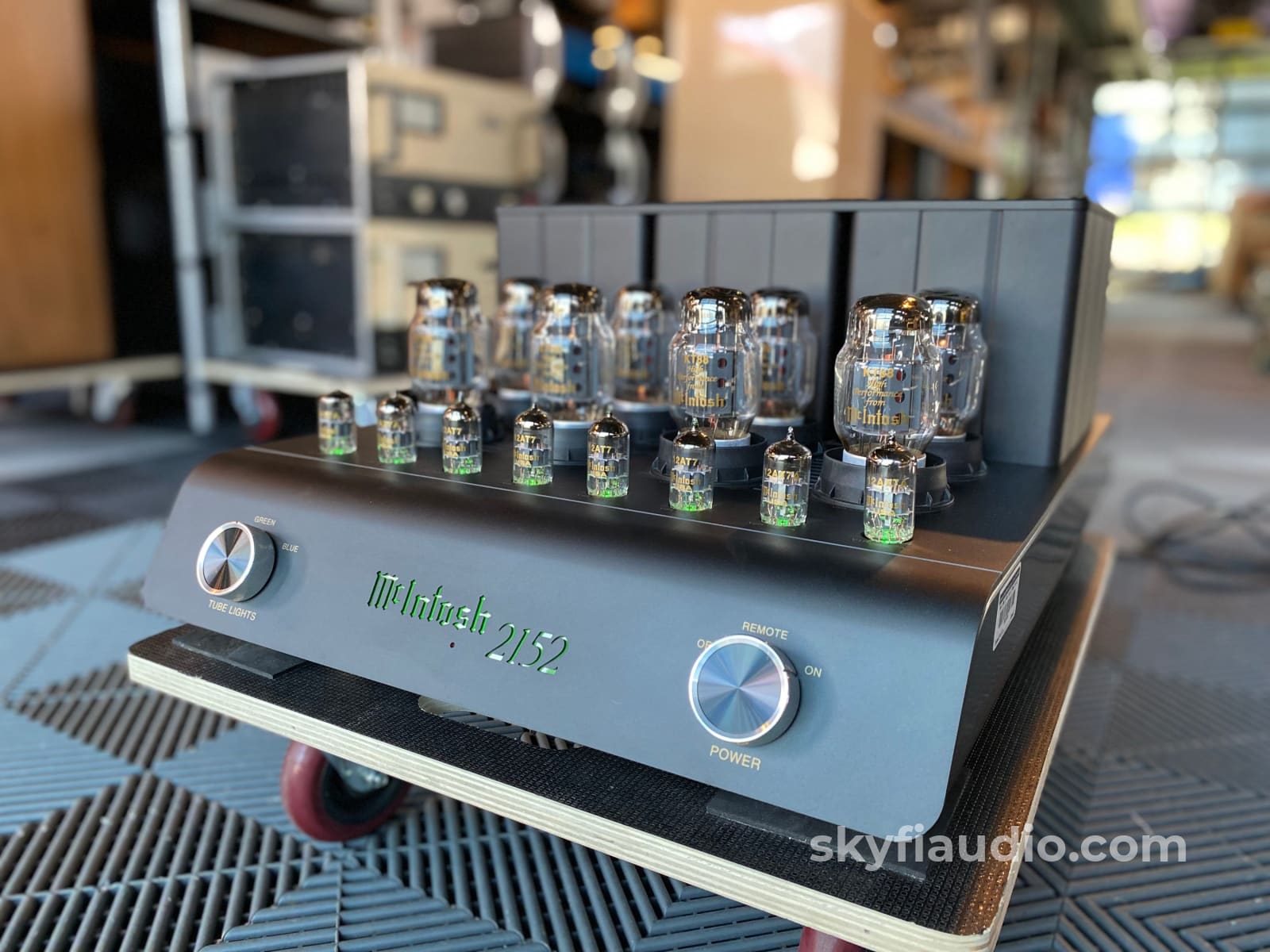

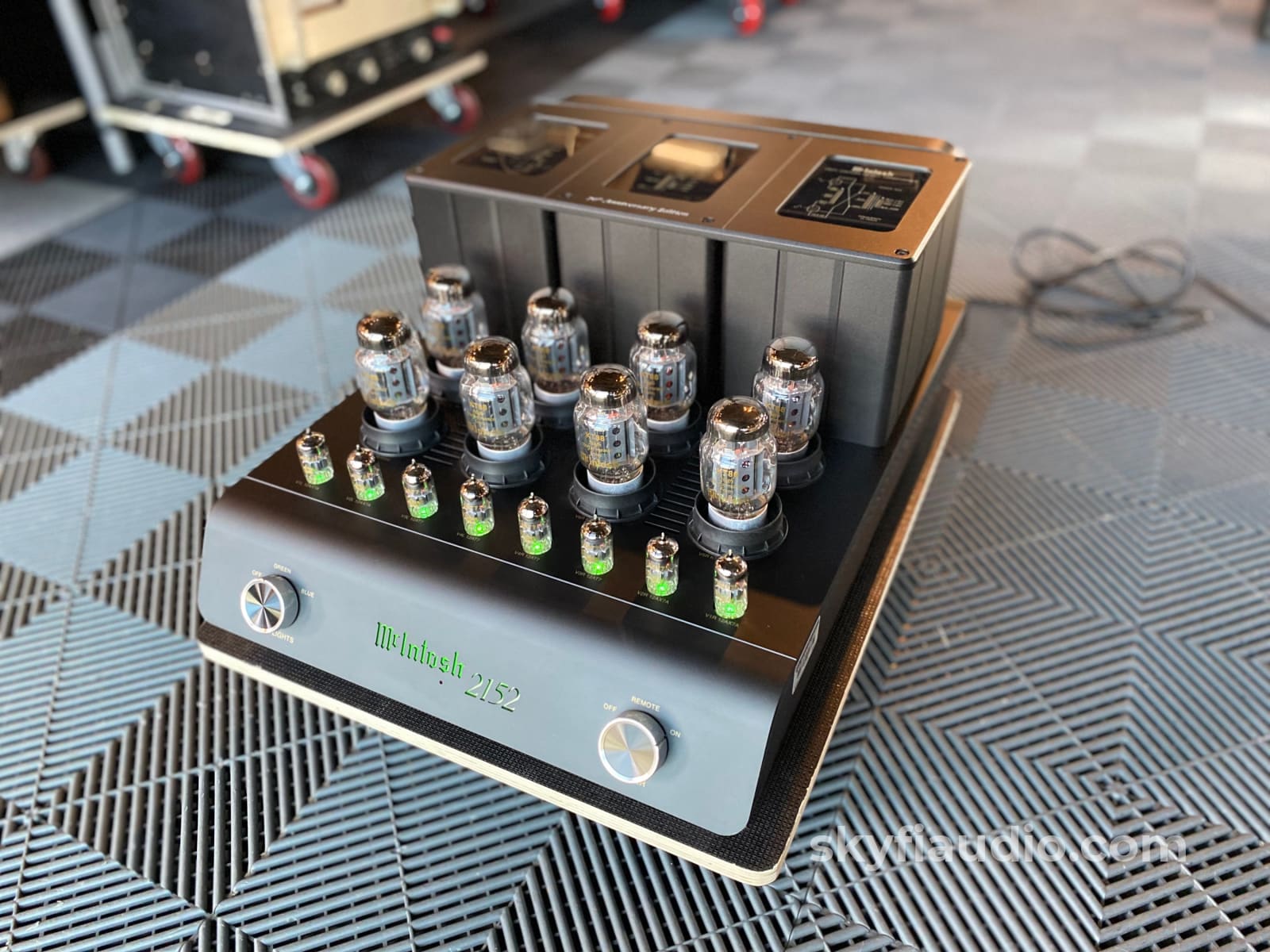

The stunning new design of the MC2152 is highlighted by a bead blasted black anodized aluminum chassis accentuated with matte finish carbon fiber side panels. The front panel showcases a backlit laser cut McIntosh logo flanked by classic McIntosh knobs. The vacuum tubes are covered by a 12-gauge stainless steel wire cage with a black powder coated finish.

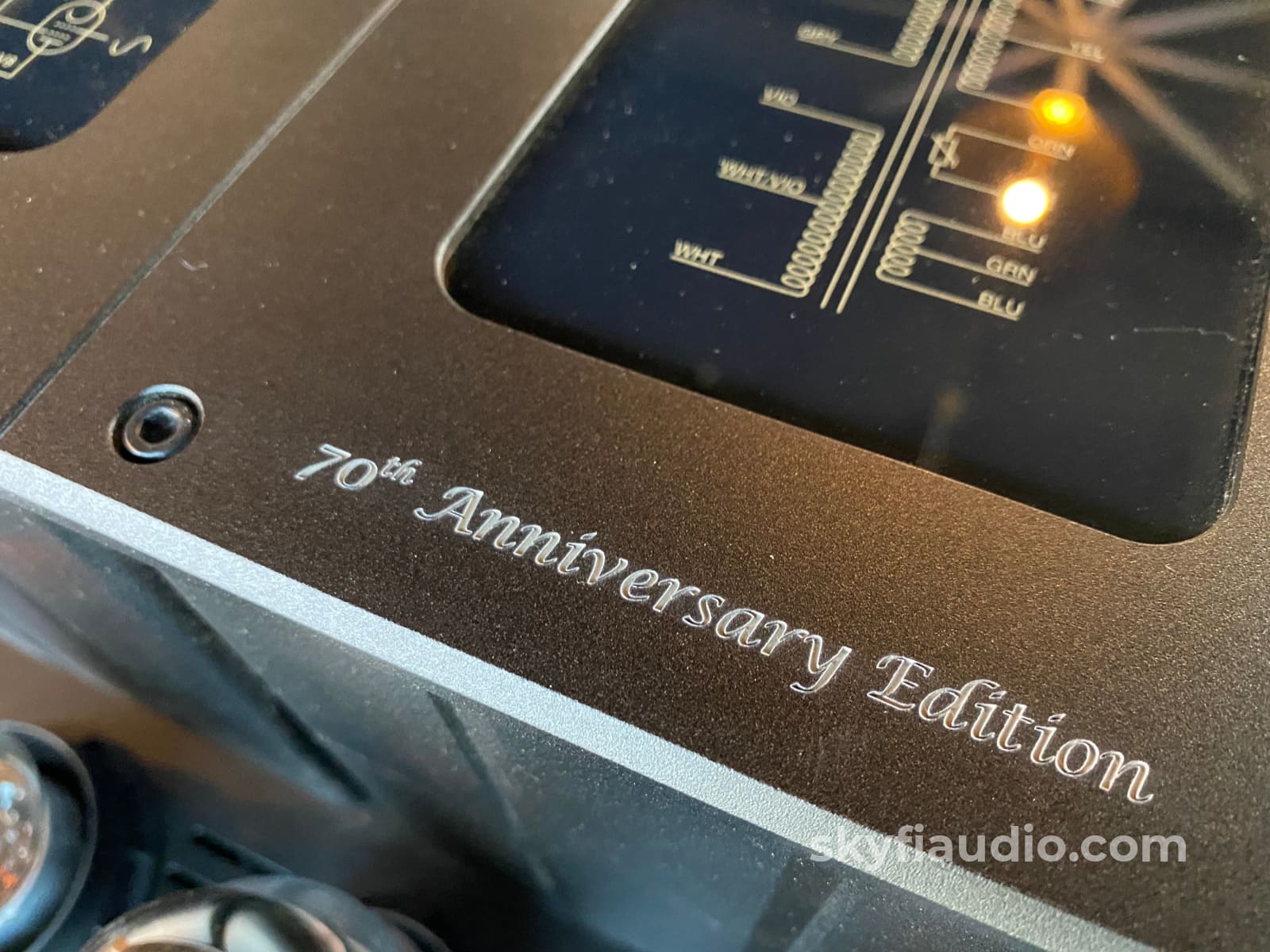

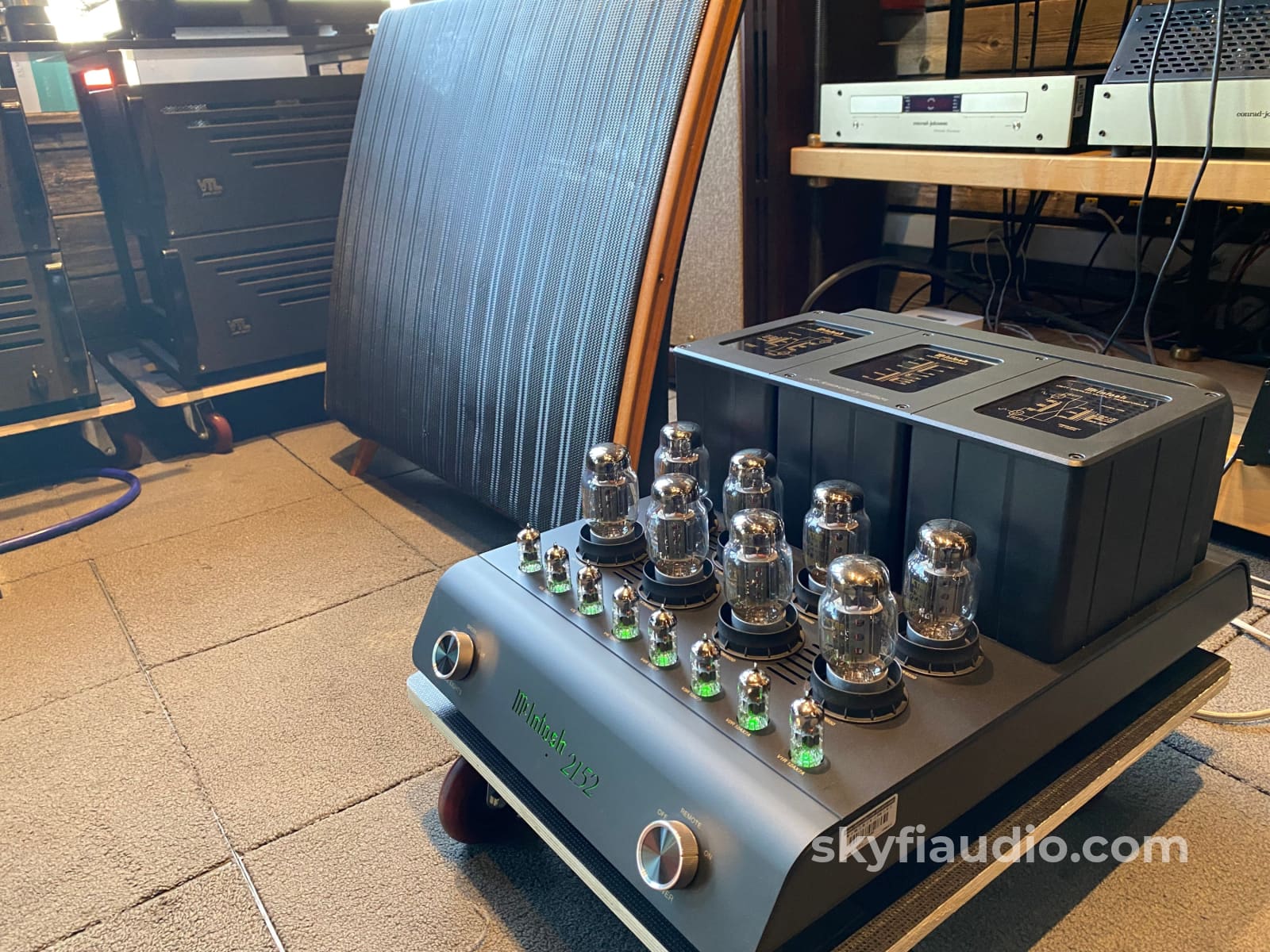

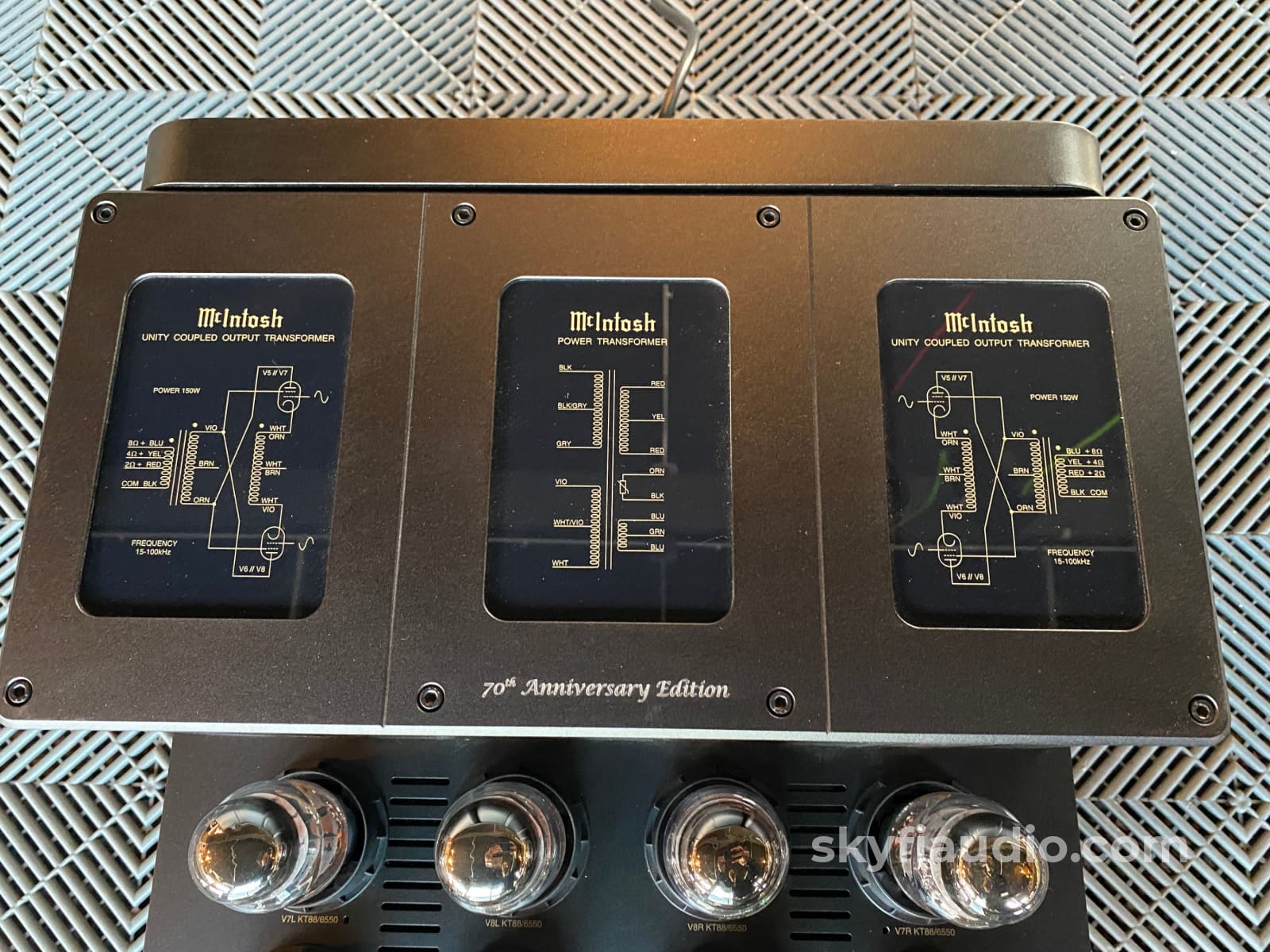

To the back are the two Unity Coupled Output Transformers with the power transformer centered between them. All three transformers are housed in glass topped extruded enclosures displaying the wiring diagram for each transformer. A 70th Anniversary badge is laser engraved into the top plate of the enclosures.

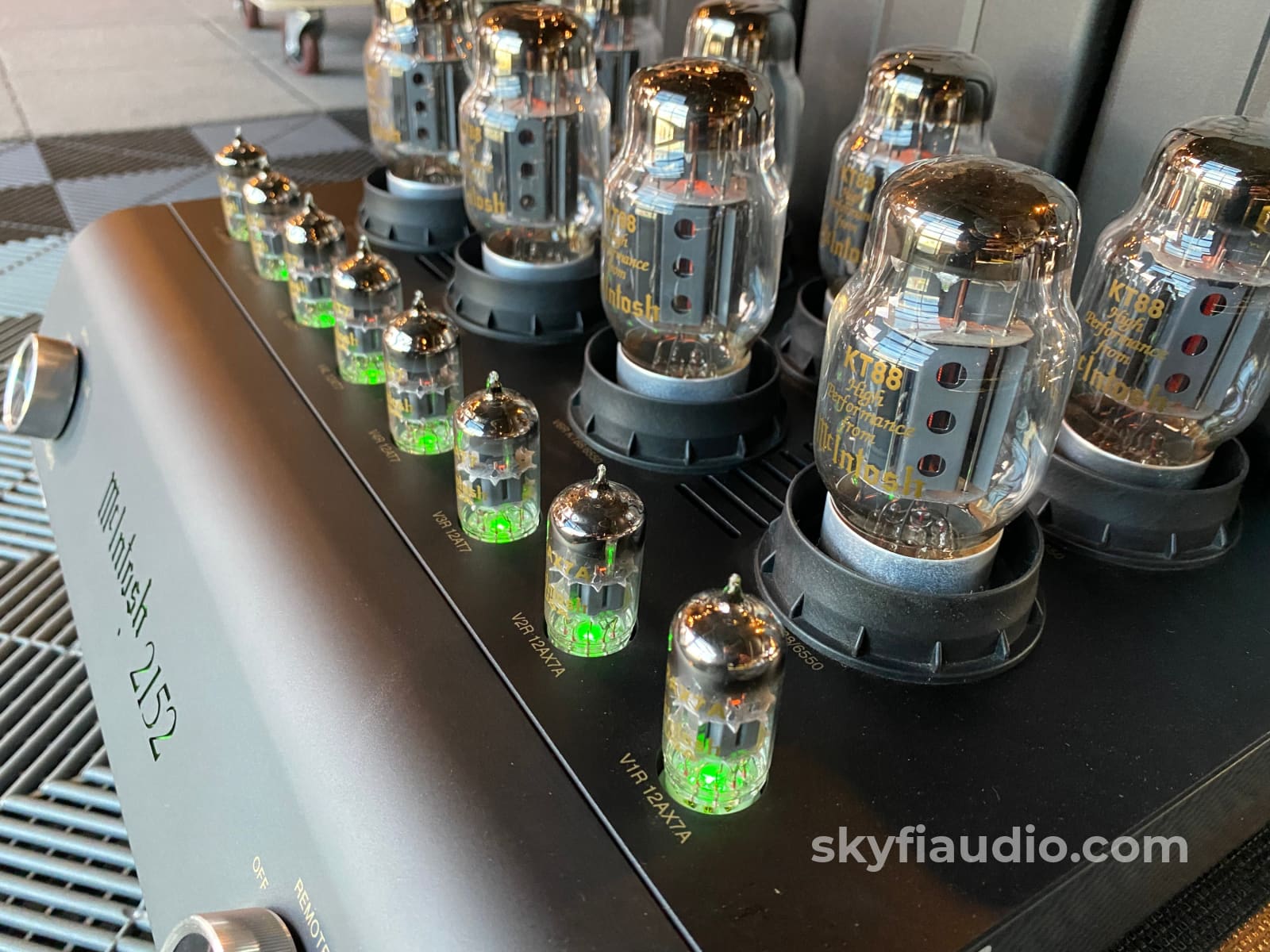

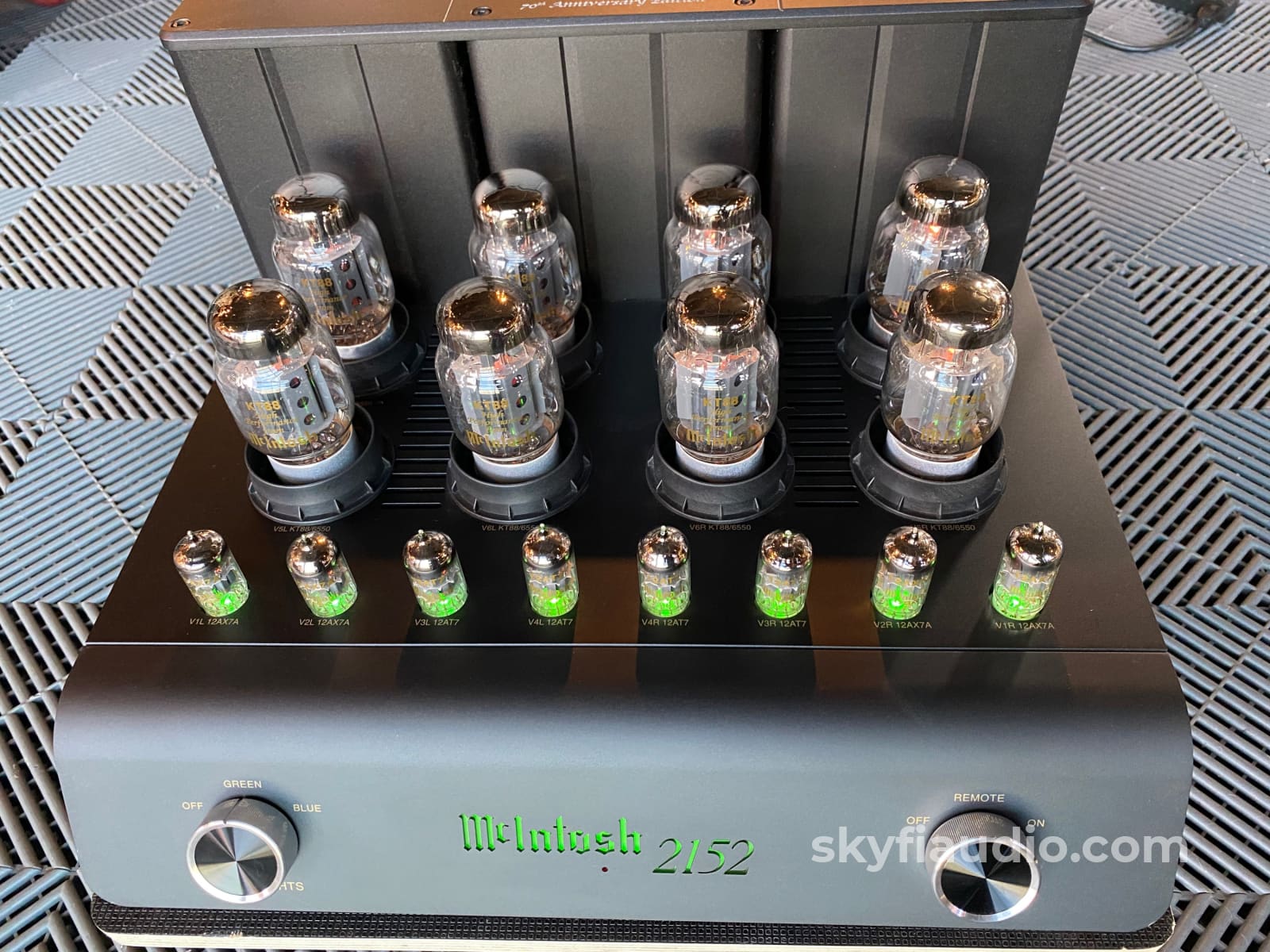

The MC2152 uses eight KT88 output vacuum tubes plus eight small signal tubes comprised of four 12AX7A and four 12AT7 vacuum tubes; half of the tube complement is assigned to each audio channel. The 12AX7A vacuum tubes are for the Balanced and Input amps, while the 12AT7 tubes are for the Voltage and Driver amps. The LEDs under the eight small signal tubes can be set to three illumination settings: Off (which allows the tubes natural amber glow to be visible), Green or Blue – a new color option unique to the MC2152. Our Sentry Monitor™ technology monitors the output current and shuts the amplifier off if it ever exceeds safe limits.

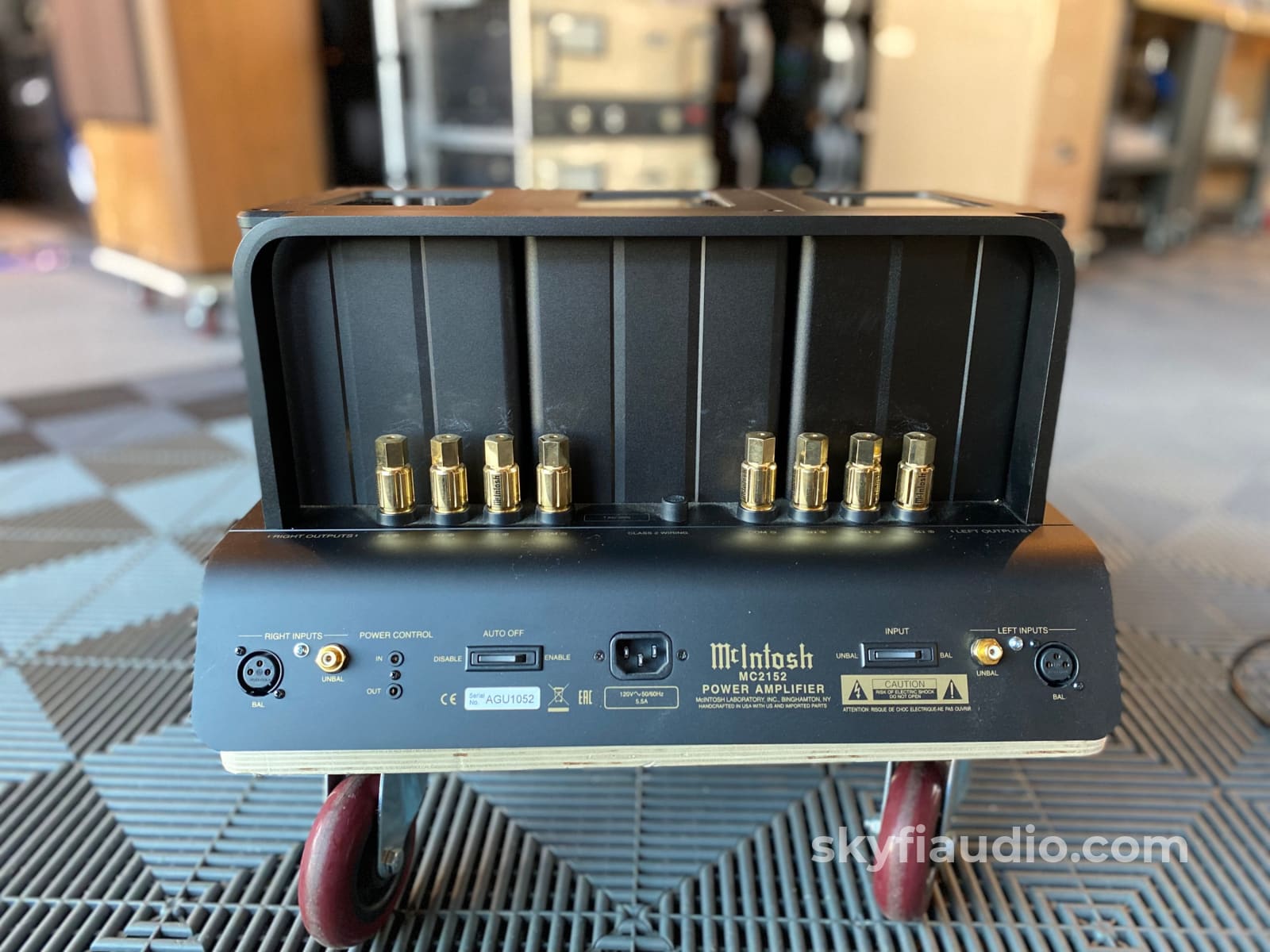

On the back are both balanced and unbalanced inputs, along with our patented Solid Cinch™ speaker binding posts to securely connect your speaker cables to your speakers, and an input and output for our Power Control technology that will automatically turn other connected McIntosh components such as preamplifiers, CD players or turntables, on and off. Contact your local dealer to learn more.

Click below to view our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Kimber Kable - RCA Interconnects

Kimber Kable - XLR Interconnects

Kimber Kable - Speaker Cables

Kimber Kable - Bi-Wire Speaker Cables

Kimber Kable - 14AWG (Gauge) Power Cords

Kimber Kable - 10AWG (Gauge) Power Cords

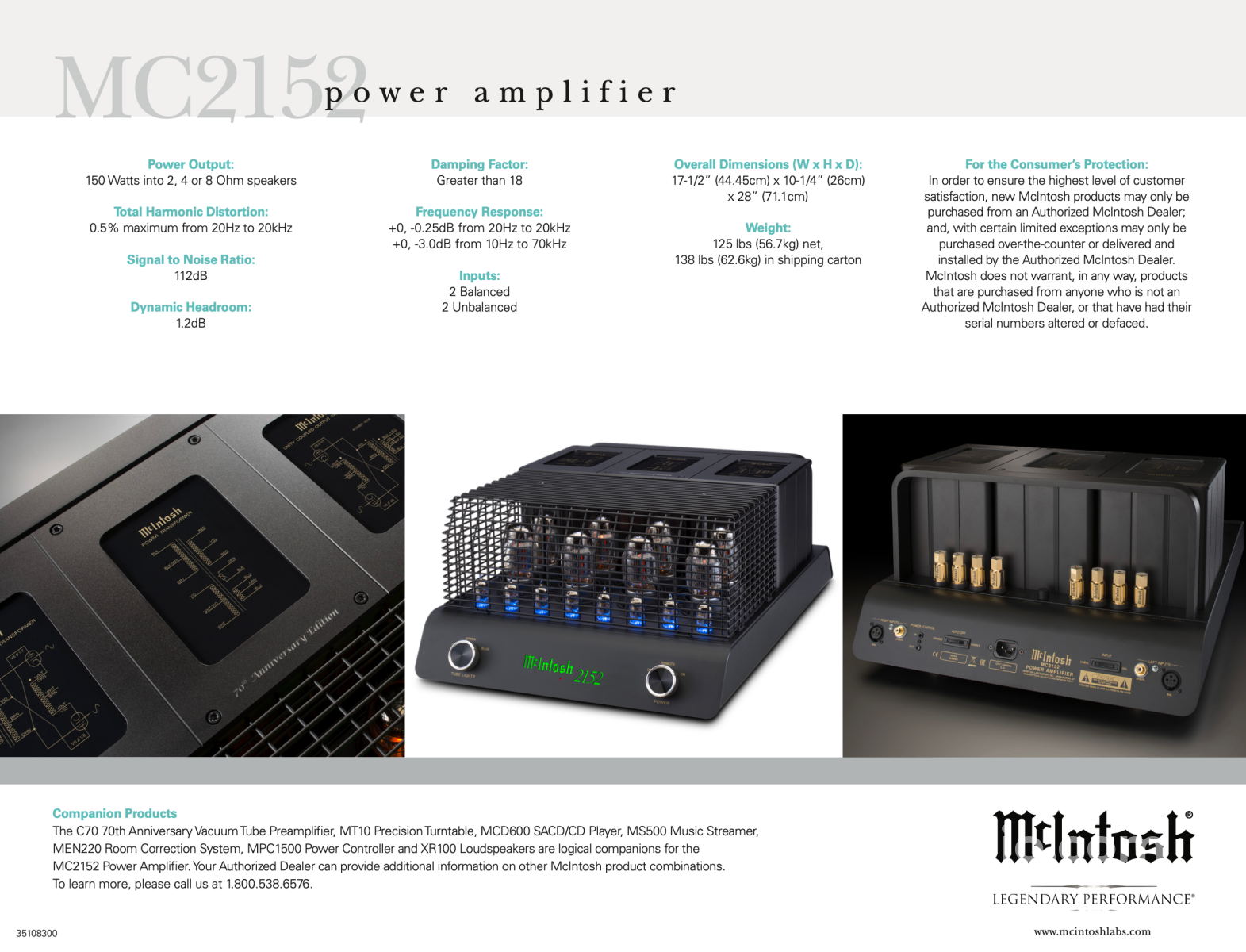

Specifications
Power Output
Minimum sine wave continuous average power output per channel, both channels operating is:
150 watts into 2 ohm loads
150 watts into 4 ohm loads
150 watts into 8 ohm loads

Output Load Impedance
2, 4, or 8 ohms

Rated Power Band
20Hz to 20,000Hz

Total Harmonic Distortion
0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz

Dynamic Headroom
1.2dB

Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 70,000Hz

Input Sensitivity (for rated output)
1.7 Volts Unbalanced
3.4 Volts Balanced

Signal To Noise Ratio (A-Weighted)
112dB below rated output

Intermodulation Distortion
0.5% maximum, if the instantaneous peak power output does not exceed twice the rated power output for any combination of frequencies from 20Hz to 20,000Hz.

Wide Band Damping Factor
Greater than 18

Input Impedance
47,000 ohms Unbalanced
20,000 ohms Balanced

Power Control Input
5-15VDC, less than 1mA

Power Control Output
12VDC, 25mA
Output is delayed 0.2 seconds from turn On.

Tube Complement
4 - 12AX7A Input and Phase Inverter
4 - 12AT7 Voltage Amplifier and Driver
8 - KT88/6550 Power Output

Power Requirements
Field AC Voltage conversion of the MC2152 is not possible.
This MC2152 is factory configured for 120V ~ 50/60Hz at 5.5 Amps.
Standby: Less than 0.3 watts

Overall Dimensions
Width is 17-1/2 inches (44.5cm)
Height is 10-1/4 inches (26.0cm) including feet
Depth is 28 inches (71.1cm) including Cables

Weight
125 pounds (56.7 kg) net, 138 pounds (62.6 kg) in shipping carton

Shipping Carton Dimensions
Width is 24 inches (61.0cm)
Height is 14 inches (35.6cm)
Depth is 30-1/2 inches (77.5cm)
