McIntosh MAC6700 Solid State Receiver with HD + FM/AM Radio, DAC, MC/MM Phono

SkyFi 479

Pickup currently unavailable

479 South Broad Street
Glen Rock NJ 07452
United States


Fantastic piece from McIntosh and a recent revival, as McIntosh took some time off from making full featured receivers.

This one has it all.

200W per side with autoformers, gorgeous blue meters. built-in HD Radio and FM/AM tuner, outstanding headphone amp, built in DAC, and a capable MC and MM phono section.

If you're looking for a one piece solution for a 2 channel system this might be perfect for you.

We also worked with McIntosh to update the main system firmware to the latest version available, along with the official McIntosh USB Audio Firmware (DAC section firmware).

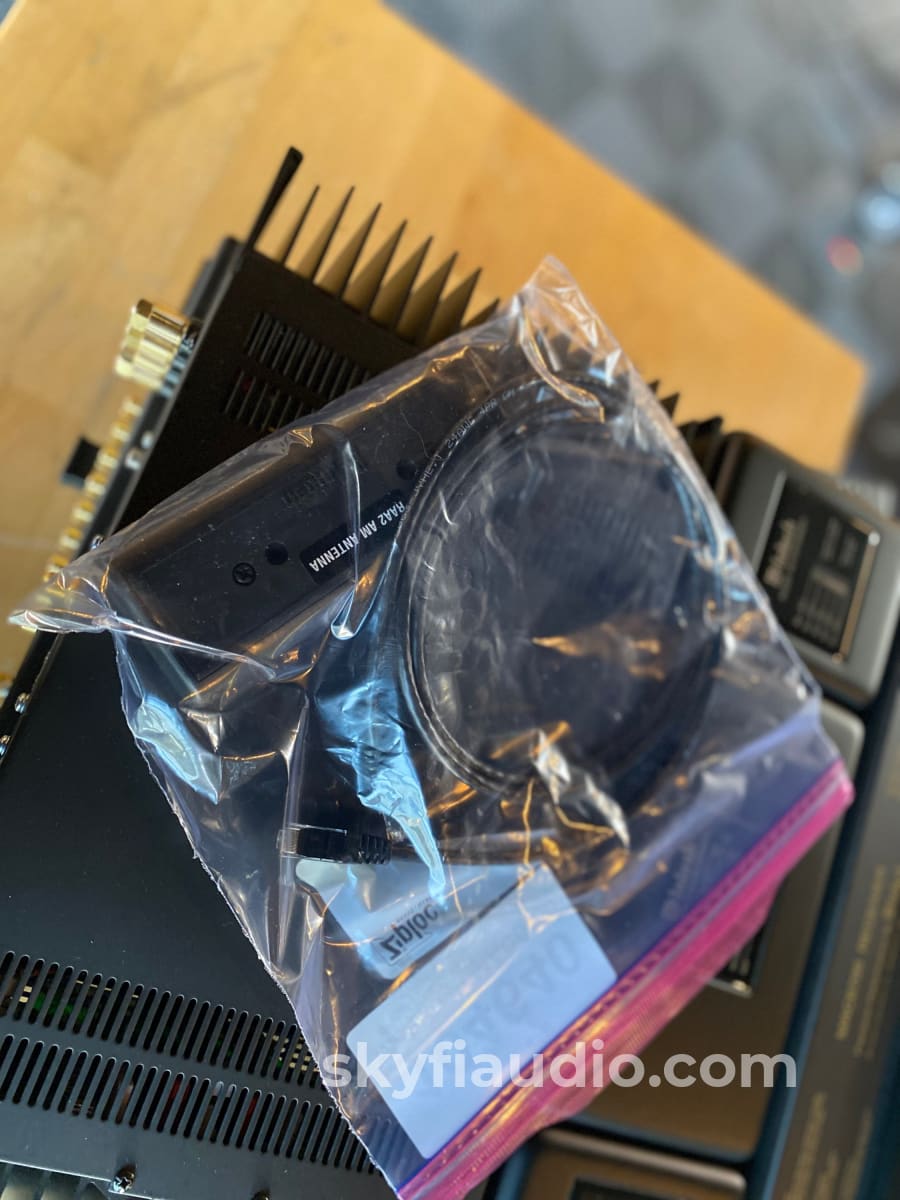

Includes a brand new modern remote from McIntosh, McIntosh RAA2 AM Antenna with connecting cord, and power cord.

McIntosh Performance Features Include:

• Power Output with Patented Autoformer
The MAC6700 consists of a 200 watts per channel stereo Power Amplifier with less than 0.005% distortion. The McIntosh designed and manufactured Autoformer allows connection of 2, 4 or 8 ohm Loudspeakers. The Power Amplifier uses ThermalTrak Output Transistors for lower distortion and cool operation.

• Digital Audio Inputs
The MAC6700 has Coaxial, Optical and USB Digital Inputs to Decode PCM Signals from an external source. The MA/MAC6700 Up Samples the Digital Signal to 192kHz with 32Bit resolution before the Digital to Analog process begins.

• Moving Coil and Moving Magnet Phono Inputs
The MAC6700 contains two different precision Phono Preamplifier Circuits. One for low output Moving Coil Phono Cartridges with selectable resistance loading, the other is for Moving Magnet Cartridges. Both circuits use the latest designs to provide the lowest possible noise and distortion. The RIAA Correction Equalization Circuitry utilizes close tolerance resistors and capacitors for an extremely flat frequency response.

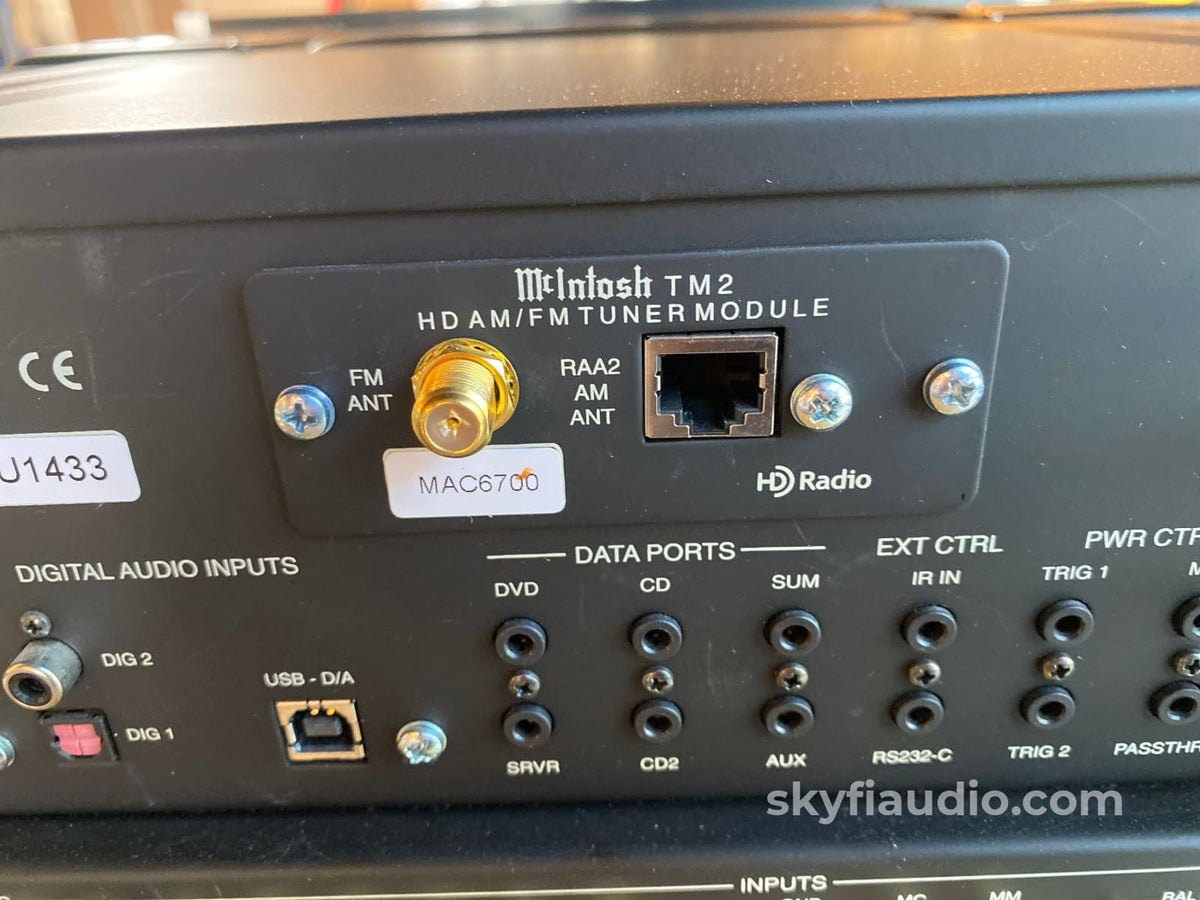

TM2 Tuner Module Performance Features • Reception
The TM2 Tuner Module with HD Radio Technology allows for the reception of high quality FM and AM Radio Broadcasts in regions where available.

• Digital Sound
Digital, CD-quality sound. HD Radio Technology enables local radio stations to broadcast a clean digital signal. AM sounds like today’s FM and FM sounds like a CD.

Technical Notes:

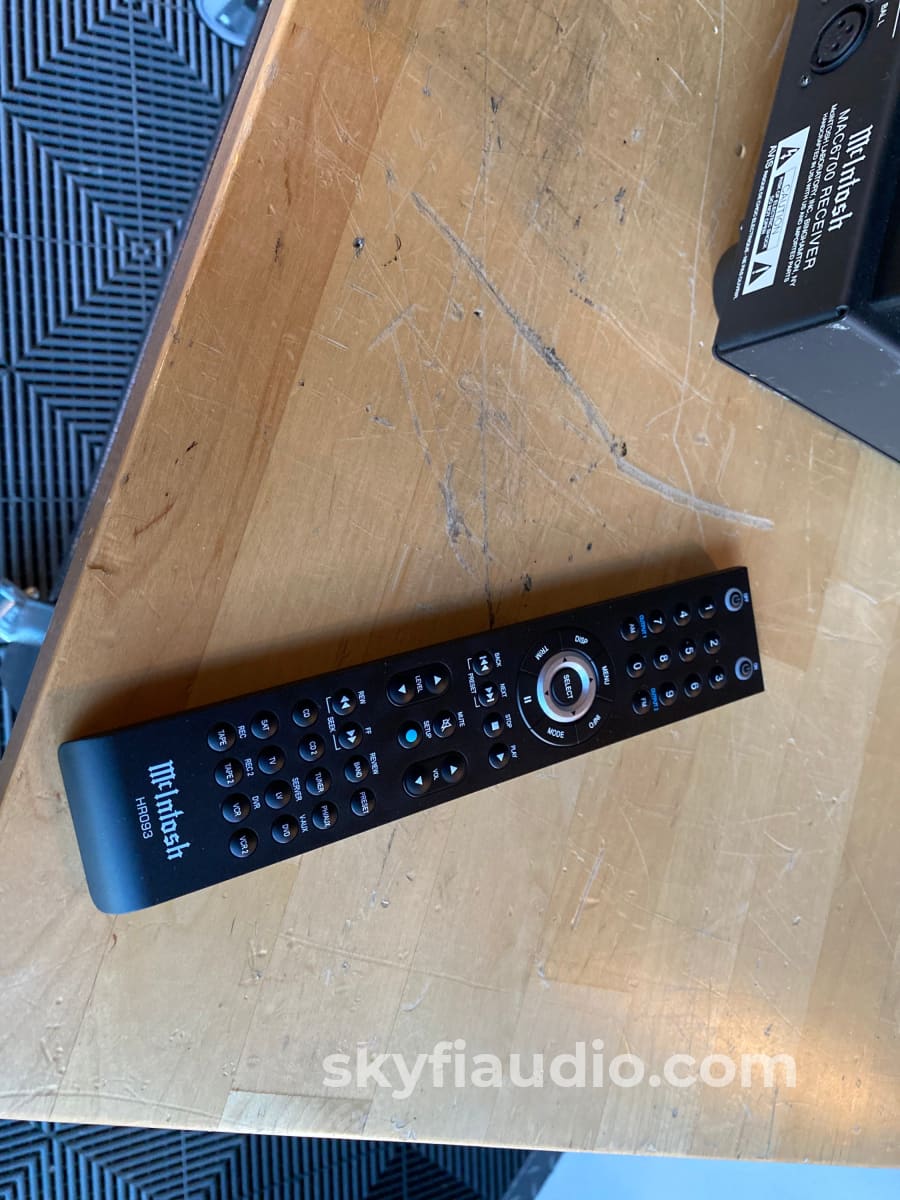

A new McIntosh HR093 remote will be provided with this unit

Brand Background:
McIntosh Laboratory is an American manufacturer of handcrafted high-end audio equipment based in Binghamton, New York. The company was founded in 1949 by Frank McIntosh. The company designs and produces audio amplifiers, stereo tuners and other consumer electronics products.

Single Owner

General Sound:
Smooth, uncolored, undistorted natural and clean

Cosmetic Condition:
7/10 = Good. One or two minor scratches. Well Maintained.. See our detailed rating description here.

Working Condition:
Working perfectly and tested in our lab and listening room.

Brand new modern remote from McIntosh, McIntosh RAA2 AM Antenna with connecting cord, power cord.

Original Manufacturers Packing

Click Here

Amplifier Specifications
Power Output
200 watts is the minimum sine wave continuous aver- age power output per channel, both channels operating

Output Load Impedance
2, 4, or 8 ohms

Rated Power Band
20Hz to 20,000Hz

Total Harmonic Distortion
0.005% maximum with both channels operating from 250 milliwatts to rated power, 20Hz to 20,000Hz

Dynamic Headroom

Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz
+0, -3dB from 10Hz to 100,000Hz

Preamplifier Output 1 and 2 (for rated input)
1.4V unbalanced (8V Maximun)

Sensitivity (for rated output)
High Level, 250mV unbalanced, 500mV balanced
Phono MM, 2.5mV
Phono MC, 0.25mV
Power Amp In, 1.4V

Signal To Noise Ratio (A-Weighted)
High Level, 95dB below rated output
Phono MM, 84dB below 5mV input
Phono MC, 82dB below 0.5mV input
Power Amplifier, 113dB below rated output

Intermodulation Distortion
0.005% maximum, if the instantaneous peak power is 400 watts or less per channel with both channels oper- ating for any combination of frequencies from 20Hz to 20,000Hz

Wide Band Damping Factor
Greater than 40

Input Impedance
High Level, 20K ohms
Phono MM, 47K ohms; 50pF
Phono MC, 50, 100, 200, 400 or 1,000 ohms; 100pF
Power Amp In, 10K ohms

Maximum Input Signal
High Level, 8V unbalanced, 16V balanced
Phono MM, 80mV
Phono MC, 8mV
Power Amplifier In, 16V

Preamplifier Output Impedance
220 ohms

Headphone Output Impedance
20 to 600 ohms

Power Guard
Less than 2% THD with up to 16dB overdrive at 1,000Hz

Voltage Gain
High Level to Rec Output: 0dB
High Level to Output 1 and 2: 15dB
Phono MM to Rec Output: 40dB
Phono MC to Rec Output: 60dB
Phono MM to Output 1 and 2: 55dB
Phono MC to Output 1 and 2: 75dB
Power Amplifier: 29dB

Tone Controls
Bass Control ±12dB (1dB steps) @ 30Hz
Treble Control ±12dB (1dB steps) @ 10,000Hz

Digital Input Sample Rates
Optical: 16Bit, 24Bit - 32kHz to 96kHz
Coaxial: 16Bit, 24Bit - 32kHz to 96kHz
USB: 16Bit, 24Bit, 32Bit - 32kHz to 192kHz

Power Control and Trigger Output
12VDC, 25mA

TM2 - FM HD Radio Specifications

Signal To Noise Ratio

Frequency Response
± 1dB from 20 to 20,000Hz

Harmonic Distortion

Stereo Separation

TM2 - FM Analog Specifications
FM Tuning Range
87.5MHz - 107.9MHz

FM Channel Spacing

Useable Sensitivity
1.6uV (15.2dBf)

50dB Quieting Sensitivity
1.8uV (16.2dBf)

Signal To Noise Ratio
Mono: 75dB Stereo: 72dB

Frequency Response
± 1dB from 20 to 13,000Hz

Harmonic Distortion
Mono: 0.1%

TM2 - FM Analog Specifications, con’t
Stereo: 0.4%

Channel Selectivity
65dB Adjacent Channel 74dB Alternate Channel

Stereo Separation

TM2 - AM HD Radio Specifications
Signal To Noise Ratio

Frequency Response
20 to 15,000Hz

Harmonic Distortion

Stereo Separation

TM2 - AM Analog Specifications
AM Tuning Range
530kHz - 1710kHz

AM Channel Spacing


Signal To Noise Ratio

Frequency Response
+ 0, - 6dB from 100 to 3,500Hz

Harmonic Distortion
0.25%, 80% Modulation

50dB Adjacent Channel

TM2 - General Specifications
FM Antenna Input
75 ohms, Type “F” Coax connector

AM Antenna Input
Balanced, RJ45 connector
(for use only with supplied McIntosh RAA2 Remote AM Antenna)

RAA2 Connection Cable
20 foot (6.09m) 8 conductor straight-thru cable with an outer shield and RJ45 connectors on each end (shielded CAT5 or CAT6 patch cable)

RAA2 Remote AM Antenna Overall Dimensions
Width is 6 inches (15.24cm)
Height is 2-1/2 inches (6.35cm)
Depth is 1-1/2 inches (3.81cm)

General Specifications
Power Requirements
Field AC Voltage conversion of the MA/MAC6700 is not possible. The MA/MAC6700 is factory configured the following AC Voltages:
120 Volts, 50/60Hz at 4.4 amps
Standby: Less than 0.25 watt

Width is 17-1/2 inches (44.45cm)
Height is 7-5/8 inches (19.37cm) including feet Depth is 22 inches (55.88cm) including the Front Panel, Knobs and Cables

Approximate Age:

Link to Manual:
Click Here

Recommended Cables:

Kimber Kable - RCA Interconnects - Better

Kimber Kable - RCA Interconnects - Best

Kimber Kable - BALANCED XLR Connectors - Better

Kimber Kable - BALANCED XLR Connectors - Best

Kimber Kable - Select Series Reference USB Cable

Kimber Kable - Coaxial Digital Interconnect

Kimber Kable - Optical Digital Interconnect

Kimber Kable - Speaker Cables - Better

Kimber Summit Series Monocle XL Speaker Cables (PAIR) - Best

Kimber Summit Series BiFocal XL Bi-Wire Speaker Cables (PAIR) - Best If Applicable

Kimber Kable - Power Cords - Better

Kimber Kable - Power Cords - Best
