McIntosh MA6100 Vintage Integrated Amplifier - Serviced

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

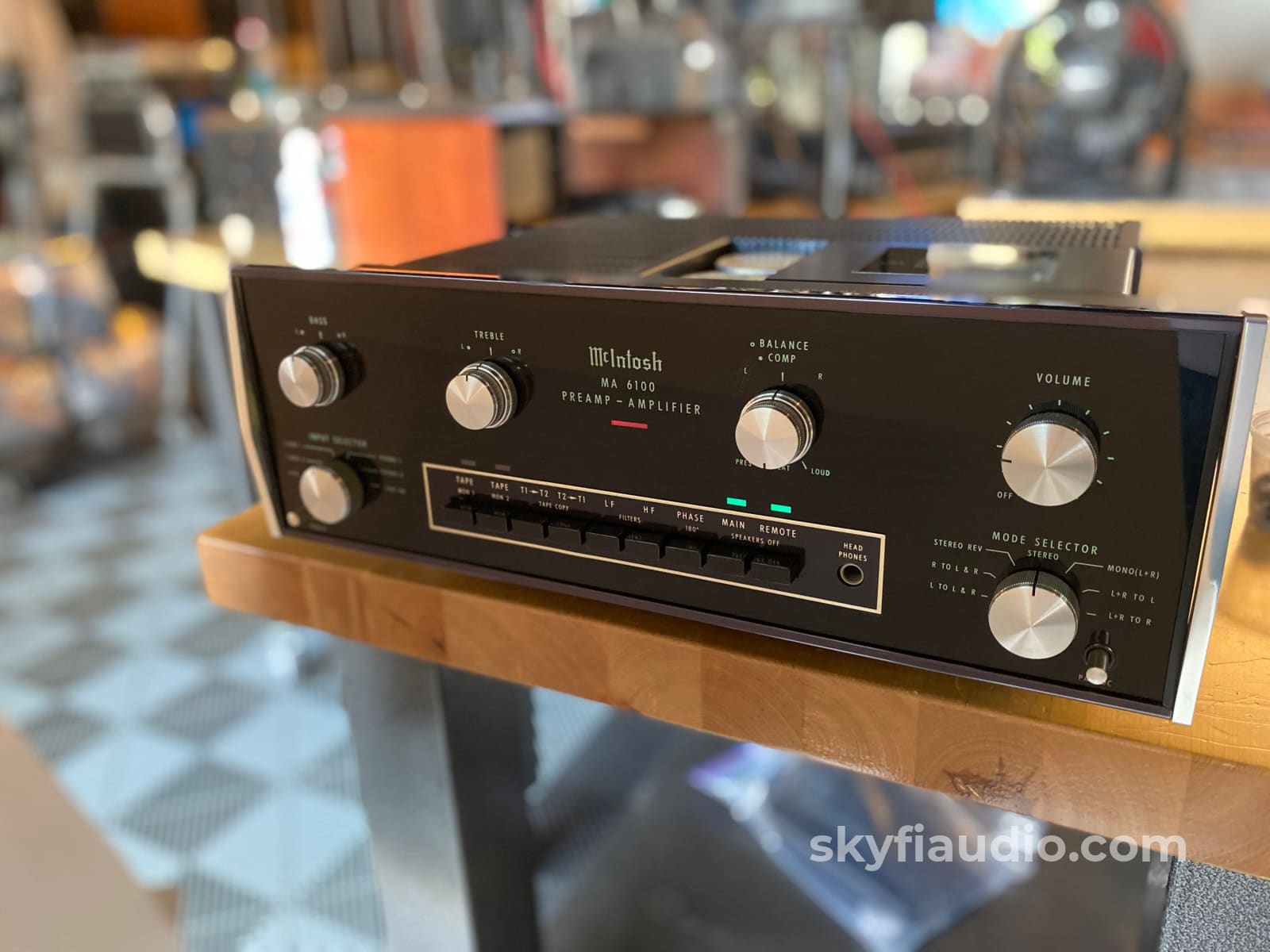

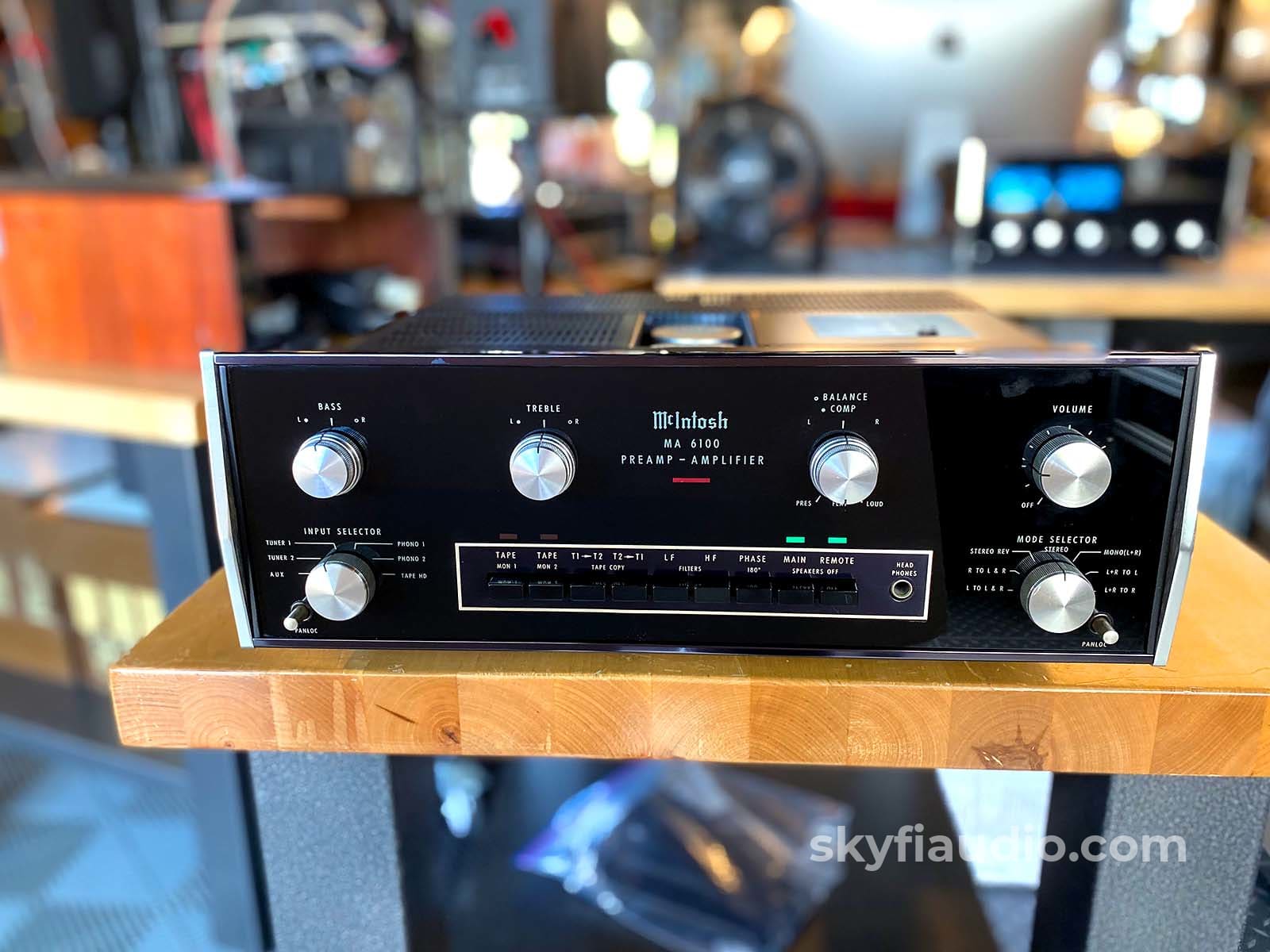

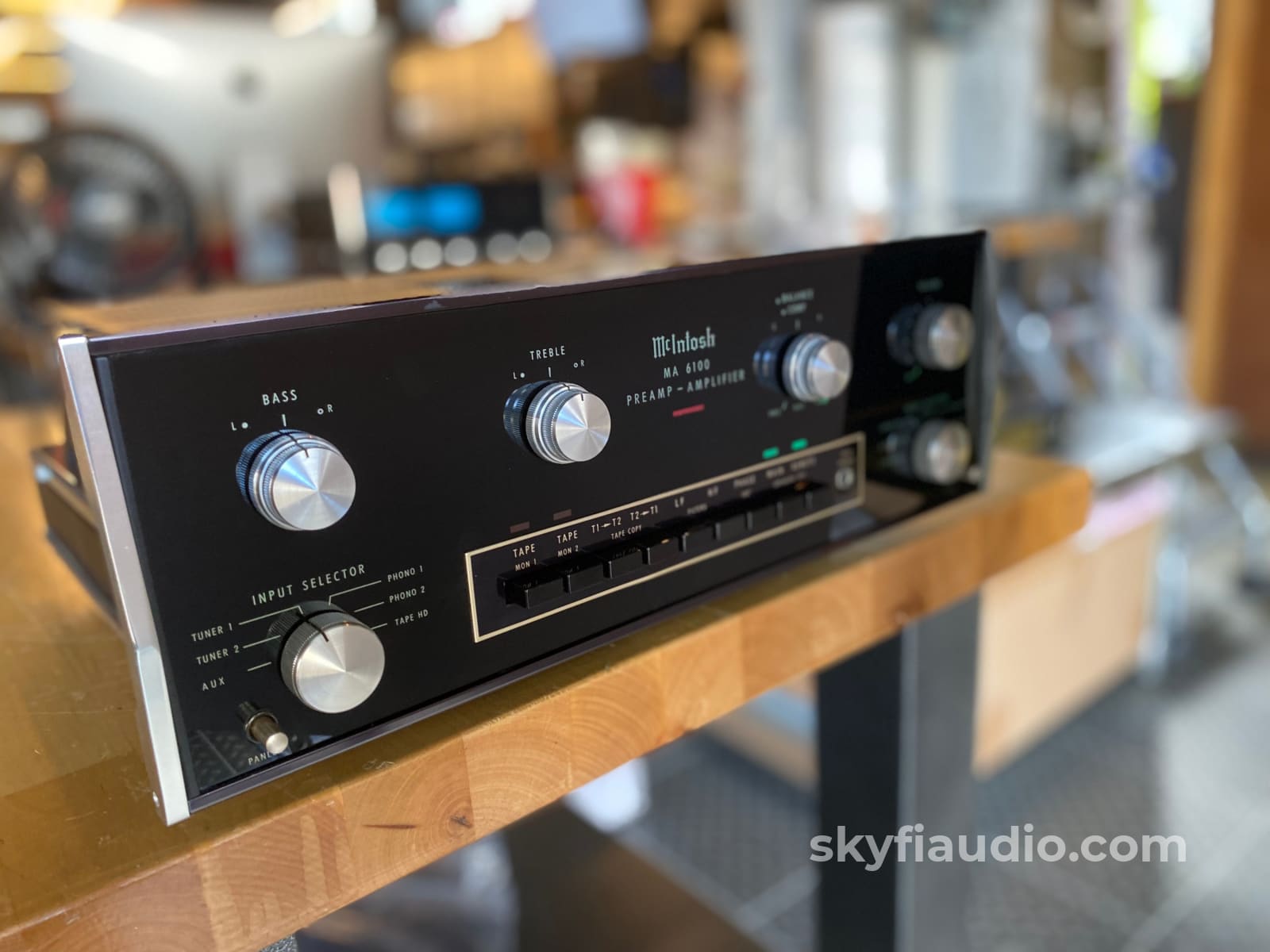

First ever MA6100 in our shop and WOW, this a wonderful unit.

While it looks like a C28 or other preamp from this era, don't be fooled.

This is a full-featured integrated amplifier from the 1970's capable of driving most speakers. It can provide 70W per side with clean, stable, and signature sweet McIntosh power. Dual phono inputs are a nice touch.

Its also a great match to the classic McIntosh MR71 tuner to form essentially a very capable receiver.

Cosmetic condition is outstanding and likely the cleanest sample you will ever find.

The paint work and chrome is fantastic without any signs of aging or your typical pitting. We can't rate this a 9 because of its age, but it definitely deserves an 8.5 if we had 1/2 increments!

This integrated amplifier underwent a routine service here in our shop.

We checked all of the electrolytic capacitors and replaced a handful of parts that were found to be out of spec. We also found some leaky transistors in the amplifier driver cards which caused one channel to run hot.

All of these transistors were replaced and both channels now run at equal temperature throughout the entire power range.

Finally, we replaced the combination volume control / power switch with an expensive new assembly sourced directly from McIntosh. The new control offers better channel tracking than the aging original part.

We can also provide a matching wood cabinet with the proper Panloc inserts for an additional $450 to complete the vintage look. Just select the option in this listing.

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Kimber Kable - RCA Interconnects - Better

Kimber Kable - RCA Interconnects - Best

Kimber Kable - Phono Interconnects - Better

Kimber Kable - Flagship Tonearm Interconnects - Best

Kimber Kable - Speaker Cables - Good

Kimber Kable - Speaker Cables - Better

Kimber Kable - Bi-Wire Speaker Cables - Best

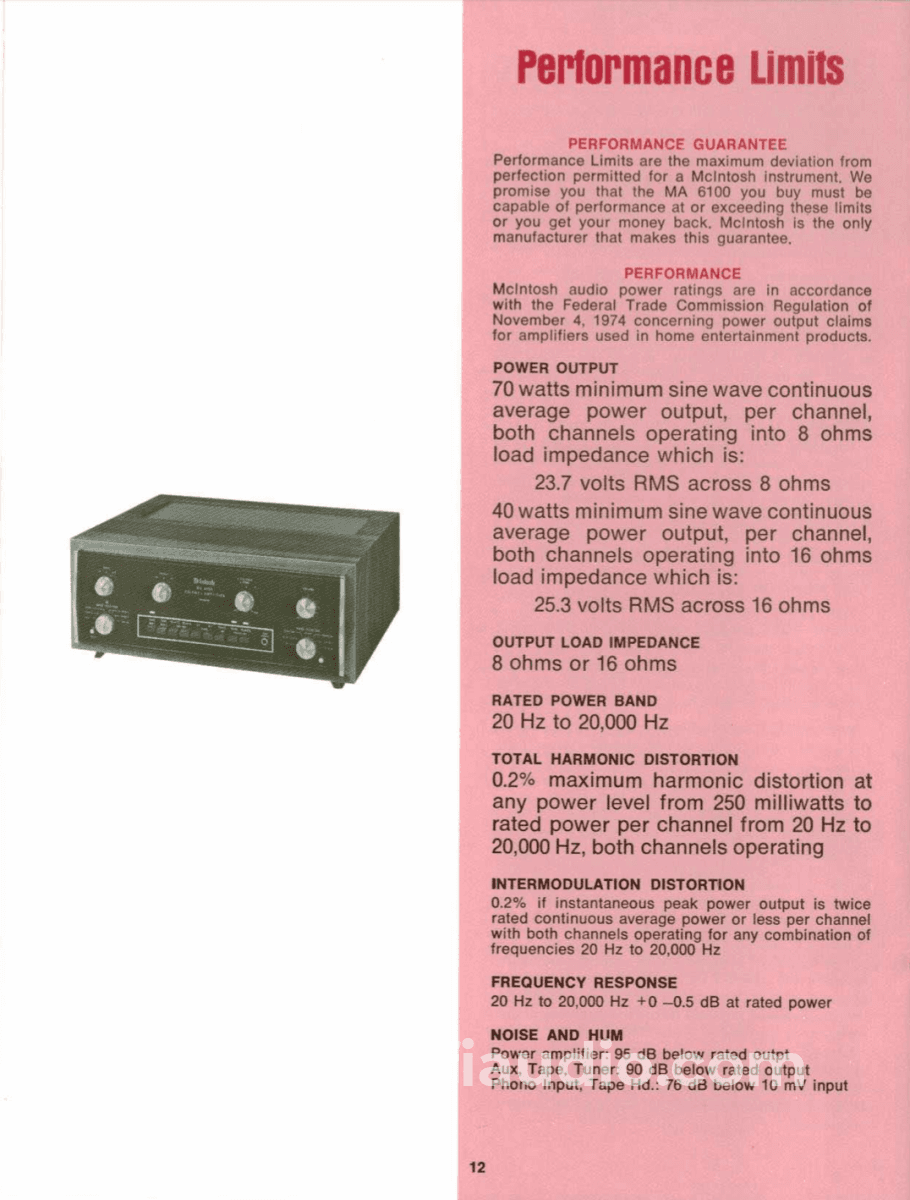

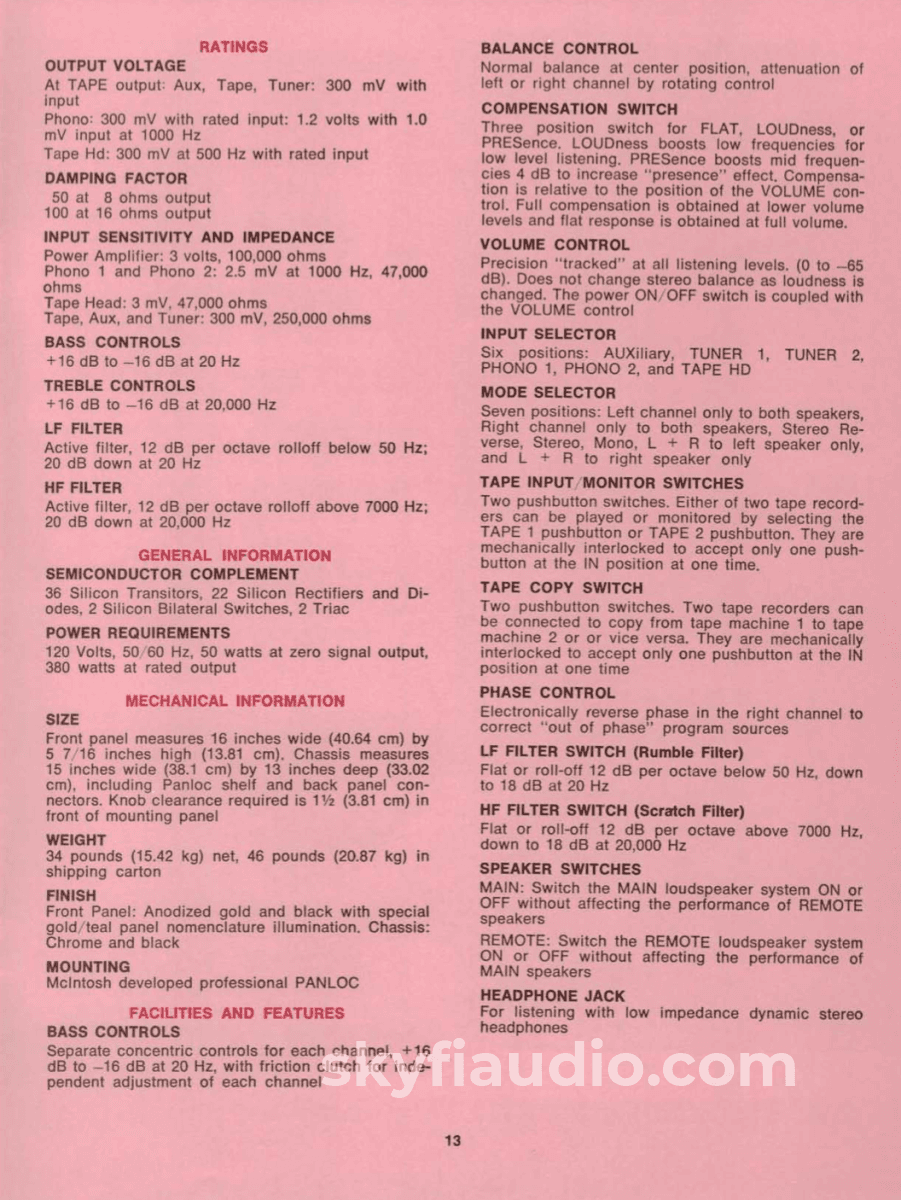

Please see our photos or the linked manual below for full specifications:

McIntosh MA6100 Integrated Amplifier - Owner's Manual

The SkyFi Testing Process for Preamplifiers:

We start with a visual inspection of all internal components to make sure that there are no signs of heat stress or damage. Capacitors are checked for telltale signs of predictive failure including bulging, shrunken wrappers, or physical leakage. We also inspect the PCBs for discoloration from resistors or transistors that may have been running hot. On vintage units we often spot check select capacitors for value and ESR.

When we first power on a preamplifier we connect its RCA output to a Sencore PA81 Power Analyzer which simulates real world loading conditions and gives us an oscilloscope interface. The first order of business is checking that the volume control works smoothly throughout its entire range with acceptable channel balance. This is accomplished by feeding a 1KHz sine wave into one of the preamp’s line level inputs while monitoring the preamp’s output on an oscilloscope. We then switch to a 1KHz square wave to test the tone controls, loudness function, and filters where applicable. During this step we are watching for equal alteration of the test signal by both channels. This also helps us identify dirty controls that will need treatment. Once the basic line stage functions are verified, we test each input individually. This is especially important for devices that use relays to select their sources. If the preamp is equipped with a phono stage we test that as well. We use an inverse RIAA filter which allows us to feed a reference test signal into the phono input with the proper RIAA equalization and level. A square wave or sine sweep is used to verify that the device’s phono stage is faithfully reproducing the RIAA curve. If the preamp under test has balanced inputs and/or outputs these are tested as well.

We finish up our bench testing with a listening test with our bench amplifier and reference speakers. During this test we check for hum or hiss that may not have shown up in earlier testing. We also check that all of the tone controls and filters perform as expected. If the preamplifier has remote control functions these are also tested. Preamps with tube circuits or complicated power supply topologies are connected at our long term test rig for extended stress testing under real world conditions.

The SkyFi Testing Process for Solid State Amplifiers:

We start with a visual inspection of all internal components to make sure that there are no signs of heat stress or damage. Capacitors are checked for telltale signs of predictive failure including bulging, shrunken wrappers, or physical leakage. We also inspect the PCBs for discoloration from resistors or transistors that may have been running hot. On vintage units we often spot check select capacitors for value and ESR.

If the amplifier passes visual inspection, we move on to a controlled power on sequence using a Sencore safety analyzer to monitor current draw in real time. Once the amplifier is determined to be safe to operate, we connect it to full AC mains for function and power testing. We connect the speaker outputs of the amplifier to a Sencore PA81 Power Analyzer which acts as a dummy load, DC offset monitor, and oscilloscope interface. We start with a low level 1KHz test signal at the amplifier’s input and slowly increase its amplitude while monitoring the output on an oscilloscope for signs of noise, clipping, distortion, or improper channel balance. We continue increasing the signal level until the amplifier reaches clipping. At this point we take an output power measurement and compare it to the spec sheet of the amplifier to verify proper performance. If the device under test has both balanced and single ended inputs they are both tested at this time. We finish off the bench evaluation with a 1KHz square wave check and a 20Hz to 20KHz sine sweep to assess the amplifier’s frequency response characteristics. This battery of tests will usually reveal if the amplifier has any issues that need further attention.

Before the device leaves the bench, we perform a listening test with actual music using a variety of preferred test tracks. Our benches are outfitted with familiar monitor speakers which help us identify inconsistencies that will not always show up on our test gear. The main things that we are listening for are hum or noise with no signal present, proper center image, clicks, pops, or any other obvious undesirable audio characteristics.

If the unit passes all of these tests it is moved to our long term testing rig where we simulate real word operating conditions for 6-8 hours. This allows us to monitor the unit for signs of thermal runaway or intermittent issues that only crop up when the unit has fully come up to temperature.
