JL Audio - Fathom f113v2-GLOSS - 13.5-inch Powered Subwoofer in a Black Gloss Finish

$4,499

These very sought after subs are on eternal backorder, so the used market is your best bet If you must have one.

Featuring a 13.5-inch ultra-long throw driver and a 3000 watt amplifier!

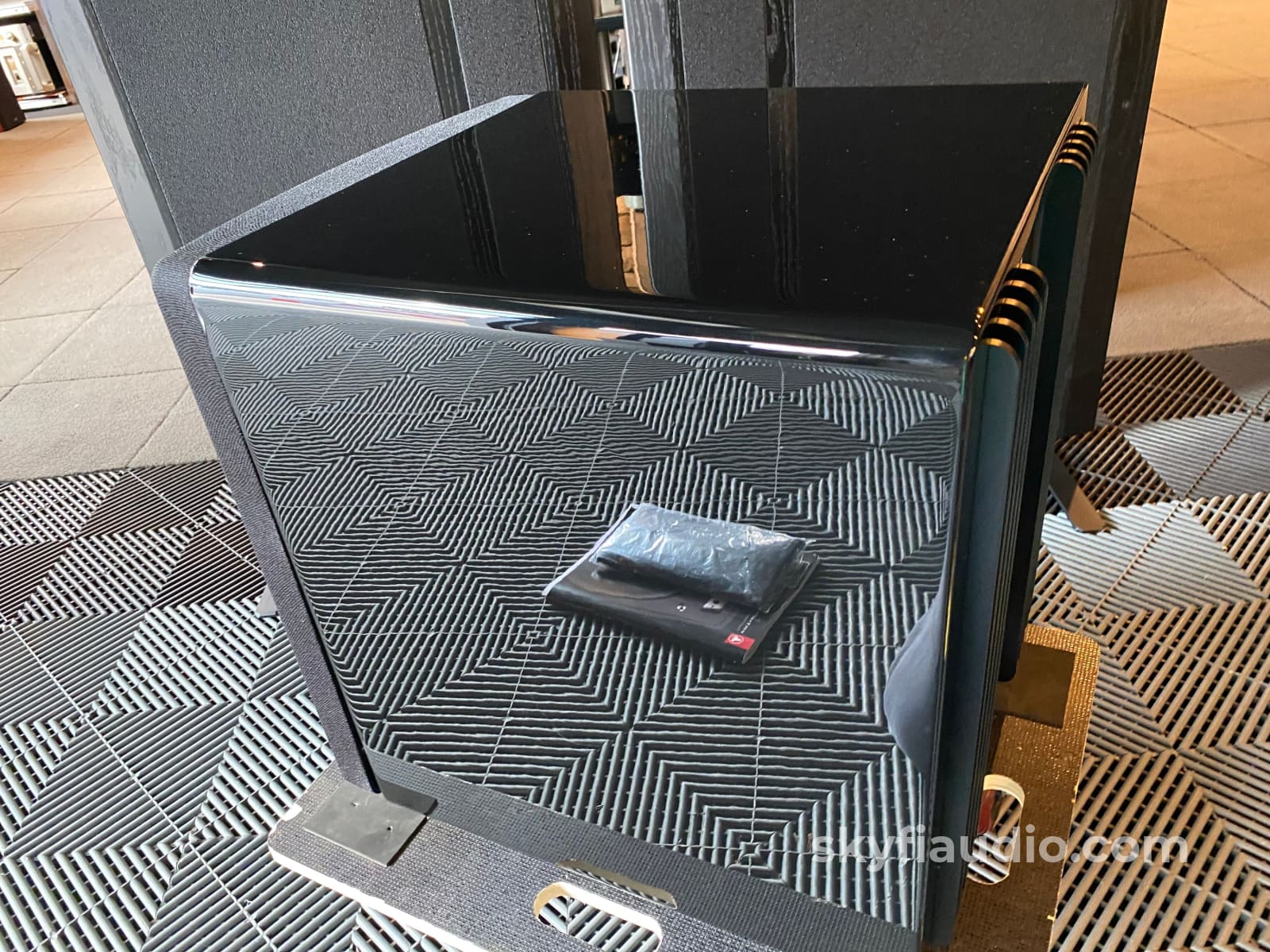

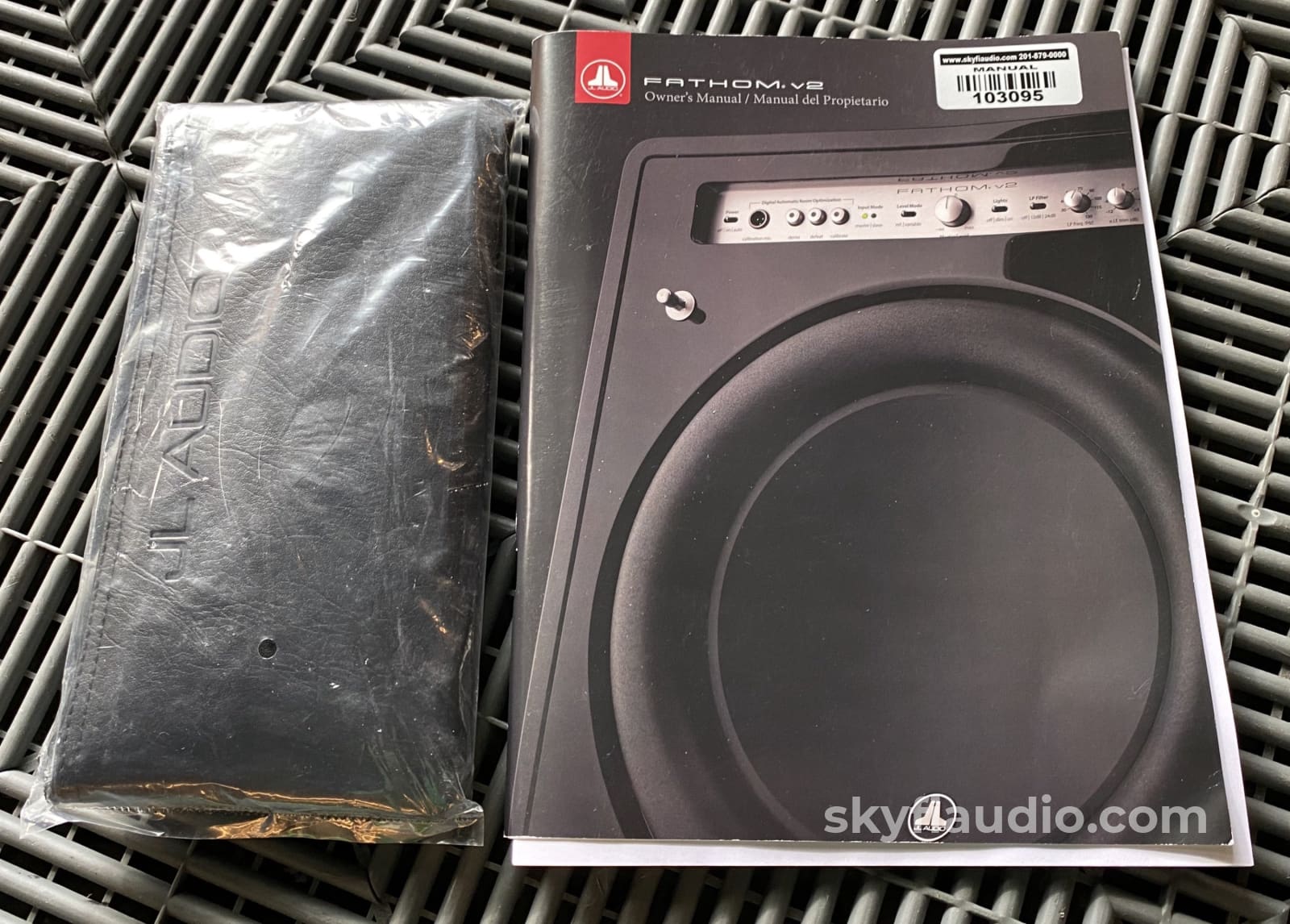

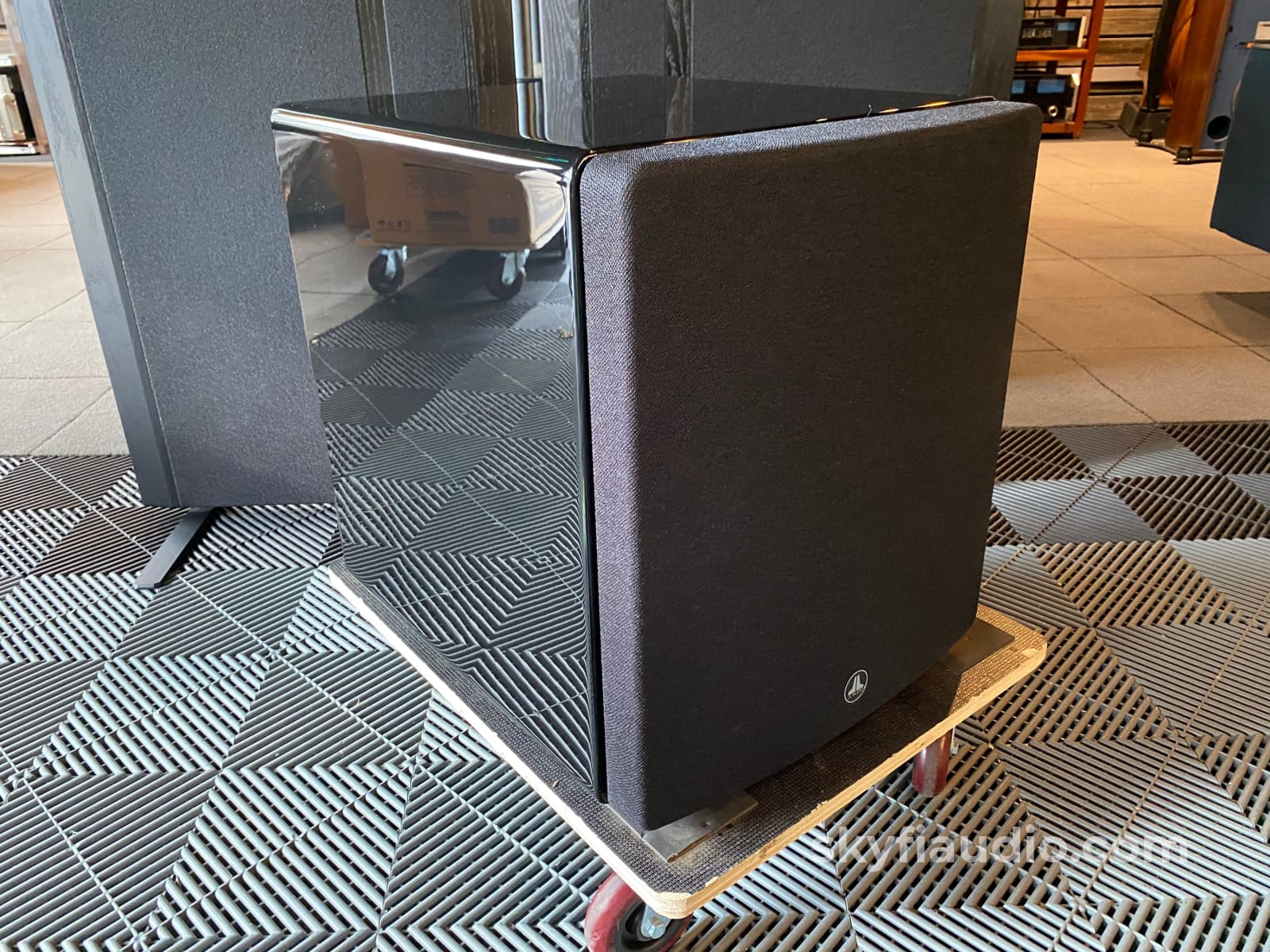

This particular example is in perfect working and cosmetic condition, and will arrive complete with its manual, grill, and accessories as shown in our photos.

Fully tested in our lab where it produced thundering, yet controlled bass.

$5000 MSRP.

We can ship this via freight anywhere in the lower 48 US States for a flat $500.00 including insurance.

And click here to view and purchase our recommended brand new Kimber Kable subwoofer interconnect (SkyFi is an official new Kimber dealer)

JL Audio - Fathom f113v2 - Manual

More from JL Audio:
Powered Subwoofer with 13.5-inch Subwoofer, 3000 watts

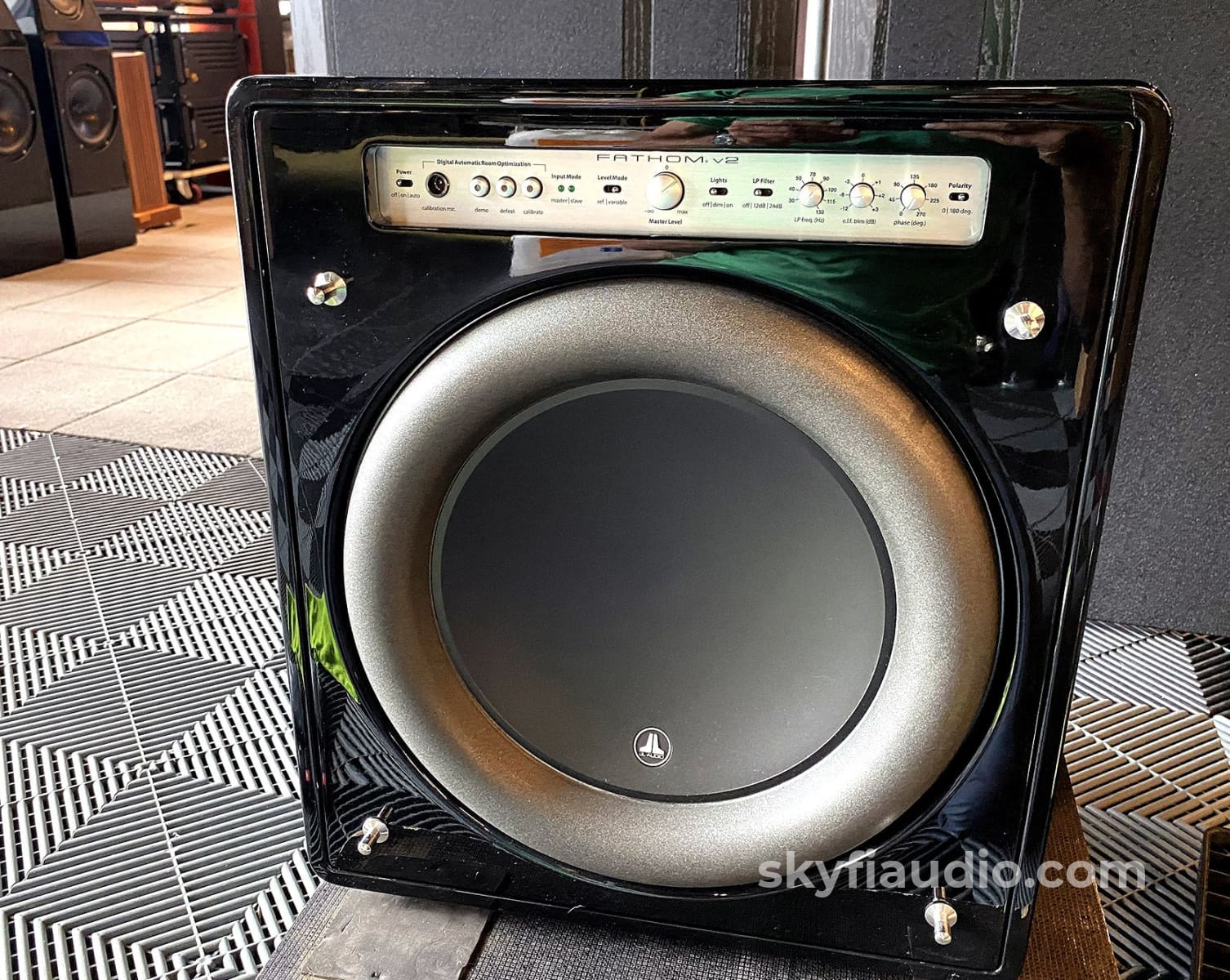

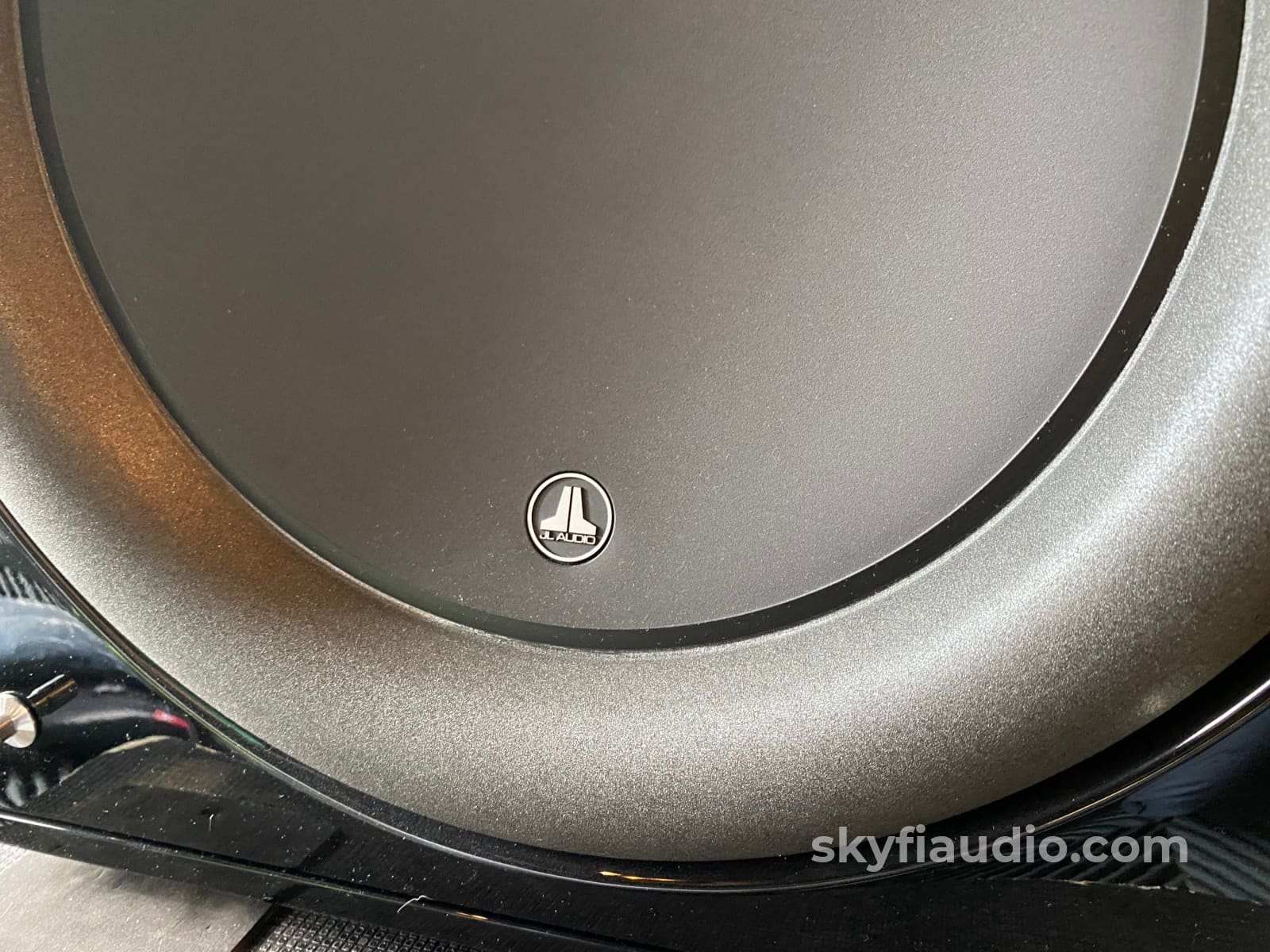

The Fathom f113v2 is a heavyweight subwoofer capable of filling the most demanding rooms with powerful low-frequency output and reference-class sound quality. The combination of an ultra-long throw W7 13.5-inch driver and a very powerful switching amplifier give it the kind of output normally associated with far larger subwoofer systems.

Because it is built with the same driver and amplifier technology as our flagship Gotham®, the f113v2 delivers a tremendous level of sound quality. Low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.

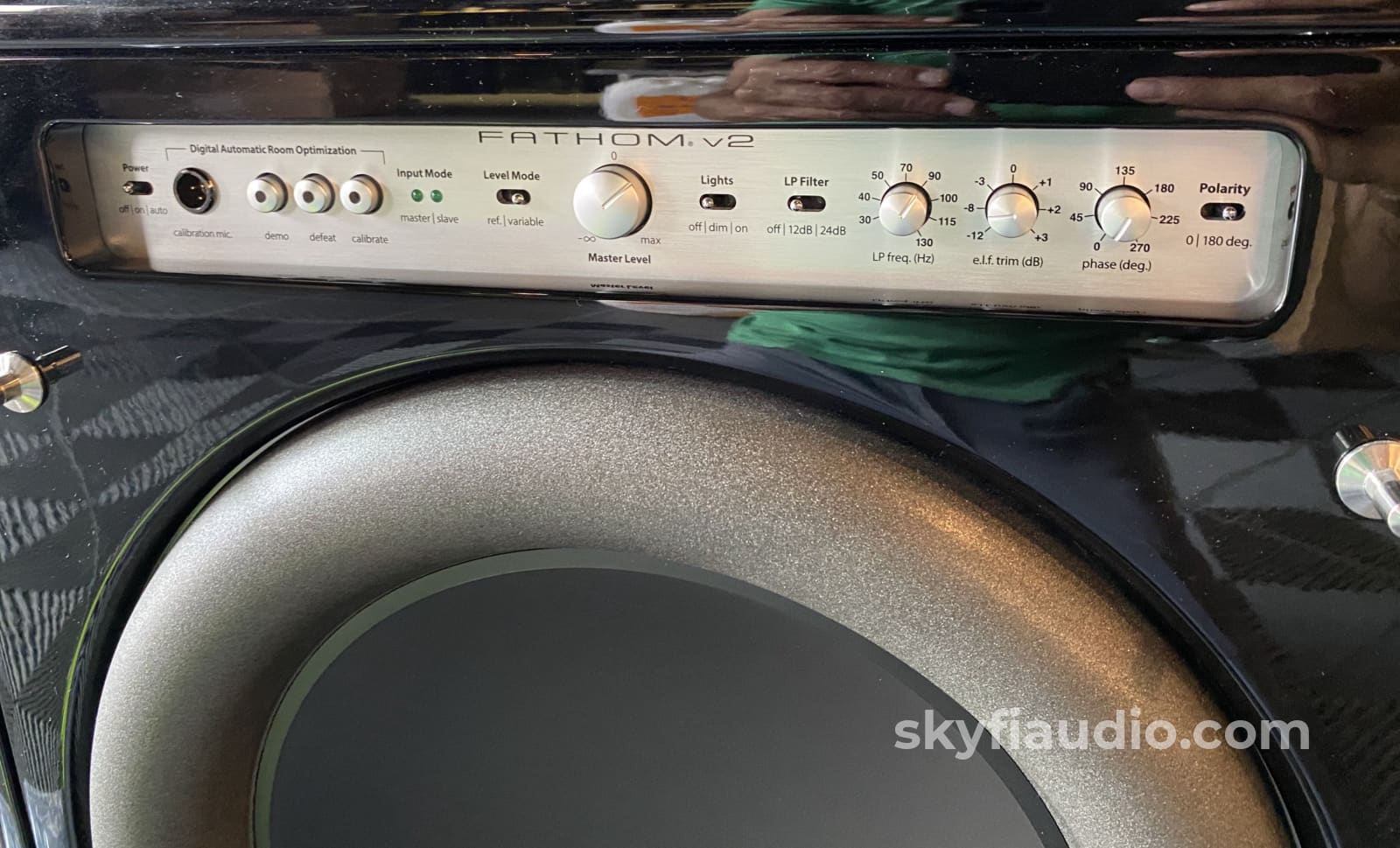

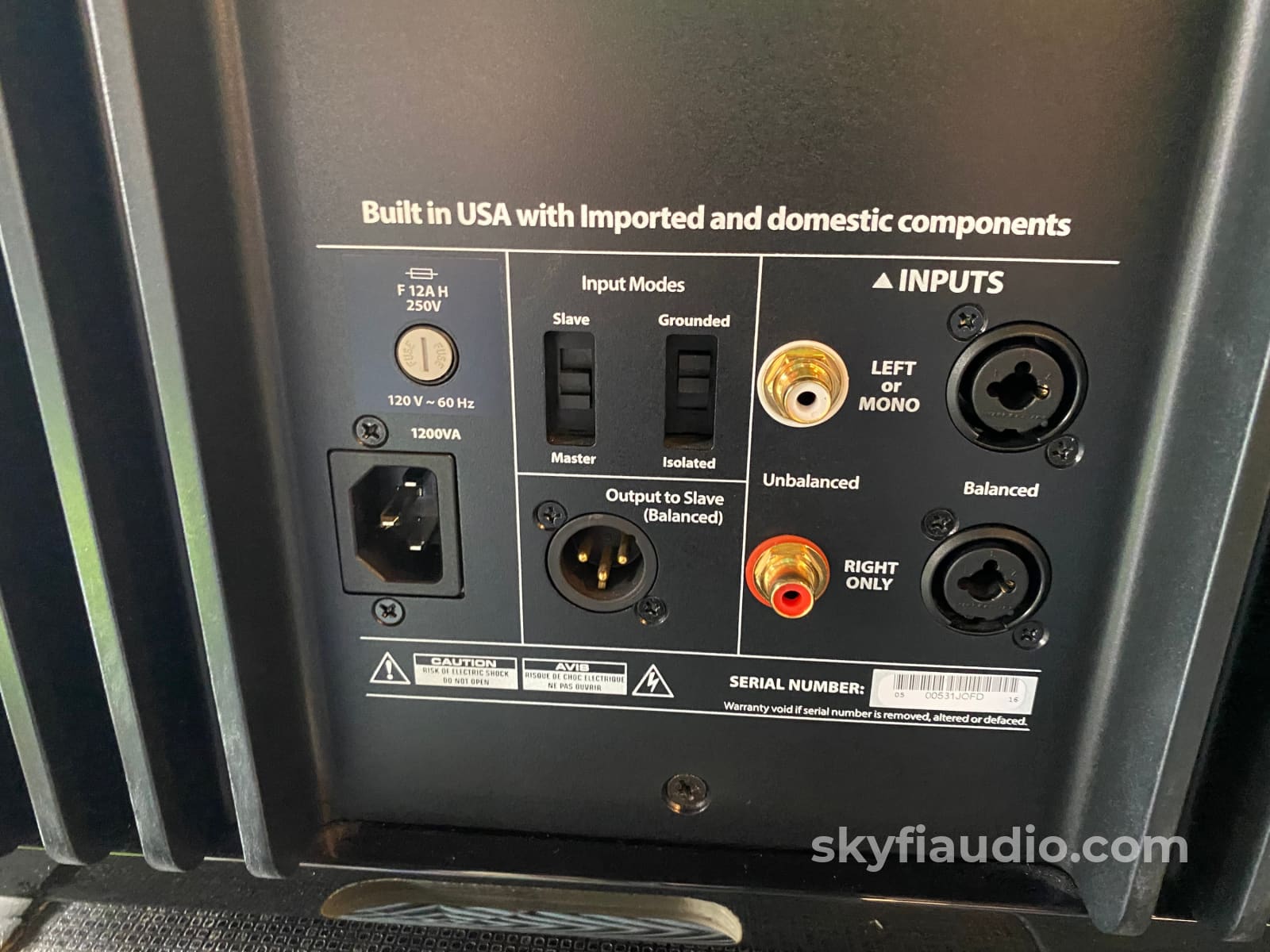

A complete set of signal processing features is easily accessible on the front surface of every Fathom. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim and our powerful Digital Automatic Room Optimization (D.A.R.O.) system. A calibrated microphone is included for the D.A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Fathom® as a slave unit.

Finish: Gloss Black
Grille finish: Black fabric
Enclosure Construction: MDF

Specifications:

General Specifications
Enclosure Type
Sealed

Enclosure Finish Black Gloss

Frequency Response (Anechoic)
20 - 86 Hz (±1.5dB) -3 dB at 18 Hz / 127 Hz -10 dB at 16 Hz / 154 Hz

Effective Piston Area (Sd)
107.35 sq in / 0.0693 sq m

Effective Displacement
386 cu in / 6.3 L

Amplifier Power
3000 W RMS short-term

Power Mode(s)
Off, On or Automatic (Signal-Sensing)

Light Modes
Off, On or Dim

Signal Processing:
Unbalanced Inputs
Stereo or Mono (two RCA jacks)

Balanced Inputs
Stereo or Mono (two female XLR jacks)

Speaker/High-Level Inputs
N/A

Input Grounding
Isolated or Grounded

Input Modes
Master or Slave

Level Control
Reference (fixed gain) or Variable, from full mute to +15dB over reference gain

Filter Mode(s)
Low-Pass

Filter Slope(s)
12/24 dB/octave

Filter Frequency Range
30 Hz - 130 Hz

Filter Defeat Function
Yes

Polarity
0 or 180 degrees

Phase
Variable, 0 - 280 degrees

Extreme Low Frequency (E.L.F.) Trim
Variable, -12 dB to +3 dB at 25 Hz

Line Outputs
N/A

Output to Slave
Balanced (one male XLR jack)

Calibration Mode
Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone

Physical Specifications:
Width (W)
16.50 in / 419 mm

Height (H)
19.25 in / 489 mm

Depth (D)
19.25 in / 489 mm

Net Weight
133 lb / 60 kg

Note:
Height dimensions include feet.

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

No

Manual

Yes

Remote


Cables

Yes - Power

Physical Condition

9

Working Condition

 10
