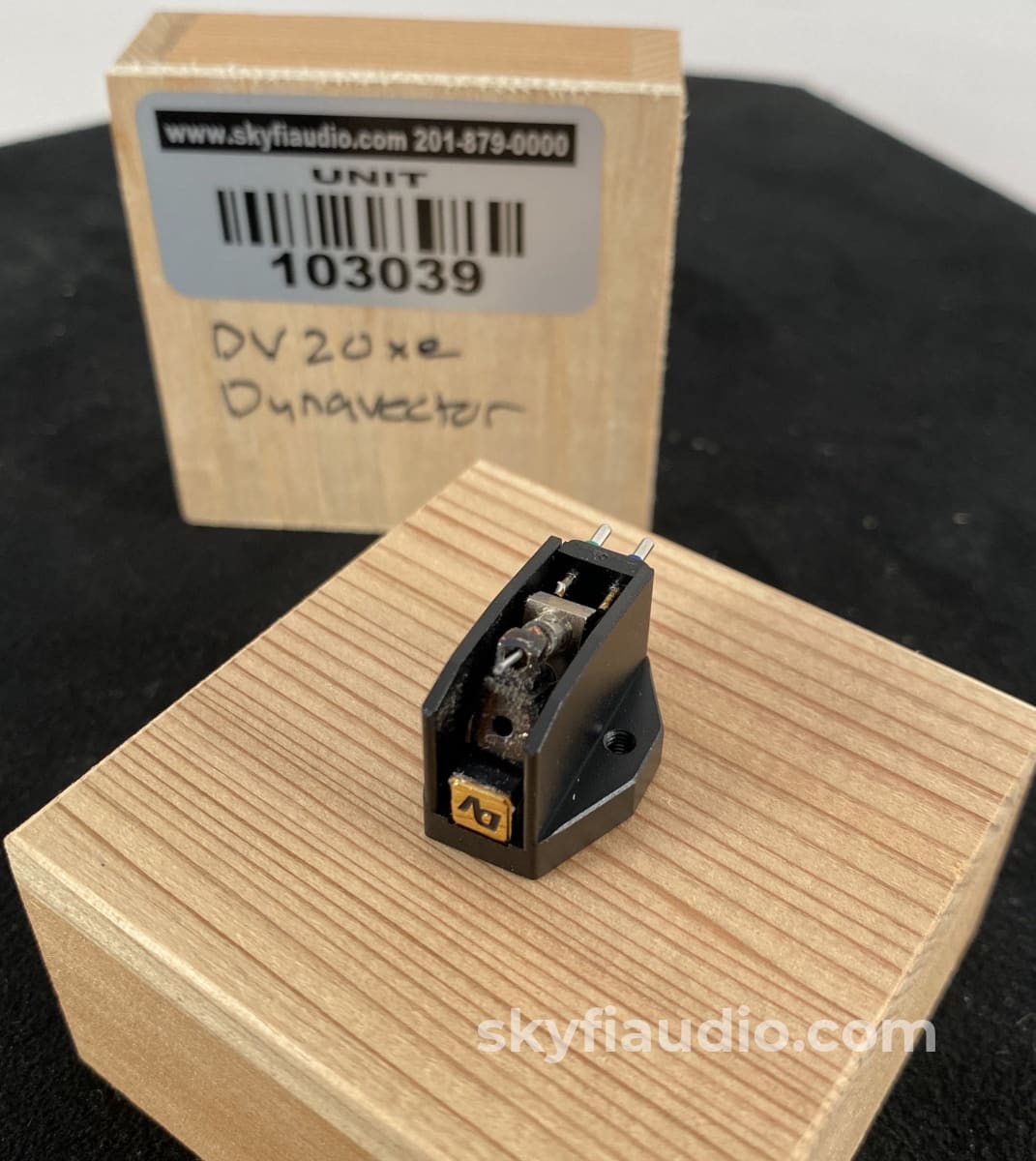

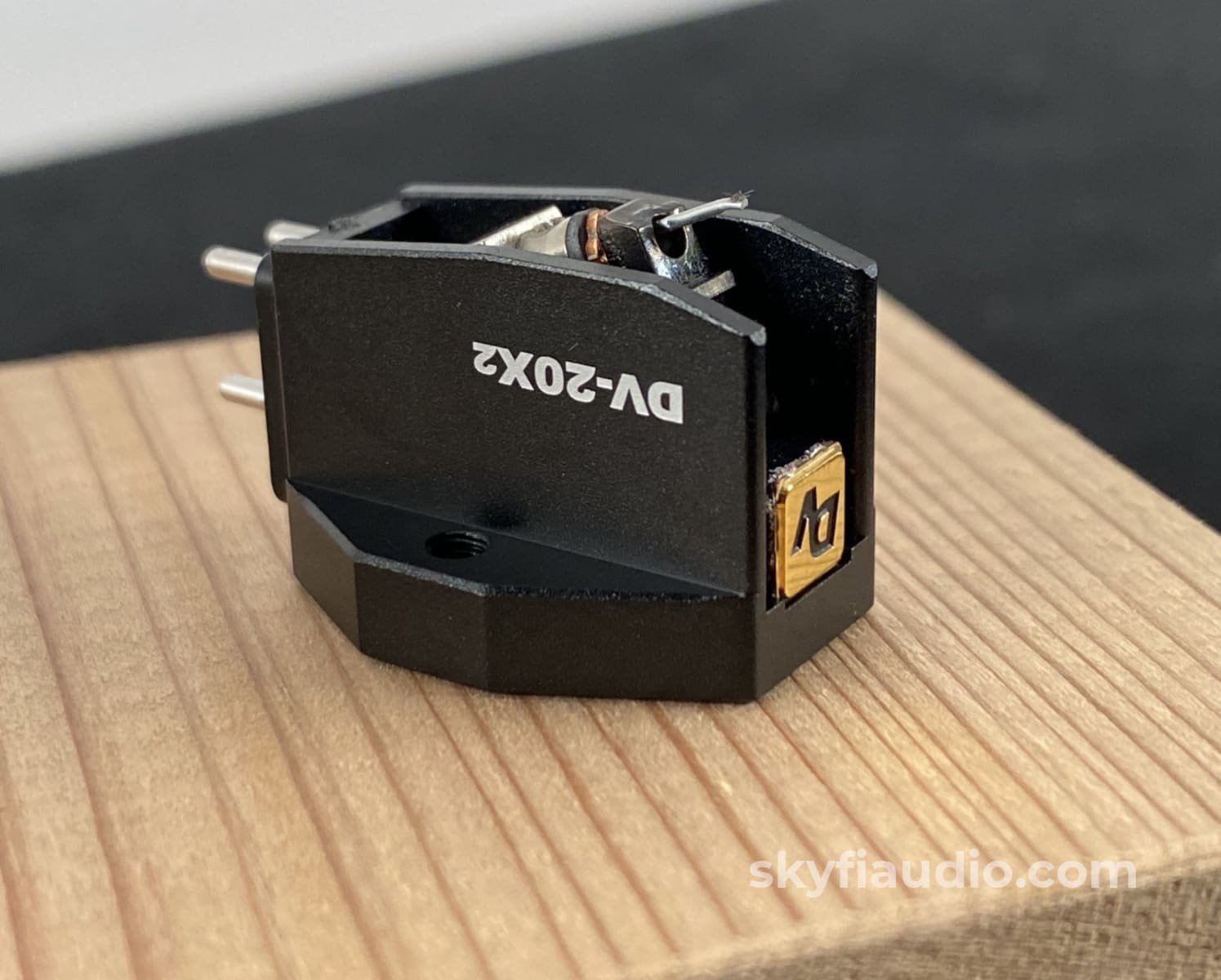

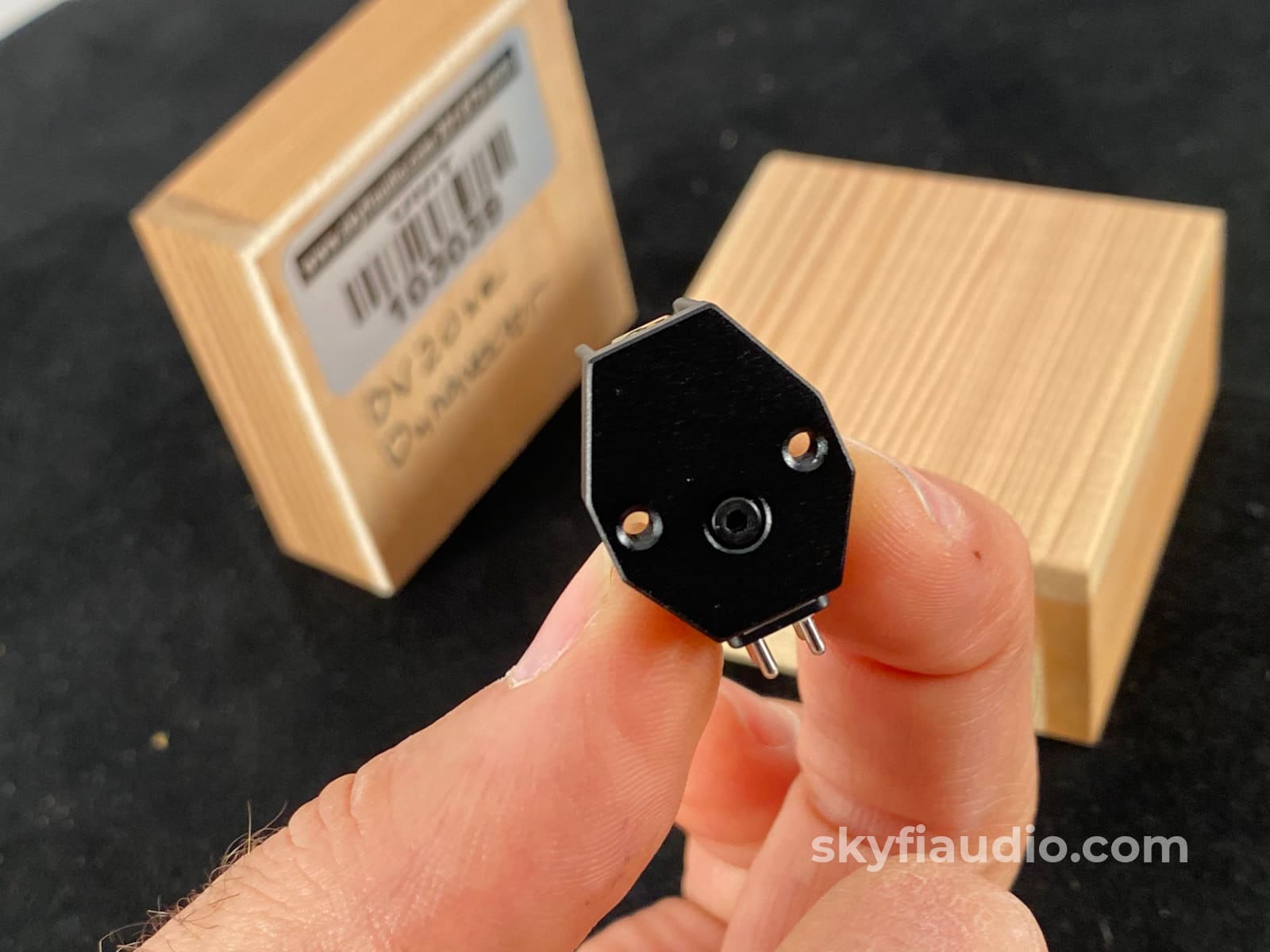

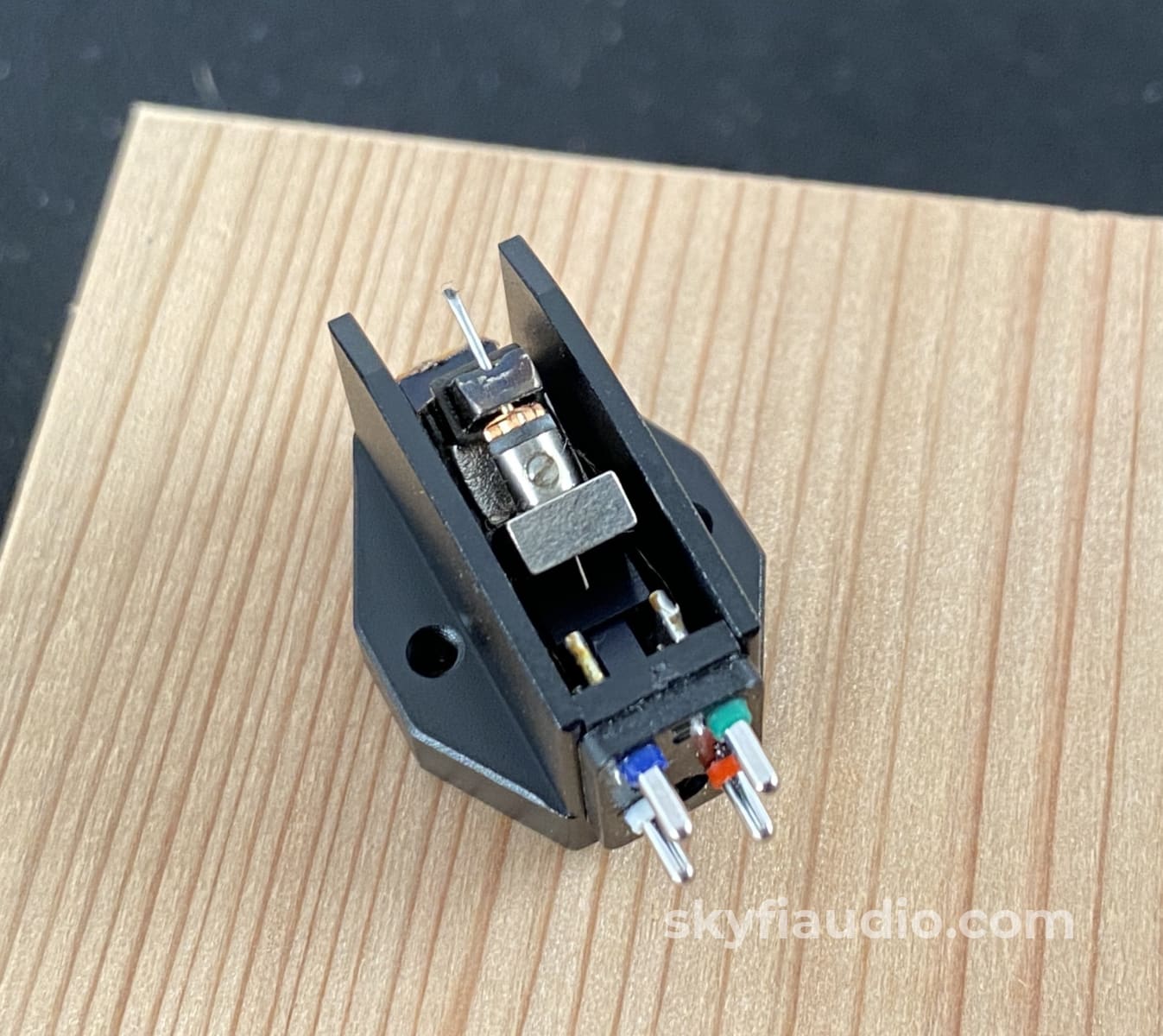

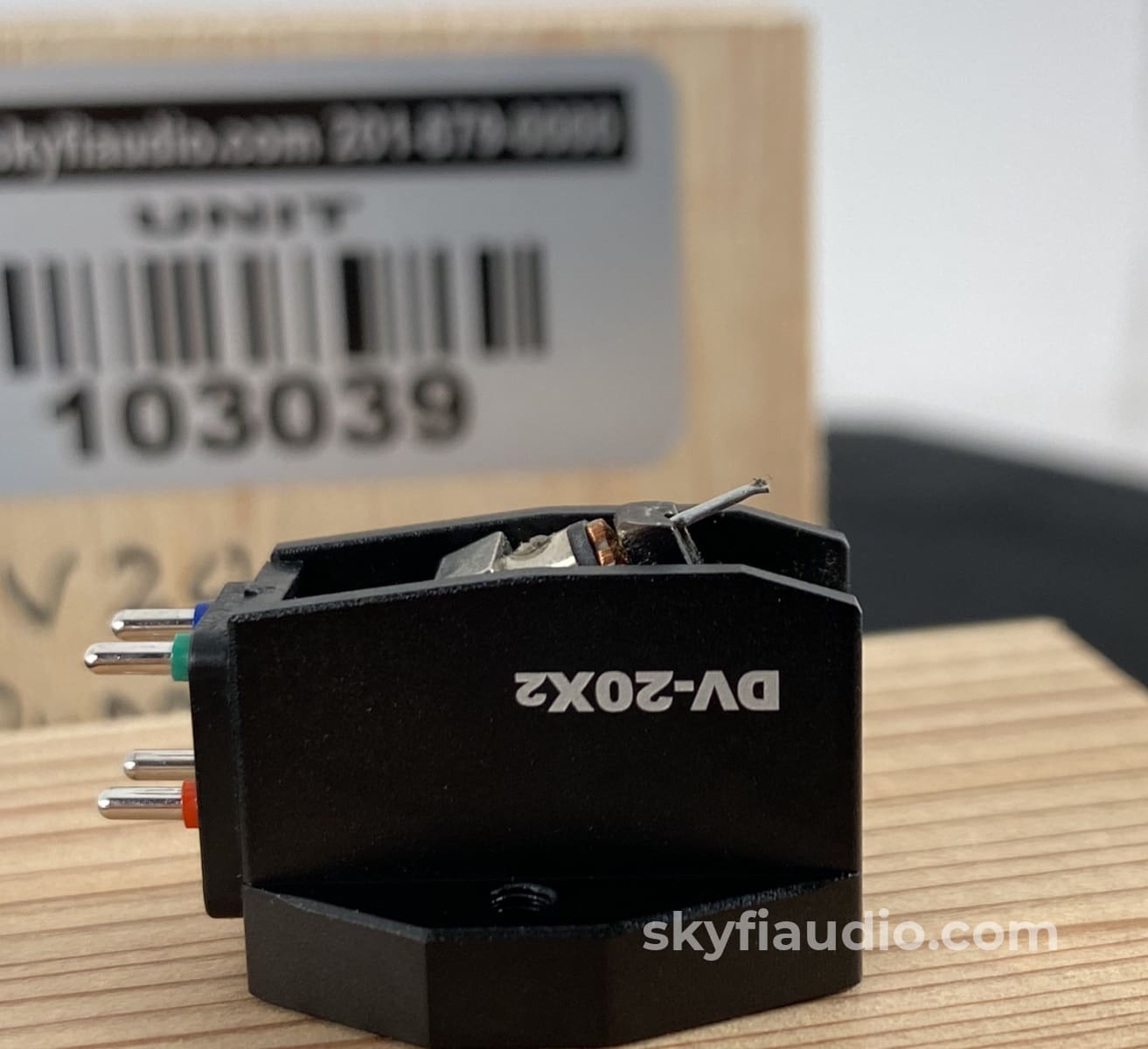

Dynavector DV-20x2 - MC (Moving-Coil) Cartridge - Lightly Used and Fully Tested

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

This Phono Cartridge is in good condition, with little use or wear. Tested in our shop on our bench with a test 'table, and working as it should.

Please note this is a High Output Moving Coil cartridge. If you're not sure what this means of if it will work with your setup, just give us a ring and we'll help confirm.

$1150 MSRP

More from Dynavector:

For more than 35 years Dynavector have established an enviable reputation for producing affordable high quality moving coil cartridges. Notably high output models that are designed to work with MM inputs negating the necessity for equipment change or the use of setup devices required for low output cartridges. The outstanding performance of the Dynavector high output moving coil cartridges can be attributed to the exclusively Dynavector designed coil winding machine capable of utilizing extremely fine coil wire providing a high output to mass ratio.

Features and Improvements
DV-20X has a solid aluminum alloy body and a rigid magnet construction similar to XX-2MKII. The cantilever is a 6mm length of hard aluminum pipe with a Micro-Ridge stylus. The magnetic flux damping and softened magnetism along with powerful neodymium magnets gives the 20X2H a healthy 2.8 mV output - suitable for most MM inputs. The 20X2L has an output of 0.3 mV ideal for most MC phono stages.

Both high and low versions of their 20X2 are available ensure for the optimum end result. The high output model is well suited to valve preamplifiers or electronics that only offer MM inputs whilst the low output version offers superb performance when combined with dedicated moving coil inputs.

Specifications
Type
High output moving coil cartridge with flux damper and softened magnetism

Output Voltage
2.8mV / 0.3mV (at 1KHz, 5cm/sec.)

Channel Separation
25 dB (at 1KHz)

Channel balance
1.0 dB (at 1KHz)

Frequency response
20 - 20,000Hz (± 1dB)

Compliance
12 mm/N

Tracking force
1.8 - 2.2 g

Impedance
150 ohms / 5 ohms

Recommended load impedance
> 1,000 ohms / > 30 ohms

Cantilever
6mm length, hard aluminium pipe

Stylus tip
Micro Ridge Nude diamond

Weight
9.2 g
