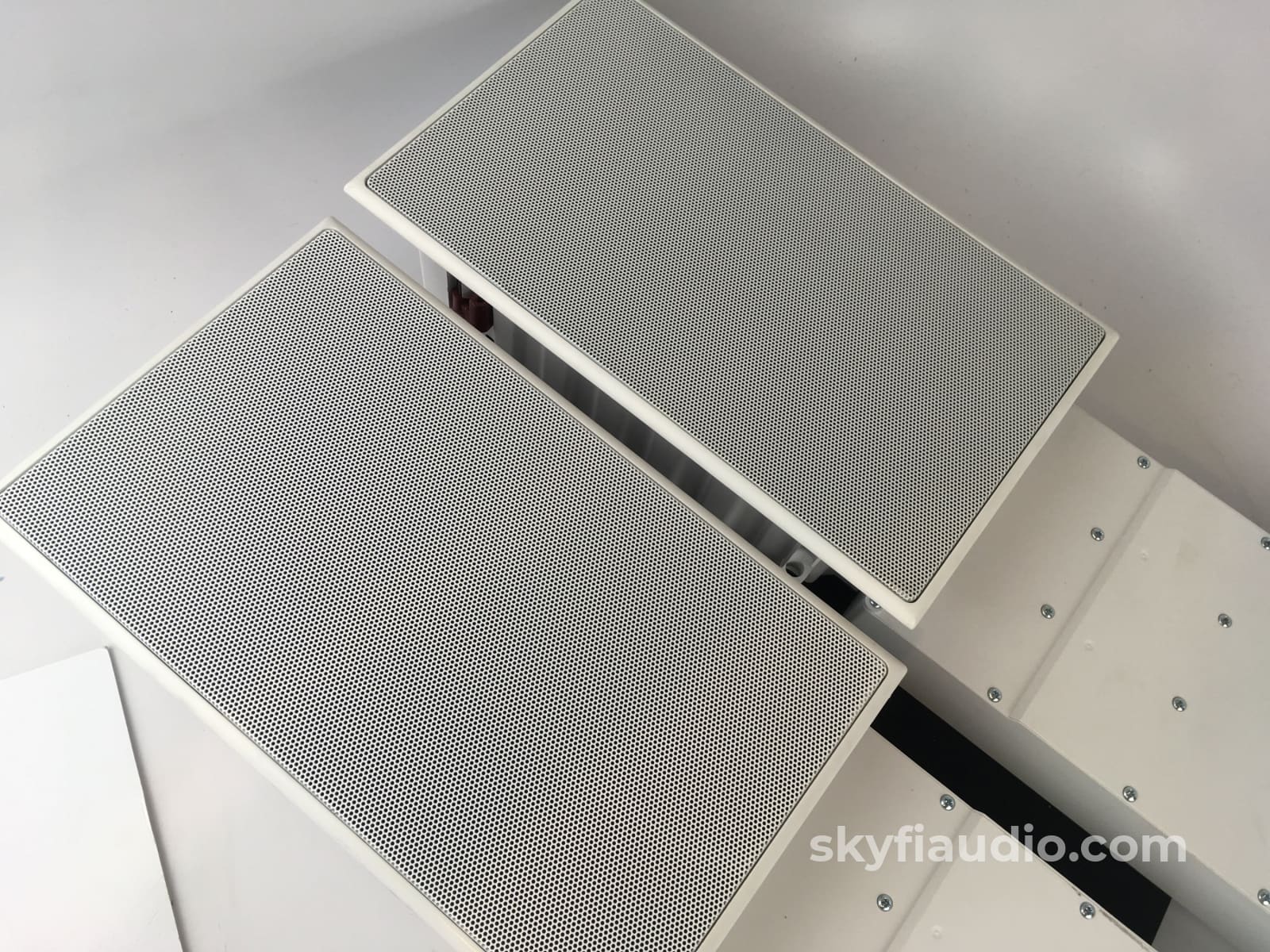

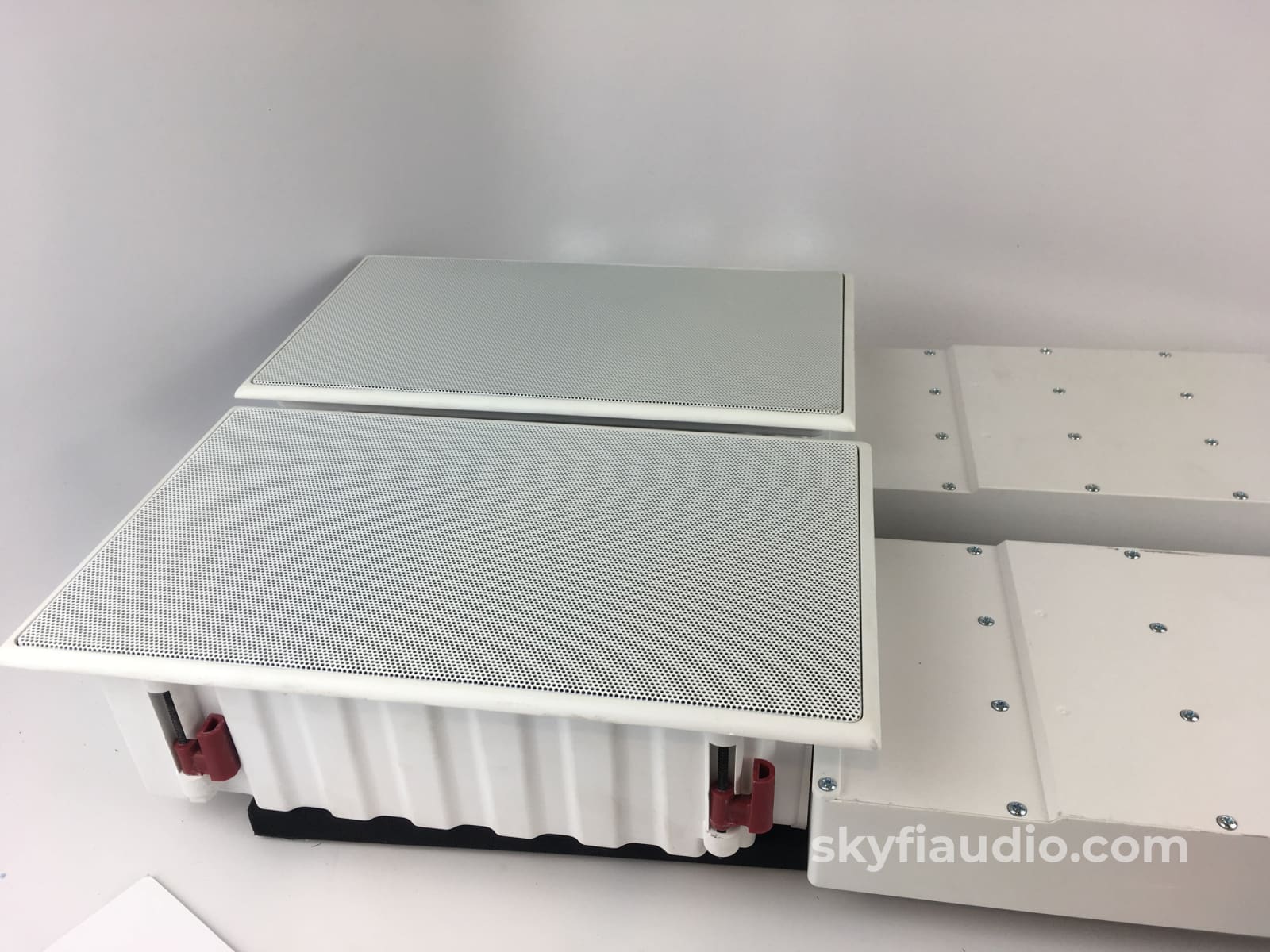

B&W (Bowers & Wilkins) CWM7.5 In-Wall Speakers - Kevlar Drivers With Bass Cavity


BowVery capable in-wall speakers from legendary speaker maker Bowers & Wilkins.

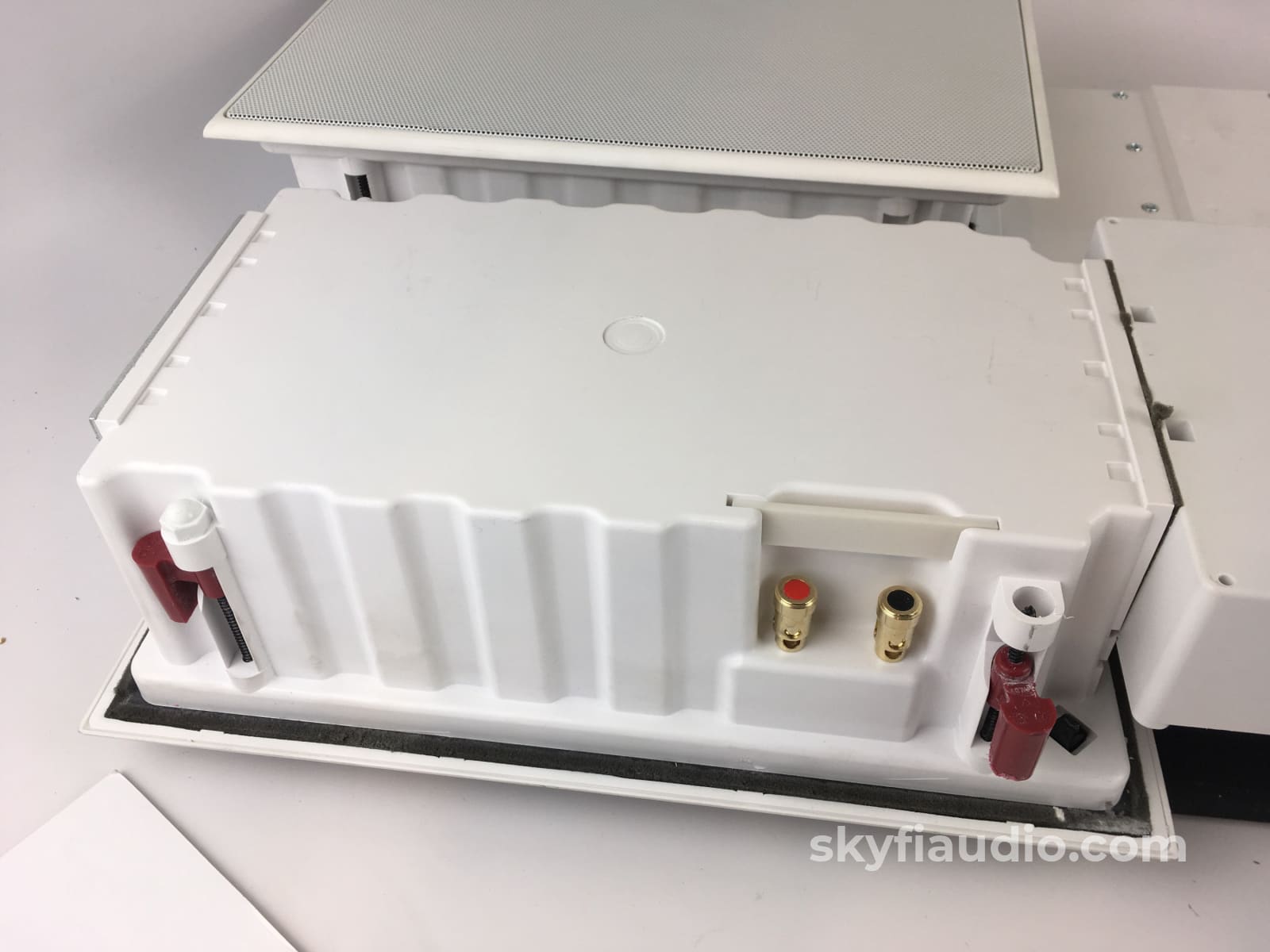

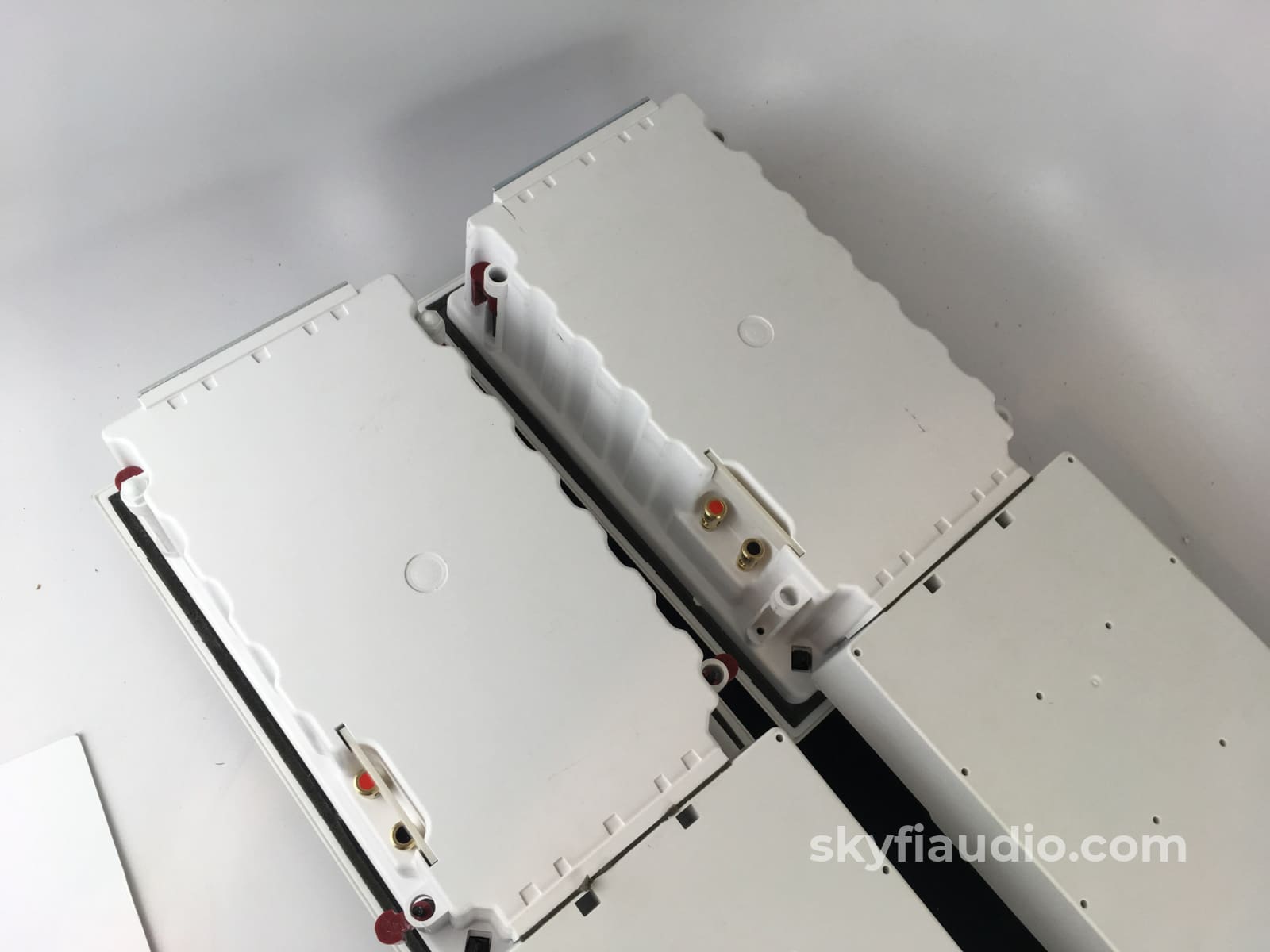

They are unique as they feature an additional bass cavity that slips behind the wall surface to provide more bass.

These were part of a demo system that had only a few hours of use.

In great condition with no dents or scratches.  Perfect working condition.

Click here for a PDF copy of the B&W CWM7.5 Owner's Manual

Click here for a PDF copy of the B&W CWM7.5 Spec Sheet

Click here for a PDF copy of the B&W CWM7.5 Exact Cut-Out and Dimensional Drawing

More from Bowers and Wilkins:

"The entry-point in our CI700 in-wall speaker range, the CWM7.5 is the smallest of the three speakers but comes packed with superb, reference-quality features such as a 130mm (5in) bass/midrange driver set in a rigid die-cast chassis, a Nautilus™ tube-loaded 25mm (1in) soft dome tweeter and reinforced ABS baffle.

Other high quality features include Mundorf crossover components and our Flowport™ venting system for a cleaner, more responsive bass."

Description: 2-way in-wall system

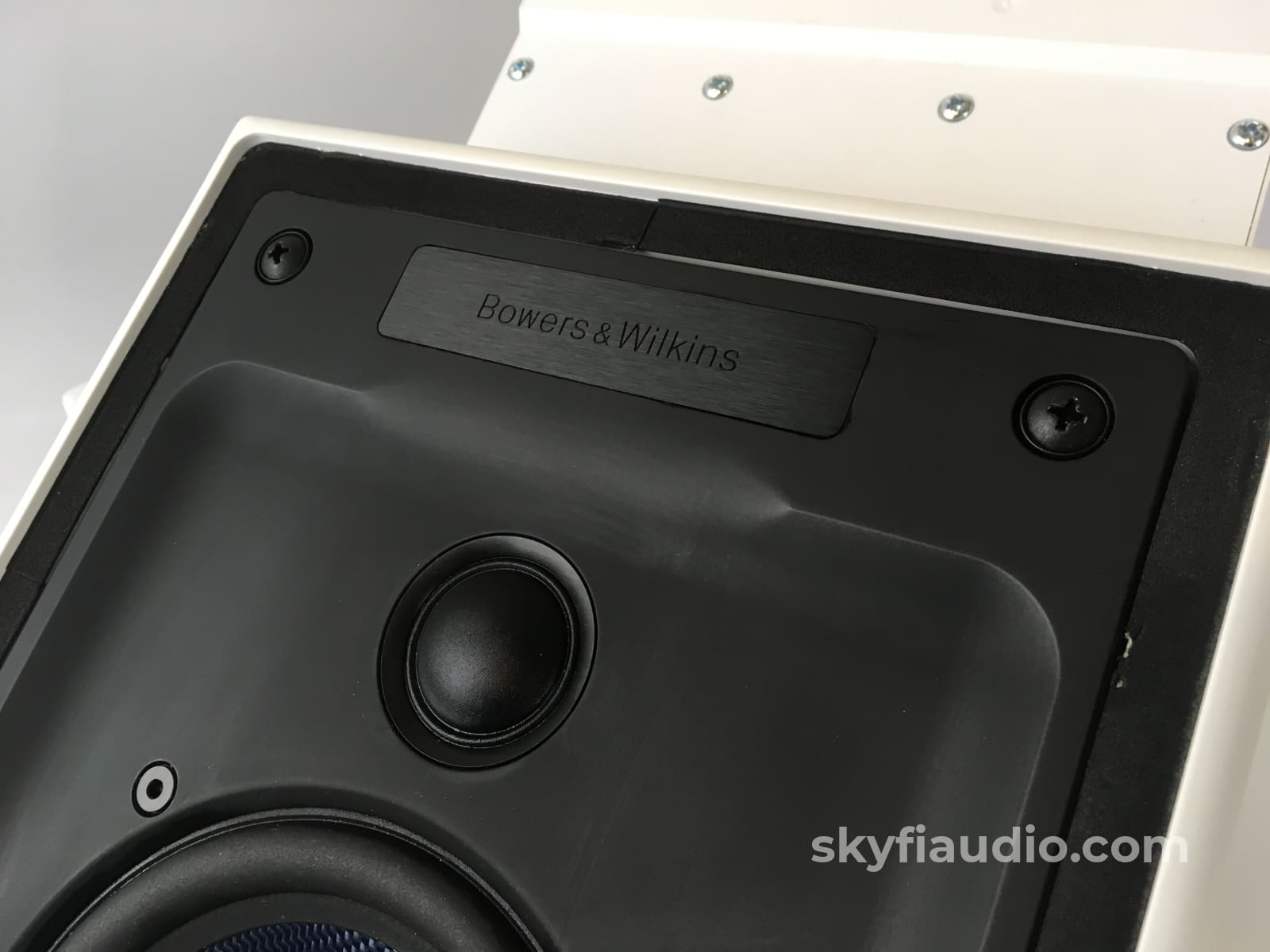

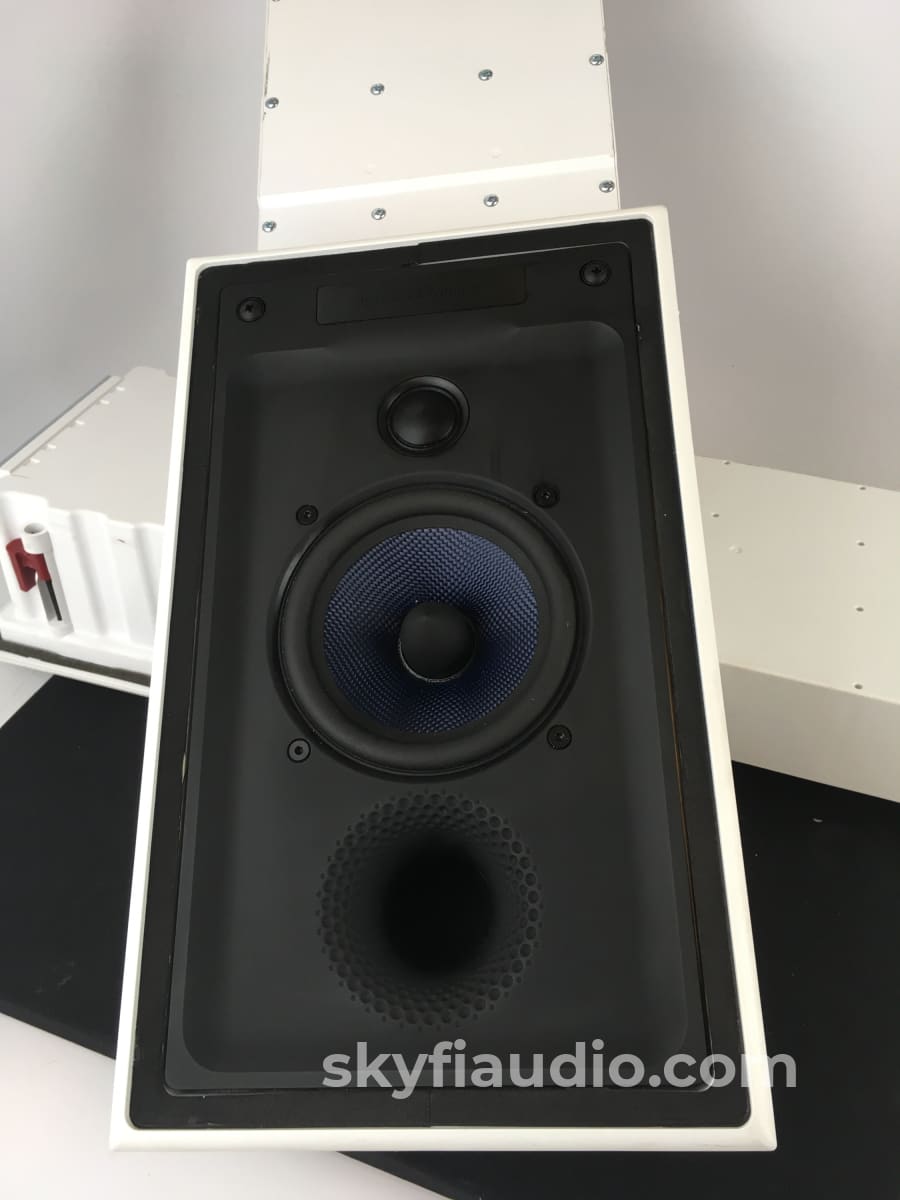

Drive units: 1x ø25mm (1 in) Nautilus™ tube loaded soft dome tweeter, 1x ø130mm (5 in) blue Kevlar® cone bass/midrange

Frequency Range: (-6dB) 49Hz – 28kHz

Recommended Amp Power: 25 – 150w

Sensitivity SPL: (2.83V, 1m)86dB

Impedance Nominal: (min)6Ω (5Ω)

Frame height: 356mm (14 in)

Frame width: 212mm (8.5 in)

Cut-out height

331mm (13 in)

Cut-out width

187mm (7.4 in)

Reservoir box height

181mm (7.1 in)

Reservoir box width

385mm (15.2 in)

Reservoir box depth

60mm (2.4 in)

Depth behind surface

102mm (4 in)


6.5mm (0.25 in)




Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.



Original Box








Physical Condition


Working Condition
