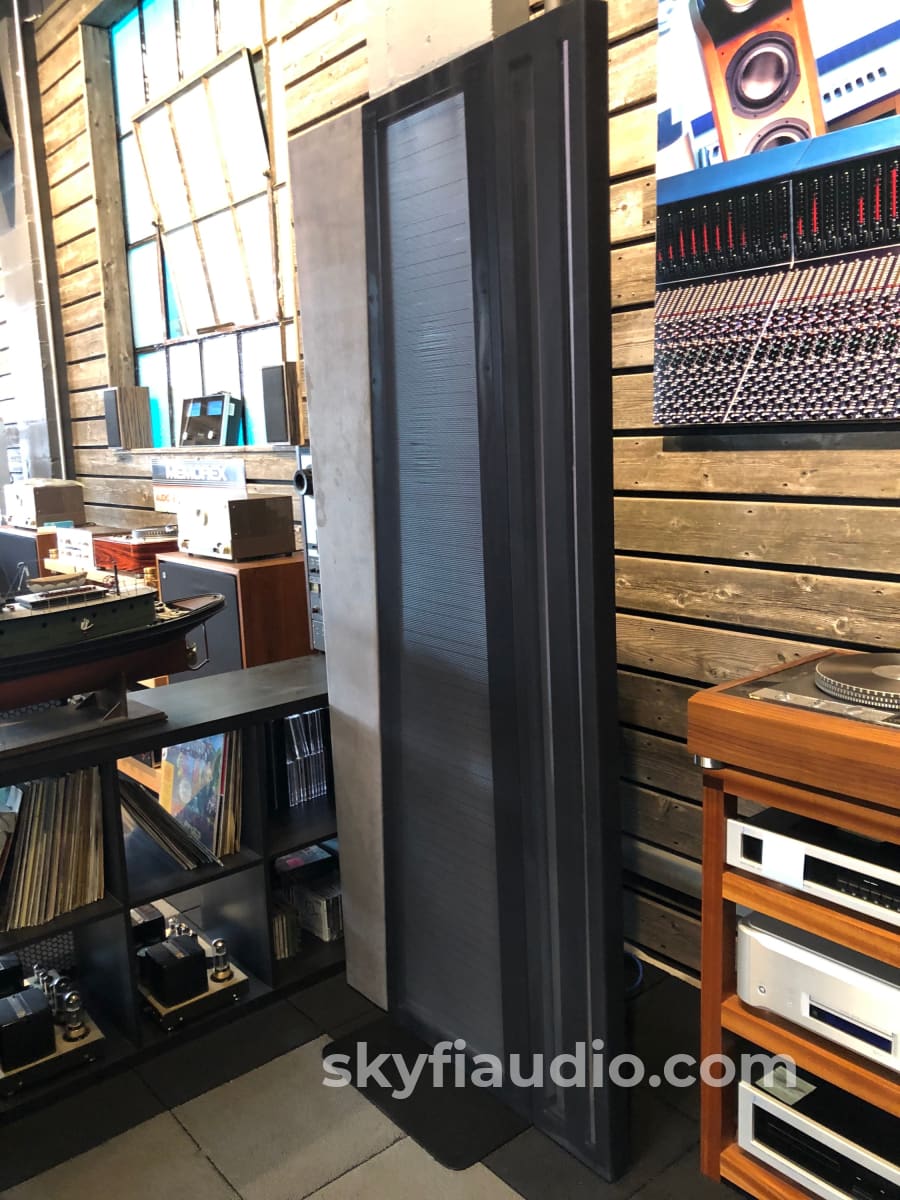

Apogee Acoustics "Full Range" aka "The Apogee" Speakers - Spectacular
Please contact us directly if you're interested in purchasing these unique and rare speakers via email@example.com or 201-879-0000
Restored 10 years ago by "True Sound Works Audio" in Nevada, where they received new bass/mid/tweeters.
Tons of upgrades are available for these speakers if you want to take it even further(!). We could arrange to have them shipped to True Sound Works prior to delivery at your home .
Possible upgrades include:
• Removal of wings
• Larger solid steel base
• Rear Metal Frames
• New bass panels
The speakers work 100% perfectly. The bass is super tight and responsive and the mids/highs are silky smooth.
We've never heard a better speaker in our shop, which is a very large and difficult room to cover.
These are legendary speakers meant for the absolute top of the audiophile community.
They are complicated to setup requiring four powerful channels of amplification, plus a sizable time investment to tune the crossovers and find the perfect listening position. However - the results are incredibly rewarding.
This listing includes the speakers and the pictured crossover and the breakout boxes containing the transformers.
Cosmetic condition is very good. The fabric looks brand new and the tweeters and mid ranges are perfect. Bass panels have a few wrinkles or creases from transport but they sound perfect. This in no way affects the sound,
We also have special shipping crates that were professionally constructed to ensure safe travels. Freight anywhere within the lower 48 US states is a flat $1500. We ship worldwide so please contact us if you're outside of this area.
Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.
Kimber Kable - RCA Interconnects
Kimber Kable - XLR Interconnects
Kimber Kable - Flagship Tonearm Interconnects
Kimber Kable - Bi-Wire Speaker Cables
|1981||Apogee Acoustics Incorporated founded by Jason Bloom and Leo Spiegel|
|1982||The Full Range also known as "The Apogee" is the first full ribbon speaker released|
More via hifi-advice.com:
The Full Range speakers were available with 2 way passive or 2-3 way active crossovers. The speakers are divided into two separate sections: the mid/tweeter section is detachable from the bass.
Apogee Acoustics has resolved fundamental problems inherent to ribbon acoustical transducer design. For the first time clarity, speed and power are provided over the entire music spectrum with a full range ribbon speaker system.
The combined tweeter, midrange and woofer ribbon coupled with APOGEE’s own seamless crossover provide:
• Vanishing low distortion virtually flat frequency response no spurious coloration over entire music spectrum
• Rise time consistent with the fastest amplifiers
• Dynamic impact of 115 db SPL @ 4 meters on axis
A virtually resonant free structural steel framework. A trapezoidal thousand square inch woofer panel designed to provide a broad non-resonant frequency response. Half inch wide tweeter ribbon and two inch wide mid-range ribbon are both eighty inches long utilizing patent filed magnetic and electromagnetic constraints that hold the ribbon within its magnetic field. This technique affords a combination of unprecedented power and clarity along with transient response and imaging. Extremely low ribbon mass permits almost instantaneous acceleration for unexcelled transient response. The FULL RANGE RIBBON SPEAKER SYSTEM is now available in a handsome architectural design.
APOGEE ACOUSTICS takes great pride in announcing a revolutionary development in loudspeaker design; the first full range ribbon speaker system. Previous sound system’s have employed ribbon-technology to provide outstanding performance in the high frequency, tweeter range. Now, with the addition of APOGEE’S midrange and woofer ribbon drivers, the excellence of the ribbon is made available from deep bass, through midrange and beyond the upper frequency limits of the acoustical range. The integration of the tweeter, midrange and woofer ribbons combined with seamless crossovers provides an outstanding clarity, resolution, spectral dispersion, depth, and dynamic range. Further, the tweeter operation as a line source reproduces the uncanny ambience of live music into your listening room.
The full range ribbon system reproduces classical music at Concert Hall sound levels but also has the dynamic range for ear splitting hard rock. The APOGEE ribbons play at a massive 115db acoustical power level at a 4 meter listening position in a 14×27 foot room using 100 watt per channel amplifiers in bi-amp configuration.
The system’s three drivers are mounted in an architectural structure that readily fits into most living room environments The speakers are sculptural in their appearance with dimensions of 80 inches in height, 35 inches width, and a depth of under 4 inches. The geometry of the three ribbons has been scaled to provide a combination of good power handling capacity, dispersion and a balanced tonal quality over the bass, midrange and upper frequencies. The woofer averages 12 inches in width covering a frequency band of below 25-400Hz, the midrange ribbon is two inches in width and covers the band from 400-3,500Hz while the tweeter covers the 3,500 to well over the 30,000Hz region.
The clarity, resolution, and wide dispersion of the midrange and tweeter are provided by the use of a ribbon element, free over its entire length except for the top and bottom mechanical support. This is the theoretically perfect-approach to sound reproduction; a limp conductor placed in a magnetic field. A force is generated uniformly across the area of the ribbon when the amplifier drives current through the ribbon. Hence, sound is reproduced without the normal structural coloration’s of speakers that do not have a pure force over area mechanization.
The midrange dipole driver consists of a two inch wide ribbon. The line source tweeter driver consists of a pair of one half inch ribbons radiating in phase acoustical power in both the forward and rear cylinders. The lime source acoustical power radiation provides impressive imaging, depth, sound stage, and live music ambience. The horizontal dispersion is essentially 360 degrees. Vertical dispersion is not an issue due to the tall line source geometry.
$7000 ($20,000 in 2019 dollars)
80.5" - 6.7 Feet (204.5 cm)
35" - 2.9 Feet (88.9 cm)
1-4 ohms when used with transformer interface, midrange direct drive = 0.14 ohm!
2 inch wide aluminium foil
½ inch wide twin back to back aluminium foil
Max Sound Level
115 dB using 4 x 100W amps
25Hz – 25kHz
400Hz and 3500Hz
Black/Brown, Grey, Taupe
300lbs each (mid/tweeter and bass assembly bolted together)
No - but even better we have custom made crates built by the pros.
7 / 10
10 / 10
