Technics Direct Drive Turntable System SL-1000R - DREAM BUILD

CALL TO ORDER

Complete turntable system built around the flagship SL-1000R.  We utilized our vast experience in this model to curate a package of outstanding performance and functionality.  By choosing  only the best accessories available we took the already mighty SL1000R to the next level, saving you tons of research and possible missteps.

Unit will arrived perfectly calibrated and ready to rock your world.  The average person should able to crack the box and be spinning records in 30 min.

This turntable can be shipped and used all over the world since it has a universal supply.  It even includes an assortment of power cords to cover just about every outlet type.

The SL-1000R is built to order by hand with a standard 6 month lead time.  However we have a steady stream units arriving monthly so contact us to find out the next available allocation.

Note the stock turntable ships without a head shell, cartridge or audio cable but this is a compete package.  Call to discuss or to tweak this package to your liking.

Included in this package:

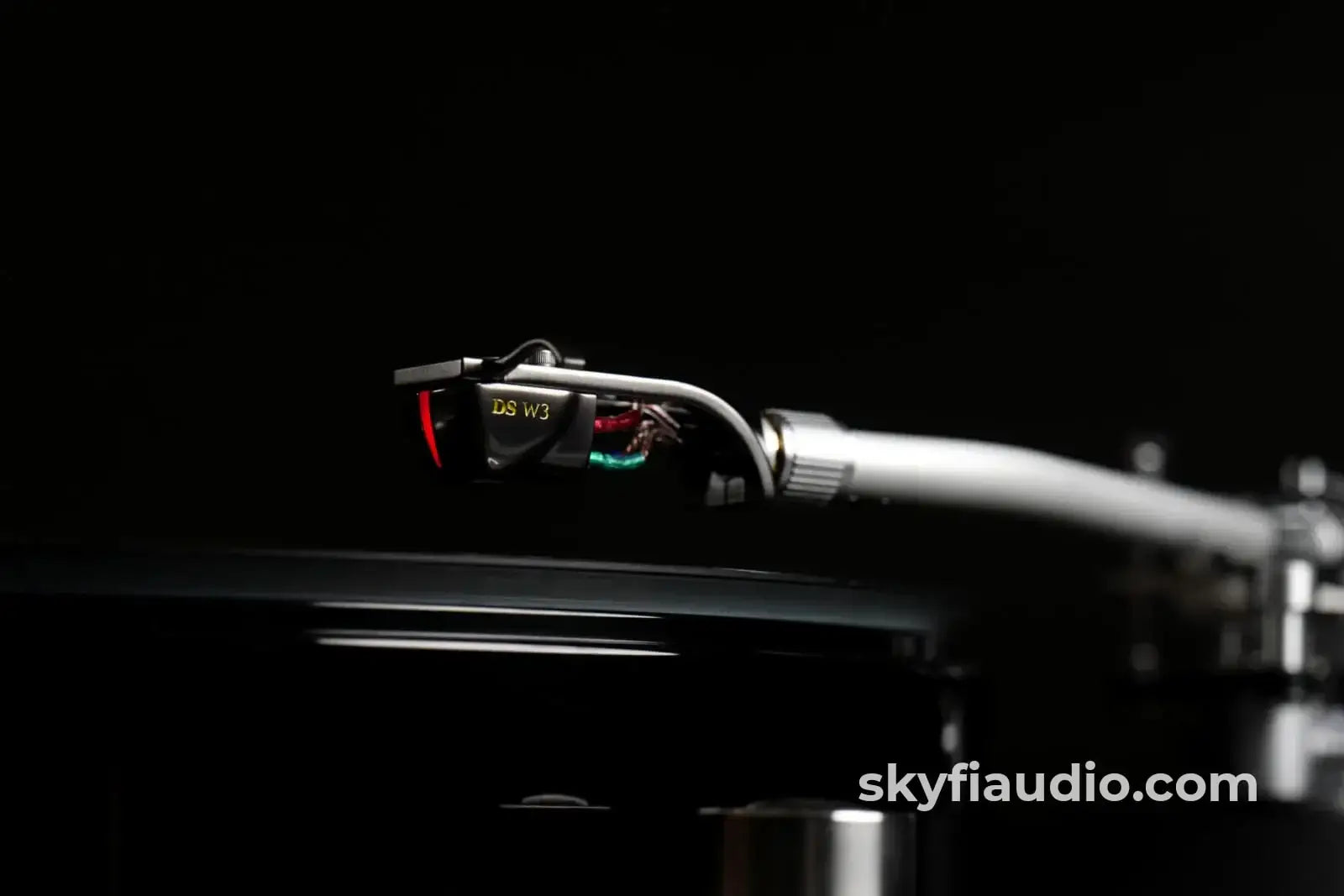

• DS Audio DS-W3 Optical Cartridge System $15,000
• DS Audio HS-001 Head Shell $450

• Kimber Kable TAK-AG DIN to RCA Audio Cable with WBT Connectors 1m $1,450

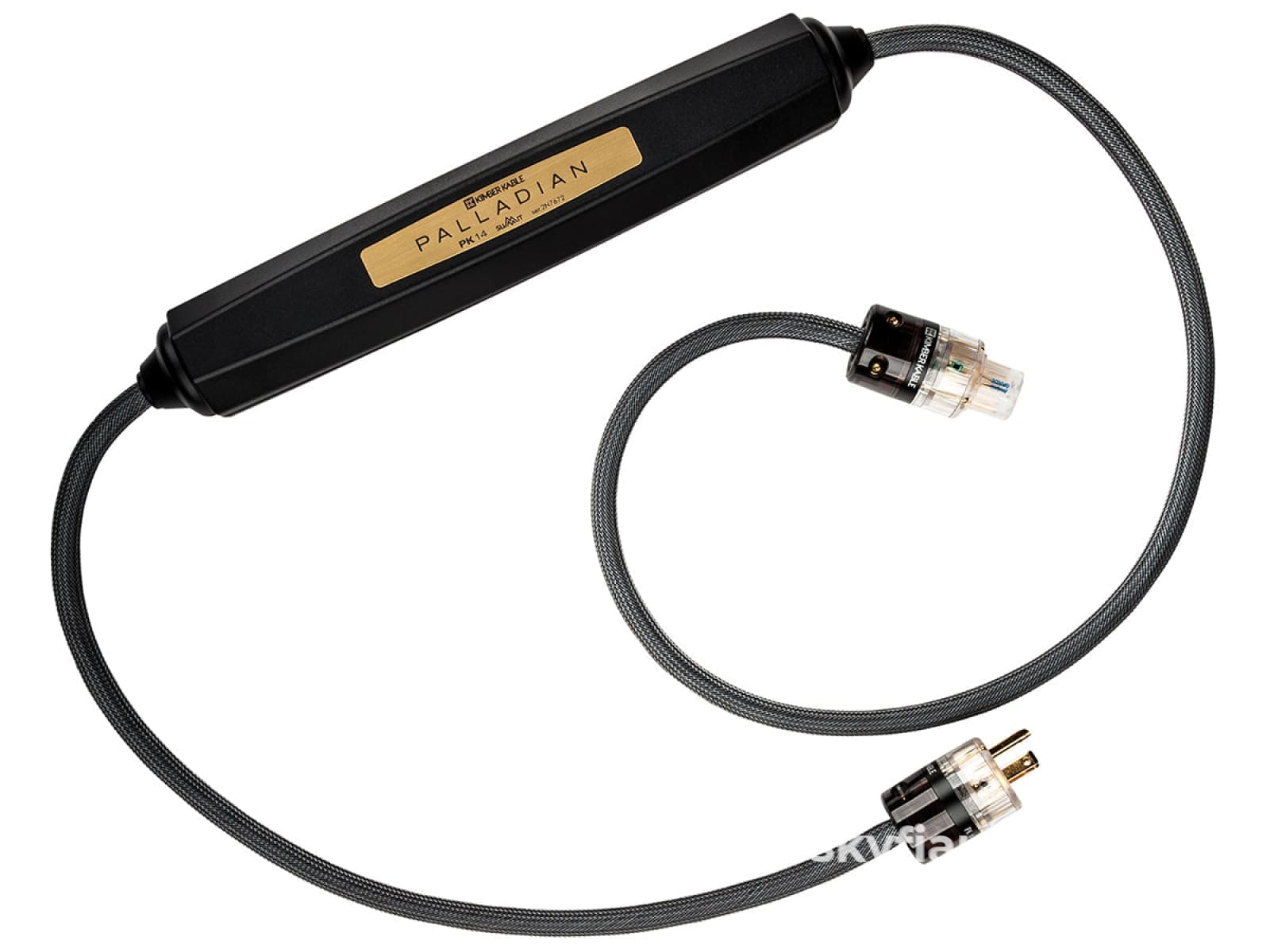

• Kimber Kable Summit Palladium PK14 Power Cord 1.5m $1,690

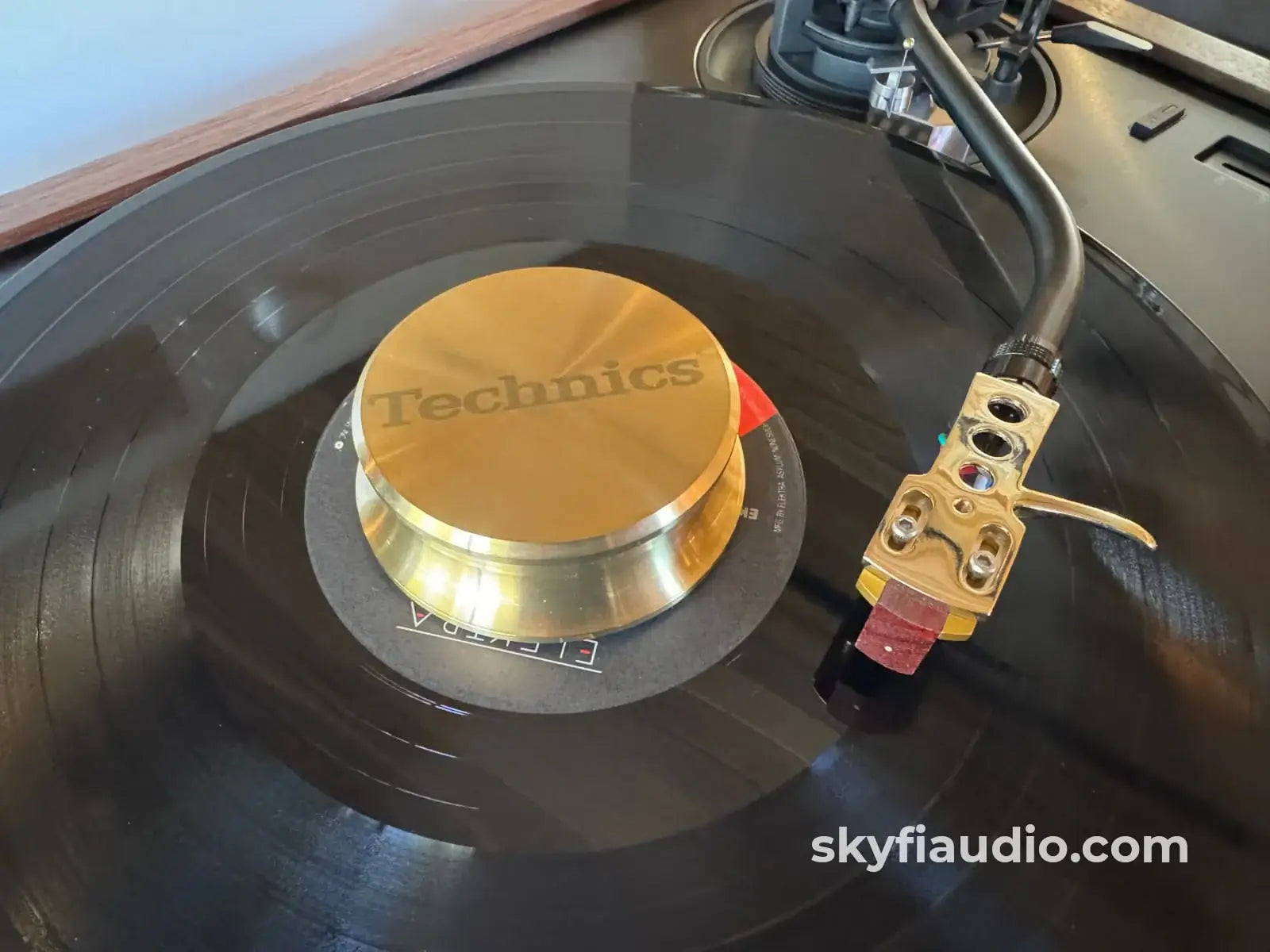

• SkyFi Brass Record Weight for Technics $299
• SkyFi 12 Step Calibration Process $390

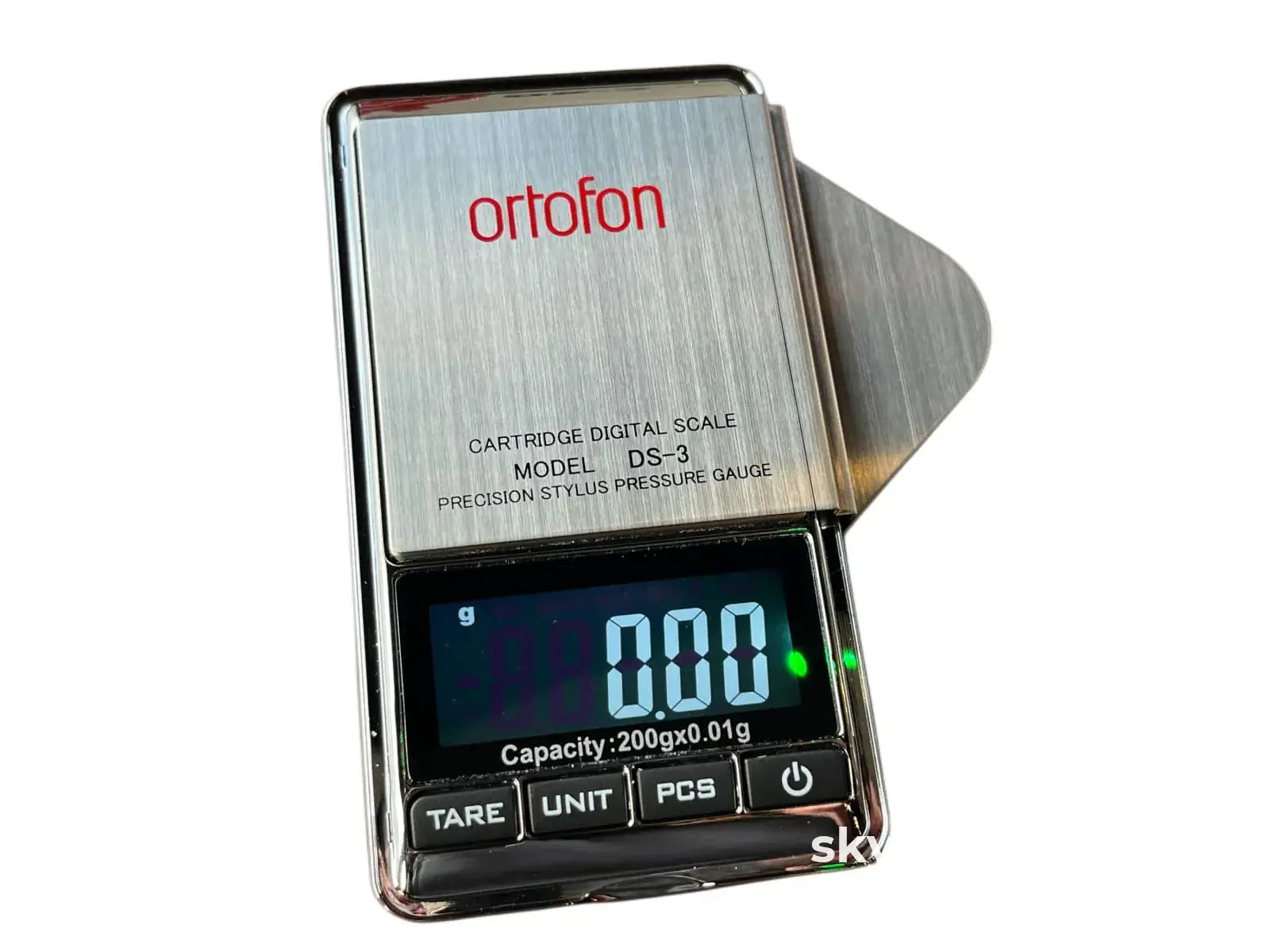

• Digital Scale and Stylus Cleaner $50
• Freight Shipping Within the USA

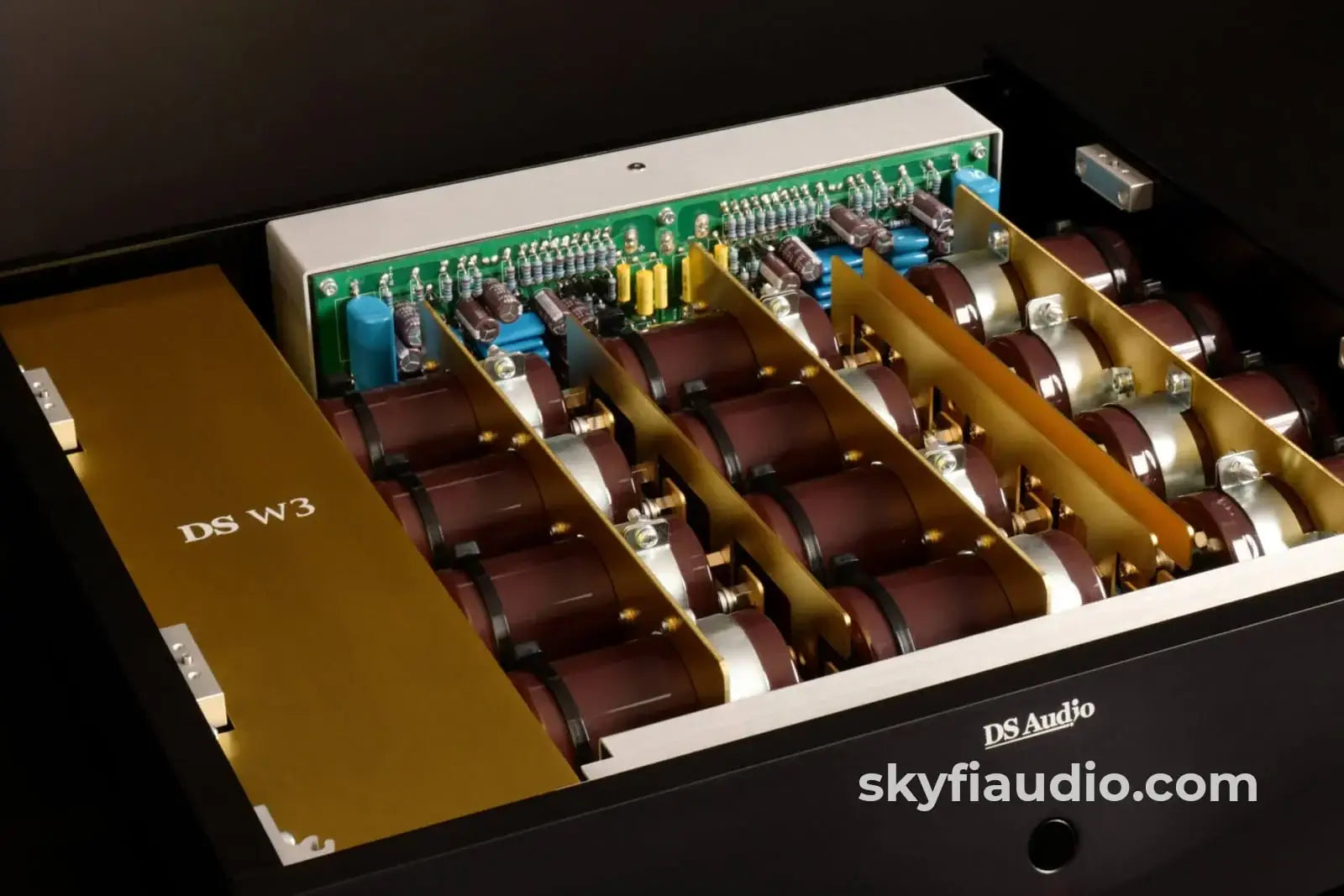

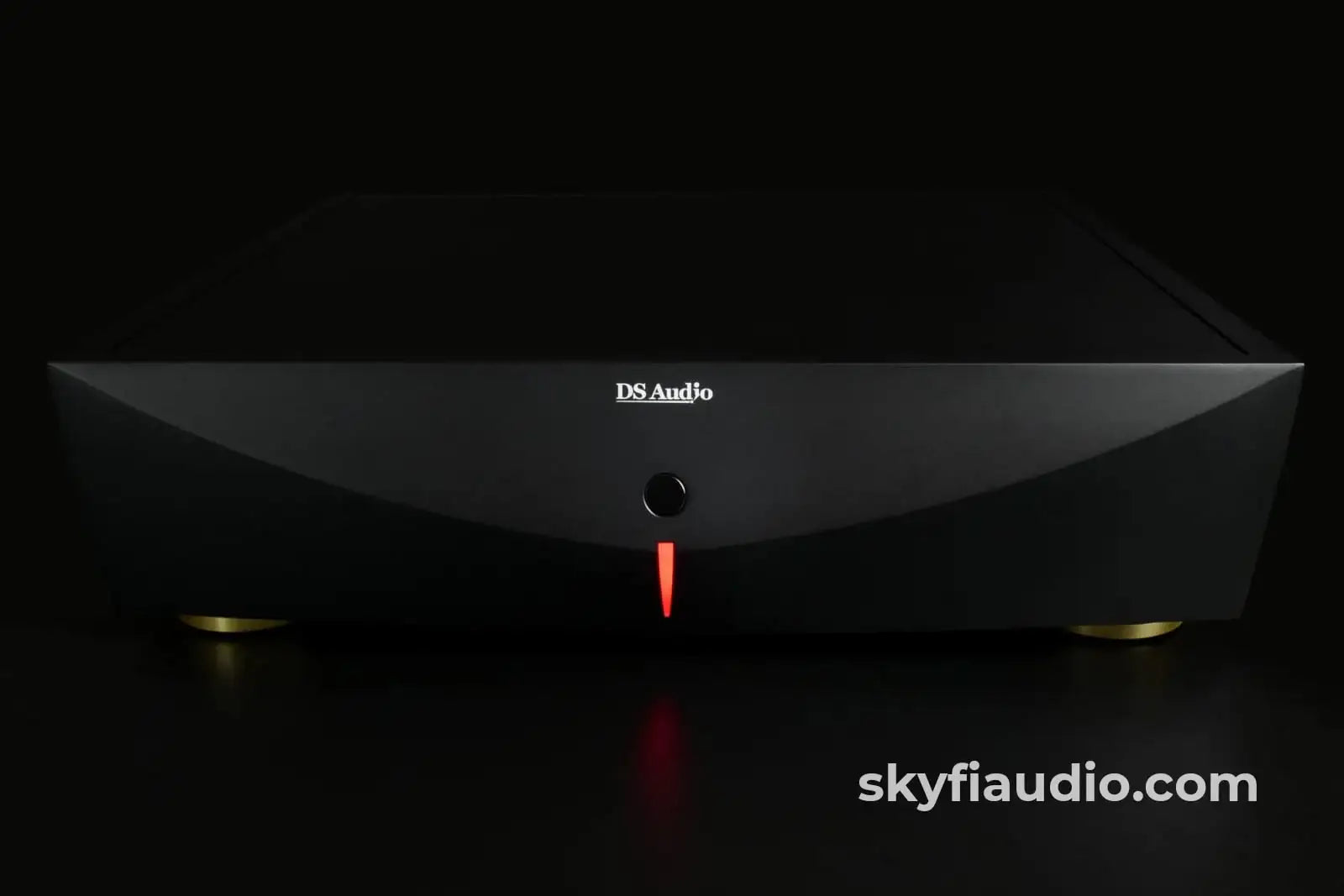

We chose what we feel is the best cartridge from DS Audio which is a complete system including the "phono preamp" or more accurately a phonostage.  Thats right you won't need a separate phono preamp as you will connect directly to a line level input.

Learn more about this revolutionary optical technology here:

Here are some videos if you are not familiar with this model.  While they do not feature this package it is a good starting point.

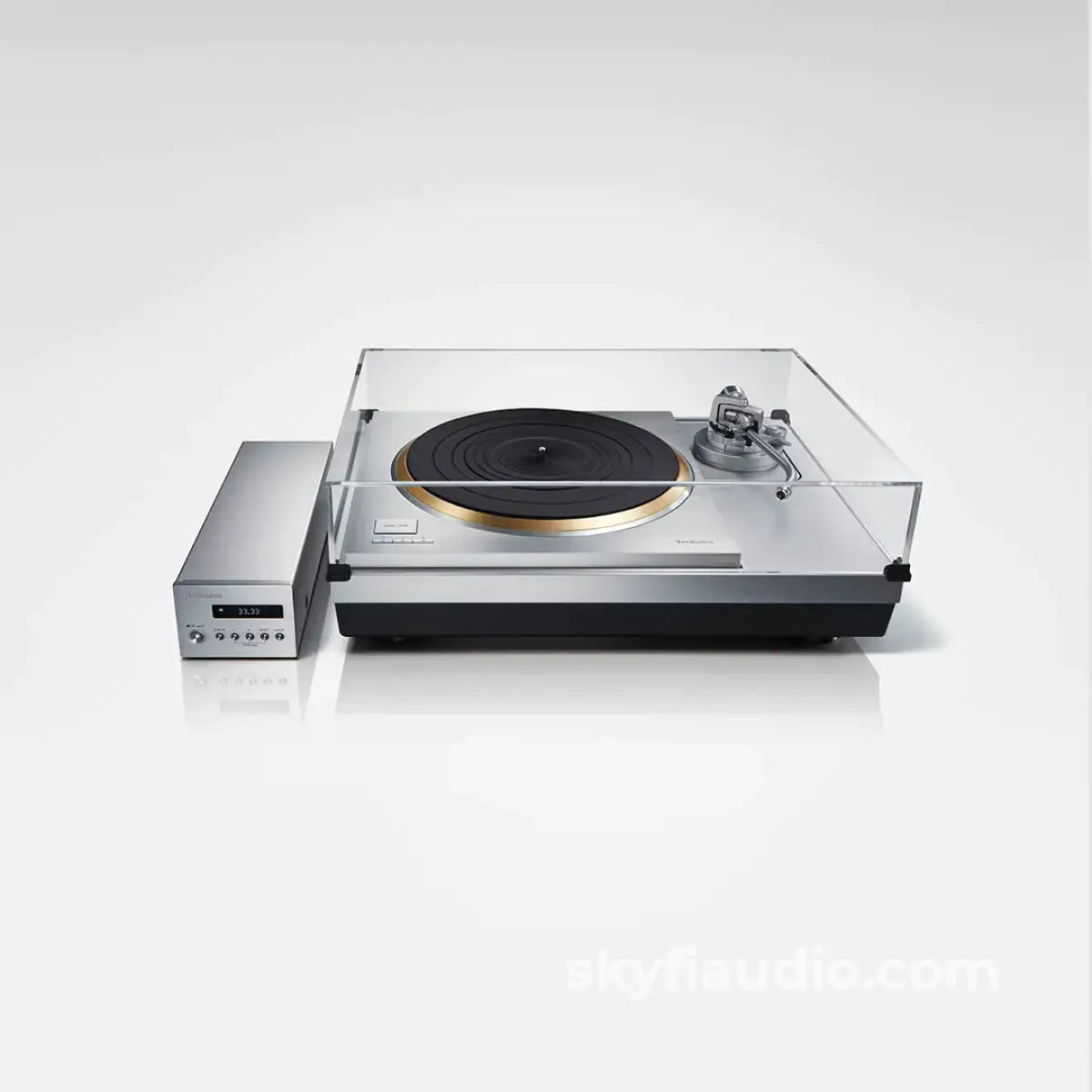

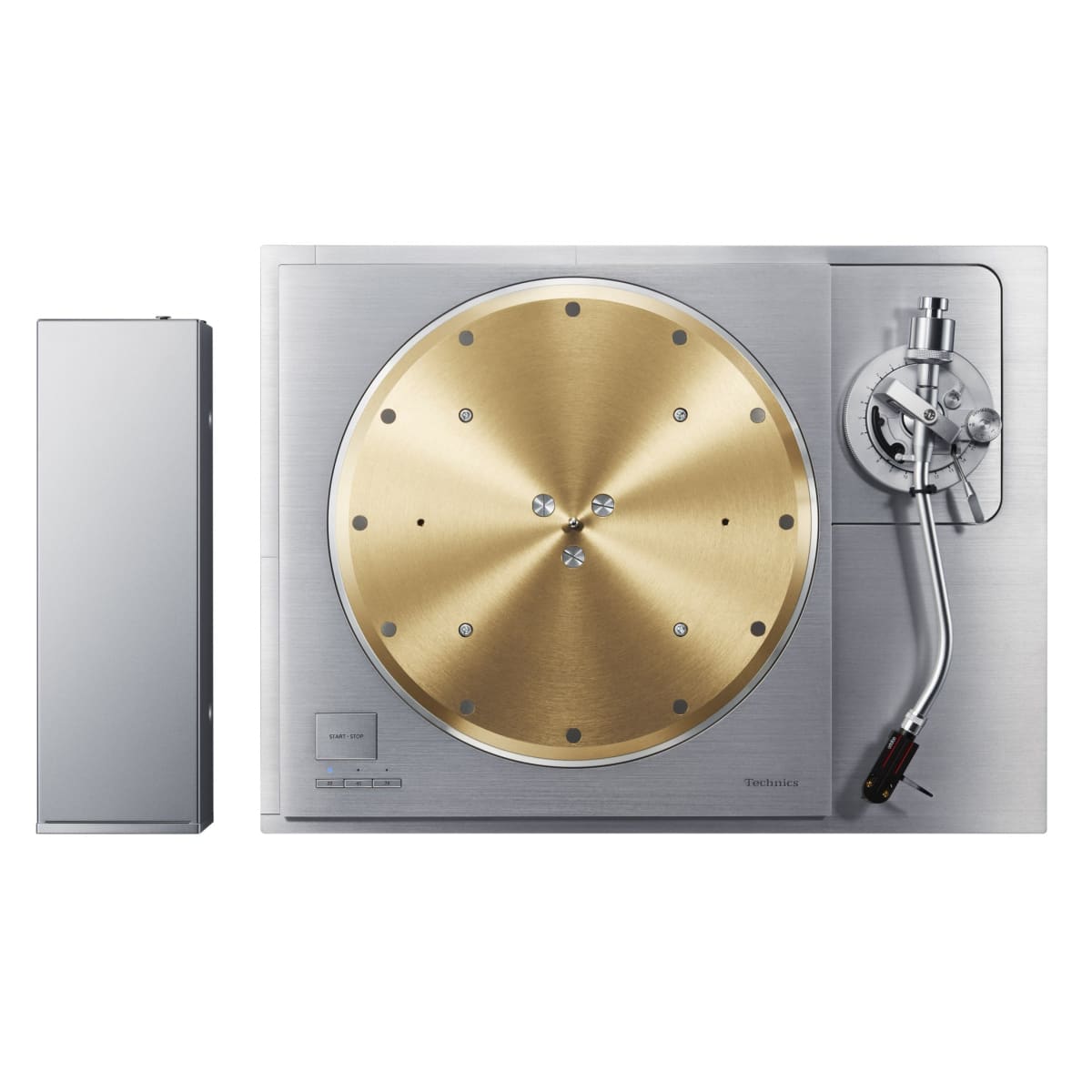

Exquisite, reference-class direct drive turntable system, the SL-1000RE-S uses the SP-10RE-S motor unit with a coreless direct drive motor that was developed for the SL-1200G and further improved to provide both high rigidity and reliability.  The high-sensitivity tonearm achieves high initial-motion sensitivity to precisely trace the grooves cut into the records, producing highly vivid sounds.

• Double coil twin rotor-type coreless direct drive motor with heavyweight-class platter
• Constructed to prevent unwanted vibration, helping to achieve overwhelming rotary precision
• The turntable platter positions tungsten weights for high rigidity and excellent vibration damping
• The control unit is separated from the main unit to suppress the effects of unwanted noise
• Supports not only LP (33 1/3 rpm) and EP (45 rpm) analog records, but also SP (78 rpm)

 Coreless Direct Drive Motor

The motor that forms the heart of the direct drive turntable is based on the coreless direct drive motor that was developed for the SL-1200G launched in 2016, and further improved. The double coil twin rotor-type coreless direct drive motor that was newly developed for this purpose had coils on both sides for 12-pole, 18-coil drive, with high enough torque to drive the heavyweight-class platter (approximately 7.9-kg). Offsetting the coils on both sides 60 degrees improved the rigidity of the substrate, suppressing fine vibrations and reducing self-inductance. These improvements achieved stable rotation of 0.015% wow and flutter or less, which is considered to be the measurement limit. Also, the thrust bearings supporting the heavyweight-class platter use a special engineering plastic to provide both high rigidity and reliability.

Suppressing Unwanted Motor Vibration

The motor that was developed for the SL-1200G served as the platform for the direct drive motor. The double coil, reinforced thrust bearings, and a chassis with increased rigidity achieved a stabilised motor with low centre of gravity. By positioning two stainless steel weights with high rigidity and high specific gravity at the bottom of the chassis, the rigidity and low centre of gravity are maintained. These thorough measures to prevent unwanted vibration help to achieve overwhelming rotary precision and improve S/N.

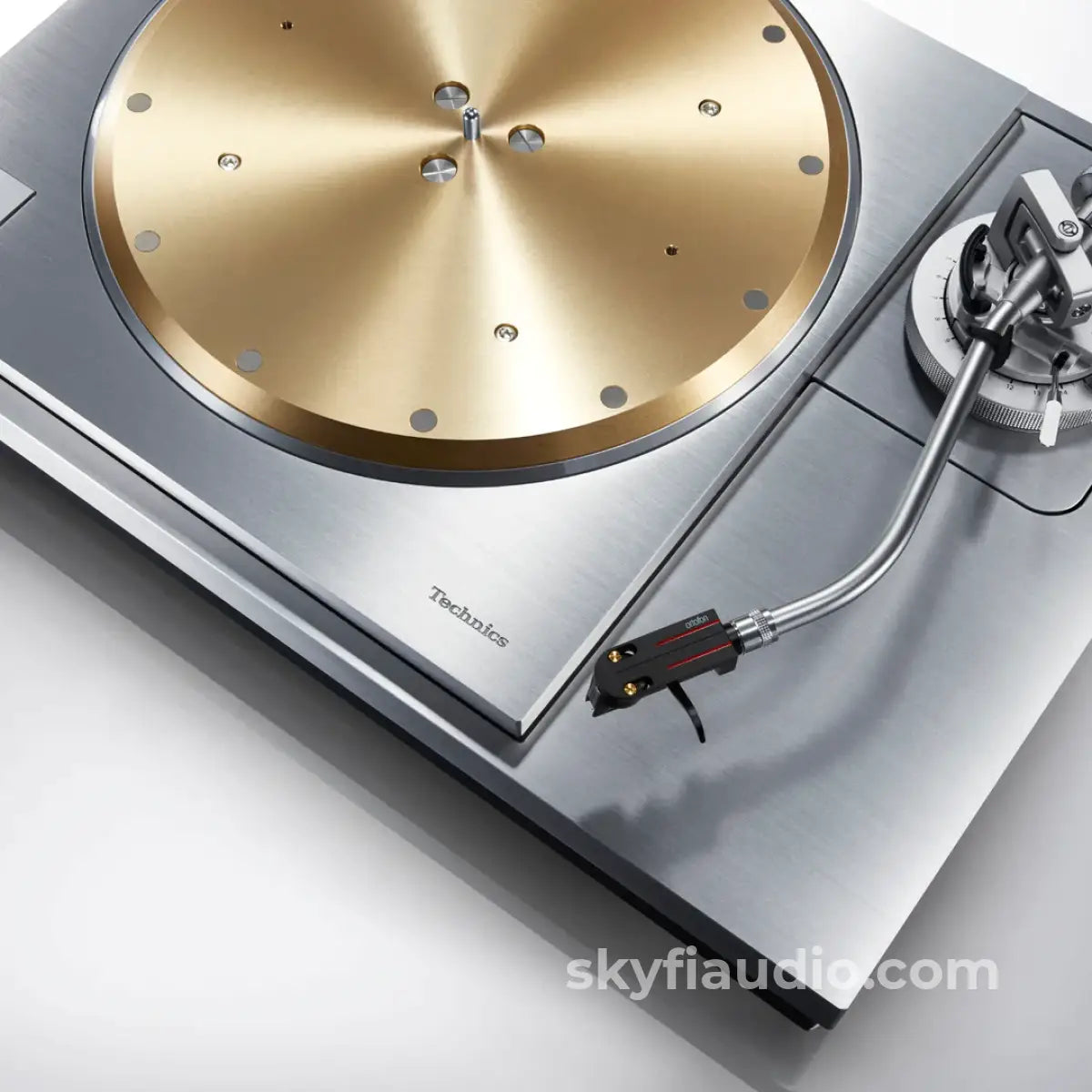

Heavyweight-class Turntable Platter

The turntable platter positions tungsten weights, which have an extremely high specific weight and are difficult to process, on the outer periphery of a 10-mm-thick brass weight. The brass weight is laminated onto the aluminium die-cast, giving the platter a total weight of approximately 7.9 kg and an inertial mass of approximately 1 ton･cm. A deadening rubber for eliminating unwanted vibration is also attached to the rear surface to form a 3-layer construction and achieve high rigidity and excellent vibration damping characteristics.

Separate Control Unit

The control unit is separated from the main unit to suppress the effects of unwanted noise on the main unit. In order to achieve a power supply circuit that provides good regulation for high torque, a switching power supply is used. To reduce the noise reaching the pickup, the switching power supply is equipped with a unique technology that provides a voltage supply with minimal noise by a newly developed "unwanted noise reduction circuit". Also, to minimise the noise even during communication, a highly reliable system that resists the effects of external noise is used for communication between the main unit and the control unit. These thorough noise-reduction measures achieve the world's highest-level S/N.

Minute Adjustment and Indication of Rotations

This turntable supports not only LP (33 1/3 rpm) and EP (45 rpm) analogue records, but also SP (78 rpm). Rotation (rpm) can also be set down to two decimal places (maximum ±16%) from the control unit. The OLED display is also capable of displaying rotation with accuracy down to two decimal places, so the user can both hear and see extremely precise rotation.

High-sensitivity Tonearm

To enable the tonearm to precisely track the record's rotation, Technics has traditionally used the static balance, S-type universal tonearm with a lightweight, high damping magnesium tonearm pipe. The gimbal suspension construction tonearm uses high-precision bearings. Highly skilled Japanese craftsmen handle all assembly and adjustment to achieve a high initial-motion sensitivity to precisely trace the grooves cut into the records. OFC is used for internal wiring, so the music signal relayed from the cartridge is not dampened and the musical energy cut into the record is not lost, thereby producing highly vivid sounds.

Tonearm Base

The tonearm base, to which the tonearm is mounted, is strongly integrated with the turntable part. Comparing the turntable base part with the tonearm mounting construction, the relationship of the tonearm bearings, turntable bearings, and needle position is always constant, providing a structure in which the vibration caused by the rigidity of the turntable base materials has minimal effect, and the tonearm performance is maximized. An optional tonearm base can also be purchased, enabling, in addition to the standard tonearm, an existing short or long-type tonearm from SME or Ortofon to be mounted (up to three including the standard tonearm).

See more details for Sub tonearm base options

*Example of customisation

High-quality Terminal

A gold-plated 5-Pin DIN terminal is used, enabling the user to select the desired PHONO cable. An integrated, machined, high-rigidity aluminum housing also suppresses external noise from reaching the pickup.

A Rigid Cabinet and High Damping Silicon Insulator

The cabinet has a 2-layer construction consisting of BMC (bulk molding compound) and a 30-mm-thick aluminium top panel. The turntable part is a 3-layer construction comprising BMC, aluminium die-cast, and a 25-mm-thick aluminium top panel. This gives the system a construction of 5 layers of different materials to ensure sufficient rigidity. The insulator that supports the cabinet is a special silicon rubber that combines high vibration damping characteristics and long-term reliability. Reinforcement with a cylindrical tube made of a microcell polymer absorbs vibrations in the horizontal direction. These parts are contained in a zinc die-cast housing with high specific gravity, for isolation from external vibrations.

Specs

Size and Weight

Height 188mm

Width 531mm

Depth 399mm

Weight 40.2kg

Coreless Direct Drive Motor

Suppressing Unwanted Motor Vibration

Heavyweight-class Turntable Platter

Separate Control Unit

High-sensitivity Tonearm

A Rigid Cabinet and High Damping Silicon Insulator



Turntable section

• Drive Method

  • Direct Drive

• Motor

  • Brushless DC motor

• Turntable Speeds

  • 33 1/3, 45, 78 rpm

• Adjust Range

  • ±16 %

• Starting Torque

  • 0.39 N・m / 4.0 kg･cm (3.47 lb-in)

• Wow And Flutter

  • 0.015 % W.R.M.S.

• Turntable Platter

  • Brass and aluminium diecast combined
    Diameter : 323 mm (12-23/32")
    Weight : Approx. 7.9 kg (17.5 lbs)　(including turntable mat)

Tonearm Section

• Type

  • Universal Static Balance

• Effective Length

  • From the tonearm pivot to the stylus : 254mm (10")
    From the tonearm pivot to the spindle : 239mm (9-13/32")

• Overhang

  • 15 mm (19/32 inch)

• Tracking Error Angle

  • Within 1° 48' (at the outer groove of 30 cm (12") record)
    Within 0° 30' (at the inner groove of 30 cm (12") record)

• Offset Angle

  • 21°

• Arm Height Adjustment Range

  • 0 - 15 mm

• Stylus Pressure Adjustment Range

  • 0 - 4 g (Direct Reading)

• Applicable Cartridge Weight Range (including Headshell)

  • 15.9 - 19.7 g (without auxiliary weight)
    18.8 - 23.6 g (with small auxiliary weight)
    22.5 - 26.3 g (with middle auxiliary weight)
    26.0 - 31.0 g (with large auxiliary weight)

Terminals

• Audio Output

  • PHONO (Din Jack) x 1 *Straight Type Cable Only

General

• Power Supply

  • AC 110 - 240 V, 50 / 60 Hz

• Power Consumption

  • 10 W
    Approx. 0.05 W (Standby)

• Dimensions (W x H x D)

  • Main Unit
    531 x 188 x 399 mm (20-29/32 × 7-13/32 × 15-23/32 inch)
    Control Unit
    110 x 84 x 350 mm (4-11/32 × 3-5/16 × 13-25/32 inch)

• Weight

  • Main Unit Approx. 40.2 kg (88.7 lbs)
    Control Unit Approx. 2.1 kg (4.7 lbs)

• Operating Temperature Range

  • 0° to +40° (32°F to +104°F)

• Operating Humidity Range

  • 35 % to 80 % RH (no condensation)

• Accessories

  • Turntable, Turntable mat, EP record adaptor, Balance weight, Auxiliary weight(Small)(Middle)(Large), Overhang gauge, Screw set for turntable, Detachable handle, Hex wrench, Insulator attachment, Dust cover, AC main leads, Owner's manual
