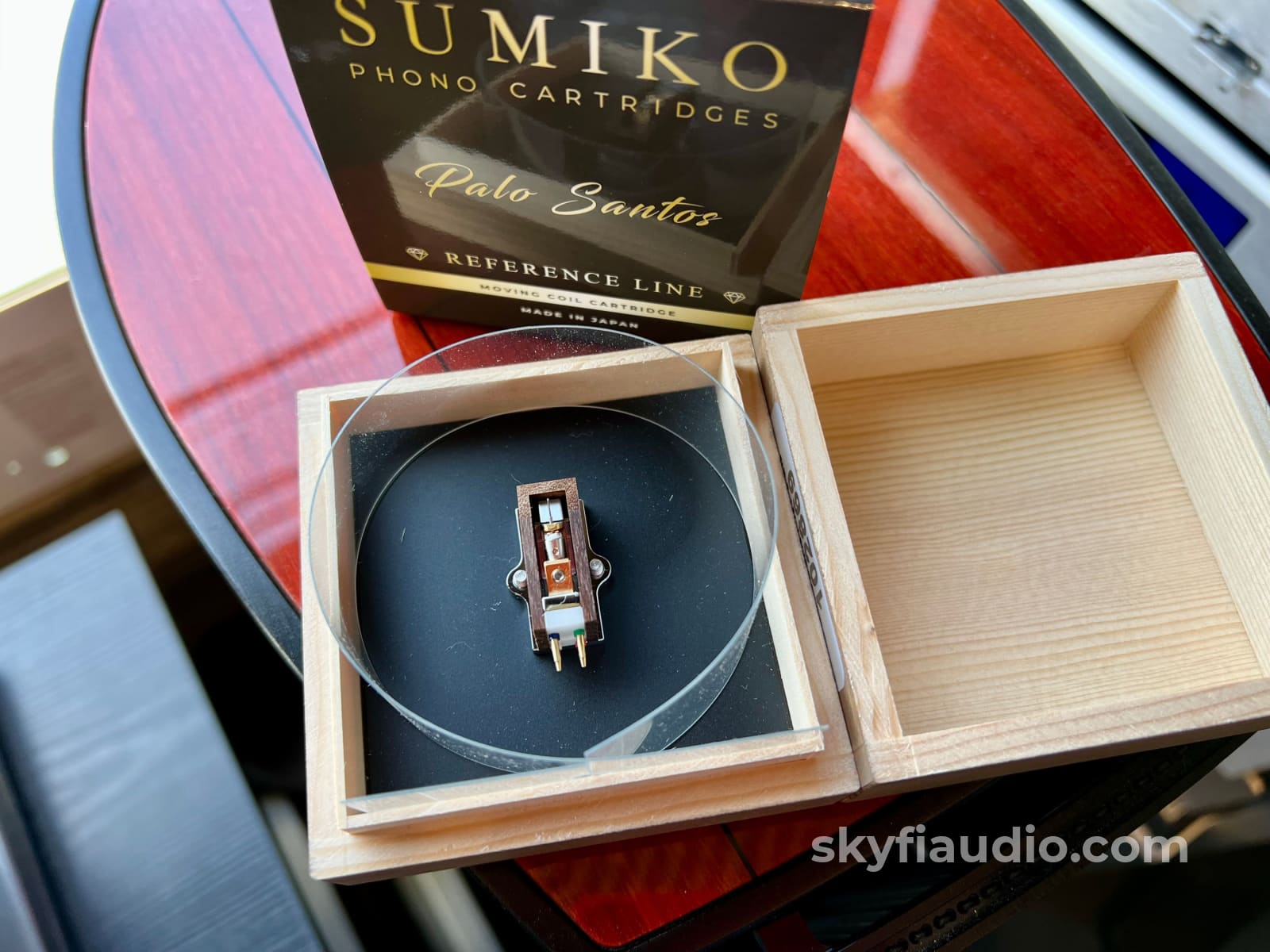

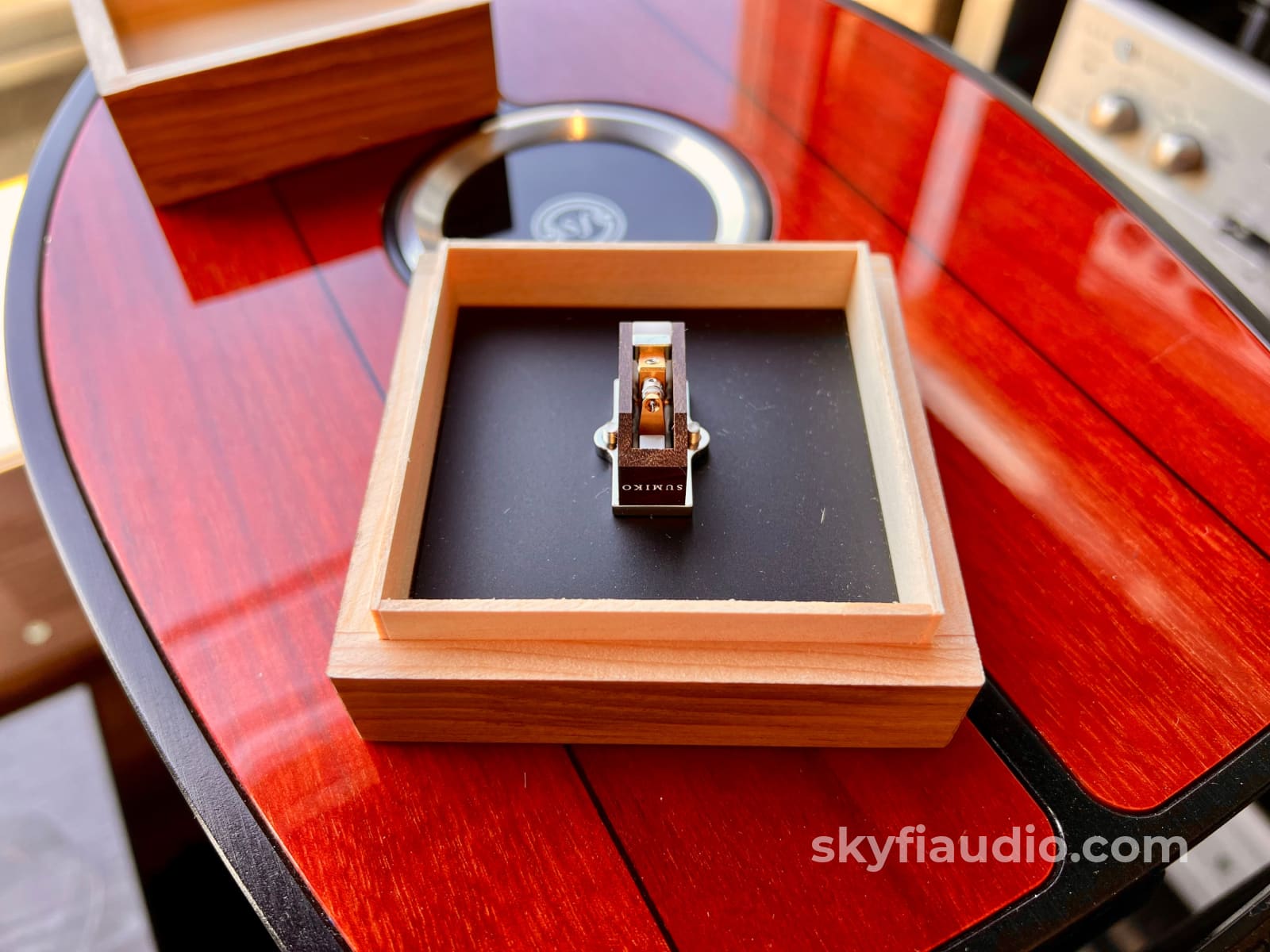

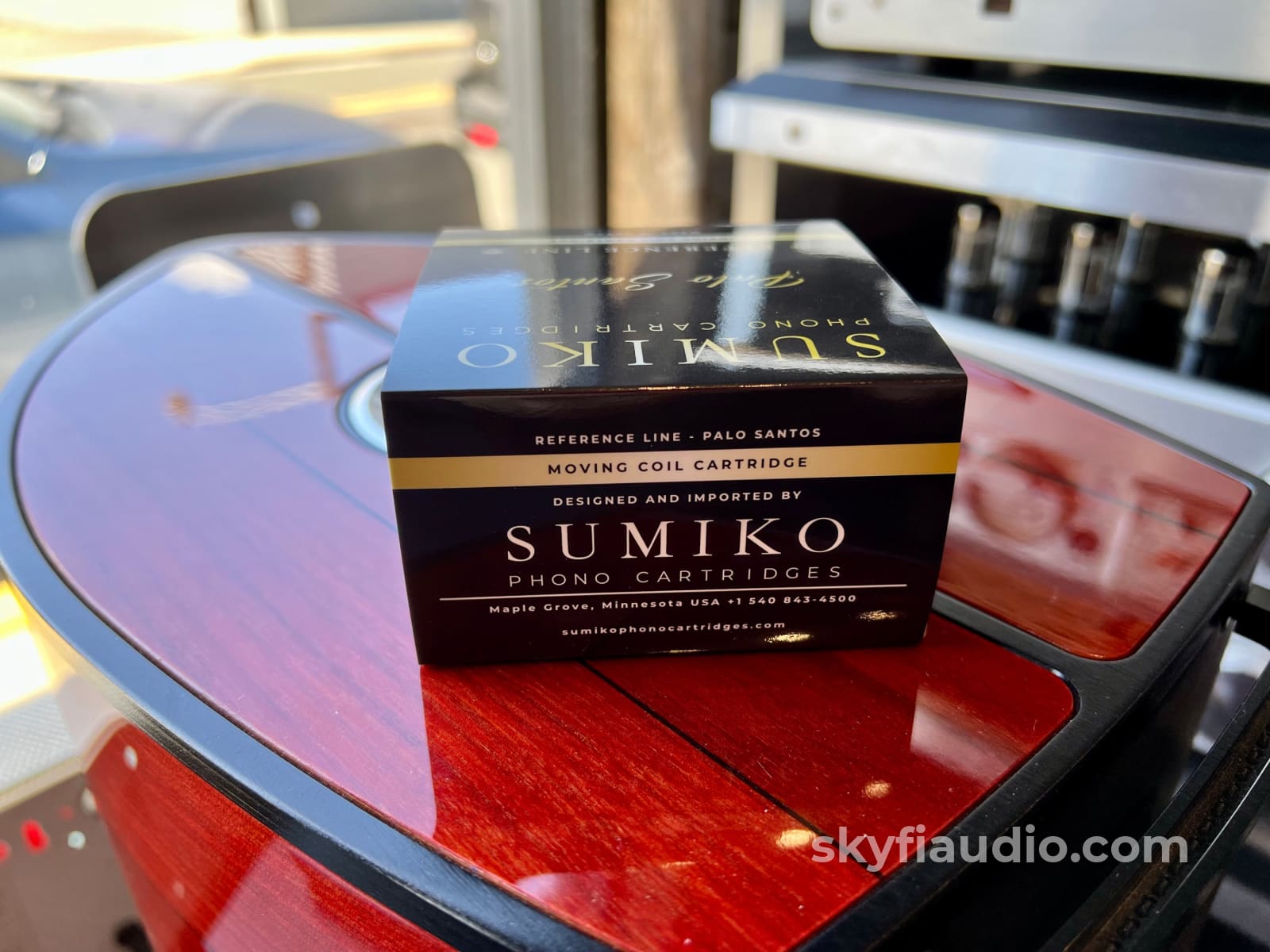

Sumiko Palo Santos Presentation Phono Cartridge, New

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

We're proud to offer the full line of Sumiko Reference and Oyster Phono Cartridges as an authorized Sumiko dealer.

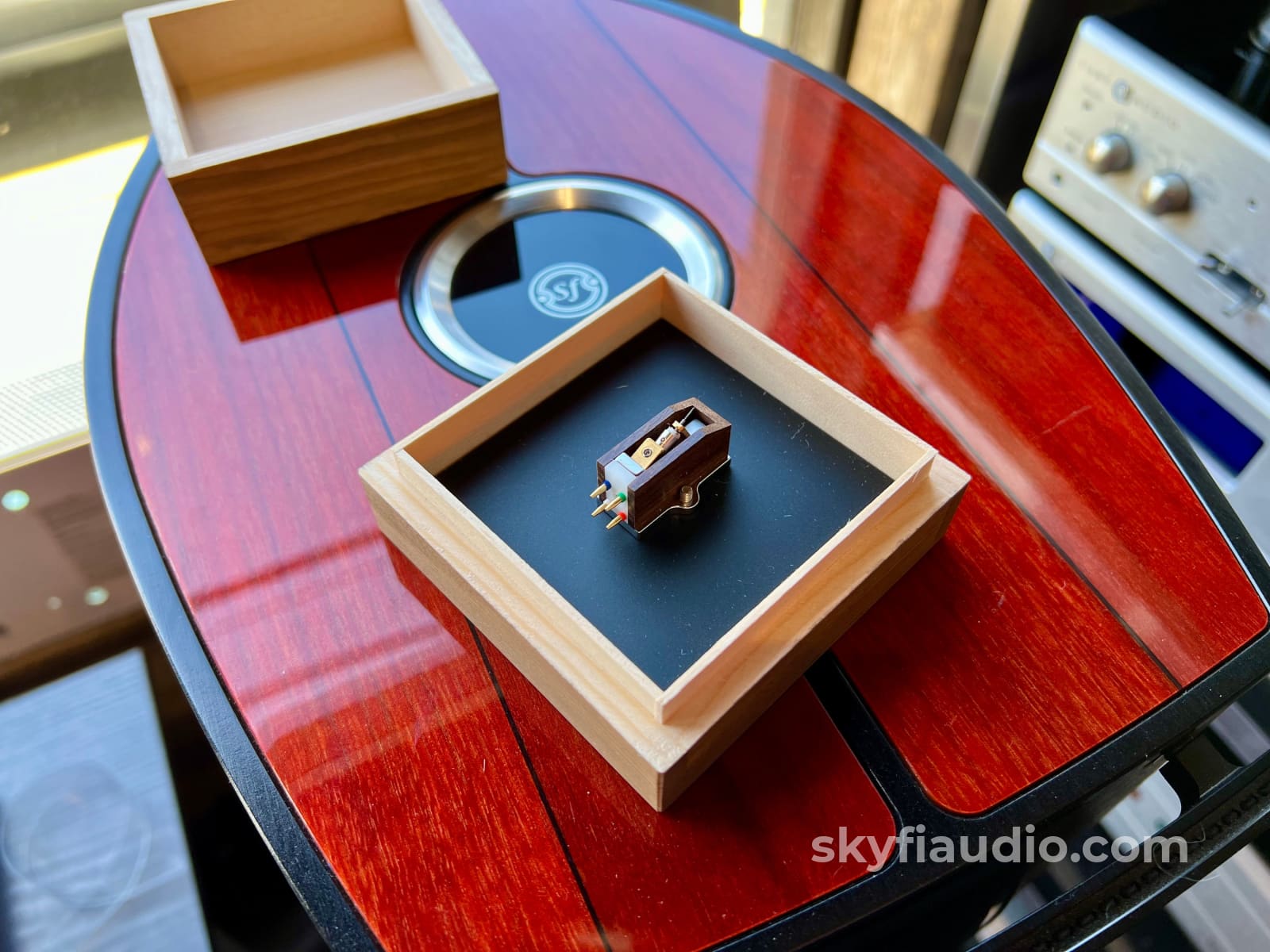

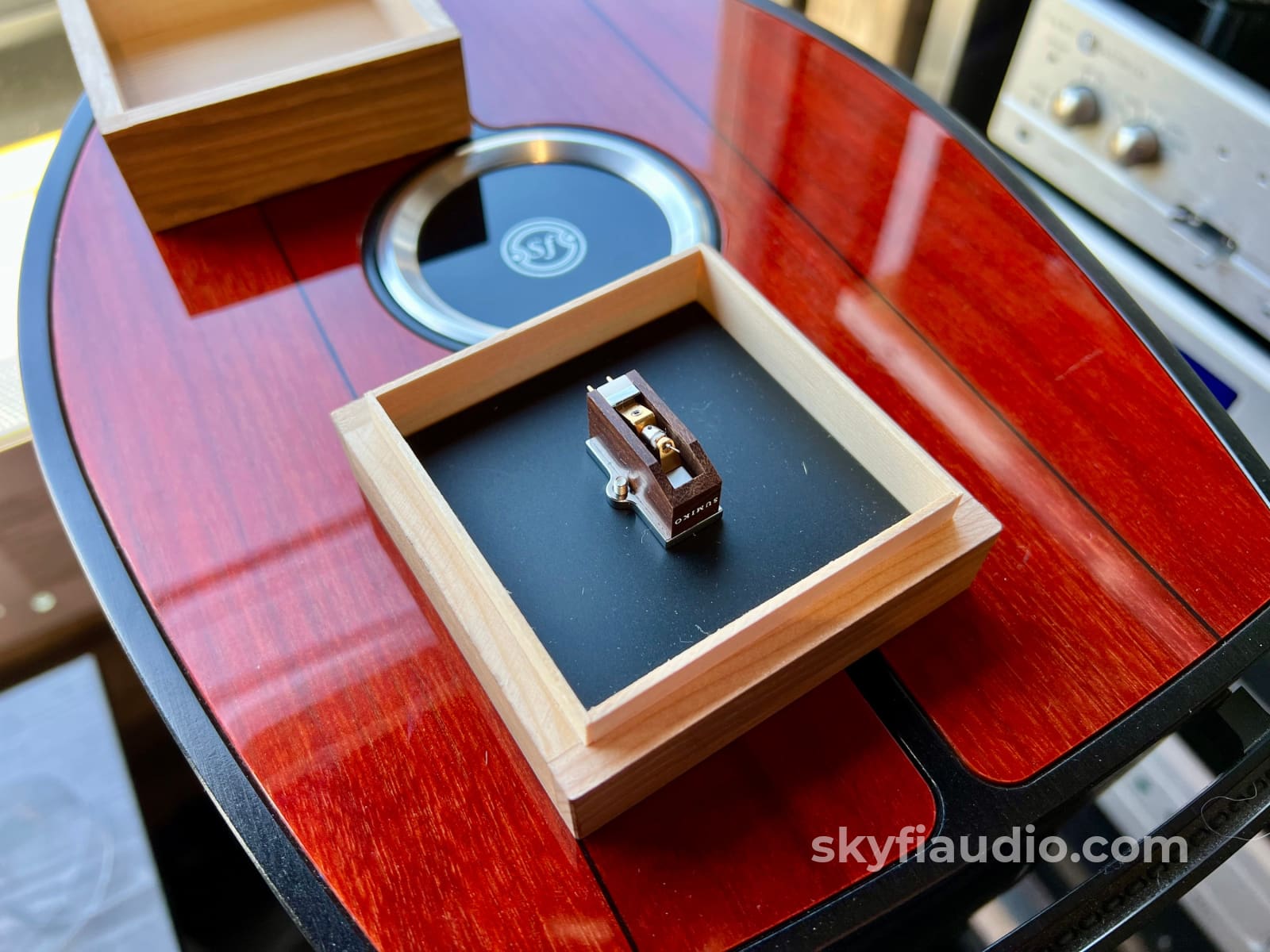

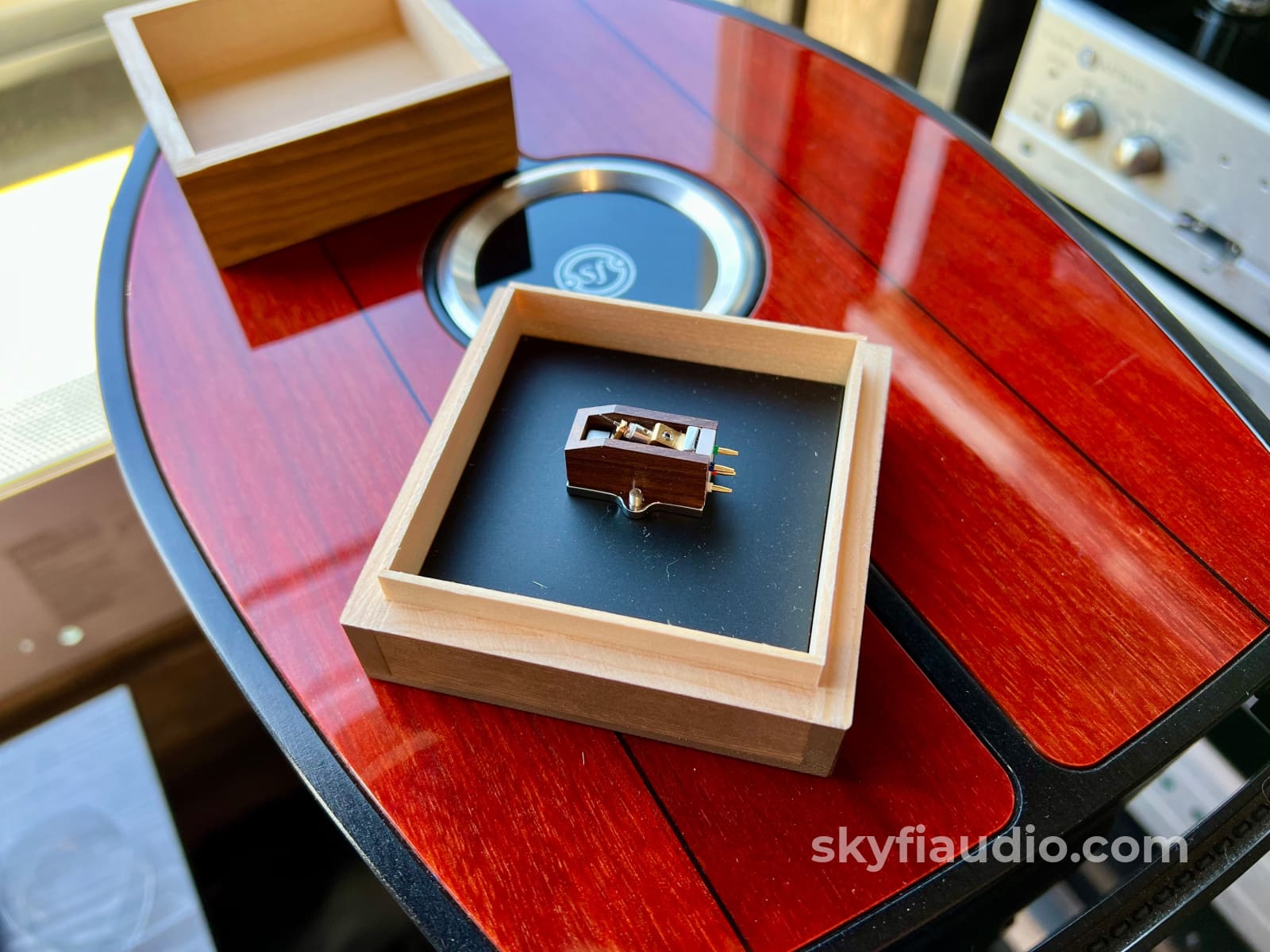

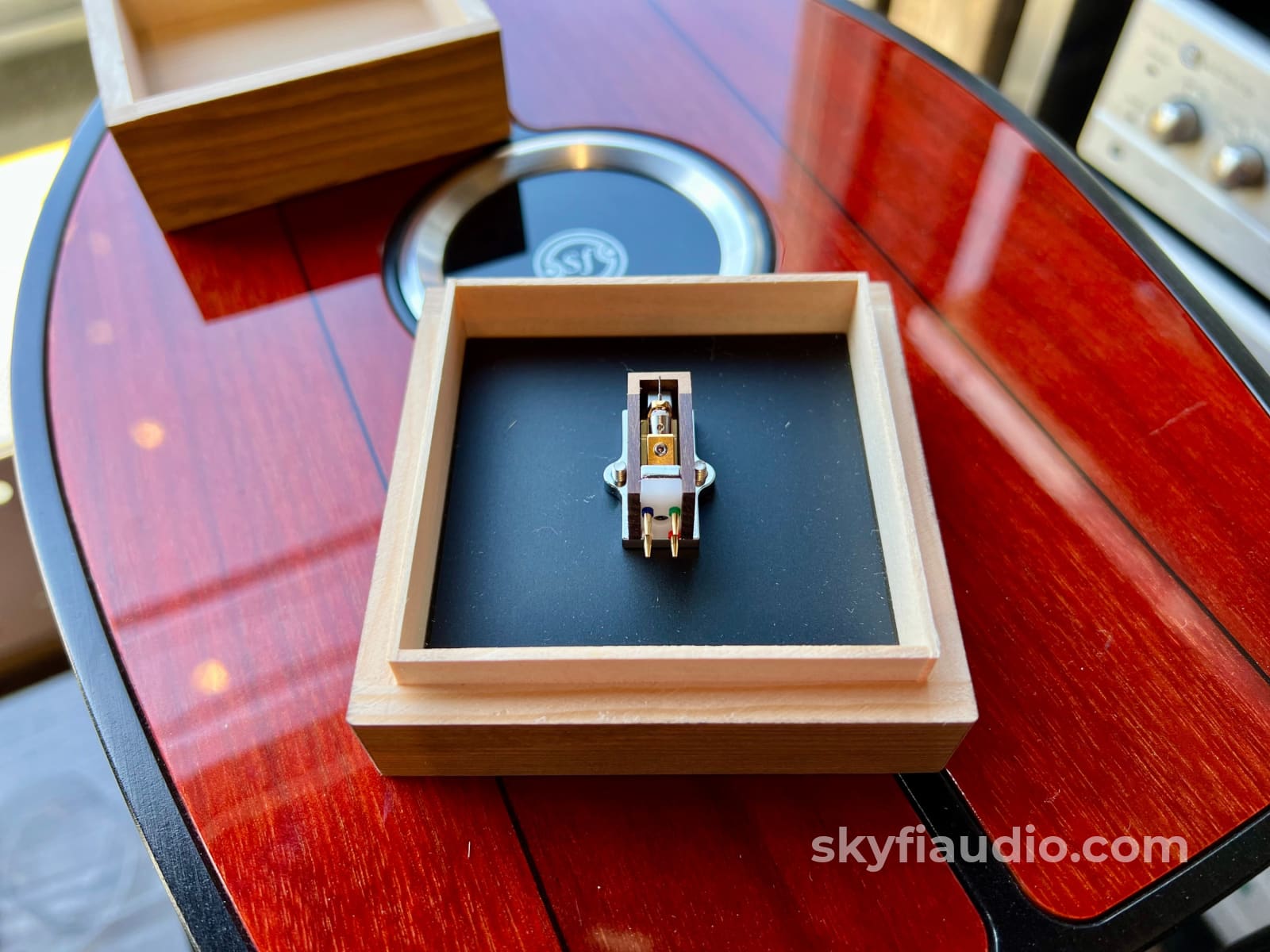

The Palo Santos Presentation cartridge is the flagship of the Sumiko Reference Series.

Hand-Crafted in Japan, New, Free Shipping, IN STOCK!

We strongly recommend checking out our new Sumiko In-Depth Cartridge Guide for the best match to your system:

More from Sumiko:

For over thirty-five years, SUMIKO has provided a comprehensive range of phono cartridges to music lovers seeking the finest musical experience at a variety of price points. In fact, the great market success of SUMIKO phono cartridges has hinged on their phenomenal cost-to-performance ratio. The Palo Santos Presentation is no exception. New design requirements incorporating advances in material technology and construction techniques have resulted in a significantly improved product which delivers a highly refined and resolved, yet musically satisfying sound quality previously unavailable at or even near its price.

Improvements grace virtually every facet of the product to differentiate it from its smaller sibling the Pearwood Celebration II. Most significant is the new generator anchoring system, which has substantially improved rigidity and reduced resonance and background noise to previously unheard of levels. From the new handcrafted Palo Santos (Brazilian Rosewood) body, which is shorter in height to add vision when mounting and aligning this cartridge, to the Long Grain Boron cantilever and new Line Contact stylus, which significantly improves resolution, the Palo Santos Presentation truly deserves the title as our flagship offering.

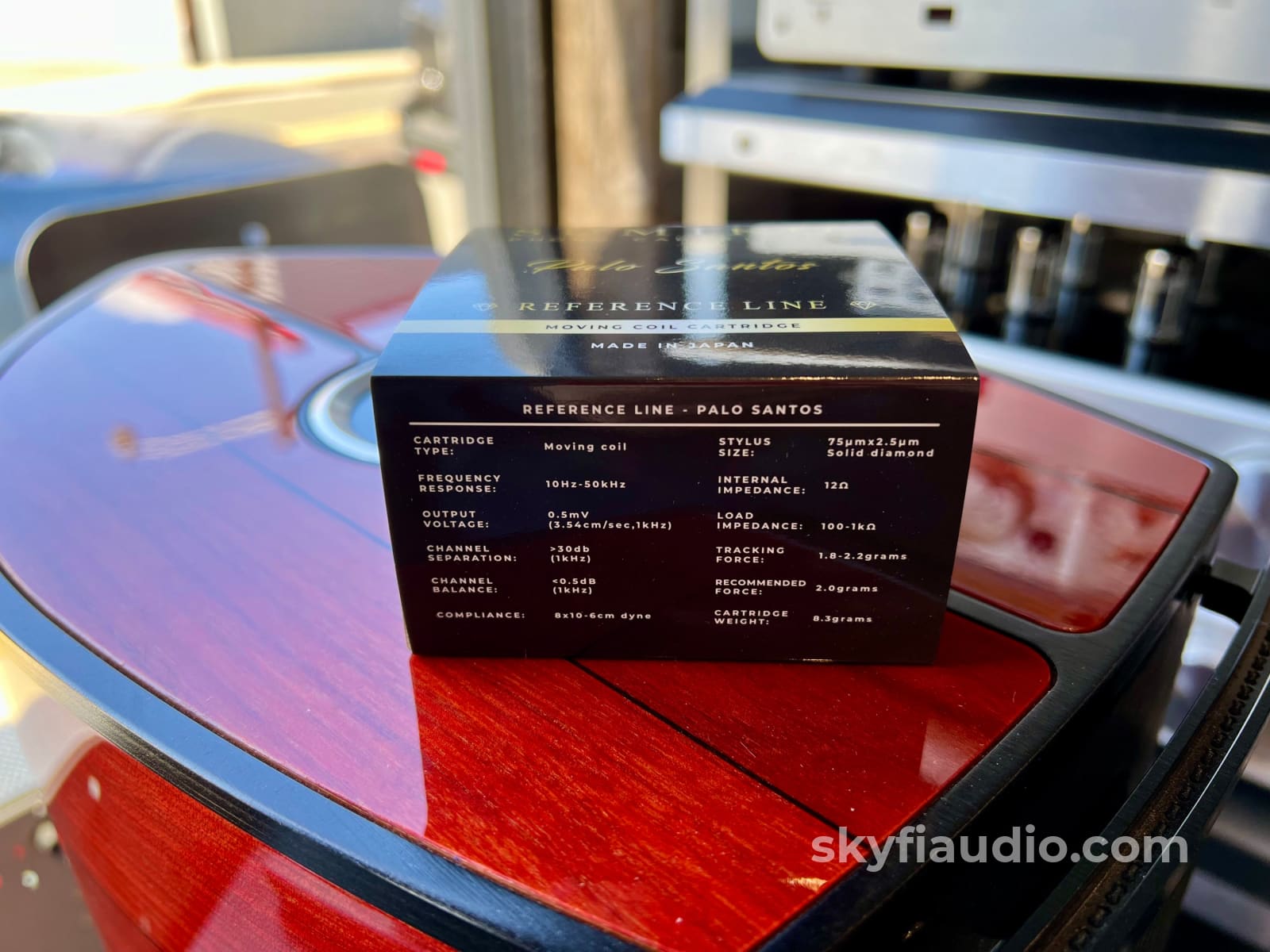

TECHNICAL SPECIFICATIONS

Cartridge Type:
Moving Coil

Suspension:
synthetic rubber

Frequency Response:
10Hz - 40khz (+/- 1.5dB)

Output Voltage/Channel:
0.5mV (3.54cm/s @ 1kHz)

Channel Separation:
>30dB @ 1kHz

Channel Balance:
<0.5dB @ 1kHz

Optimum Tracking Force:
2.0g

Tracking Force Range:
1.8g - 2.2g

Dynamic Compliance:
8x10-6 cm/dyn

Internal Impedance:
12Ω

Load Impedance:
100Ω - 1kΩ

Capacitance Range:
100pF - 300pF

Cantilever:
long-grain boron

Stylus:
75 x 4 micron ultra low-mass Line-Contact

Output Terminals:
unique gold-plated tapered brass pins

Cartridge Weight:
8.3g

Mounting System:
standard 0.5” hole spacing (M2.5 threaded)

Supplied Hardware:
2x M2.5 (6mm) stainless steel mounting screws
2x M2.5 (8mm) stainless steel mounting screws
4x M2.5 stainless steel washers,
1x 2.0mm allen wrench
