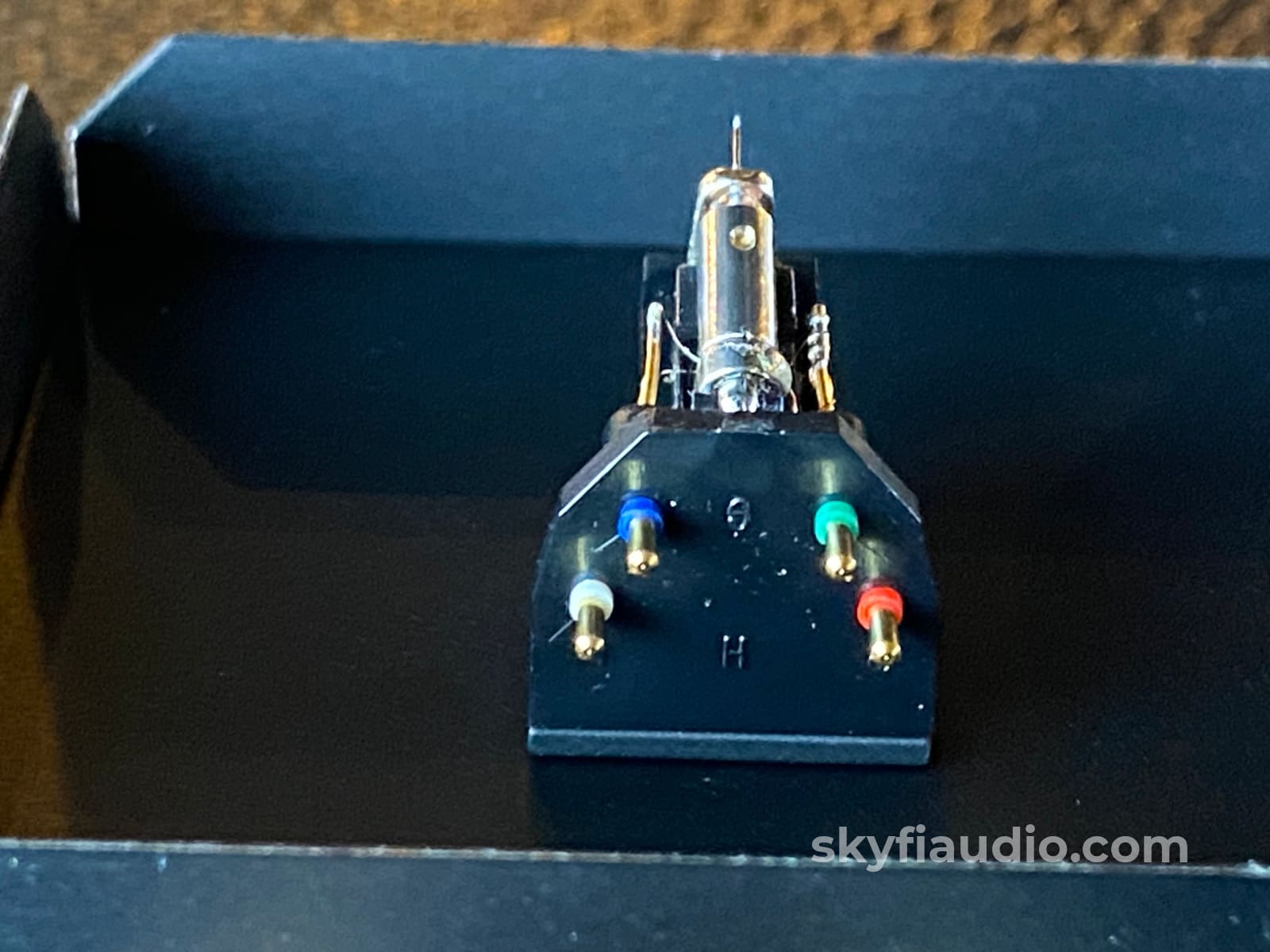

Sumiko Blackbird MC High Output Phono Cartridge - Lightly Used
Sadly the Blackbird is not longer in production but we were fortunate to find a super clean pre-owned unit.

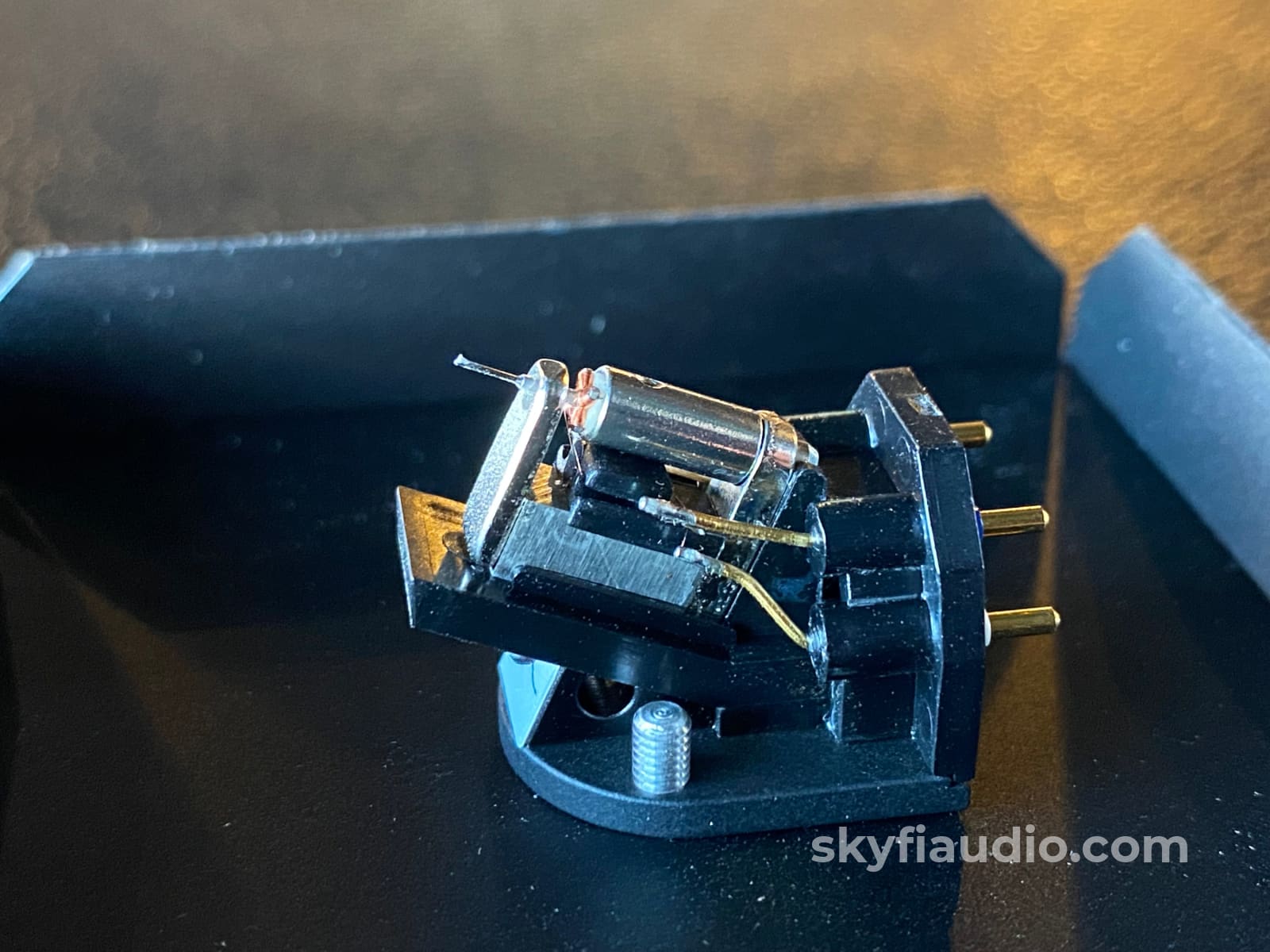

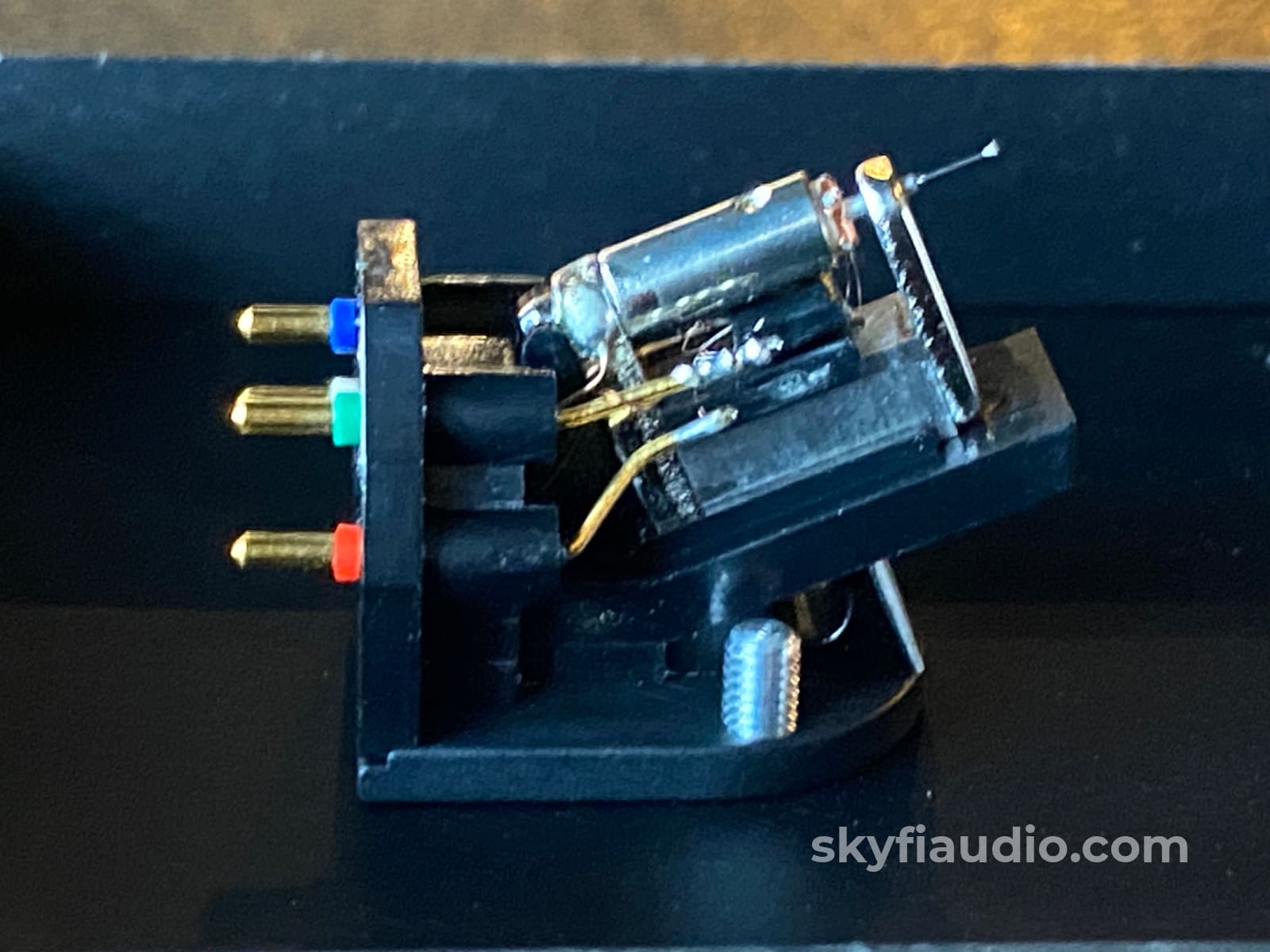

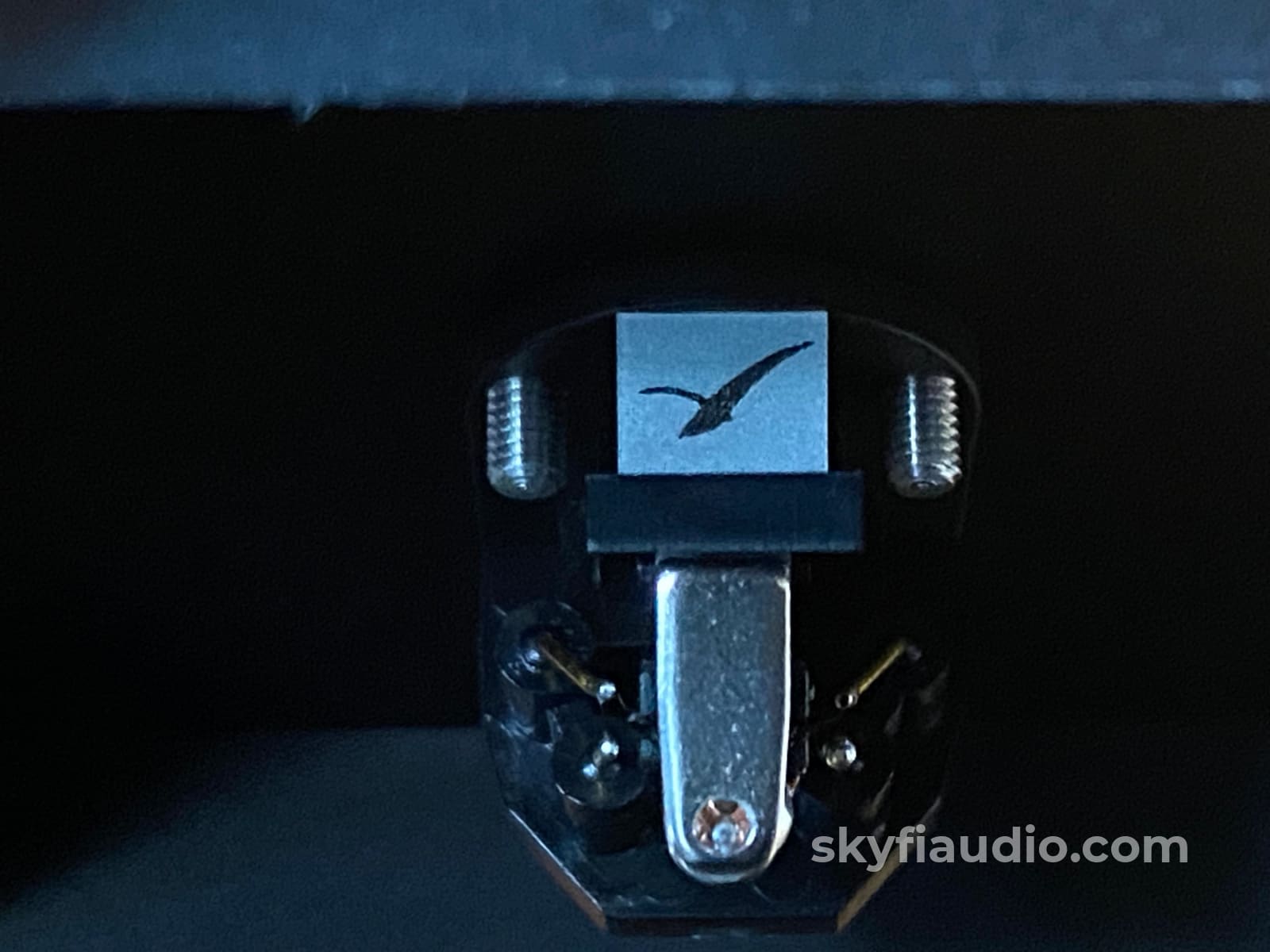

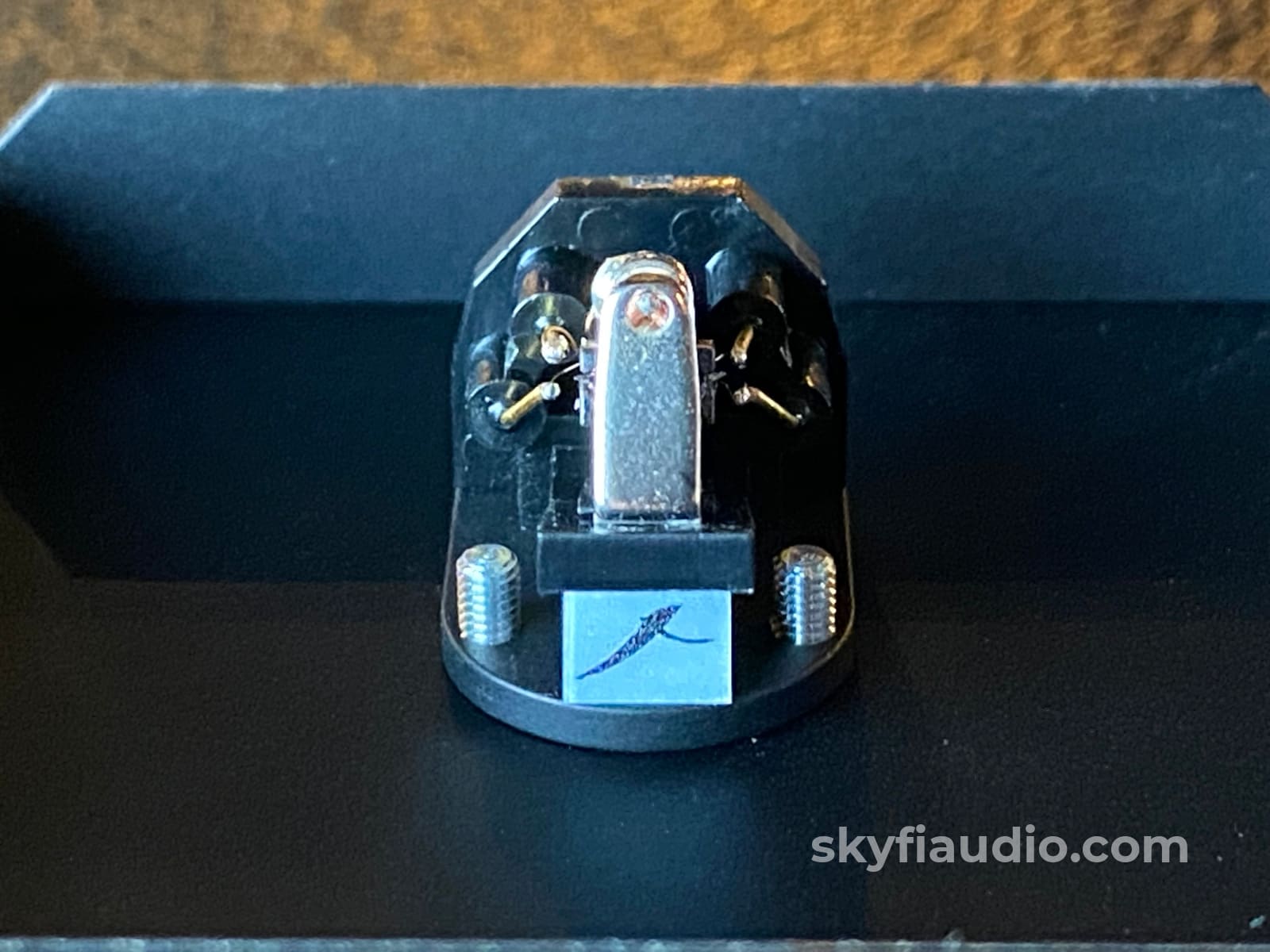

We inspected it under the microscope and found it to look like new with no wear at all. On the test bench it measured properly and the stylus looks perfectly centered.
This is the High Output version of this cartridge meaning it will work with your MM phono stage/phono input.
For nearly 40 years, SUMIKO has provided the finest array of phono cartridges to discriminating analog enthusiasts around the world. The long list of iconic models produced by SUMIKO reads like a “who’s who” of analog audio’s illustrious past.
Accurate to the recording
8 - Very Slight Signs of Use
Working perfectly and tested in our lab.

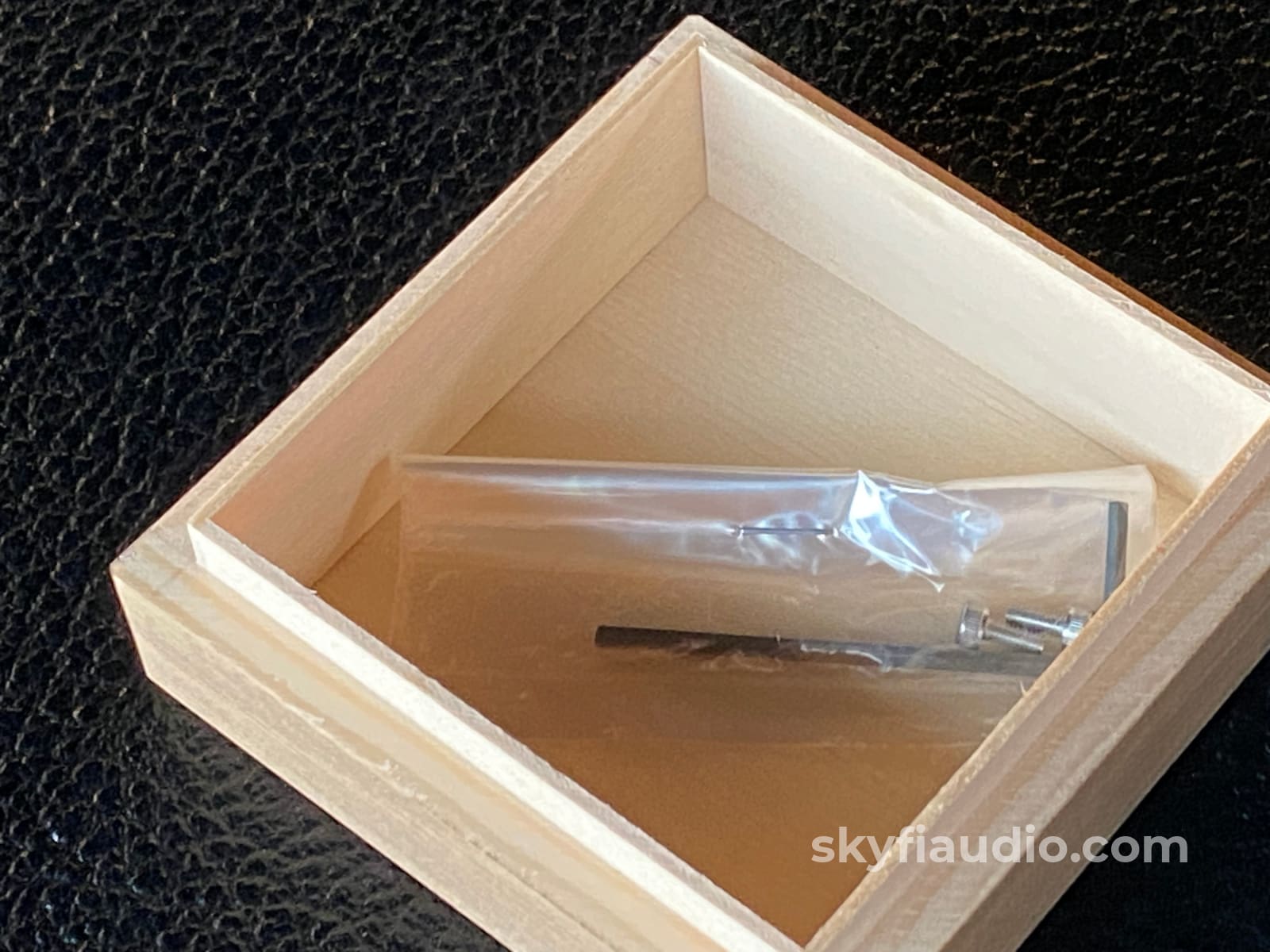

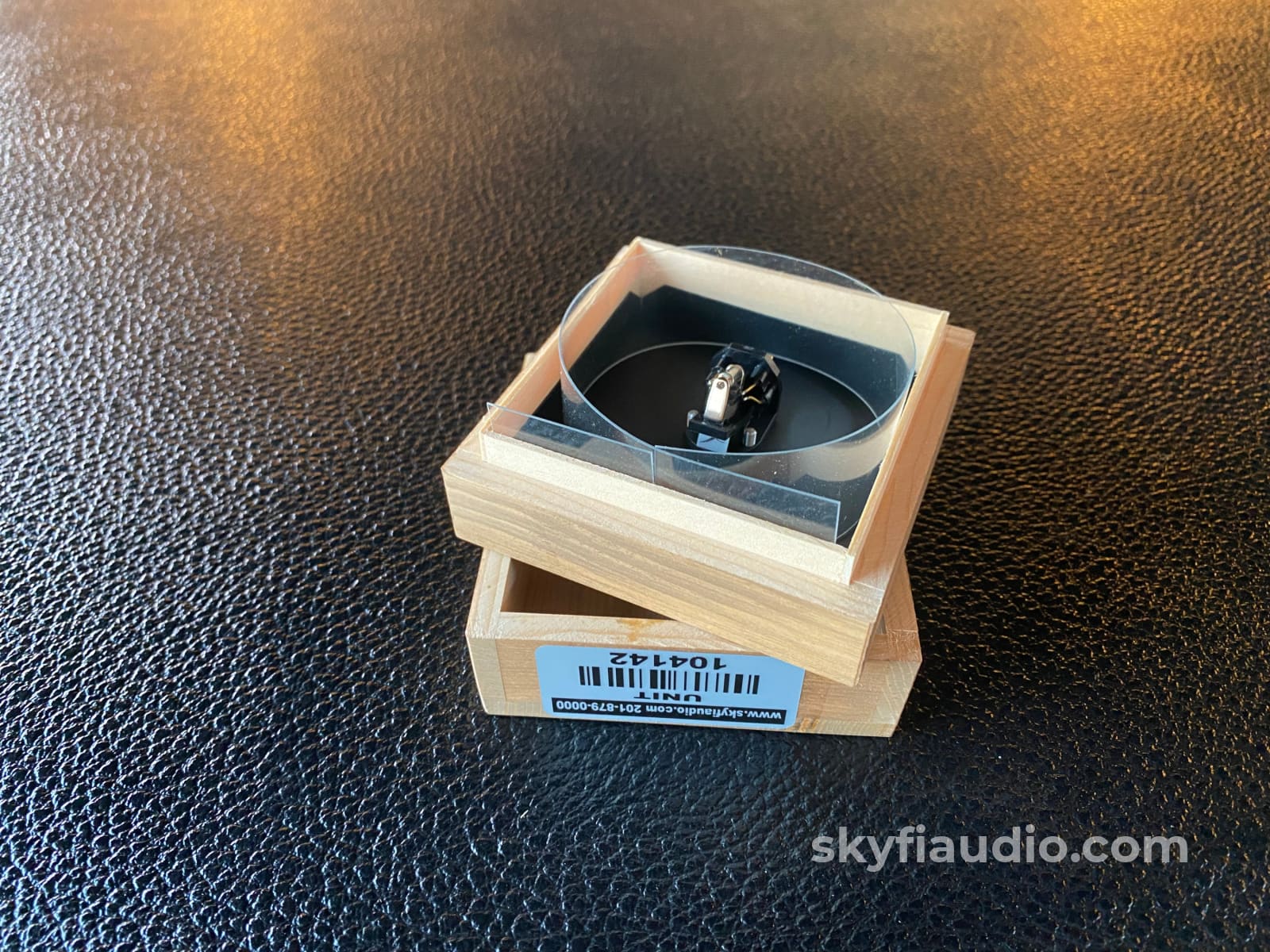

Original Manufacturers Packing
Link to Manual:
The SkyFi Testing Process for Phono Cartridges
We start by doing a detailed physical inspection under light magnification to asses the cantilever condition, its position in the cartridge body and the condition of the suspension. We also inspect any coil wires and the output connections to make sure it hasn’t been strained. We then perform a light cleaning with specialized agents and blow it dry with compressed air.

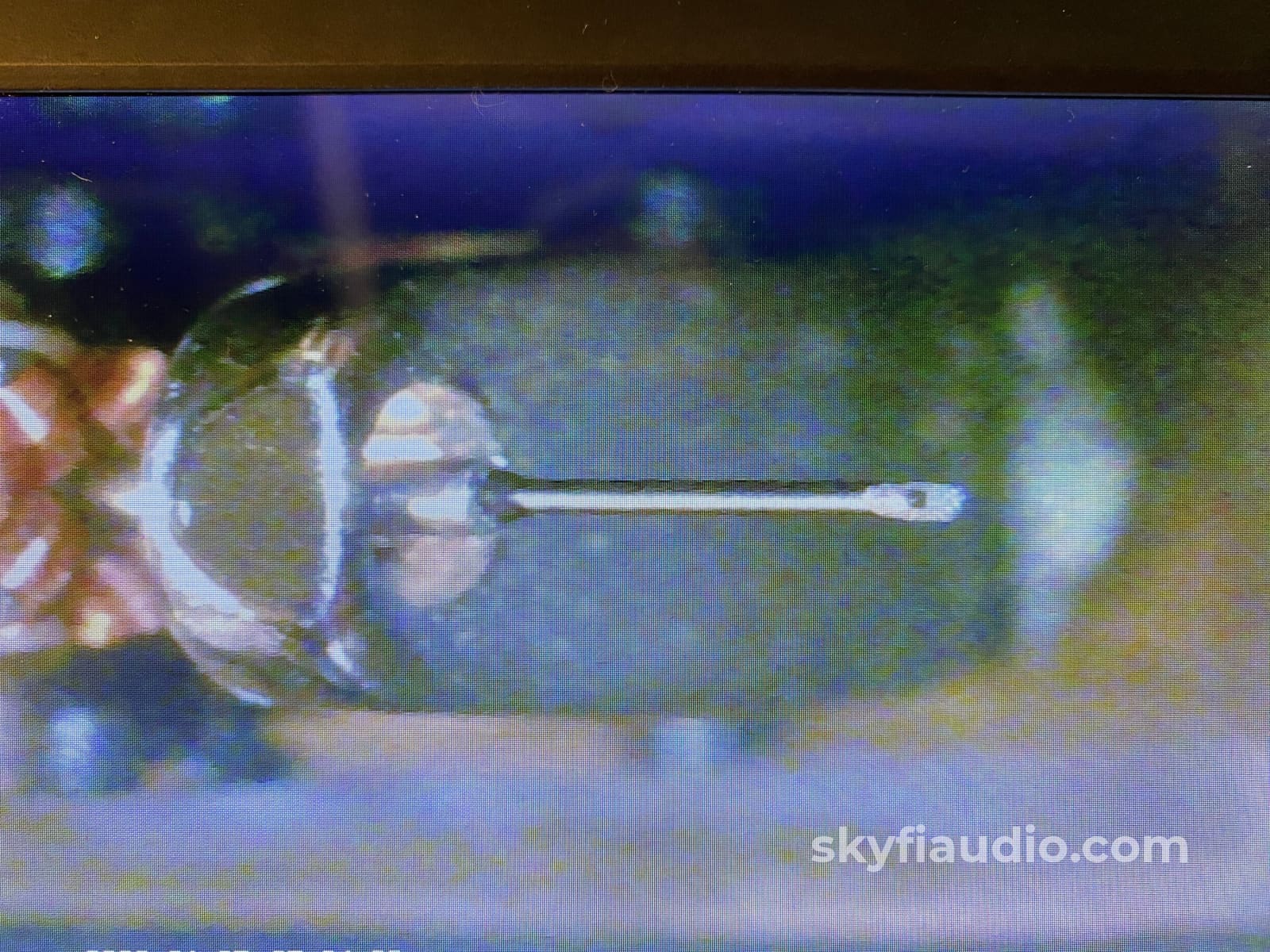

We then perform a more detailed inspection with our Wild Heerbrugg professional microscope. From there we can asses the wear and quality of the stylus and determine how much use it has had and if there are any mechanical issues. We can also identify if it needs further cleaning or care.

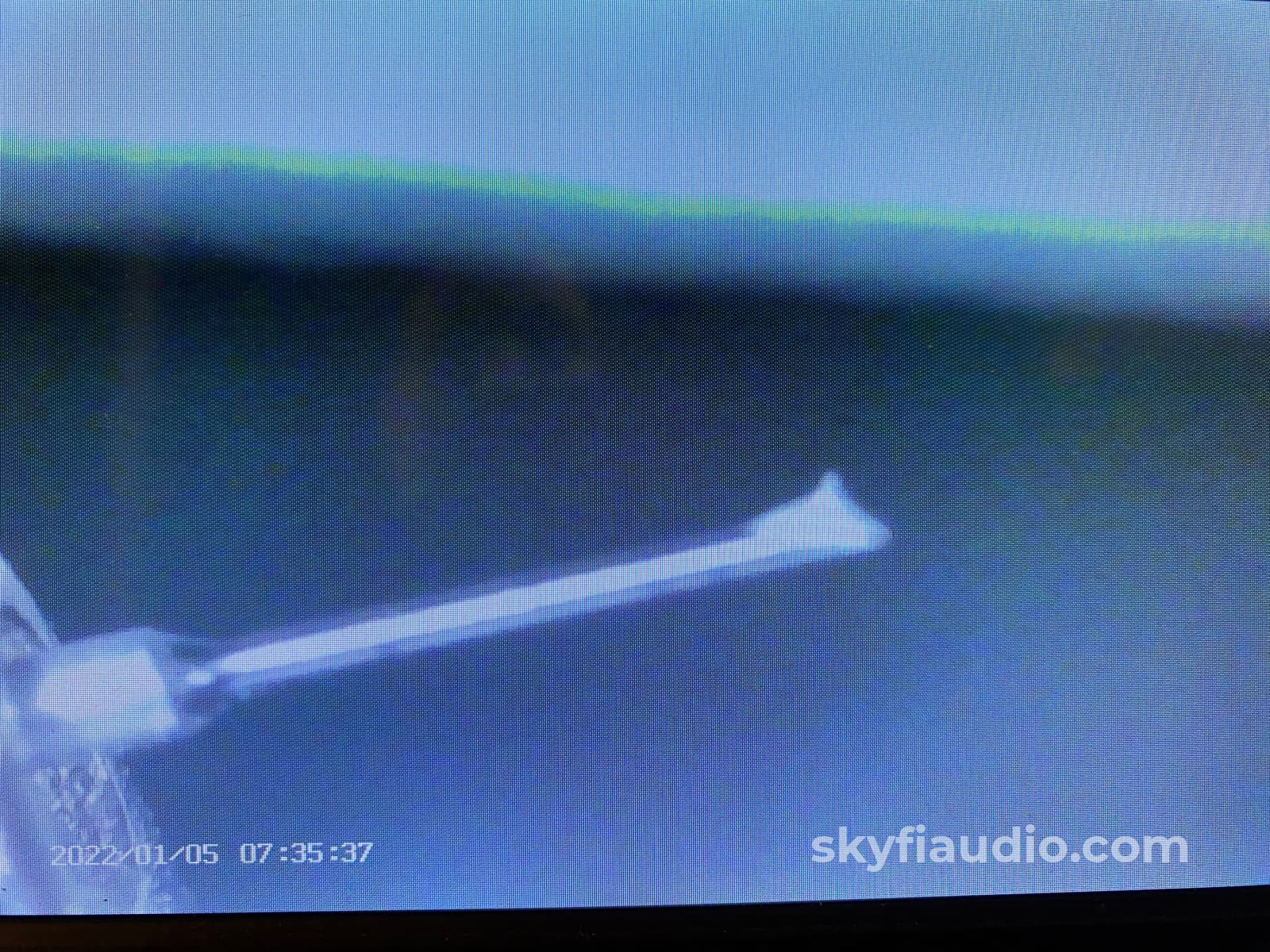

We then move the cartridge to a digital microscope where we take photo os the cantilever for future reference.
We then move to the test bench where we can check for continuity of each channel and resistance.
On certain cartridges and it the technician feels necessary we install the unit on a turntable and run a few test records to ascertain tacking ability, distortion and compliance.
Low Output Moving Coil
Mass & Dimension
9.6g, 17.1 x 20.5 x 28.2mm (WxHxD)
Solid Ultra Low-Mass 75µm x 2.5µm Microridge
⌀0.28mm Boron Shaft
12Hz – 50kHz
35dB @ 1kHz
<0.5dB @ 1kHz
12×10-6cm/dyn @ 100Hz
100pF – 200pF
Vertical Tracking Angle
Tracking Force Range
1.8g – 2.2g
Recommended Tracking Force
