Spectral DMA-360 Solid State Monoblock Pair
Monaural amplifiers from the legendary american maker Spectral.
This auction is for 2 units with manuals, boxes, and power cords.
I would rate these 10/10 functionally and 8/10 cosmetically.

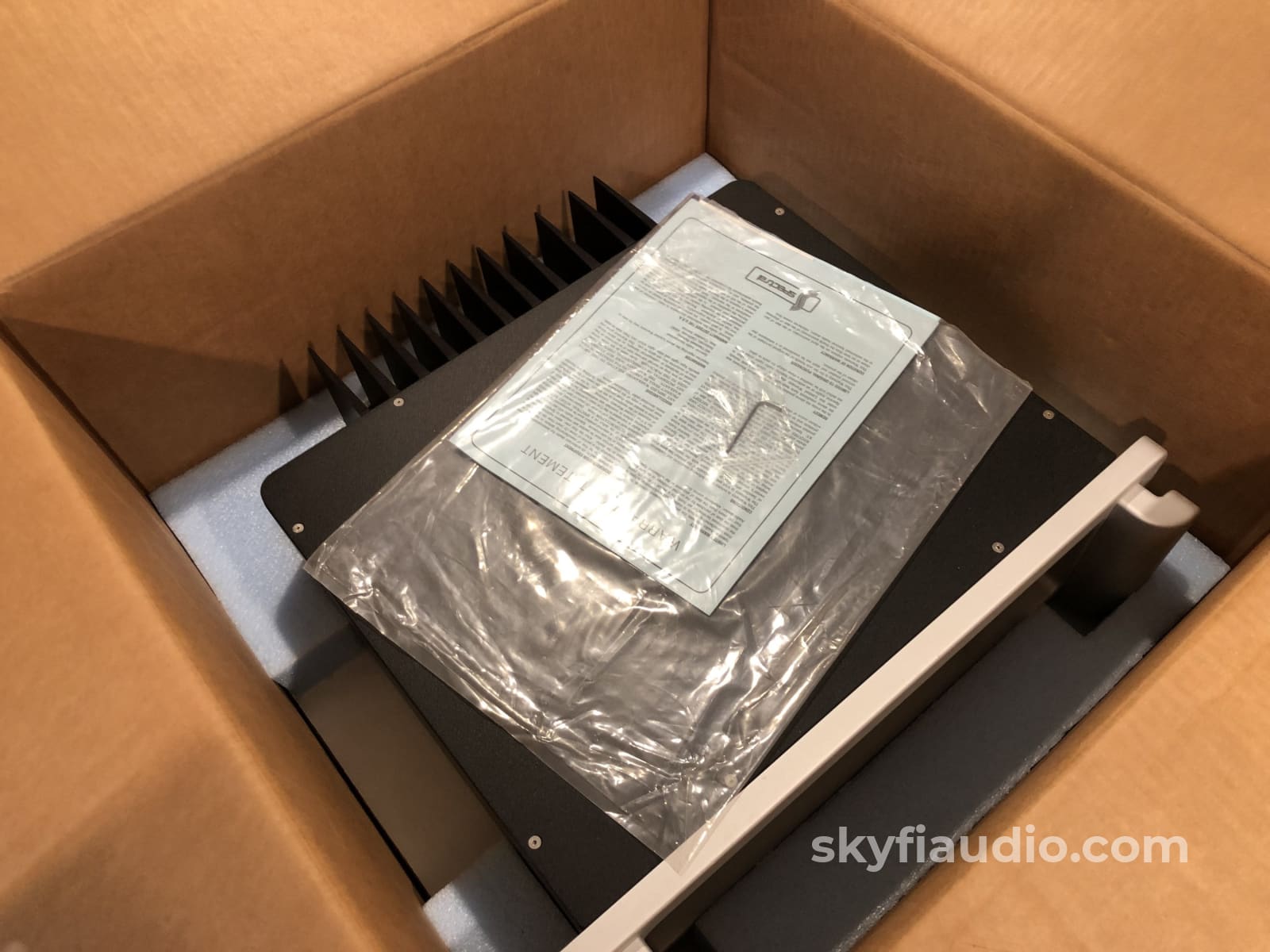

New double boxes were just purchased from Spectral and were quite expensive.
These puppies are rated at 300W each at 8 ohms, and 533W at 4 ohms.
Internal and external construction and component quality is the highest I've ever seen.

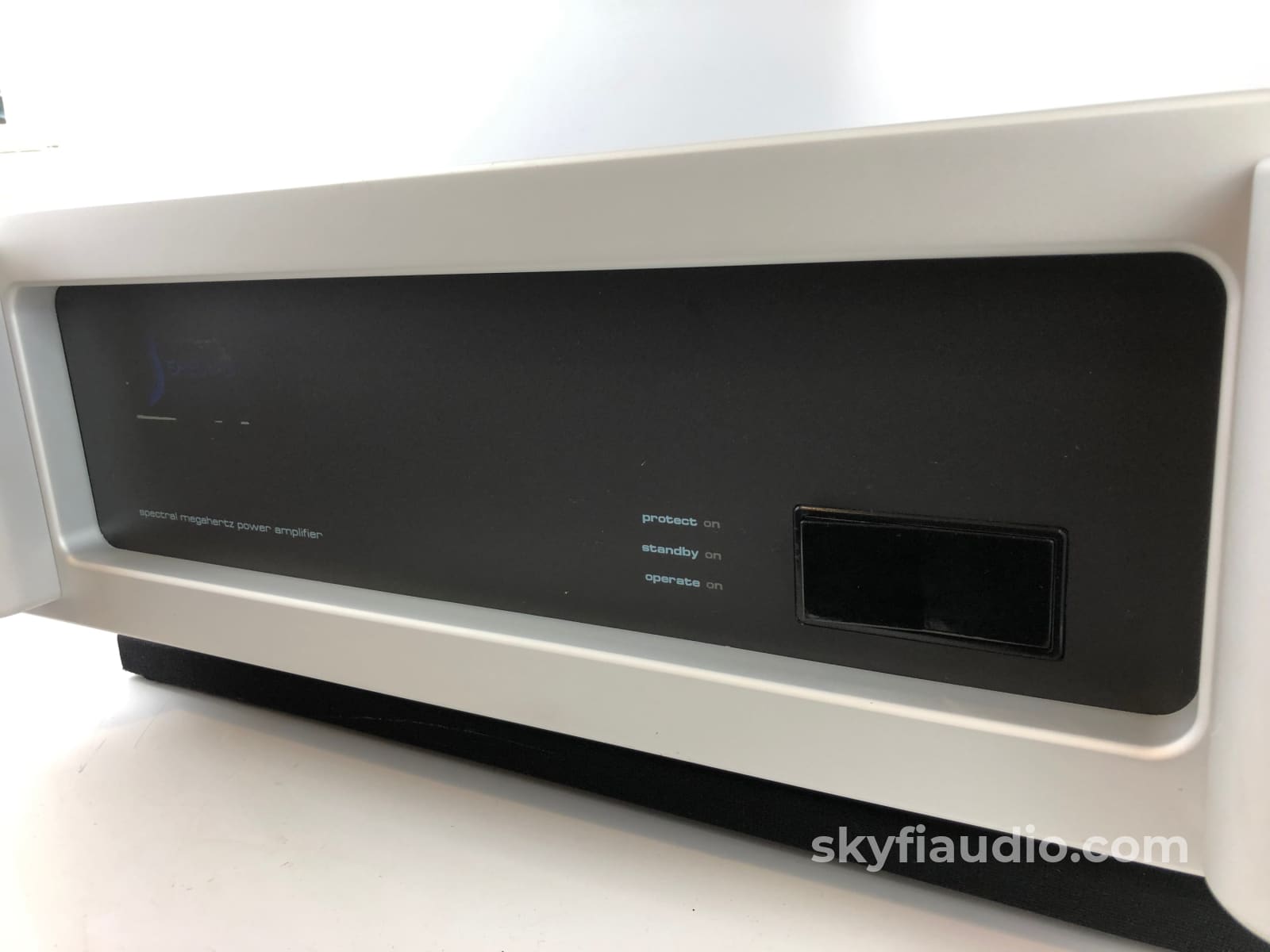

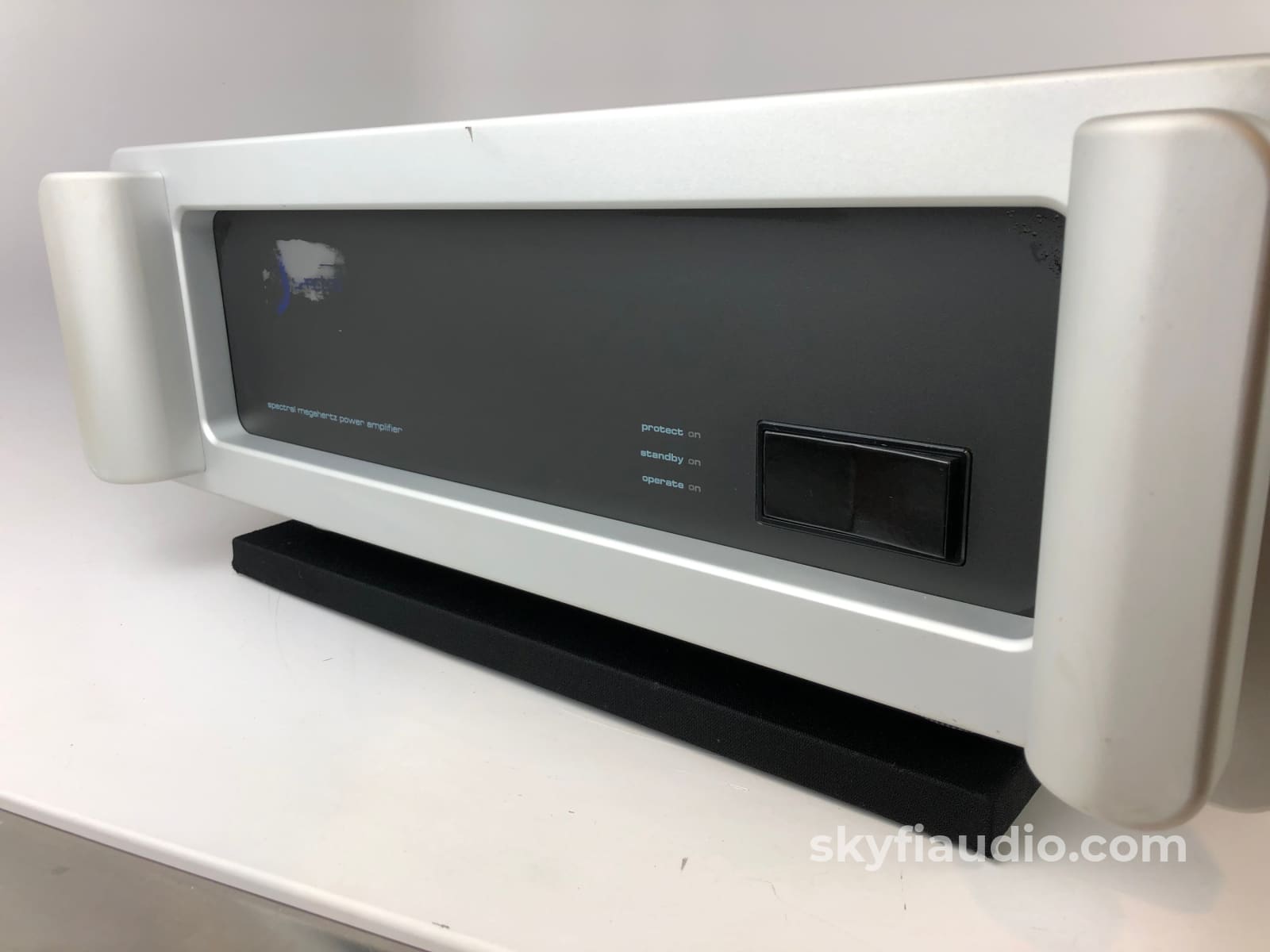

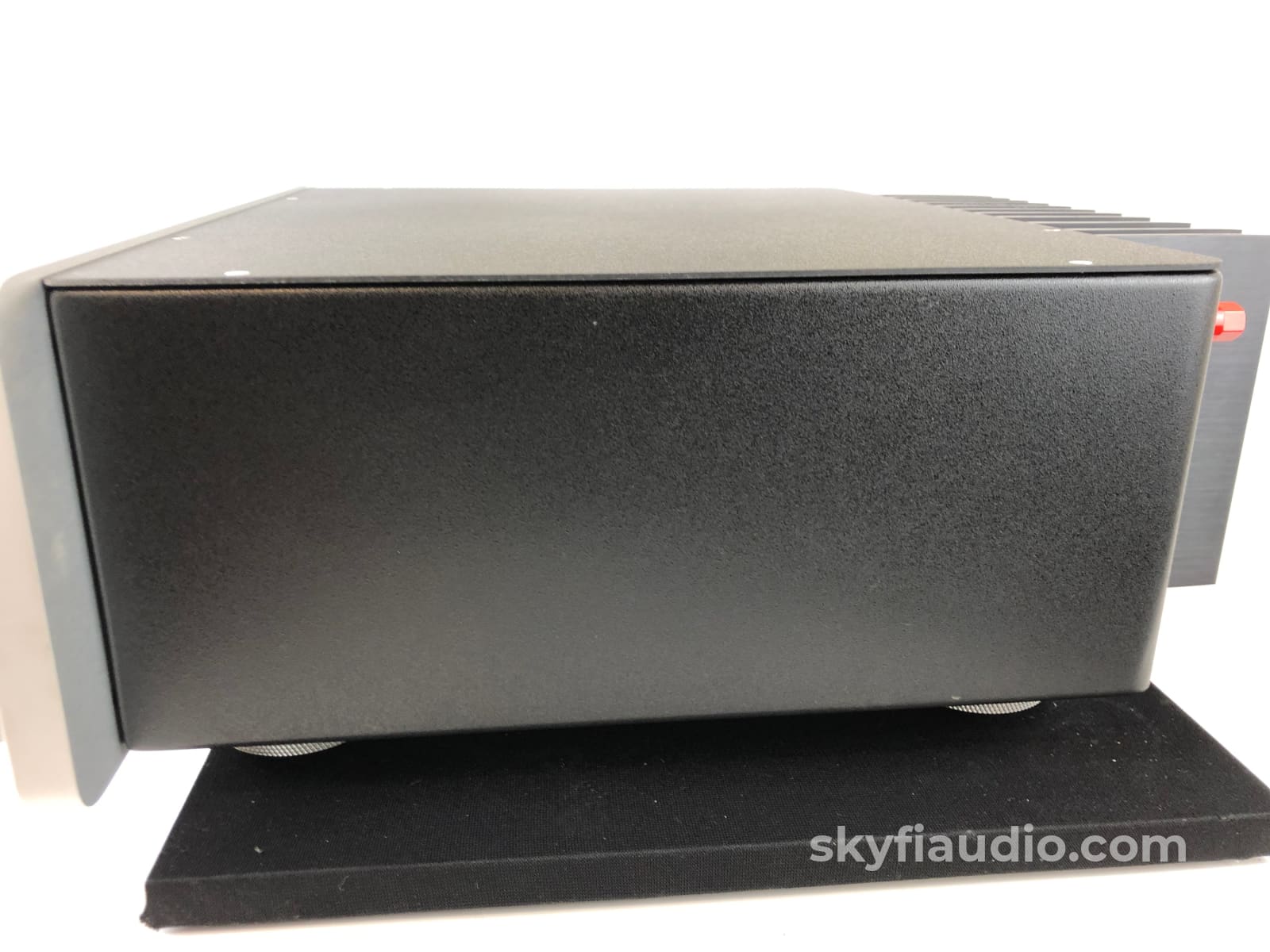

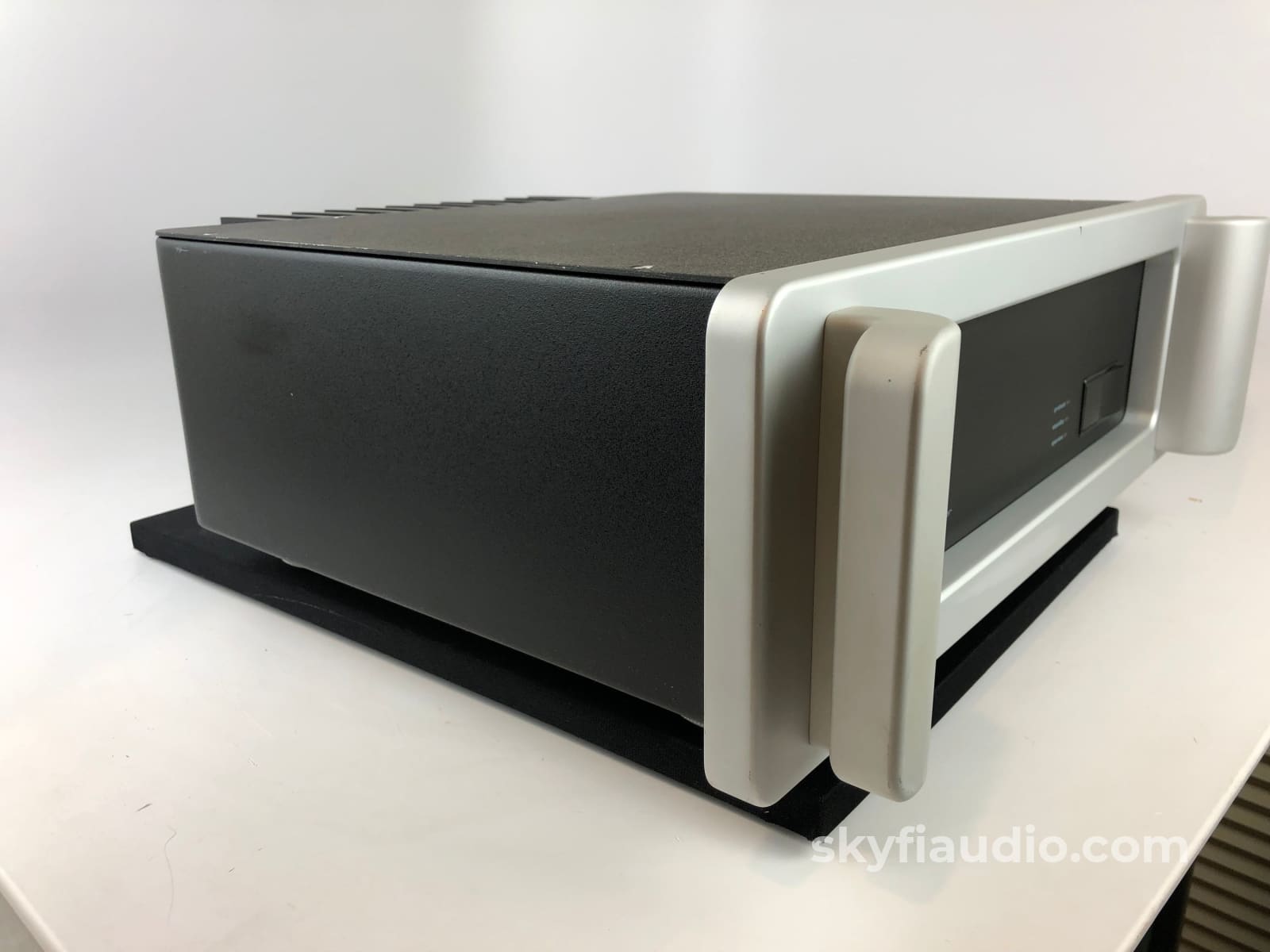

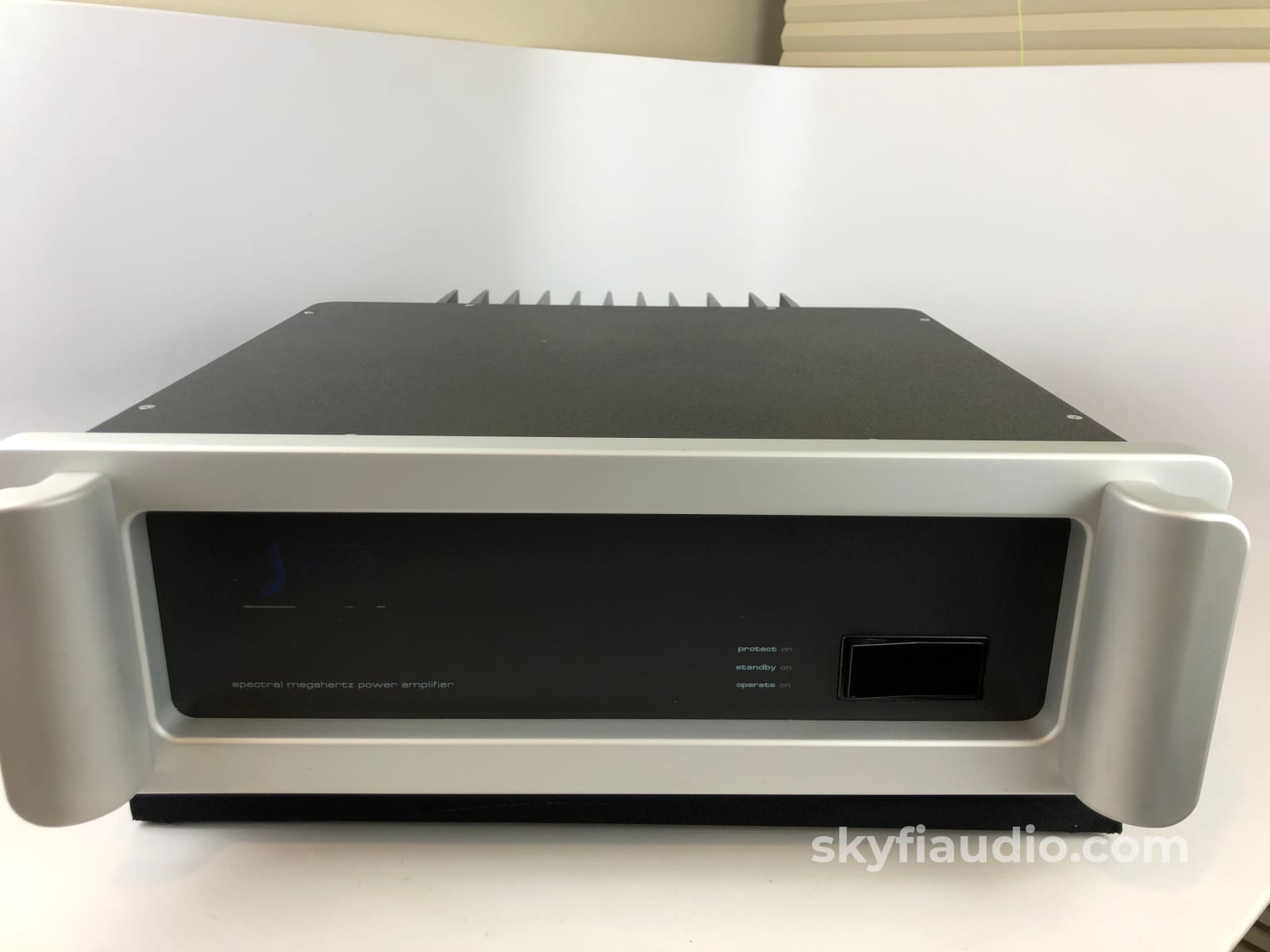

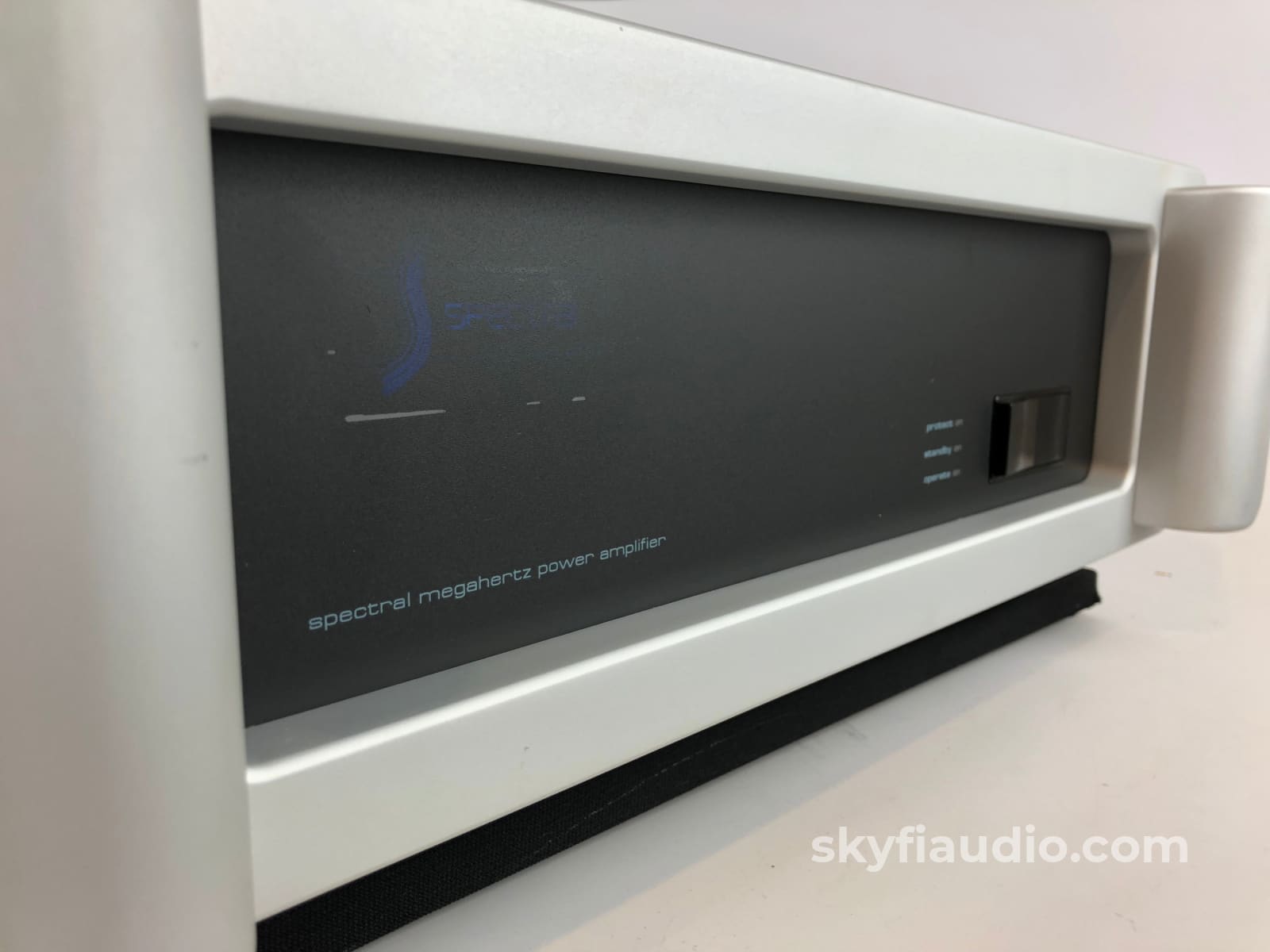

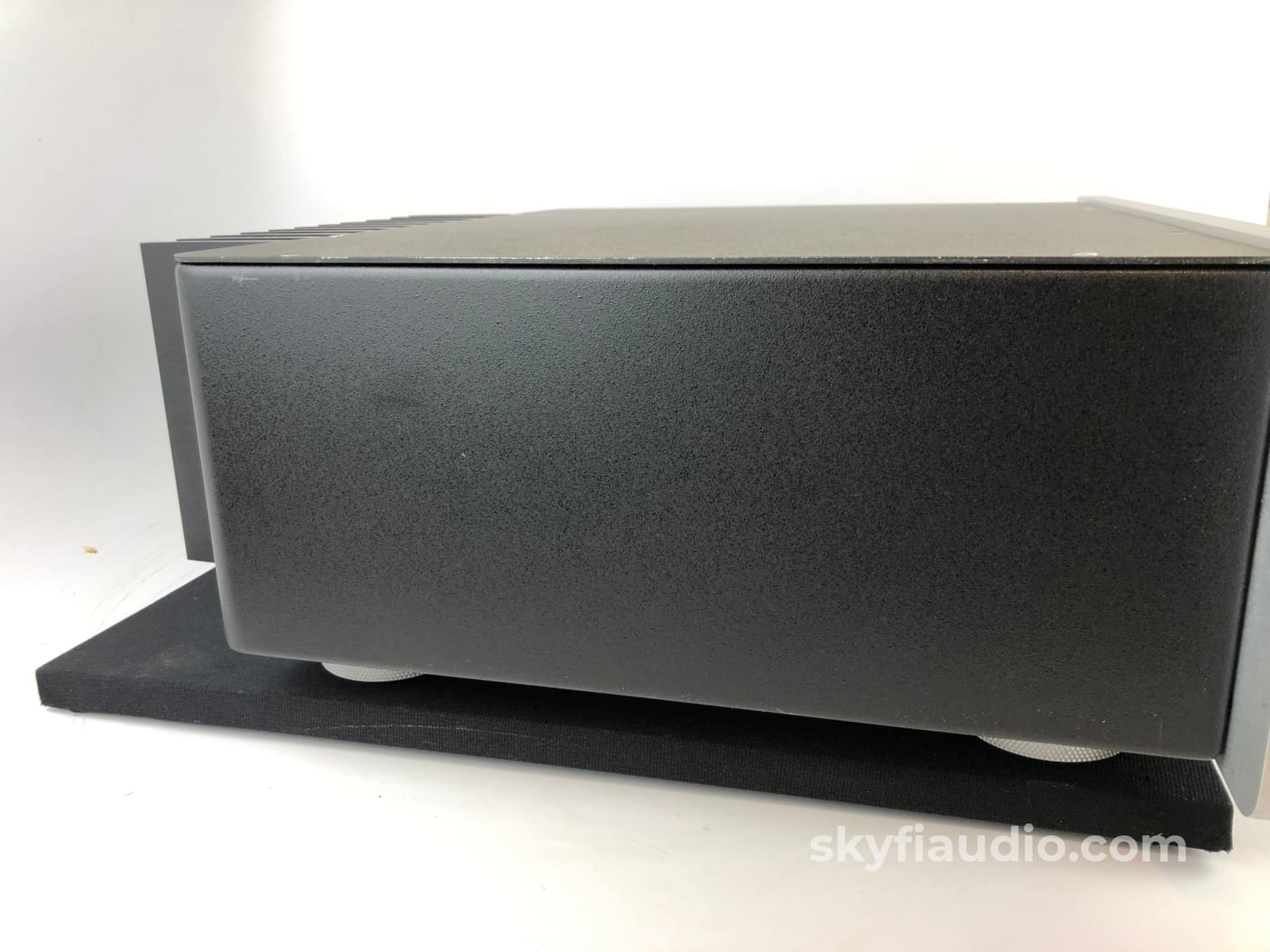

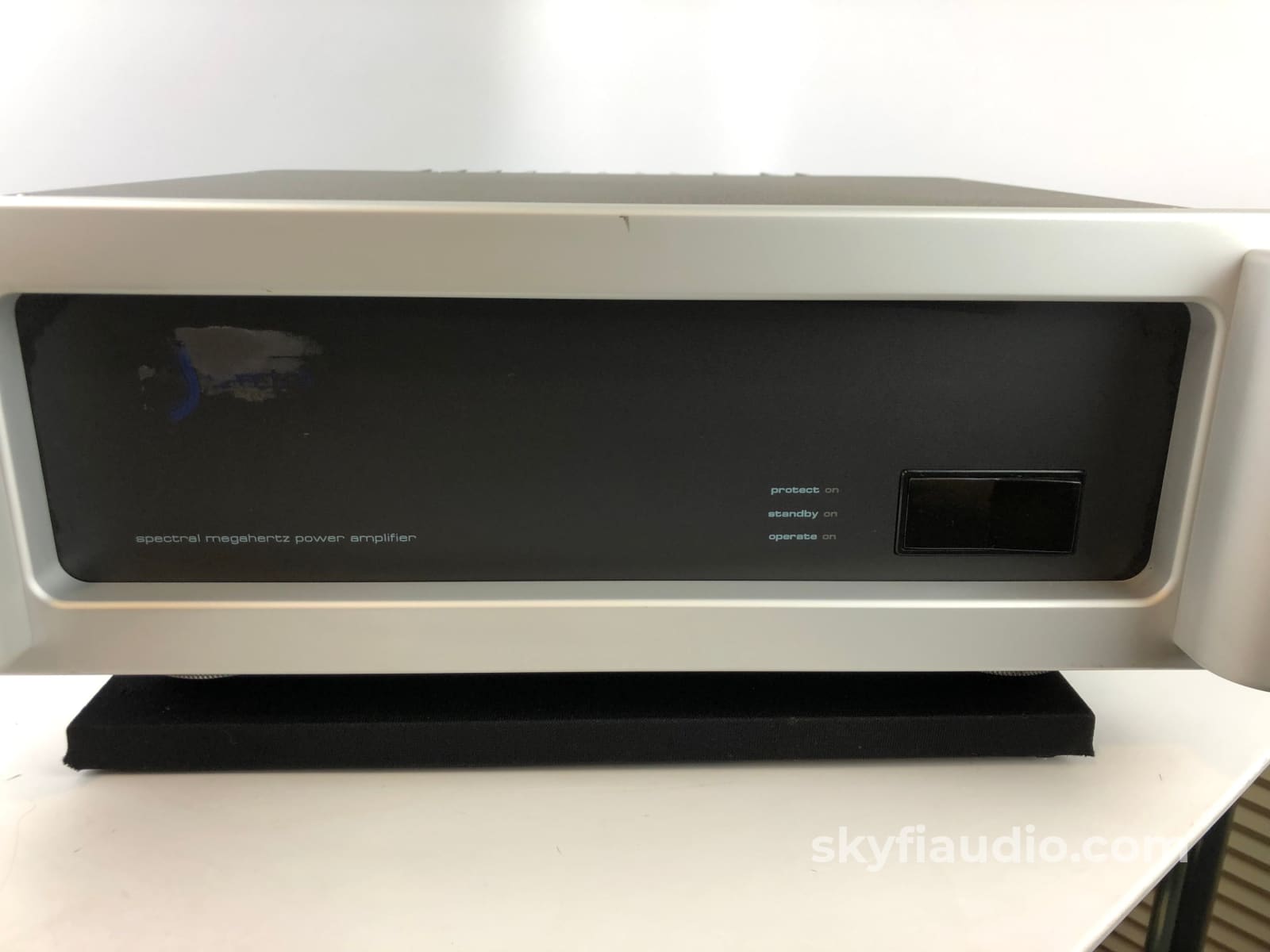

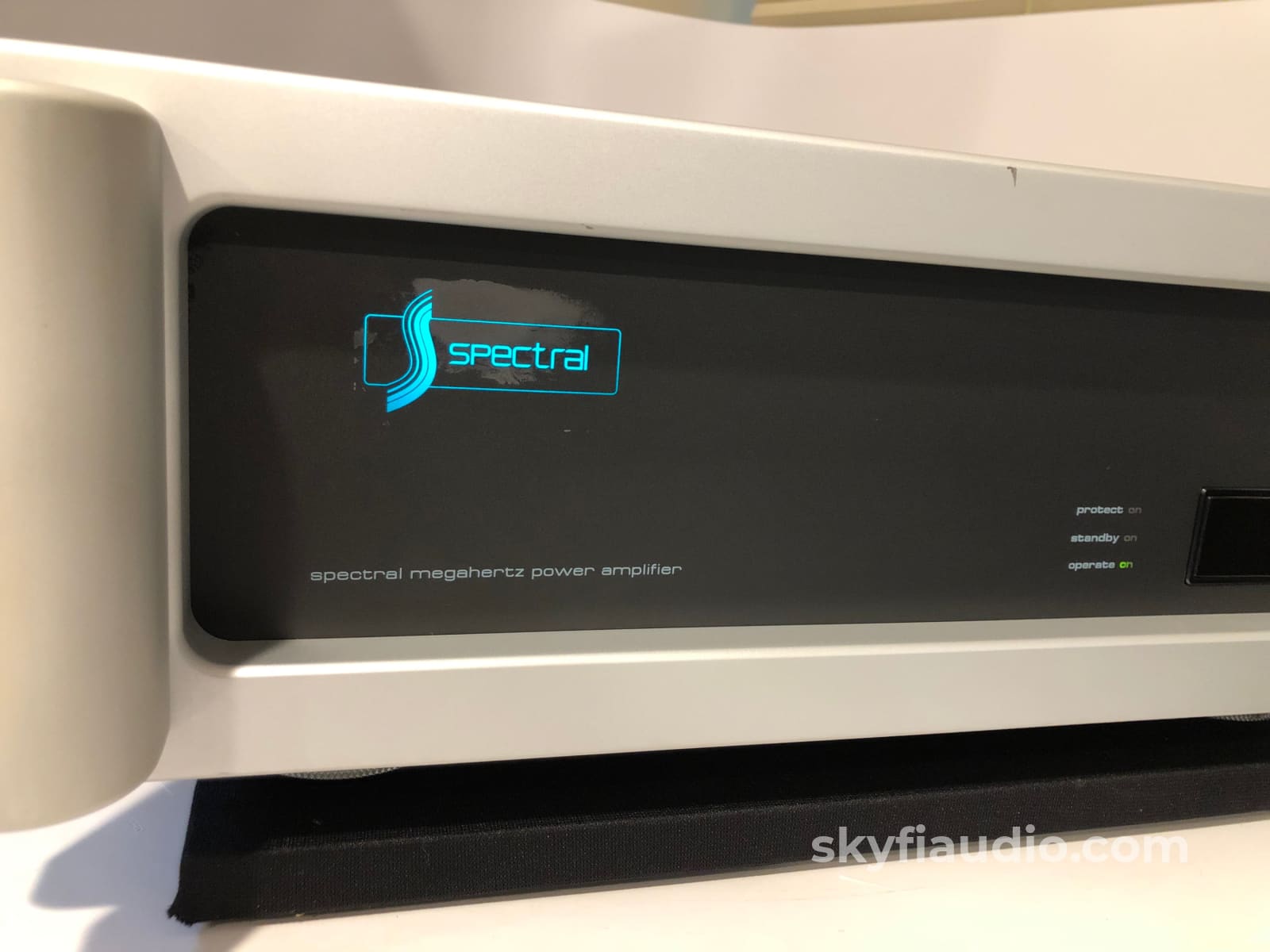

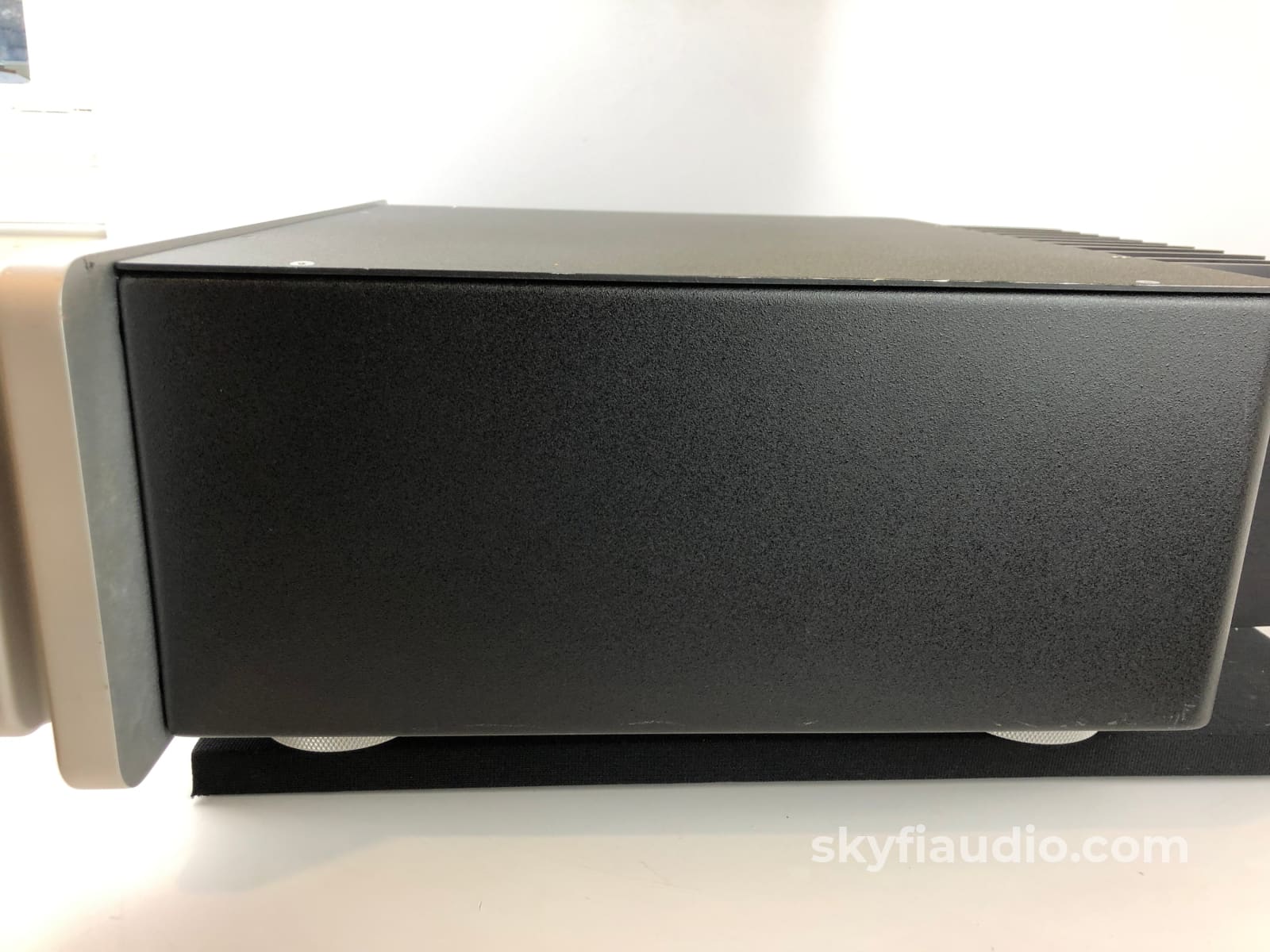

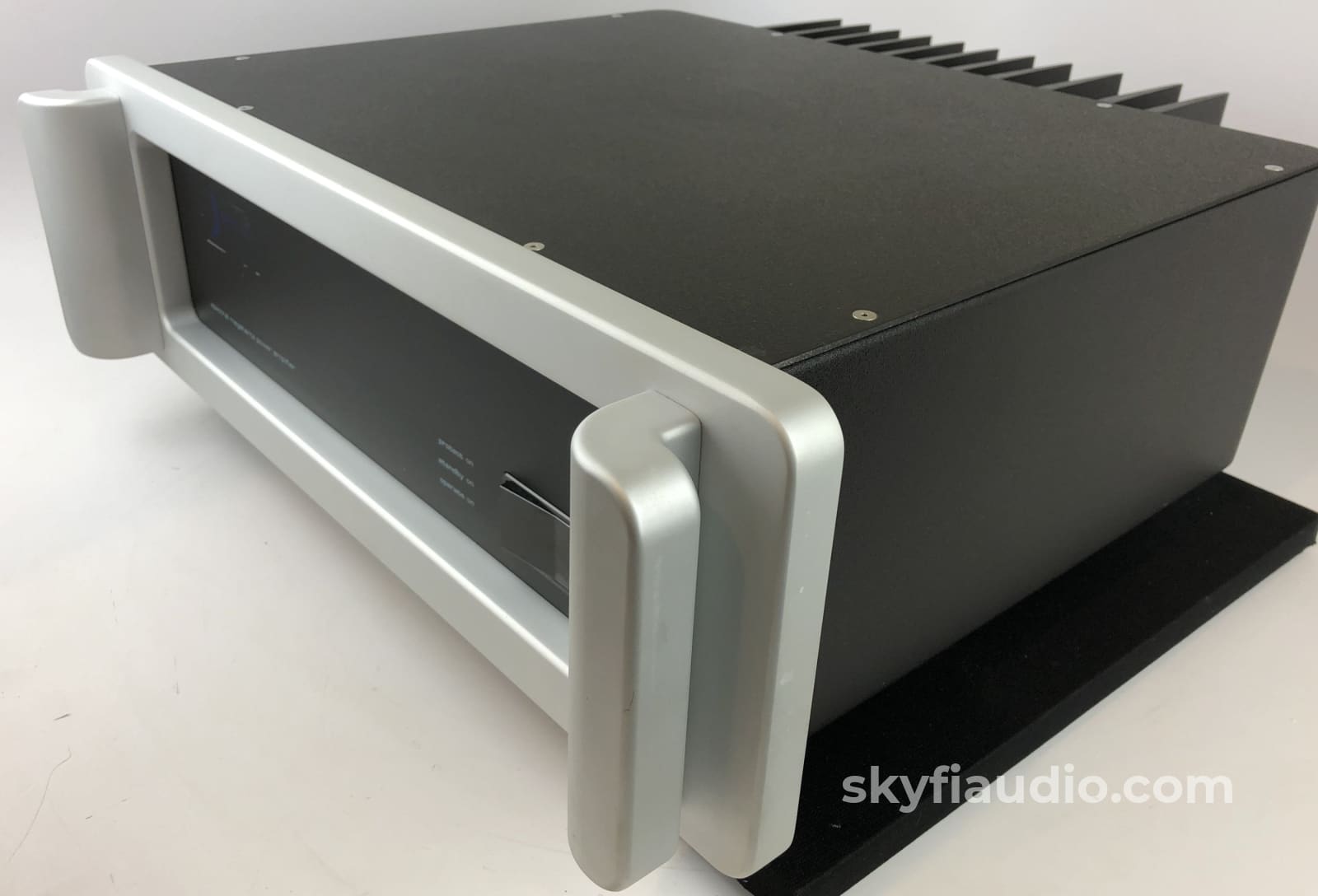

Cosmetically the exterior is in very good shape with no significant scratches or dents as visible in the pictures. One of the units has some discoloration on the plastic insert front panel only visible when the unit is powered off, just above the logo and barely visible on the pictures.

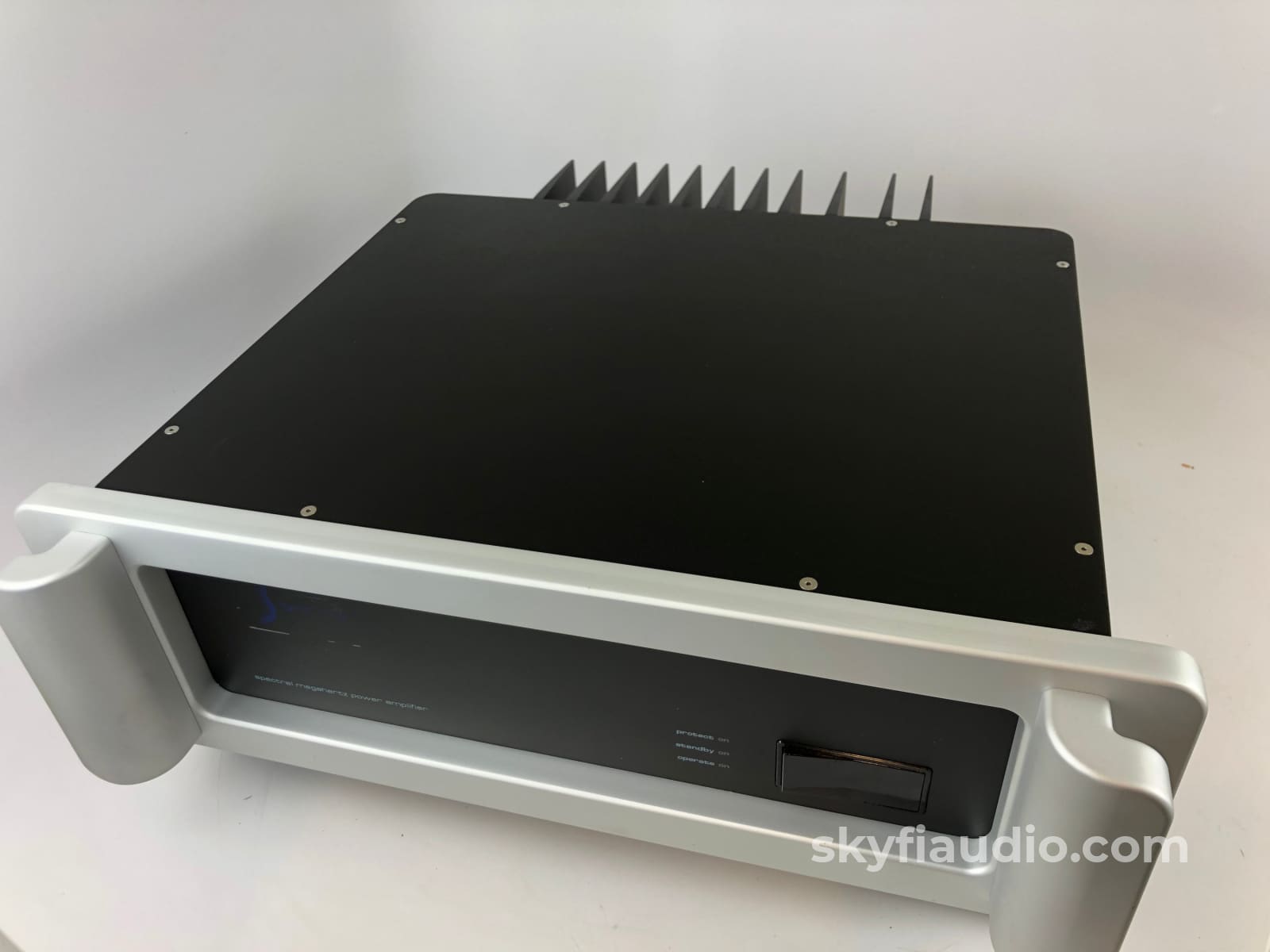

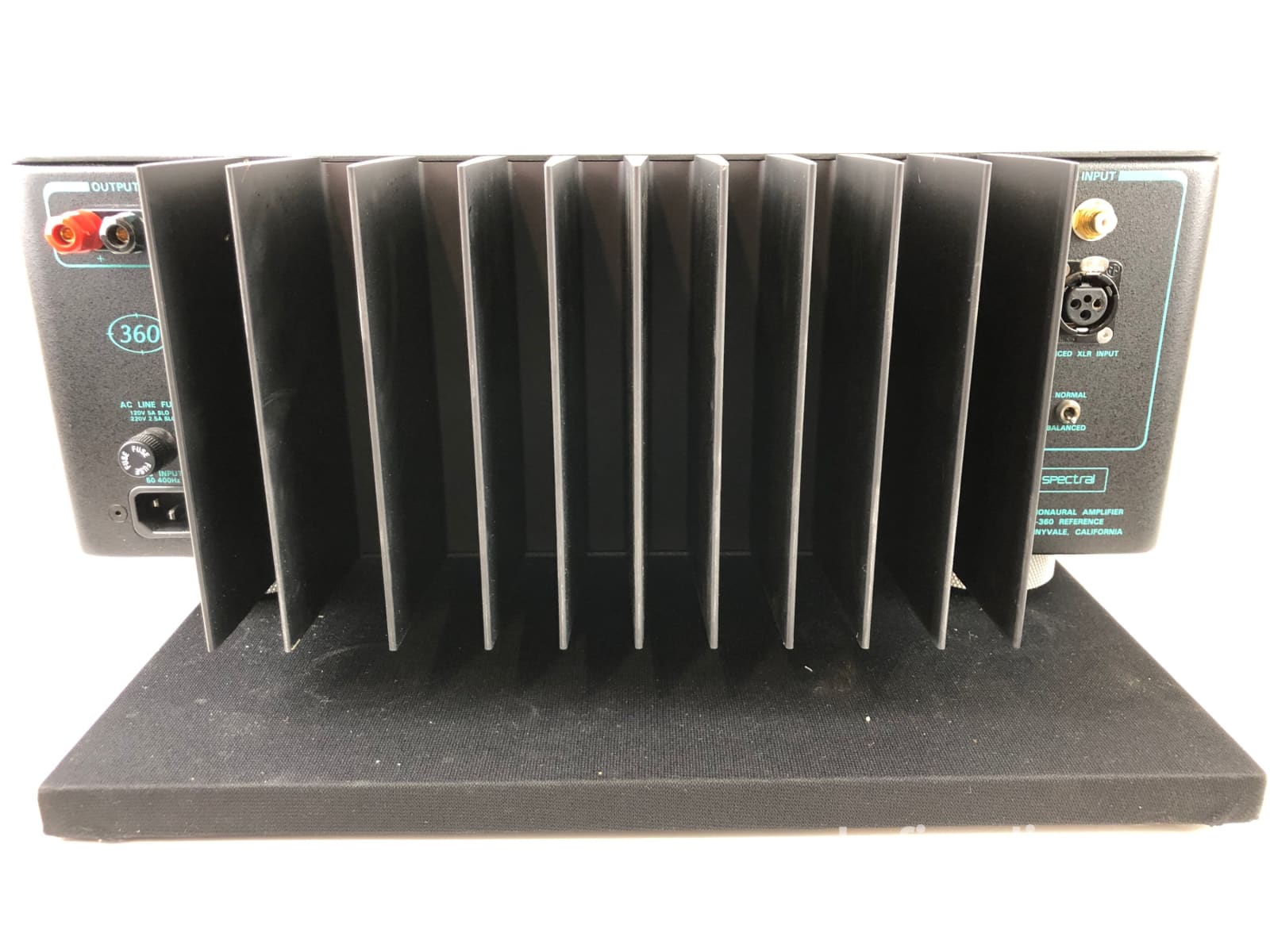

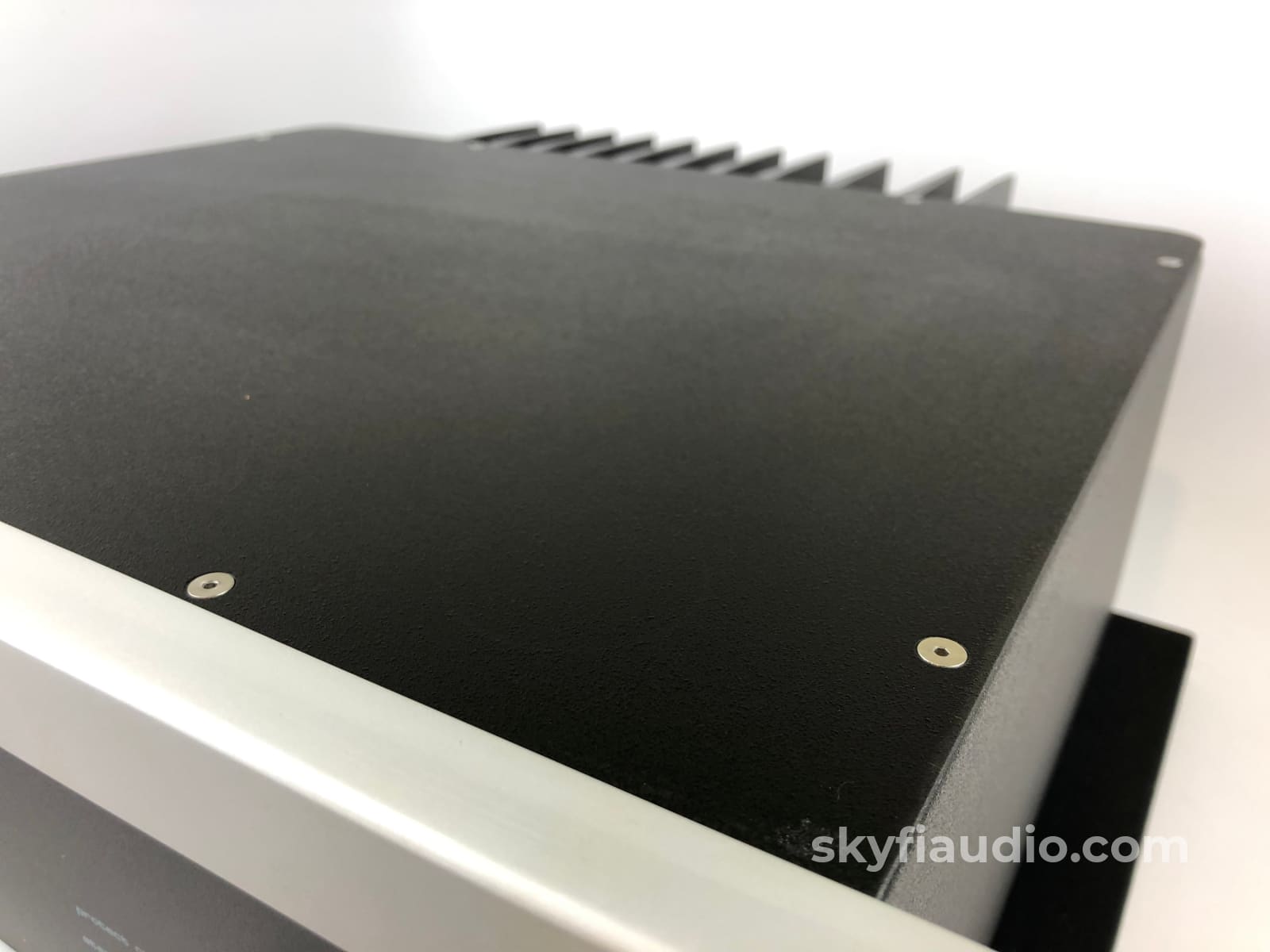

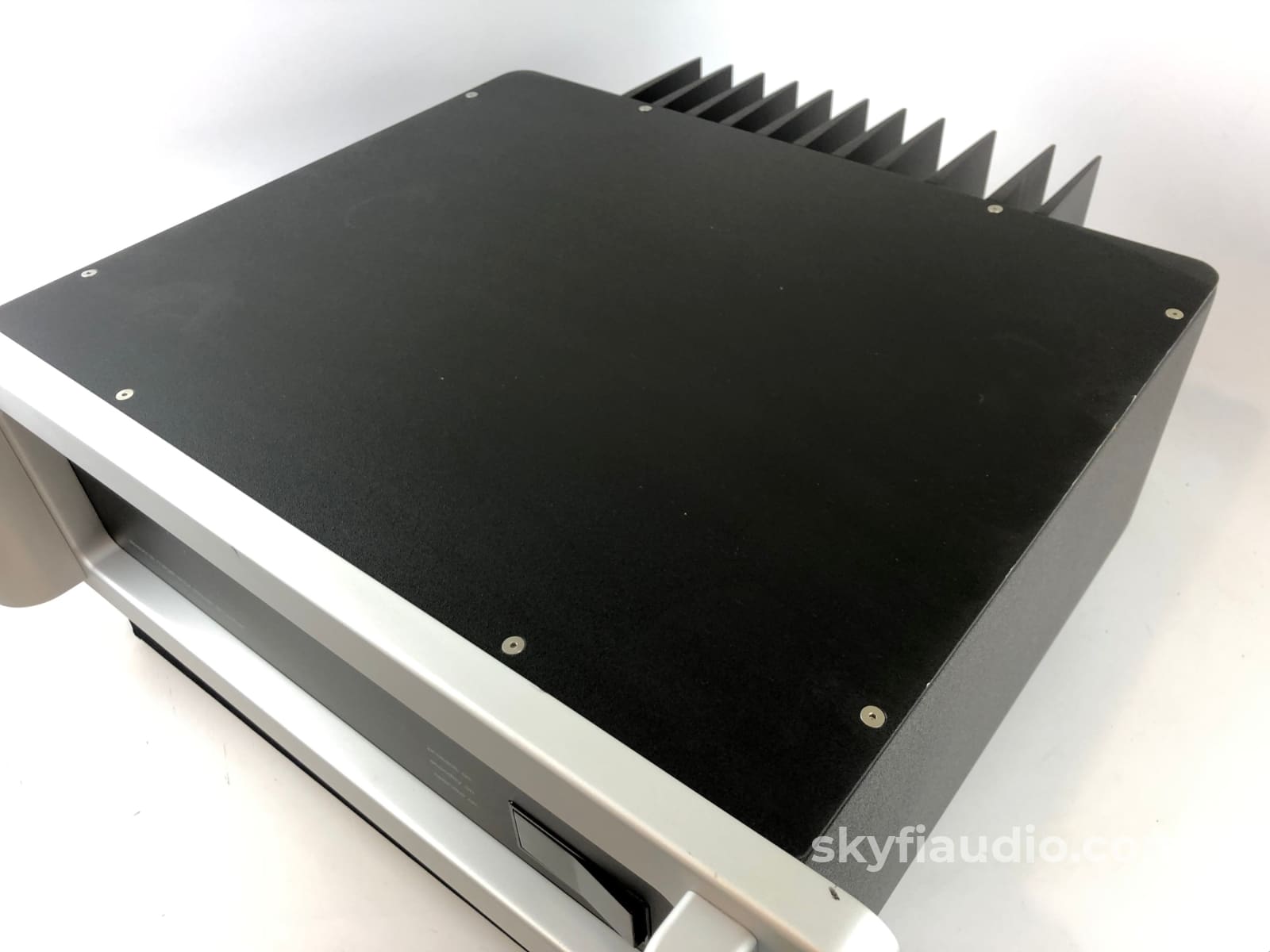

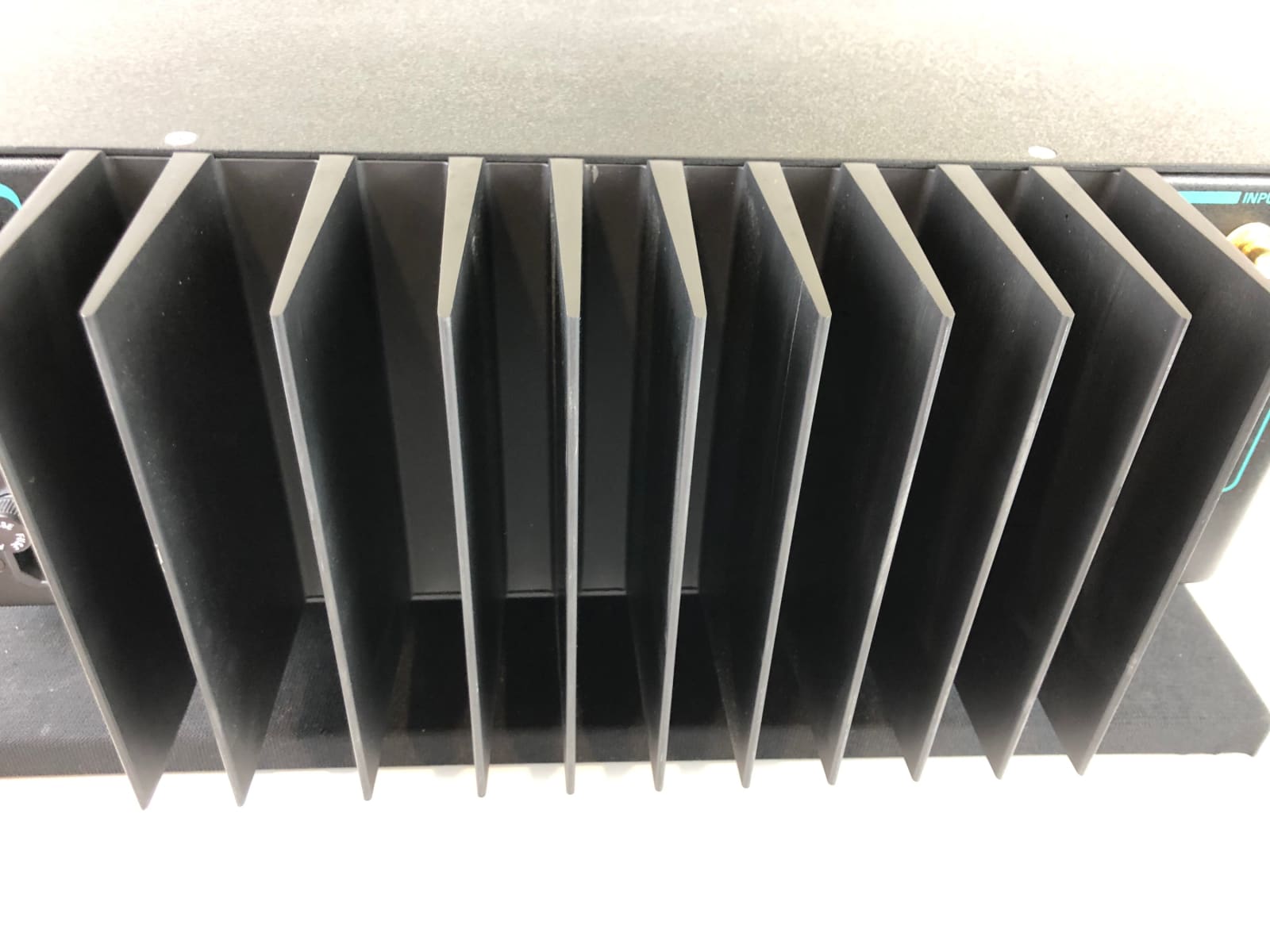

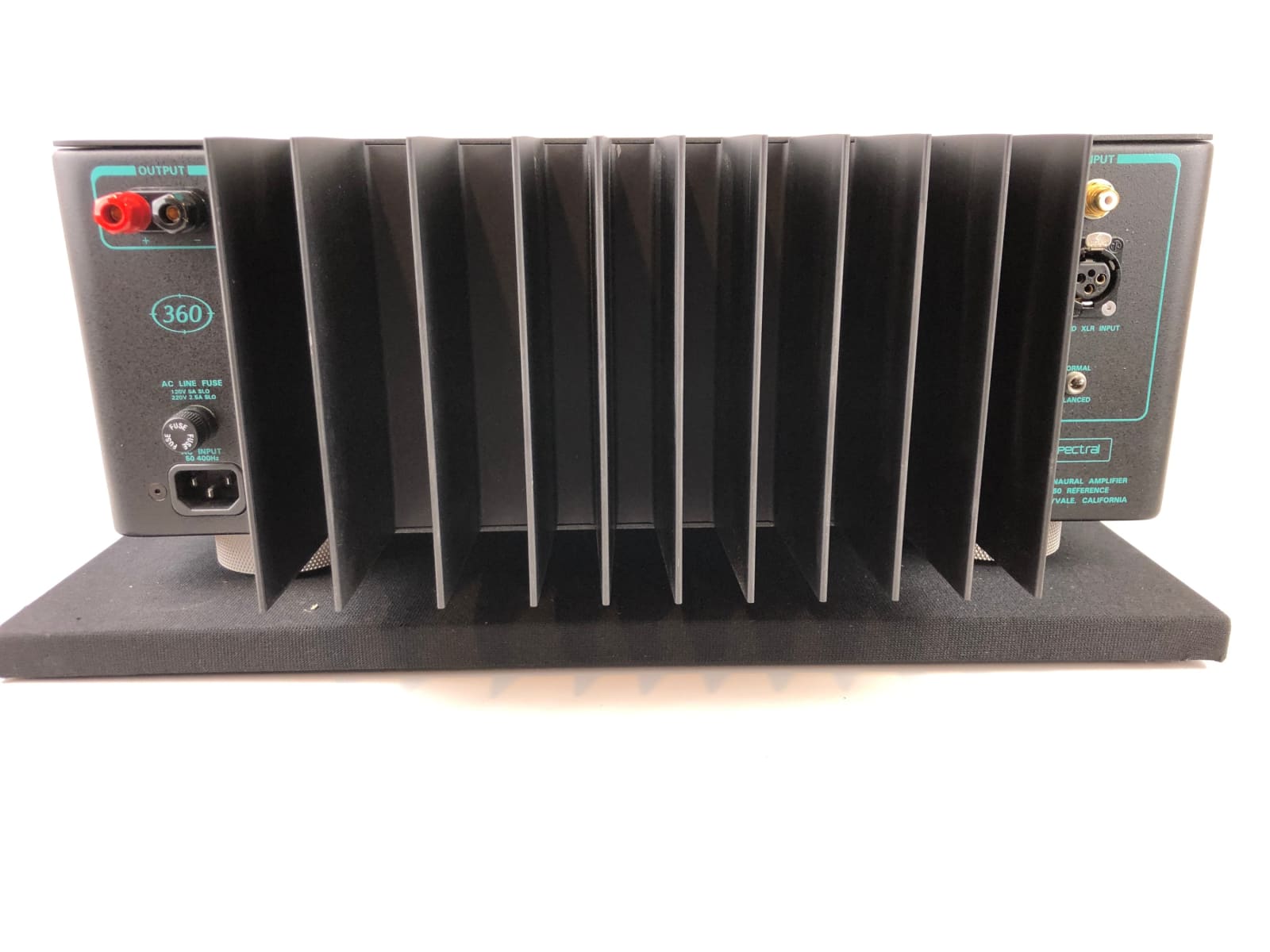

The tops do not have any scratches and the aluminum faceplates are clean except for one small nick visible in the pictures. The heatsinks are free of scratches or dents.
Matching MIT interconnects, power cables, and speaker cables are also available - but not included in this auction.
From the spectral literature:
DMA-360 Monaural Power Amplifier
(continuous): @ 8 ohms - 300 Watts RMS
@ 4 ohms - 533 Watts RMS
@ 2 ohms - 680 Watts RMS
Output Compliment: 90 Amps peak
Frequency Response: +-0.1 dB, DC - 150 KHz
+-1 dB, DC - 1 MHz
+-3 dB, DC - 1.8 MHz
Static: less than 0.015% from DC
to 100 KHz, typically
0.009% @ 300 WRMS/8 ohms
Dynamic: 8 Tone Cluster Test 20
KHz @ 500 Hz separation
0.01% @ 8 ohms
0.015% @ 4 ohms
Risetime: less than 300 nanoseconds
Settling: 1.5 microseconds to -40 dB
Slew Rate: 600 volts/microsecond
Signal to Noise: 97 dB nweighted,
107 dB ASA A
Crosstalk: 98 dB @ full power 8 ohms
Impedance: 10k ohms
Sensitivity: 1.5 volts / nominal output
Line Voltage: 100 volts, 120 volts,
240 volts (internal wiring)
AC Voltage Range: +-10%
Maximum Consumption: 2000 Watts
Quiescent Consumption: 250 Watts
Operating Temperature: 0 deg. to +50 deg. Cesius range,
32 deg. to +122 deg. Fahrenheit
DC Protection Servo: .5 volt range
Current Limit Onset: 90 Amps
Thermal Threshold: Protects at 85 deg. Censius,
185 deg. Fahrenheit

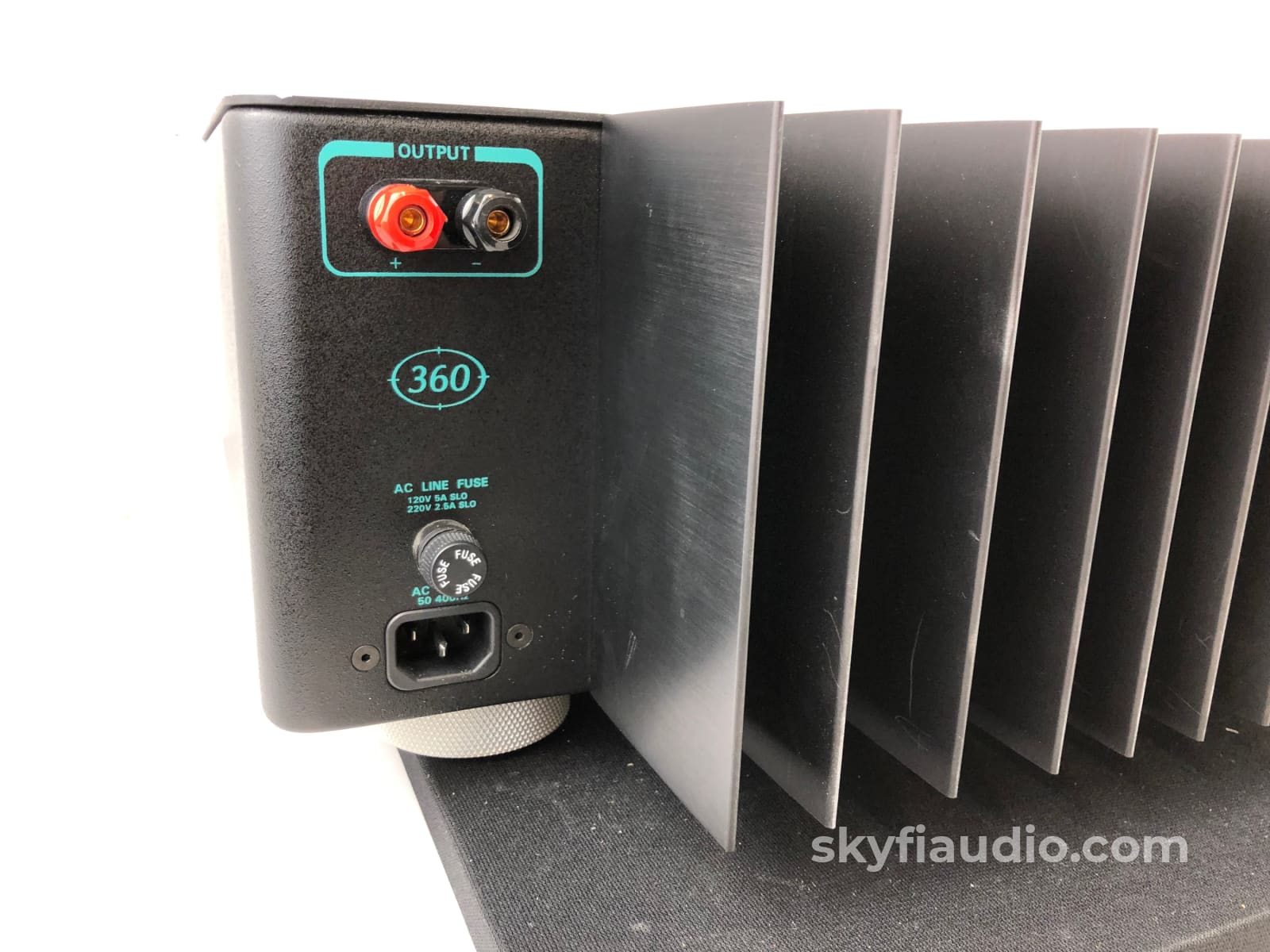

AC Main Fuses: 120v 5A or 220v 2.5A slo blo
Size and Weight:
Dimensions: 20" (50.8 cm) W,
7.23" (18.4 cm) H,
19.6" (49.9 cm) D,
Weight: 67 lbs, 30.4 KG Net
