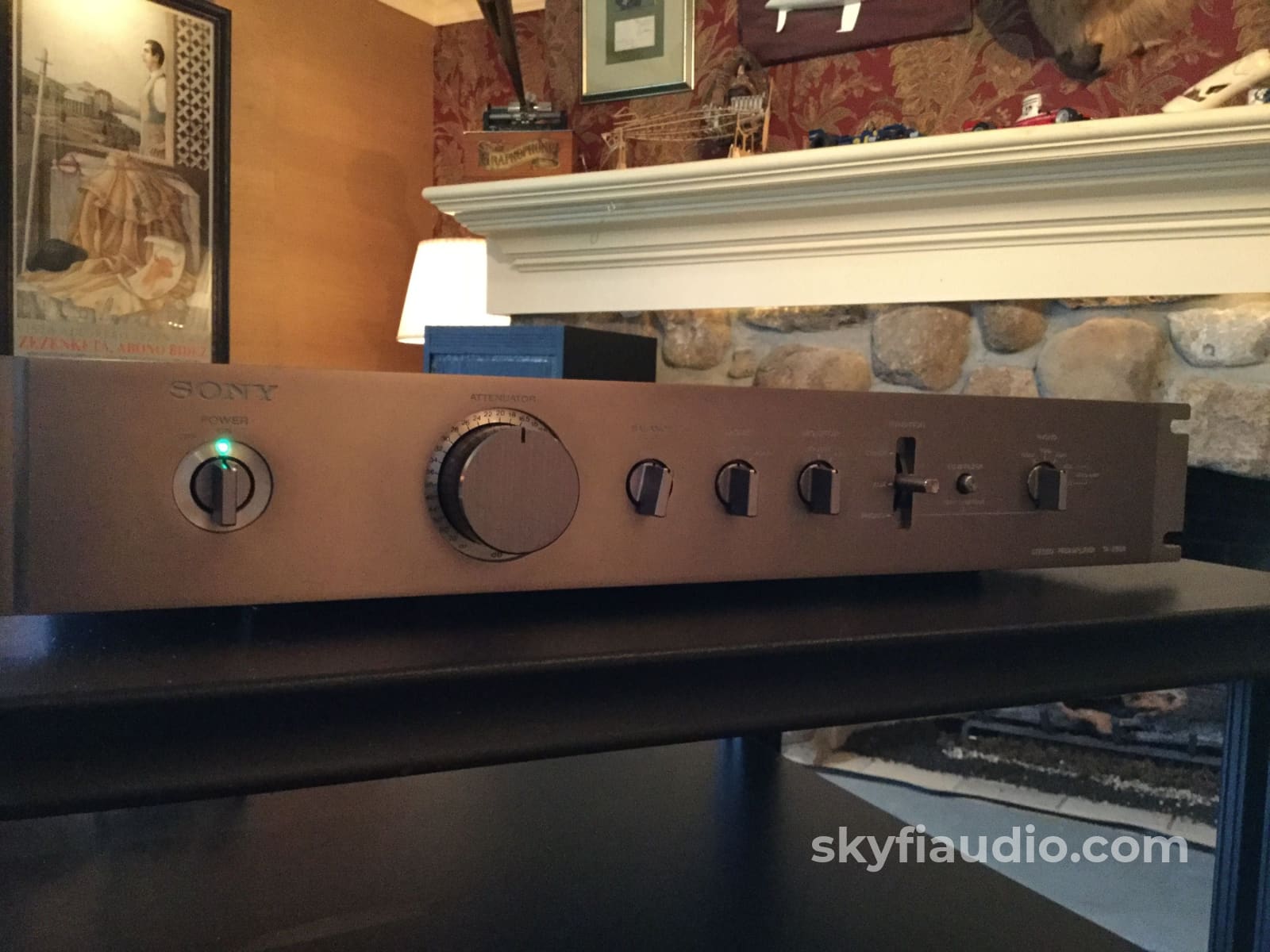

Sony Ta-E86B And Ta-N86B Preamp/Amplifier Combo Super Rare Collectable Preamplifier

Sony TA-E86B and TA-N86B Preamp/Amplifier Combo, Super Rare and Collectable

SkyFi 479

Pickup currently unavailable

479 South Broad Street
Glen Rock NJ 07452
United States

+12018790000

This is a rare and collectible set from our personal collection.

These were not at all easy to find and put together, and is the result of searching over many years to find the right pieces.  Pieces that were not rusty from being stored a damp basement, pieces not missing knobs, and pieces that were not beyond repair.

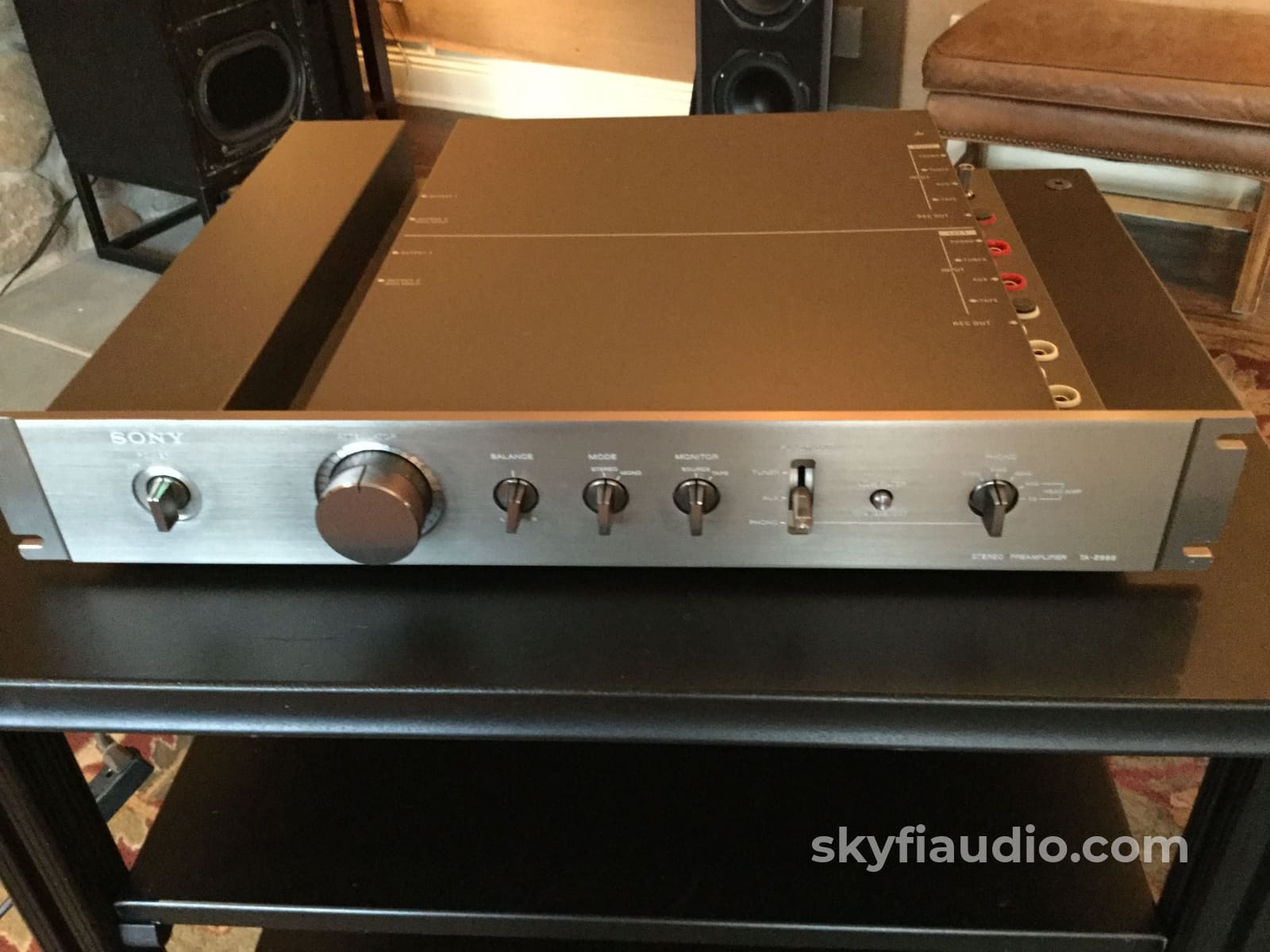

These are both super unique in their design, especially the preamp.

Full dual mono design featuring discrete signal paths for the left and right channels. If you were to use a bandsaw and cut this unit in two, you would end up with two mono preamps (not completely true but close enough to make a point).

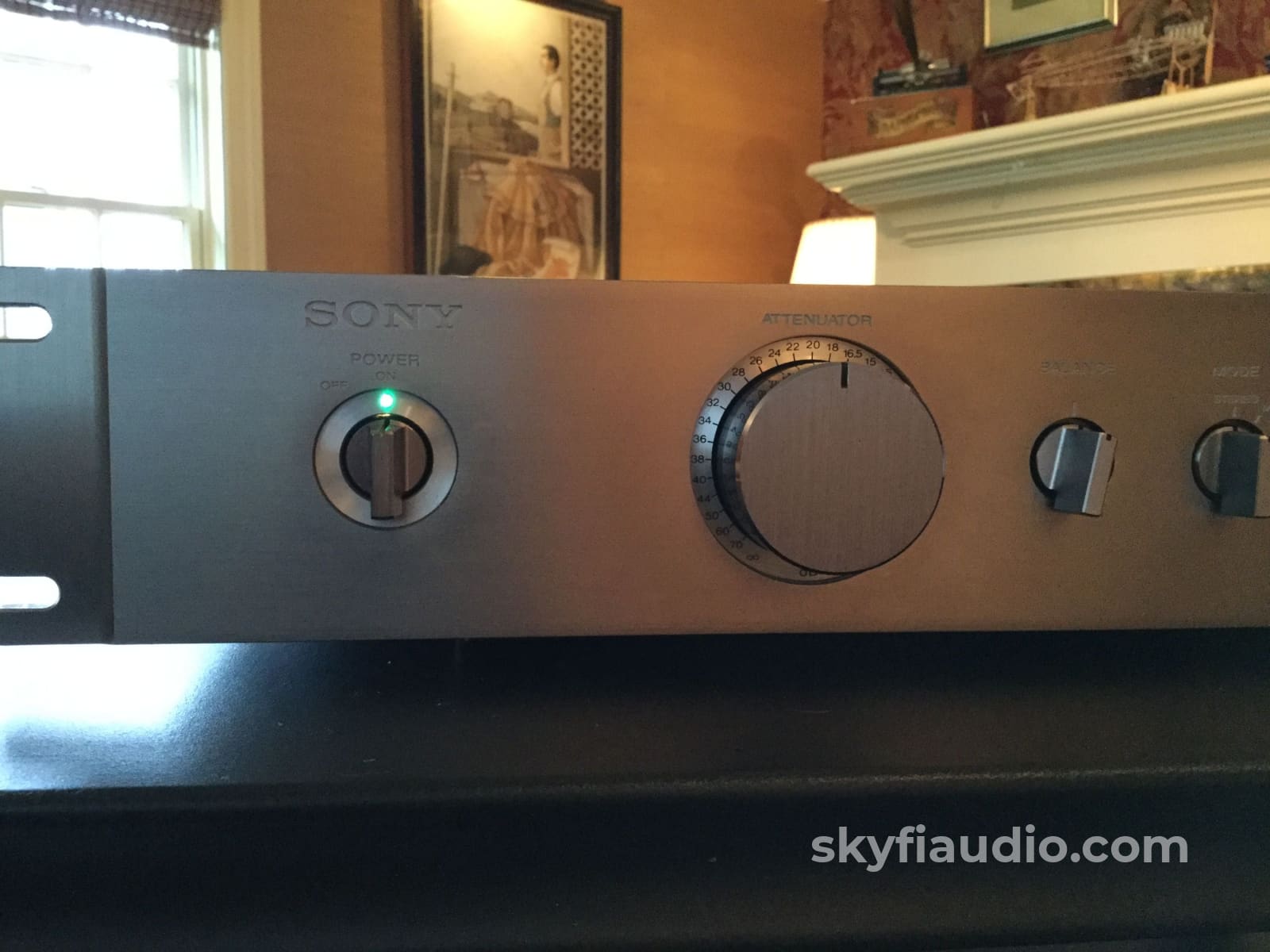

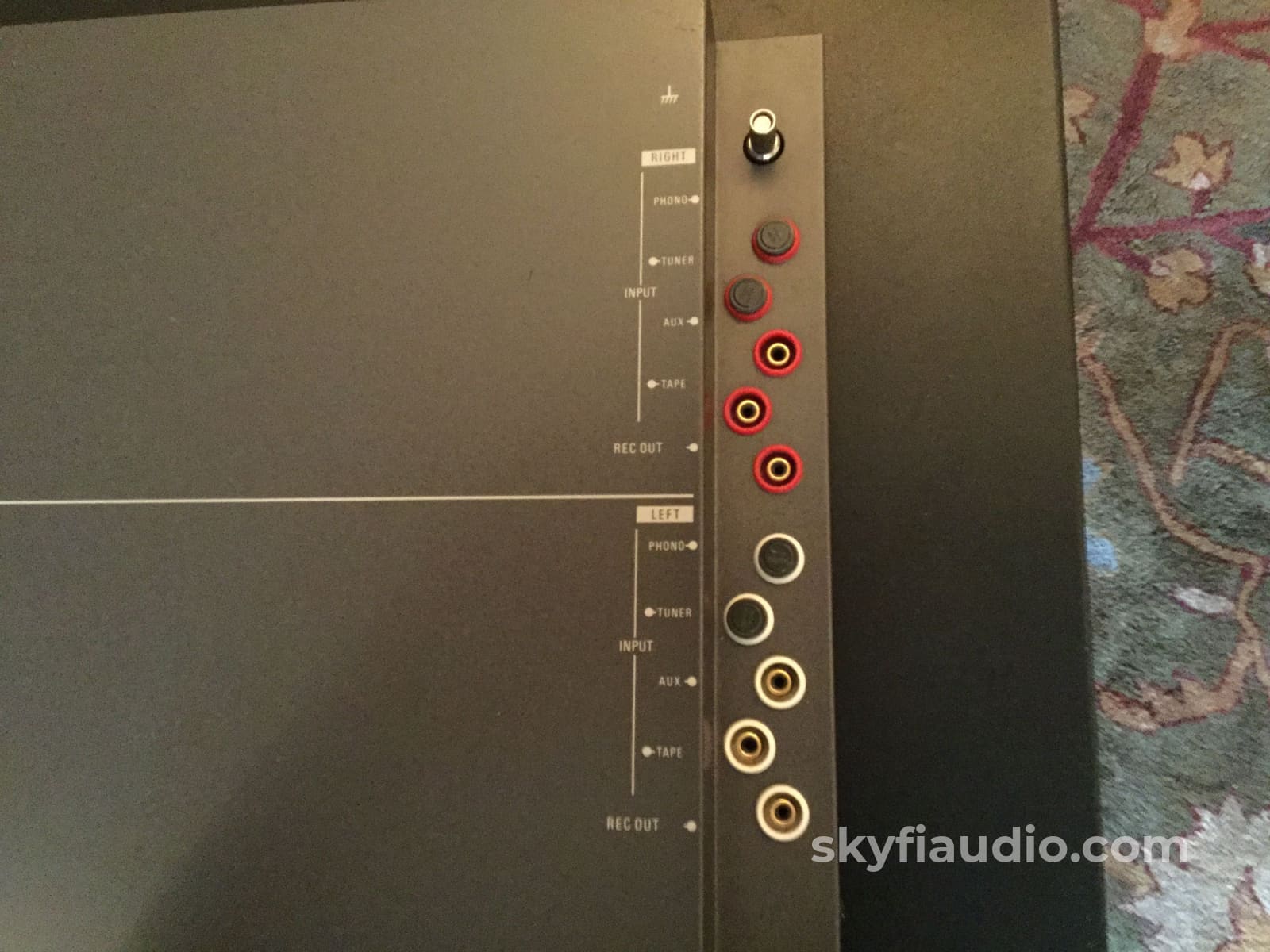

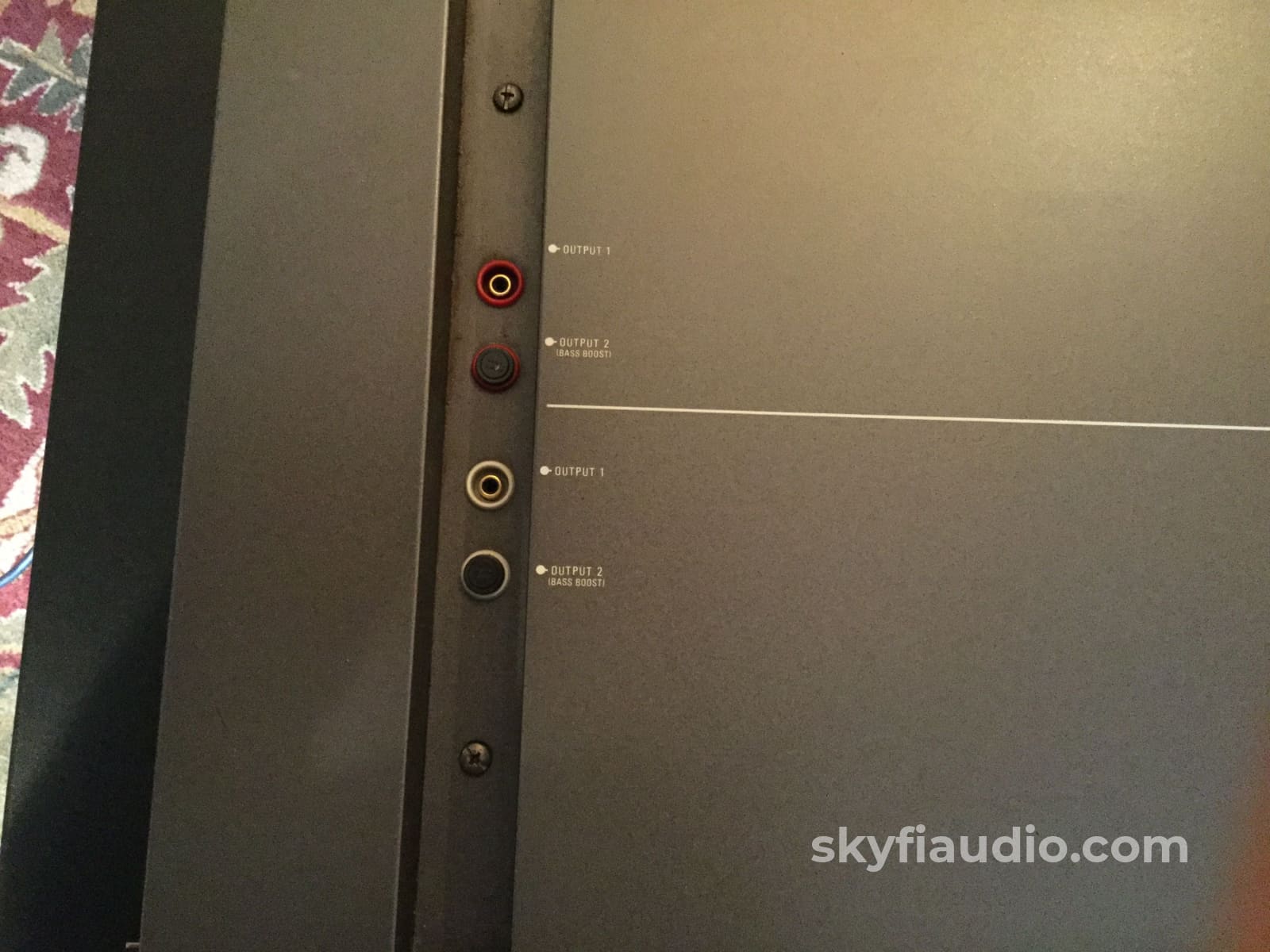

The signal flows from right to left and all connectors are on the sides of the unit. The volume and input selector shafts extend through both channels making it possible to have a single knob for operation.

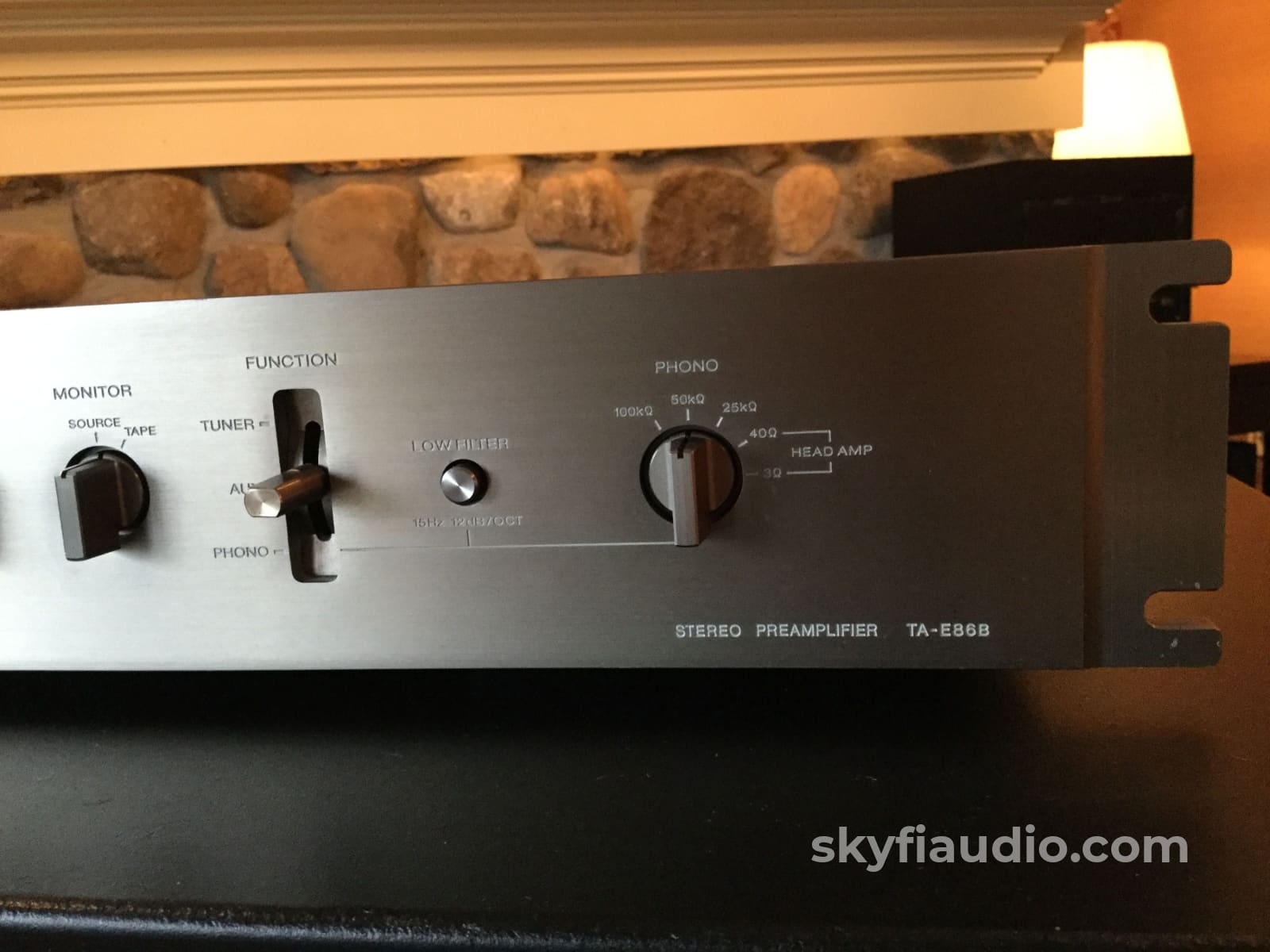

It also has a super convenient phono cartridge loading selector knob on the front, whereas most preamps would have this buried inside.

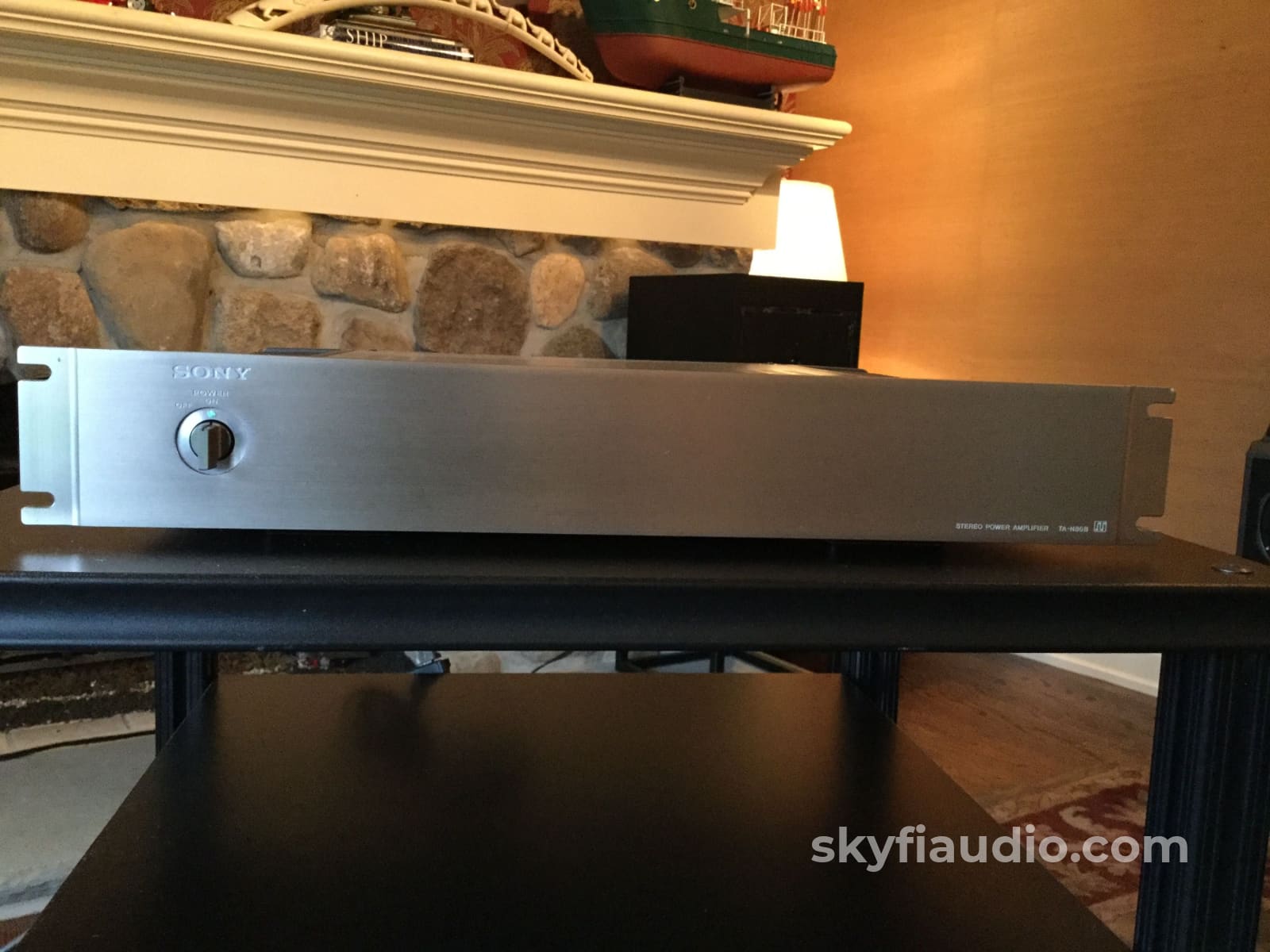

The amplifier is a perfect match and unique in its own way as it features a selector switch for Class A or Class B operation. I don’t think I’ve ever seen that before, and it's brilliant.

It is heavy and built like a tank. Parts quality is amazing from the brushed metal face plate to the internal component selection.

If you like tape decks there is a matching model from this same series which we have been unable to find in working/fixable condition.  The TCK-88 / TCK-88B. Should you actually have one for sale we would love to hear from you.

Condition is superb, with no real noticeable scratches or dents, just a tiny nick near one fo the rack ears.

Operation is spot on and has been fully tested in our lab and listening room over a lengthy period of time.

These are wonderful pieces of audio history from Sony, truly rare and special, and would make a great part of your collection.

Specifications - TA-E86B Solid State Stereo Preamplifier:
Frequency response: 5Hz to 500kHz
Total harmonic distortion: 0.003%
Input sensitivity: 0.125mV (MC), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 78dB (MC), 87dB (MM), 105dB (line)
Output: 150mV (line), 1.5V (Pre out), 13V (Pre out Max
Dimensions: 18.9" x 3.15" x 14.41" (480 x 80 x 366mm)
Weight: 18.07 lbs. / 8.2kg
Year: 1978 - 1980

Click here for a PDF copy of the original Service Manual

Specifications - TA-N86B Solid State Stereo Amplifier:
Power output: 80 watts per channel into 8Ω (stereo), 180W into 8Ω (mono)
Frequency response: 1Hz to 200kHz
Total harmonic distortion: 0.007%
Damping factor: 70
Gain: 27.4 dB
Input sensitivity: 1.1V
Signal to noise ratio: 120dB
Speaker load impedance: 4Ω to 16Ω
Dimensions: 18.9" x 3.15" x 14.96" (480 x 80 x 380mm)
Weight: 17.64 lbs. / 8kg
Finish: silver front panel
Year: 1978 - 1980

Click here for a PDF copy of the original Operating Instructions

Click here for a PDF copy of the original Service Manual

The Vintage Knob website has a fantastic write-up plus additional interior pictures via these links:  Preamp / Amplifier

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

No

Manual

No

Remote

No

Cables

No

Physical Condition

8

Working Condition

10

SKU: 101163 and 101164
