Simaudio Moon 300D Digital-To-Analog Converter (DAC)

$699

Standout Features - v1:
• Burr Brown PCM1793 high-resolution 24-bit/192-kHz D/A and 8x oversampling
• Internal upsampling which uses 24-bit / 352.8kHz processing
• Oversized power supply with 8 stages of voltage regulation
• Single-ended RCA and Balanced XLR analog outputs
• Accurate digital clocking system for exceptionally low intrinsic jitter levels
• Advanced analog signal path using a DC servo circuit and proprietary analog filter
• Pure copper circuit board tracings with extremely low impedance characteristics

The MOON 300D Digital-to-Analog Converter features an exceptionally versatile external interface that allows for use with a computer, via its USB-B input, as well as other digital audio source components such as a music server, digital transport, etc. though either S/PDIF or optical TosLink connectors. Intended to fulfill the demands of the discerning music aficionado, the 300D will bring new life to all of your digital audio files, regardless of their storage format.

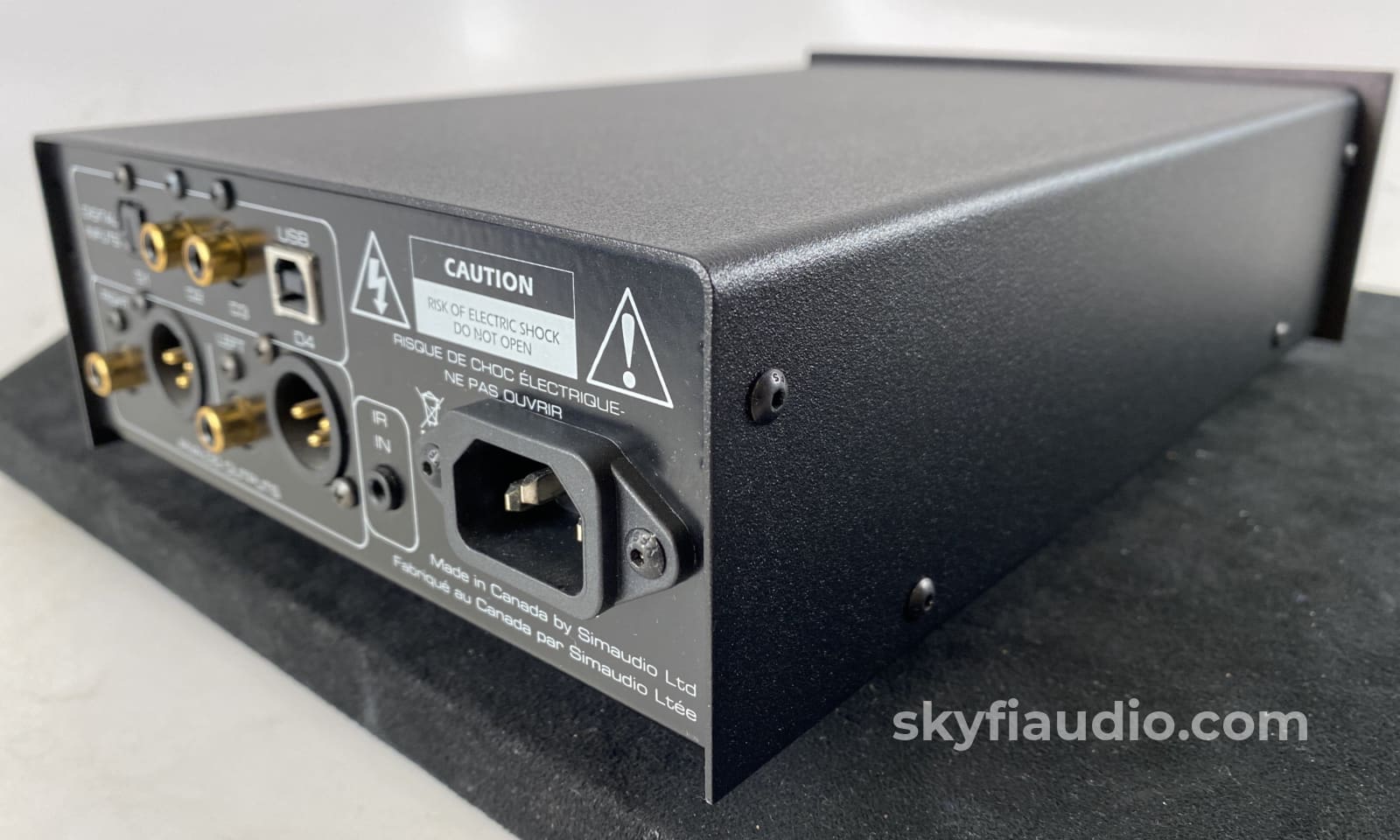

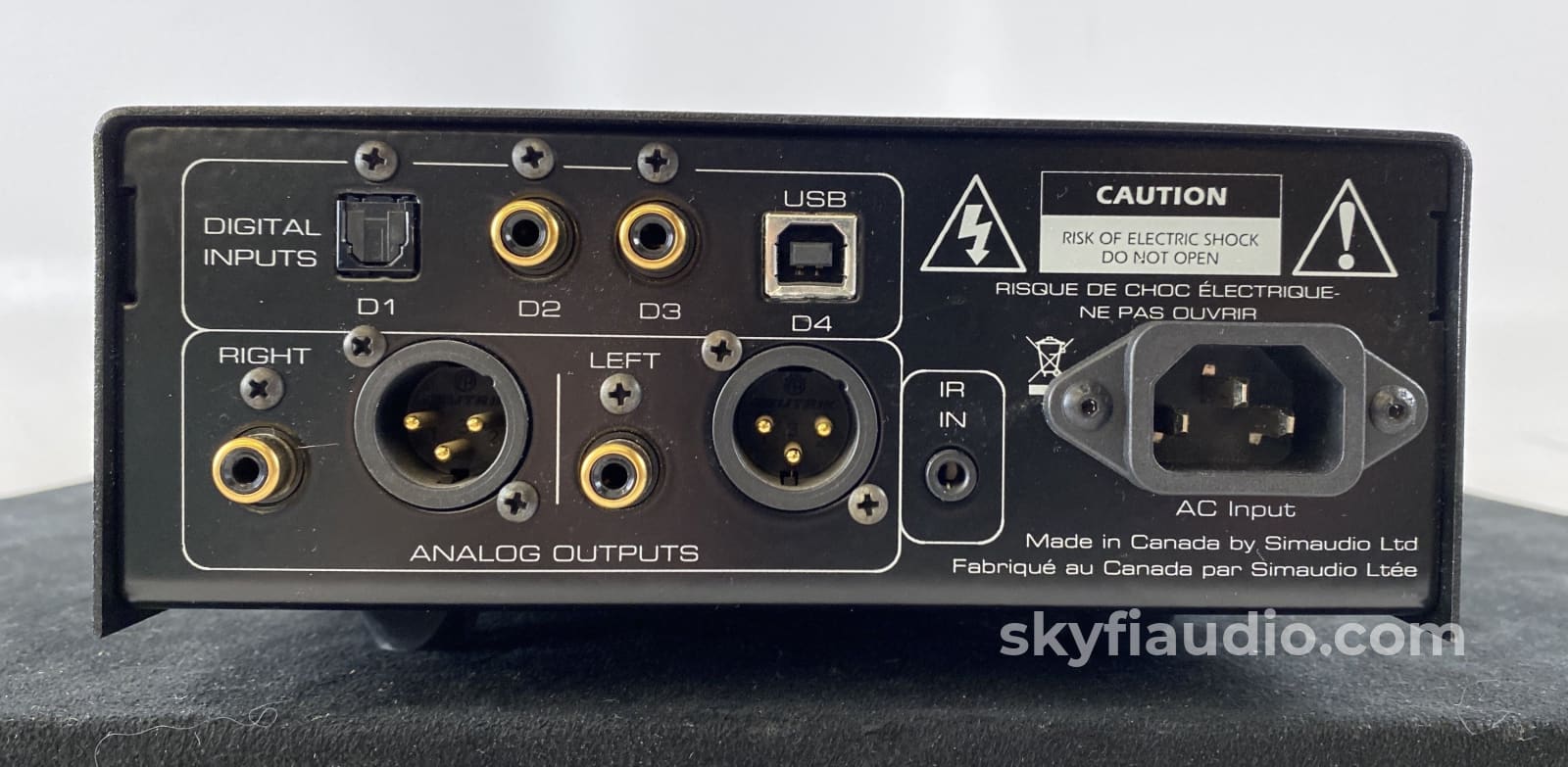

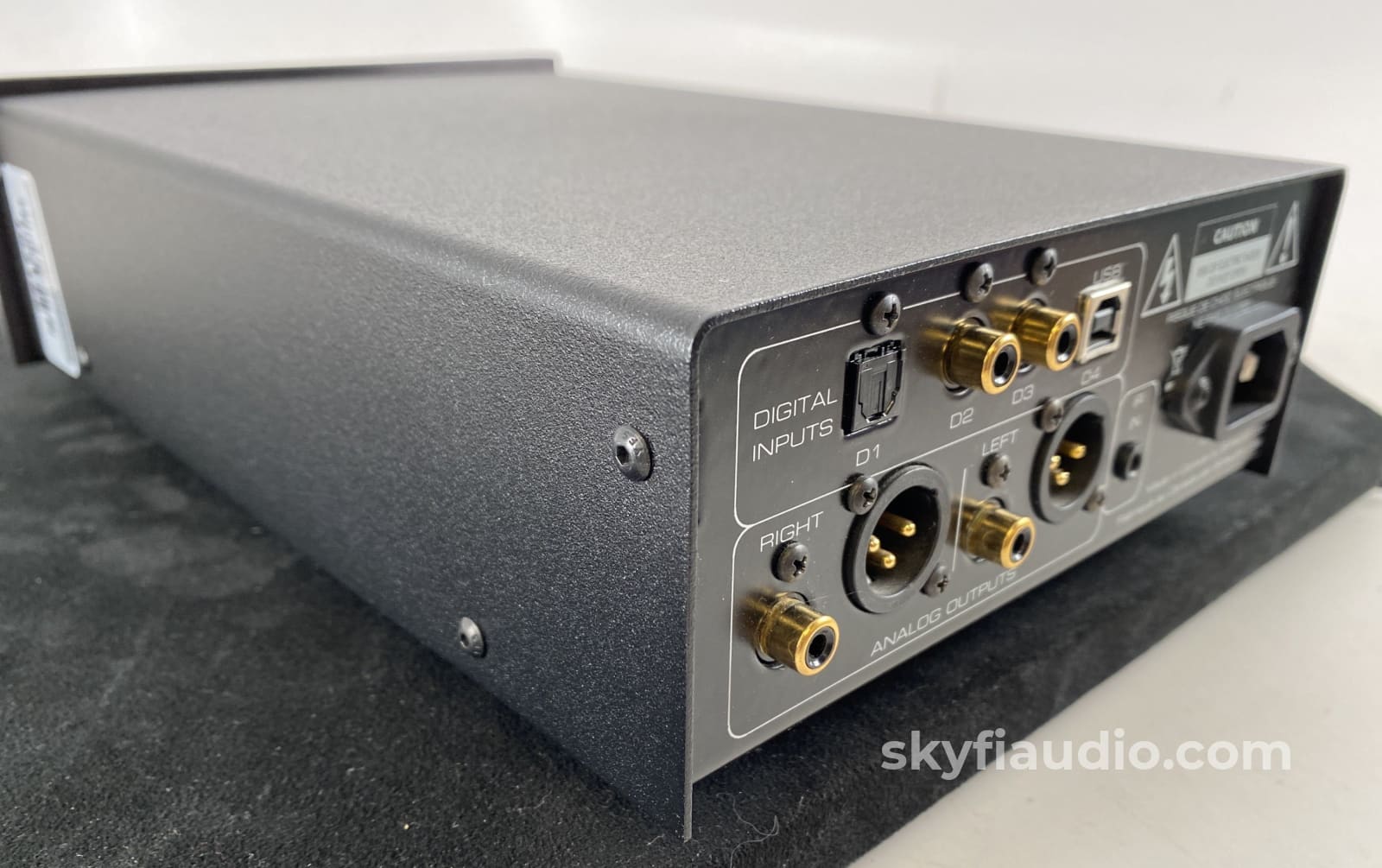

With internal upsampling using 24-bit/352.8kHz processing, the MOON 300D will reproduce your digital music in a genuine life-like fashion. This DAC will accept an input signal ranging from 44.1 to 192kHz, with a bit-depth range from 16 to 24-bits. Jitter is a virtual non-issue thanks to our highly regarded proprietary digital clocking system. The back panel features a total of 4 digital inputs (USB, SPDIF x 2, and TosLink) and both balanced (XLR) and single-ended (RCA) analog outputs. The balanced outputs provide a significant improvement in noise floor, dynamics and midrange transparency.

Sonically, it portrays all of the Simaudio hallmarks: clean, powerful, fast and extended bass combined with an open midrange and airy extended high frequencies. Like other MOON series components, the 300D includes an IR input, an over-built power supply and is housed in a extremely rigid custom-made chassis with a 3/8” brushed and anodized front panel.

**An important note about the USB input:
The USB input on the MOON 300D accepts a digital audio signal of up to 16-bits/48kHz. This is the native specification of the USB input. However, if you require a higher sampling rate, there are ways to achieve this with the 300D.

Rather than including a USB input for sampling rates exceeeding 48kHz, we opted to provide the best possible power supply, D/A converter and analog stage in the MOON 300D at this price level. Also, keep in mind that USB wasn’t originally intended for use with hi-resolution audio; there are latency issues which compromise sound quality (i.e. jitter and phase errors, etc.). These could be minimized through dedicated costly circuitry, but this would significantly drive up the cost of the 300D without improving the sonic performance on any of the other inputs.

If you intend to use the MOON 300D’s USB input, it’s very likely that your computer is a data source for music. Today most computers with a built-in sound card will have either an S/PDIF (RCA connector) or Toslink (optical connector) digital audio output, thus eliminating the need for a USB input on the 300D. Furthermore, if you’re committed to getting the most out of the music stored on your computer, then in all likelihood you have installed an after-market soundcard in your computer. Virtually all of these soundcards have at least one S/PDIF, Optical or AES/EBU (XLR connector) digital output. At this point, USB connectivity becomes irrelevant. The USB input is there for convenience as opposed to performance.

In the event that you wish to use your computer’s USB connection with files greater than 48kHz, there are several relatively inexpensive after-market products; compact one-box USB-to-S/PDIF interfaces that will work with USB datastreams up to 24-bit, all the way up to 192kHz.

Simaudio Moon 300D Digital-To-Analog Converter - Manual

Detailed Specifications:
Type: Solid State

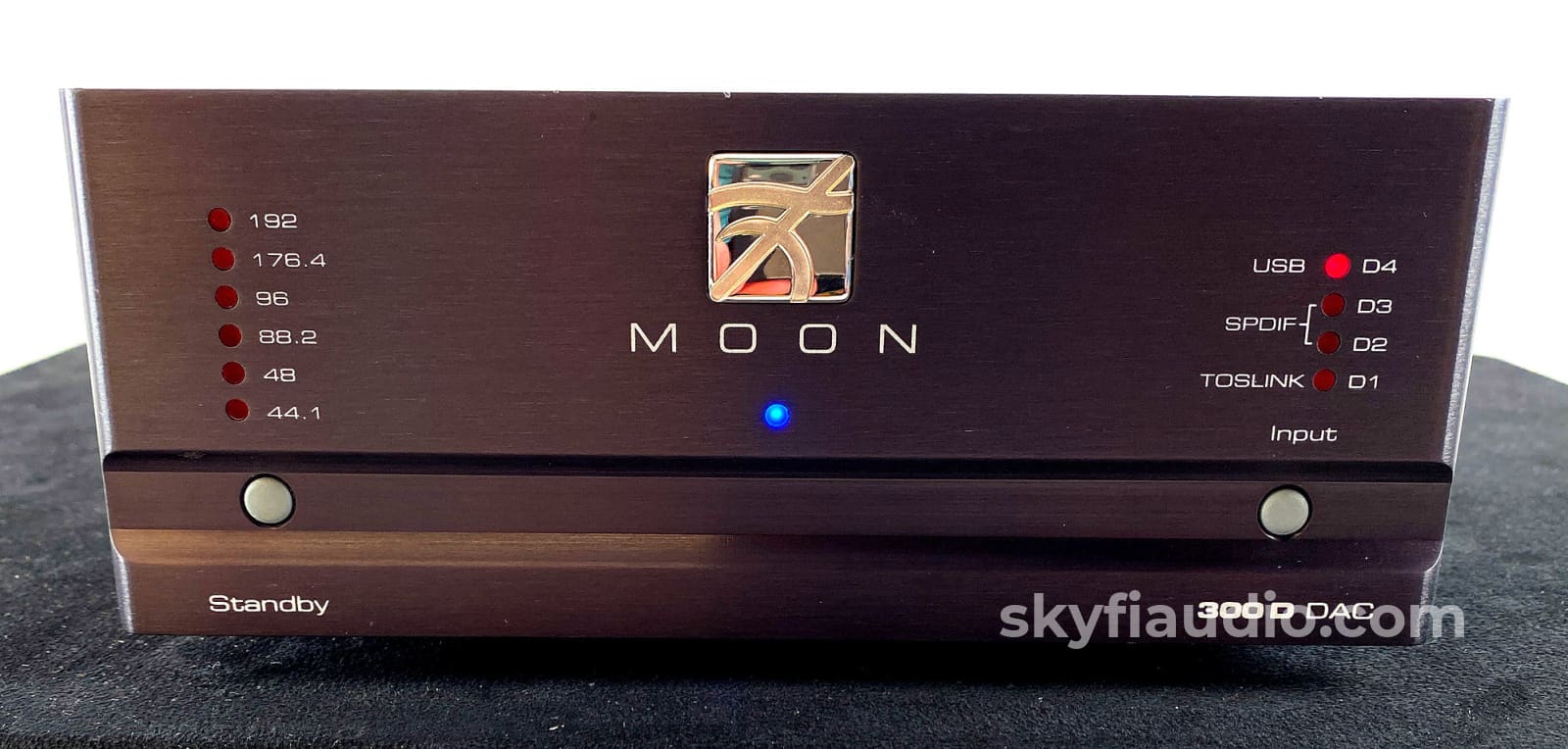

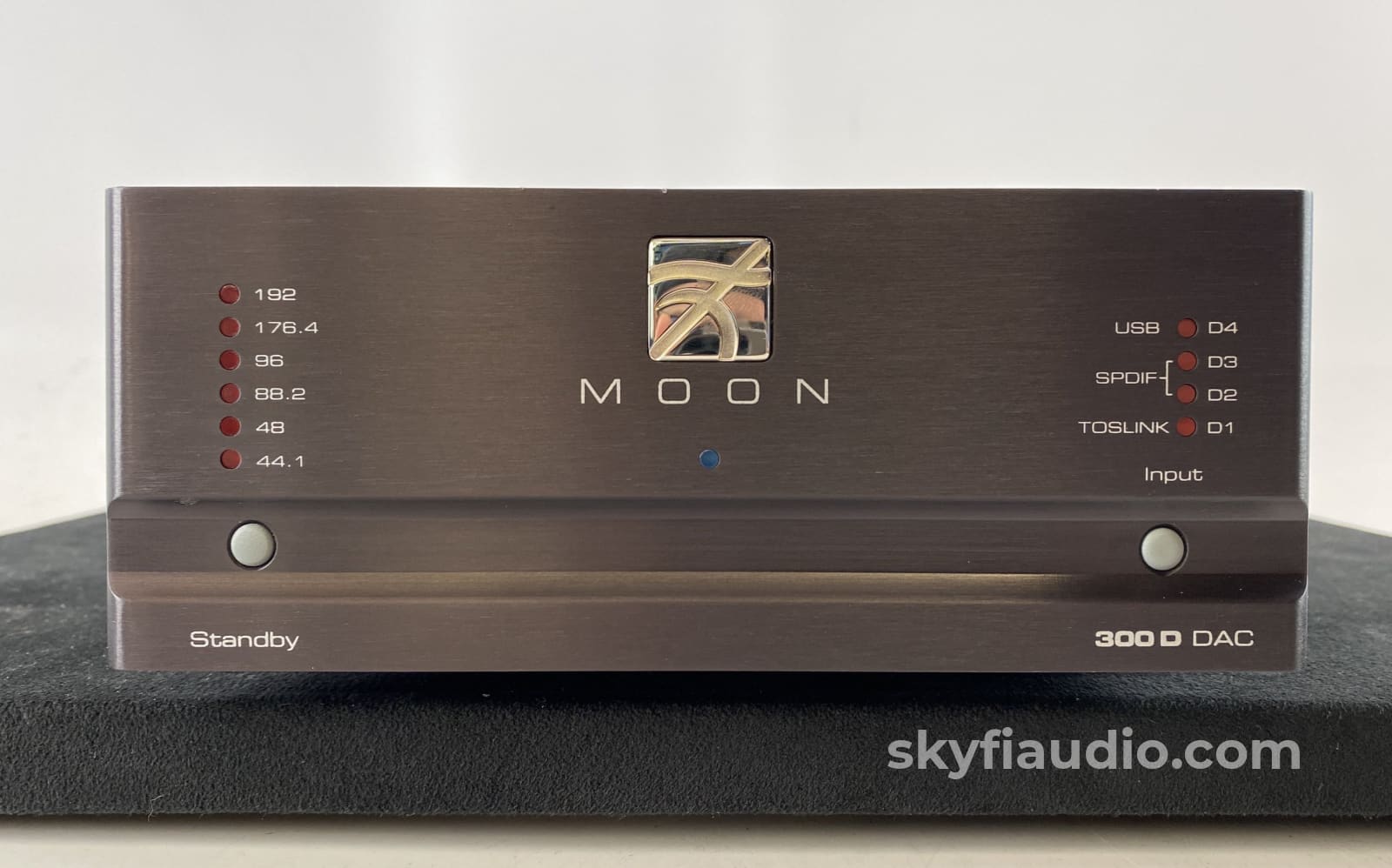

Front Panel Controls: Standby / Input Selector
LED Indicators: Locked Sampling Frequency / Input

Digital Input Types: S/PDIF (RCA) x 2 USB x 1 TosLink x 1
Digital Input Impedance: S/PDIF 75 Ohms @ 0.5 Volts
DAC / Digital Filter: BurrBrown PCM1793

Bit-depth range: - S/PDIF, Toslink 16 - 24 bits
Bit-depth range: - USB 16 bits

Sampling Frequency Rate range: - S/PDIF, Toslink 32, 44.1, 48, 88.2, 96, 176.4 and 192kHz
Sampling Frequency Rate range: - USB 32 - 48kHz

Frequency Response (audible): 20Hz - 20kHz +0/-0.2dB
Frequency Response (full range): 2Hz - 72kHz +0/-3dB

THD @ 1kHz, 0dBFS (A-weighted): < 0.001 %
IMD < 0.004 %

Dynamic Range: > 116dB
Signal-to-noise ratio: > 115dB @ full output

Slew Rate: 50V/µs
Channel Separation: > 115dB
Low Level Linearity: ±1.0dB to below 120dBFS
Intrinsic Jitter: < 25 picoseconds RMS

Single-ended Output: (RCA) 1 pair
Balanced Output: (XLR) 1 pair
Max. Analog Output: @ 0dBFS - RCA 2.0 Volts
Max. Analog Output: @ 0dBFS - XLR 2.0 Volts
Output Impedance: - Single-Ended 100 Ohms
Output Impedance: - Balanced 100 Ohms

IR input: 1/8" mini-jack
Power Consumption: 5 Watts
AC Power Requirements: 120V / 60Hz 240V / 50Hz
Fuse Replacement: - 120V 0.2A short slow blow
Fuse Replacement: - 230V 0.1A short slow blow

Shipping weight: 7 lbs / 3 kgs
Dimensions: (W x H x D)
7.5 x 3.25 x 11 in. (19 x 8 x 28 cm.)

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

No

Manual

Online

Remote

Not Applicable

Cables

Yes - Power

Physical Condition

8

Working Condition

10
