Rotel RC-1570 Preamp/DAC with Phono Input

Sale price$0.00
Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

Pickup currently unavailable at SkyFi 479

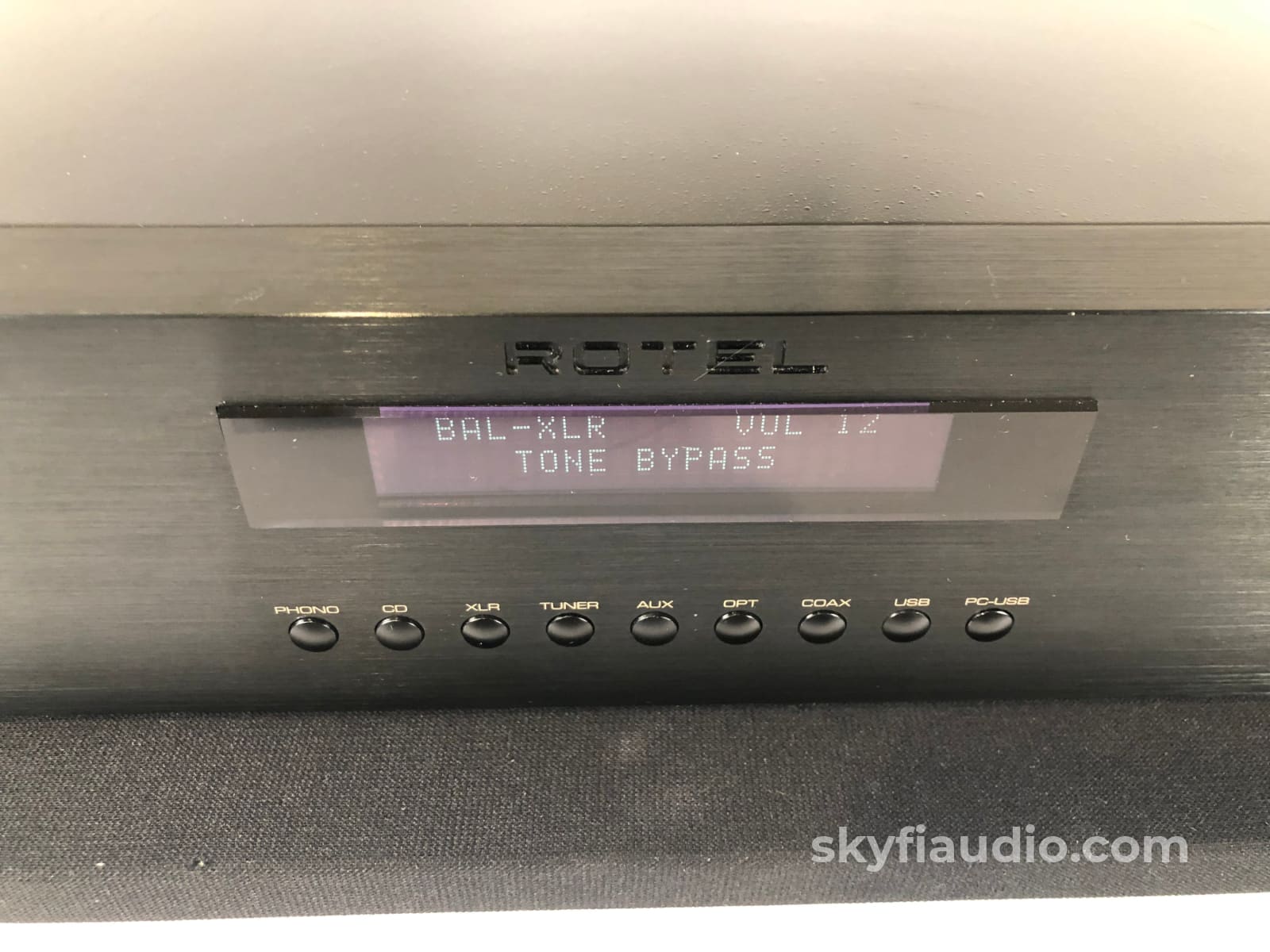

Rotel Rc-1570 Preamp/Dac With Phono Input Preamplifier

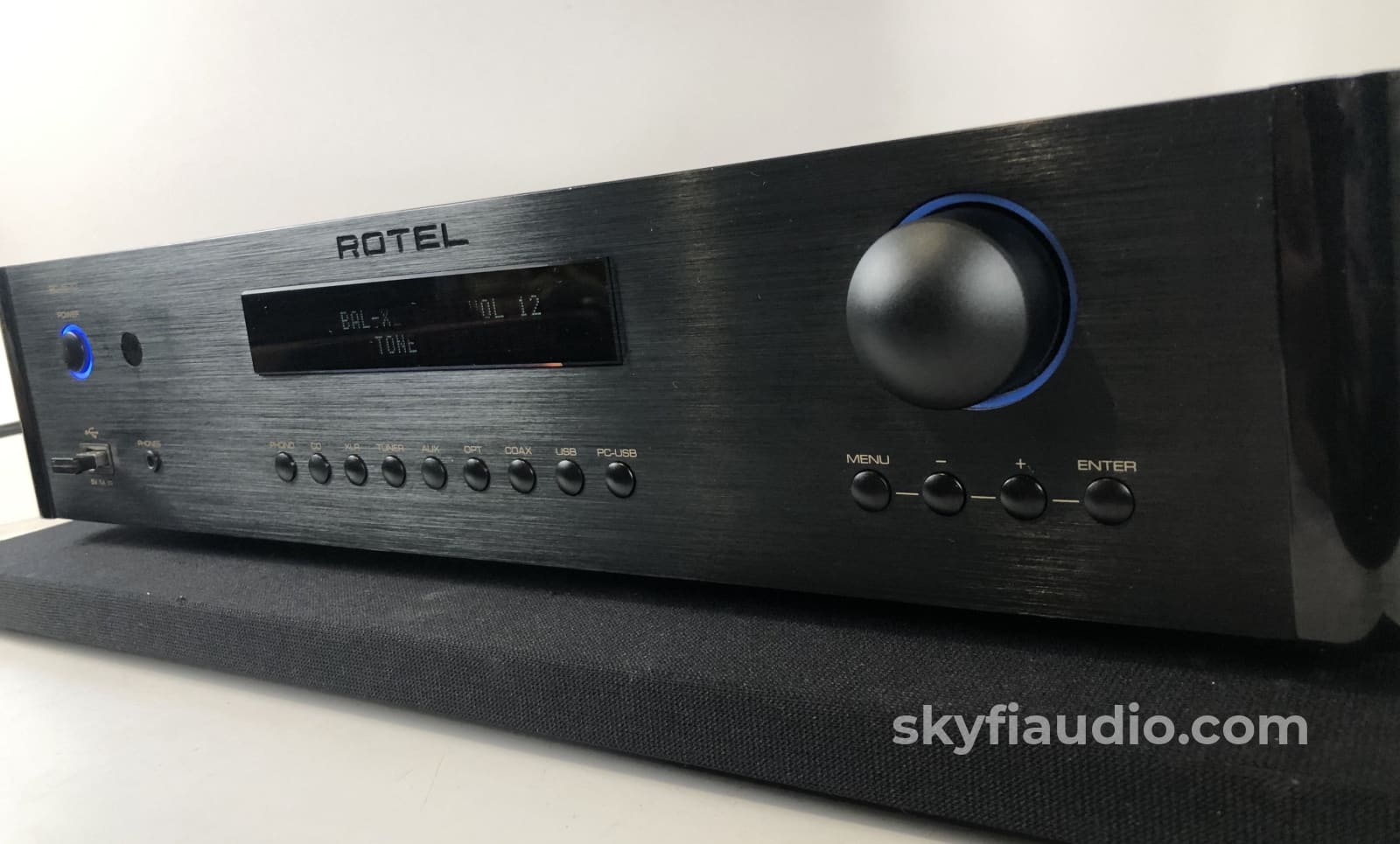

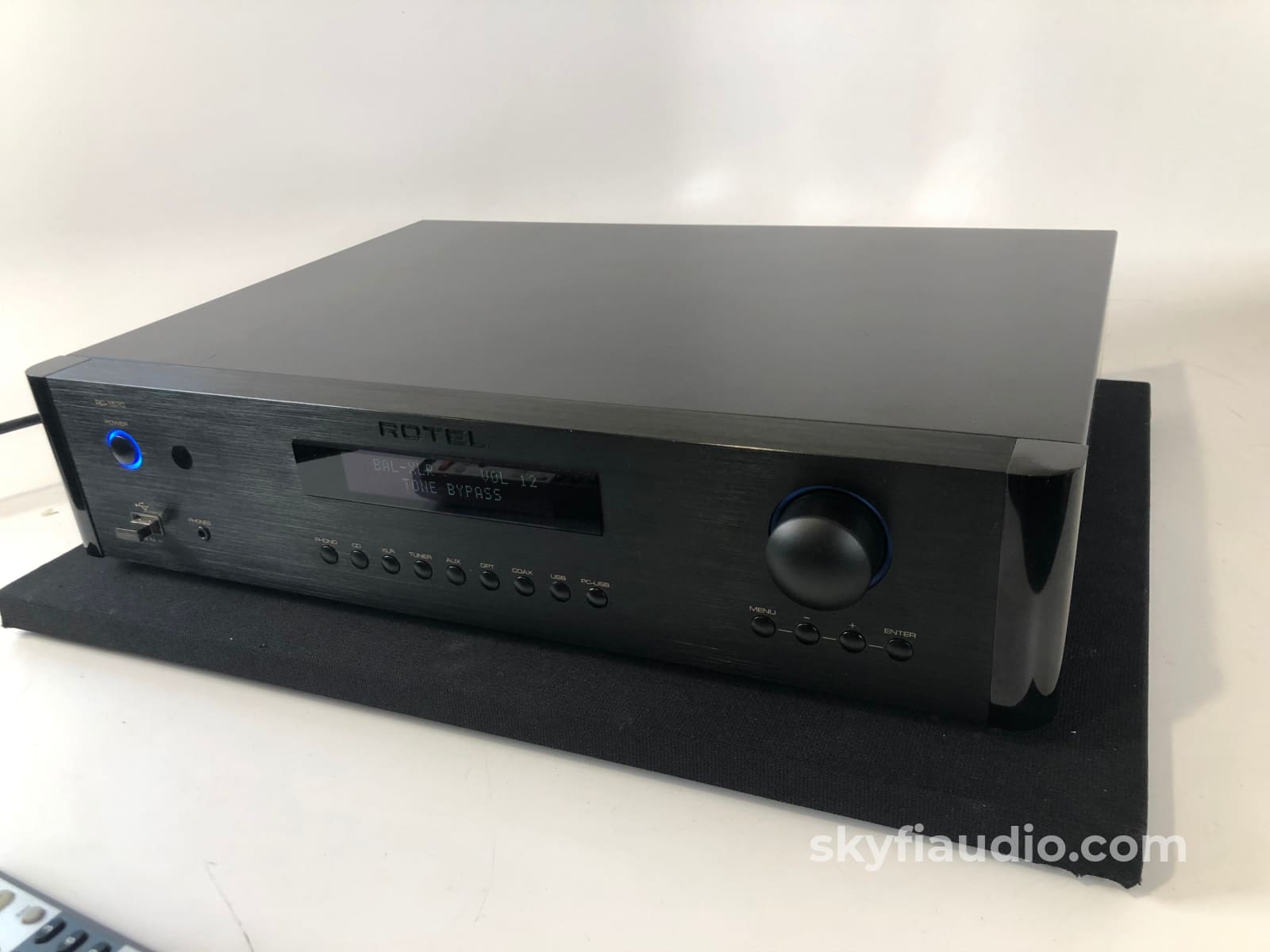

Rotel RC-1570 Preamp/DAC with Phono Input

SkyFi 479

Pickup currently unavailable

479 South Broad Street
Glen Rock NJ 07452
United States

+12018790000

One of the most versatile preamps on the market, complete with a full featured DAC and MM phono stage.

It even has a set of balanced XLR inputs and outputs, which at our price is amazing.

Key Features:
• Wolfson premium 24-bit/192kHz Digital to Analog Converter
Front panel USB input for Apple iOS devices
Moving magnet phono input for turntable connection
Balanced XLR inputs and outputs

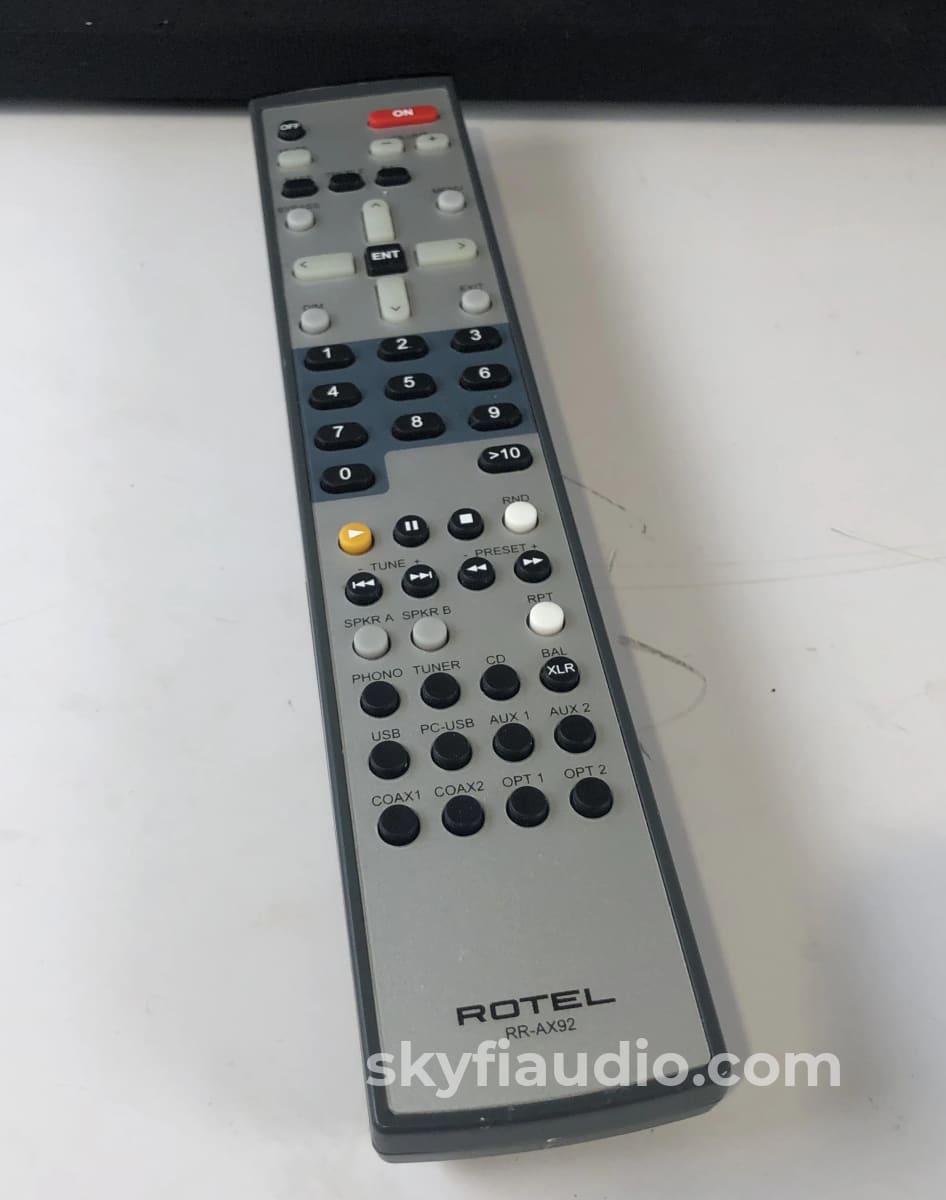

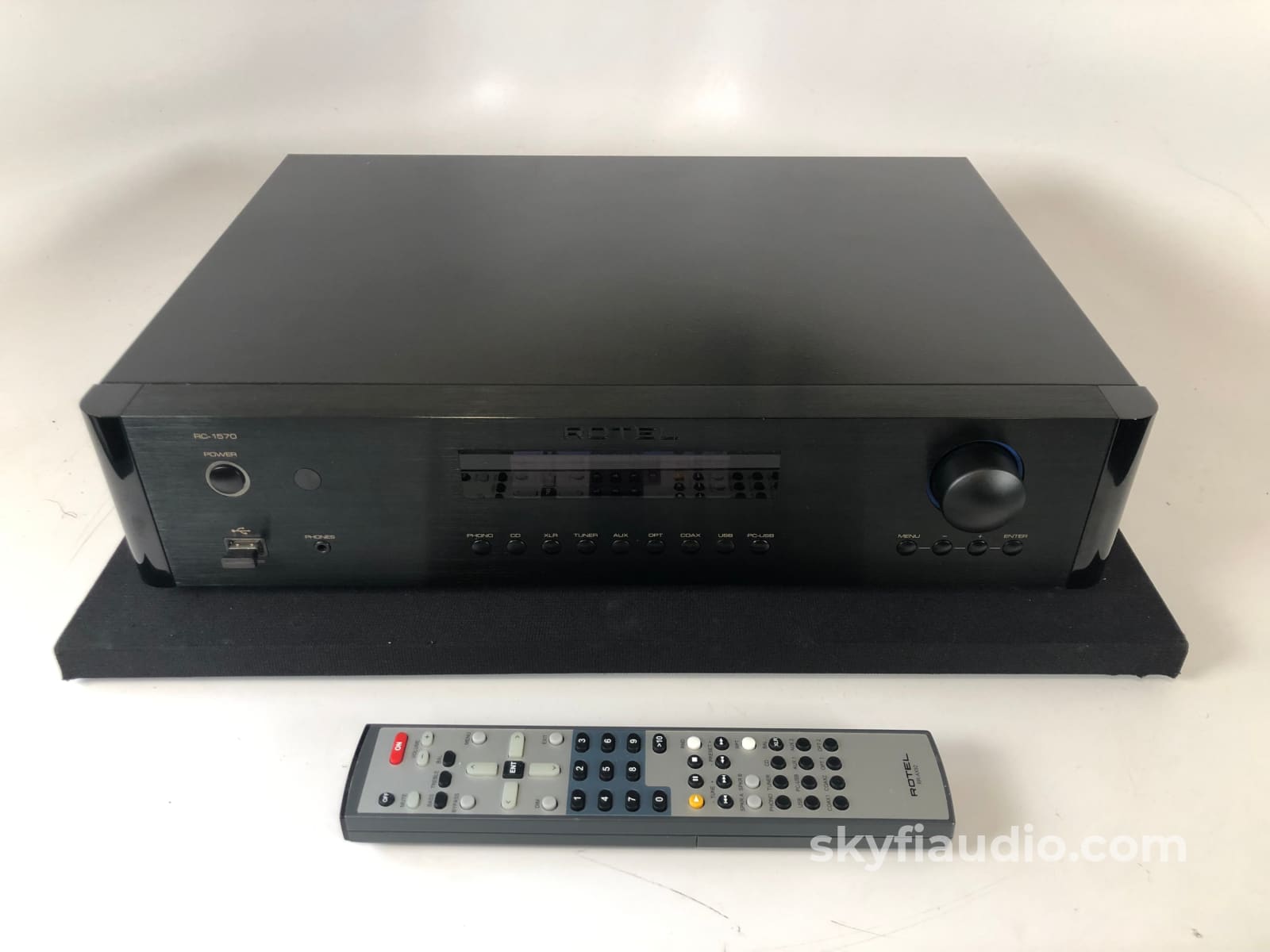

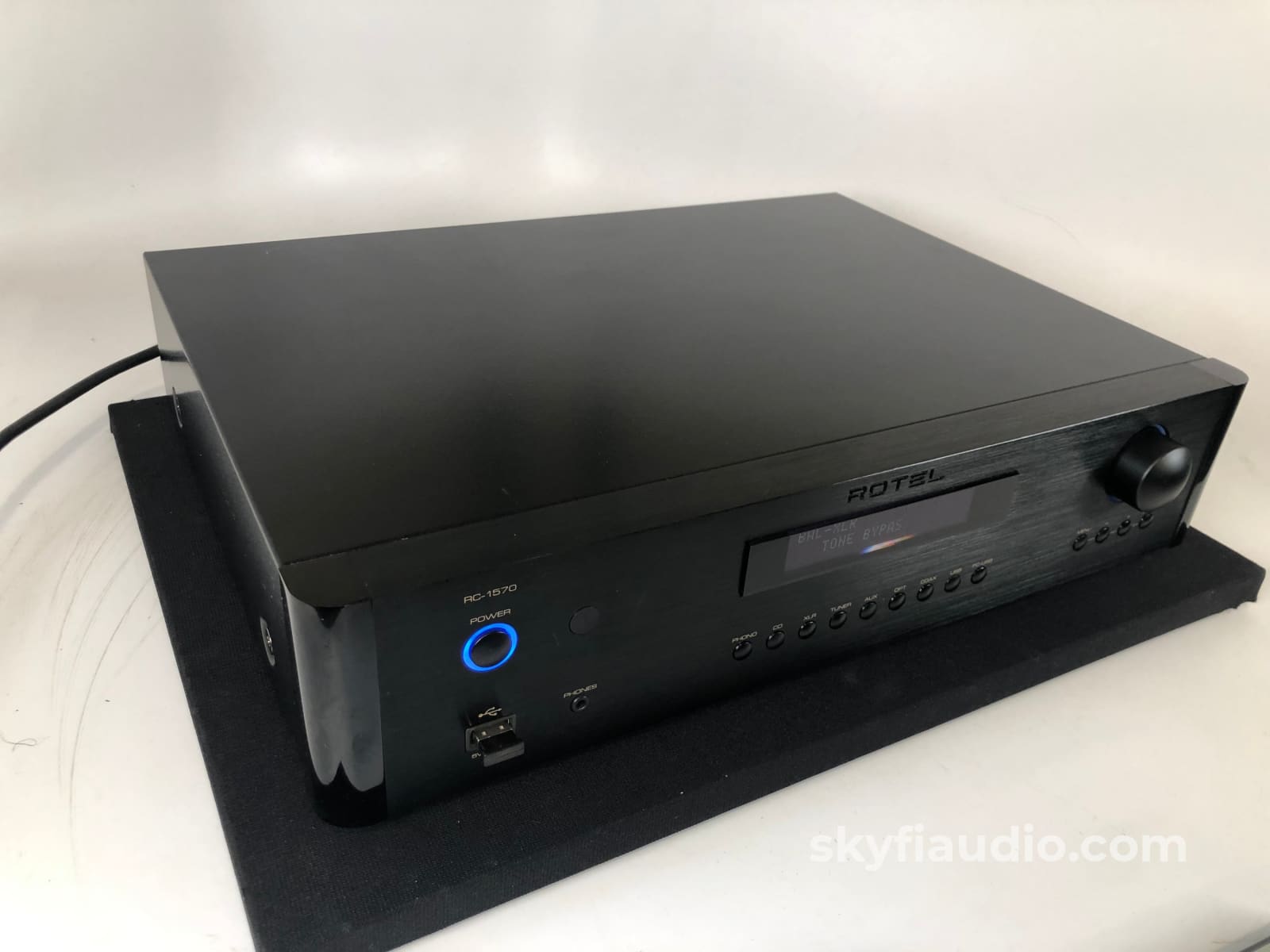

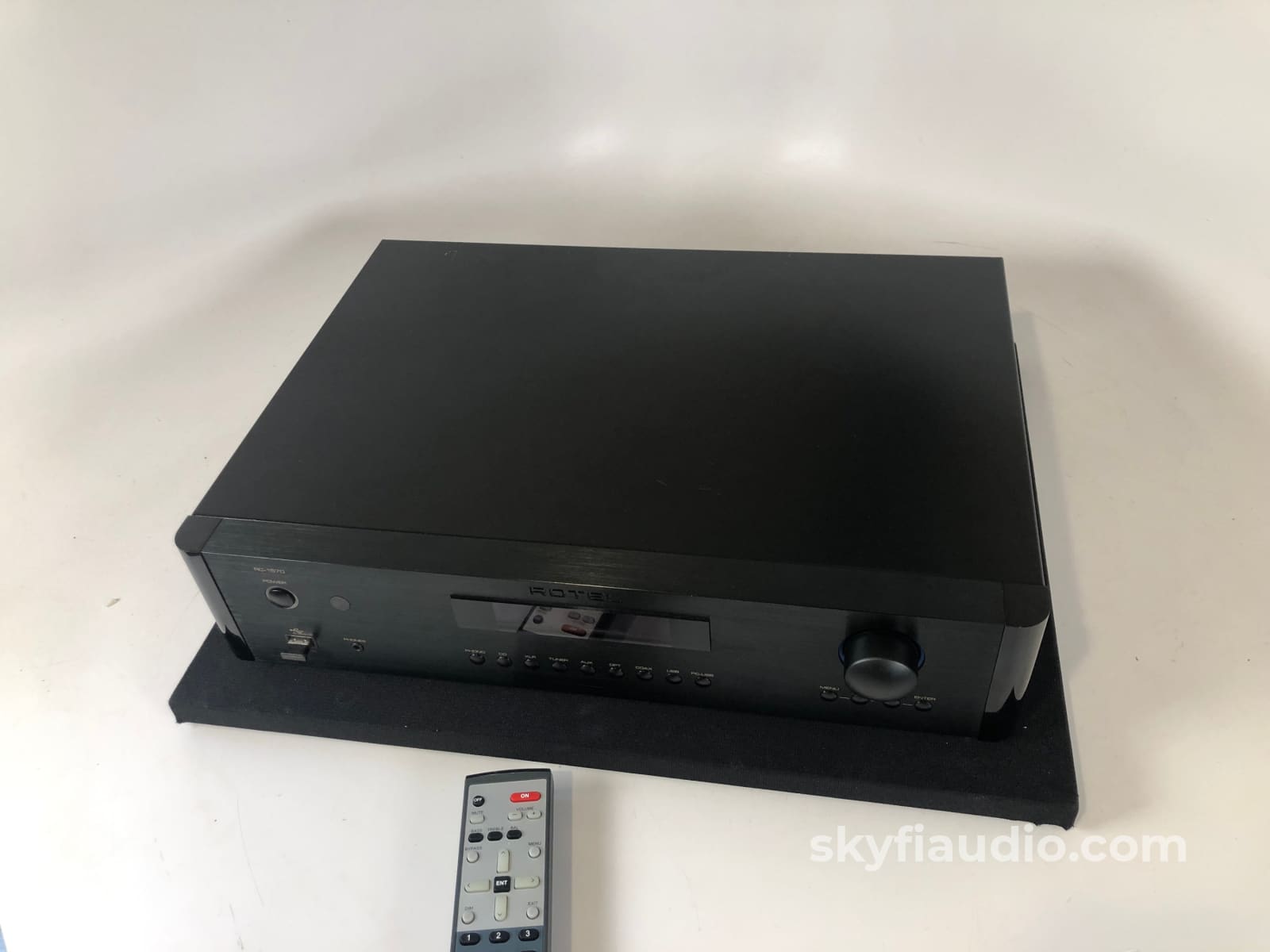

This listing includes the RC-1570, the original Rotel RR-AX92 remote control, Bluetooth dongle (pictured inserted into the front panel USB input), and a power cord.

Specifications:

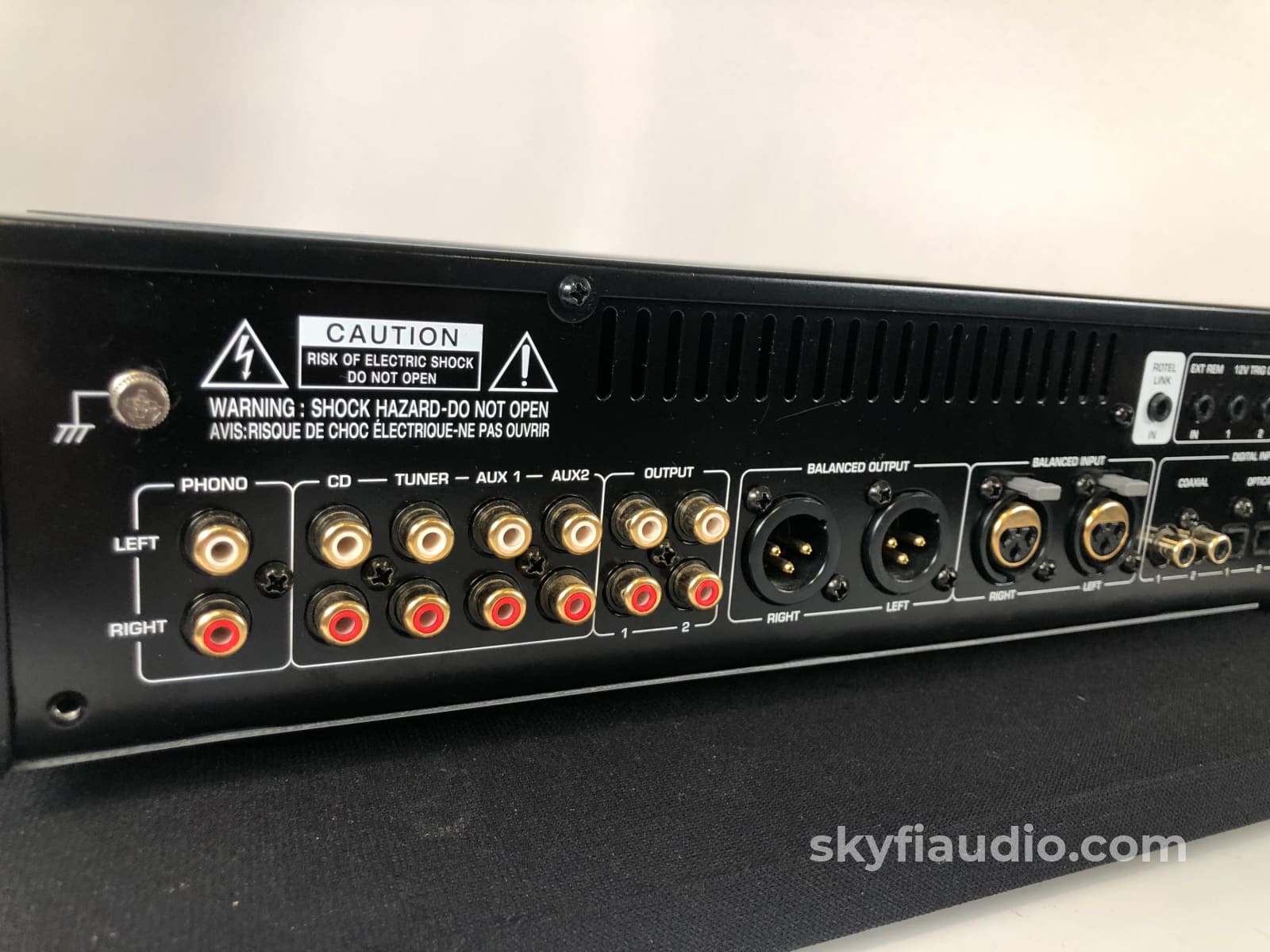

Inputs:
Four Unbalanced RCA
One MM (Moving-Magnet) Phono
One Balanced XLR
Two Optical Digital
Two Coaxial Digital
Two USB (One Front, One Rear)

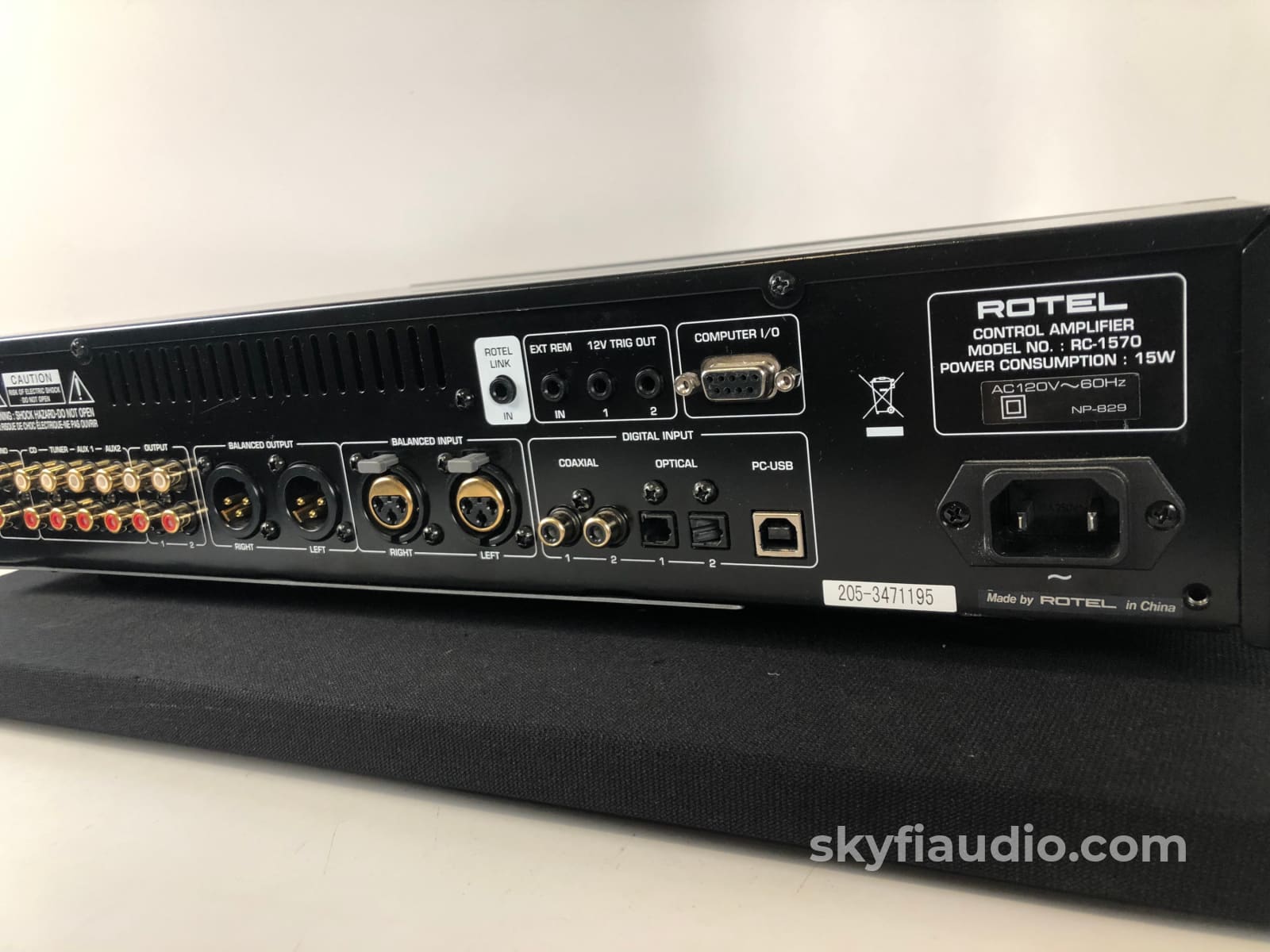

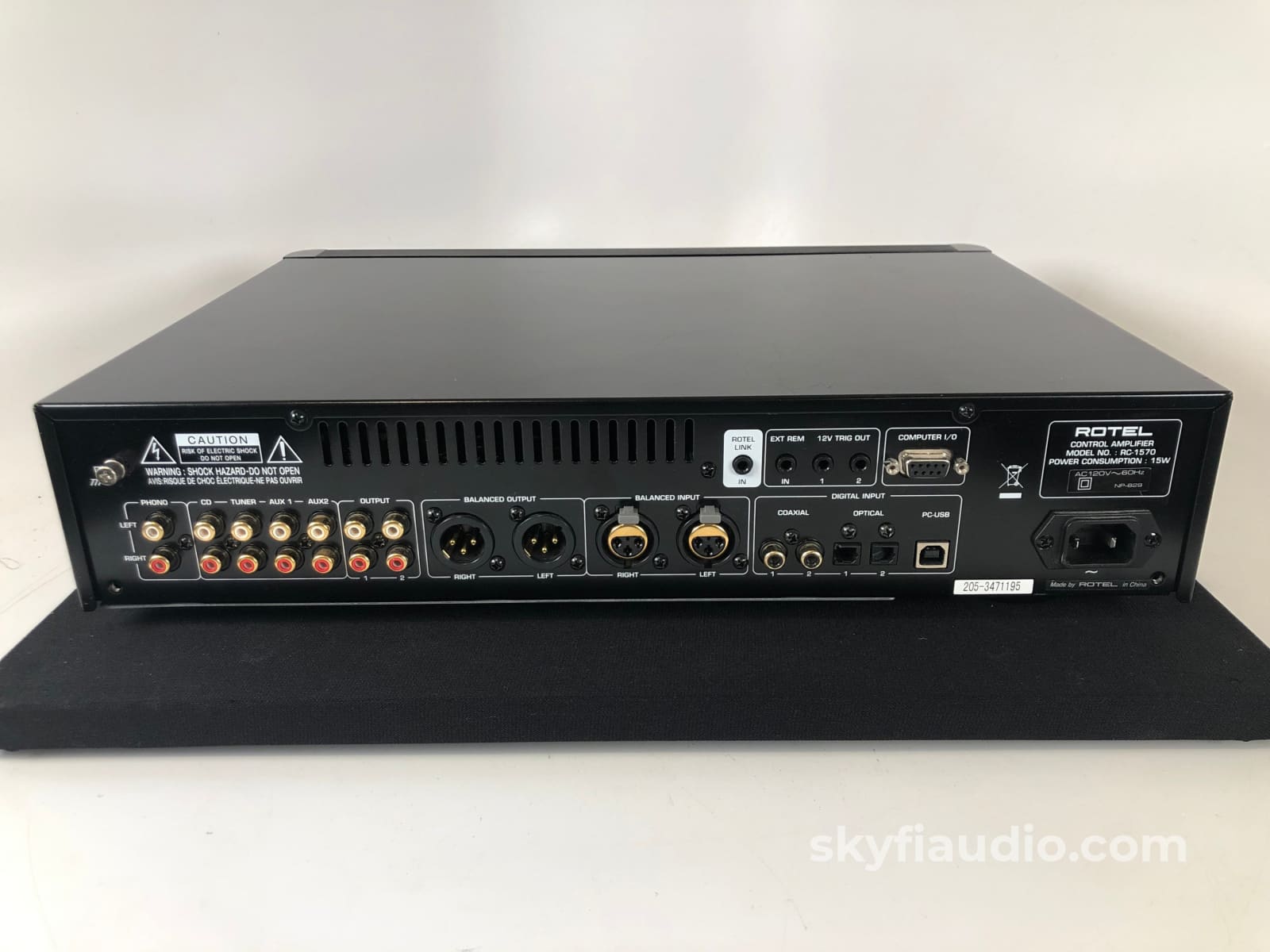

Outputs:
Two Unbalanced RCA
One Balanced XLR

Other:
Rotel Link In
12V Trigger Output 1 and Output 2
External Remote In
Computer I/O (DB9 RS-232)

TOTAL HARMONIC DISTORTION
(THD) (20Hz–20kHz) <0.004%

FREQUENCY RESPONSE
Line Level Inputs: 4Hz - 100kHz ±0.3dB
Digital Inputs: 10Hz - 95kHz ±3dB
Phono Input: 20Hz - 20kHz ±0.3dB

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 110dB
Digital Inputs: 100dB
Phono Input: 80dB

DECODABLE FRONT USB FORMATS
MP3, WAV, WMA, Ogg Vorbis (up to 48kHz 16-bit)

COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 24/192)

DIMENSIONS
(W × H × D)
431 × 99 × 320mm
17" × 3.9" × 12.6"

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
25W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
7kg (16lbs.)

Click here for a PDF copy of the RC-1570's Datasheet

Click here for a PDF copy of the RC-1570 Owner's Manual

More details from Rotel's website:

Separate components hold the promise of the best possible fidelity, since each device is optimized for its role in the sound reproduction chain. Rotel has been designing and manufacturing high performance components for dedicated enthusiasts for over 50 years.

Those decades of experience, along with precise and efficient in-house manufacturing, are fully evident in Rotel separates. As countless reviewers have testified over the years, they rival and frequently exceed the performance of much higher priced offerings. The new RC-1570 stereo preamplifier, a blend of cutting edge digital circuitry with on-board Digital-to-Analog conversion and classic analog stages, is the latest example.

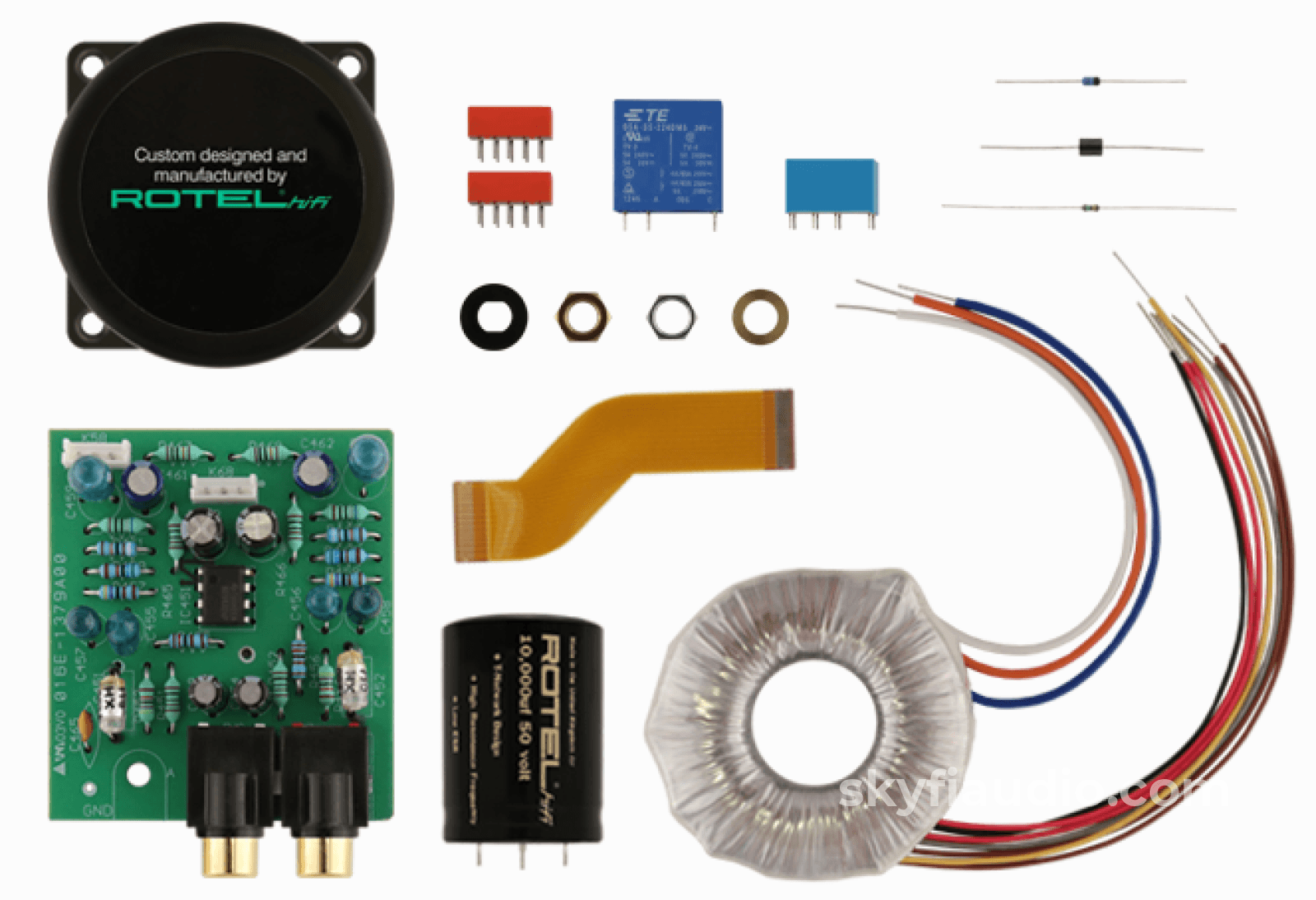

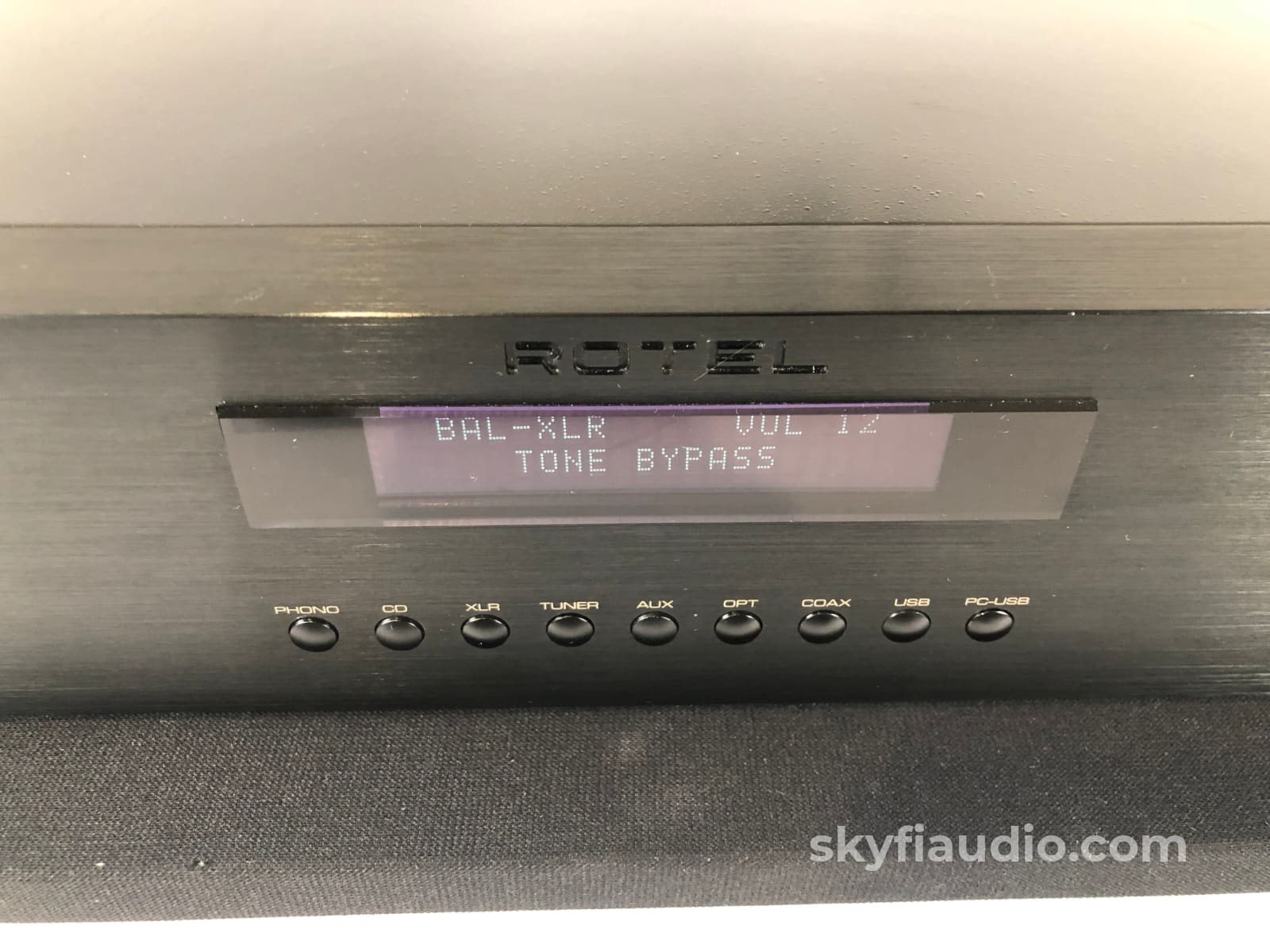

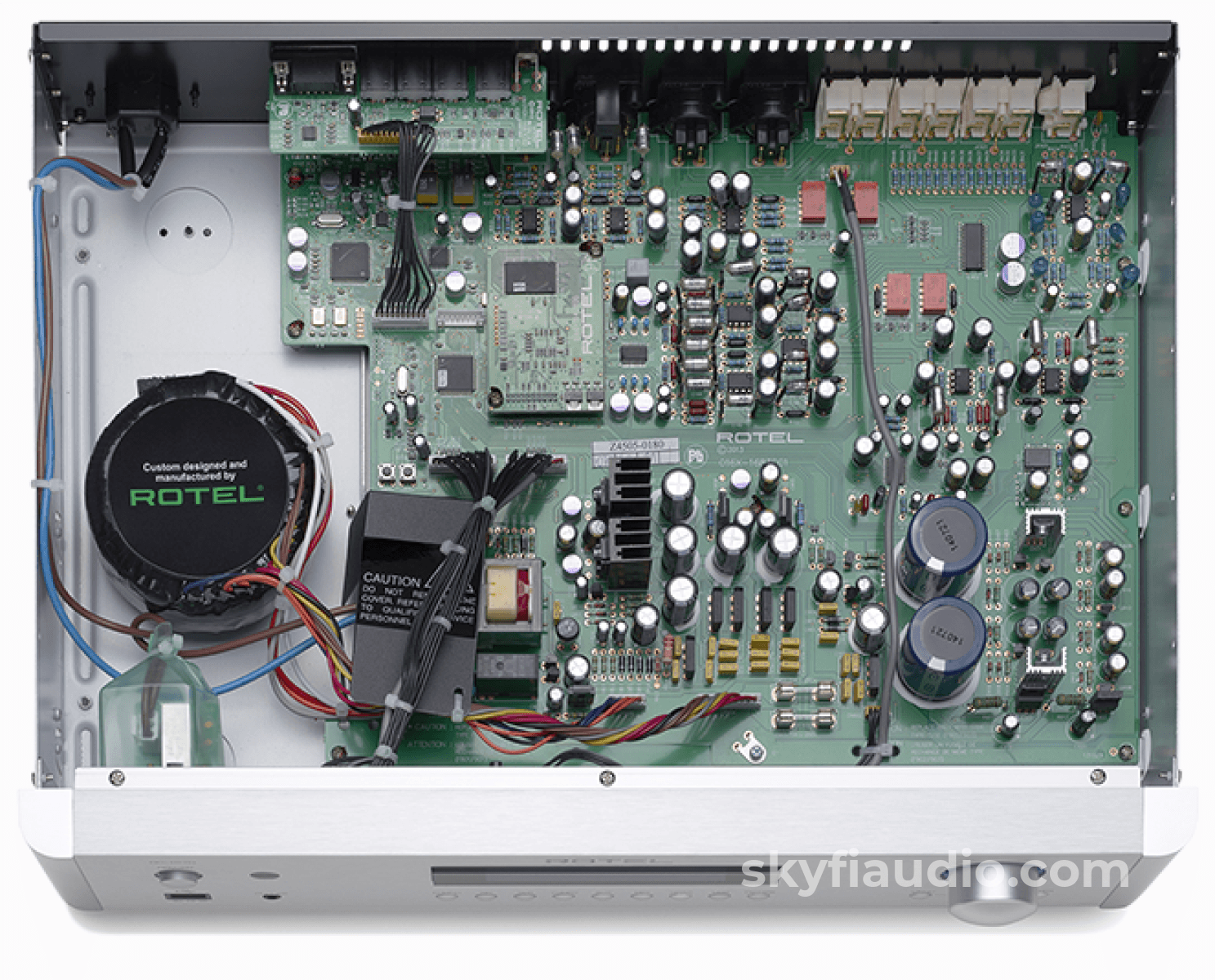

Beneath the clean lines and user friendly fascia of the RC-1570 lies highly sophisticated engineering. Both analog and digital sources have been given equal consideration as today’s listener often has several digital sources, but may also enjoy legacy formats like vinyl LPs. A large toroidal transformer and regulated power supply ensures stable current and voltage requirements to all stages under dynamic conditions. Premium circuit components have been selected only after extensive listening evaluations. Careful routing of all low level signals has been practiced to ensure impressive signal to noise levels. The result is effortless musical dynamics, impressive detail and scale.

The RC-1570 stereo preamplifier is also extremely flexible. Four digital inputs (2 coax and 2 optical), plus the rear PC-USB input handle digital sources up to 24-bit/192kHz resolution. The digital inputs are designed for sources such as TV set-top boxes, flat panel TVs or Blu-ray players for stunning playback. The PC-USB input makes use of audio playback software such as iTunes or Windows Media Player to replay music from your computer digital library.

A Bluetooth dongle is provided to be used with the front USB input. A premium Wolfson stereo D/A converter handles critical conversion from digital data to analog. Analog inputs include balanced XLR connectors (perfect for connecting the RCD-1570 via its XLR outputs) in addition to four pair of conventional RCA inputs. A moving magnet phono stage rounds out the source capability. XLR and single ended outputs are provided, as are two 12-volt triggers to control on/off operation of an amplifier and/or other components and RS-232 on a standard DB-9 connector. In short, the RC-1570 is a tremendous value and the perfect upgrade for owners of older analog-only preamplifiers.

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

No

Manual

Online

Remote

Yes

Cables

Yes - Power

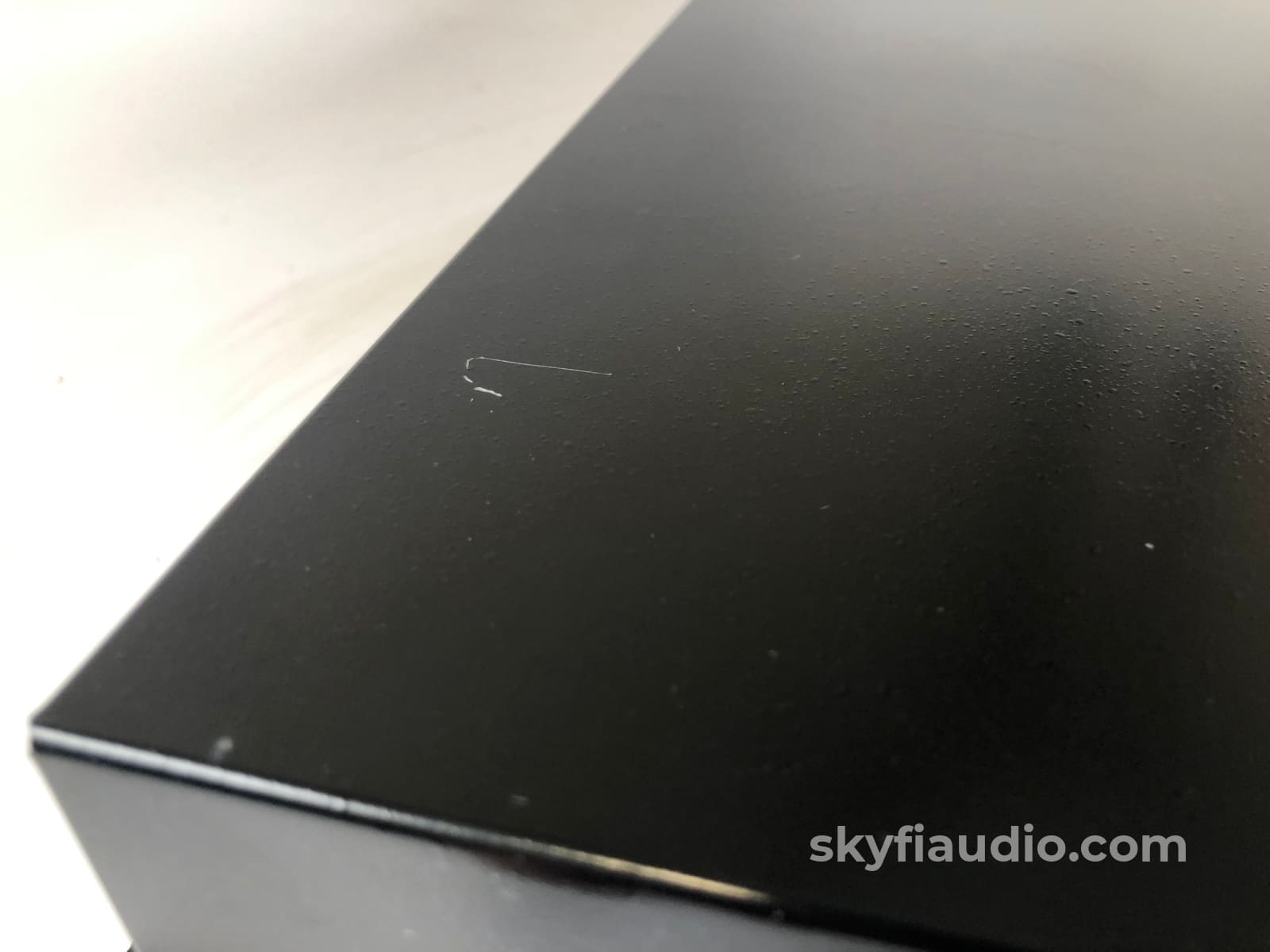

Physical Condition

8/10

Working Condition

10/10

SKU: 100371
