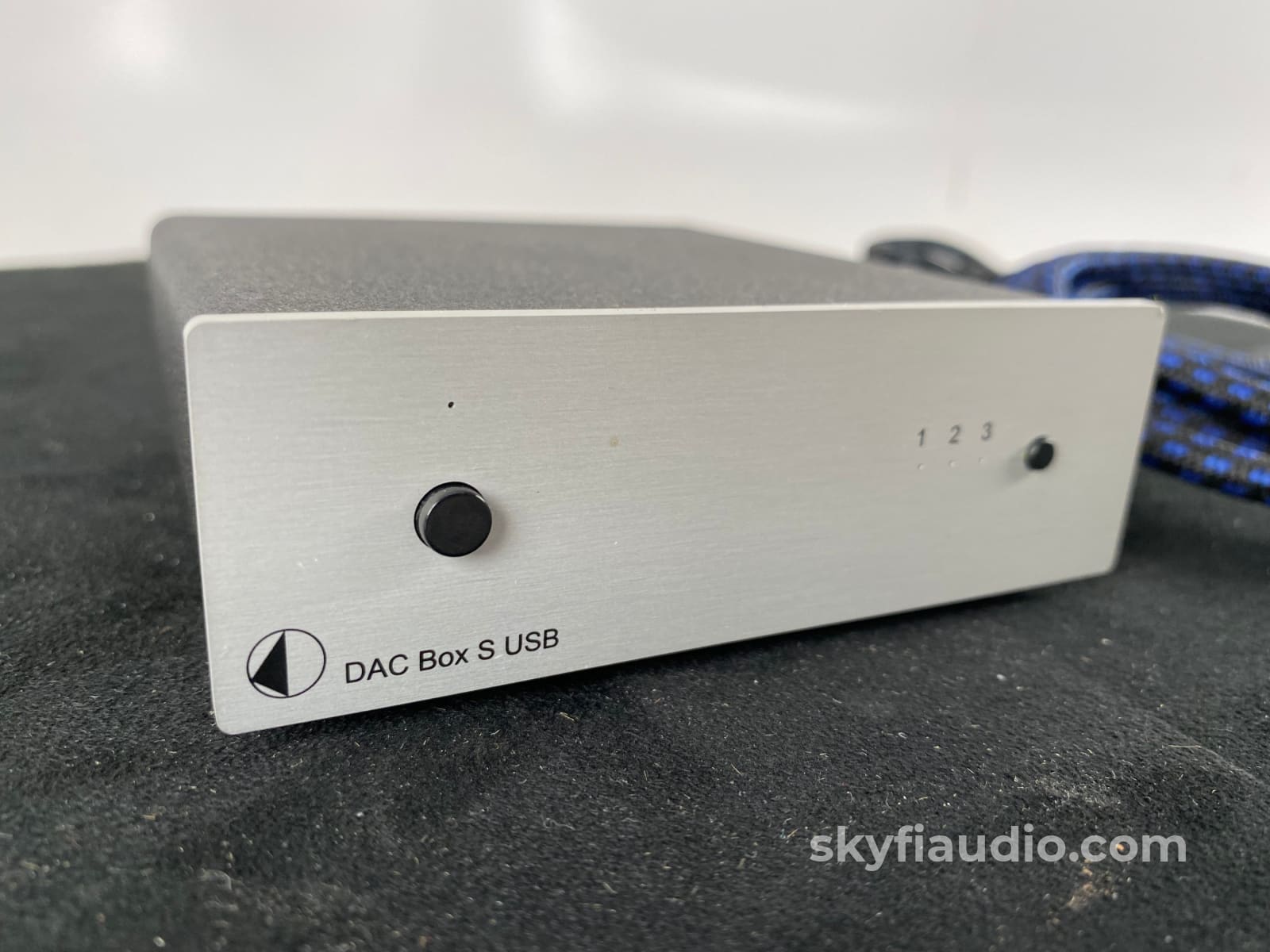

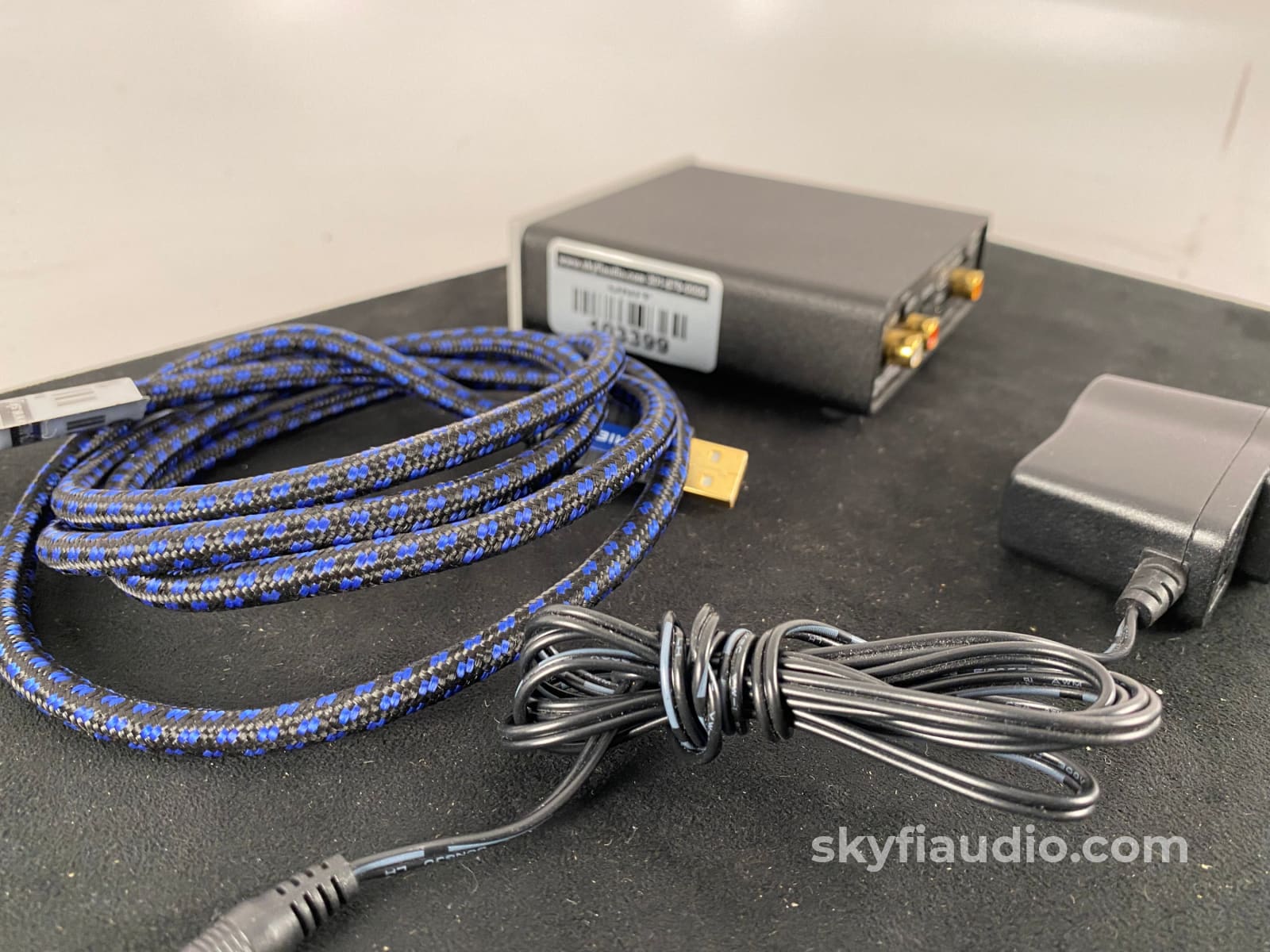

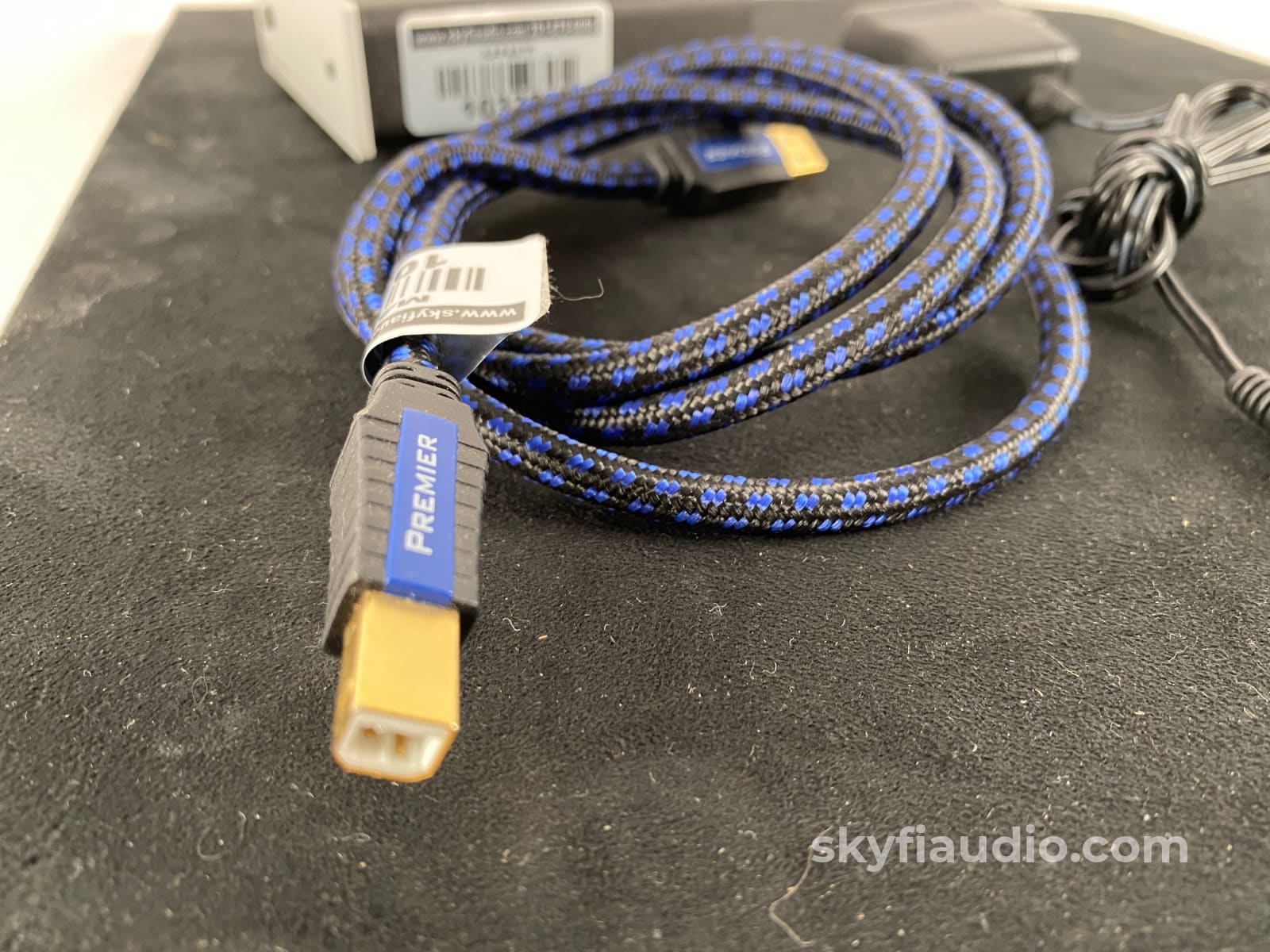

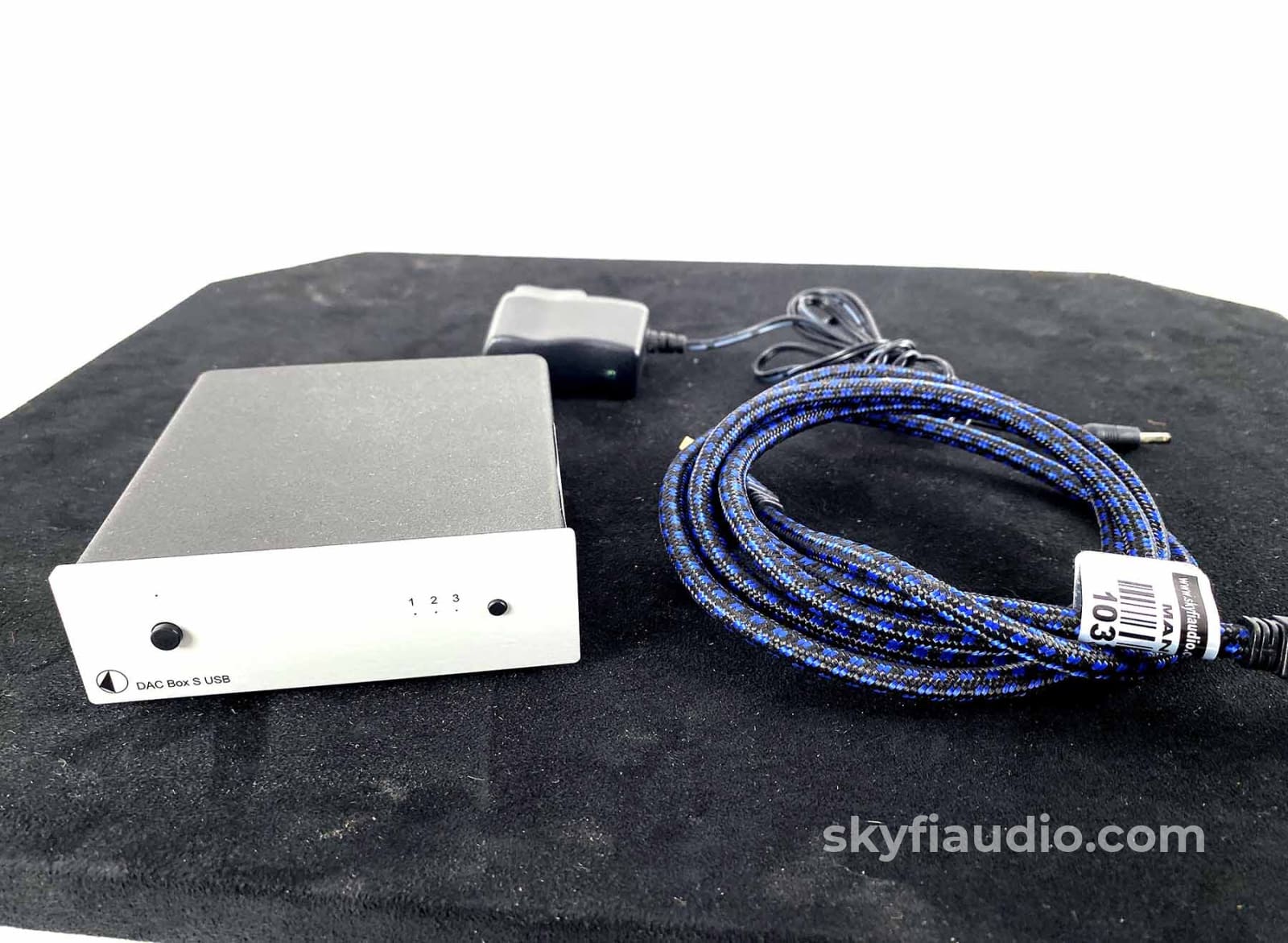

Pro-Ject DAC Box S USB - Includes Upgraded Pangea USB Cable


The DAC Box S USB is a high-quality Digital-Analog Converter with three switchable inputs, allowing for multiple digital musical sources to be converted in a more convenient and better sounding way. By over-sampling the input signal, this small device produces a thorough and fluid sound performance.

The 'S' version of the DAC Box USB uses the same technology as its predecessor and has the same footprint. The only differences are in the thicker, more stylish front-plate, and the smaller power supply.

Key Features:
• Audiophile 24-bit/96kHz D/A-conversion
Precision D/A chip from Texas Instruments
8 times oversampling
3 Inputs (RCA, Toslink, USB)
Manual input switching via front-facing button
THD <0,005% (20Hz-20kHz)
>95dB crosstalk
Gold-plated RCA line level output sockets
Stylish S-design

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Kimber Kable - RCA Interconnects - Better

Kimber Kable - RCA Interconnects - Best

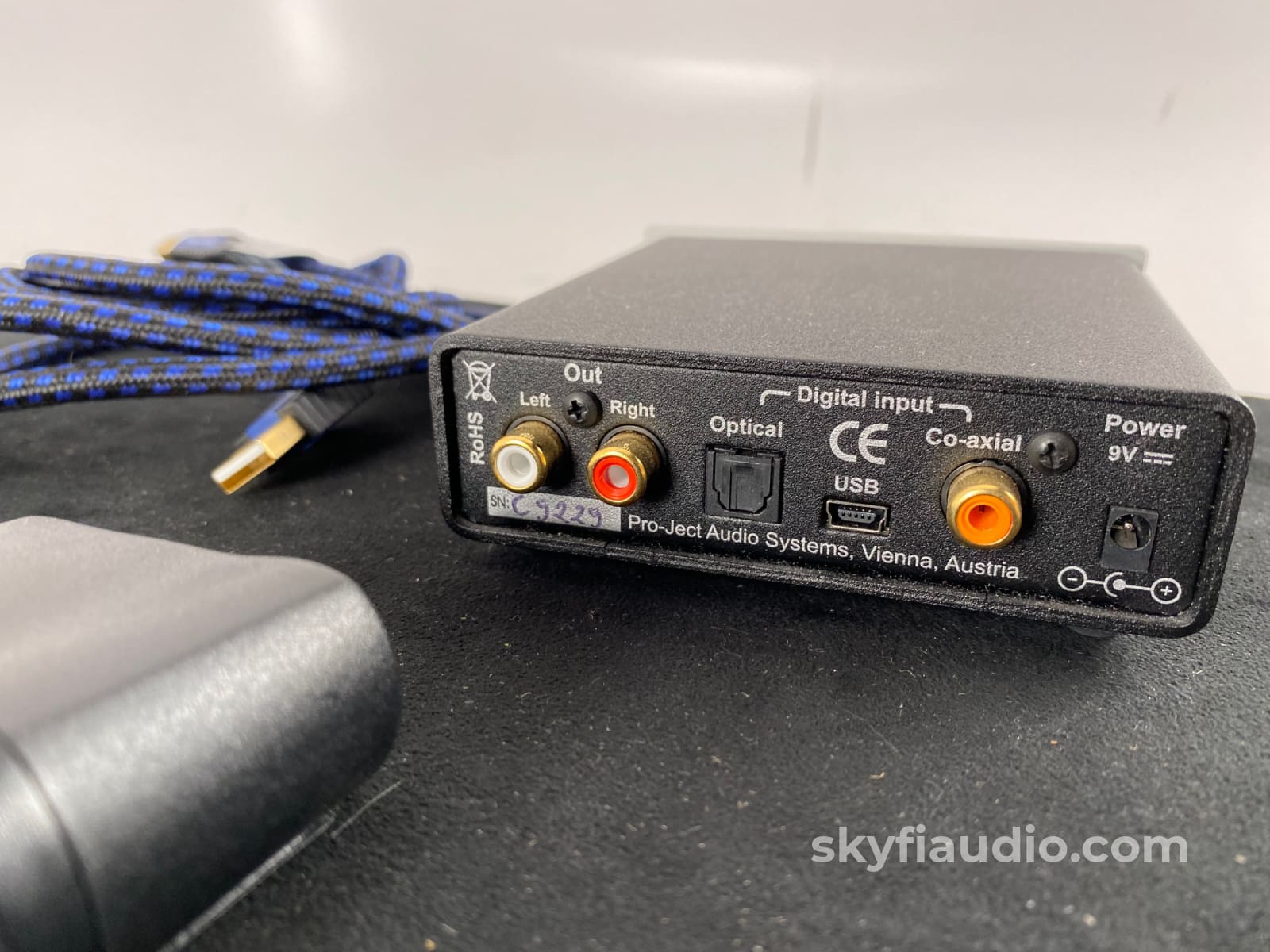

Technical specifications
Line-level output:
1 pair RCA/phono sockets

Output voltage:
1 Vrms

Digital outputs:
1 x coaxial (S/PDIF),
1 x optical (TOSlink),
1 x USB (mini B socket, USB cable not included)

USB input:
Digital serial data protocol USB 1.1


Operating systems:
Windows XP®, Windows VISTA®, Windows 7® , Windows 8®, Windows 10®, Mac OS®

D/A converter:
Texas Instruments TLV320DAC23 24Bit/96kHz
8-times oversampling

Supported audio format:
No support for formats like Dolby® Digital or DTS TM

Sampling rates
USB input:
32kHz, 44,1kHz and 48kHz

Optical and coaxial input:
8kHz, 16kHz, 32kHz, 44,1kHz, 48kHz and 96kHz

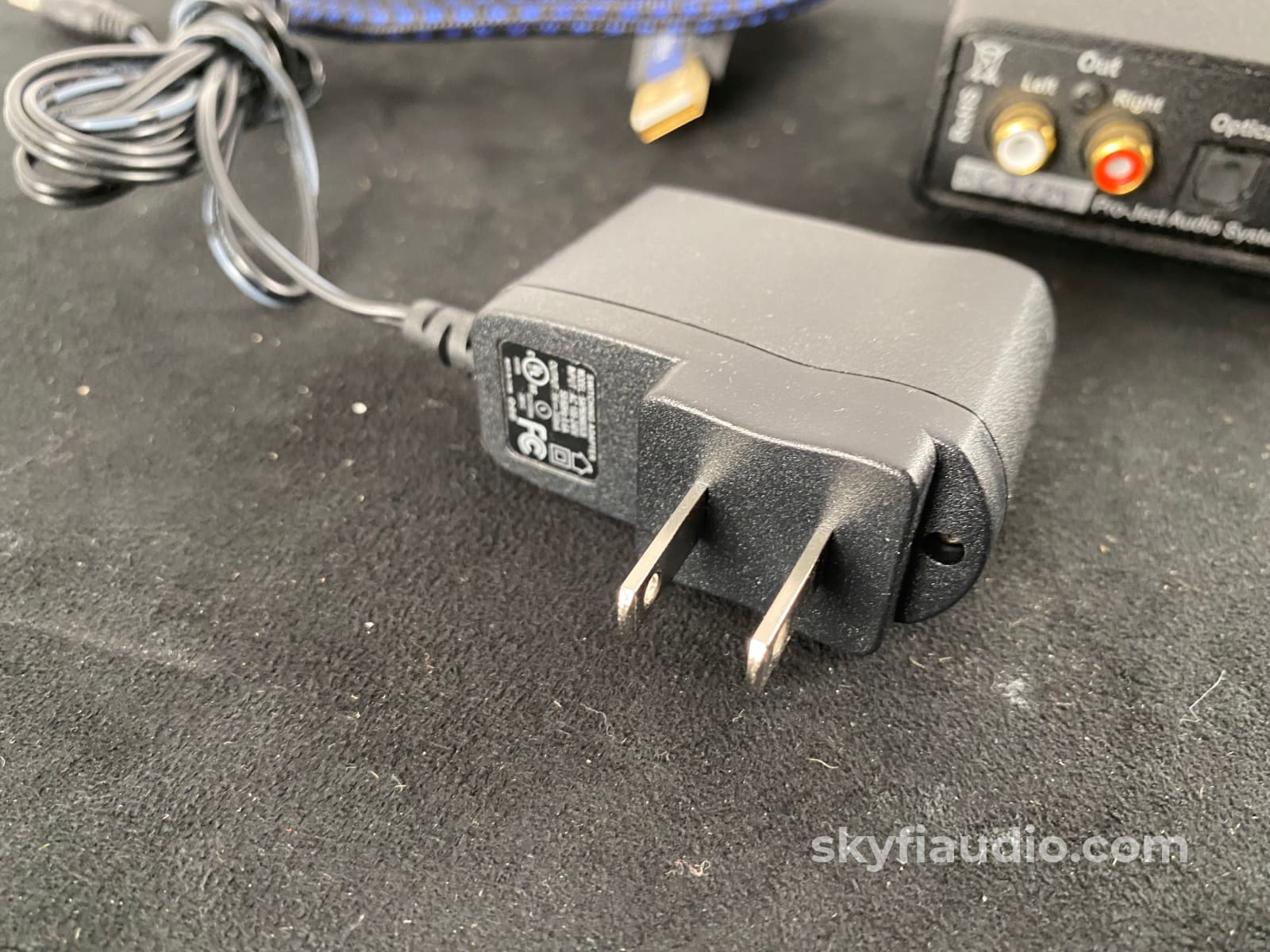

Outboard power supply:
9V/300mA DC; suitable for your country's mains supply

Power consumption:
100mA DC, <1W in standby

Dimensions W x H x D (D with sockets):
4.06" x 1.42" x 4.09" (4.5")
(103 x 36 x 104 (115) mm)

1.5 lbs without power supply
(680g without power supply)



Original Box

Not Included


Online Only


Not Applicable


Yes - Power and USB

Physical Condition

8 / 10

Working Condition

10 / 10
