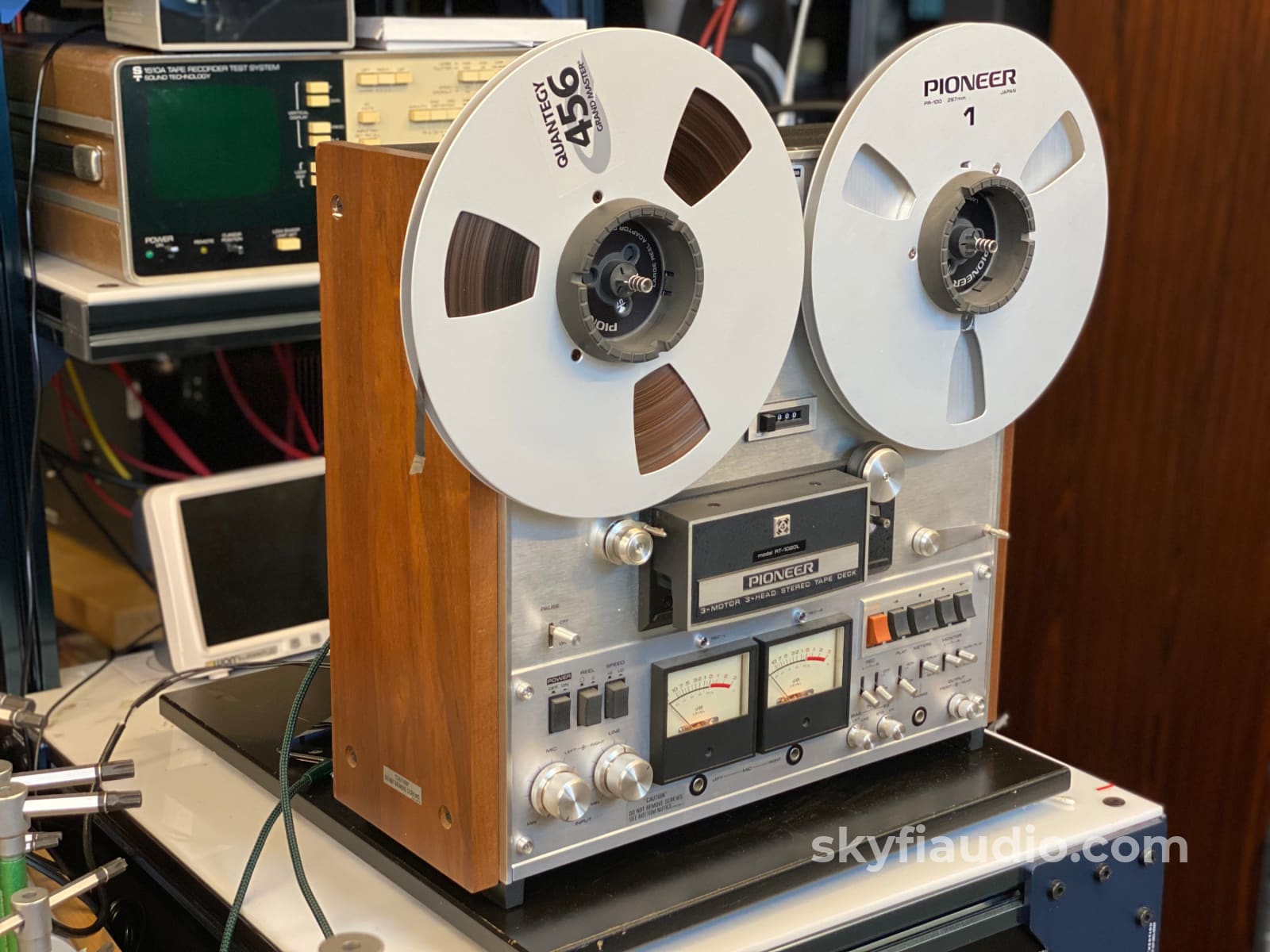

Pioneer RT-1020L Reel To Reel Recorder

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

If you're looking to break into the fun world of reel to reel recorders, this might be the perfect entry point.

Good looking, robust and great sounding, the RT-1020L is a great value at this price.

This listing also includes two take up reels and two hub adapters so you can proudly display it in your system.

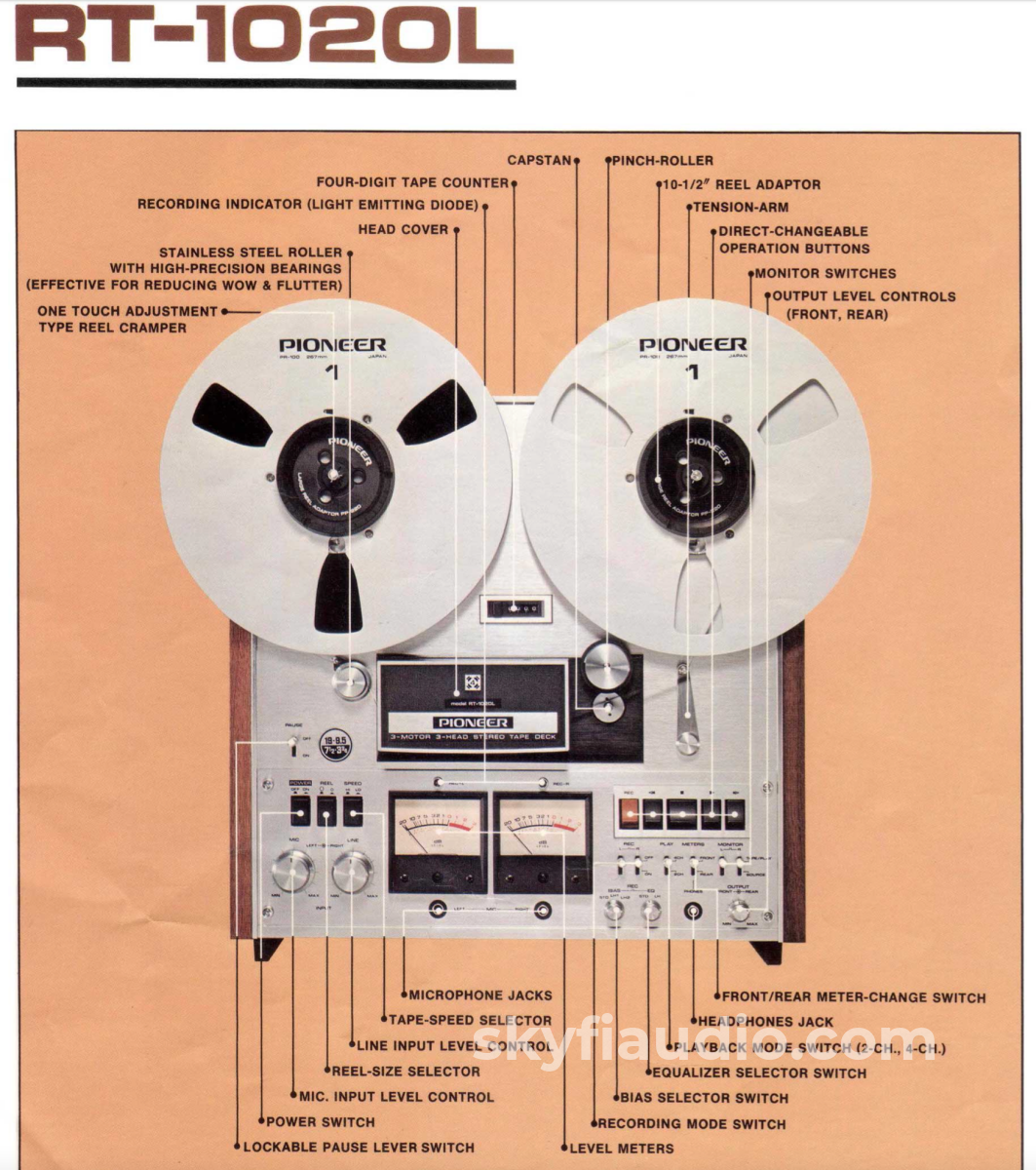

Pioneer RT-1020L Original Sales Brochure

Pioneer RT-1020L Owner's Manual

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Kimber Kable - RCA Interconnects

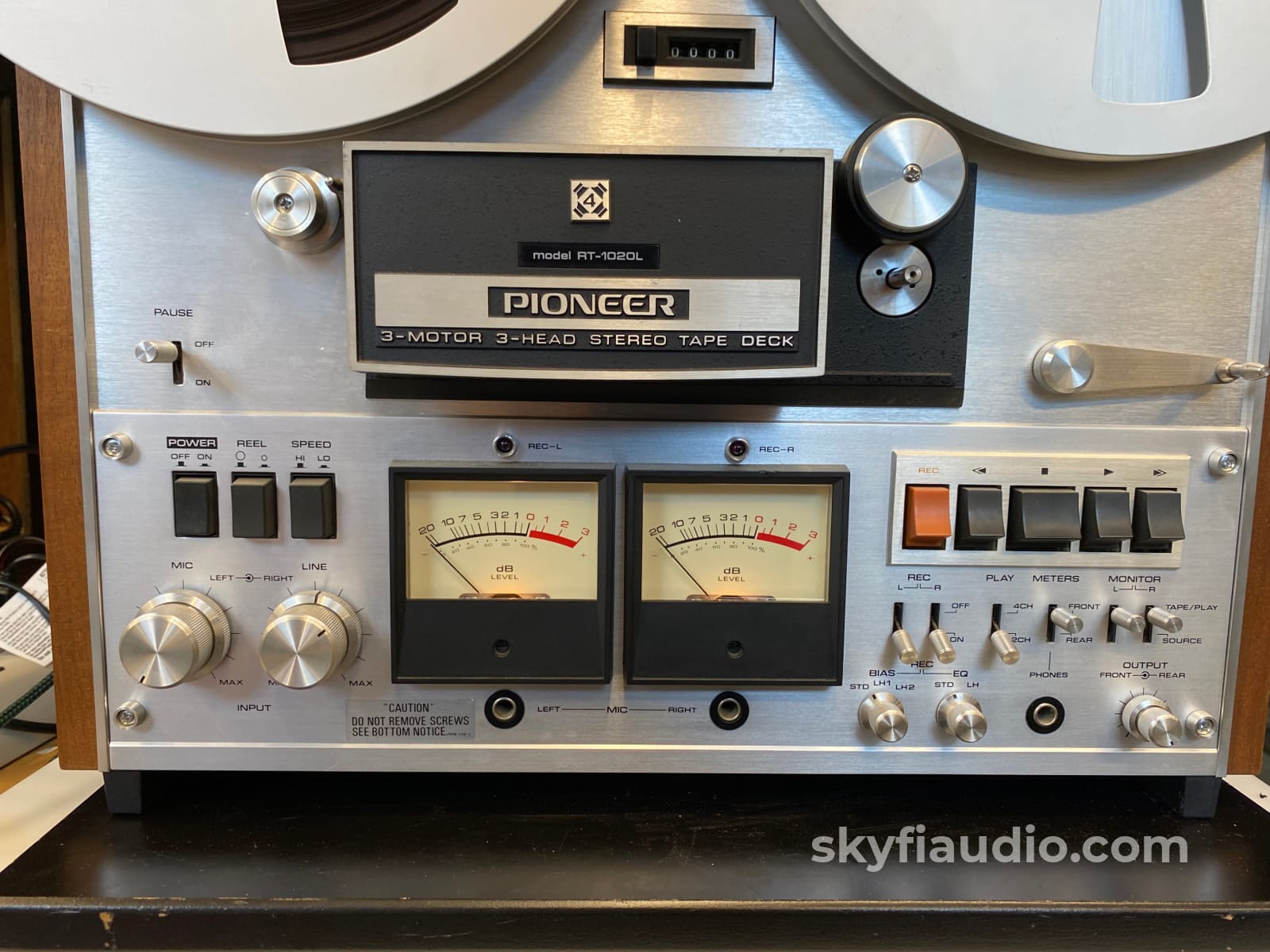

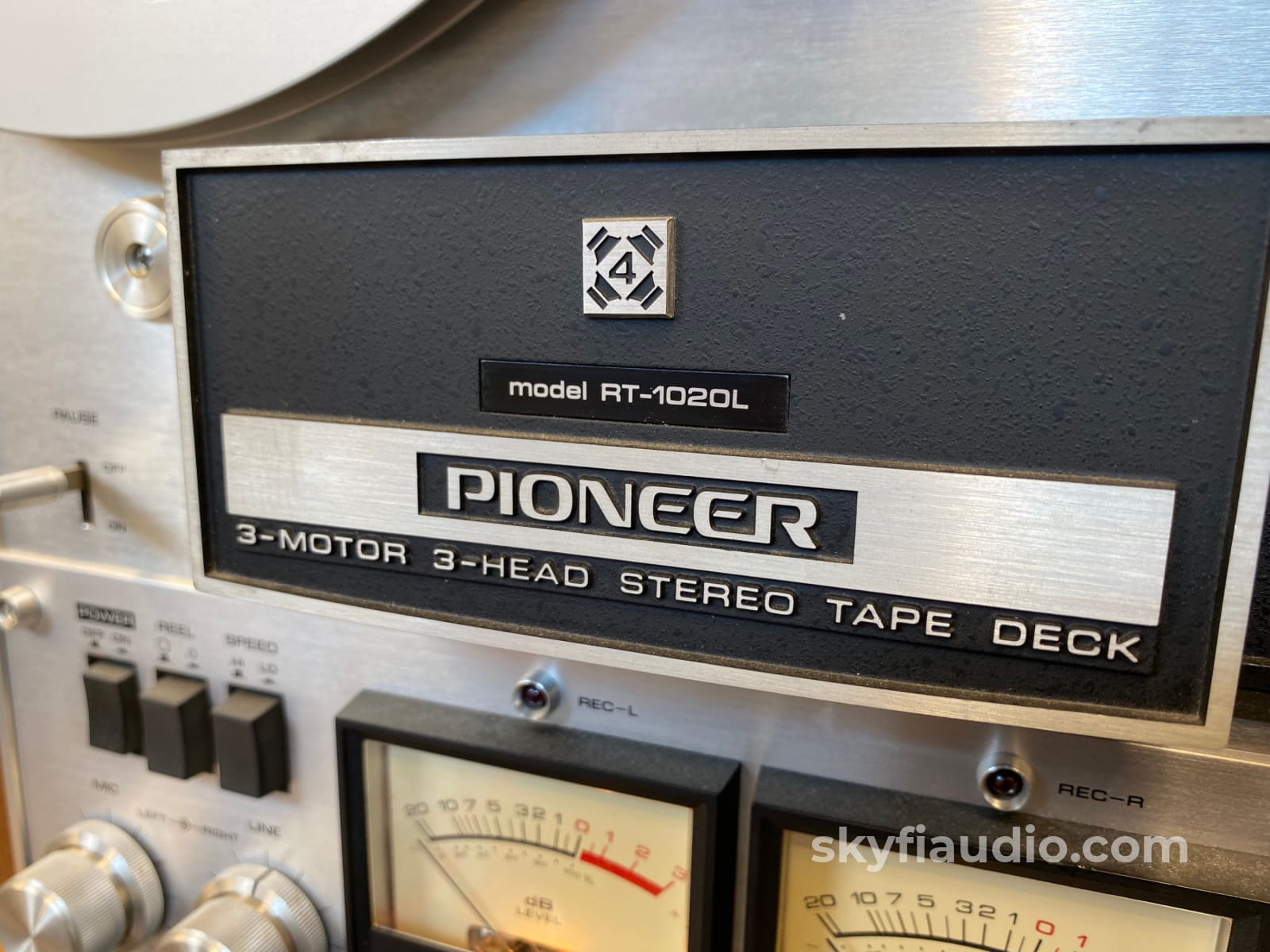

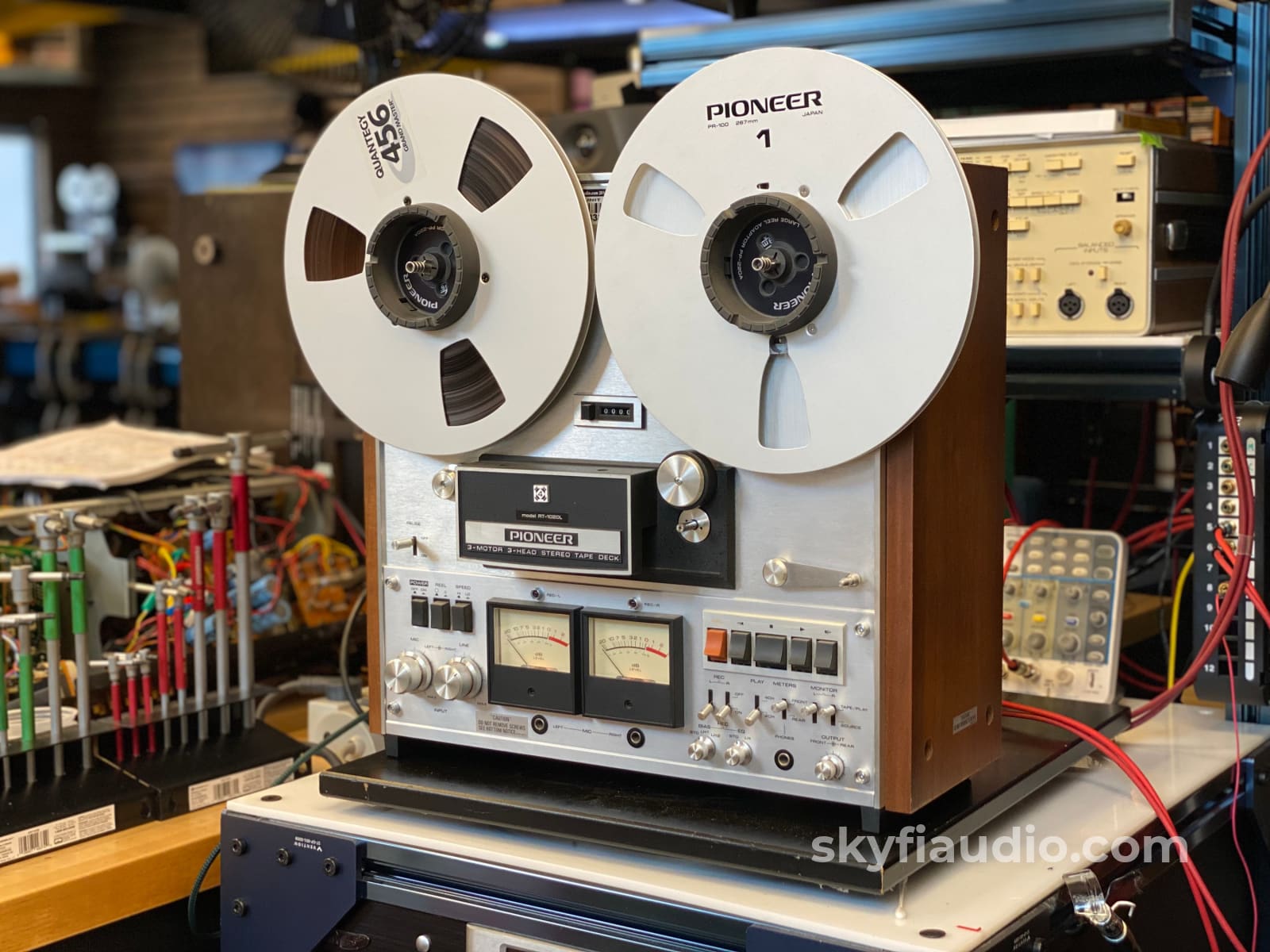

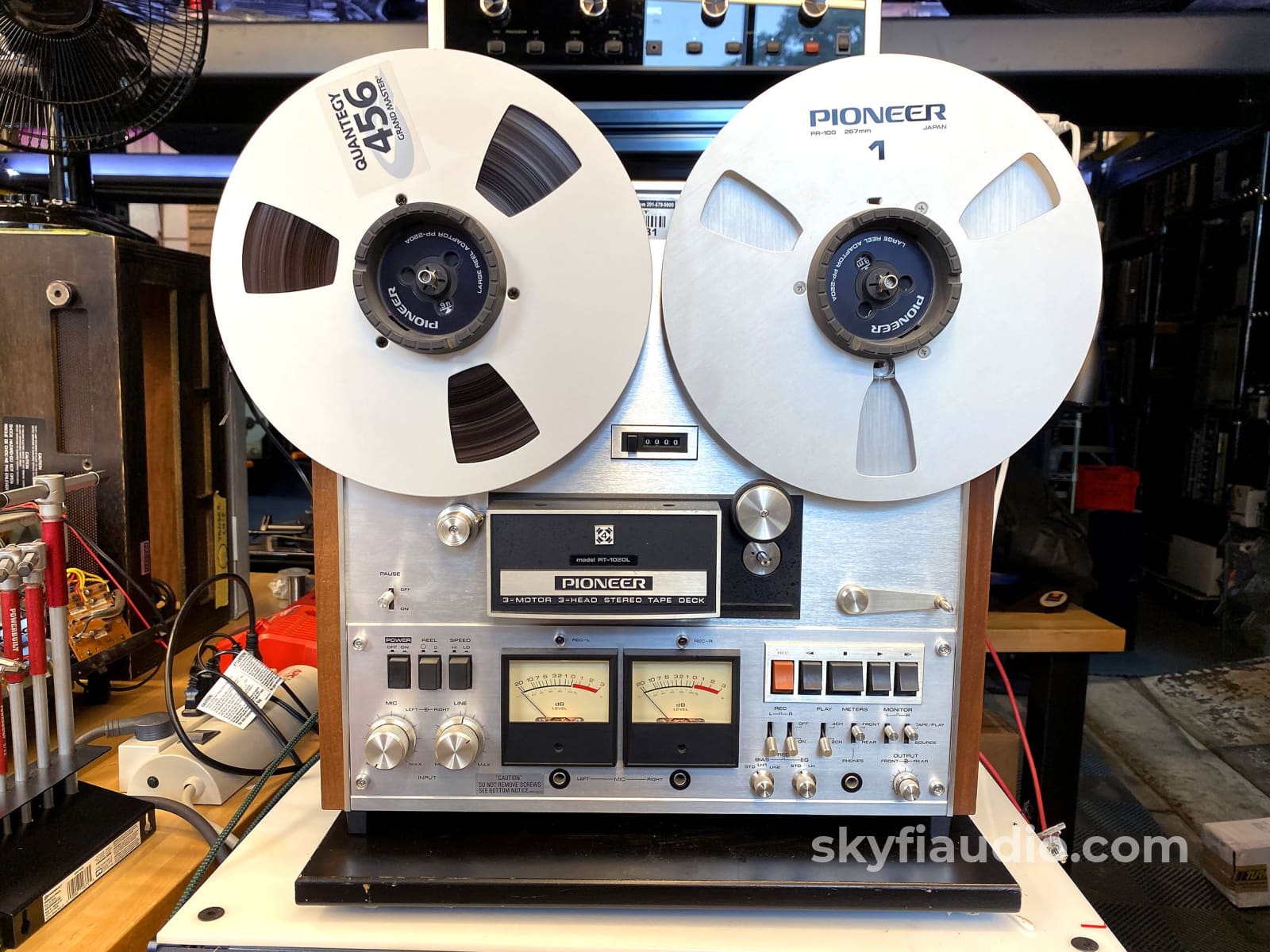

The Pioneer RT-1020L is a superb reel-to-reel stereo tape deck with many professional features.

It features a 2 and 4 channel playback head plus a built-in 4-channel preamplifier, allowing you to enjoy quadraphonic plus 2 track and 4 track stereo playback.

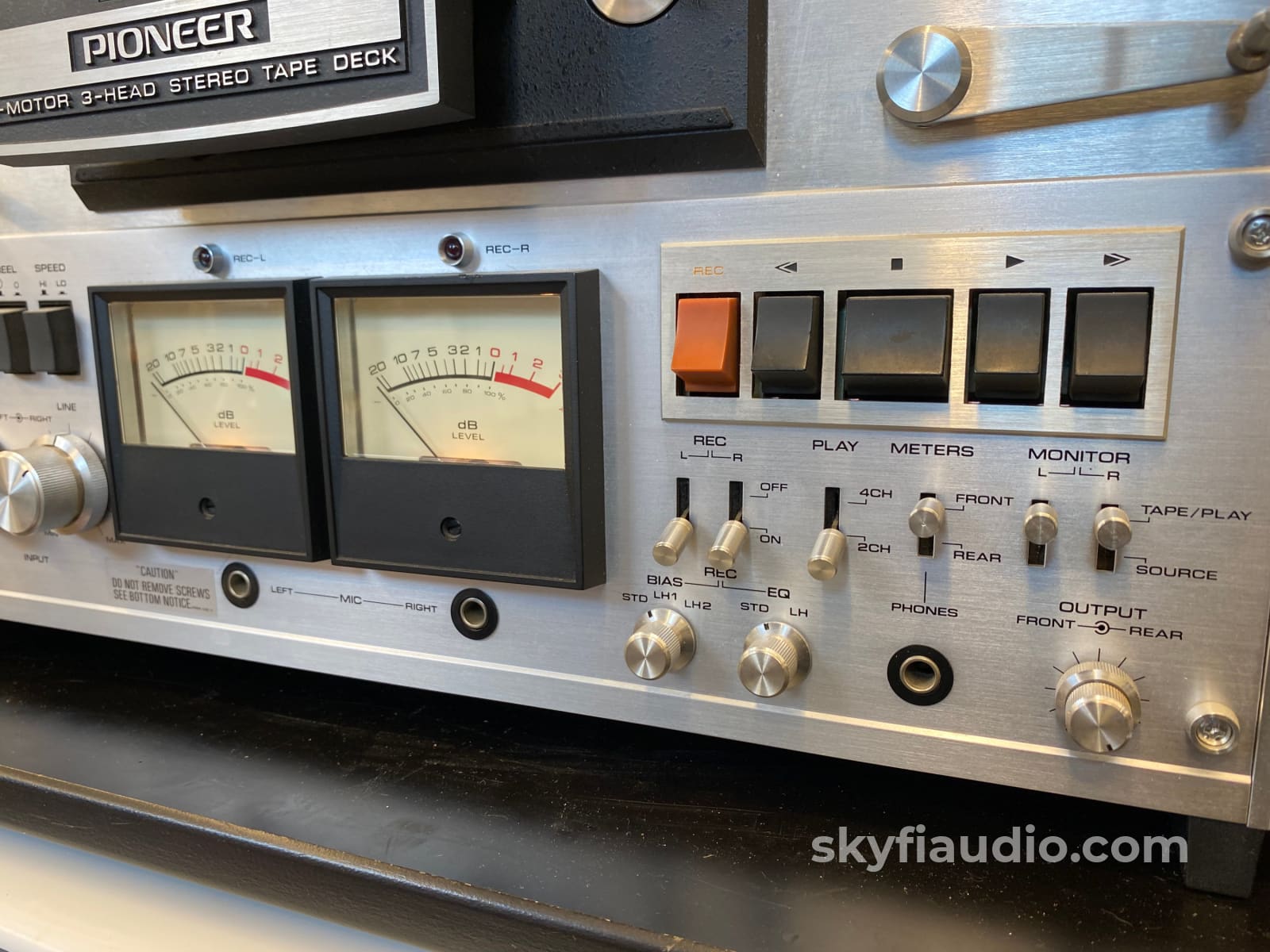

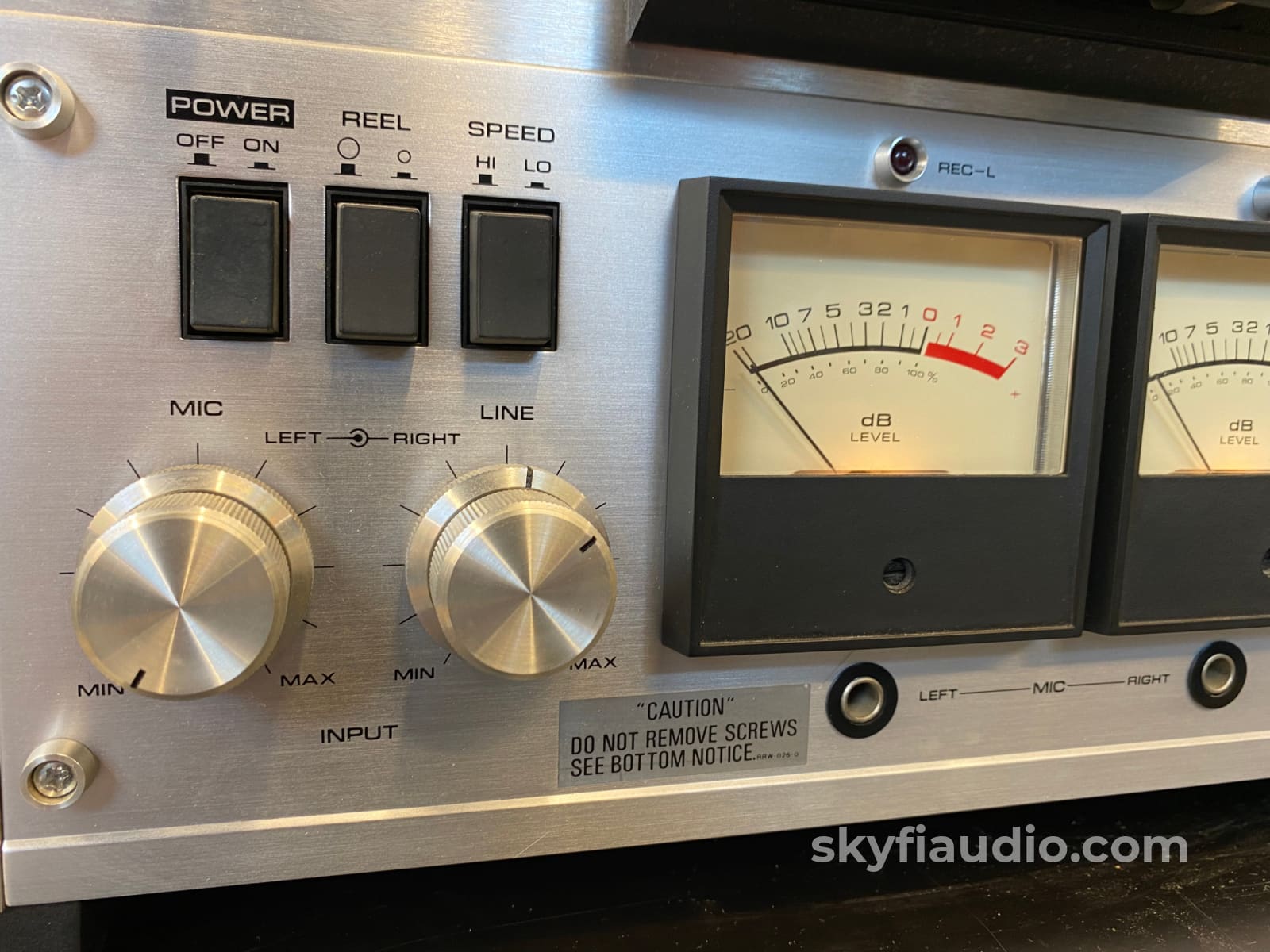

The 3 position bias selector and 2 position equalization selector guarantee perfect reproduction of low noise/high-output tape.

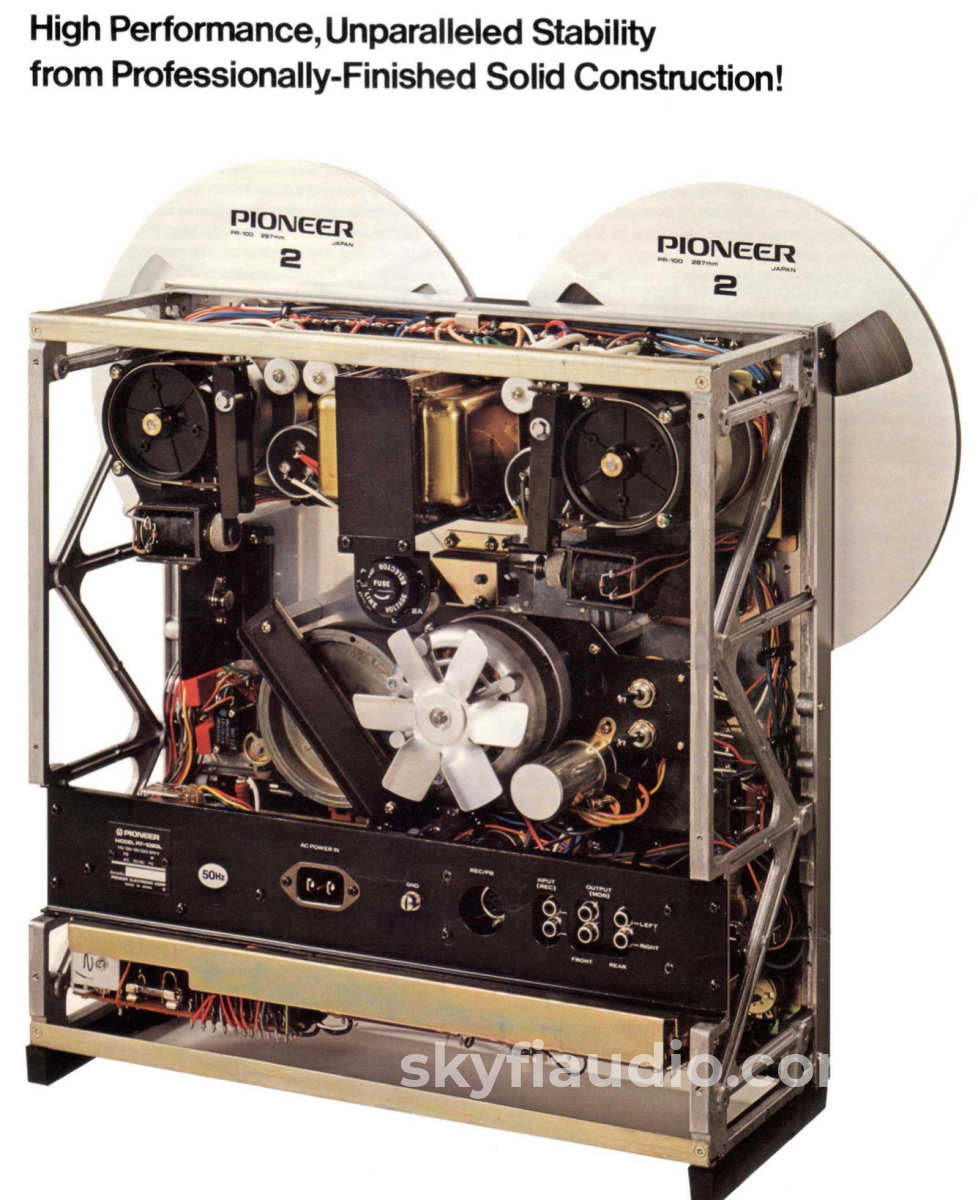

With its high-torque motors, professional sized 10.5 inch reel transport and other standard extras, it's built to bring you top versatility, long service, and total reliability.

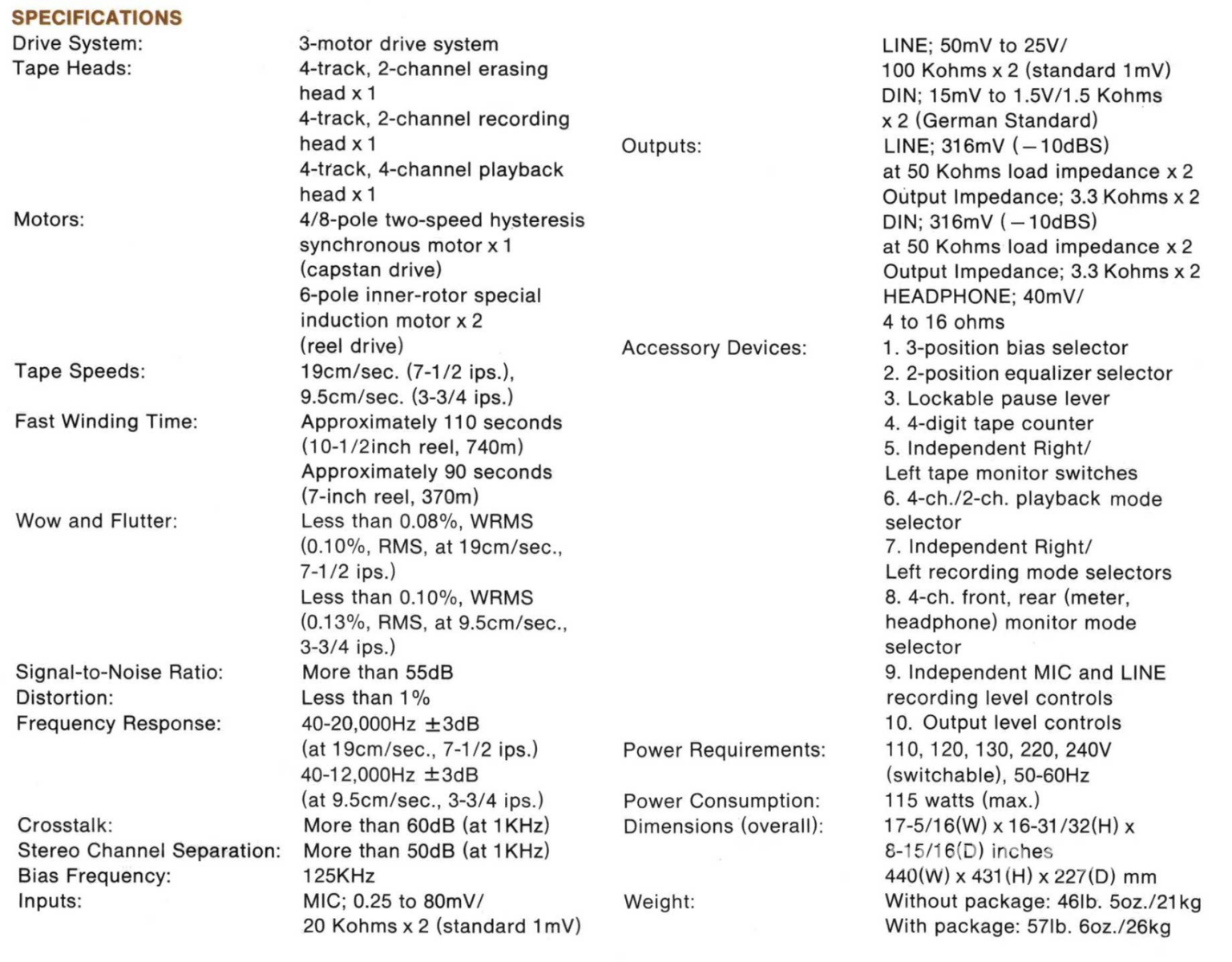

Technical Specifications
Track System:
2 / 4-track, 2-channel, stereo

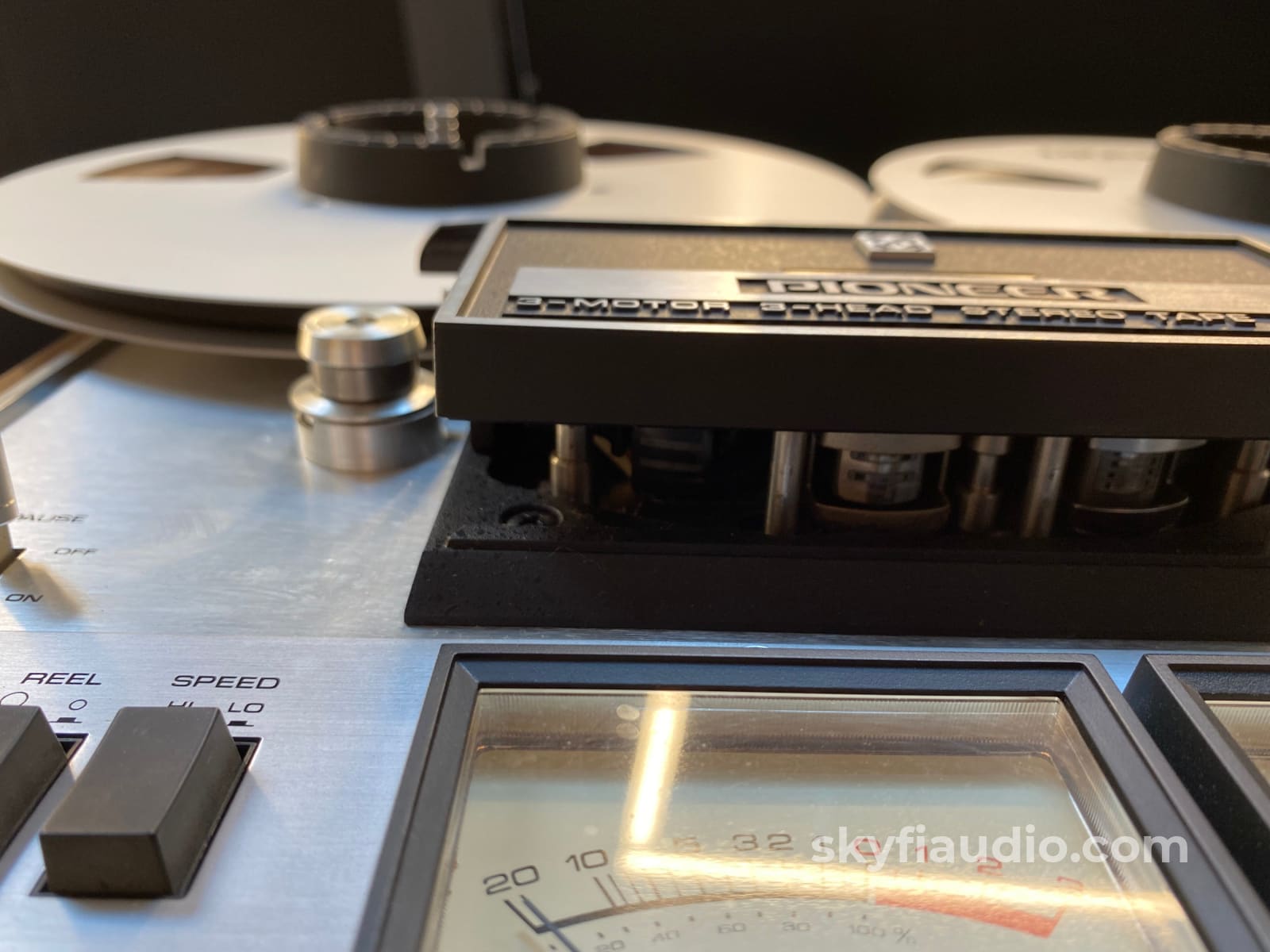

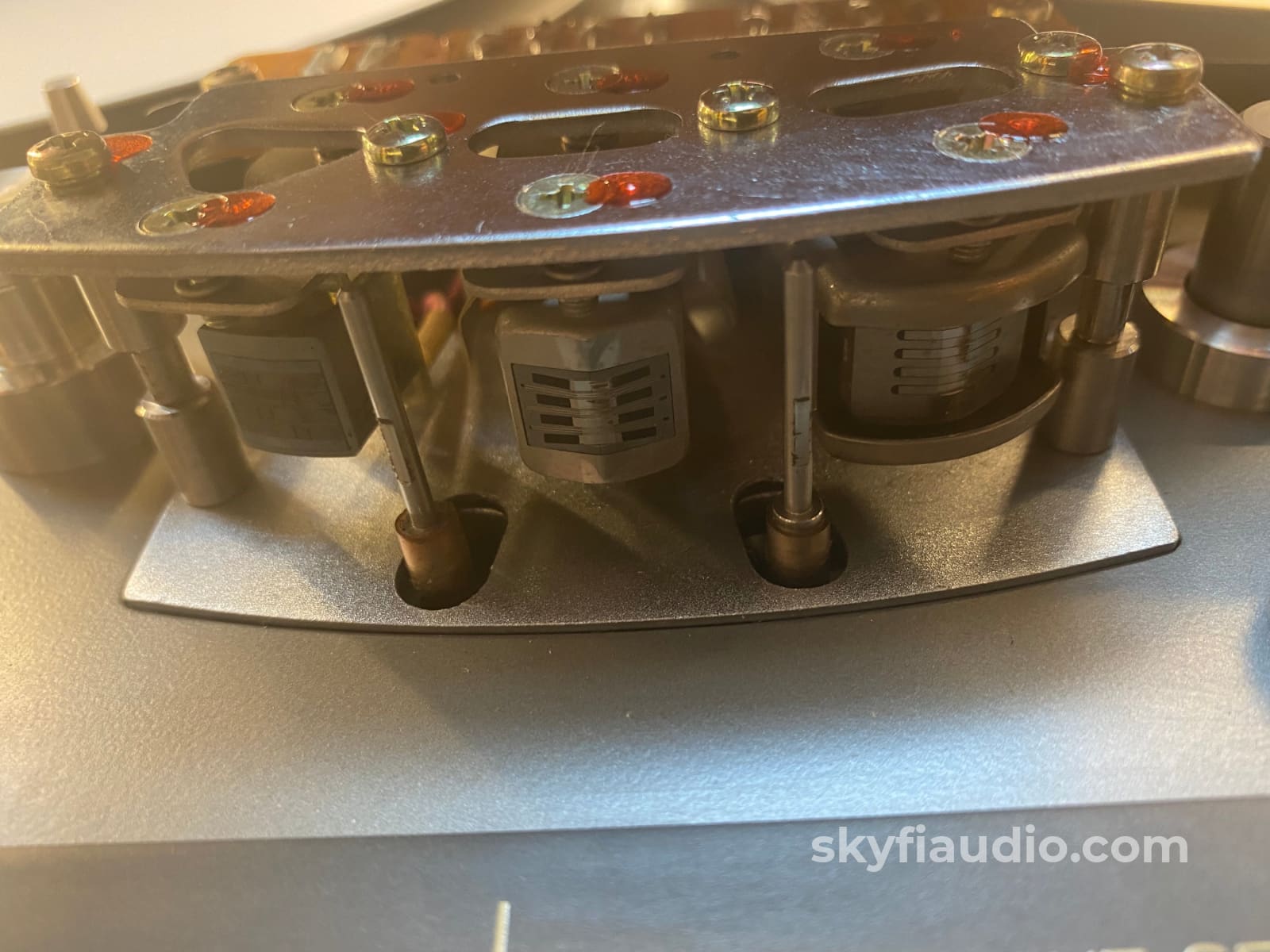

Heads:
1 x playback
1 x record
1 x erase

Motor:
2 x reel
1 x capstan

Reel Size:
Up to 10.5 inch reel

Tape Speeds:
3-3⁄4 ips
7-1⁄2 ips

Wow and Flutter:
0.08% (7-1⁄2 ips)

Frequency Response:
40 Hz to 20 kHz (7-1⁄2 ips)

Signal to Noise Ratio:
55 dB

Total Harmonic Distortion:
1%

Crosstalk:
60 dB

Input:
50mV (line)
15mV (DIN)
0.25mV (mic)

Output:
0.3V (line)

Dimensions:
17.32" W x 16.97" x 8.86"
(440 x 431 x 225 mm)

Weight:
46.3 lbs
(21 kg)
