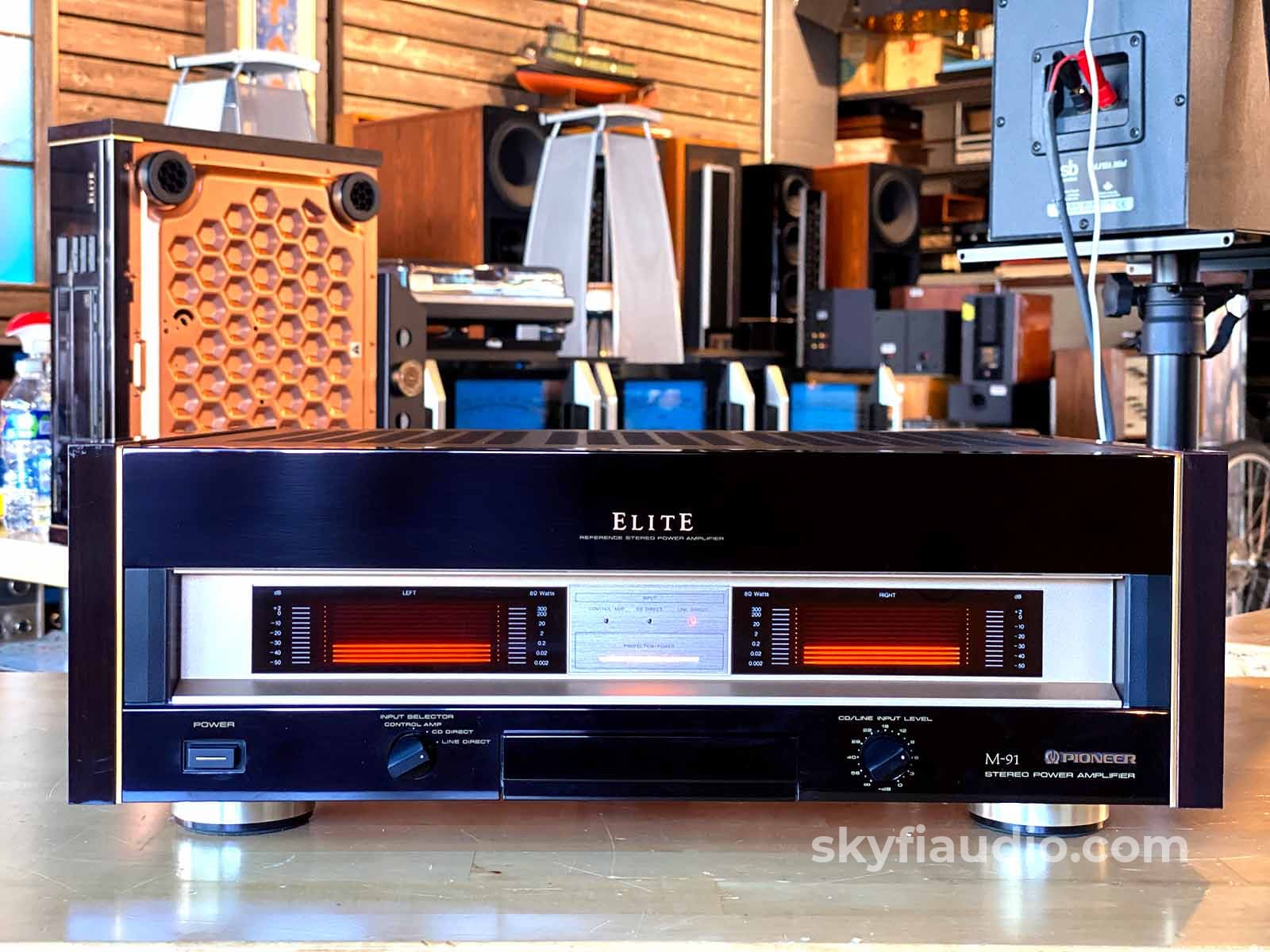

Pioneer Elite M-91 Vintage Solid State Amplifier - Gorgeous

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

I can't believe these are already considered vintage! I personally installed many of these famed Elite systems when I was working as an installer in college.

Unlike many components from this era, the Elite series delivers both inside and out.

Oh, and they also sound superb.

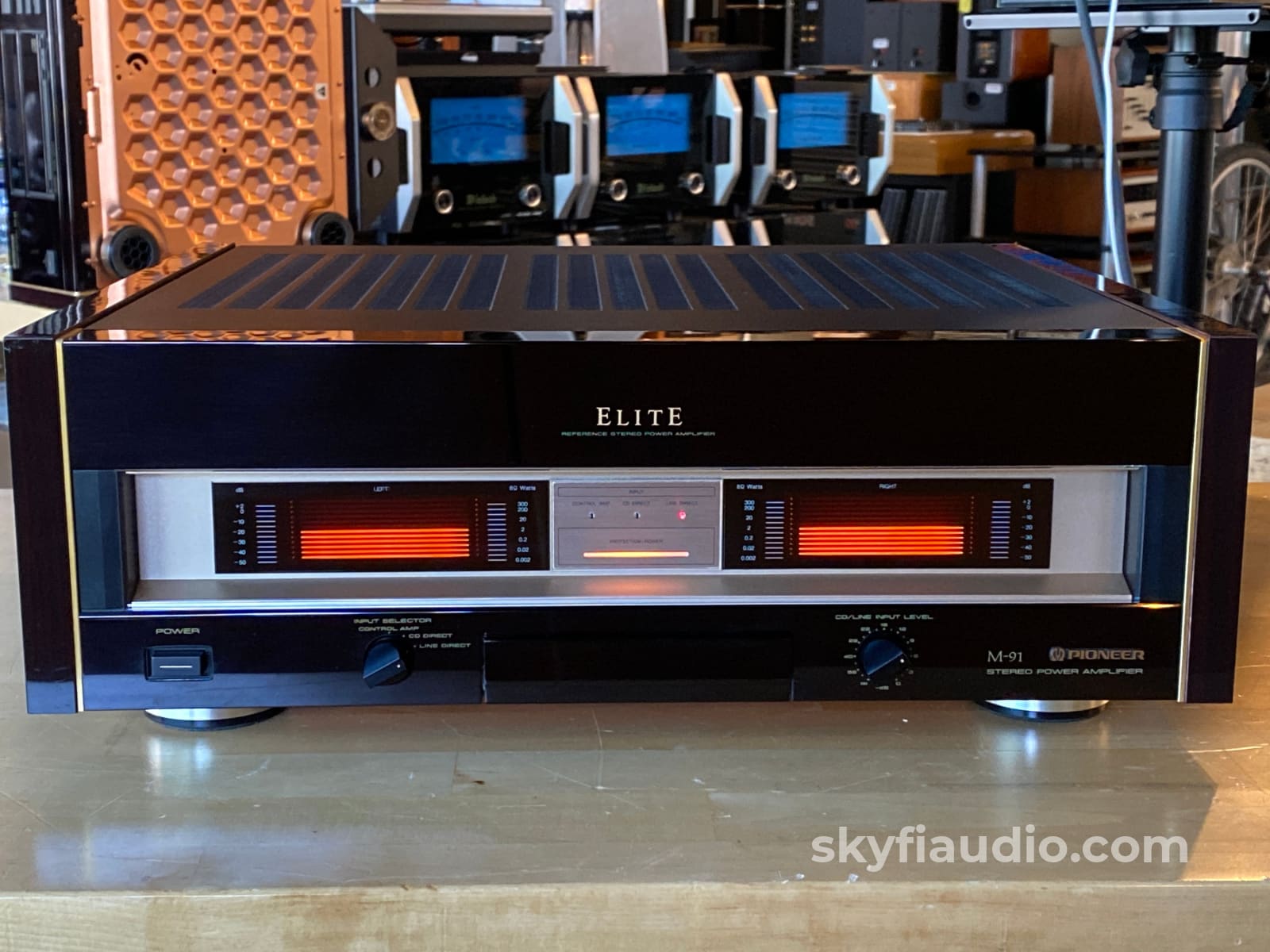

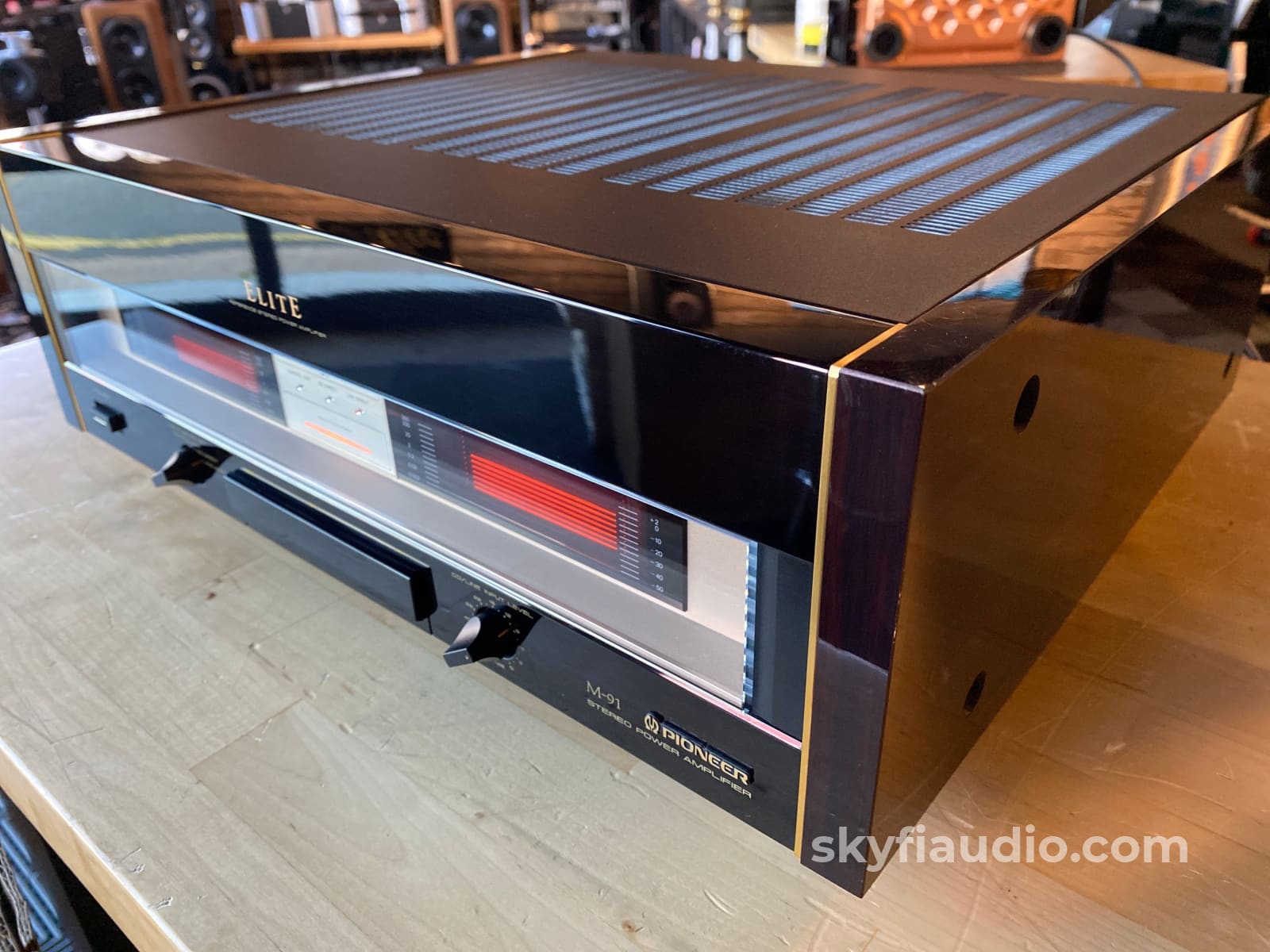

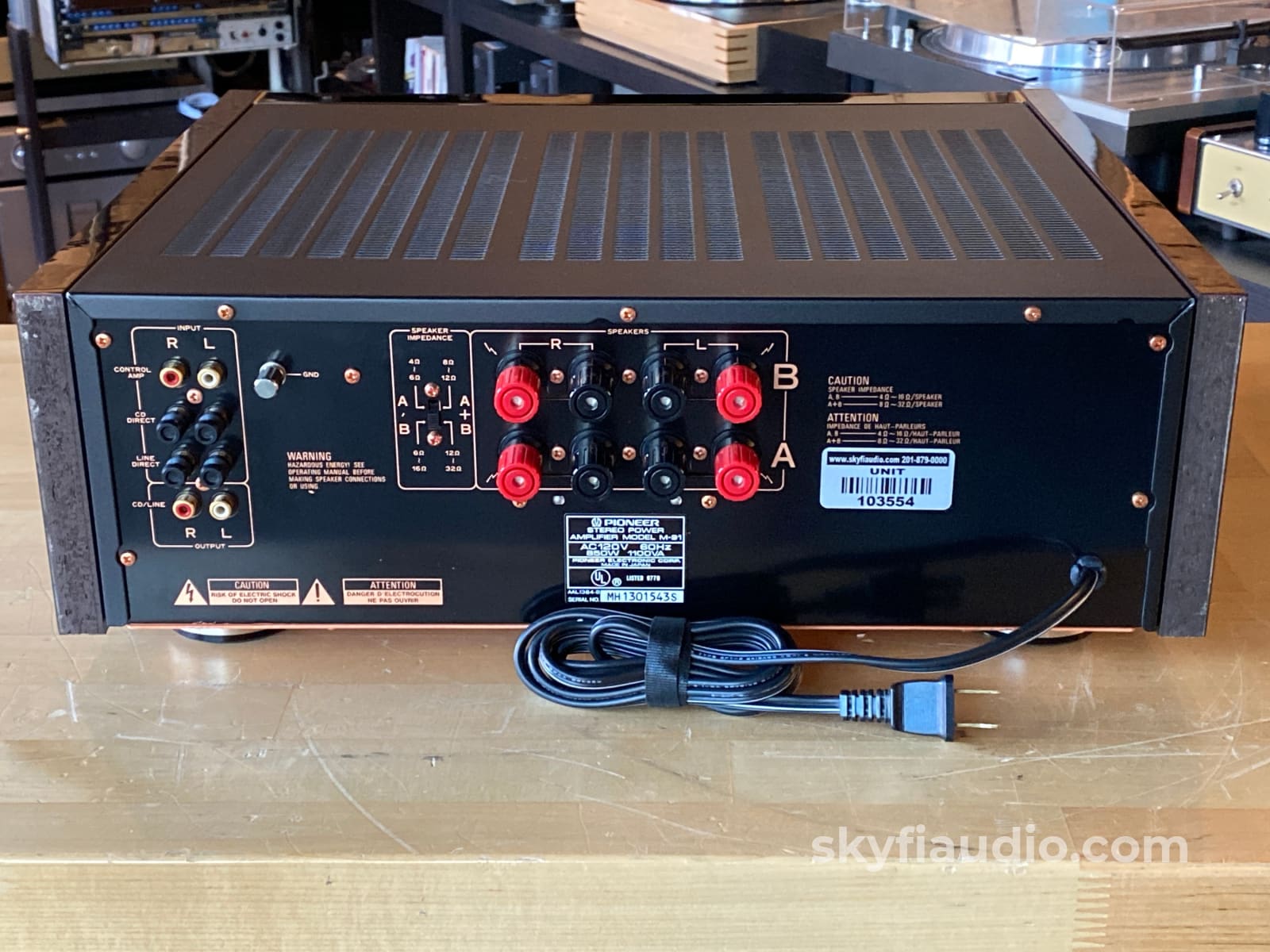

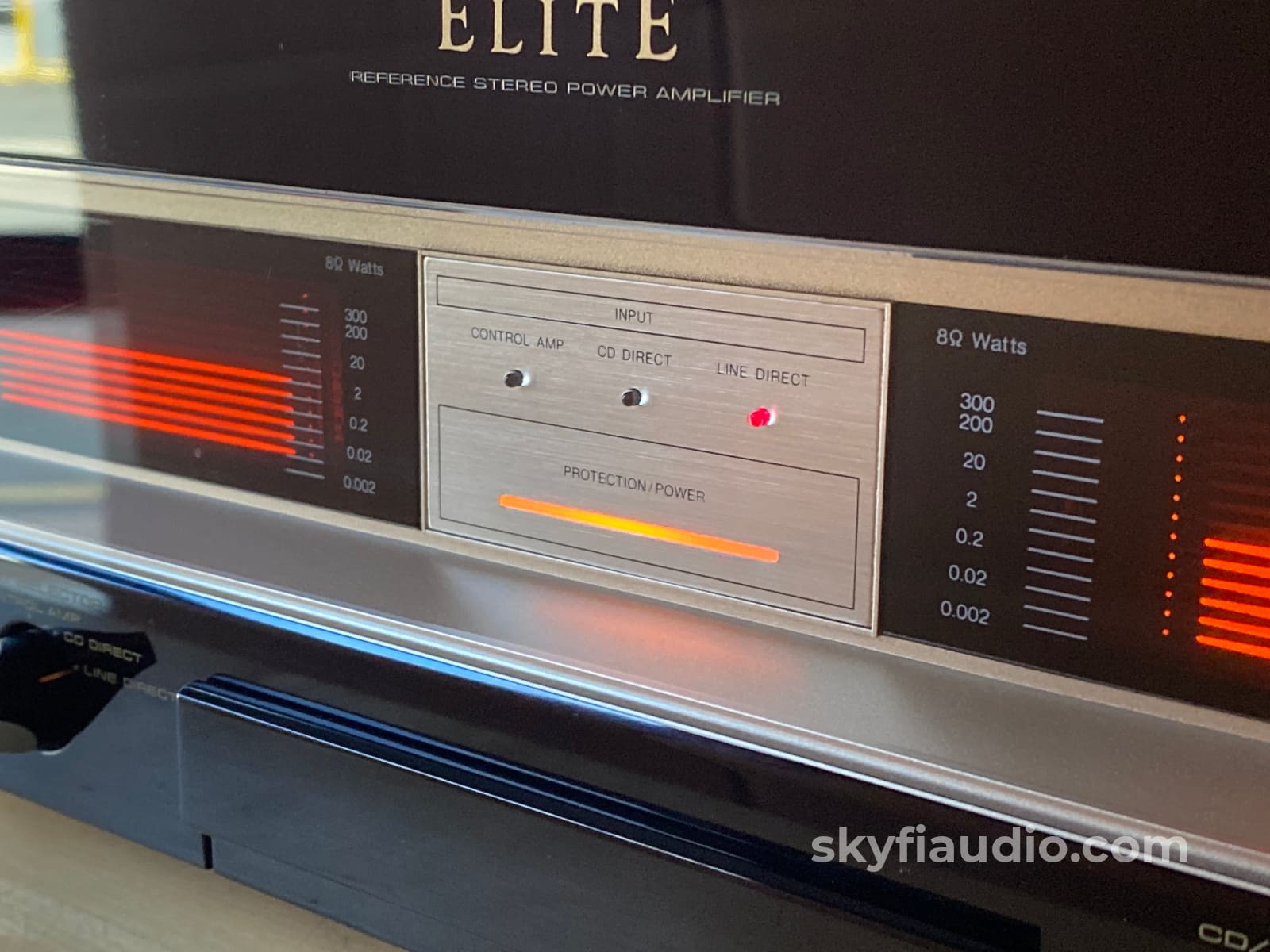

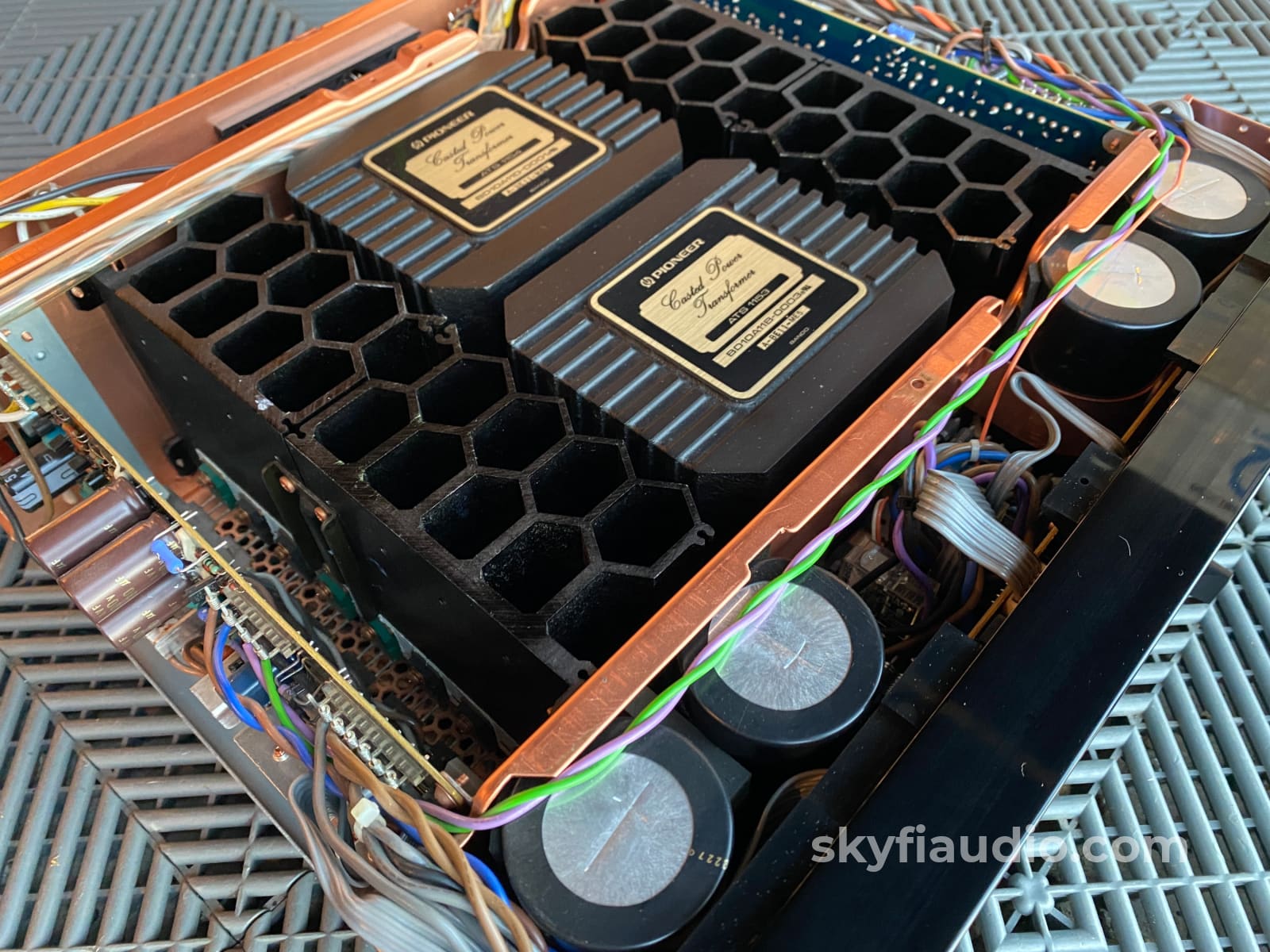

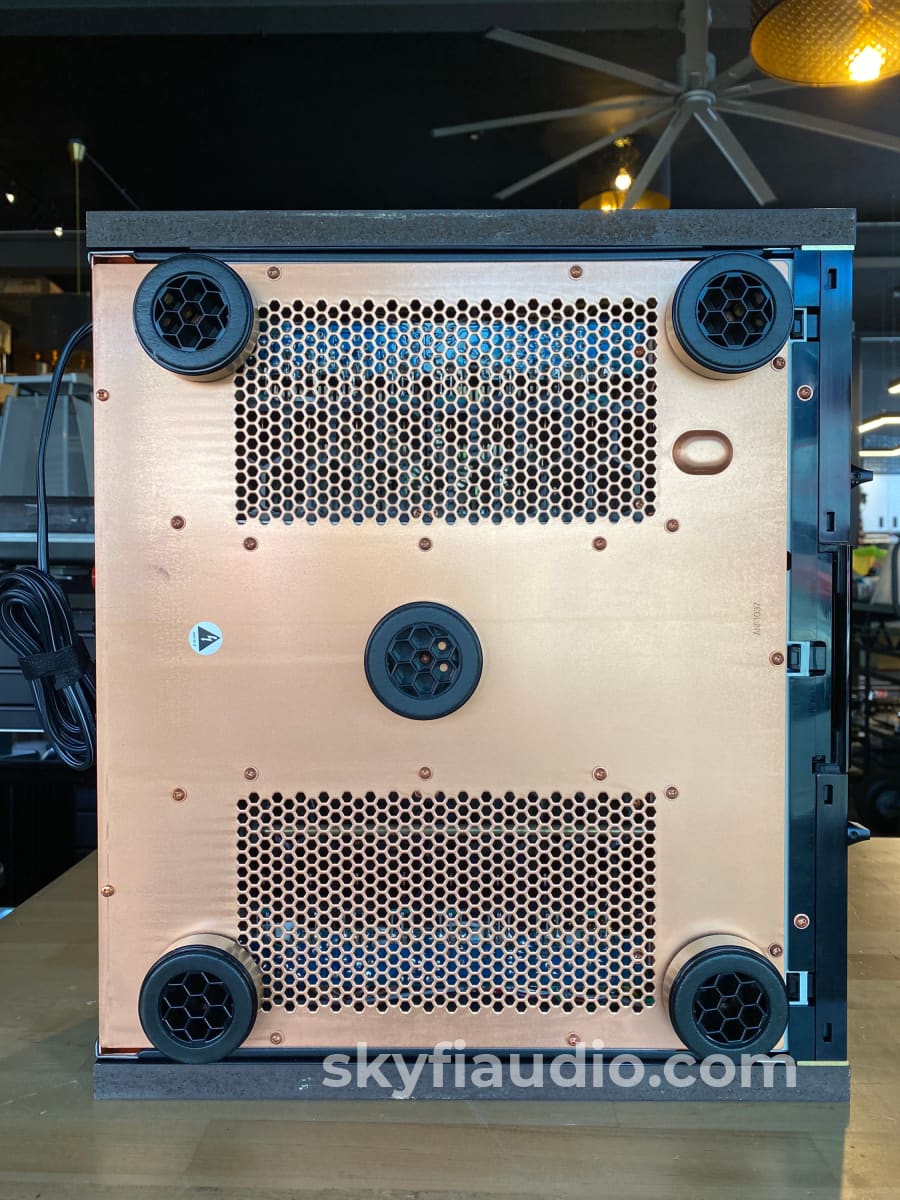

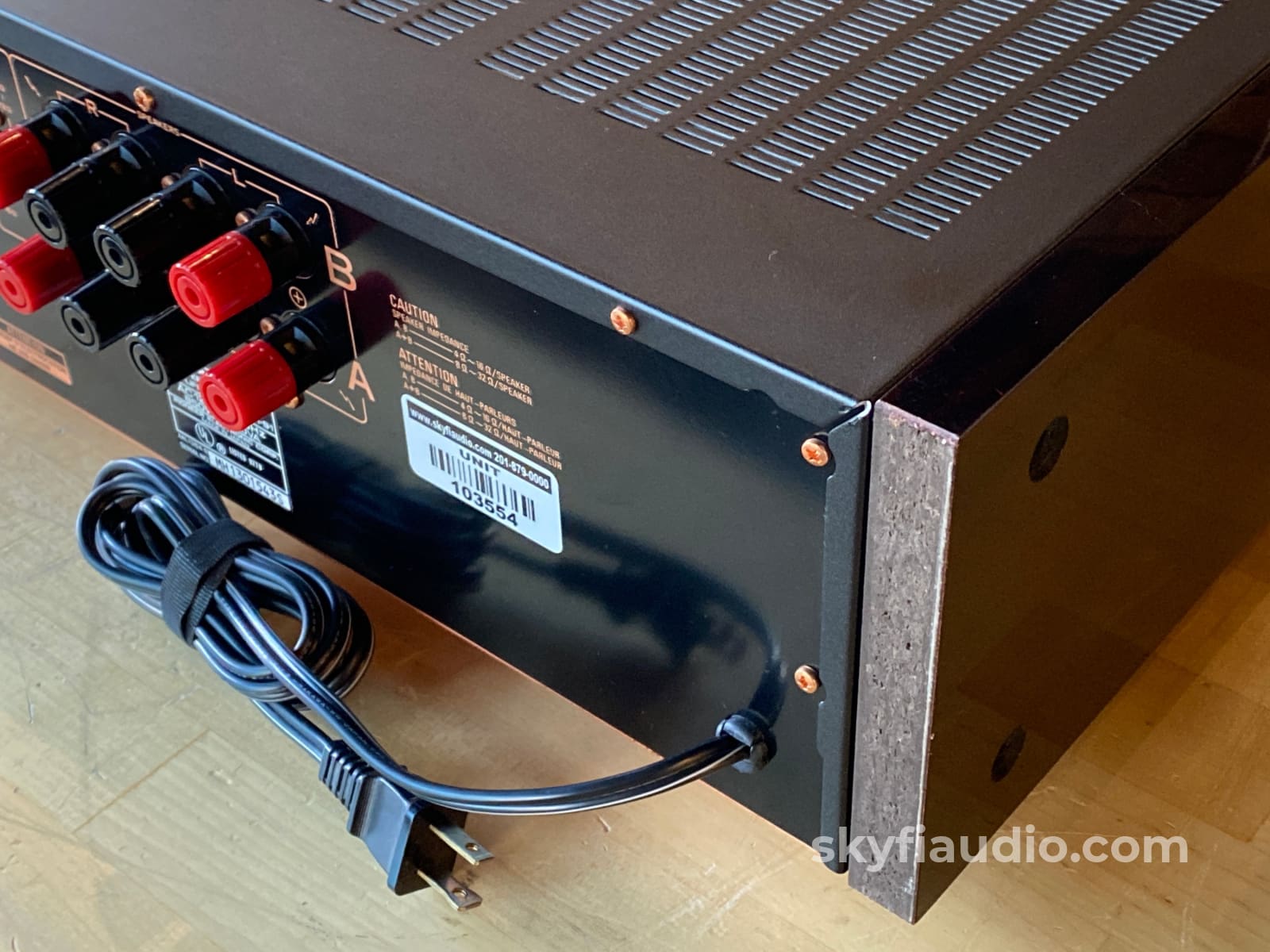

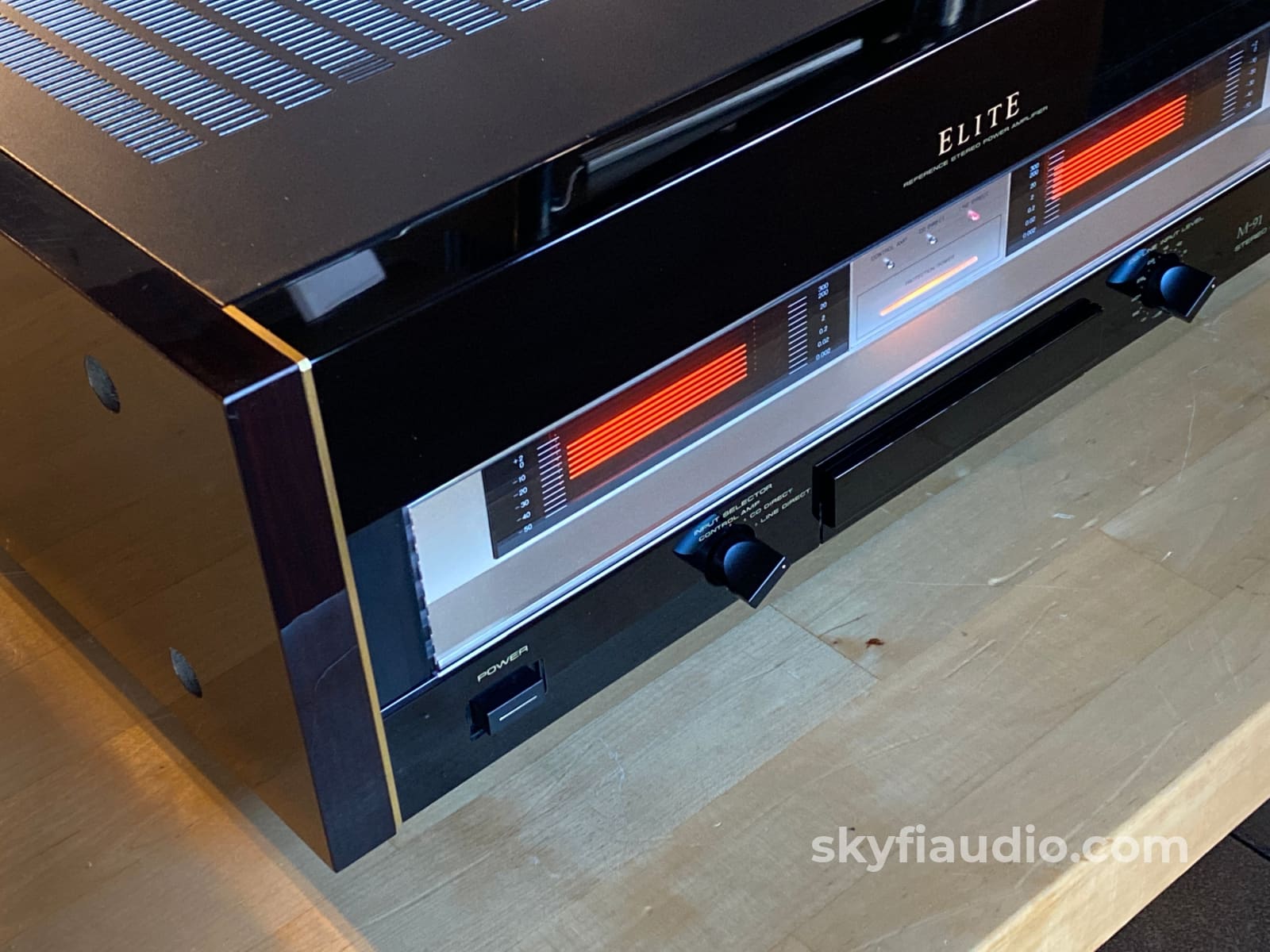

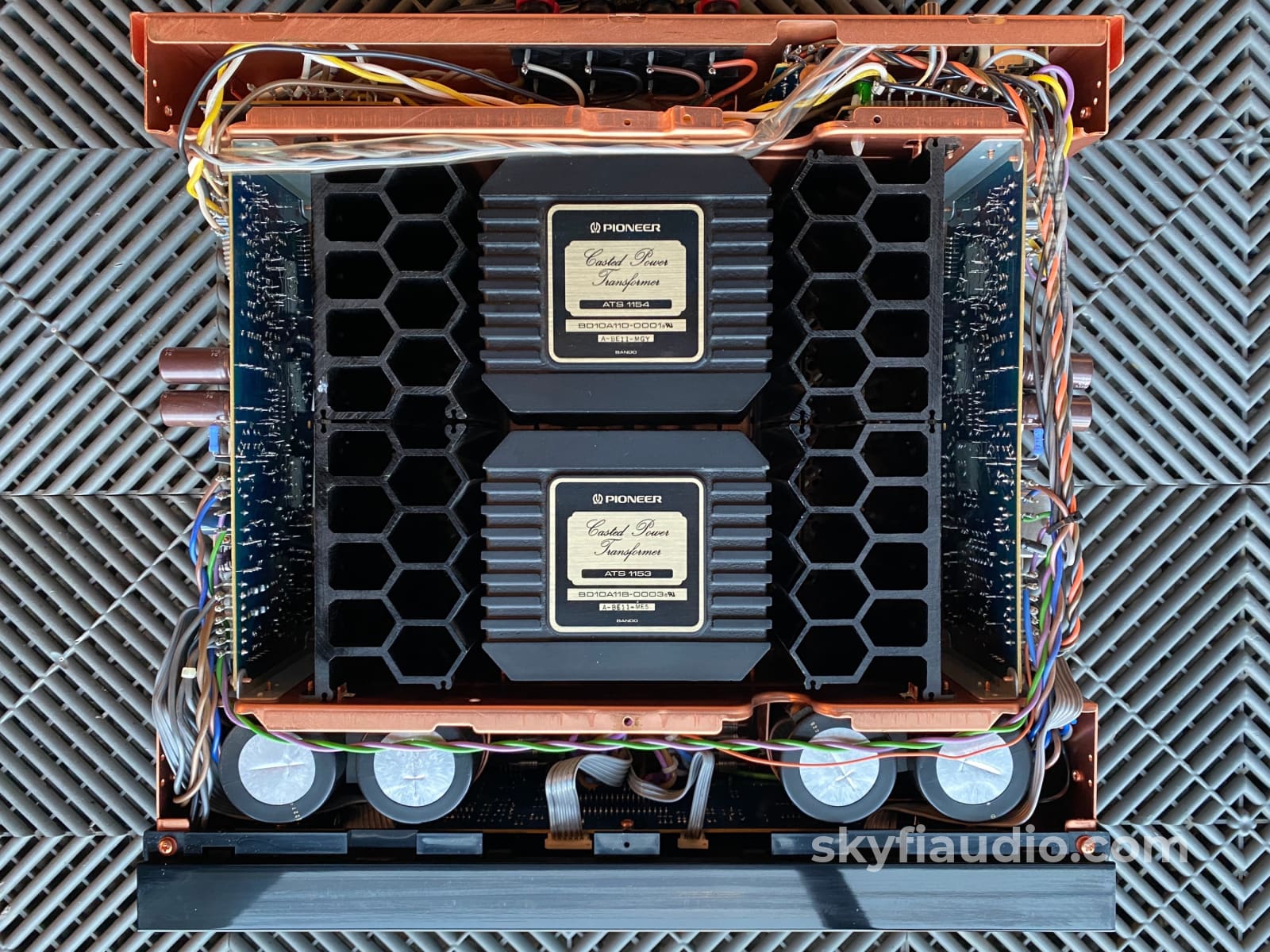

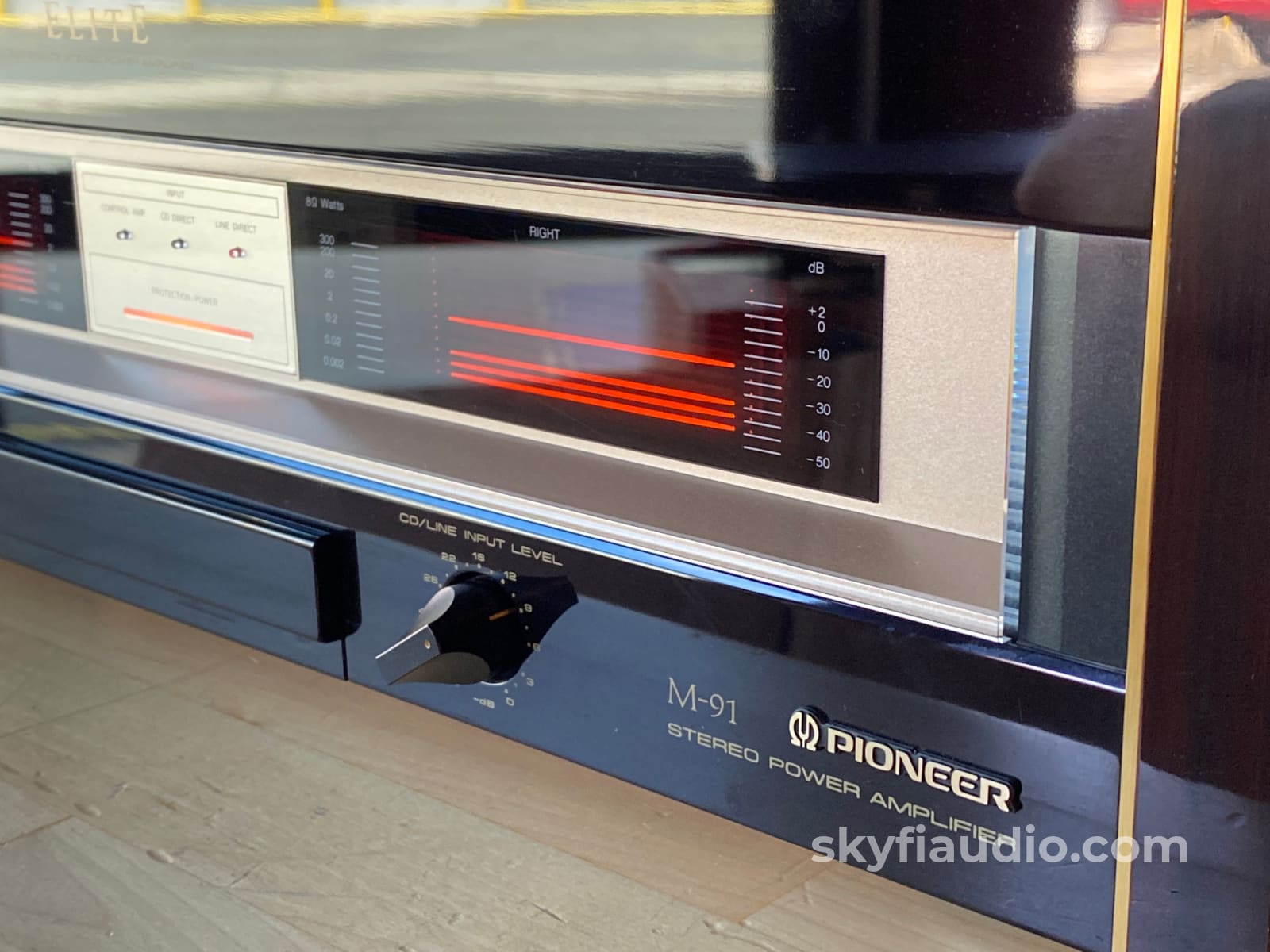

The part/build quality of this amp is incredible. Twin mono construction with dual cast iron-housed transformers, big honeycomb heatsinks, beautiful orange meters, solid aluminum knobs, copper-plated chassis and screws, high grade electrical components, huge speaker terminals, mirror metal finish - this was Pioneer's flagship consumer amp and it shows.

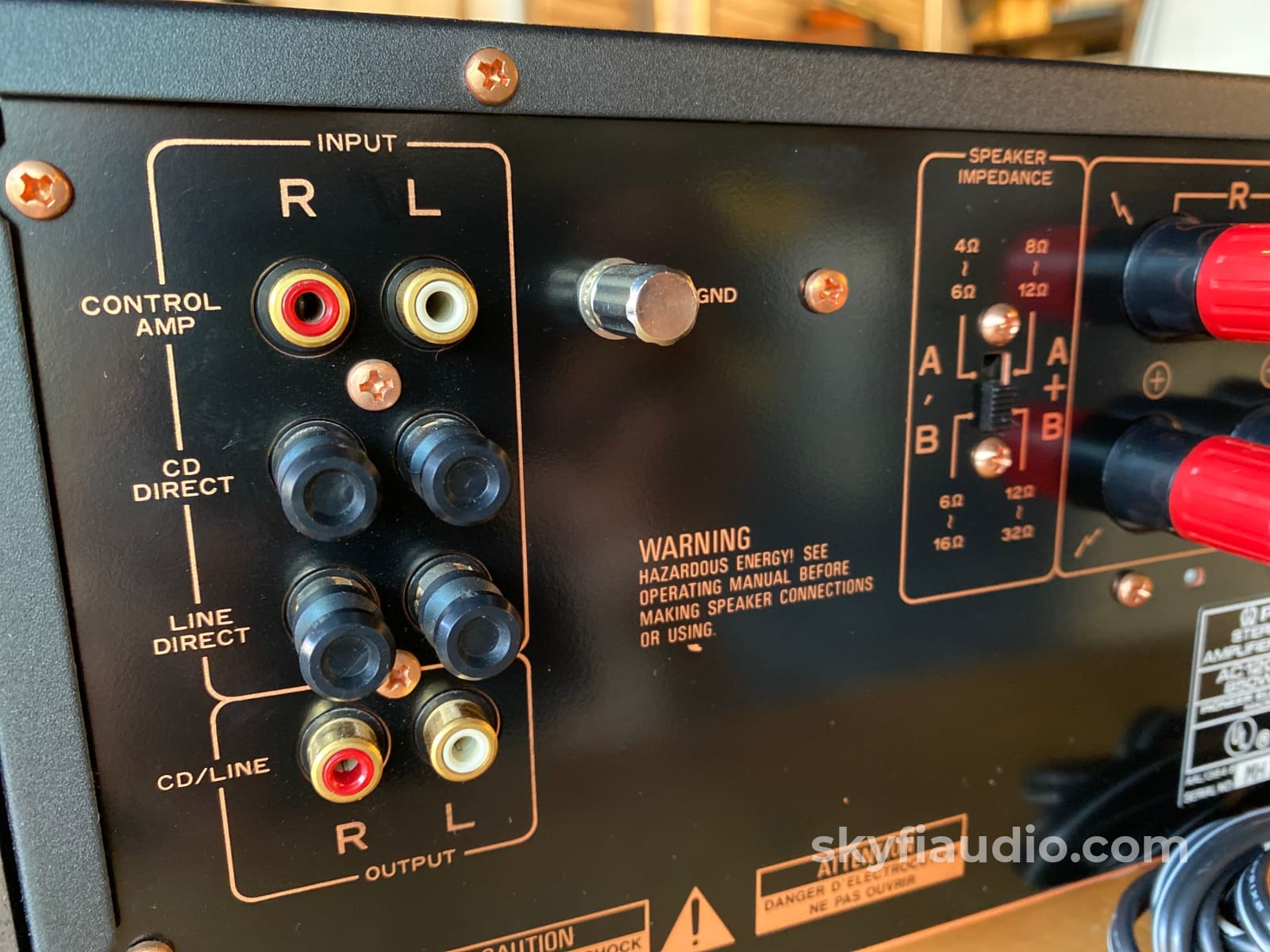

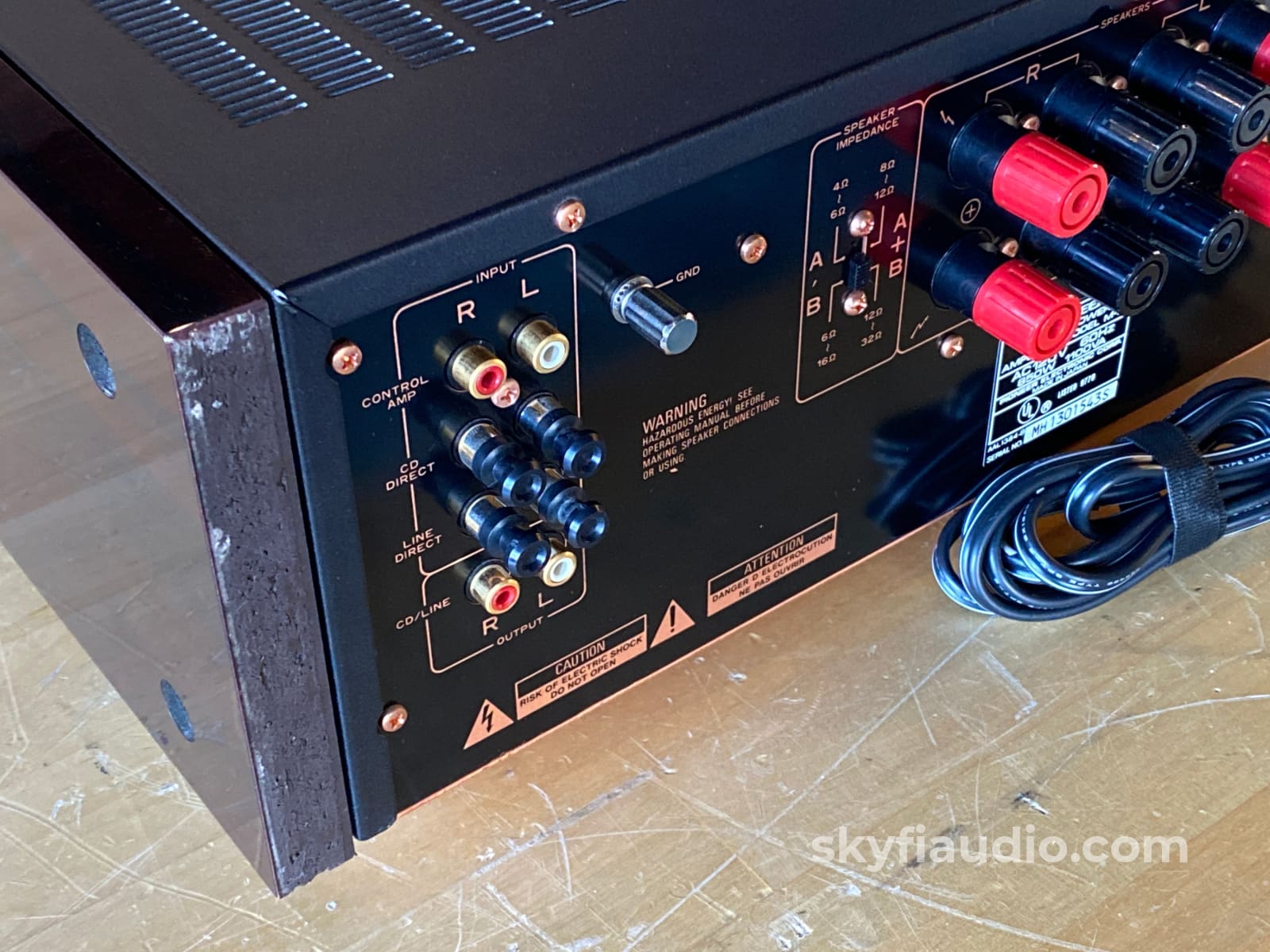

One great feature on this amp is that it offers *three* inputs, including two dedicated line level inputs that are controlled by a volume knob on the front. So you can use this with no preamp to avoid unnecessary circuitry. The last input is for a preamp/control amp and bypasses the volume knob.

We just acquired a big lot of Elite components so stand by for a full system video and review. Drop us a note if you're invested in the complete stack.

Fully tested in our lab where it performed as expected.

SkyFi Cosmetic Notes:

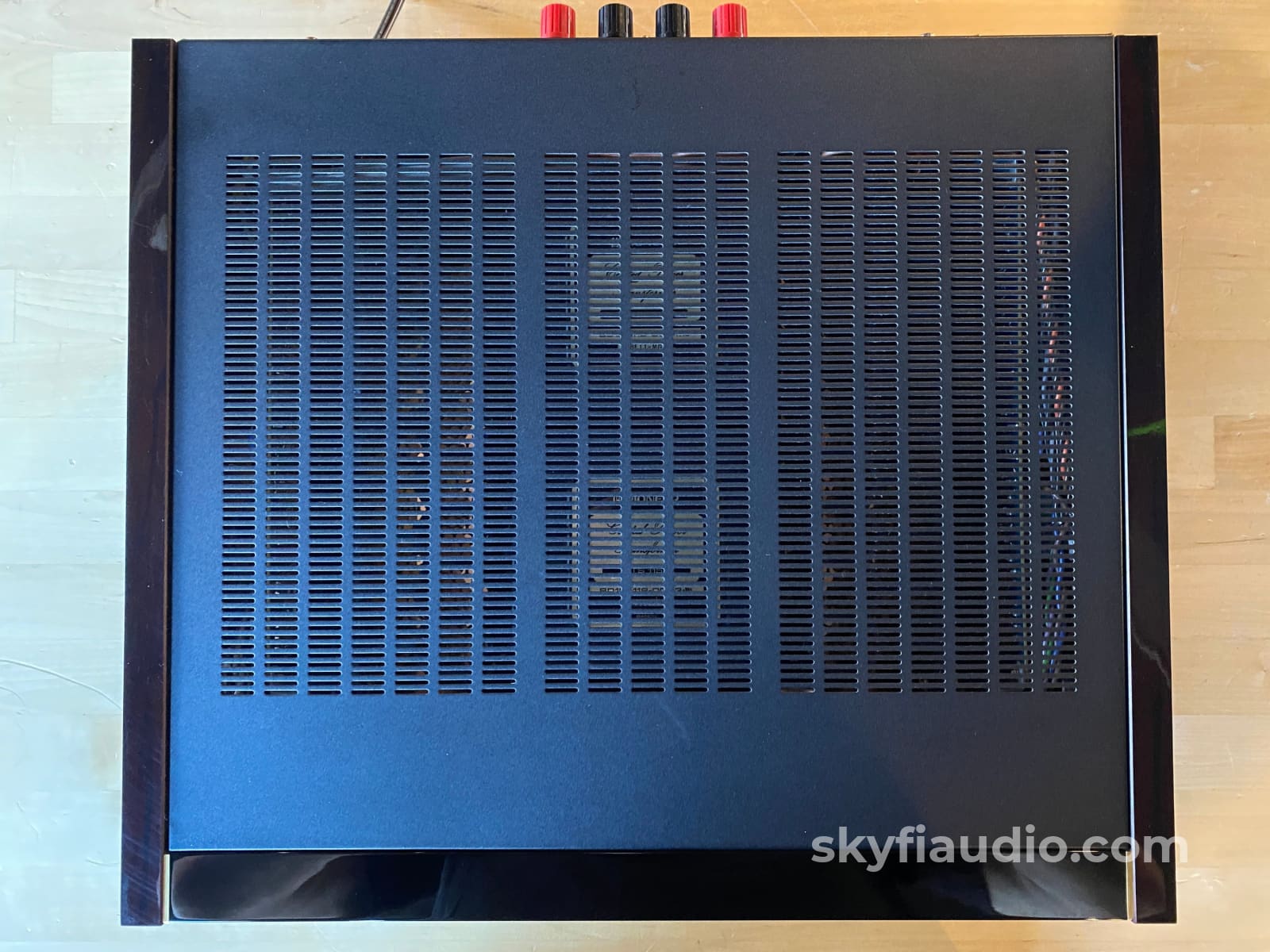

• Very light paint splatter on top cover

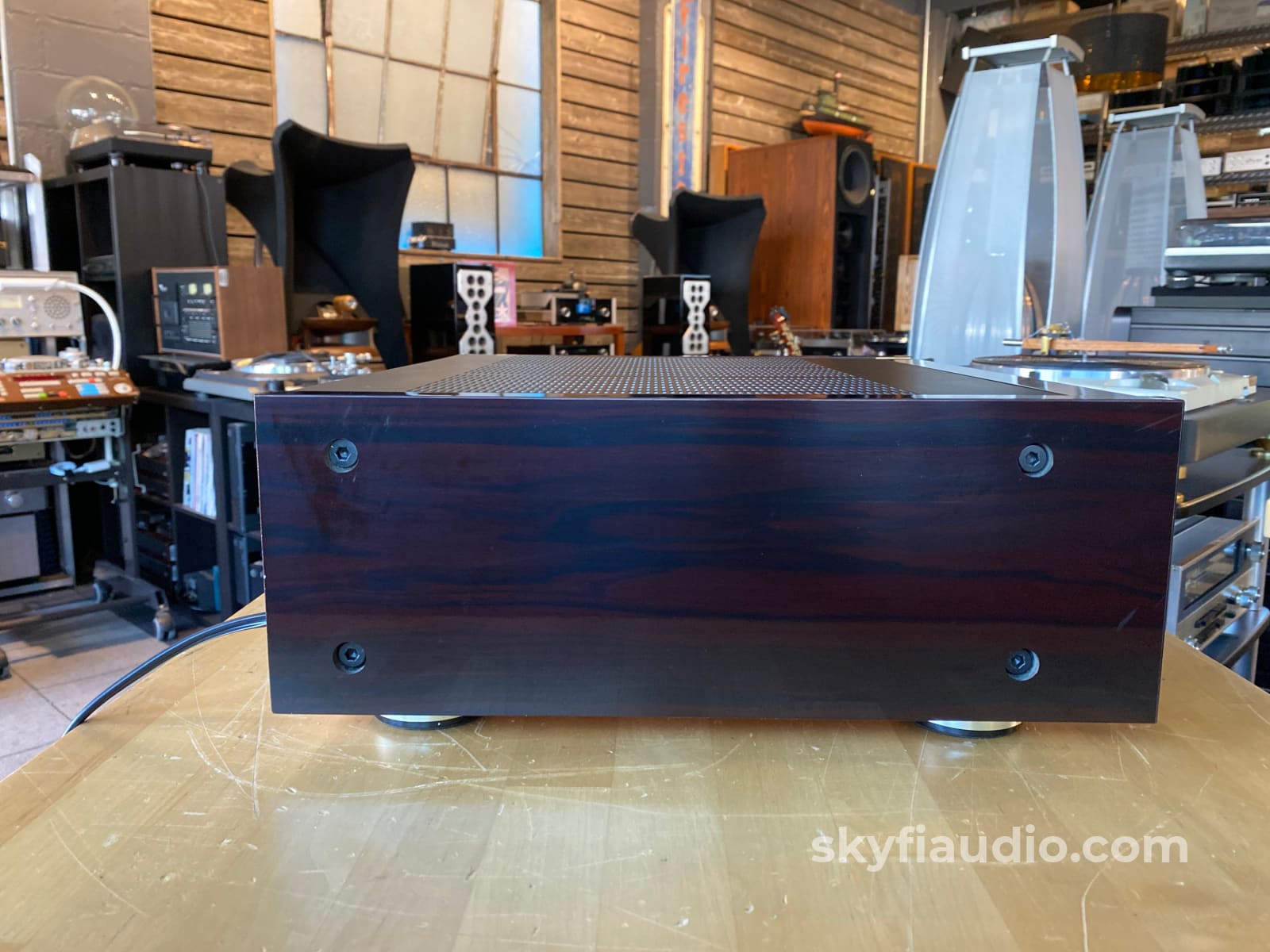

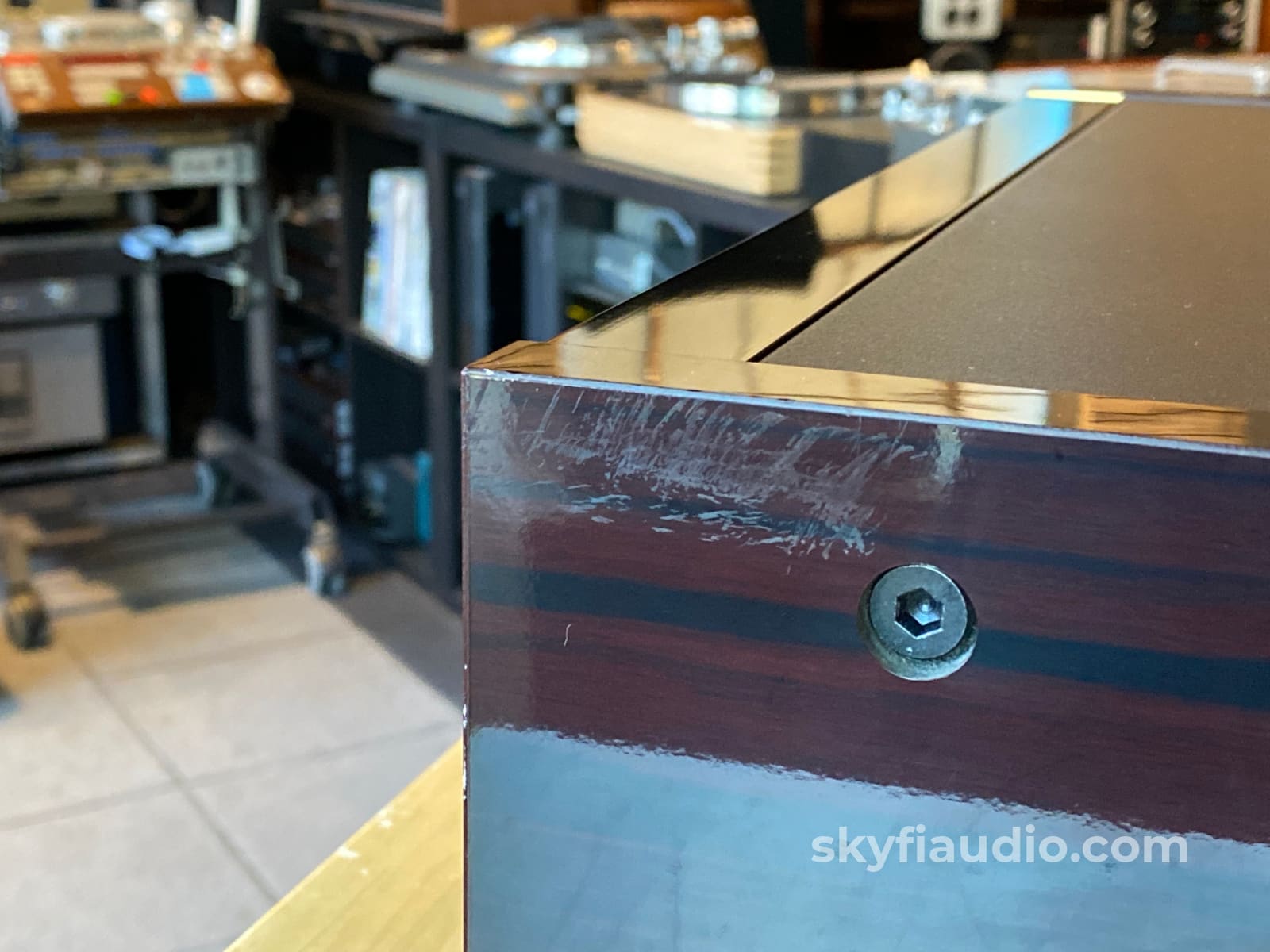

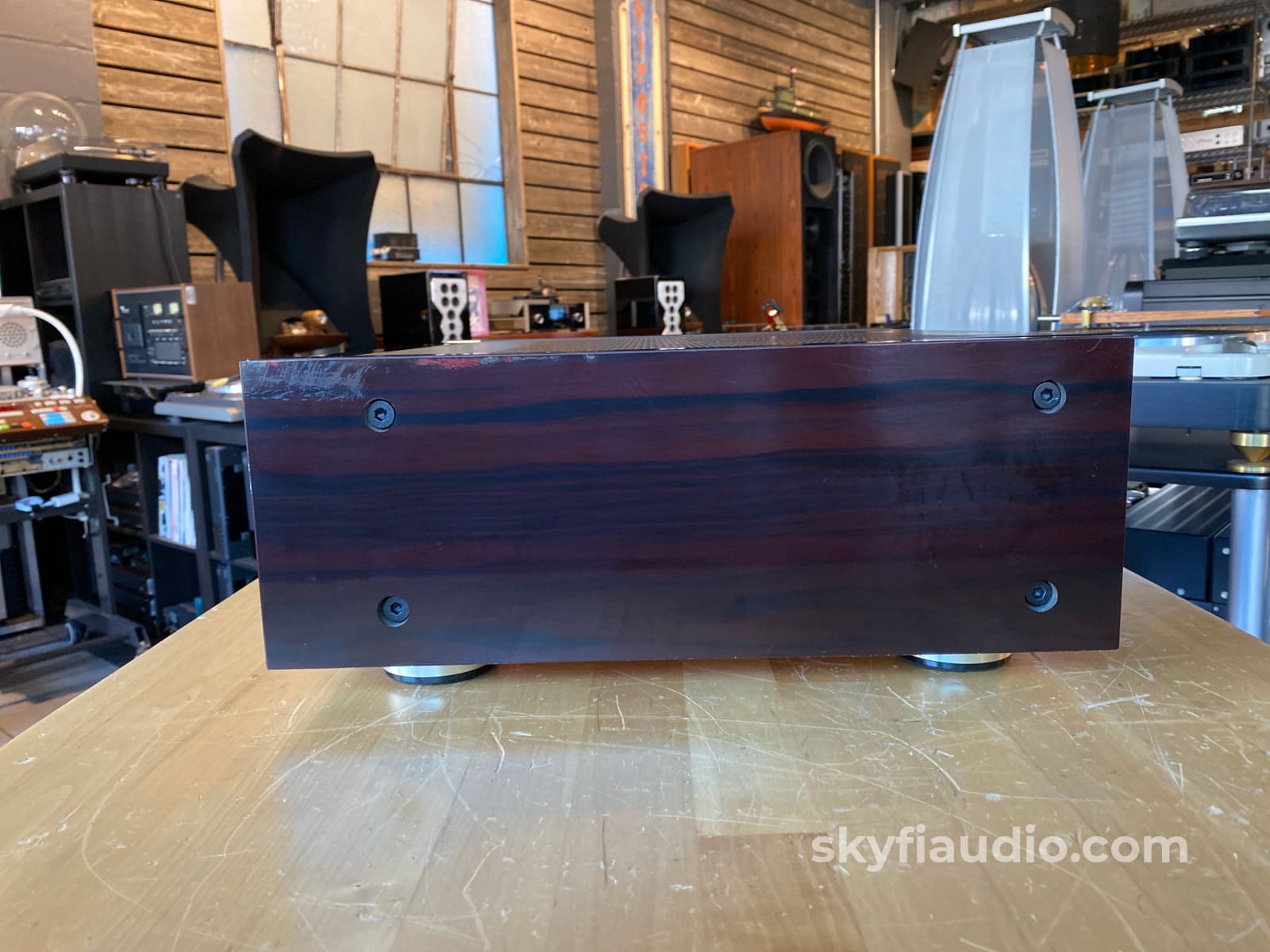

• Light scuffs on top and sides of wood panels

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Kimber Kable - RCA Interconnects

Kimber Kable - Speaker Cables

Technical Specifications
Power Output:
200 watts per channel into 8Ω (stereo)

Frequency Response:
20 Hz to 20 kHz

Total Harmonic Distortion:
0.003%

Input Sensitivity:
1V

Signal to Noise Ratio:
125 dB

Dimensions:
17.99" x 17" x 6.24"
(457 x 432 x 163mm)

Weight:
60 lbs.
(27.3kg)

Year Released:
1988

The SkyFi Testing Process for Solid State Amplifiers:

We start with a visual inspection of all internal components to make sure that there are no signs of heat stress or damage. Capacitors are checked for telltale signs of predictive failure including bulging, shrunken wrappers, or physical leakage. We also inspect the PCBs for discoloration from resistors or transistors that may have been running hot. On vintage units we often spot check select capacitors for value and ESR.

If the amplifier passes visual inspection, we move on to a controlled power on sequence using a Sencore safety analyzer to monitor current draw in real time. Once the amplifier is determined to be safe to operate, we connect it to full AC mains for function and power testing. We connect the speaker outputs of the amplifier to a Sencore PA81 Power Analyzer which acts as a dummy load, DC offset monitor, and oscilloscope interface. We start with a low level 1KHz test signal at the amplifier’s input and slowly increase its amplitude while monitoring the output on an oscilloscope for signs of noise, clipping, distortion, or improper channel balance. We continue increasing the signal level until the amplifier reaches clipping. At this point we take an output power measurement and compare it to the spec sheet of the amplifier to verify proper performance. If the device under test has both balanced and single ended inputs they are both tested at this time. We finish off the bench evaluation with a 1KHz square wave check and a 20Hz to 20KHz sine sweep to assess the amplifier’s frequency response characteristics. This battery of tests will usually reveal if the amplifier has any issues that need further attention.

Before the device leaves the bench, we perform a listening test with actual music using a variety of preferred test tracks. Our benches are outfitted with familiar monitor speakers which help us identify inconsistencies that will not always show up on our test gear. The main things that we are listening for are hum or noise with no signal present, proper center image, clicks, pops, or any other obvious undesirable audio characteristics.

If the unit passes all of these tests it is moved to our long term testing rig where we simulate real word operating conditions for 6-8 hours. This allows us to monitor the unit for signs of thermal runaway or intermittent issues that only crop up when the unit has fully come up to temperature.
