Ortofon MC Quintet Bronze Cartridge - Pre-Loved
Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)
Pickup available at SkyFi 479
Usually ready in 24 hours
![Ortofon Mc Quintet Bronze Cartridge - Pre-Loved Phono](http://skyfiaudio.com/cdn/shop/files/ortofon-mc-quintet-bronze-cartridge-pre-loved-phono-622.webp?v=1721939311&width=1600)
Ortofon MC Quintet Bronze Cartridge - Pre-Loved
SkyFi 479
479 South Broad Street
Glen Rock NJ 07452
United States
General:
Lightly used Quintet Bronze from Ortofon showing no noticeable signs of use under the microscope. Stylus is super clean and straight like the day it left the factory.

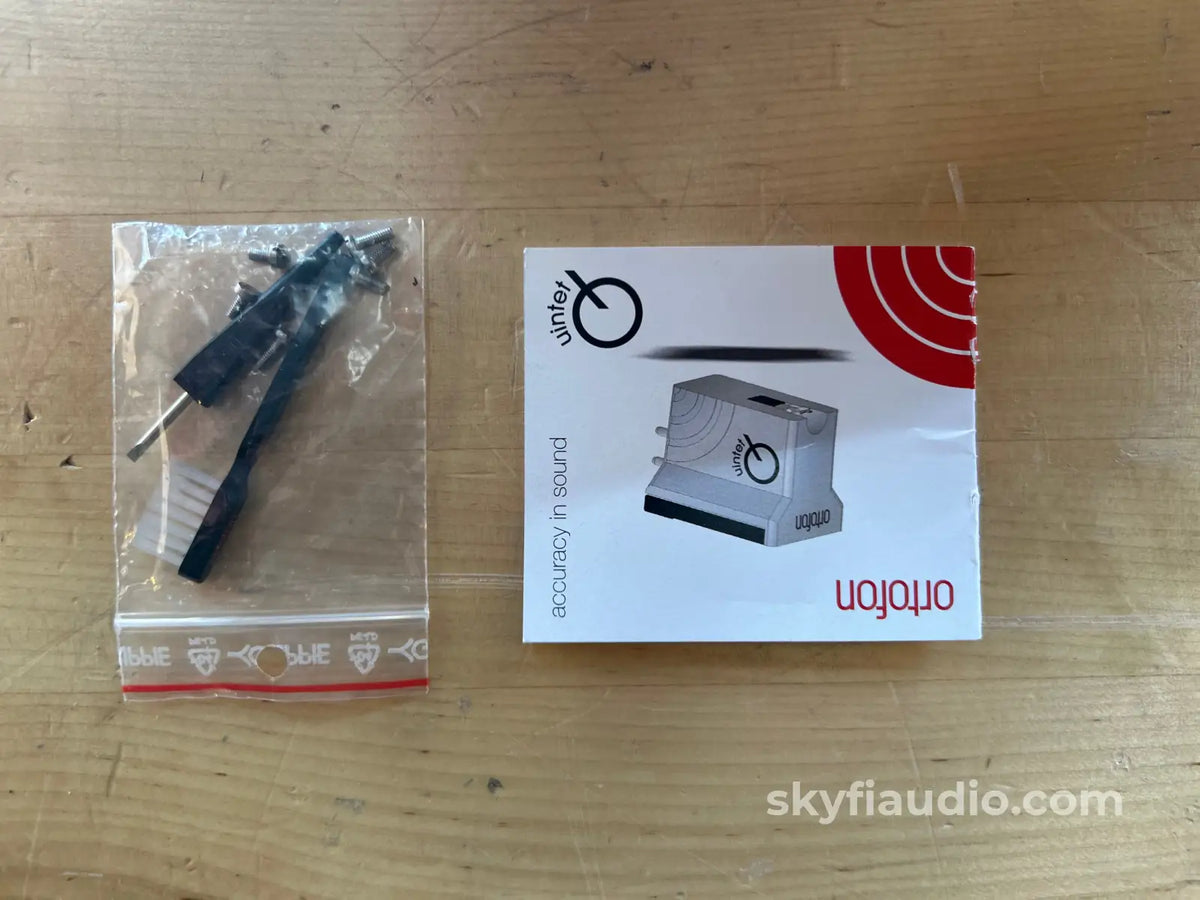

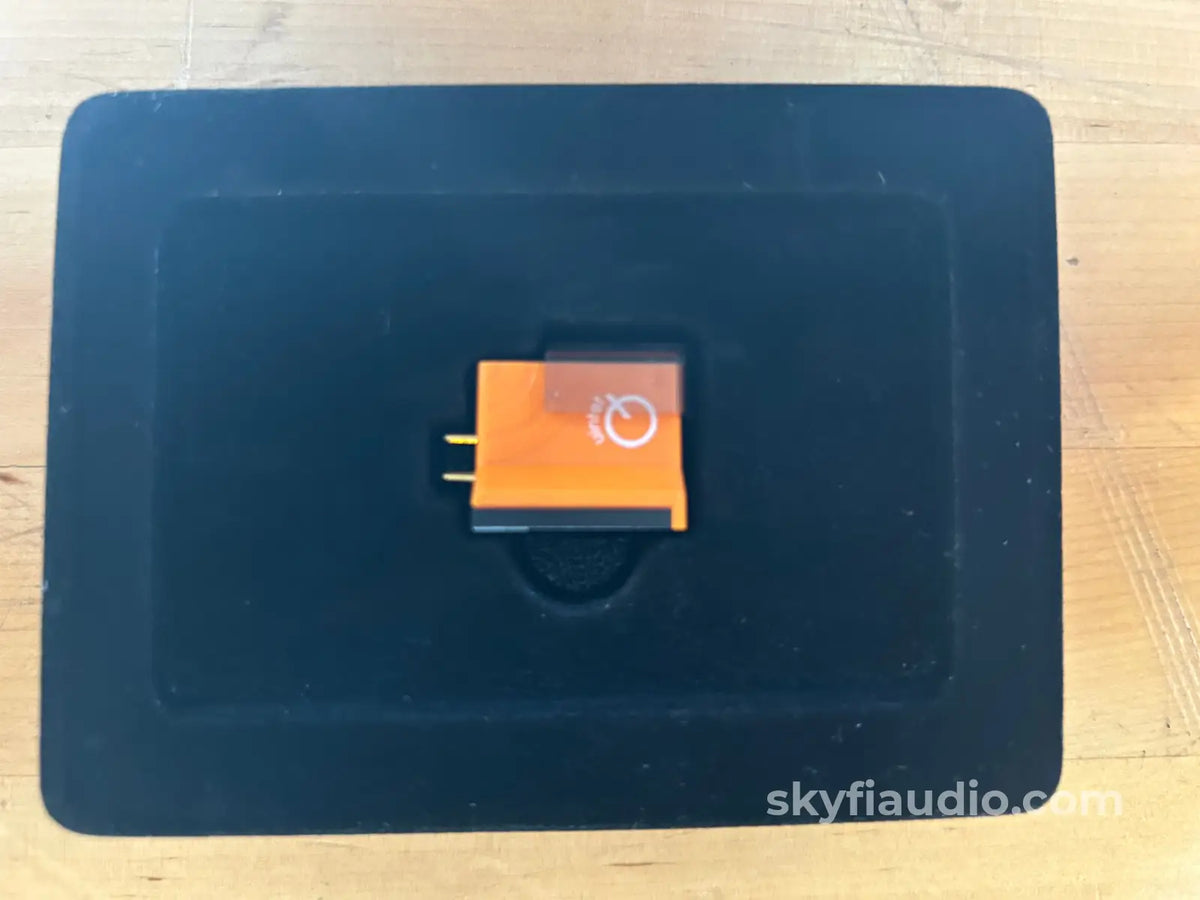

Complete with all original packing and accessories.
MSRP:
$799
More from Orotfon:
If you crave lower distortion, evenhanded sonics, and visceral power from your records, the Ortofon Quintet Bronze needs to be on your short list.
The slim profile of its Nude Fine Line diamond stylus tracks even the highest frequency information. Additionally, its larger footprint ensures reduced distortion and record wear. Bronze's evenhanded character means that every type of music is conveyed with tremendous accuracy, precision, and dynamics.
Incredible Performance for the Cost: Moving-Coil Cartridges Traditionally Command Higher Prices
A serious MC cartridge, Quintet Bronze outshines many competing models that cost twice as much. Given its price, Quintet Bronze represents a new accomplishment in high-end audio. Seldom, if ever, has a moving-coil cartridge of this caliber been available at this cost. Ortofon's Quintet Series is primed to become one of the most celebrated cartridge lines in recent memory.
Precise Reproduction Plus Seamless Compatibility With Most Preamplifiers and Transformers
The MC Quintet Series continues Ortofon's unrelenting commitment to providing the most precise and accurate analog reproduction possible without introducing coloration. A special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material is used in manufacturing the cartridge body. This lightweight, impact resistant material is extremely suitable for injection-molding and provides a durable, scratch-resistant surface. Neodymium magnets are implemented to achieve an optimal output. Low internal impedance makes the cartridge less sensitive to load, and therefore ensures compatibility with a wide range of preamplifiers and transformers.
Excellent Ease of Use and Setup
Mounting the Quintet Bronze couldn't be any easier. The aluminum frame has threaded mounting holes and is fitted with the supplied 5mm or 7mm screws (depending on the thickness of your headshell). The Quintet Bronze's right angles, straight lines, stylus visibility, and ample distance between the record surface and cartridge's bottom allow listeners to correctly mount and align the cartridge and tonearm without problem. You'll be spinning records in no time.
Ownership:
Single Owner
Cosmetic Condition:
8/10 = Very Good. Excellent front faceplate, one minor flaw on chassis side or top. See our detailed rating description here.
Working Condition:
Working perfectly and tested in our lab.
Packing:

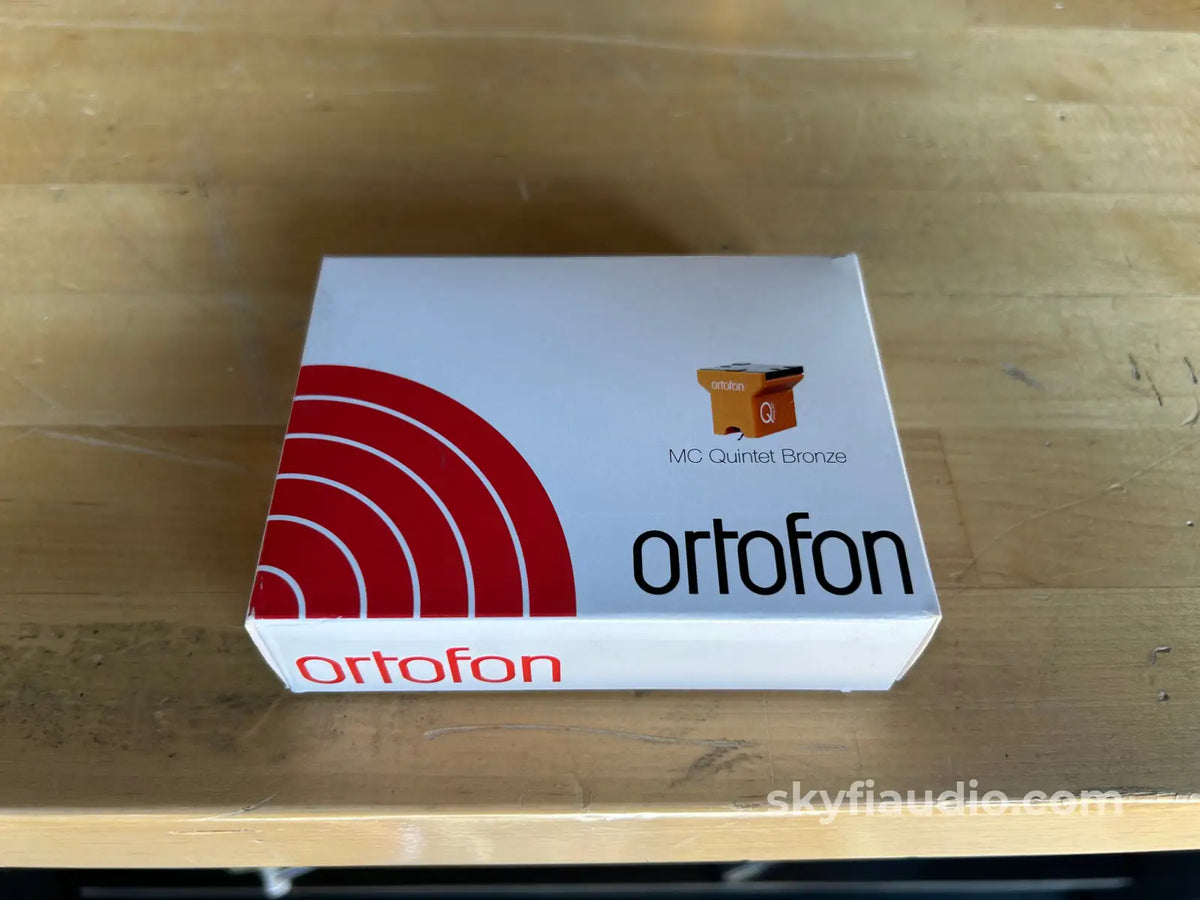

Original Manufacturers Packing
Original MSRP:
$800.00
Specs:
Output voltage at 1000 Hz, 5cm/sec.: 0.3 mV
Channel balance at 1 kHz: < 1.2 dB
Channel separation:
1 kHz: > 23 dB
15 kHz: > 15 dB
Frequency range at - 3dB: 20 - 25.000 Hz
Frequency response 20-20.000 Hz: +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force: 80 µm
Compliance, dynamic, lateral: 15 µm/mN
Stylus type: Nude Fine Line
Stylus tip radius: r/R 8/40 µm
Tracking force range: 2.1-2.5 g (21-25 mN)
Tracking force, recommended: 2.3 g (23 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 5 Ohm
Recommended load impedance: > 20 Ohm
Cartridge body material: ABS/Aluminum
Coil wire material: Pure 4-nines copper
Cartridge color: Bronze
Cartridge weight: 9 g
Testing Process:
We start by doing a detailed physical inspection under light magnification to asses the cantilever condition, its position in the cartridge body, and the condition of the suspension.
We also inspect any coil wires and the output connections to make sure it hasn't been strained. We then perform a light cleaning with specialized agents and very carefully blow dry with compressed air.
Following that, we conduct a thorough examination using our Wild Heerbrugg professional microscope. From there we can asses the wear and quality of the stylus and determine how much use it has seen, and if there are any mechanical issues. We can also identify if it needs further cleaning or care.

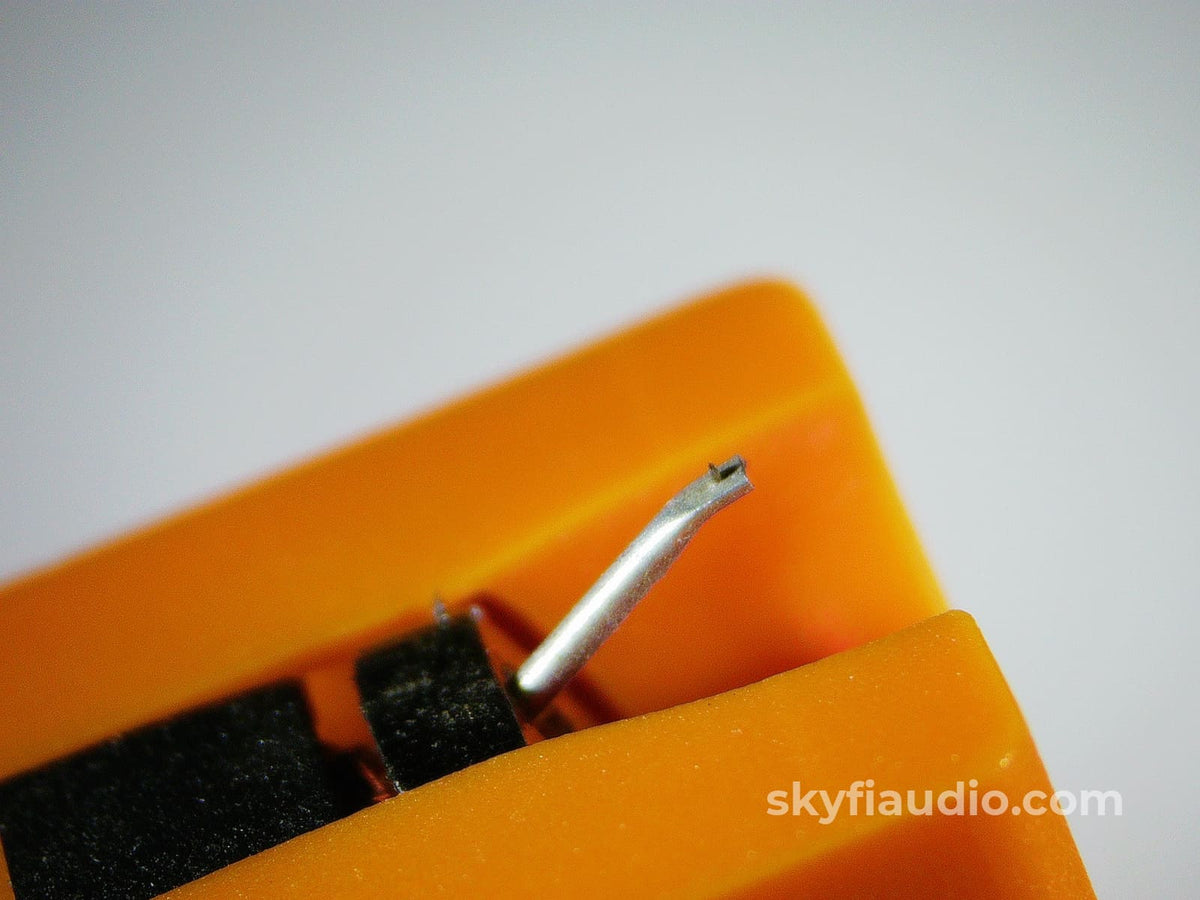

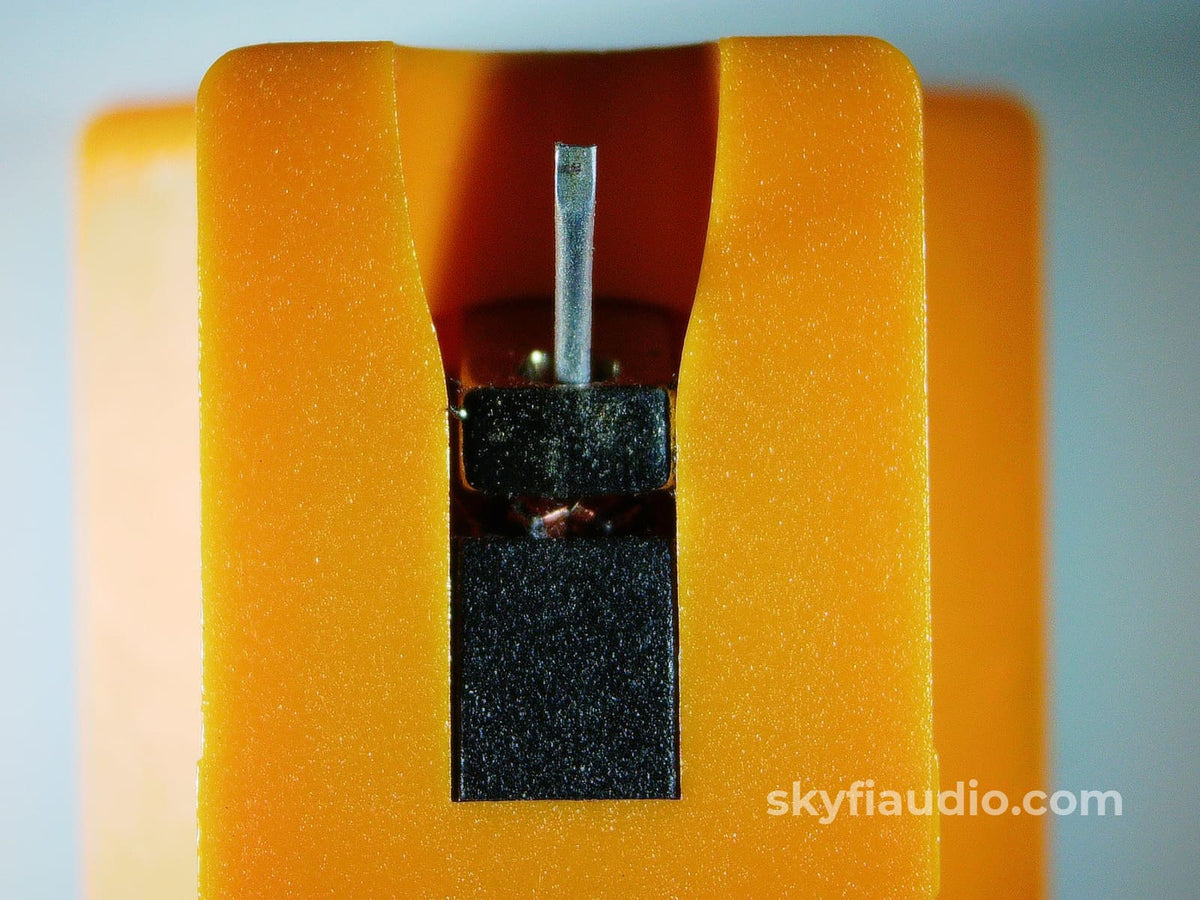

We then move the cartridge to a digital microscope where we take photos of the cantilever and stylus for future reference.

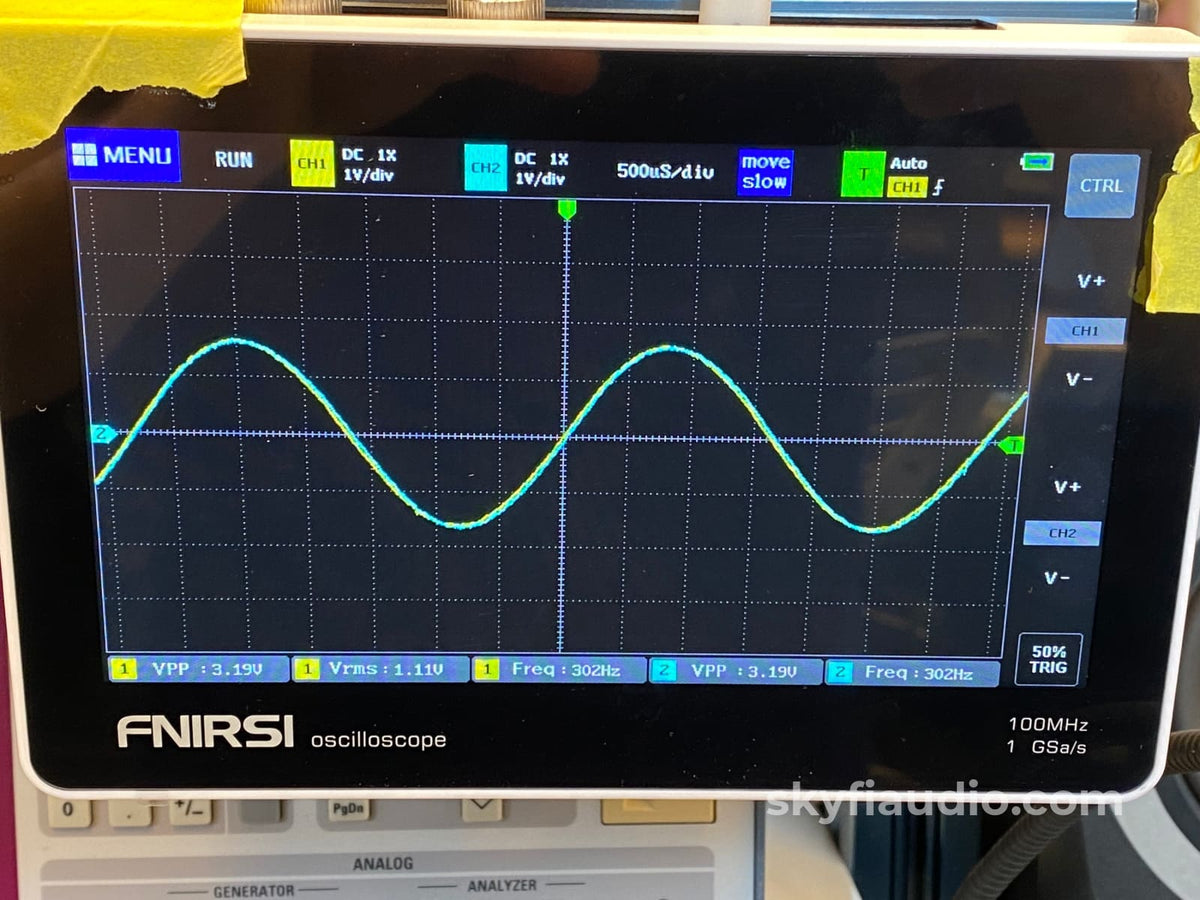

Next we move to the test bench where we can check for continuity of each channel and resistance.
On certain cartridges (or if the technician feels necessary) we install the cartridge on a turntable and run several test records to ascertain tacking ability, distortion, and compliance.
