Ortofon 2M Red (MM) Phono Cartridge - Factory Sealed

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

General:
The Ortofon 2M Red is a high-performance and high-value moving-magnet (MM) cartridge. It's a great sounding cartridge and it's no wonder why Technics includes it with every single SL-1500C they sell.

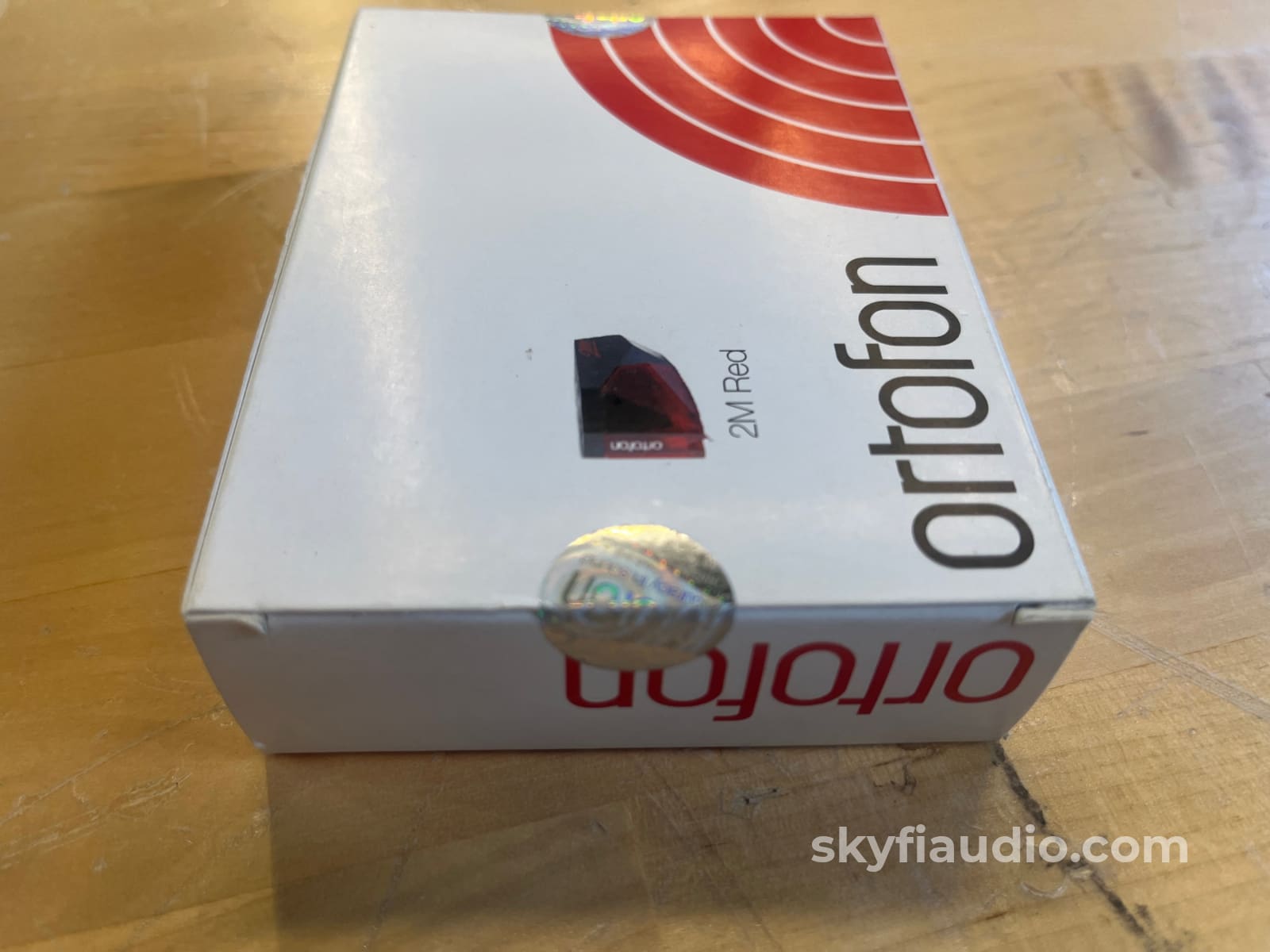

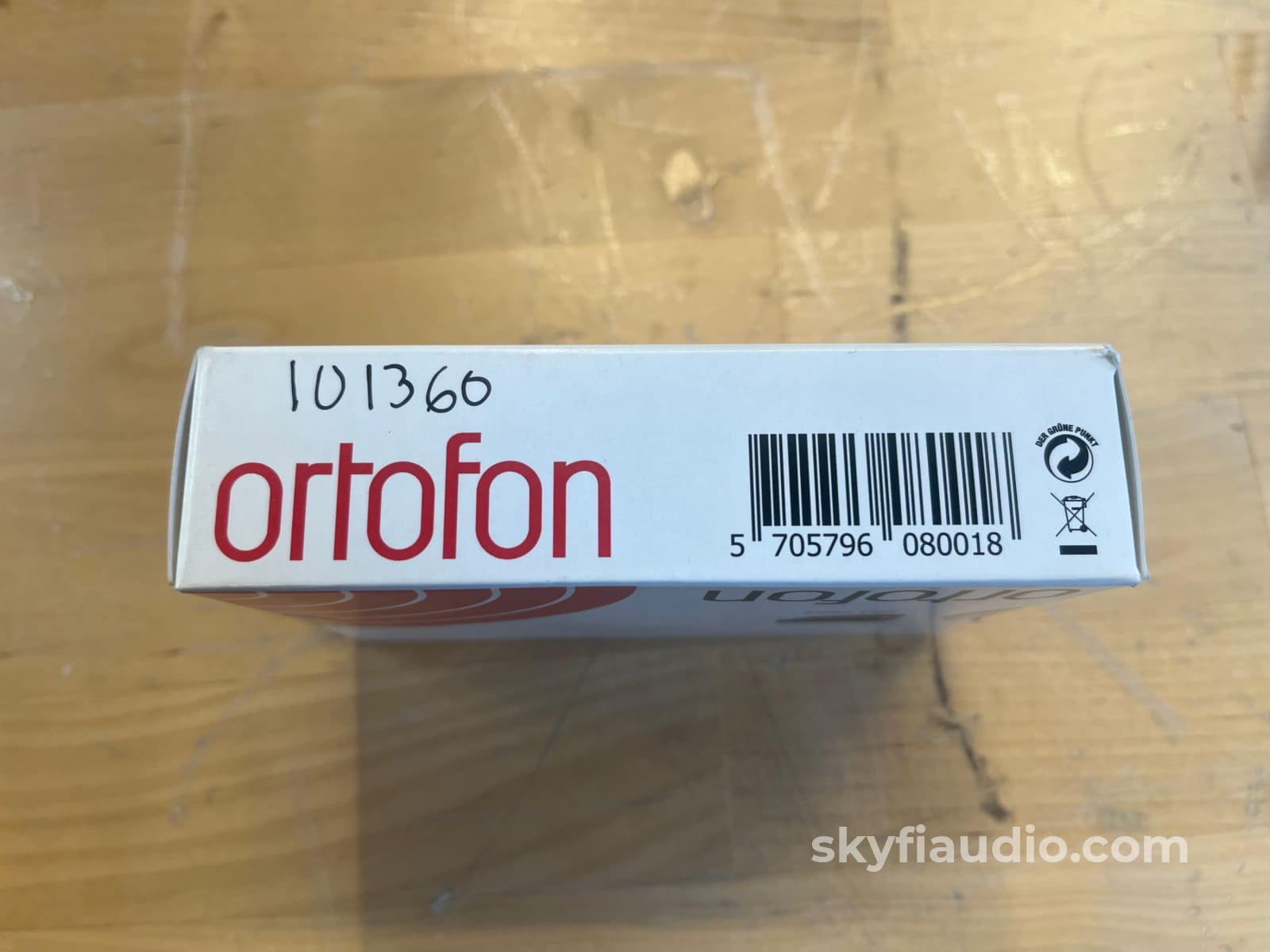

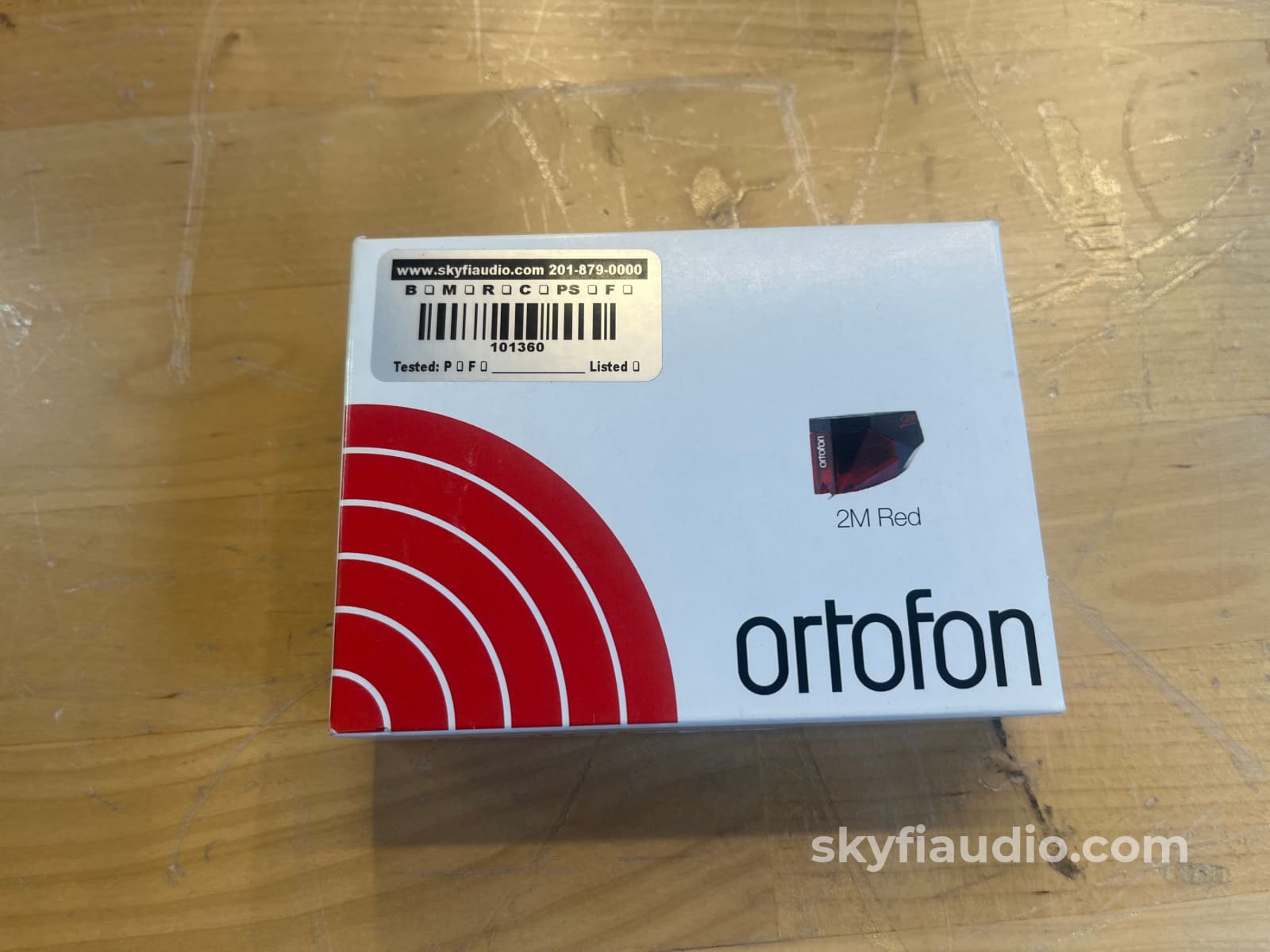

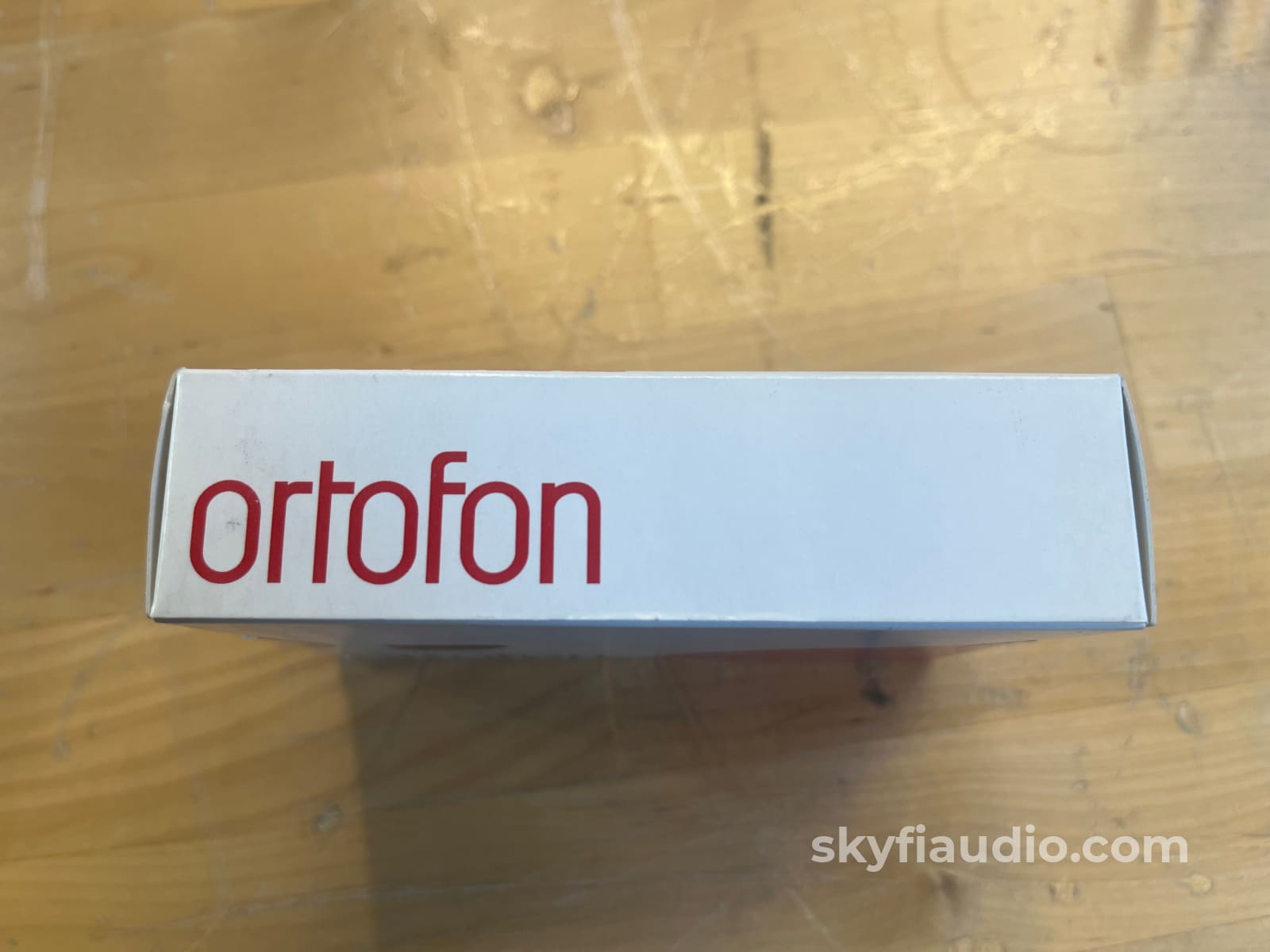

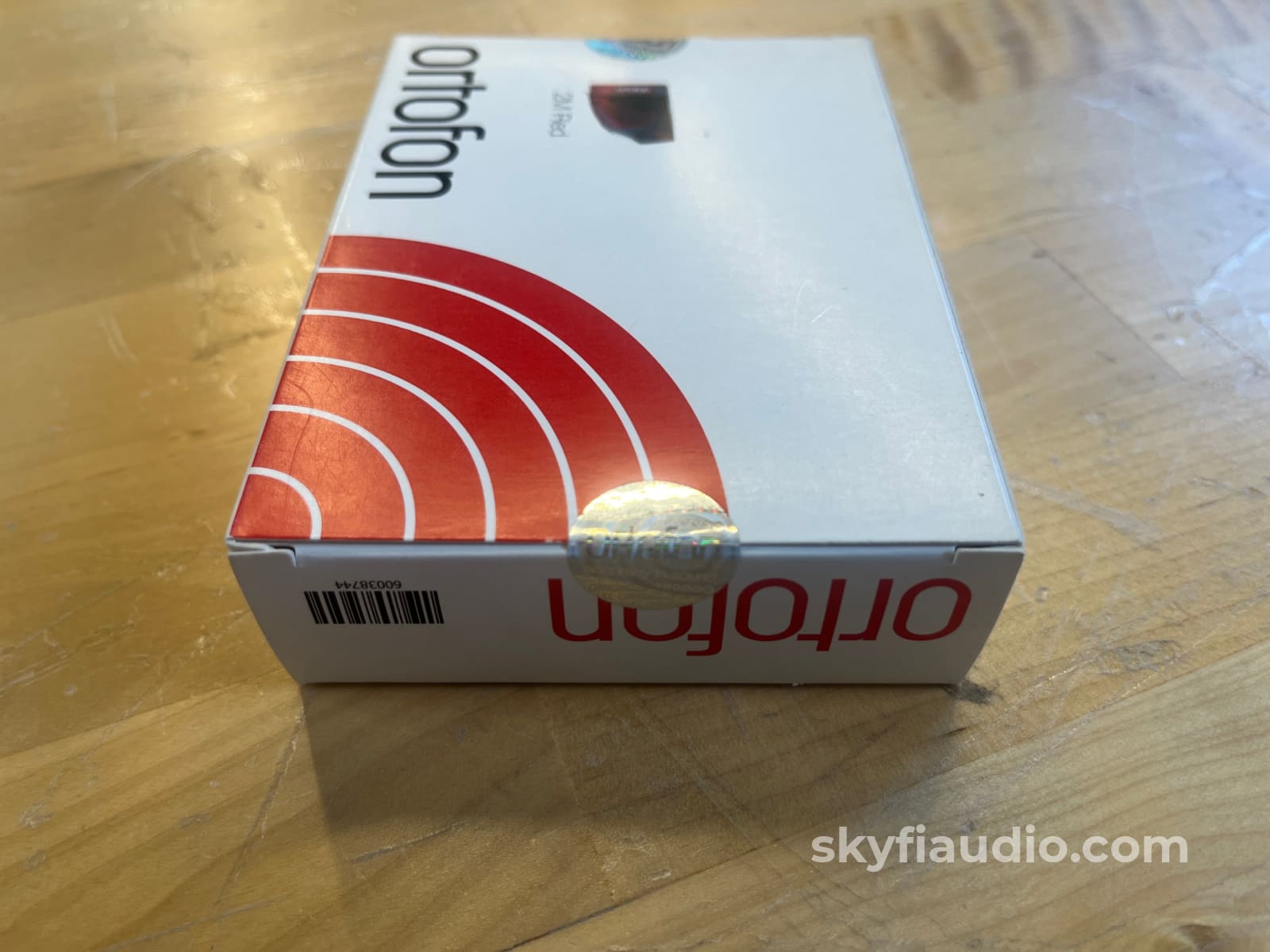

This particular example is still factory sealed in its original box.

More from Ortofon:
2M Red
With the 2M Red you will hear the music come to life on its own terms. It is like taking a step into the music itself. The 2M Red delivers an open, dynamic sound with a slight touch of warmth. This is our entry-level cartridge in the series, but what an entry.

Accuracy level
Remember when you fell in love with music? The 2M Red will rekindle that flame and make music matter again. From the moment the diamond tipped needle hits the groove you feel it. With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.

Compatibility
The 2M Series is designed for easy cartridge mounting, weight, and size to fit the most common turntables today. The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

Features
The 2M Red features Ortofon’s very own invention: the split pole pins with a copper wire that gives you a sound reproduction so precise only your heart dares skip a beat.

Exploring the Lineup
The 2M series is built on our philosophy of accuracy in sound. All our experience, know-how, technology, and innovation has gone into making it the series that lets you hear the music the way the artist intended. In every piece of every cartridge, we strive for perfection, and when the technology can’t deliver the quality we want - we invent something that can. To ensure the highest of quality in our product we keep everything close. All our cartridges are designed and crafted right here in Denmark.

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

Output
The engine provides an increased output of 5.5 mV, an optimized sound reproduction, and a high level of sonic accuracy. With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.

SkyFi Cosmetic Notes:
Brand new condition, factory sealed.

Ownership:
Brand New

General Sound:
Smooth, uncolored, undistorted natural and clean

Cosmetic Condition:
New = Factory sealed and unopened. See our detailed rating description here.

Working Condition:
Working perfectly and tested in our lab.

Included:
Complete Kit as it Left the Factory

Packing:
Original Manufacturers Packing

Reviews:
Click Here

Original MSRP:
$99.00

Specs:
- Channel balance at 1 kHz
- 1.5 dB
- Output voltage at 1 kHz, 5cm/sec
- 5.5 mV
- Channel seperation at 1 kHz
- 22 dB
- Channel seperation at 15 kHz
- 15 dB
- Frequency response 20 Hz - 20 kHz
- + 3 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force
- 70 µm
- Compliance, dynamic, lateral
- 20 µm/mN
- Stylus type
- Elliptical
- Stylus tip radius
- r/R 8/18 µm
- Tracking force range
- 1.6-2.0 g (16-20 mN)
- Tracking force, recommended
- 1.8 g (18 mN)
- Tracking angle
- 20°
- Internal impedance, DC resistance
- 1.3 kOhm
- Cartridge colour
- Black/Red
- Cartridge weight
- 7.2
- Premounted cartridge weight
- 16.7 g
- Recommended load resistance
- 47 kOhm
- Internal inductance
- 700 mH
- Recommended load capacitance
- 150-300 pF

Testing Process:
We start by doing a detailed physical inspection under light magnification to asses the cantilever condition, its position in the cartridge body, and the condition of the suspension.

We also inspect any coil wires and the output connections to make sure it hasn't been strained. We then perform a light cleaning with specialized agents and very carefully blow dry with compressed air.

Following that, we conduct a thorough examination using our Wild Heerbrugg professional microscope. From there we can asses the wear and quality of the stylus and determine how much use it has seen, and if there are any mechanical issues. We can also identify if it needs further cleaning or care.

We then move the cartridge to a digital microscope where we take photos of the cantilever and stylus for future reference.

Next we move to the test bench where we can check for continuity of each channel and resistance.

On certain cartridges (or if the technician feels necessary) we install the cartridge on a turntable and run several test records to ascertain tacking ability, distortion, and compliance.
