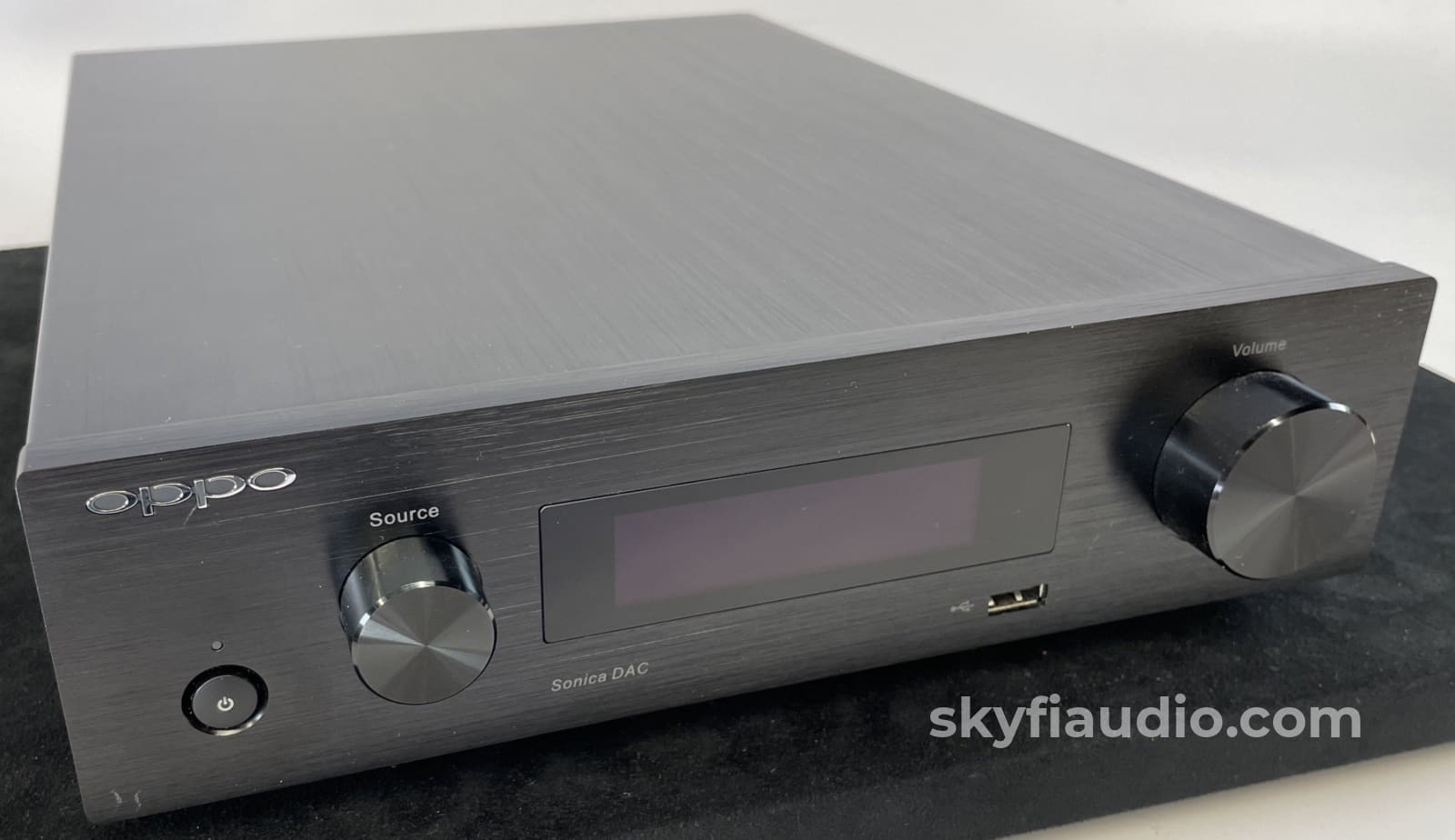

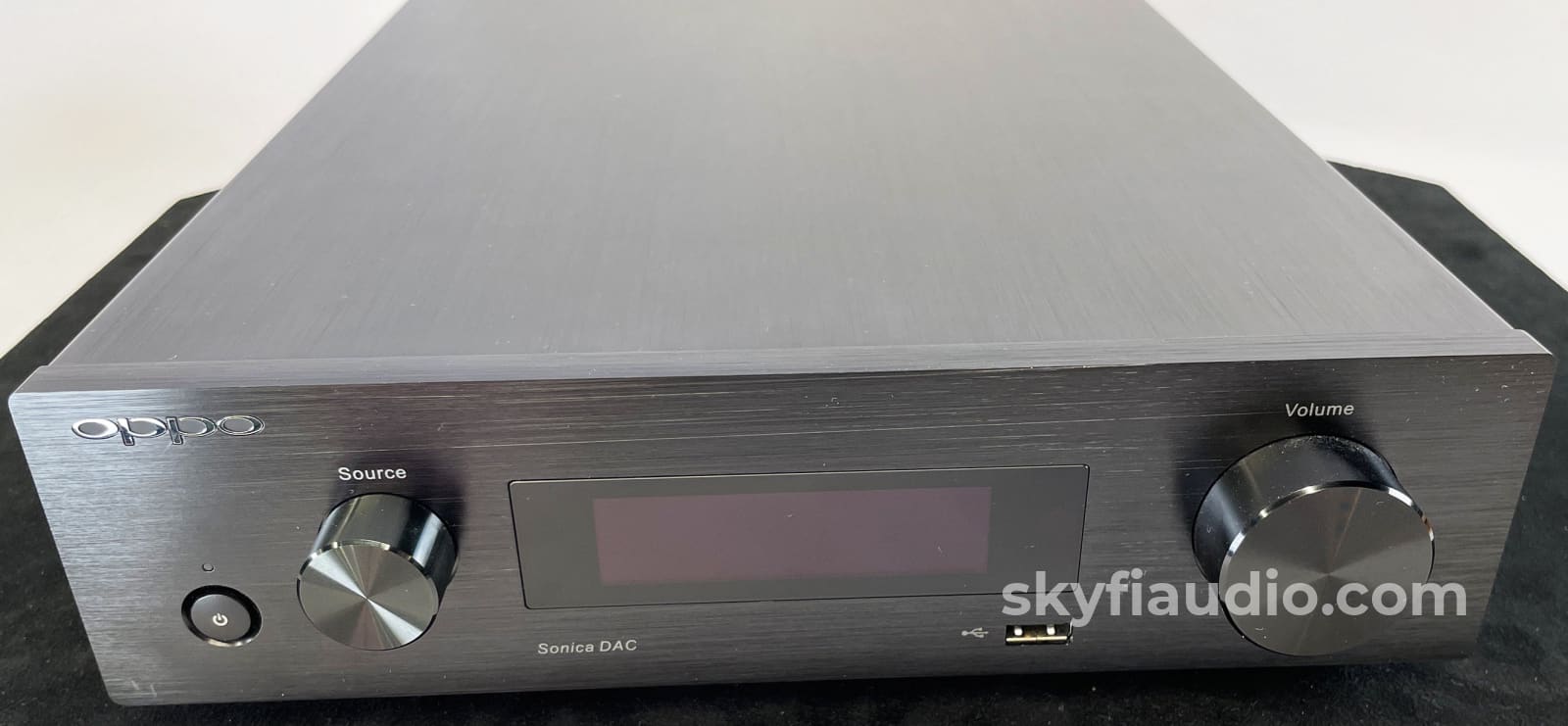

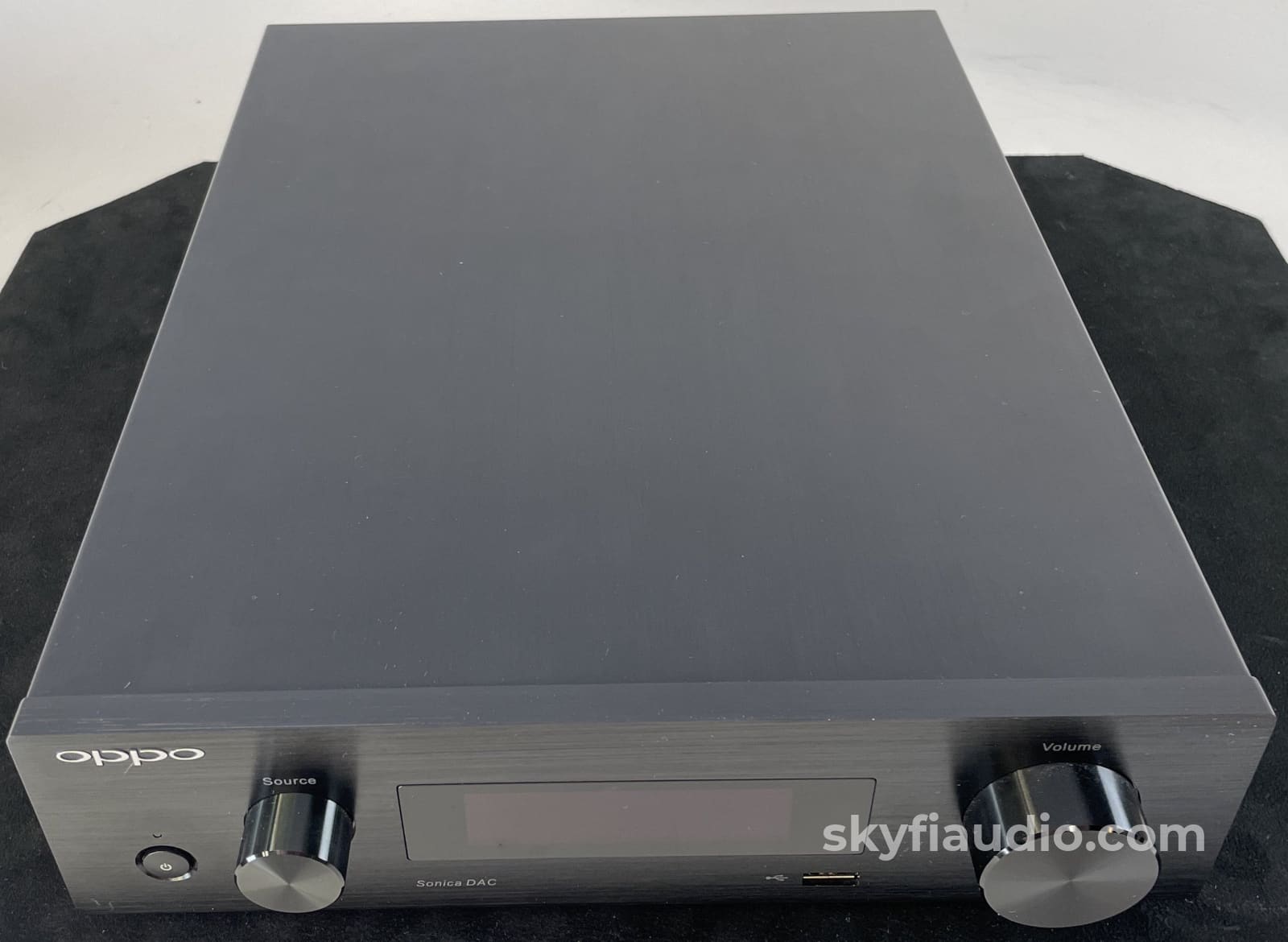

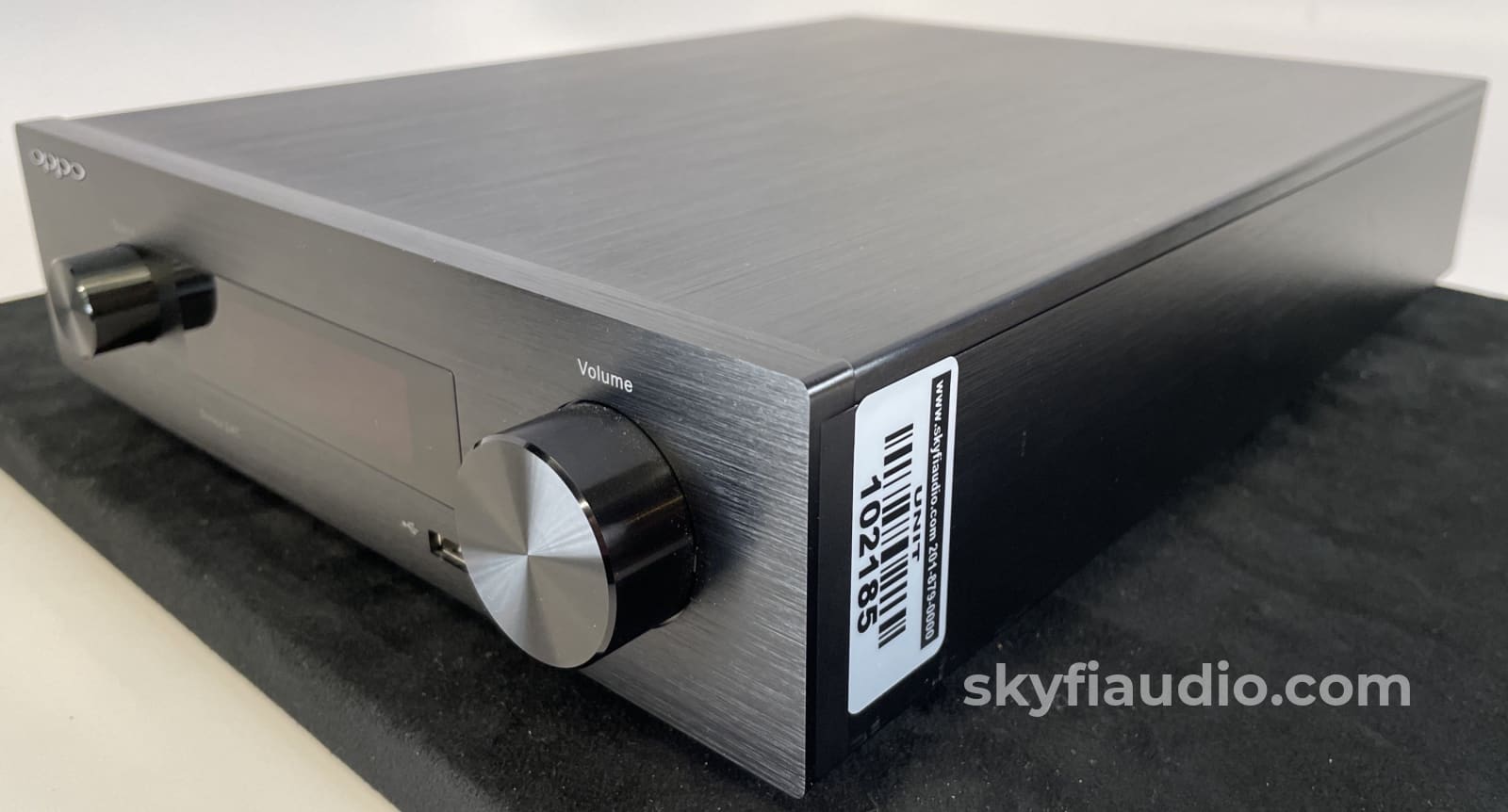

Oppo Sonica Audiophile DAC and Network Streamer - ESS ES9038PRO Sabre Pro DAC

$1,499

Great sounding and easy to use DAC from Oppo Digital. Capable of decoding 24/192. Featuring a most excellent and well known ESS ES9038PRO Sabre Pro DAC.

No longer available from Oppo and quickly becoming a collectors piece. This can also be used as a digital preamp.

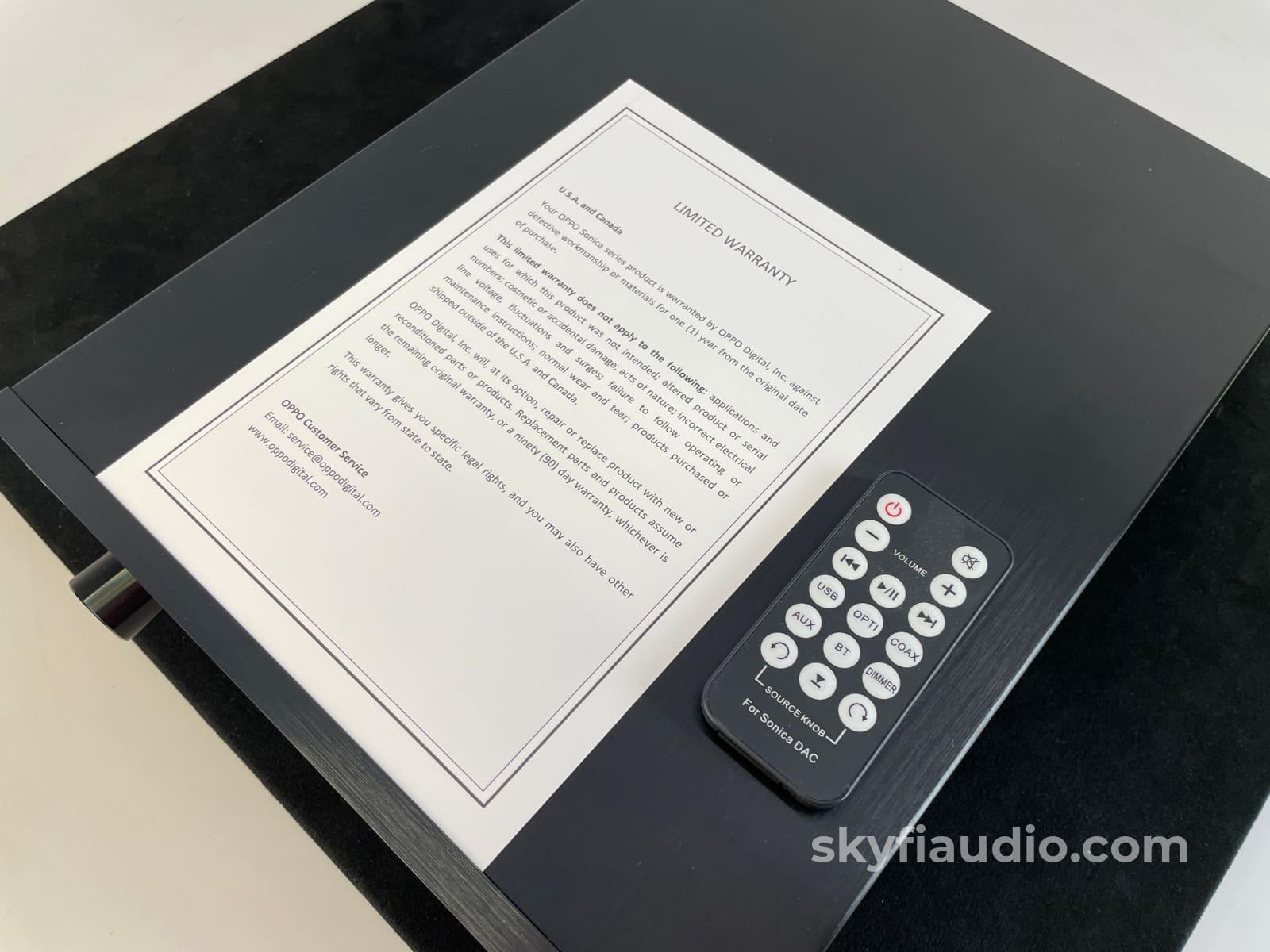

Comes to you complete with its original remote, tested and working just like it should.

More from the Oppo website:

HIGH PERFORMANCE AUDIO
Top-of-the-line Digital-to-Analog Performance
With more and more music coming from digital sources, the DAC is one of the most important components for digital audio playback. OPPO Sonica DAC is equipped with an ES9038PRO 32-bit HyperStream DAC chip at its core. The flagship of the ESS SABRE PRO series, ES9038PRO sets a new benchmark for audio excellence.

Clean Power for Clear Music
Sonica DAC’s audio circuitry is supplied with a linear power regulator drawing from a massive toroidal power transformer. A toroidal power transformer offers superior power efficiency and much lower exterior magnetic fields over traditional laminated steel core transformers. The toroidal linear power supply provides a very clean and robust power source to the audio components.

Fully Balanced Design for the Best Signal Quality

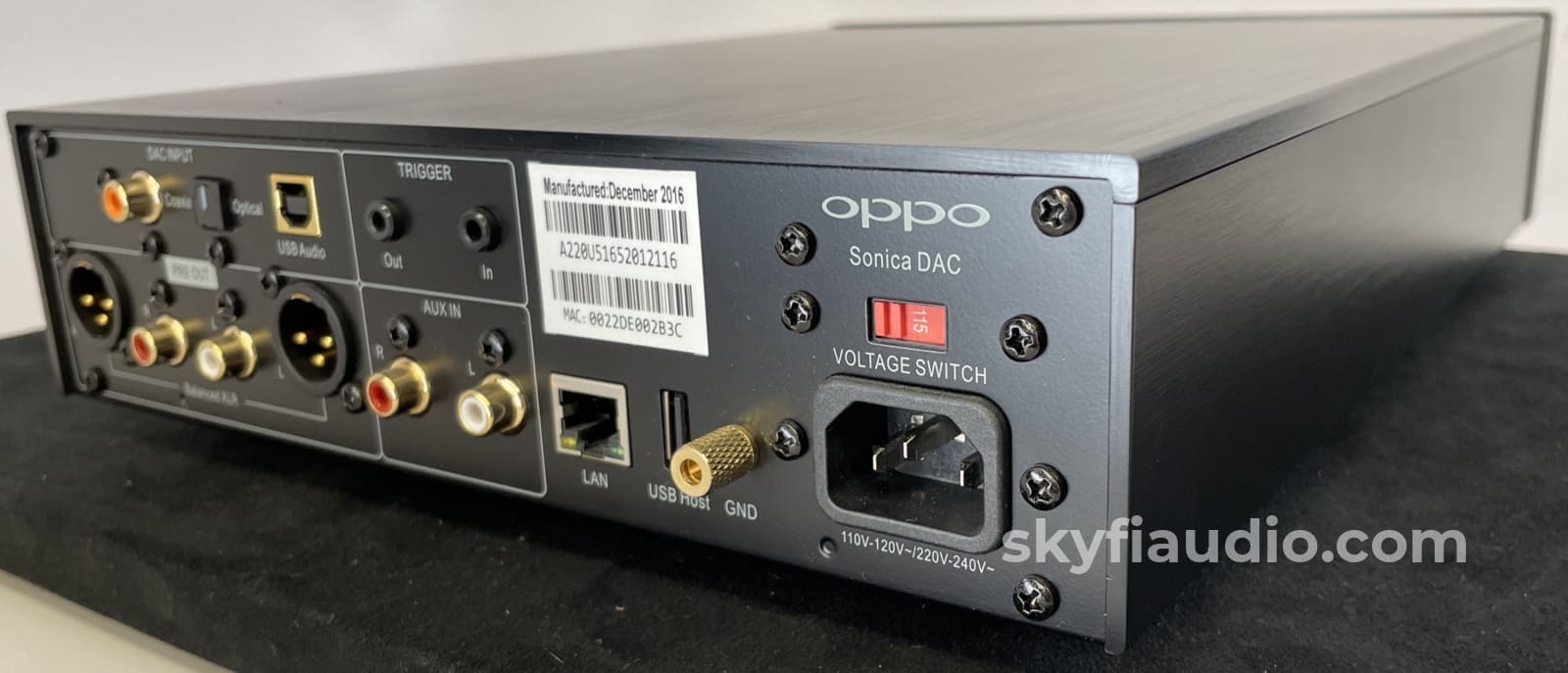

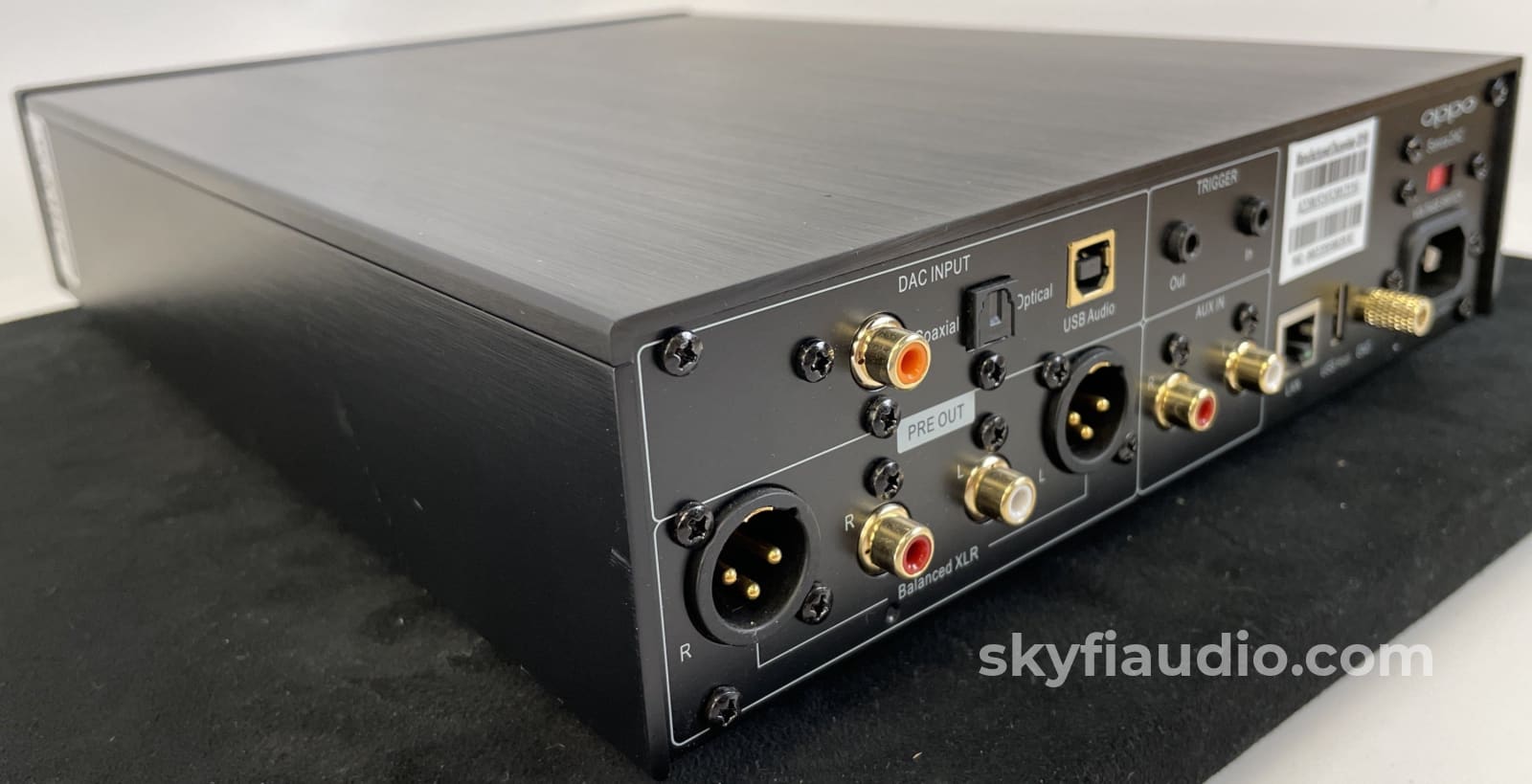

Sonica DAC’s audio output path is fully balanced from the DAC chip all the way to the XLR jacks. Even the RCA output signal is converted from the balanced output. The balanced design provides better common-mode noise rejection and improves signal quality. It also provides better channel separation by eliminating the common ground return path.

MUSIC WITHOUT LIMITS
Play and Stream High Resolution Music
Play music files of many formats from USB drives attached to the Sonica DAC, or from home network computers and servers connected via Ethernet or Wi-Fi. Stream music from your smartphone and tablet via Wi-Fi using the Sonica app. The Sonica DAC is a high resolution audio player and decoder capable of decoding audio files up to 24-bit / 192 kHz from formats such as FLAC, WAV and Apple Lossless, as well as DSD files at 64x sample rate. (A smartphone or tablet running Android or iOS is required.)

Asynchronous USB DAC for Computer Audio
By bypassing the low fidelity, poor quality DAC of traditional computer soundcards, the Sonica DAC turns any computer into a high performance multi-media source by converting digital audio to analog through the ES9038PRO chip. The asynchronous transfer mode uses the high precision clock inside the Sonica DAC to drive the audio signal, not relying on the clock quality of the computer. The USB DAC input supports PCM up to 768 kHz 32-bit and DSD up to 22.5792 MHz (DSD512).

SPECIFICATIONS:
General
Dimensions (W x H x D) 10.0 x 3.0 x 14.2 inches, 254 x 76 x 360 mm
Weight 10.4 lbs, 4.7 kg
Power Supply AC 110-120 V ~ / 220-240 V ~ 50/60 Hz
Power Consumption 30 W (operation), 0.5 W (standby)
Trigger Input 3.5 V - 15 V, 10 mA minimum
Trigger Output 12V, 100 mA maximum
Operating Temperature 41°F - 95°F, 5°C - 35°C
Operating Humidity 15% - 75% No condensation
USB Audio Input (USB B Type)
Input Format Stereo PCM, Stereo DSD (DoP v1.1 or native)
PCM Sampling Frequencies 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz
PCM Word Length 16-bit, 24-bit, 32-bit
DSD Sampling Frequencies 2.8224 MHz (DSD64), 5.6448 MHz (DSD128), 11.2896 MHz (DSD256), 22.5792 MHz (DSD512, native mode only)
Profile USB 2.0, USB Audio 2.0
Coaxial and Optical Digital Audio Inputs
Input Format Stereo PCM, Stereo DSD (DoP v1.1 or native)
Sampling Frequencies 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Word Length 16-bit, 24-bit
DSD Sampling Frequencies 2.8224 MHz (DSD64)
AUX Audio Input
Input Impedance 10k Ohm
Maximum Input Level 2 Vrms
USB Ports (Type A)
Profile USB 2.0, mass storage only
Audio Format Support AAC, AIF, AIFC, AIFF, APE, FLAC, M4A, M4A (Apple Lossless) ALAC, OGG, WAV, WMA, DSF, DFF
Maximum Sampling Rate PCM up to 192 kHz / 24-bit, DSD up to 2.8224 MHz (DSD64)
Wireless Standard
Wi-Fi 802.11.a/b/g/n/ac
Bluetooth Bluetooth 4.1

DAC Performance Specifications

Specification XLR Output RCA Output
Output Level 4±0.4 Vrms 2±0.2 Vrms
Frequency Response 20 Hz - 160 kHz (+0/-2.4 dB)
20 Hz - 20 kHz (+0/-0.04 dB)
20 Hz - 160 kHz (+0/-2.4 dB)
20 Hz - 20 kHz (+0/-0.04 dB)
THD+N at 1 kHz (A Weight, 20 Hz- 20 kHz) < -115 dB < -115 dB
Channel Separation > 120 dB > 120 dB
Signal-to-Noise Ratio
(A Weight, 20 Hz- 20 kHz)
> 120 dB > 120 dB
Dynamic Range
(1 kHz -60 dBFS, A Weight, 20 Hz- 20 kHz)
> 120 dB > 120 dB

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

No

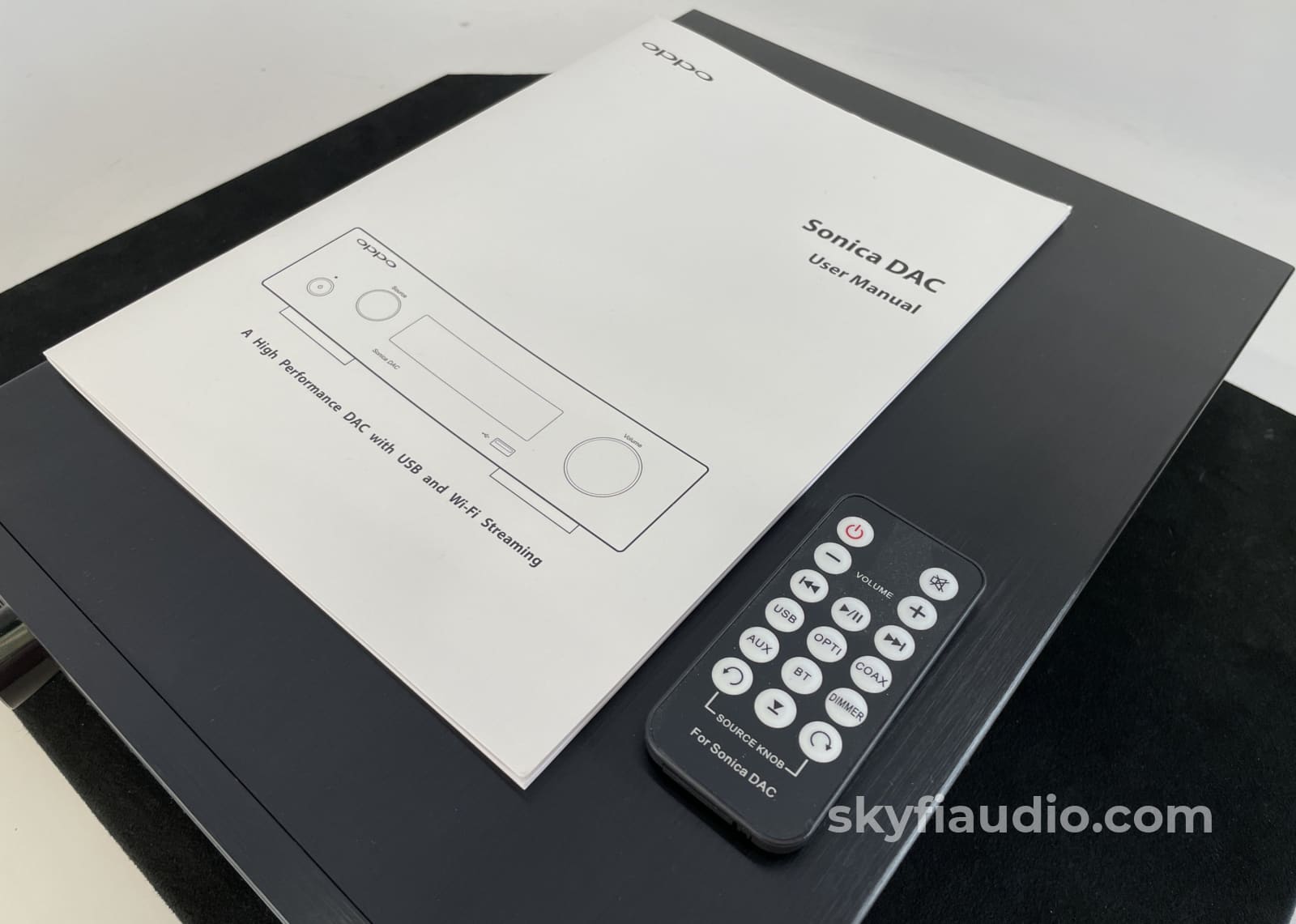

Manual

Yes

Remote

Yes

Cables

Yes - Power

Physical Condition

8

Working Condition

10
