Niles StageFront Pro770FX - Surround or Side Speakers

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

Niles made these excellent speakers for only a brief period of time.

I used them as my surround back channels for a decade or so without ever finding a reason to replace them.

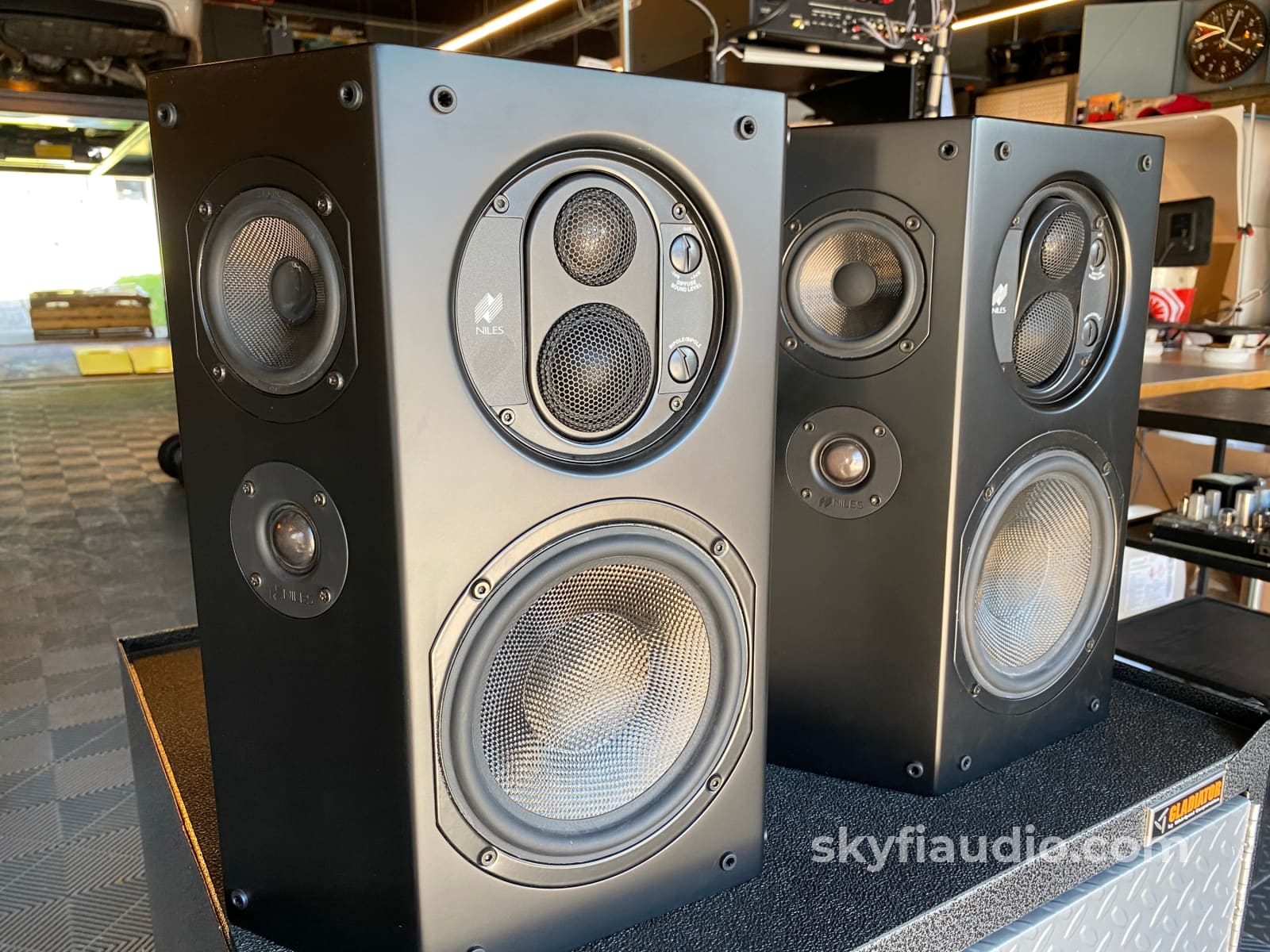

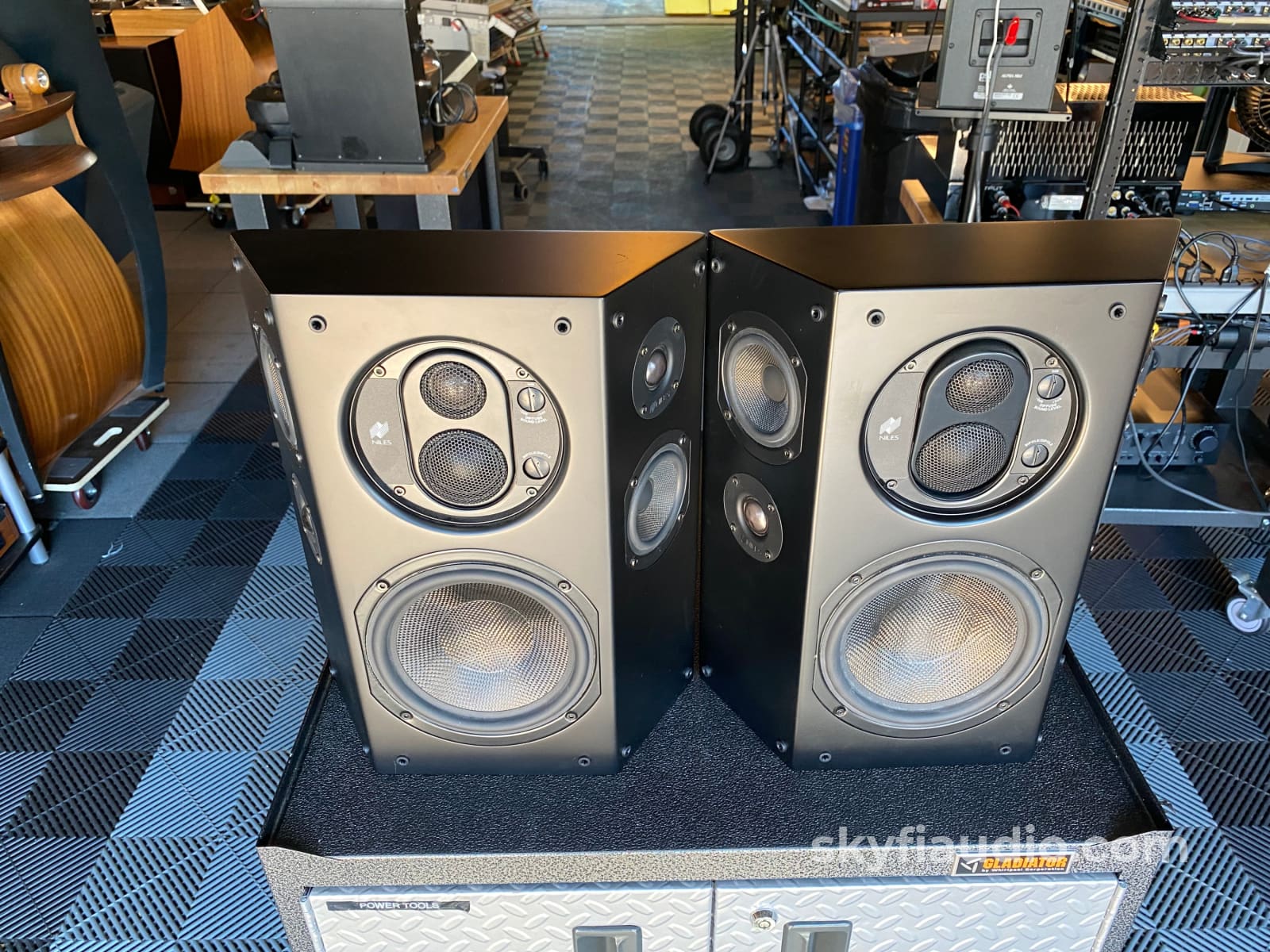

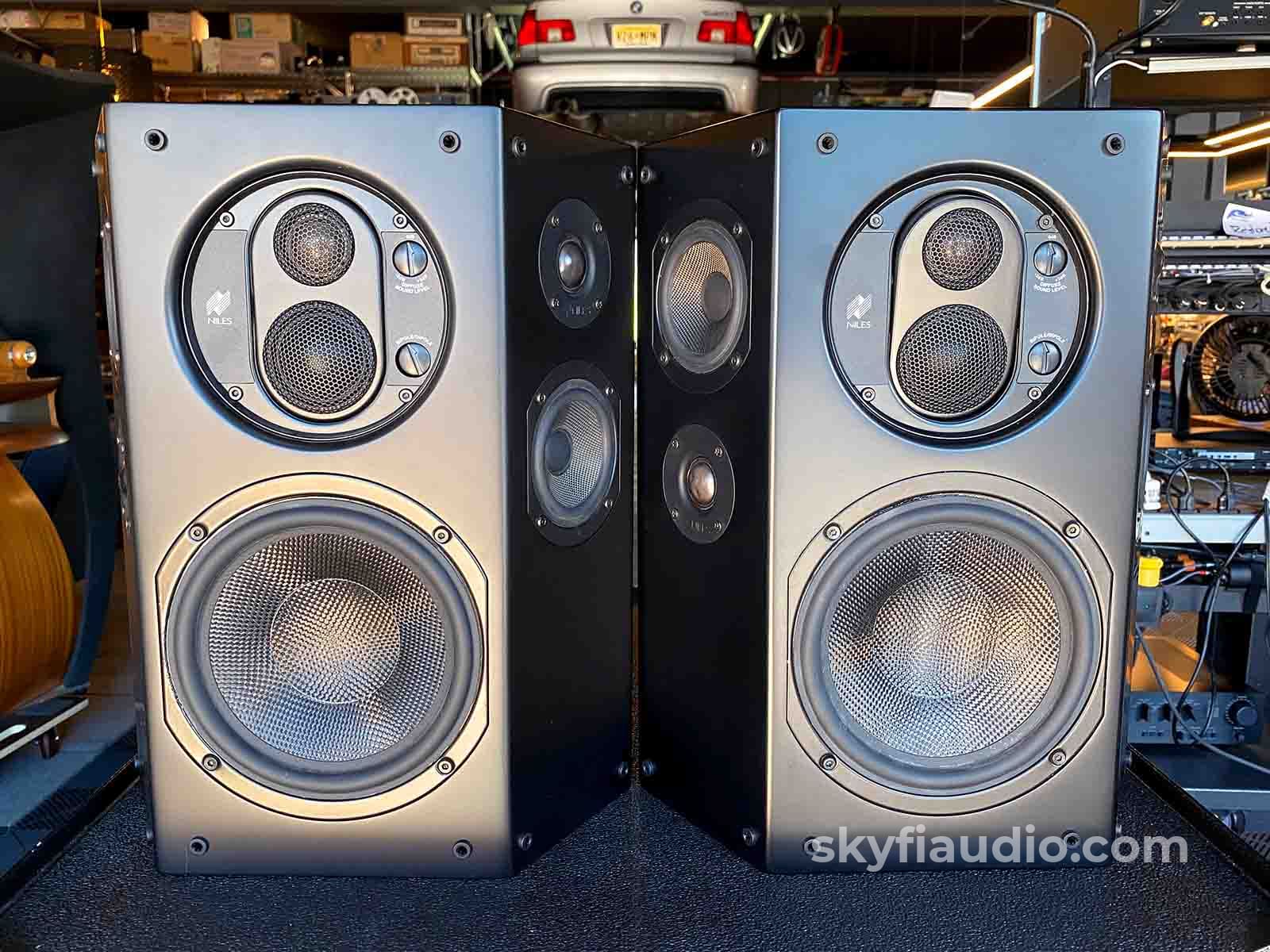

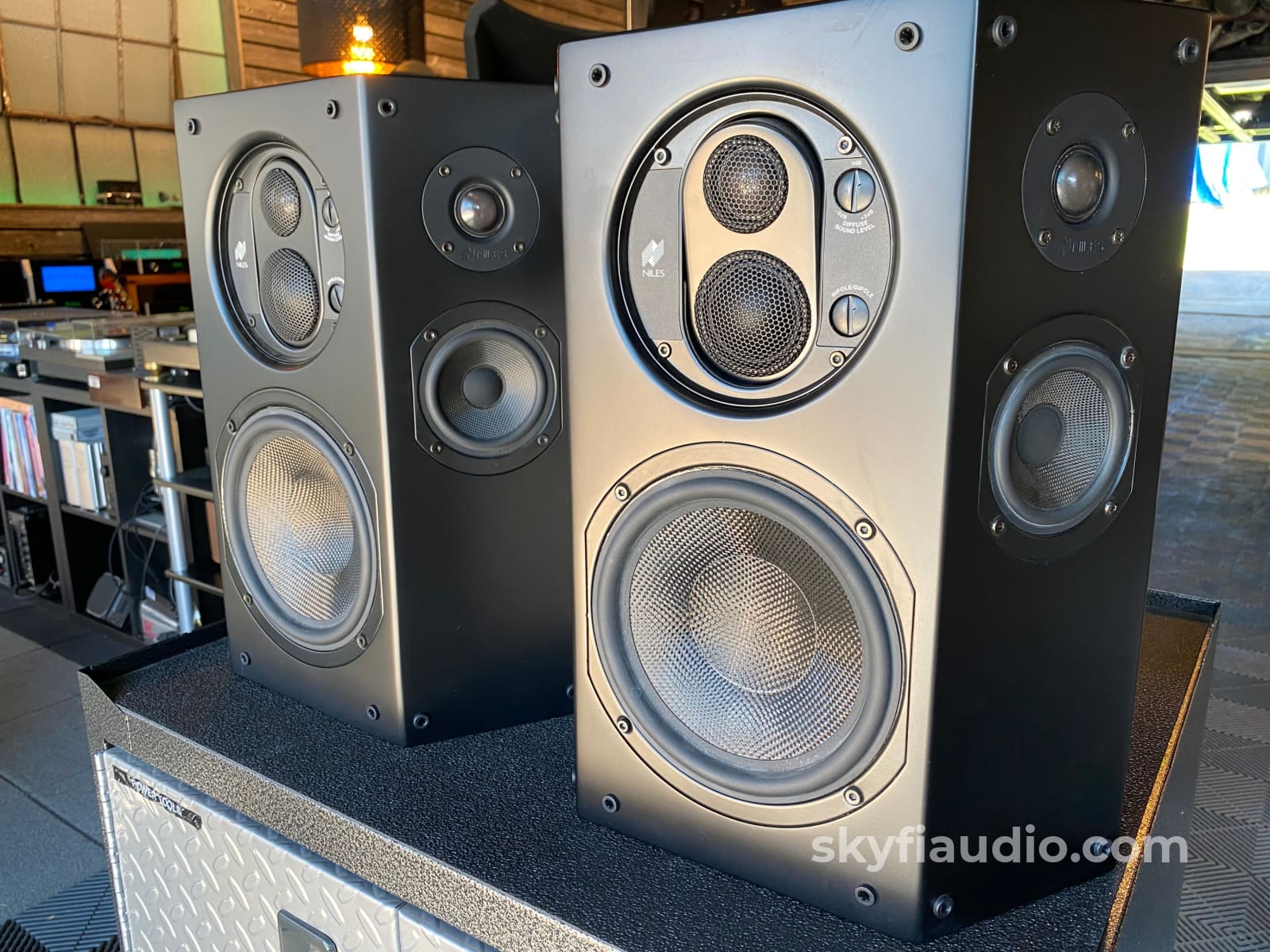

They are very capable and quite sophisticated with no less than 7 drivers per speaker, giving you the ultimate in surround/movie coverage.

They are both working perfectly and look like they have been well cared for.

I can't think of a single speaker that could outperform these at this price.

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Kimber Kable - Speaker Cables

StageFront Pro770FX - FEATURES AND BENEFITS

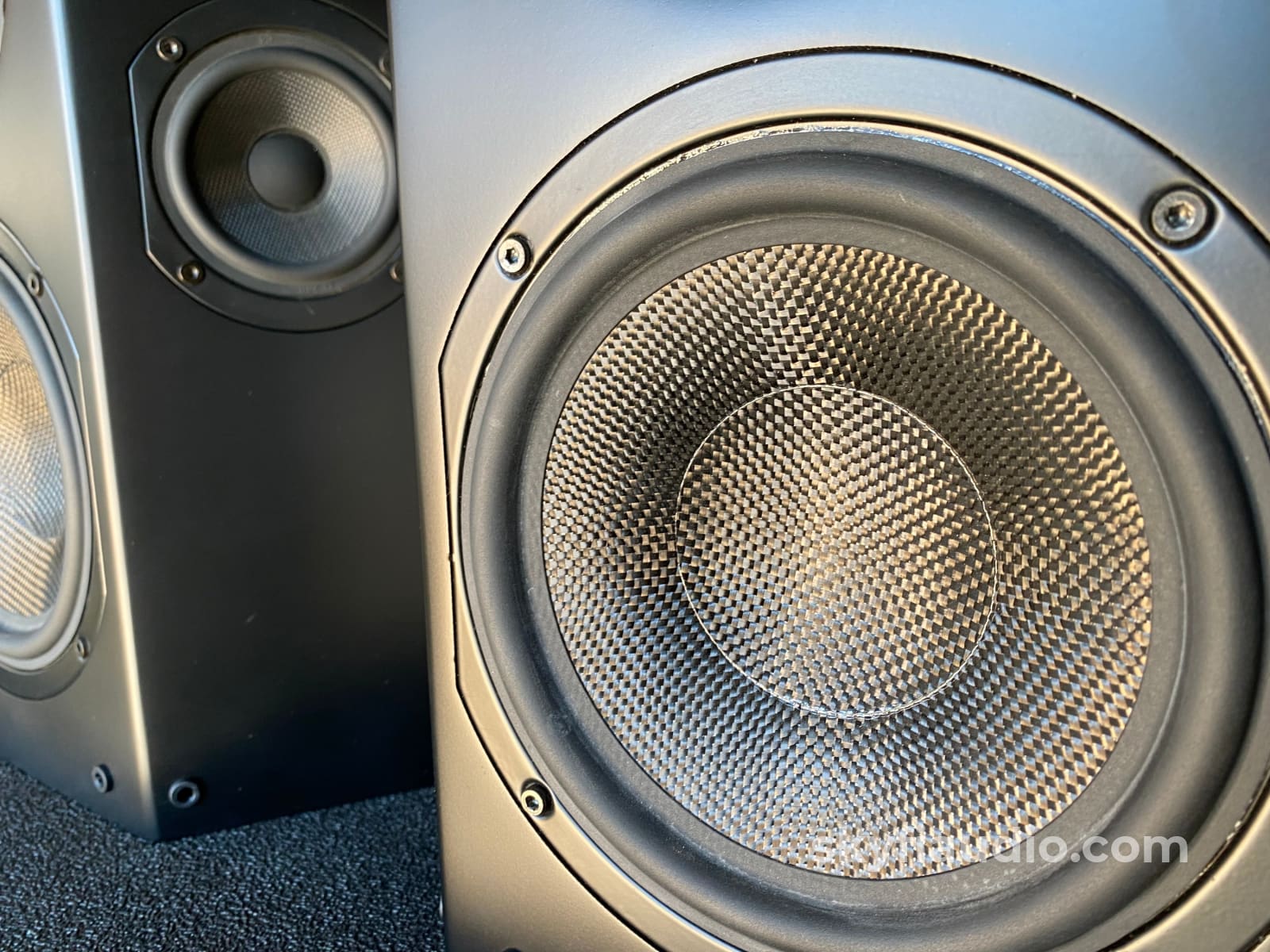

• INTERLACED CARBON-FIBER WOOFER WITH BUTYL RUBBER SURROUND
Provides dynamic theater quality sound at sustained high-power output levels

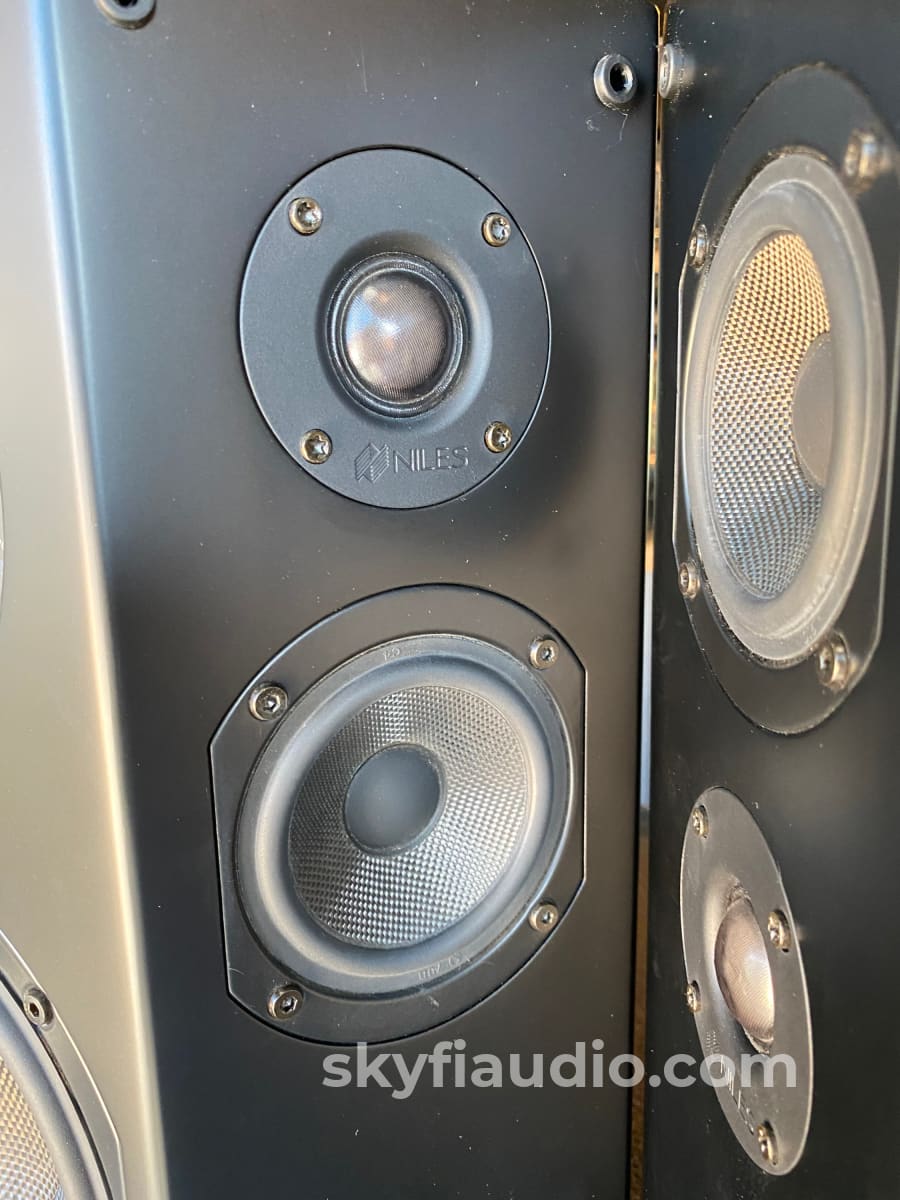

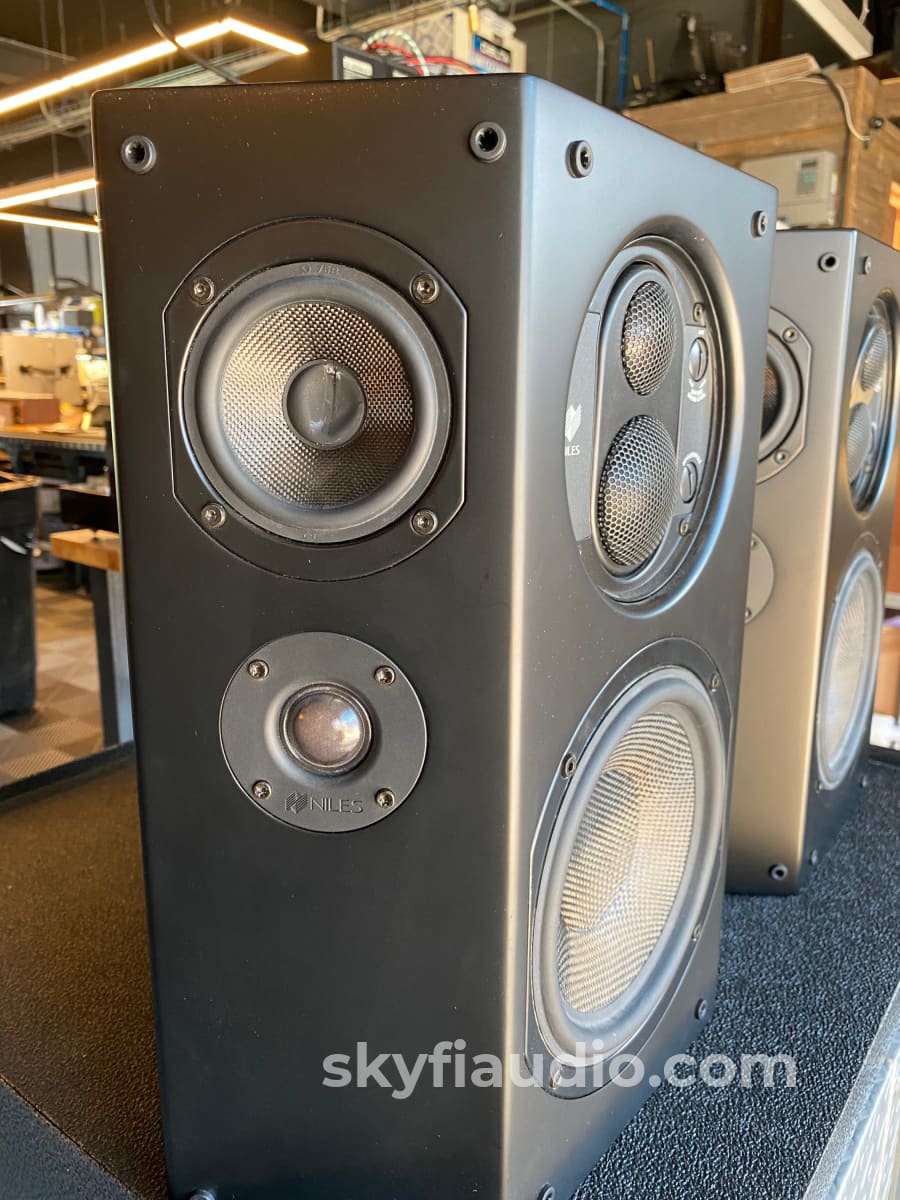

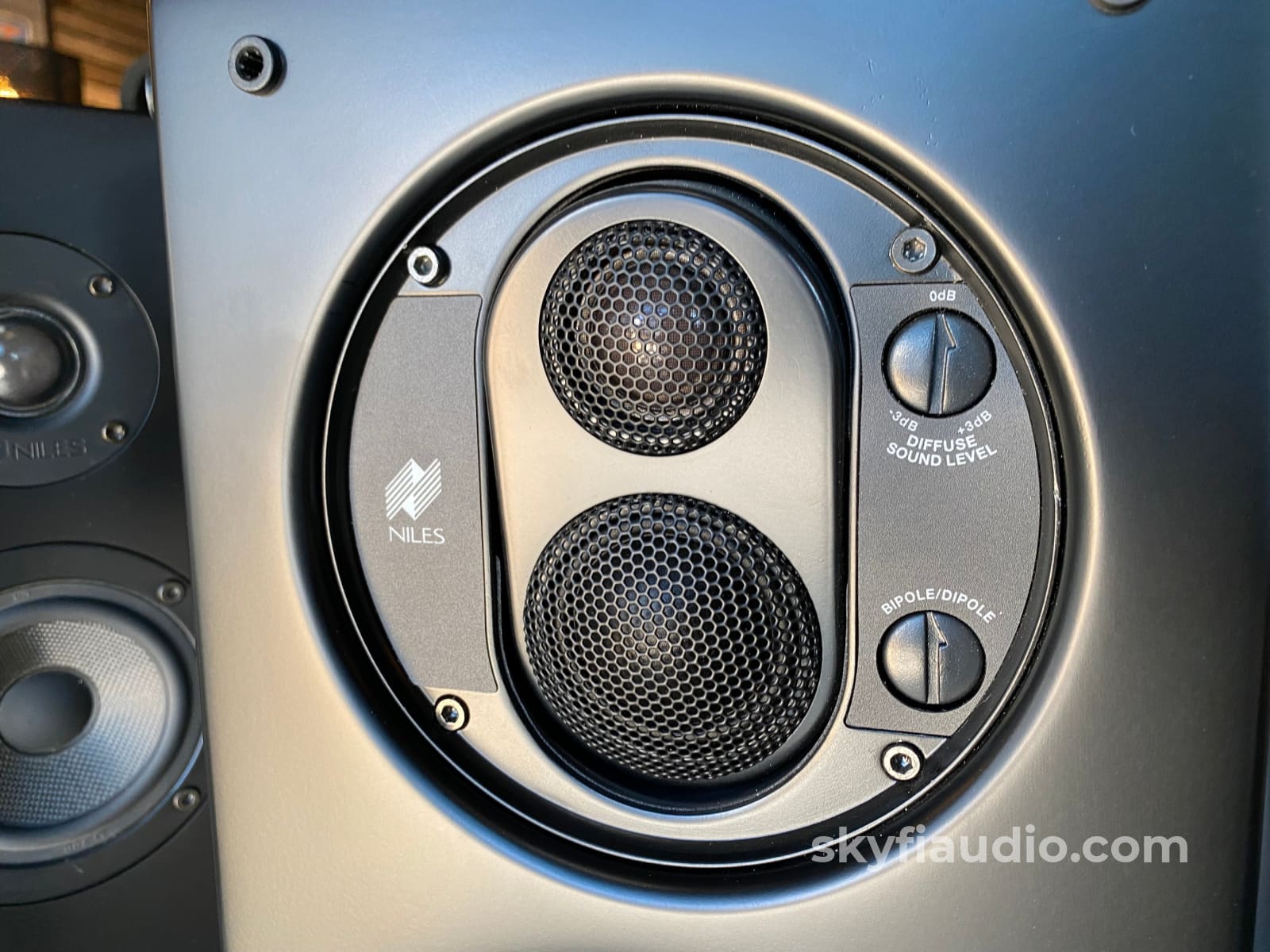

• DUAL SIDE-FIRING CARBON-FIBER MIDRANGES WITH DUAL TETERONTM DOME TWEETERS
Provide diffuse sound fields for optimum surround effects

• FORWARD-FIRING FLUID-COOLED TETERON TM DOME TWEETER
Deliver ultra-wide dispersion and silky-smooth response

• FORWARD-FIRING FLUID-COOLED TETERON TM DOME MIDRANGE
Allows for precise imaging regardless of placement

• 12V CONTROLLED DIPOLE/BIPOLE RELAY
Accommodates automated DVD-Audio or Dolby® surround sound effects

• FRONT-MOUNTED DIPOLE/BIPOLE SWITCH AND EFFECTS LEVEL CONTROL
Enables fine-tuning after installation

• CROSS-BRACED CABINET
Delivers the ultimate in rigidity and sound clarity

• POLISHED BLACK CABINET WITH SCULPTED CHARCOAL ALUMINUM GRILLE
Presents an elegant yet unobtrusive appearance

• DOLBY DIGITAL® READY
The StageFront Home Theater Solutions loudspeakers are expressly designed
for superior sonic quality in home theater applications. All models exceed the specifications set forth by Dolby Laboratories for the accurate reproduction of Dolby Digital-Encoded Sources

• RECOMMENDED AMPLIFIER POWER
For satisfactory performance, we recommend using a surround amplifier with
a power rating of 20-150 watts for the Pro770FX. We recommend an amplifier power rating of to 20-200 watts for the Pro870FX. Most loudspeakers are not damaged by large amplifiers, but rather by small amplifiers. If your system is playing loud music, a small amplifier will run out of power very quickly and can create damaging “clipping” distortions. A more powerful amplifier will play at the same volume without distorting.

SPECIFICATIONS
Recommended Amplifier Power
20-150 watts per channel

Nominal Impedance
6 ohm nominal; 3.2 ohm minimum

Frequency Response
80Hz to 20kHz, +/- 3 dB

Sensitivity
88 dB with 2.83 V pink noise input measured at 1 meter on axis

Dimensions

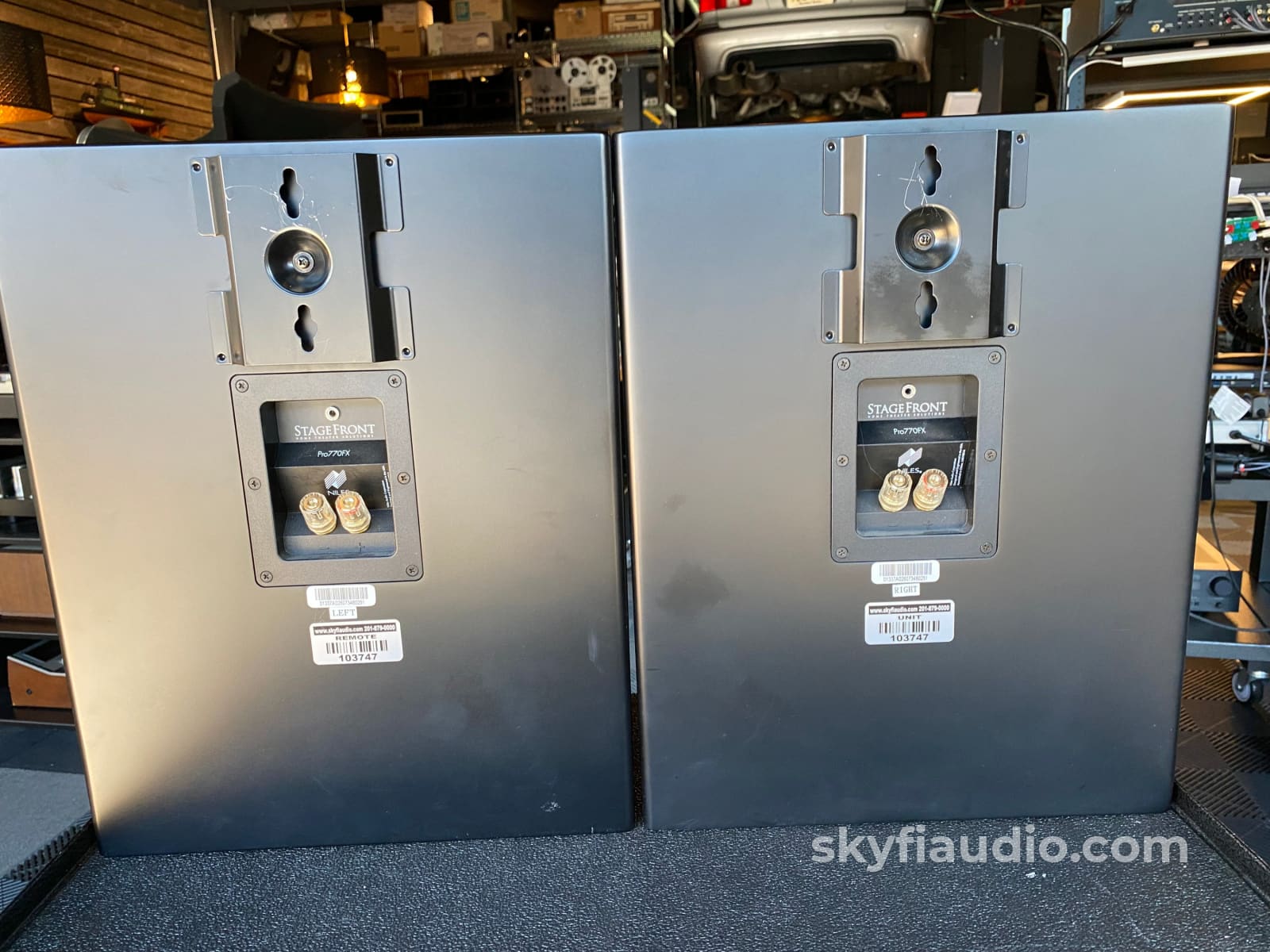

13-7/8” W x 16” H x 5-3/4” D*
*Measurements include all grilles and rear mounting bracket

13-1/2” W x 16” H x 6” D**
**Measurements are without any grilles and include rear mounting bracket

Wiring Requirements

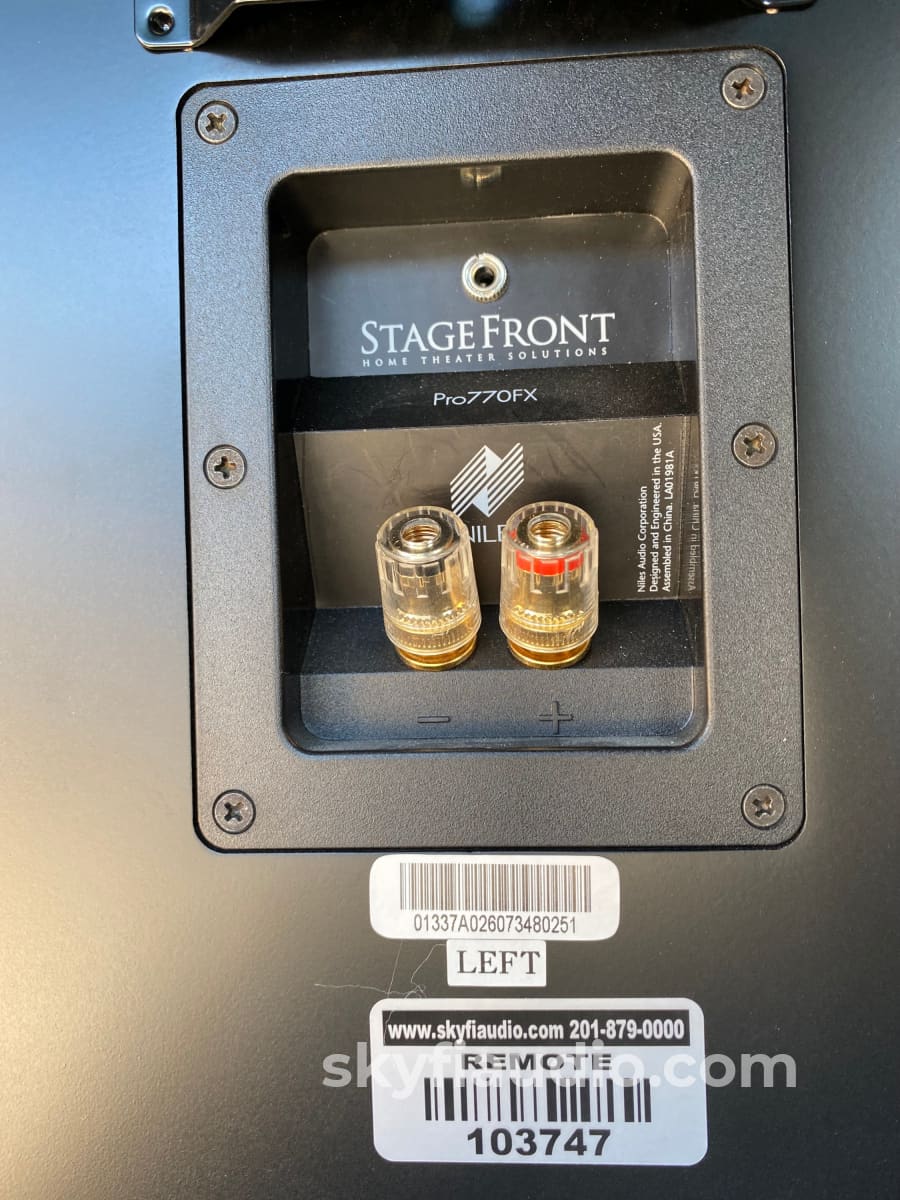

We recommend using 16-gauge loudspeaker wire for runs up to 80 feet and 14-gauge speaker wire for runs up to 200 feet. The connectors will accommodate 12 to 22 gauge wire.

The SkyFi Testing Process for Speakers:

Our speaker evaluation process starts with a visual inspection of all drivers. We are looking for damaged or deteriorating woofer surrounds, dented tweeter domes, and cone damage. We also inspect the speaker connection points for loose or broken connectors.

After the initial visual inspection we connect the speakers to a reference amplifier with our preferred test tracks. With the speakers placed with proper distance we listen to each driver to make sure that they are producing the intended frequencies with no signs of distortion or rattle. During listening tests with test tracks we check for proper stereo imaging and bass response at various listening levels. If there are any audible signs of issues, the speakers are taken to the bench where we perform a frequency sweep to isolate the issue so that it can be resolved by component repair or replacement.
