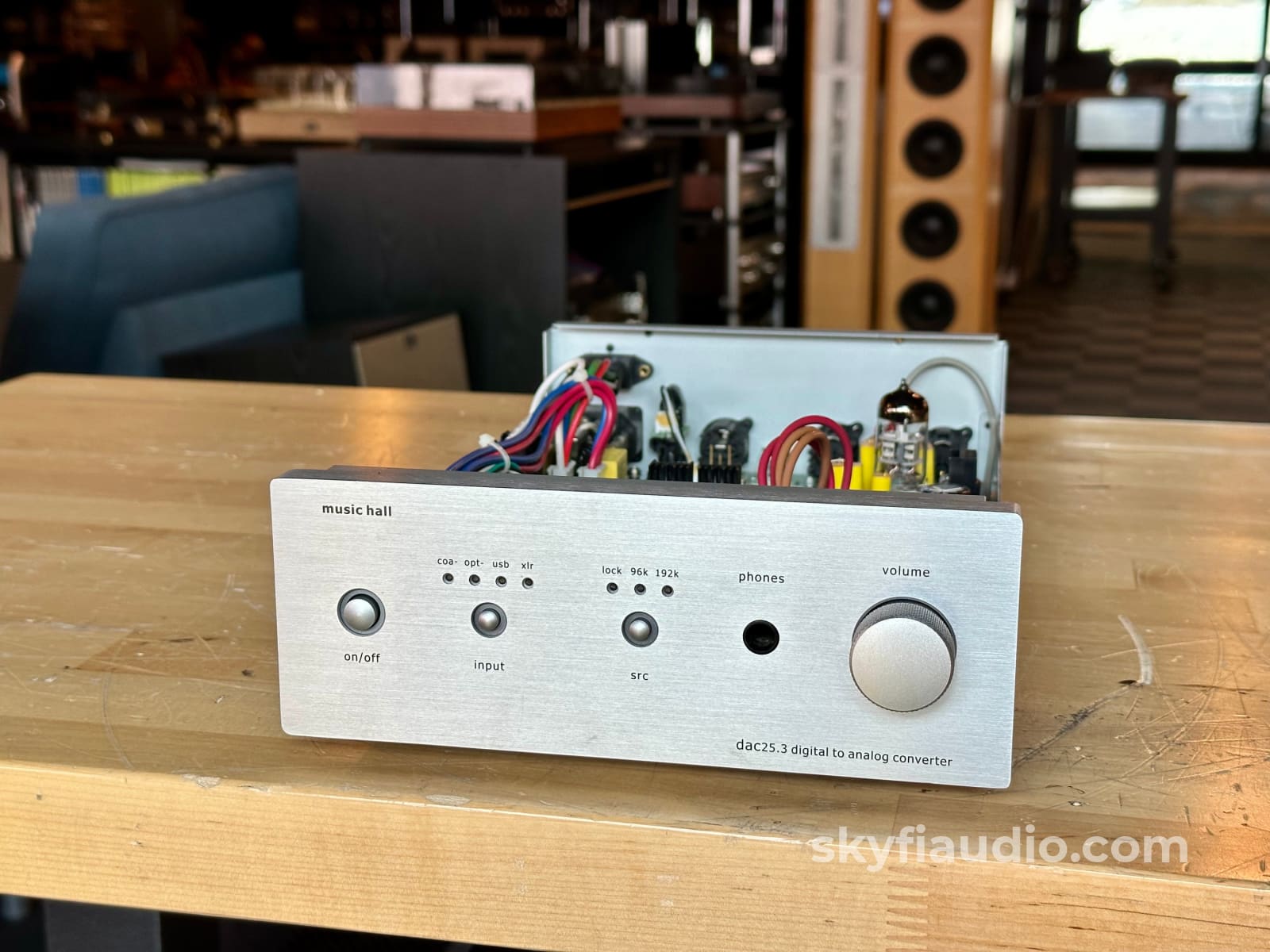

Music Hall DAC 25.3 With TUBE Output Stage

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

General:

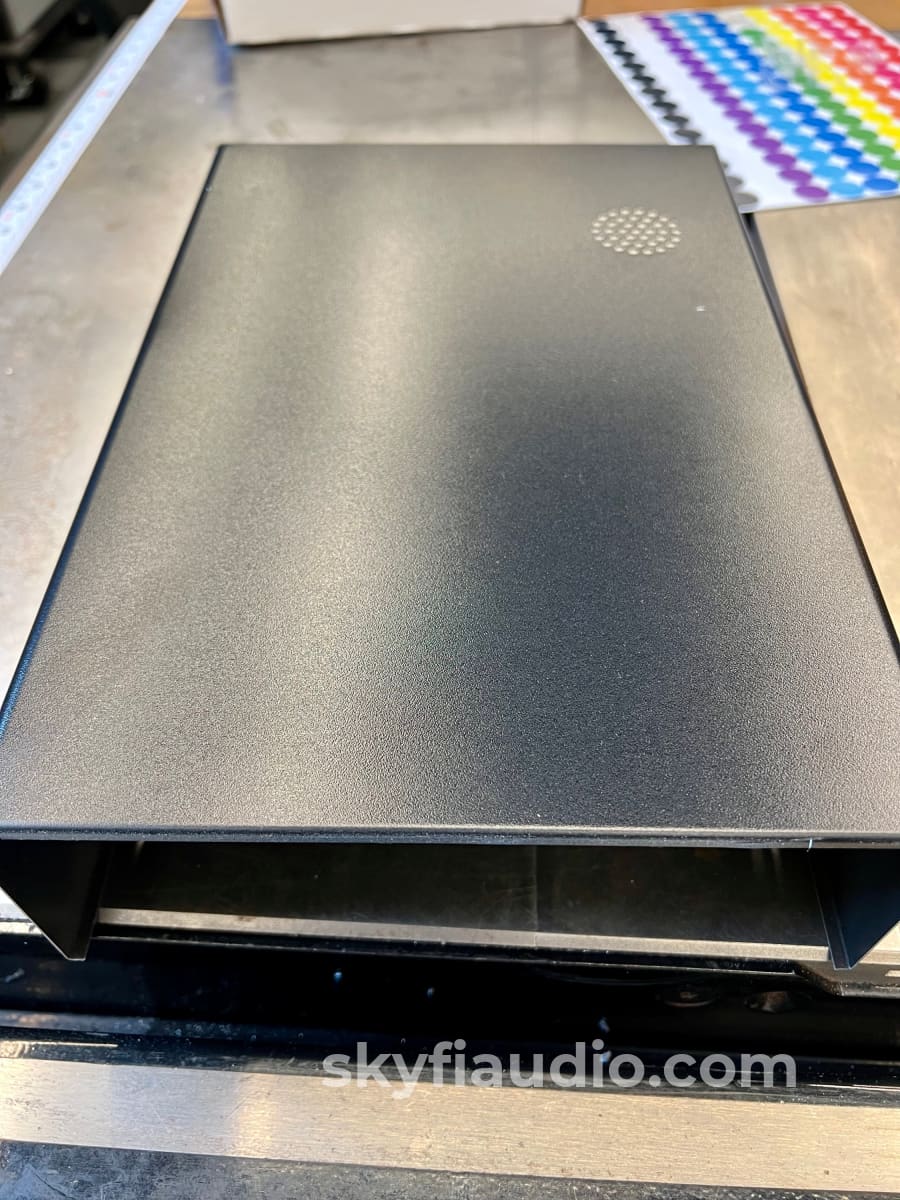

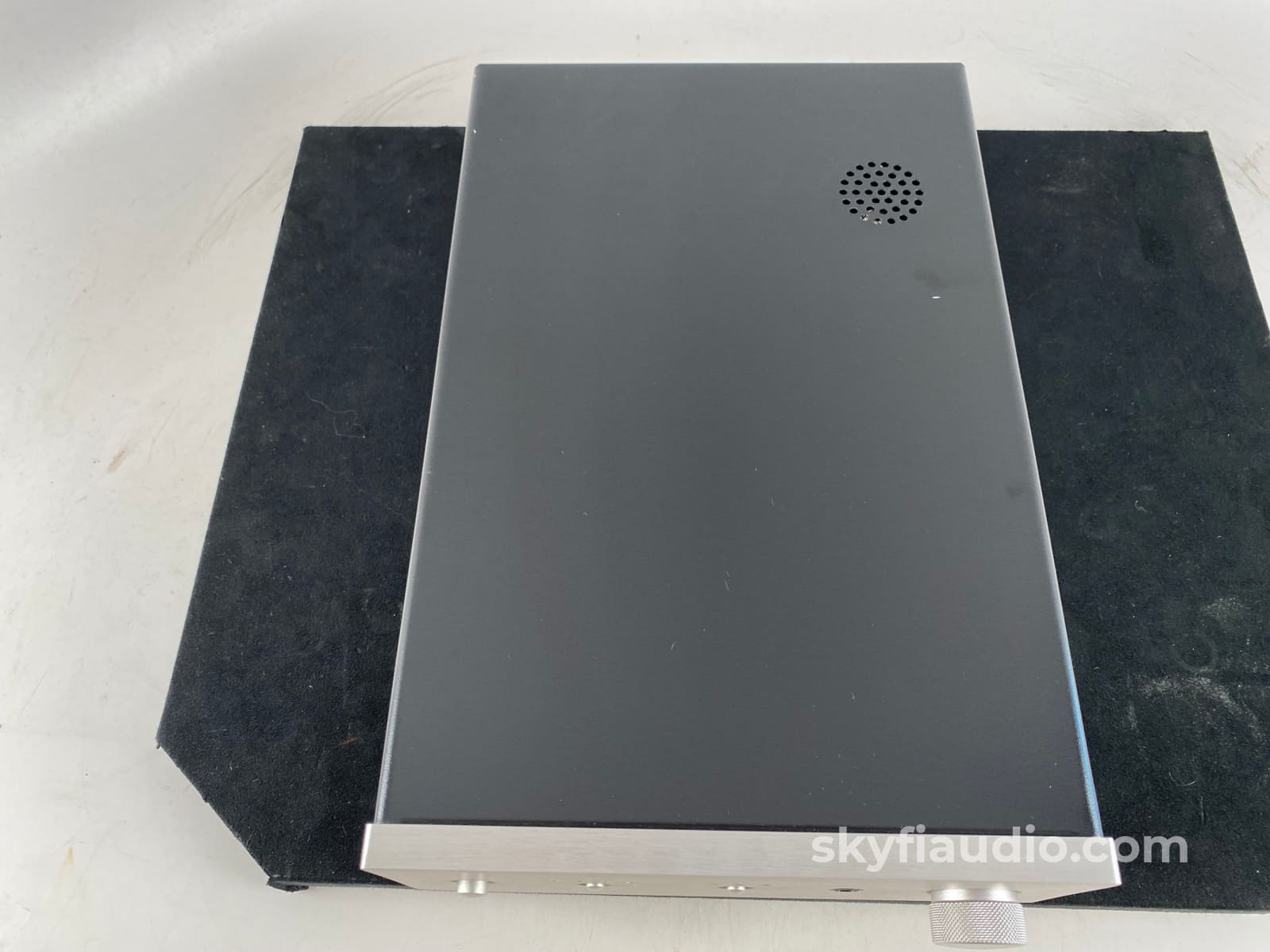

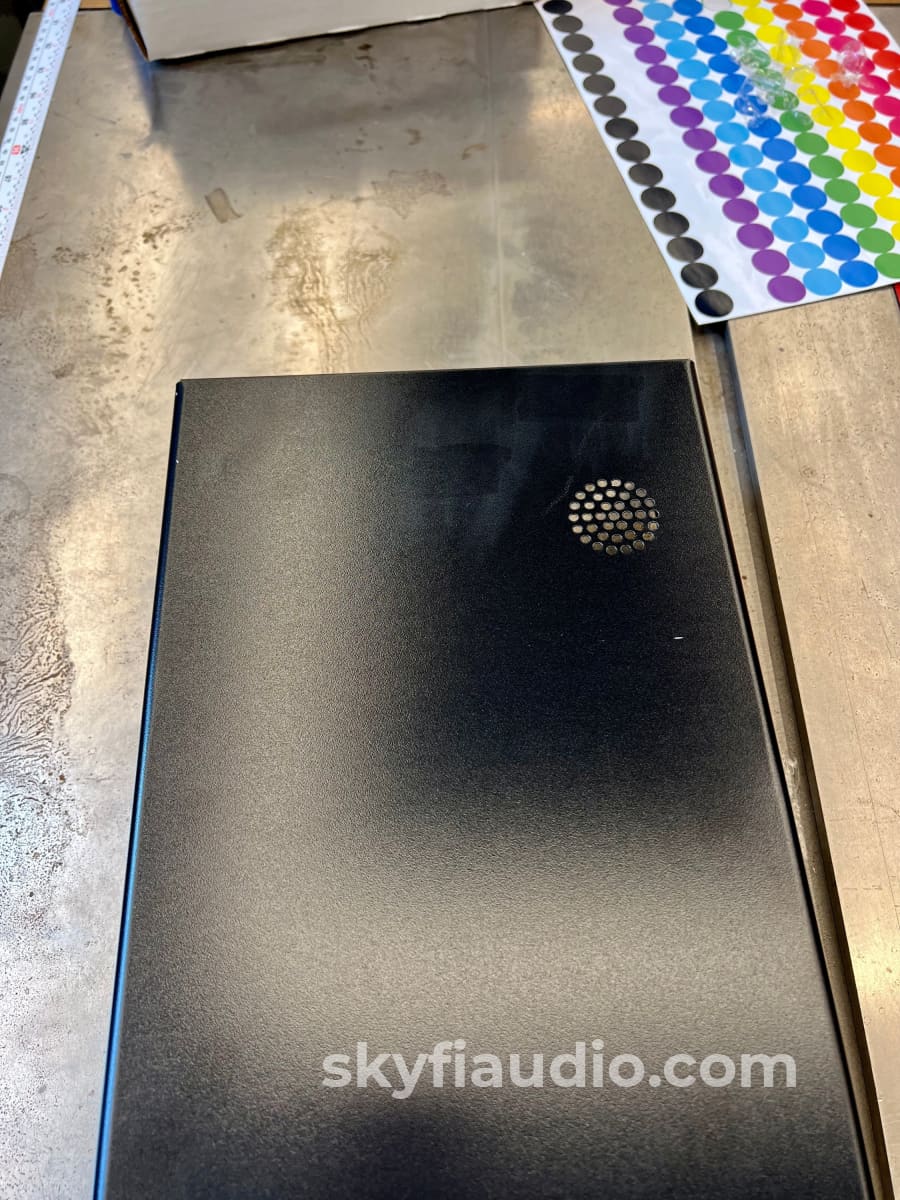

In perfect working condition with little signs of wear besides the top panel toward the very rear which you'll never see in daily use.

More from Music Hall:
By uniting a state-of-the-art digital-to-analog converter with a tube output stage the dac25.3 produces the clarity and precision of a 24-bit DAC with the warm, open and natural sound of tubes. The dac25.3 has 4 digital inputs - Coax (SPDIF), Tos-Link, XLR (AES/EBU) & USB digital input for ultimate compatibility with virtually any source.

The dac25.3 features the latest Burr-Brown PCM1796 24bit/192k, advanced segment, stereo audio DAC. This processor features 123dB dynamic range, an 8x oversampling digital filter, and achieves a miniscule 0.0005% THD.

The dac25.3 upsamples incoming signals to either 96kHz or 192kHz at 24 bits, with user selectable, front panel control.

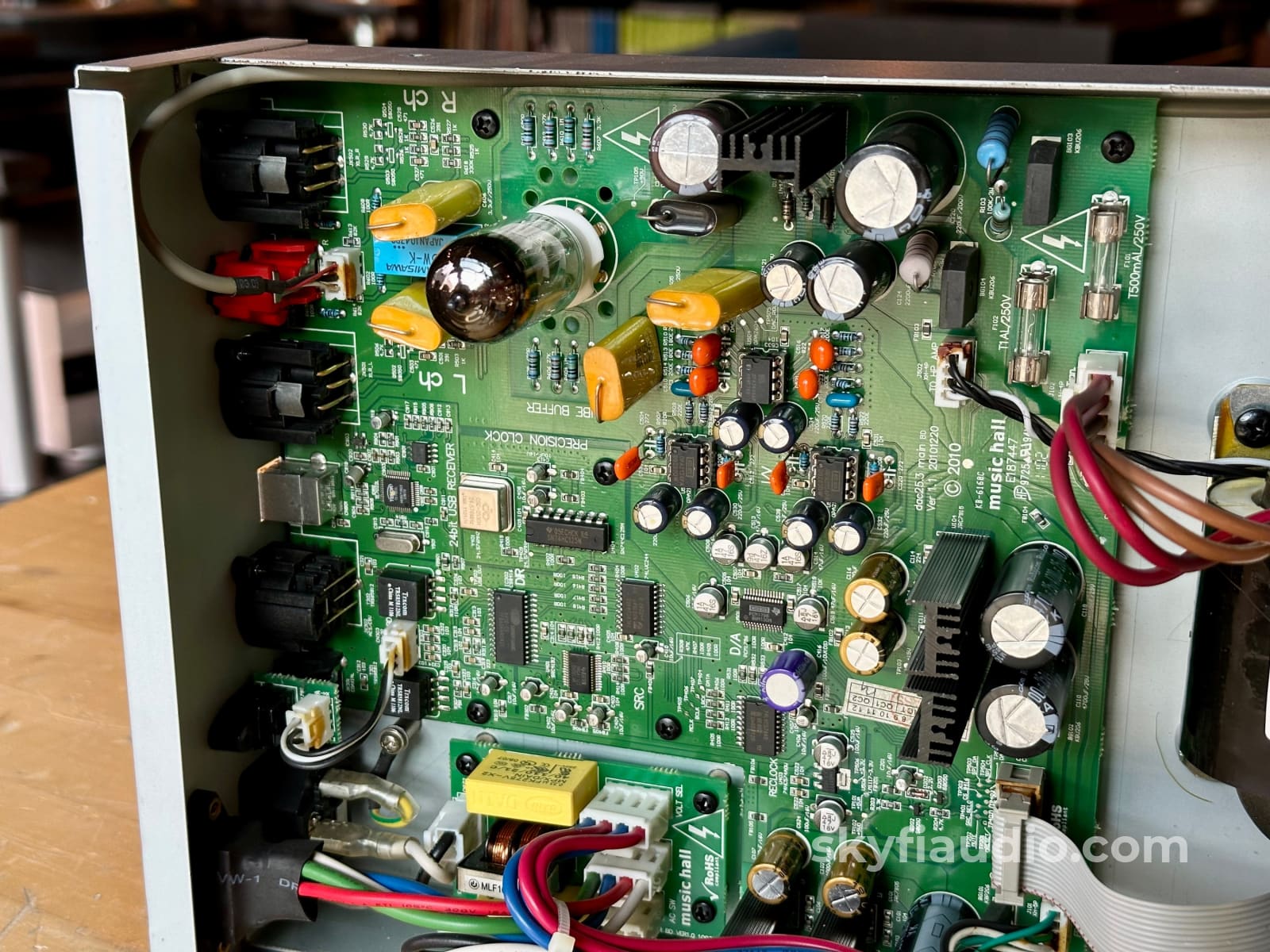

To achieve the best sound, Music Hall uses an advanced asynchronous reclocking and anti-jitter control system upstream of the PCM1796 DAC, a Philips 74HC574, in conjunction with a Ti SRC4192 Asynchronous Sample Rate Converter, whose master clock is a high precision active crystal oscillator.

To ensure a lifetime of flawless operation, the dac25.3 uses an oversized, high current power supply.

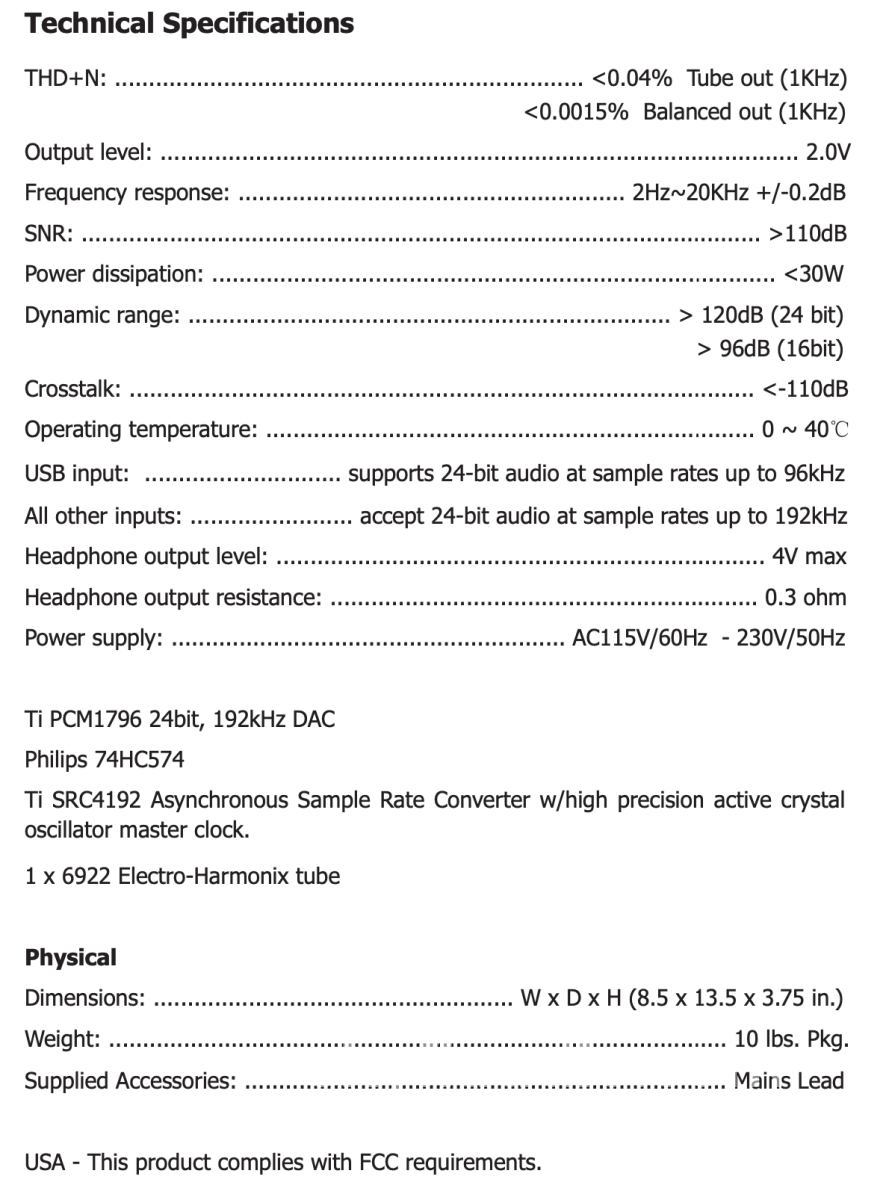

Standout Features:

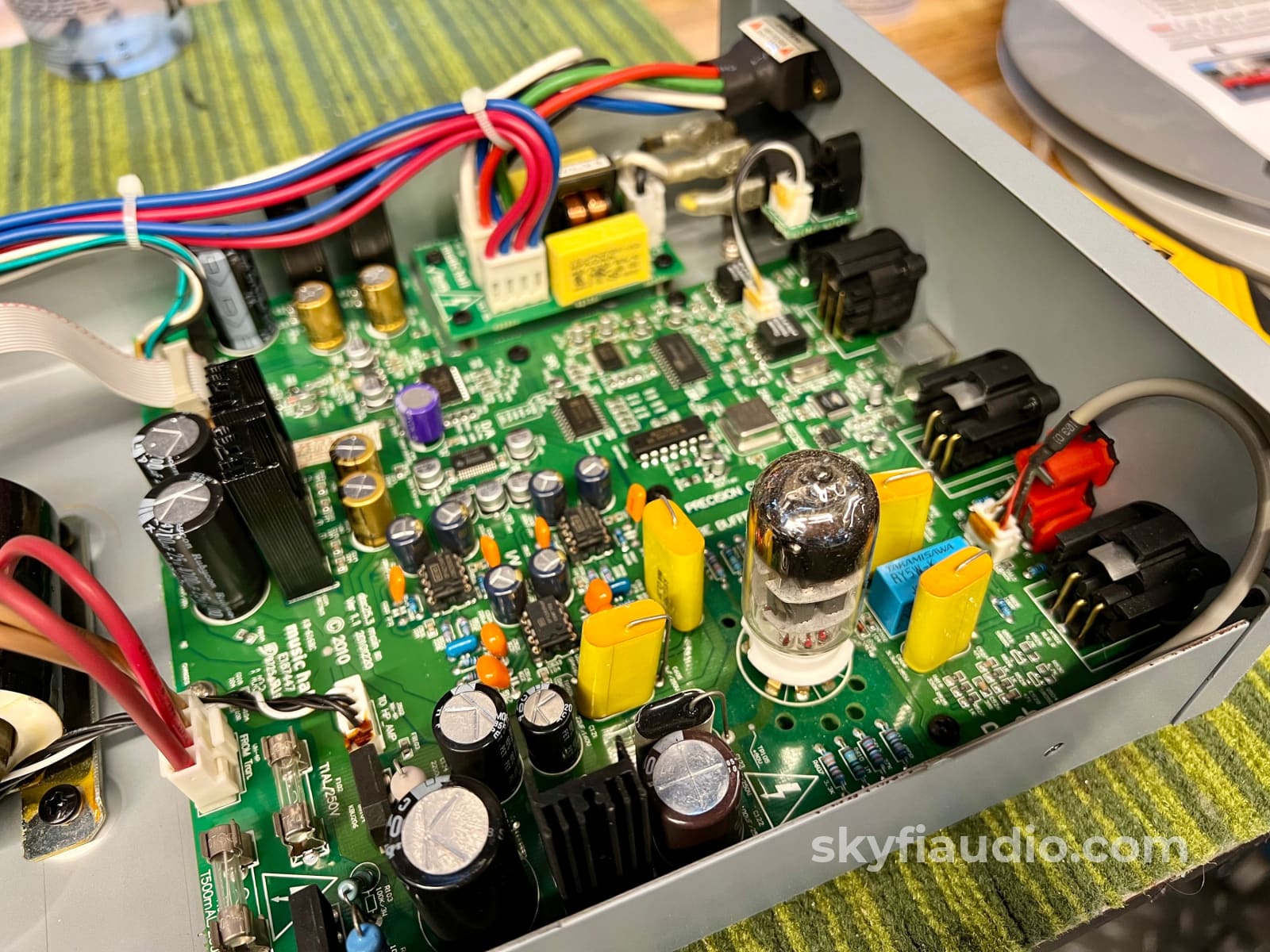

• Electro-Harmonix 6922 tube output
• Ti PCM1796 24bit, 192kHz DAC
• Ti SRC4192 Asynchronous sample rate converter w/high precision master clock
• User selectable 96kHz or 192kHz upsampling
• Sophisticated asynchronous re-clocking and anti-jitter control system
• 8x oversampling digital filter

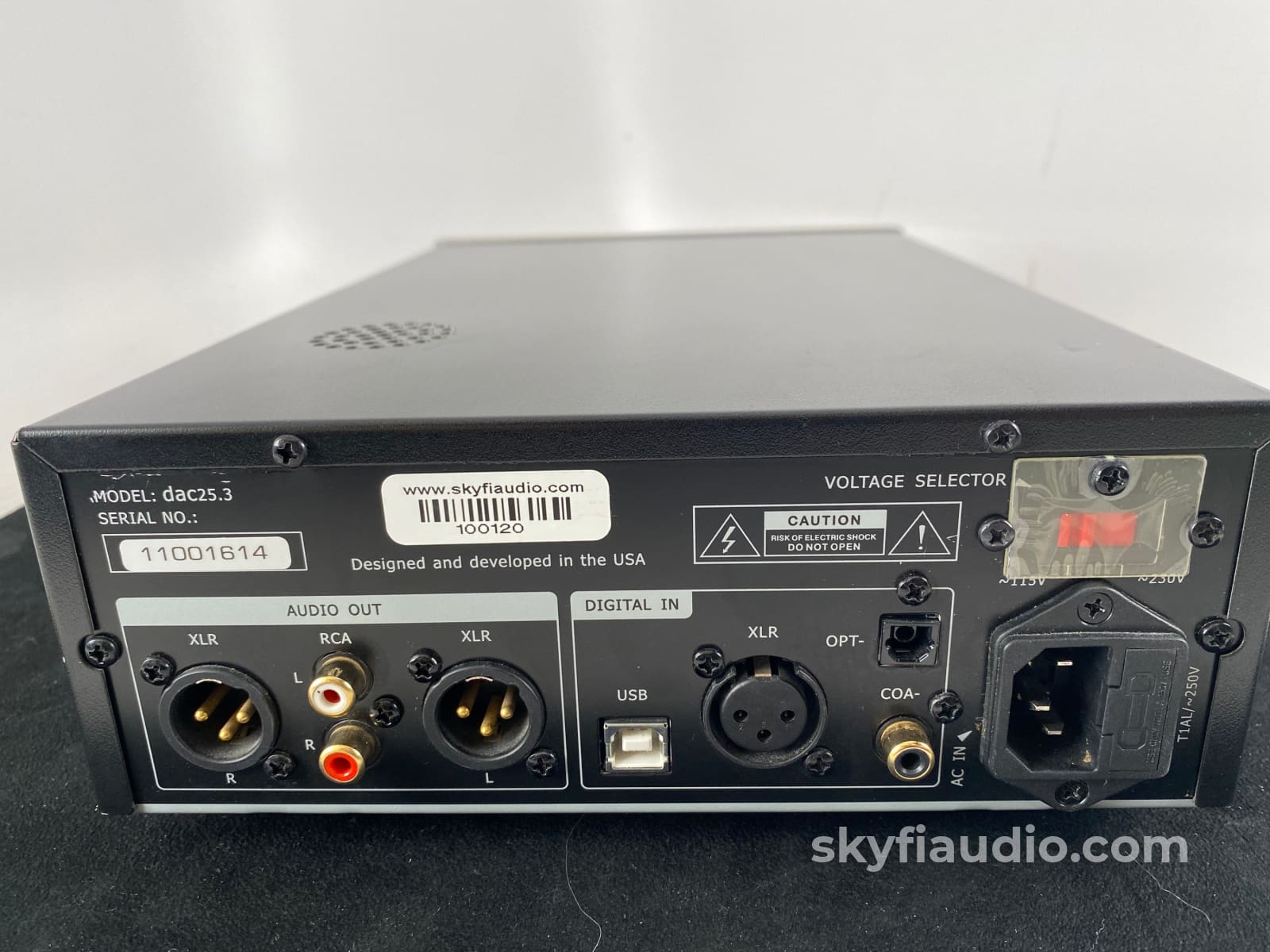

• 4 digital inputs: coax (S/PDIF), optical, XLR (AES/EBU), or USB
• Analog Outputs: RCA- Single-Ended (Pr) & XLR Balanced (Pr)

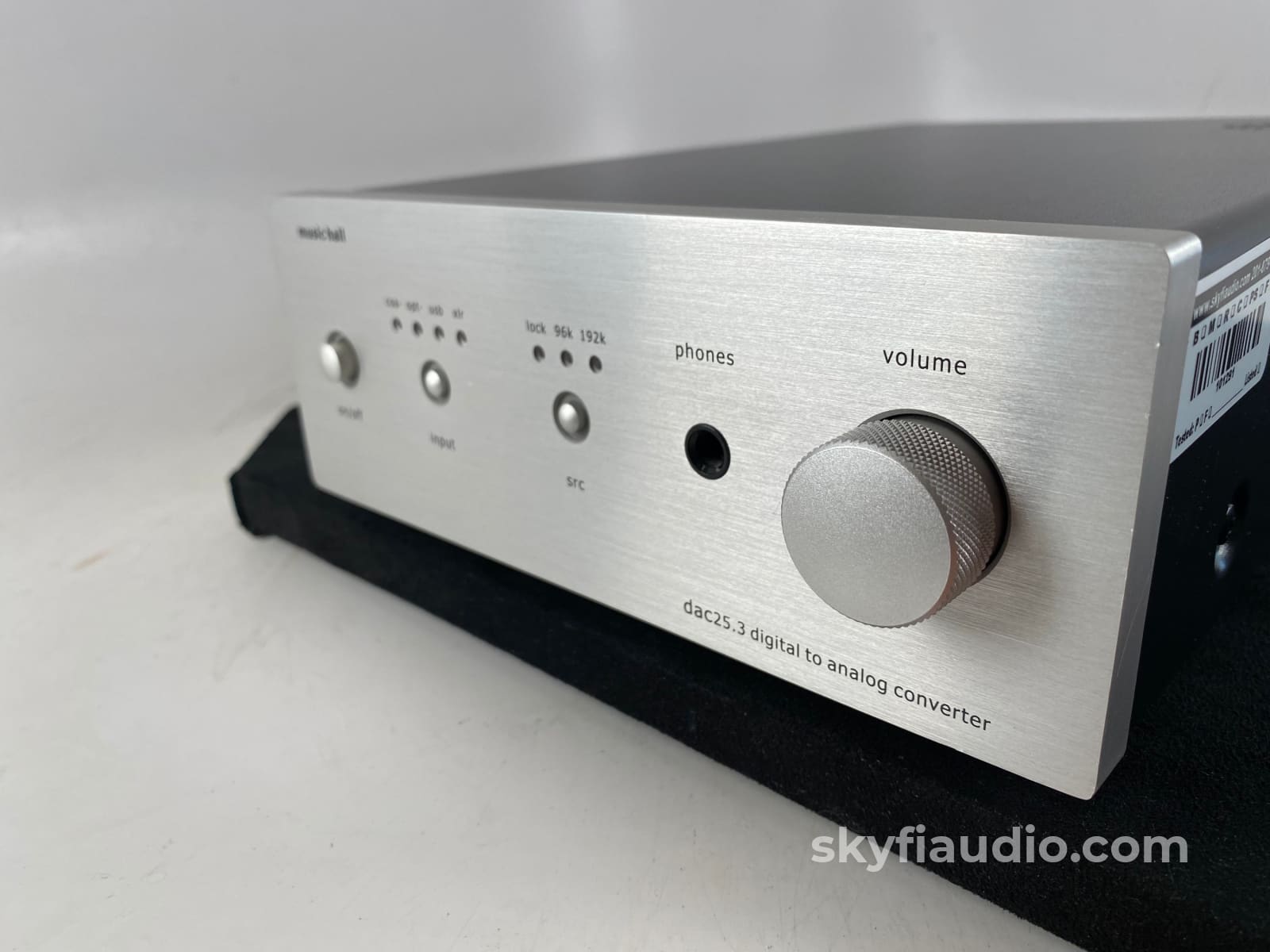

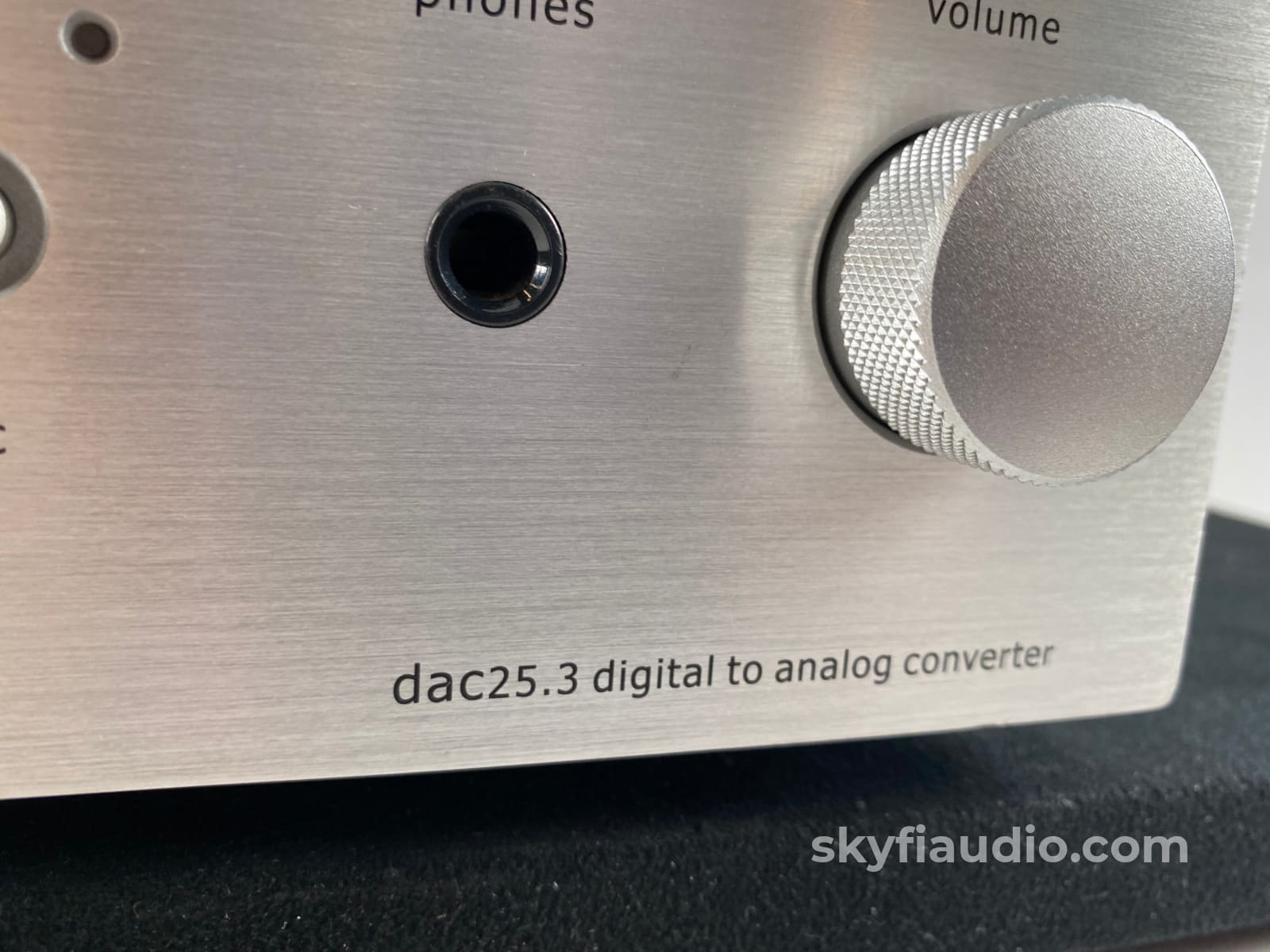

• Headphone Output with adjustable volume control

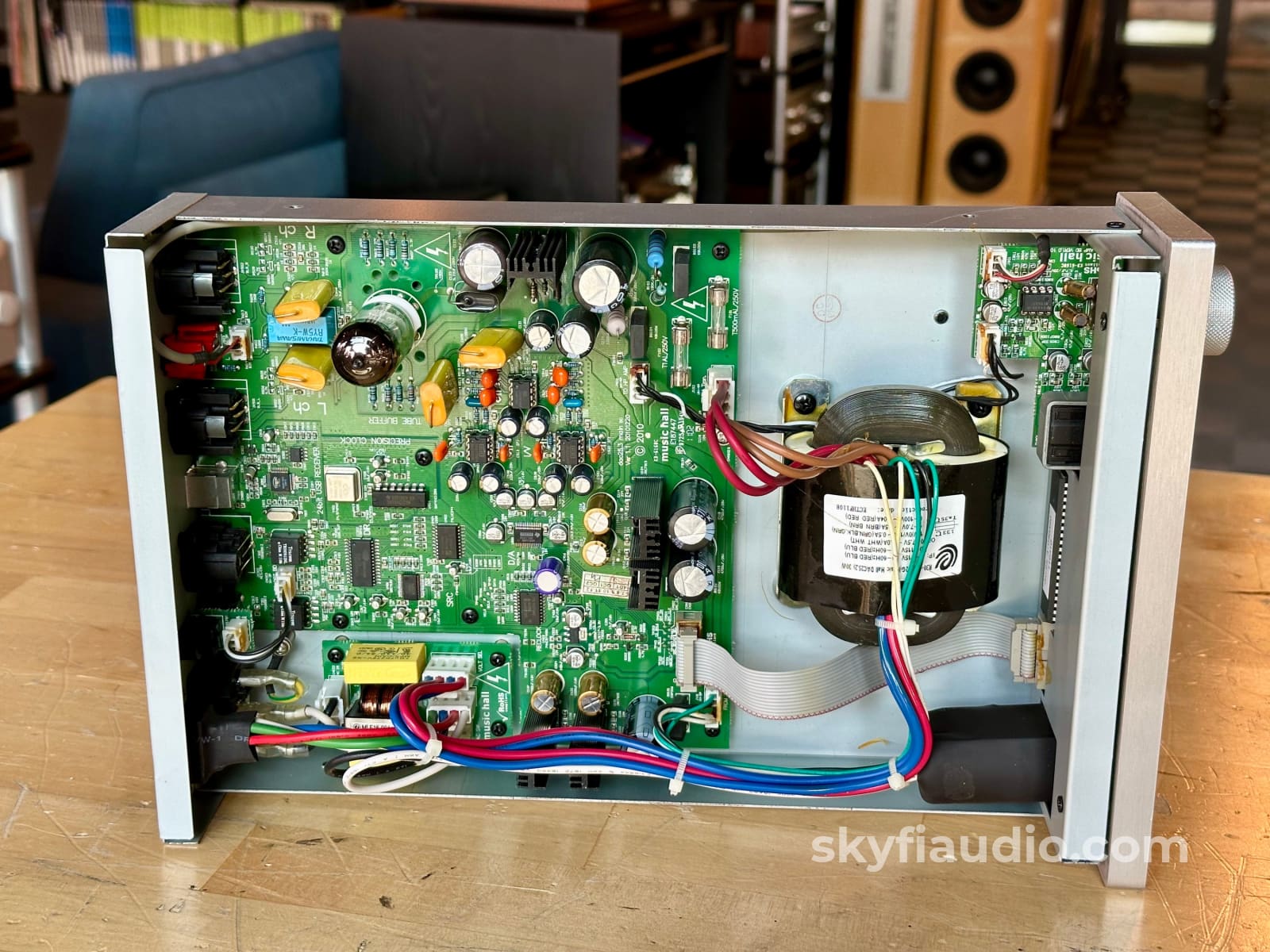

• New Larger high current power supply

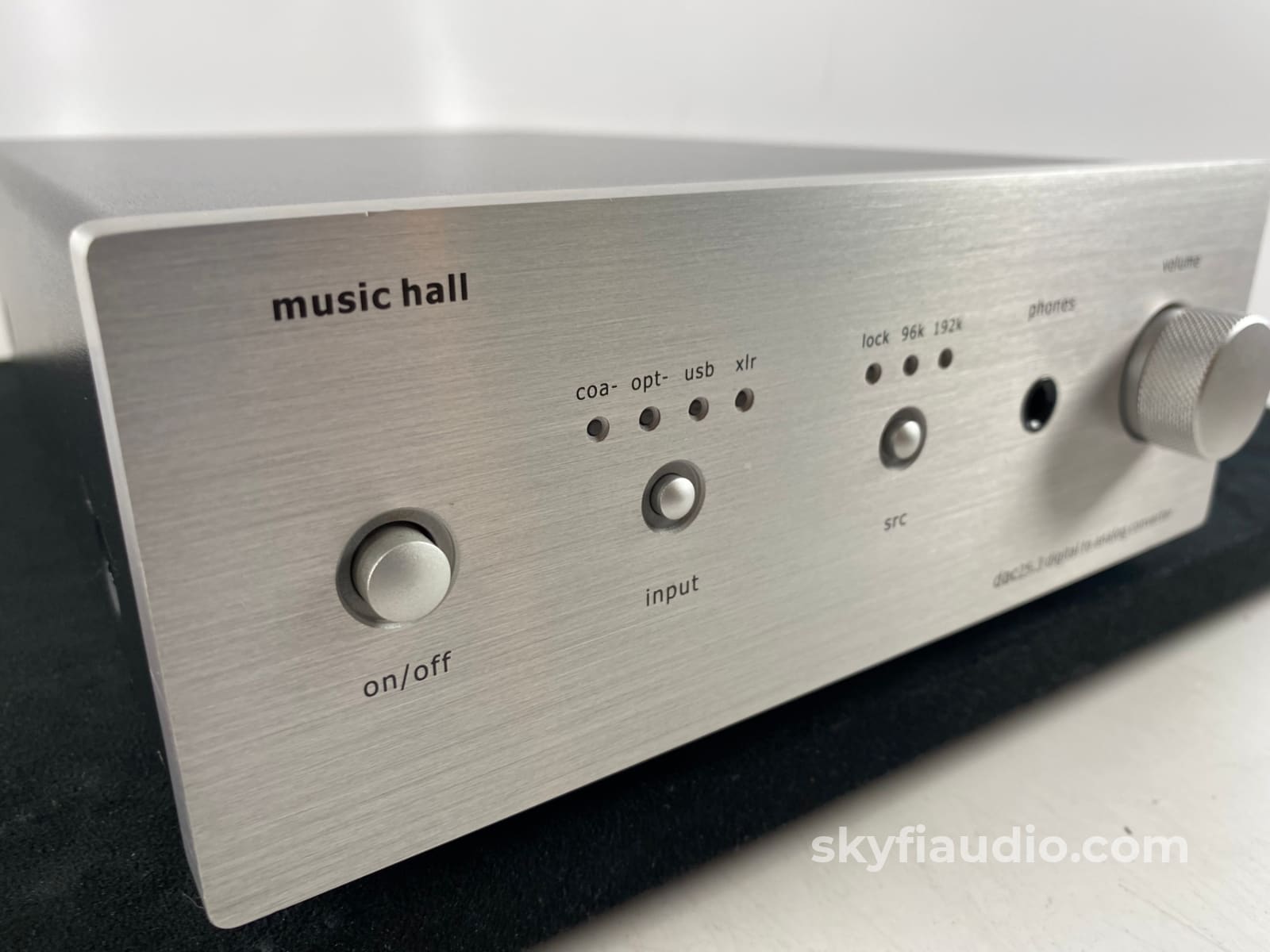

• Thick brushed-aluminum fascia and solid chassis
• 110v/220v voltage selectable transformer
• Detachable power cord
