McIntosh MX121 AV Processor

General:
Almost as capable as the latest version (MX123) at a fraction of the cost, yet still able to manage HDMI signals. If you require 4K video you would just connect your sources directly to the TV and use this unit for audio processing which is where McIntosh shines.

Using the built-in Audyssey DSX® Auto Setup you'll avoid fiddling with individual bands, settings, etc., to get the best sound possible in your home theater. (Note: Audyssey microphone and stand not included, but are easily found online).

Yes some of the HDMI features and standards may be older, but best results are usually achieved from running your sources directly to your display from experience.

This MX121 will come to you factory reset with its original remote.

SkyFi Cosmetic Notes:

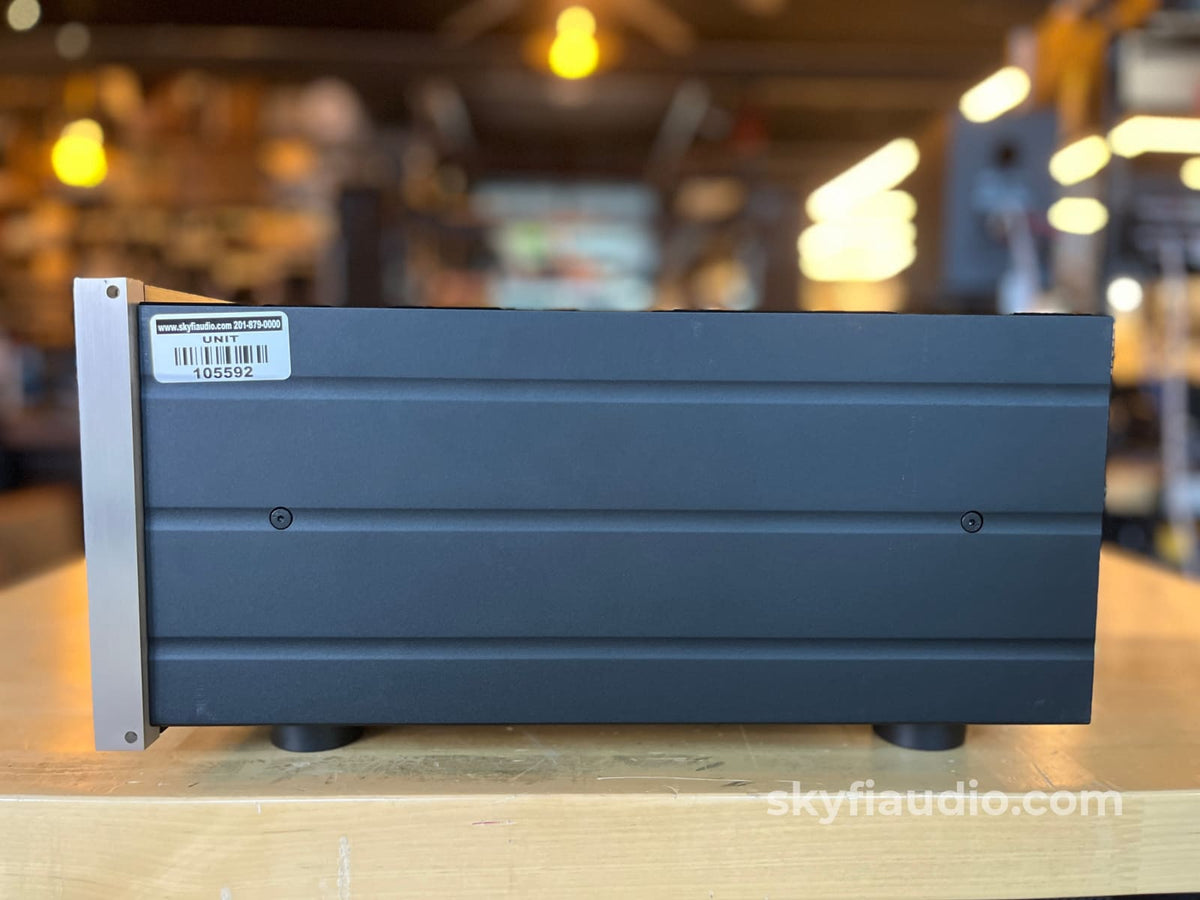

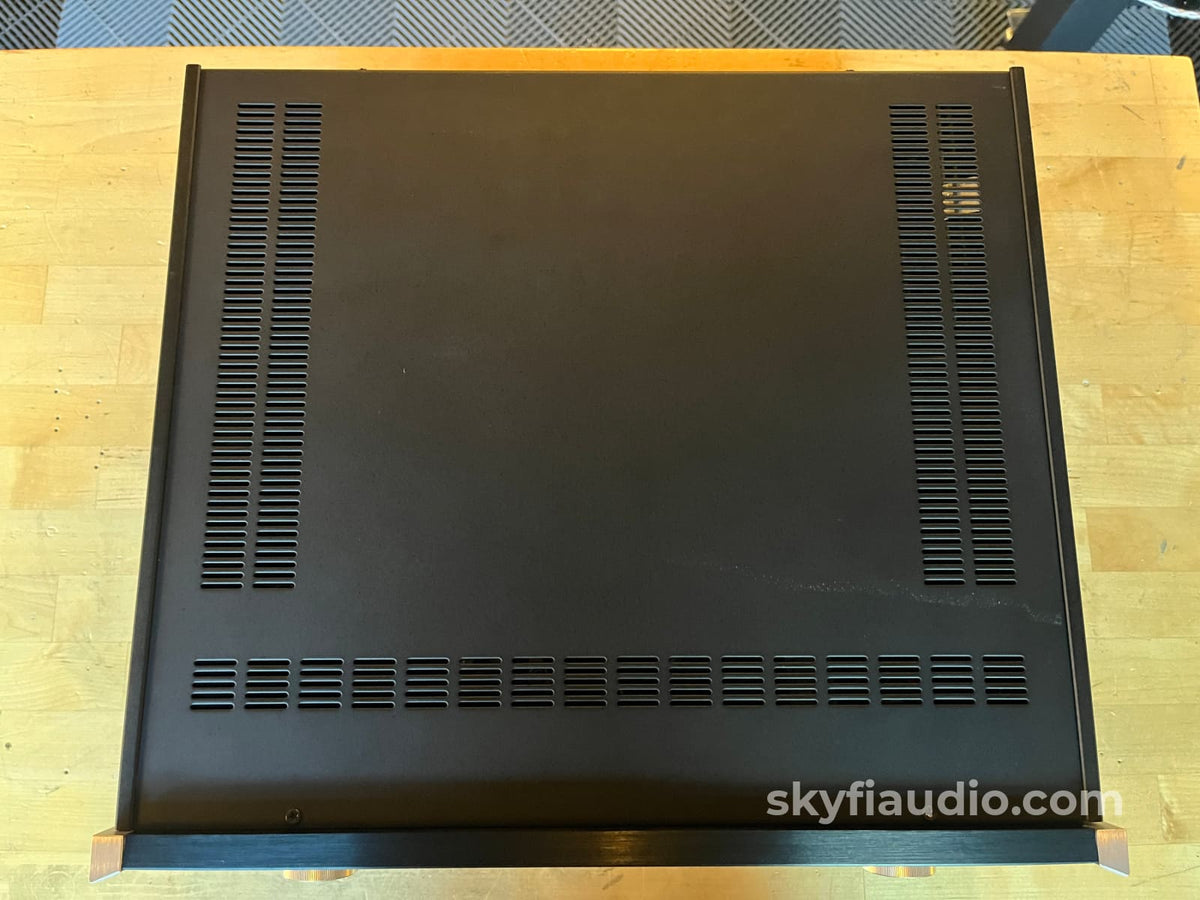

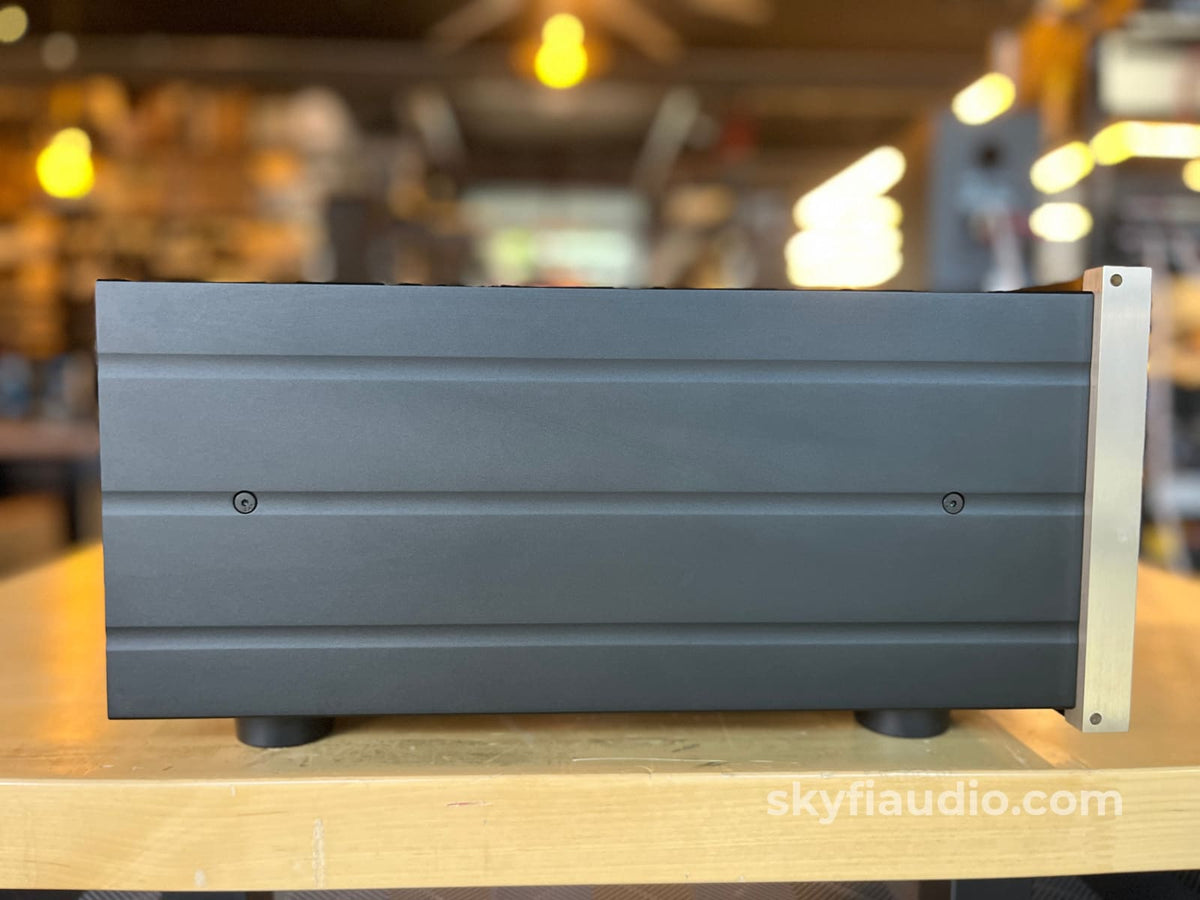

This processor has some light marking on the top and side panels. Overall good condition.

Brand Background:
McIntosh Laboratory is an American manufacturer of handcrafted high-end audio equipment based in Binghamton, New York. The company was founded in 1949 by Frank McIntosh. The company designs and produces audio amplifiers, stereo tuners and other consumer electronics products.

Ownership:
Single Owner

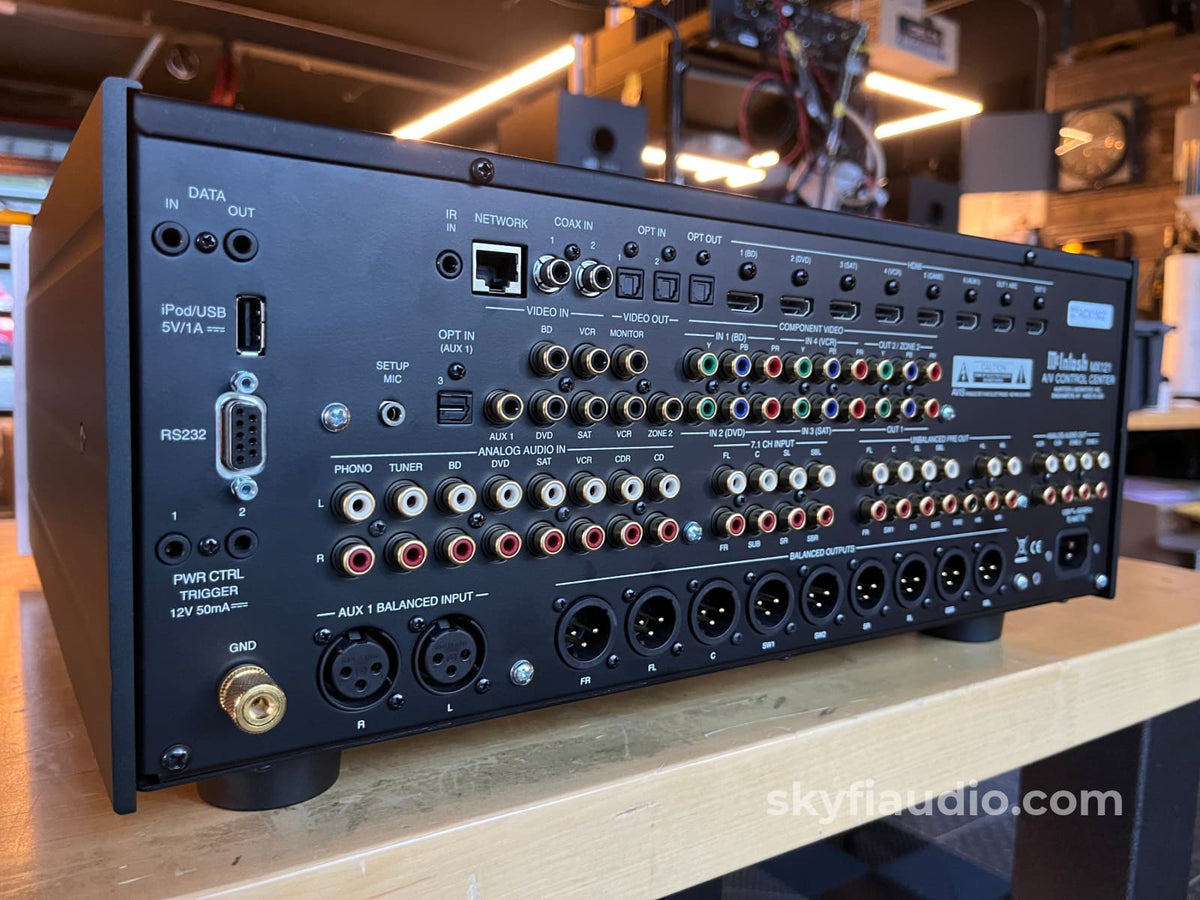

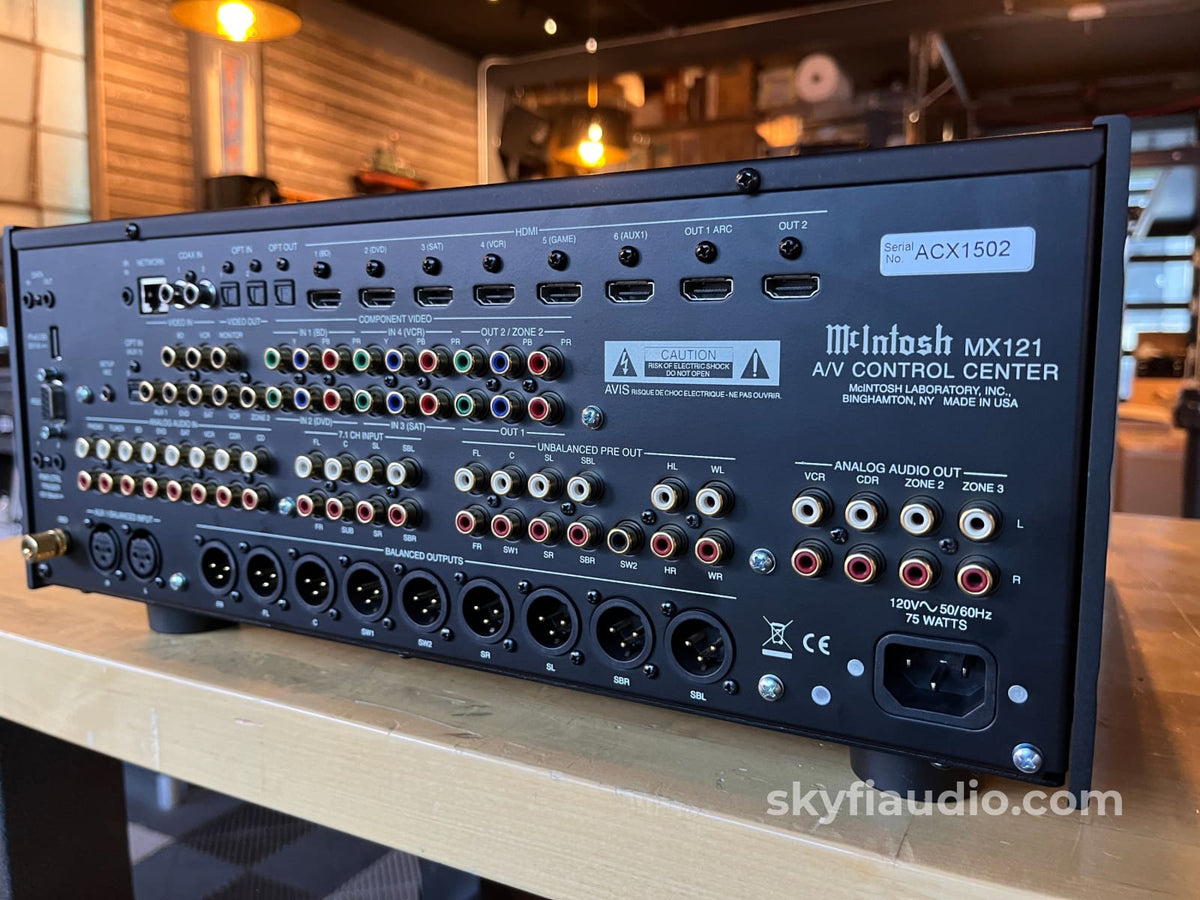

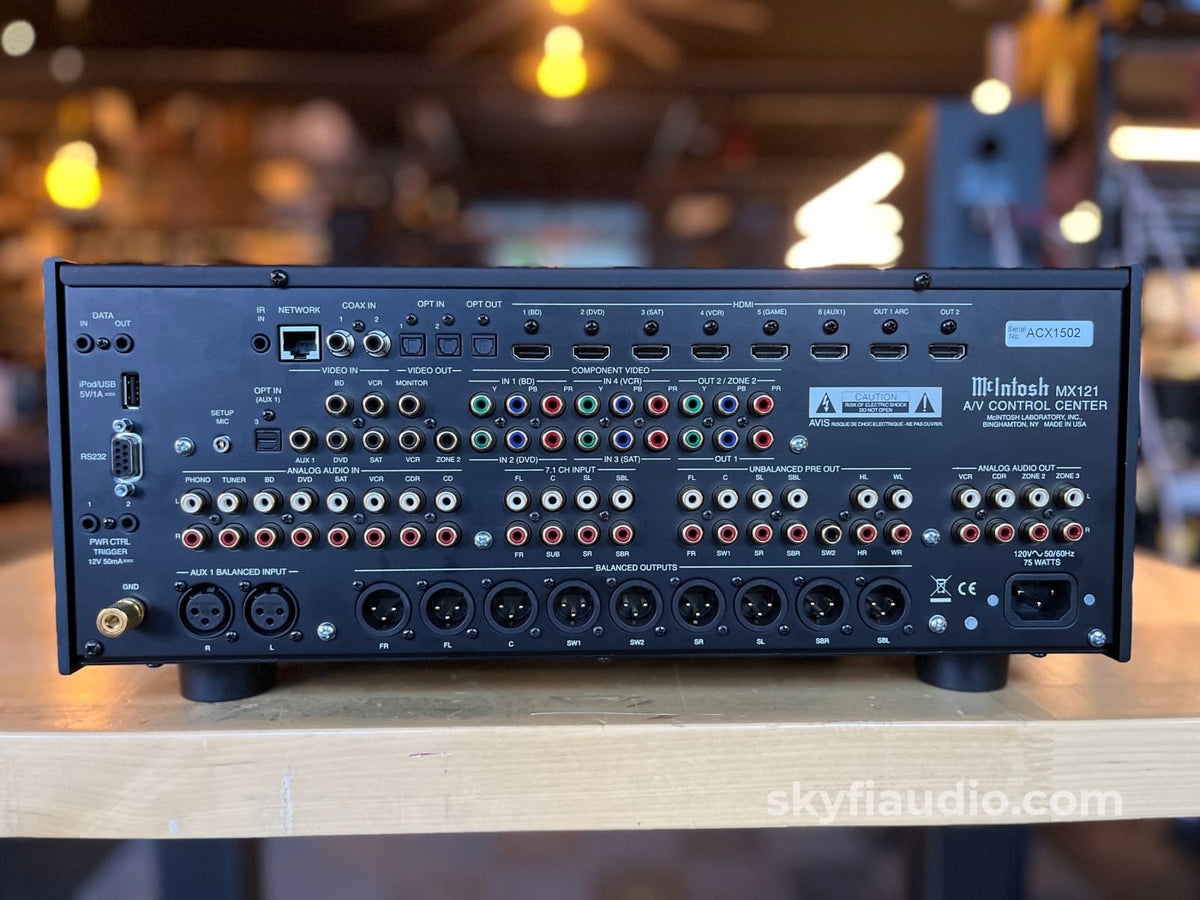

Connections:
HDMI, RCA, XLR and Network. Removable power cord.

General Sound:
Accurate to the recording

Cosmetic Condition:

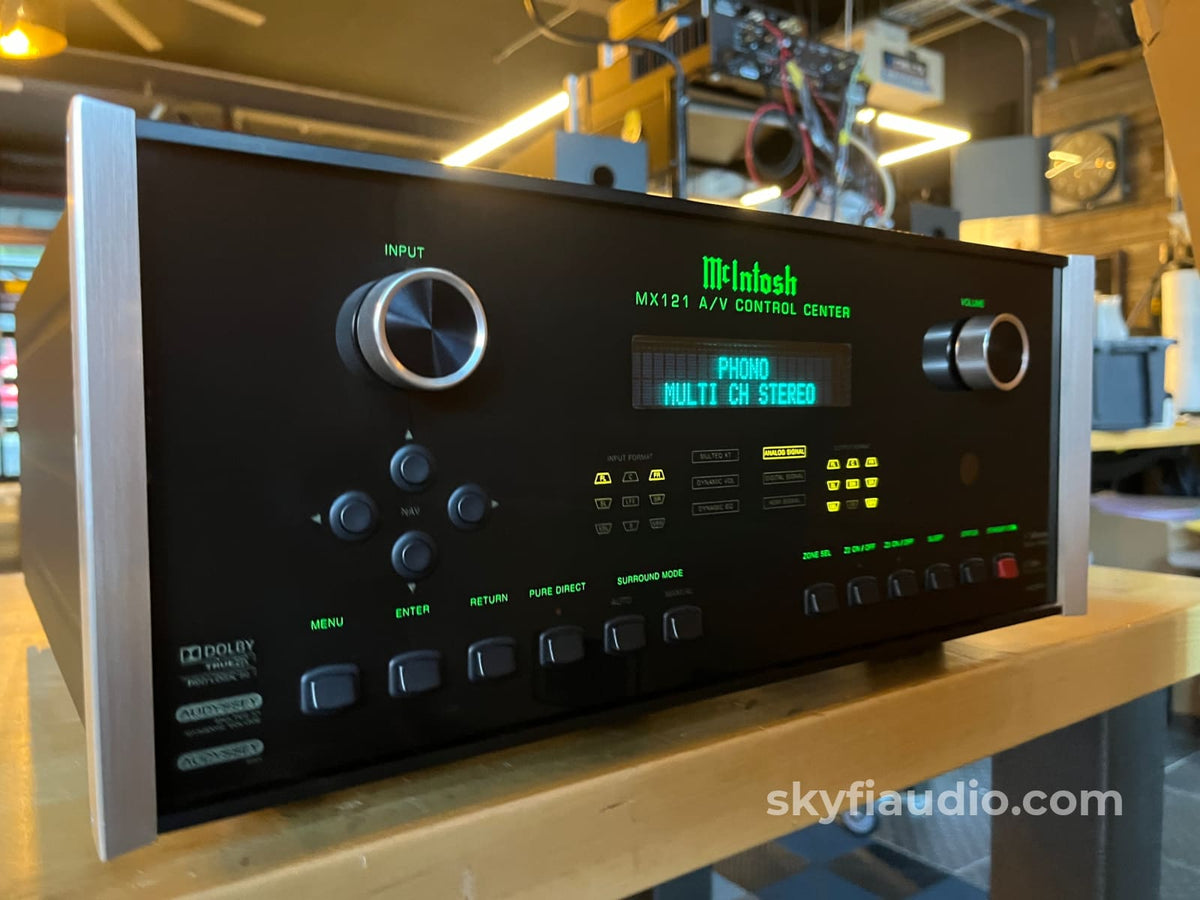

8/10 = Very Good. Excellent front faceplate, one minor flaw on chassis side or top. See our detailed rating description here.

Included:

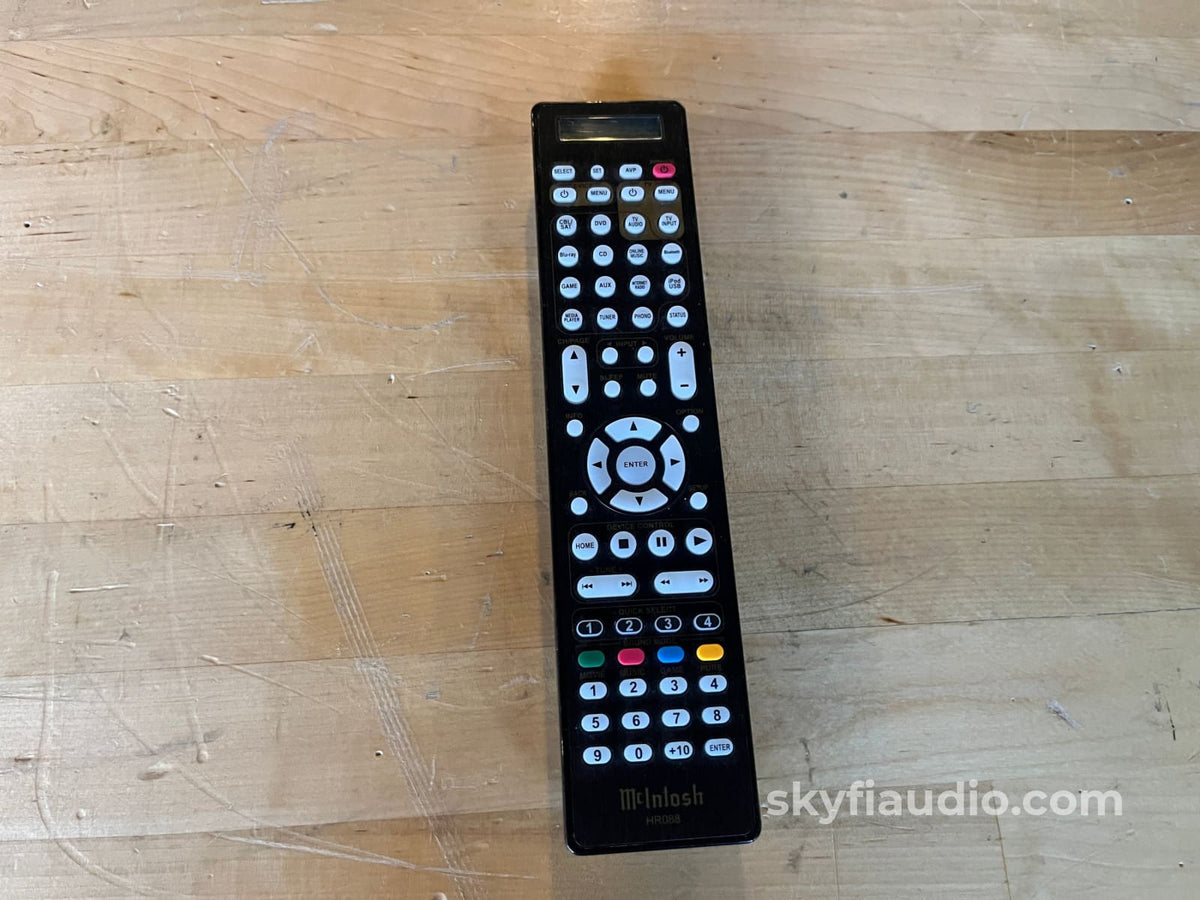

Just the unit and remote

Packing:
Will be packed using our highly developed in-house process and custom packing materials.Specs:
McIntosh Performance Features Include:
• HDMI 1.4a with 3D Passthru Switching
There are six HDMI 1.4a Inputs. HDMI Output 1 includes the new Digital Audio Return Channel (ARC) signal from the TV1, thus eliminating the need for an extra cable and simplifies operation. HDMI inputs are compatible with Deep Color, x.v.Color, Auto Lipsync and HDMI Component Control.

• Analog Video/Audio Switching with Scaling
Component Video Inputs and Composite Video Inputs (Analog Video Signals) are also converted to a Digital Video Signal with resolution up to 1080P at the HDMI Outputs.

• Balanced Inputs and Outputs
A pair of Balanced high level Inputs and an eight channel Balanced Output are provided, permitting long cable lengths without a loss in sound quality.

• Moving Magnet Phono Input
There is a Precision Phono Preamplifier for Moving Magnet Cartridges.

• Built-in Dolby True HD and DTS-HD Master Decoders
The MX121 also provides built-in decoding of the Dolby Pro Logic IIz, Dolby Pro Logic IIx, Dolby Digital EX, DTS Neo6 and DTS-ES Sound Tracks.

• Internet Streaming
The MX121 when connected to a network, offers Internet Radio, with music and photo streaming.

• Audyssey DSX®
Audyssey DSX is a scalable system that adds new speakers to improve surround impression. Audyssey DSX first adds Wide channels for the biggest impact on envelopment and then creates Height channels to reproduce the next most important acoustical and perceptual cues. Surround Envelopment Processing is used to enhance the blend between the front and surround channels.
Audio Specifications
Unless otherwise noted, the below MX121 Specifications where taken with Audyssey bypassed and manual Tone/EQ set to flat setting.

Frequency Response
±0.5dB from 20Hz-20,000Hz

Total Harmonic Distortion
0.005% maximum from 20Hz to 20,000Hz at rated output

Signal To Noise Ratio
Phono: 86dB below 10mV input (A Weighted)
High Level: 96dB below rated output (A Weighted)

Rated Output Voltage
2.5V Unbalanced Outputs (Main Zone)
5.0V Balanced Outputs (Main Zone)

Maximum Voltage Output
6V Unbalanced
12V Balanced

Output Impedance
220 ohms

Input Impedance
Phono: 47k Ohms, 65pf
High Level: 20k Ohms Unbalanced and Balanced

Sensitivity for Rated Output
Phono: 4.5mV
High Level: 450mV Unbalanced, 900mV Balanced

Maximum Input Signal
Phono: 50mV
High Level: 4.5V Unbalanced and Balanced

Tone Controls
Bass Control: ±6dB at 30Hz
Treble Control: ±6dB at 10,000Hz

Video Specifications
Signal System
NTSC/PAL

HDMI
Version 1.4 (includes support for Deep Color, x.v.Color, Auto Lipsync, Audio Return Channel and HDMI Component Control)

Scaling
Analog Video Inputs scaled to a 1080P Digital Signal

Component Video Output Level
Y Output Level 1.0Vp-p (75 OHM)
PB/CB Output Level 0.7Vp-p (75 OHM)
PR/CR Output Level 0.7Vp-p (75 OHM)

Composite Video Output Level
1Vp-p (75 OHM)

Dimensions:
Width is 17-1/2 inches (44.45cm)
Height is 7-5/8 inches (19.37cm) including feet
Depth is 19-1/2 inches (49.53cm) including the Front Panel, Knobs, Rear Panel Connections and USB Drive

Weight:
30 lbs.

Link to Manual:
Click Here
