General:
ELEVATING SOUND QUALITY WITH PRECISION ENGINEERING
The MEN220 Room Correction System offers an all-in-one solution for sophisticated room correction, custom EQ, and two-way crossover functionality in an accessible stereo component.
Each individual feature of the MEN220 has the capability to enhance the acoustic performance of high-quality audio systems; however, when combined, these features unveil an unparalleled level of clarity and precision.
IMPROVE YOUR SOUND
At the heart of the MEN220 is RoomPerfect™, one of the most advanced systems for adapting a sound system to the unique acoustic environment of your room.
RoomPerfect intelligently analyzes the audio characteristics of your speakers and the specific acoustic traits of your space, then adjusts the audio signal for a sound profile precisely tailored to the room’s size, shape, and acoustic qualities.
This technology allows for flexible speaker placement without compromising sound quality. Position your speakers against a wall, in open space, or asymmetrically from the listening position, and RoomPerfect will adjust the audio to deliver optimal sound performance.
The MEN220 supports precise measurement and correction for up to eight distinct listening positions and provides a Global Room Correction mode for listening from any point in the room. It includes six preset EQ curves tailored for different music genres and allows for the creation of up to six additional custom EQ profiles.
ENHANCED FUNCTIONALITY
The MEN220’s adjustable crossover simplifies bi-amping your speakers, featuring two pairs of balanced and unbalanced outputs to connect to your power amplifier(s). Additionally, it offers both balanced and unbalanced inputs for seamless integration with your preamplifier via balanced cables or unbalanced cables.
Operation is straightforward, with control options available through the front panel, the included remote control, or a web interface. Power Control ports enable synchronized on/off functionality with other McIntosh components via Power Control cables.

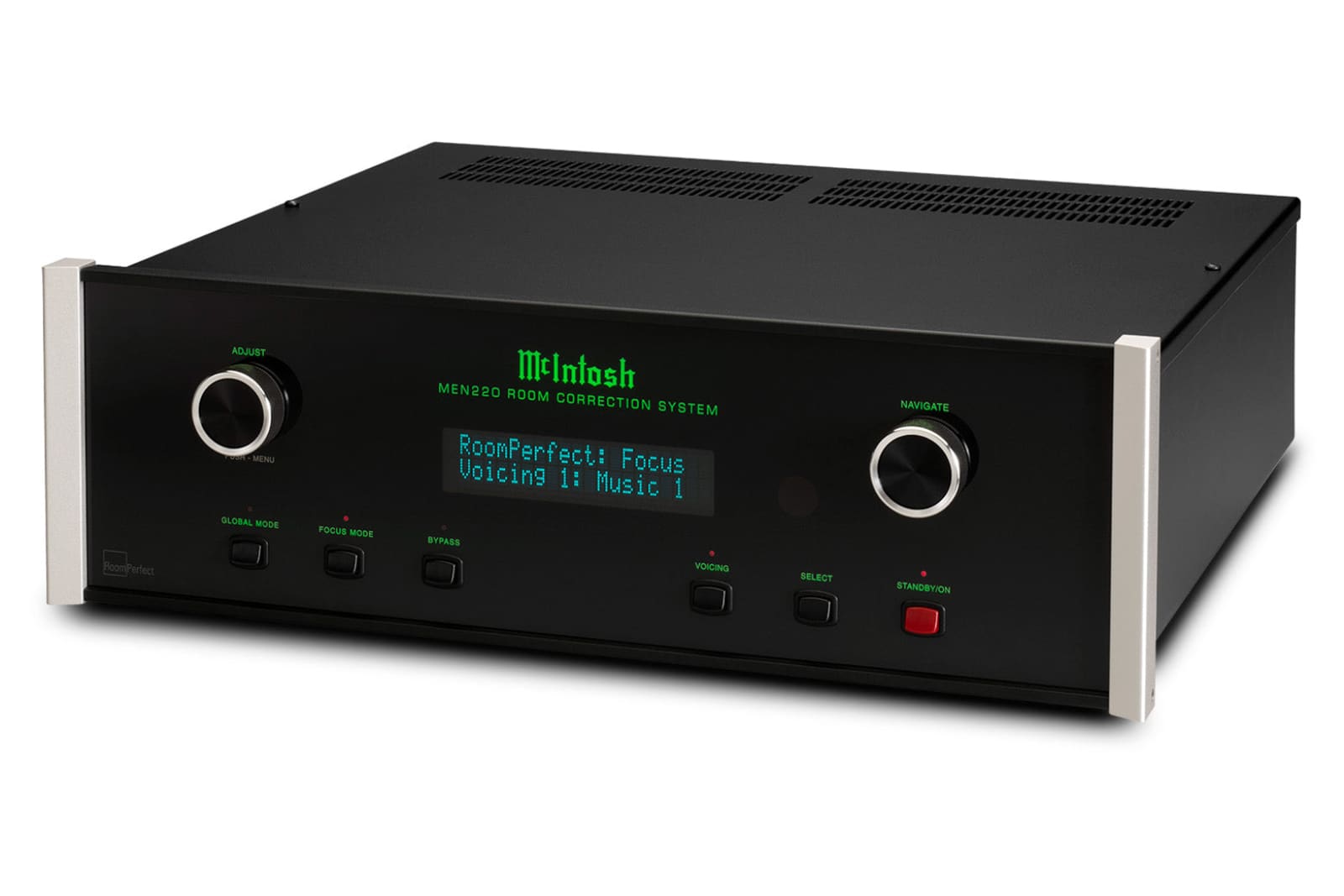

The MEN220 showcases McIntosh's signature design, with a black glass front panel, rotary knobs, push buttons, and an illuminated logo.
Manufactured under license from Lyngdorf Audio A/S. RoomPerfect is a registered trademark and the RoomPerfect logo is a trademark of Lyngdorf Audio A/S. (C) Lyngdorf Audio A/S 2009.
Brand Background:
Founded in 1949, McIntosh is known for offering distinguished home audio systems that deliver the ultimate experience in music and film. Offering products for two-channel stereo sound systems and multi-channel home theaters with surround sound, McIntosh continues to define the ultimate home audio entertainment experience for discriminating listeners around the world. Our iconic blue Watt output meter is globally recognized as a symbol of quality home audio. With a McIntosh home stereo system or home theater, listeners have the ability to create their own luxury audio experience Ð and truly live their music.
McIntosh products are designed and handcrafted at our Binghamton, NY factory by our dedicated employees who share a passion for music and the McIntosh heritage. Since our inception, McIntosh has been powering some of the most important moments in music history and pop culture. From President Lyndon JohnsonÕs inauguration speech to Woodstock to the famous Grateful Dead ÒWall of Sound,Ó McIntosh has not only witnessed history, we have shaped it.

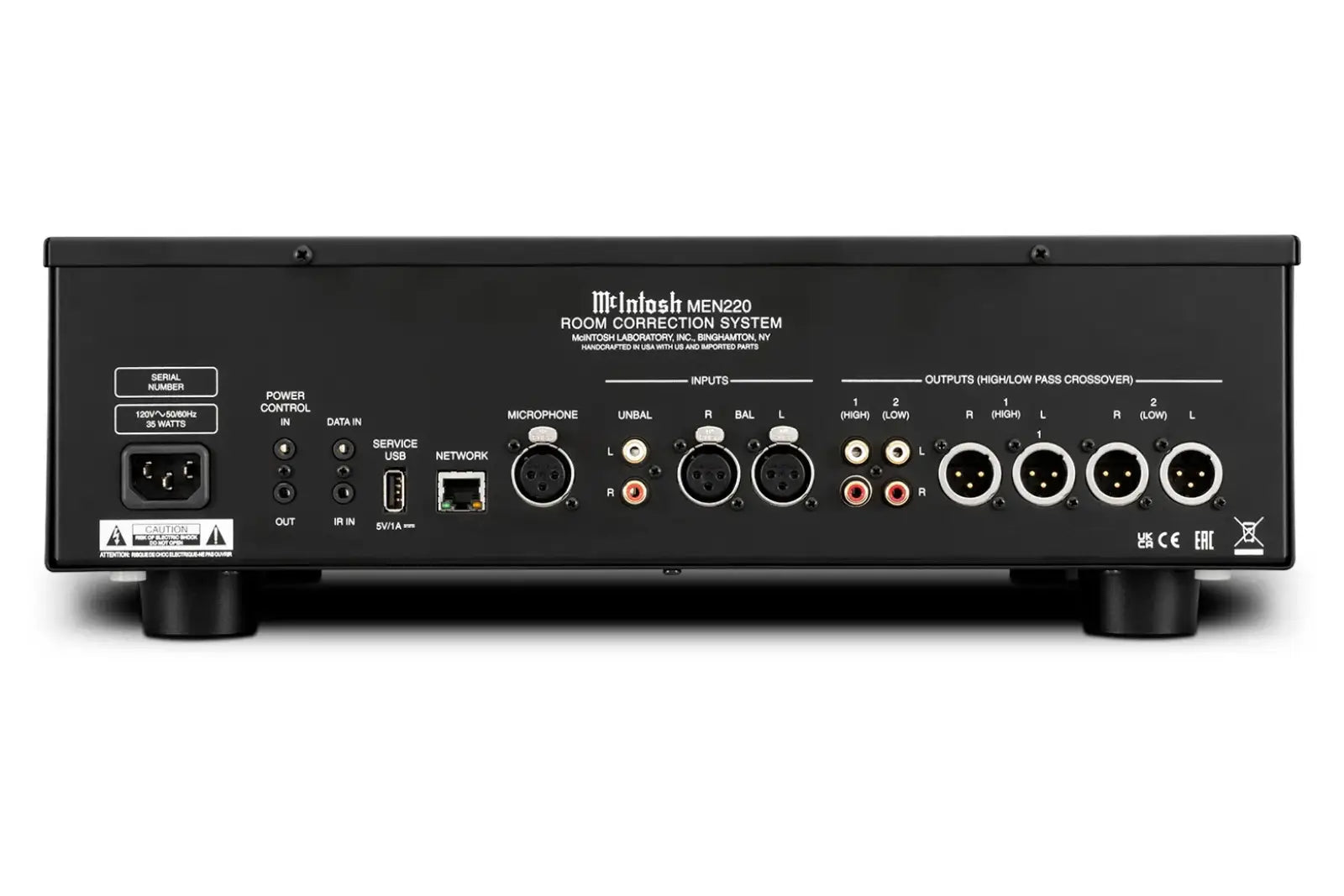

Connections:
RCA and Balanced Inputs and Outputs
Included:

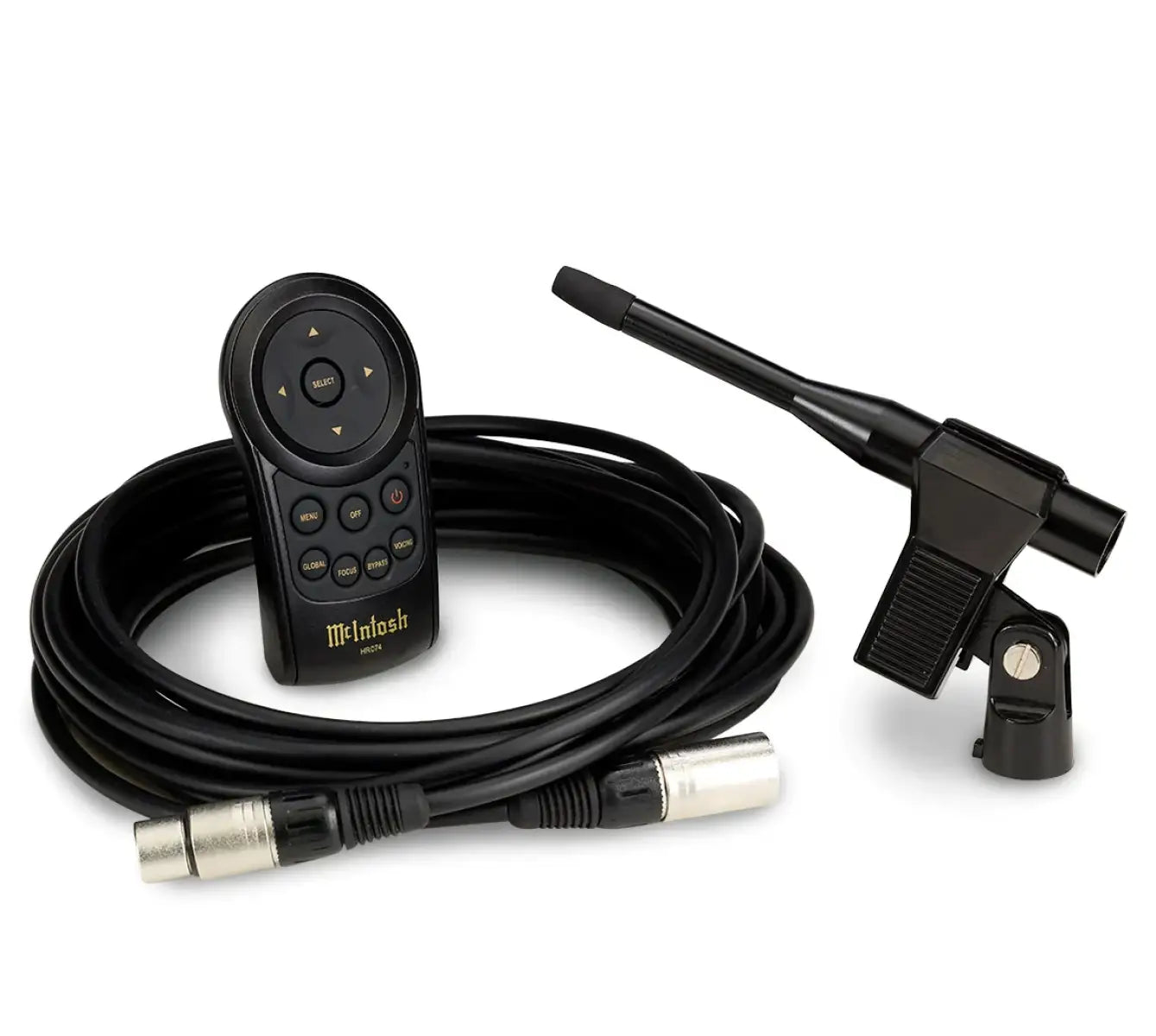

Unit, manual, microphone with cable and remote
Packing:
Factory Sealed McIntosh Carton
Dimensions:
17-1/2" (44.45cm) x 6" (15.24cm) x 16-1/2" (41.9cm)
Unit Weight:
15 lbs (6.8 kg)
Reviews:
and also Click Here
Link to Manual:
Click Here
Recommended Cables:
McIntosh Balanced Audio Cables (XLR)
McIntosh Power Control Cables
Specs:
ELECTRONIC SPECIFICATIONS
NOTE: ALL MEASUREMENTS WITH EQ FILTERS AND OUTPUT FILTERS BYPASSED.
Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz
Total Harmonic Distortion
0.002% from 20Hz to 20,000Hz
Maximum Input Voltage
4.5V Unbalanced and Balanced
Output Voltage
2.0V Unbalanced and Balanced
Maximum Output Voltage
4.5V Unbalanced and Balanced
Signal To Noise Ratio (A-Weighted)
100dB
Input Impedance
10K ohms Unbalanced and Balanced
Voltage Gain
0dB
Output Impedance
50 ohms
Crossover Filter Types, Order and Slope
Butterworth, 1st order, 6dB/octave
Butterworth, 2nd order, 12dB/octave
Butterworth, 4th order, 24dB/octave
Linkwitz-Riley, 2nd order, 12dB/octave
Linkwitz-Riley, 4th order, 24dB/octave
Linkwitz-Riley, 8th order, 48dB/octave
CONNECTIVITY
Balanced Input
1
Balanced Output
1 (High)
1 (Low)
Unbalanced Input
1
Unbalanced Output
1 (High)
1 (Low)
Balanced Microphone Input
1
Network Connection
1
USB Input
1 (For Service Only)
USB Input Type
Type A
CONTROL
Power Control Input
1
Power Control Output
1
Data Input
1
Rear Panel IR Sensor Input
1
GENERAL SPECIFICATIONS
Microphone and stand included
Yes
Power Requirement
120V ~ 50/60Hz at 35 watts
Standby Power Requirement
<0.5 Watts
