General:

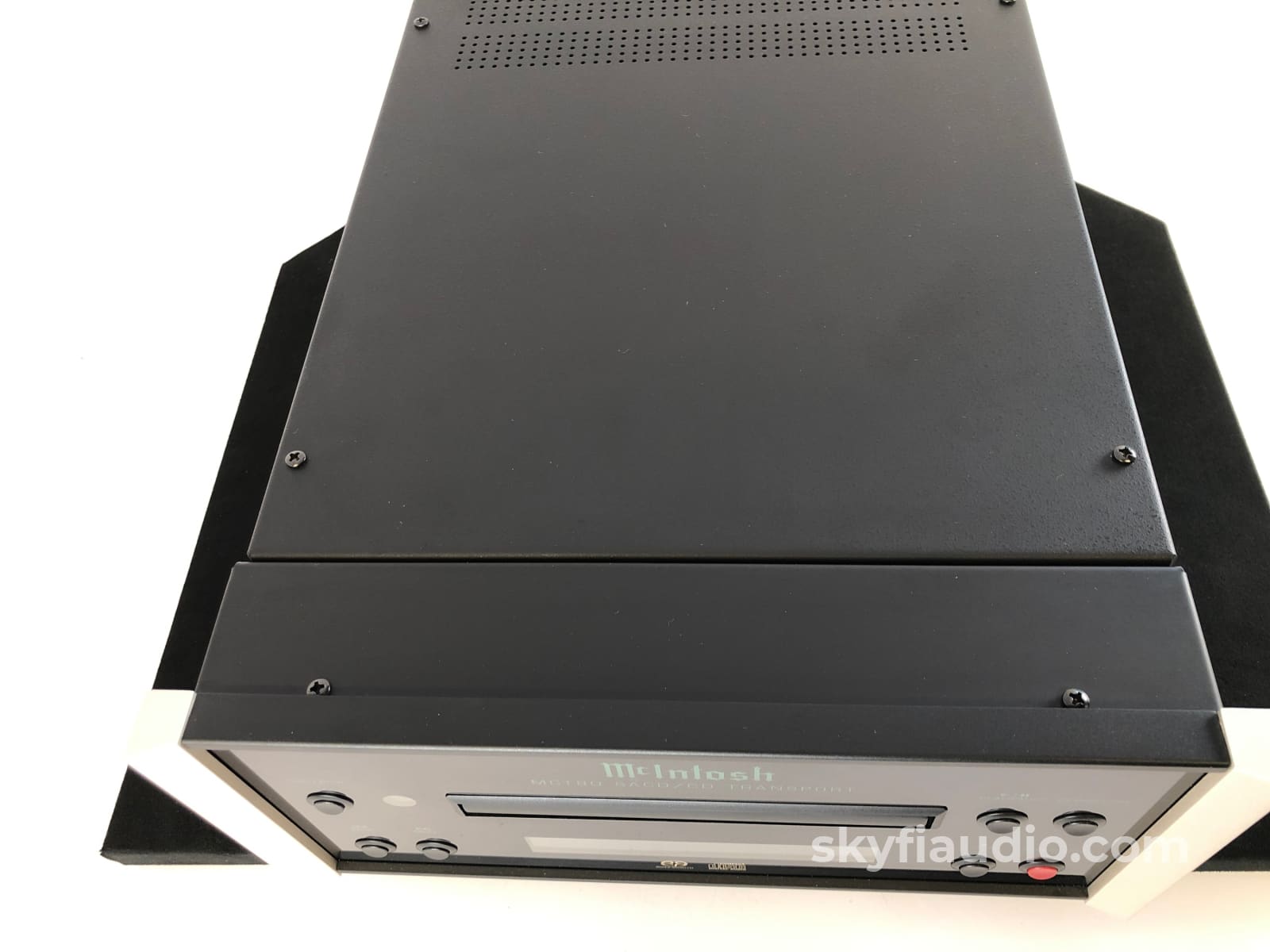

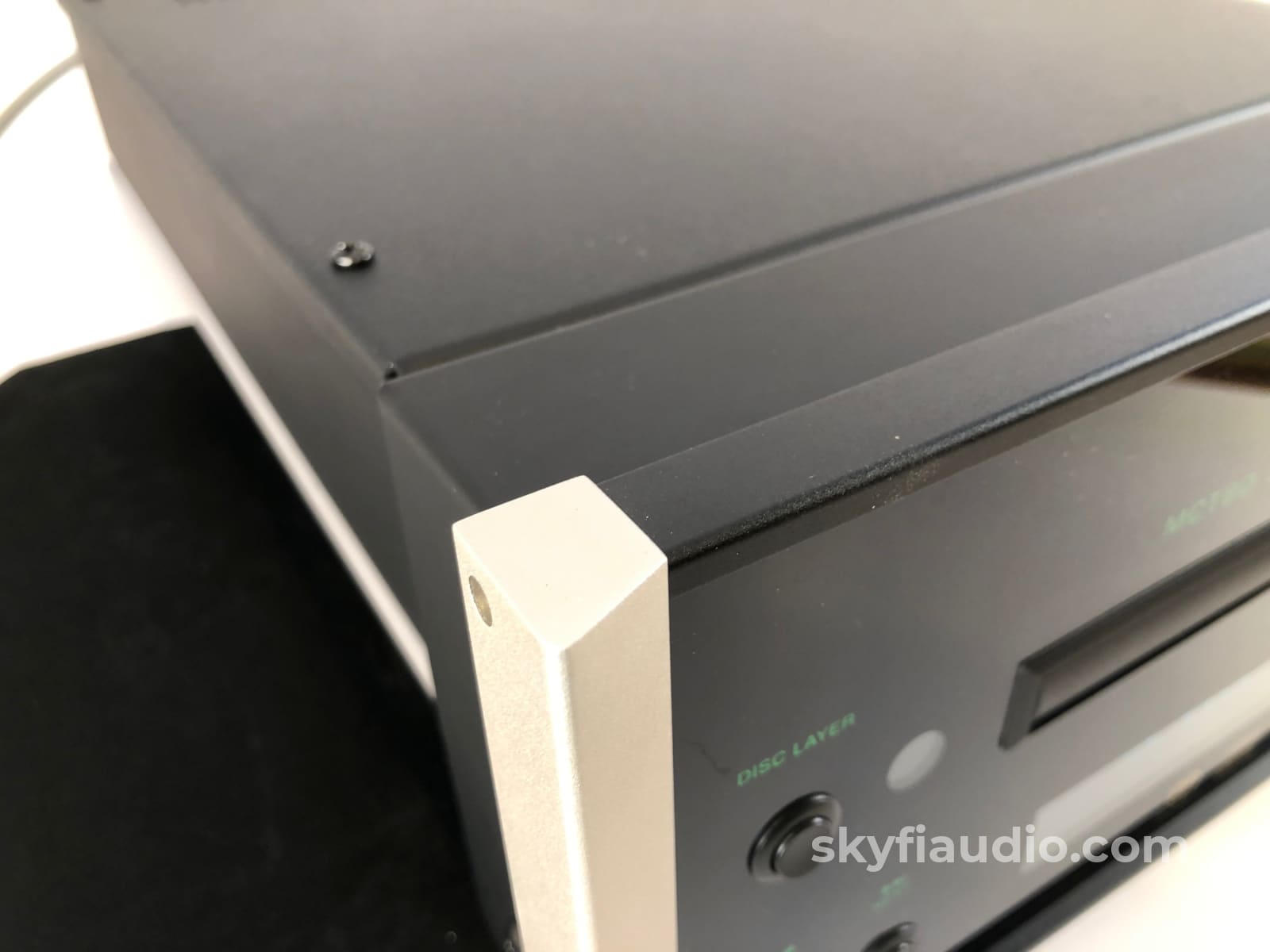

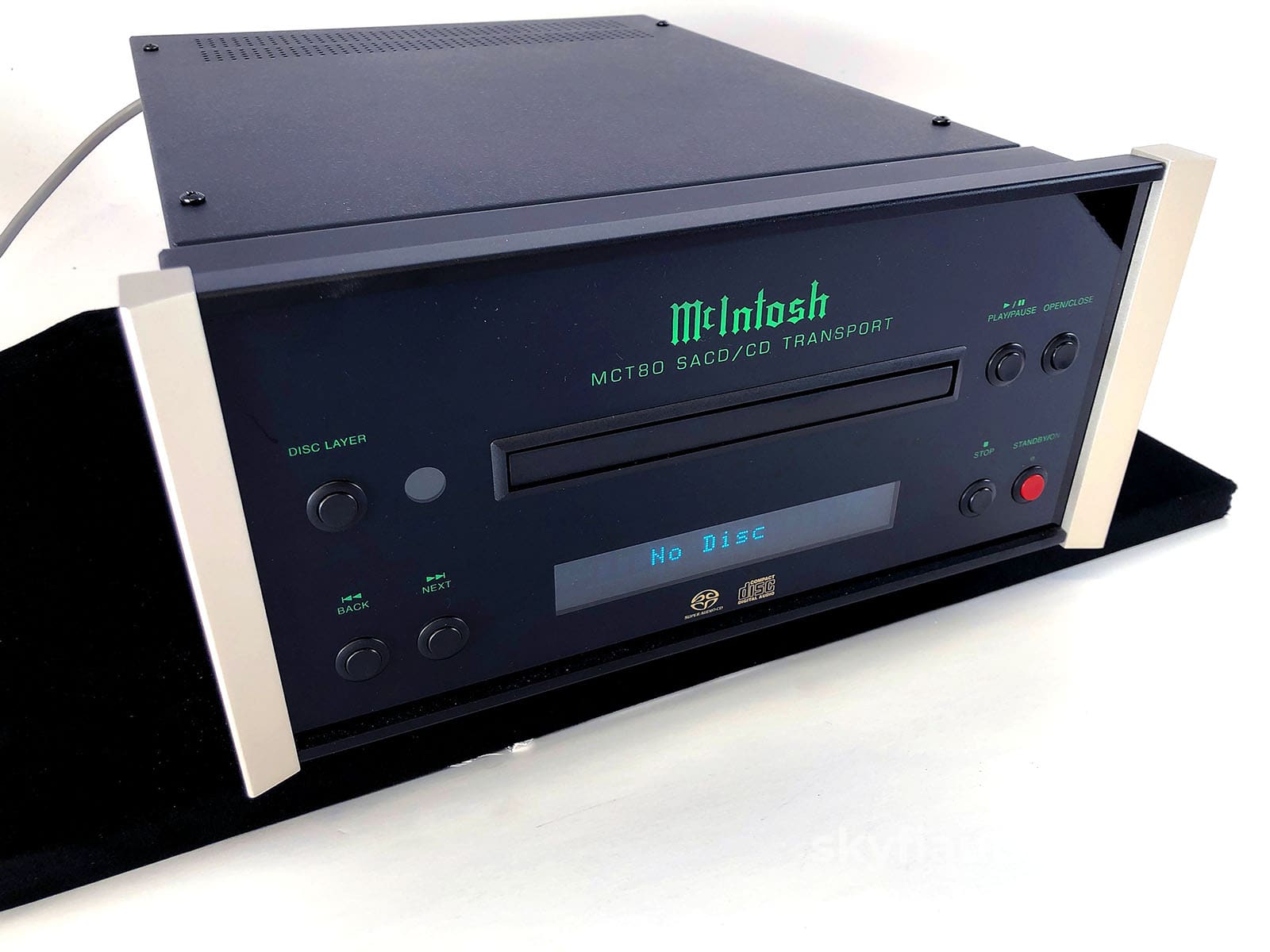

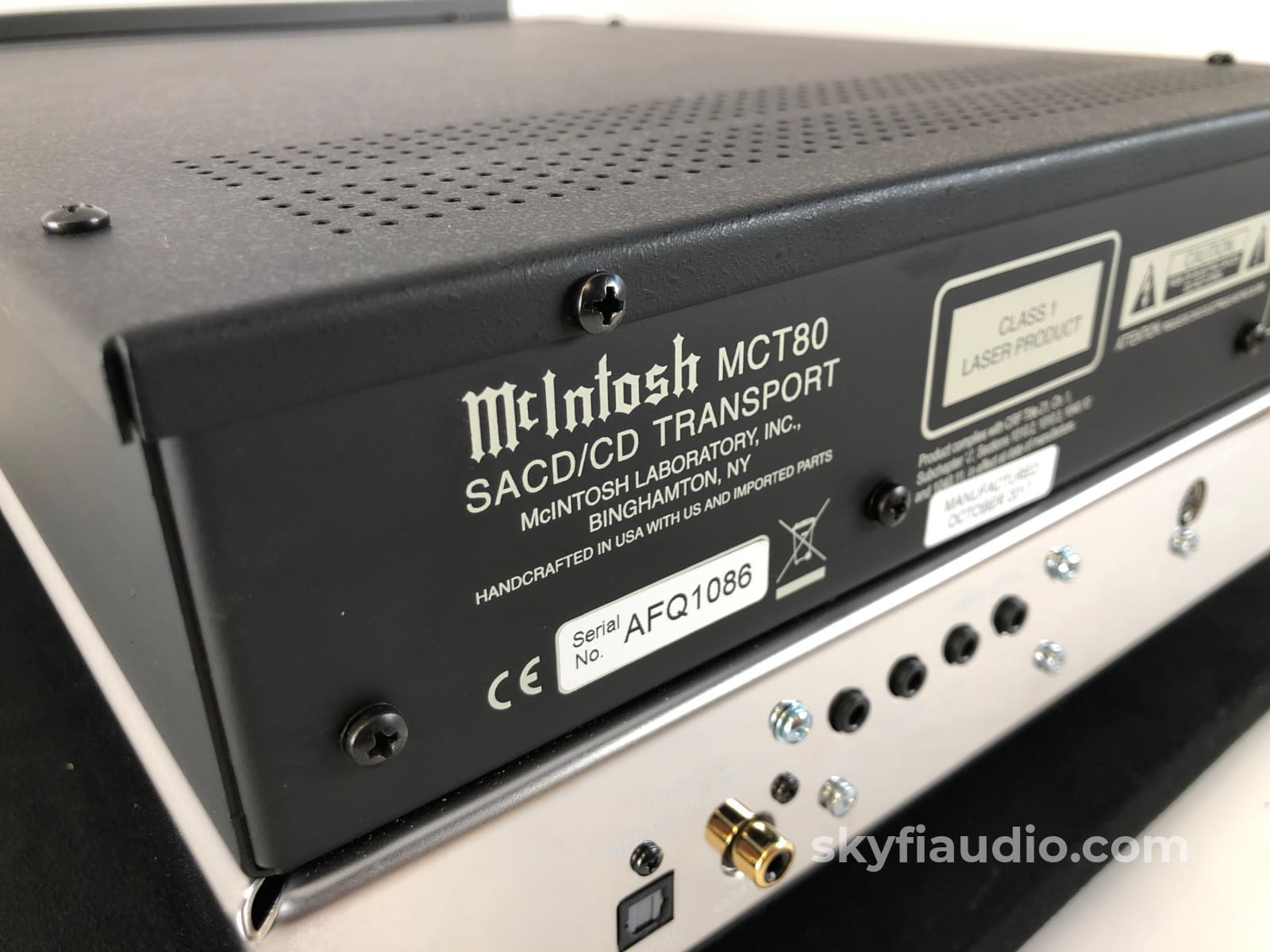

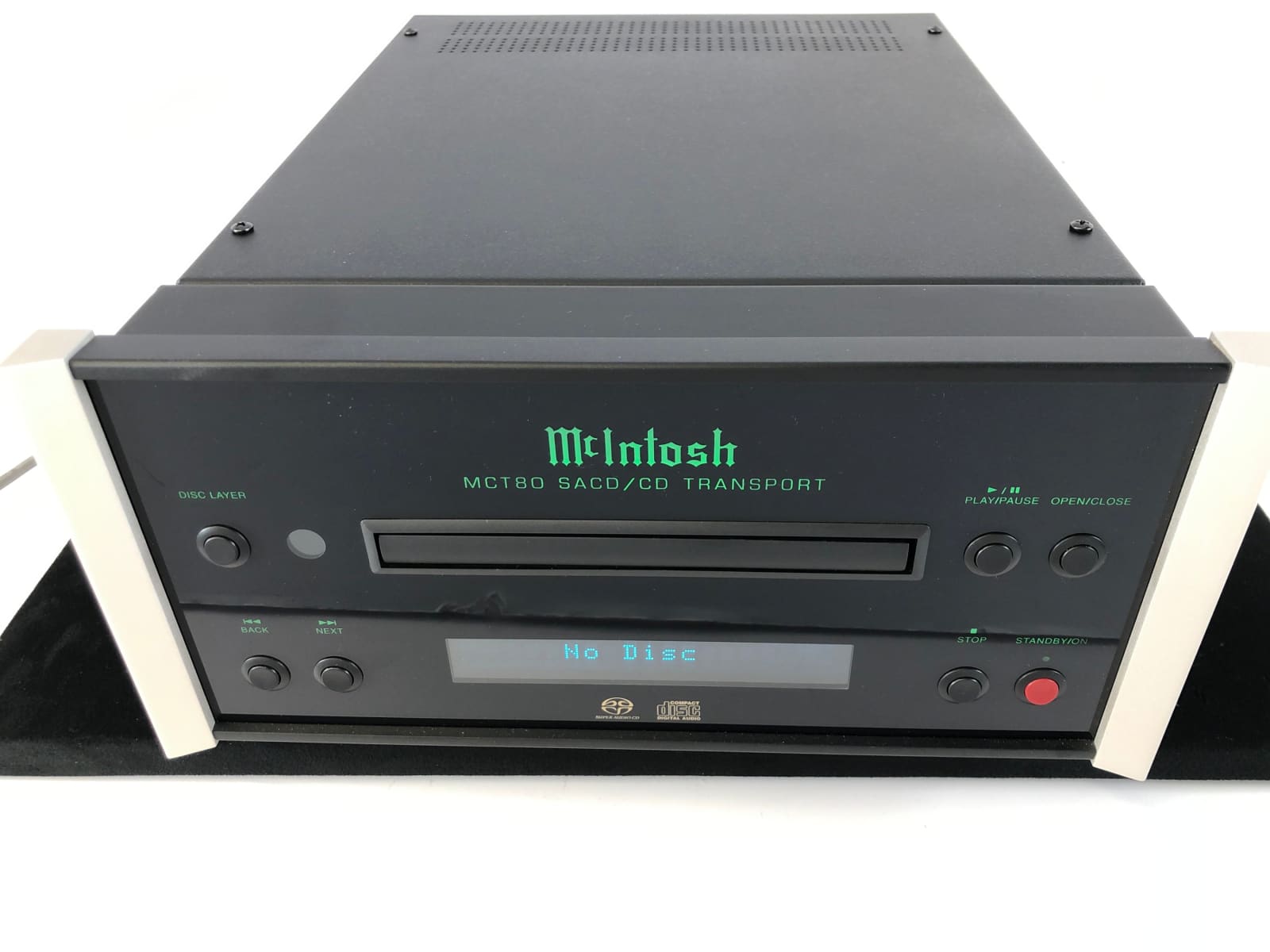

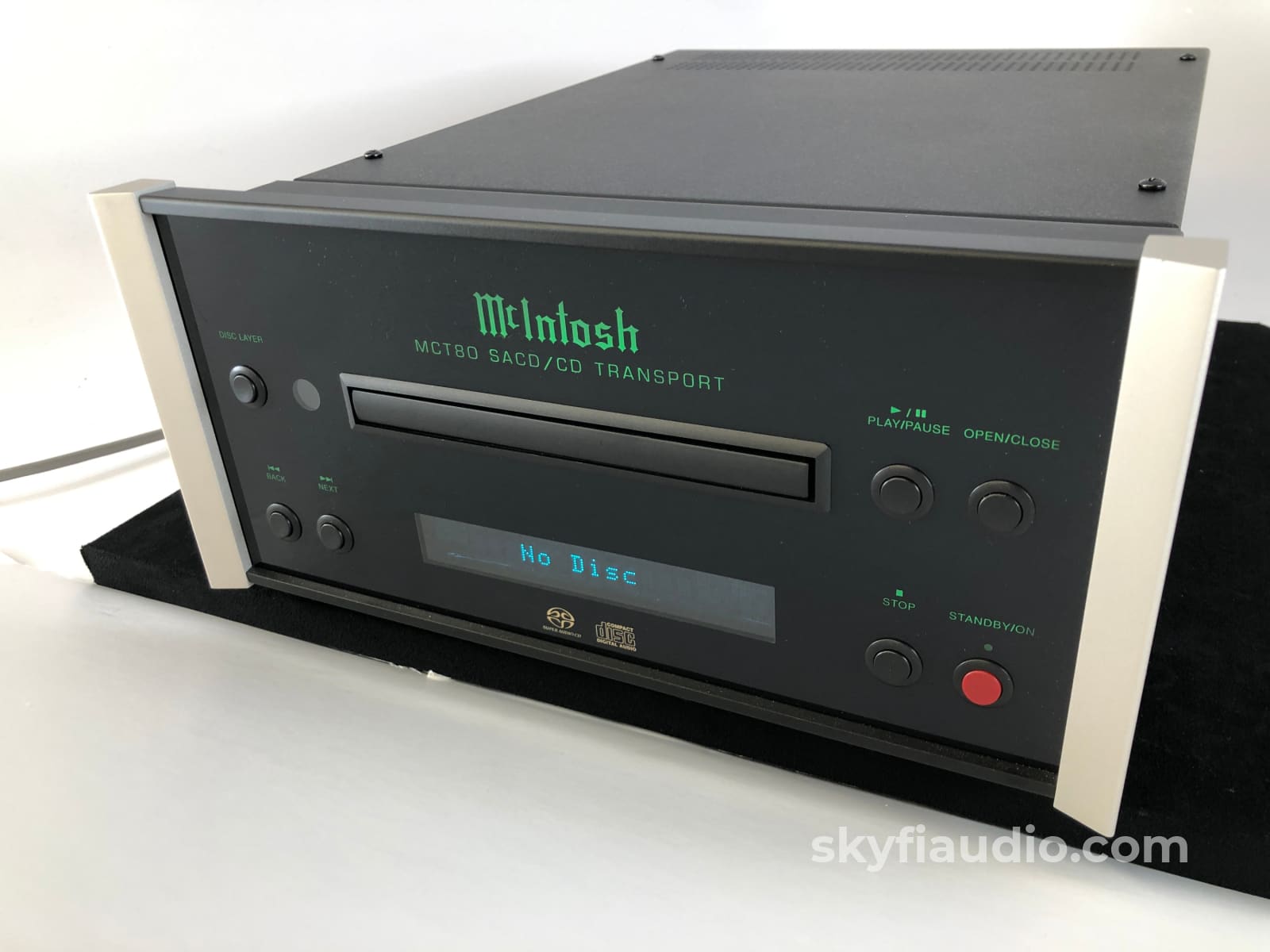

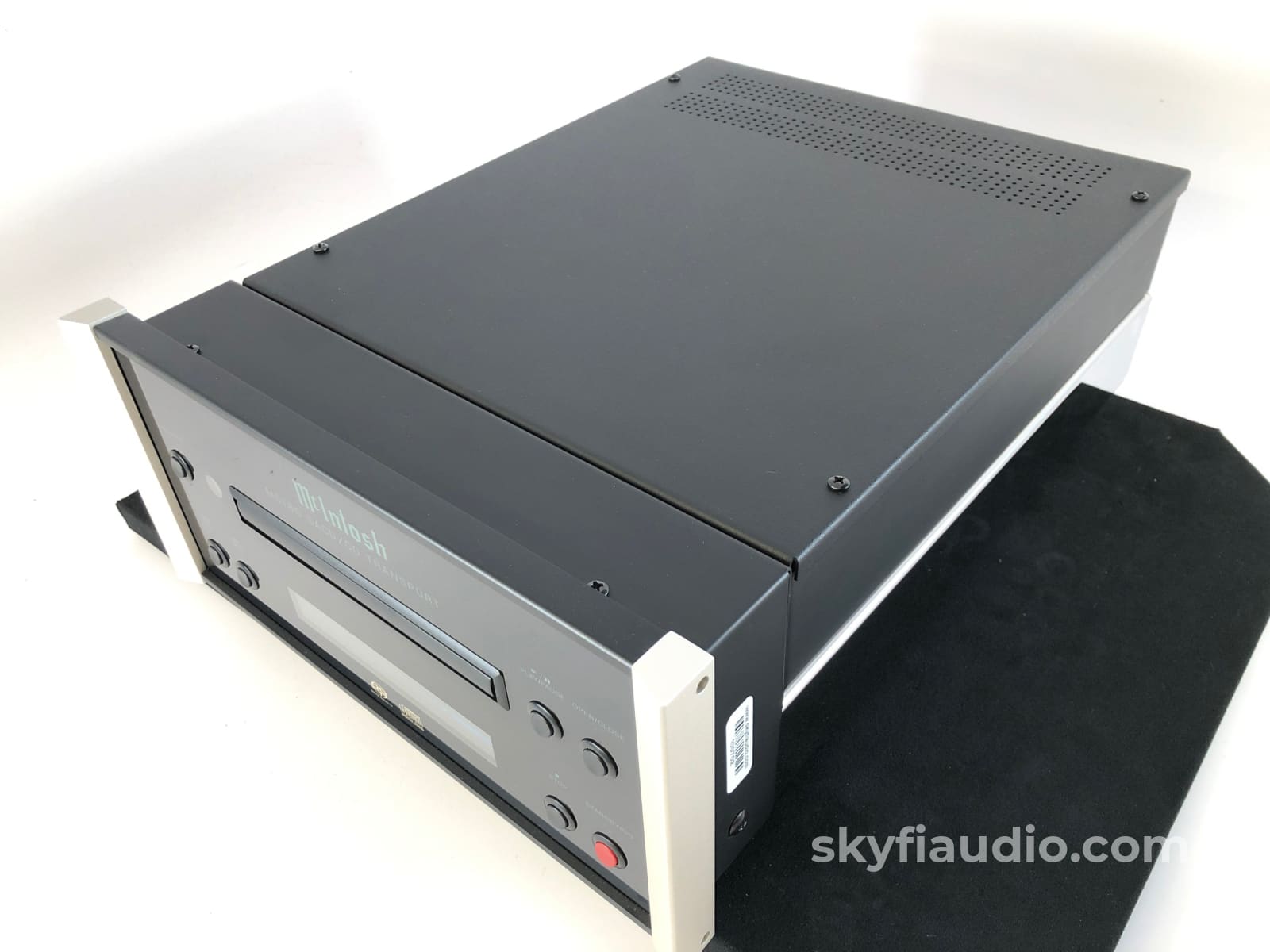

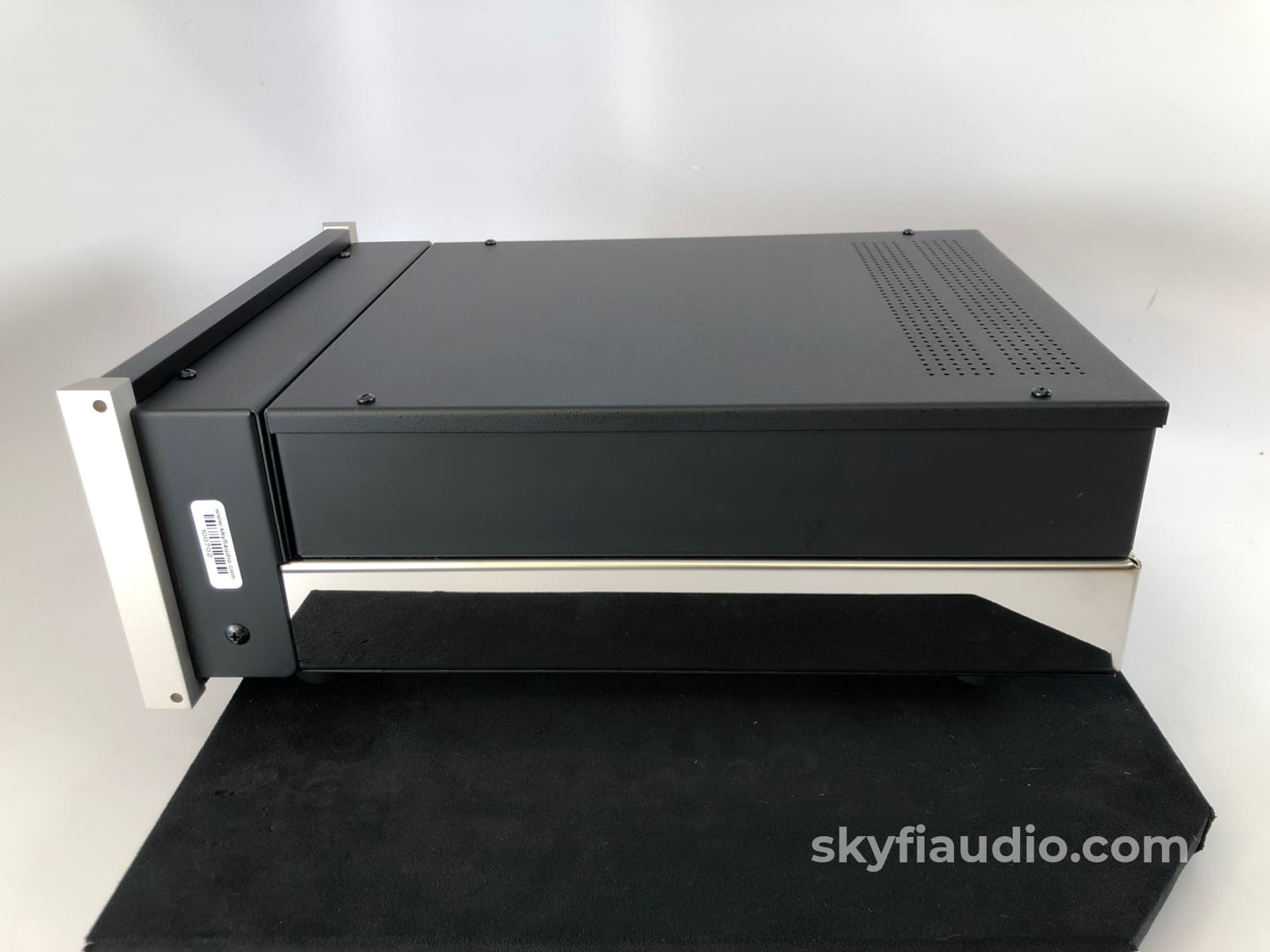

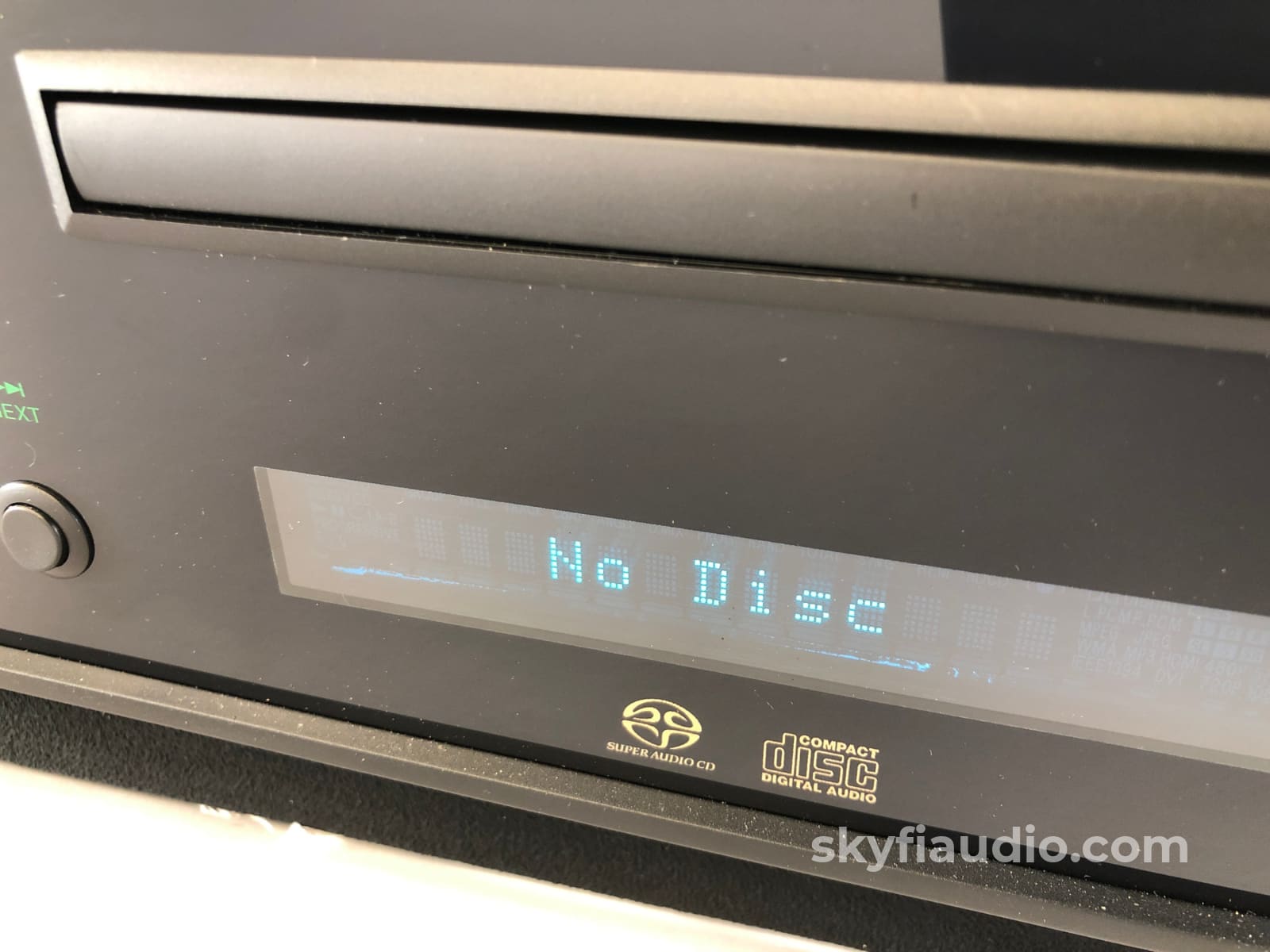

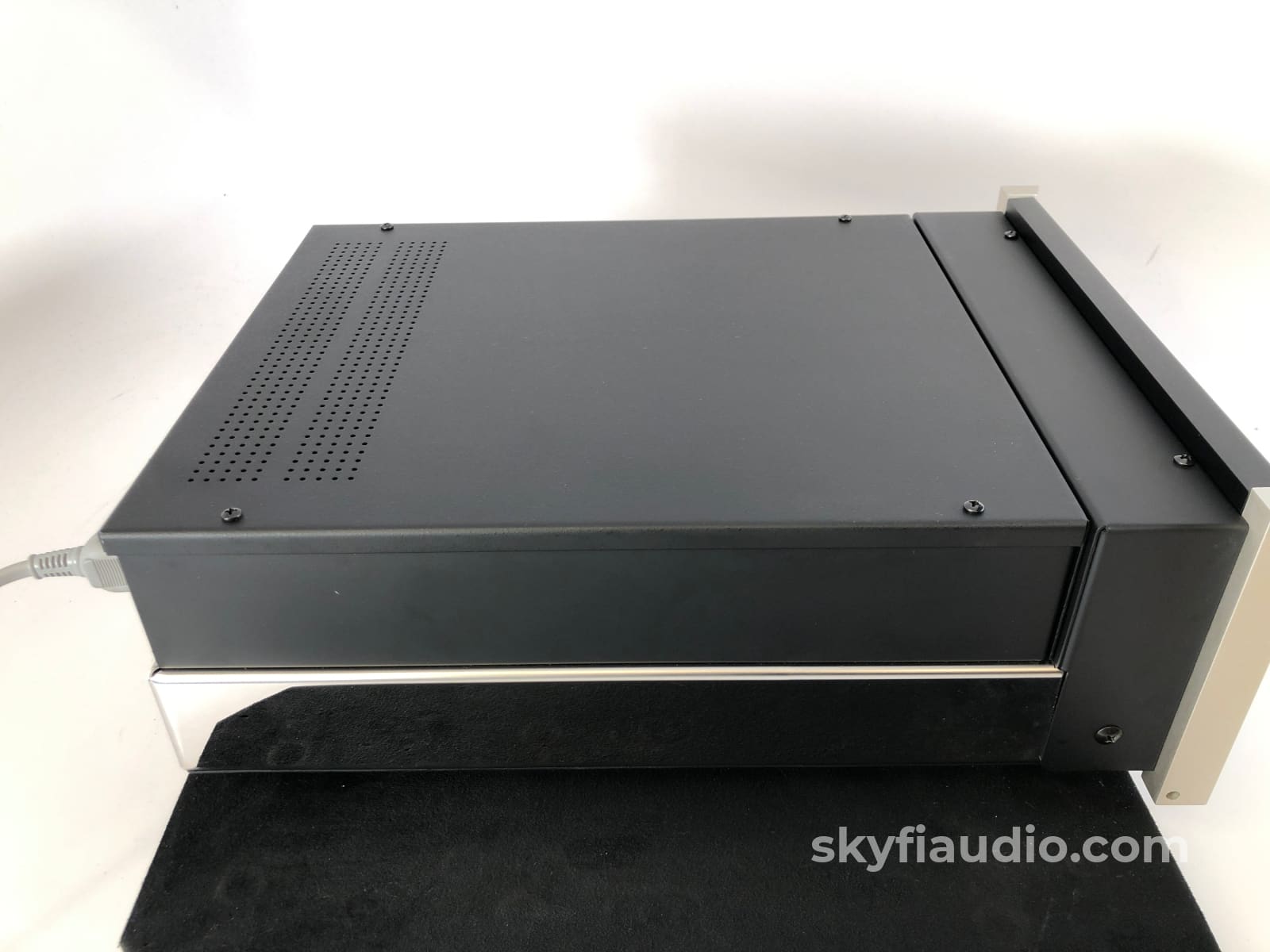

Super clean pre-owned MCT80 SACD/CD Transport.

Just received a new set of belts and a health check-up against full manufacturer specs to make sure its good to go.

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Kimber Kable - Coaxial Digital Interconnect

Kimber Kable - Optical Digital Interconnect

Kimber Kable - Power Cords

More from McIntosh:
Enjoy your CDs all over again with the MCT80 SACD/CD Transport. The MCT80 was designed to perfectly match our smaller sized MXA80 Integrated Audio System, MHA150 Headphone Amplifier, MB50 Streaming Audio Player and MP100 Phono Preamplifier (each sold separately) to make a comprehensive yet compact audio system.

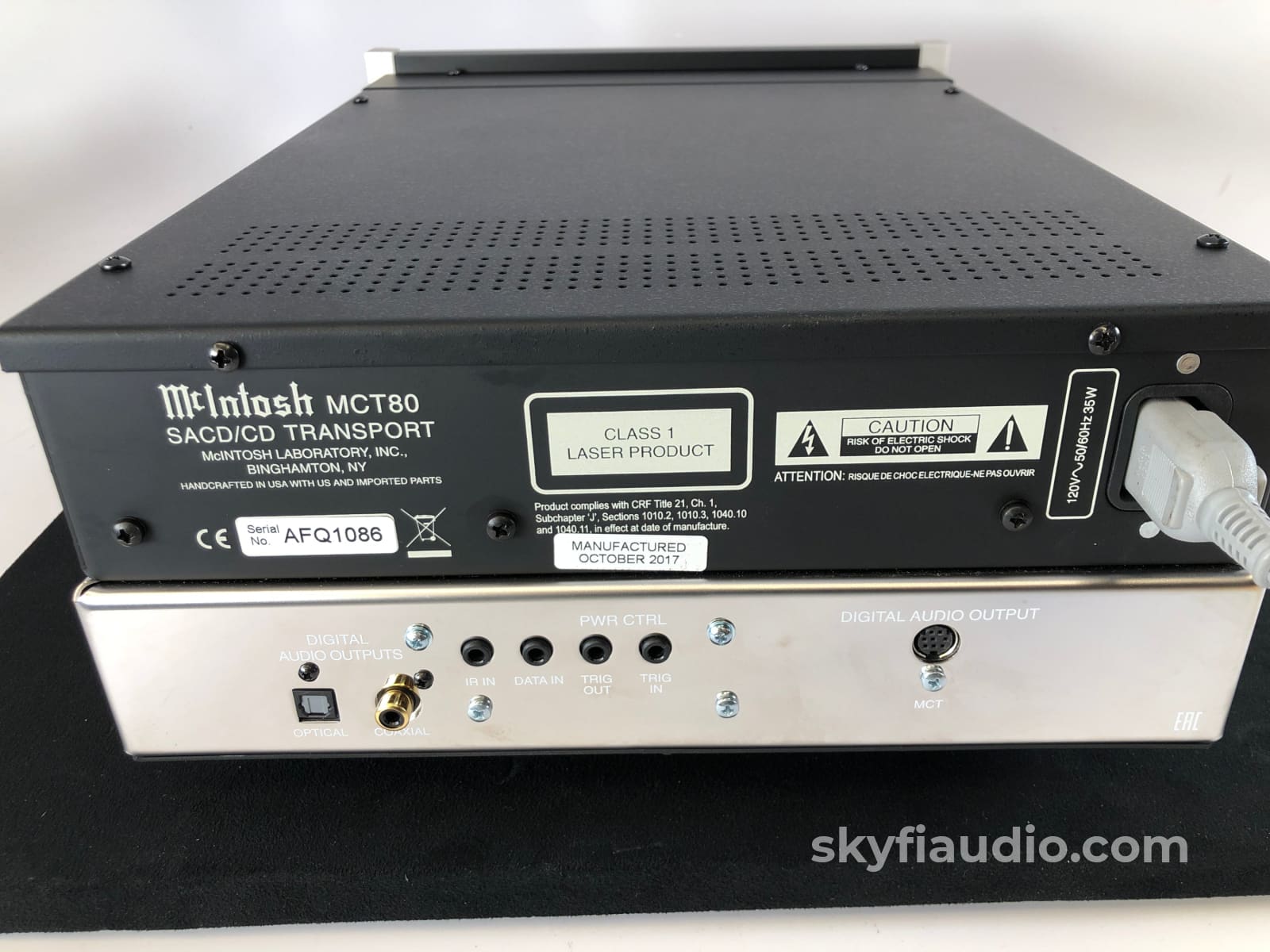

The MCT80 includes 3 digital-only outputs in the form of 1 coax and 1 optical connector along with 1 of our proprietary MCT connectors.

The MCT output offers a secure DSD connection for playback of the high definition audio on SACDs up to DSD128 levels. To take advantage of the MCT80’s unique SACD capabilities, it must be used with select McIntosh models that have an MCT input – which includes the aforementioned MXA80 and MHA150, plus the D1100, C53, C2700, C49 and D150 Preamplifiers as well as the MA9500, MA8950, MA7200 and MA5300 Integrated Amplifiers.

The coax and optical outputs support CD audio formats up to 24-bit/192kHz. For listening to CDs, the MCT80 can be used with any product that contains a digital coax or optical input and a Digital to Analog Converter (DAC).

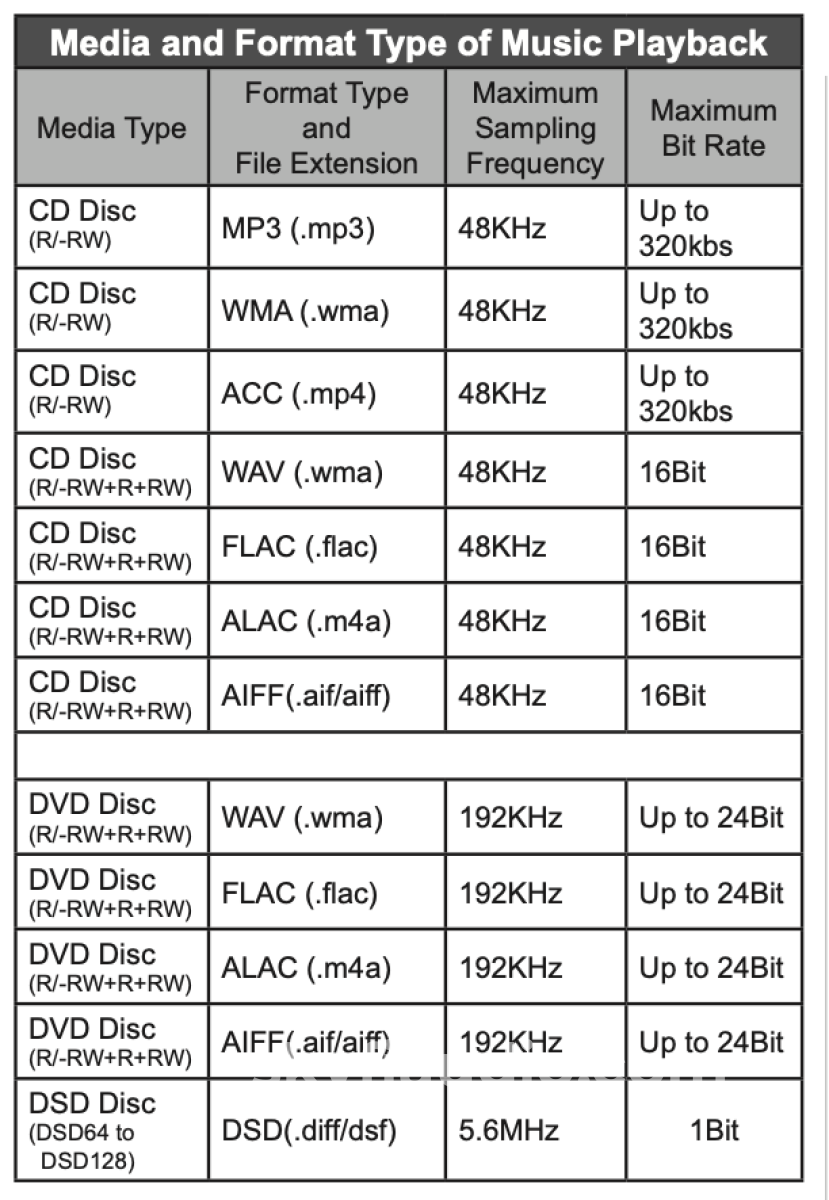

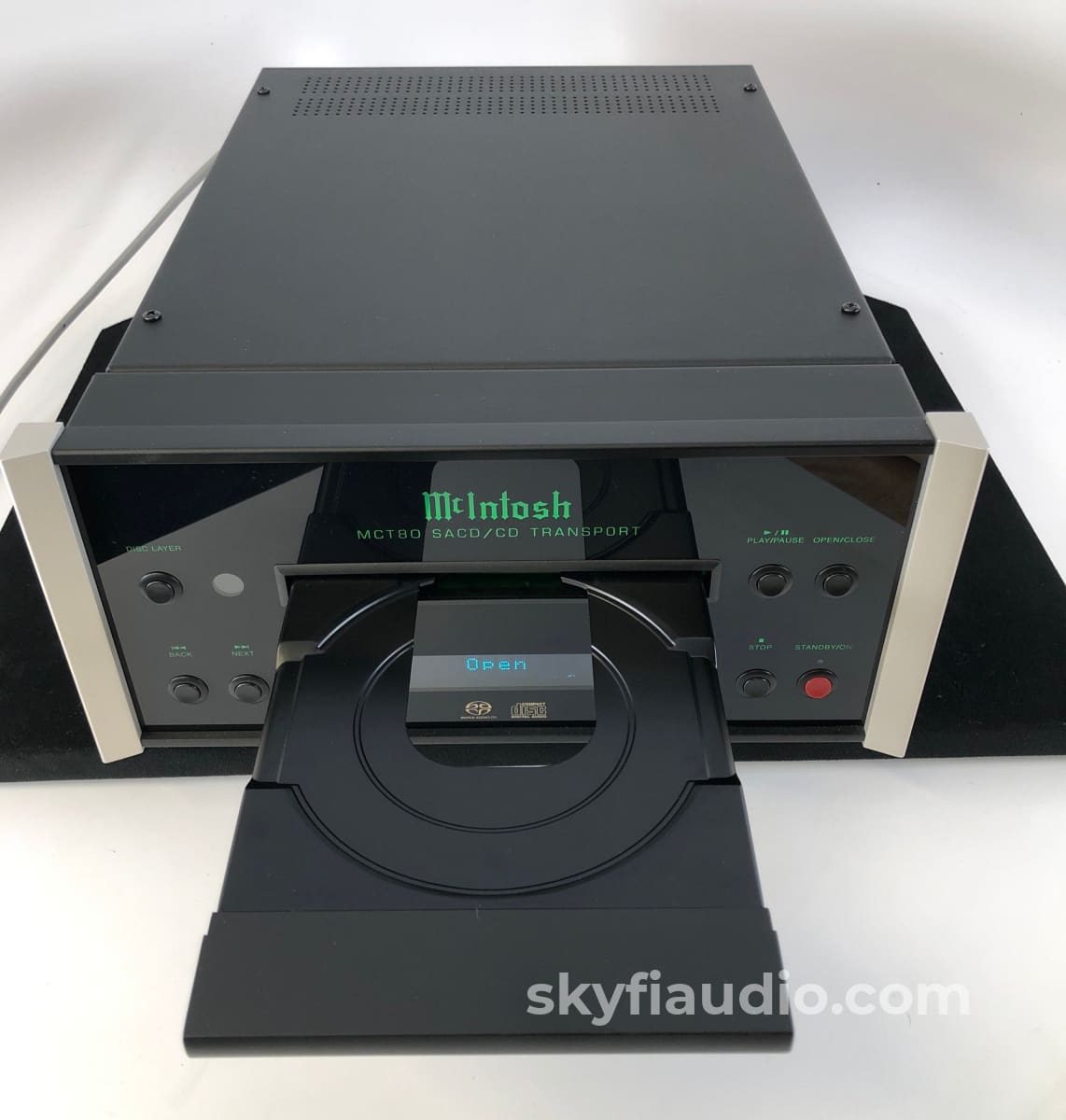

The MCT80 features an improved transport with a die-cast aluminum tray in conjunction with an advanced digital servo for faster, quieter and accurate operation. All common disc types can be played including SACD, CD, CD-R, CD-RW (MP3 and WMA) and user generated DVD or CD Data Discs with music file formats including DSD (up to DSD128), WAV (up to 24-bit/192kHz), FLAC, MP3 and others. A disc’s audio data is read at twice the normal rate insuring better disc tracking and error correction processing. A twin laser optical pickup assures optimal disc reading. Power control and data ports integrate the MCT80's operational state with other McIntosh system components. It’s wrapped in classic McIntosh styling with a polished stainless steel chassis, black glass front panel, illuminated logo and aluminum end caps. Contact your local dealer to learn more.

McIntosh Performance Features Include:
• Twin Laser Pickup
The MCT80 incorporates two laser elements, with different wavelengths, that are focused through one lens assembly. This unique design allows reading both the CD and Super Audio Compact Disc (SACD) Discs Formats.

• Advanced Transport
The MCT80 has a new transport with a Die Cast Tray. It has the latest in advanced digital servo for faster, quieter and accurate operation. The Disc Audio Data is read at twice the normal rate insuring better disc tracking and error correction processing.

• Advanced Digital MCT Output
A unique Digital MCT Output connects to McIntosh Integrated Amplifier or Preamplifier with a Digital MCT Connector for the purist possible sound quality.

• Digital Audio Outputs
The MCT80 Digital Outputs include MCT, Coaxial, and Optical Connections.

• Special Power Supply
The Digital Power Supply and Multiple Regulators en- sure stable noise free operation even though the power line varies.

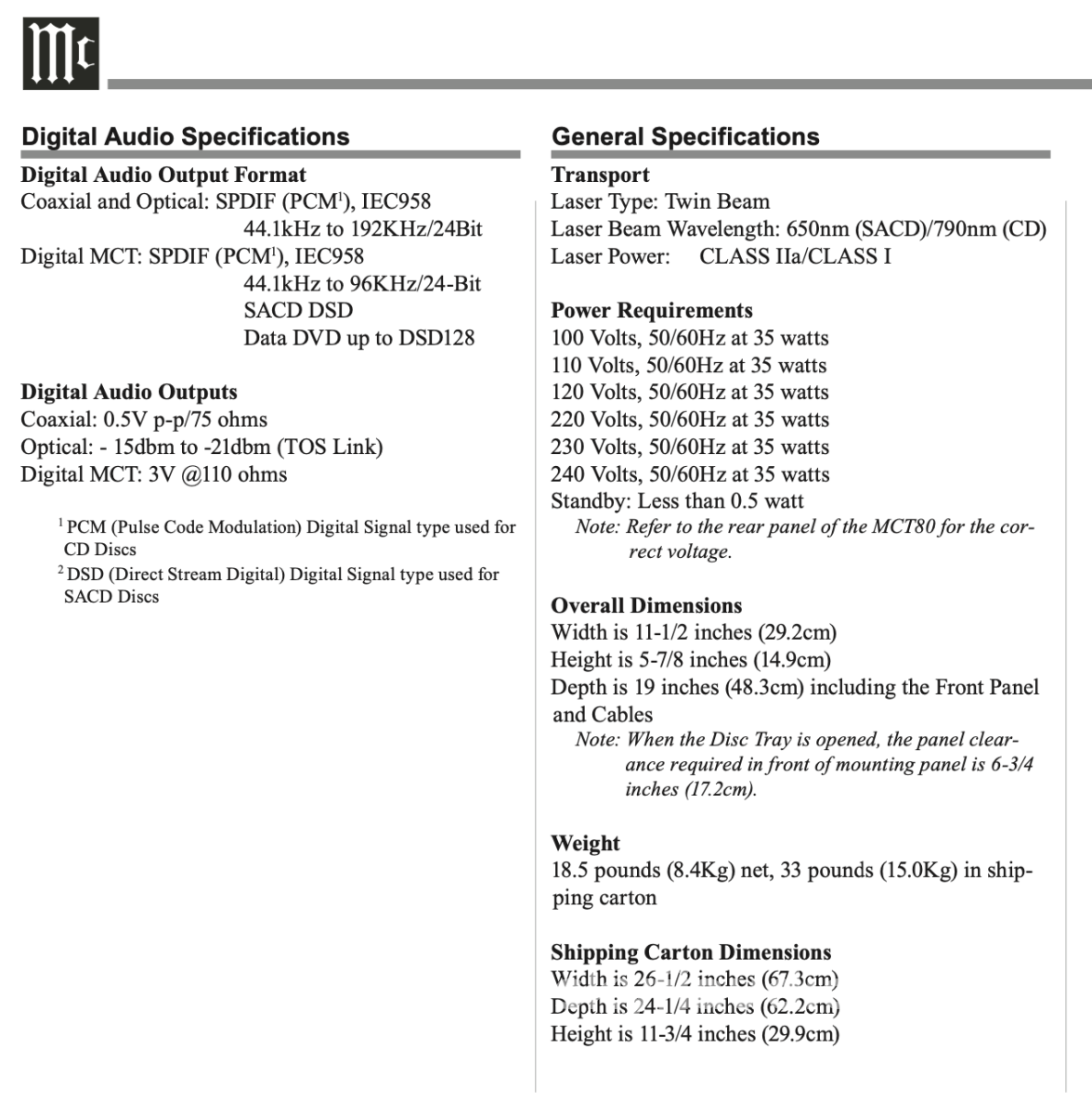

Specifications
Digital Audio Specifications
Digital Audio Output Format

Coaxial and Optical:
• SPDIF (PCM *1*), IEC958 44.1kHz to 192KHz/24Bit

Digital MCT:
• SPDIF (PCM*1*), IEC958
• 44.1kHz to 96KHz/24-Bit
• SACD DSD
• Data DVD up to DSD128

Digital Audio Outputs
• Coaxial: 0.5V p-p/75 ohms
• Optical: - 15dbm to -21dbm (TOS Link)
• Digital MCT: 3V @110 ohms

*1* PCM (Pulse Code Modulation) Digital Signal type used for CD Discs
*2* DSD (Direct Stream Digital) Digital Signal type used for SACD Discs

General Specifications
Transport
Laser Type:
Twin Beam

Laser Beam Wavelength:
650nm (SACD)
790nm (CD)

Laser Power:
CLASS IIa/CLASS I

Power Requirements:
120 Volts, 50/60Hz at 35 watts
Standby: Less than 0.5 watt

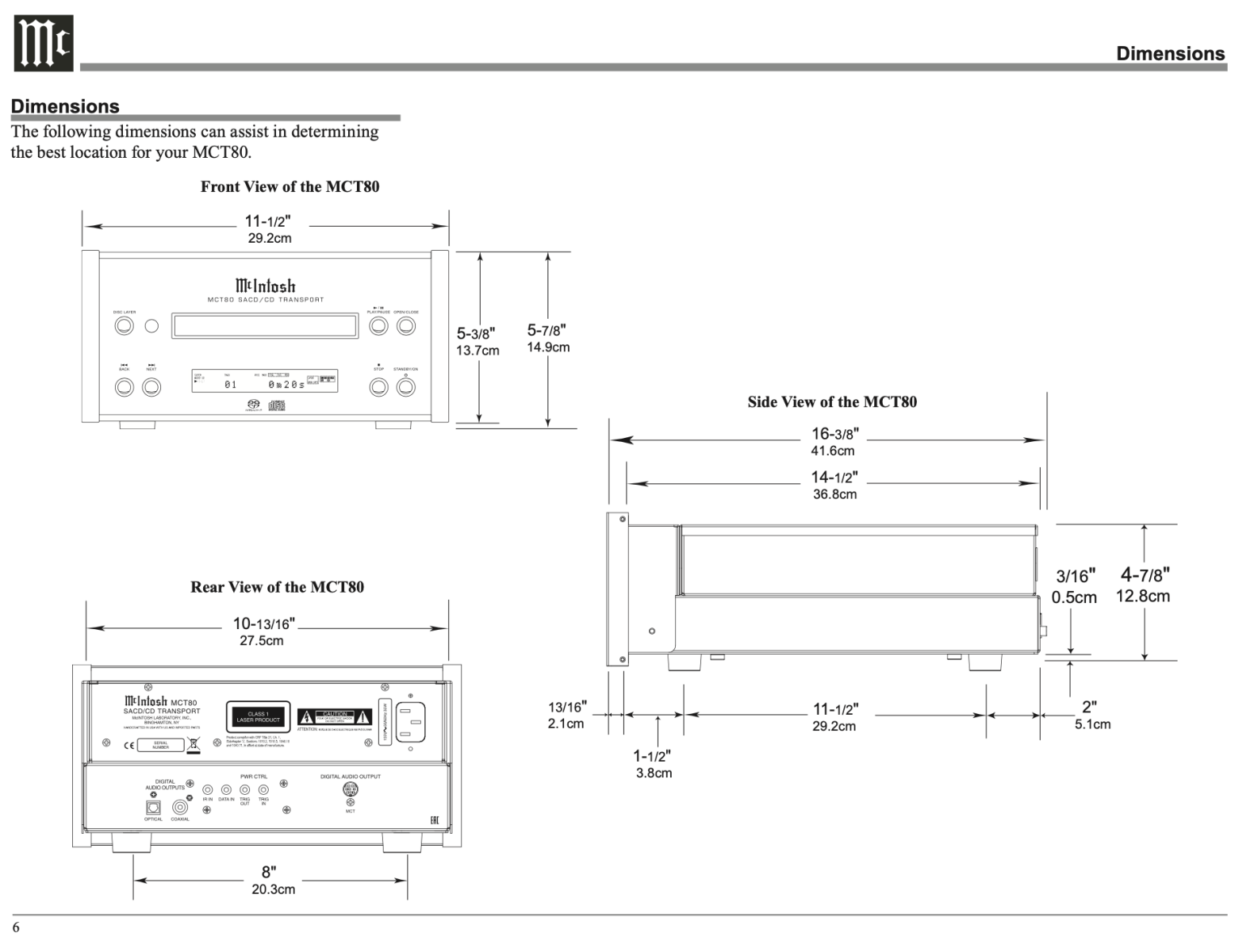

Overall Dimensions:
Width is 11-1/2 inches (29.2cm)
Height is 5-7/8 inches (14.9cm)
Depth is 19 inches (48.3cm) including the Front Panel and Cables

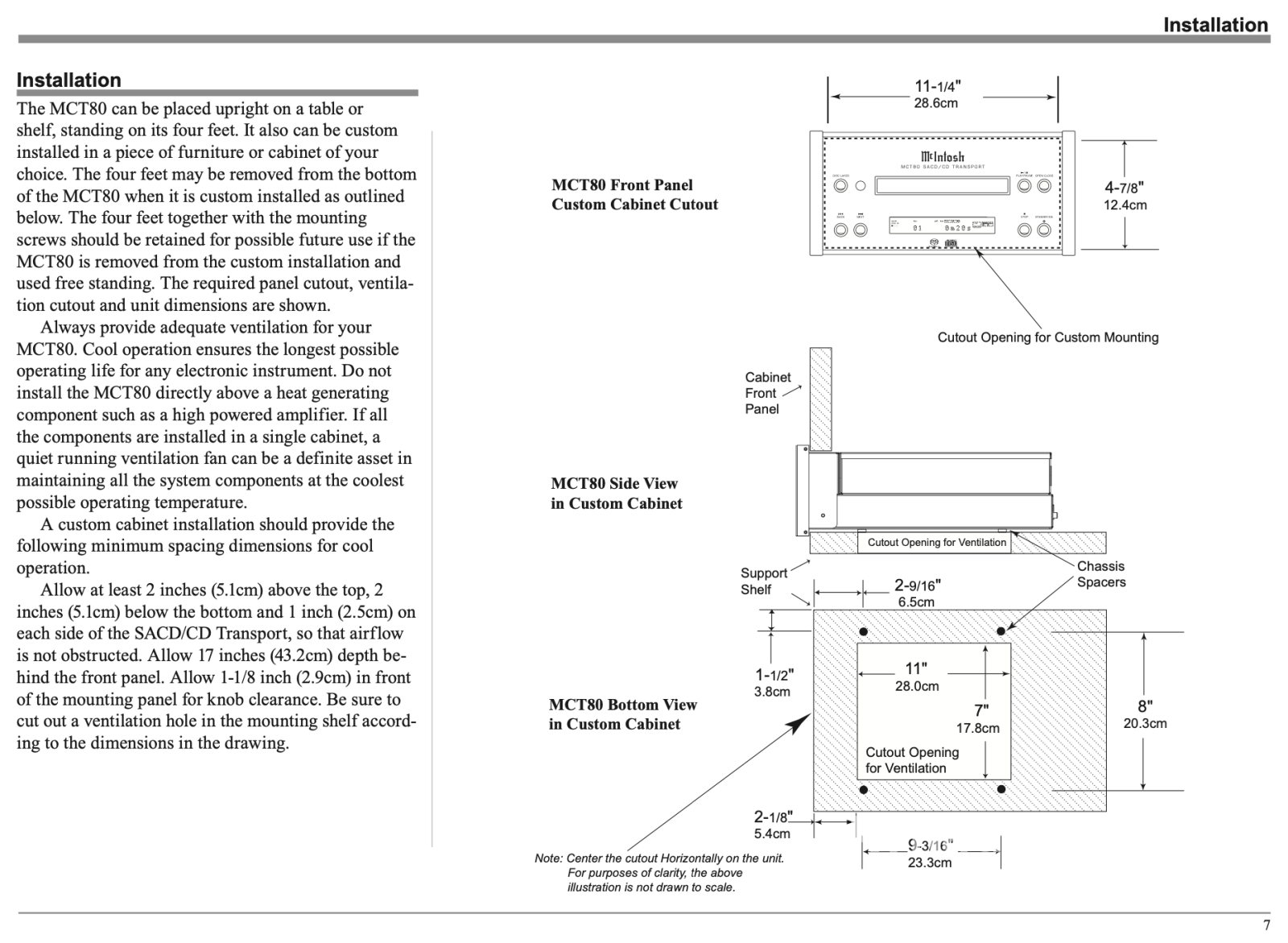

Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).

Weight:
18.5 pounds (8.4Kg) net
33 pounds (15.0Kg) in shipping carton

Shipping Carton Dimensions:
Width is 26-1/2 inches (67.3cm)
Depth is 24-1/4 inches (62.2cm)
Height is 11-3/4 inches (29.9cm)

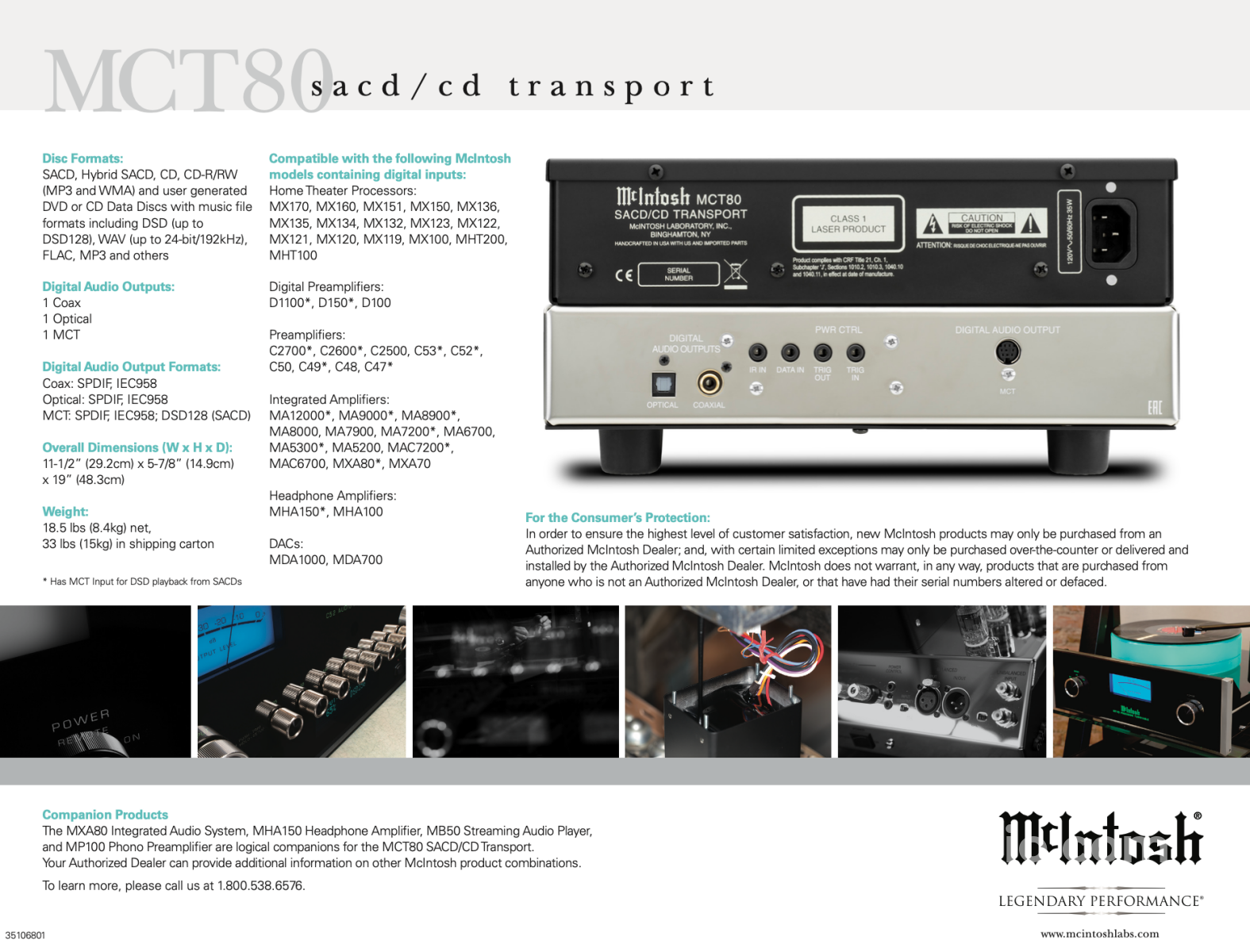

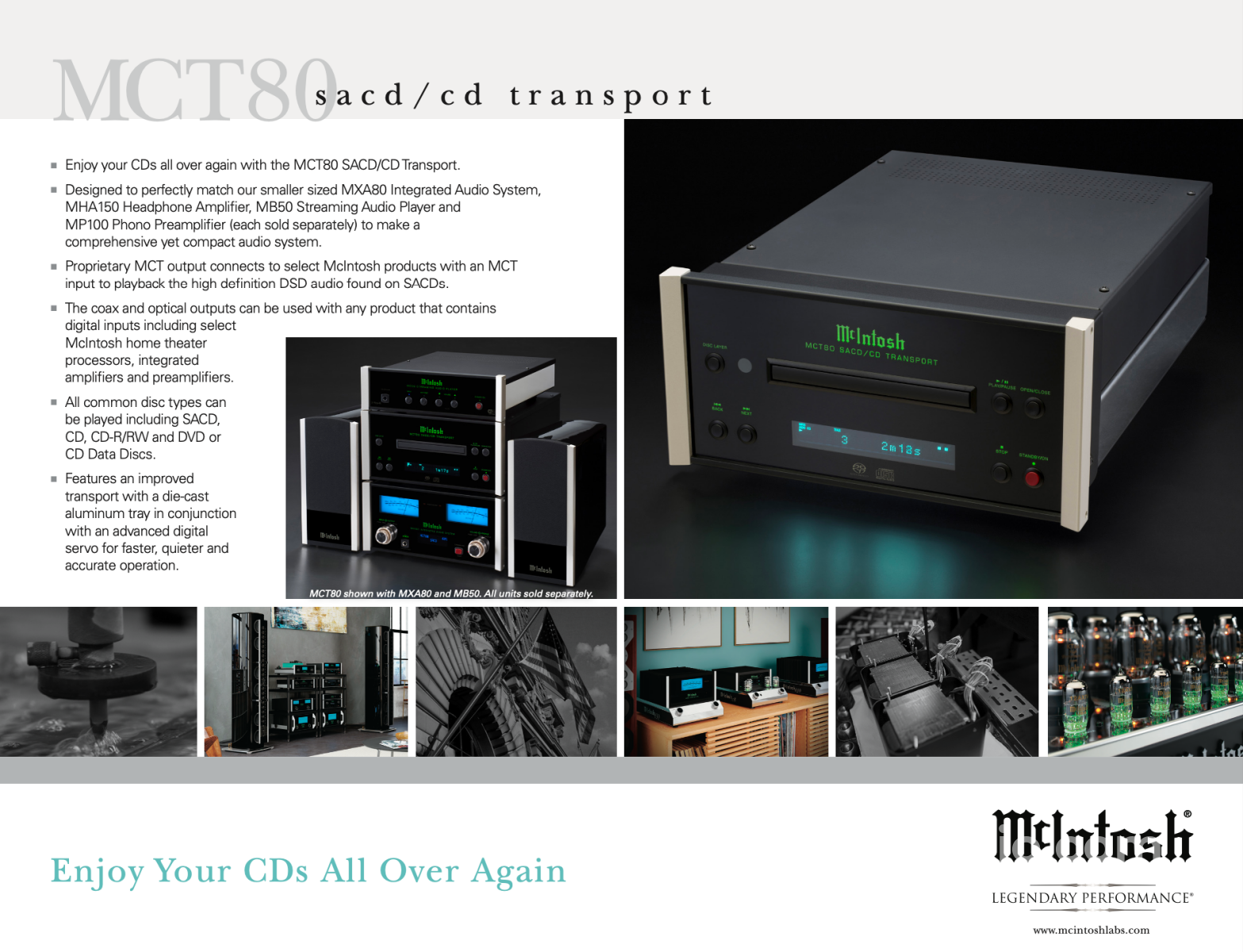

MCT80 SACD/CD Transport Brochure - Sales Brochure and Specs

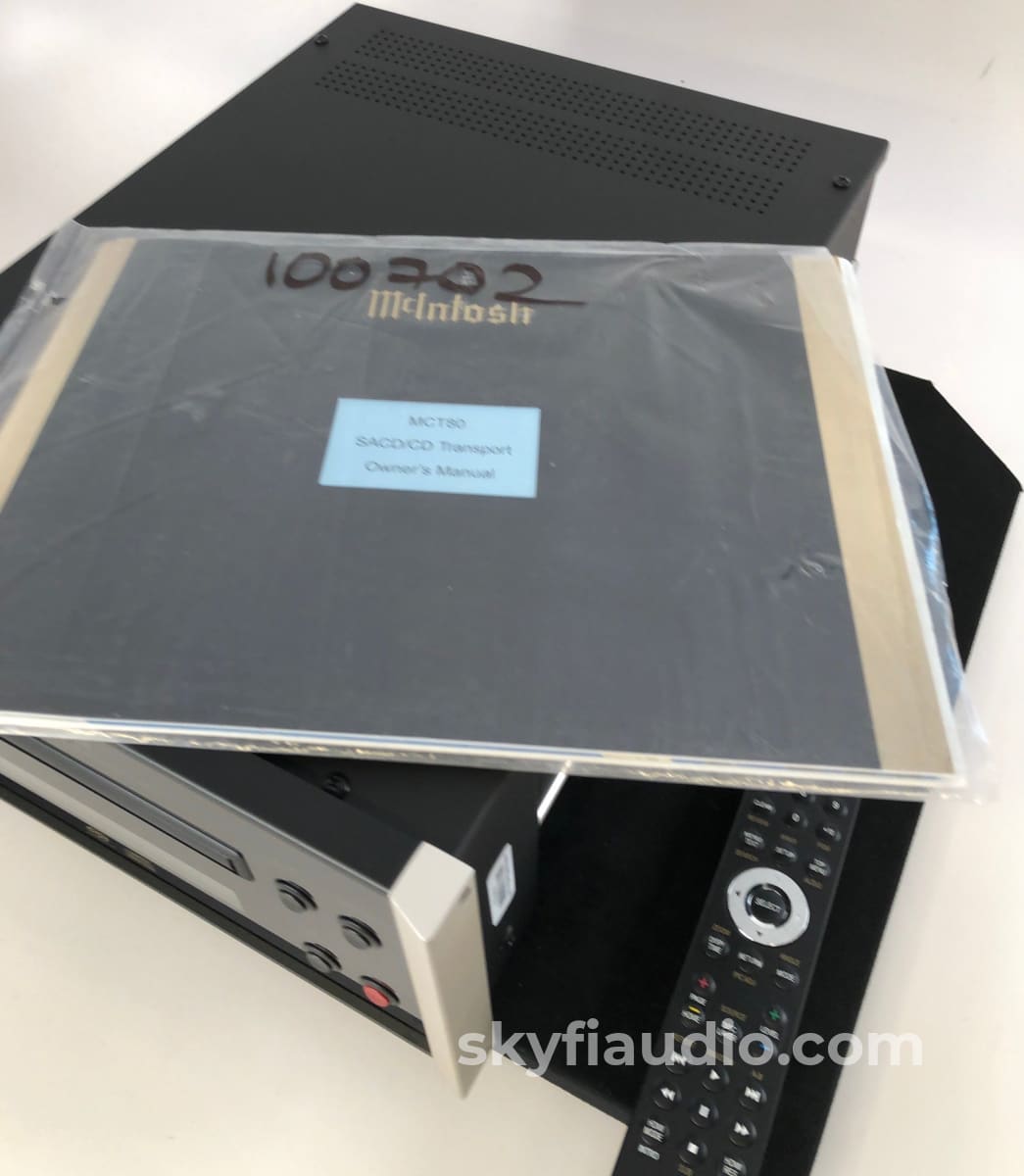

MCT80 SACD/CD Transport Brochure - Owner's Manual
