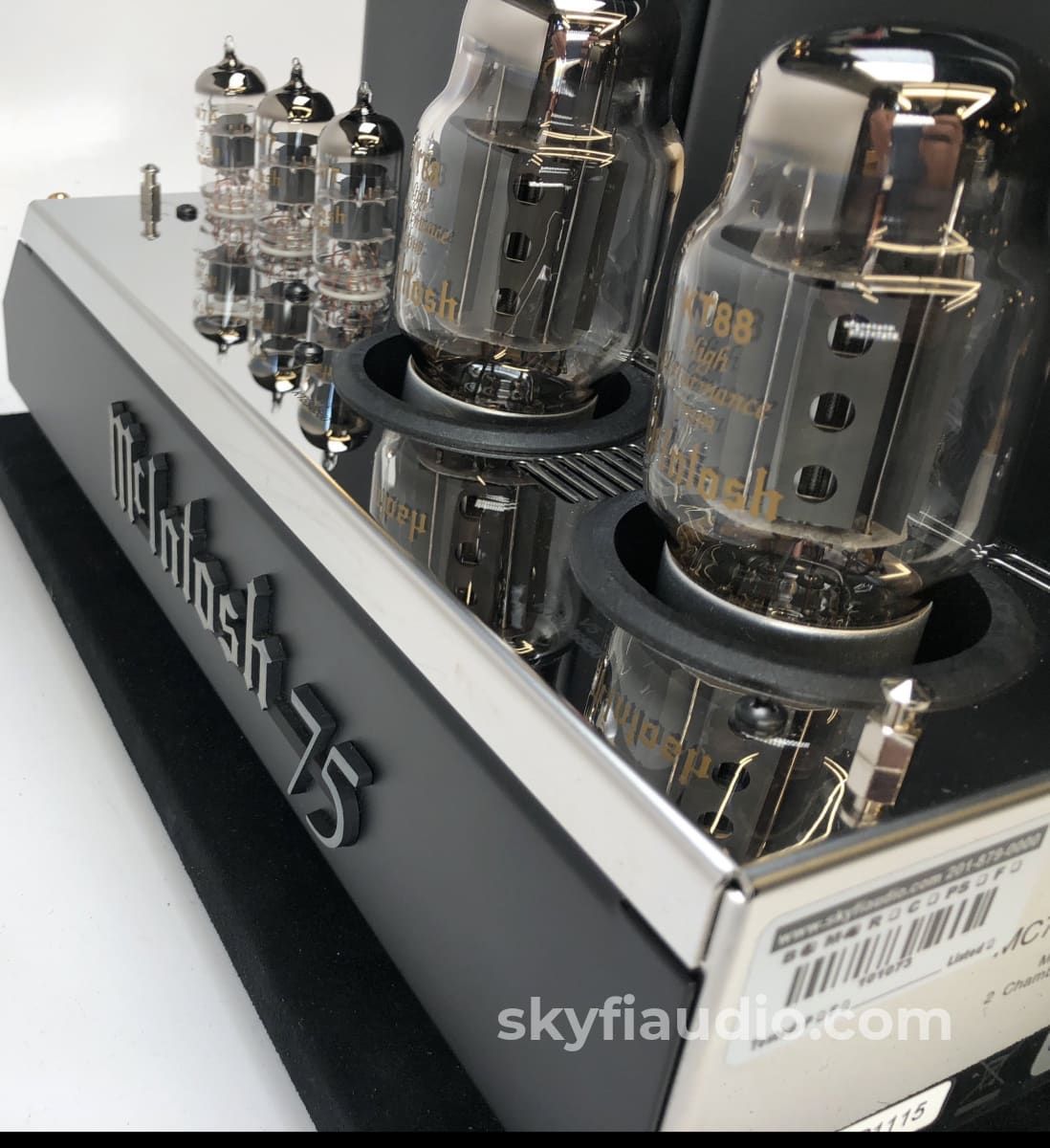

McIntosh MC75 Modern Tube Monoblock Amplifiers - Limited 2015 Reissue

$0

This is the special limited edition reissue of the original McIntosh 1960's classic.

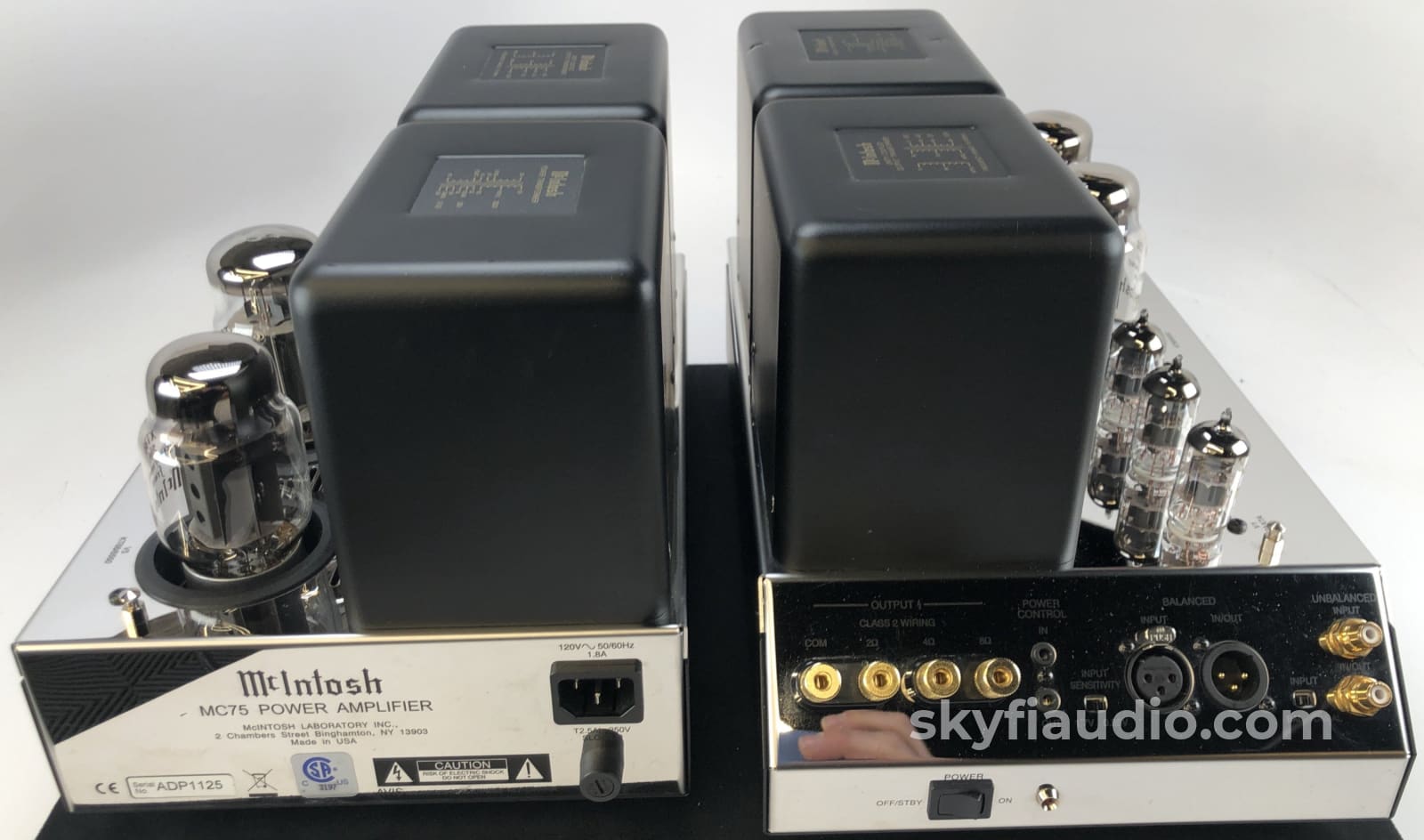

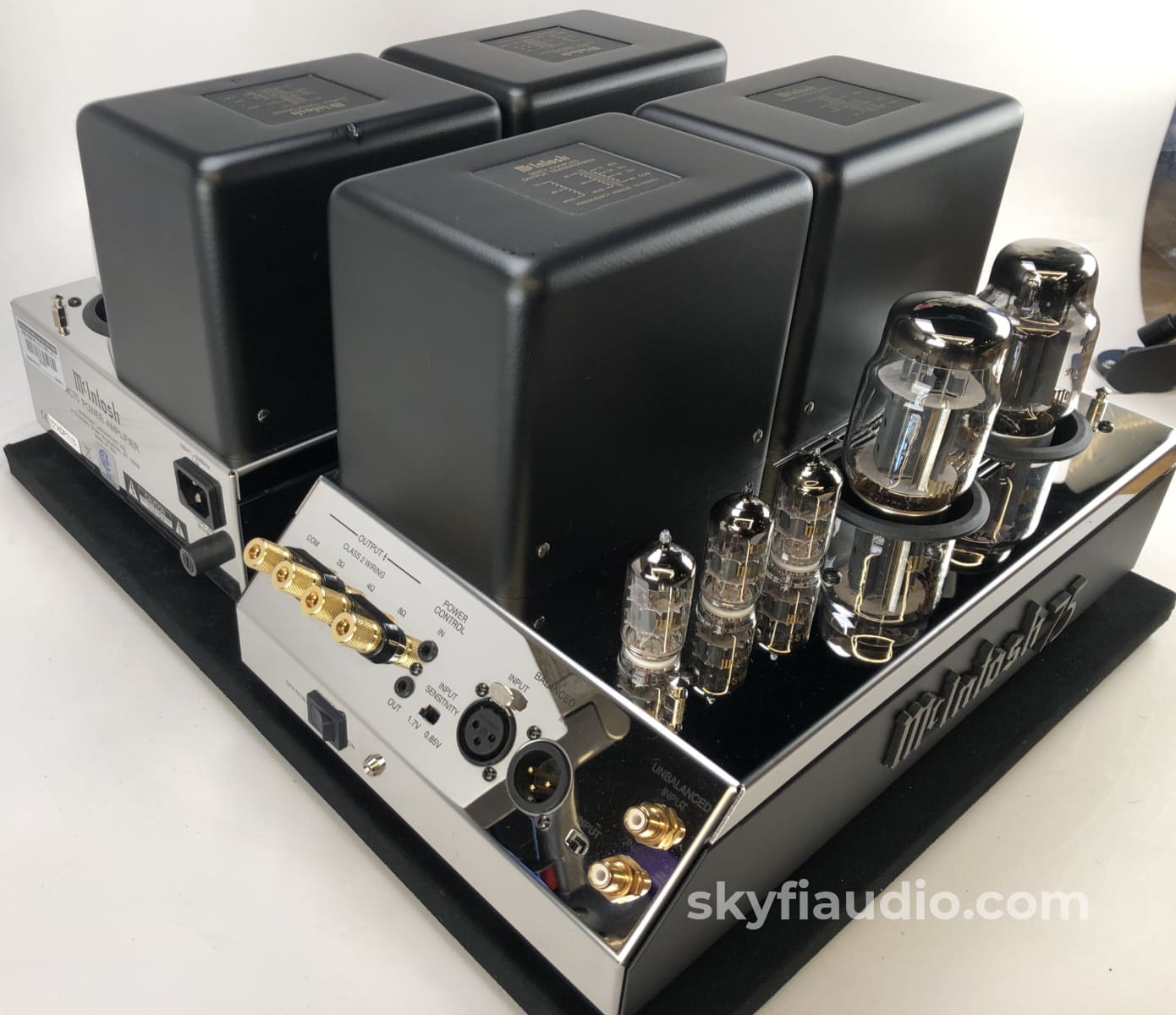

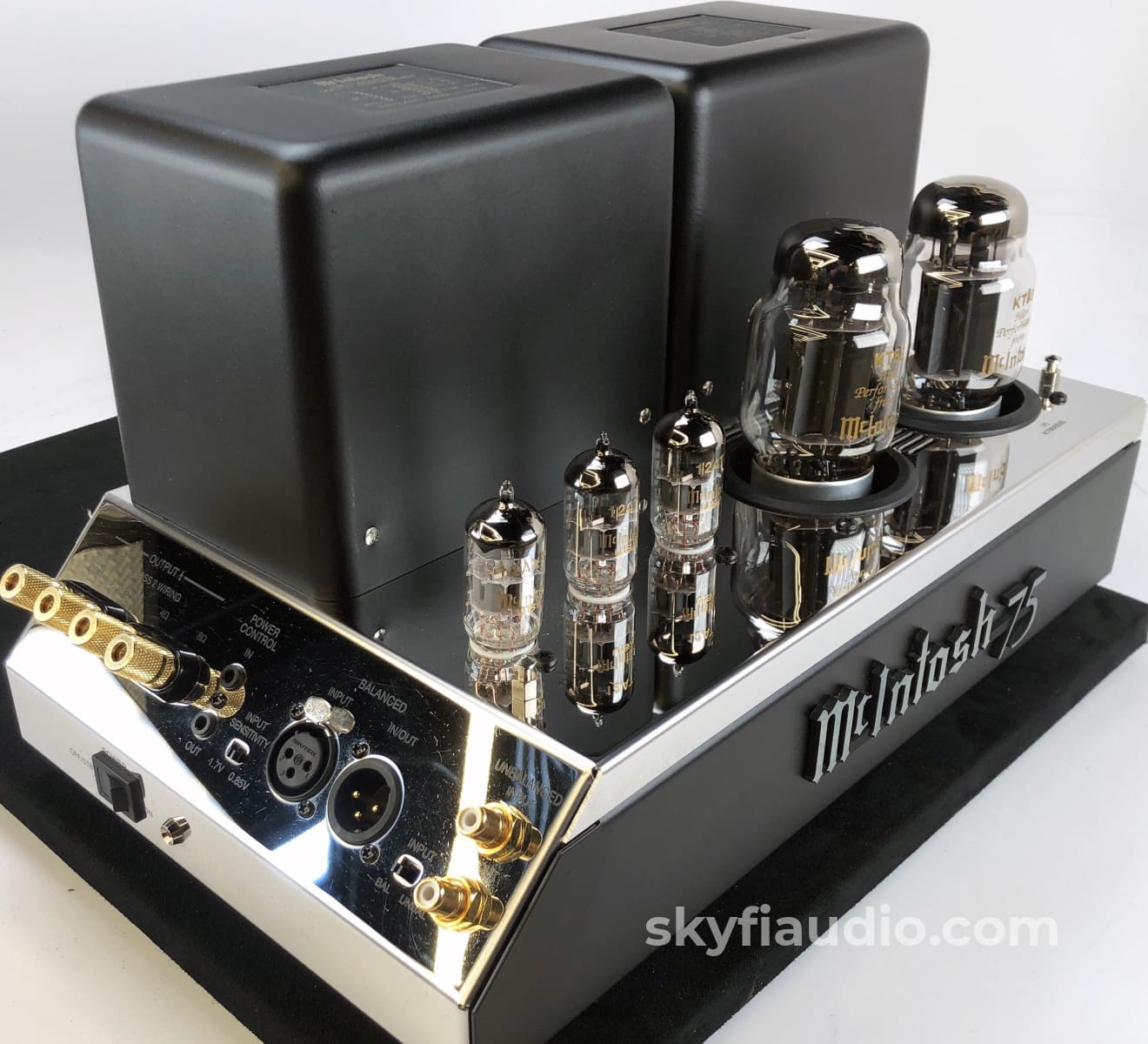

This listing is for the pair to confirm - 2 x MC75 Monoblock Amplifiers.

Back in 2015 McIntosh re-released this tube monoblock along with a matching modern version of the basically perfect 1960's McIntosh C22 preamplifier.

Dealers were quickly overwhelmed with preorders, both "retro reissues" sold out almost instantly, and they remain in very high demand. Excellent future collectibility!

These were recently discontinued and are a perfect match for any vintage or high efficiency speaker.

They have the warmth and ease of a vintage 75W amp but without the high noise floor, which is great for driving horns.

These came to us from a collector that had dozens of amps (!), so we suspect they received very little use.

Each of the tubes tested new and they work perfectly, as indicated by our modern professional test equipment and live experience in our listening room where they were used to drive a pair of Klipsch horns with amazing results!

In overall very good shape, except one nick in the transformer can that's not very noticeable.

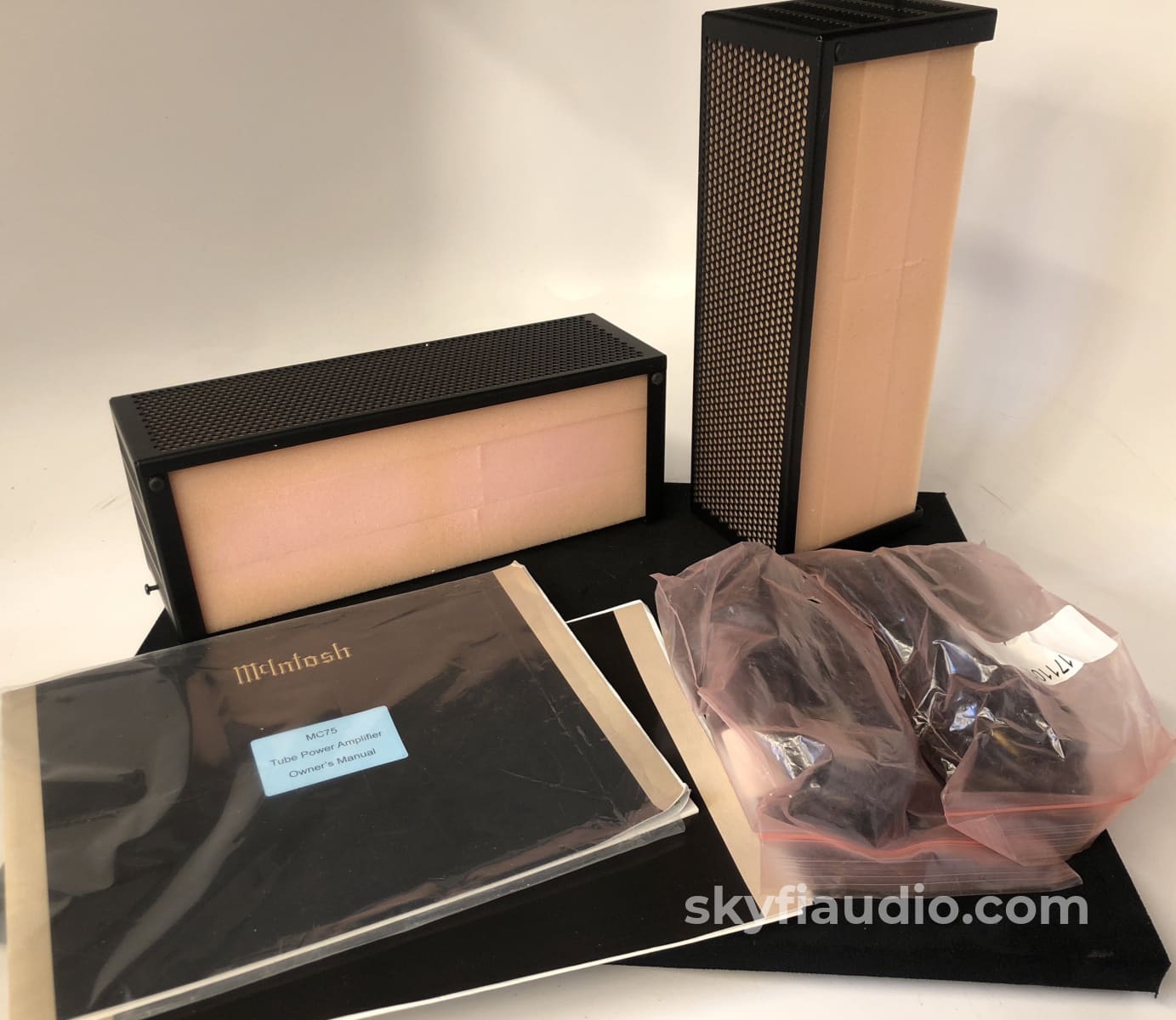

These modern reissue of the original classic come complete with their original boxes, manual, tube cages and power cords.

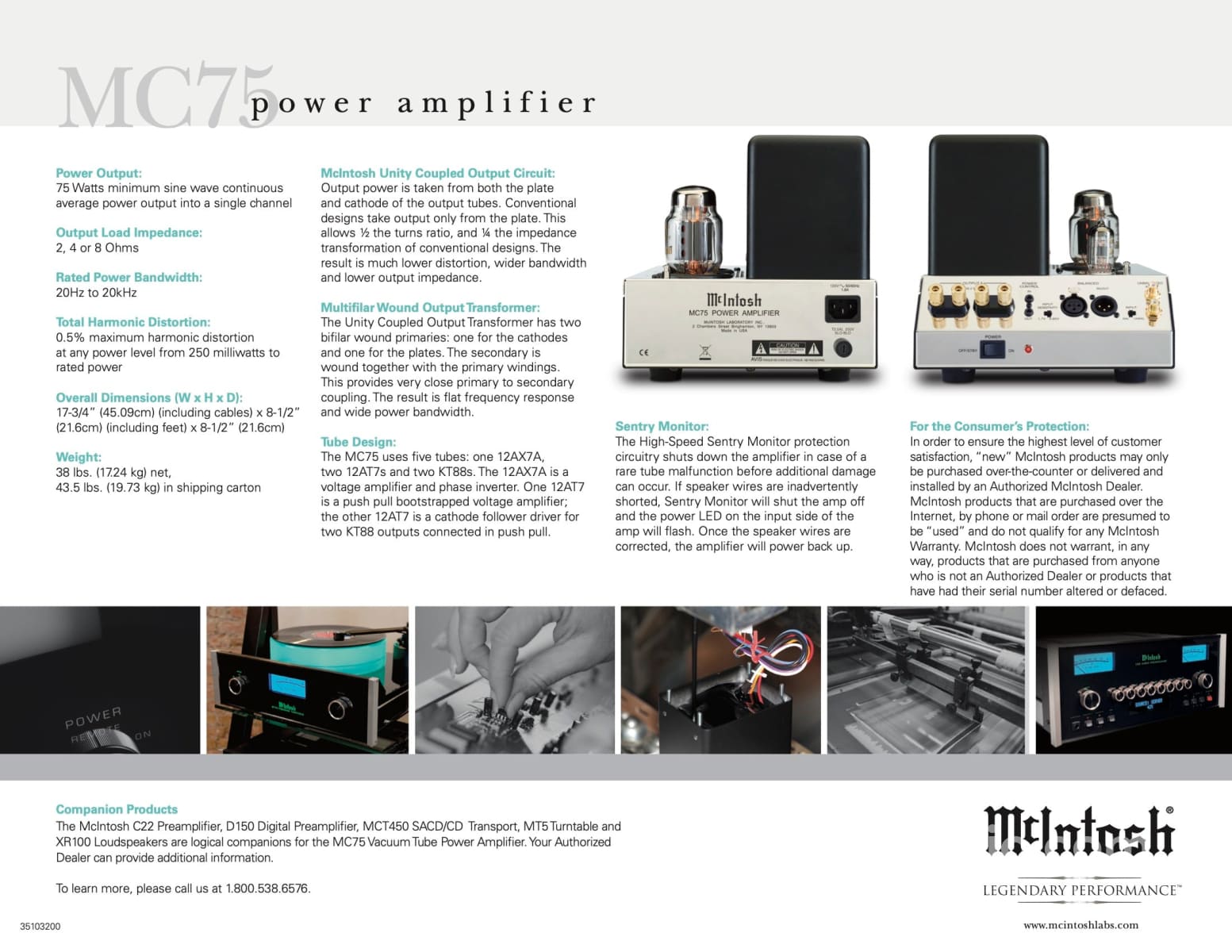

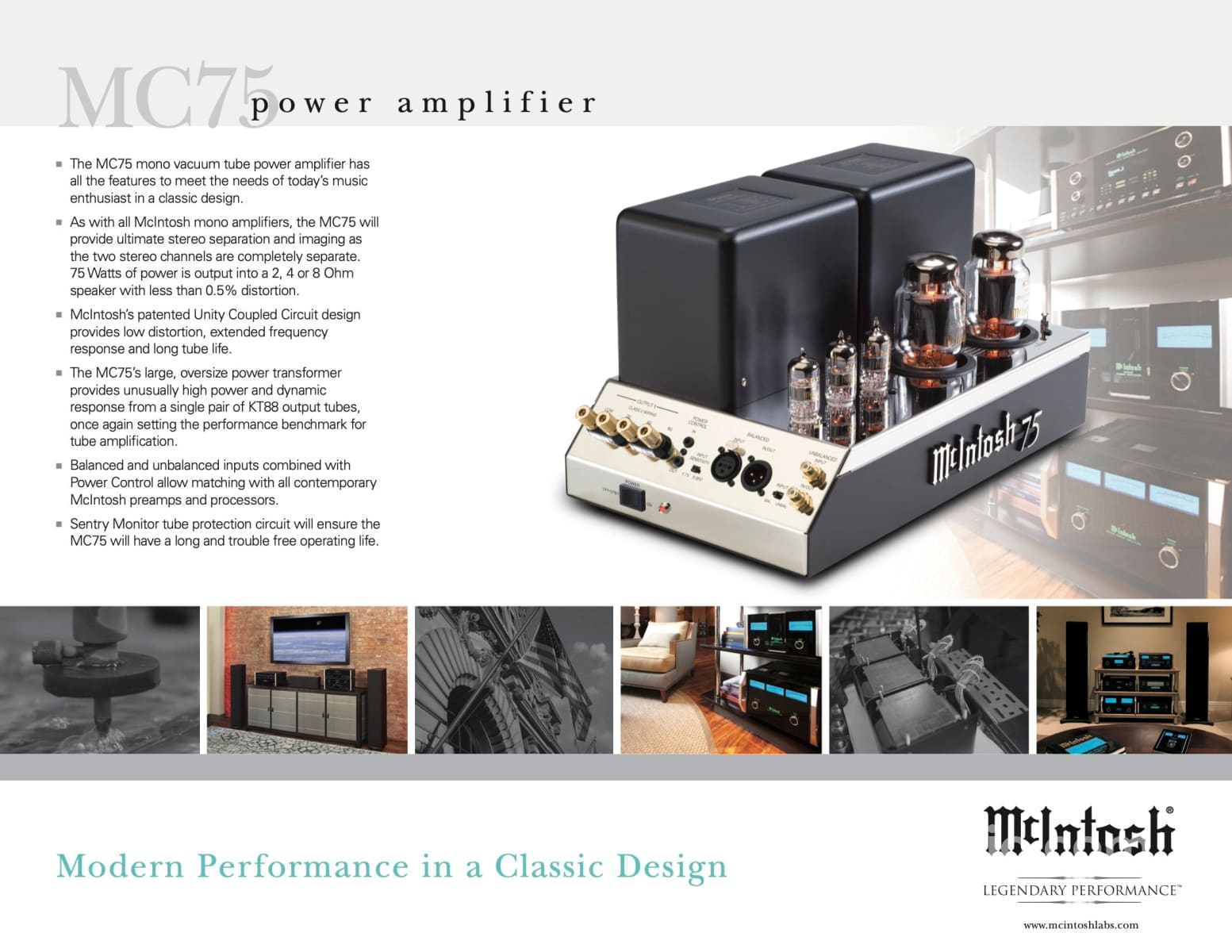

McIntosh MC75 Sales Brochure

McIntosh MC75 Owner's Manual

Performance Features:

• Power Output
The MC75 is a Tube Power Amplifier with a capability of 75 watts into 2, 4 or 8 ohm speakers with less than 0.5% distortion.

• Unity Coupled Circuitry
The MC75 Power Amplifier uses the famous McIntosh Patented Unity Coupled Circuit which provides low distortion, extended frequency response, and cool operating output tubes.

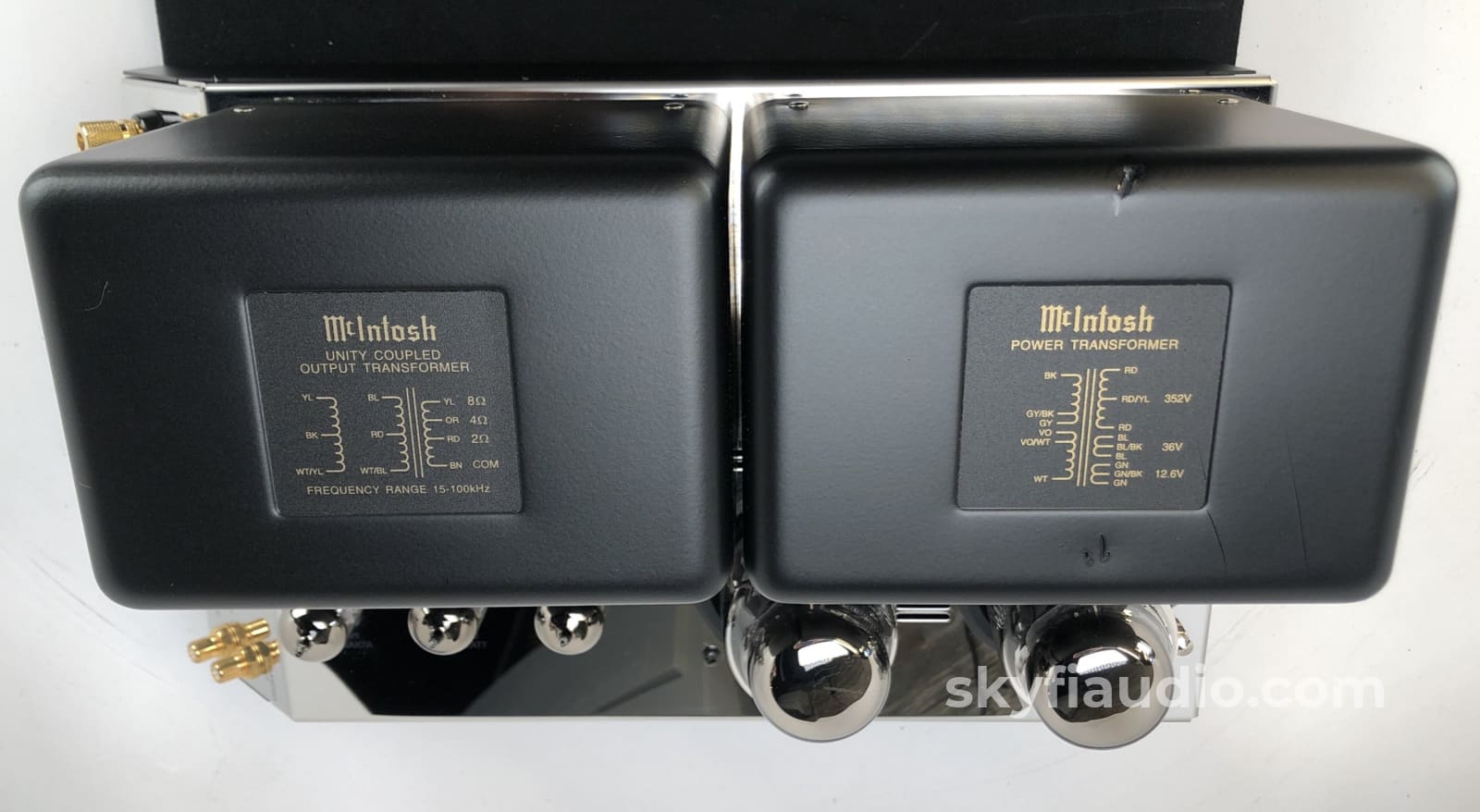

• Multifilar Wound Output Transformer

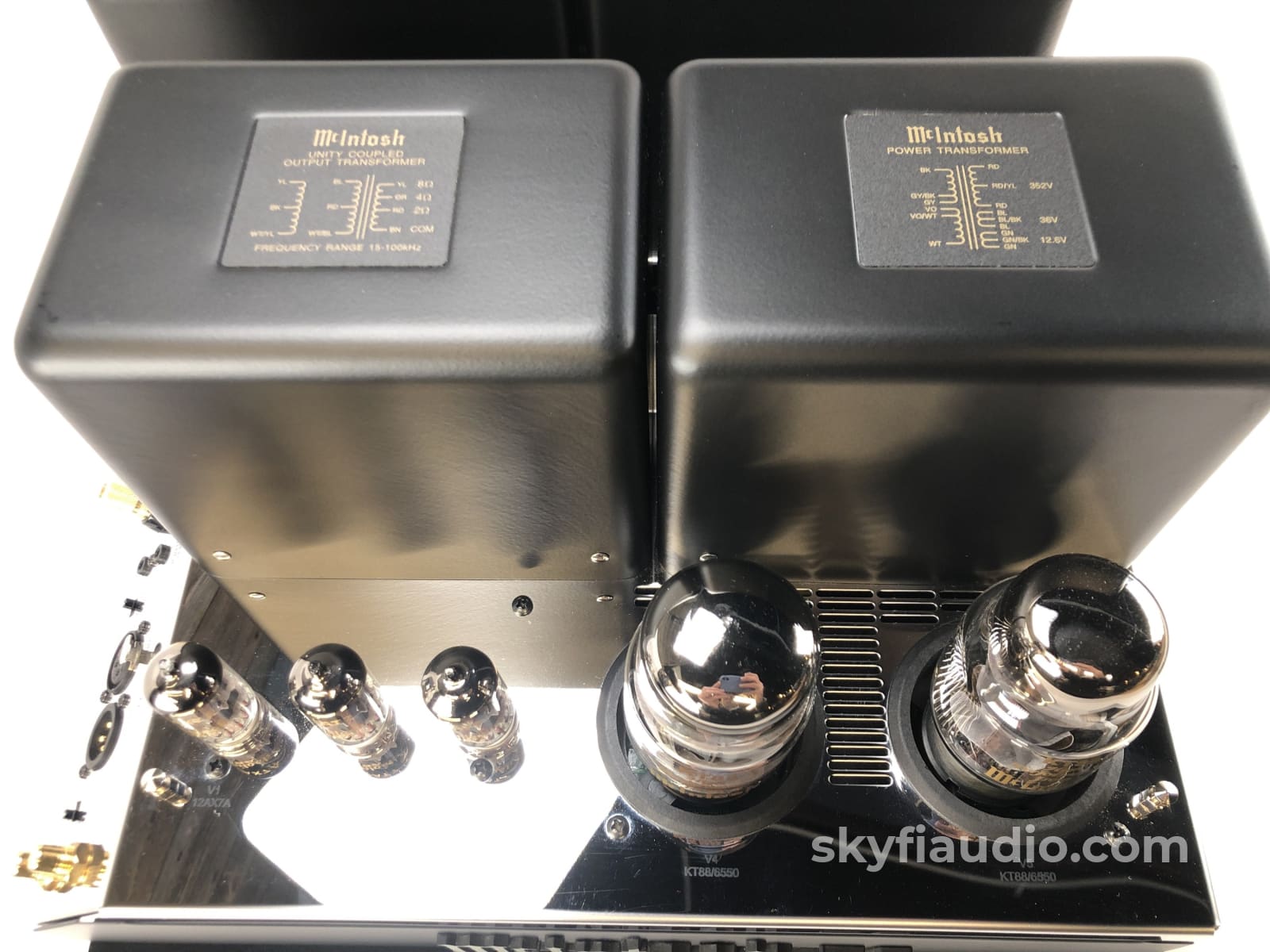

The MC75 Output Transformer Windings are part of the Unity Coupled Circuitry. There are two bifilar wound primaries, one for the cathodes and one for the plates. The secondary winding is wound together with the primary windings. This provides very close primary to secondary coupling. The result is flat frequency response and wide power bandwidth.

• Sentry Monitor Tube Protection
McIntosh Sentry Monitor Tube Protection Circuits ensure the MC75 will have a long and trouble free operating life.

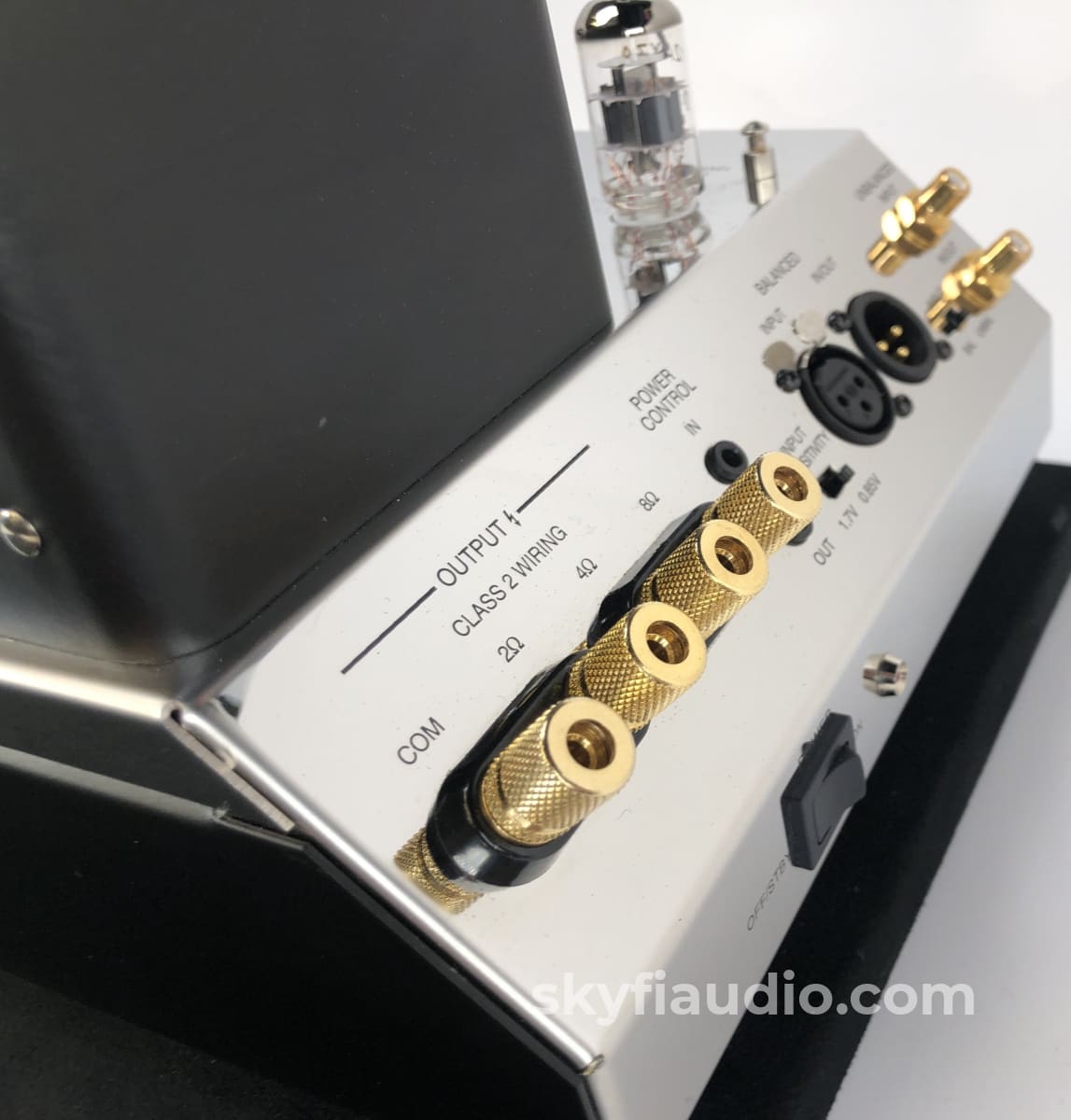

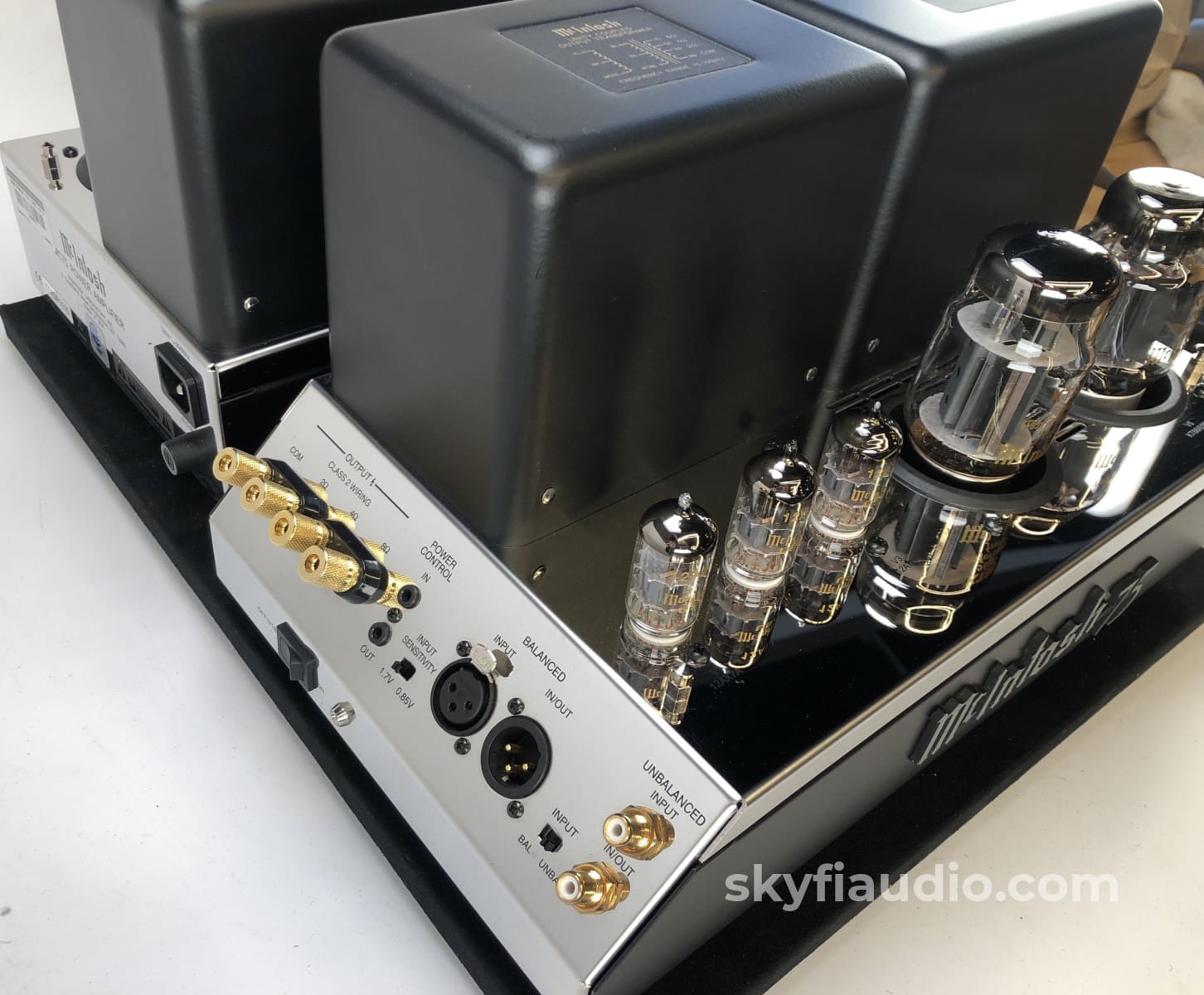

• Gold Plated Connectors and Tube Socket Contacts
Gold Plated Input Jacks and Output Binding Posts provide trouble free connections. Ceramic tube sock- ets with gold plated contacts provide protection from atmospheric contamination. Output Tube Sockets include Air-Pipe cooling at their bases.

• Special Power Supply
A regulated Power Supply, a very large core Power Transformer and large capacitors ensure stable noise free operation even though the power line varies.

Specifications:

Power Output
Minimum sine wave continuous average power output is:
75 watts into 2 ohm load
75 watts into 4 ohm load
75 watts into 8 ohm load

Output Load Impedance
2, 4 or 8 ohms

Rated Power Band
20Hz to 20,000Hz

Total Harmonic Distortion
0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz

Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 100,000Hz

Input Sensitivity (for rated output)
1.7 Volt or 0.85 Volt Unbalanced
3.4 Volt or 1.7 Volt Balanced

Signal To Noise Ratio (A-Weighted)
110dB below rated output

Intermodulation Distortion
0.5% maximum, if the instantaneous peak power output does not exceed twice the rated power output for any combination of frequencies from 20Hz to 20,000Hz.

Wide Band Damping Factor
Greater than 18

Input Impedance
20,000 ohms Unbalanced 15,000 ohms Balanced

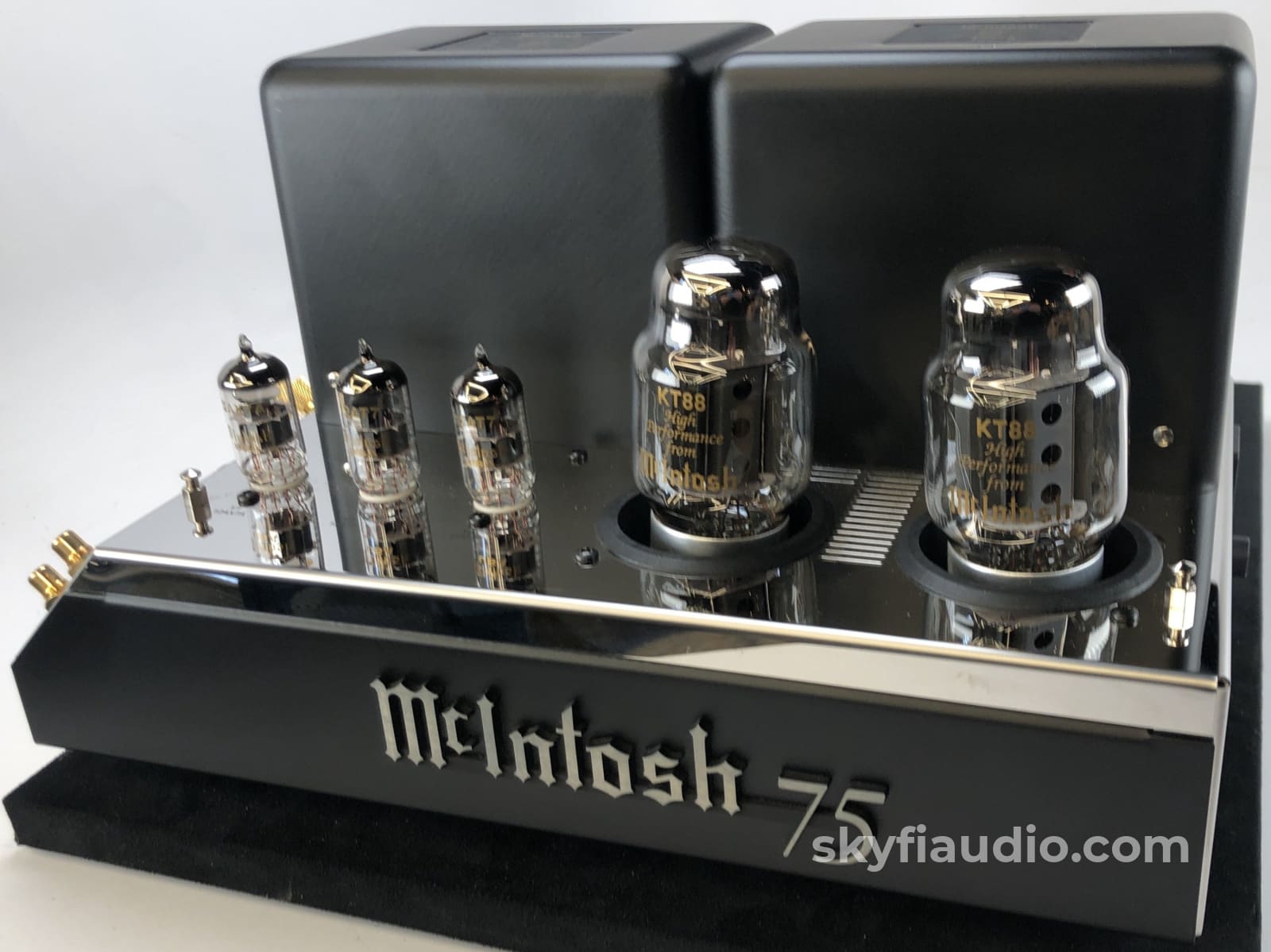

Tube Compliment
1 - 12AX7A Input and Phase Inverter
2 - 12AT7 Voltage Amplifier and Driver
2 - KT88 Power Output

Overall Dimensions
Width is 17-3/4 inches (45.09cm) including Cables
Height is 8-1/2 inches (21.59cm) including feet
Depth is 8-1/2 inches (21.59cm)

Weight
38 pounds (17.24 kg) net
43.5 pounds (19.73 kg) in shipping carton

The SkyFi Testing Process for Amplifiers (Tube):

We start with a visual inspection of all internal components to make sure there are no signs of stress or aging. Capacitors are checked for telltale sings of bulging or leaking, resistors are checked for signs of overheating or cracking, and tubes are inspected for signs of stress overheating or cracking.

We then power up the unit carefully and run a simple 1k sine wave while monitoring the output on an oscilloscope for signs of distortion or noise. Finally we run the amplifier to its full rated power into the appropriate resistive load provided by our Sencore amplifier tester. If there is an issue, it will usually be noticeable at this point. If it all looks clean we will often test for THD (Total Harmonic Distortion) measured by our Keithley distortion meter, and compare it against the original manufacturers specifications. The amplifier the remains powered on to "burn in" on our test bench for a few hours to make sure there are no heat related issues. If there are balanced inputs available they will also be tested.

We also test all tubes for output gain and leakage on our calibrated B&K 747 tester against the original manufacturers specifications. If needed, the tubes will be replaced from our vast NOS (New Old Stock) vintage or modern inventory.

Final testing involves pushing actual music thorough the amplifier. We've learned over time that some issues are only noticeable to a trained ear while listening to familiar source material. Our test bench has reference vintage KEF speakers that we're very familiar with which quickly reveal any discrepancies. Some amplifiers will then move into our listening room where they are tested with our in-house reference speakers of choice.

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

Yes

Manual

Yes

Tube Cages

Yes

Cables

Yes - Power

Physical Condition

8

Working Condition

10
