General:

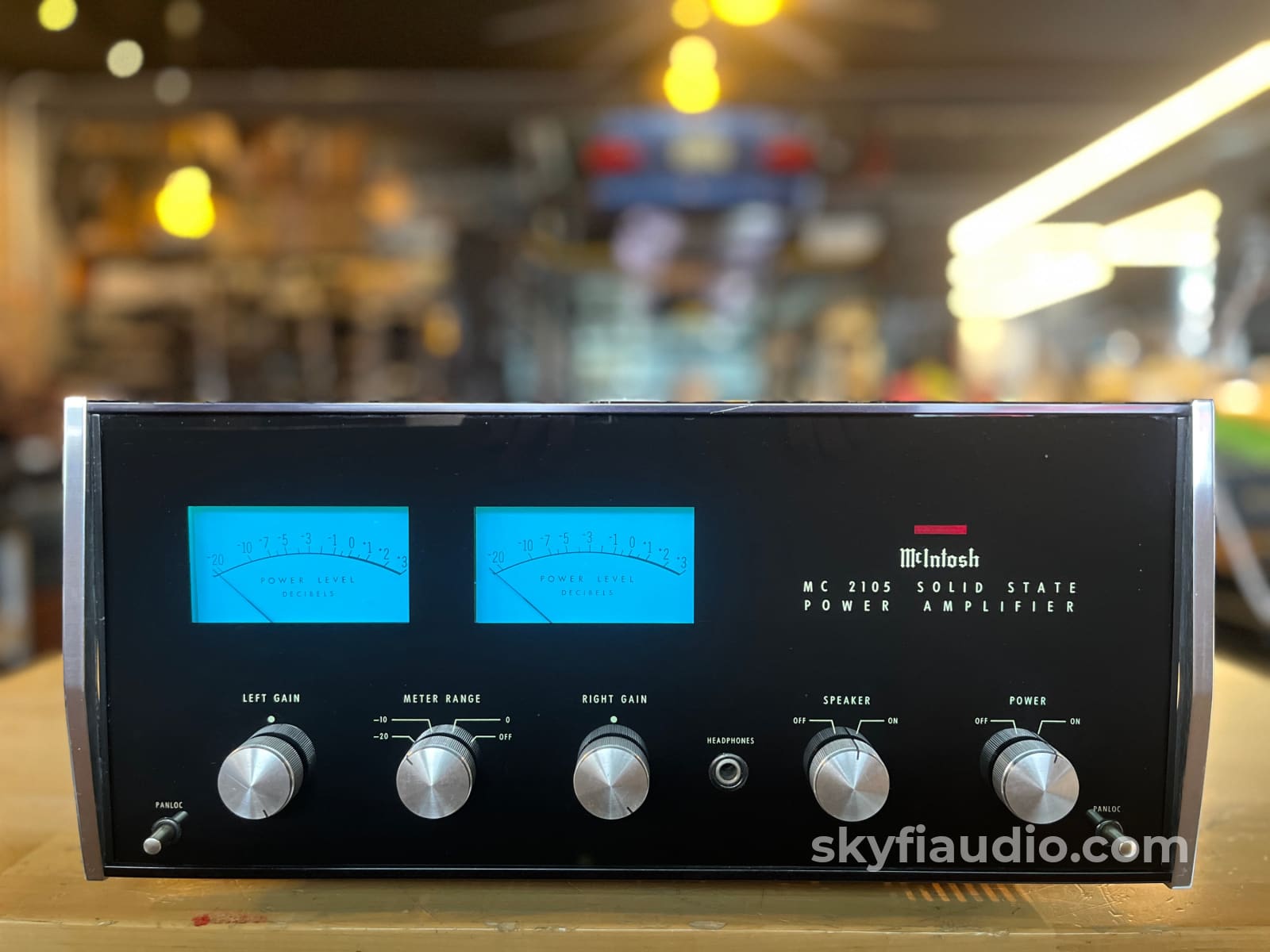

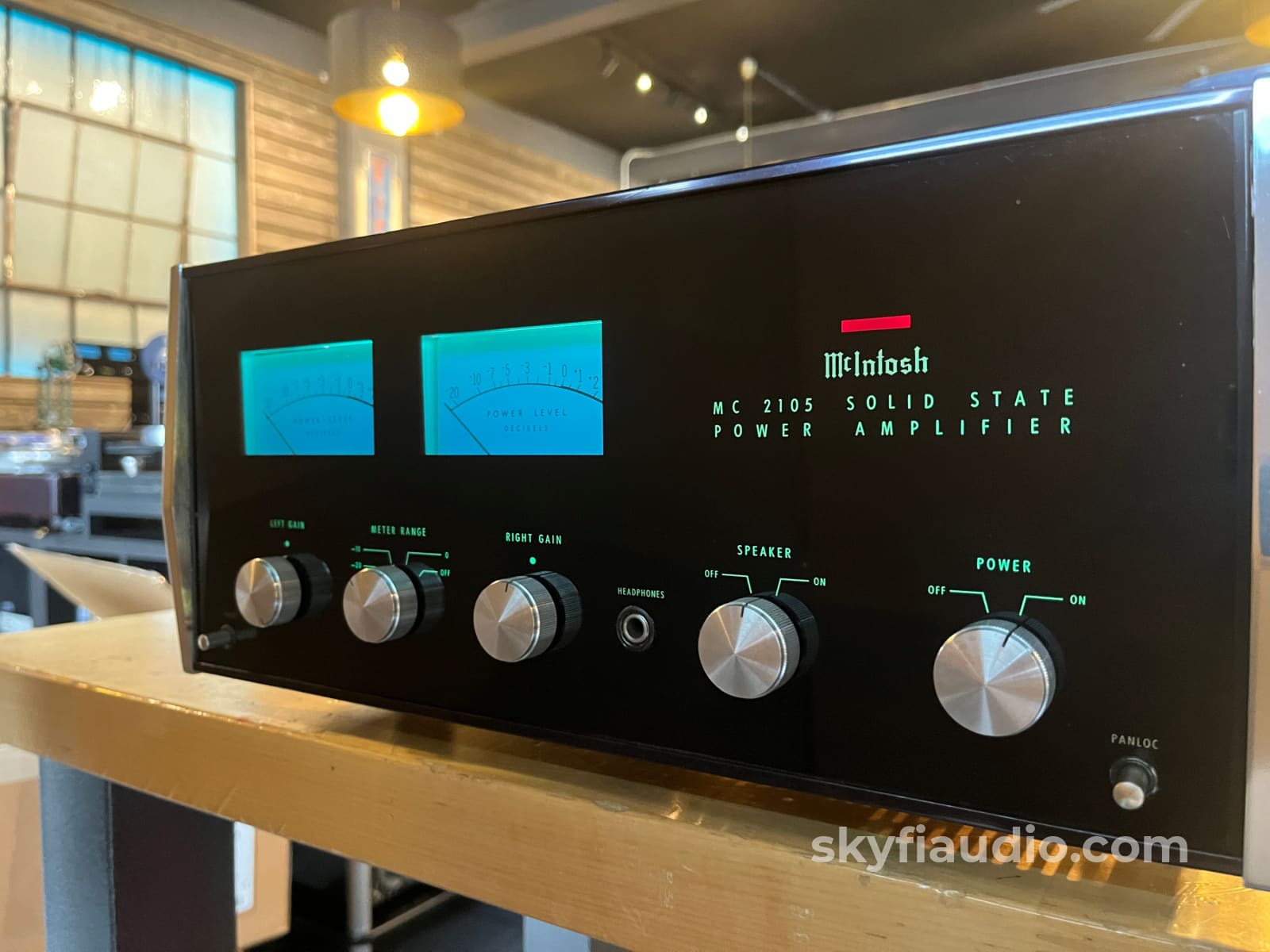

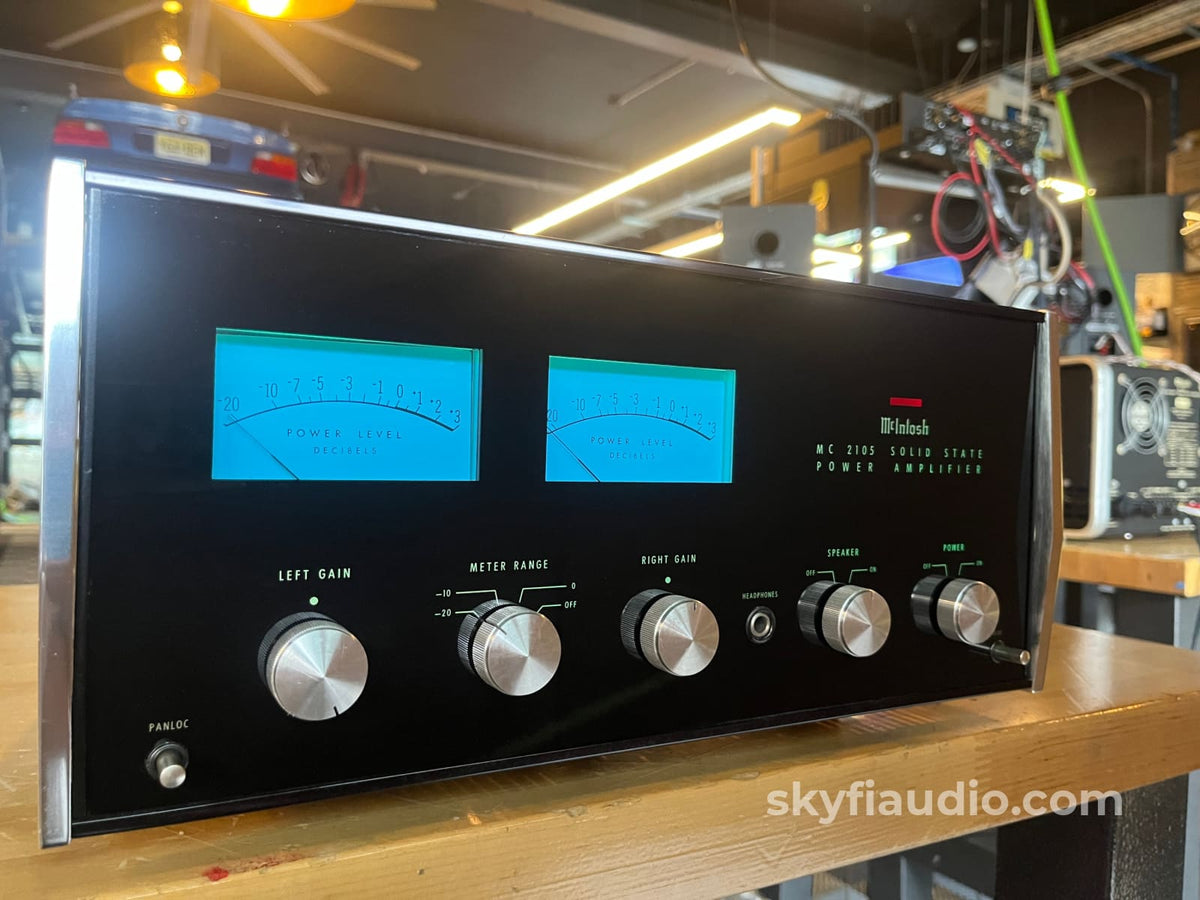

The MC2105 is one of our best selling amps and a true McIntosh workhorse. Classic McIntosh looks and sound, but with a vintage feel.

Absolutely gorgeous, and capable of powering most modern and vintage speakers.

This MC2105 is working perfectly and serviced here at Skyfi Audio.

Priced accordingly, so if you're looking for an unserviced bargain on a nearly 60 years "young" piece of audio excellence, please look elsewhere.

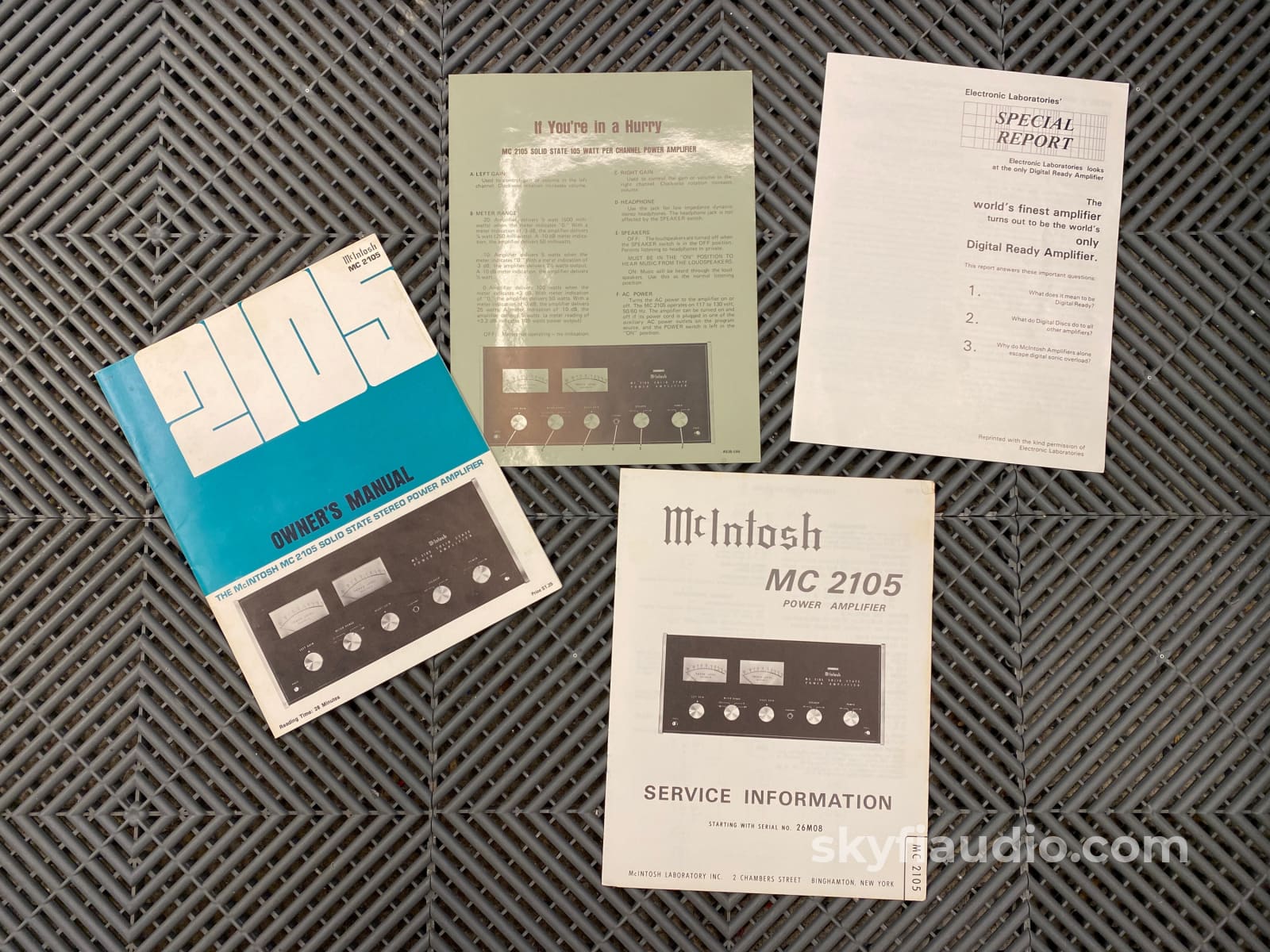

This unit will come with its original McIntosh box and manual.

SkyFi Cosmetic Notes:

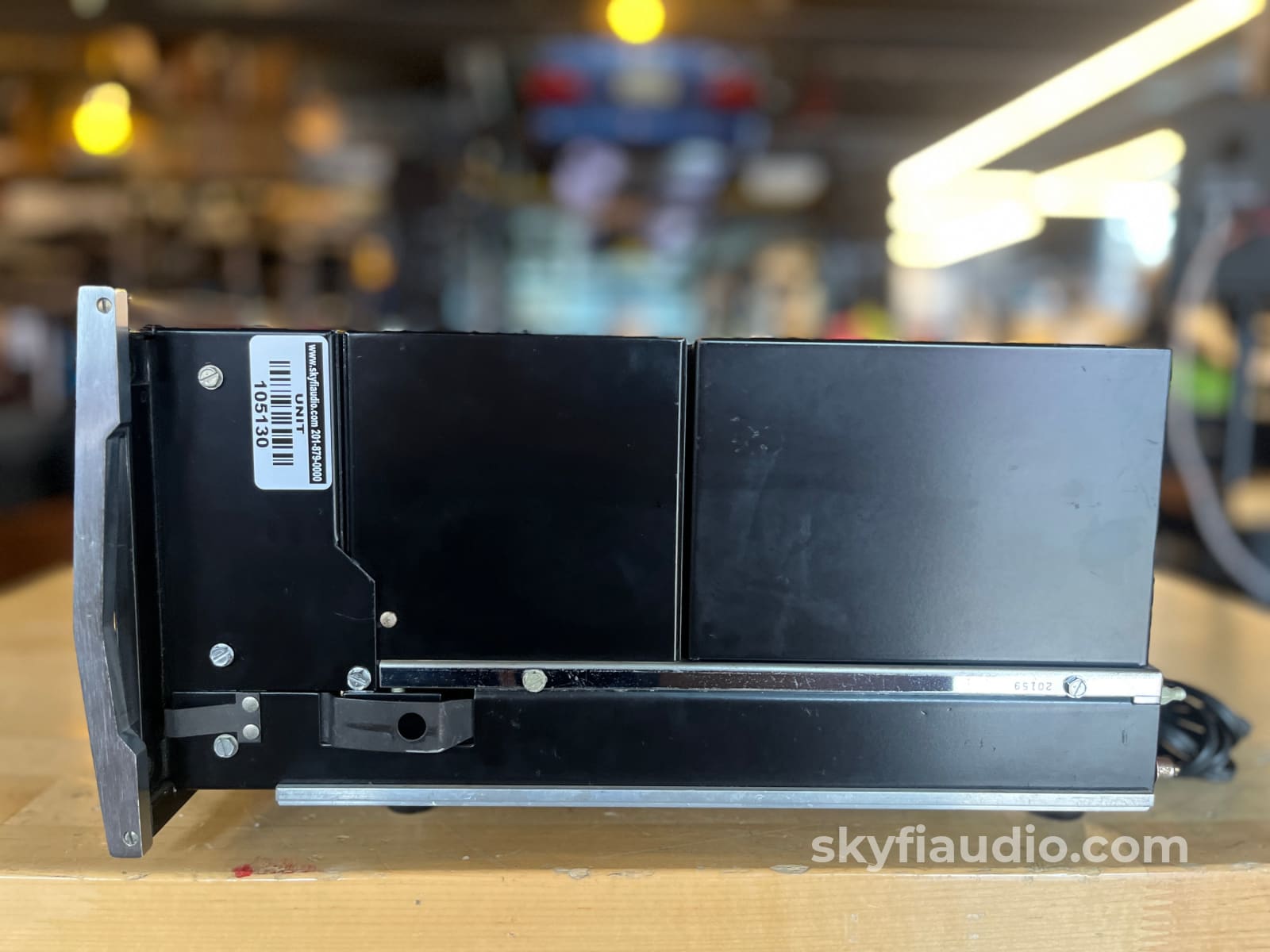

This amplifier is in very good cosmetic condition considering its age. It has some light pitting on the corners of the chrome and light marks on some of the panels. The faceplate is near mint.

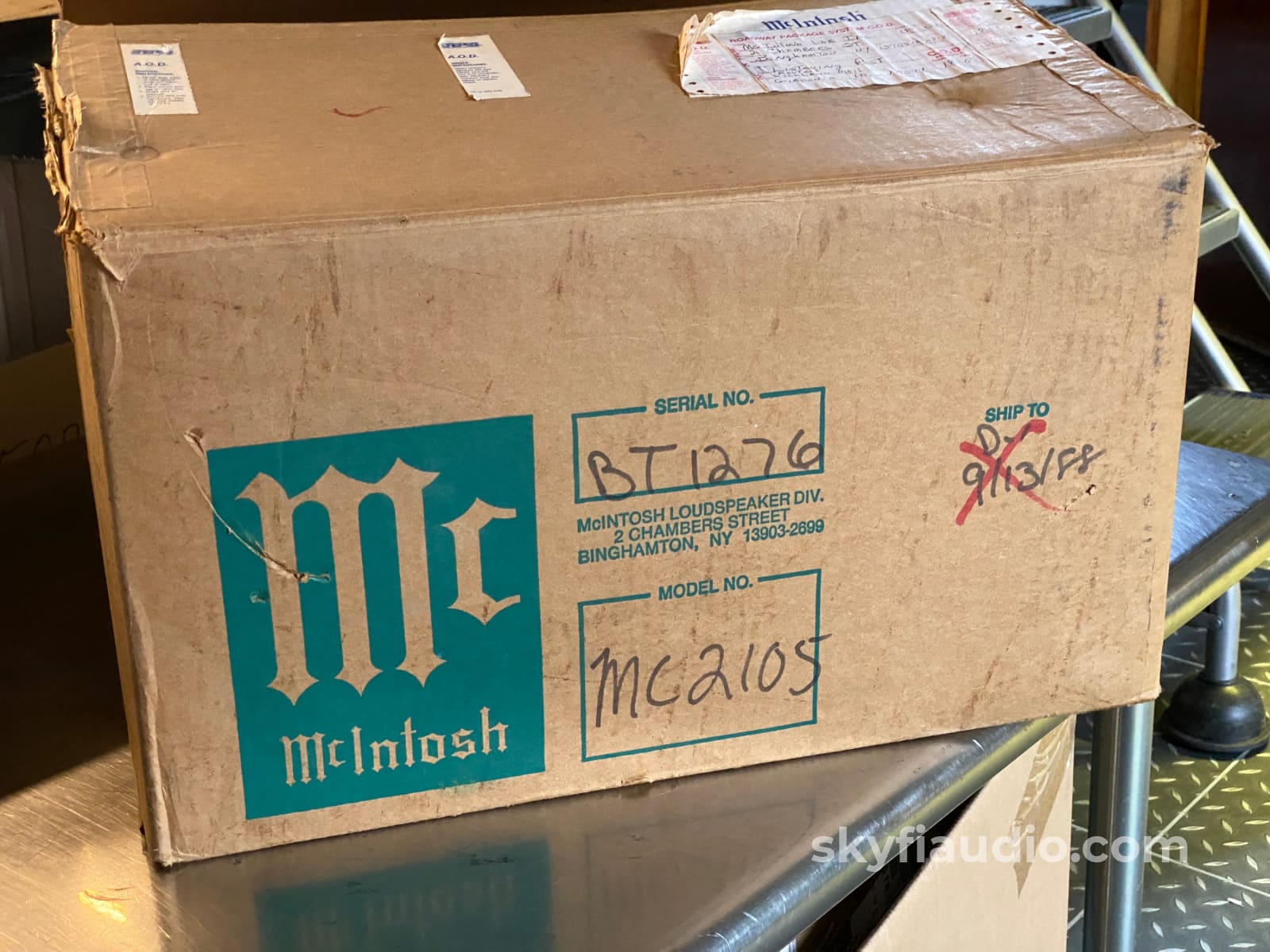

The original box shows shelf wear, markings, and labels from previous use and storage.

SkyFi Technical Notes:

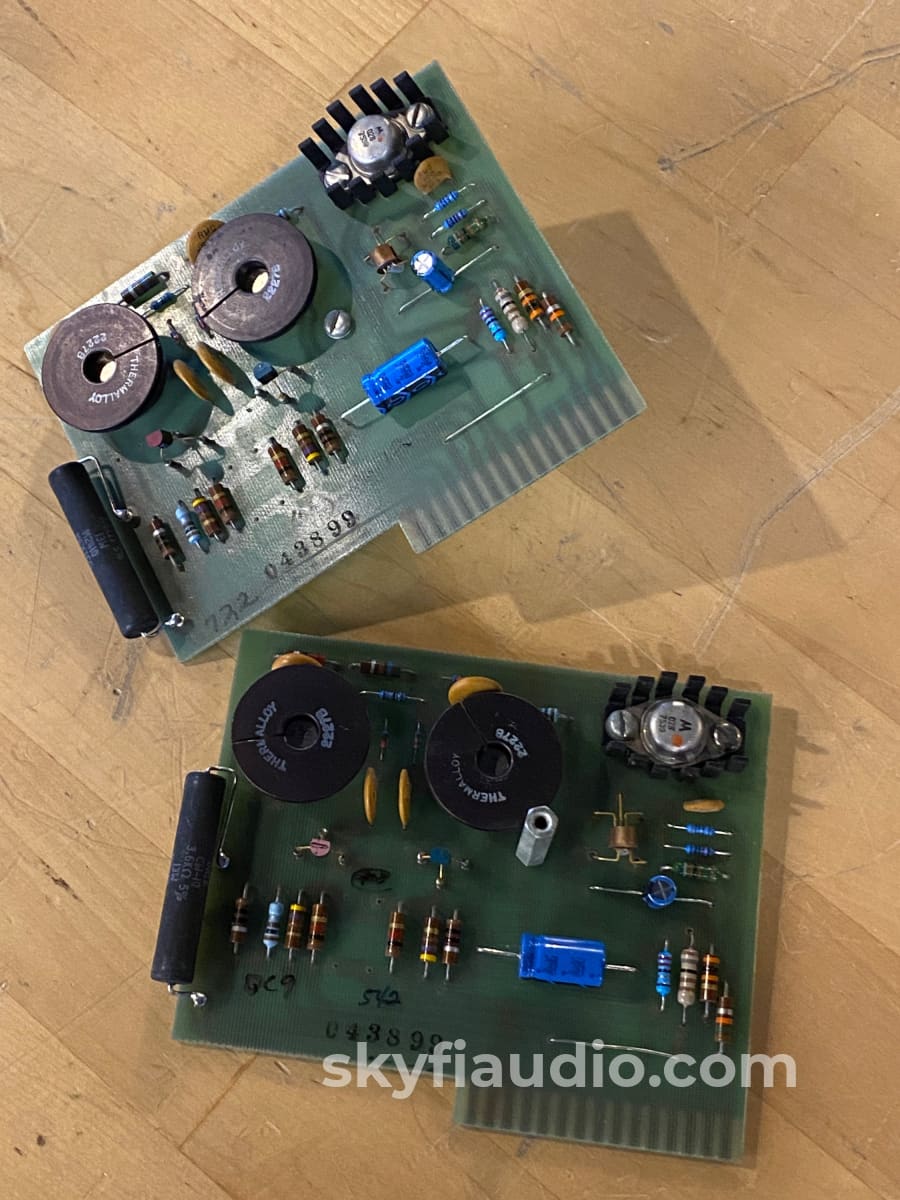

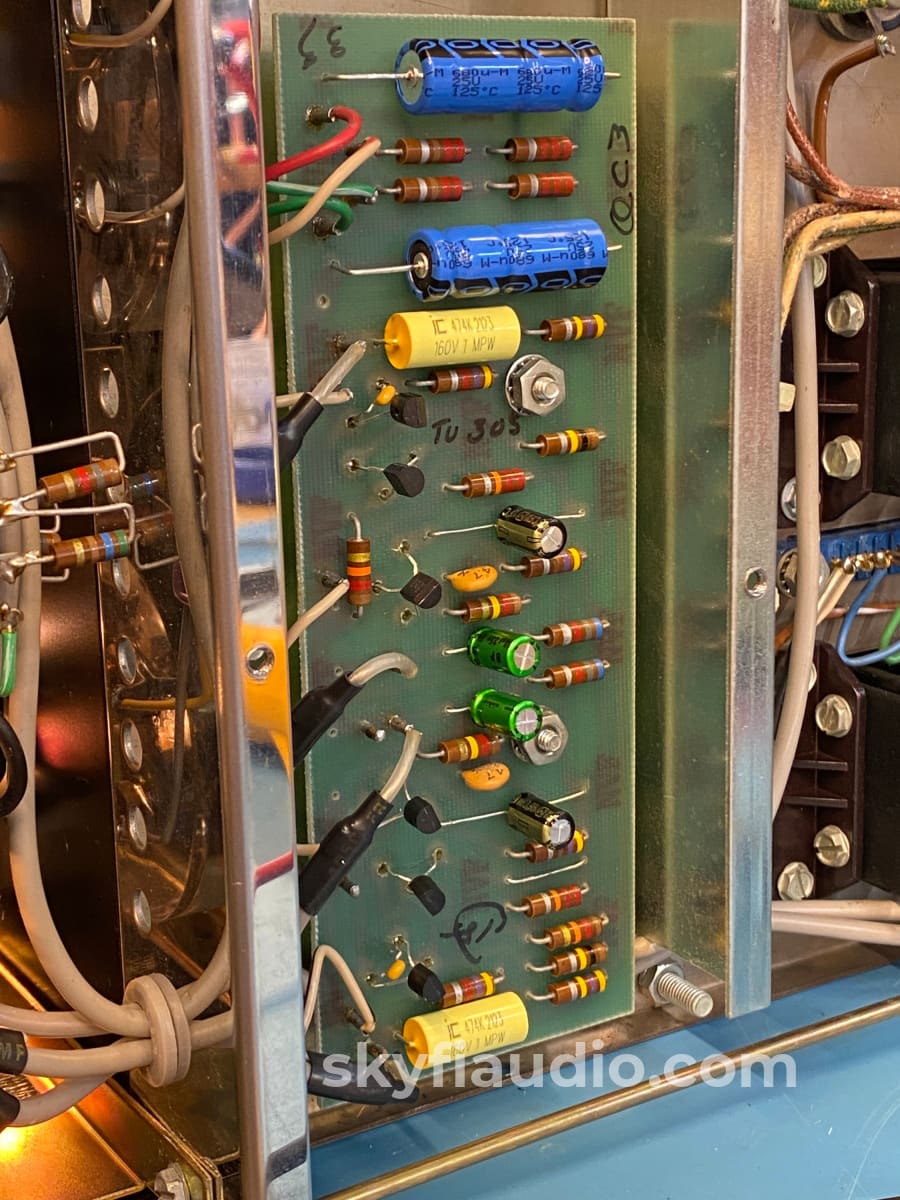

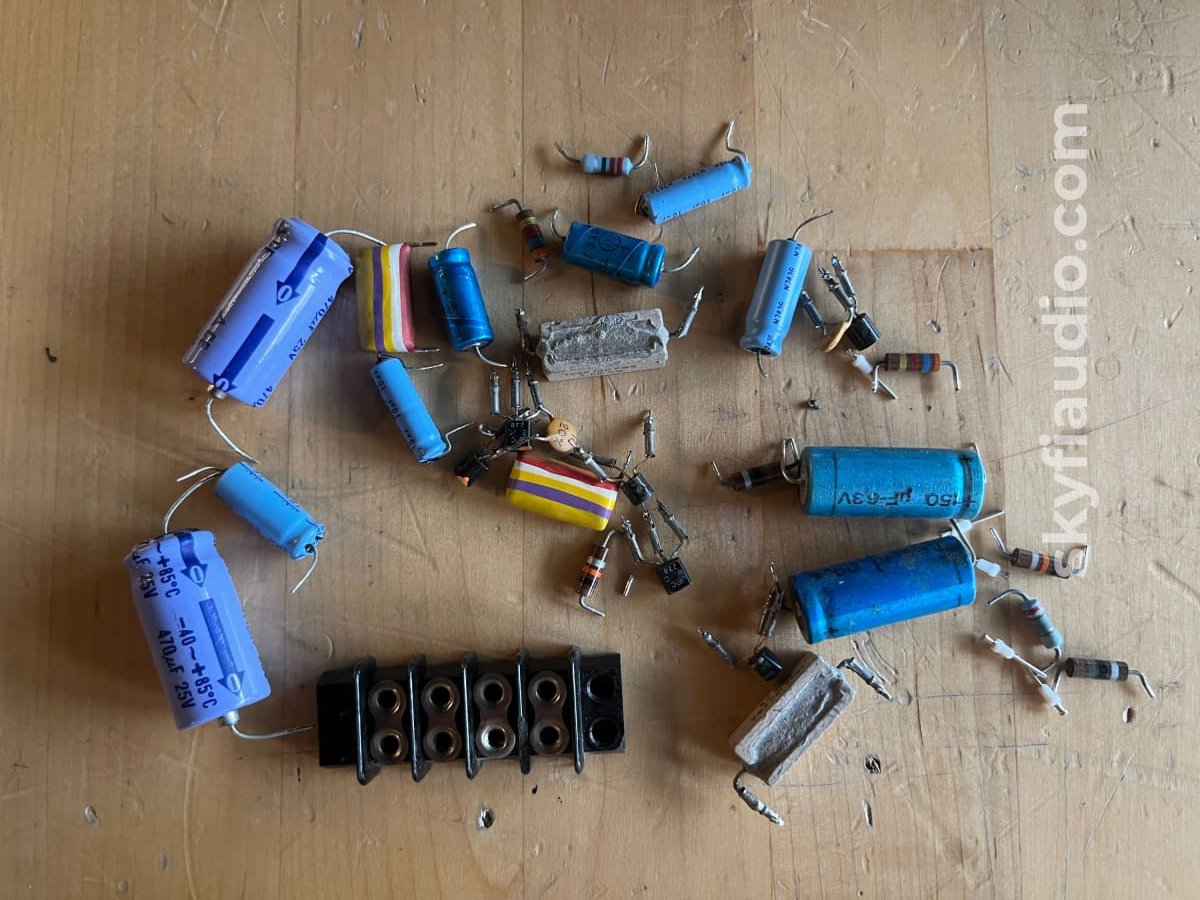

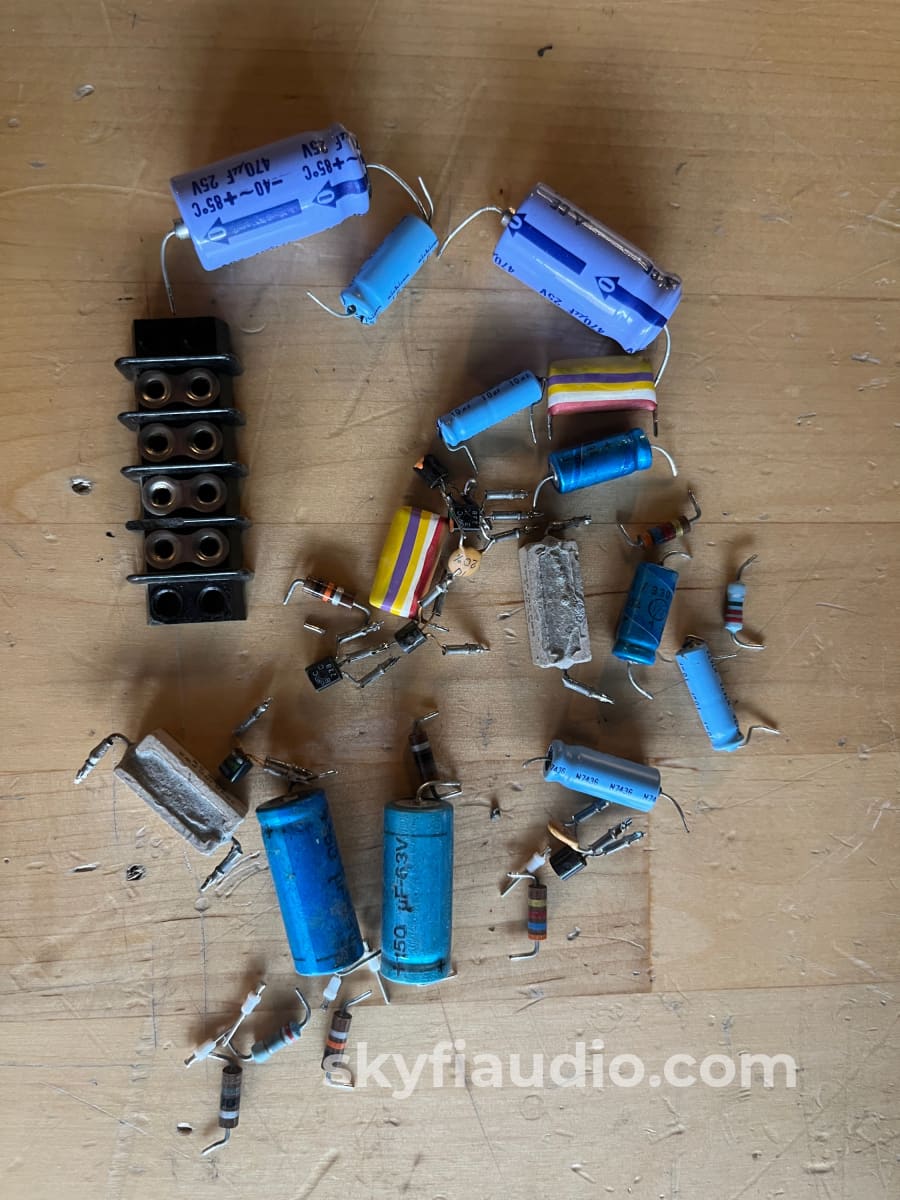

This amplifier was serviced in-house here at SkyFi. We reworked the driver boards and performed some preventative maintenance on the input board. One barrier strip was replaced, both meters calibrated, and controls cleaned.

Brand Background:
McIntosh Laboratory is an American manufacturer of handcrafted high-end audio equipment based in Binghamton, New York. The company was founded in 1949 by Frank McIntosh. The company designs and produces audio amplifiers, stereo tuners and other consumer electronics products.

Ownership:
Single Owner

Connections:

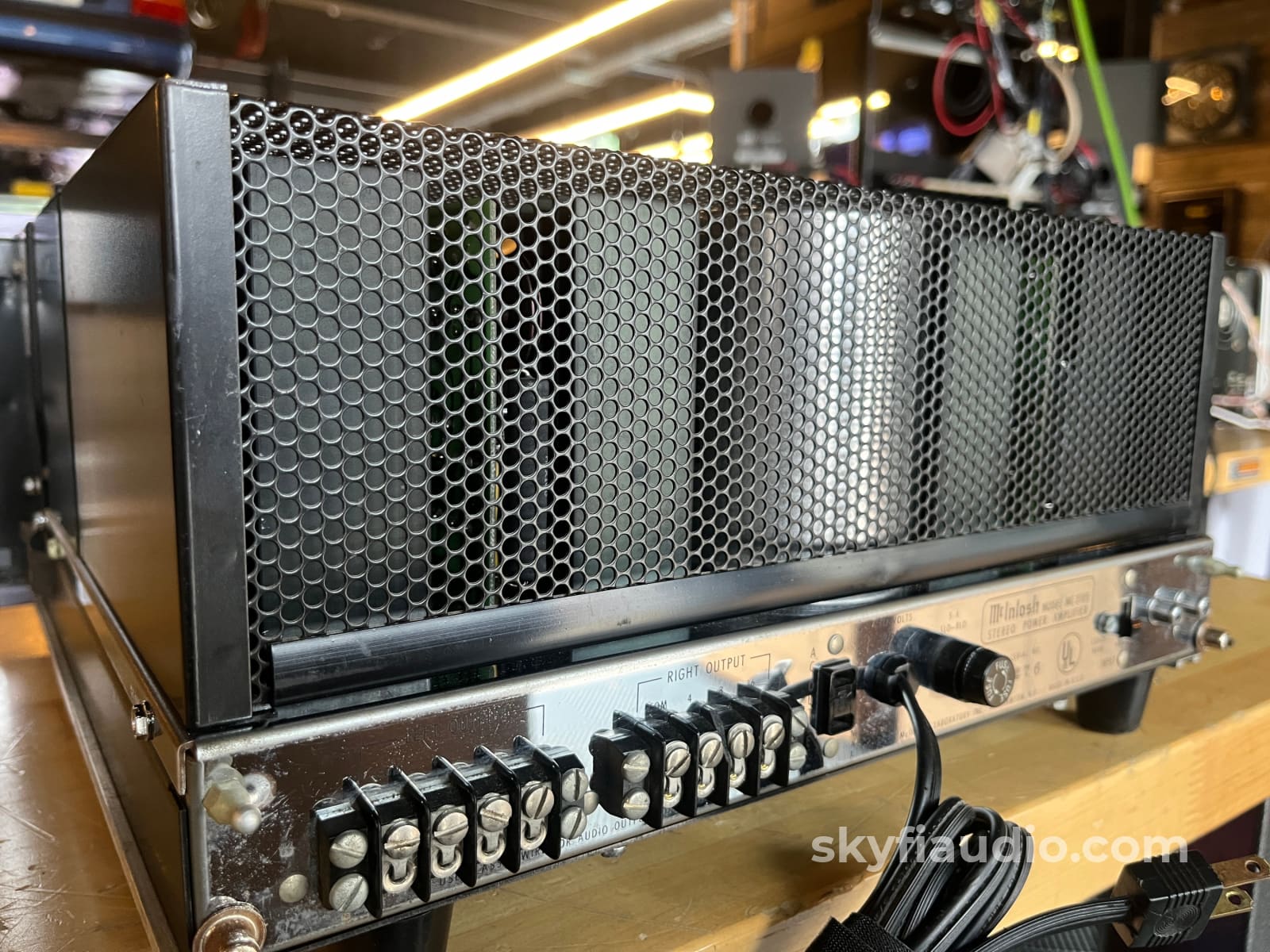

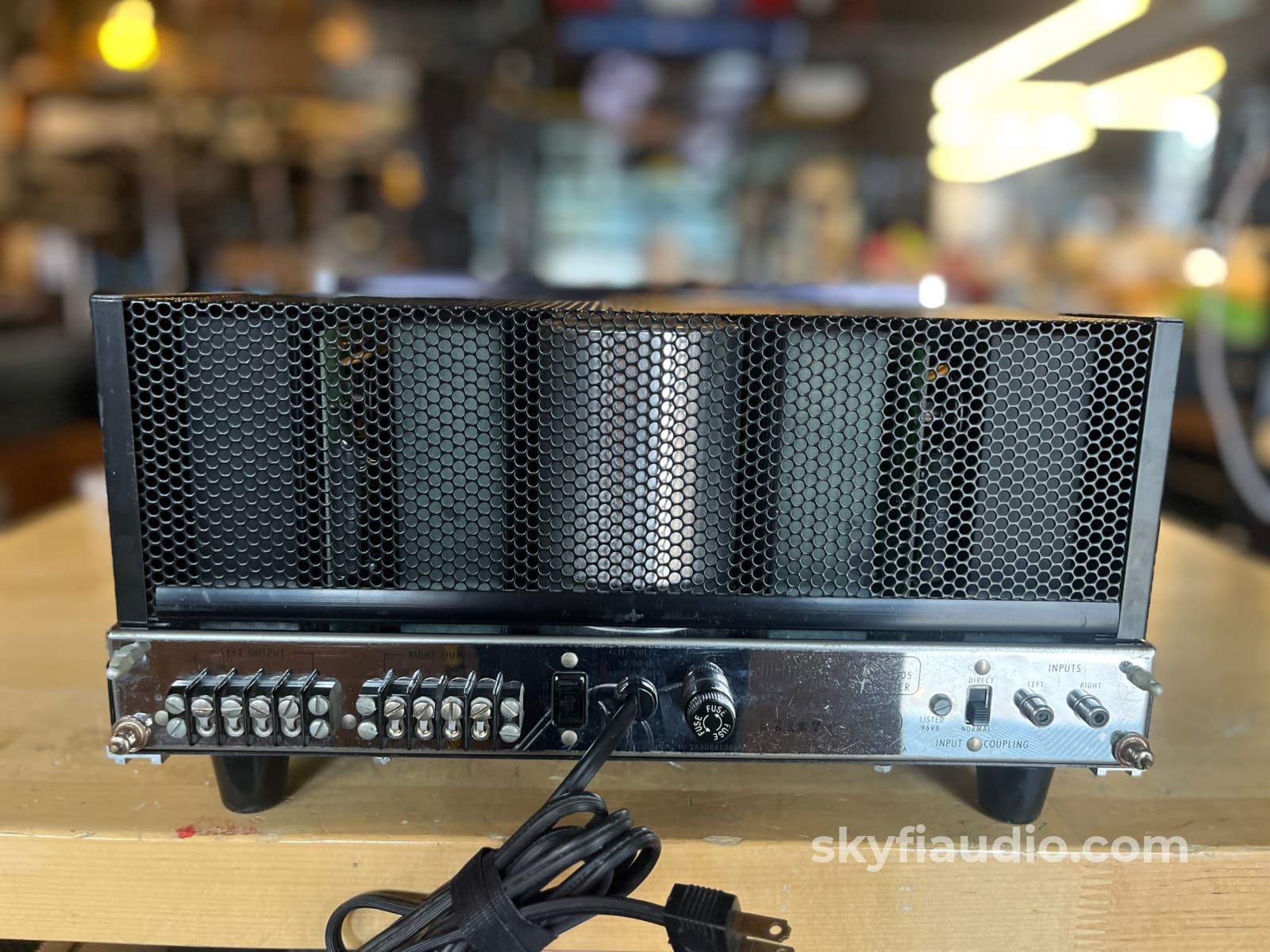

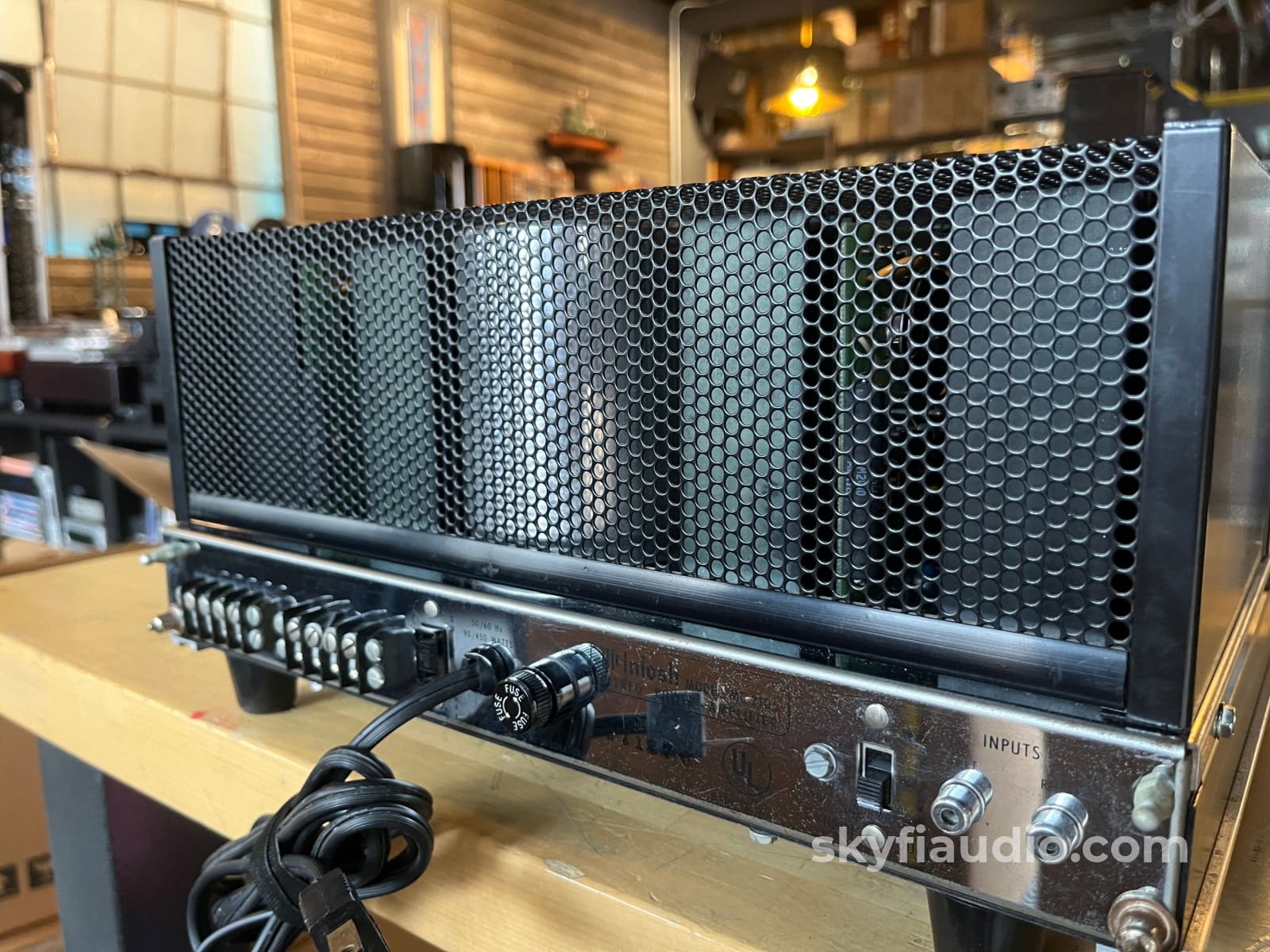

RCA input, AC power outlet, Speaker binding posts

General Sound:
Smooth, uncolored, undistorted natural and clean

Cosmetic Condition:
8/10 = Very Good. Excellent front faceplate, one minor flaw on chassis side or top. See our detailed rating description here.

Working Condition:
Working perfectly and tested in our lab and listening room.

Included:
Unit, Box, Manual

Packing:
Original Manufacturers Packing

Specs:
PERFORMANCE
McIntosh audio power ratings are in accordance with the Federal Trade Commission Regulation of November 4, 1974 concerning power output claims for amplifiers used in home entertainment products.

POWER OUTPUT
105 watts minimum sine wave continuous average power output, per channel, both channels operating into 4 ohms, 8 ohms, or 1.6 ohms load impedance, which is:
20.5 volts RMS across 4 ohms
29.0 volts RMS across 8 ohms
41.0 volts RMS across 16 ohms

OUTPUT LOAD IMPEDANCE
4 ohms, 8 ohms, or 16 ohms; separate terminals are provided for each output

RATED POWER BAND
20 Hz to 20,000 Hz

TOTAL HARMONIC DISTORTION
0.25% maximum harmonic distortion at any power level from 250 milliwatts to 105 watts per channel from 20 Hz to 20,000 Hz, both channels operating

INTERMODULATION DISTORTION
0.25% if instantaneous peak power output is 210 watts or less per channel with both channels operating for any combination of frequencies 20 Hz to 20,000 Hz

FREQUENCY RESPONSE
20 Hz to 20,000 Hz +0 -0.25 dB
10 Hz to 100,000 Hz +0 -3.0 dB at one watt output

NOISE AND HUM
90 dB below rated output

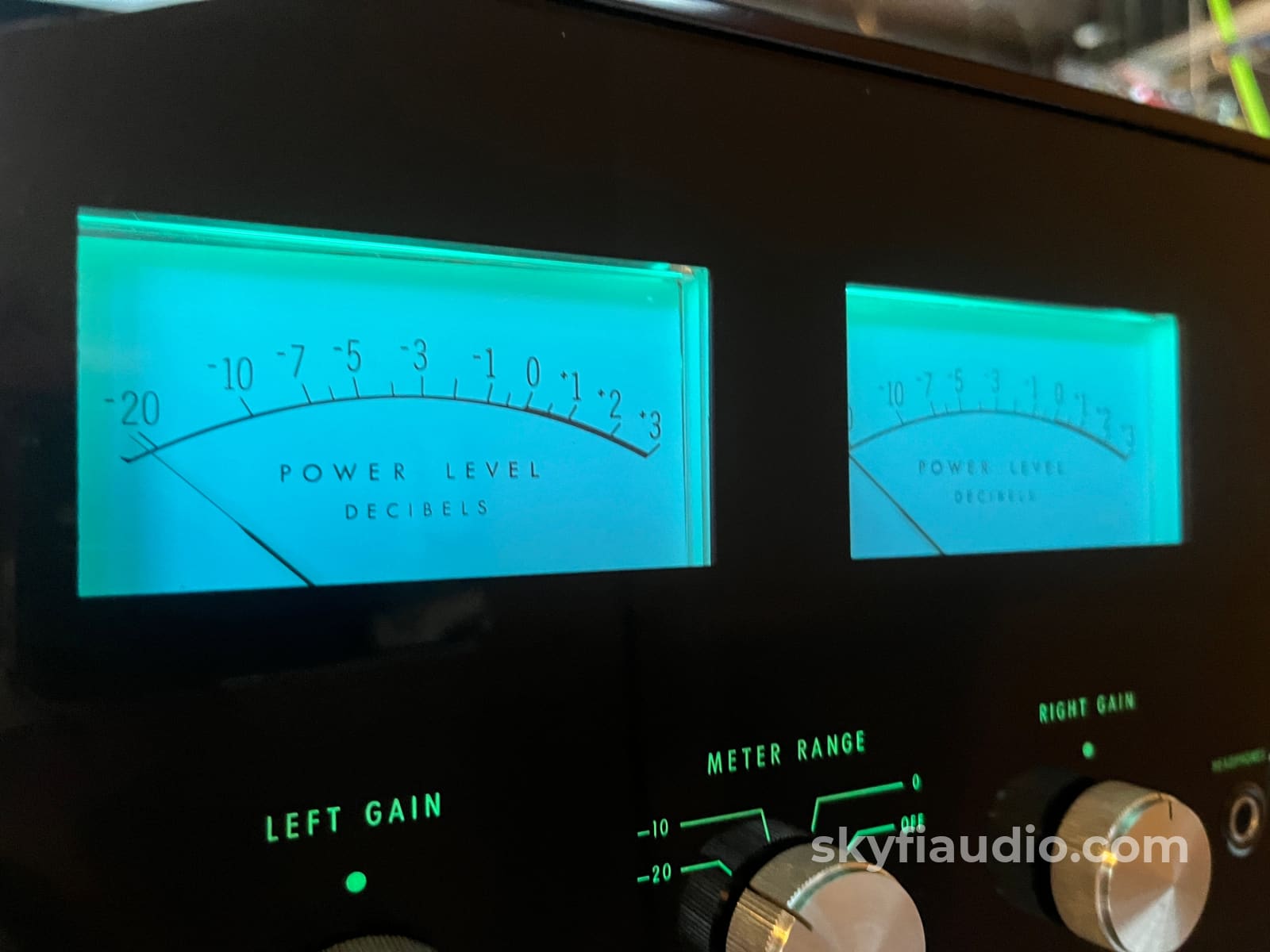

OUTPUT POWER MONITOR METER
Meter is calibrated to read +3 dB when amplifier produces 105 watts. Meter range switch is provided to increase meter sensitivity by 10 dB or 20 dB Calibration accuracy at 0 dB reading is ±2% at all frequencies; meter range accuracy is ±5%

OUTPUT VOLTAGES
25 volts for distribution lines

DAMPING FACTOR
13 at 8 ohms output 18 at 4 ohms output 10 at 16 ohms output

INPUT IMPEDANCE
200.00 ohms

INPUT SENSITIVITY
0.5 volt. Level control provided for higher input voltage

POWER REQUIREMENTS
120 volts 50 60 Hz, 75 watts at zero signal output, 430 watts at rated output

SEMICONDUCTOR COMPLEMENT
34 silicon transistors
18 silicon rectifiers and diodes

Dimensions:
Front panel measures 16 3/16 inches wide (41,12 cm) by 71/8inches high (18,1 cm). Chassis measures 15 inches wide (38,1 cm) by 6 9/16 inches high (16.67 cm) by 141⁄2 inches deep (36.83 cm), including connectors. Knob clearance required is 11⁄2 inches (3.81 cm) in front of mounting panel

Weight:
65 lbs.

Approximate Age:
1967

Link to Manual:
Click Here

Recommended Cables:
Kimber Kable - RCA Interconnects - Better

Kimber Kable - RCA Interconnects - Best

Kimber Kable - Speaker Cables - Better

Kimber Summit Series Monocle XL Speaker Cables (PAIR) - Best

Testing Process:
We start with a visual inspection of all internal components to make sure that there are no signs of heat stress or damage. Capacitors are checked for telltale signs of predictive failure including bulging, shrunken wrappers, or physical leakage. We also inspect the PCBs for discoloration from resistors or transistors that may have been running hot. On vintage units we often spot check select capacitors for value and ESR.

If the amplifier passes visual inspection, we move on to a controlled power on sequence using a Sencore safety analyzer to monitor current draw in real time. Once the amplifier is determined to be safe to operate, we connect it to full AC mains for function and power testing. We connect the speaker outputs of the amplifier to a Sencore PA81 Power Analyzer which acts as a dummy load, DC offset monitor, and oscilloscope interface. We start with a low level 1 KHz test signal at the amplifier's input and slowly increase its amplitude while monitoring the output on an oscilloscope for signs of noise, clipping, distortion, or improper channel balance. We continue increasing the signal level until the amplifier reaches clipping.

At this point we take an output power measurement and compare it to the spec sheet of the amplifier to verify proper performance. If the device under test has both balanced and single ended inputs they are both tested at this time.

We finish off the bench evaluation with a 1 KHz square wave check and a 20 Hz to 20 KHz sine sweep to assess the amplifier's frequency response characteristics.

This battery of tests will usually reveal if the amplifier has any issues that need further attention.

Before the device leaves the bench, we perform a listening test with actual music using a variety of preferred test tracks. Our benches are outfitted with familiar monitor speakers which help us identify inconsistencies that will not always show up on our test gear. The main things that we are listening for are hum or noise with no signal present, proper center image, clicks, pops, or any other obvious undesirable audio characteristics.

If the unit passes all of these tests it is moved to our long term testing rig where we simulate real word operating conditions for 6-8 hours minimum. This allows us to monitor the unit for signs of thermal runaway or intermittent issues that only crop up when the unit has fully come up to temperature.
