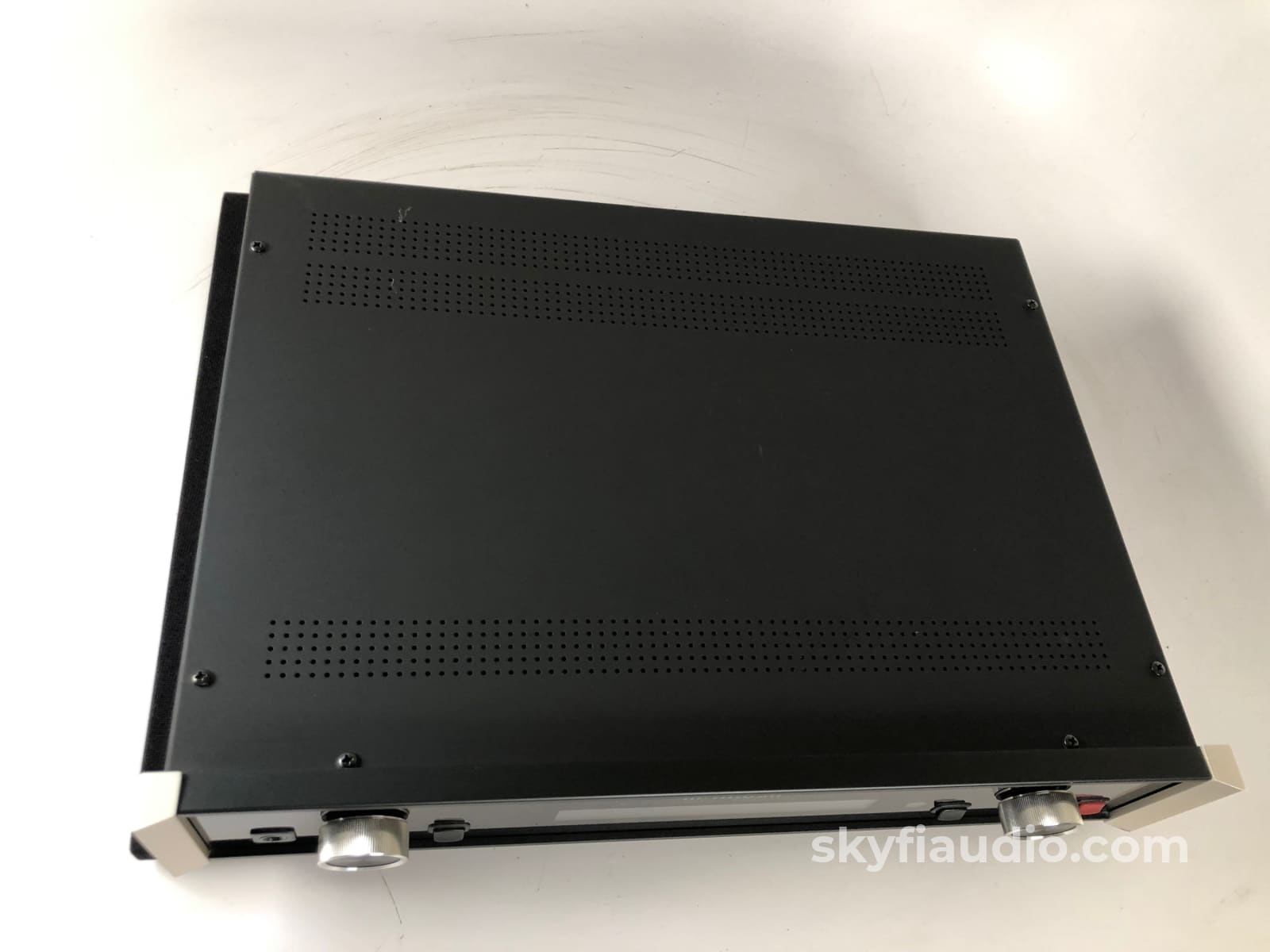

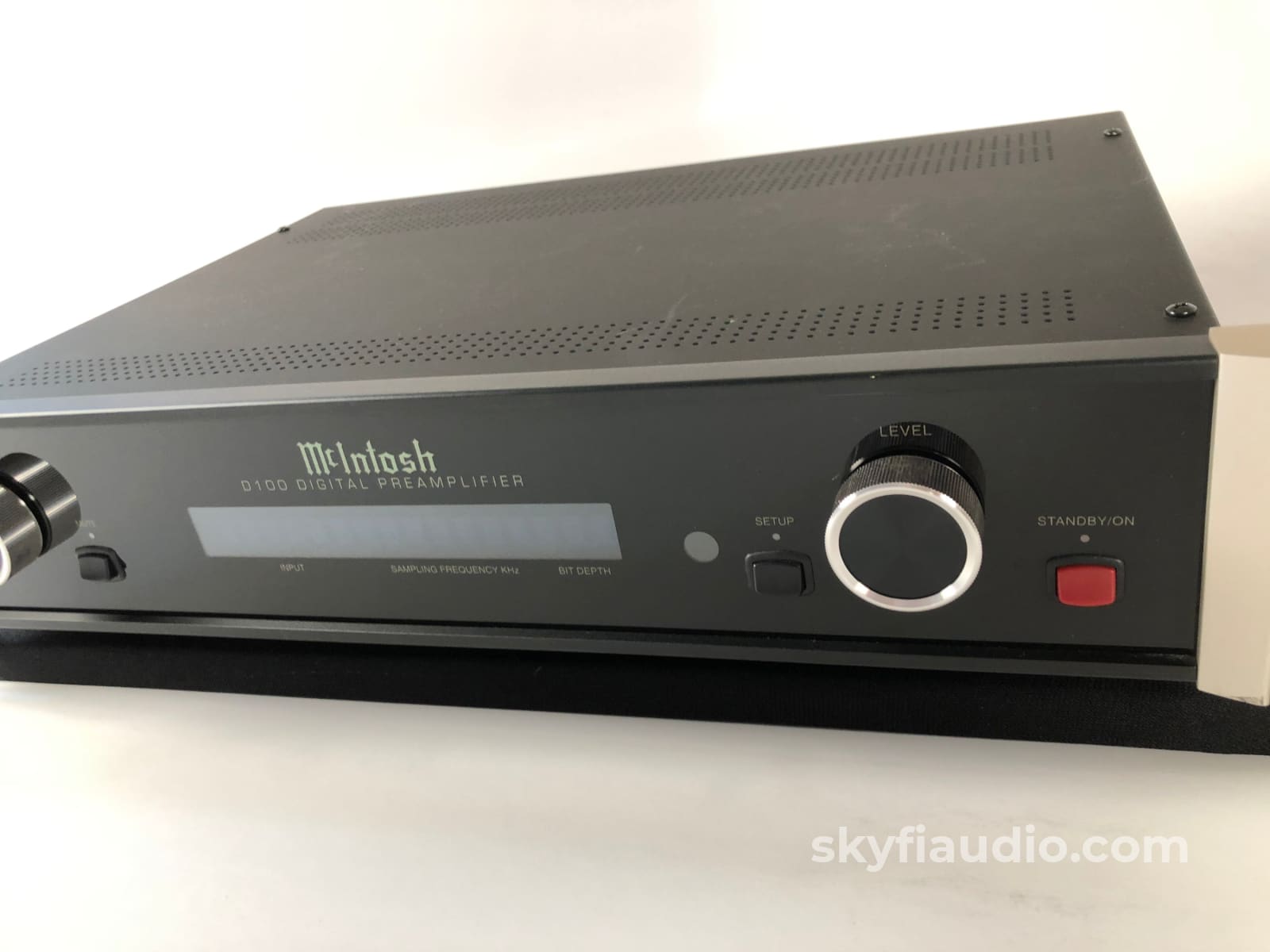

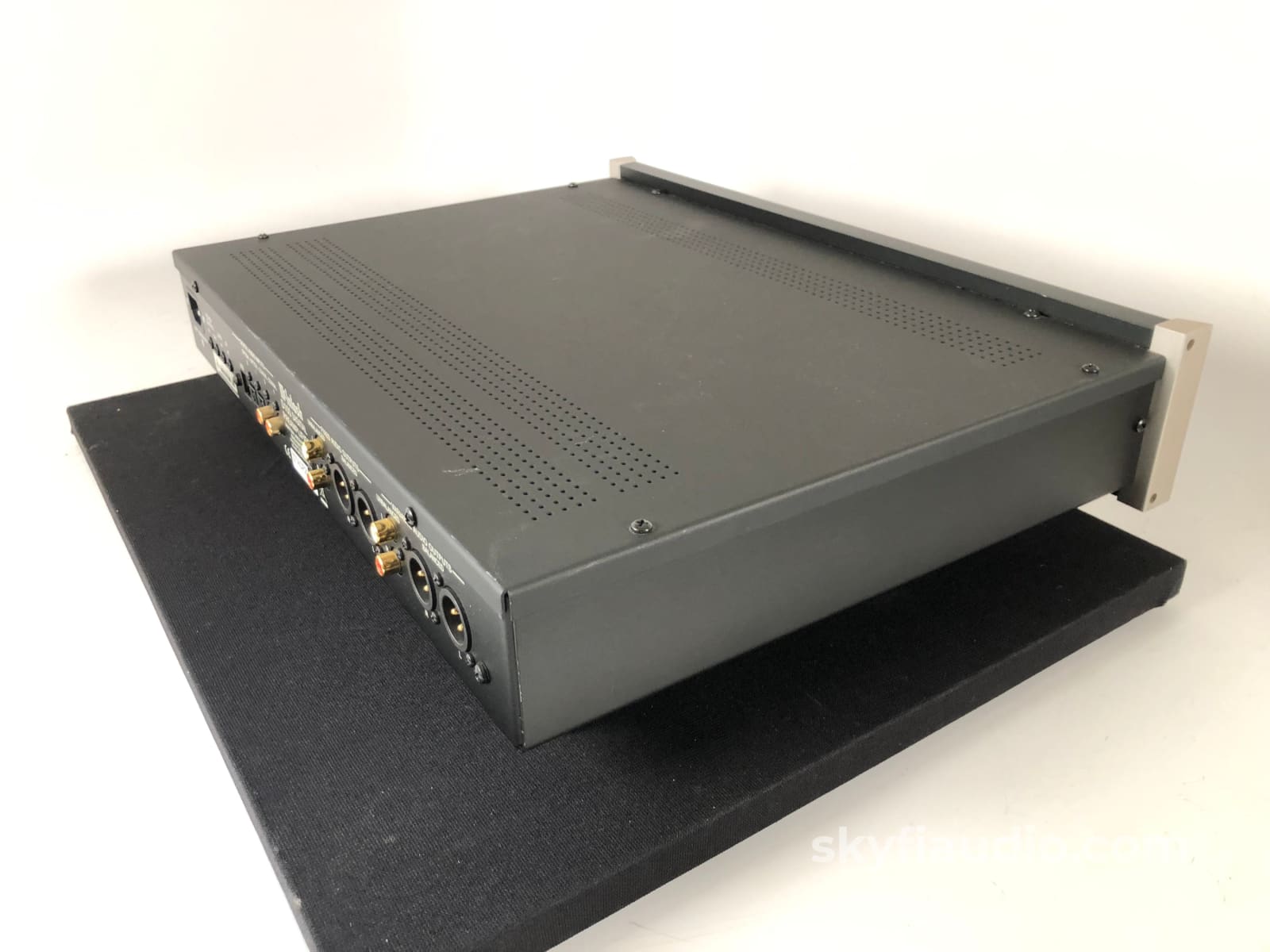

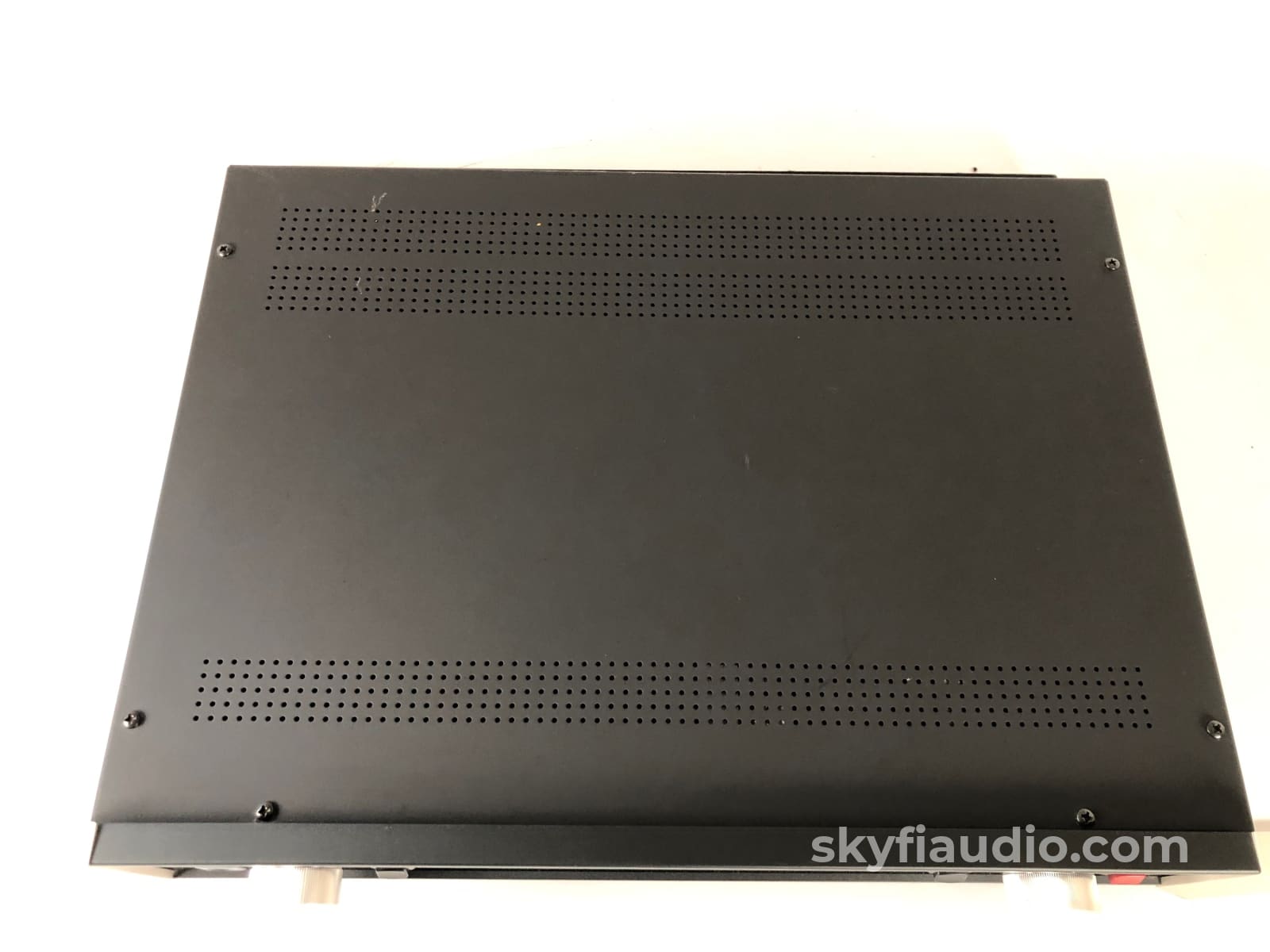

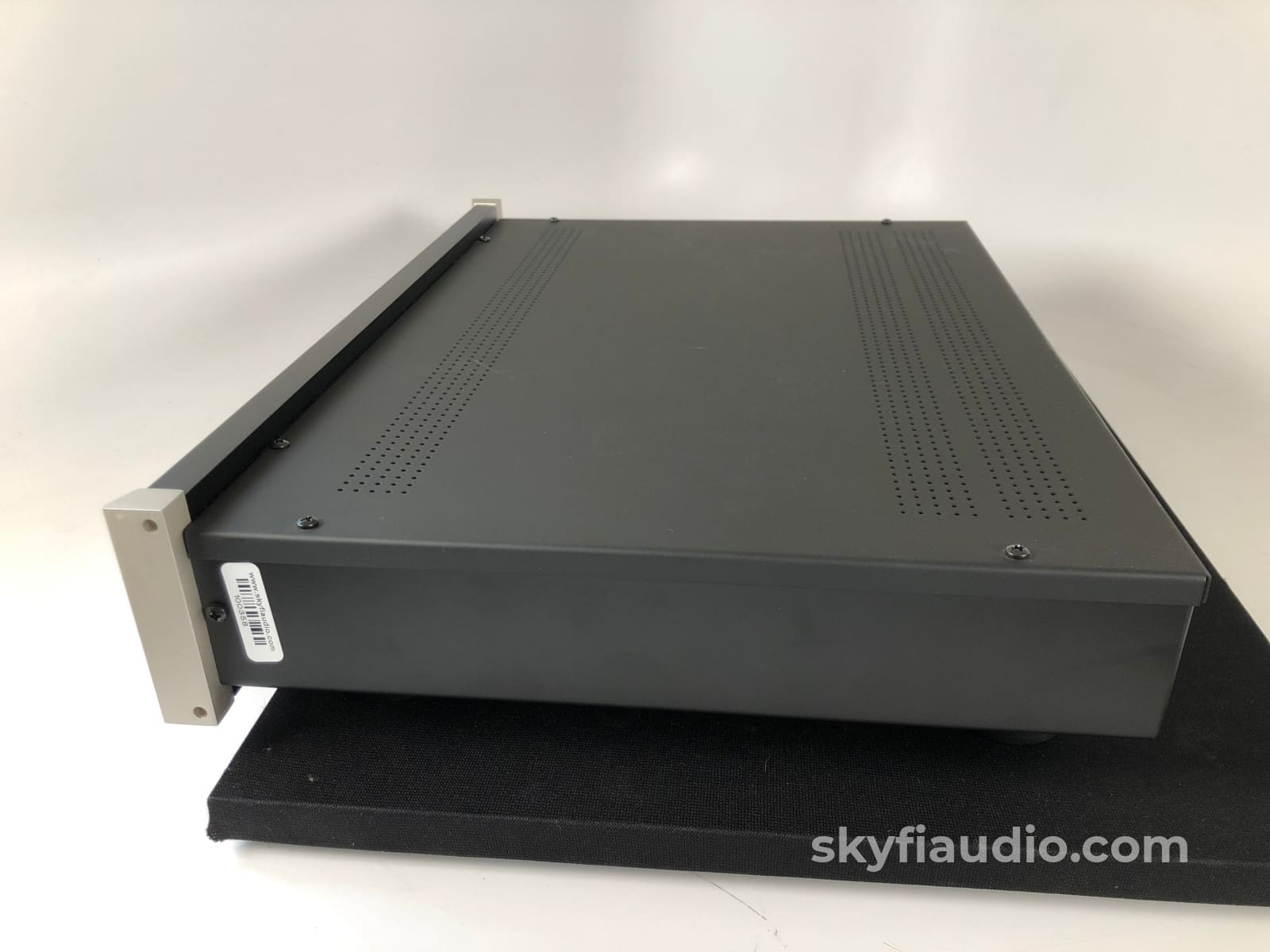

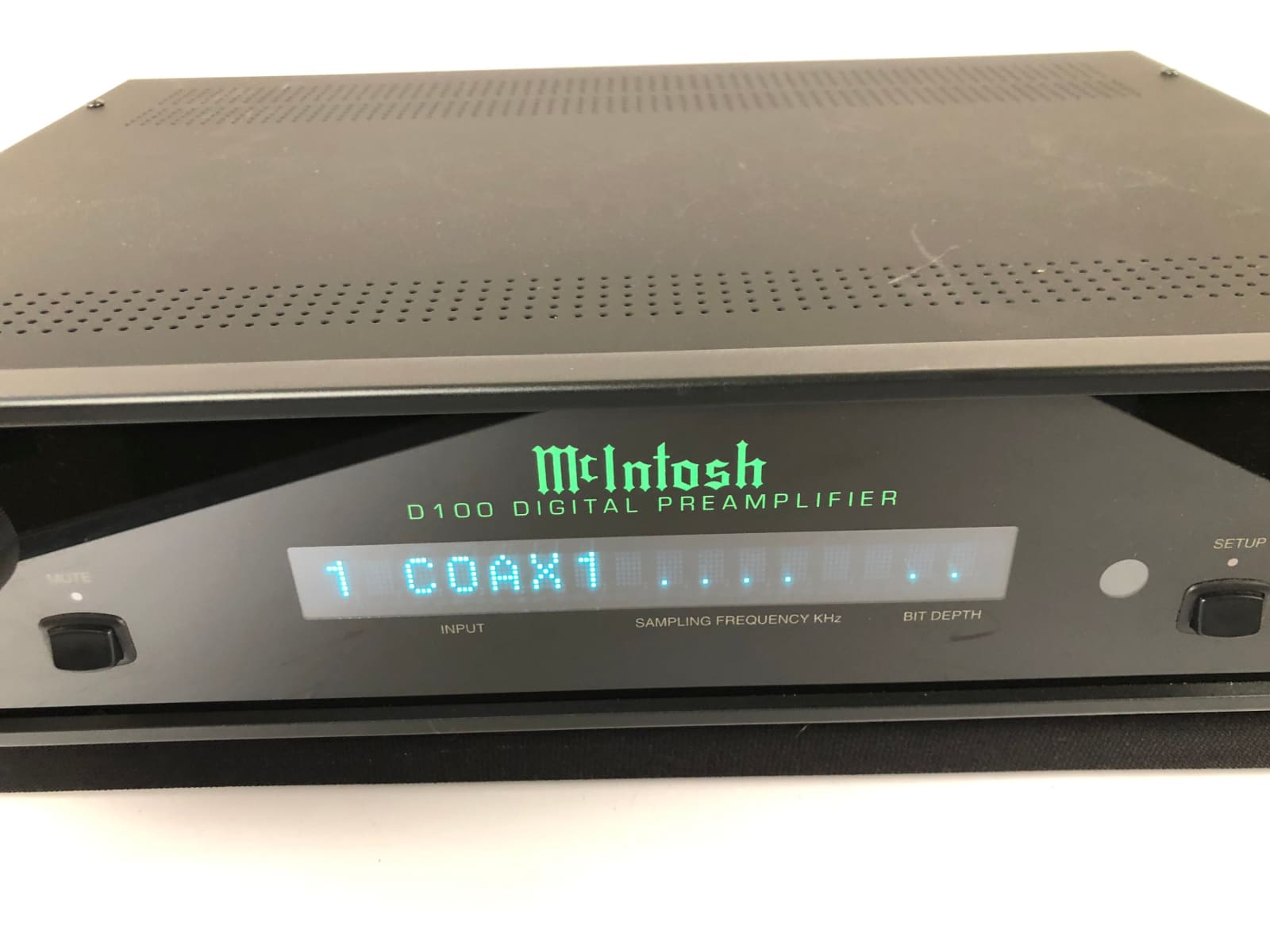

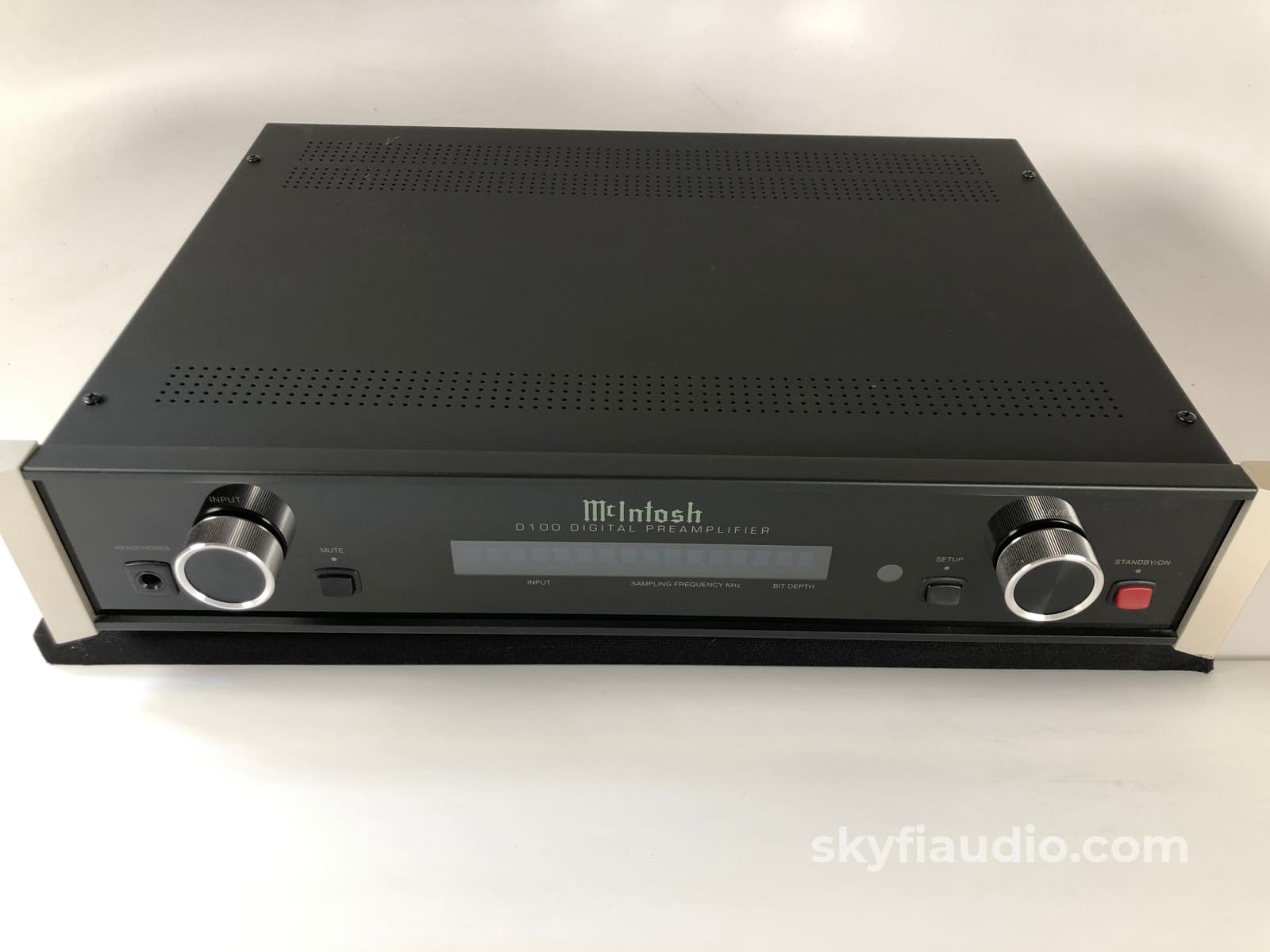

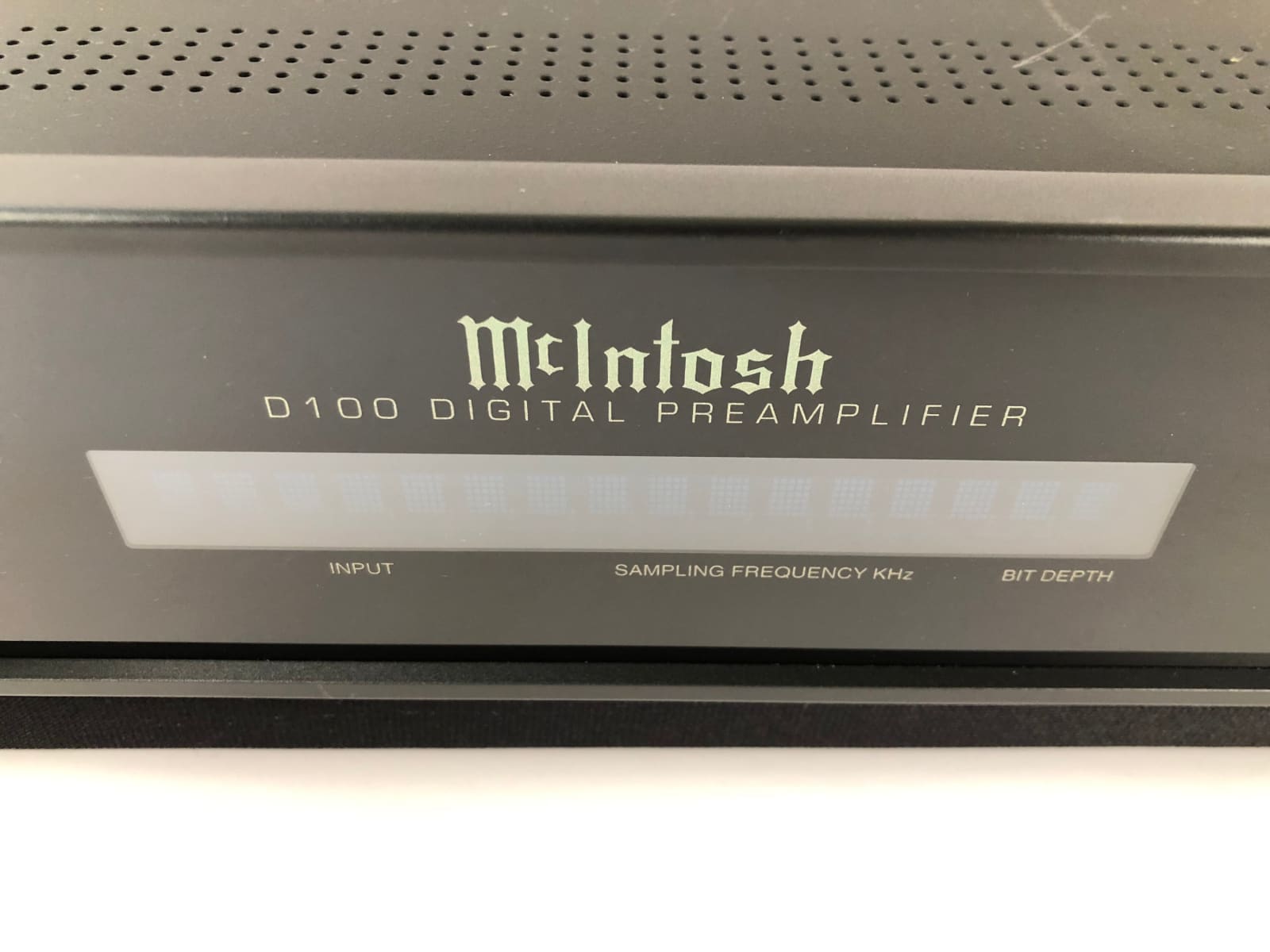

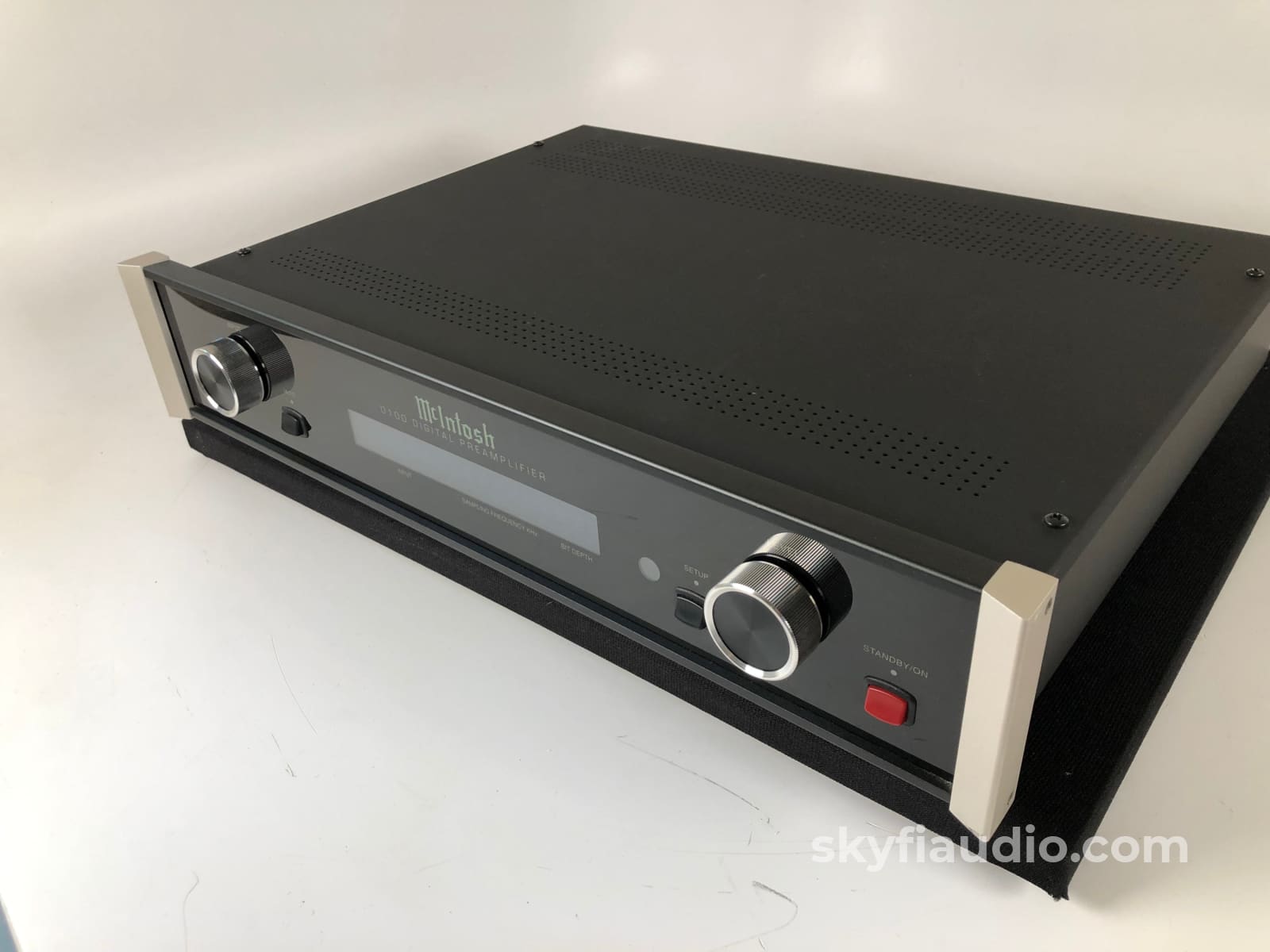

McIntosh D100 Digital Preamp and DAC
Sweet versatile piece from McIntosh, and a great addition to any system.
Can be used as a preamp since it has a volume control, as long as you don't have any other analog sources.

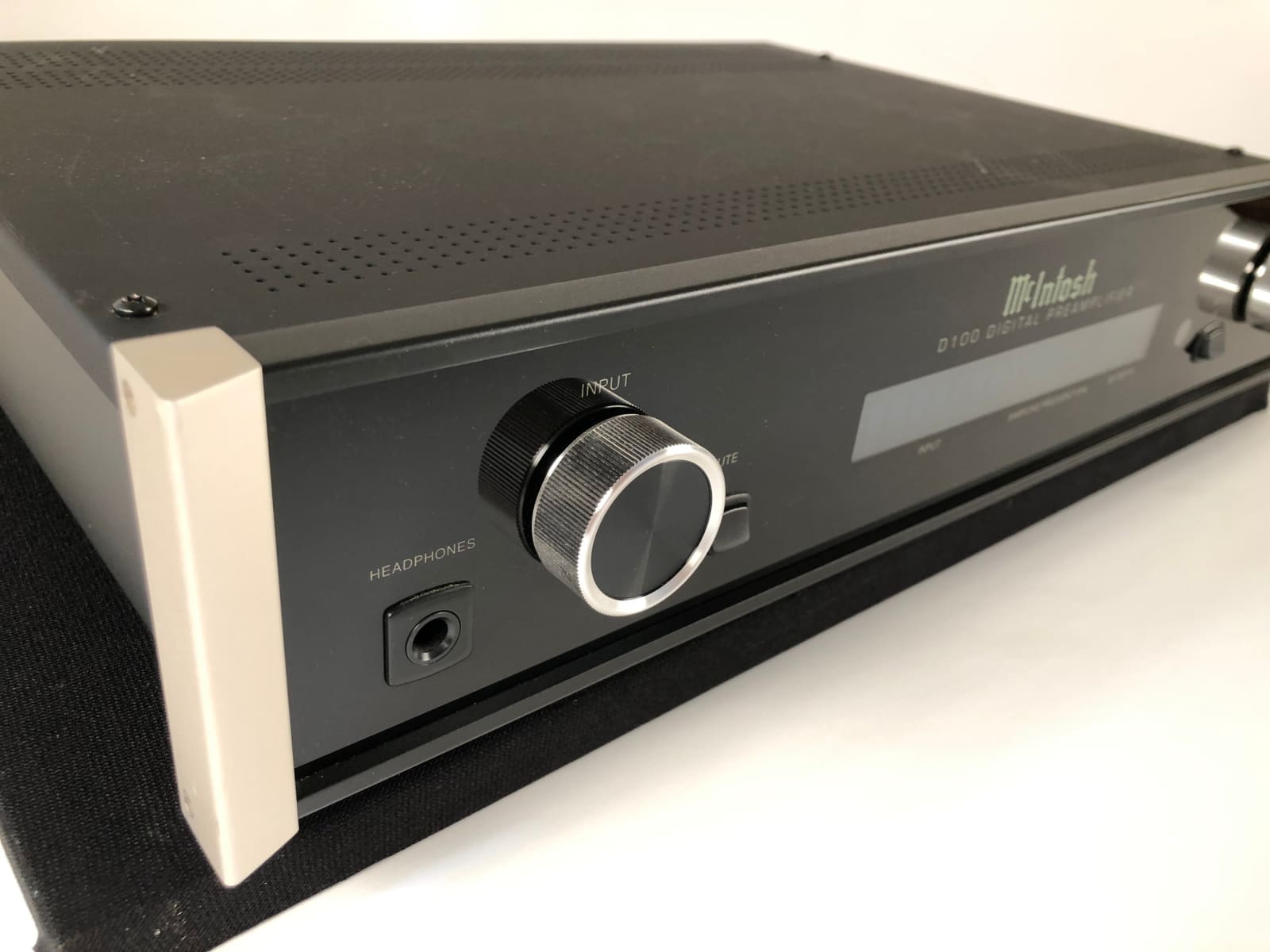

Also has an excellent headphone amplifier to drive your cans that was definitely not an afterthought add-on.

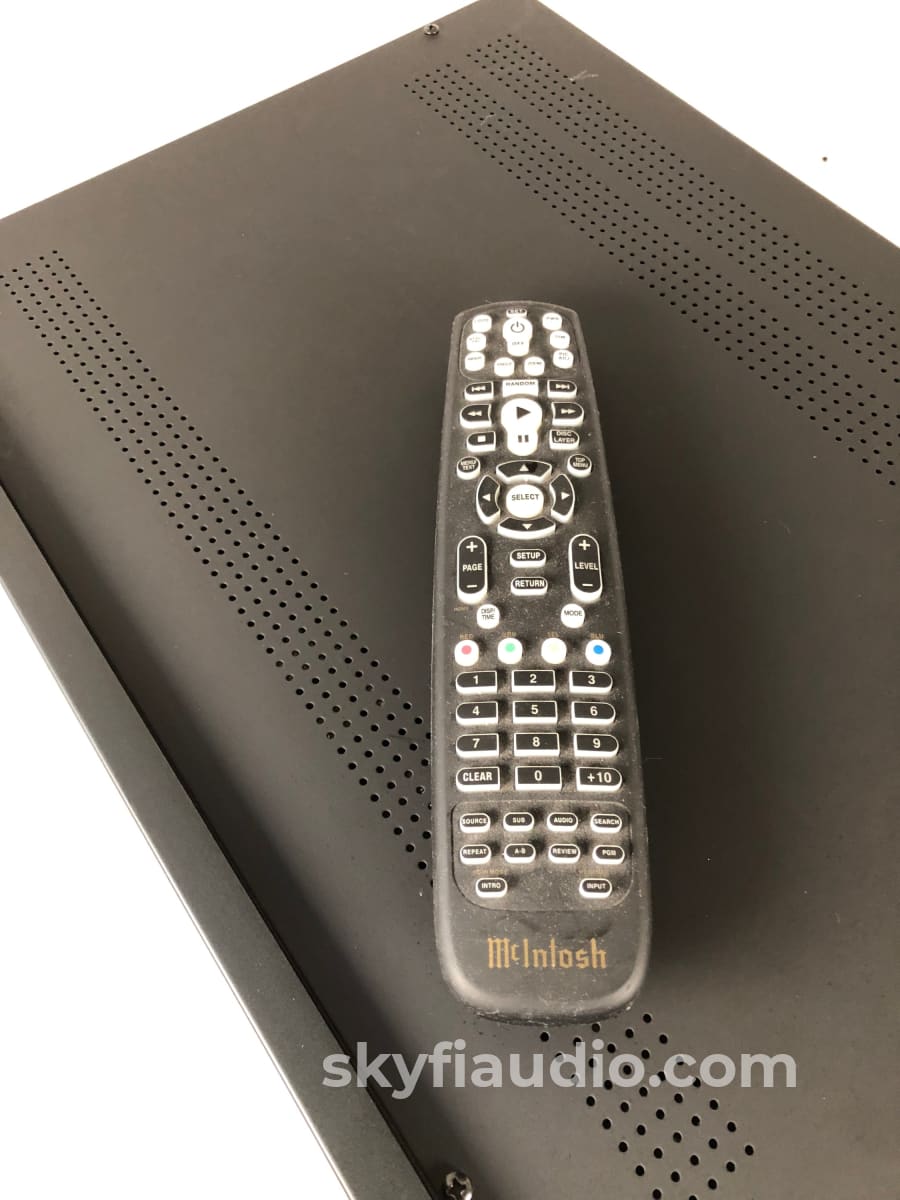

Includes the original McIntosh D100 remote and power cord.
Audio Specifications:
Frequency Response: +/-0.5dB from 4Hz to 20,000Hz +0.5/-3dB from 4Hz to 68,000Hz (Source dependent)
Total Harmonic Distortion: 0.0015%
Fixed Output level: 2.0Vrms Unbalanced 4.0Vrms Balanced
Variable Output level: 0 - 8.0Vrms Unbalanced 0- 16.0Vrms Balanced
Signal To Noise Ratio (A-Weighted): 110dB
Dynamic Range: 100dB
Output Impedance: 600 ohms Unbalanced and Balanced
Headphone Load Impedance: 20 to 600 ohms
Digital Audio Specifications:
Digital Input Format:
SPDIF (PCM/Pulse Code Modulation Digital Signal type used for CD Discs, etc.
Digital Input Sample Rate:
Coaxial and Optical: Up to 192KHz, 24-Bit
USB: Up to 192KHz, 32-Bit

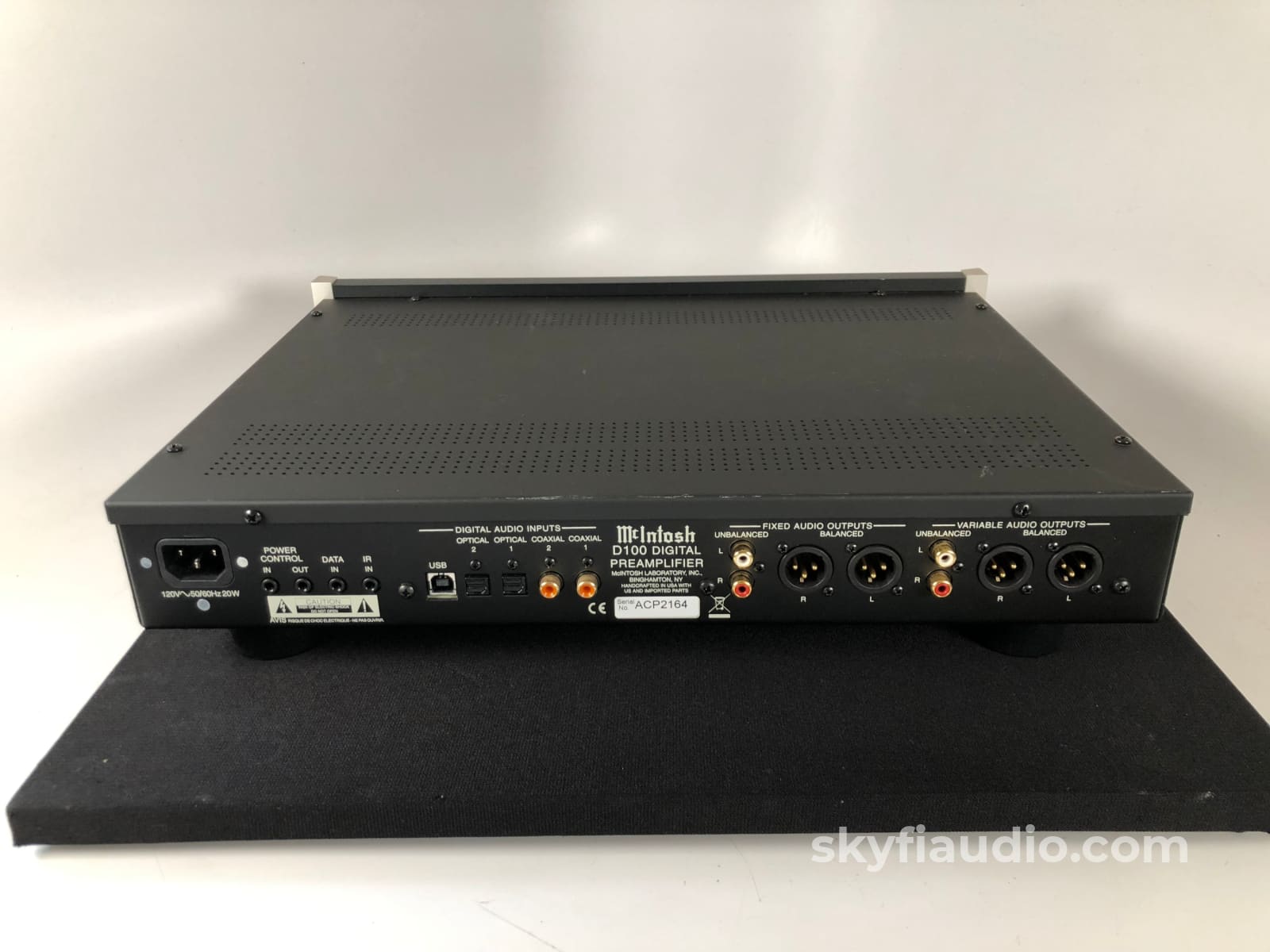

Digital Inputs:
Coaxial 1 and 2: 0.5V p-p/75 ohms
Optical 1 and 2: - 15dbm to -21dbm (TOS Link)
USB: USB Type B Connector
Overall Dimensions: Width is 17-1/2 inches (44.45cm) Height is 3-7/8 inches (9.8cm) including feet Depth is 16 inches (40.64cm) including the Front Panel, Knobs and Cables
Weight: 13.5 pounds (6.1 kg) net, 28 pounds (12.7 kg) in shipping carton
Click here for a PDF copy of the Owners Manual
Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.
Item |
Included |
Original Box |
No |
Manual |
Online |
Remote |
Yes |
Cables |
Yes - Power |
Physical Condition |
9 |
Working Condition |
10 |
