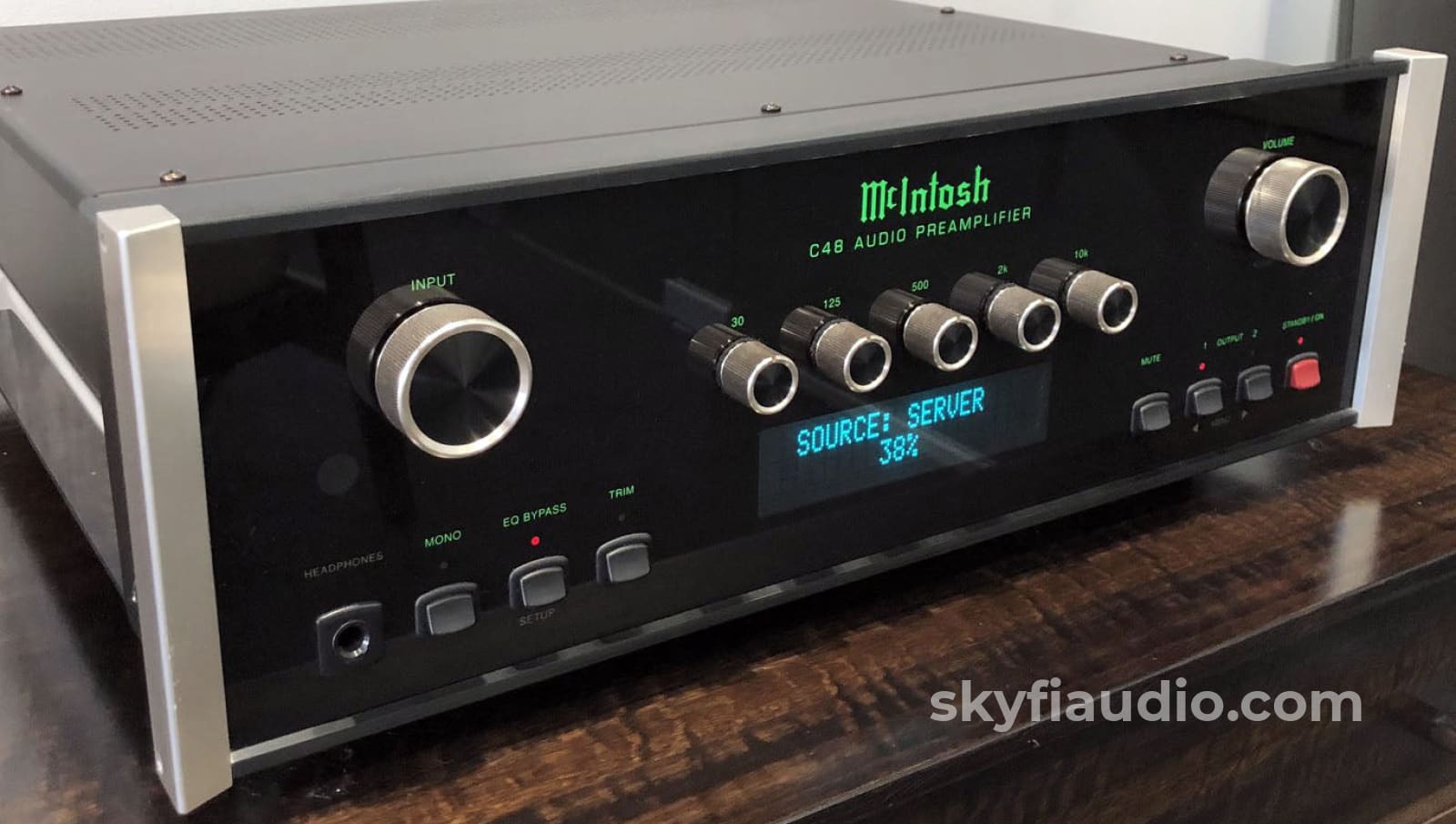

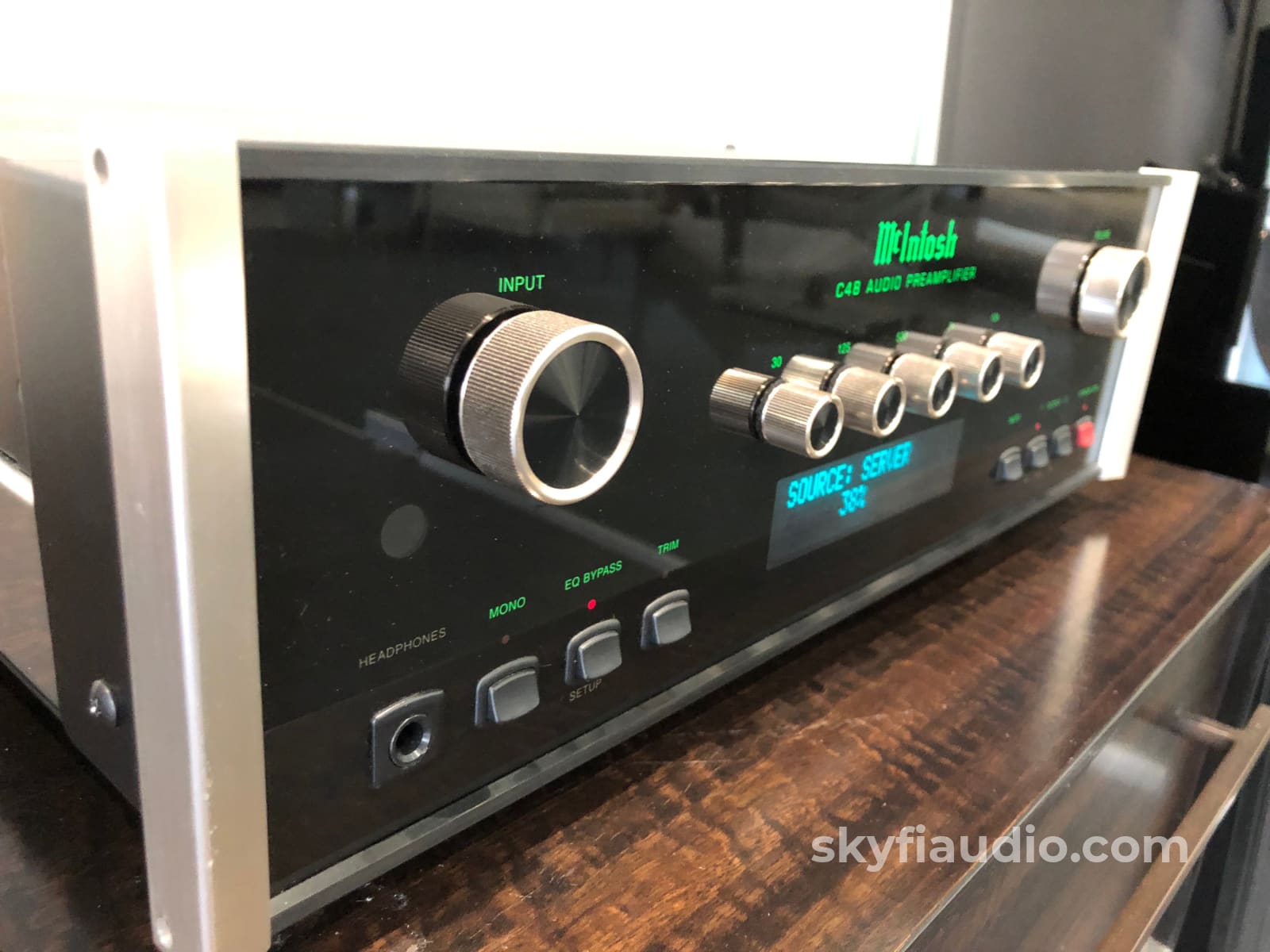

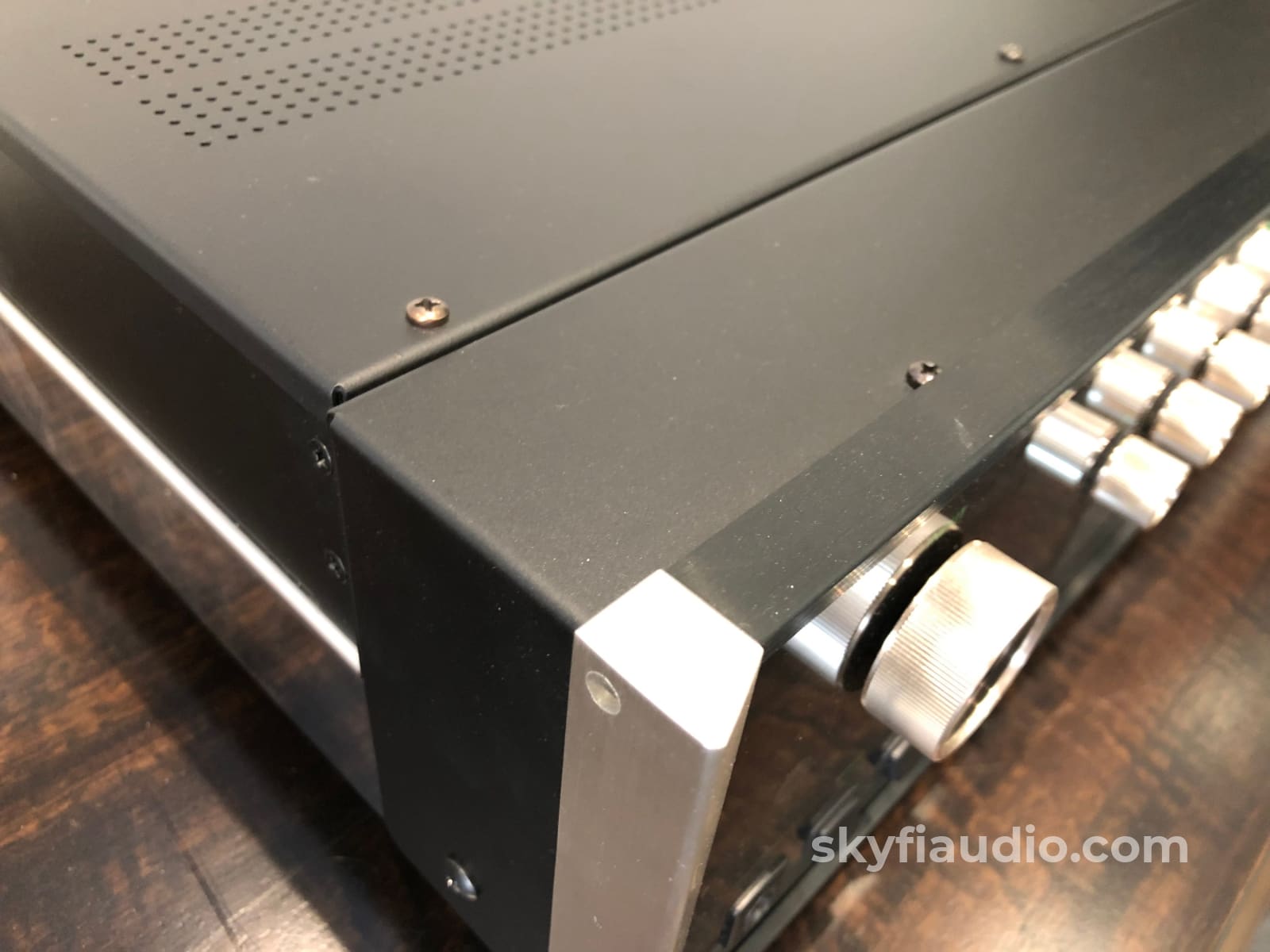

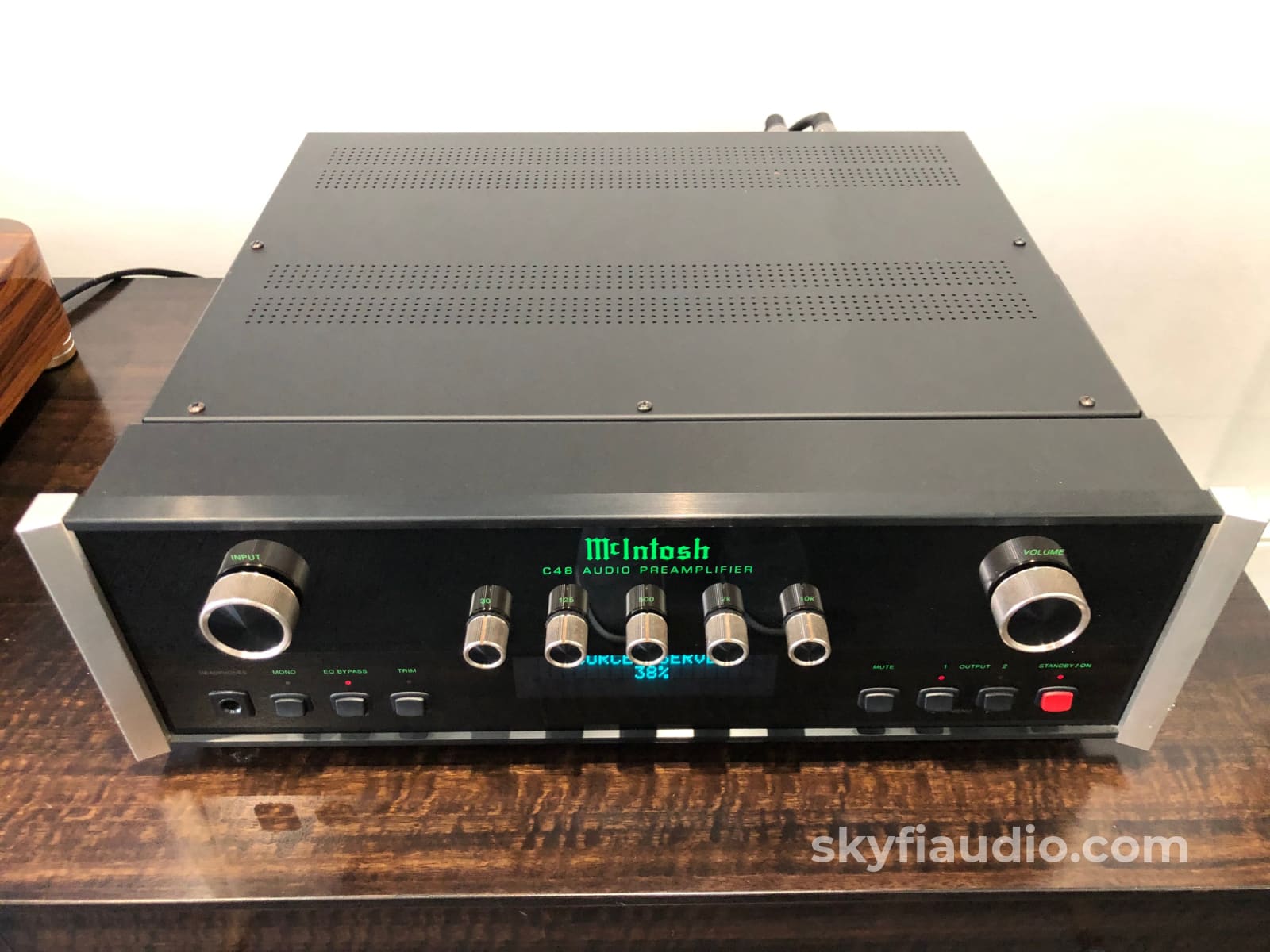

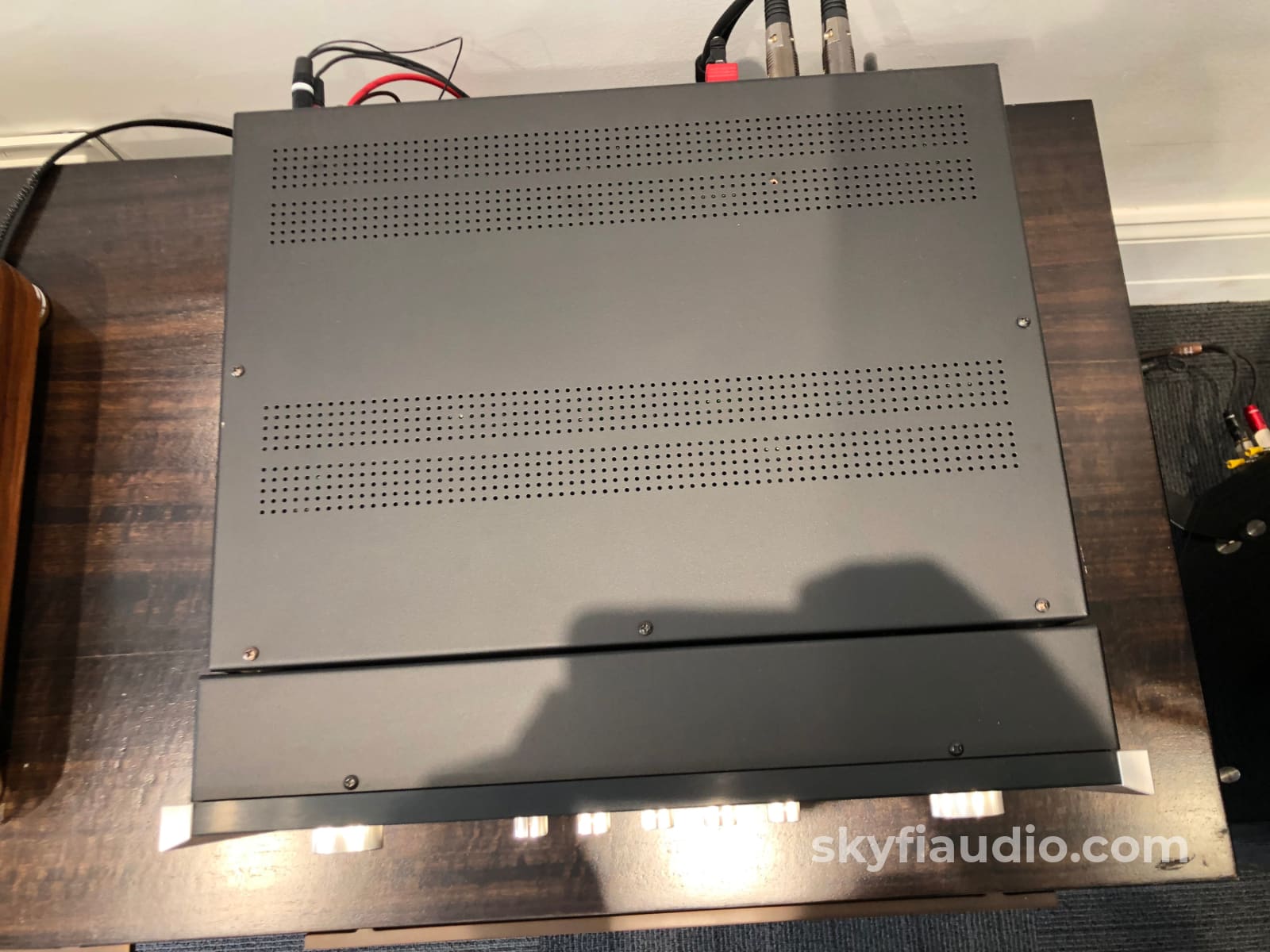

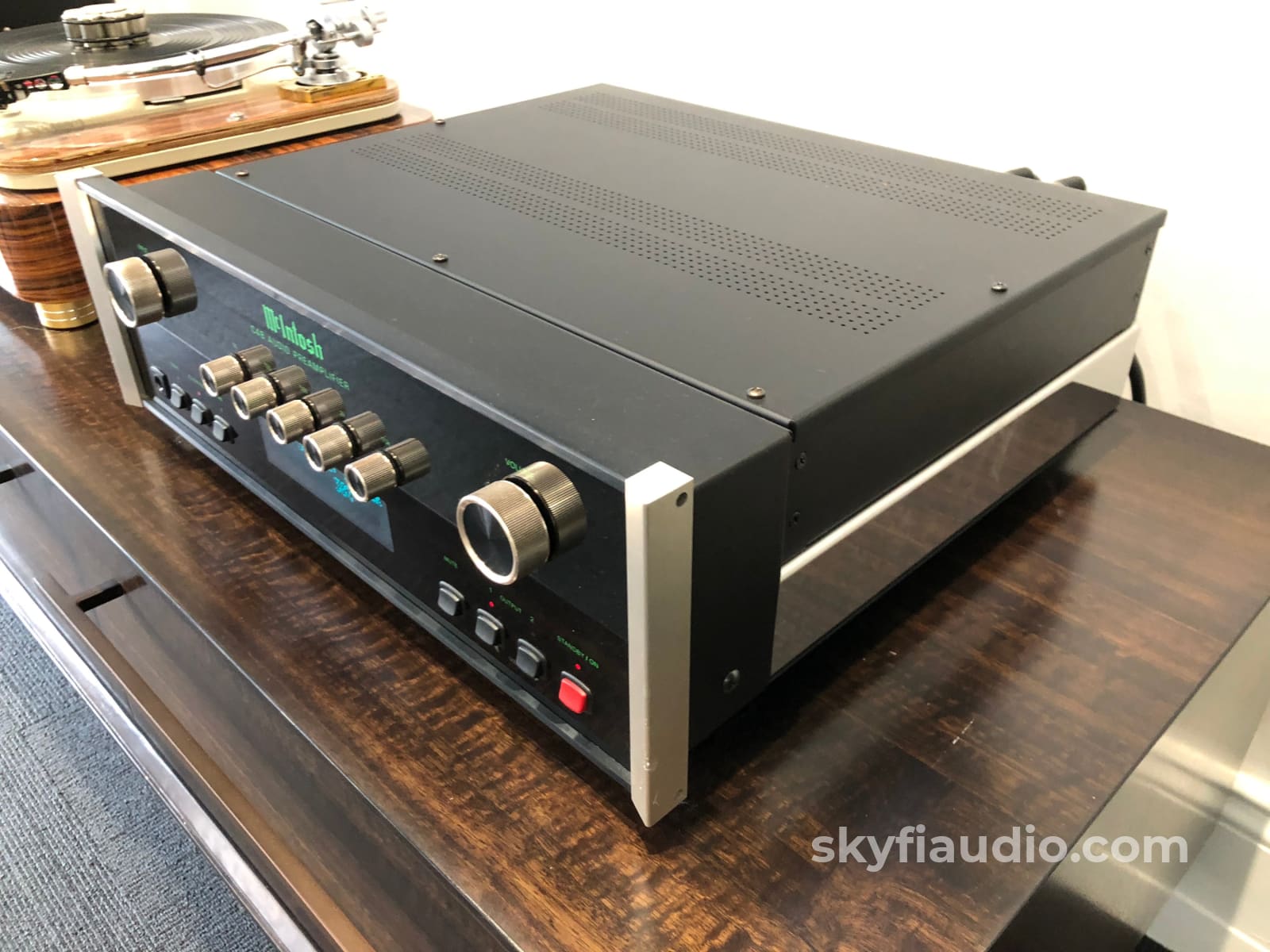

McIntosh C48 Preamp with DAC - Complete Package

$3,499

This is a complete package from McIntosh, with the original box, manual, remote, and power cord all included, and in excellent overall condition.

"The C48 is the ultimate McIntosh preamplifier value, bridging the two worlds of conventional analog stereo source with the latest digital music sources."

Performance Features:

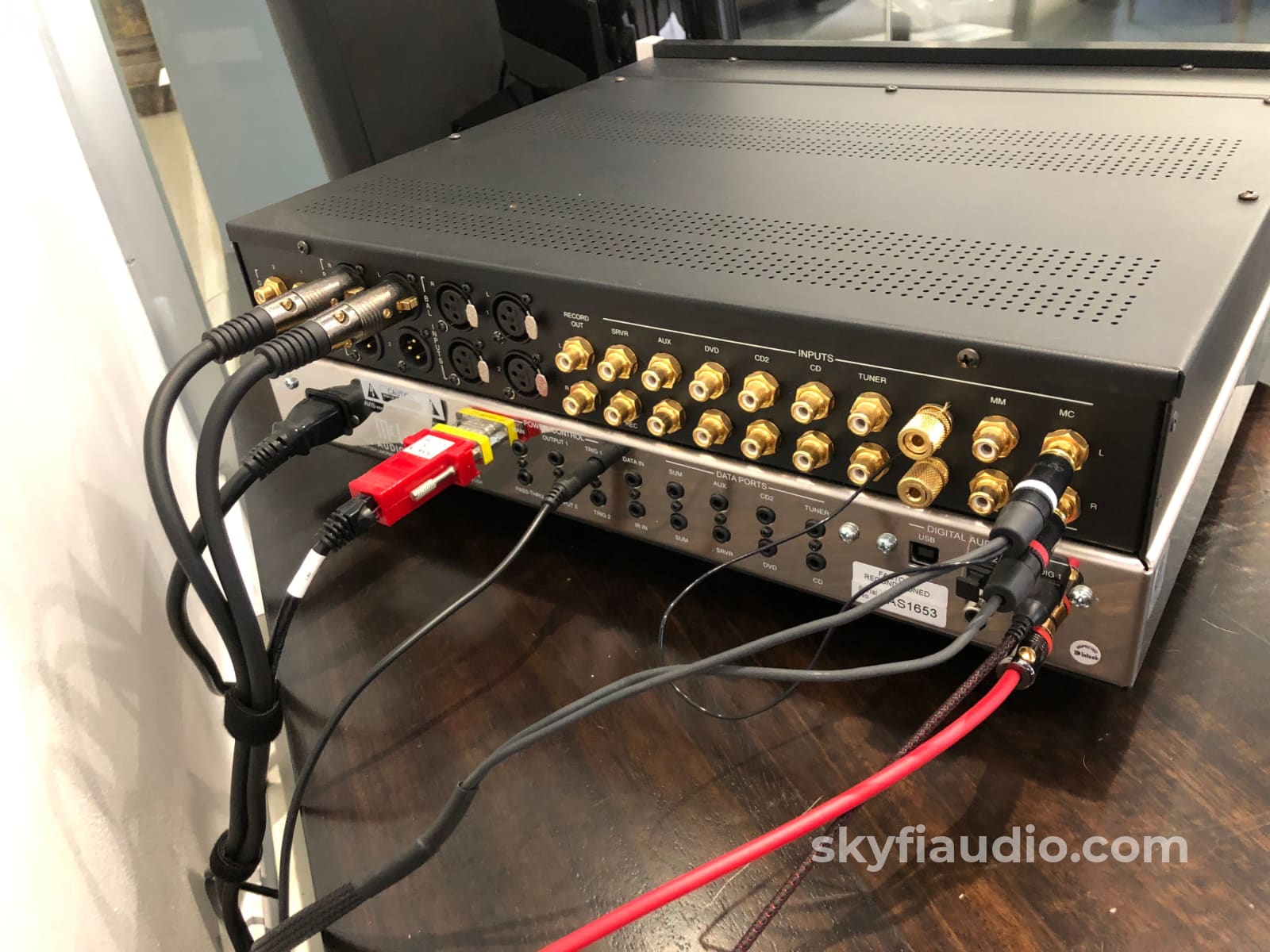

• The C48 offers control of 8 analog sources including phono cartridges, plus 4 additional programmable digital inputs and one dedicated USB computer music input.

• Unique features include home theater pass through, amplifier meter light control and RS232 software upgradability.

• Five band tone controls that may be actively programmed by input, moving coil and moving magnet phono sections are fully adjustable from the remote control volume control.

• Moving Coil and Moving Magnet Phono Inputs
The C48 contains two different precision Phono Preamplifier Circuits. One for low output Moving Coil Phono Cartridges with selectable resistance loading, the other is for Moving Magnet Cartridges with selectable capacitive loading. Both circuits use the latest designs to provide the lowest possible noise and distortion. The RIAA Correction Equalization Circuitry utilizes close tolerance resistors and capacitors for an extremely flat frequency response.

• Digital Audio Inputs
The C48 has Coaxial, Optical and USB Digital Inputs to Decode PCM Signals from an external source. The C48 Up Samples the Digital Signal to 192kHz with 32Bit resolution before the Digital to Analog process begins. The USB Input sends basic commands (e.g. Play/Pause, Next, Back, etc.) to the computer by using the C48 Remote Control.

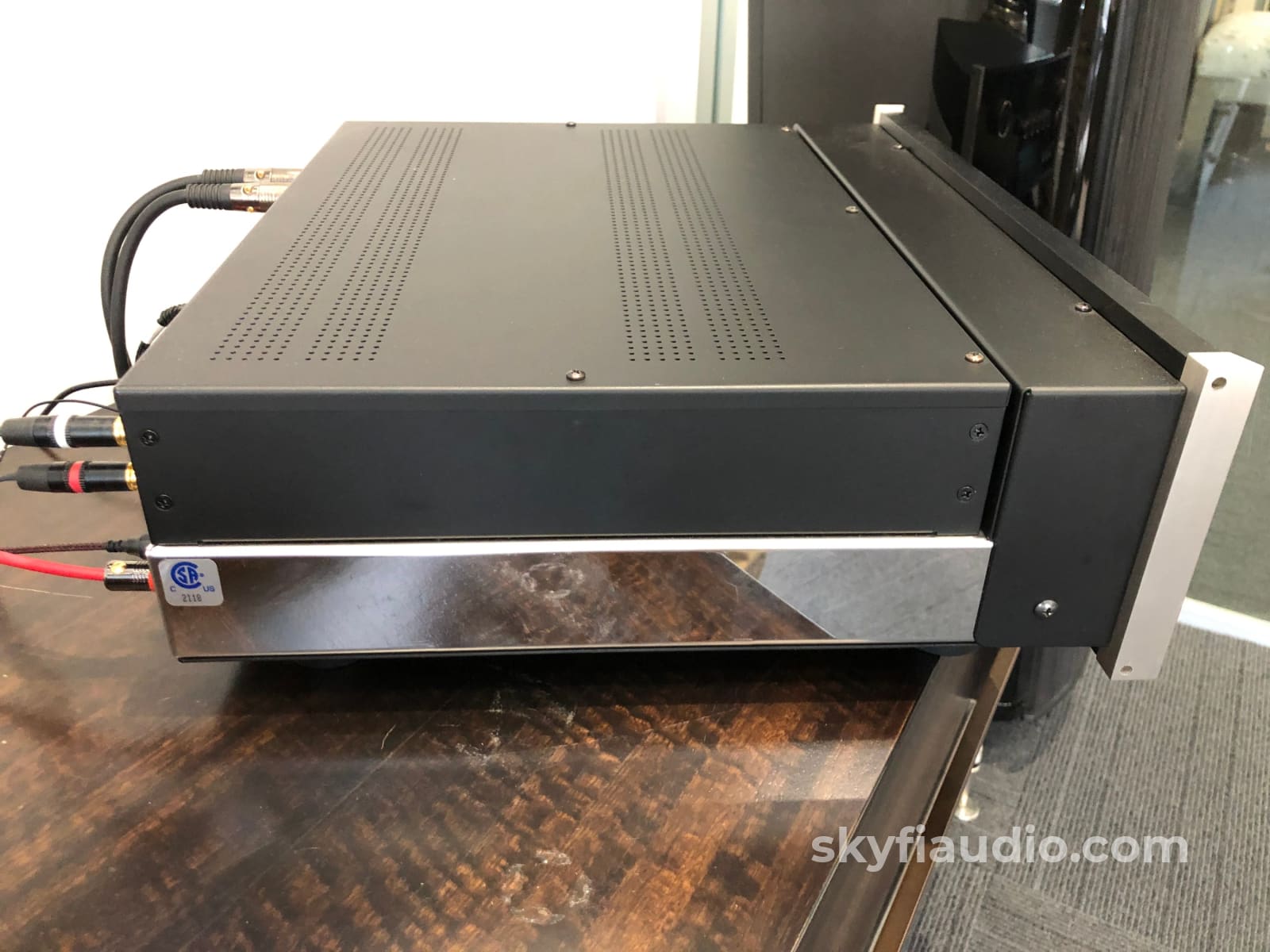

• Inverted Double-Chassis Design:
All analog signals and amplification are nestled into the top section, protected from any noise generated by the power supply or digital circuits that are contained in the bottom section. This achieves the performance of a dual-box component with the convenience of a single-chassis component and provides for ultra-short cabling between sections.

• Silent Electromagnetic Switching:
Signal routing is accomplished through digital controlled electromagnetic switching devices. Precision switch contact, isolated from environmental contamination inside inert gas-filled tubes, provide the most reliable, quietest and lowest distortion switching possible.

•VRV (Variable Rate Volume)
Digital Controlled Attenuator:
The output attenuator controls volume over 214 steps of 0.5dB each with accuracy within 0.1dB. The volume vs. rotation rate varies as preamplifier gain varies and attenuation changes occur at the zero crossings of the audio signal to prevent audible artifacts during adjustment.

Frequency Response:
+0, -0.5dB from 20Hz to 20kHz
+0, -3.0dB from 15Hz to 100kHz

Total Harmonic Distortion:
0.002% maximum from 20Hz to 20kHz

Rated Output Voltage:
Unbalanced Outputs 1 & 2: 2.5Vrms
Balanced Outputs 1 & 2: 5 Vrms

Maximum Voltage Output:
Unbalanced Outputs 1 & 2: 8 Vrms
Balanced Outputs 1 & 2: 16 Vrms

Overall Dimensions (W x H x D):
17-1/2” (44.45cm) x 6” (15.24cm) including feet x 18” (45.72cm) including the front panel, knobs and cables

Weight:
26.5 lbs (12kg) net,
41 lbs (18.6kg) in shipping carton

Click here for a PDF copy of the C48 Sales Brochure

Click here for a PDF copy of the C48 Owner's Manual

Our Testing Process - Preamplifiers:

We start with a visual inspection of all internal components to make sure there are no signs of stress or aging. Capacitors are checked for telltale sings of bulging or leaking, resistors are checked for signs of overheating or cracking, and transistors are checked for signs of stress or damage. Special attention is paid to the power supply which is the most common source of failure for preamps. We then power up the unit and run a simple 1k sine wave while monitoring the low voltage output on an oscilloscope for signs of distortion or noise to get a baseline.

At this point we will lubricate and clean all switches and potentiometers (that are not sealed) with a high quality contact cleaner, and then re-test all functions for any signs of noise or scratching.

Final testing involves putting actual music through the preamplifier We have learned over time that some issues are only noticeable to a trained ear while listening to a familiar source material. Our test bench has reference vintage Kef speakers that we are super familiar with which will quickly reveal any discrepancies. Some preamps will then move into the listening room where they will be tested with our in-house reference system.

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

Yes

Manual

 Yes and Online

Remote

Yes

Cables

Yes - Power

Physical Condition

 9

Working Condition

10
