McIntosh C2300 All Tube All Analog Preamplifier With Extras
This is the last of the all analog preamps from this line before they starting including a DAC (which no self respecting audiophile wants in a preamp :-)).

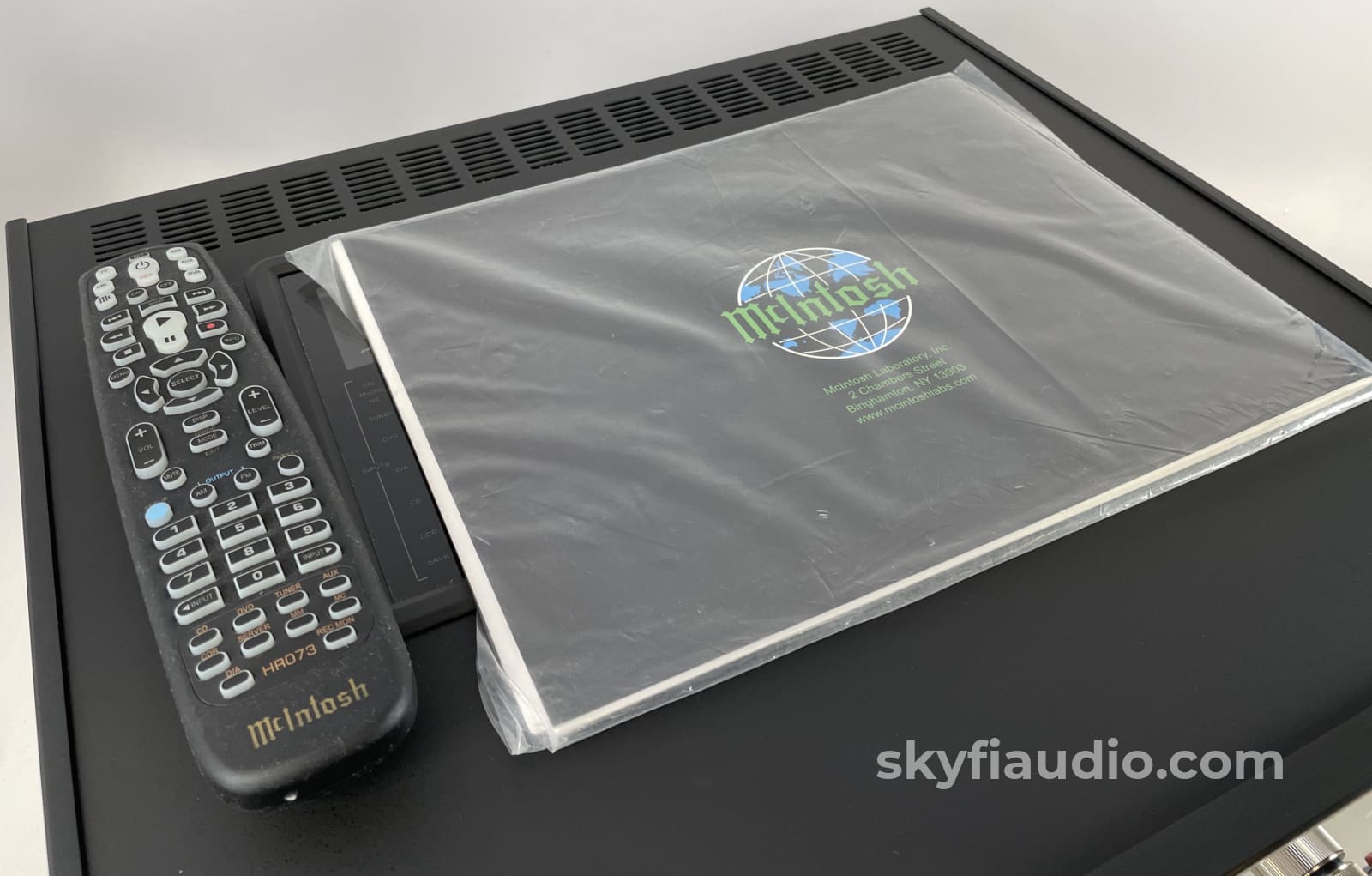

All Tube, super musical, and full of features such as remote control, phono section, and the best parts selection available.
These are quickly becoming collector pieces and very sought after by discerning McIntosh fans.

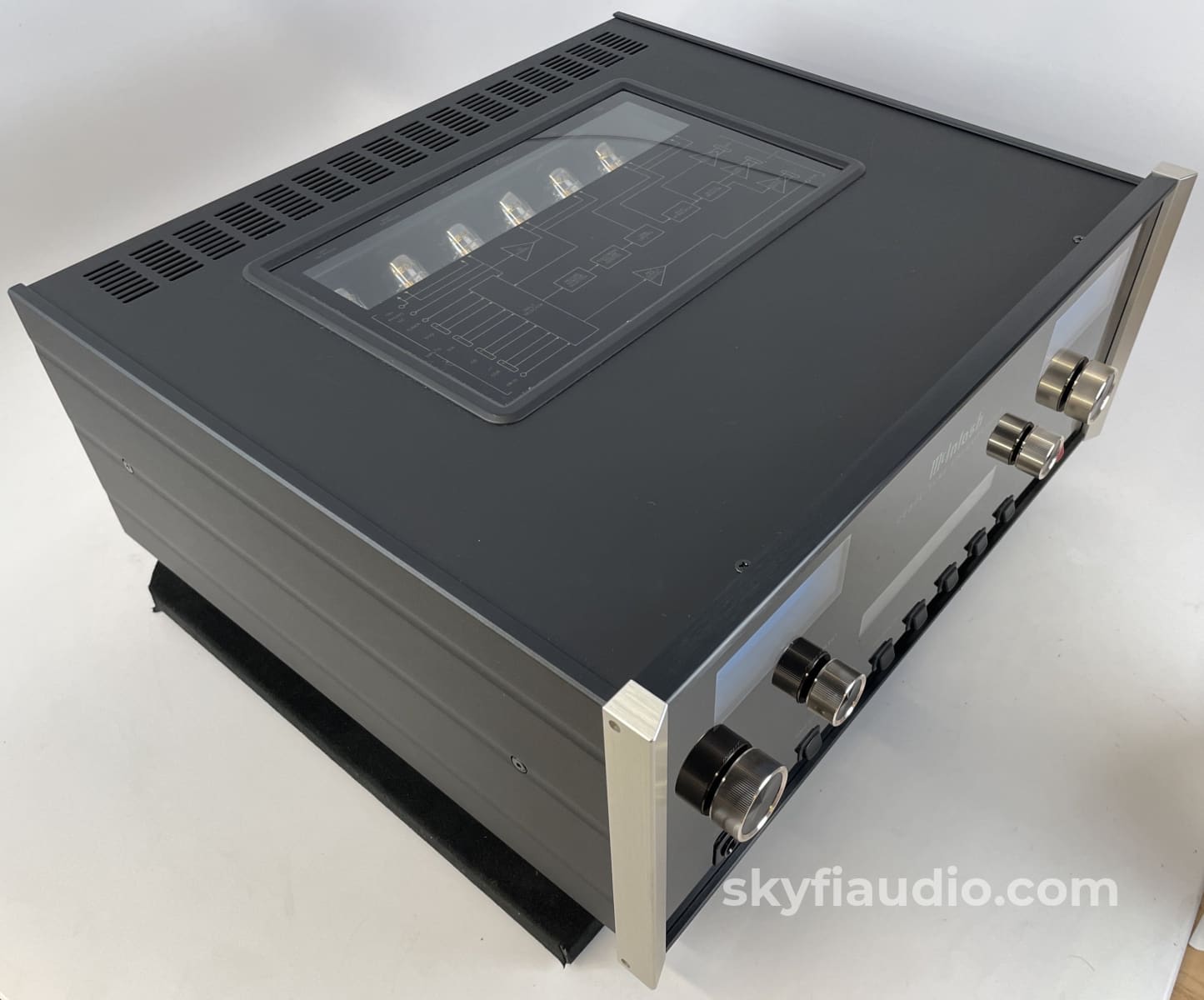

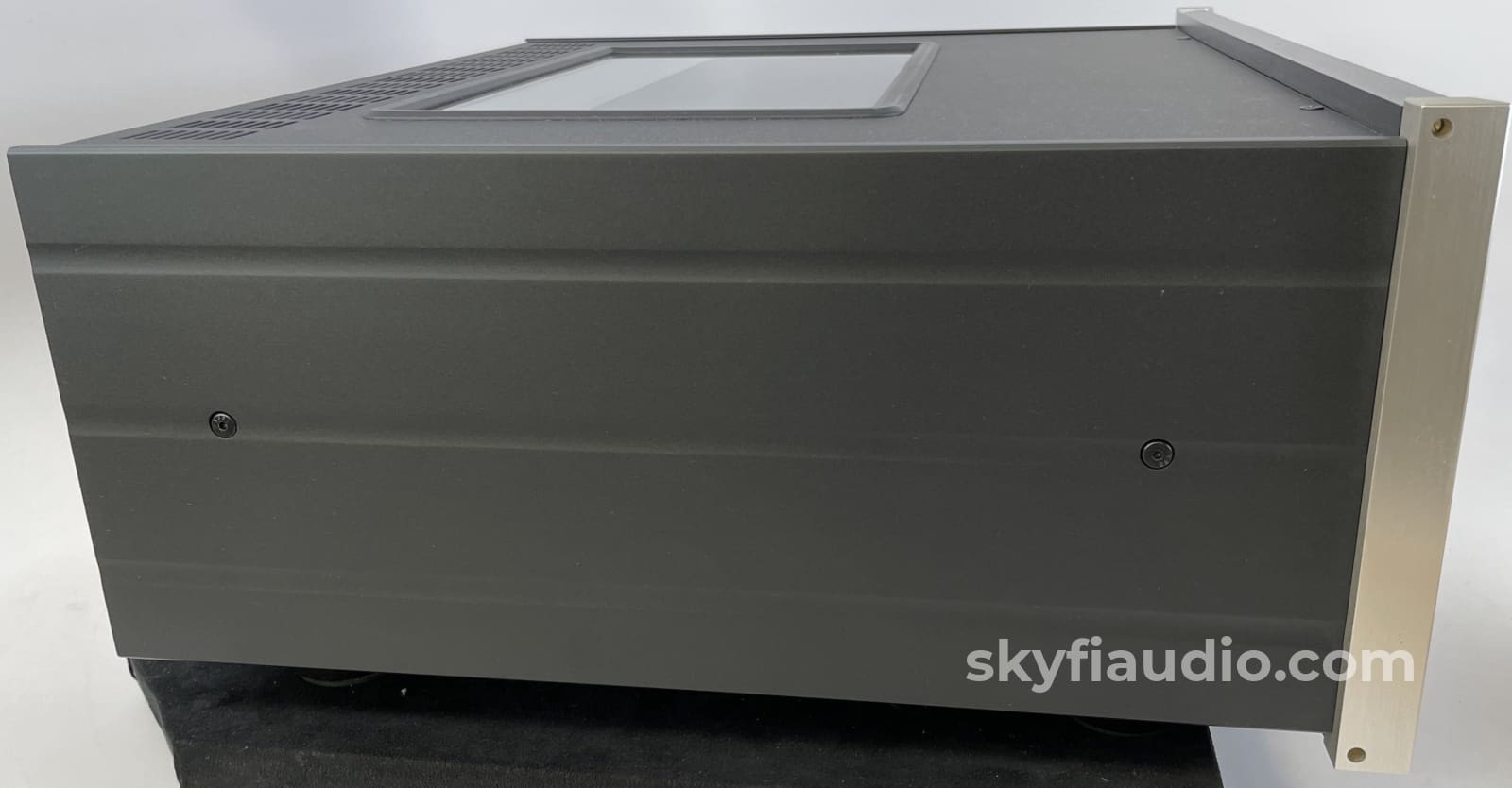

This example is like new, not a fingerprint or scratch to be seen. Carefully tested in our lab and working like the day it left the factory.

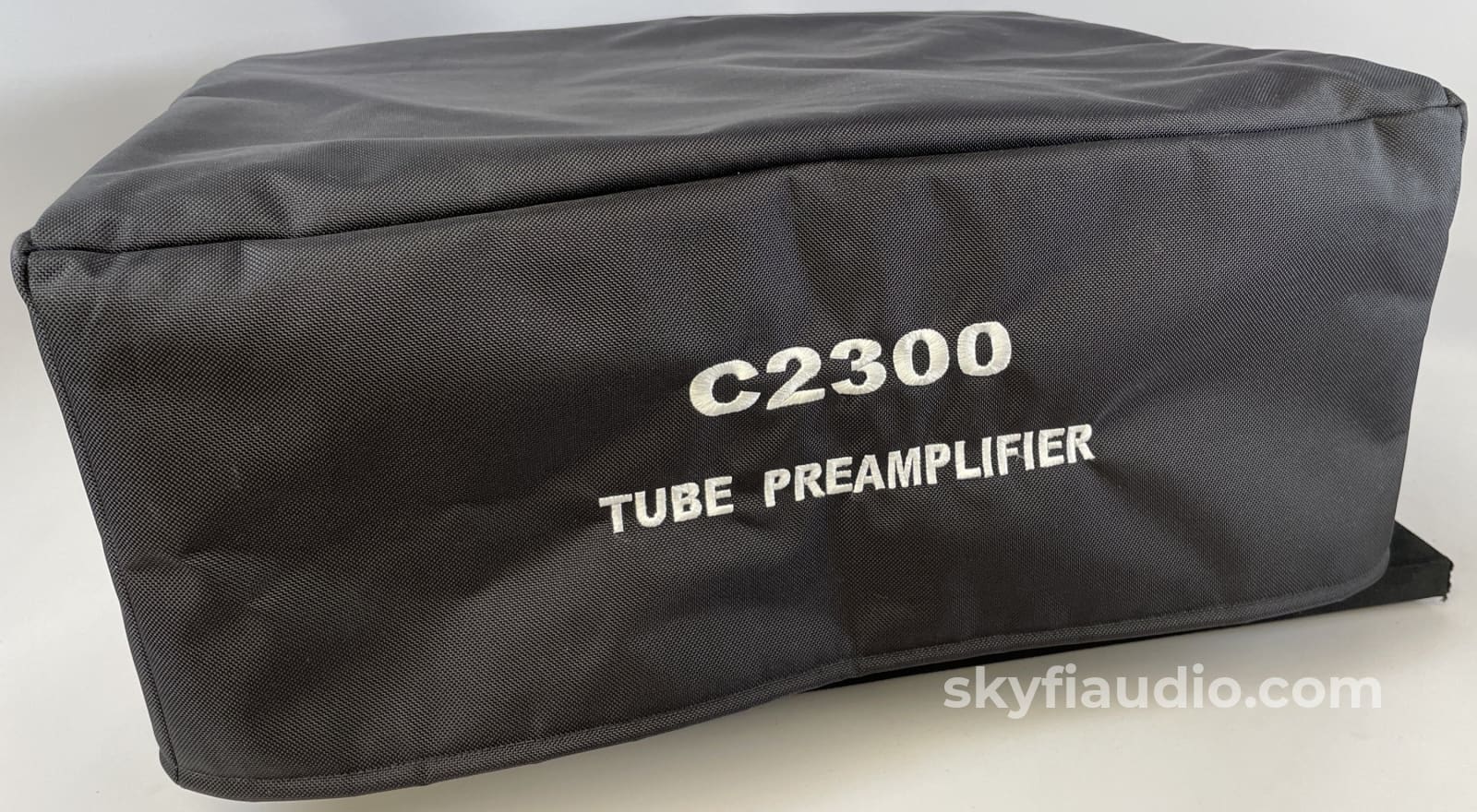

Your purchase also includes a custom embroidered dust cover to keep it looking new.
The current model C2800 will run you about $8k and regrettably includes a built-in DAC by default.
Standout Features Include:
• Six Vacuum Tube Design
• Variable Rate Volume with Multi- Stage Precision Digitally Controlled Attenuator
• Vacuum Tube Moving Coil and Moving Magnet Phono Preamplifiers
• Custom top cover with lighted tube view
• Custom R-Core Power Transformer
More from McIntosh:
The C2300 tube preamplifier delivers a new level of performance and value. Potent engineering enhancements combine with smart, user-programmable features to deliver a truly extraordinary audio preamplifier.
The two phono preamplifiers, moving coil and moving magnet, are both 12AX7A tube based. Programmable Load and Resistance is selectable by remote control so the adjust- ments can be made from the listening position.
Bass and Treble controls are also adjustable by remote control. Individual tone settings and mono/stereo may be stored in memory for each of the 8 inputs. Tone Bypass may also be assigned which completely removes the tone controls from any designated input.

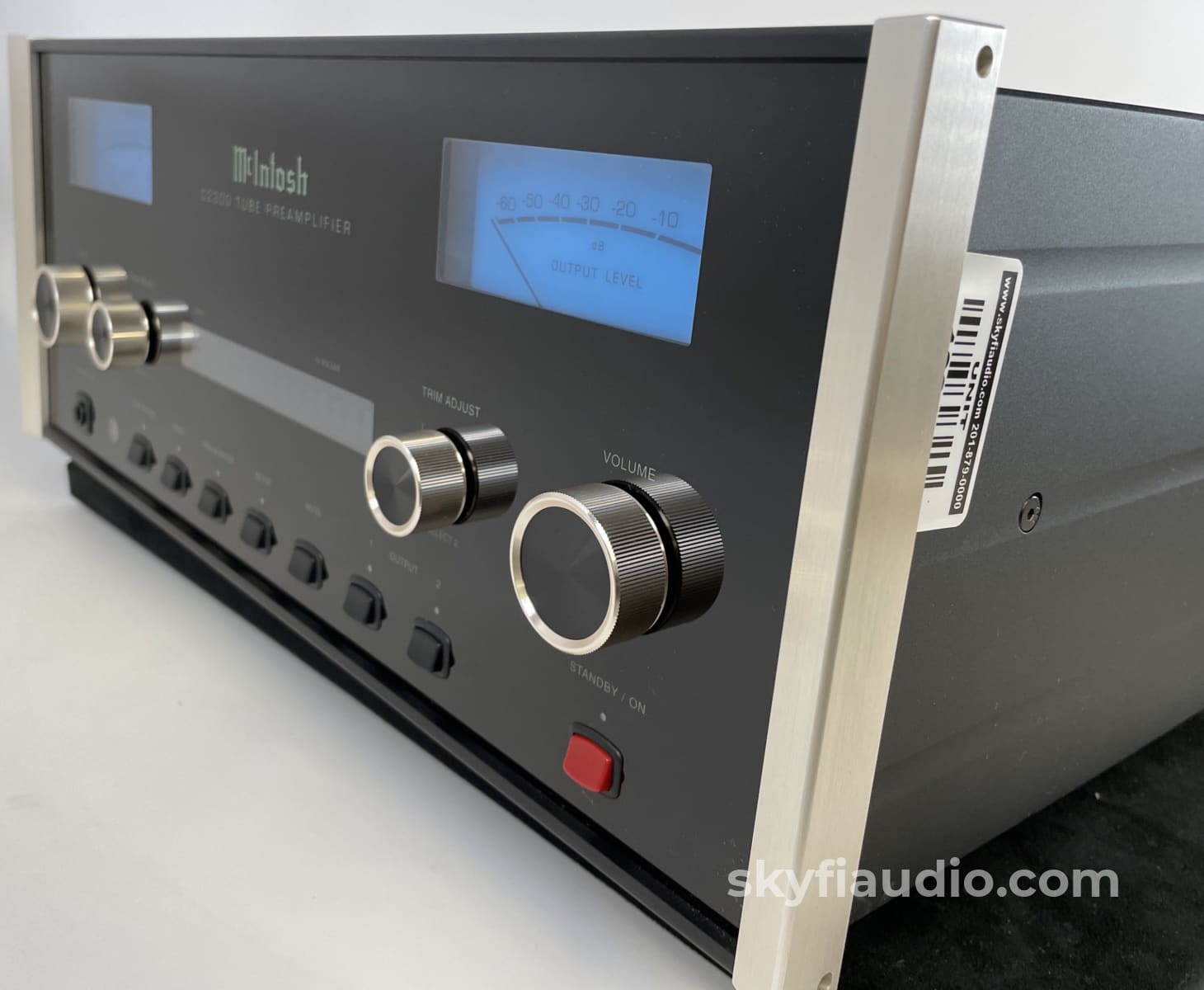

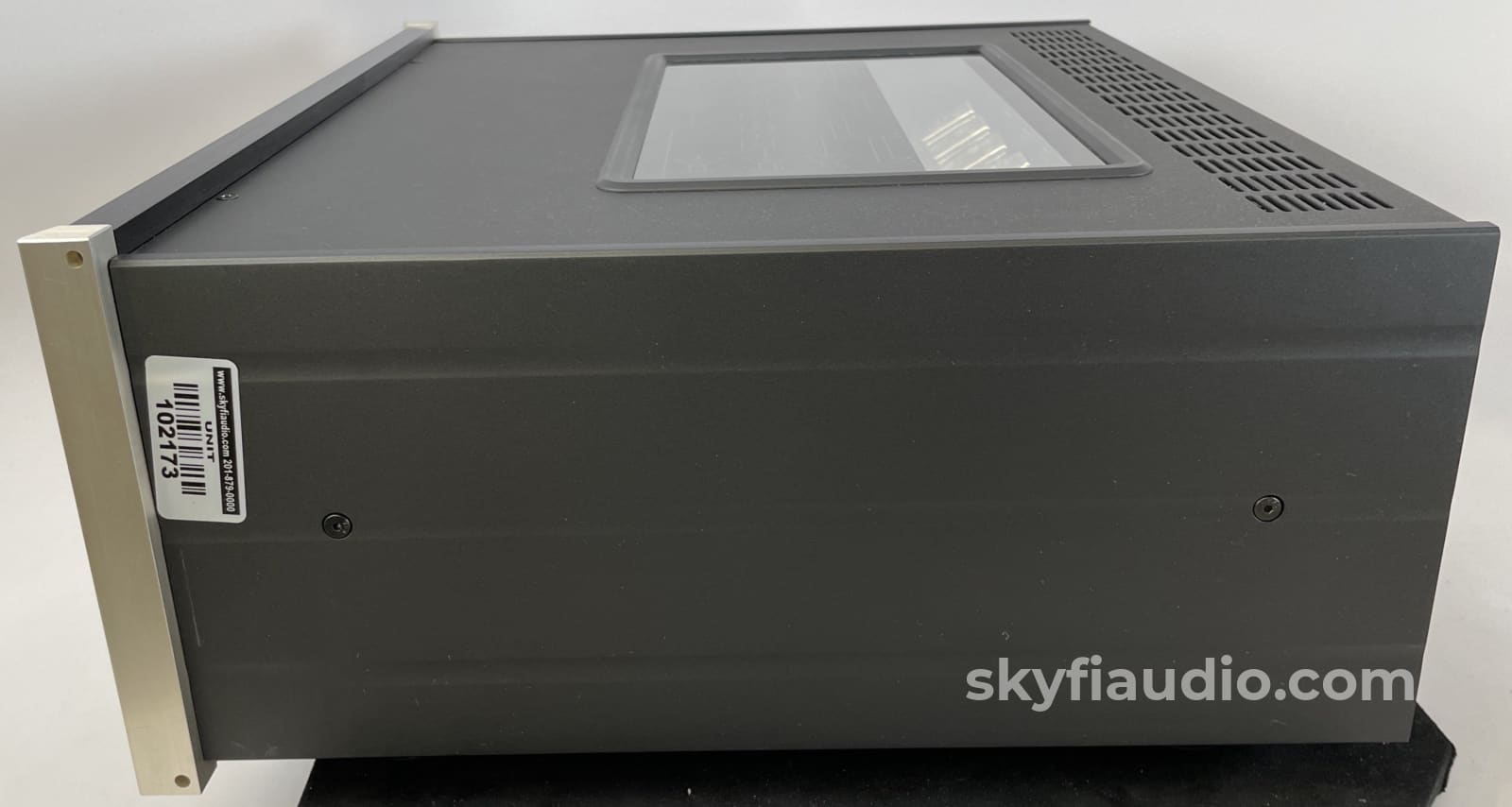

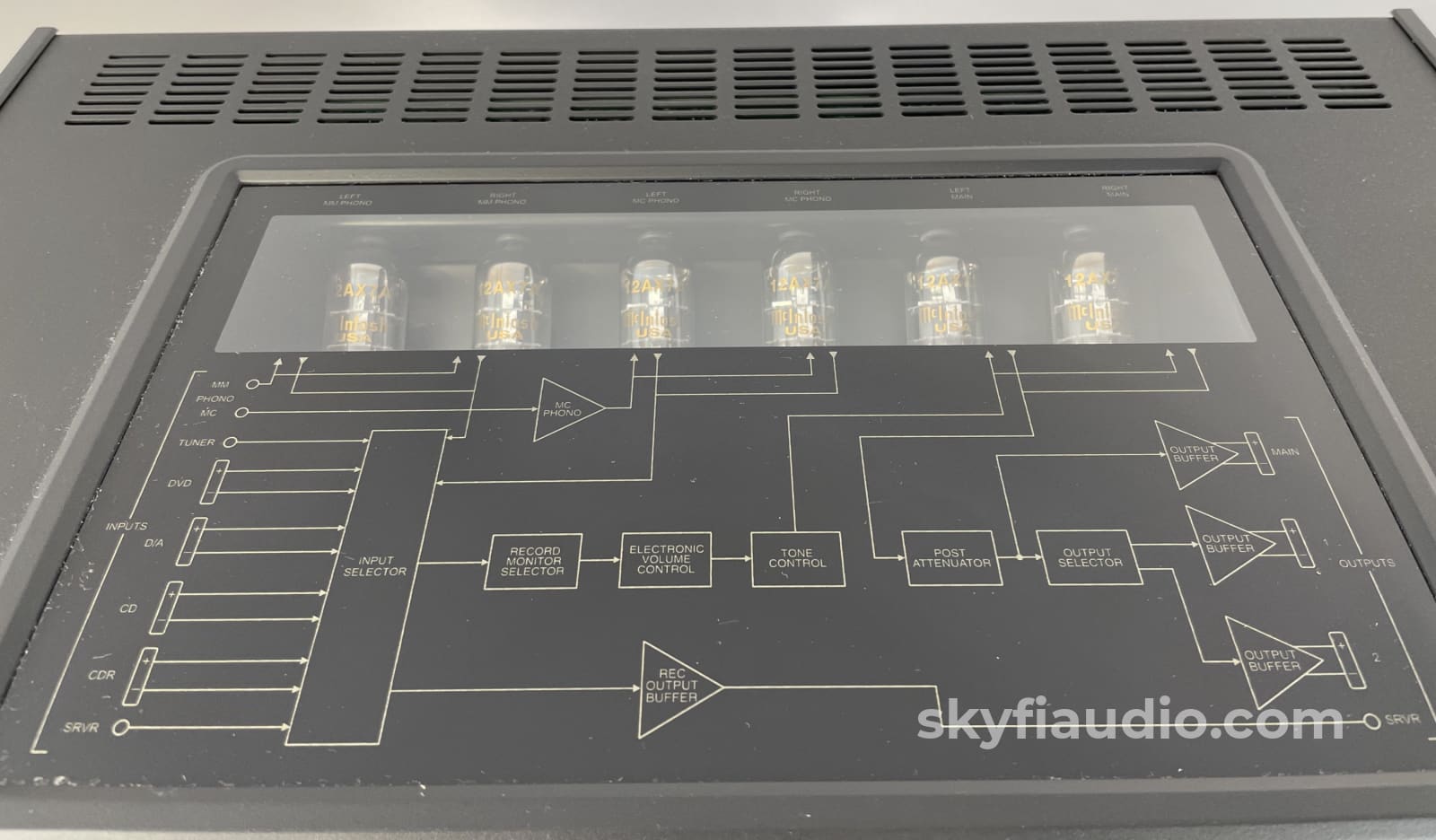

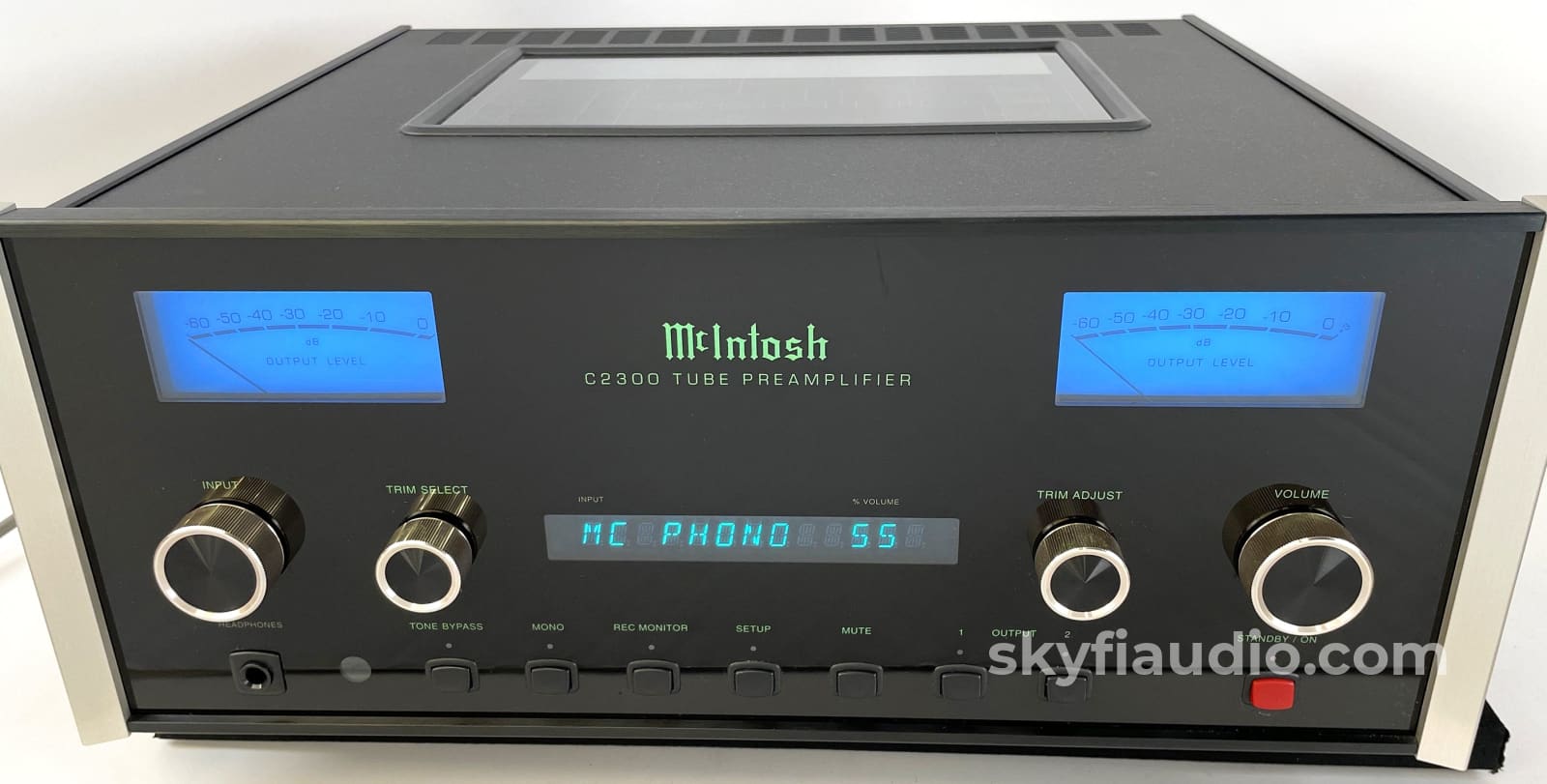

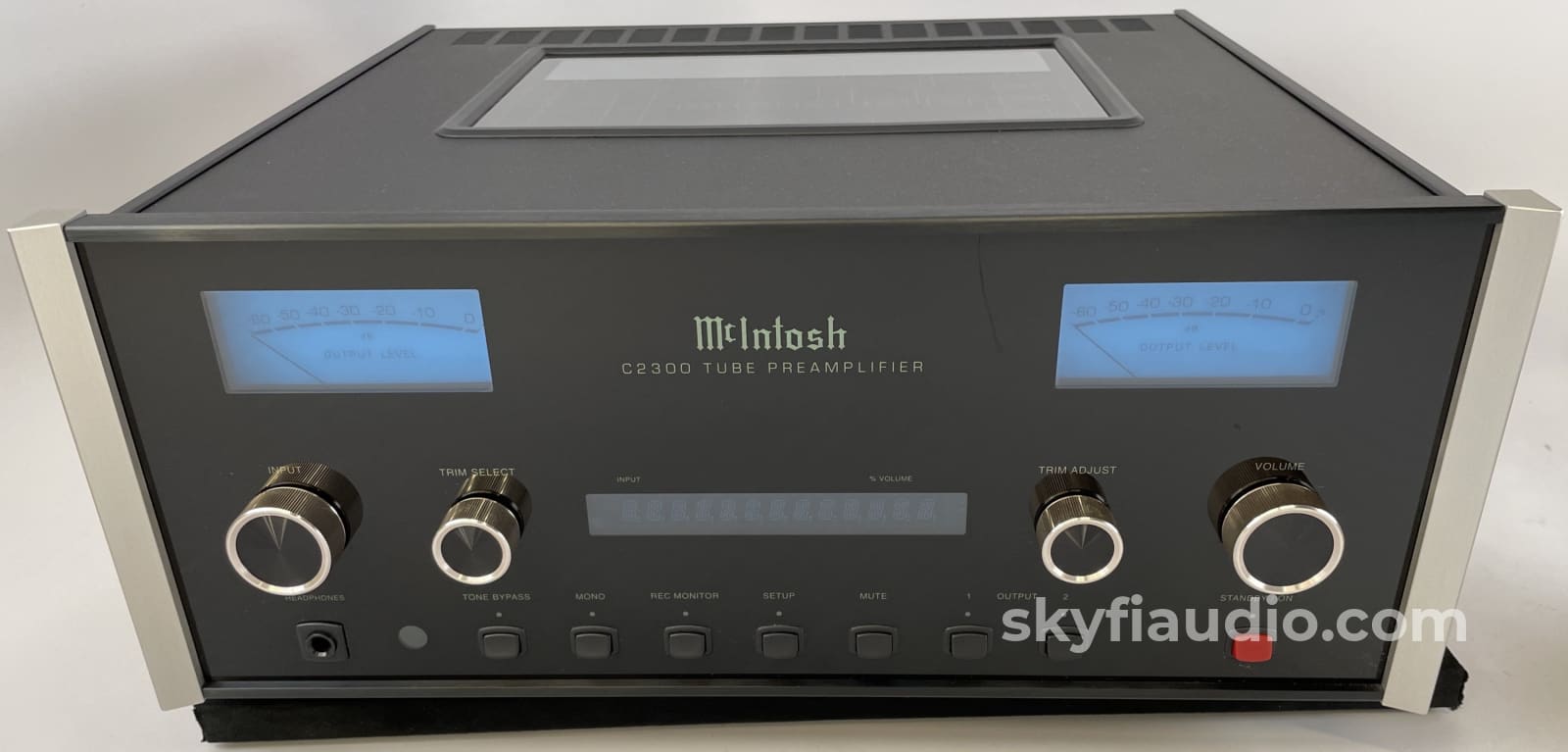

The C2300 is both beautiful to look at as well as listen to. The custom top cover features a silk-screened glass window which reveals a unique, slant-mount tube array. With its classic McIntosh glass faceplate, twin blue output meters and ergonomically pleasing rotary controls, the C2300 is poised to serve as the centerpiece of any fine music system.
EIGHT PROGRAMMABLE SOURCE SELECTIONS

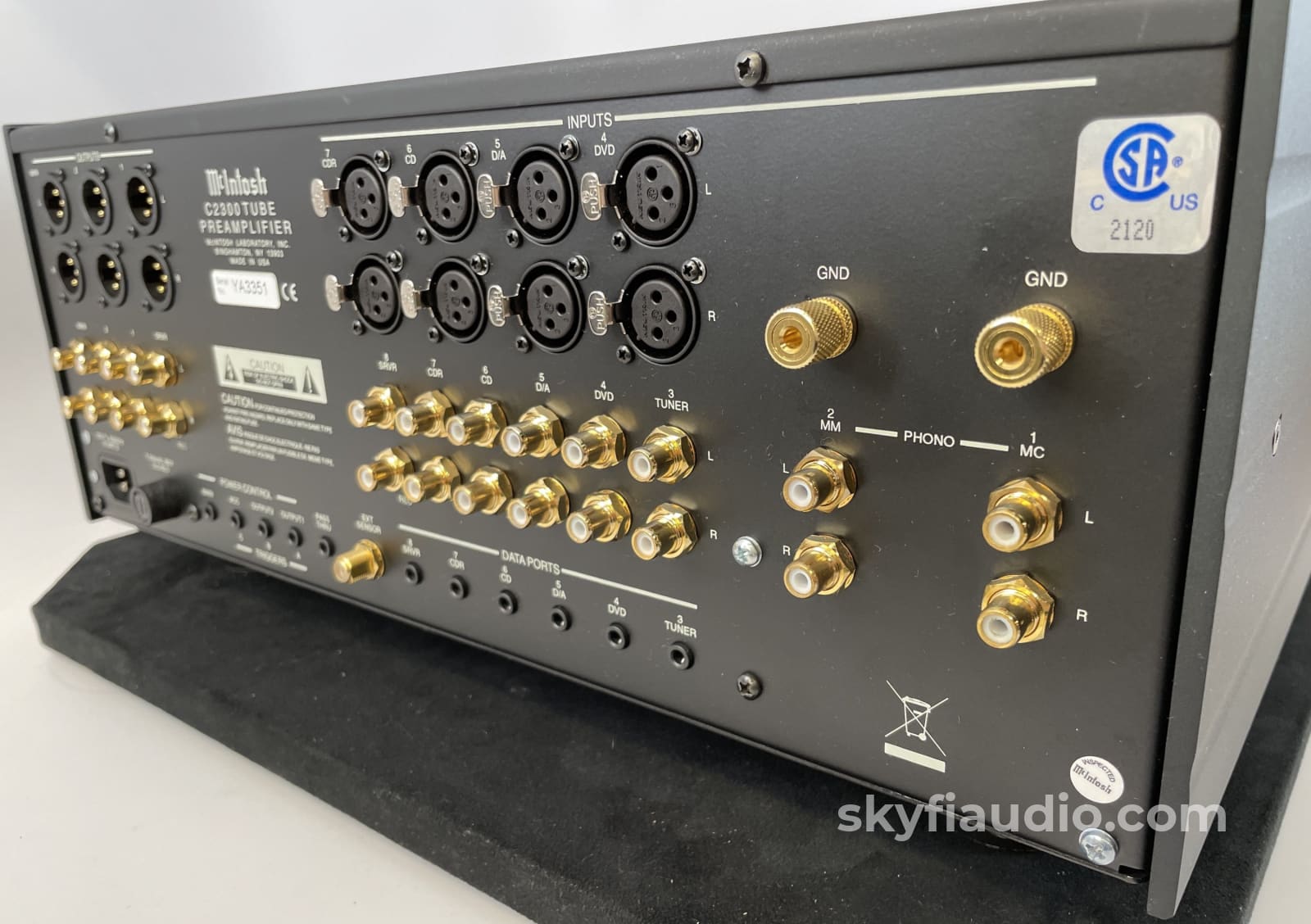

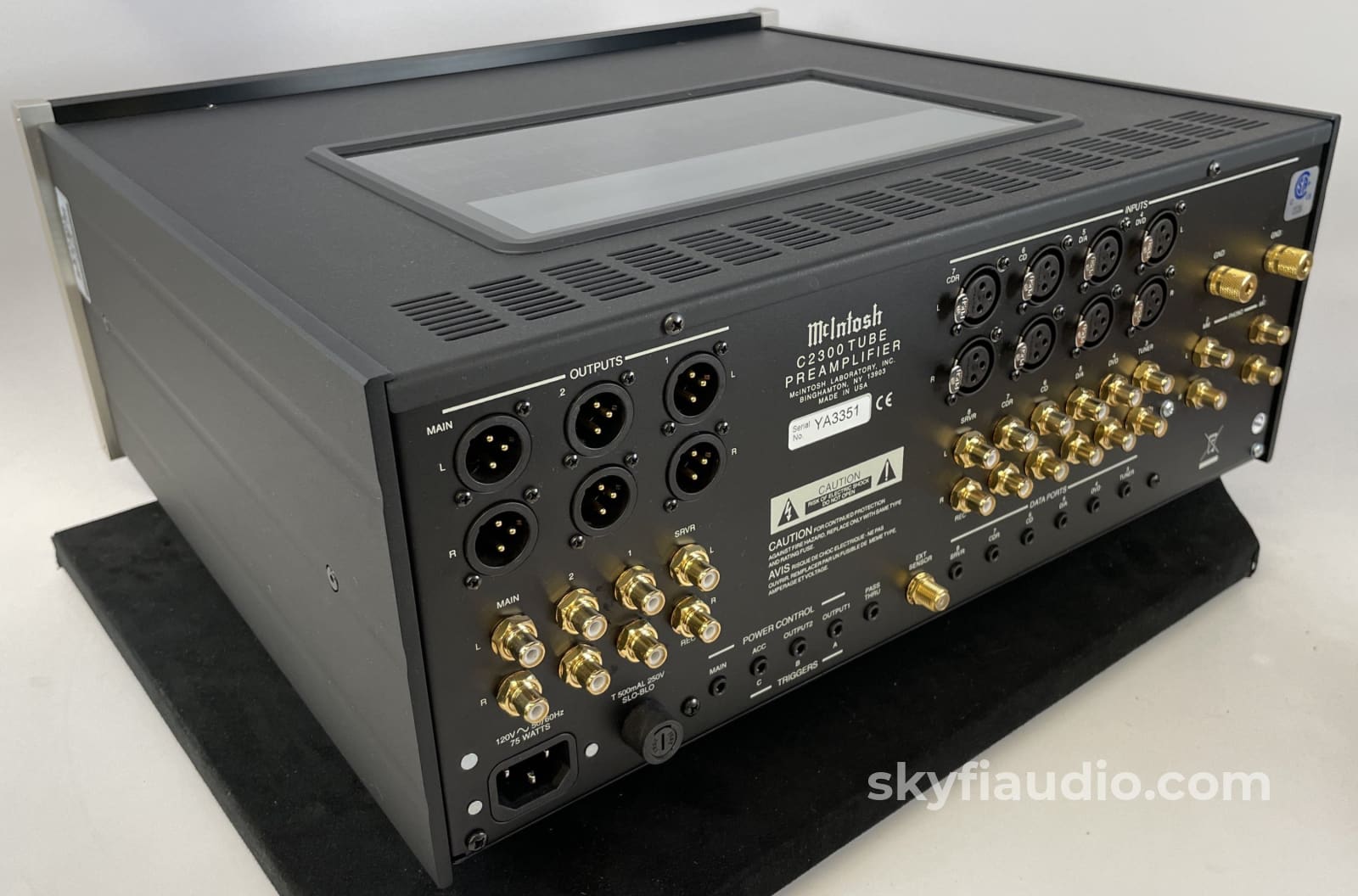

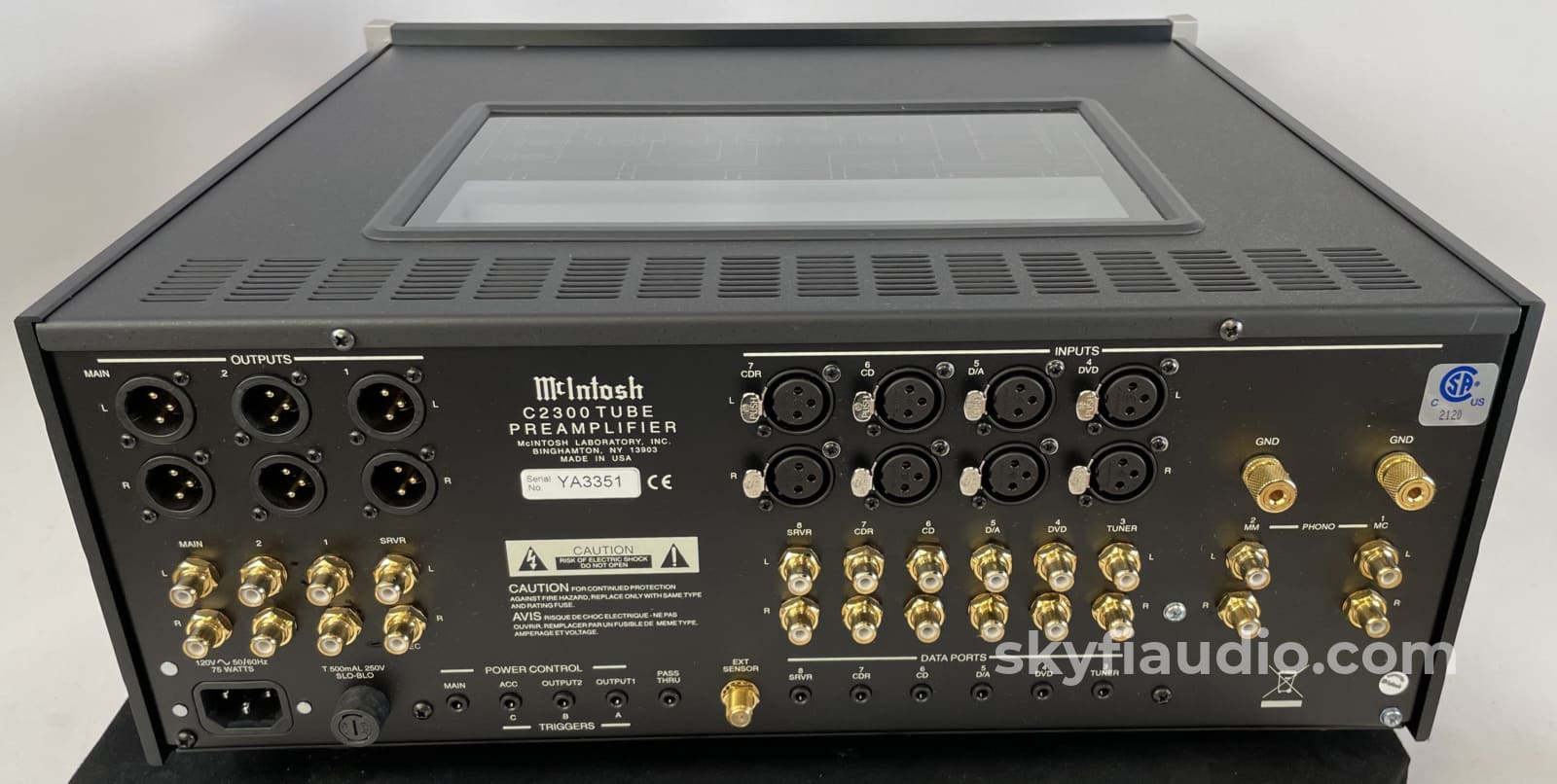

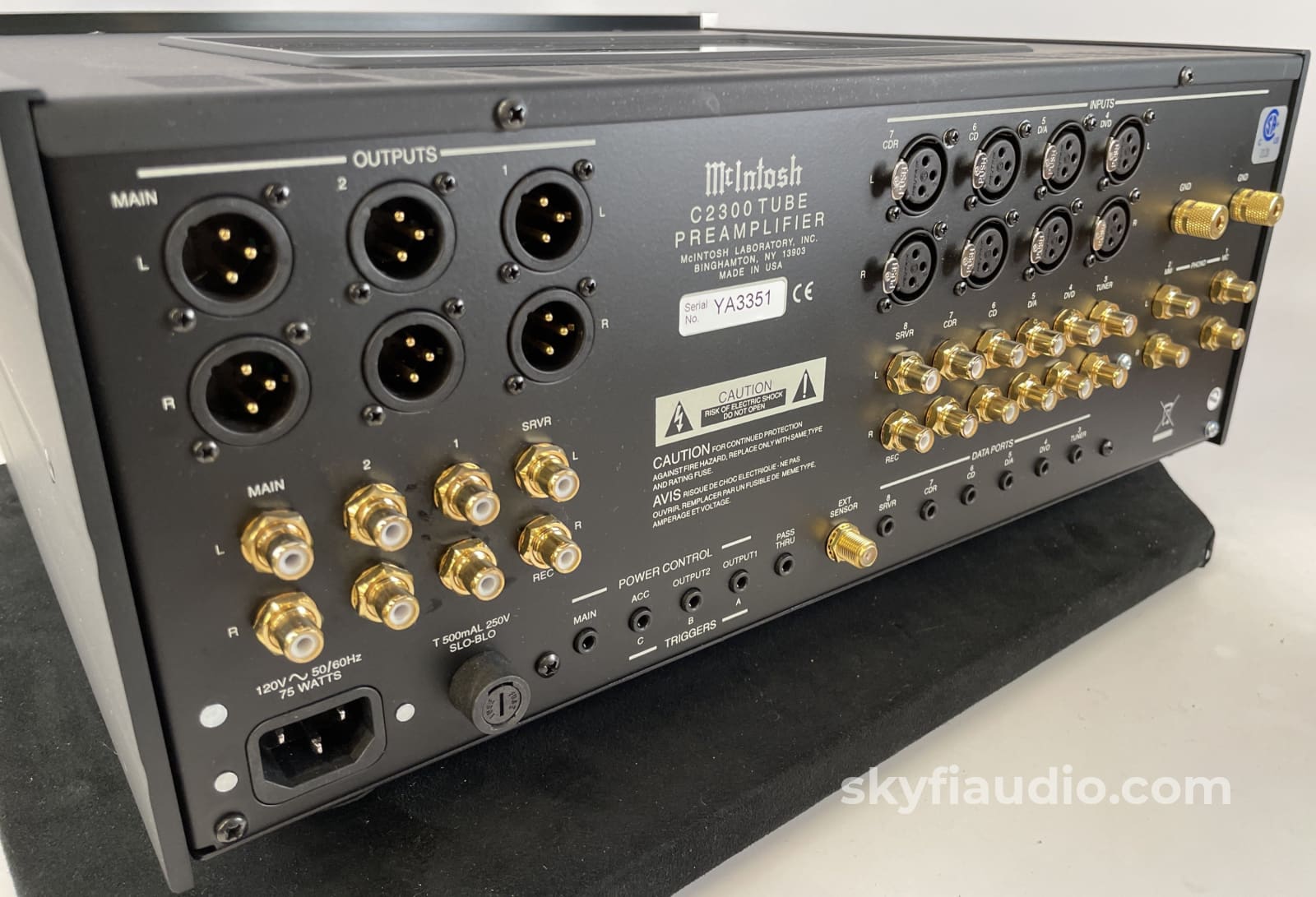

All eight source elections accommodate unbalanced inputs while four of the either also accommodate balanced inputs. Any of 12 standard names can be assigned to a source selection and the panel display can be customized to indicate only available sources.
SILENT ELECTROMAGNETIC SWITCHING
Signal routing is accomplished through digitally controlled electromagnet switching devices. Precision switch contacts, isolated from environmental contamination inside inert gas-filled glass tubes, provide the most reliable, quietest and lowest distortion switching
VRV (VARIABLE RATE VOLUME) DIGIALLY CONTROLLED ATTENUATOR
The output attenuator controls volume over 214 steps of .5dB each with accuracy within .1dB. The volume vs. rotation rate varies as preamplifier gain varies and attenuation changes occur at eh zero crossings of the audio signal to prevent audible artifacts during adjustment.
+0, -0.50dB from 20Hz to 20kHz +0
-1dB from 10Hz to 100kHz
Balanced: 5VRMS at MAIN, 1 and 2
Unbalanced: 2.5VRMS at MAIN, 1 and 2
MAXIMUM VOLTAGE OUTPUT
Balanced: 16VRMS at MAIN, 1 and 2
Unbalanced: 8VRMS at MAIN, 1 and 2
TOTAL HARMONIC DISTORTION
0.08% maximum from 20Hz to 20kHz
Phono, MC: 0.45mV for 2.5V
Phono, MM: 4.5mV for 2.5V
High Level: 450mV for 2.5V
SIGNAL-TO-NOISE RATIO (A-Rated)
High Level: 93dB
MAXIMUM INPUT SIGNAL
Phono, MC: 5mV
Phono, MM: 50mV
High Level: 5V Balanced
Phono: MC: 25, 50, 100, 200, 500, or 1000 Ohms
MM: 47k Ohms, 50 to 750pF, 50pF steps
Balanced: 40k Ohms
Unbalanced: 20k Ohms
Phono, Moving Coil to Record Output: 60dB
Phono, Moving Magnet to Record Output: 40dB
High Level to Record Output: 0dB
High Level to Main Output: 15dB
OVERALL DIMENSIONS (H x W x D)
7-1/8” (18.1 cm) X 17-1/2” (44.4 cm) X 14-1/2”
(36.8 cm) including clearance for connectors.
Knob clearance in front of the mounting panel is 3⁄4” (1.9 cm)
29.5 lbs (13.41 kg) net
44.9 lbs. (20.41 kg) in shipping carton
