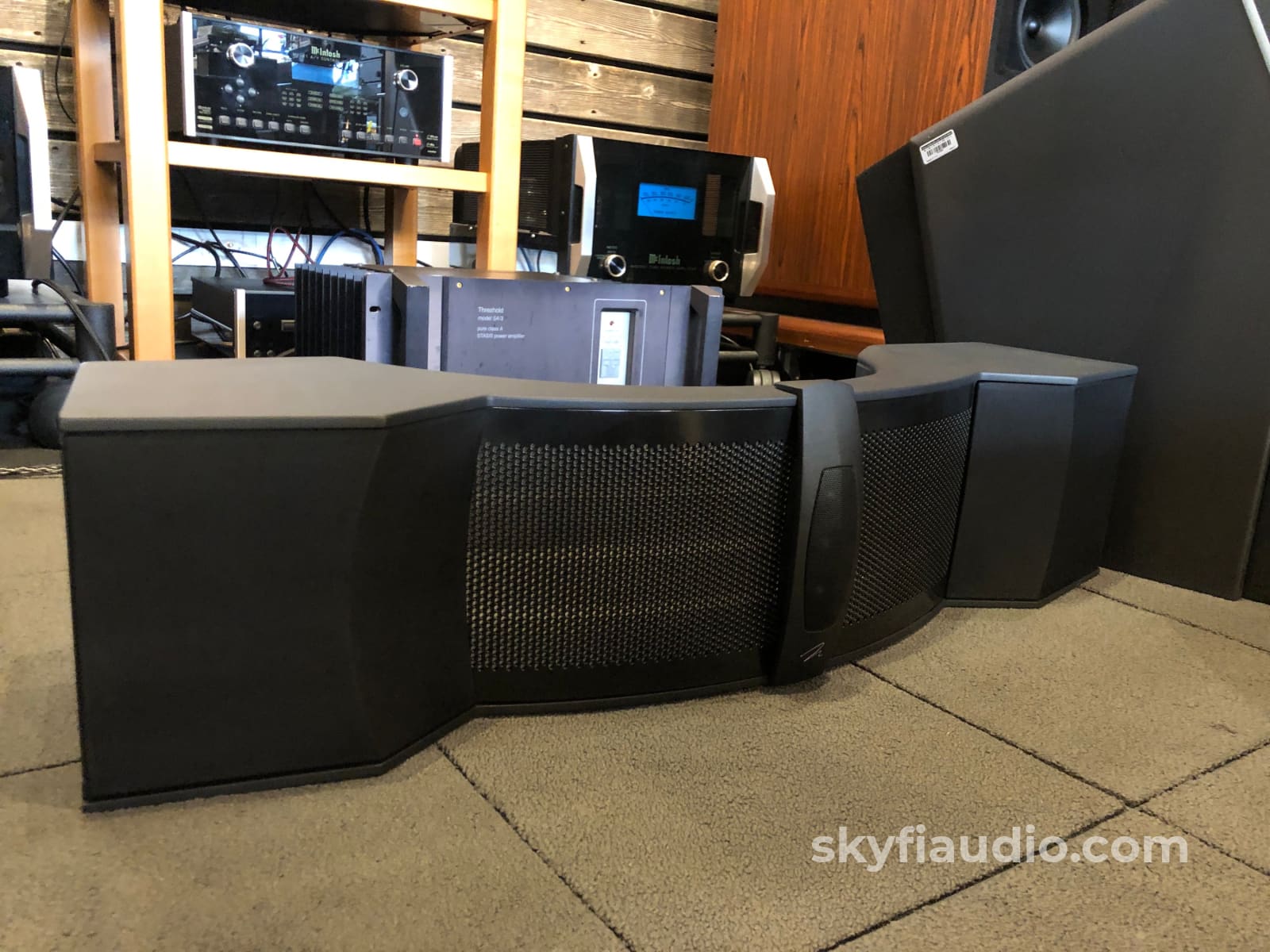

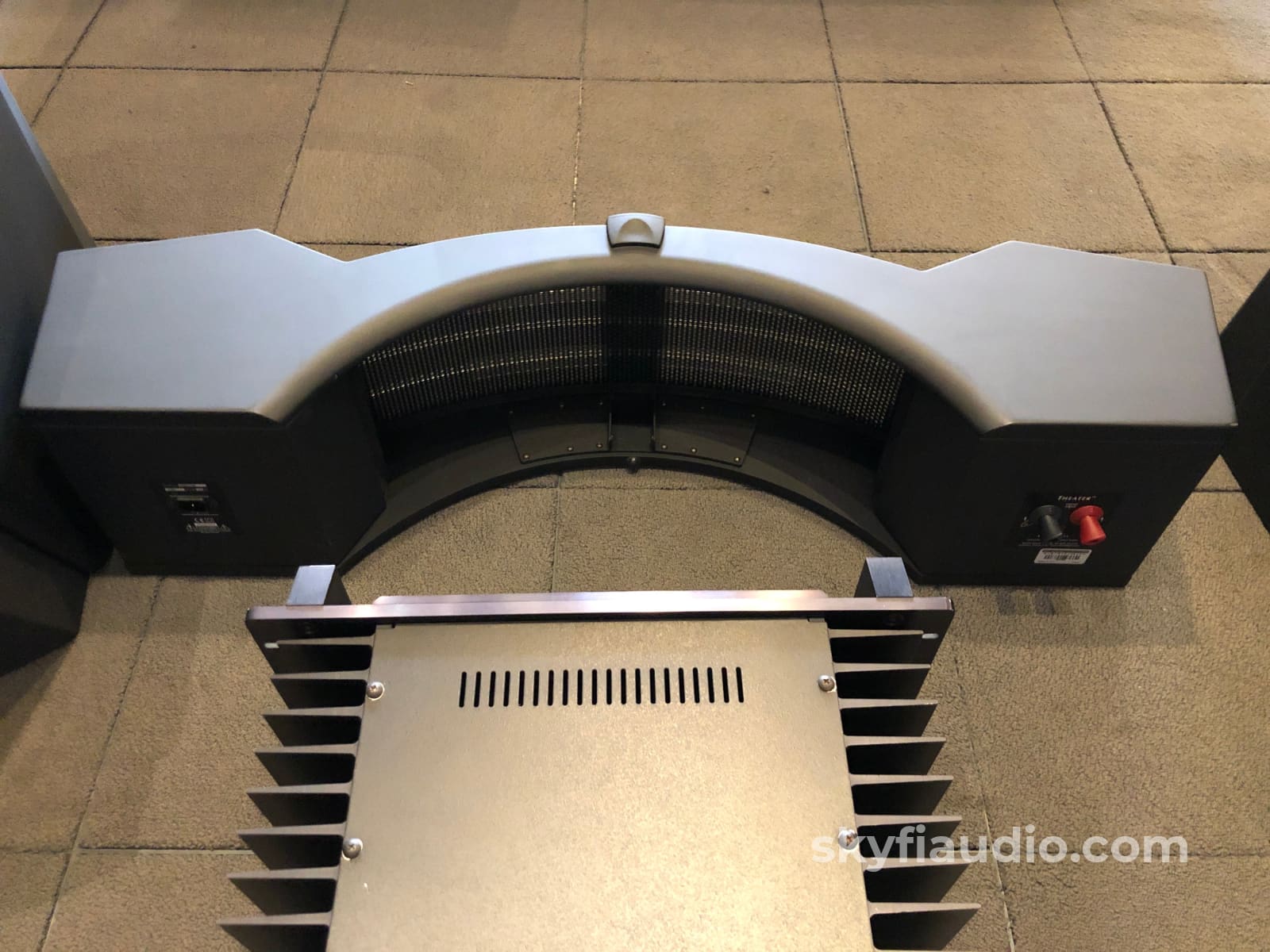

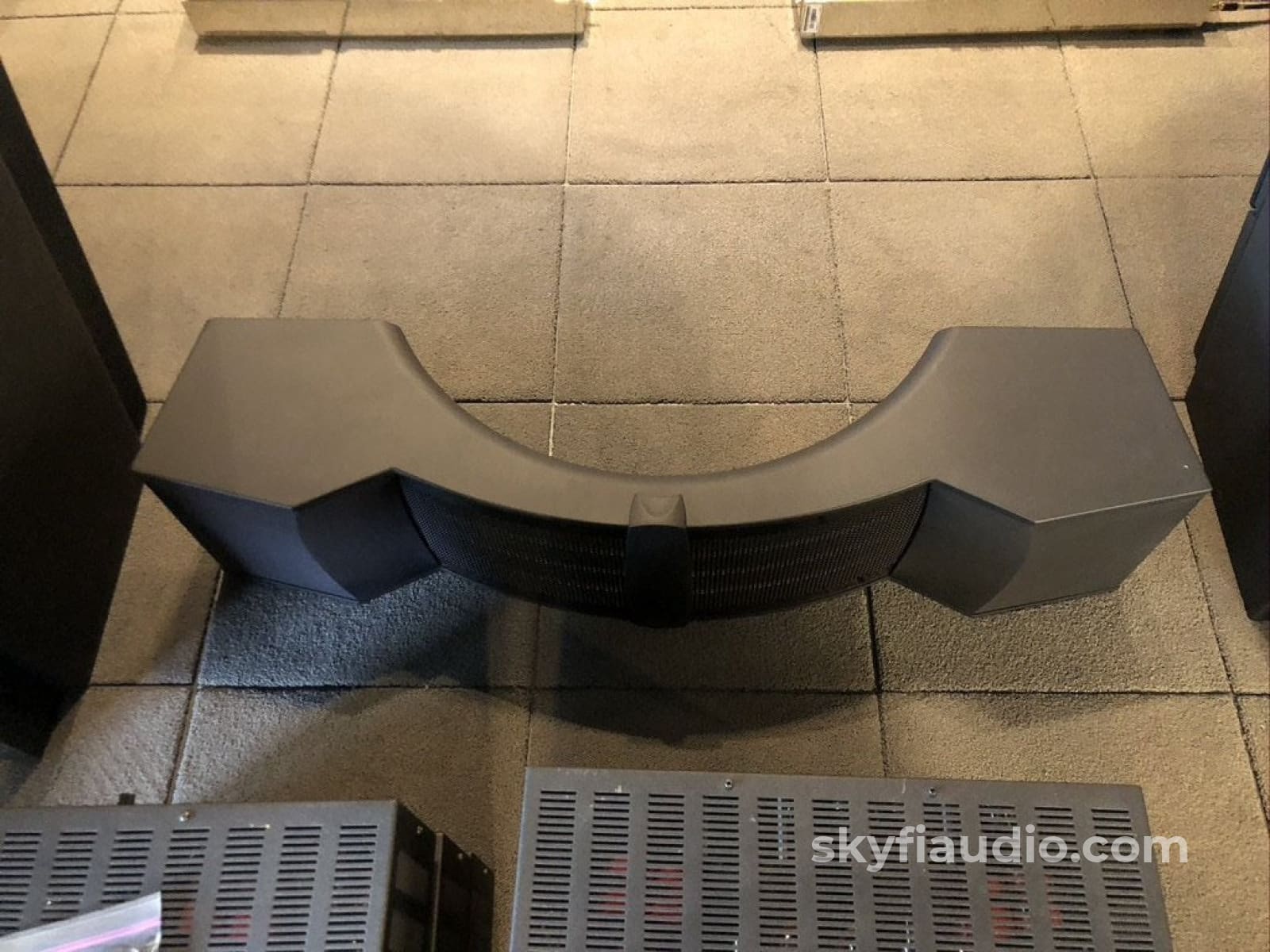

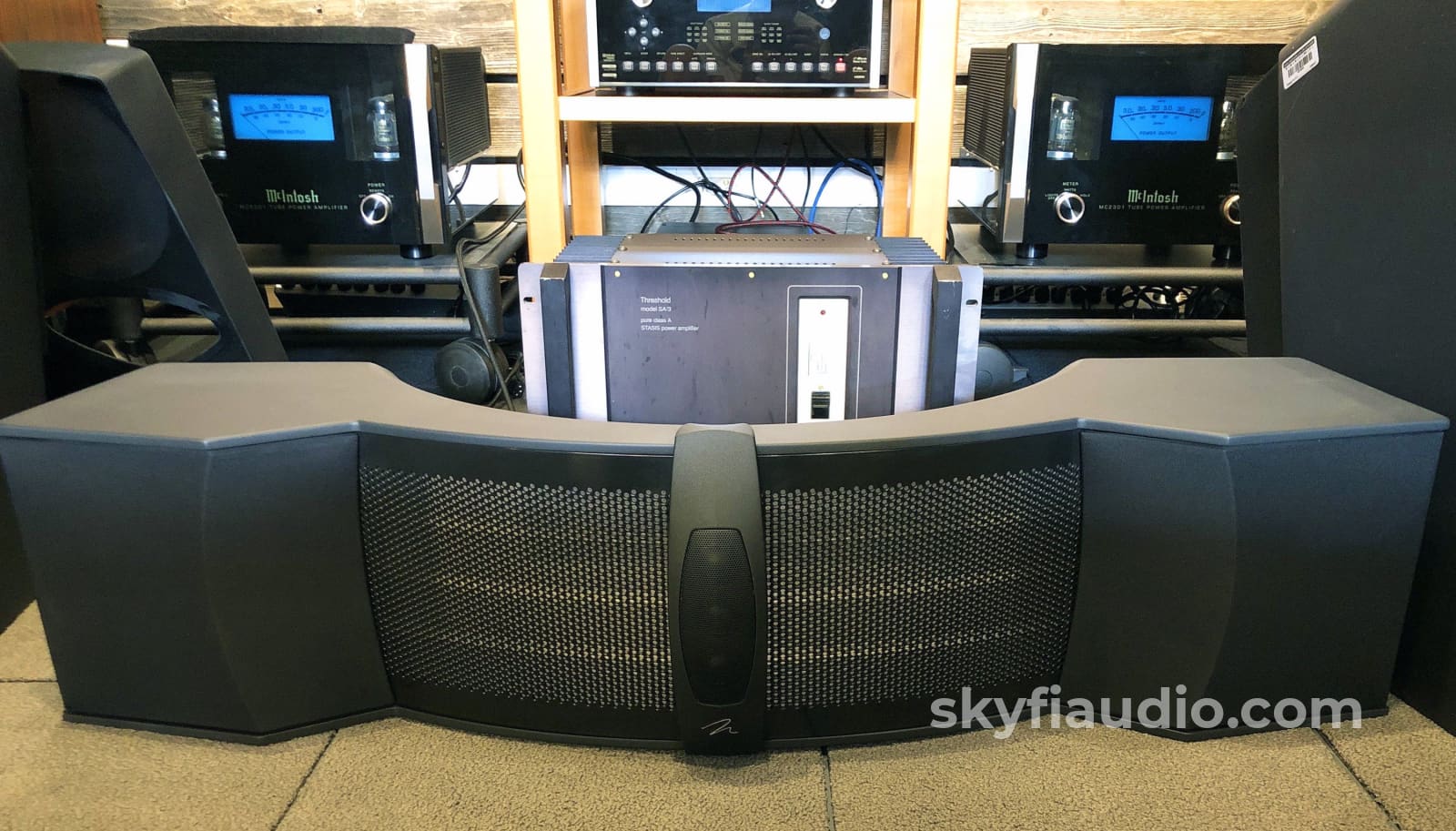

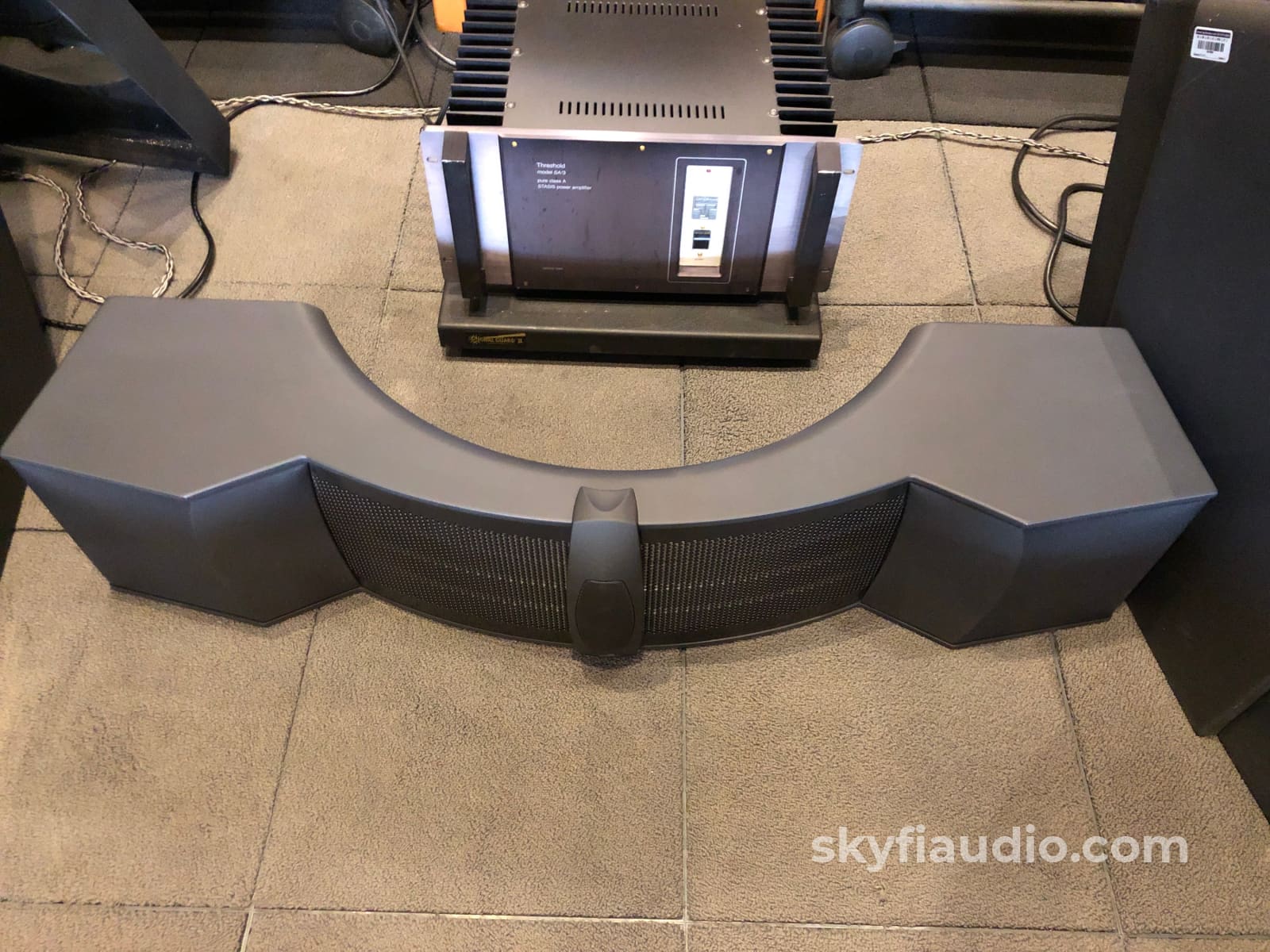

Martin Logan Reference Theater ESL Center Channel Speaker with Articulating Bracket

$0

If you're looking to put together a Martin Logan theater system, then you are absolutely going to want this piece.

Perfectly voiced to match your L+R Martin Logan speakers.

Well cared for, fully tested, and and working absolutely perfectly.

The official Martin Logan Ceiling/Floor articulating bracket is included in its original box(not pictured)

We also have the matching (side) surround wall speakers.

Flat fee shipping of $199 in the USA.

Specifications

Frequency Response
70–22,000 Hz ±3dB

Recommended Amplifier Power
20‒500 watts per channel

Horizontal Dispersion
30°

Sensitivity
90 dB/2.83 volts/meter

Impedance
Nominal: 4 Ohms
Minimum: 3.1 Ohms at 140 Hz. Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency
300, 3000 Hz

High Frequency Transducer
Three 1" (2.54) soft dome, controlled dispersion array

Mid Frequency Transducer
Patented CLS™ electrostatic transducer

Low Frequency Transducer
Two 6.5" (16.5cm) magnetically shielded. Non-resonance asymmetrical chamber format.

Components
Custom wound audio transformer, air core coils, polypropylene capacitors

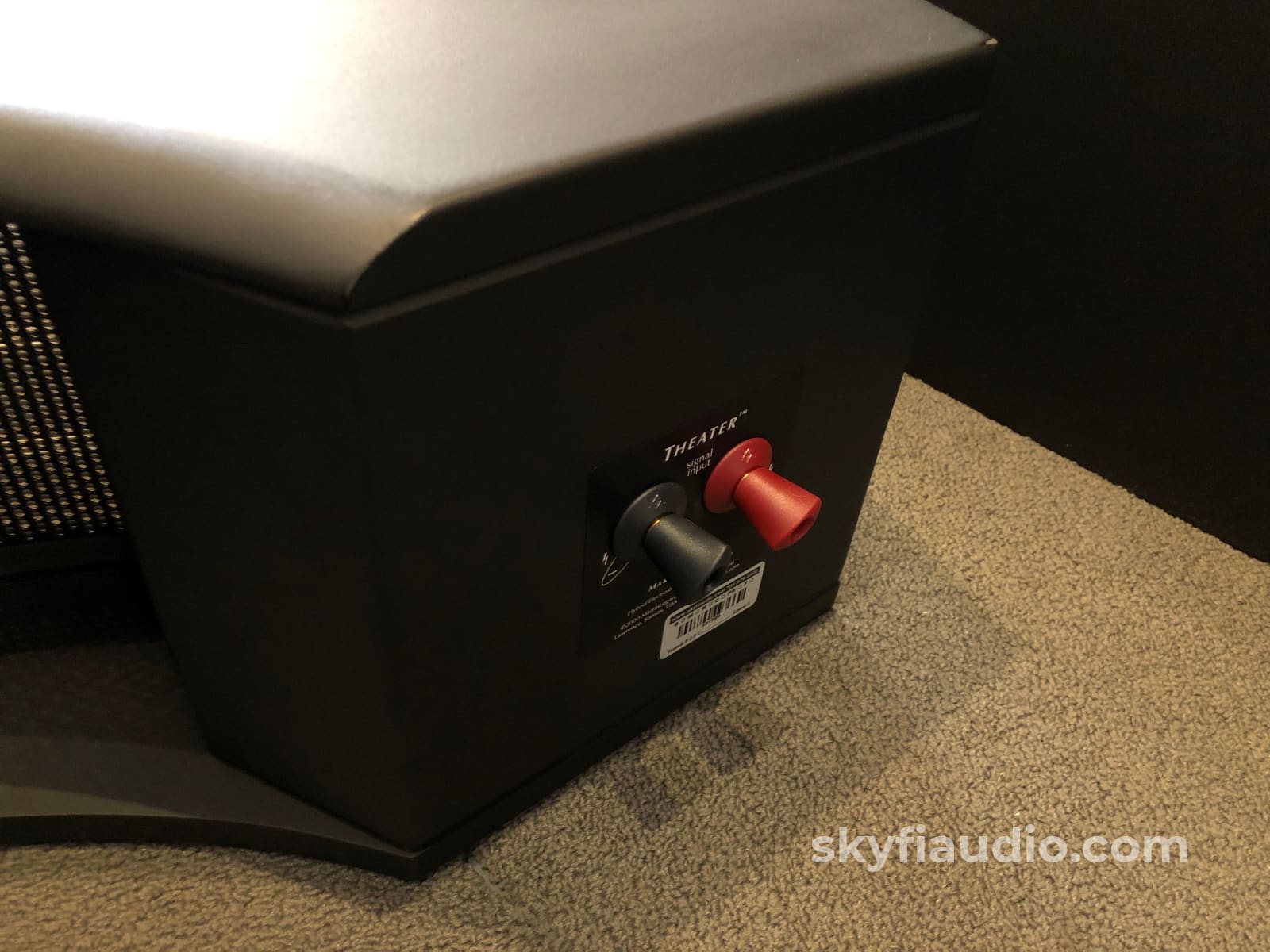

Inputs
Custom 5-way binding posts

Weight
57 lbs. (26 kg)

Dimensions (with wall-mount/stand)
13" × 43" × 11.5"
(33cm × 109.2cm × 29.2cm)

Dimensions (without wall-mount/stand)
10.5" × 43" × 11.5"
(26.7cm × 109.2cm × 29.2cm)

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

No

Manual

Yes

Remote

N/A

Cables

No

Physical Condition

8

Working Condition

10
