Marantz Model 3 Vintage Electronic Tube Crossover - 2 Way - SUPER RARE

Sale price$0.00
Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

Pickup currently unavailable at SkyFi 479

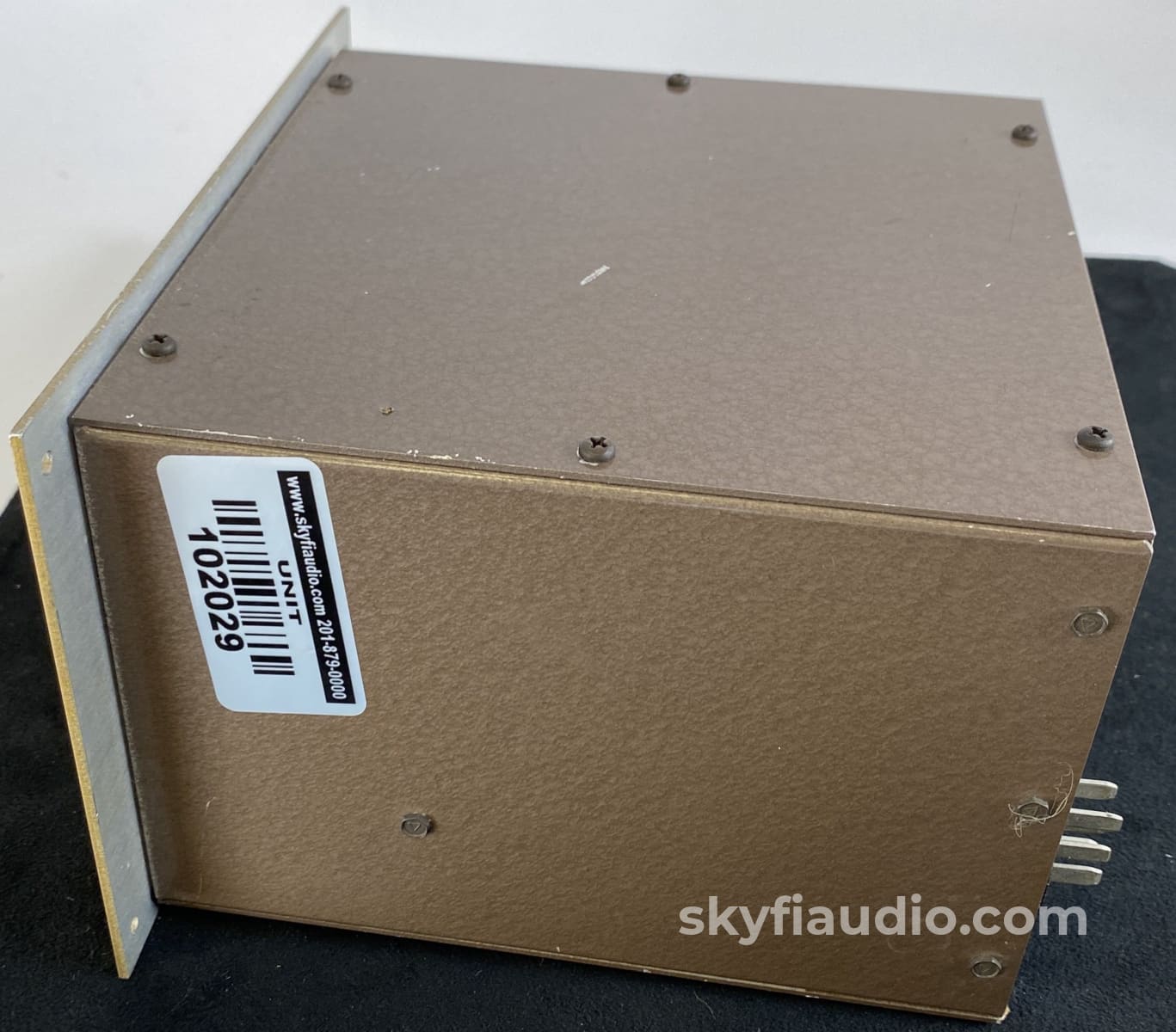

Marantz Model 3 Vintage Electronic Tube Crossover - 2 Way Super Rare Accessory

Marantz Model 3 Vintage Electronic Tube Crossover - 2 Way - SUPER RARE

SkyFi 479

Pickup currently unavailable

479 South Broad Street
Glen Rock NJ 07452
United States

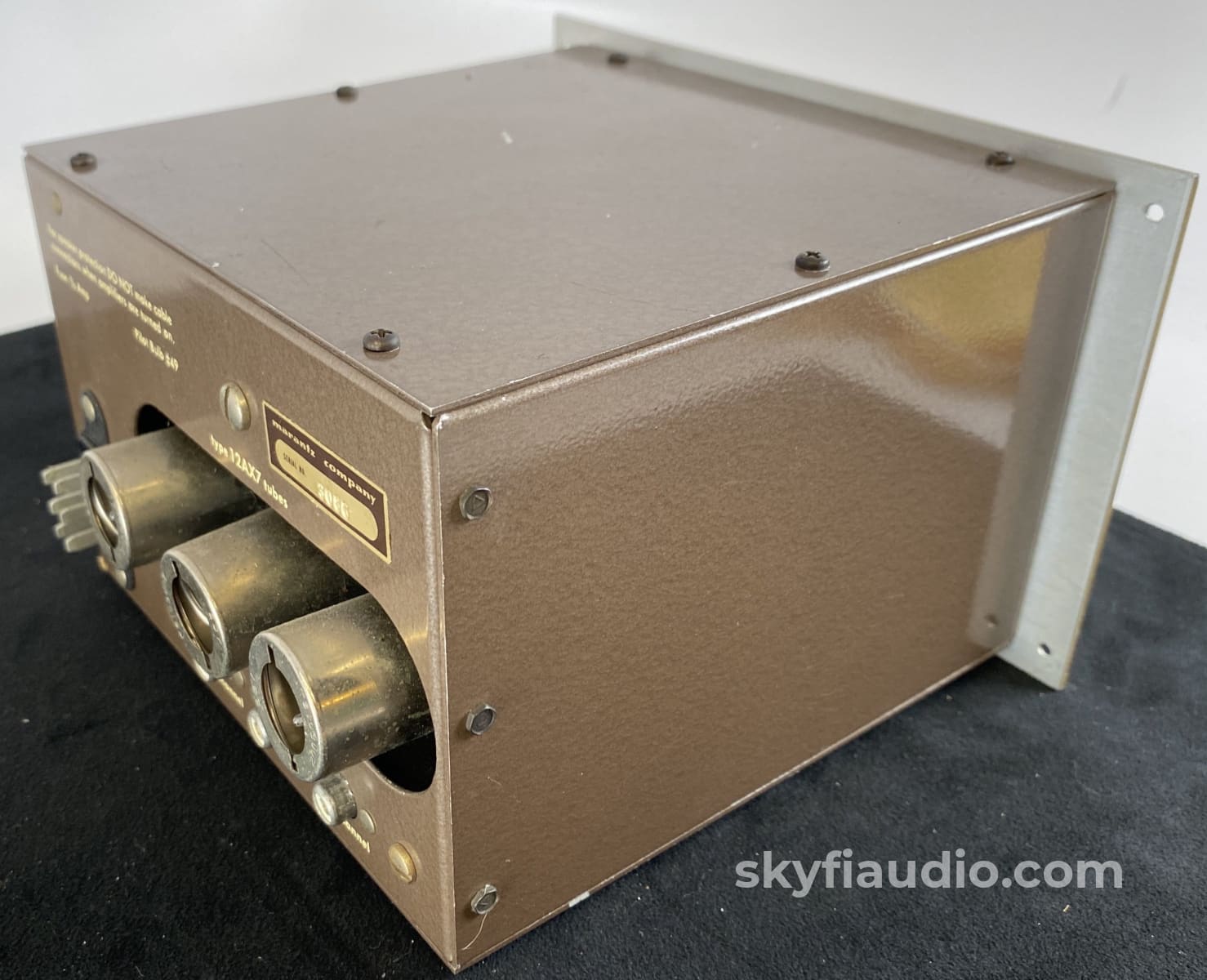

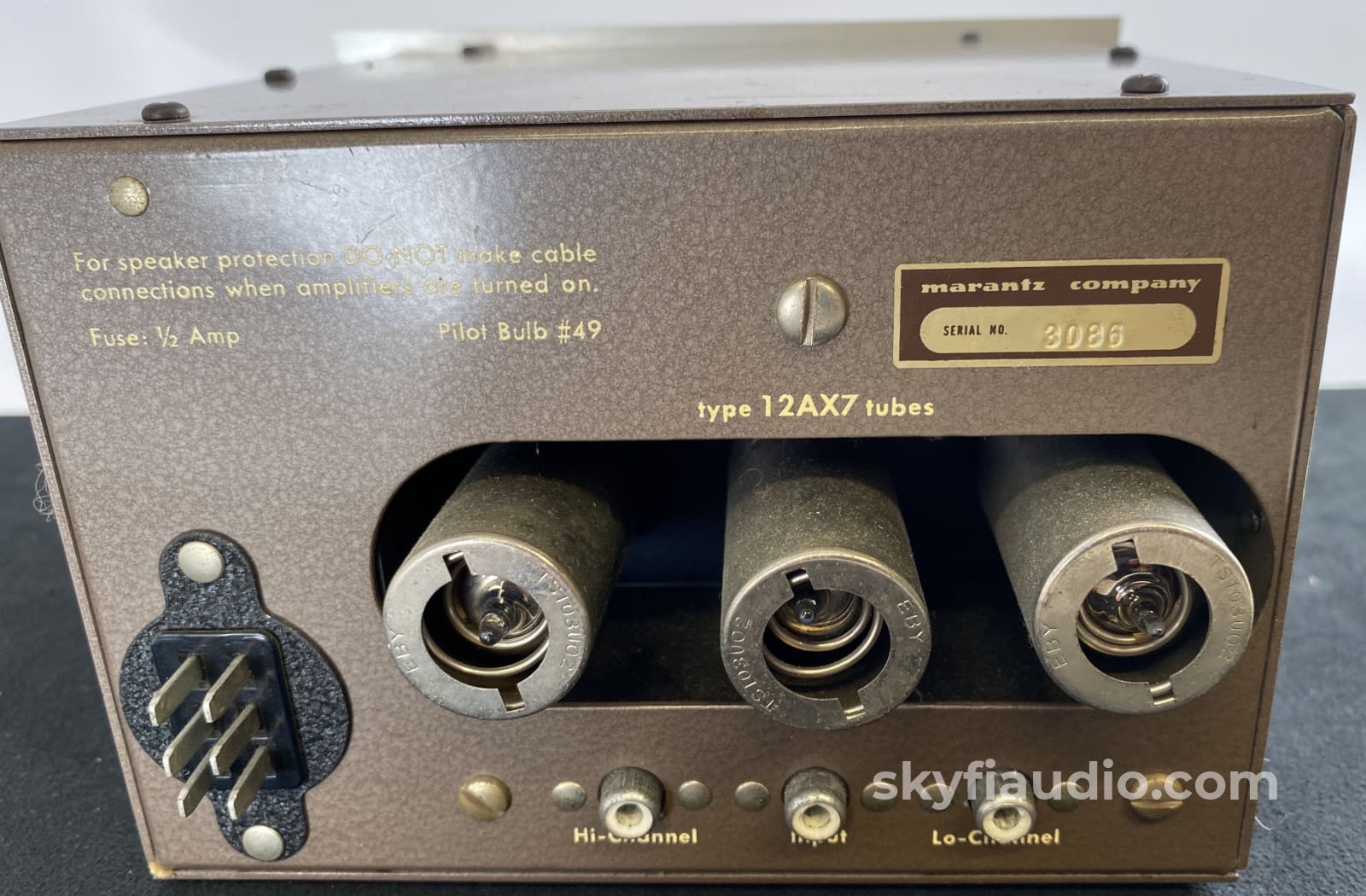

This is a Super Rare monaural 2-way crossover from Marantz, utilizing 3 x 12AX7 type tubes.

Untested but likely working. Will need a power supply, or matched and powered in tandem with another Marantz piece that has required connector.

More from a vintage Marantz article:

"A considerable improvement in clarity and smoothness of reproduction is obtained when a loudspeaker is connected directly to the amplifier terminals without intervening reactive networks. The low internal impedance of the amplifier then tends to dampen spurious speaker resonances. In a multi-speaker system it would be necessary to accomplish the crossover at an earlier stage in order to supply separate amplifiers with the frequency range required for each speaker. The Marantz Electronic Crossover was designed for this purpose.

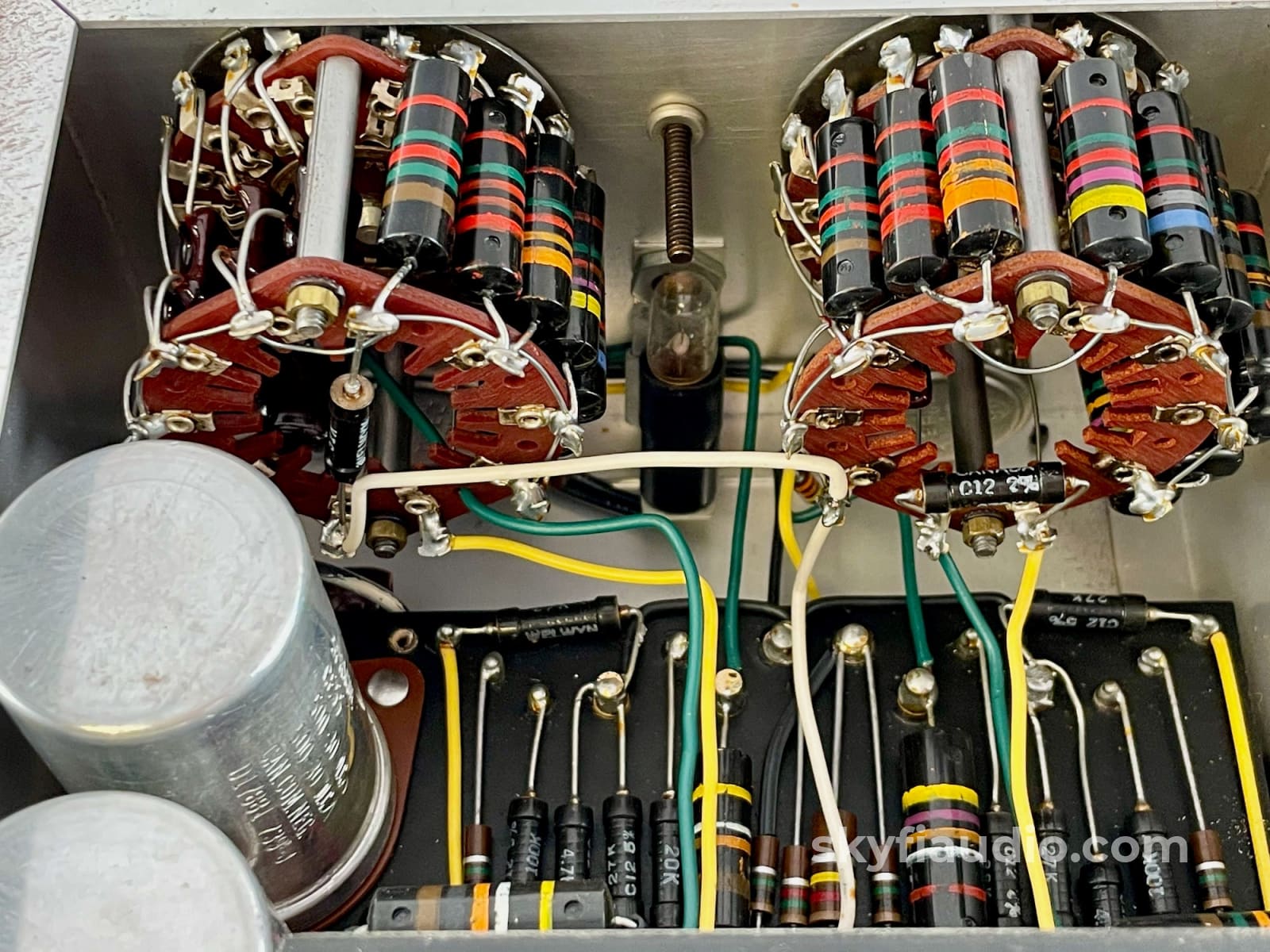

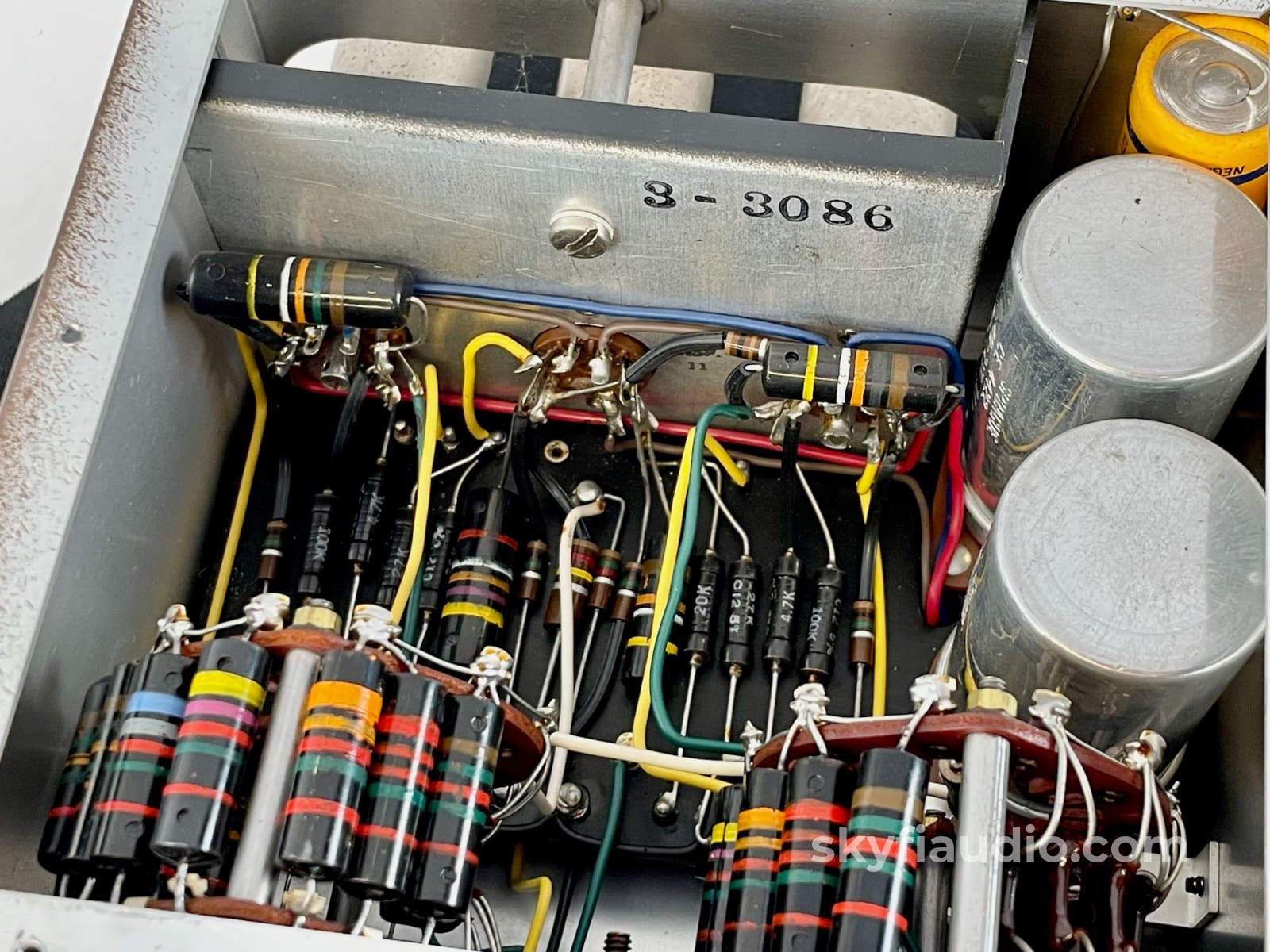

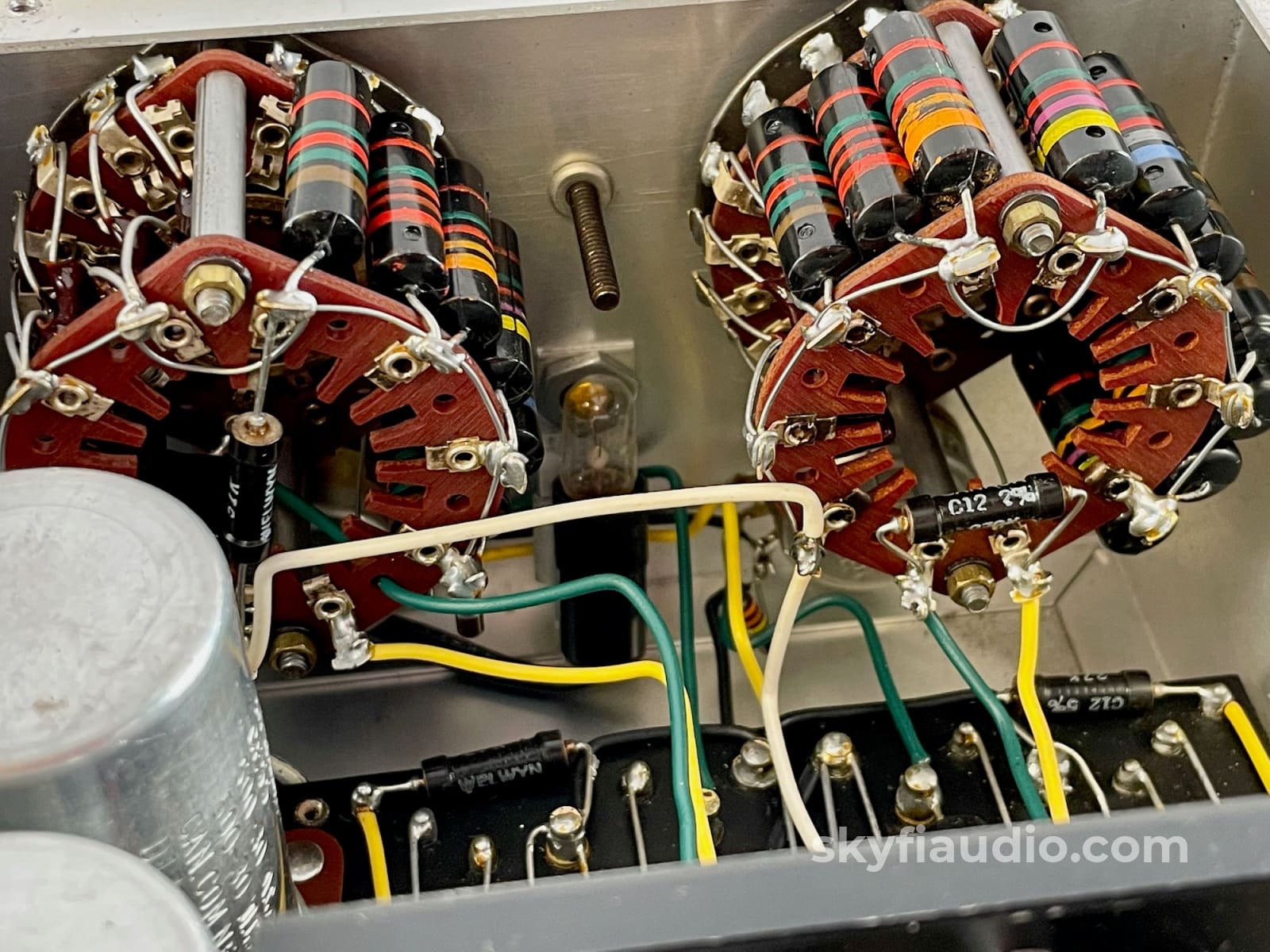

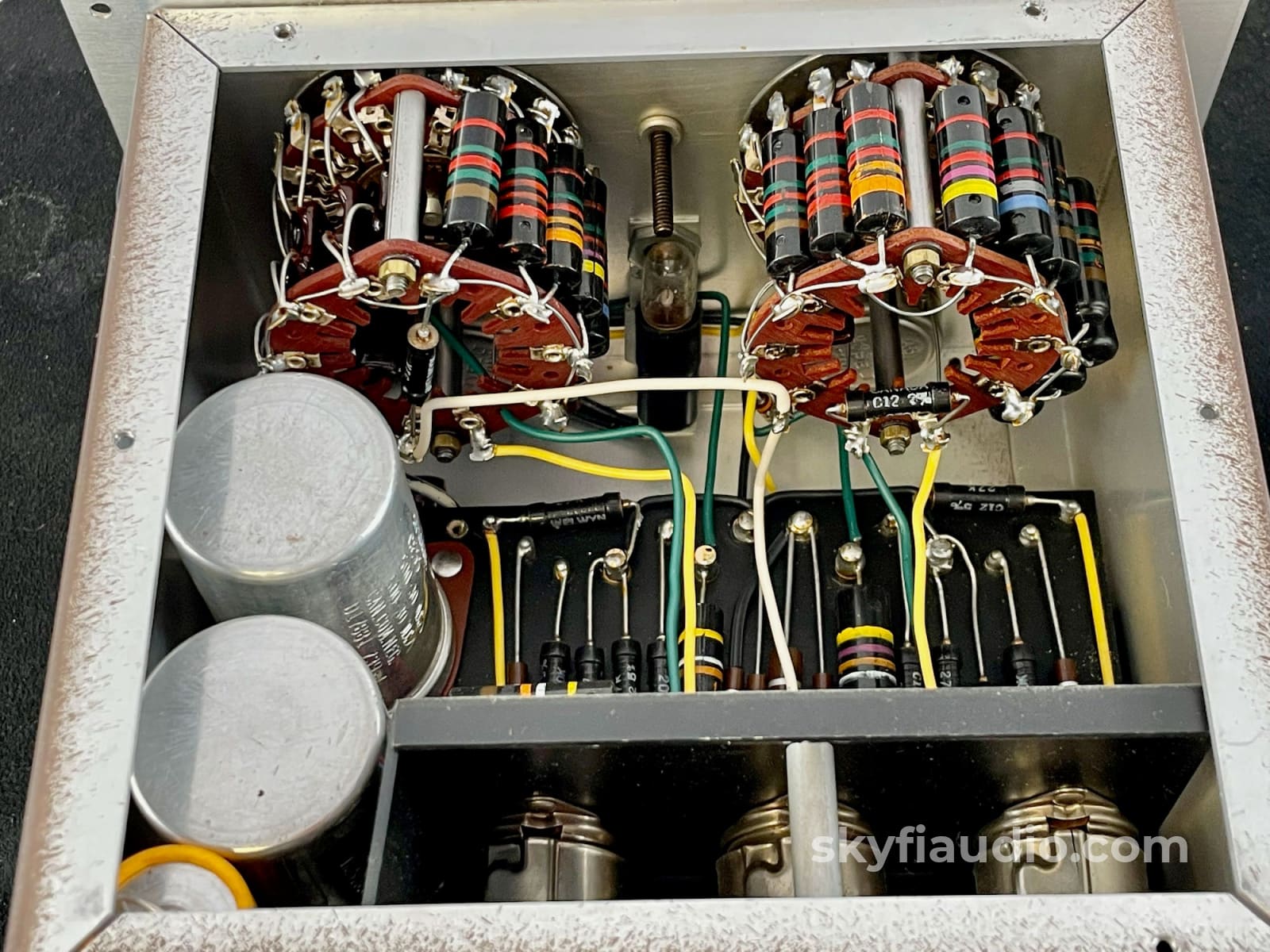

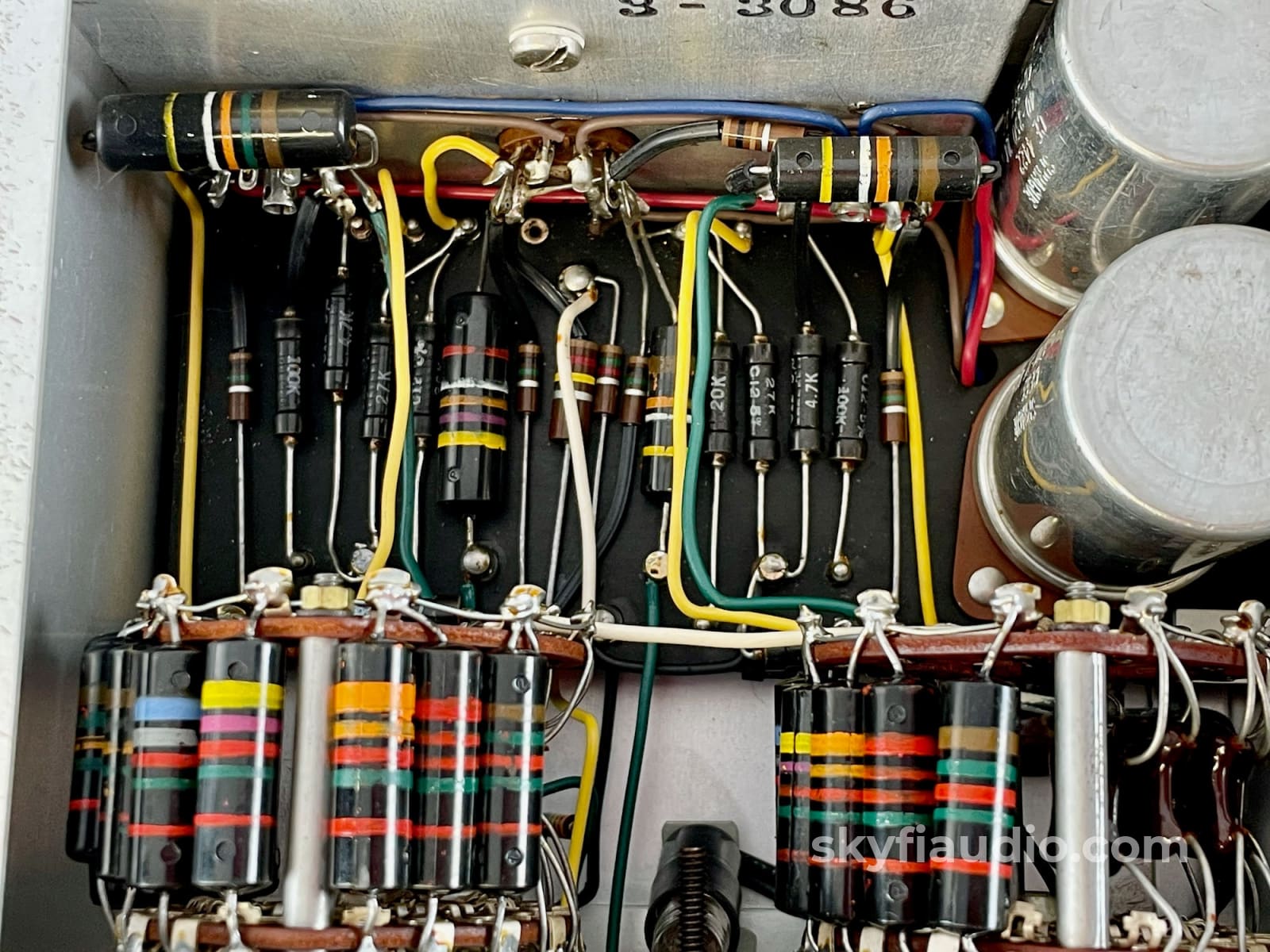

This new unit embodies typical Marantz quality features. Careful engineering and high-grade construction make this one of the finest instruments of its type (terminal board wiring, low-noise deposited carbon resistors, precision components, etc.) A basic two-channel unit, it can be cascaded for multi-speaker systems.

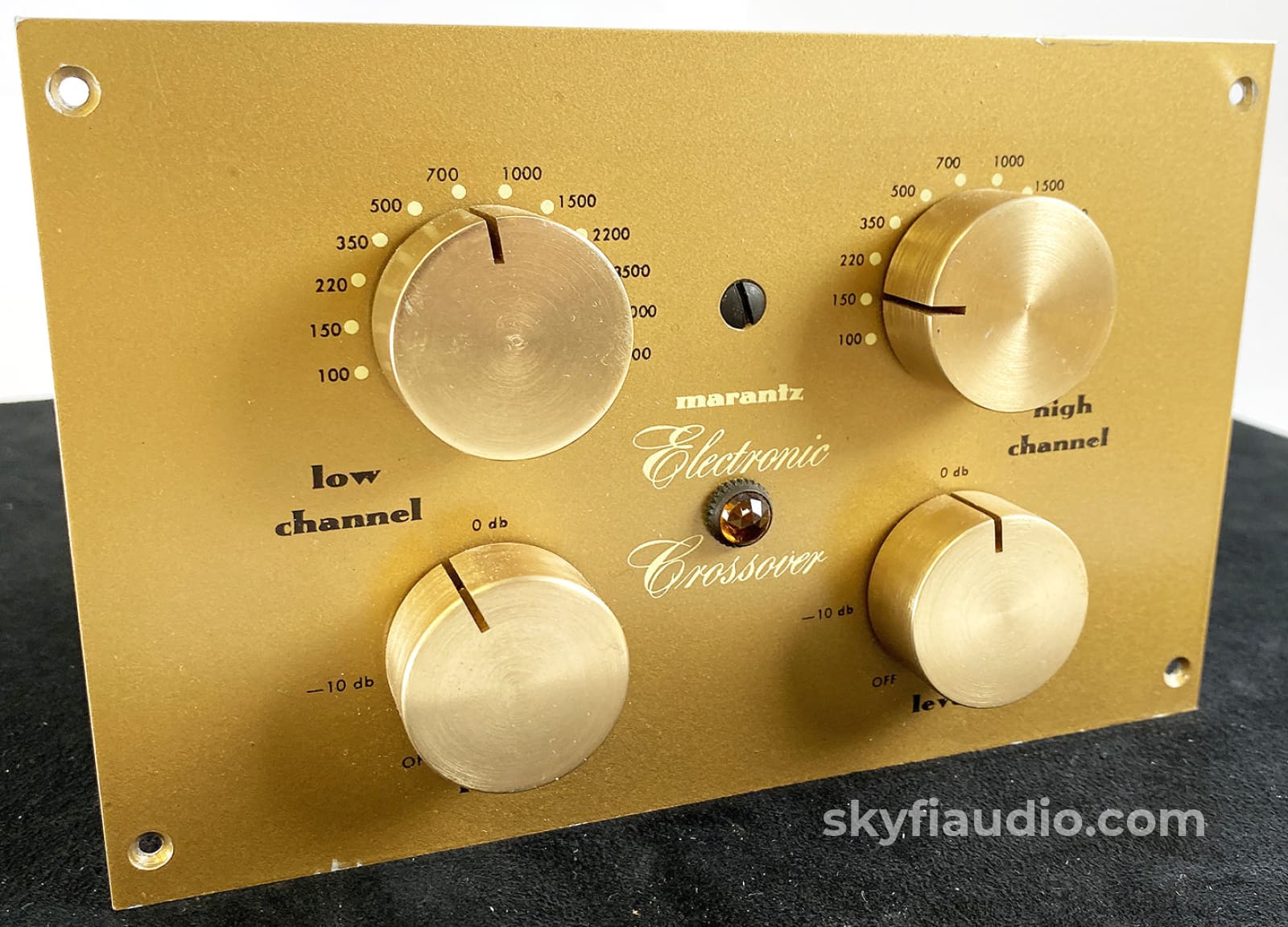

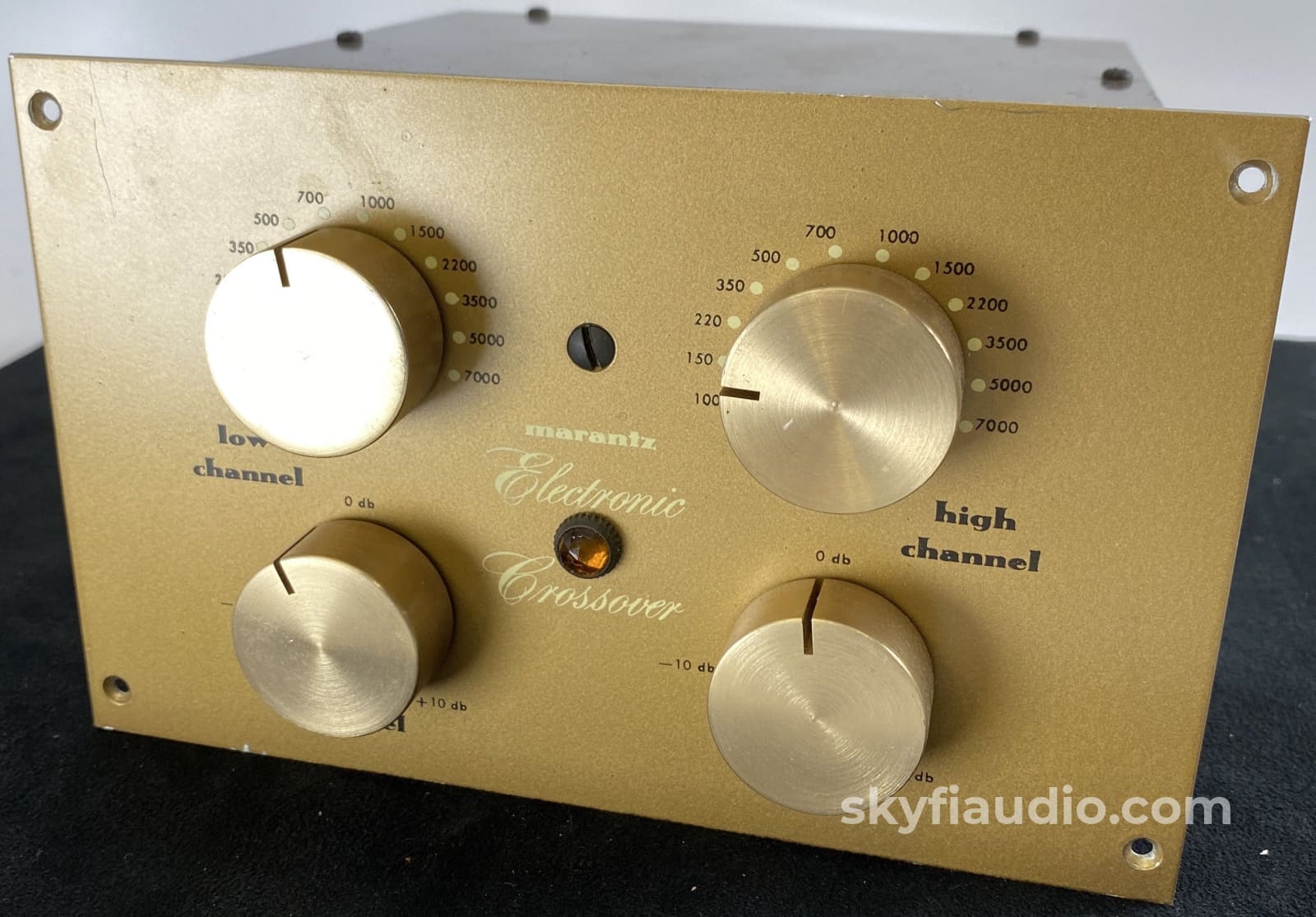

12 crossover points at 1/2 octave intervals.
Adjustable from 100 cps to 7000 cps.

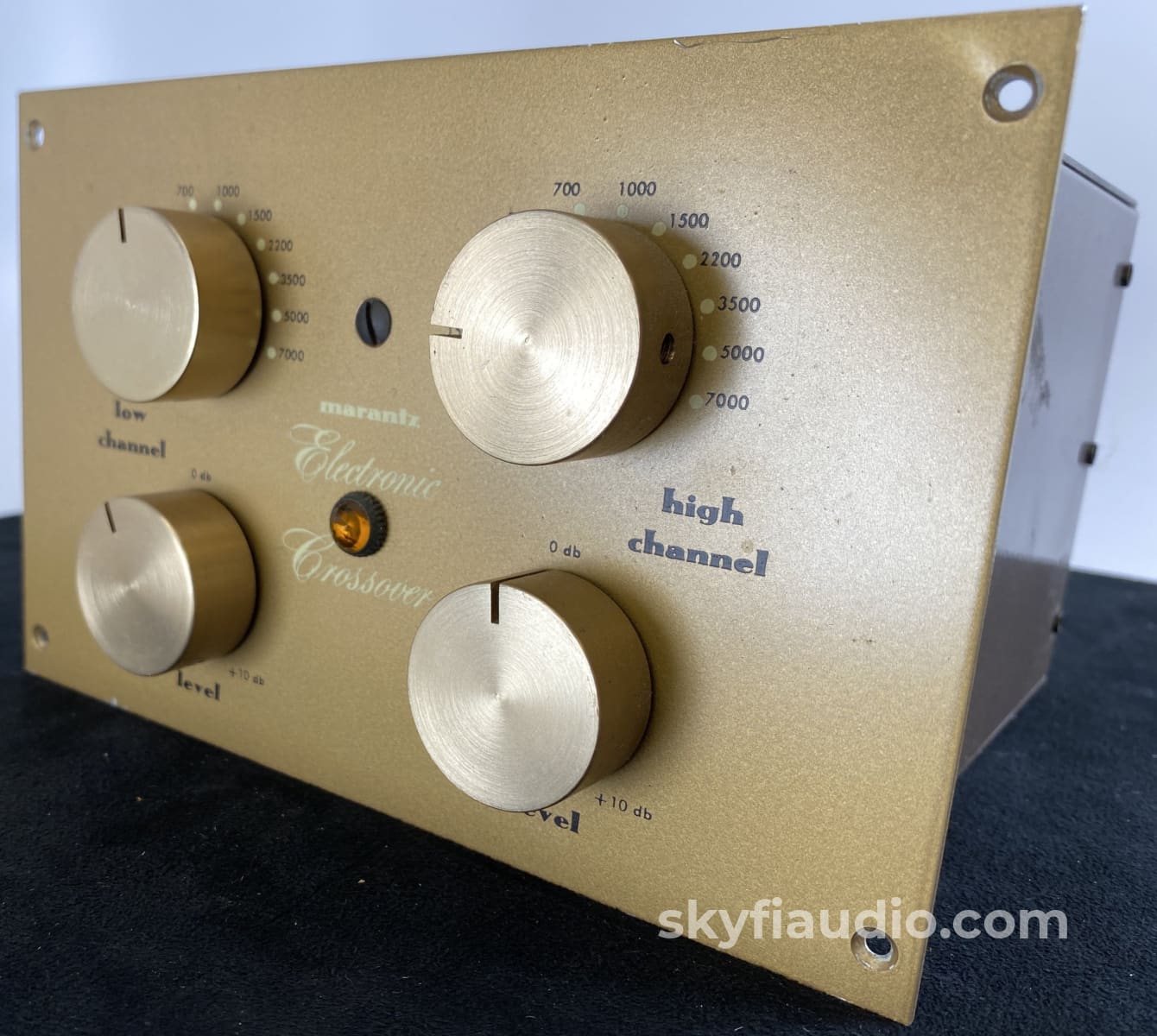

Separate switch and a balance control for each channel.
12 dB per octave rolloffs with -3dB (non-ringing) "knees".
12 dB down one octave beyond crossover.
Self-powered by remote supply.
All 3 dual triode tubes provided with filtered DC on filaments for elimination of Hum problems.

IM Distortion:
2 volts equivalent RMS; less than 0,1%.
15 volts equivalent RMS; less than 1%

Better than -90 dB below 2 V output

10 dB gain available with balance controls at max.
Normal (Zero dB gain) position indicated.
Cathode follower outputs.

Optional: Dual or Single cabinet in Mahogany, Walnut or Blonde Wood."

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.



Original Box







No Cables Included

Physical Condition


Working Condition

SKU: 102029
