Luxman Luxkit KMQ-60 Vintage Tube Amplifier

$2,499

Please watch our video on this piece for the full technical walkthrough and more:

Additional notes from our lead technician:

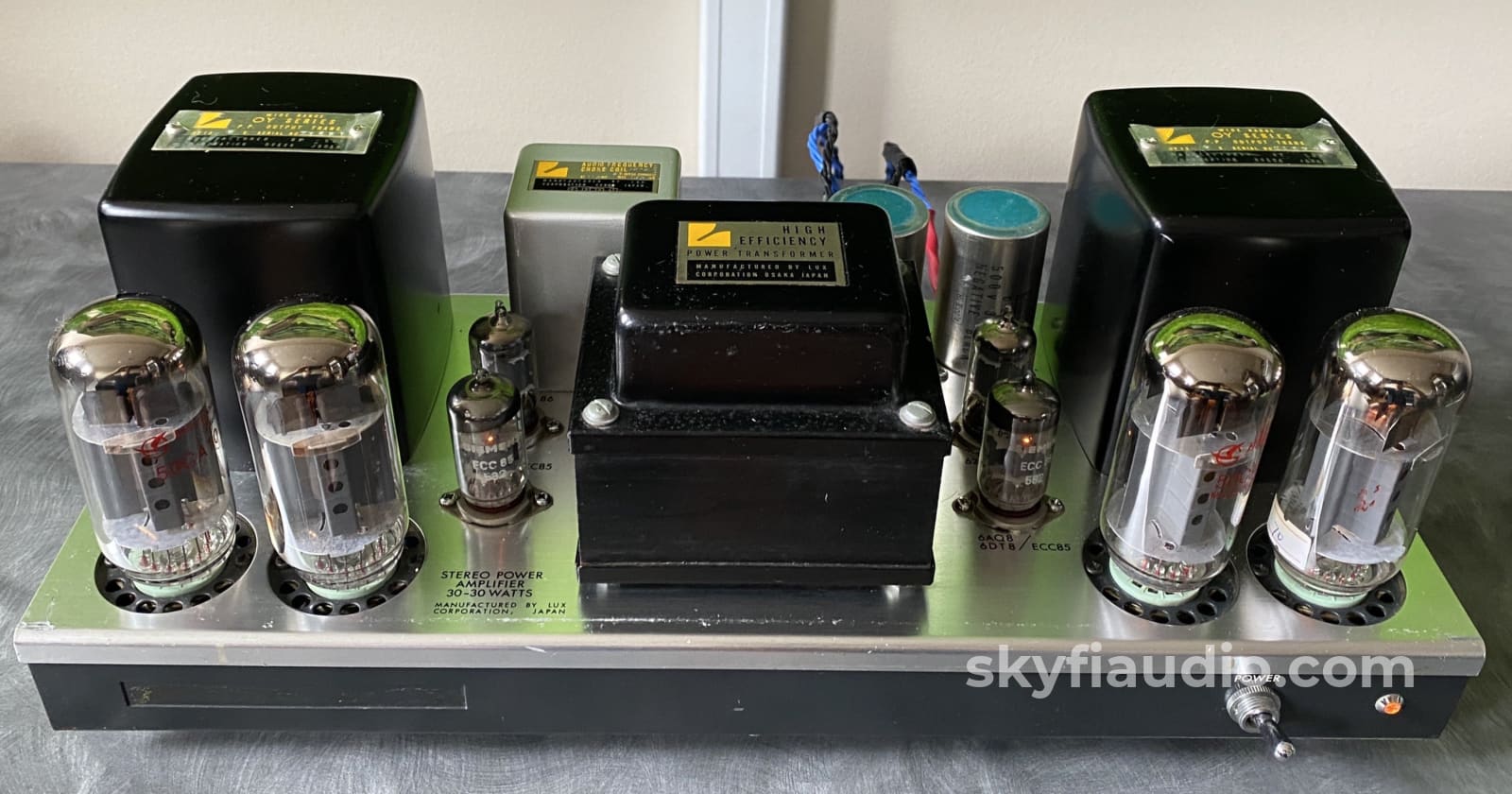

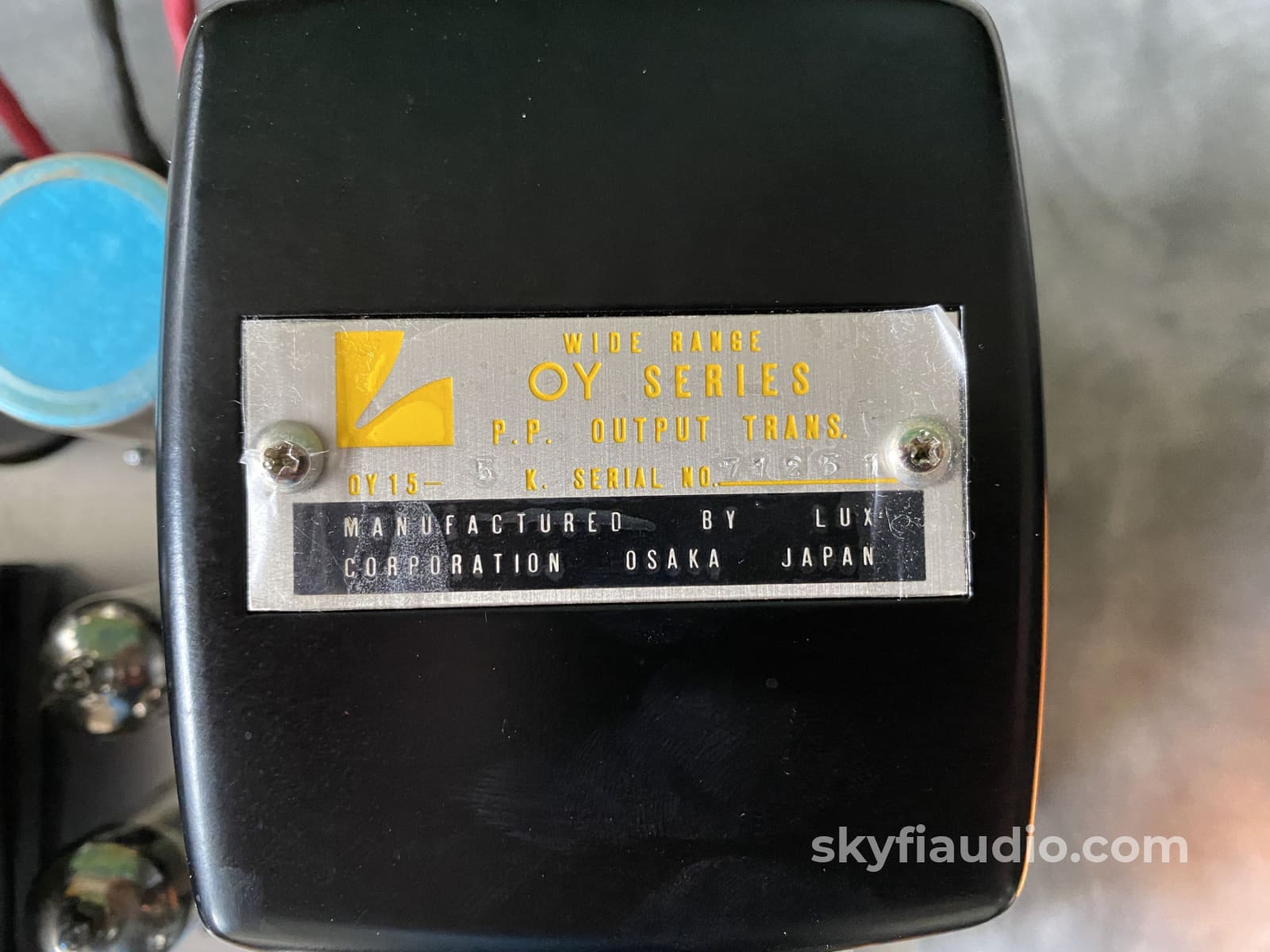

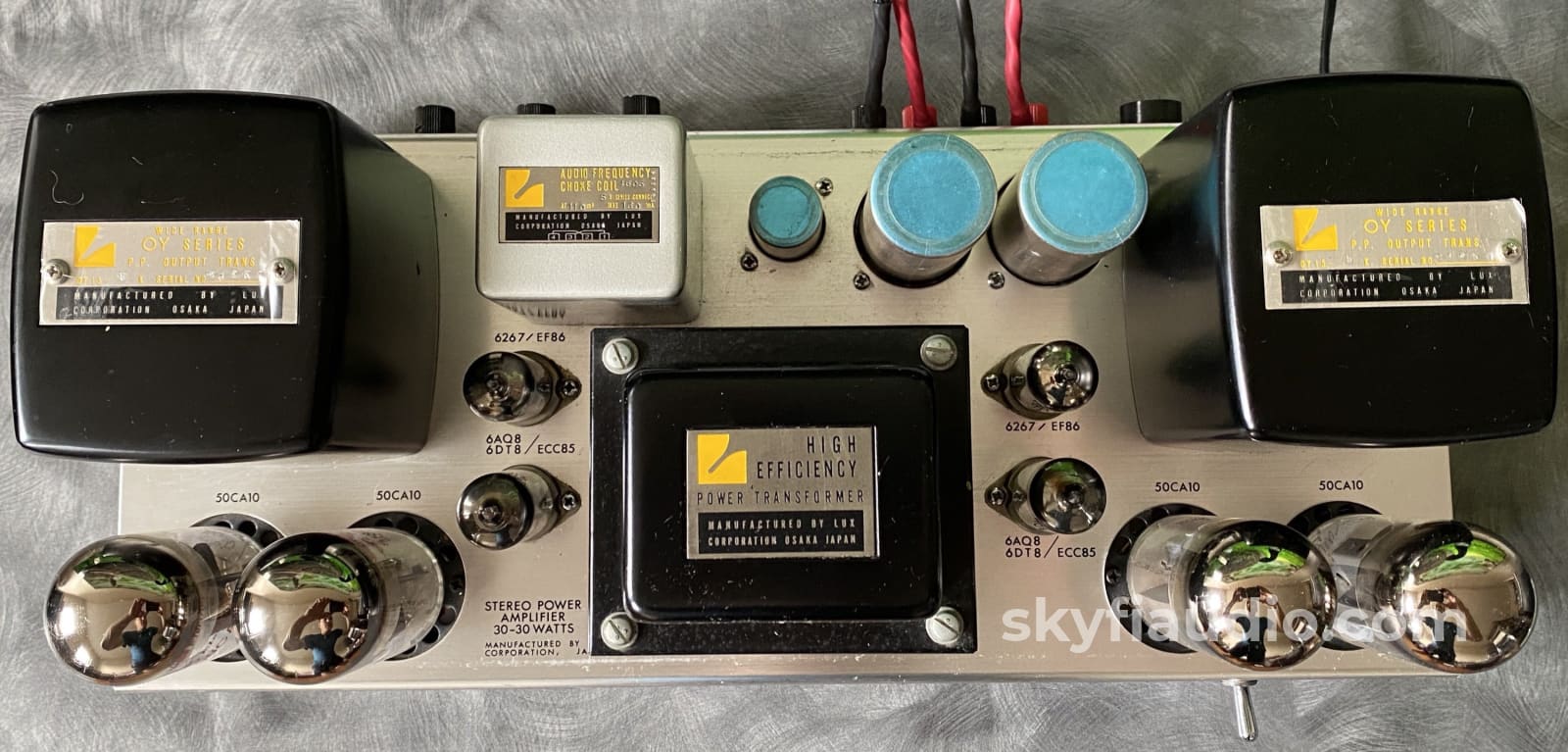

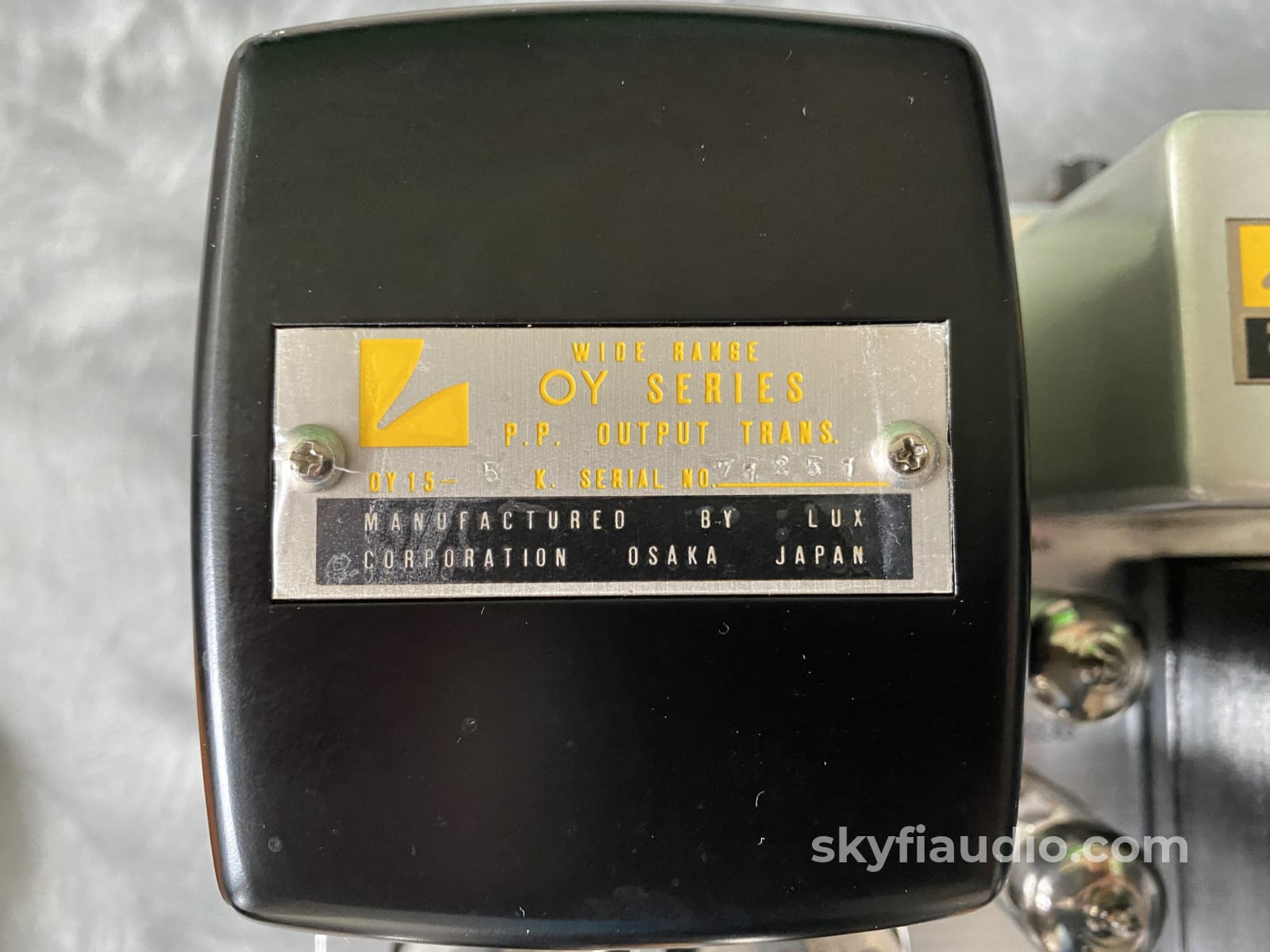

This unit was fitted with a matched set of authentic replacement Luxman OY-15 5K NOS output transformers.

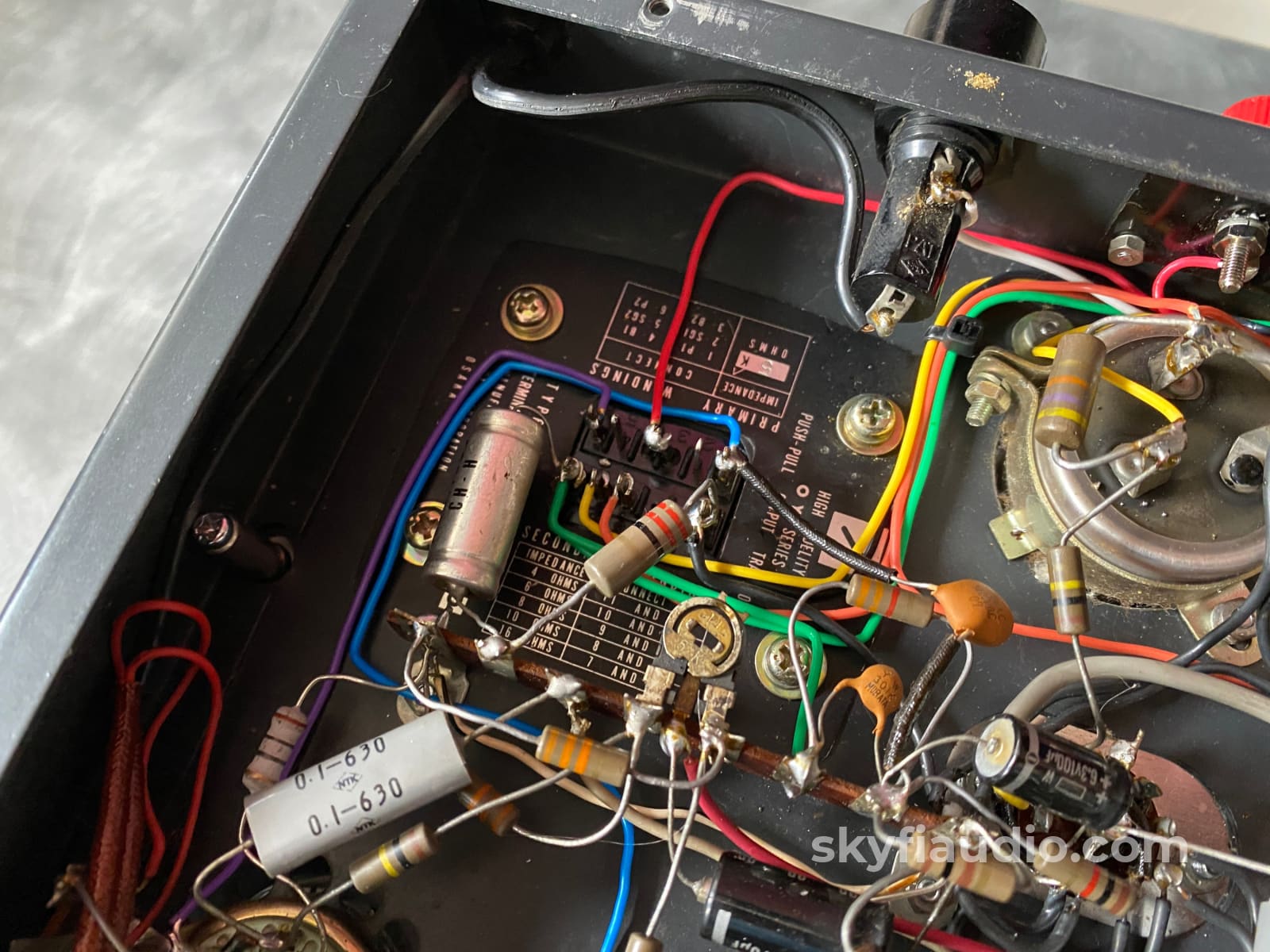

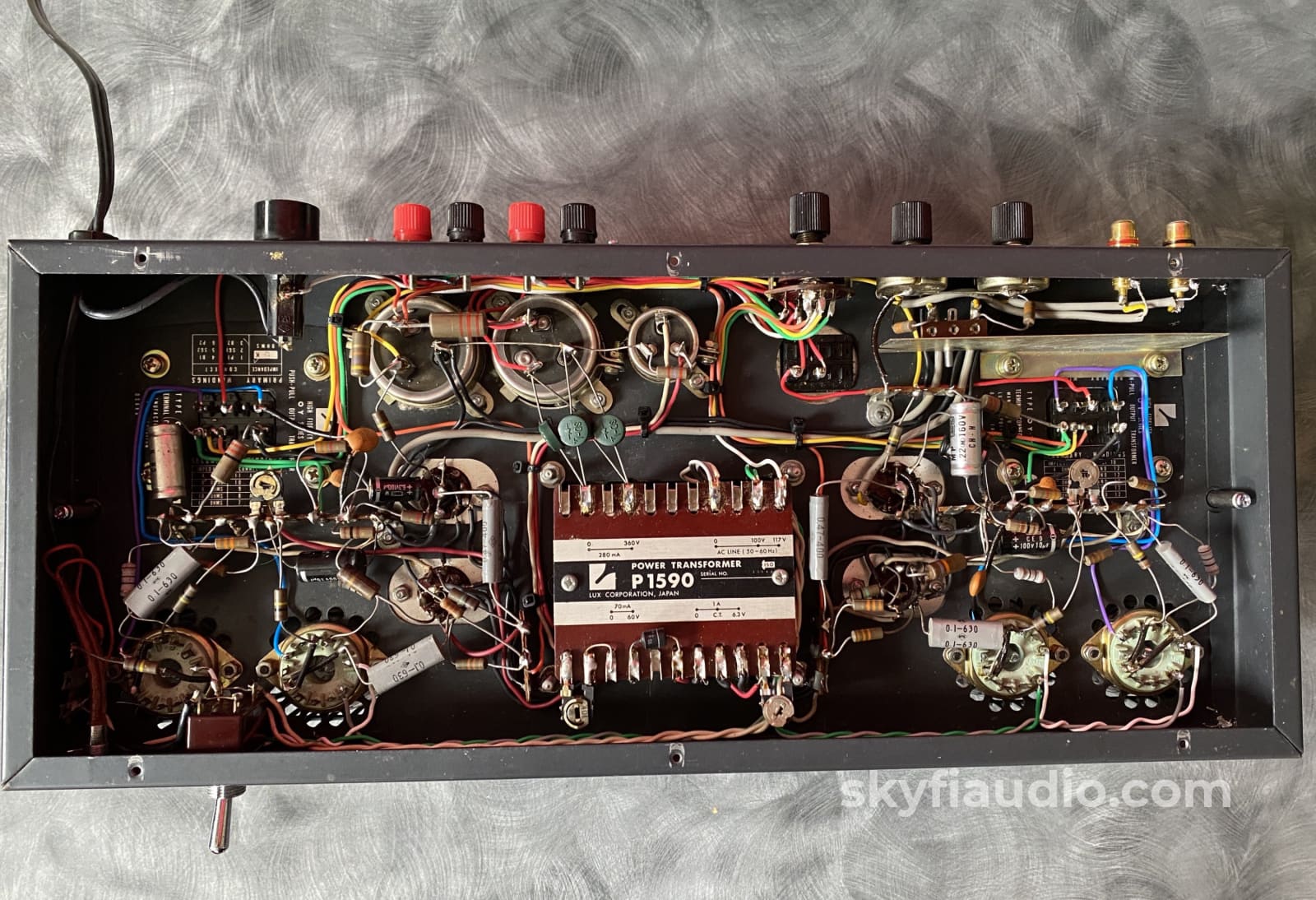

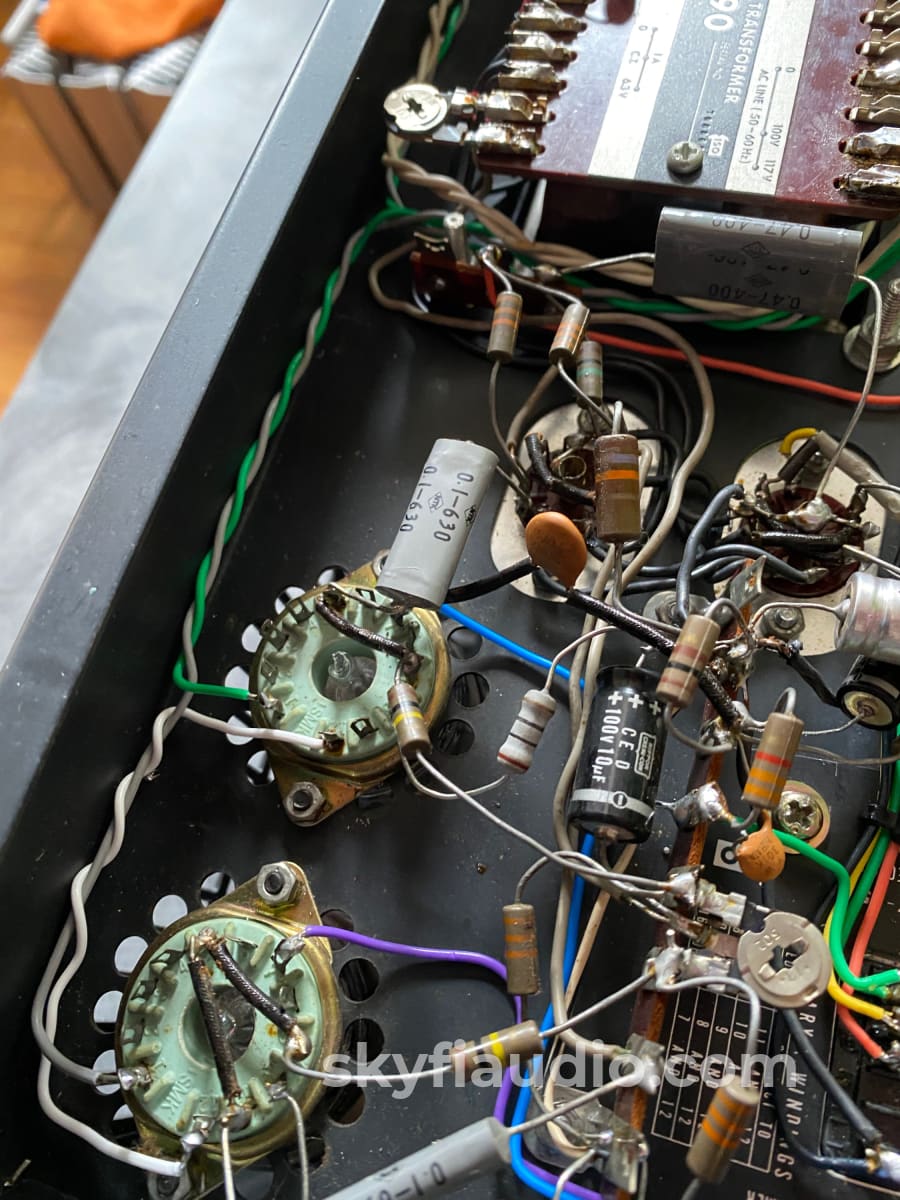

The original kit wiring was reworked with high quality modern teflon coated wire.

All capacitors and passive devices confirmed functional and within spec.

Minor original build mistakes were all corrected.

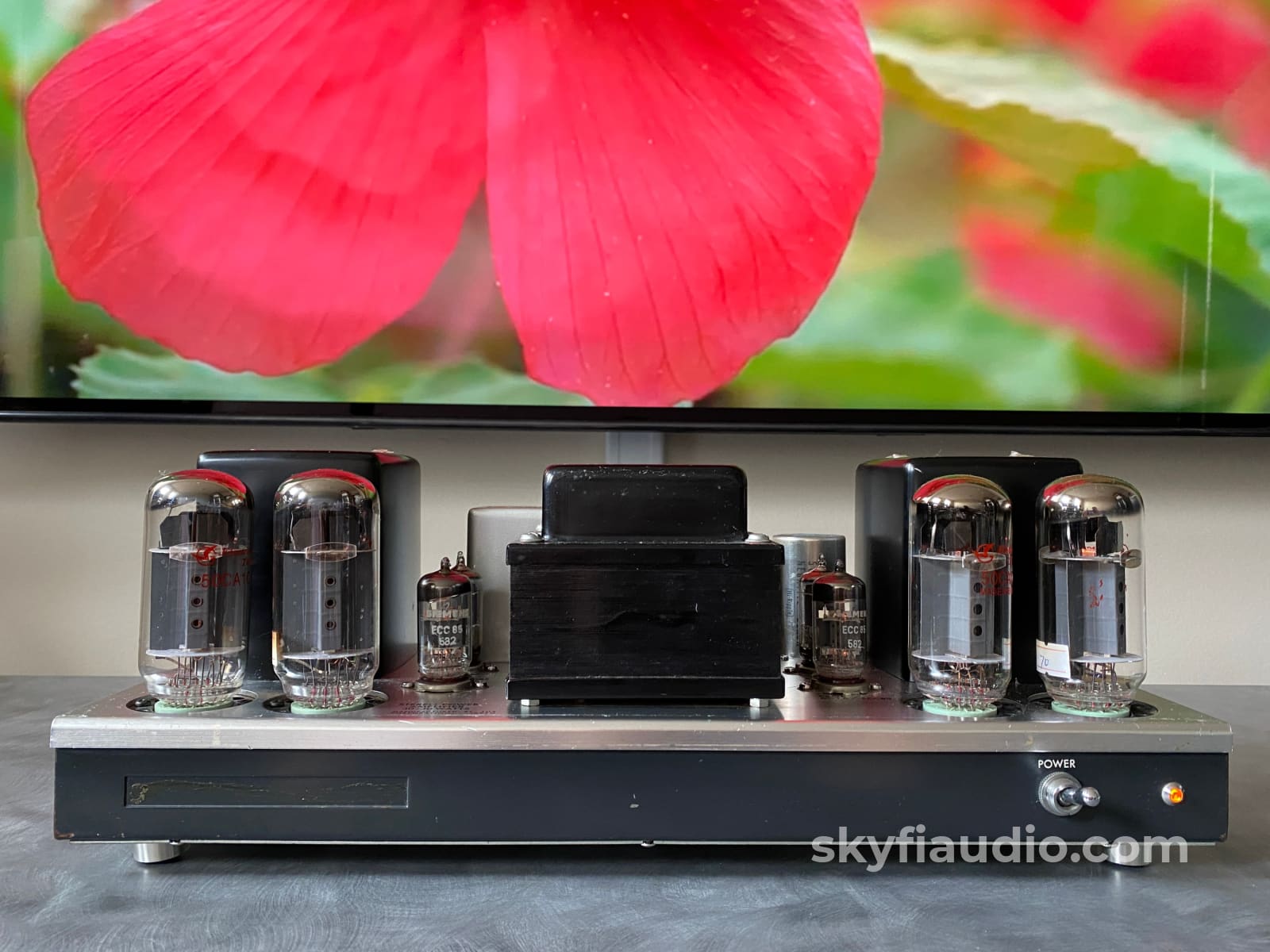

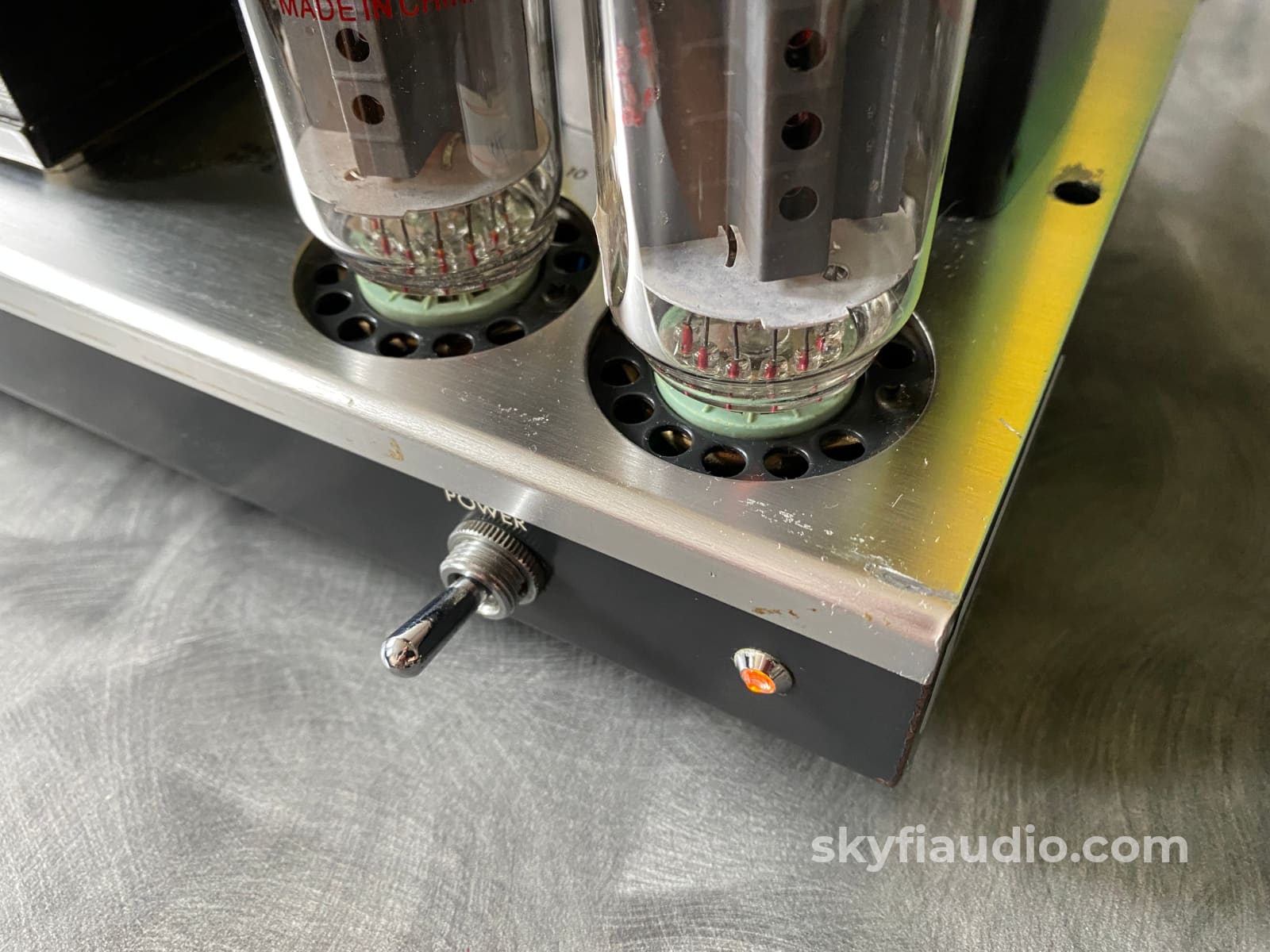

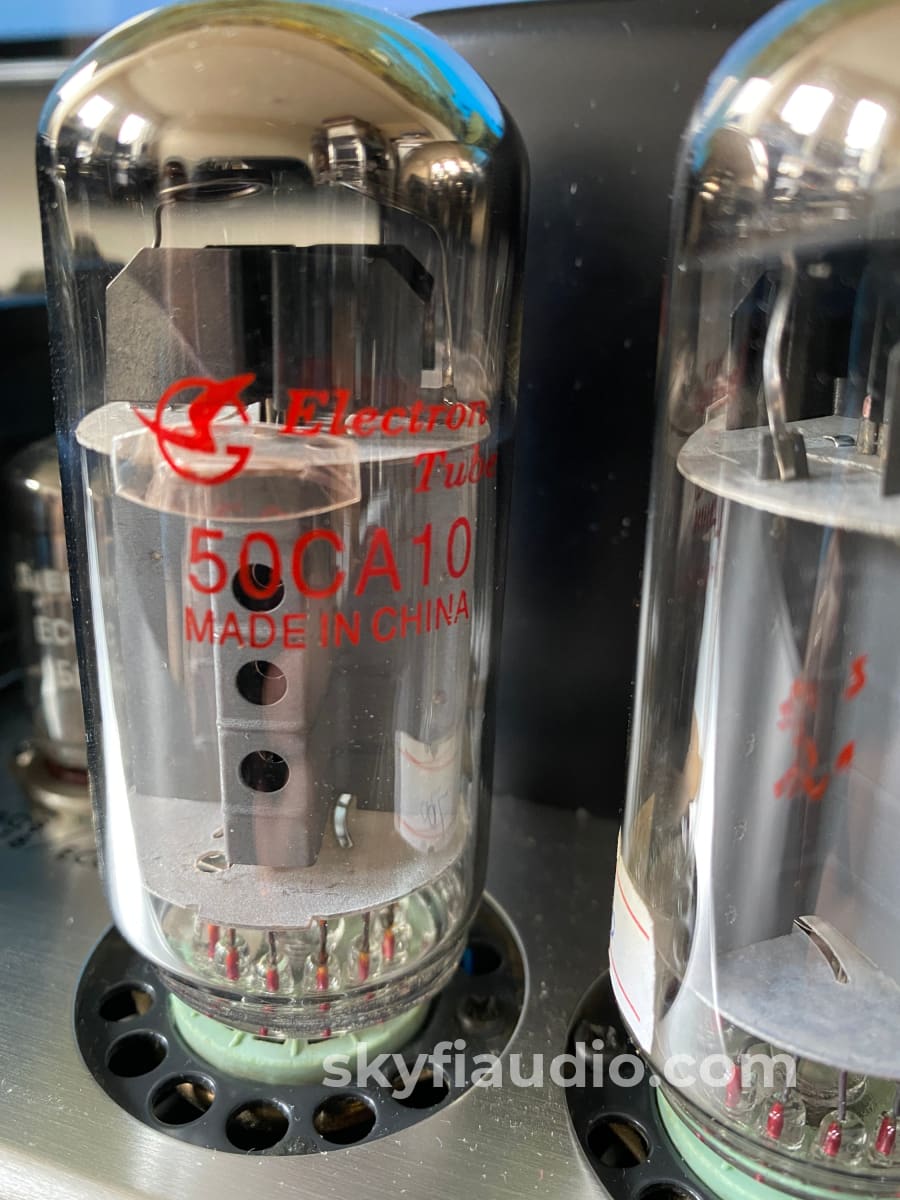

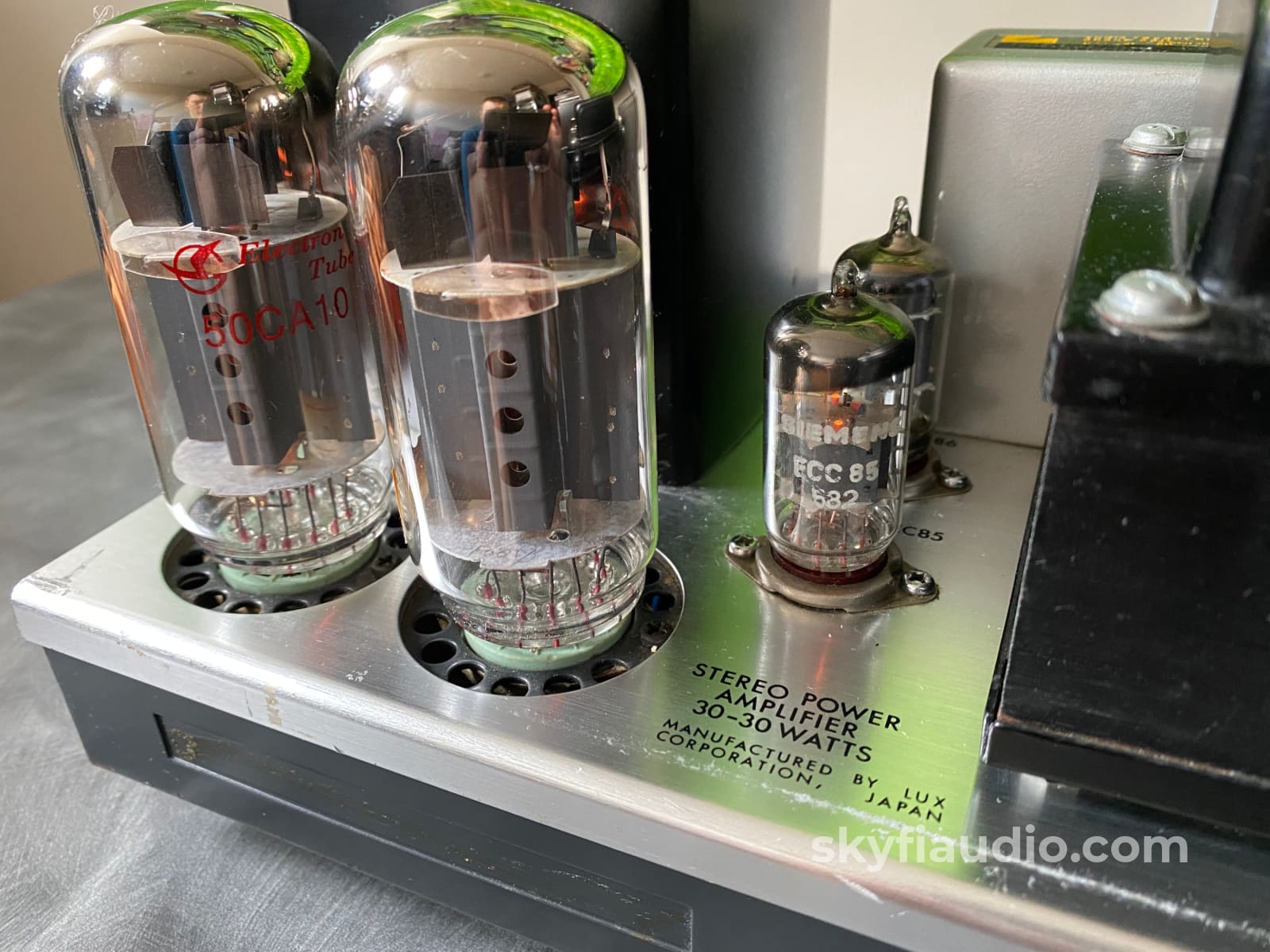

Output section fitted with modern production 50CA10 output tubes, with bias optimized for 120VAC mains input voltage. Note these are super rare and desirable tubes.

Our Testing Process for Amplifiers (Tube) at SkyFi:

We start with a visual inspection of all internal components to make sure there are no signs of stress or aging. Capacitors are checked for telltale sings of bulging or leaking, resistors are checked for signs of overheating or cracking, and tubes are inspected for signs of stress overheating or cracking.

We then power up the unit carefully and run a simple 1k sine wave while monitoring the output on an oscilloscope for signs of distortion or noise. Finally we run the amplifier to its full rated power into the appropriate resistive load provided by our Sencore amplifier tester. If there is an issue, it will usually be noticeable at this point. If it all looks clean we will often test for THD (Total Harmonic Distortion) measured by our Keithley distortion meter, and compare it against the original manufacturers specifications. The amplifier the remains powered on to "burn in" on our test bench for a few hours to make sure there are no heat related issues. If there are balanced inputs available they will also be tested.

We also test all tubes for output gain and leakage on our calibrated B&K 747 tester against the original manufacturers specifications. If needed, the tubes will be replaced from our vast NOS (New Old Stock) vintage or modern inventory.

Final testing involves pushing actual music thorough the amplifier. We've learned over time that some issues are only noticeable to a trained ear while listening to familiar source material. Our test bench has reference vintage Kef speakers that we're very familiar with which quickly reveal any discrepancies. Some amplifiers will then move into our listening room where they are tested with our in-house reference speakers of choice.

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

No

Manual

No

Remote

N/A

Cables

Yes - Power

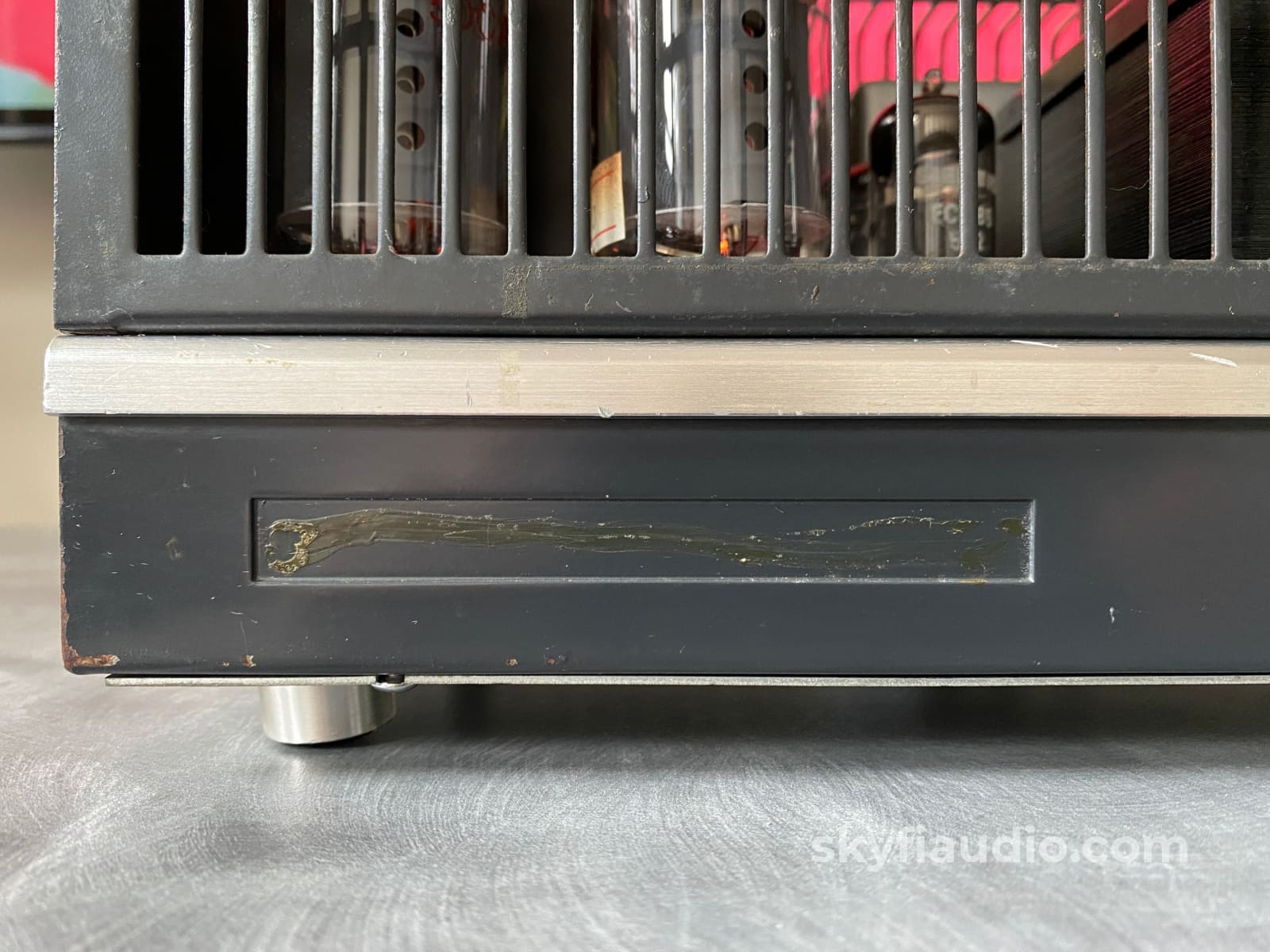

Physical Condition

7

Working Condition

10
