Luxman L-509X Integrated Amplifier with Phono - As New

Sale price$0.00
Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

Pickup currently unavailable at SkyFi 479

Luxman L-509X Integrated Amplifier With Phono - As New

Luxman L-509X Integrated Amplifier with Phono - As New

SkyFi 479

Pickup currently unavailable

479 South Broad Street
Glen Rock NJ 07452
United States

+12018790000

Few audiophiles this side of the pond realize the amazing equipment that Luxman in Japan is actually still manufacturing.  This unit is a tour de force and about the nicest integrated we've seen to date.

This piece will arrive at your house looking like it just left the factory. Not a fingerprint or scratch to be seen anywhere and is priced accordingly. MSRP is $9500.

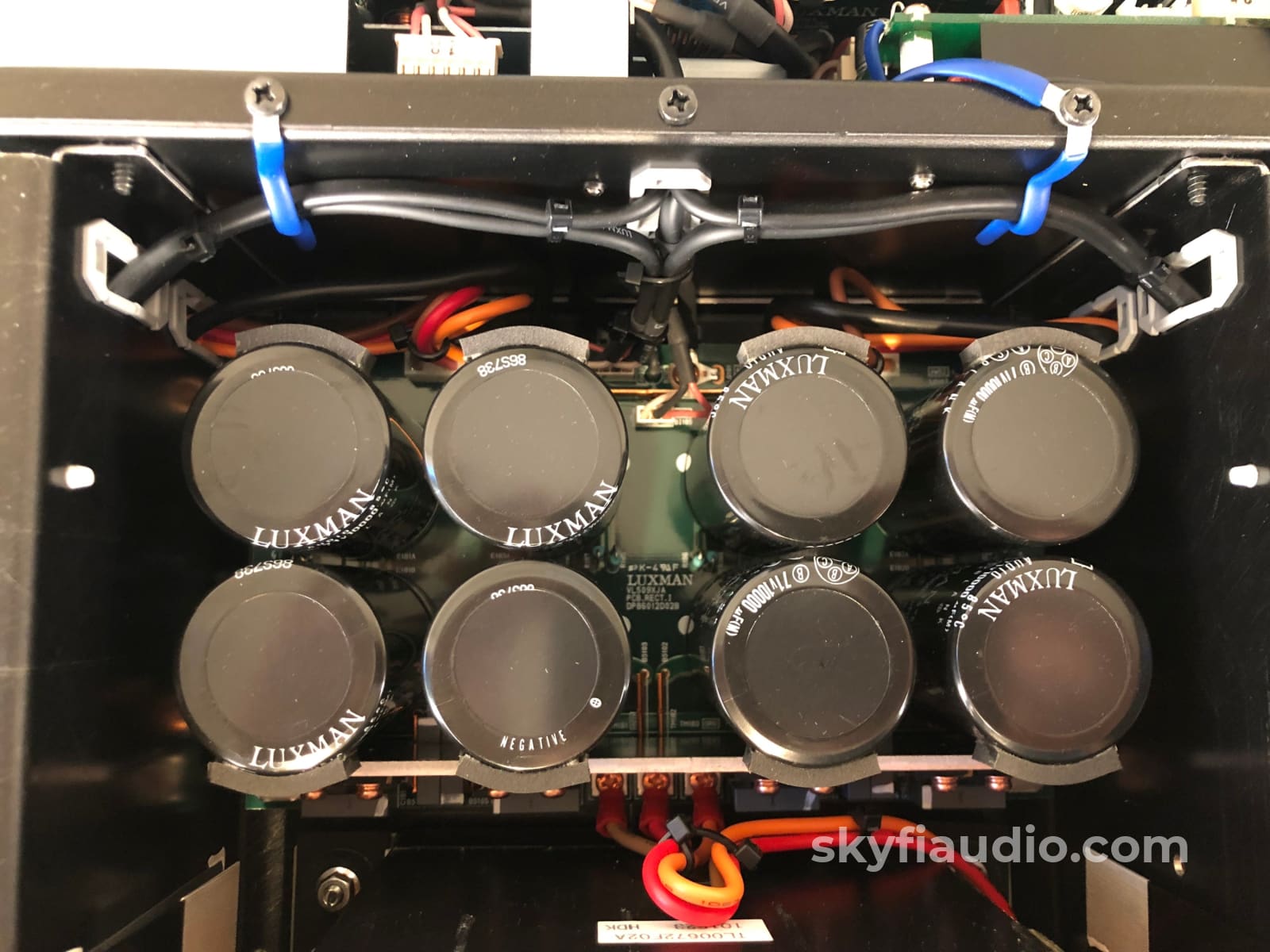

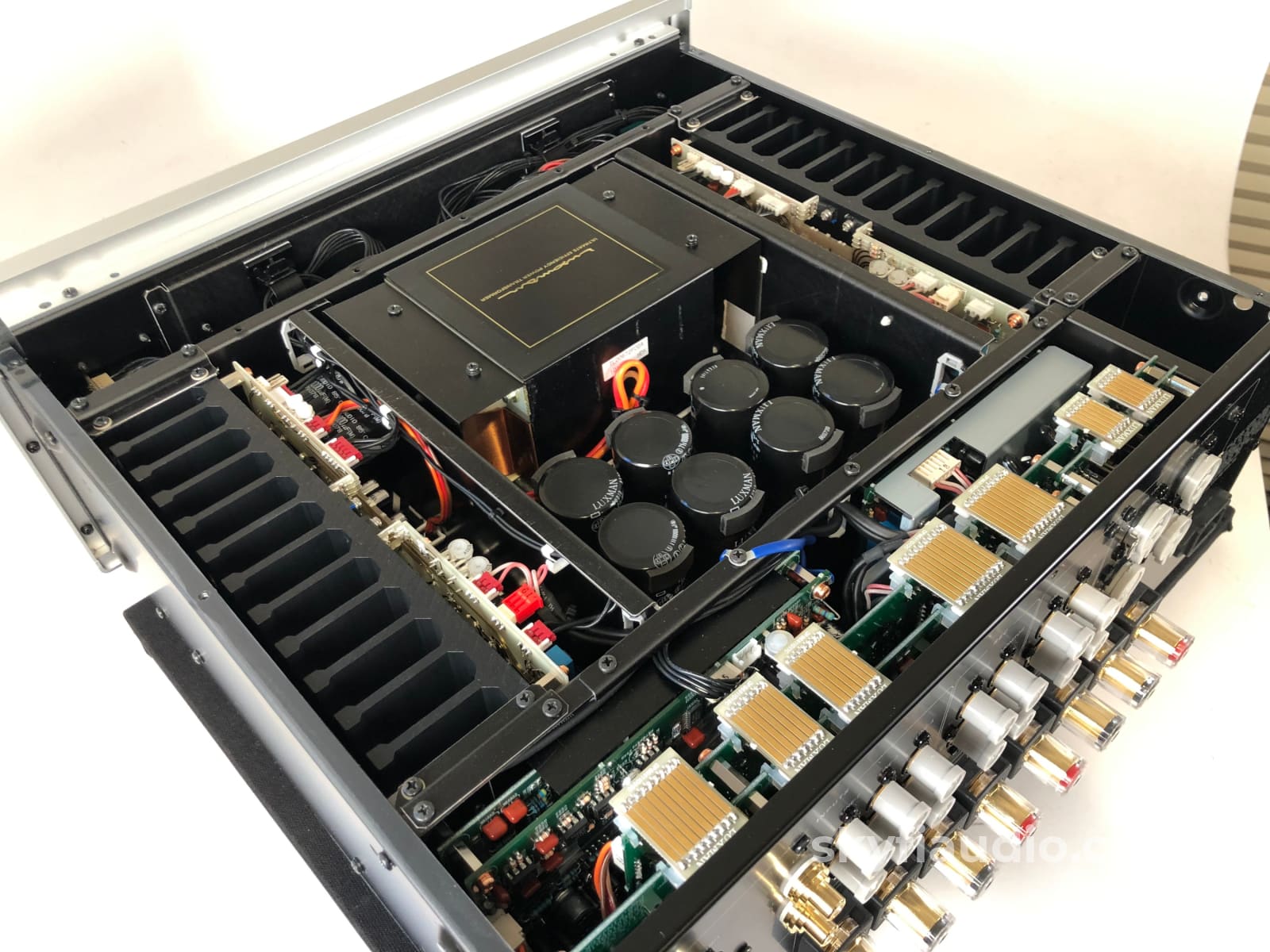

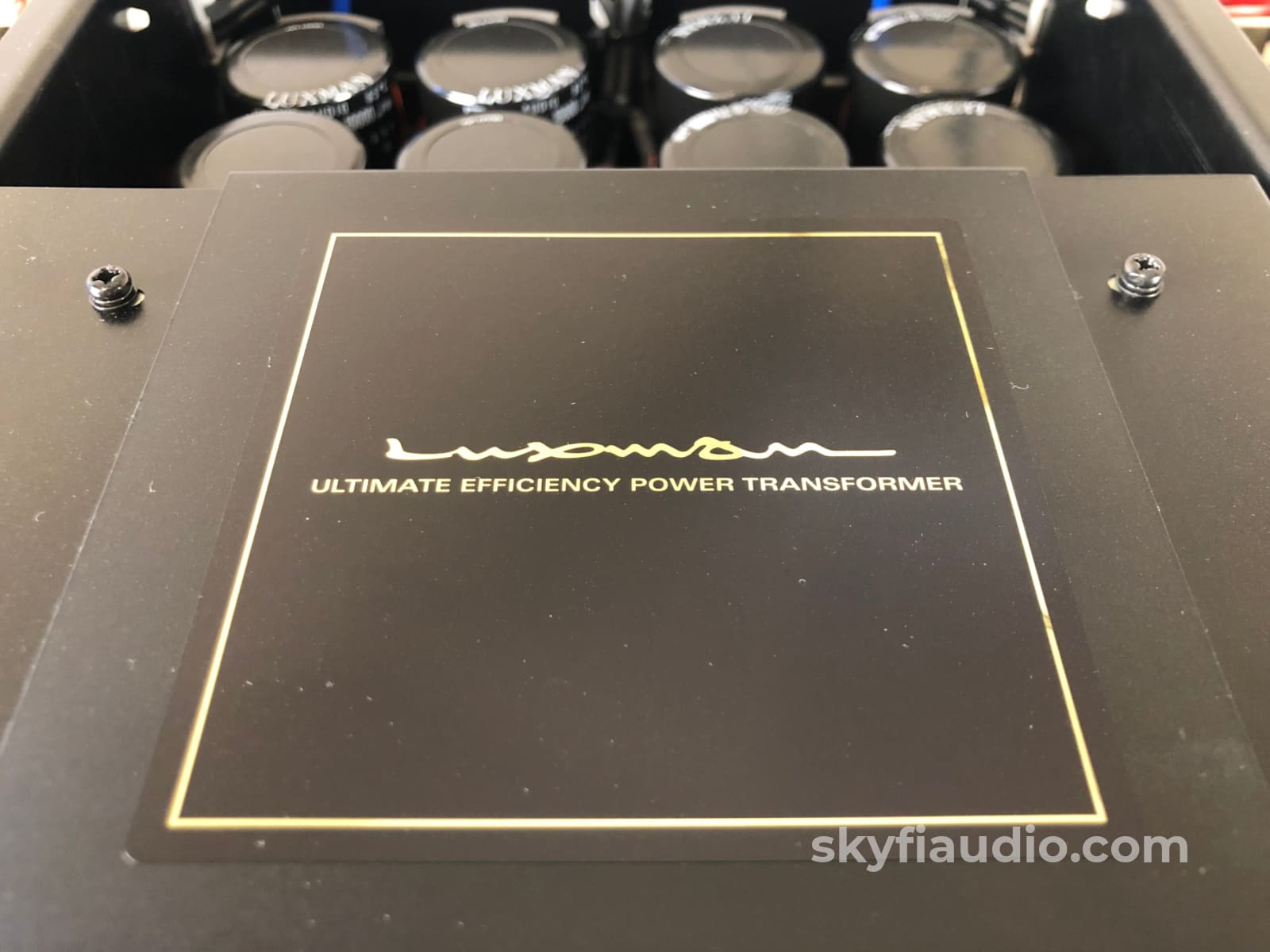

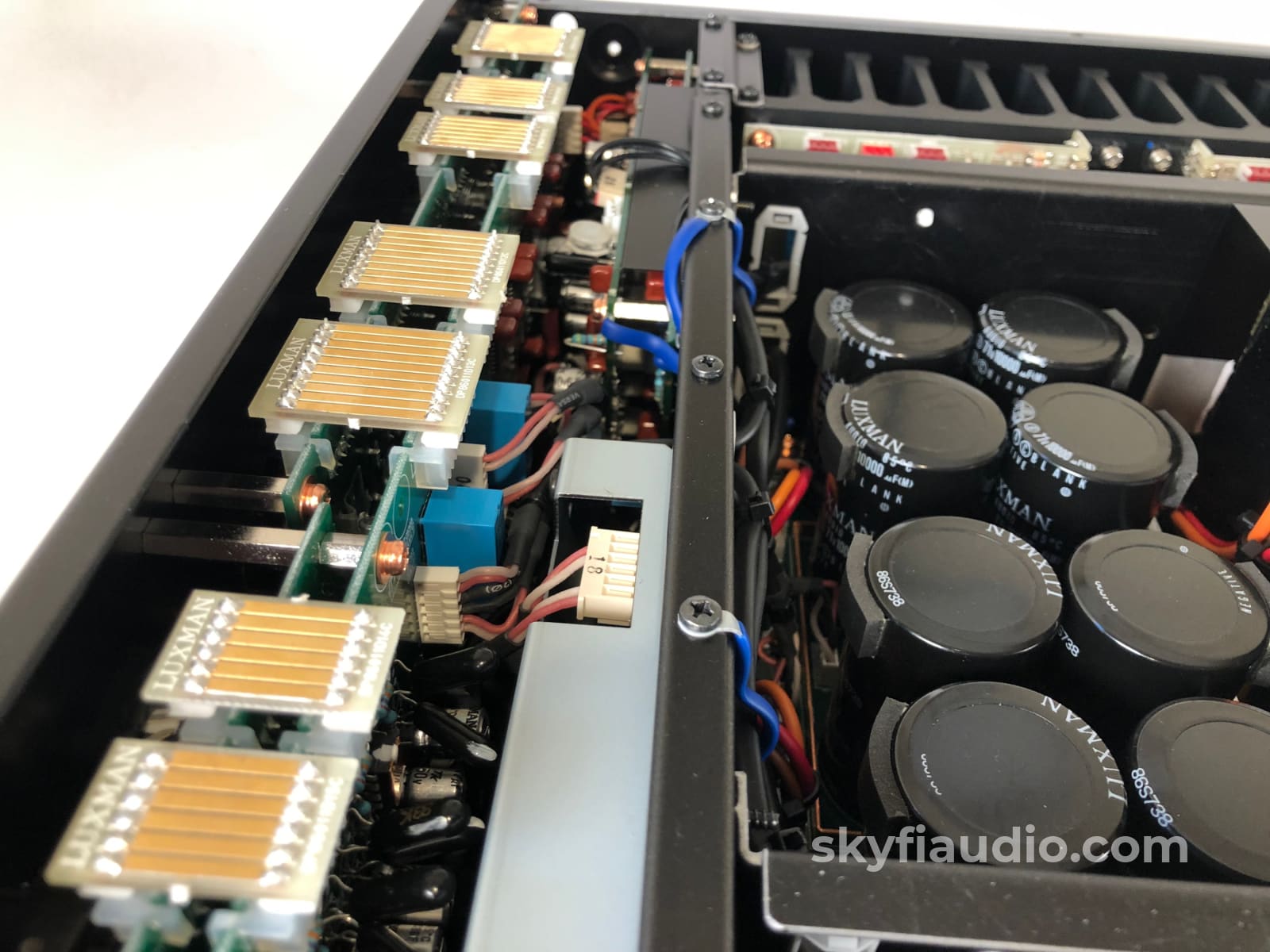

We had to have a look inside to confirm that the build quality and exquisite exterior carried on into the internals - and boy were we pleased.  We snapped a few pictures so you can see yourself.

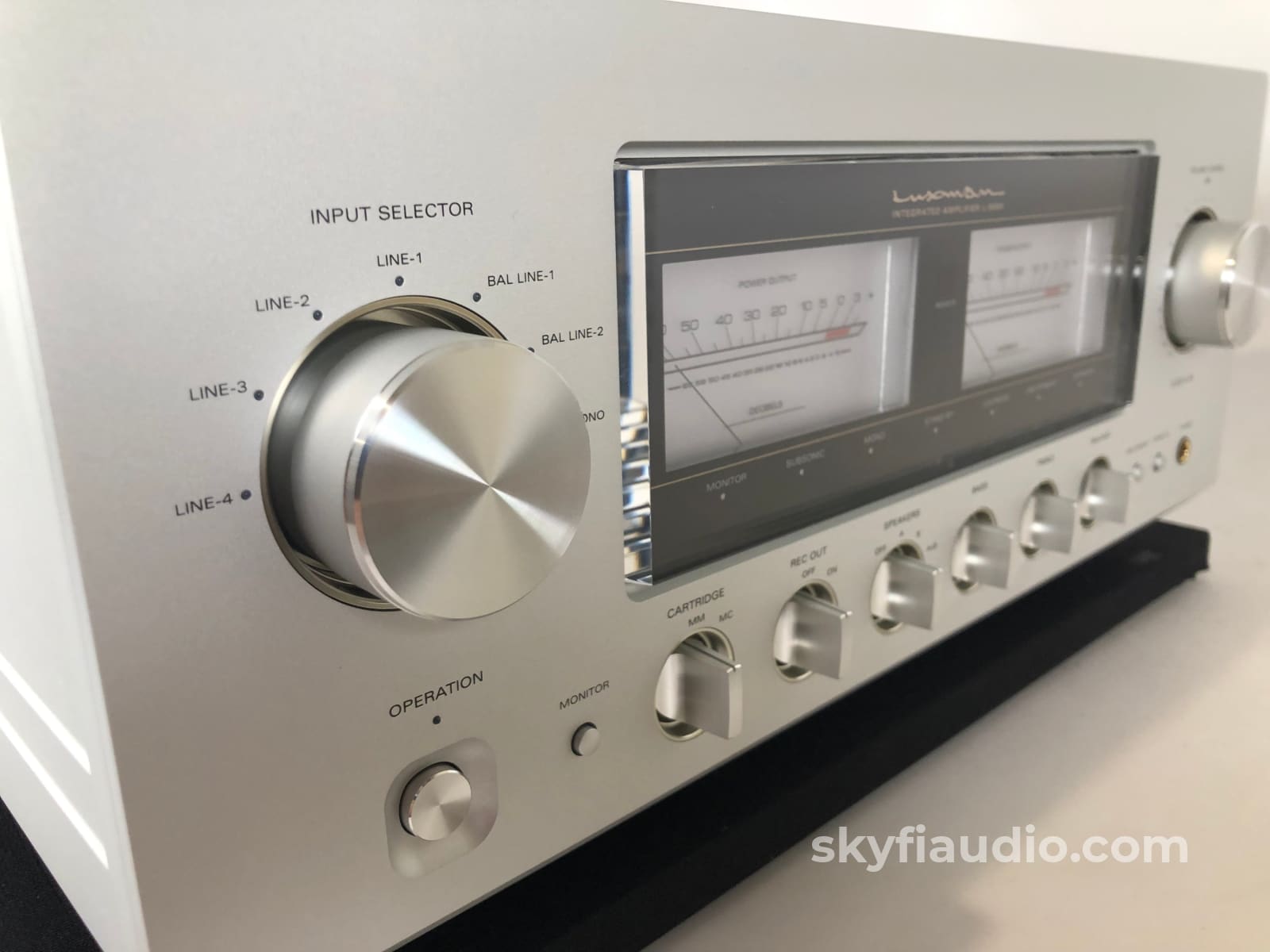

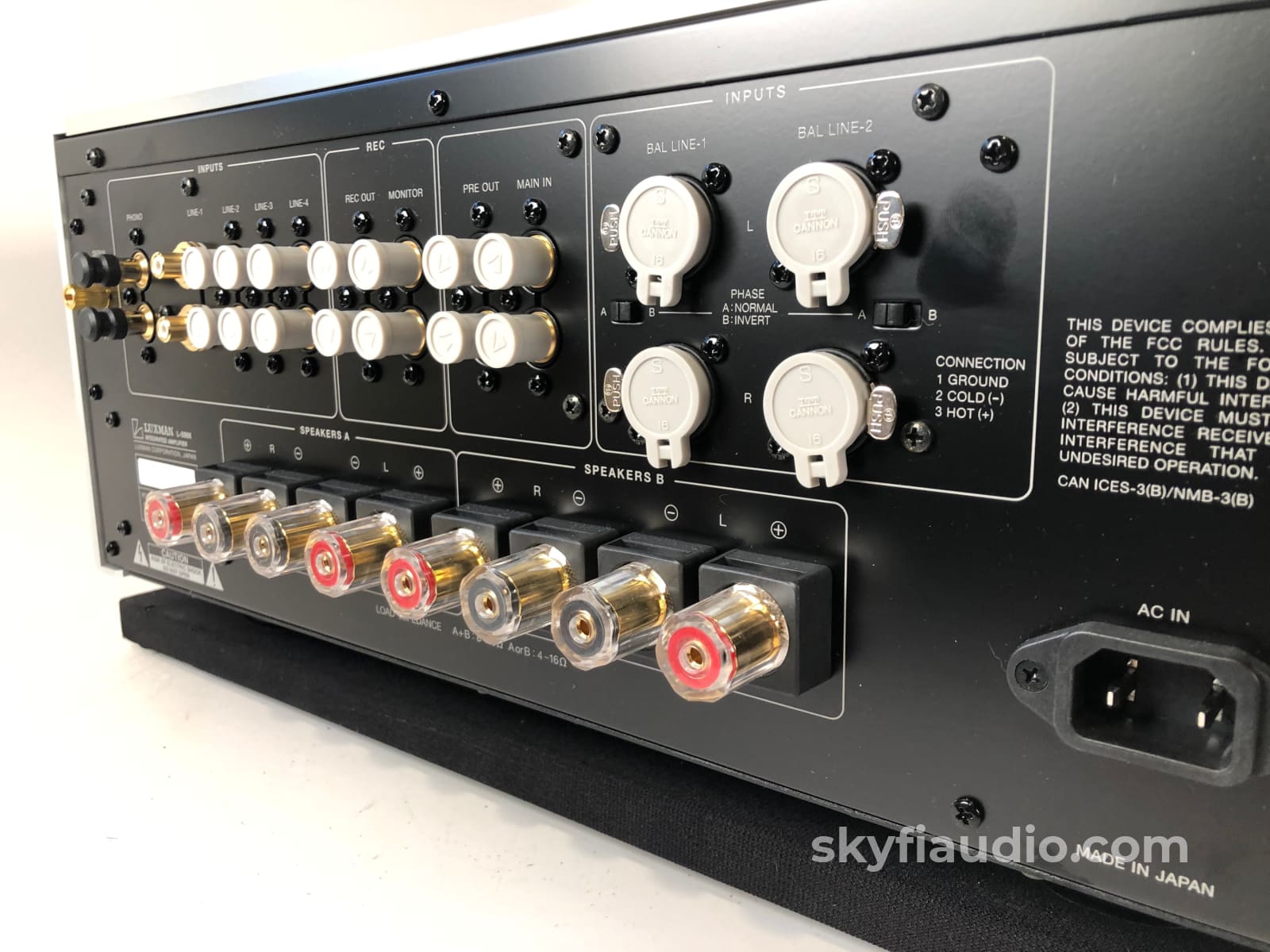

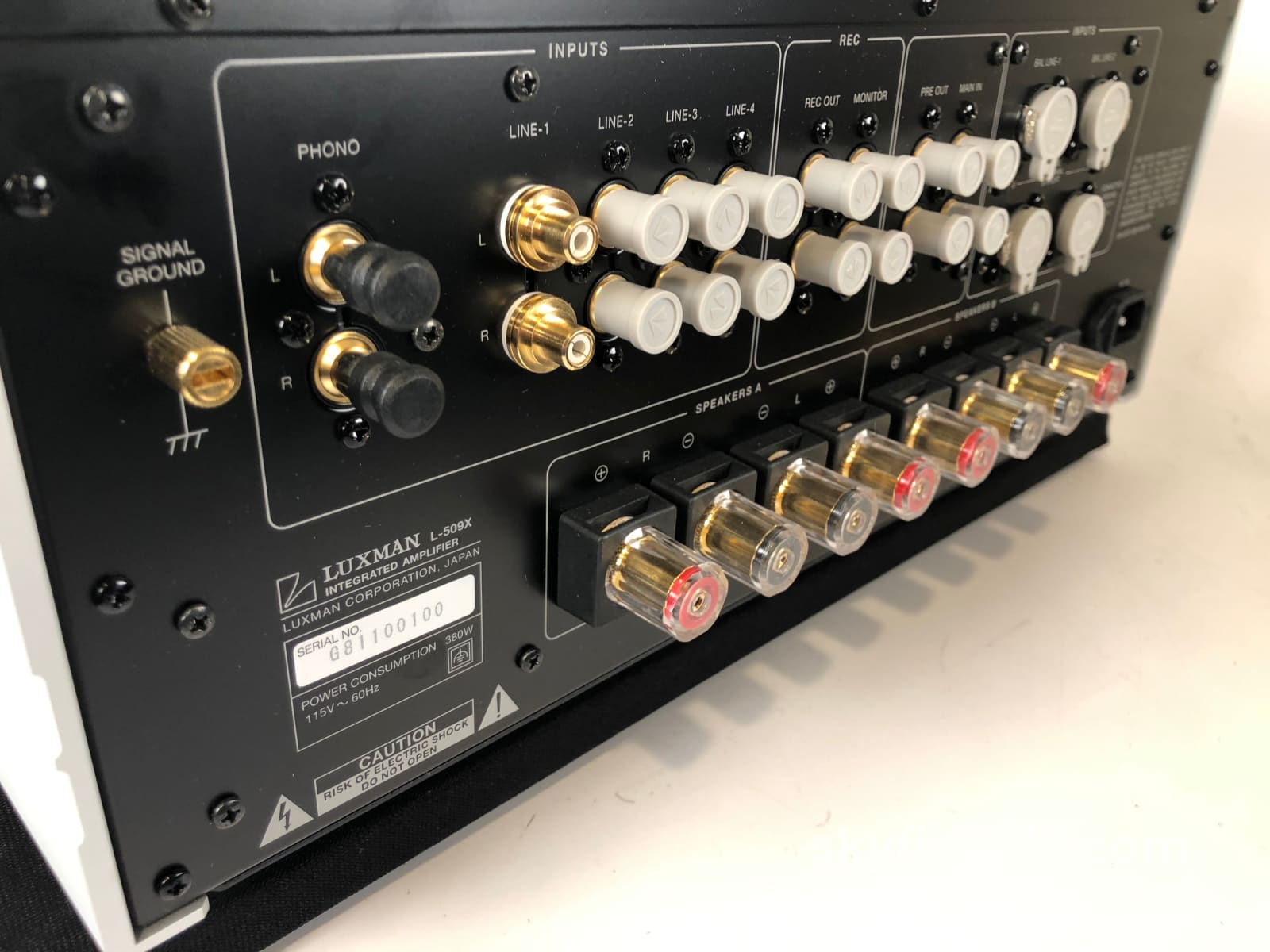

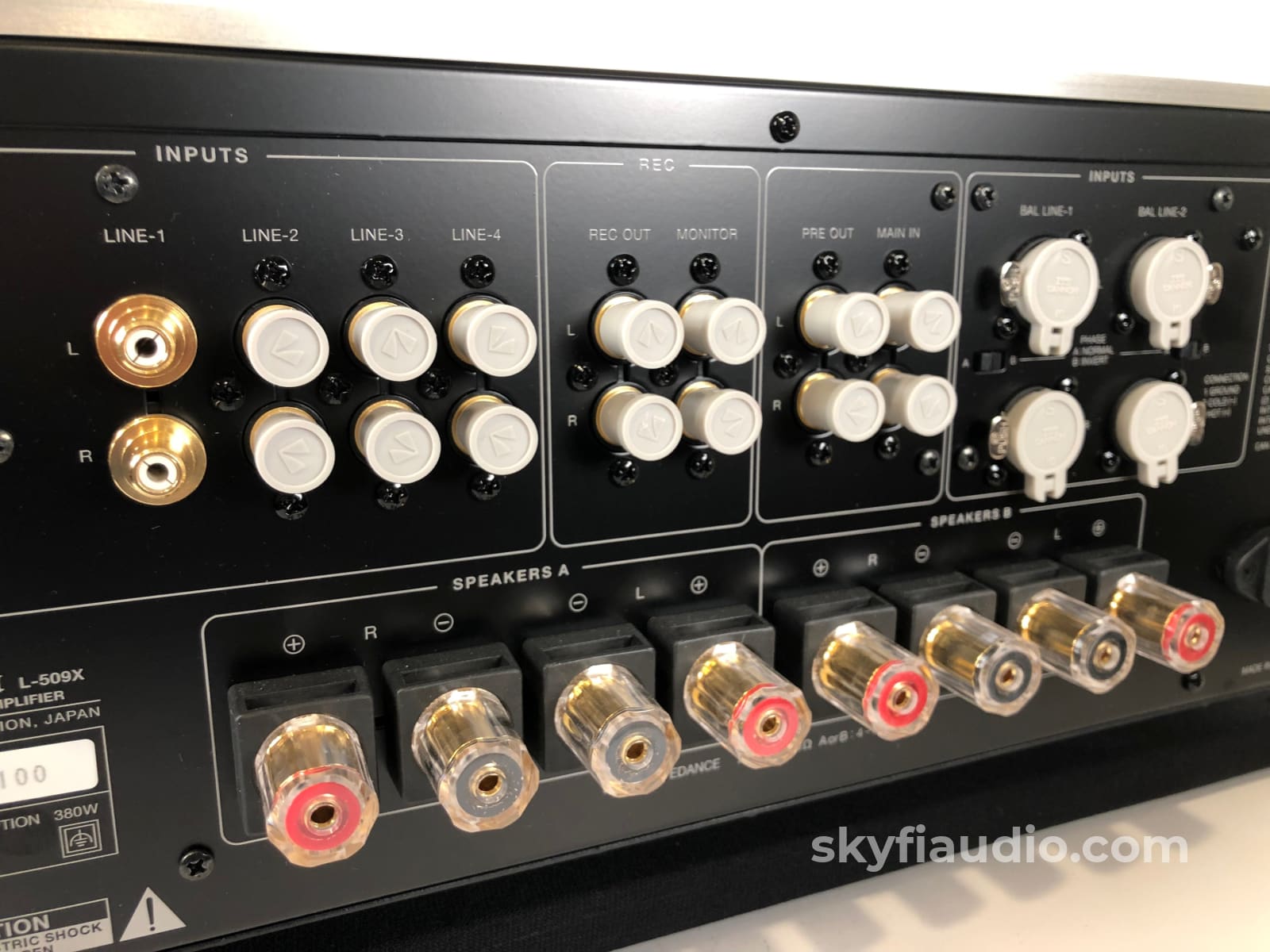

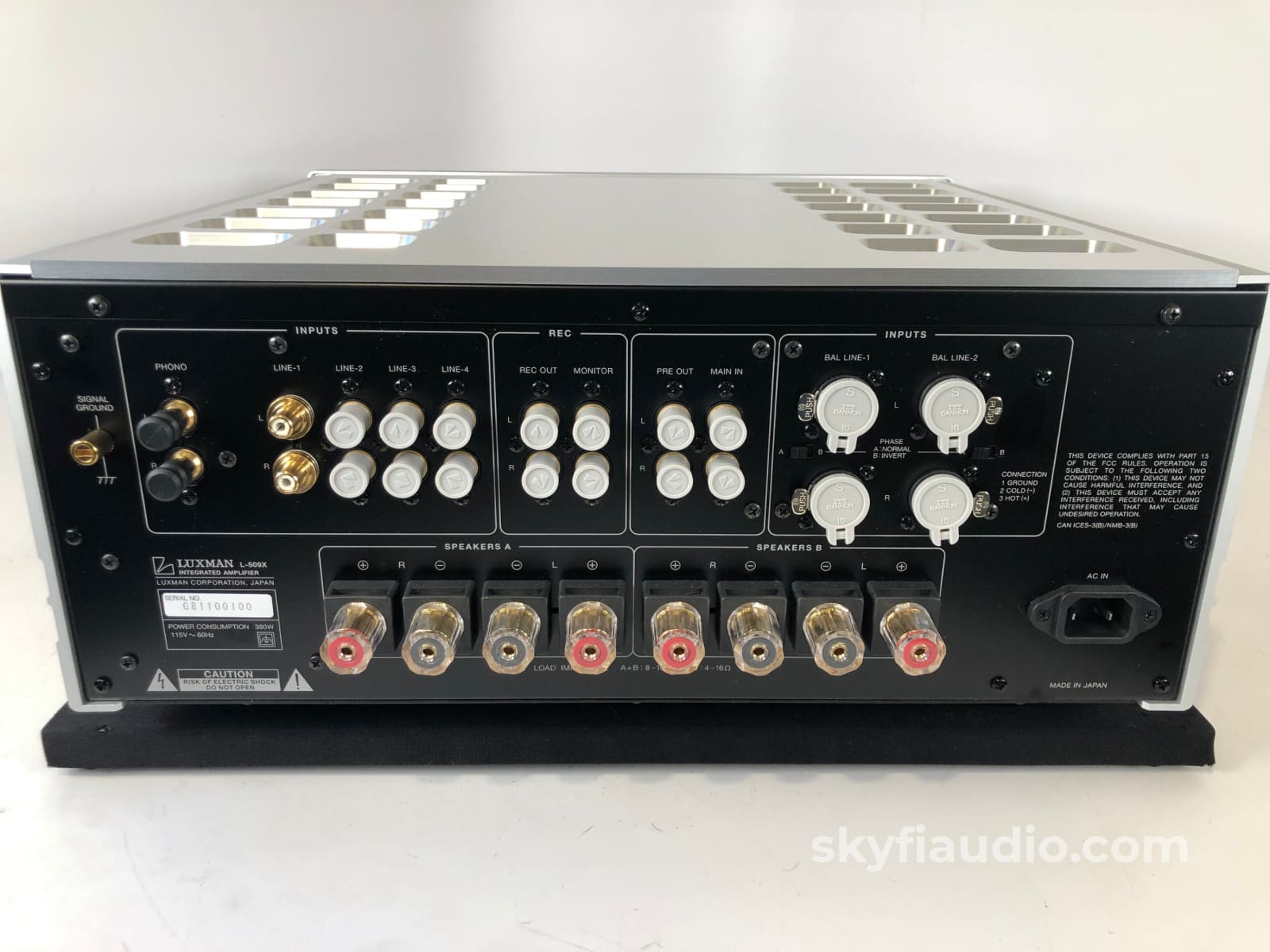

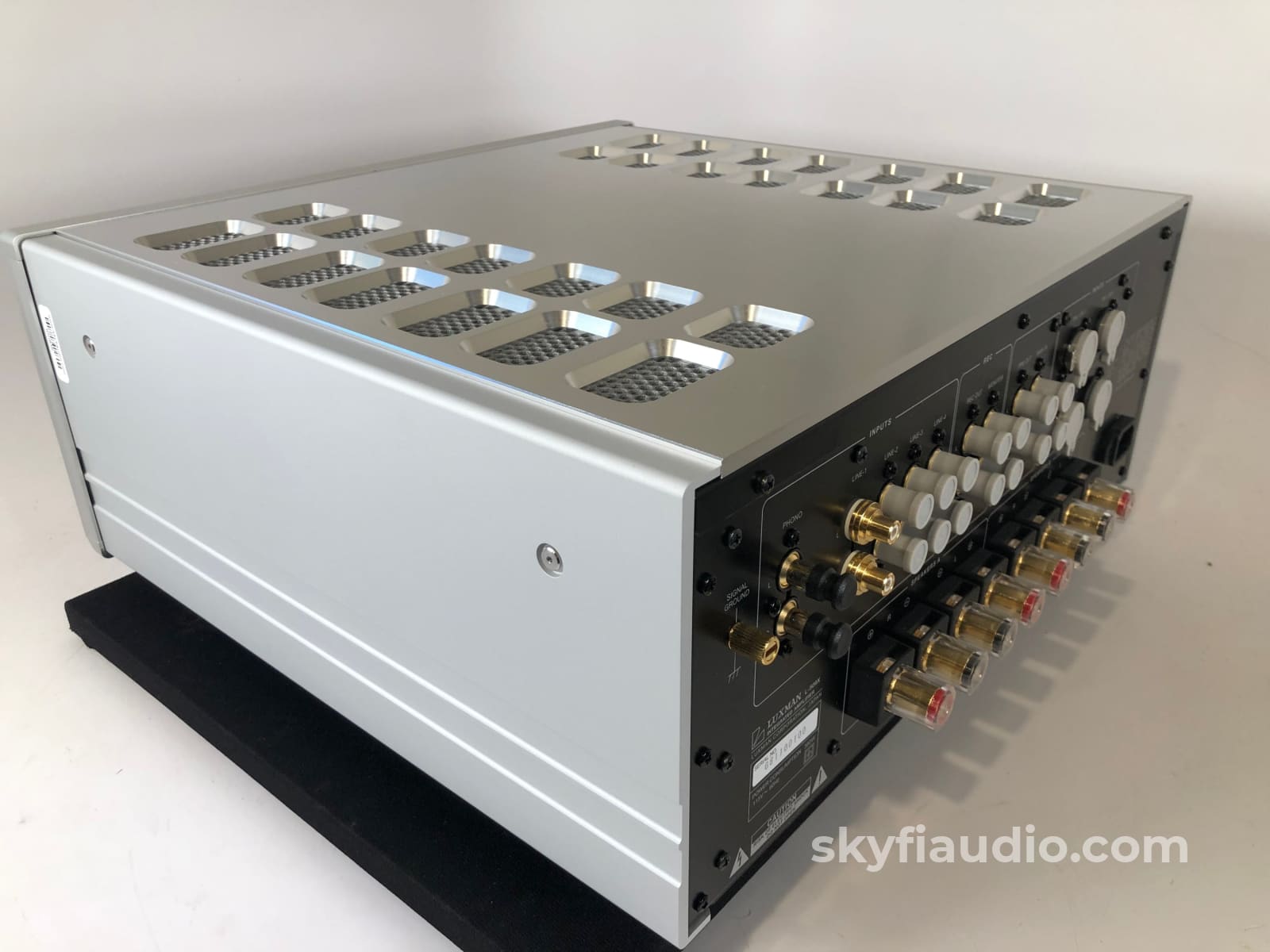

While this is modern design and execution, vintage lovers will quickly notice that is still has all the features typically found on vintage receivers.  Notice the Speaker A/B selector, MC/MM knob, the ability to disengage the preamp from the amp, and a headphone jack.  Modern features include balanced inputs and outputs, along with a high quality remote.

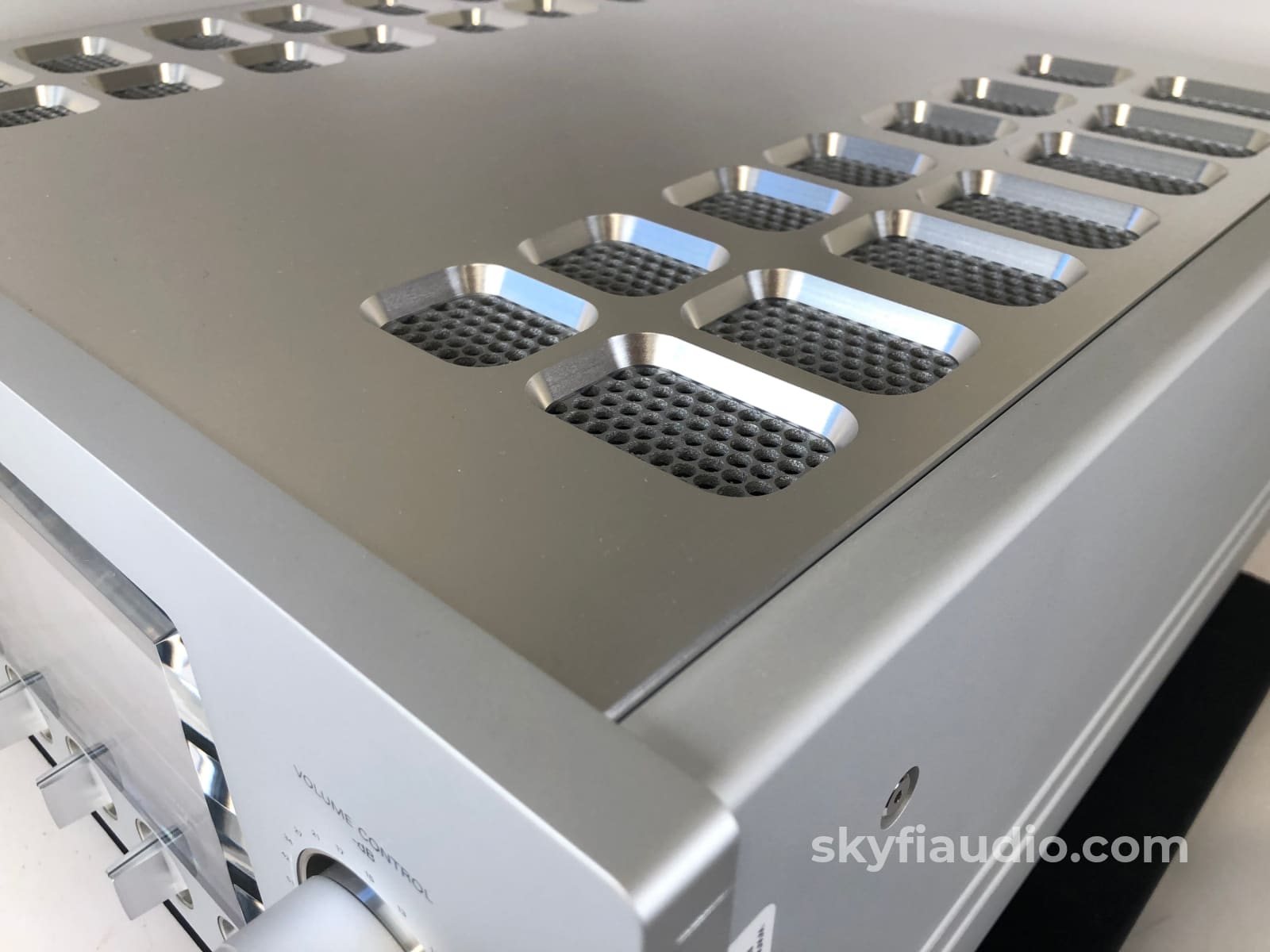

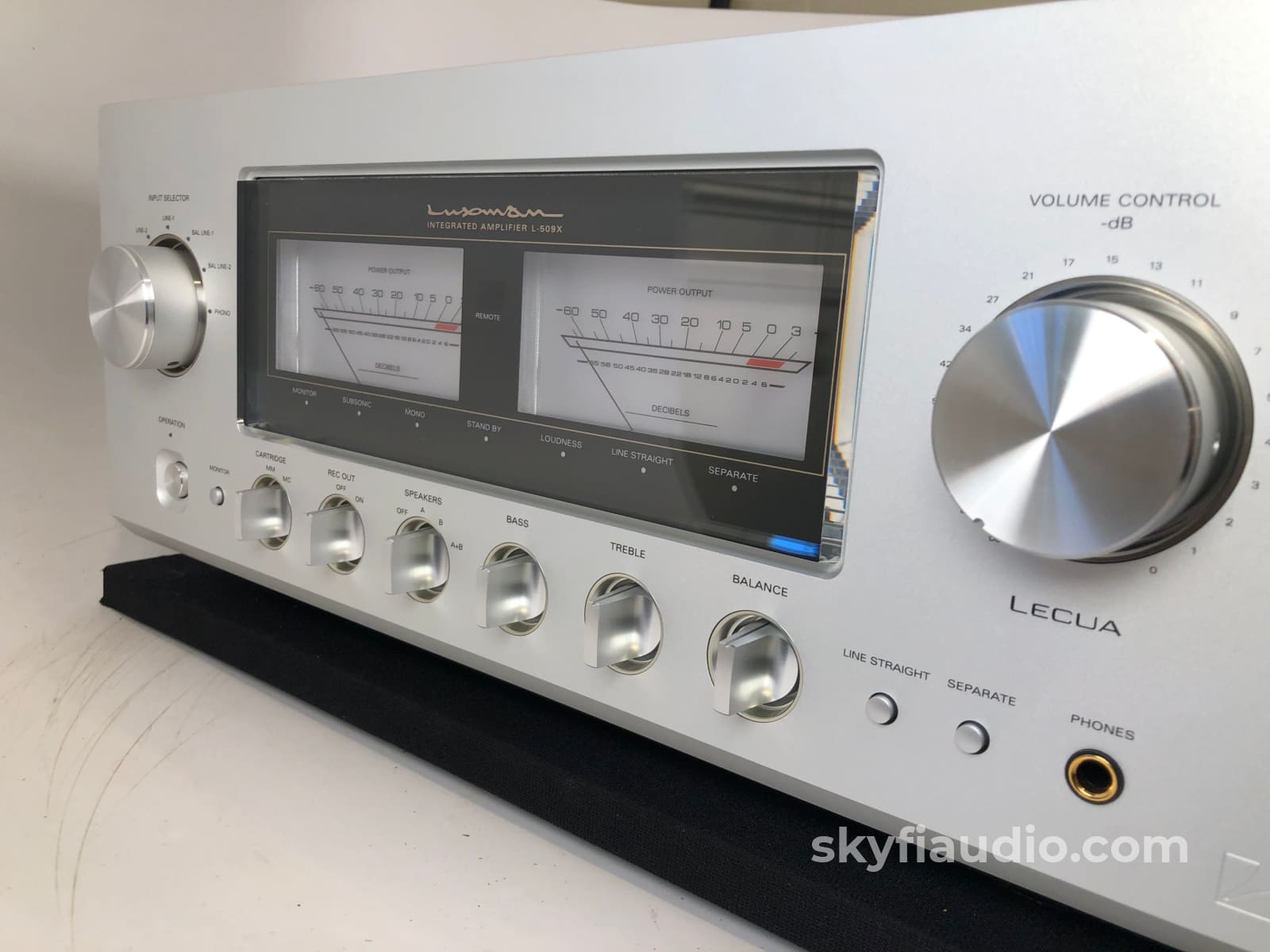

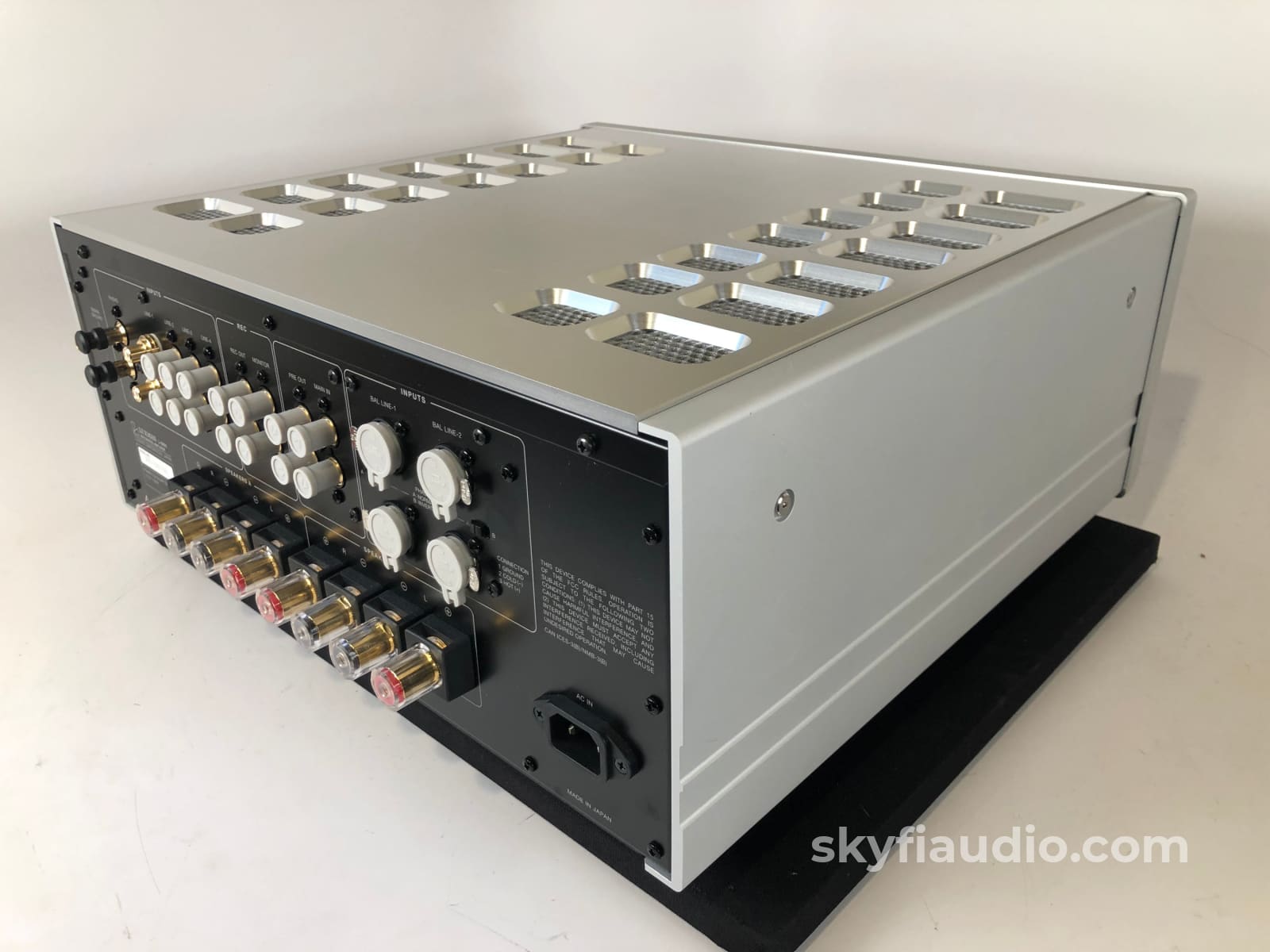

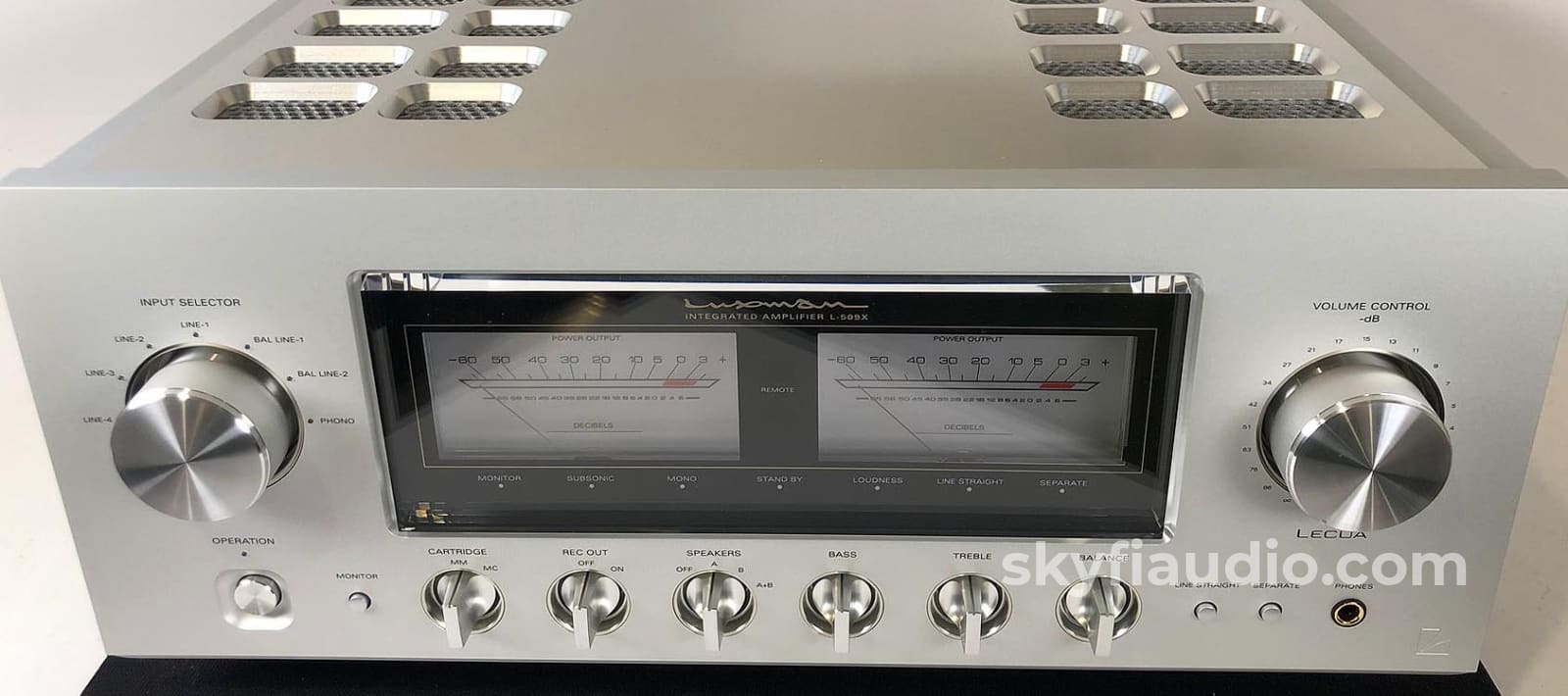

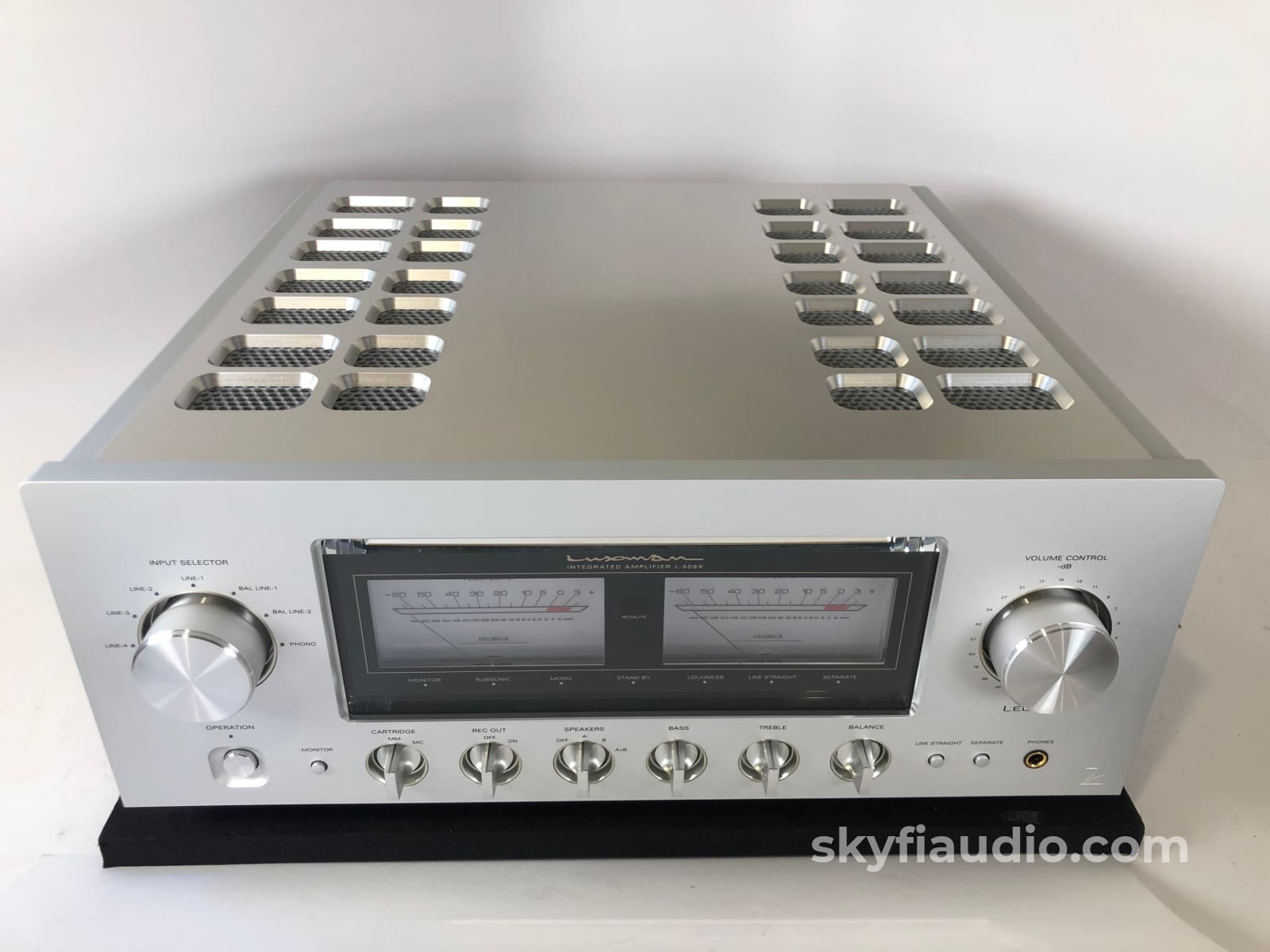

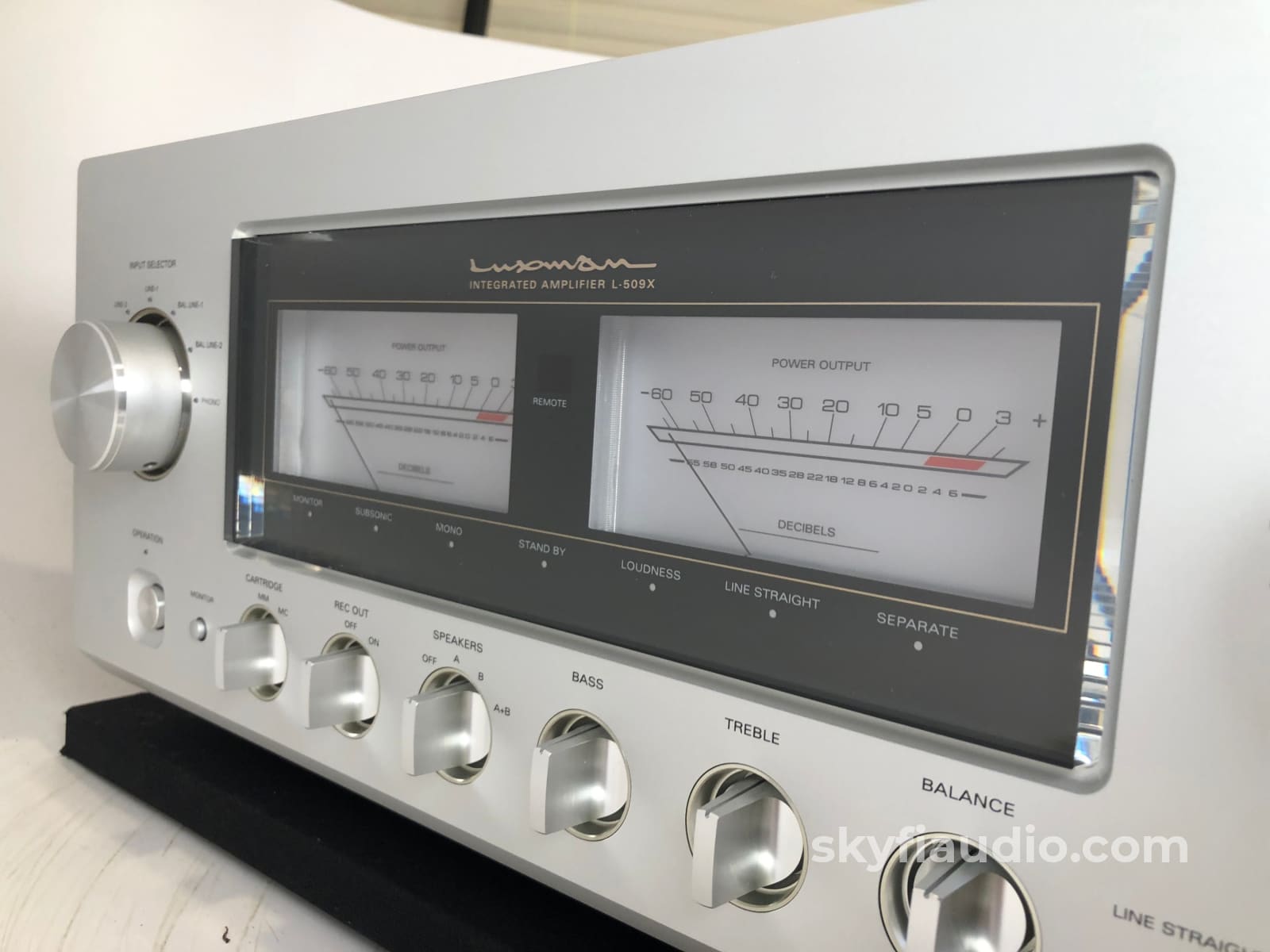

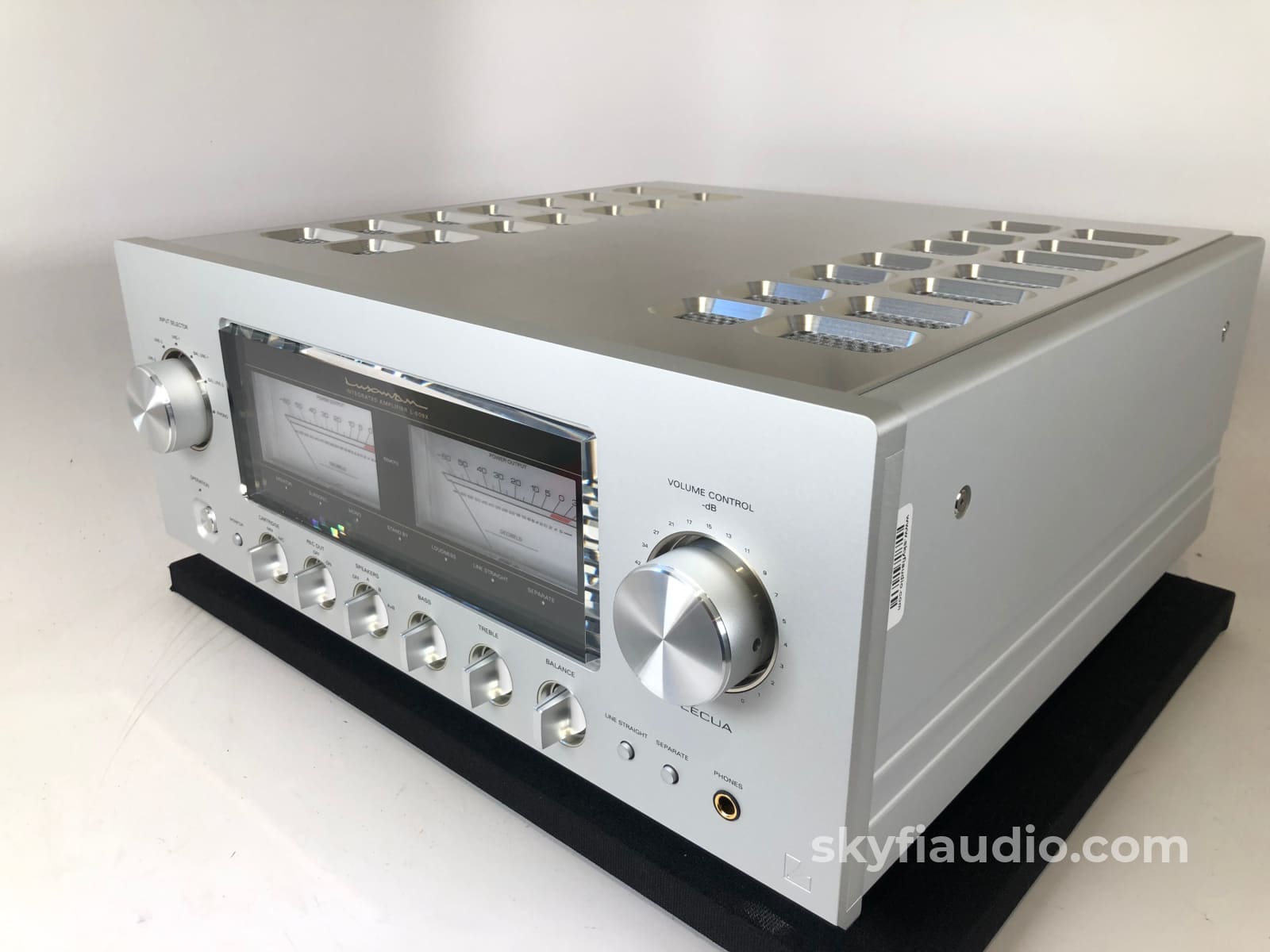

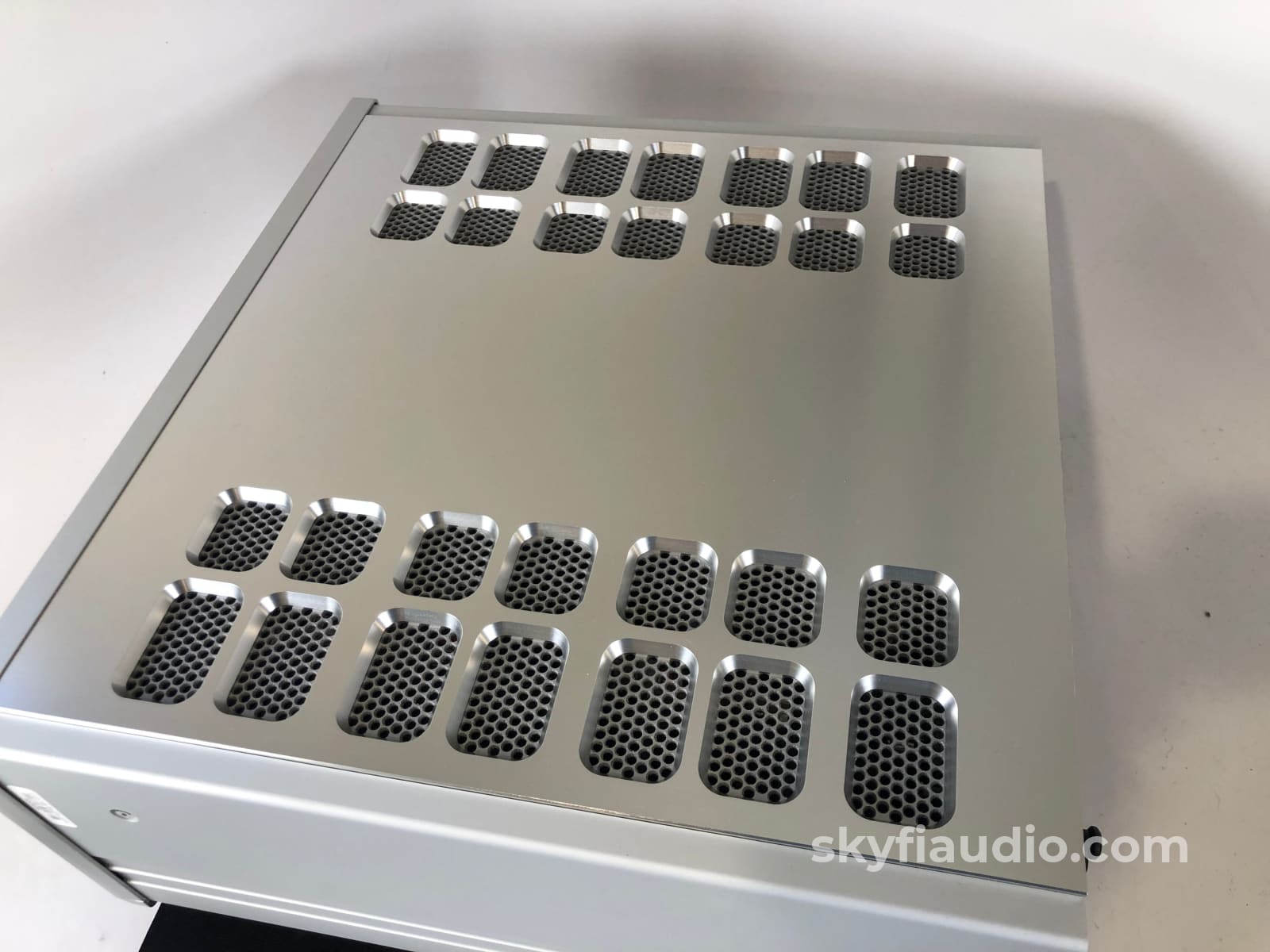

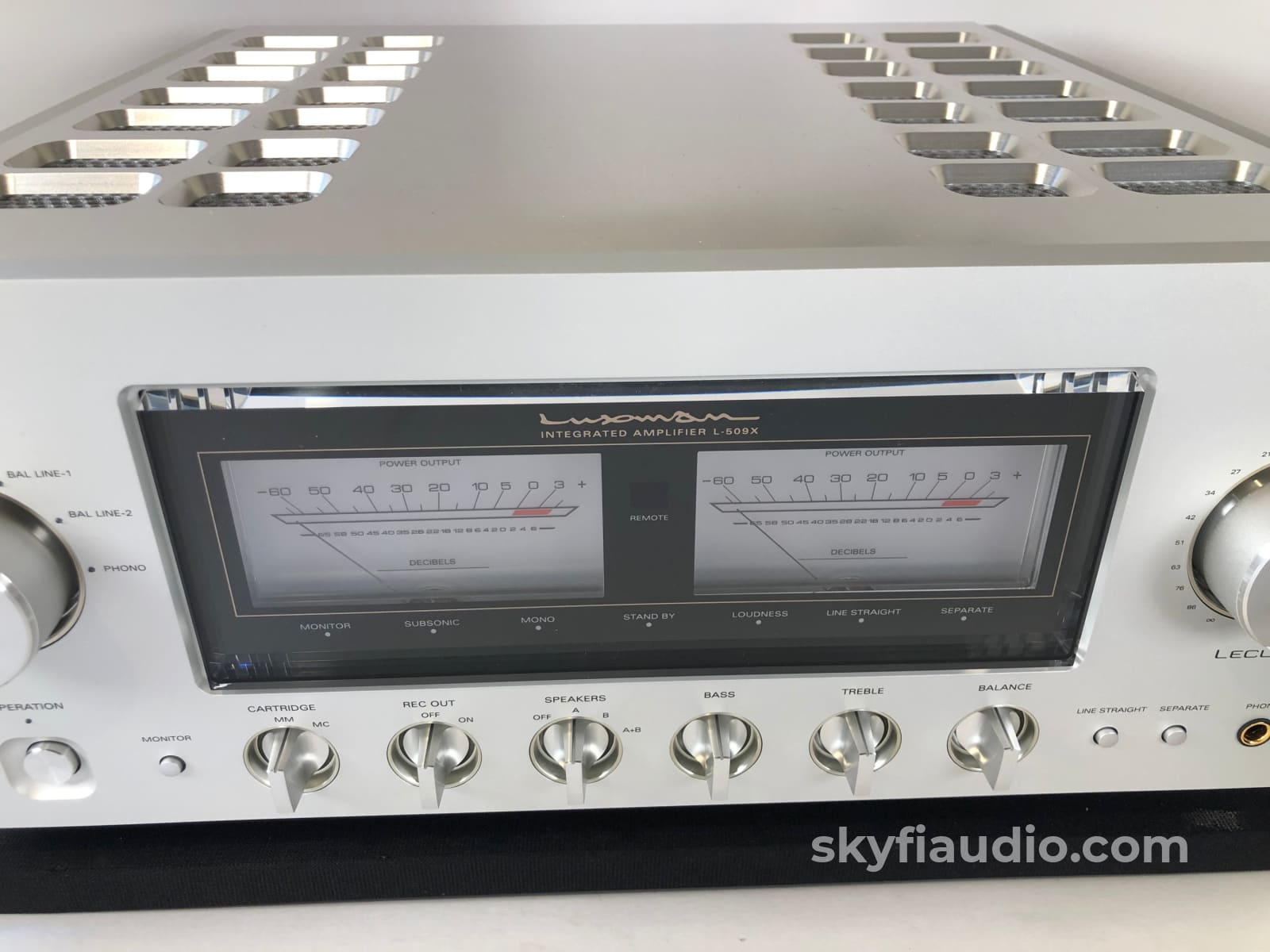

The backlit VU meters and heavy aluminum casework makes this unit look like it cost a million bucks to build. Very few companies are still building audio at this extreme quality level.

Click here for a PDF copy of the detailed L-509X Sales Brochure

Specifications:

Rated output
120W + 120W (8Ω),
220W + 220W (4Ω)

Input sensitivity / input impedance
PHONO (MM) : 2.5mV/47kΩ
PHONO (MC) : 0.3mV/100Ω
LINE : 180mV/47kΩ
BAL.LINE : 180mV/55kΩ
MAIN IN : 1.1V/47kΩ

Output voltage
REC OUT: 180mV, PRE OUT: 1V

Frequency response
PHONO : 20Hz to 20kHz (±0.5dB)
LINE : 20Hz to 100kHz (within -3dB)

Total harmonic distortion
0.007% or less (8Ω, 1kHz)
0.06% or less (8Ω, 20Hz to 20kHz)

S/N ratio (IHF-A)
PHONO (MM) : 91dB or more
PHONO (MC) : 75dB or more
LINE : 105dB or more

Volume adjustment
New LECUA1000

Amplification circuit
ODNF 4.0

Output configuration
Bipolar 4-parallel push-pull

Damping factor
370

Max. amount of tone control
BASS: ±8dB at 100Hz
TREBLE: ±8dB at 10kHz

Power supply
230V~(50Hz) / 115V~(60Hz)

Power consumption
380W
150W (under no signal), 0.5W (at standby)

External dimensions
17.32" x 7.6" x 17.32"  (440(W) x 193(H) x 463(D) mm)
Front side knob of .79" (20mm) and rear side terminal of 1.46" (37mm) included in depth

Net weight
64.6 lbs. / 29.3kg (main unit)

Accessories
Remote control (RA-17A)
Power cable

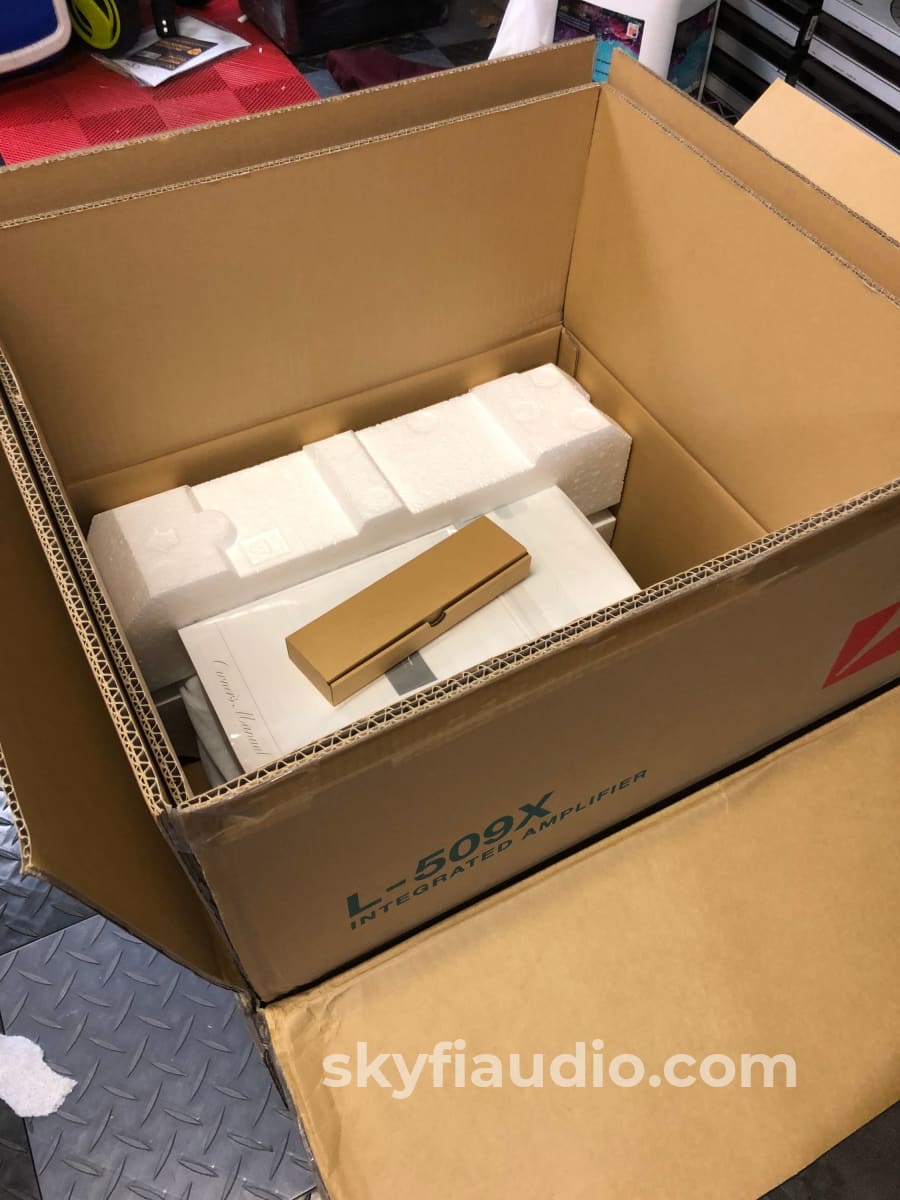

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

Yes

Manual

Yes

Remote

Yes

Cables

Yes - Power

Physical Condition

10

Working Condition

10
