Luxman L-590AXII Integrated Amplifier from Japan - CLASS A

Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

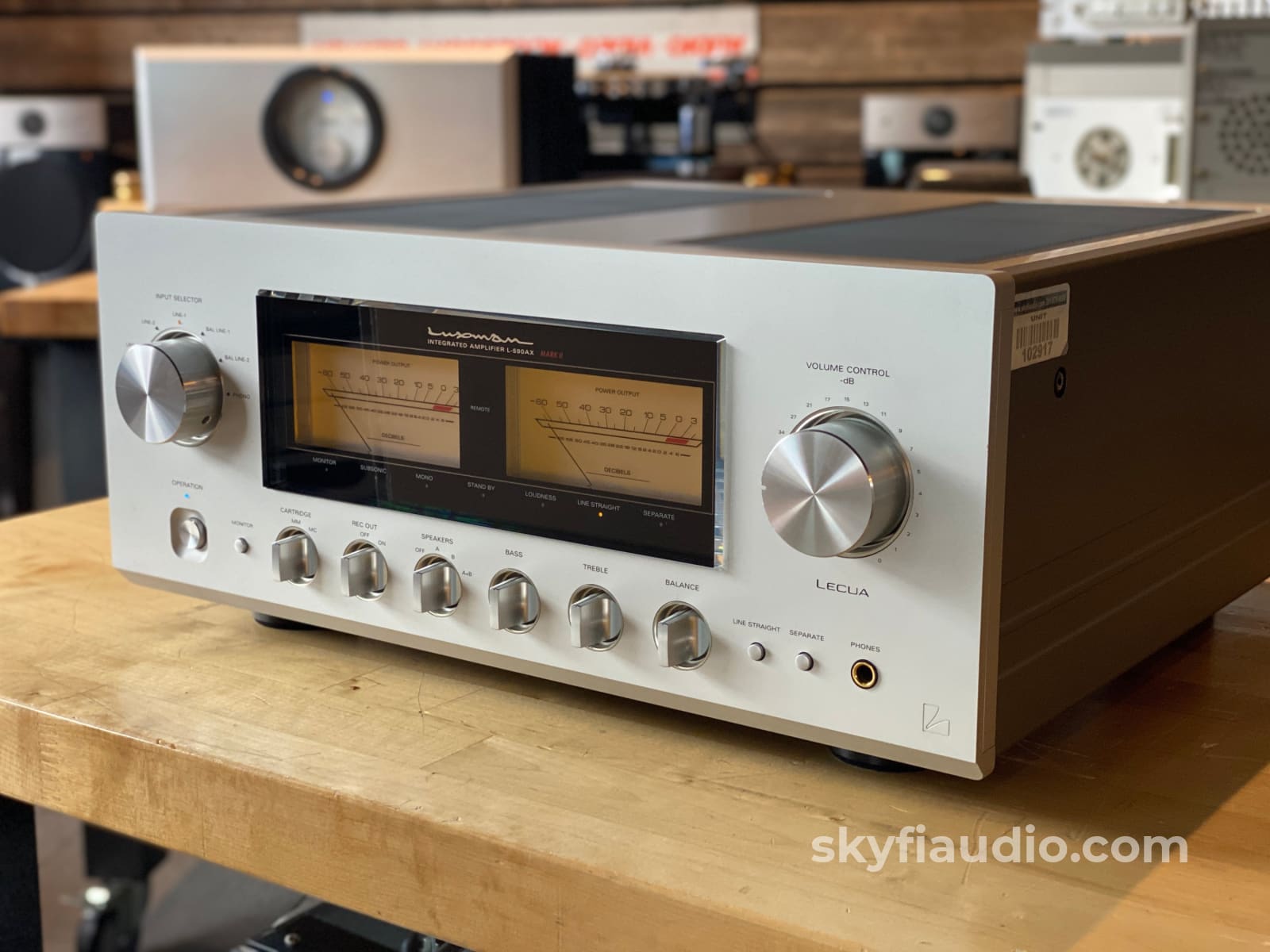

Running in pure CLASS A this is the most desirable integrated from Luxman.

This particular unit was a floor sample which was never sold or used much. We could not find any signs of use on the unit whatsoever.

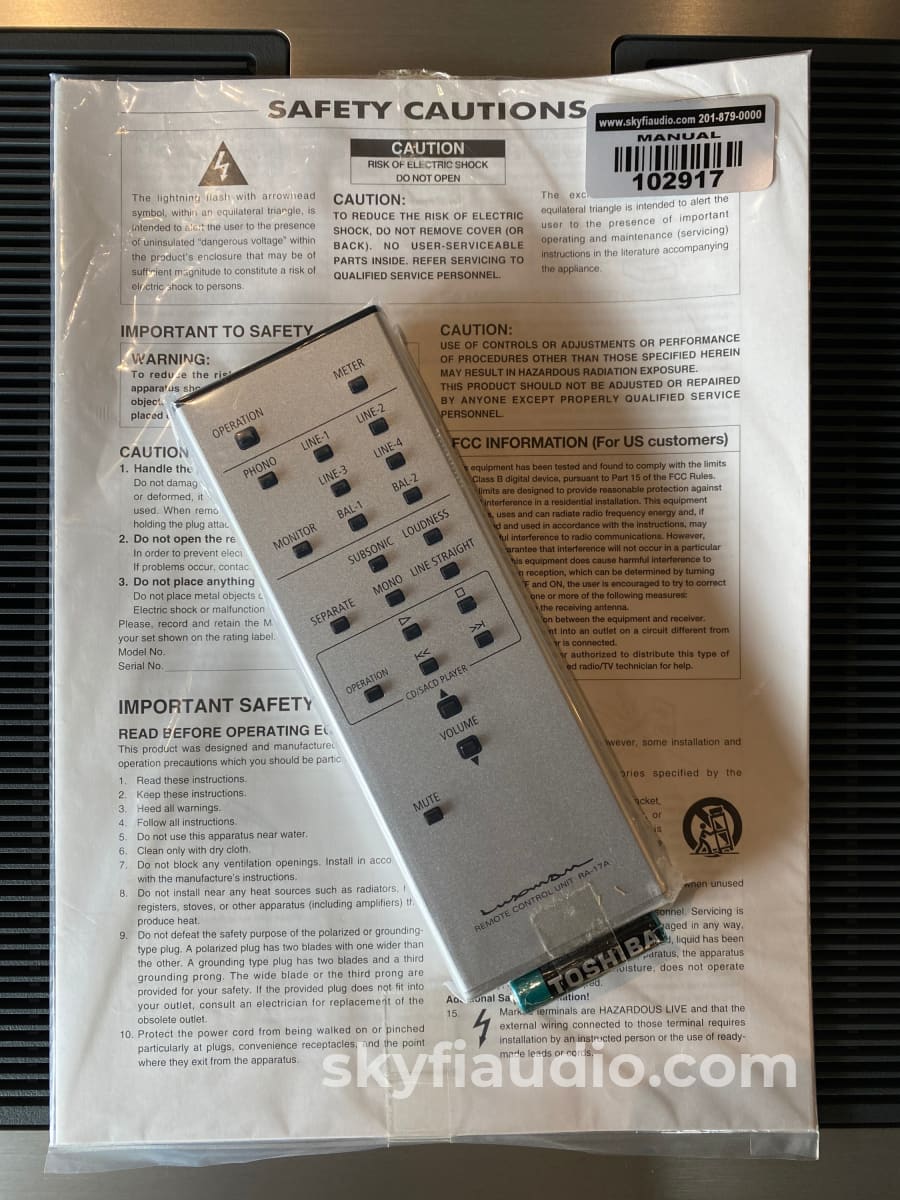

It presents like new and will arrive complete as it left the factory, complete with the original manual, remote and power cord.

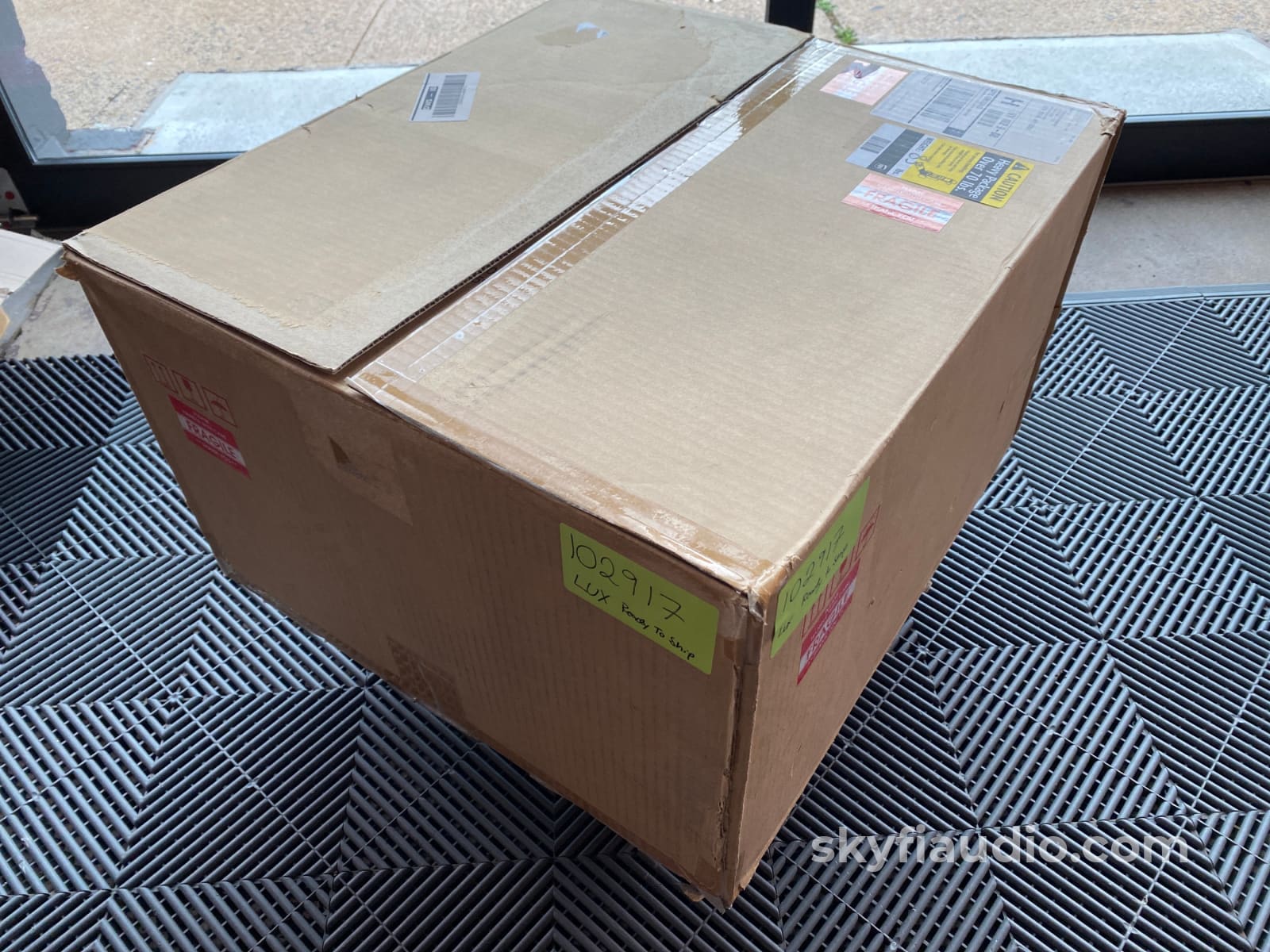

We'll also ship this in its original triple shipping carton for safe transport.

MSRP is $9500.

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Select Series KS1016 Copper RCA Analog Interconnects (Pair) - WBT Connectors

Select Series Balanced XLR Analog Interconnects (Pair) - KS1116 Copper

Summit Series Monocle XL Speaker Cables (PAIR)

Summit Series BiFocal XL Bi-Wire Speaker Cables (PAIR)

Summit Series - PK10 Palladian Power Cord (10 AWG/Gauge)

The SkyFi Testing Process for Solid State Amplifiers:

We start with a visual inspection of all internal components to make sure there are no signs of stress or aging.  Capacitors are checked for telltale signs of bulging or leaking, resistors are checked for signs of overheating or cracking, and transistors are checked for signs of stress or damage.

We then power up the unit carefully and run a simple 1k sine wave while monitoring the output on an oscilloscope for signs of distortion or noise.  Finally, we run the amplifier to its full rated power into the appropriate resistive load provided by our Sencore amplifier tester.  If there is an issue, it will usually be noticeable at this point.  If everything reads clean, we will often test for THD (Total Harmonic Distortion) measured by our Keithley distortion meter, and compare it against the original manufacturers specifications.  The amplifier then remains powered on to "burn in" on our test bench for a few hours to make sure there are no heat related issues.  If there are balanced inputs available they will be also be tested.

Final testing involves pushing actual music thorough the amplifier.  We've learned over time that some issues are only noticeable to a trained ear while listening to familiar source material.  Our test bench has reference vintage KEF speakers that we're very familiar with which quickly reveal any discrepancies.  Some amplifiers will then move into our listening room where they are tested with our in-house reference speakers of choice.

More from Luxman:
L-590AXII
Bringing an evolved and expressive Class A sound to the peak of integrated amplifier

LUXMAN has been at the forefront of integrated amplifier design since releasing the first Japanese integrated amplifier, the SQ5A, in 1961.

For over 50 years, LUXMAN has been confronting the challenges of balancing performance, function and design in an integrated amplifier body. These years of research and experience have resulted in the L-590AXII, the ultimate complete integrated amplifier design.With unprecedented spatial expression - and a sense of density particular to Class A design - outstanding realisation of tonal quality and penetrating audio ability have been achieved in this Class A integrated amplifier.

The integrated L-590AXII introduces a combination of high grade technologies found in LUXMAN separate amplifiers, such as the original amplification feedback circuit ODNF4.0, LR independent block capacitors, discrete configured buffer circuits and the newly developed LECUA 1000.The L-590AXII is the peak of integrated amplifier design, amalgamating tried and tested know how and state of the art technology.

The L-590AXII is the debut flagship model of integrated amplifier from LUXMAN to commemorate the 90th anniversary of this ground-breaking company.

The new LECUA1000 computerized attenuator
The newly developed integral LECUA1000 computerized attenuator with an 88 step amplifier circuit has been mounted in the volume adjustment unit, that is, for the first time as LUXMAN’s integrated amplifier, an essential part of the pre-amplifier circuit. This pre-amplifier circuit uses the same design as the top end control amplifier, the C-900u. The LECUA 1000 enables the sound volume to be adjusted smoothly with minimal deterioration of sound quality. A 3D layout has been introduced in the LECUA 1000 that allows substrates to be placed in three dimensions with the attenuator circuit directly connected to the amplification circuit, thereby minimizing routes and improving efficiency. Furthermore, this type of layout is extremely insensitive to external vibration and changes in sound quality caused by the volume level and has high durability.

ODNF version 4.0 innovative amplification feedback circuit
The ODNF (Only Distortion Negative Feedback) original amplification feedback circuit from LUXMAN features a fast primary slew rate and an ultra-wide bandwidth achieved through the feedback of distortion components only from output signals. The L-590AXII is equipped with the latest version of ODNF - Version 4.0 - in which the distortion characteristics at high frequencies as well as the S/N performance have been significantly improved. Version 4.0 also features a power amplifier circuit in which a 3-parallel push-pull structure with 3 stage Darlington is used, as featured in the LUXMAN M-700u power amplifier. The rated output of 30W + 30W (8 ohms) of pure Class A amplification sufficiently supports the impedance characteristics of a wide variety of loudspeakers. It is possible to achieve a mellow, expressive sound with an increased sense of density with drivability to speaker systems that is equivalent to separate amplifiers.
* ODNF is an abbreviation for “Only Distortion Negative Feedback”.

Large-capacity power supply circuit
A high inertia power supply circuit with a high regulation large capacity power transformer and a large block capacitor of 80,000μF (10,000μF x 8) in a LR independent manner have been combined to achieve both instantaneous power andstability. A high level of regulation is achieved by increasing the diameter of the primary winding of the power transformer.

High level of damping factor
To transmit the powerful drive force that is generated by the large scale output circuit without loss, a large low resistance speaker relay in which 2 contacts are connected in parallel has been incorporated into the design. Lowering impedance right to the extent of the speaker terminals improves the damping factor significantly from 240 (the value of the L-590AX) to 320 resulting in vibrant sound reproduction.

Low impedance transmission
The combination of LUXMAN original OFC wire used in the internal wiring and the round pattern incorporated in board wiring which enables smooth signal transmission allows for Beeline construction in which audio signals are configured with the optimal and shortest route, further contributing to lower impedance transmission.

Discrete buffer circuit
Discrete buffer circuits equivalent to the ones used in the LUXMAN C-900u, the flagship model of LUXMAN separate amplifiers, is mounted on the output stage of the pre-amplifier circuit, protecting the purity of the audio signals whilst simultaneously enhancing the drive force for the power amplifier. The L-590AXII is equipped with not only a custom power transformer and block capacitors but also with many custom built parts featuring sophisticated technologies. These custom parts and features have been improved through thorough listening tests on passive parts including resistors, input/output terminals and various wires.

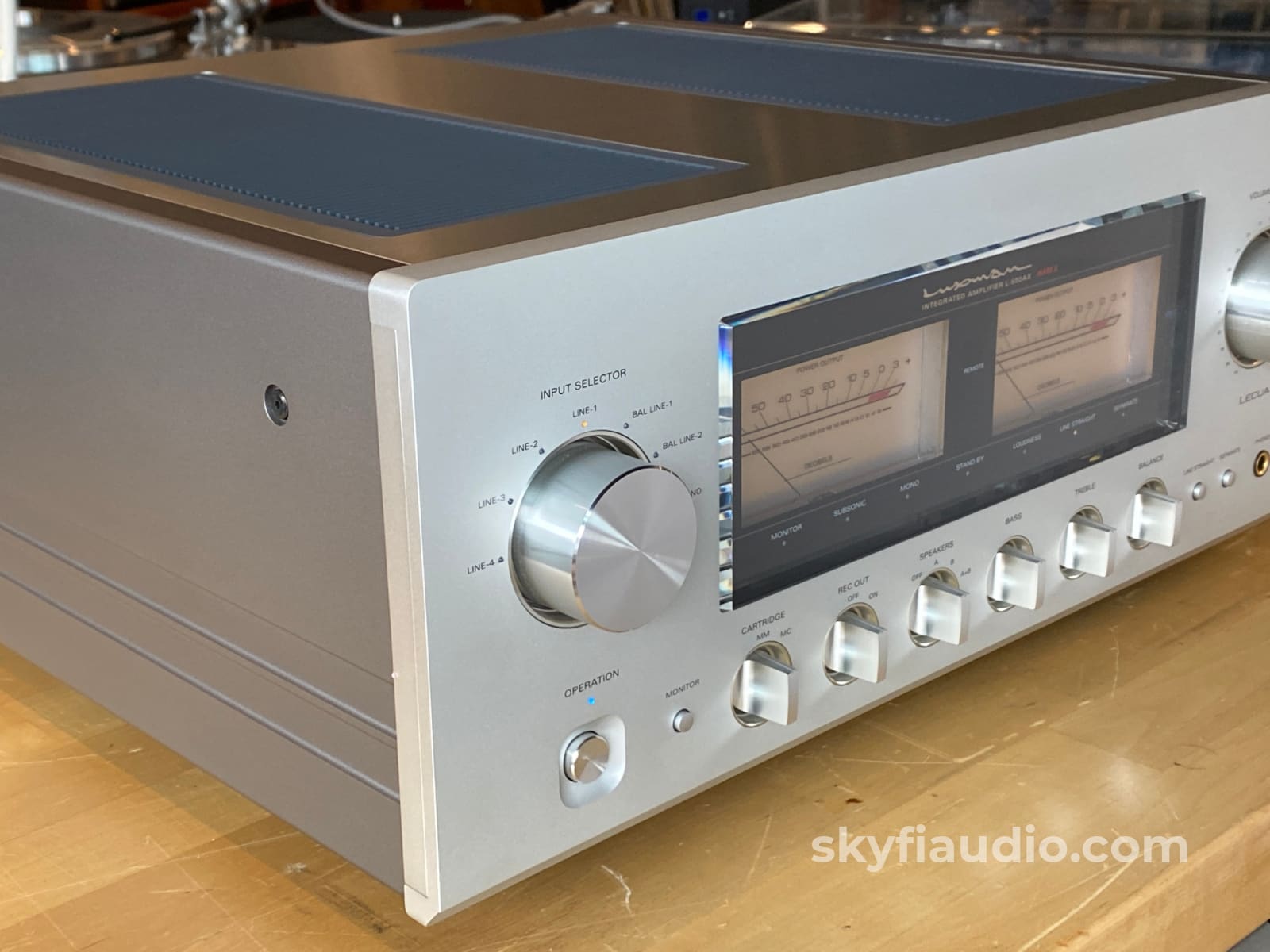

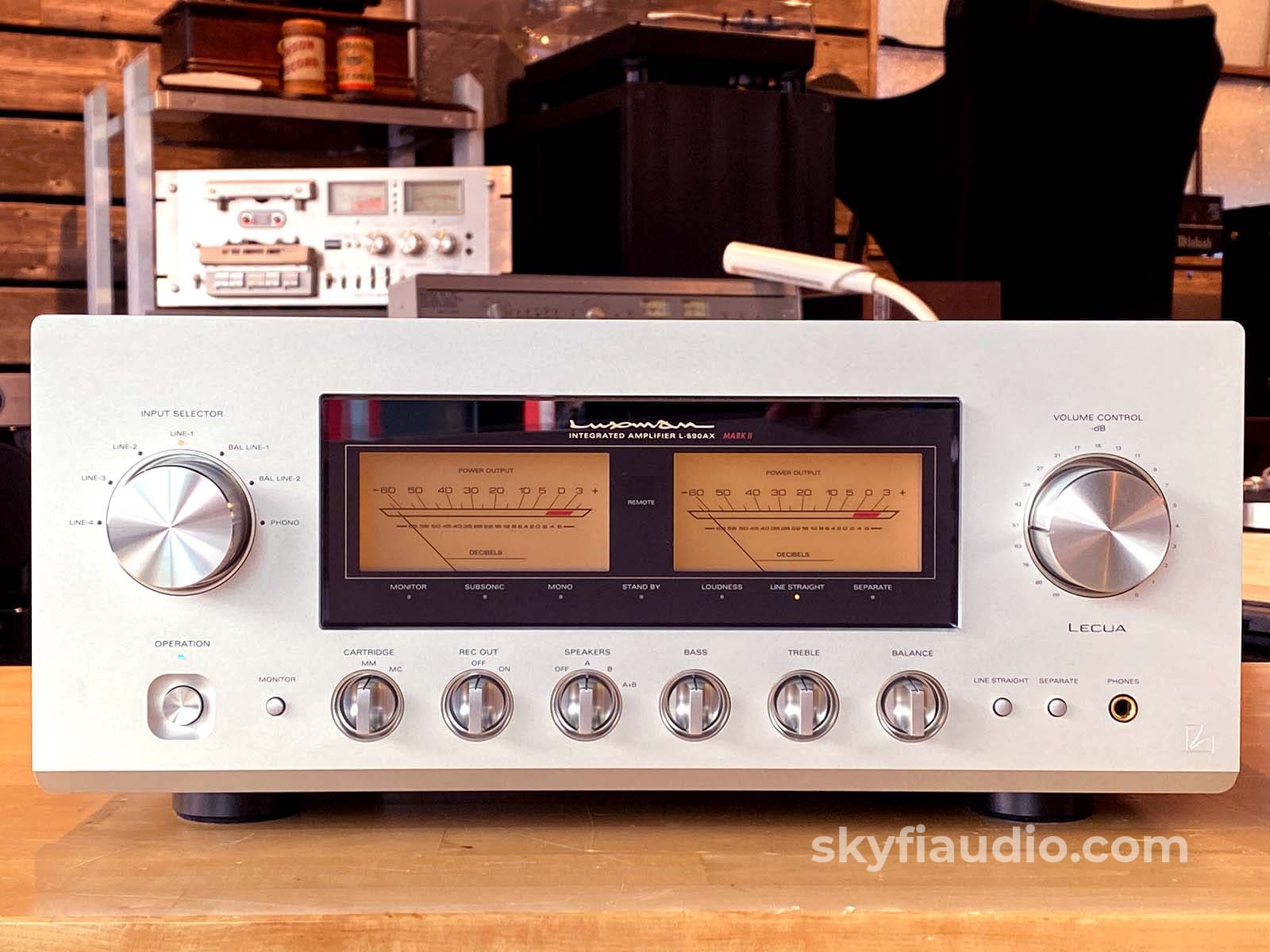

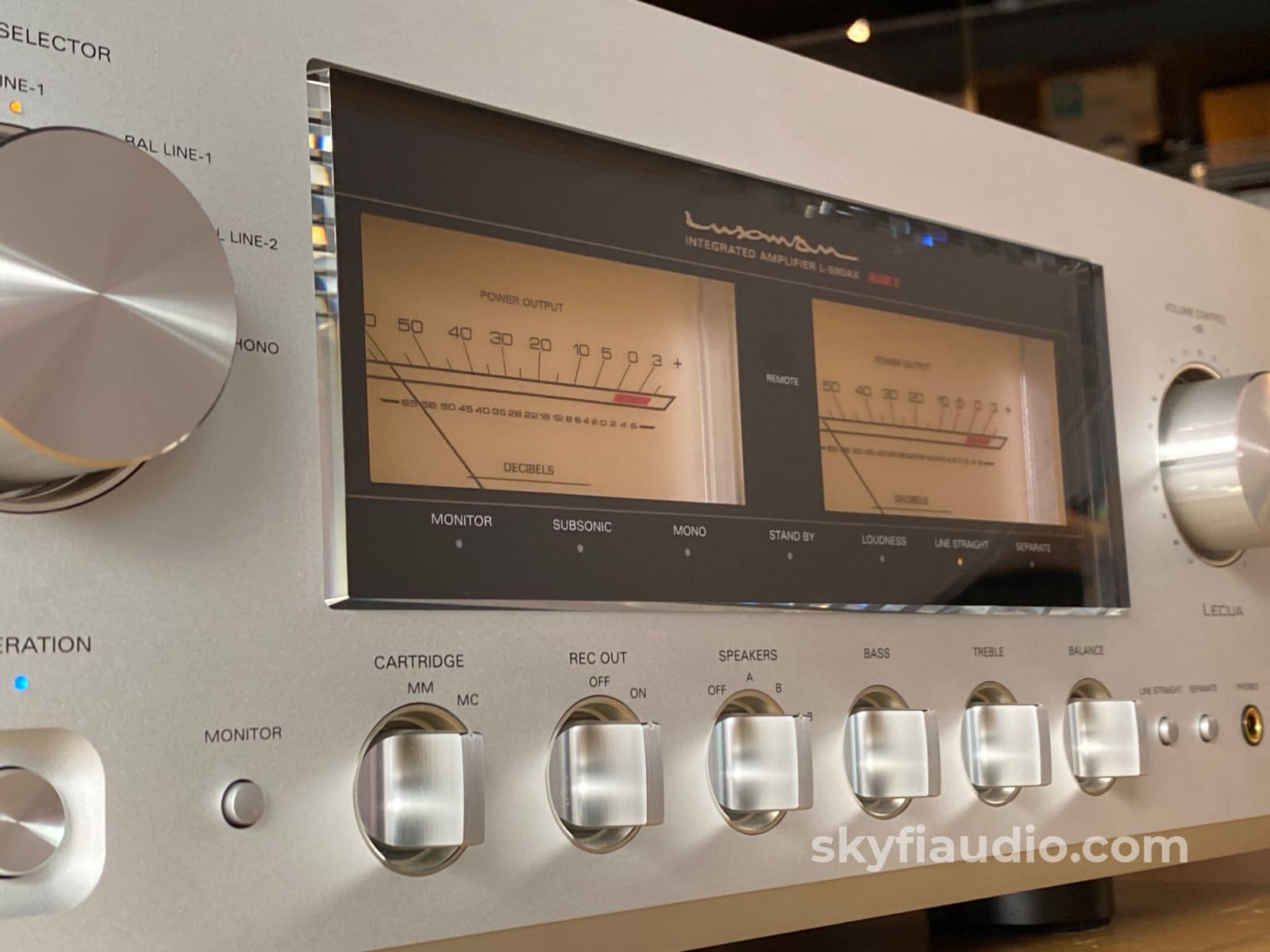

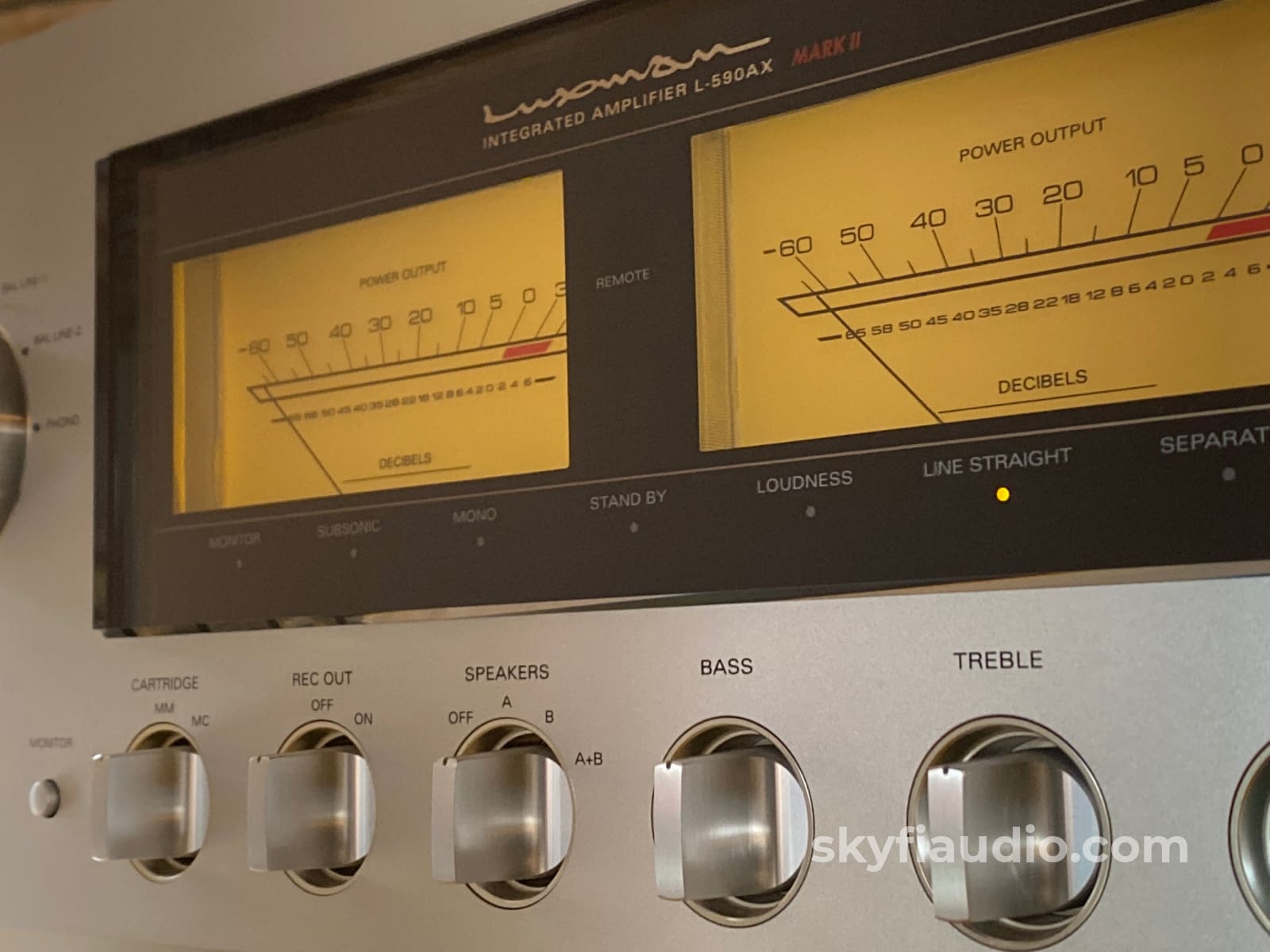

New pointer type analog meter

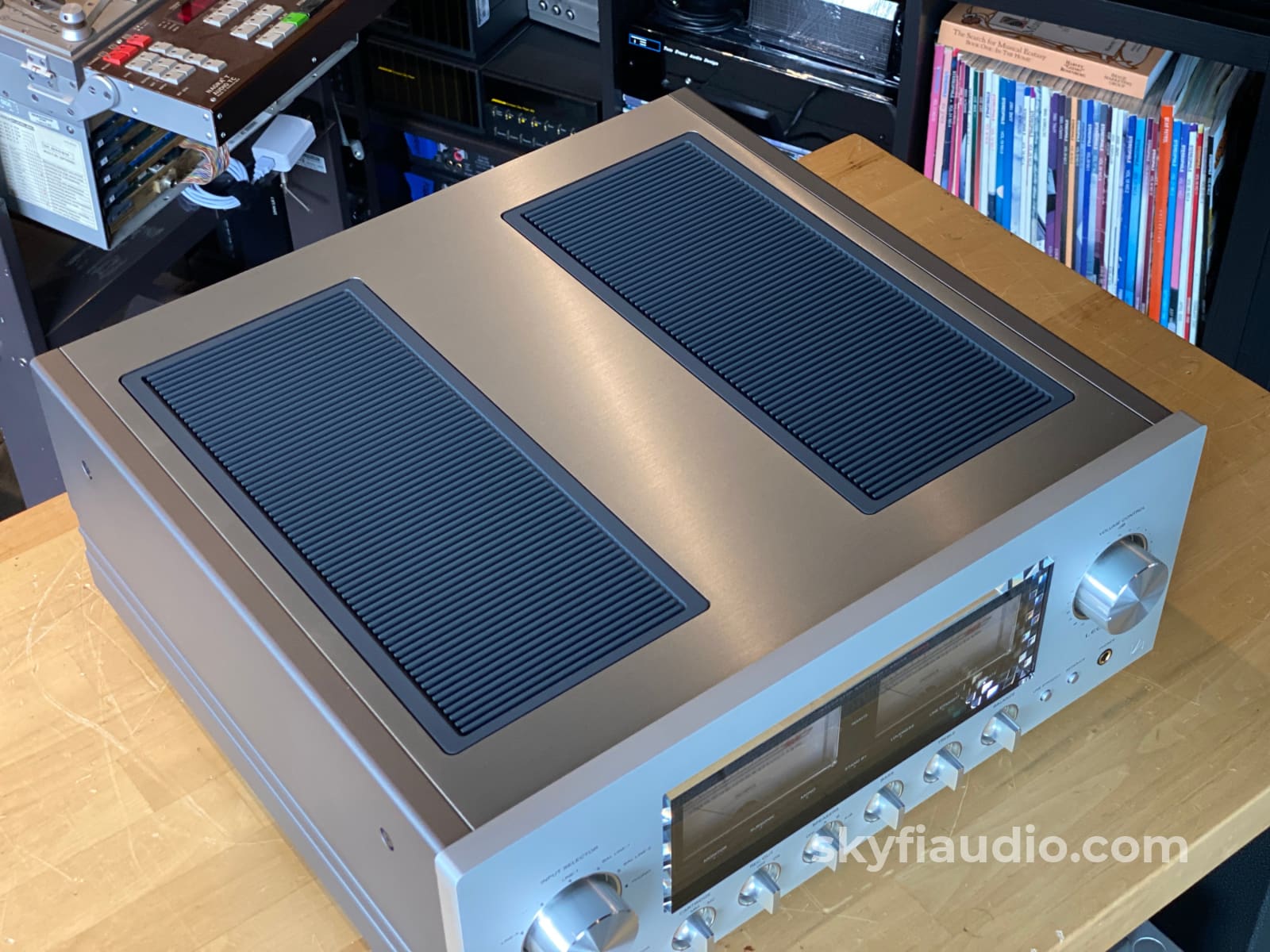

A newly designed, highly visible meter panel and LED lit ‘pointer’ type analog meters featuring a highly responsive meter unit are used in the L-590AXII. The sophisticated hairline finish on the top panel of the blaster white main unit exudes elegance and quality of design.

Abundant functions
The L-590AXII features an electronically controlled bass/treble type tone control function with LR balance adjustment utilising LECUA’s volume shifting function, equipped with loudness function interlocking with sound volume and pre/power separation functions. The L-590AXII is also equipped with a phono amplifier that is compatible with MM/MC cartridges. Thus, the L-590AXII has a high functionality specific to an integrated amplifier.

Loopless chassis structure

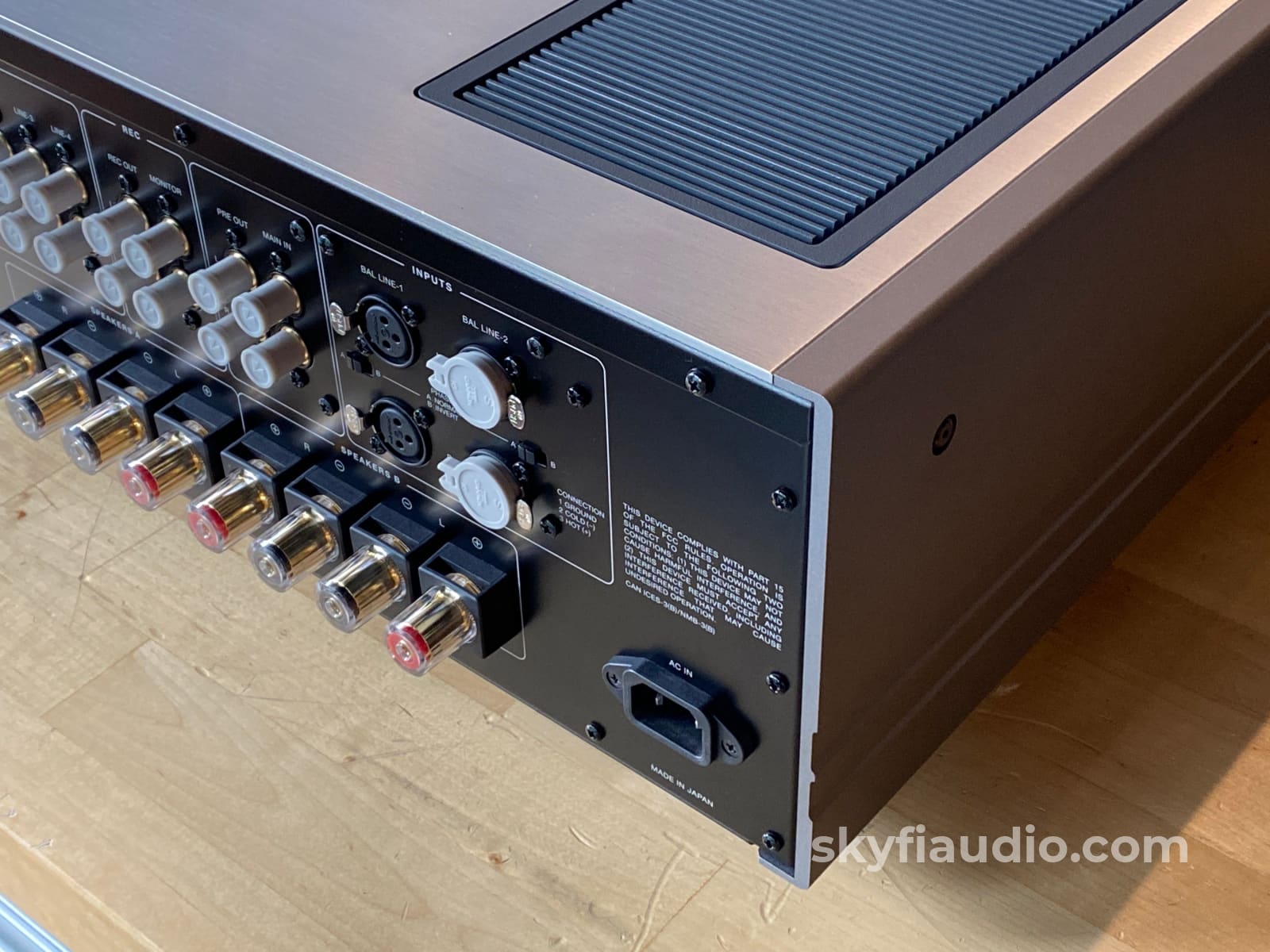

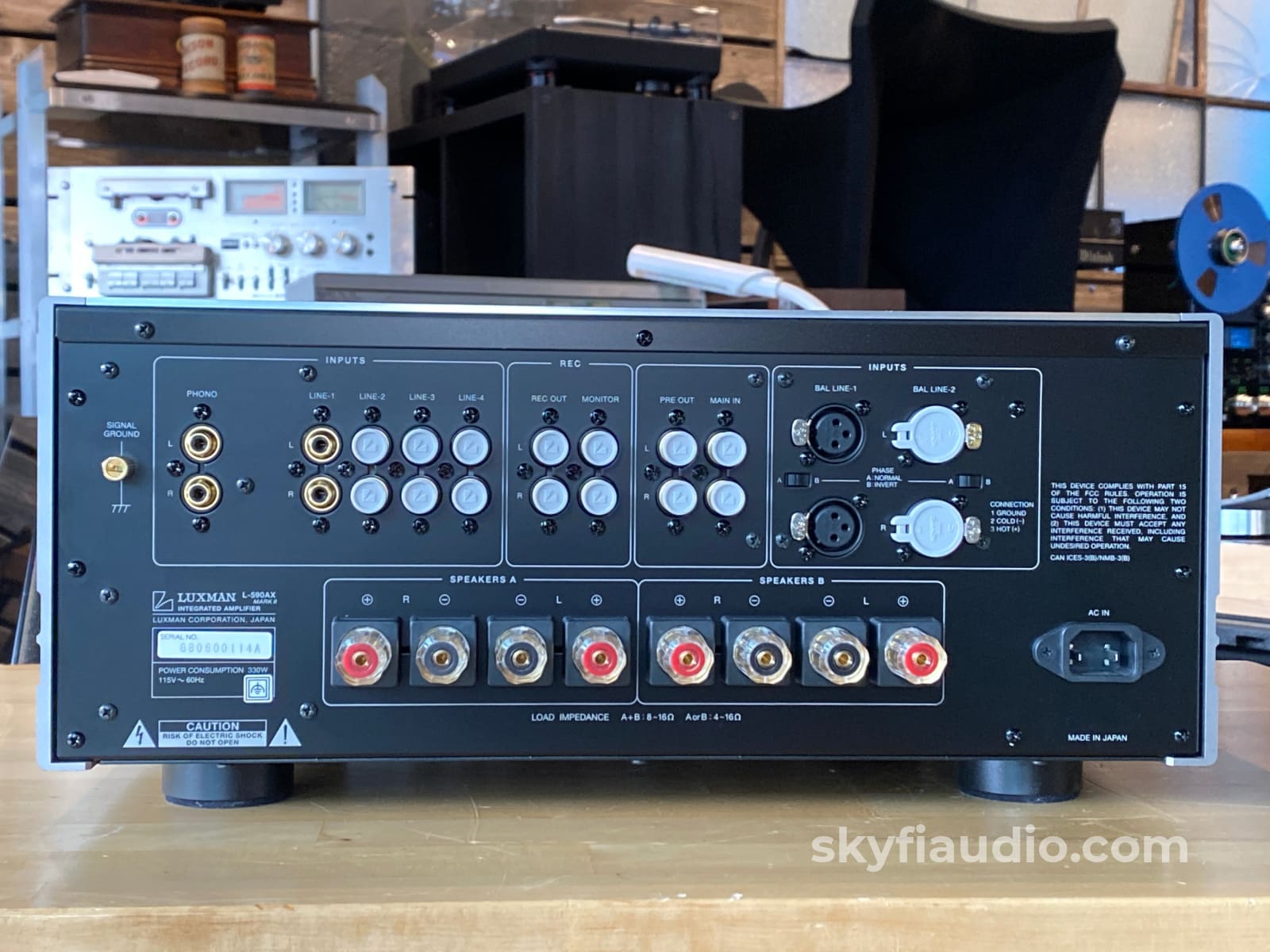

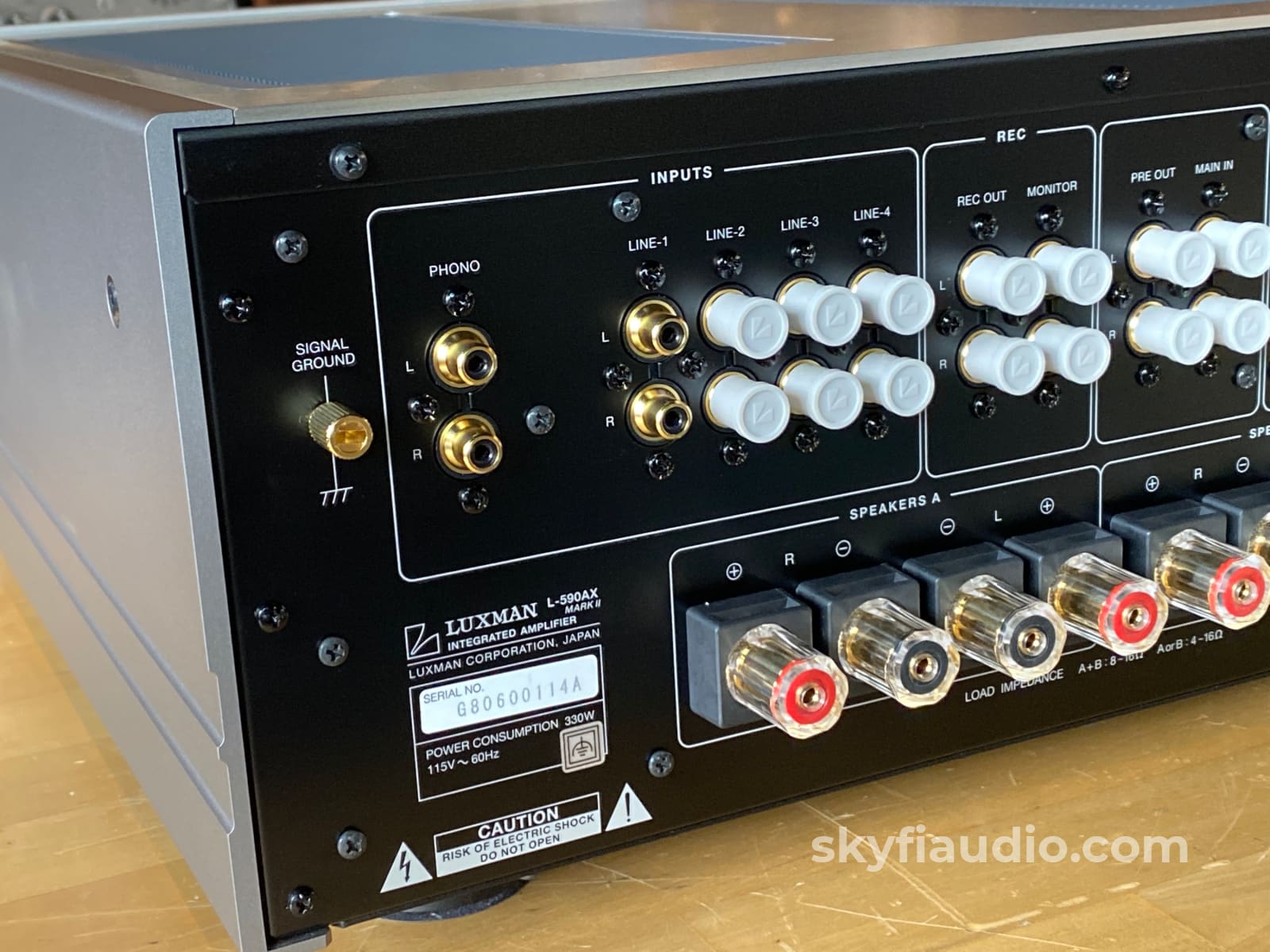

The solid structure of the loopless chassis of the L-590AXII eliminates ground impedance increase. The speaker terminals (A and B) are positioned inline and are compatible with Y lugs to enable easy connection with extra-thick speaker cables. A headphone terminal is also provided.

Gradation cast-iron insulator leg
The gradation cast-iron insulator legs supporting the L-590AXII cut out any unnecessary external vibration and hold the weight of the unit securely. The high grade remote control is encased in aluminium and is designed to control compatible CD/SACD players as listed below. *Applicable CD players:D-08u, D-06u, D-05u, D-08, D-06, and D-05 (as of Nov 2015)
