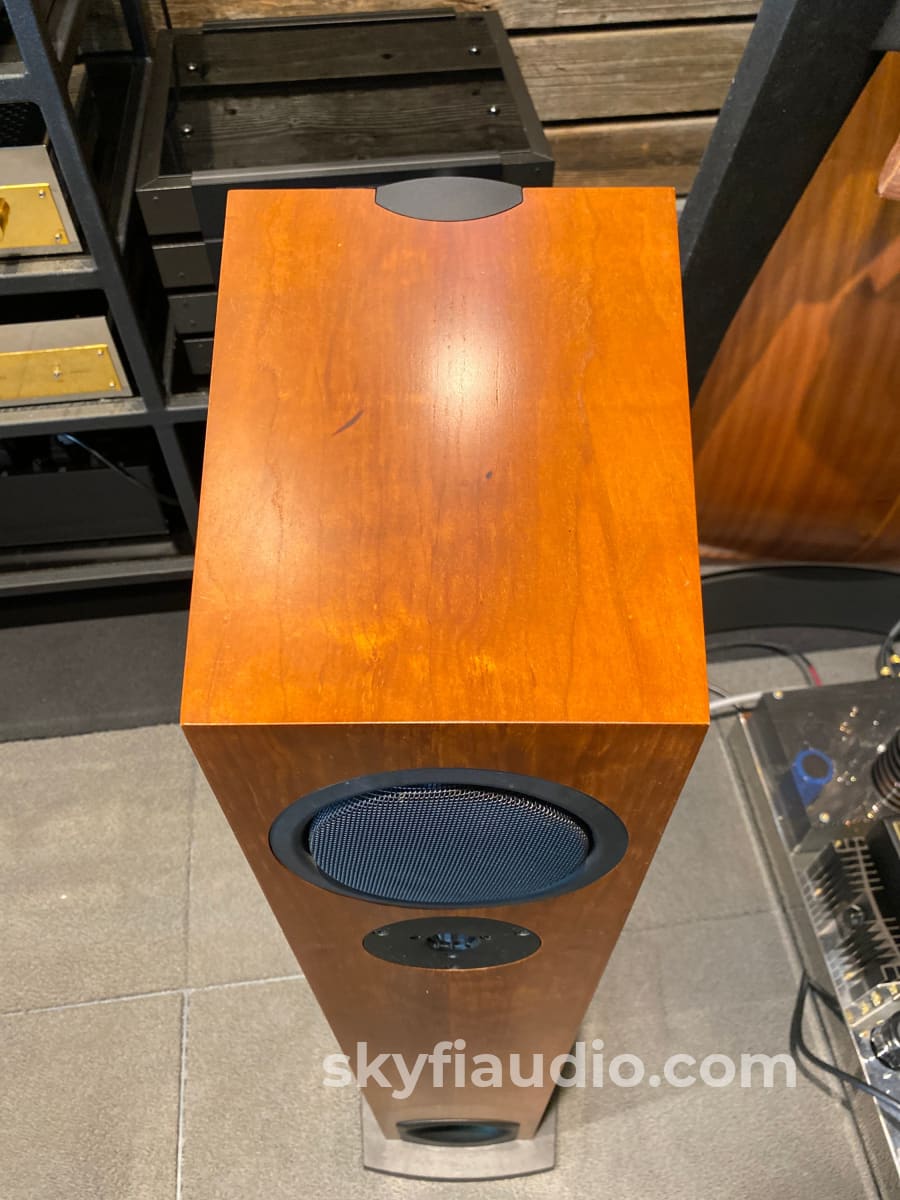

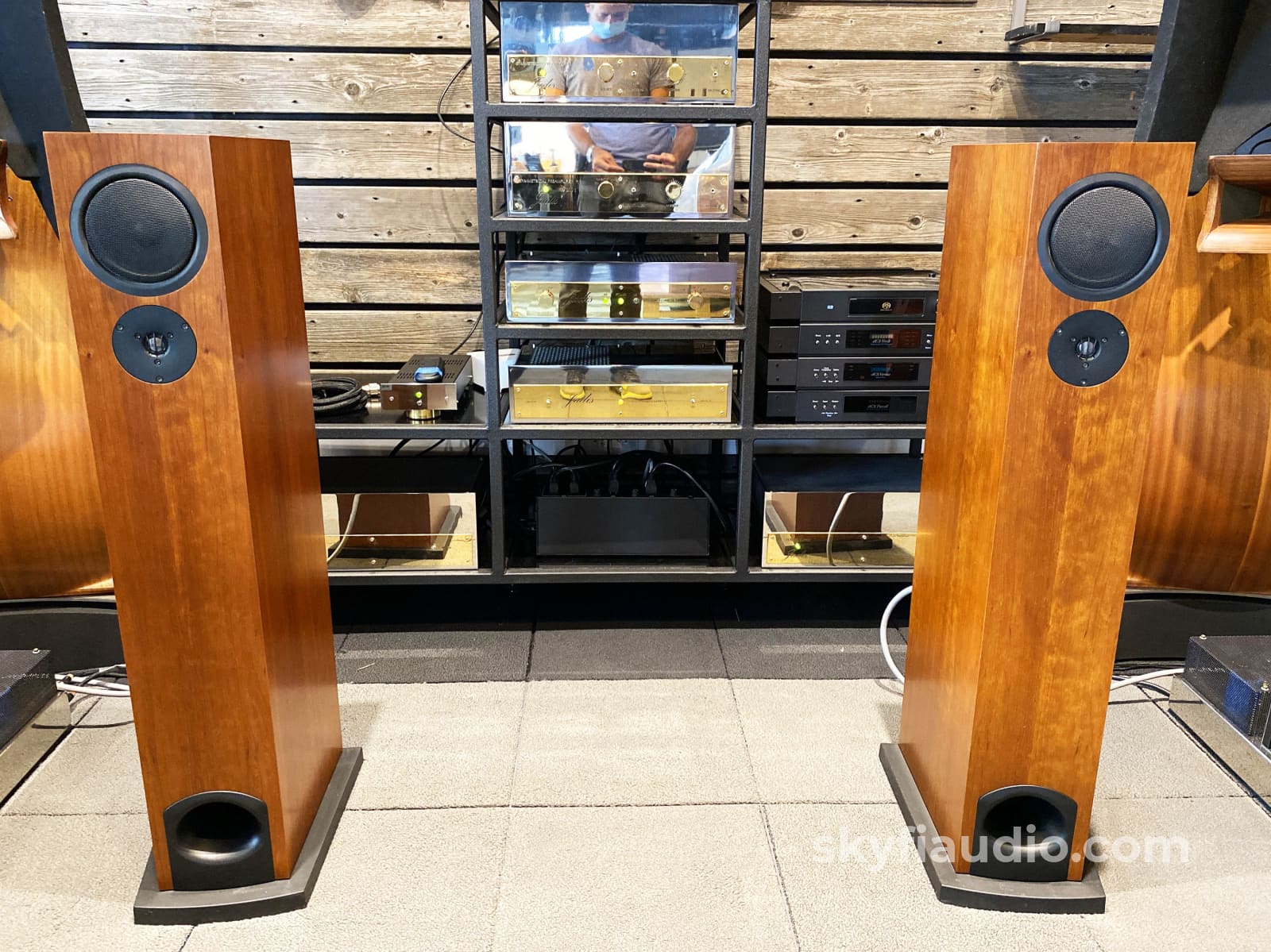

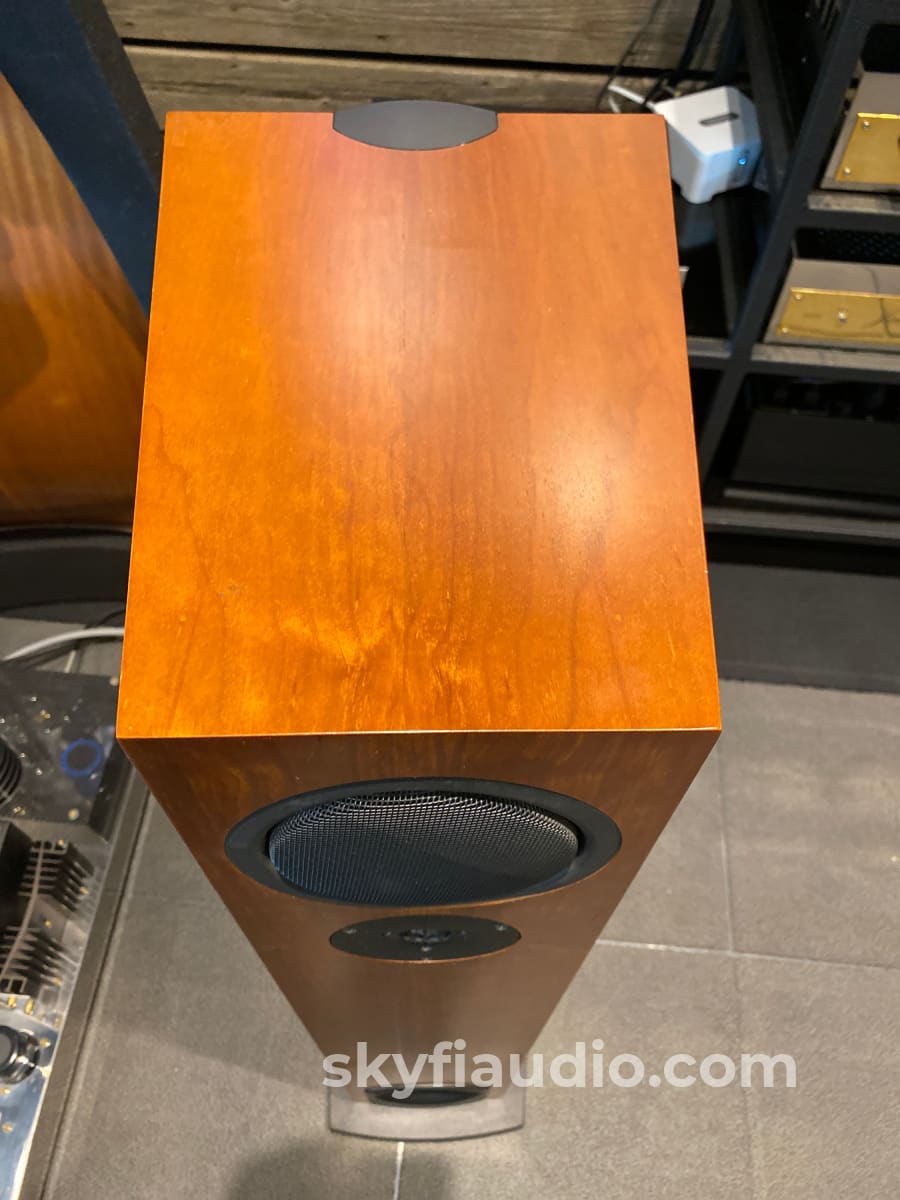

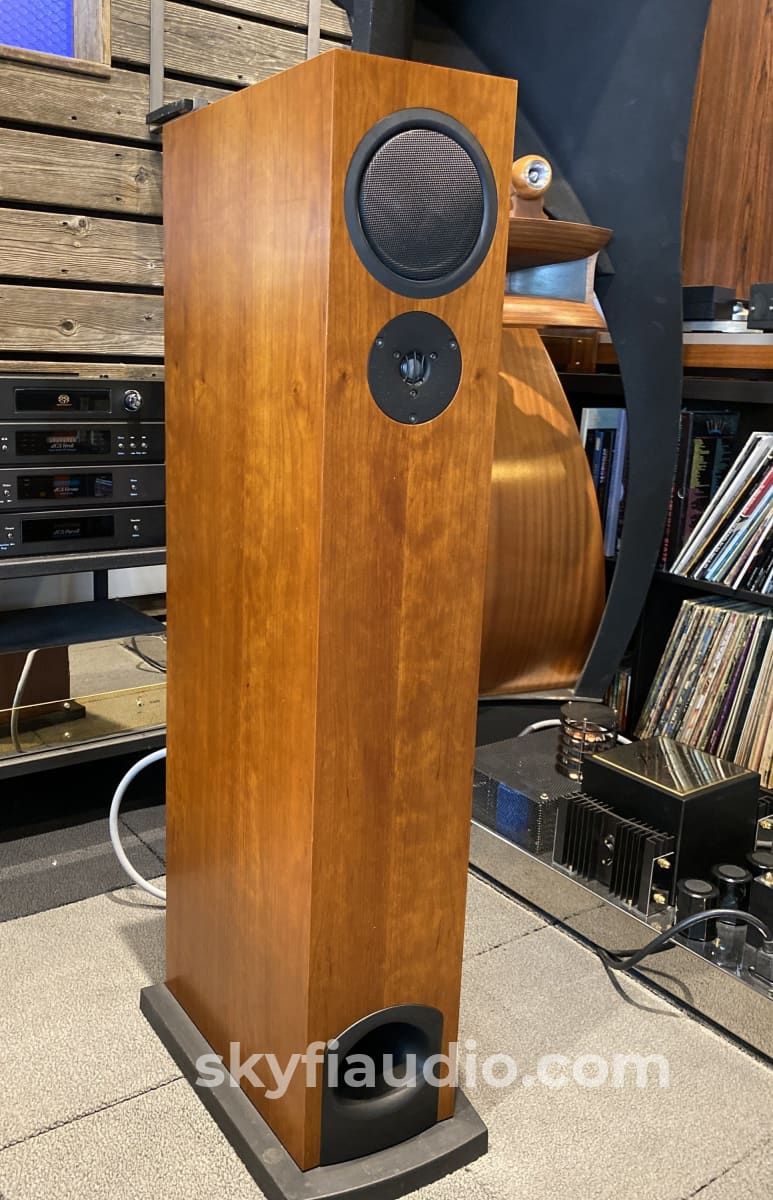

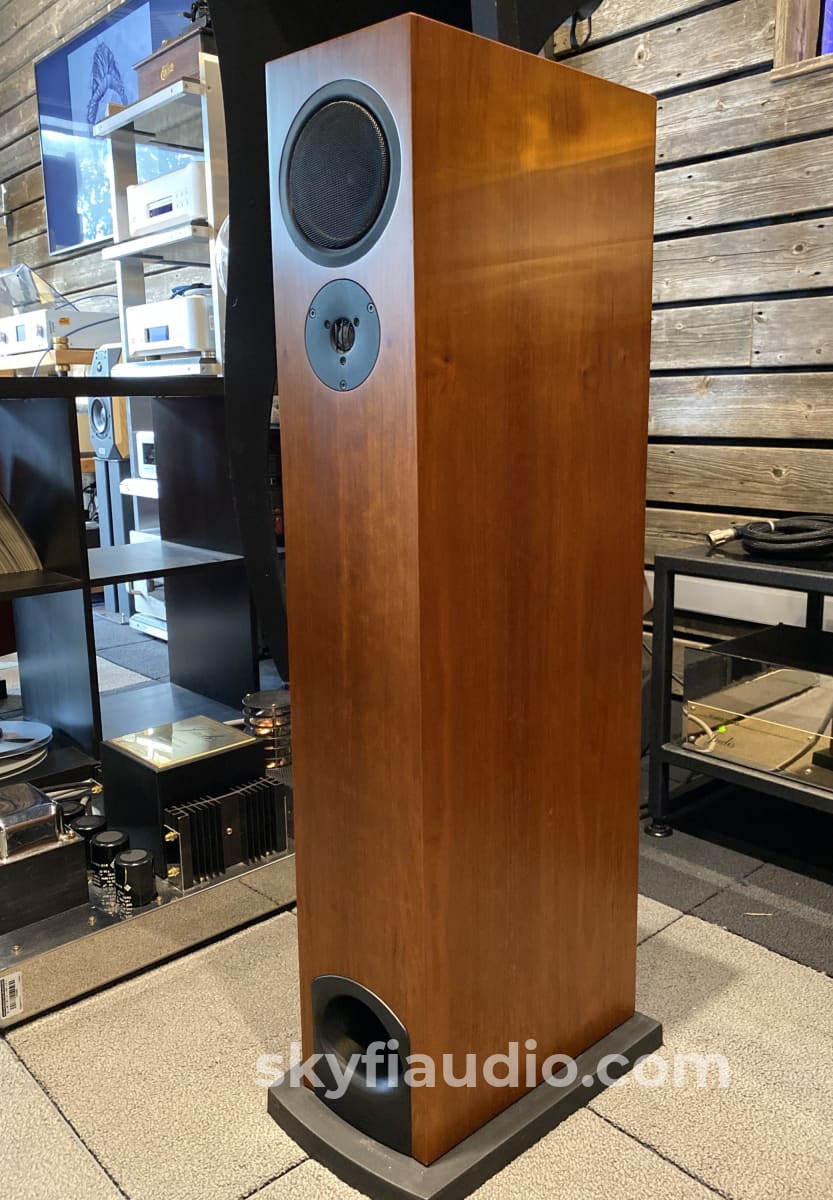

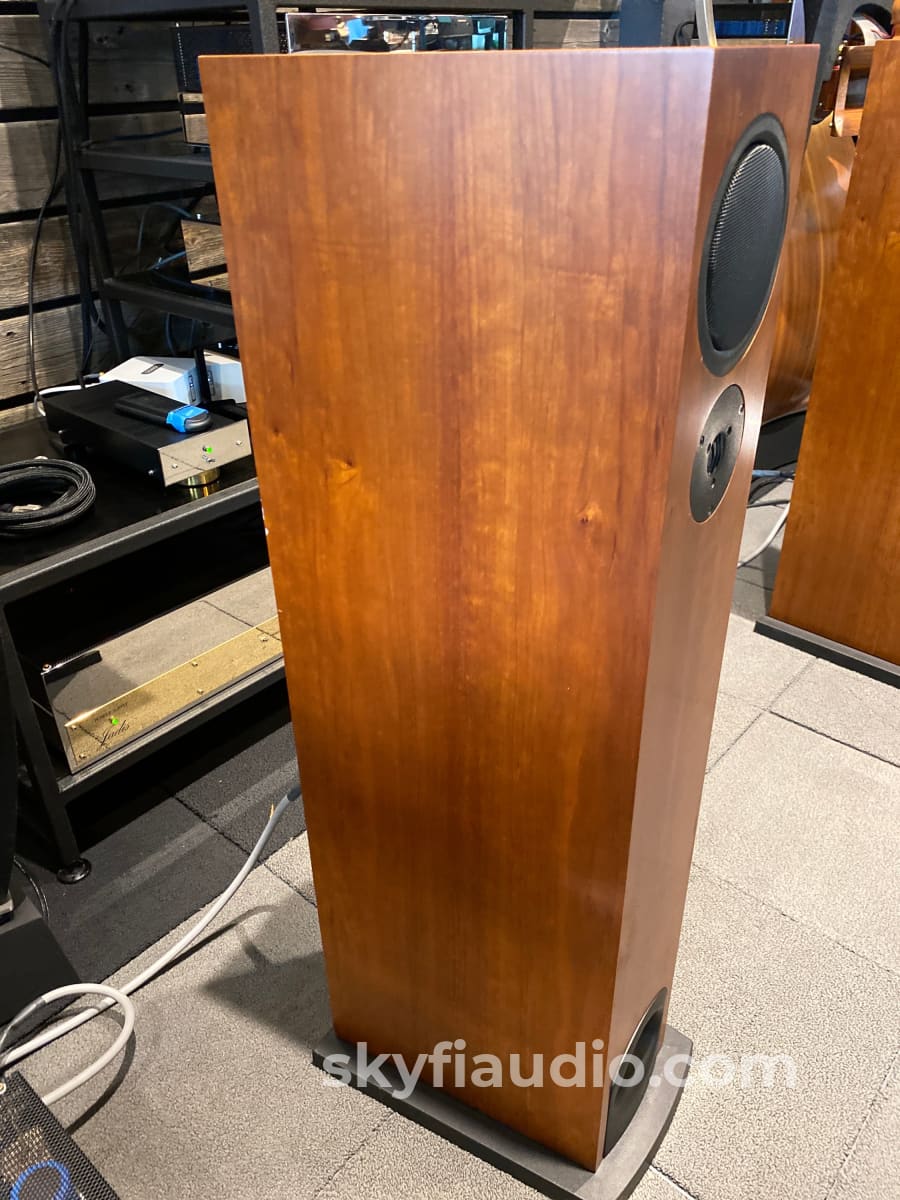

Linn AV 5140 Full-Range Floorstanding Speakers - Cherry Finish (2 of 2)
Fantastic Linn speakers from the early 2000's in a gorgeous Cherry Finish.

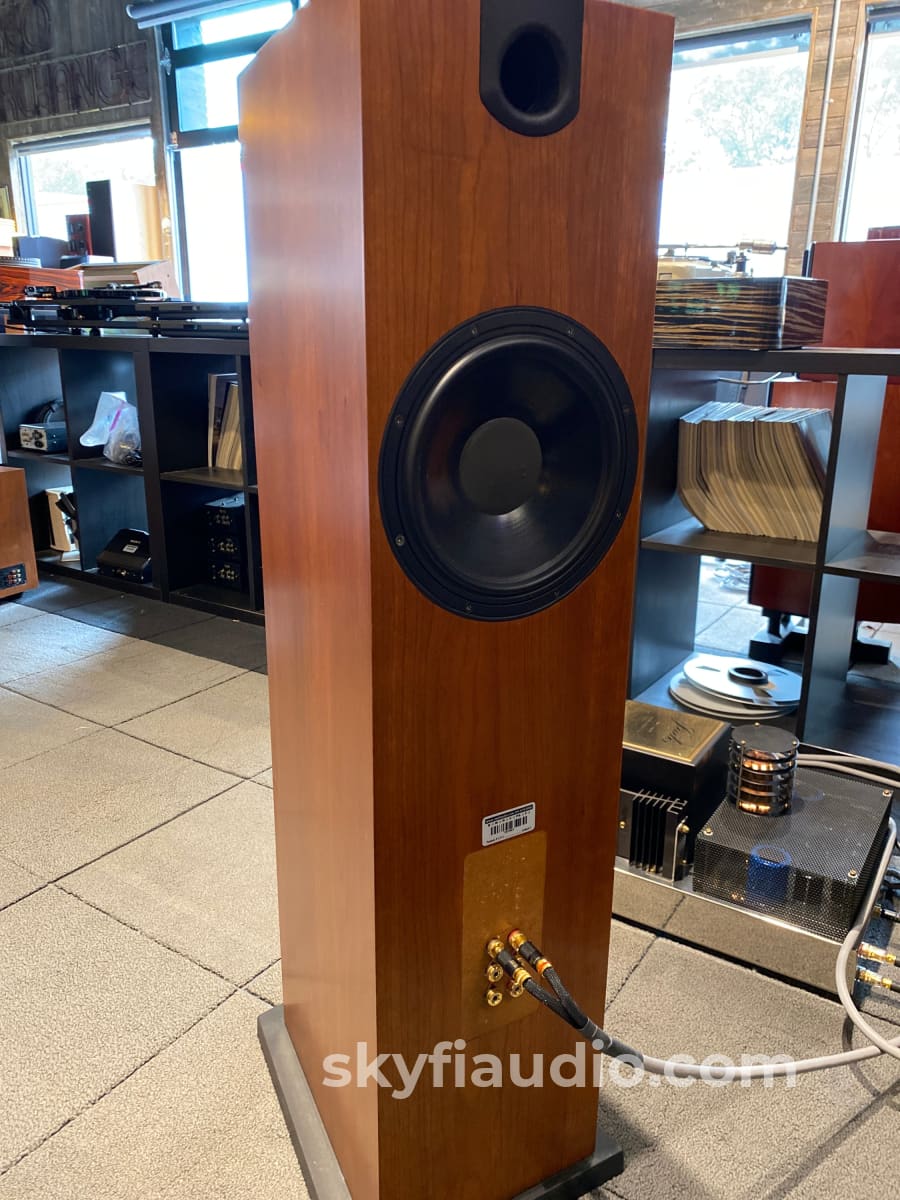

Featuring rear firing woofers to take advantage of your rooms "corner loading" for improved bass performance.
You're able to single-wire them with the included jumpers, and you can also tri-wire them (!) if you're lucky enough to have multiple Linn amplifiers (like the set we just listed!)
The cabinets and all drivers are in good shape. The speaker bases do have some cosmetic wear, but are structurally intact.
$5999 original retail (Just under $10k in today's dollars).
More from Linn:
The Linn AV 5140 loudspeaker is specifically designed to dramatically enhance the performance and enjoyment of audio/visual playback. The AV 5140 is a high quality floorstanding speaker, which can be used in a wide variety of AV system positions: Built-in magnetic screening allows the AV 5140 to be positioned as close as 50mm to a television set. An elegant, slender speaker this speaker will blend naturally into many different home environments.
The AV 5140 is the result of critical acoustic and performance considerations. The design of the speaker optimises cabinet geometry and construction, drive unit configuration, crossover frequency relationships and aerodynamic design of port exits to maximise the performance of A/V playback.

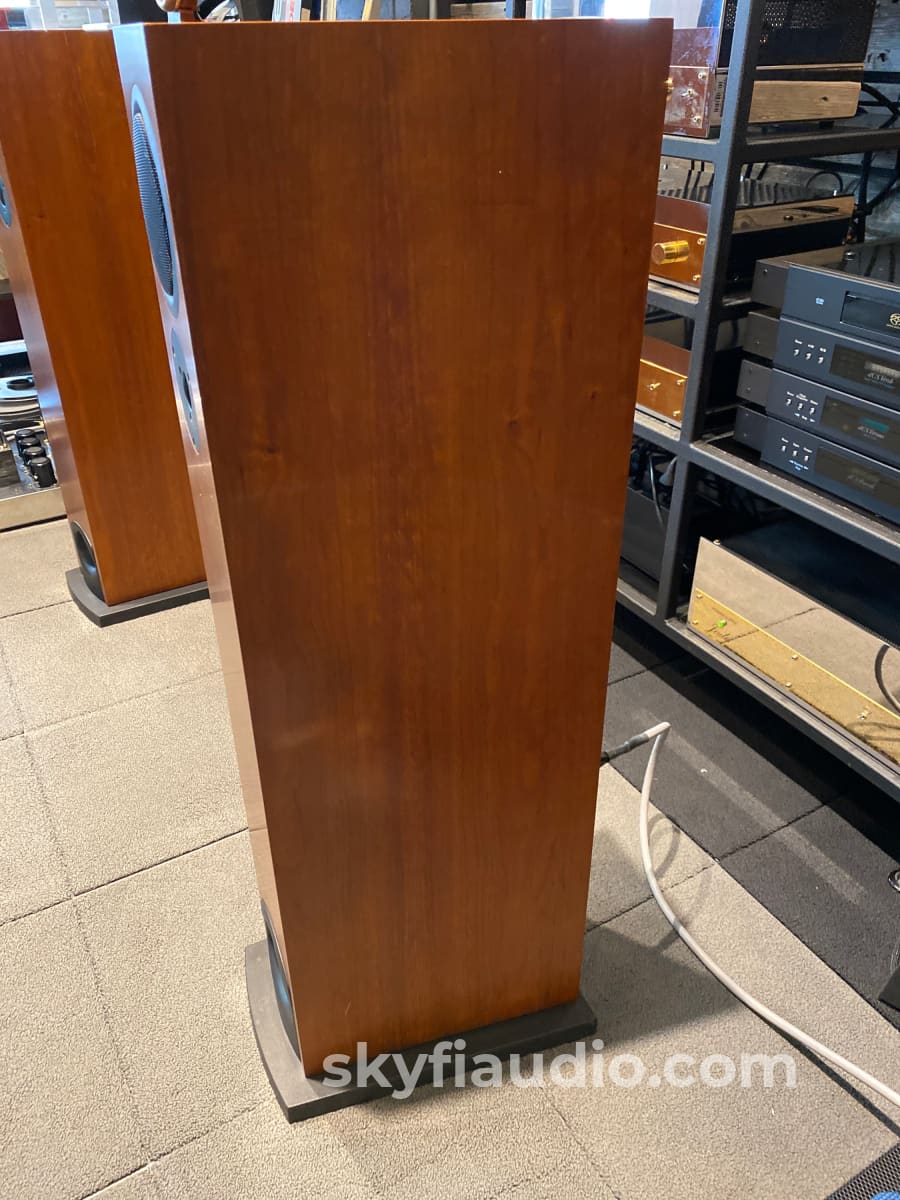

The 18mm high density fibre board cabinet of the AV 5140 has been radically designed resulting in a minimum of parallel surfaces on the inside of the cabinet to reduce the internal resonance associated with all loudspeakers. The slim front baffle provides good dispersion and high rigidity whilst the wider back of the cabinet allows an eight inch bass unit to be fitted to provide superior bass extension.

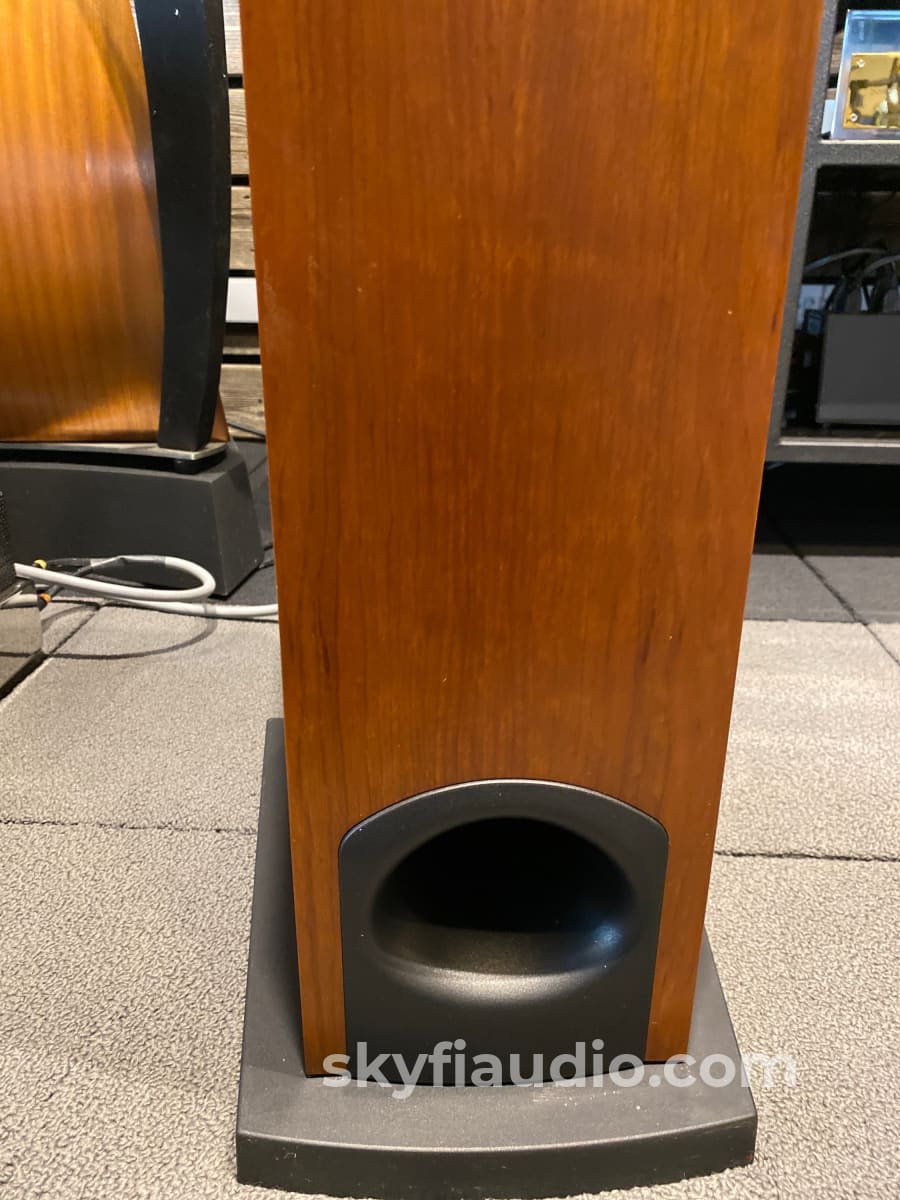

Extended bass units provide the low range necessary for A/V. High power handling and wide dynamic range enable it to handle music and AV sound effects without distortion. The front and rear ports ensure optimum air flow while at the same time providing a stylish, timeless and elegant look.
The AV 5140 is supplied with spikes and base to improve sound quality and provide maximum stability. A full length grille is available as an option.

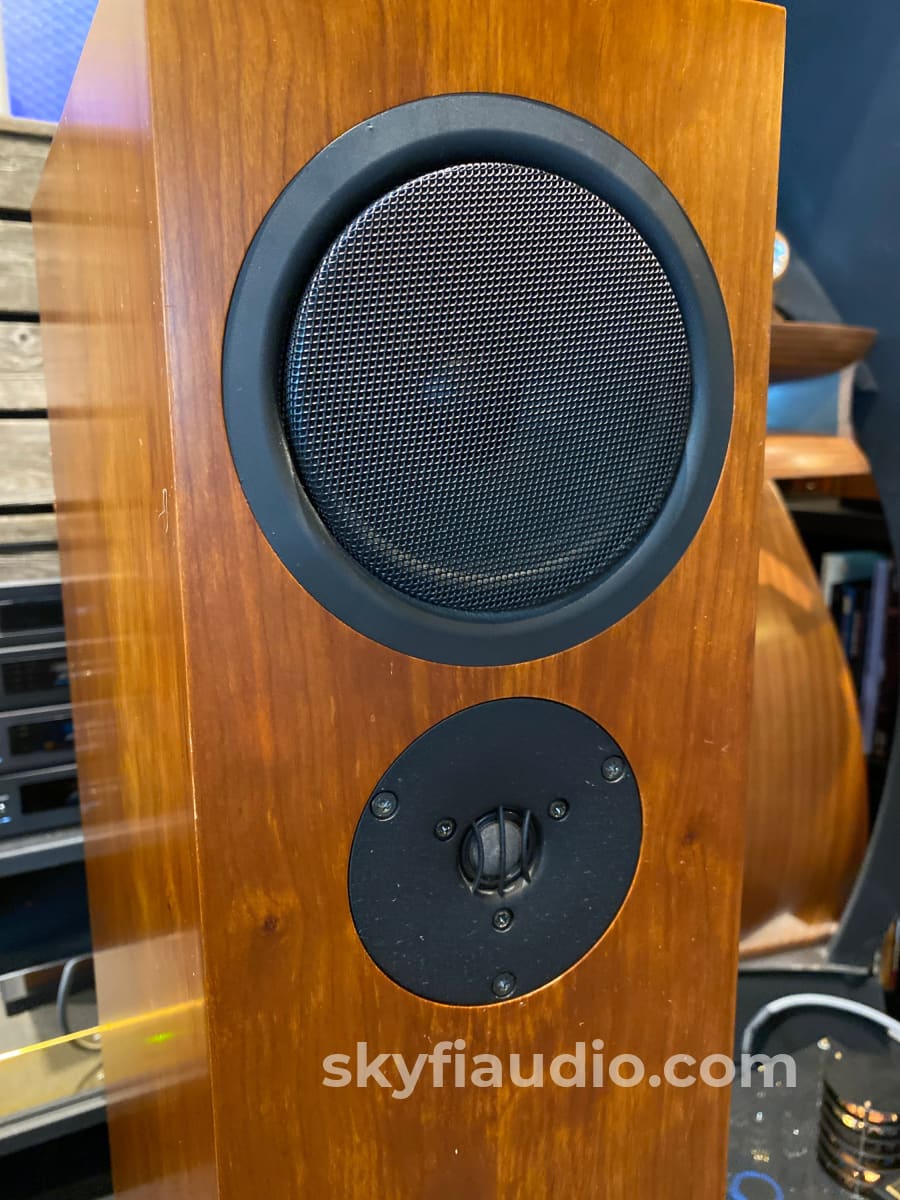

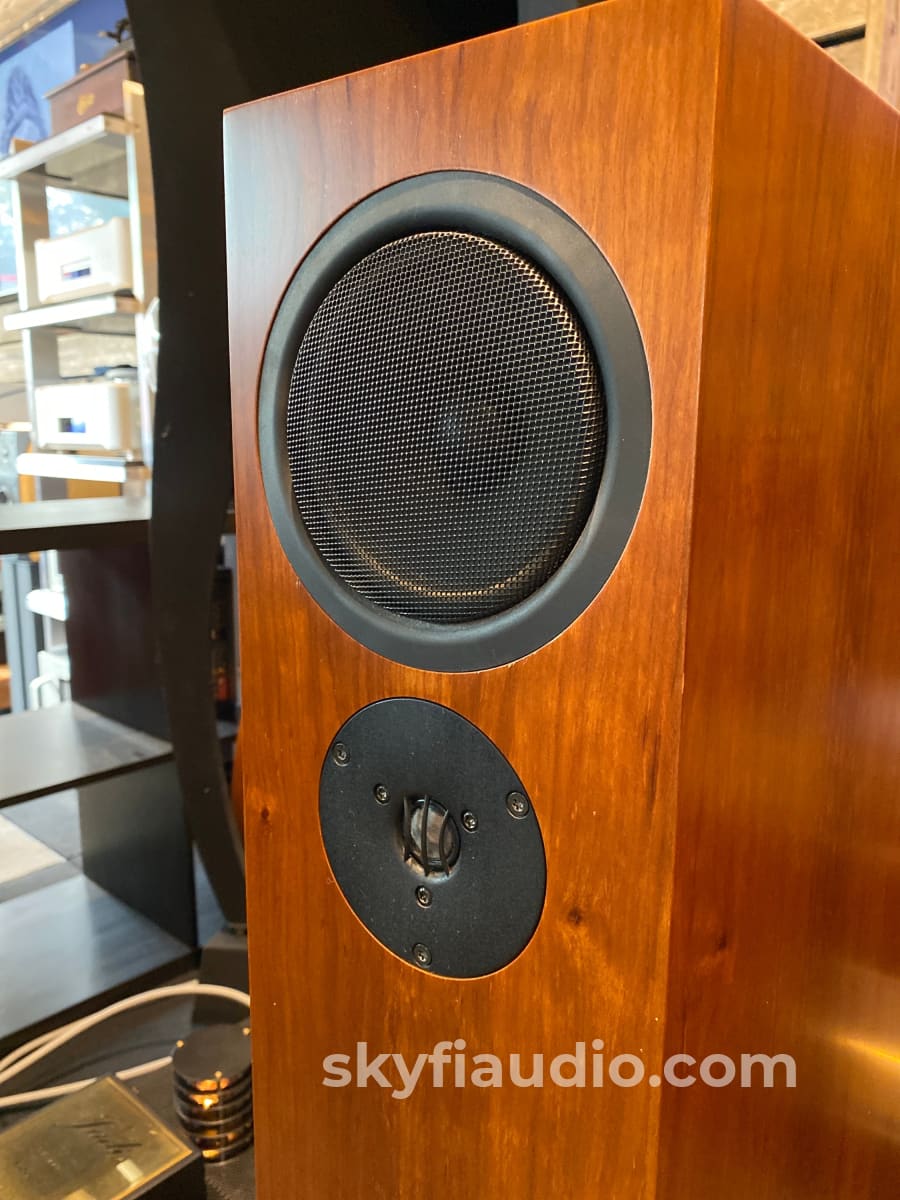

The treble unit has a 19mm ceramic dome tweeter mounted on a diecast face plate, with a ferrofluid-cooled voice coil on a Kapton former which transmits heat to the magnet. The aluminium face plate allows higher power handling. The rear of the tweeter is sealed in its own enclosure to prevent the bass pressure influencing the treble performance.
The midrange driver uses a rigid polypropylene cone and an aluminium voice coil former. Magnet assembly increases efficiency allowing maximum amplifier control. There is a long throw voice coil for lower distortion.
Magnesium alloy diecast chassis providing maximum rigidity. Large high-efficiency magnet assembly providing high sensitivity and bass damping. Aluminium voice coil former for excellent heat dispersion. Four-layer voice coil for improved magnetic coupling. Long throw cone suspension for high sound pressure levels.
The crossovers use high specification audio grade capacitors with polypropylene caps for treble, polyester caps for mid-range. High current iron-dust inductors are used to prevent saturation and distortion. Other features include: heavy copper tracks for low resistance and signal integrity; high strength glass fibre circuit boards. Input sockets are soldered directly to board to reduce contact resistances. Second order electrical response for treble, mid-range and bass. All drive units individually soldered to crossover cables.
11.1 Gallons / 42 Litres
30 Hz to 20 Khz
38.6" / 980mm
6.7" / 170mm
9.25" / 235mm
12.6" / 320mm
90dB for 1W at 1m (1Khz)
Minimum Amplifier Power:
60W / 4O Ohms
47.4 lbs / 21.5 Kilos
