Linn Arkiv MC Phono Cartridge

Free Shipping on Most Electronics - Excludes Speakers and Items Requiring Freight - Contiguous U.S. Only

General:
The Linn Arkiv MC (Moving-Coil) phono cartridge is a perfect choice to match with a Linn turntable, especially the classic and ever-popular LP12 model.

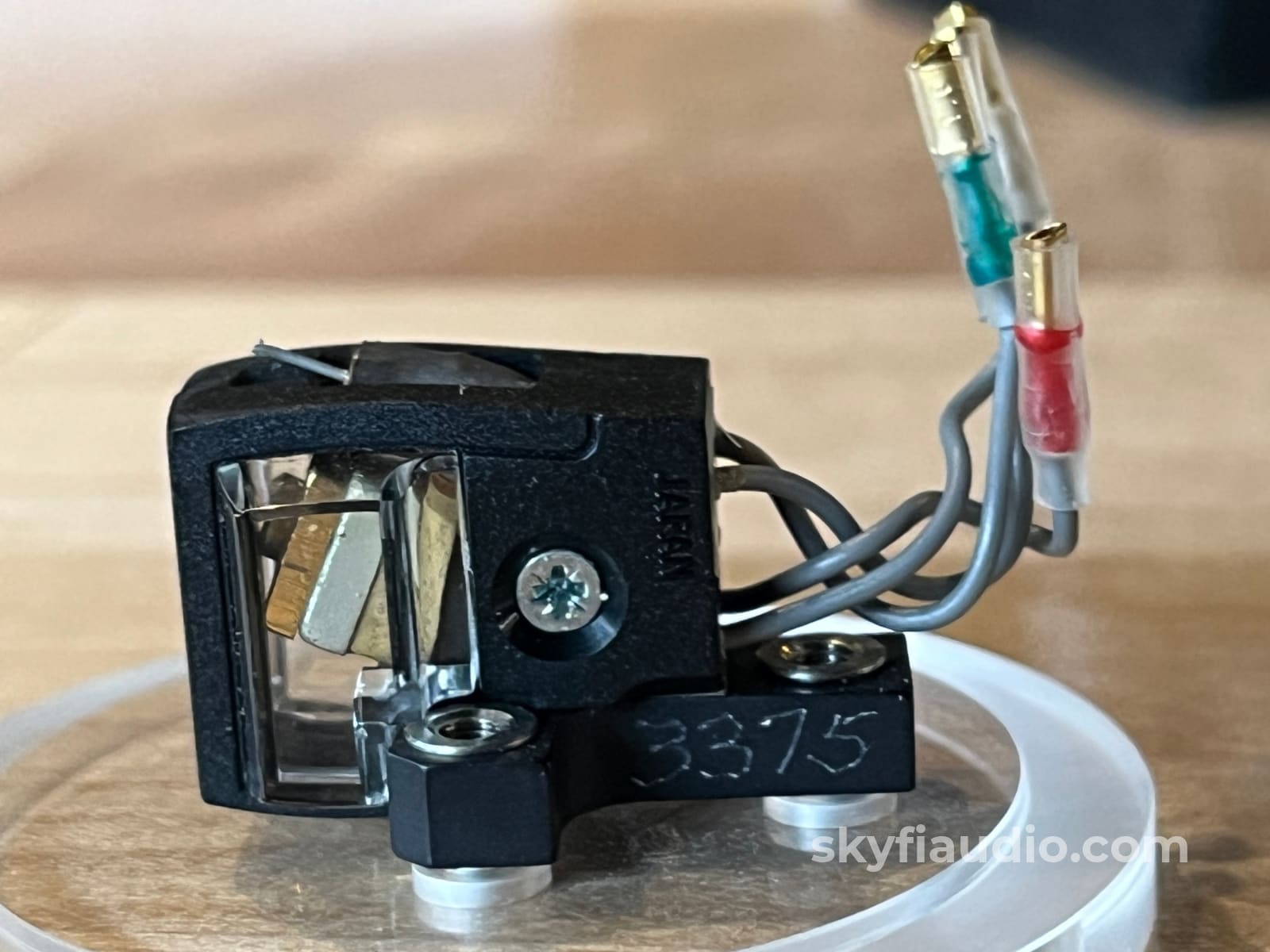

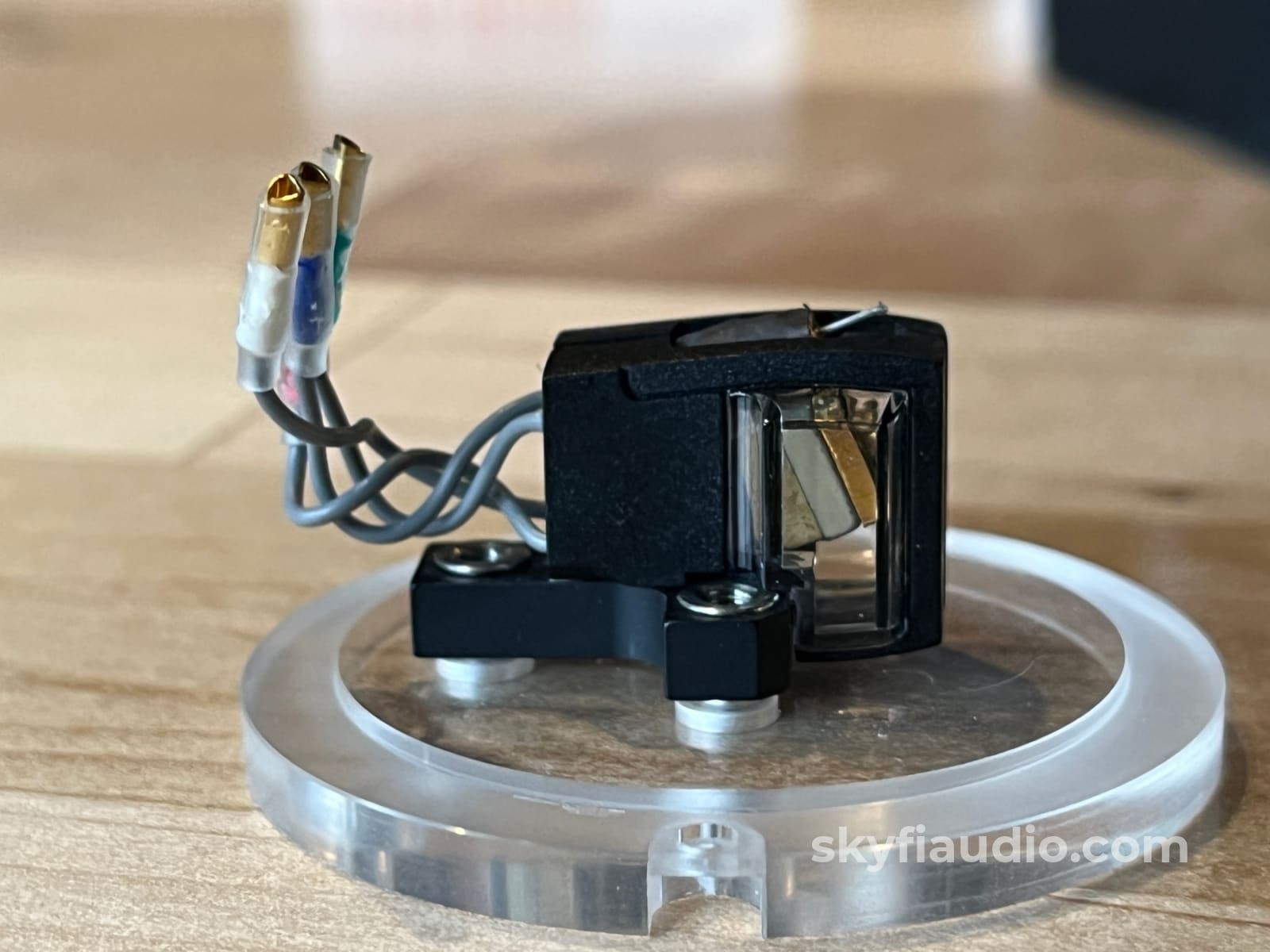

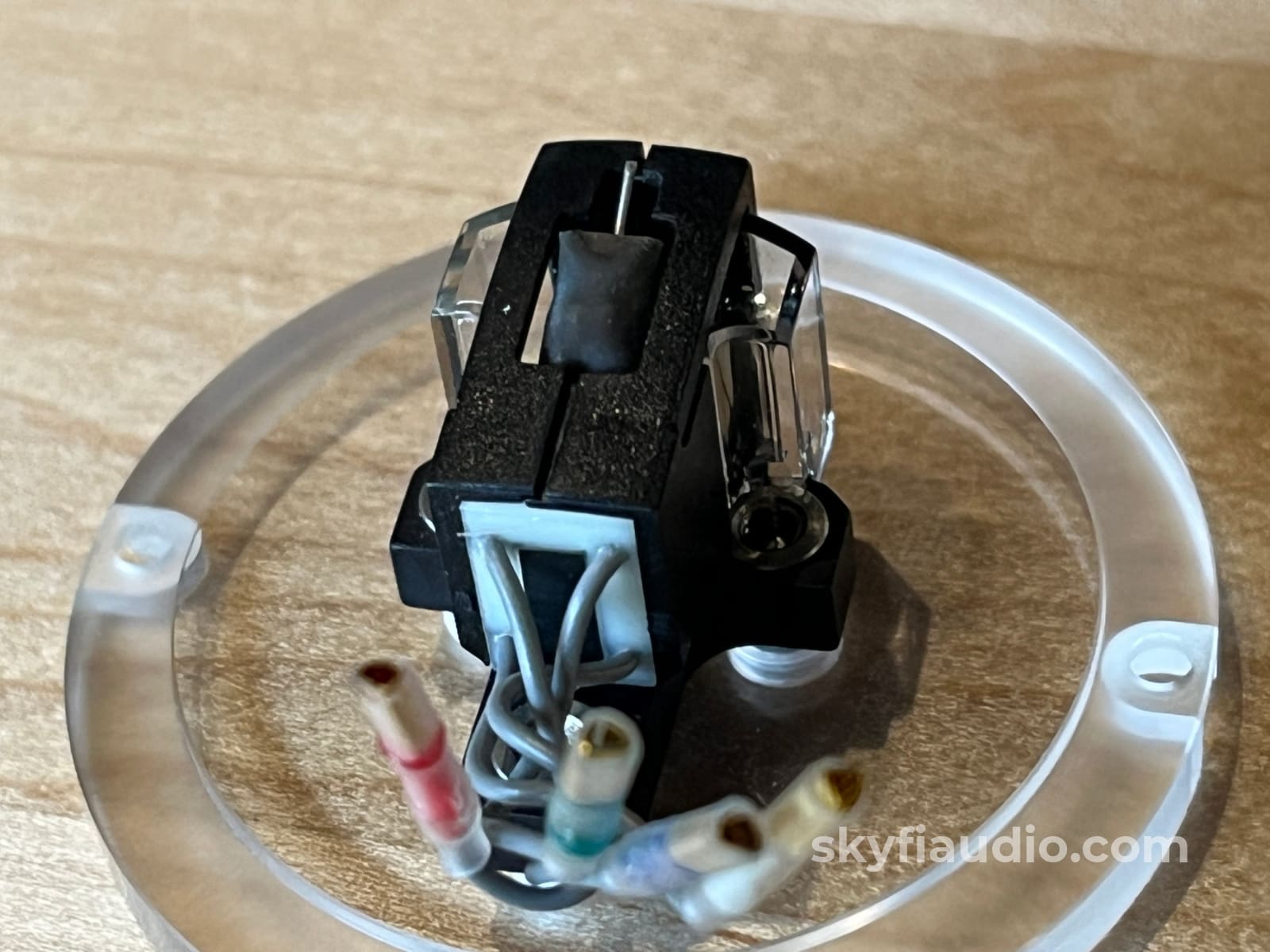

Interestingly the design of this cartridge allows you to see some of the inner parts through a plastic window at the side.

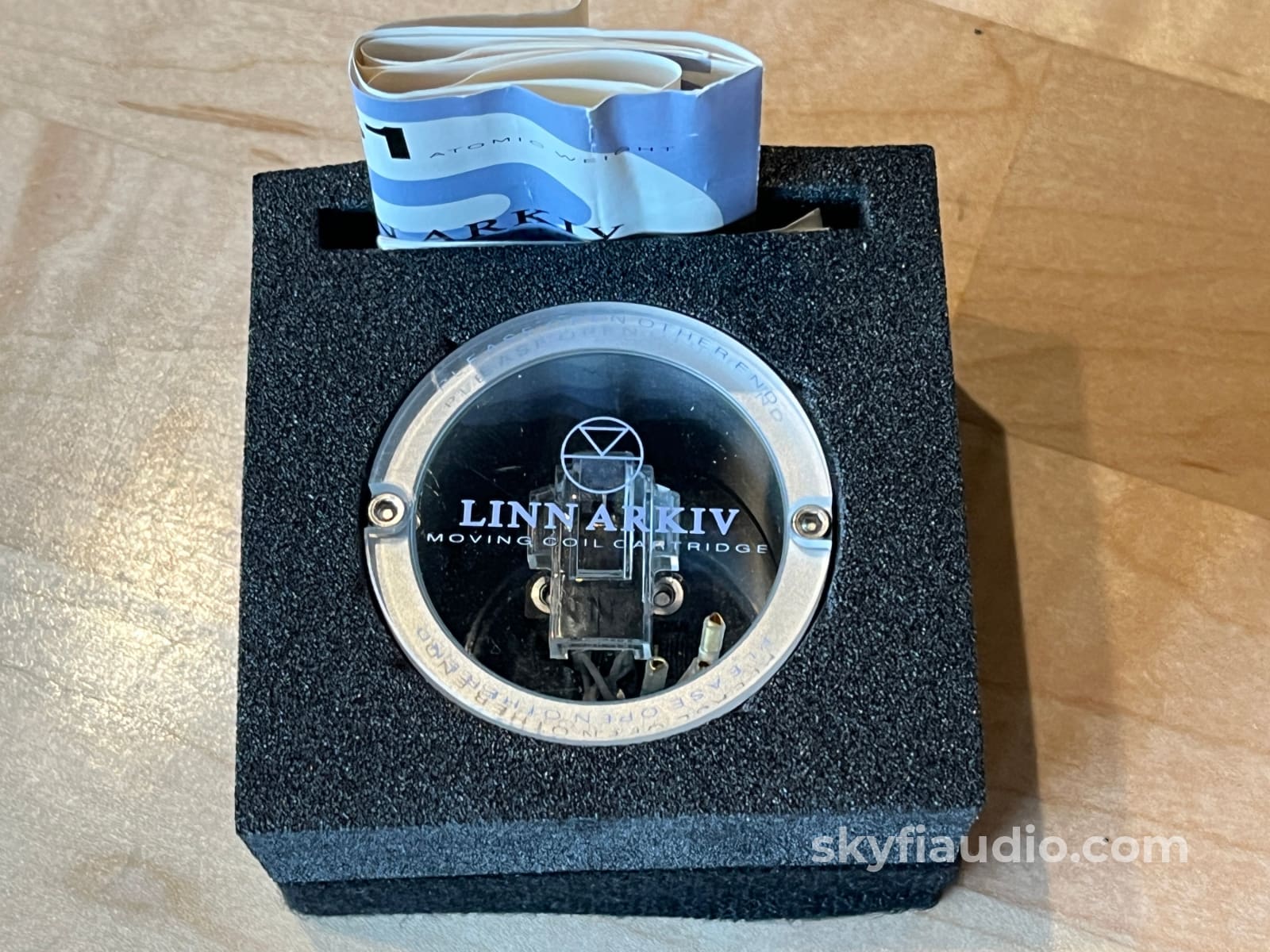

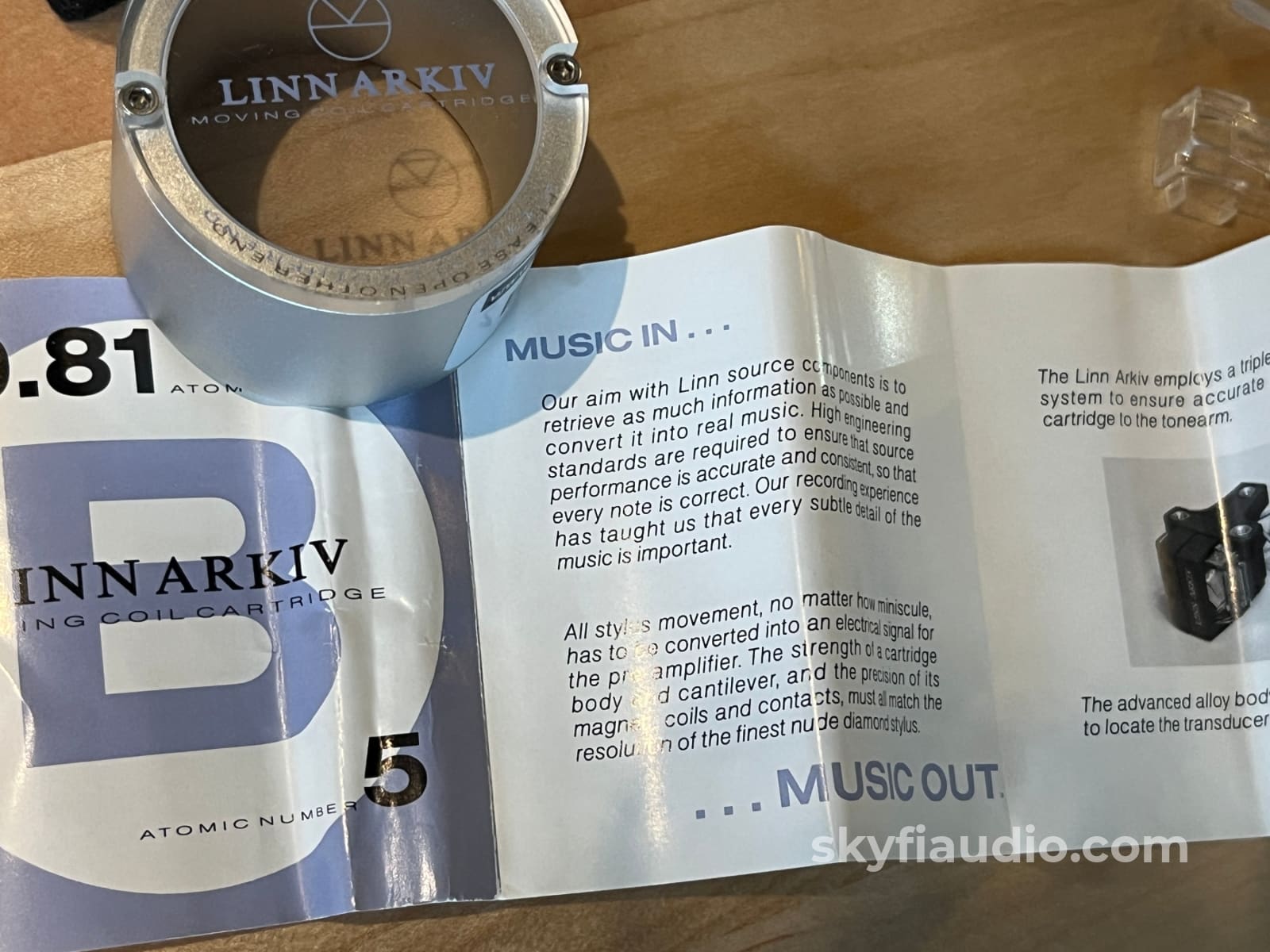

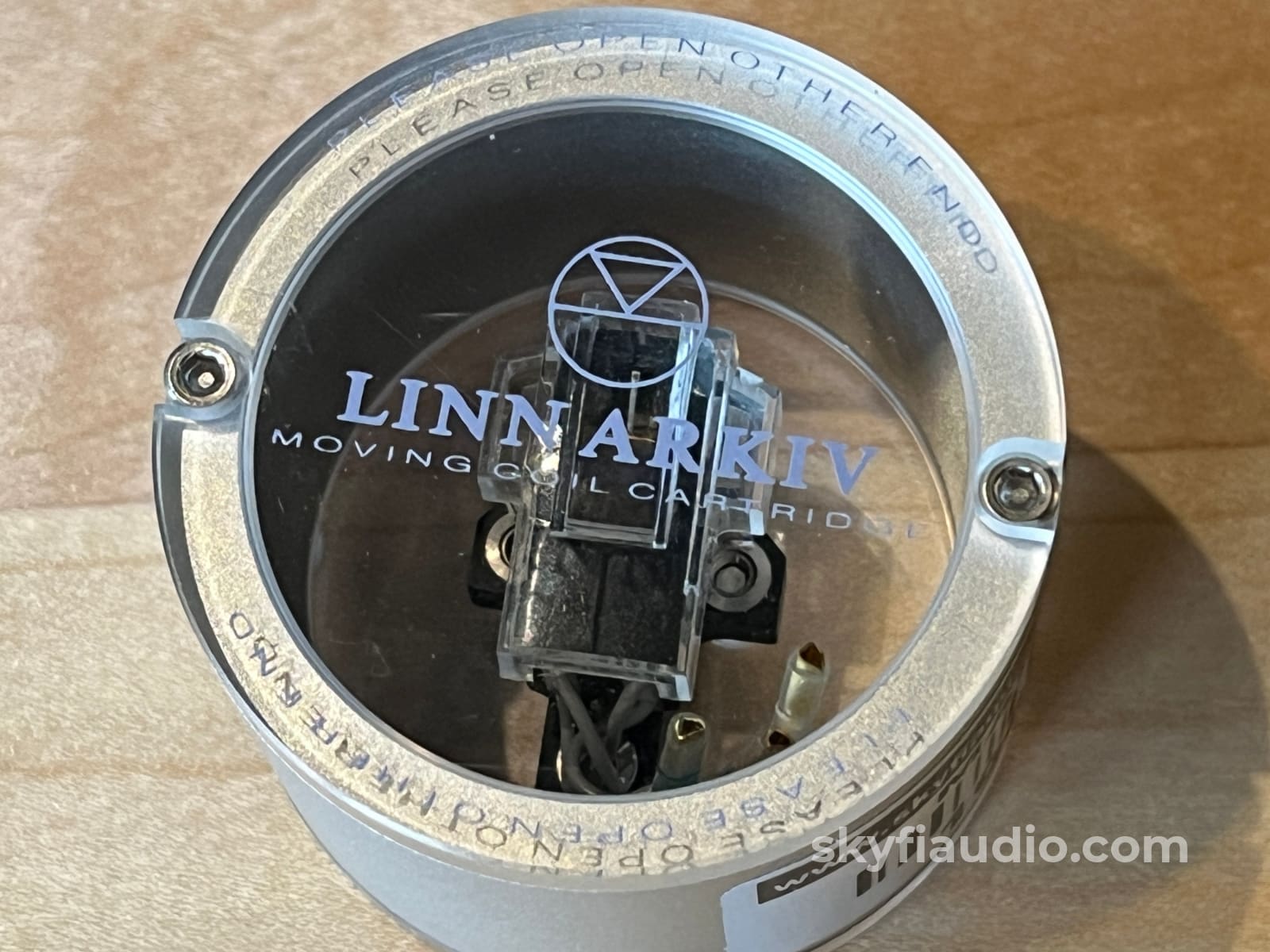

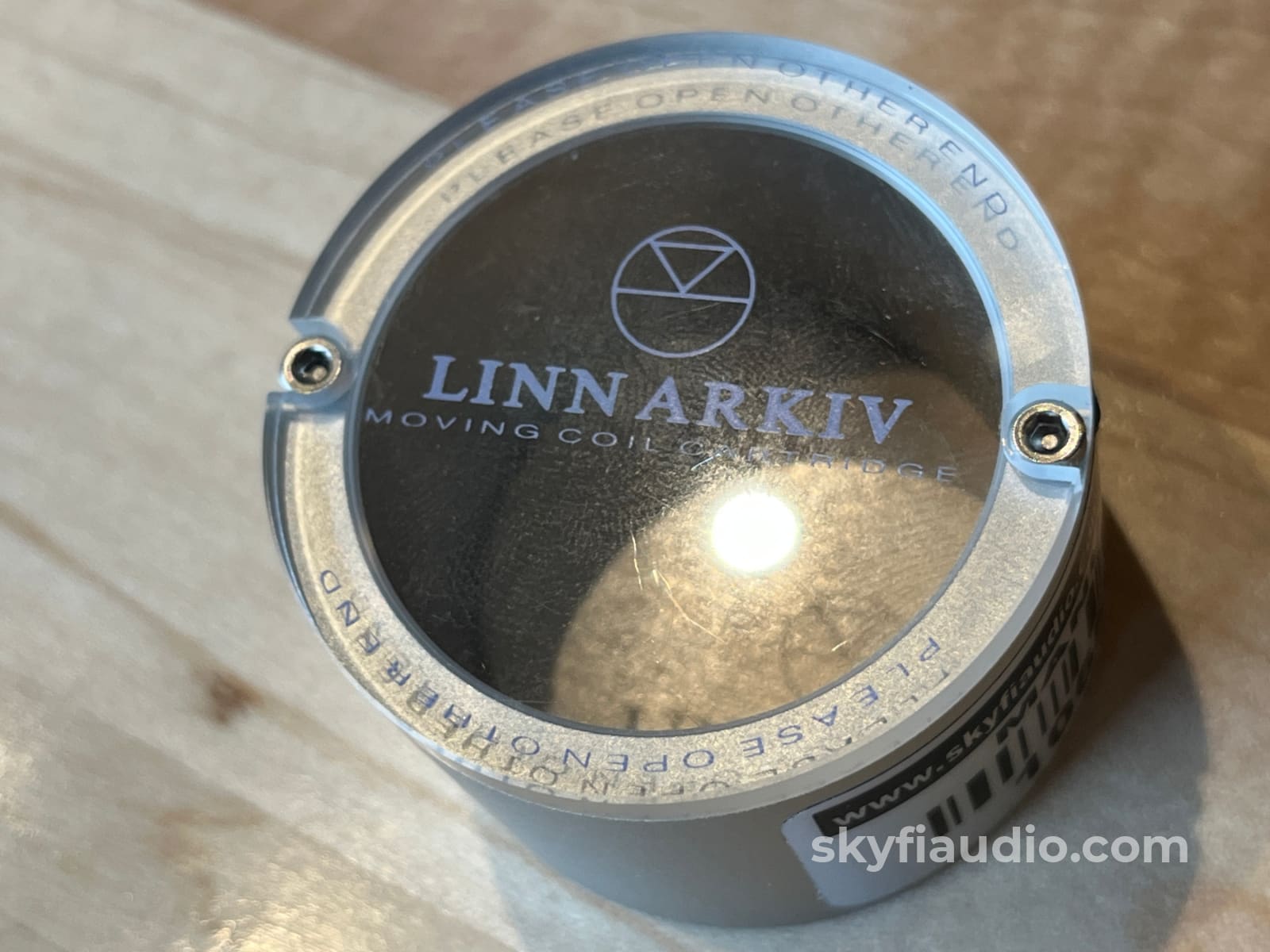

This Arkiv MC will come with its original case, paperwork, and stylus protector.

This cartridge was also examined under our dedicated shop microscope and is in great condition, showing only light signs of use.

SkyFi Cosmetic Notes:

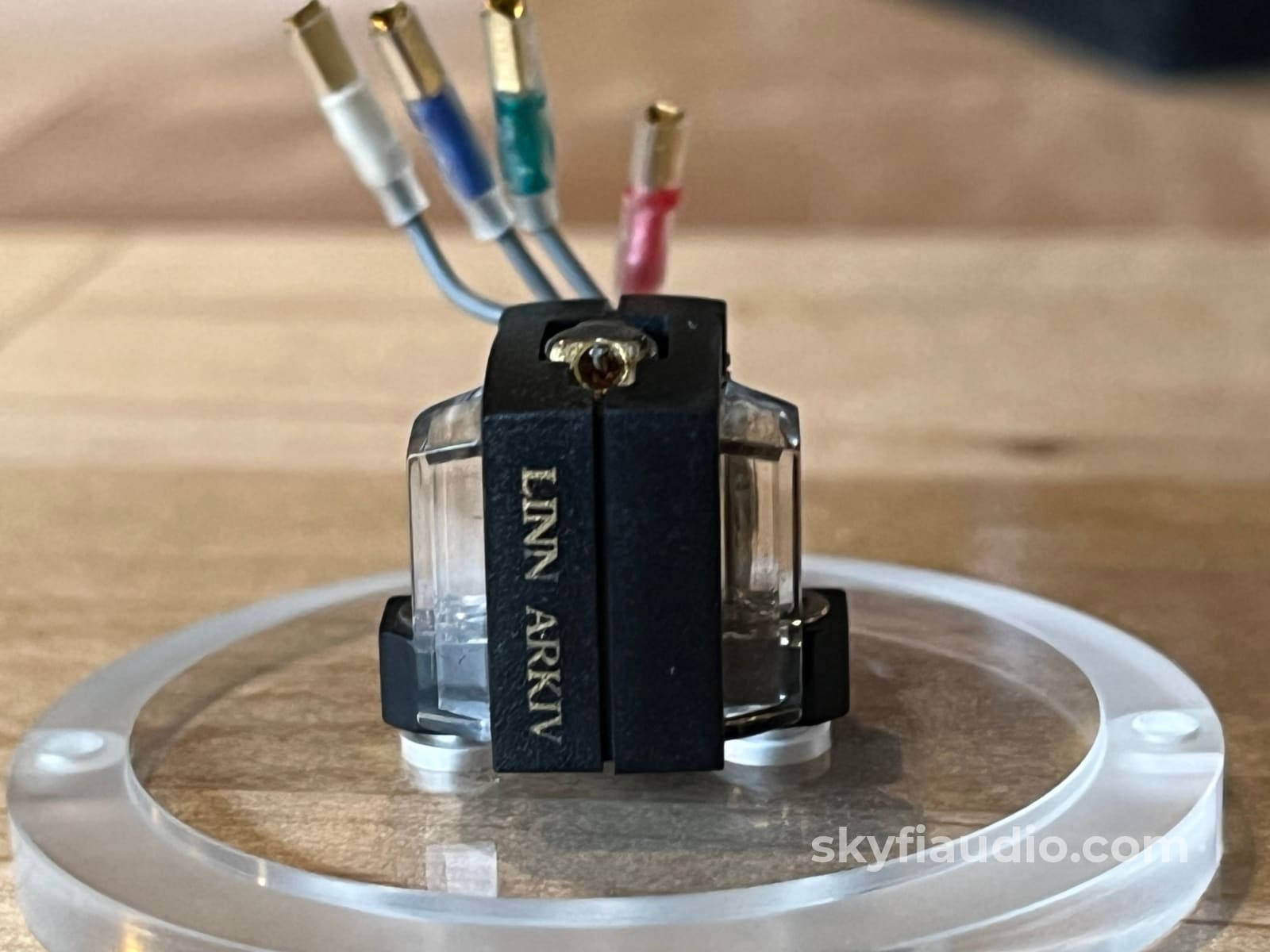

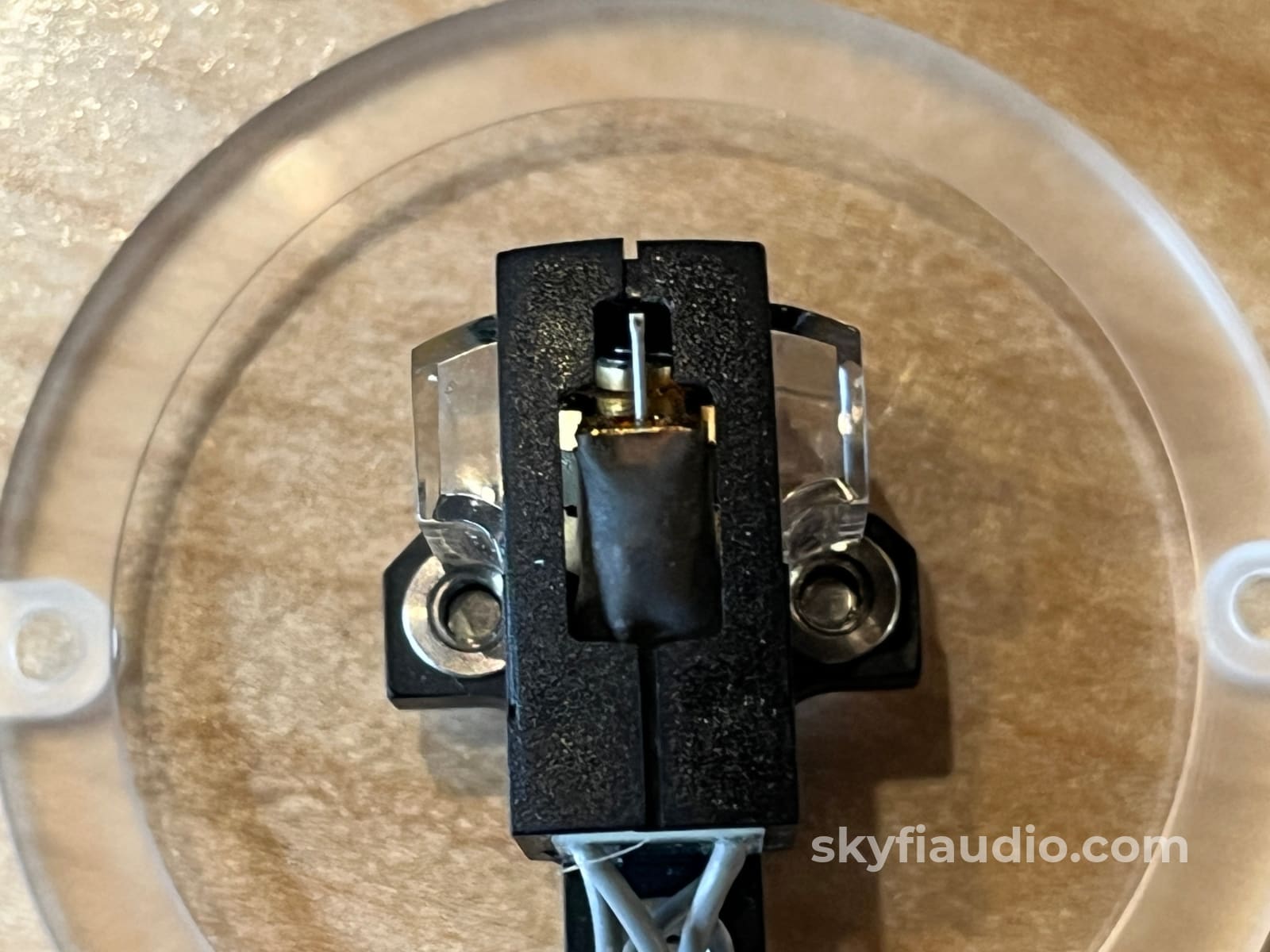

Some light scratches on the cartridge body, some wear shown on the leads. Overall good condition.

Ownership:
Second Owner

Cosmetic Condition:
8/10 = Very Good. Excellent front faceplate, one minor flaw on chassis side or top. See our detailed rating description here.

Working Condition:
Working perfectly and tested in our lab.

Included:
Exactly as pictured and described above.

Packing:

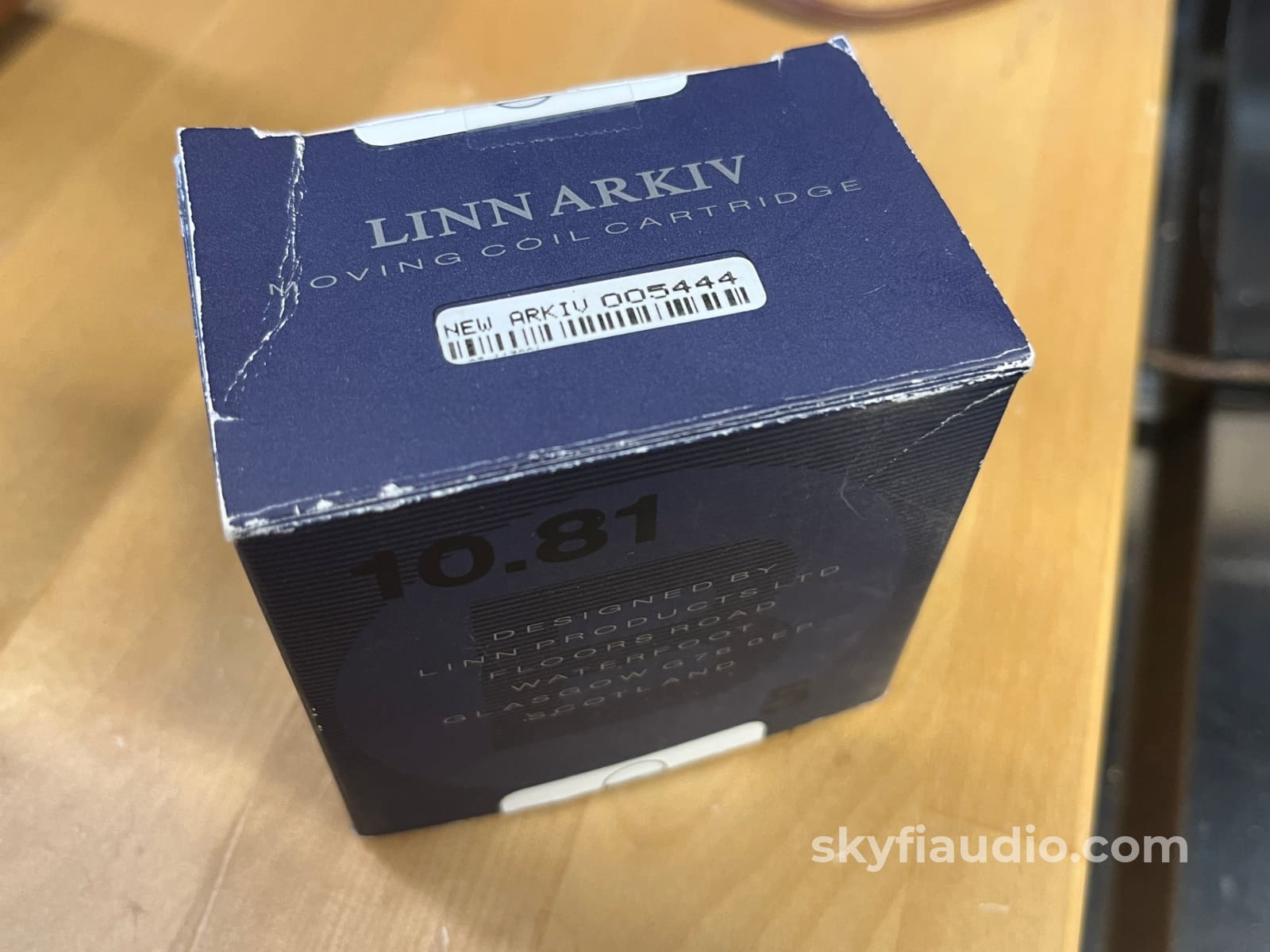

Original Manufacturers Packing

Specs:
Type: Low Output Moving Coil
Stylus: Vital
Tracking Force: 1.55 – 1.75 g
Connection Method: 1.0 mm Flying Lead Socket
Recommended Load: >50 ohms
Weight: 7.4 g
Separation at 1 kHz: Better than 30 dB
Channel Balance at 1 kHz: Within 0.5 dB
Output at 5 cm/s at 1 kHz: 150 µV
Recommended Tonearm: Rigid, medium mass – ideally ITTOK or EKOS

Testing Process:
We start by doing a detailed physical inspection under light magnification to asses the cantilever condition, its position in the cartridge body, and the condition of the suspension.

We also inspect any coil wires and the output connections to make sure it hasn't been strained. We then perform a light cleaning with specialized agents and very carefully blow dry with compressed air.

Following that, we conduct a thorough examination using our Wild Heerbrugg professional microscope. From there we can asses the wear and quality of the stylus and determine how much use it has seen, and if there are any mechanical issues. We can also identify if it needs further cleaning or care.

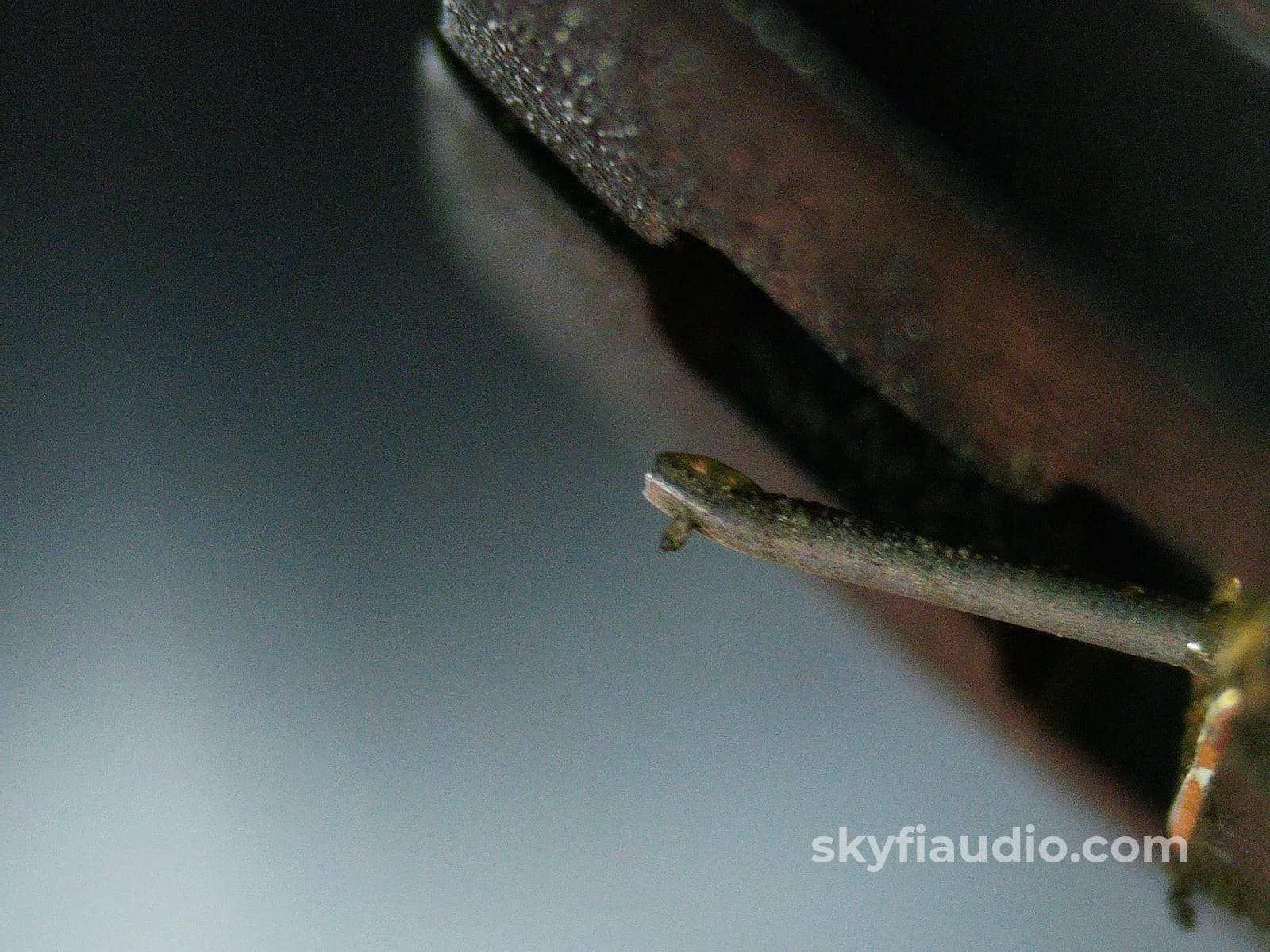

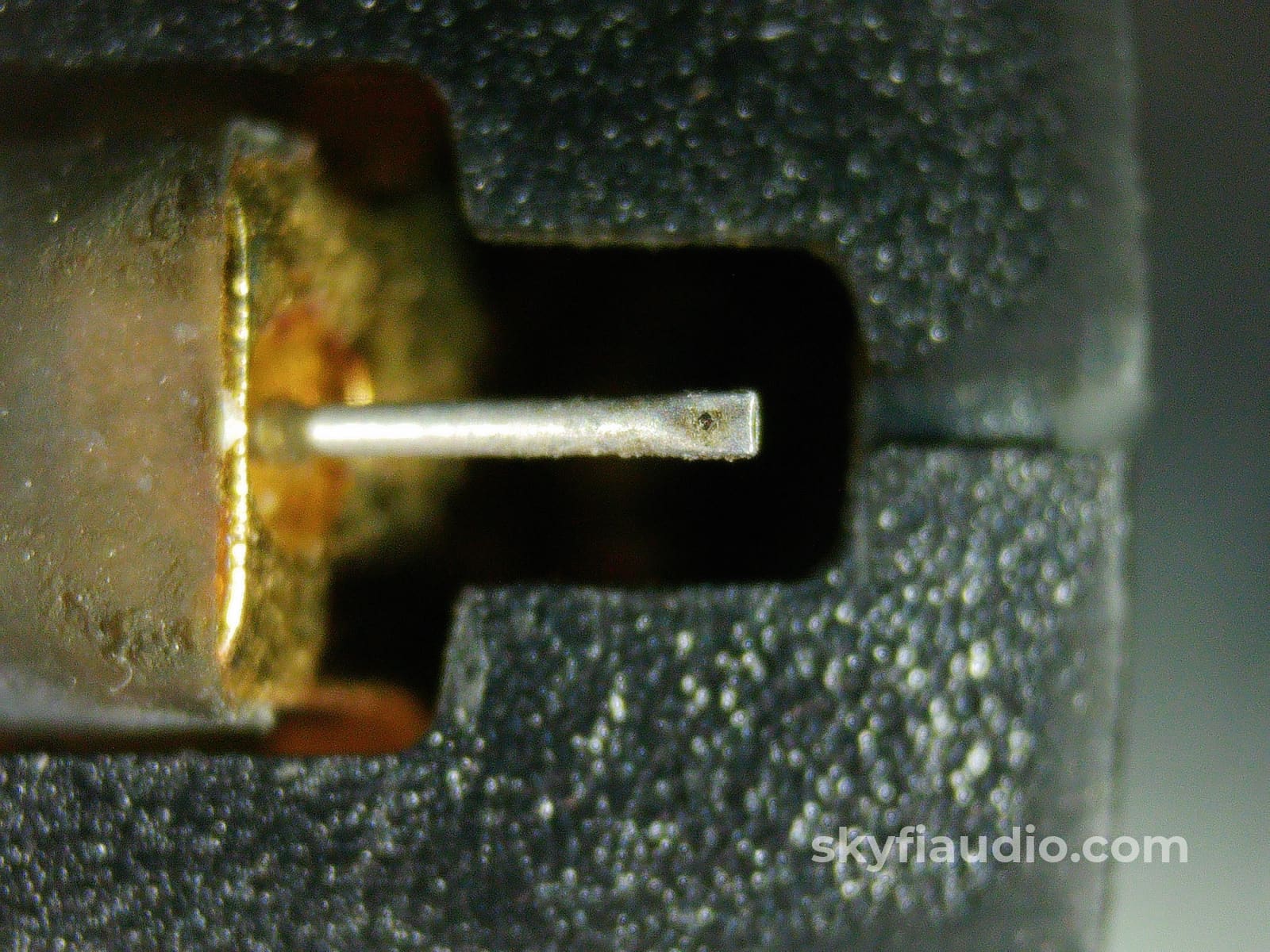

We then move the cartridge to a digital microscope where we take photos of the cantilever and stylus for future reference.

Next we move to the test bench where we can check for continuity of each channel and resistance.

On certain cartridges (or if the technician feels necessary) we install the cartridge on a turntable and run several test records to ascertain tacking ability, distortion, and compliance.
