Leben CS-1000P Stereo Tube Power Amplifier - New - Pre Order
SKYFI IS NOW A LEBEN DEALER
The CS-1000P is a high power tube amplifier from Leben. It's rated at 100W per channel in Pentode mode, and 70W per channel in Triode mode.
Key features include a meter at the top to assist with tube bias, wood side panels, and a beautiful and well-made chassis.
Items from Leben have a considerable lead time since they're handmade in small numbers. This lead time can be up to 6 months. Please call us to discuss timing and reserve your spot in the queue.
Support your local Leben Dealer.
High power output tube KT120 (Super KT88)
100W/ch (1 KHz) at Pentode circuit (70W/ch at Triode).

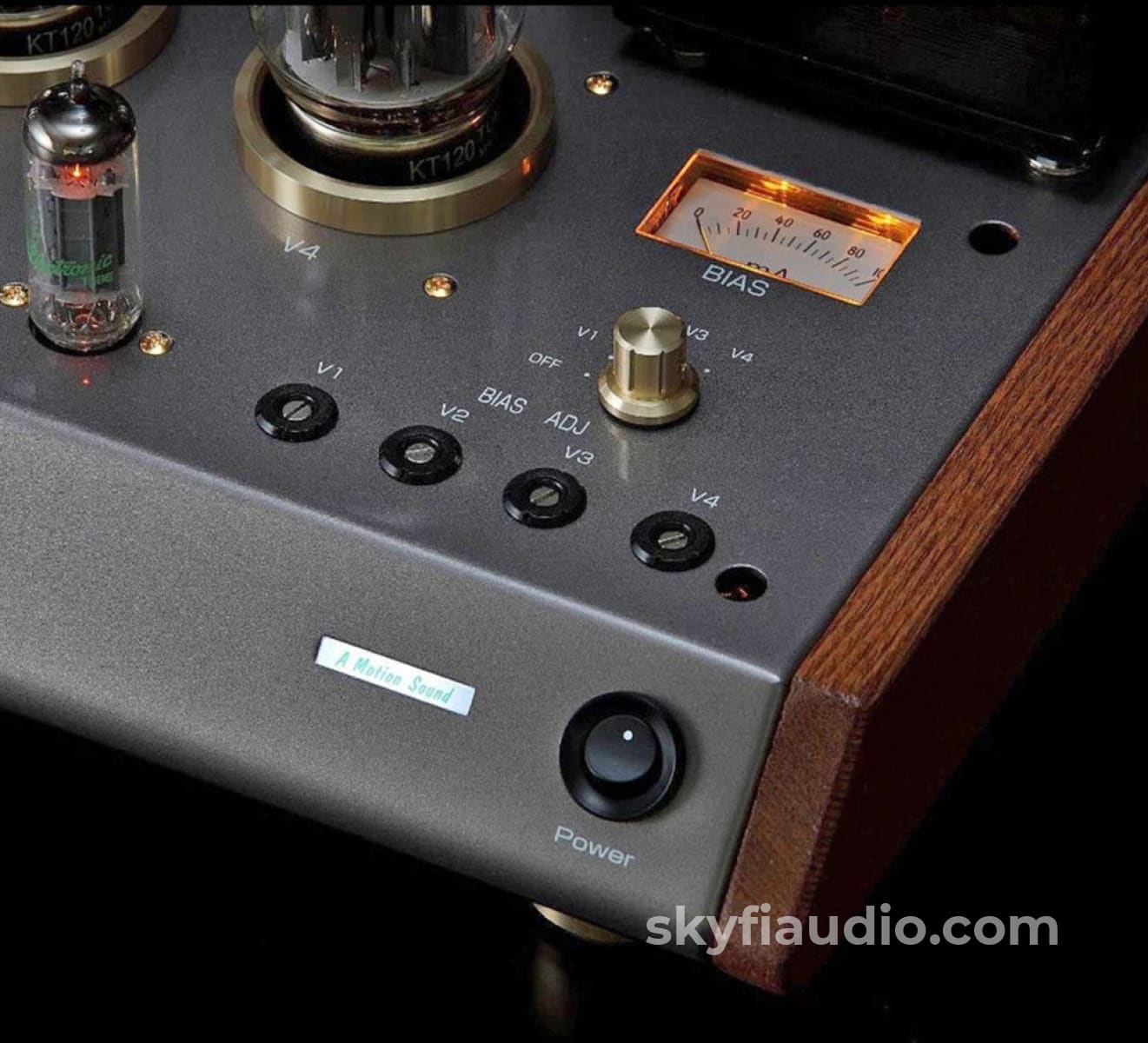

Pentode/Triode selector switch Bias adjustment with a Cathode-direct meter
Several types of output tubes are applicable by adjusting the cathodal electric current.
Newly developed Orient-core output transformer
A minimum loss and a superior high-frequency response.
Flat and wide Frequency Response
A wide frequency response from 10 Hz to 150 KHz (-0 dB) caters for digital audio formats such as SACD/HDCD.
High rigidity solid aluminum insulators
OTHER FEATURES
- Super-high sensitivity bias meter made by a long-established manufacturer.
- High-grade Metal glaze resistorals of below 1% error margin.
- High-grade 41-steps Detent Volume of ALPS.
CS-1000P SPECIFICATIONS
| TUBES COMPLIMENT | KT120 x 4 6922/6DJ8 (ECC88) x 2 6CG7/6FQ7 x 2 |
|
|---|---|---|
| OUTPUT POWER | 100W x 2 at 1 KHz. | |
| FREQUENCY RESPONSE | 10 Hz - 150 KHz. (-3 dB) | |
| INPUT SENSITIVITY | 0.4V at 50W | |
| INPUT IMPEDANCE | 100K Ohms. | |
| OUTPUT IMPEDANCE | 4/6/8/16 Ohms (Selectable) | |
| POWER CONSUMPTION | ||
| WEIGHT | 23.5 Kgs. (51.8 lbs) | |
| DIMENSIONS | 455 (W) X 200 (H) X 335 (D) mm (17.91” (W) × 7.87” (H) × 13.19” (D) | |
| ATTACHMENT | Detachable AC Power Cable x 1 | |
