Kiseki PurpleHeart MC Phono Cartridge

Free Shipping on Most Electronics - Excludes Speakers and Items Requiring Freight - Contiguous U.S. Only

General:

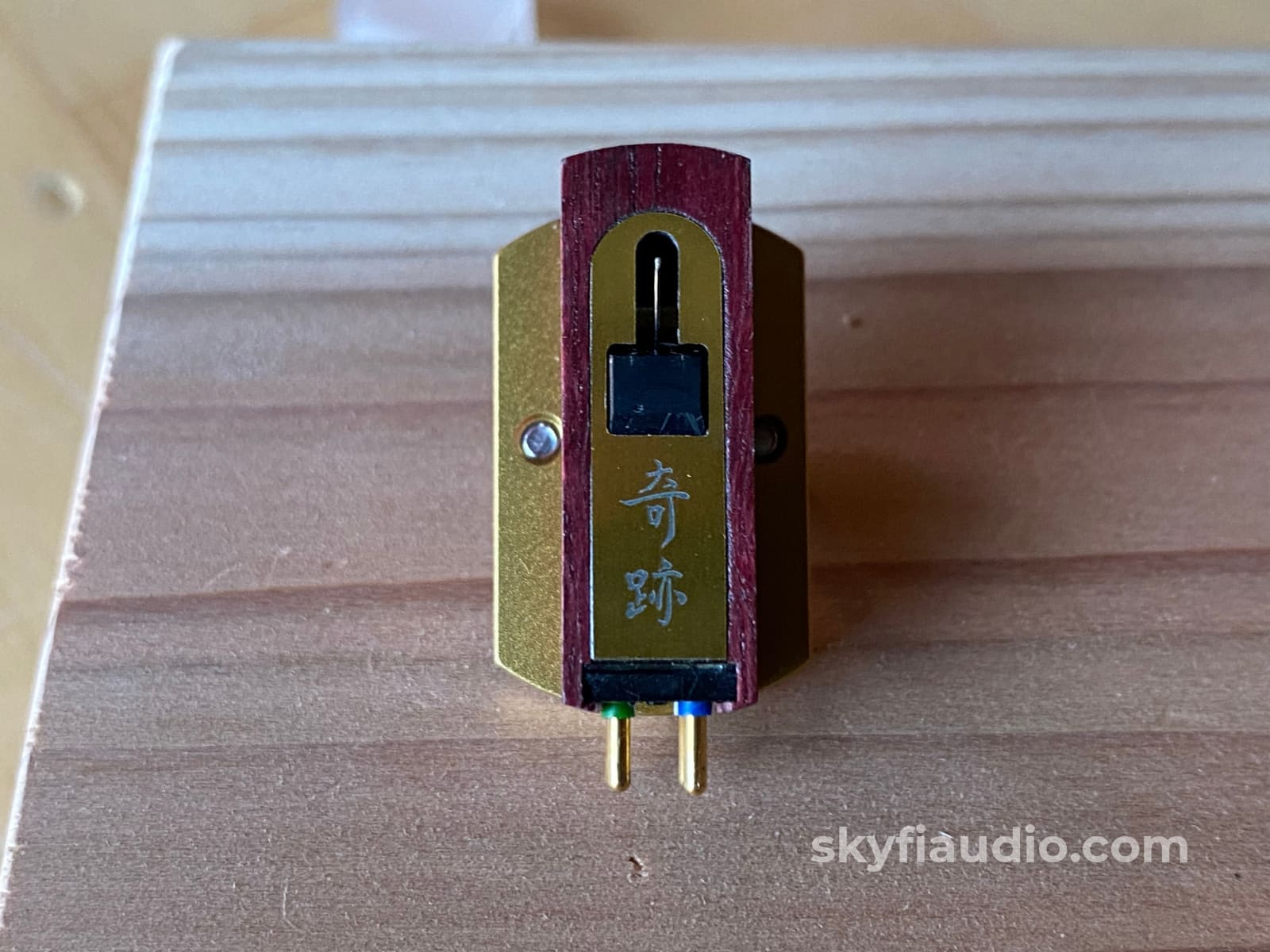

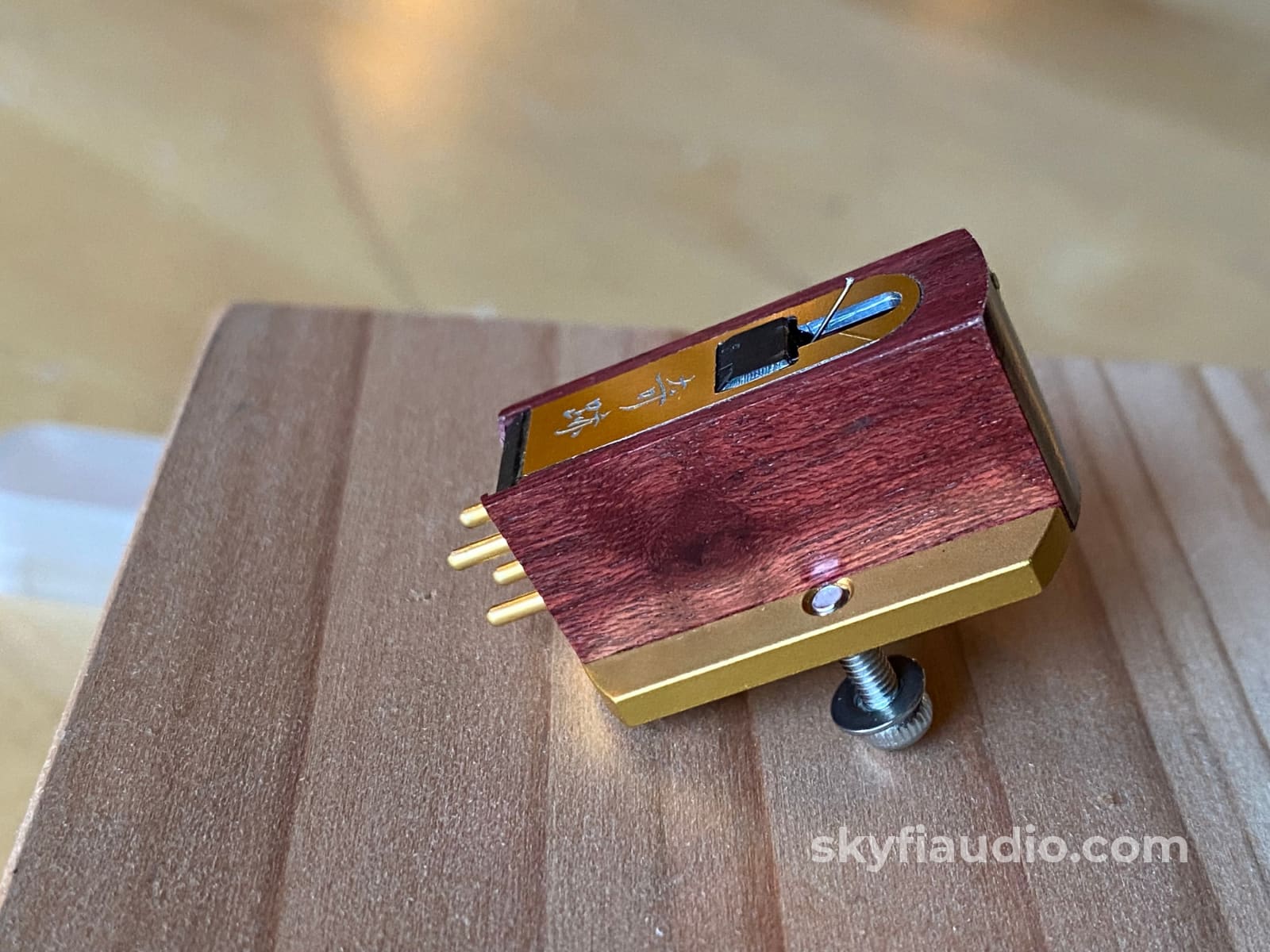

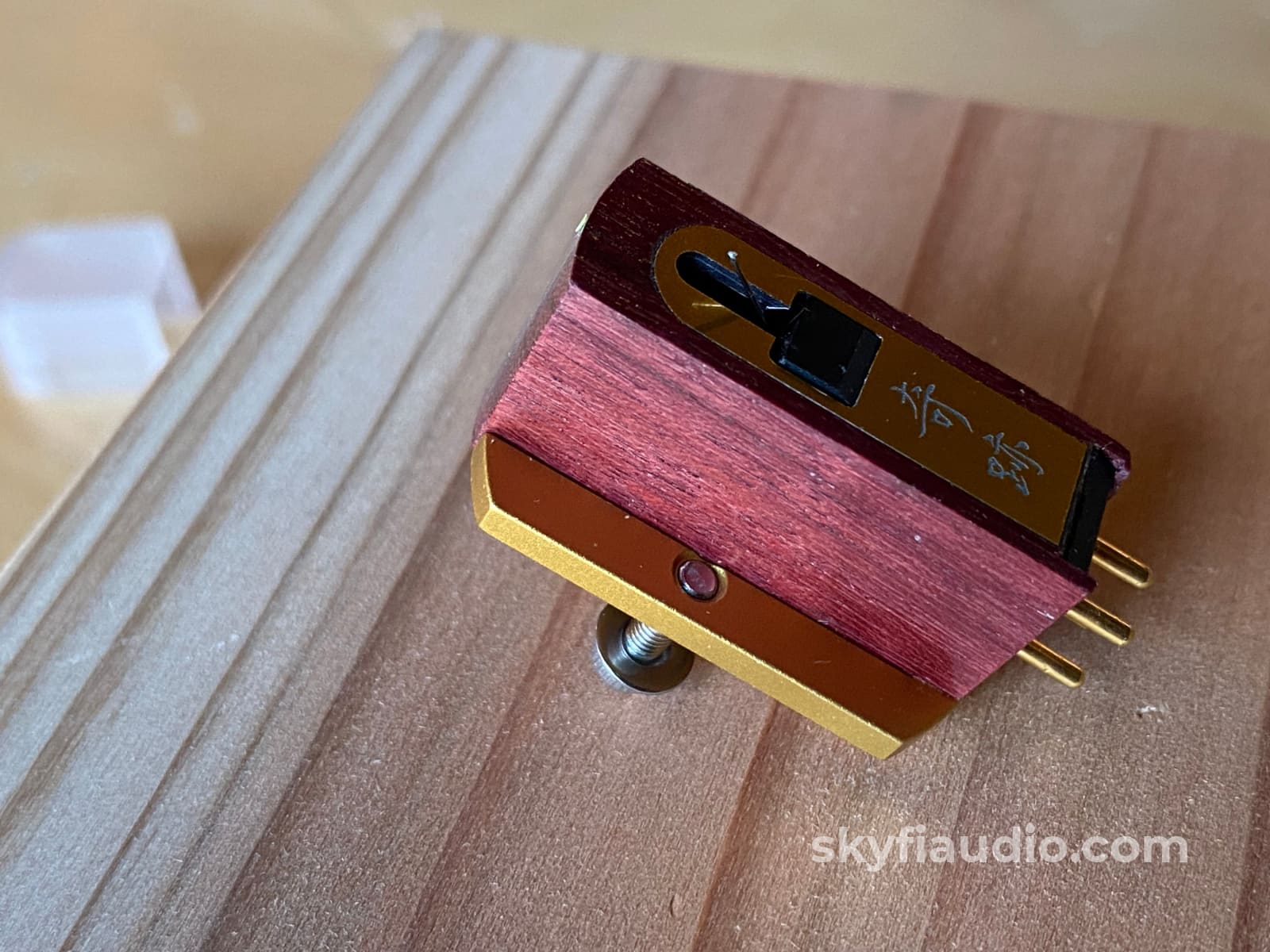

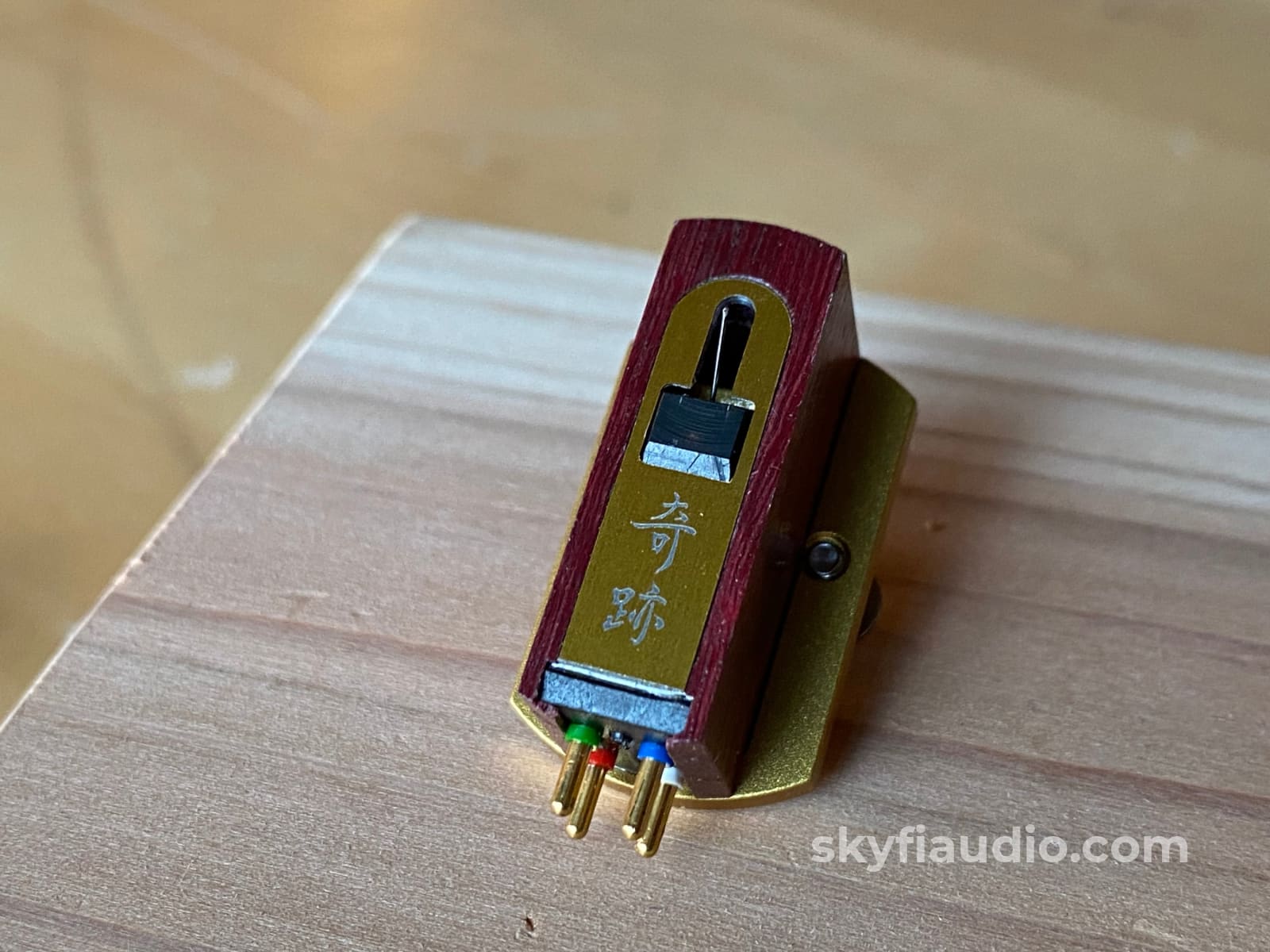

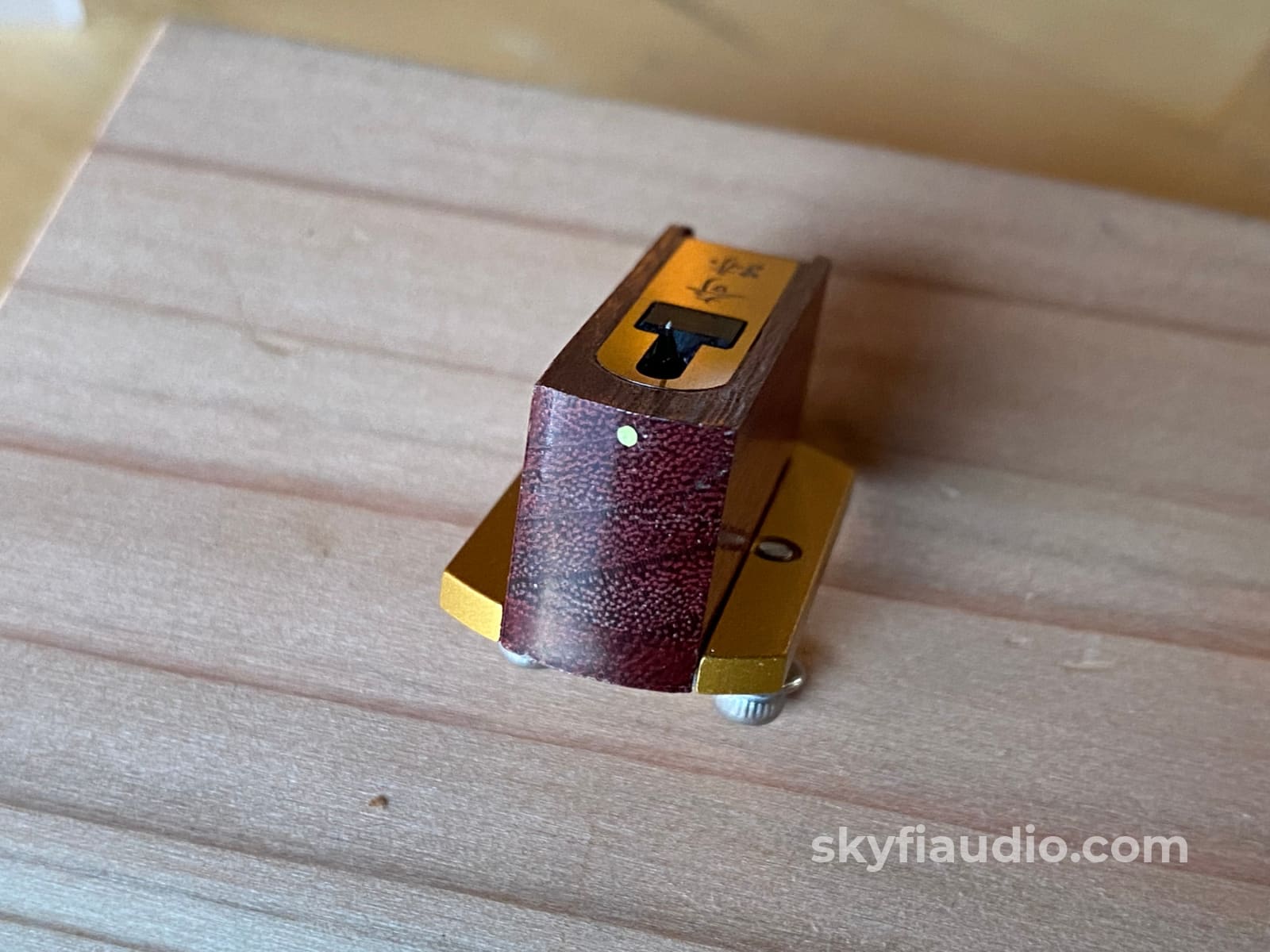

The Kiseki PurpleHeart phono cartridge has all the hallmarks of a state of the art cartridge.

It features an MC (Moving-Coil) design, boron cantilever, nude line-contact diamond stylus, and an exotic PurpleHeart wood body.

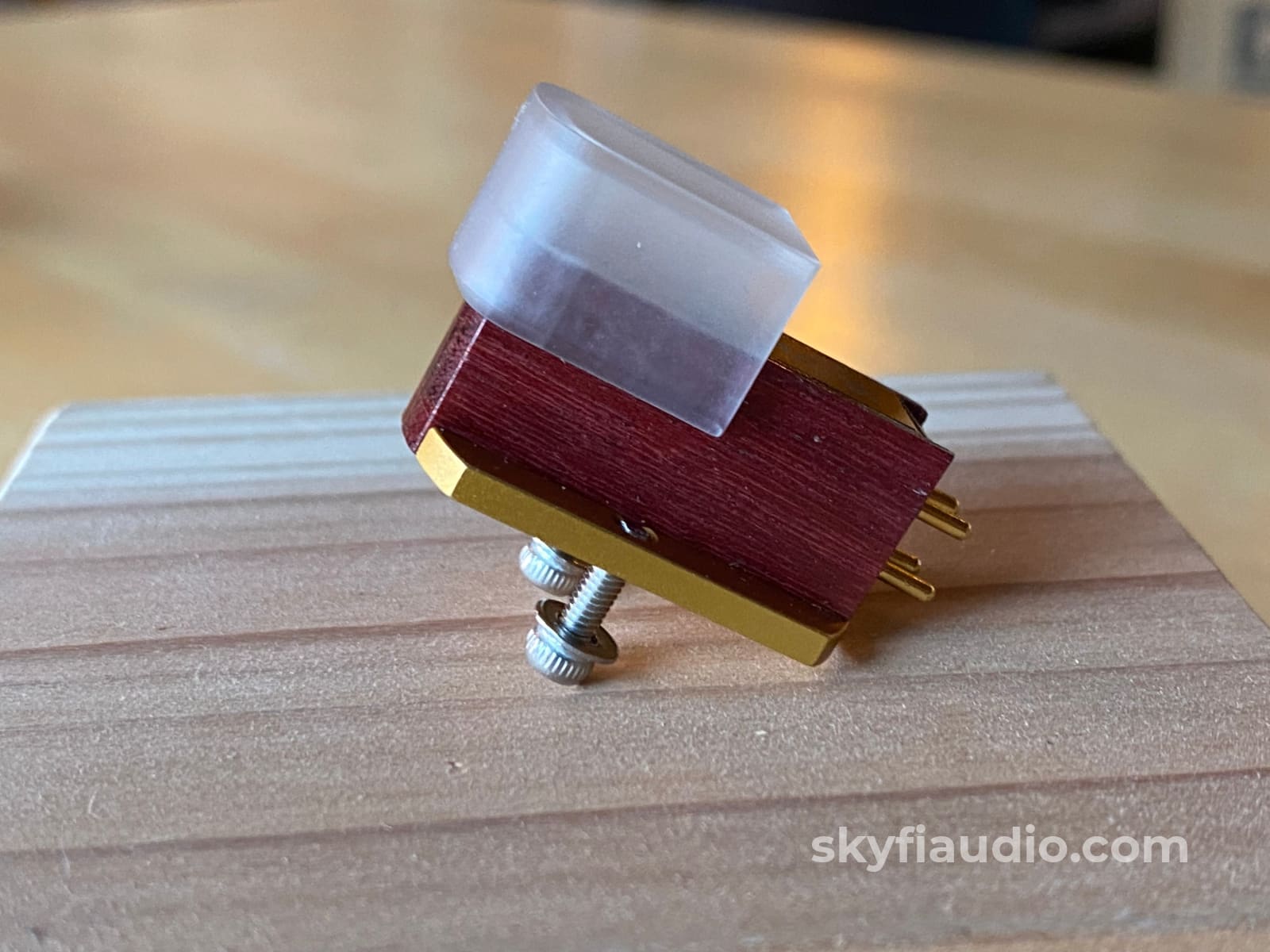

This particular example is in excellent condition with very little wear after inspection under our dedicated shop microscope, and in our testing. Included with the cartridge is a custom-made 3D printed stylus protector.

SkyFi Cosmetic Notes:
Very light signs of wear on cartridge body. Overall Excellent.

Ownership:
Second Owner

General Sound:
Smooth, uncolored, undistorted natural and clean

Cosmetic Condition:
8/10 = Very Good. Excellent front faceplate, one minor flaw on chassis side or top. See our detailed rating description here.

Working Condition:
Working perfectly and tested in our lab.

Included:
Just the Unit

Packing:
Will be packed using our highly developed in-house process and custom packing materials.Reviews:
Click Here

Original MSRP:
$3,199.00

Specs:
Type: Moving-coil
Body: Purpleheart wood, 30mm long
Cantilever: Solid boron
Stylus: Nude line-contact diamond, mirror polished
Stylus tip radius: 4 x 120µm
Vertical tracking angle (VTA): 20 degrees
Coil: Pure iron
Weight: 7 grams
Output voltage: 0.48mV at 5cm/s
Internal impedance: 42 ohms
Frequency response: 20Hz–30kHz ±1dB
Channel balance: 0.2dB
Channel separation: 35dB at 1kHz
Tracking ability (at 315Hz at a tracking force of 2.6 grams): 80µm
Dynamic compliance: 16µm/mN
Recommended loading: 400 ohms
Recommend tracking force: 2.0–2.6 grams
Recommended tonearm mass: Medium
Break-in period: 50–100 hours

Testing Process:
We start by doing a detailed physical inspection under light magnification to asses the cantilever condition, its position in the cartridge body, and the condition of the suspension.

We also inspect any coil wires and the output connections to make sure it hasn't been strained. We then perform a light cleaning with specialized agents and very carefully blow dry with compressed air.

Following that, we conduct a thorough examination using our Wild Heerbrugg professional microscope. From there we can asses the wear and quality of the stylus and determine how much use it has seen, and if there are any mechanical issues. We can also identify if it needs further cleaning or care.

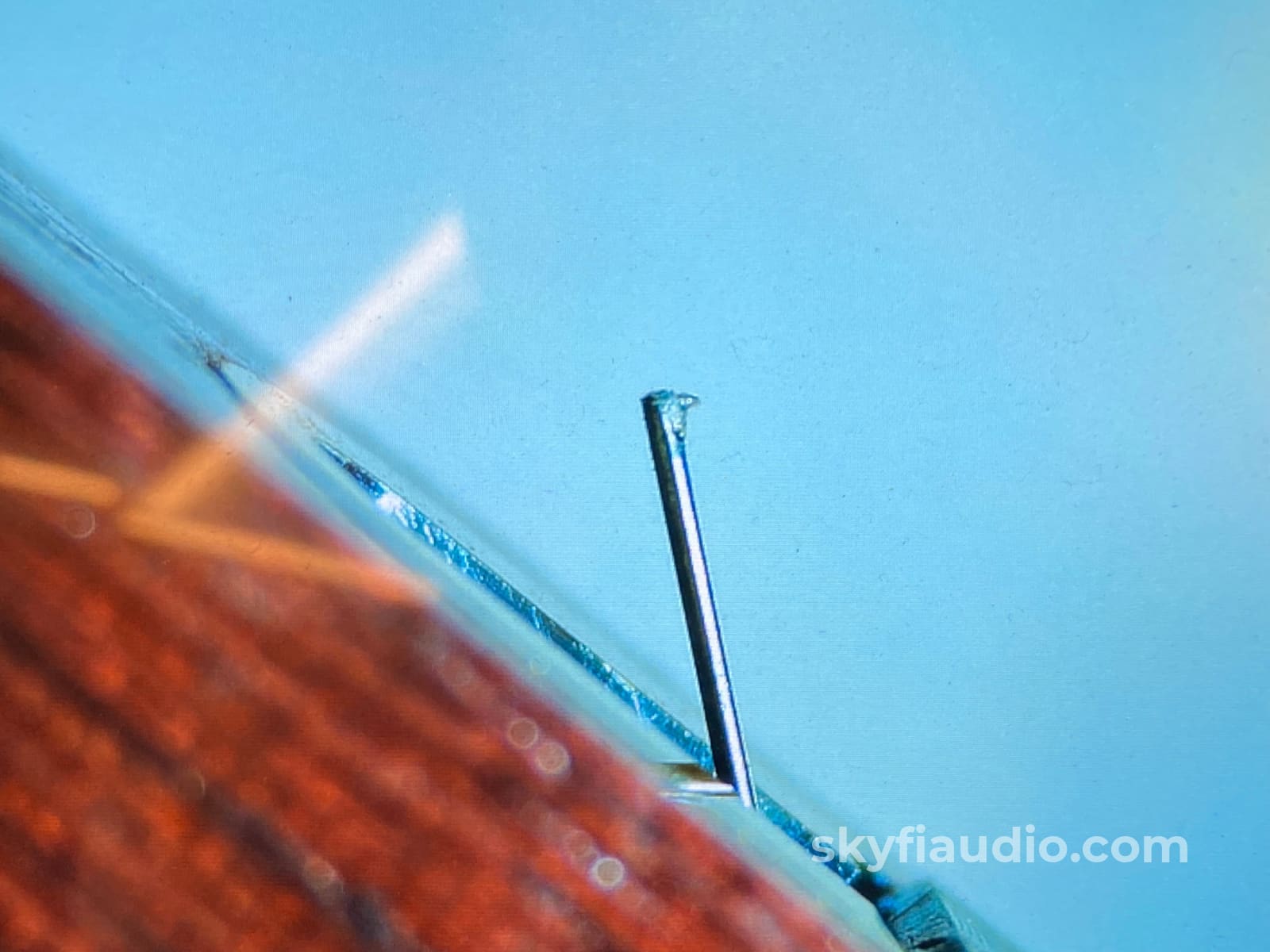

We then move the cartridge to a digital microscope where we take photos of the cantilever and stylus for future reference.

Next we move to the test bench where we can check for continuity of each channel and resistance.

On certain cartridges (or if the technician feels necessary) we install the cartridge on a turntable and run several test records to ascertain tacking ability, distortion, and compliance.
