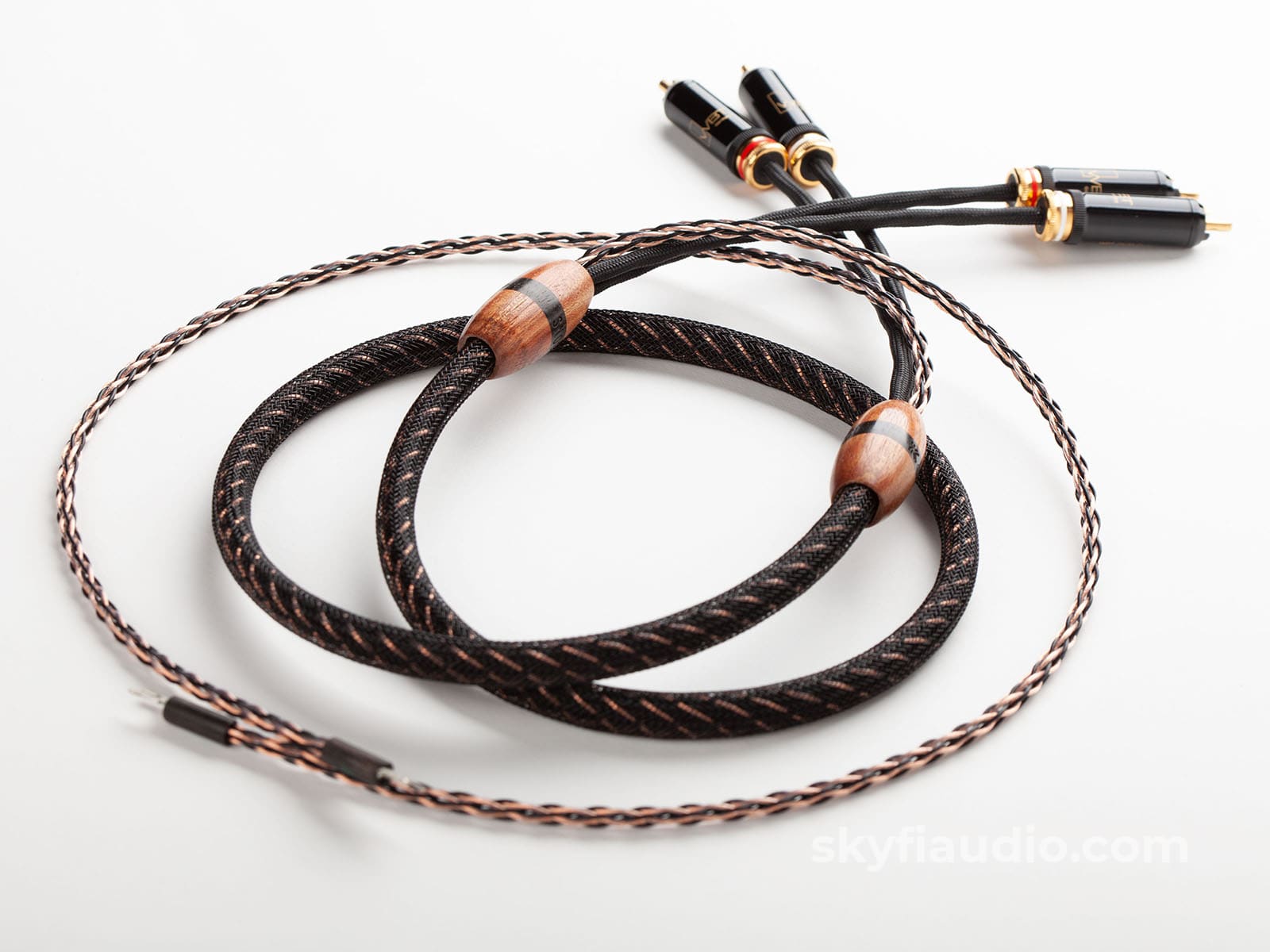

Kimber Kable - Select Series KS PHONO Tonearm Interconnects - Pure Copper - New


SkyFi Audio is proud to offer the full Kimber Kable product line as the leading official dealer in the Tri-State area.

This listing is for: a single Kimber Kable KS PHONO Tonearm Analog Interconnect.

Brand new, featuring Pure Copper, and available in several different lengths via the drop-down menu at the bottom of this listing.

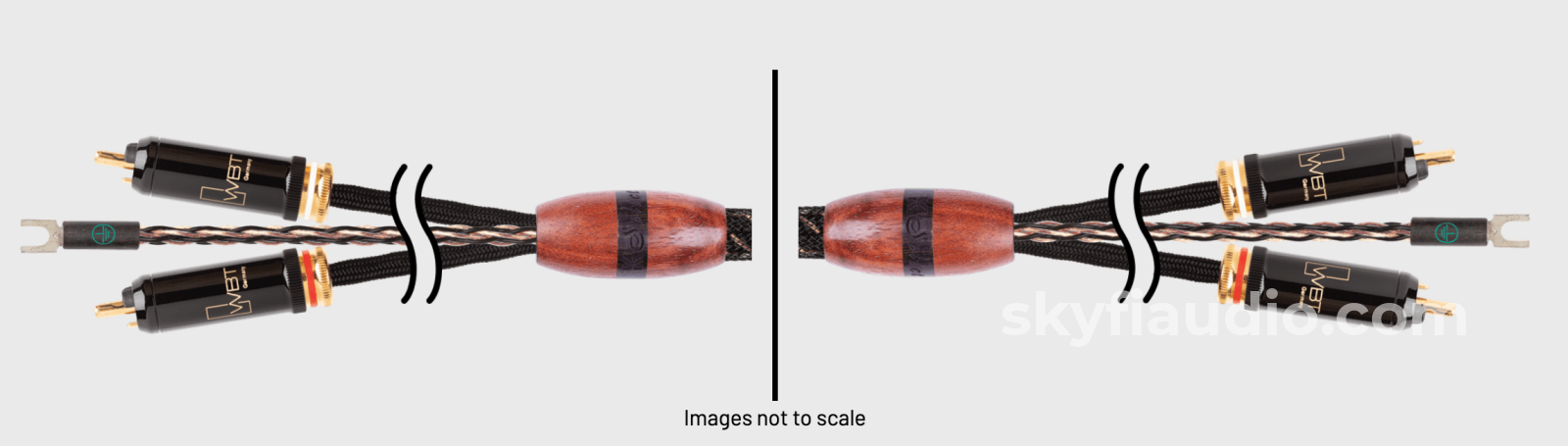

Featuring high-quality German-made WBT (RCA) connectors at both the Turntable end and Phono Stage end, plus a ground cable at both ends.

Kimber Kable - Handcrafting cables since 1979

The KSPHONO-CU tonearm cable was designed to minimizes both electrical noise as well as mechanically transmitted noise. The pure copper signal pair incorporates air articulated PTFE dielectric for minimal capacitance and dielectric losses.

The four, pure copper conductors are shielded with over braided shielding with 95% coverage. This grounding plane is further improved with the addition of 8, 25AWG pure copper conductors. These copper conductors are bonded to the underlying shielding with pure silver foil and silver solder. This unique design provides extremely low DC resistance to ground for the lowest possible noise floor.

Pure copper 8x24AWG ground plane. (lowest possible noise) Pure copper signal pair.

German-made high-end WBT style terminations complete the signal path at both ends. For phono outputs (record players, microphones, etc.) good shielding against interference fields is particularly important. This is provided by the WBT-0102 CU that features the brass sleeve of higher conductivity connected to the minus pole – but otherwise is all nextgen™. (75 ohms up to 200 MHz) Utilizes pure copper contacts.

The KSPHONO-CU tonearm provides unmatched tonality with an ultra low noise floor delivering maximum dynamics and realism.

 Performance Features Include:
• Wrapped PTFE (expanded) dielectric
• Pure copper signal conductors
• Pure copper 8-wire braided ground plane
• Fully shielded

To view all Kimber items currently listed for sale click here

If you don't see a specific type or length listed simply contact us for a custom cable request.
