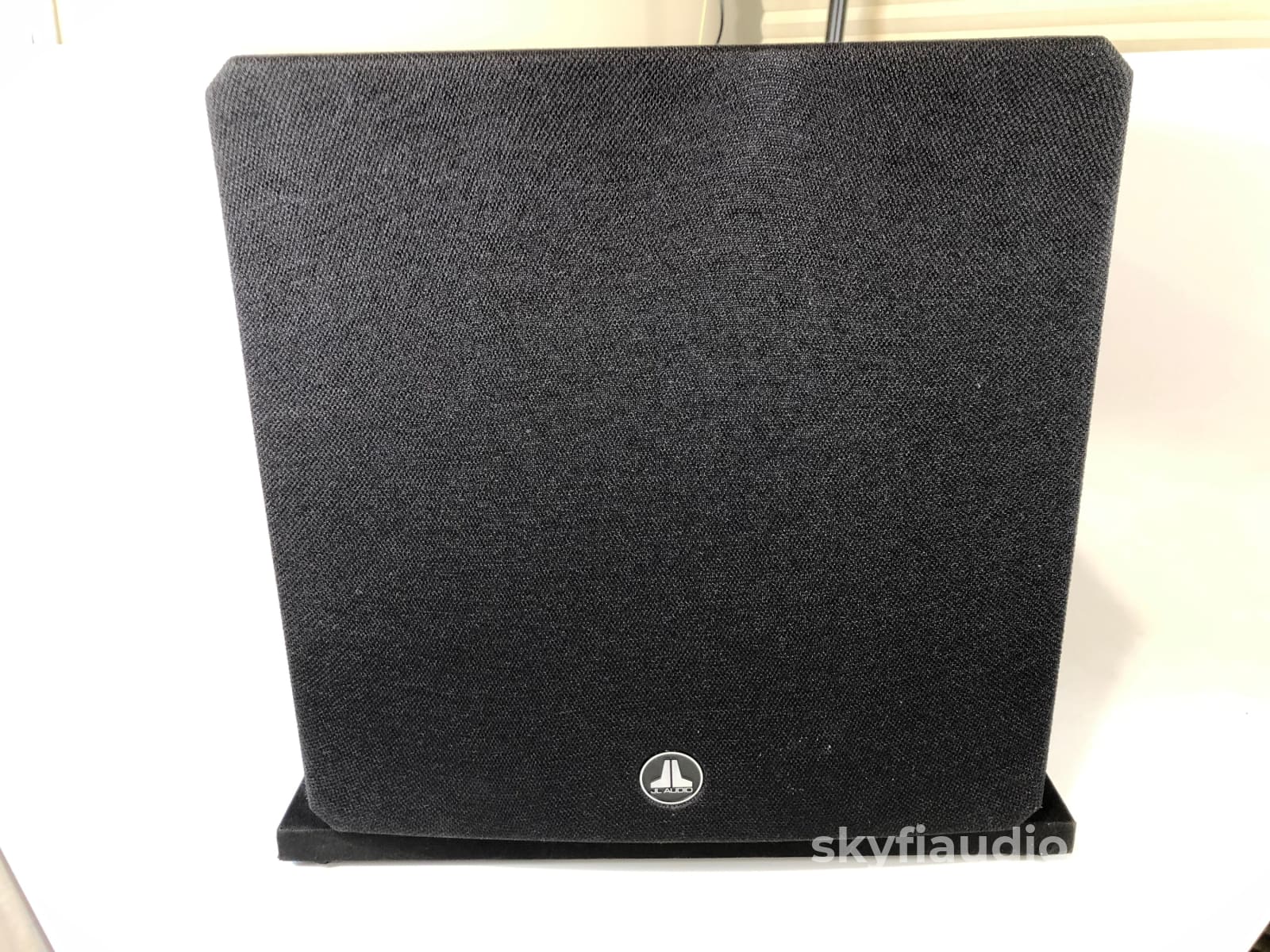

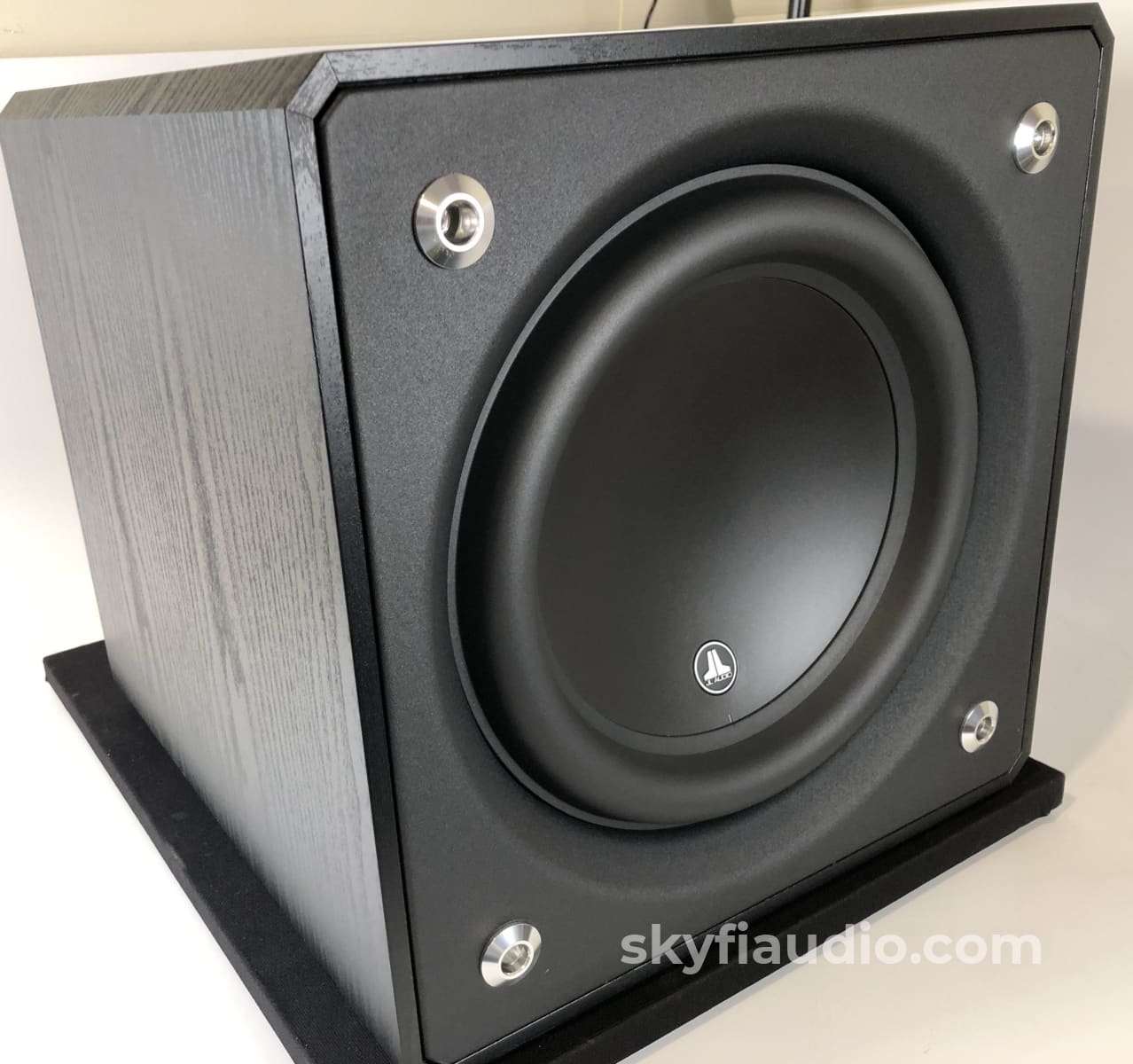

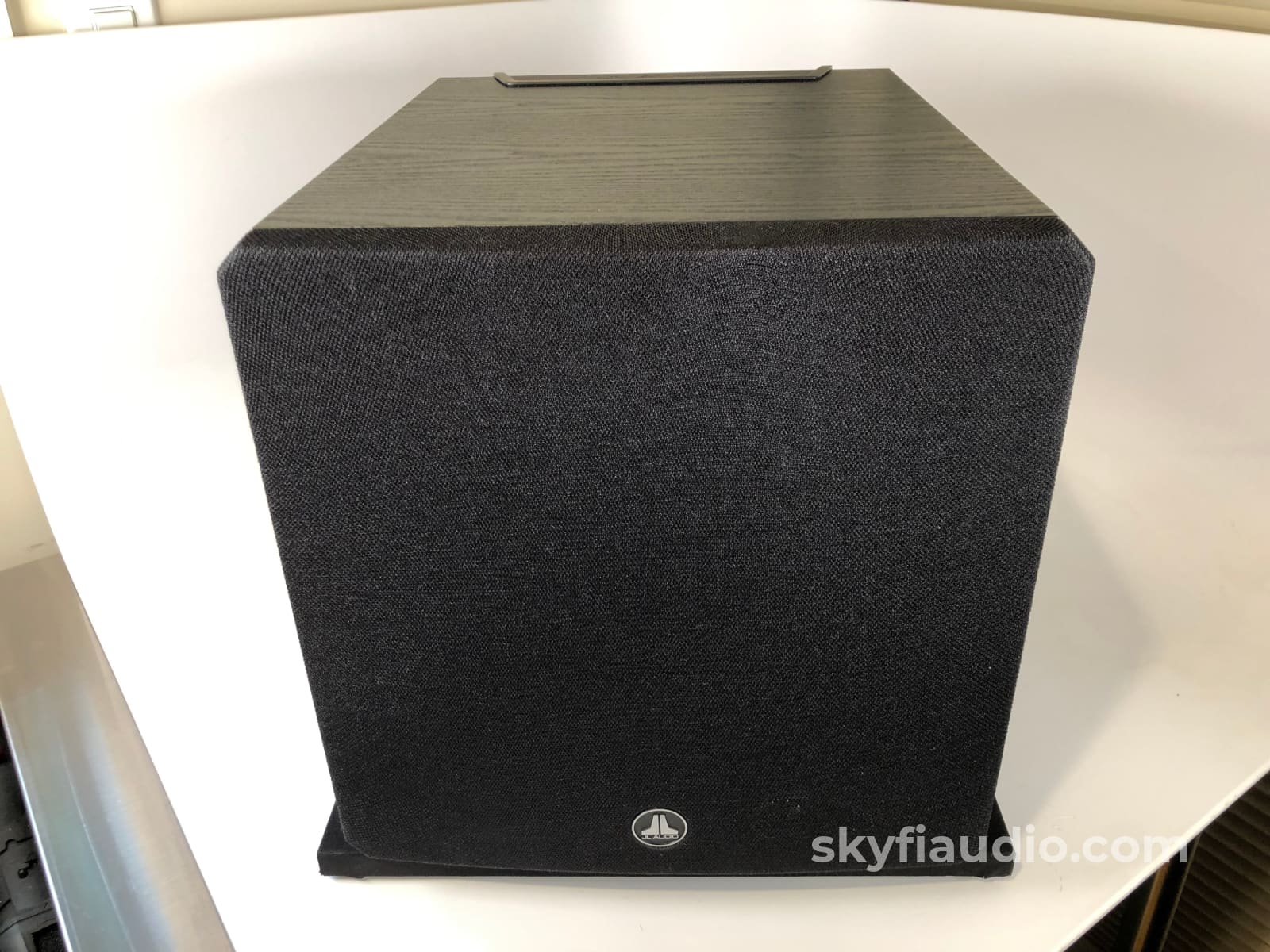

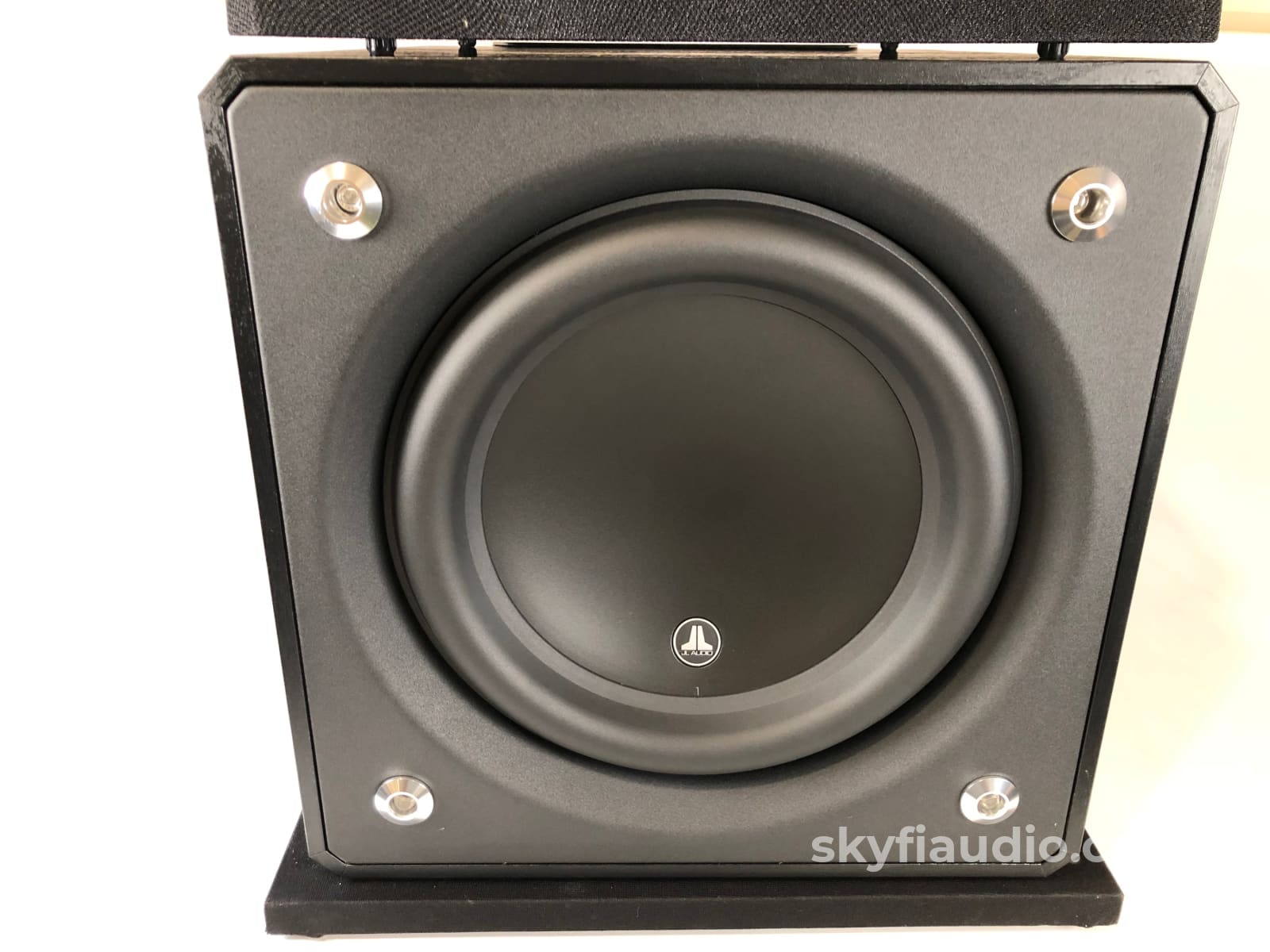

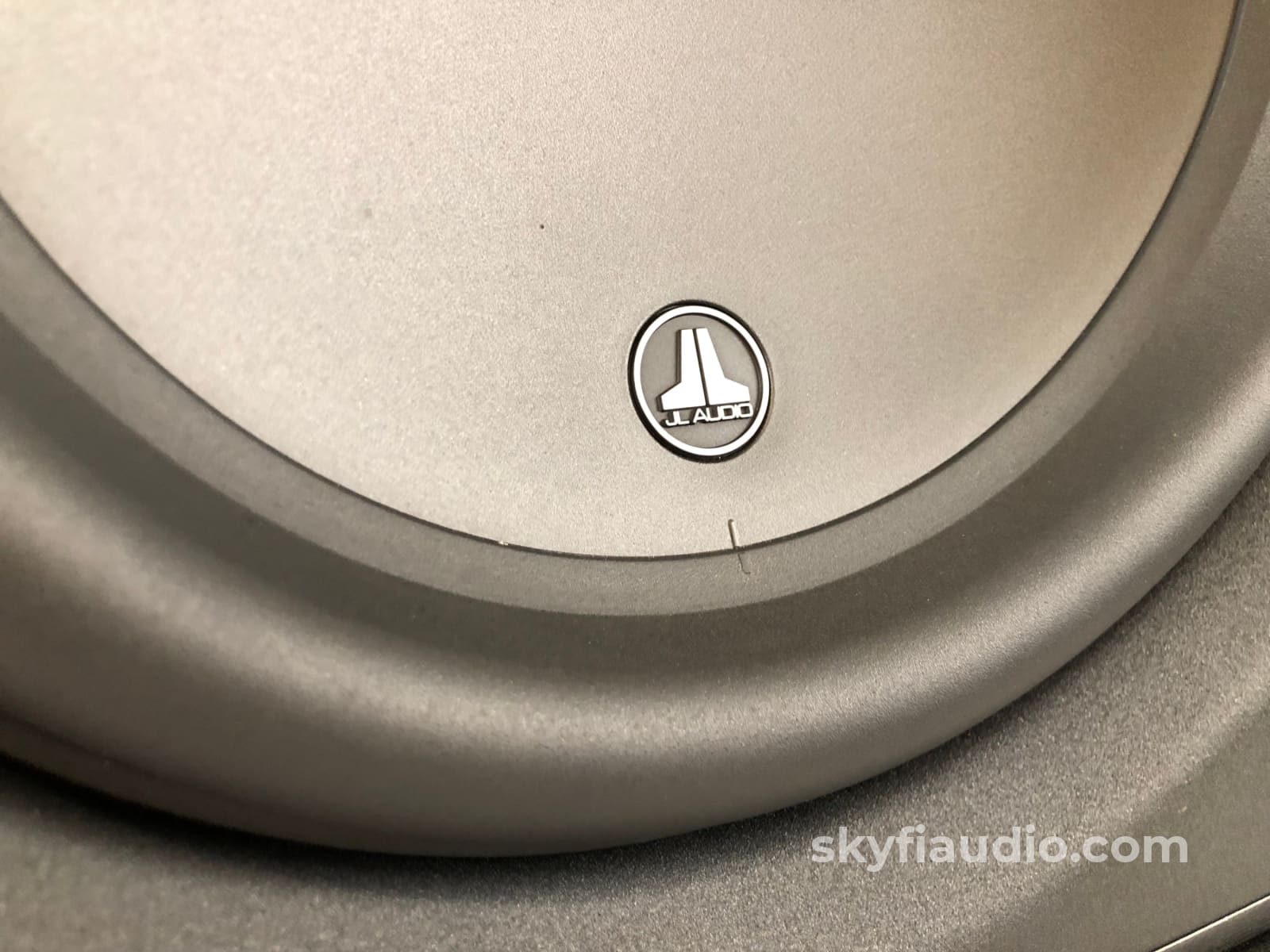

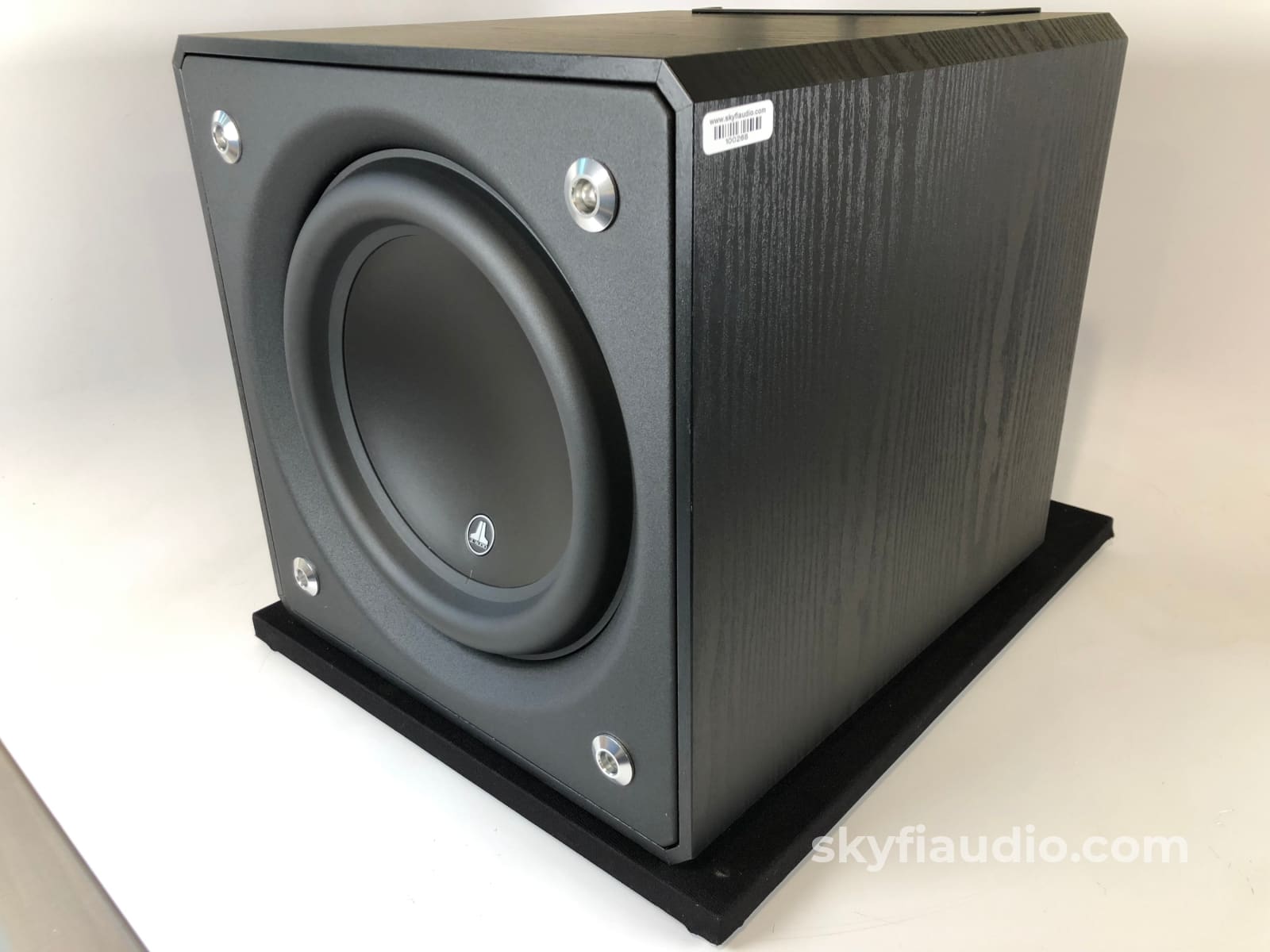

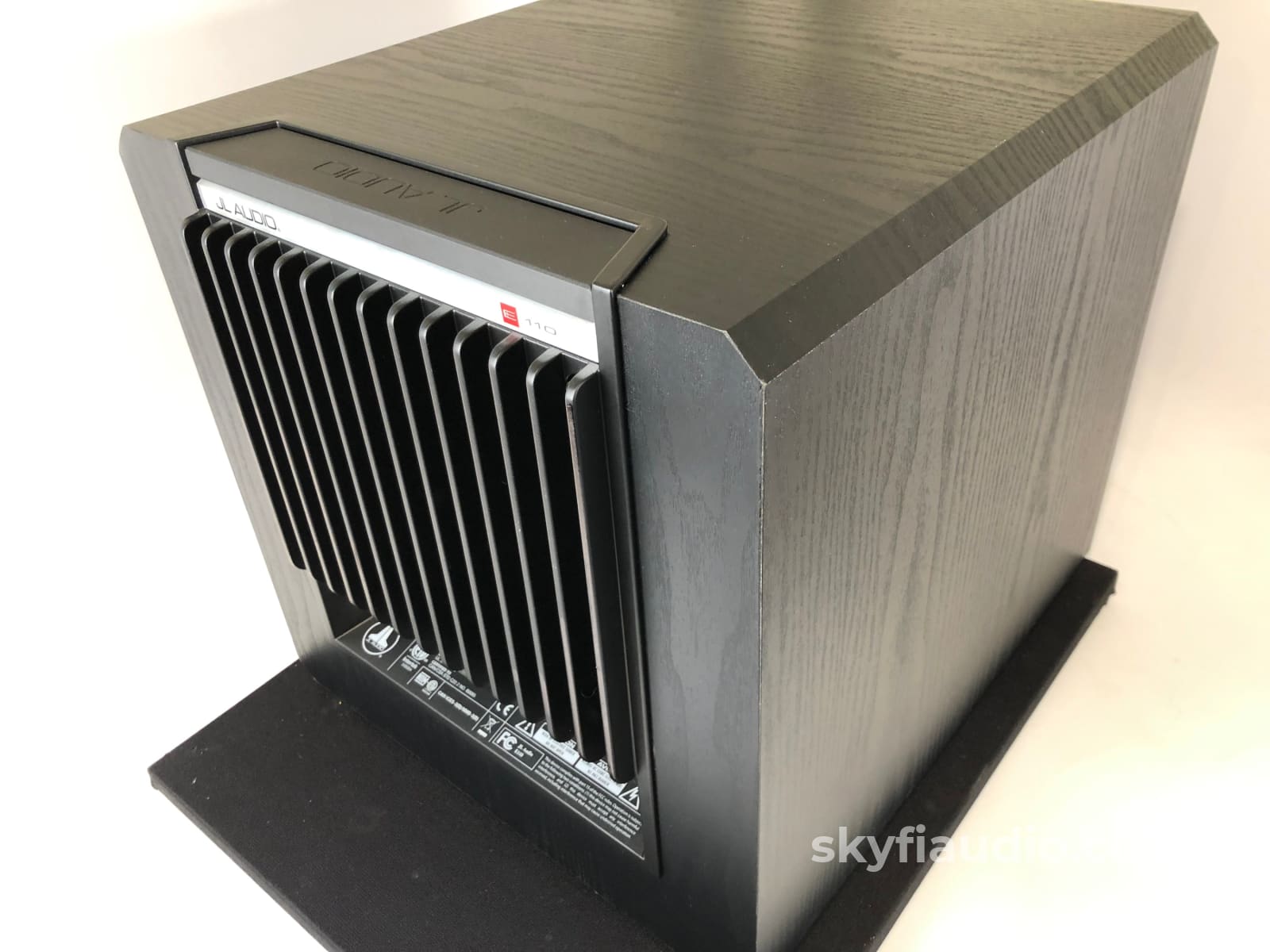

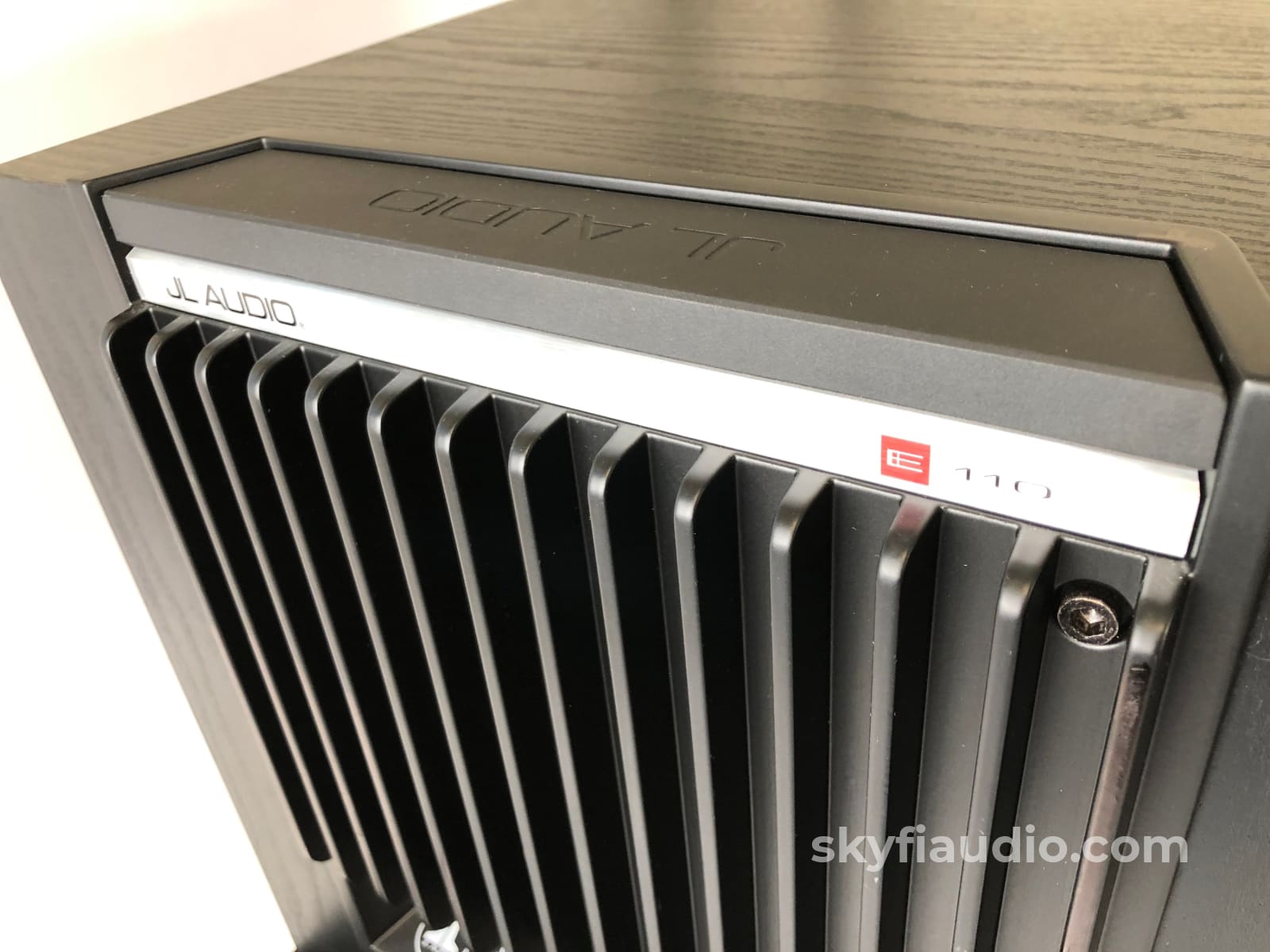

JL Audio E-Sub e110 Powered Subwoofer - Amazing Depth

Sale price$0.00
Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

Pickup currently unavailable at SkyFi 479

Jl Audio E-Sub E110 Powered Subwoofer - Amazing Depth Speakers

JL Audio E-Sub e110 Powered Subwoofer - Amazing Depth

SkyFi 479

Pickup currently unavailable

479 South Broad Street
Glen Rock NJ 07452
United States

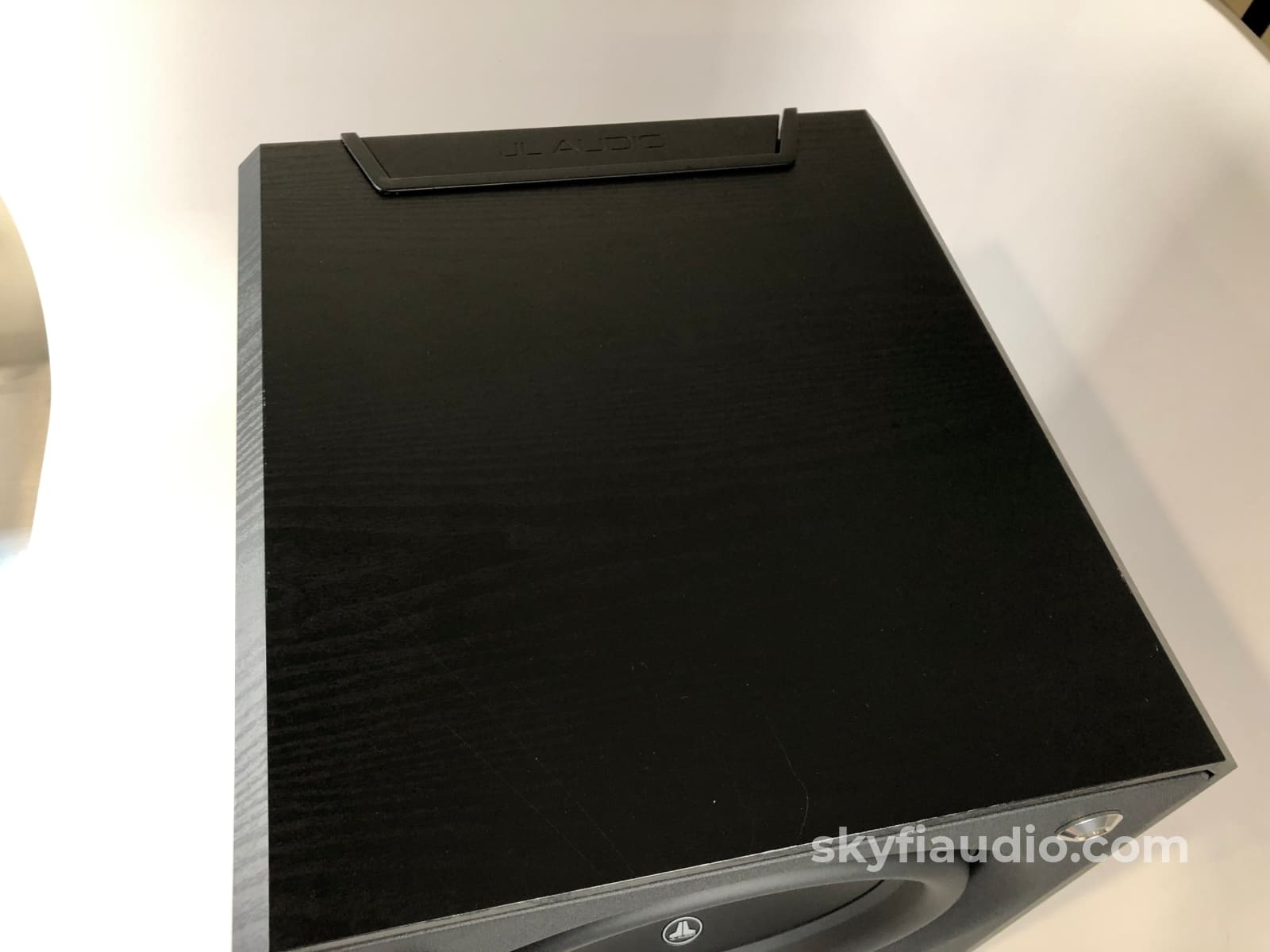

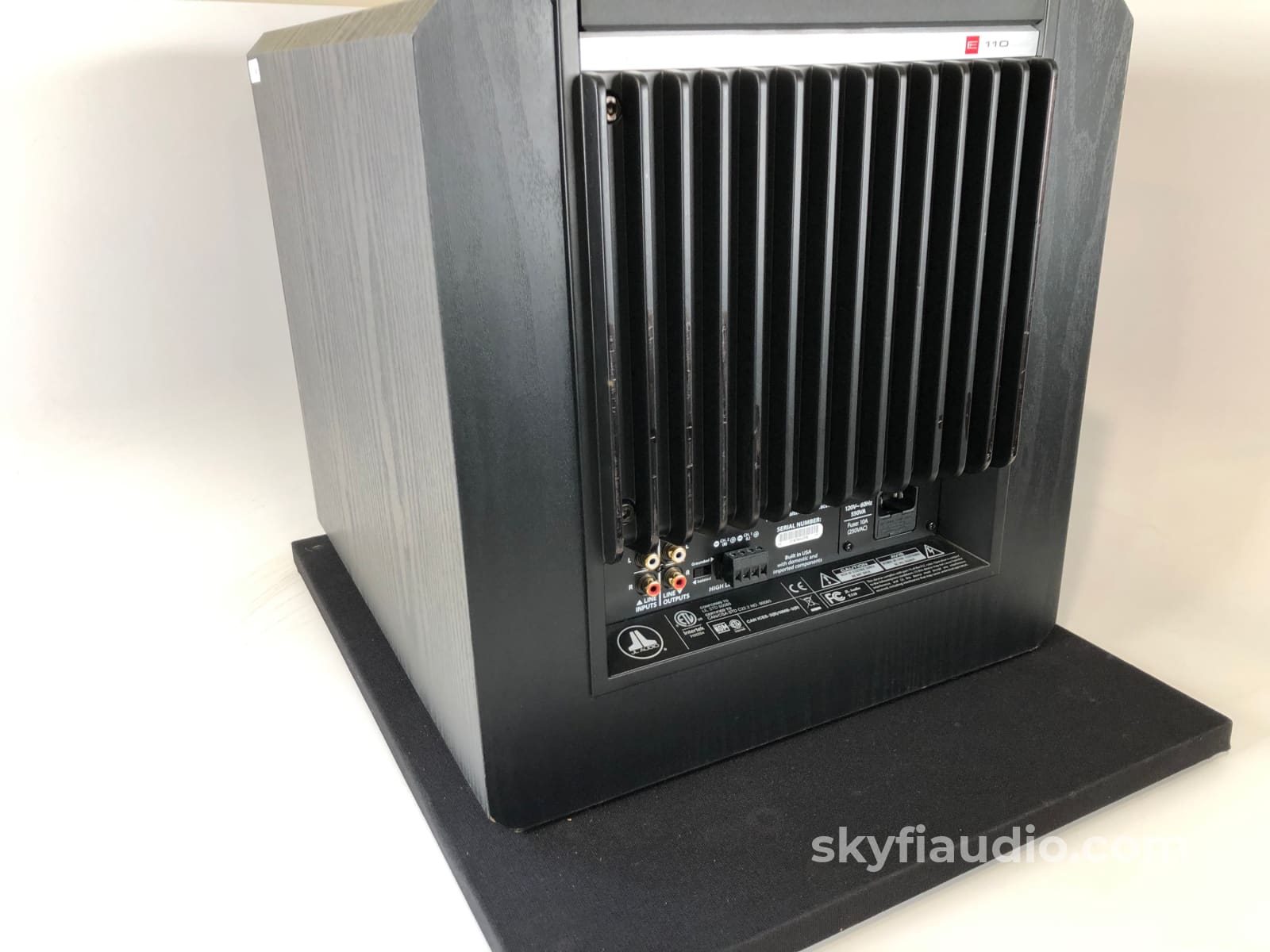

In overall great condition with no significant signs of use or any deep scratches.

Tested with a sweep generator and working perfectly.

From the E-Sub product brochure:

"The e110’s can be used in a wide range of applications, from full home theater systems to dedicated two- channel music systems, to desktop audio workstations.

A true, two-way onboard crossover with high-pass line outputs allows for seamless integration with two- channel systems, while high-level inputs even make it possible to add an e110 to systems lacking line outputs."

E-Sub e110 Features:

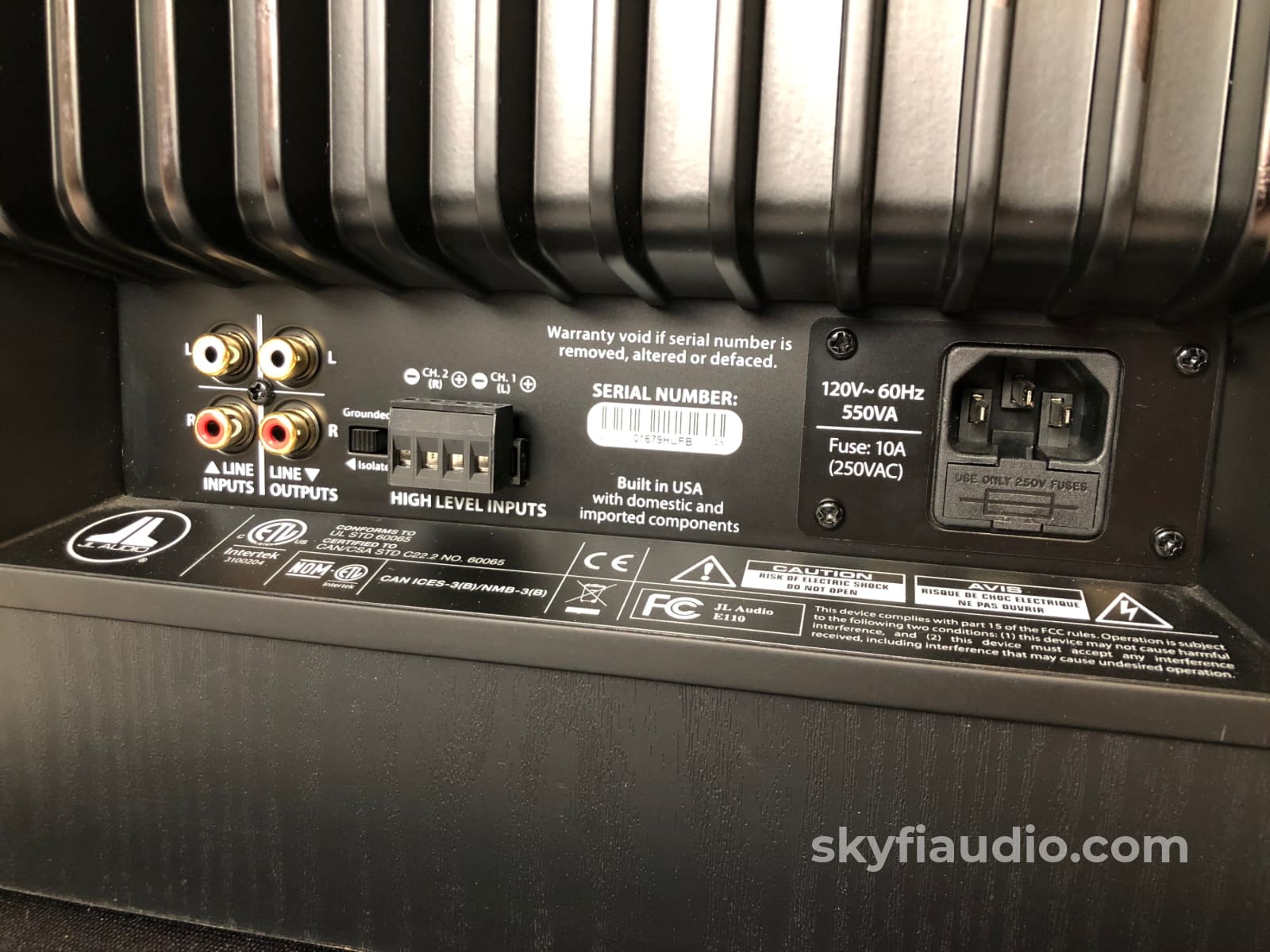

Unbalanced Inputs: Stereo or Mono (two RCA jacks)
High-Level Inputs: Stereo or Mono (removable plug)
Line Outputs: Unbalanced (two RCA jacks): High-Pass (set by crossover) or Pass-Through
Input Grounding: Selectable (Isolated or Grounded)
Level Control: Variable: full mute to +15 dB over reference gain
Power Modes: Off, On or Automatic Signal-Sensing
Crossover Filter: 24 dB per octave with Linkwitz-Riley alignment
Crossover Frequency Range: Variable: 25 Hz – 130 Hz
Polarity: 0 or 180 degrees
Phase: Variable from 0 – 280 degrees, referenced to 80 Hz

E-Sub e110 Specifications:
Enclosure Type: Sealed
Drivers: Single 10-inch (nominal diameter)
Frequency Response: (anechoic) 25 – 116 Hz (±1.5dB)
–3 dB at 23 Hz / 120 Hz
–10 dB at 18 Hz / 165 Hz
Input Impedance: Line Inputs: 10 kΩ High-Level Inputs: 4.3 kΩ
Effective Piston Area: 58.78 sq. in. (0.0379 sq. m)
Effective Displacement: 131 cu. in. (2.1 liters)
Amplifier Power: 1200 watts RMS short-term
Dimensions* (H x W x D): 14.24 in. x 13.50 in. x 16.51 in. / 362 mm x 343 mm x 419 mm
Net Weight: 52.7 lbs. (23.9 kg)
*Built in USA with Global Components

Click here for a PDF copy of the E-Sub Brochure

Click here for a PDF copy of the Owner's Manual

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.



Original Box








Physical Condition


Working Condition


SKU: 100268
