General:

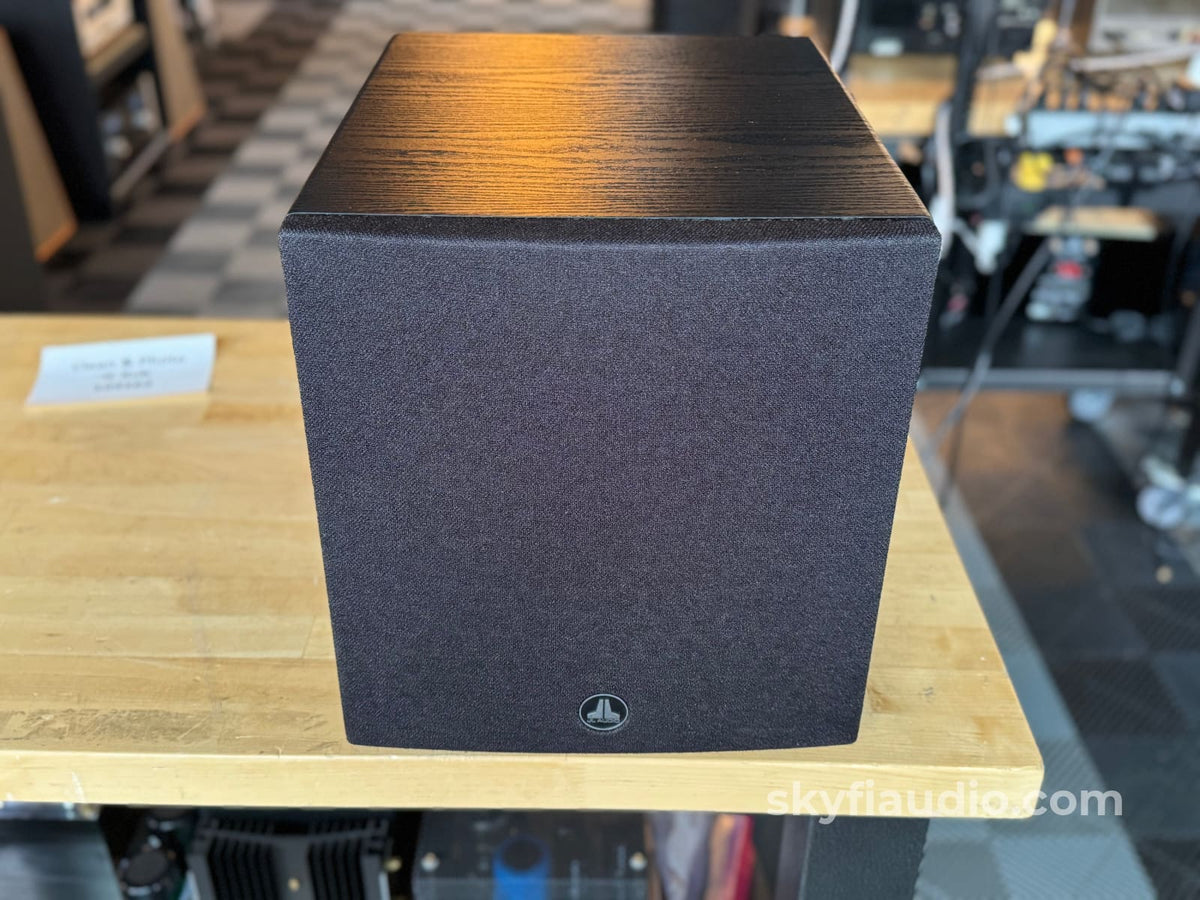

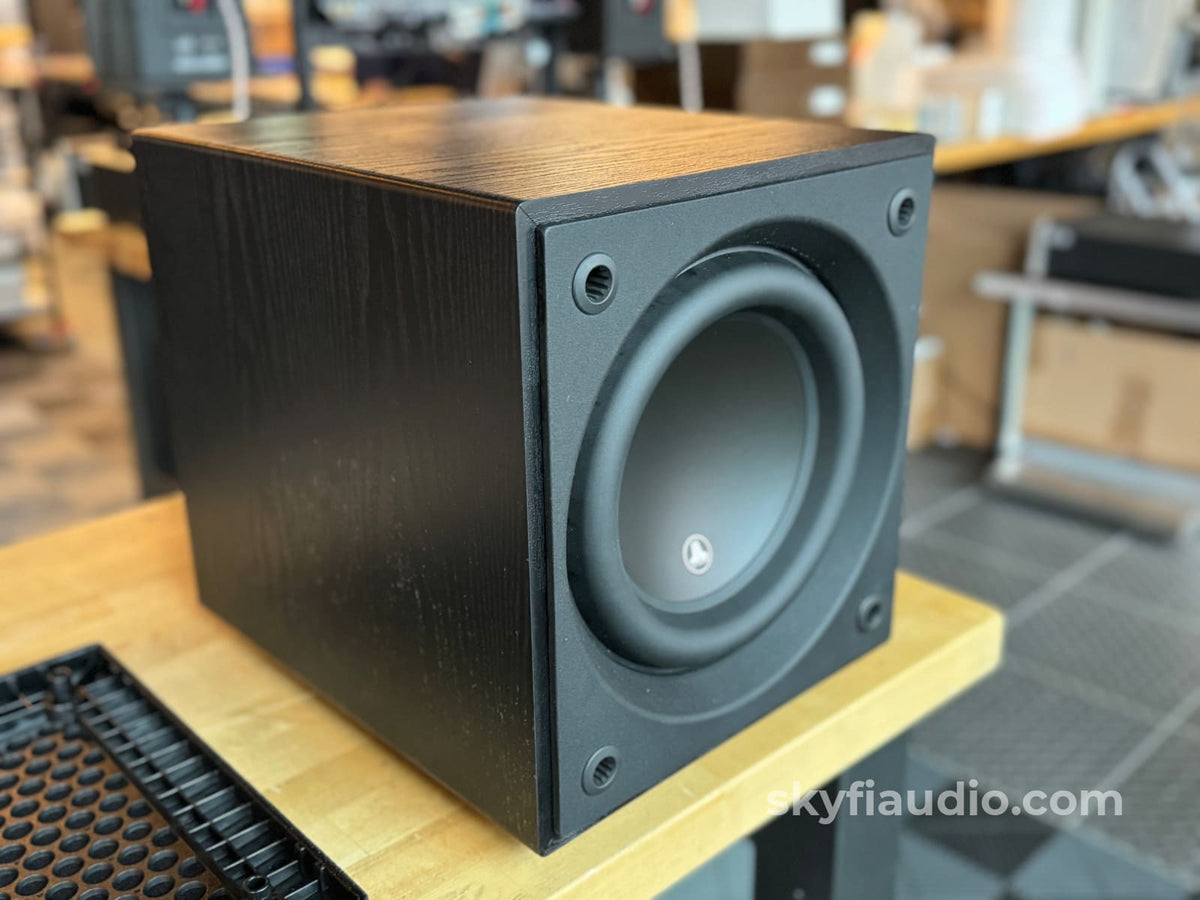

Midsize subwoofer from one of the highest regarded companies out there.
Looking and working perfect. Tested fully in our lab where it produced deep and well controlled bass.
More from JL Audio:
Powered Subwoofer with 10-inch Subwoofer, 750 watts
Born from JL Audio’s vast collection of advanced technologies, Dominion® powered subwoofers combine a state-of-the-art Subwoofer and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.

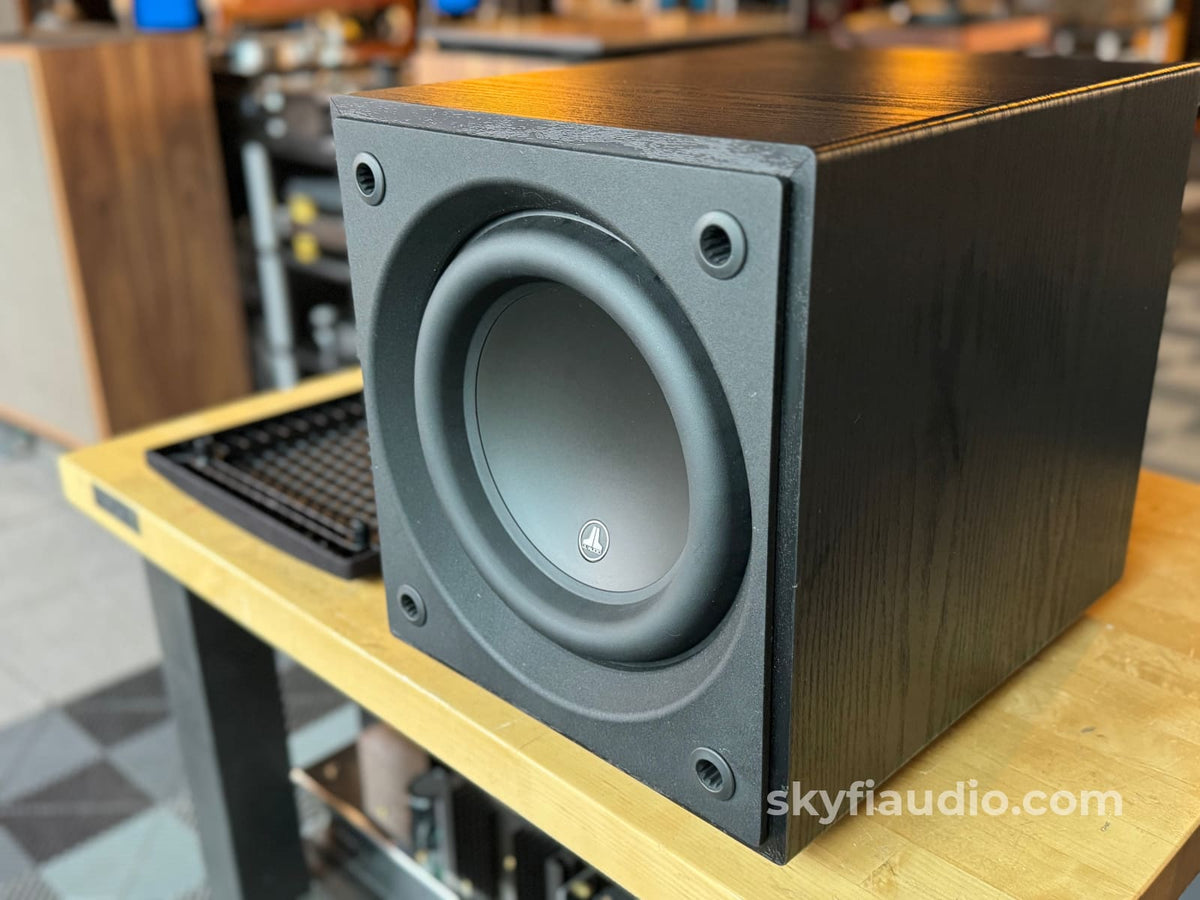

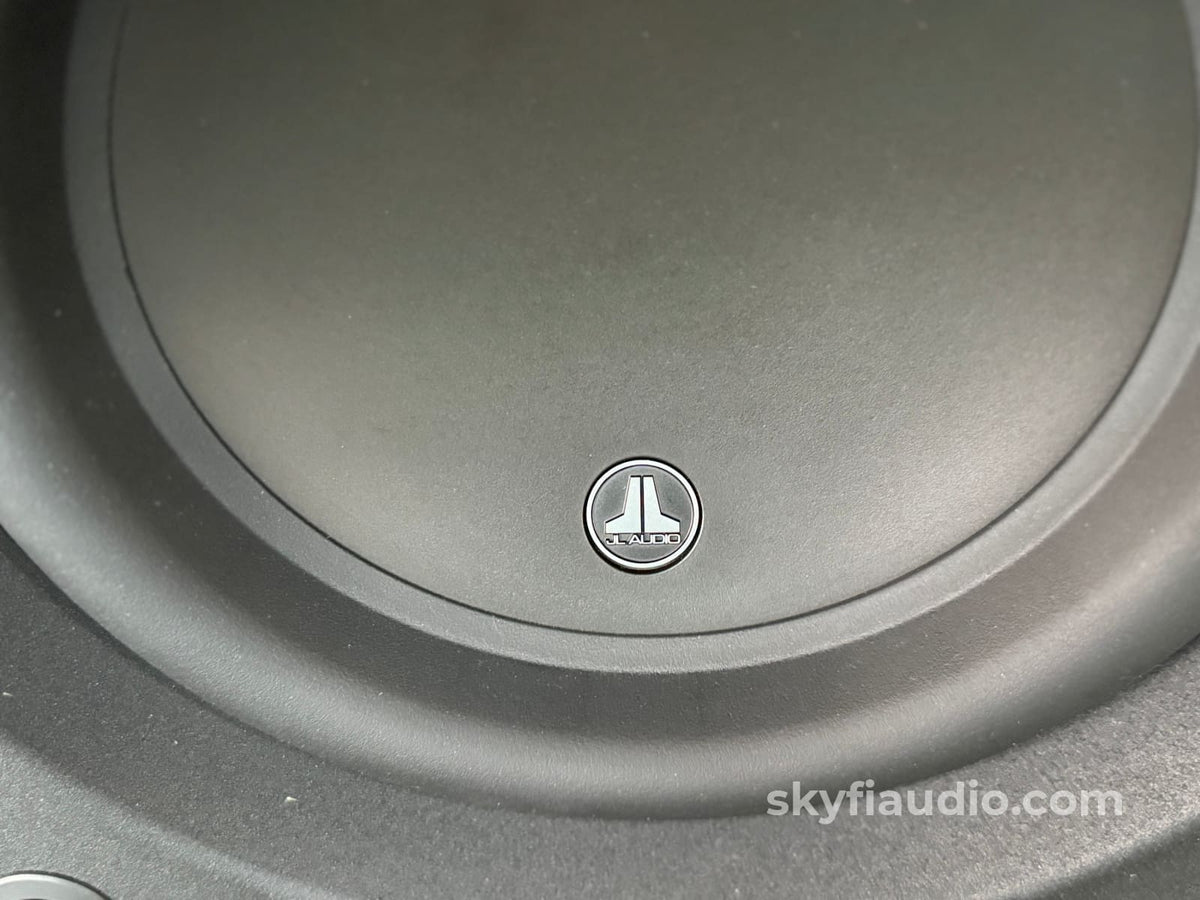

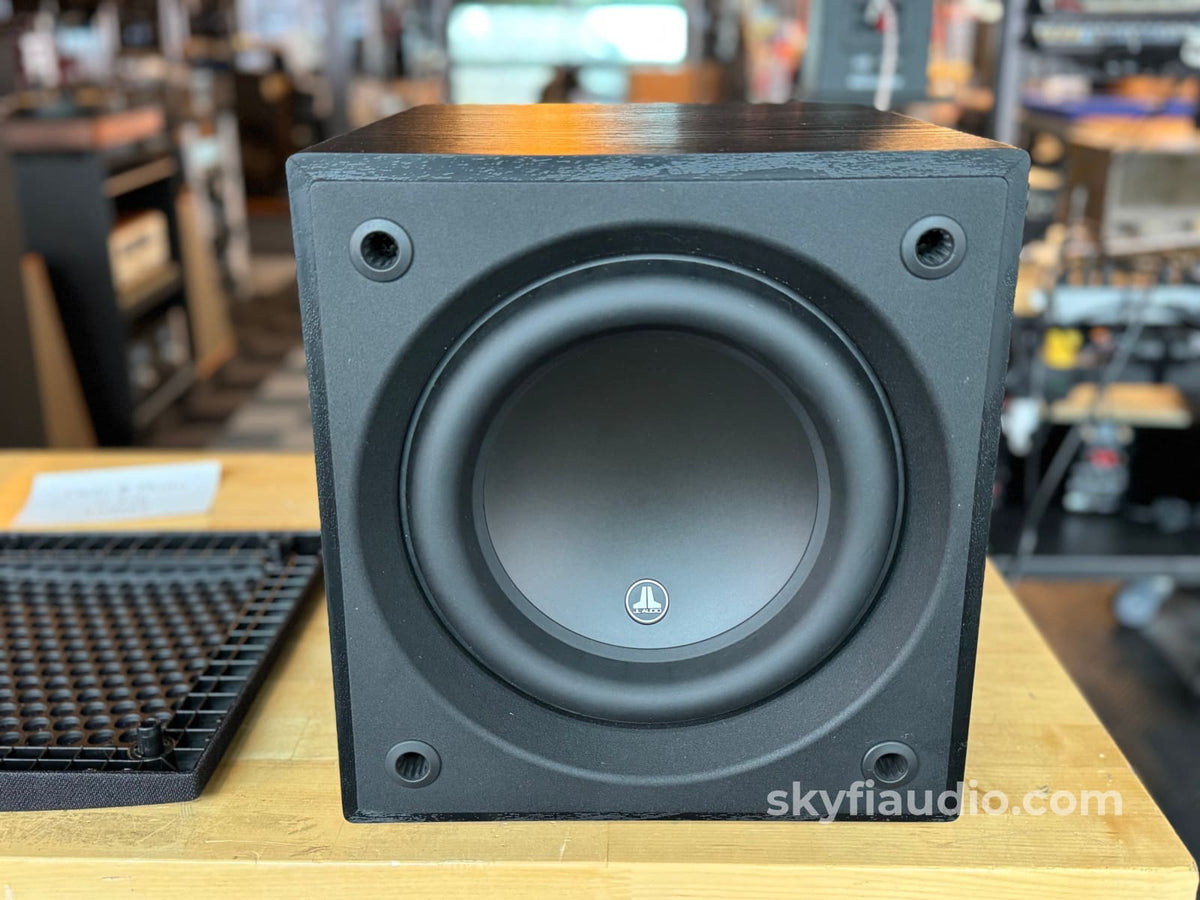

Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion® driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion® subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.
Dominion® amplifiers utilize an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion® powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.
With a host of signal processing features included, Dominion® powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion® almost anywhere, up to 100 feet (30 meters) away from your source unit.
To contain the immense pressures created by the Dominion® driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion® powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.
General Specs:

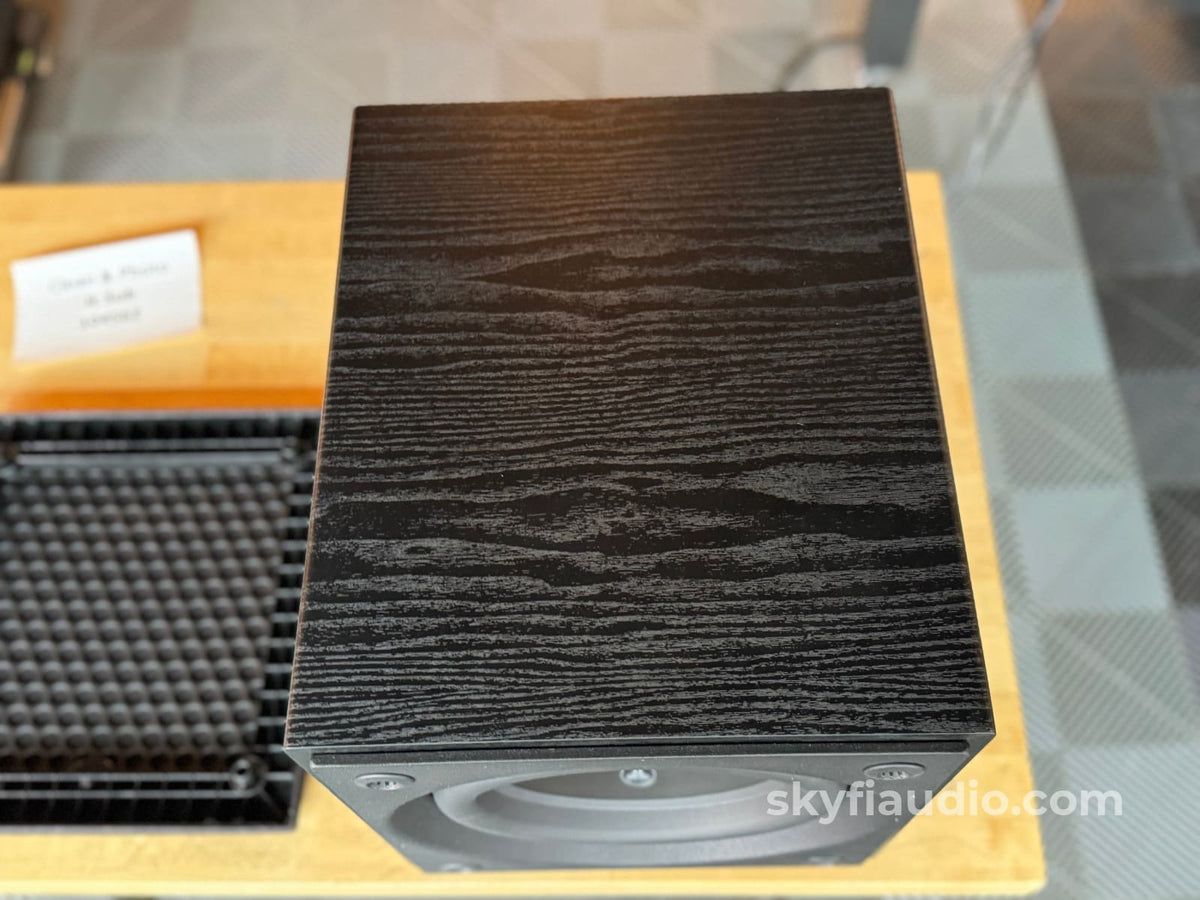

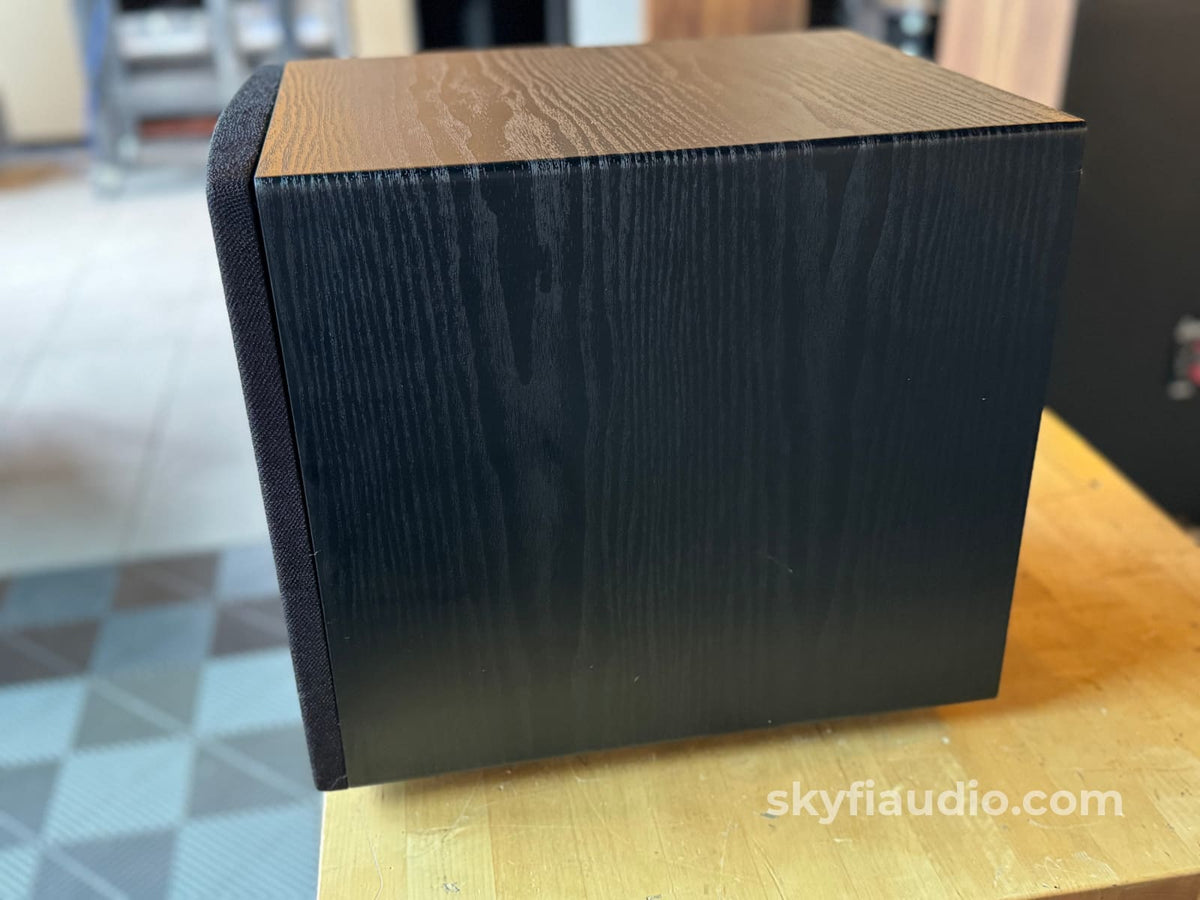

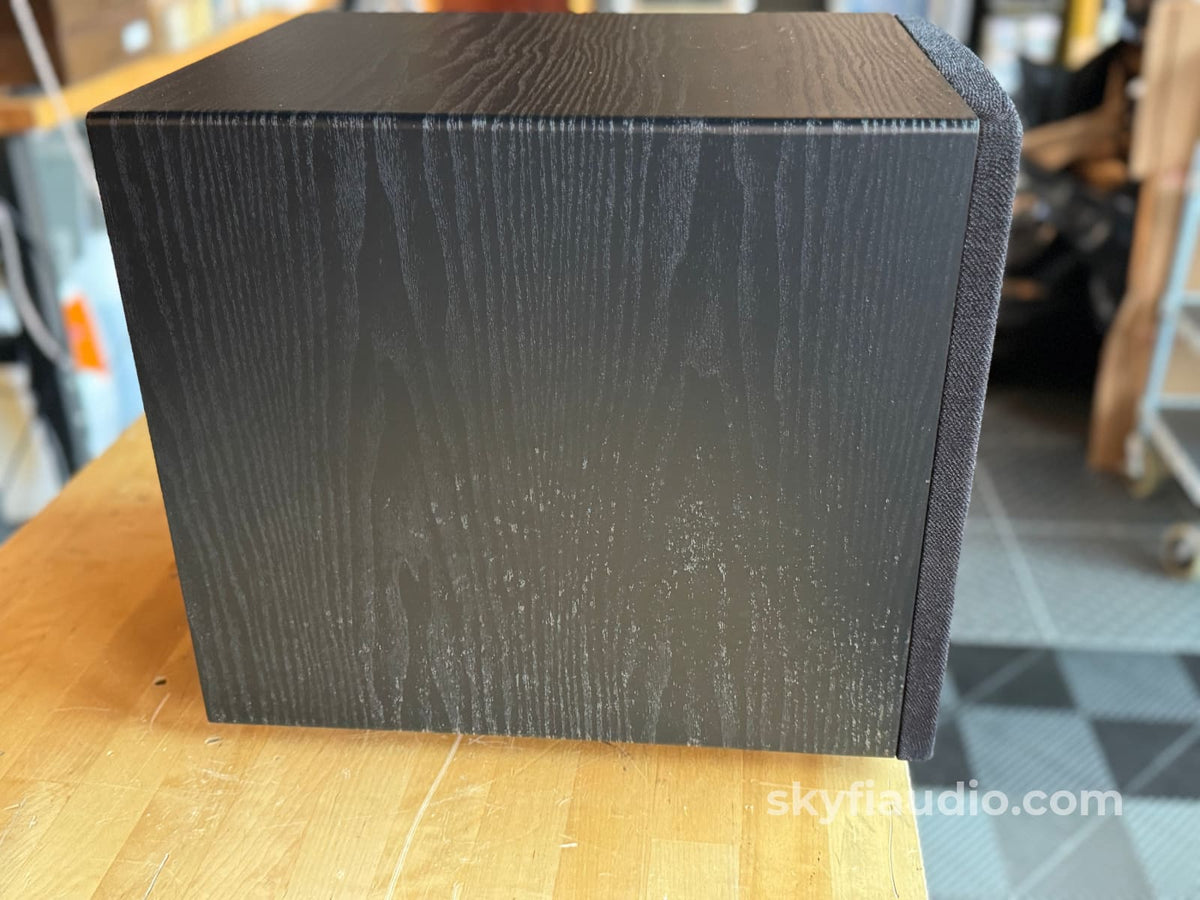

Finish: Black Ash
Grille Finish: Black Fabric
Enclosure Construction: MDF
Frequency Response (Anechoic):
27 - 111 Hz (±1.5dB)
-3 dB at 25 Hz / 118 Hz
-10 dB at 21 Hz / 143 Hz
Effective Piston Area (Sd): 48.71 sq in / 0.0314 sq m
Effective Displacement: 127 cu in / 2.08 L
Amplifier Power: 750 W RMS short-term
Power Mode: Automatic (Signal-Sensing)
Light Modes: N/A

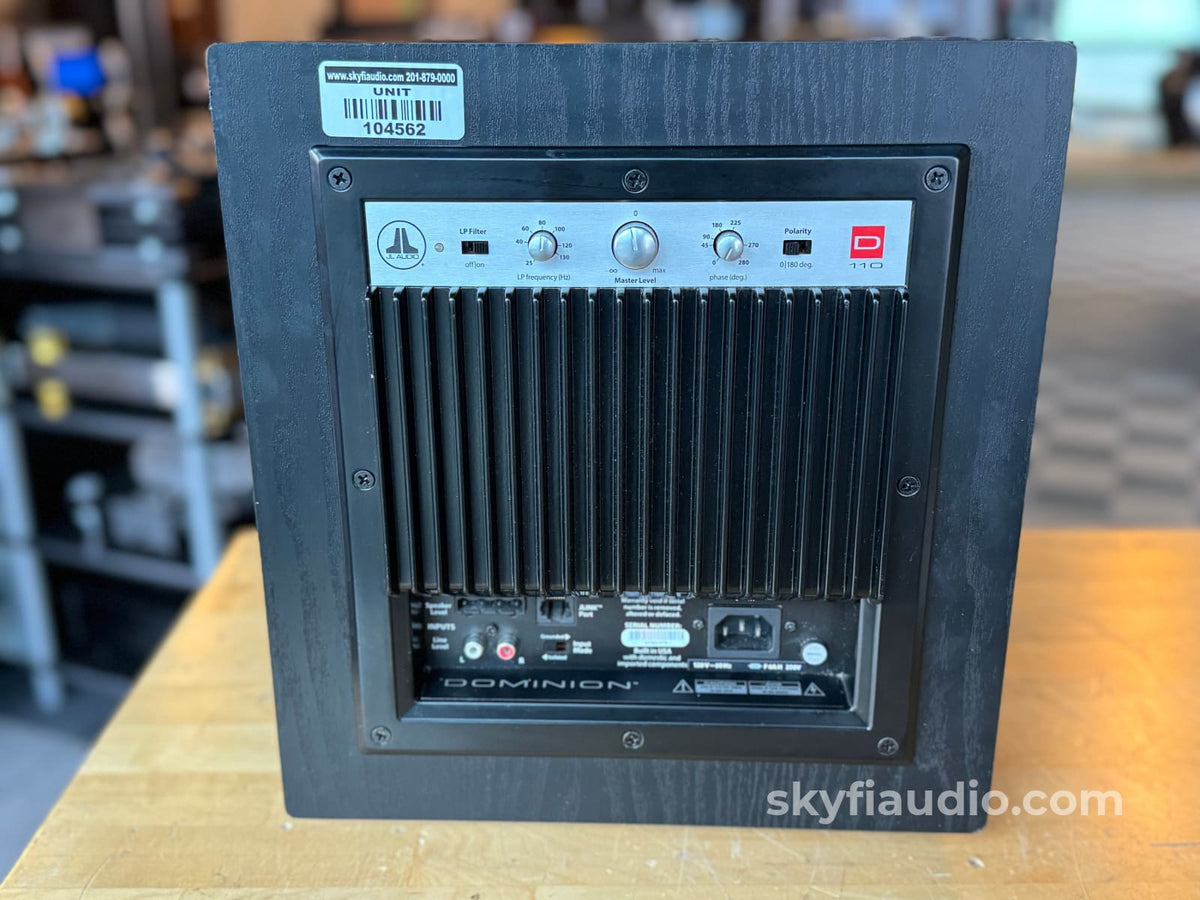

Signal Processing:
Unbalanced Inputs: Stereo or Mono (two RCA jacks)
Balanced Inputs: N/A
Speaker/High-Level Inputs: Stereo or Mono (removeable plug)
Input Grounding: Isolated or Grounded
Input Modes: N/A

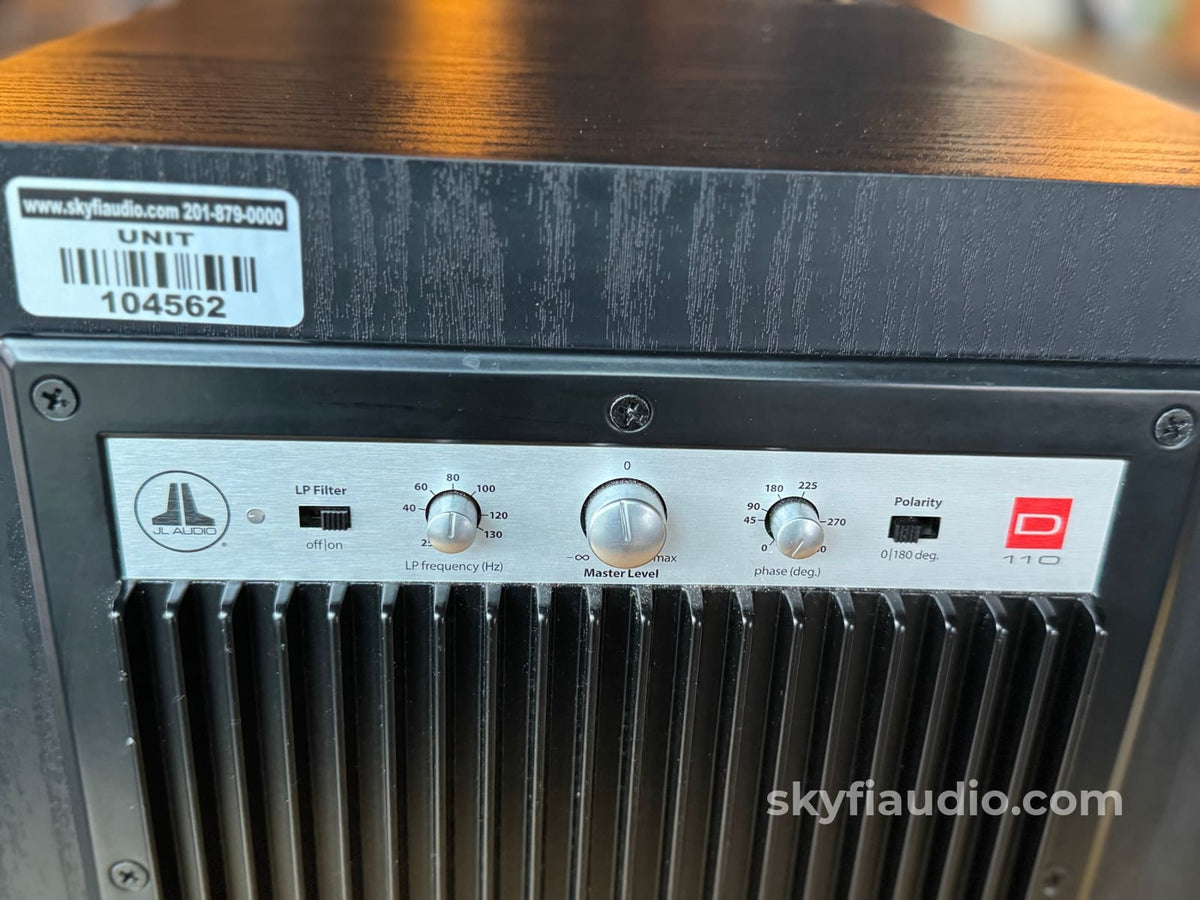

Level Control: Variable, from full mute to +15dB over reference gain
Filter Mode(s): Low-Pass
Filter Slope(s): 24 dB/octave
Filter Frequency Range: 25 Hz - 130 Hz
Filter Defeat Function: Yes
Polarity: 0 or 180 degrees
Phase: Variable, 0- 280 degrees, referenced to 80 Hz
Extreme Low Frequency (E.L.F.) Trim: N/A
Line Outputs: N/A
Output to Slave: N/A
Calibration Mode: N/A
Physical Specifications:
Width (W): 12 in / 305 mm
Height (H): 13.4 in / 340 mm
Depth (D): 15.86 in / 403 mm
Net Weight: 38.2 lb / 17.3 kg
Note: Height dimensions include feet. Depth dimensions include grilles.
Ownership:
Single Owner
Cosmetic Condition:
8. See our detailed rating description here.
Working Condition:
Working perfectly and tested in our lab and listening room.
Included:
Just the unit and power cord.
Testing Process:
Our speaker evaluation process starts with a visual inspection of all drivers. We are looking for damaged or deteriorating woofer surrounds, dented tweeter domes, and cone damage. We also inspect the speaker connection points for loose or broken connectors.
After the initial visual inspection we connect the speakers to a reference amplifier with our preferred test tracks. With the speakers placed with proper distance we listen to each driver to make sure that they are producing the intended frequencies with no signs of distortion or rattle. During listening tests with test tracks we check for proper stereo imaging and bass response at various listening levels. If there are any audible signs of issues, the speakers are taken to the bench where we perform a frequency sweep to isolate the issue so that it can be resolved by component repair or replacement.
Our subwoofer evaluation process starts with a visual inspection of all drivers. We are looking for damaged or deteriorating woofer surrounds, cone damage, or rubbing voice coils. We also inspect the input connections for damage.
After the initial visual inspection, we connect the sub at our bench and perform a sine wave sweep from about 200Hz down to around 10Hz. During this sweep we are listening for excessive rattle or other signs of improper function. If the sweep passes, we then increase the input level to evaluate how the woofer performs at high output levels. If the woofer has built in crossover features or multiple connection options these features are tested at this time.
We complete the subwoofer evaluation by feeding the unit with an audio signal in conjunction with our house music system to see how it responds to low frequency content in real world conditions while paired with a full range system.
