Jeff Rowland Coherence One Preamp
Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)
Pickup currently unavailable at SkyFi 479
Jeff Rowland Coherence One Preamp
479 South Broad Street
Glen Rock NJ 07452

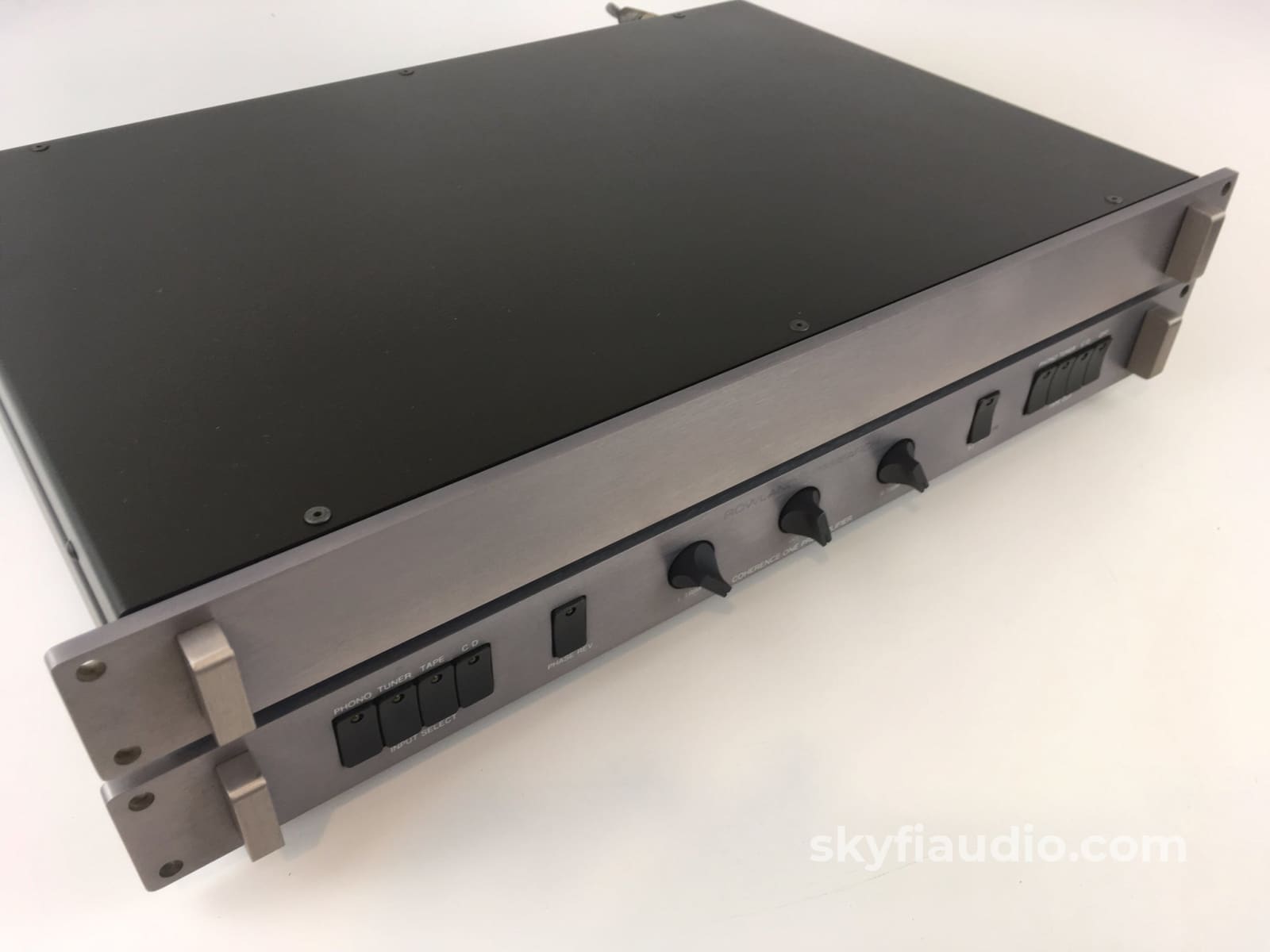

Two-piece preamp from highly acclaimed maker Jeff Rowland (still in business).
This unit came to us from the original owner who had it since new and took great care of it. There are no noticeable signs of use or abuse of any kind.

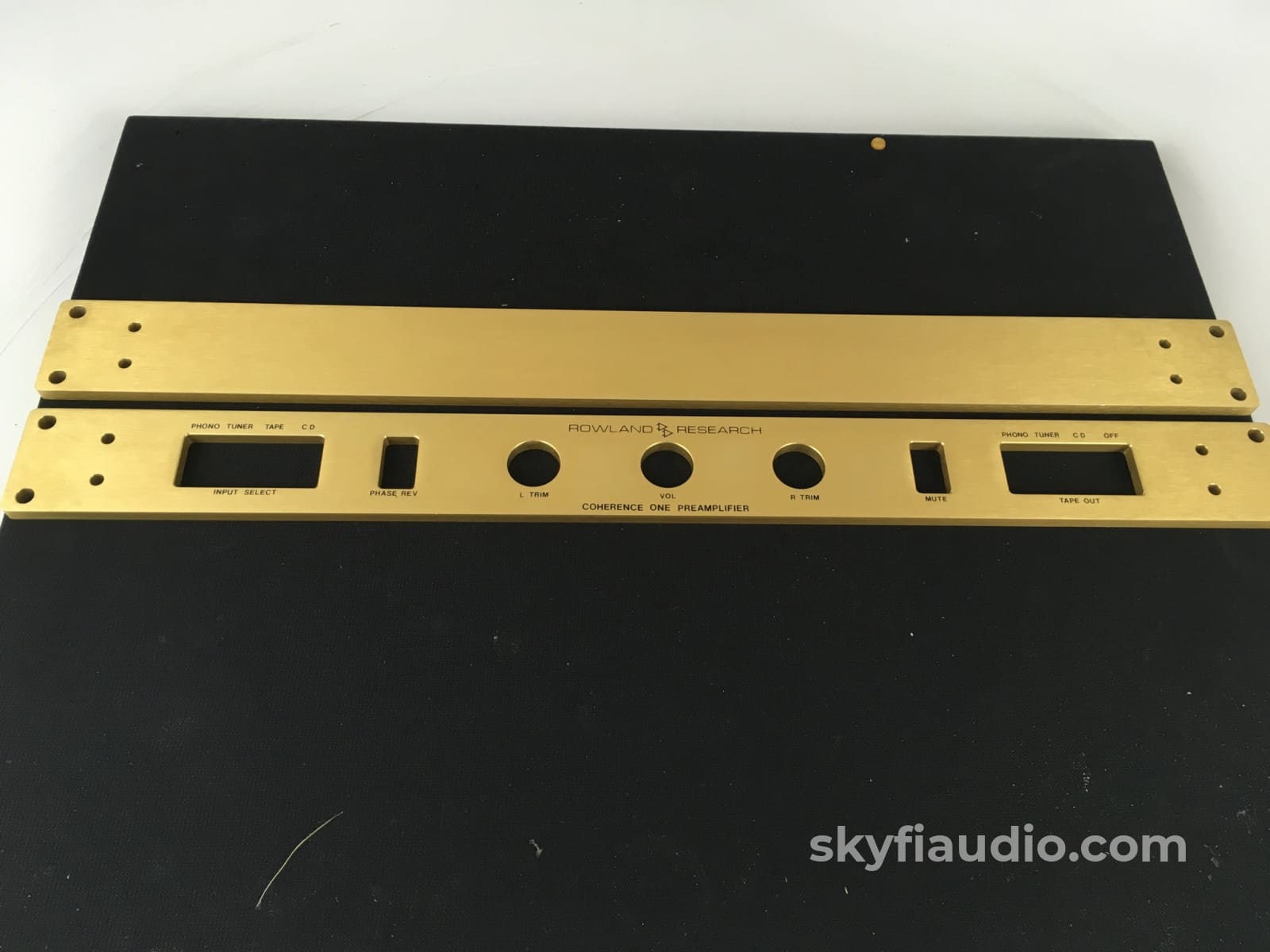

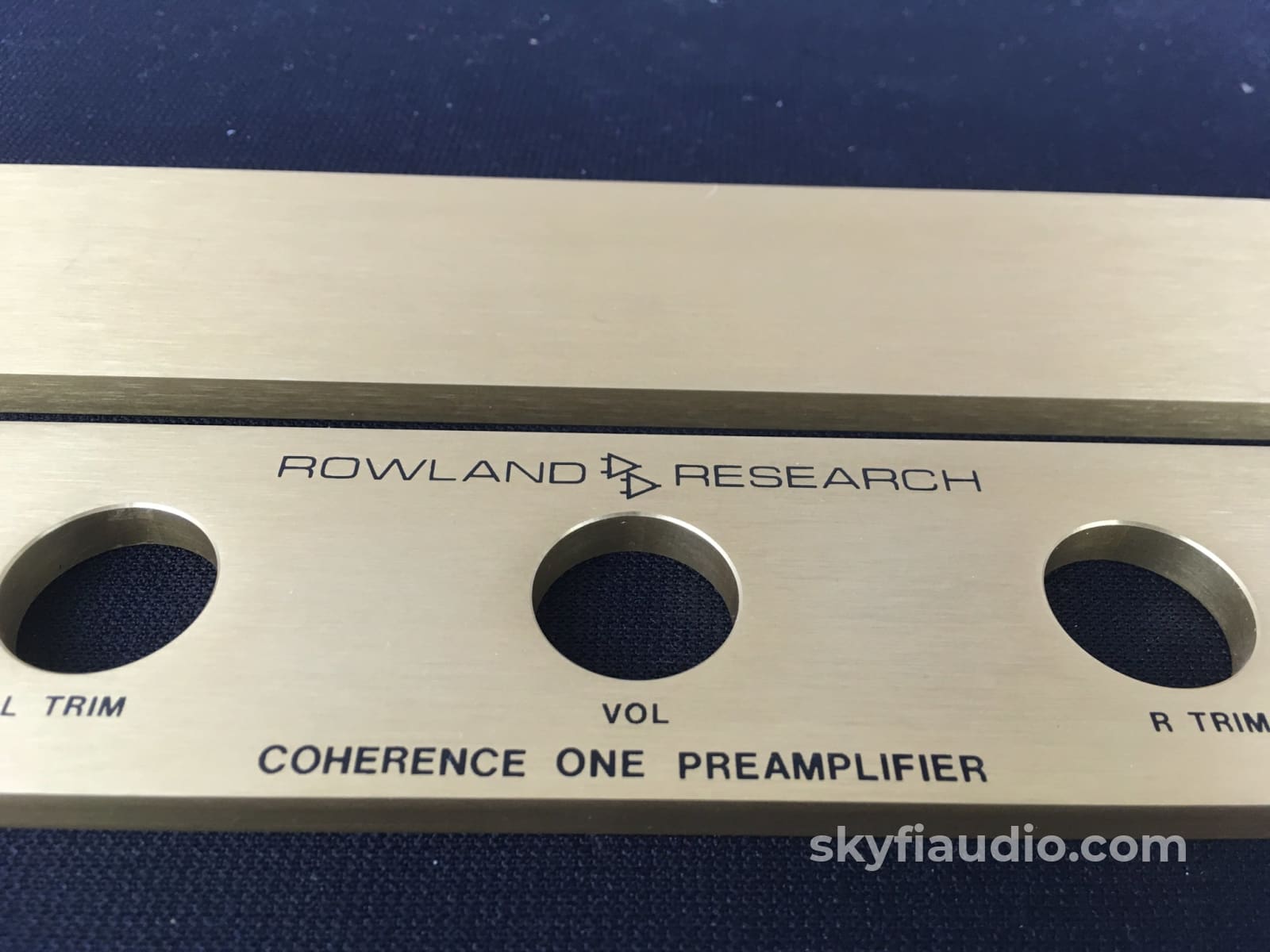

What's best, we have located a rare second set of faceplates finished in gold so you get to choose which finish you’d prefer (Gray or Gold). We will replace them for you prior to shipping.

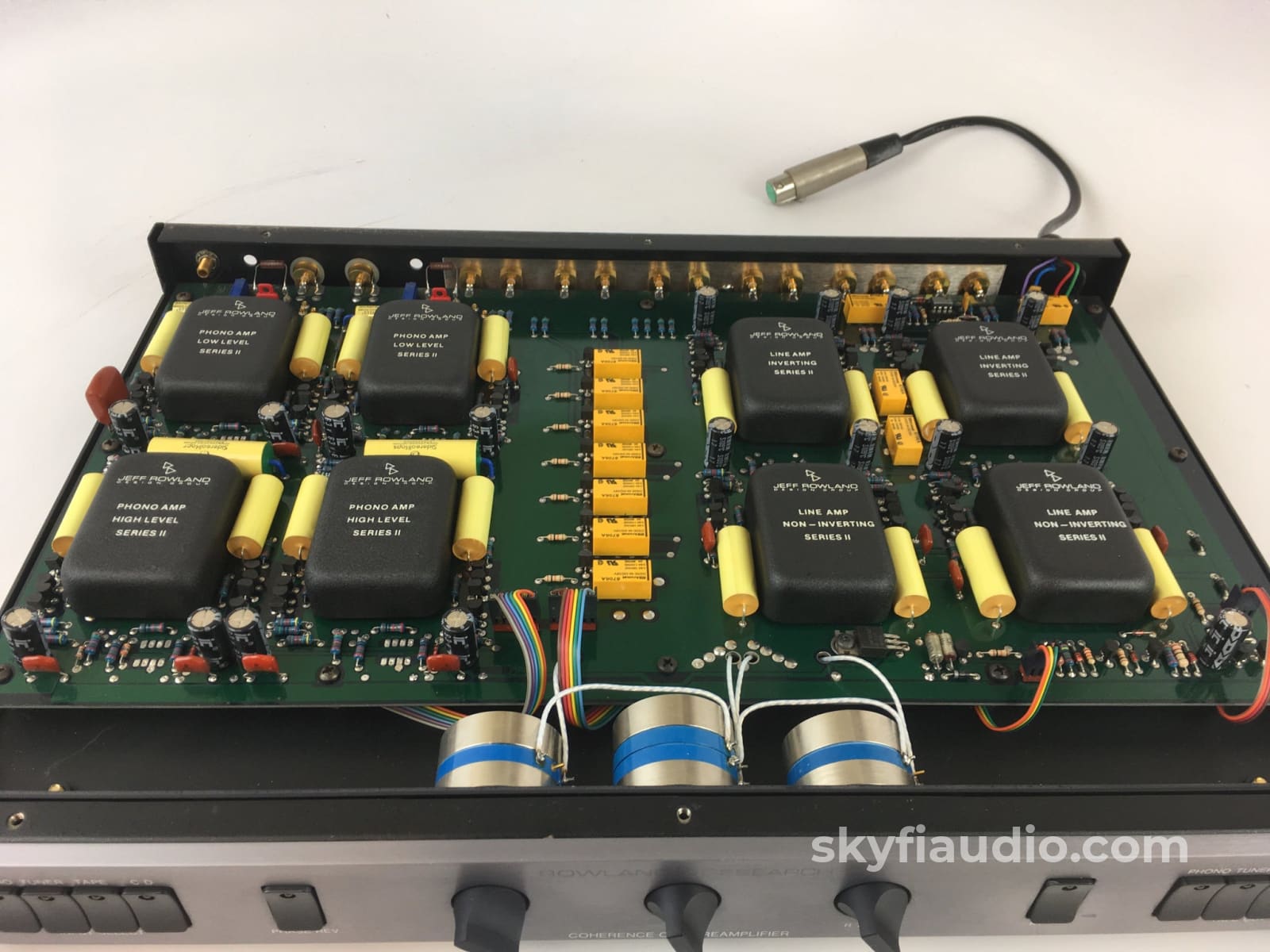

Fully tested and working perfectly. These feature the highest parts quality and circuit layout we have ever seen. A quick look inside indicates that no shortcuts of any kind were taken.

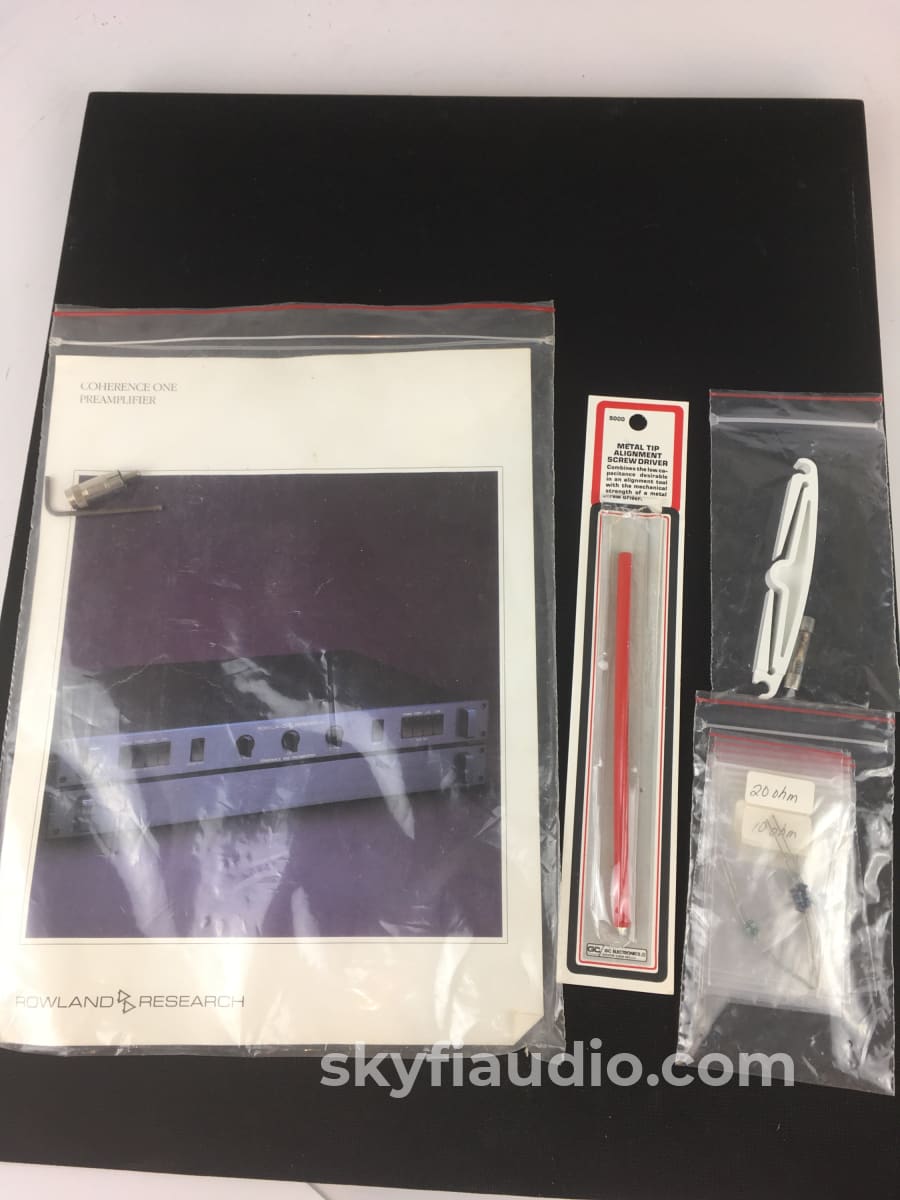

Includes 2 piece preamp, and power cord.
Link to manual: Coherence1Manual.pdf

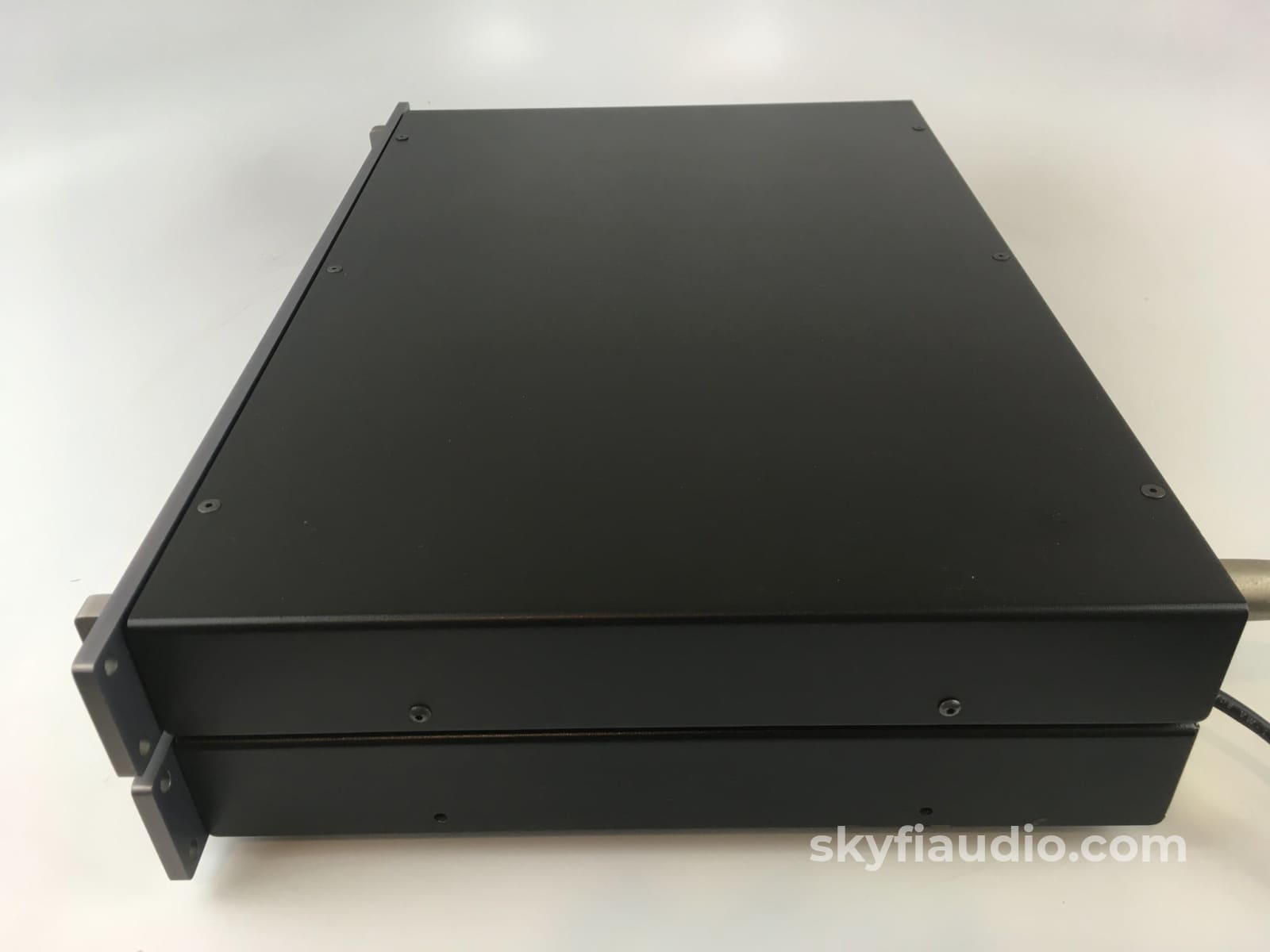

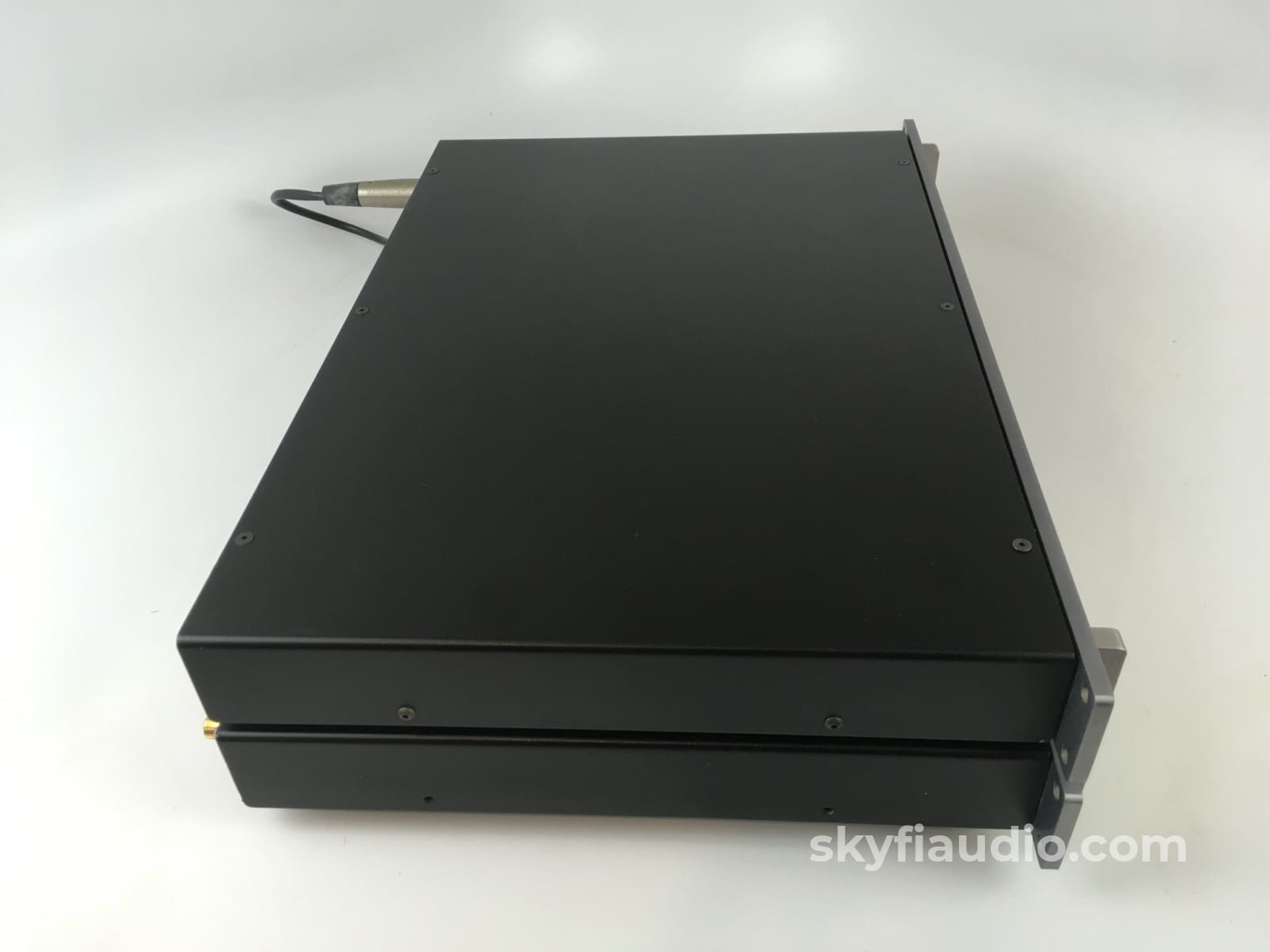

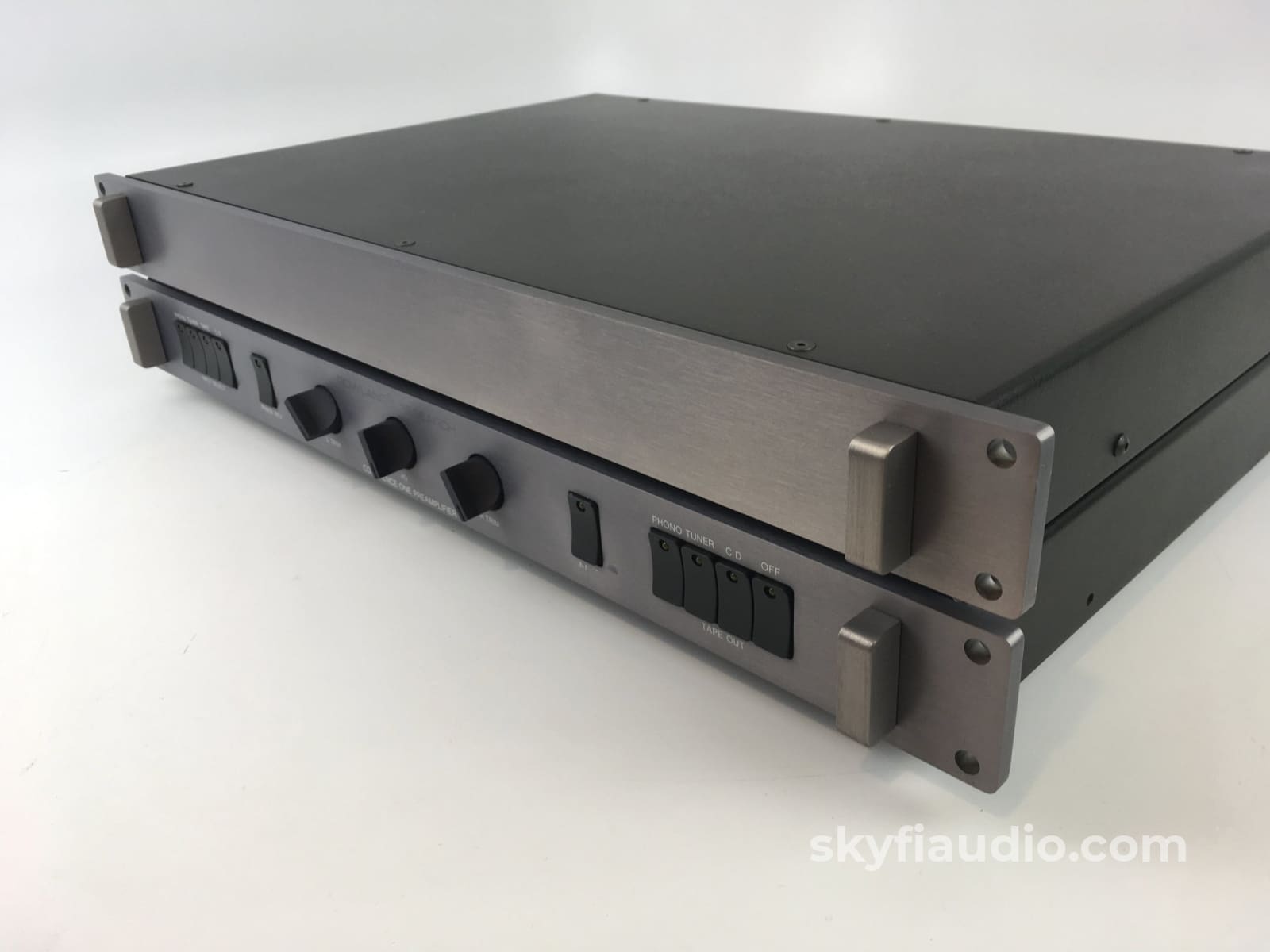

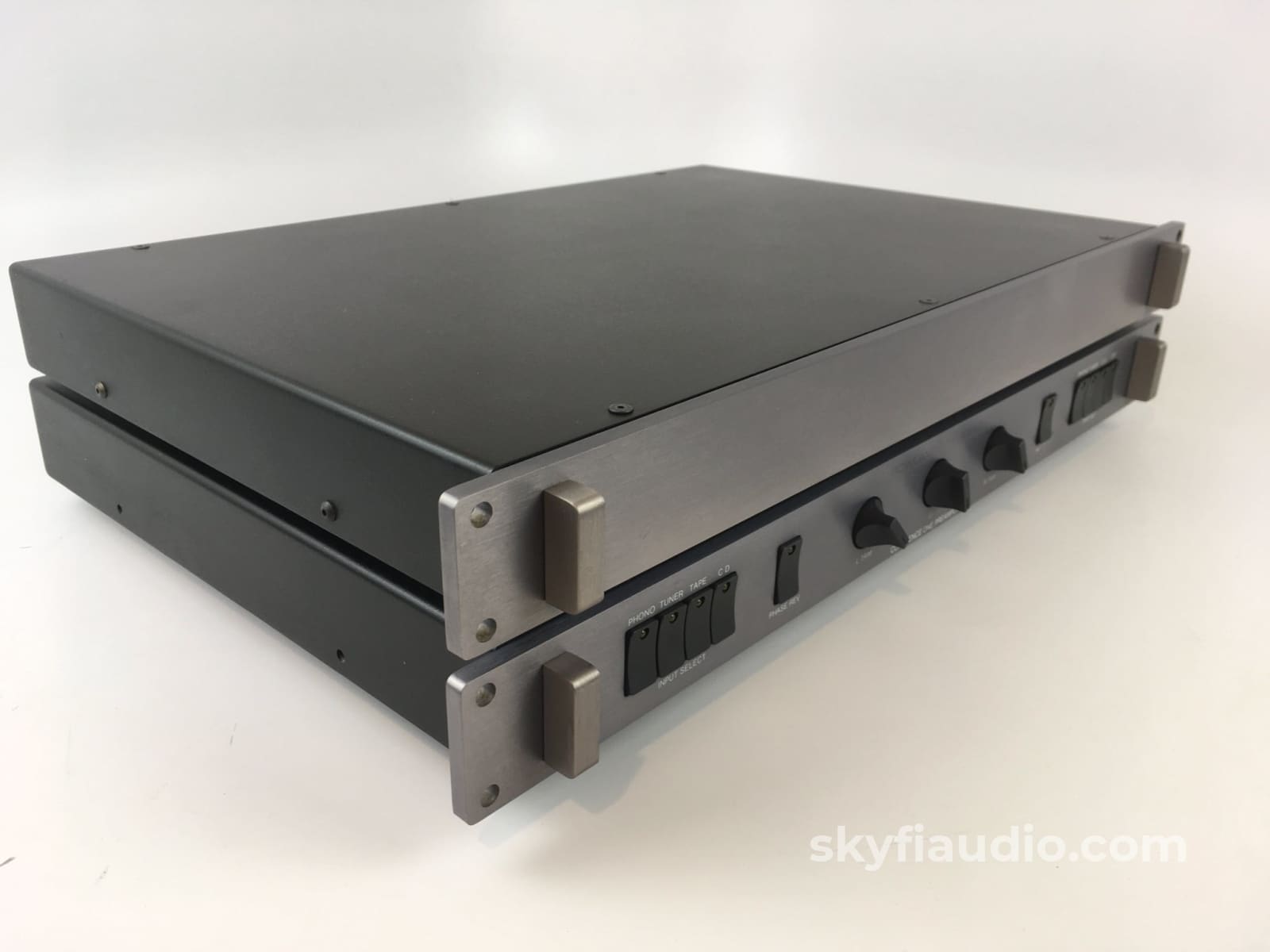

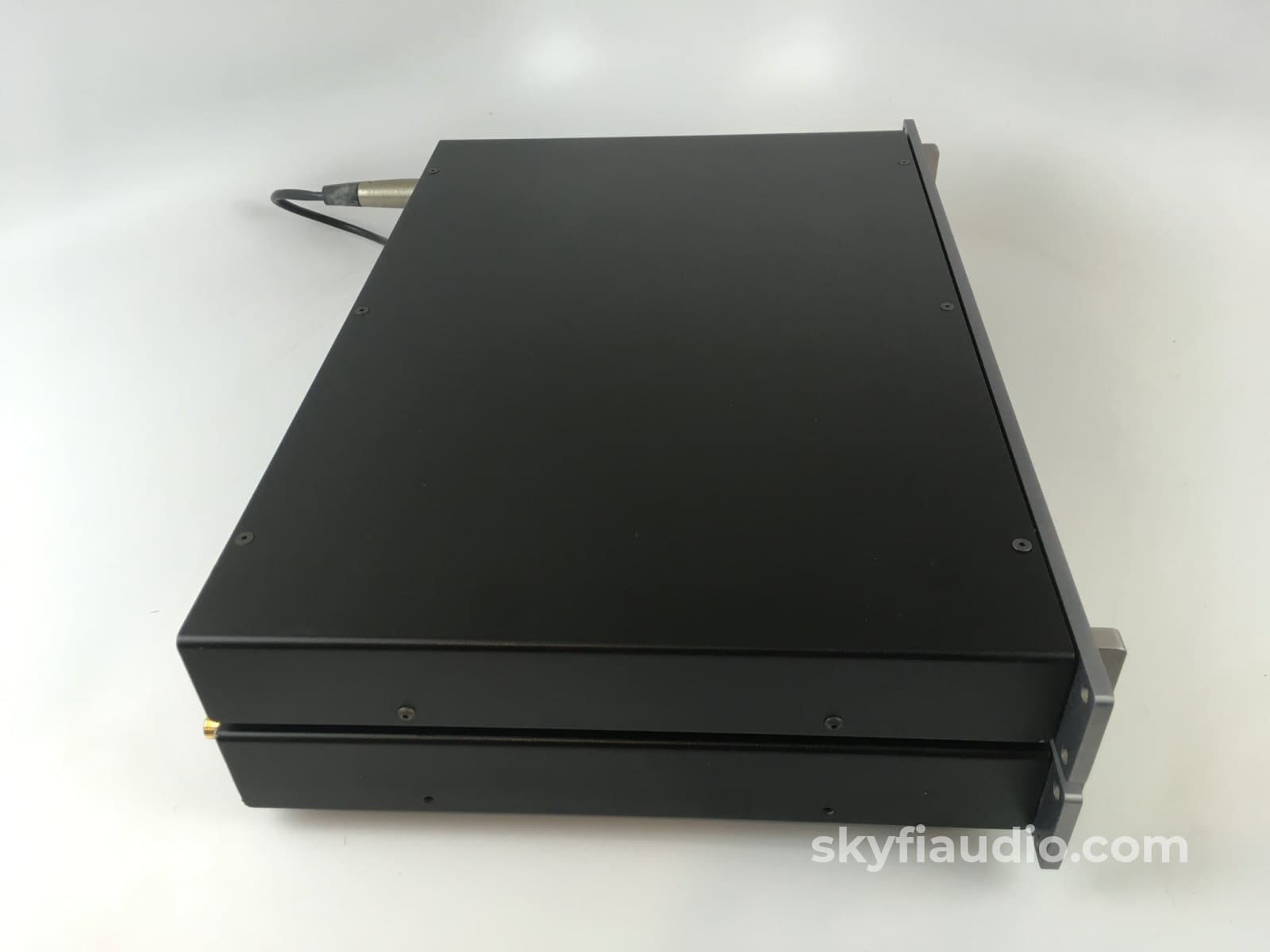

- The preamplifier is designed to rest on top of its power supply so the user-friendly pair can be handled easily. Special shielding techniques allow for this configuration, and "hum field" contamination has been eliminated.

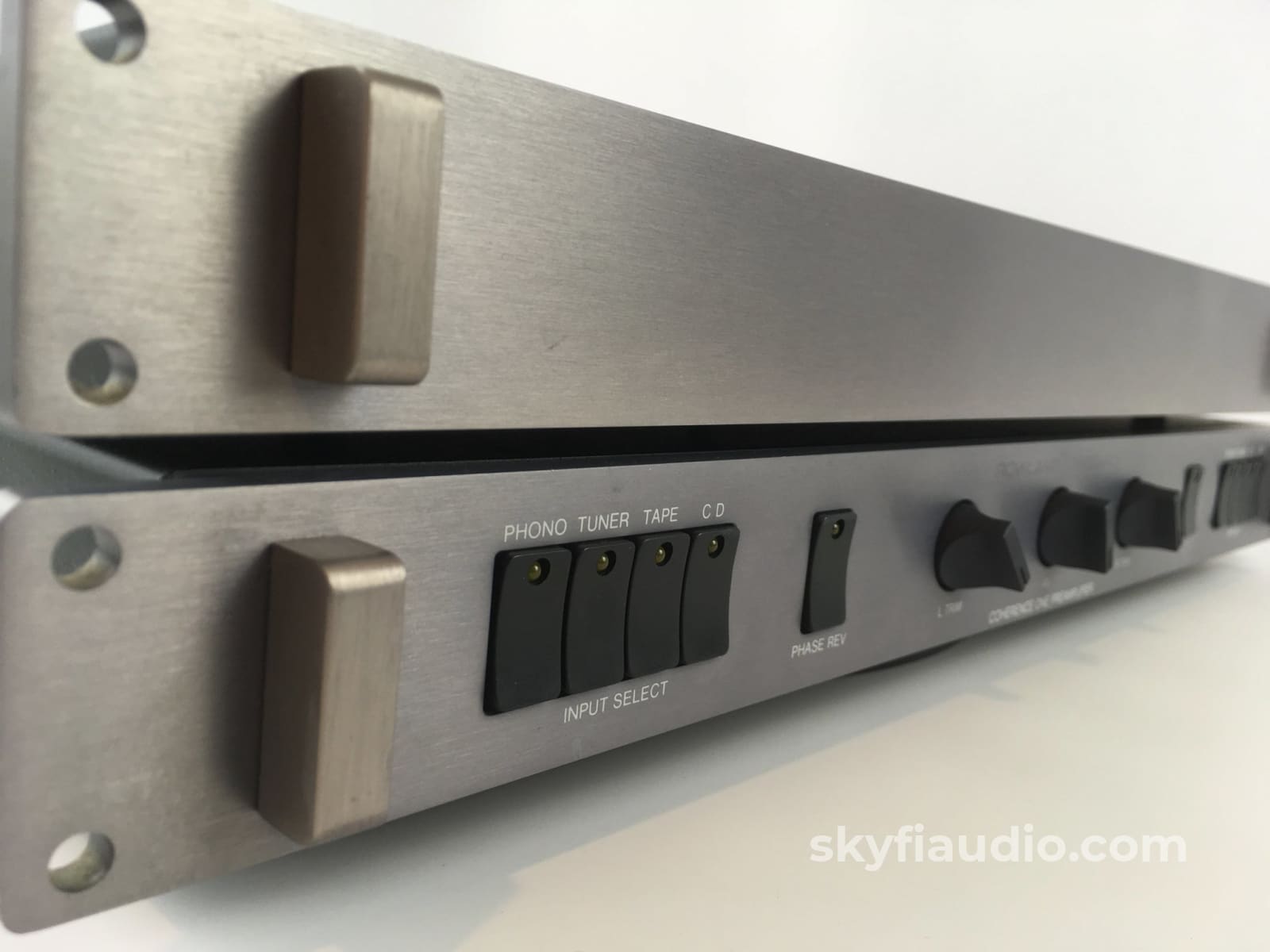

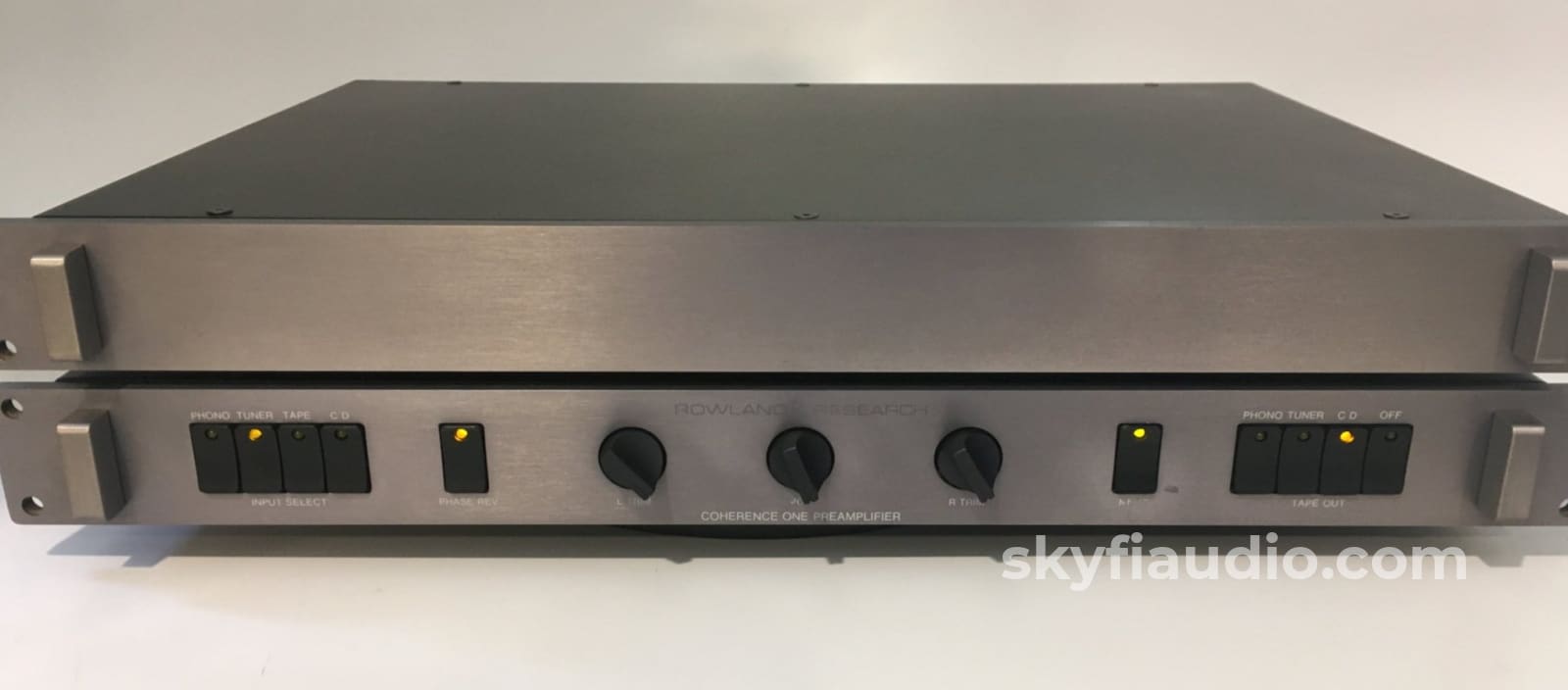

- Lighted, feather-touch mode switches electronically control signal. The front panel switches do not alter sonic integrity, since signal switching is accomplished at the preamplifier input stage. Absolute phase reversal and full muting are other essential front panel control functions.

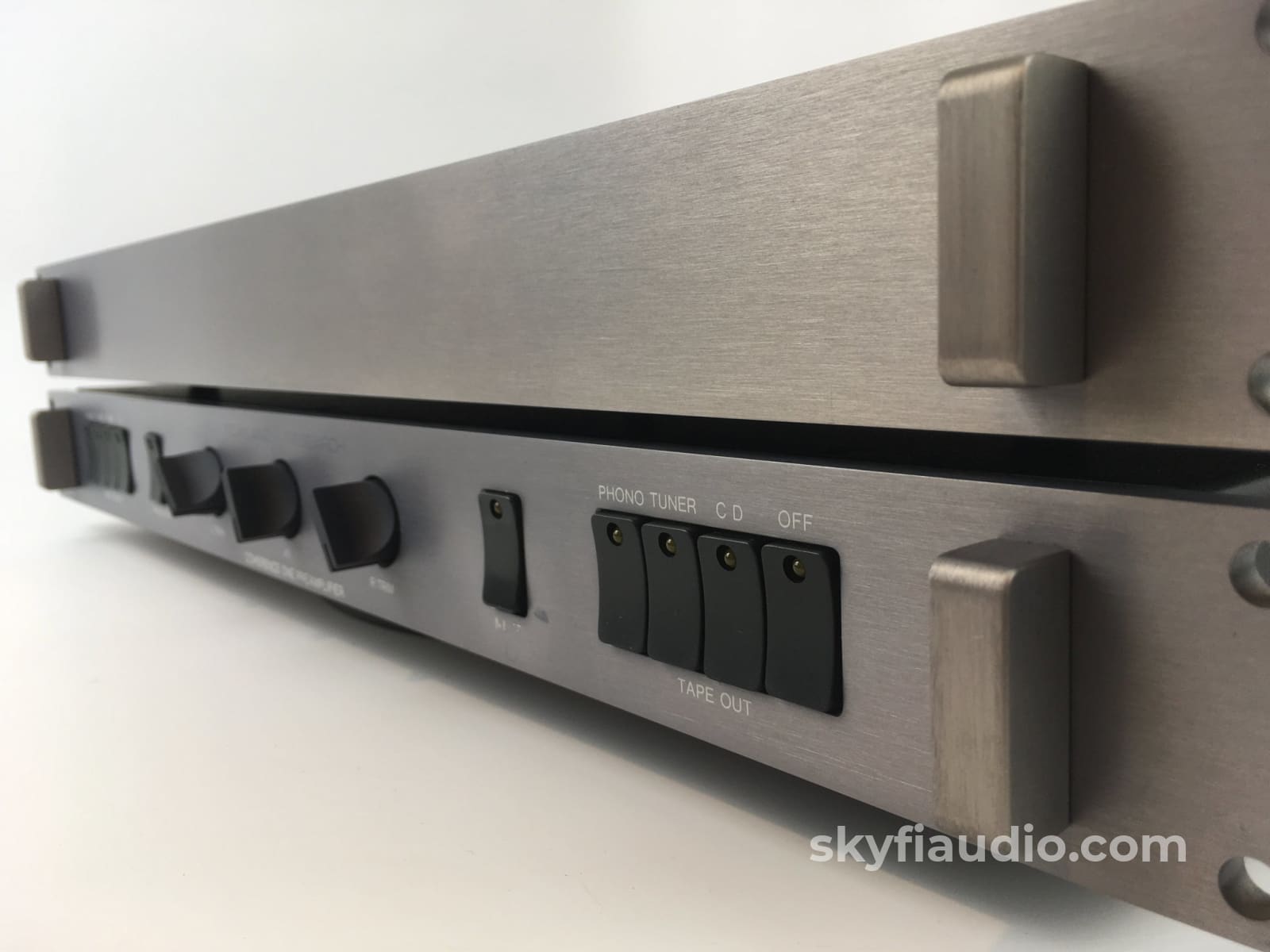

- A selectable tape output section allows simultaneous recording from one source while listening to another. "Record Out: Off" position disconnects tape recorder inputs from tape out jacks, eliminating loading problems when tape recorder is not in use.

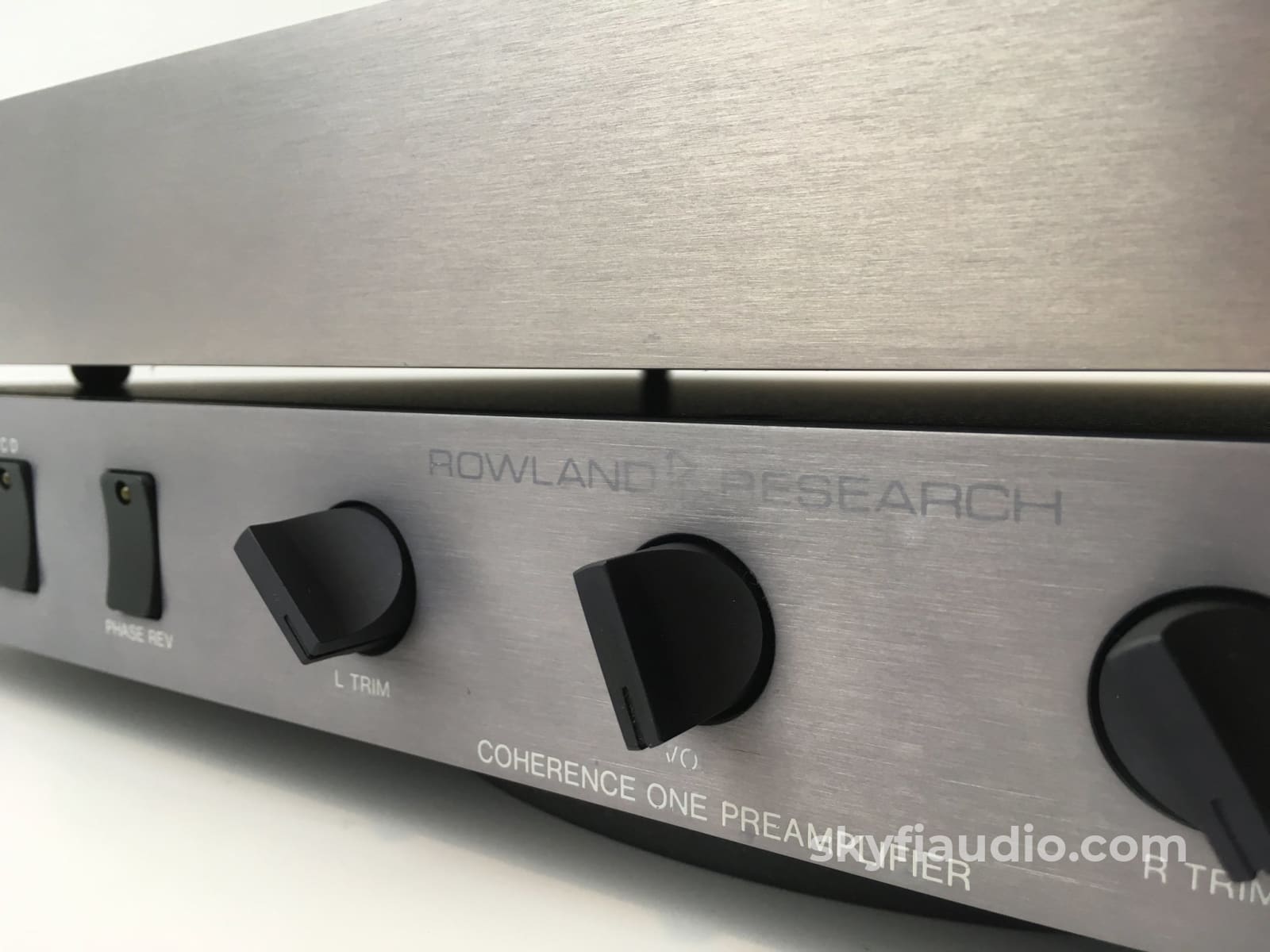

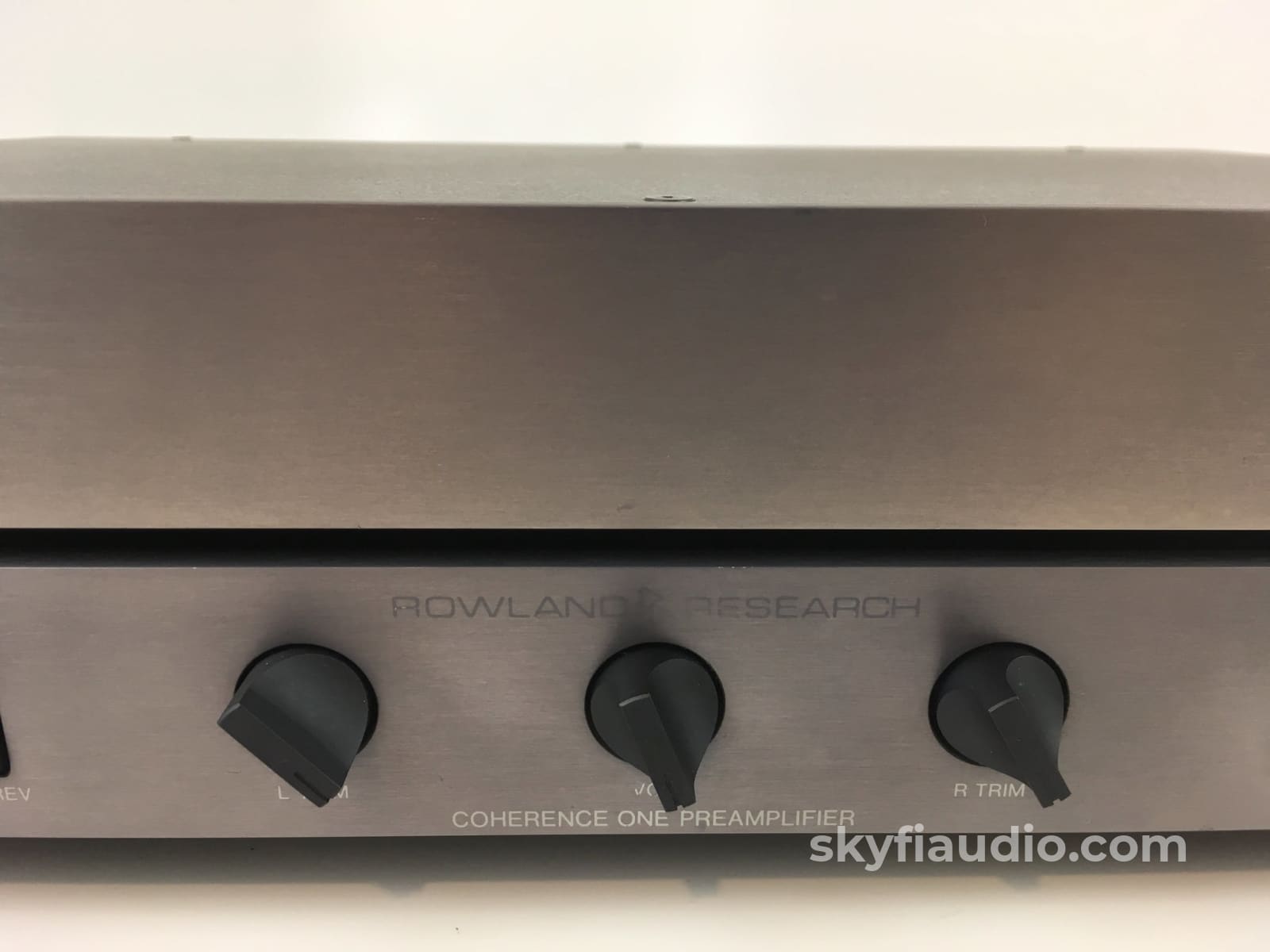

- Volume controls are chosen for their sonic neutrality. Separate right and left trim potentiometers provide 6 dB adjustment for full rotation, permitting precise channel balance.

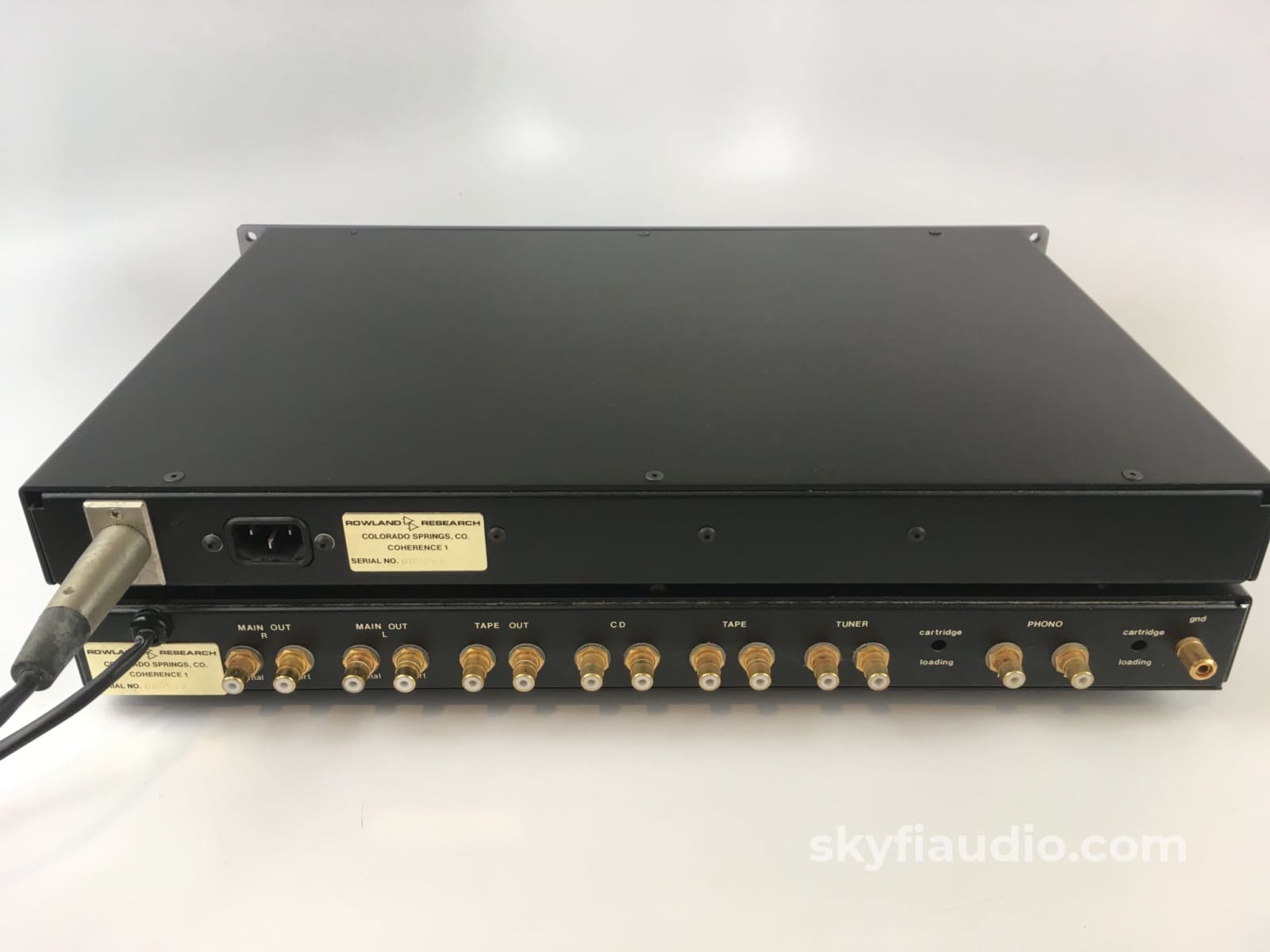

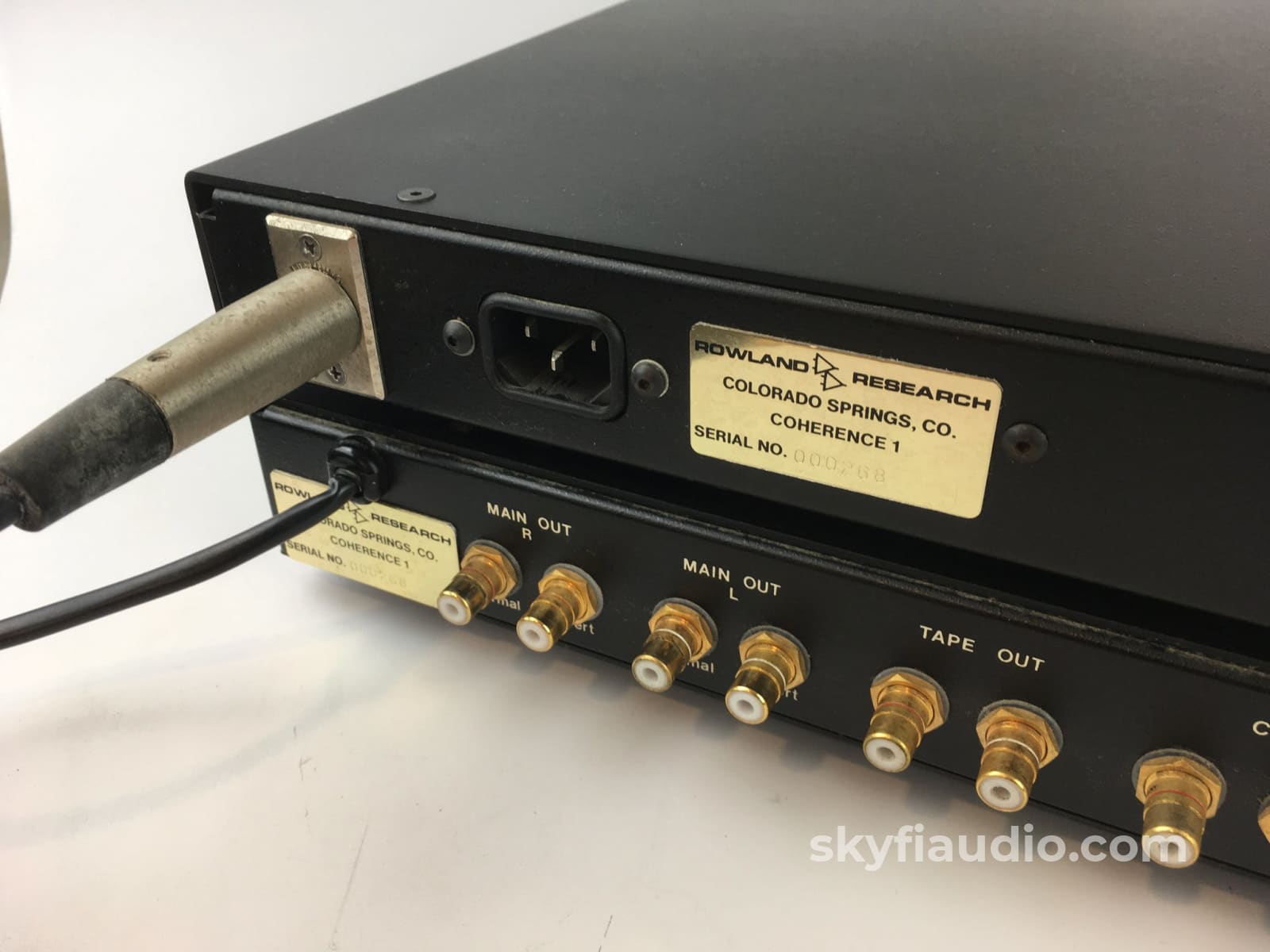

- Input and output jacks are gold-plated, ground-fault protected connectors, which provide tight, corrosionfree connections. Simultaneous normal and inverting outputs allow for balanced cable operation.

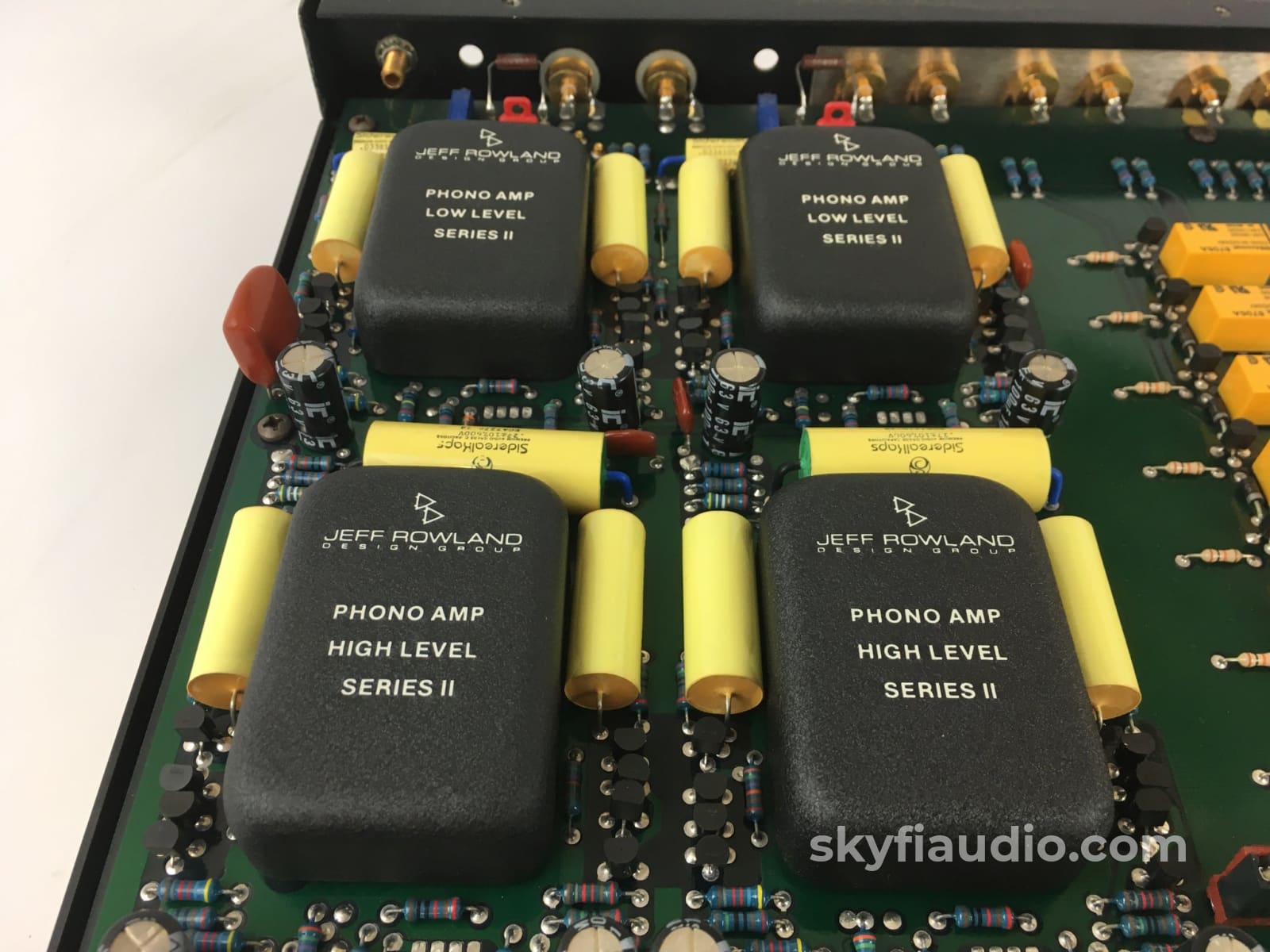

- Extremely low-noise phono sections eliminate the need for extra circuitry when using low output moving coil cartridges. The phono modules of the Coherence One Series II have been optimized for use with moving coil cartridges; for moving magnet cartridges, a module exchange can be easily accomplished by the user. Please contact Jeff Rowland Design Group from more details.
- All main outputs are muted temporarily during initial power application, power drop or disruption. DC potential across outputs, regardless of source, will also cause a muted condition.
- All signal amplification utilizes high-voltage, high-current, Class A field effect transistor technology.
- All inputs and outputs are direct-coupled, thus eliminating the deleterious effects of capacitors in the signal path.
- Precise RIAA equalization is the result of a split-passive network in the phono section.
- Incorporation of two-stage power supply regulation: A separate outboard power supply provides tight regulation regardless of power company extremes. Additionally, this discrete component design is optimized for excellent transient behavior, thus providing very low output impedance beyond 100 kHz.
- DC power is routed, via a power cable with a locking connector, to the main preamplifier circuit board. Compensating for power cable and circuit board inductance effects, sixteen (16) feedback-free discrete regulators adjacent to each module complete DC power distribution. This total system, in addition to separate channel balance controls, provides dual mono operation and precise regulation at each stage throughout.
- Time-related distortion, particularly in low-level phono stages, is eliminated by a totally feedback-free design.
- Mil-spec circuit board material, with oxygen-free copper traces and high-temperature mask provides superior electrical characteristics.
- All signal switching is accomplished with hermetically sealed, gold- contact signal relays.
- AC power line filter offers excellent line noise rejection.
- All critical circuitry is encapsulated in a thermally-conductive epoxy to ensure excellent thermal stability, mechanical integrity and to facilitate ease of service
Coherence 1 Specs
Inputs Phono + 3 unbalanced line
Main outputs (per channel) 1 inverting, 1 non-inverting
Dimensions 12.5 in. W x 19 in. D x 3.75 in. H 31.8 cm W x 48.3 cm D x 9.5 cm H
Weight 29 lbs., 13 kg
Gain 60 dB
Frequency Response 0.15 Hz to 220 kHz, -3 dB
RIAA Accuracy 20 Hz to 20 kHz ± 0.15 dB; +0, -3 dB, 200 kHz
Input Impedance User selectable: 0-200 ohms adjustable, 47 k ohm fixed or any value.
THD and Noise < 0.025% @ 1 kHz, 0.7 V RMS output
Max Output Level 18 V RMS
Gain 19 dB
Frequency Response 0.06 Hz to 650 kHz, -3 dB
Input Impedance 10 k ohms
Output Impedance 300 ohms (single-ended output) 600 ohms (balanced output)
THD and Noise < 0.010% @ 1 kHz, 3 V RMS output
