General:

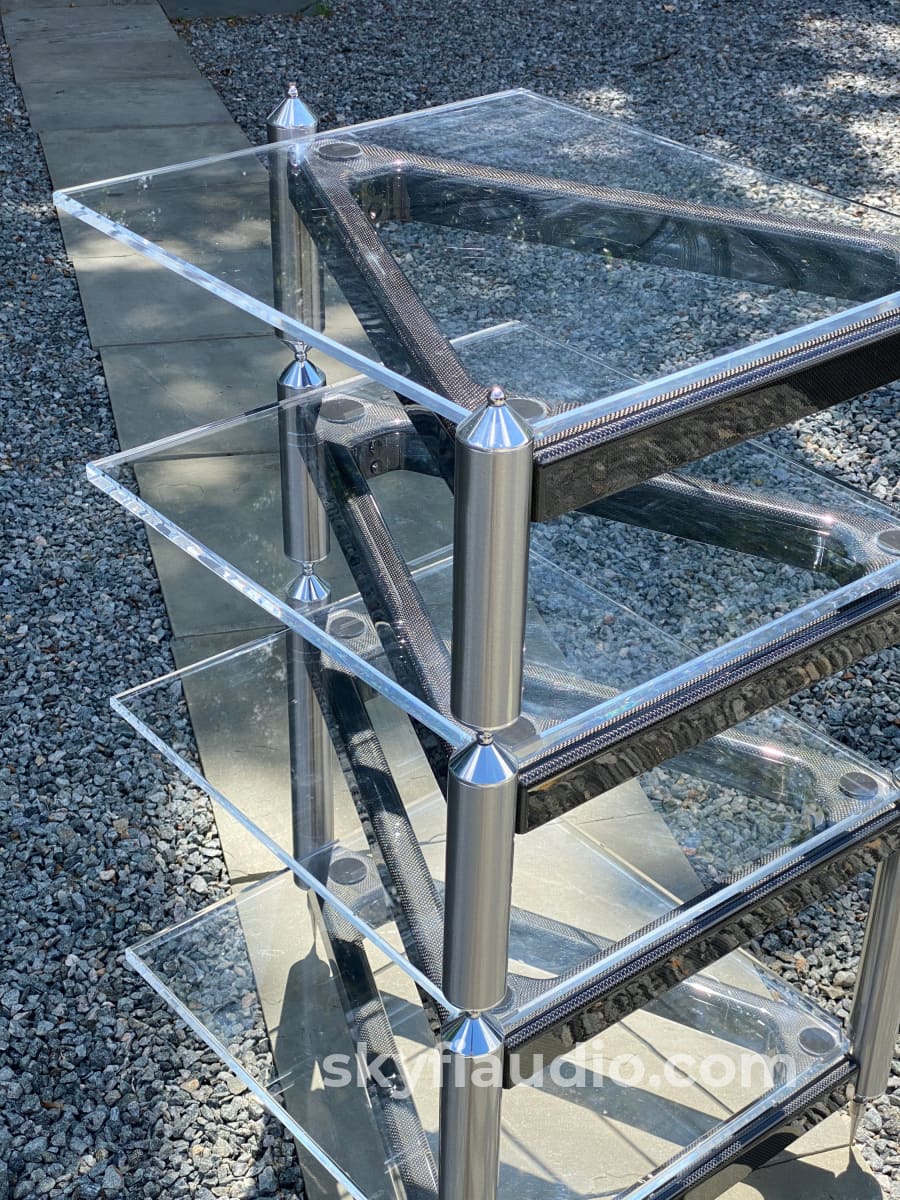

Very unique and highly engineered rack from Grand Prix. Super lightweight but extremely strong (600 lb capacity).

Made out of carbon fiber just like an F1 race car suspension.

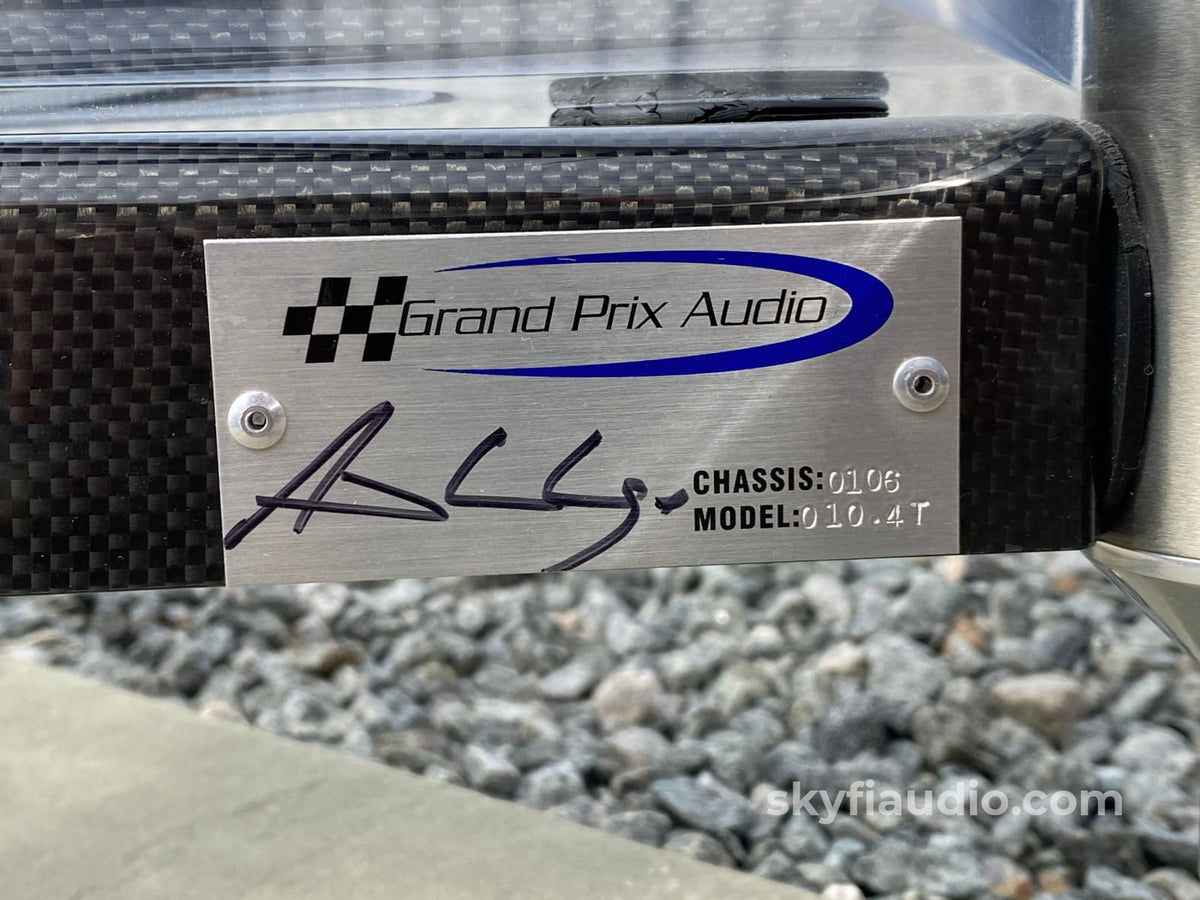

This Gran Prix listing consists of a 010-4T system, and the shelves are fitted with a variety of different sized dampers.

The bottom shelf can fit components up to 10.5" tall. The remaining shelves can fit components up to 7.5" tall.

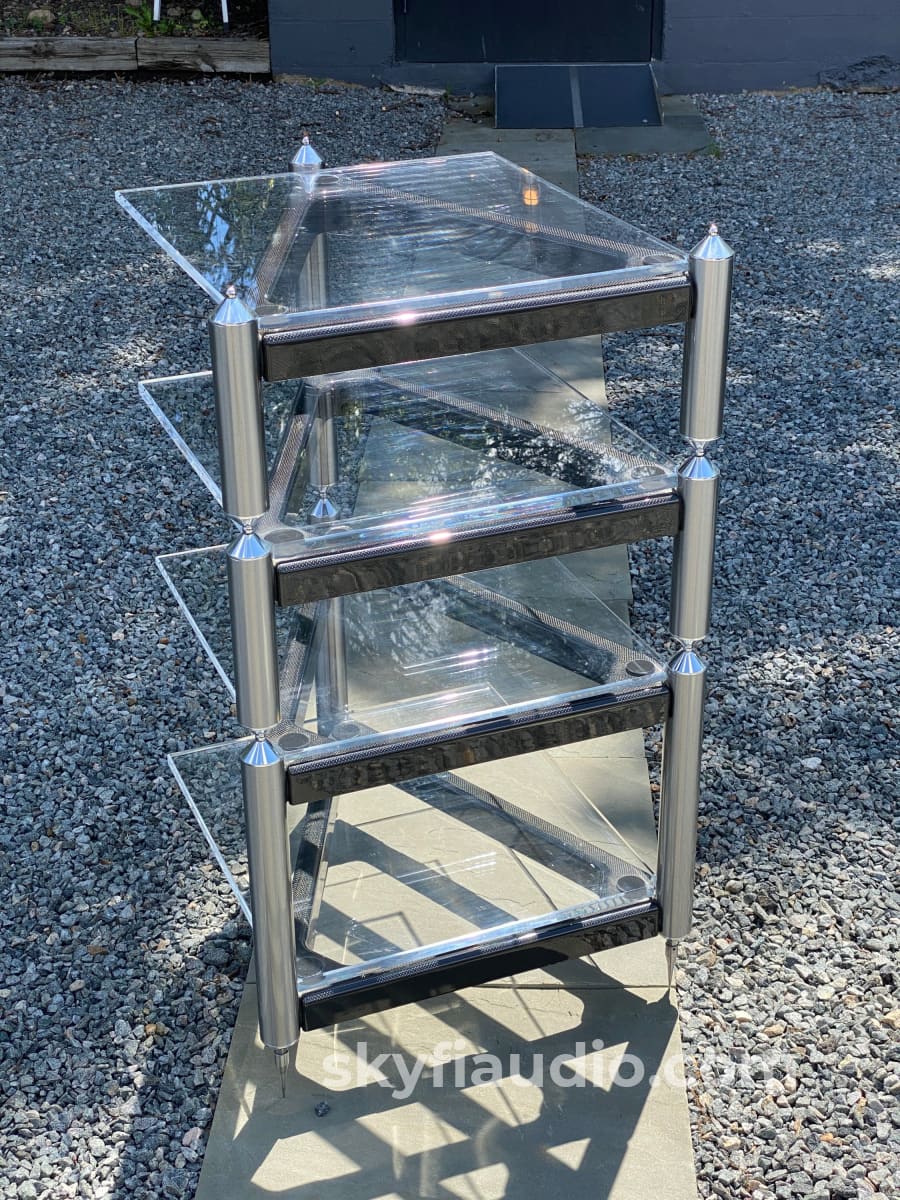

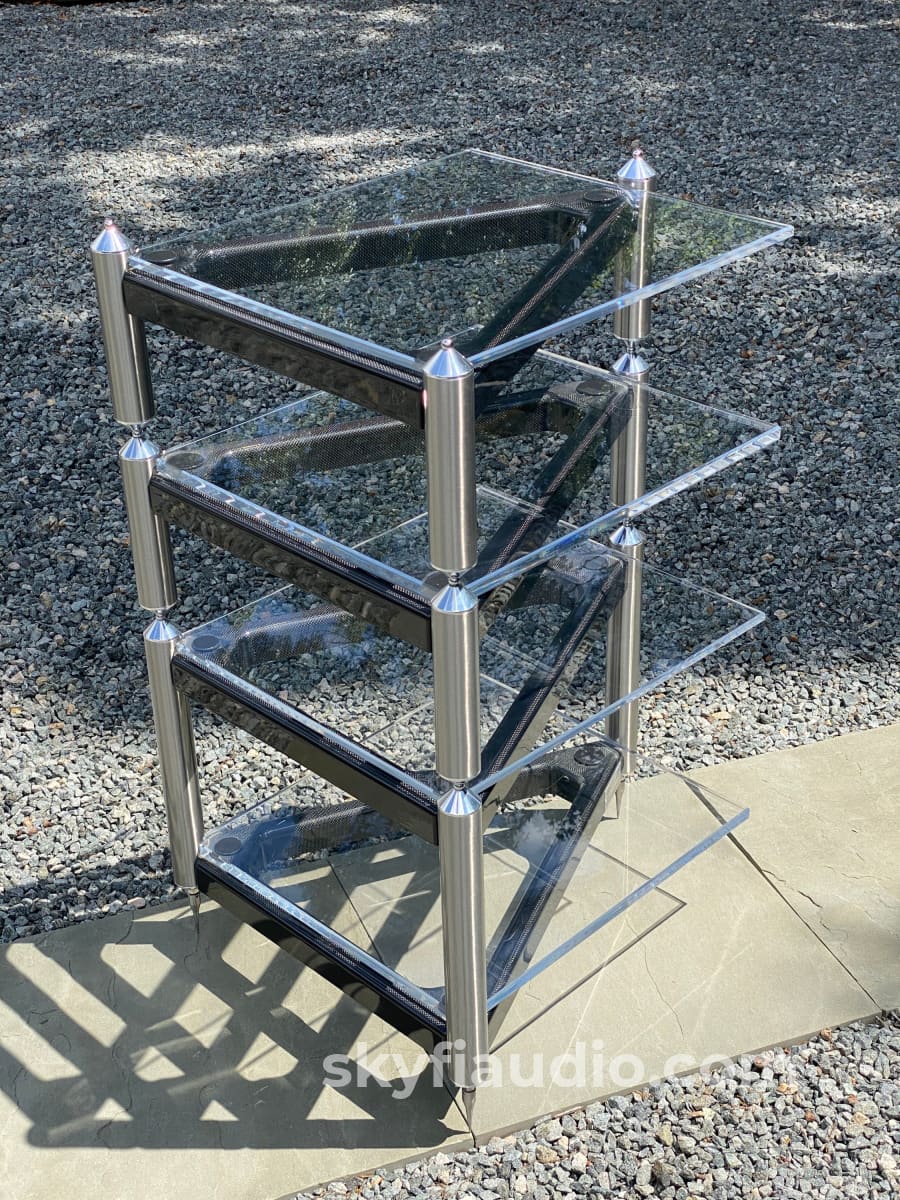

The overall height of the system from the tip of the bottom floor spikes to the top of the final shelf is approximately 40 inches. The width is 24 inches, and the depth is approx. 27.5 inches.

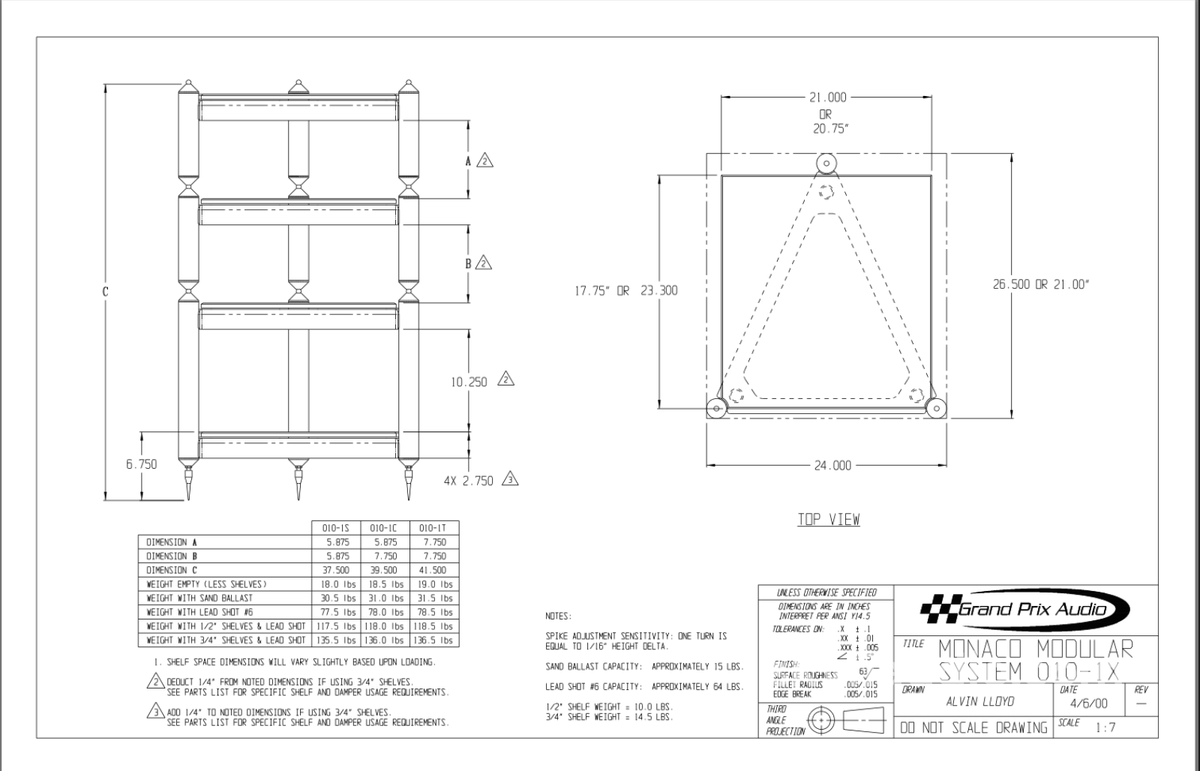

See pictures for exact dimensions.

Please note this rack is exempt from any free shipping promotions. This will ship partially disassembled via UPS Ground in 1 large package.

Cosmetic Notes:

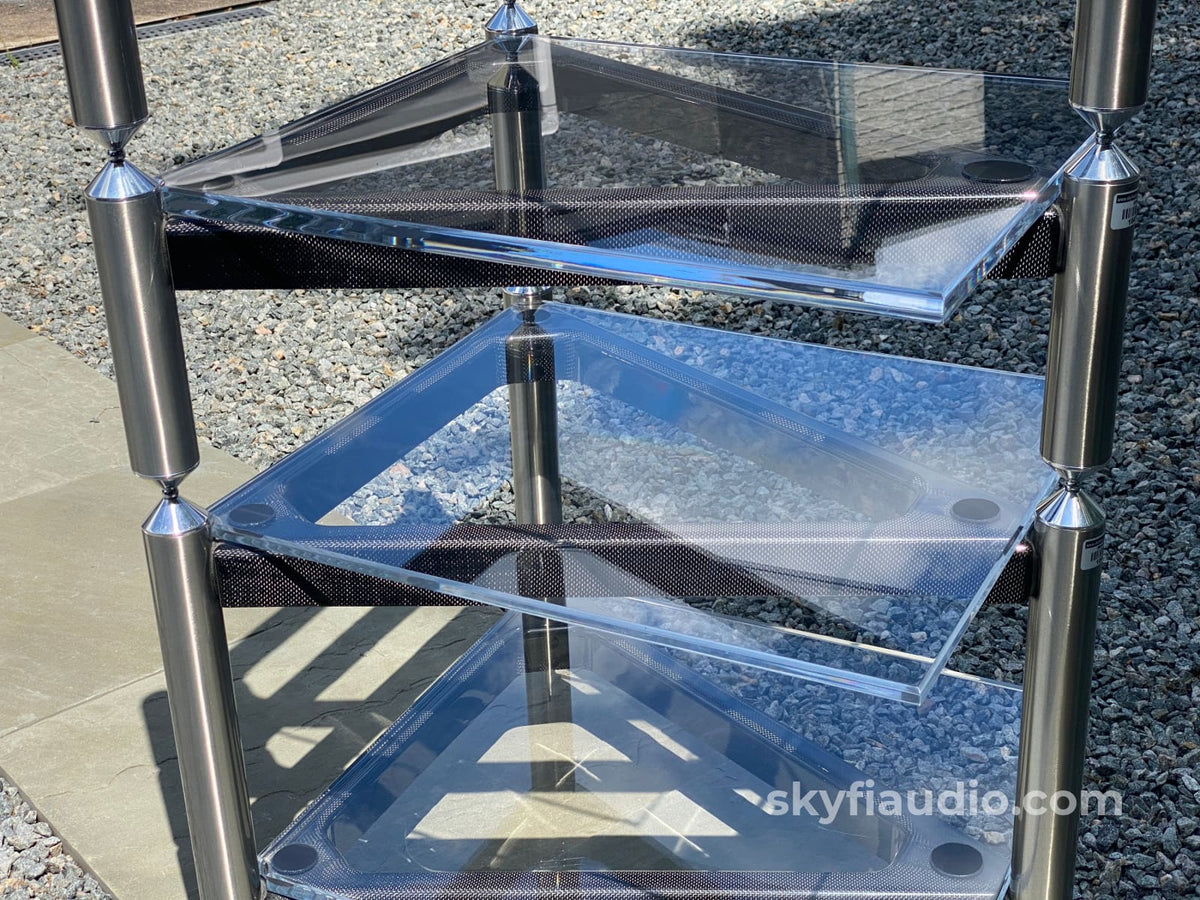

This Gran Prix rack system has light cosmetic blemishes on clear shelves from normal use.

More from Gran Prix Audio:

Monaco Classic System
Grand Prix Audio's original three-column fully-modular isolation system.

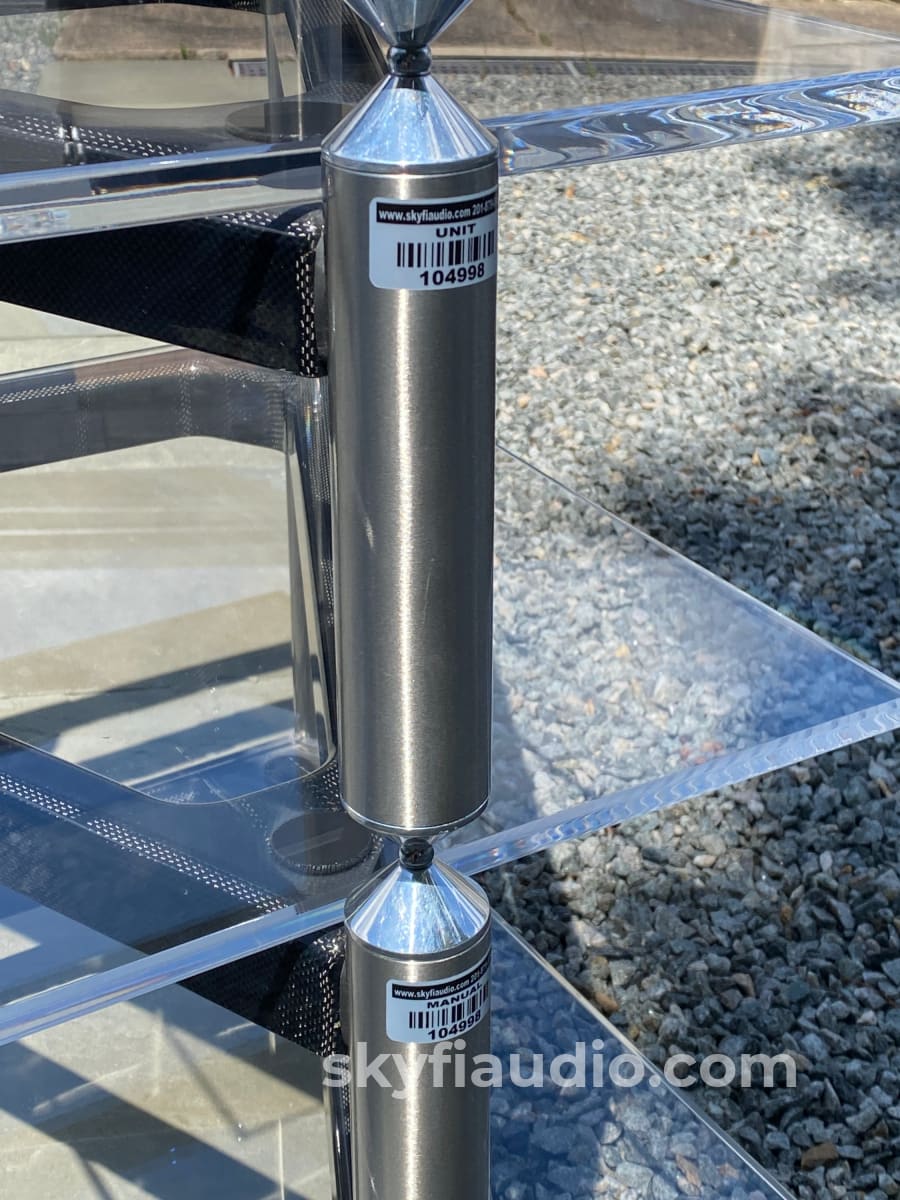

Two-inch diameter stainless steel columns are combined with O-ring decoupled conical interfaces to create a versatile, precision stackable rack system. Decoupled from the ‘U-Tube’ frames by sorbothane interfaces, they provide a stepped dissipation cascade between your equipment and the outside world. Base layers are available in two widths, with three or four legs and provide two support levels, with a 260mm/10.25” opening between them.

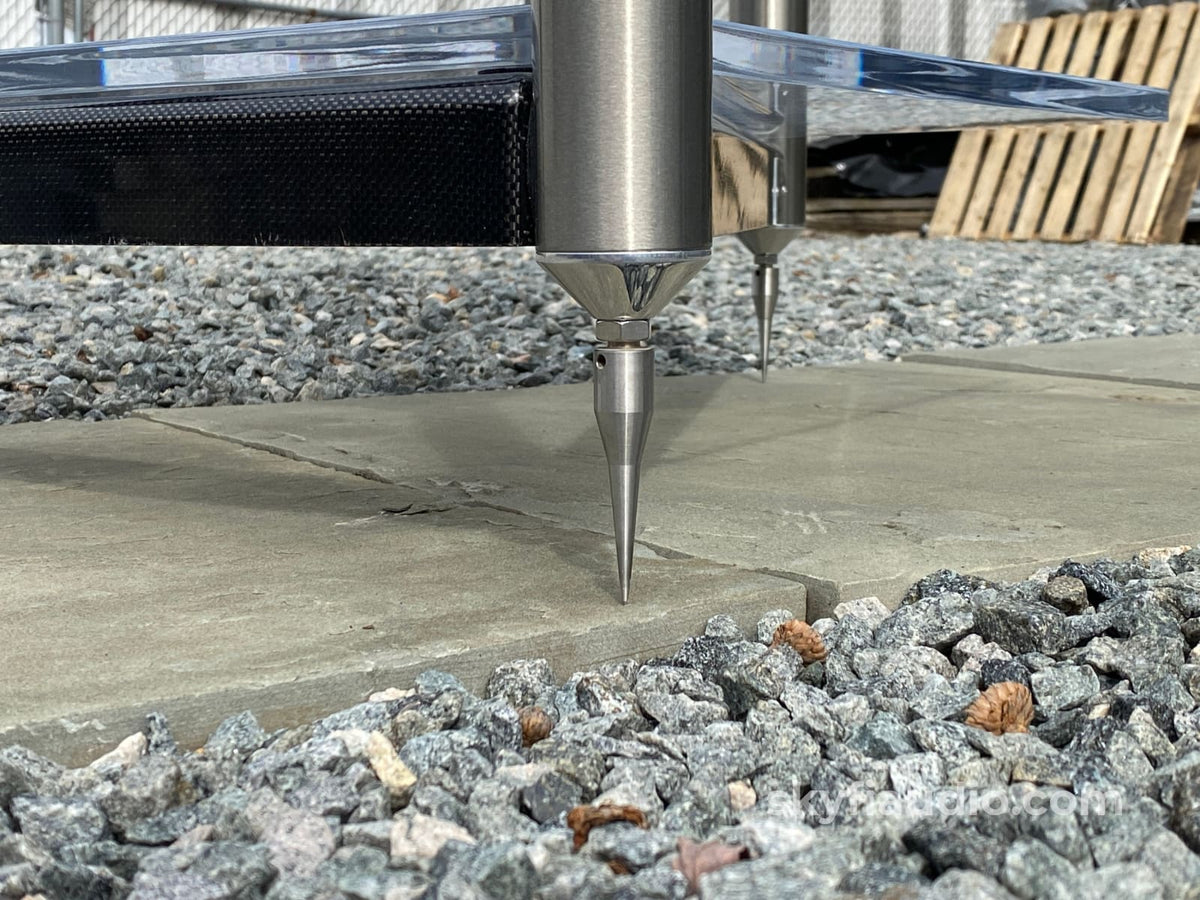

The Monaco is available as a three-, four-, or five-shelf system, or as individual modules. From the ground up, a GPA system consists of: 1) a 304 stainless-steel spike; 2) a large-diameter 304 stainless-steel support column, to which an aerospace-derived damping compound is applied; 3) **O**-ring dampers in the caps of each support column; 4) "true vector" stainless-steel ball couplers that couple multiple modules together; 5) the viscoelastic damping material that secures 6) the carbon-fiber supports, which provide the foundation for 7) specially sized dampers between supports and shelves (footnote 1); and 8) acrylic shelves (F1 shelves can be substituted at additional cost). The hollow stainless-steel columns can also be filled with lead shot to further improve performance. The approach is based on high-tech engineering and finesse rather than brute mass-loading.

Monaco Modular System Specifications
Shelf size: 21" W x 23.3 D" (or 17.75" D for the "short wheel base" frame)

Weight without ballast: 58 - 76 lbs. depending on shelf thickness

Weight with lead shot: 122 - 140 lbs

Weight-bearing capacity: 600 lbs

Ballast capacity: 64 lbs

Materials: Carbon Fiber epoxy chassis platforms, 304 Stainless steel support columns, 6061 T6 Aluminum support column closures, Stainless steel "True Vector" couplings, 304 Stainless steel spikes, Sorbothane, Acrylic

Cosmetic Condition:
8/10 = See our detailed rating description here.

Included:
Exactly as pictured and described above.

Packing:
Will be packed using our highly developed in-house process and custom packing materials.Original MSRP:
$10,000.00

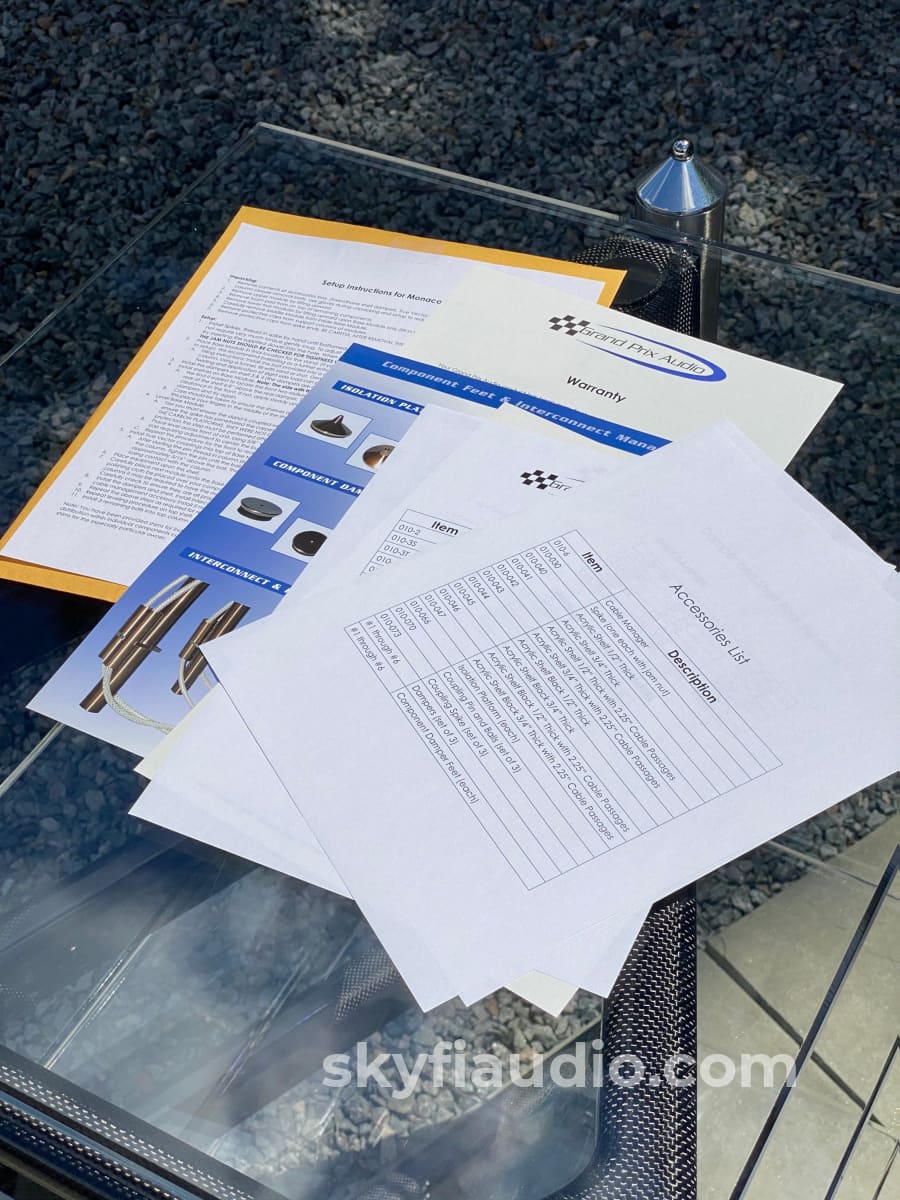

Link to Manual:
Click Here
