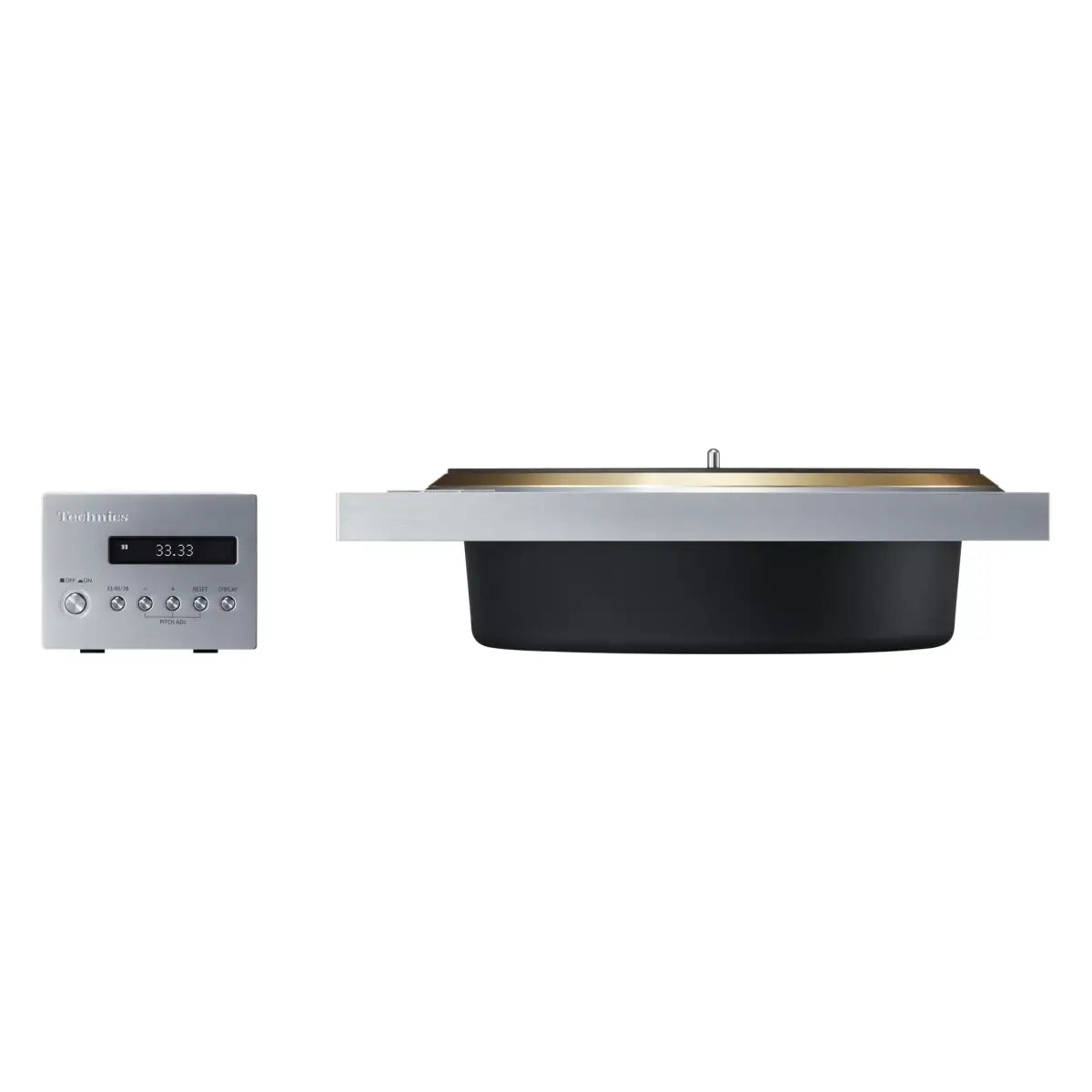

Technics Direct Drive Turntable SP-10RE-S - Build Your Dream Turntable
A direct drive turntable system designed and engineered to optimize sound performance, the SP-10RE-S establishes a new reference point for the modern high-fidelity turntable, redefining it for a new age.
The revival of the SP-10 Series establishes a new reference point for the modern high-fidelity turntable, redefining it for a new age. That’s why, as the newest additions to Technics’ signature Reference Class lineup of audio components, we have dubbed the SP10RE-S the heart of our newest direct drive turntable system, the SL-1000RE-S, designed and engineered to optimize its outstanding performance.
- Suppressing Unwanted Motor Vibration
- Heavyweight-class Turntable Platter
- Separate Control Unit
- Minute Adjustment and Indication of Rotations
- Double coil twin rotor-type coreless direct drive motor with heavyweight-class platter
- Constructed to prevent unwanted vibration, helping to achieve overwhelming rotary precision
- The turntable platter positions tungsten weights for high rigidity and excellent vibration damping
- The control unit is separated from the main unit to suppress the effects of unwanted noise
- Supports not only LP (33 1/3 rpm) and EP (45 rpm) analog records, but also SP (78 rpm)
Contact us if you'd like us to build your dream custom turntable around this historic and venerable drive. We can provide custom plinths to match any decor, tonearms and tons of customization options.
Coreless Direct Drive Motor
The motor that forms the heart of the direct drive turntable is based on the coreless direct drive motor that was developed for the SL-1200G launched in 2016, and further improved. The double coil twin rotor-type coreless direct drive motor that was newly developed for this purpose had coils on both sides for 12-pole, 18-coil drive, with high enough torque to drive the heavyweight-class platter (approximately 7.9-kg). Offsetting the coils on both sides 60 degrees improved the rigidity of the substrate, suppressing fine vibrations and reducing self-inductance. These improvements achieved stable rotation of 0.015% wow and flutter or less, which is considered to be the measurement limit. Also, the thrust bearings supporting the heavyweight-class platter use a special engineering plastic to provide both high rigidity and reliability.
Suppressing Unwanted MotorVibration
The motor that was developed for the SL-1200G served as the platform for the direct drive motor. The double coil, reinforced thrust bearings, and a chassis with increased rigidity achieved a stabilized motor with low center of gravity. By positioning two stainless steel weights with high rigidity and high specific gravity at the bottom of the chassis, the rigidity and low center of gravity are maintained. These thorough measures to prevent unwanted vibration help to achieve overwhelming rotary precision and improve S/N.
Heavyweight-class Turntable Platter
The turntable platter positions tungsten weights, which have an extremely high specific weight and are difficult to process, on the outer periphery of a 10-mm-thick brass weight. The brass weight is laminated onto the aluminum die-cast, giving the platter a total weight of approximately 7.9 kg and an inertial mass of approximately 1 ton・cm. A deadening rubber for eliminating unwanted vibration is also attached to the rear surface to form a 3-layer construction and achieve high rigidity and excellent vibration damping characteristics.
Heavyweight-class Turntable Platter
The turntable platter positions tungsten weights, which have an extremely high specific weight and are difficult to process, on the outer periphery of a 10-mm-thick brass weight. The brass weight is laminated onto the aluminum die-cast, giving the platter a total weight of approximately 7.9 kg and an inertial mass of approximately 1 ton・cm. A deadening rubber for eliminating unwanted vibration is also attached to the rear surface to form a 3-layer construction and achieve high rigidity and excellent vibration damping characteristics.
Separate Control Unit
The control unit is separated from the main unit to suppress the effects of unwanted noise on the main unit. In order to achieve a power supply circuit that provides good regulation for high torque, a switching power supply is used. To reduce the noise reaching the pickup, the switching power supply is equipped with a unique technology that provides a voltage supply with minimal noise by a newly developed "unwanted noise reduction circuit". Also, to minimize the noise even during communication, a highly reliable system that resists the effects of external noise is used for communication between the main unit and the control unit. These thorough noise-reduction measures achieve the world's highest-level S/N.
Minute Adjustment and Indication ofRotations
This turntable supports not only LP (33 1/3 rpm) and EP (45 rpm) analogue records, but also SP (78 rpm). Rotation (rpm) can also be set down to two decimal places (maximum ±16%) from the control unit. The OLED display is also capable of displaying rotation with accuracy down to two decimal places, so the user can both hear and see extremely precise rotation.
SP-10MK2 and SP-10MK3Compatibility
In order to enable users to continue using the turntable base and tonearm of systems including the SP-10MK2 and SP-10MK3, the shape and screw positions of the SP-10R base plate are designed to allow mounting onto the SP-10MK2 and SP-10MK3 for complete backward compatibility. The control unit is also the same shape and size as the SP-10MK2 power unit for trouble-free replacement.
