Complete McIntosh Four Piece System In Wood Cases
Recently featured as our System of the Week "with a touch of modern", this McIntosh collection is a quick and easy way to source four perfectly matched pieces carefully selected from our collection...

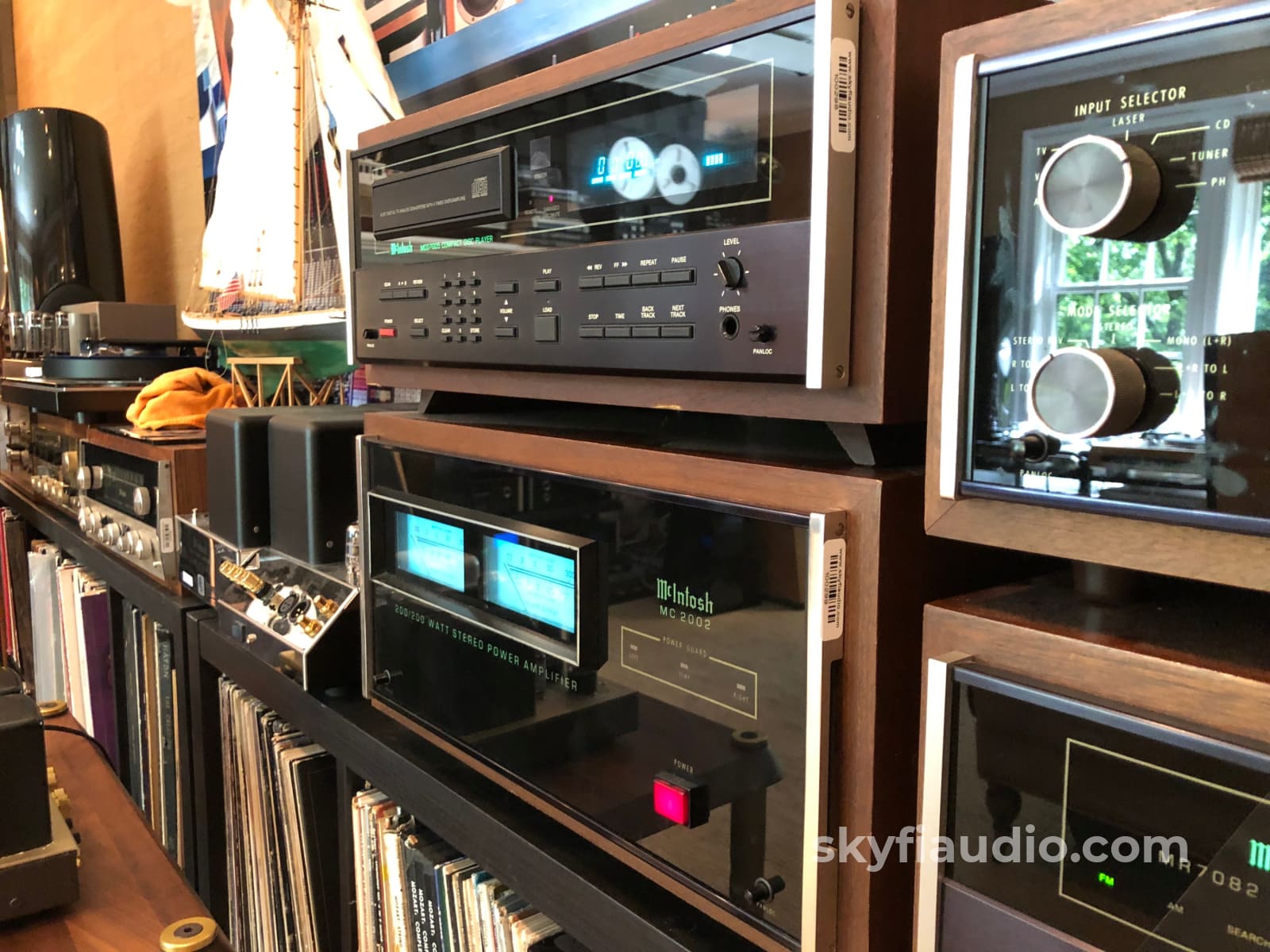

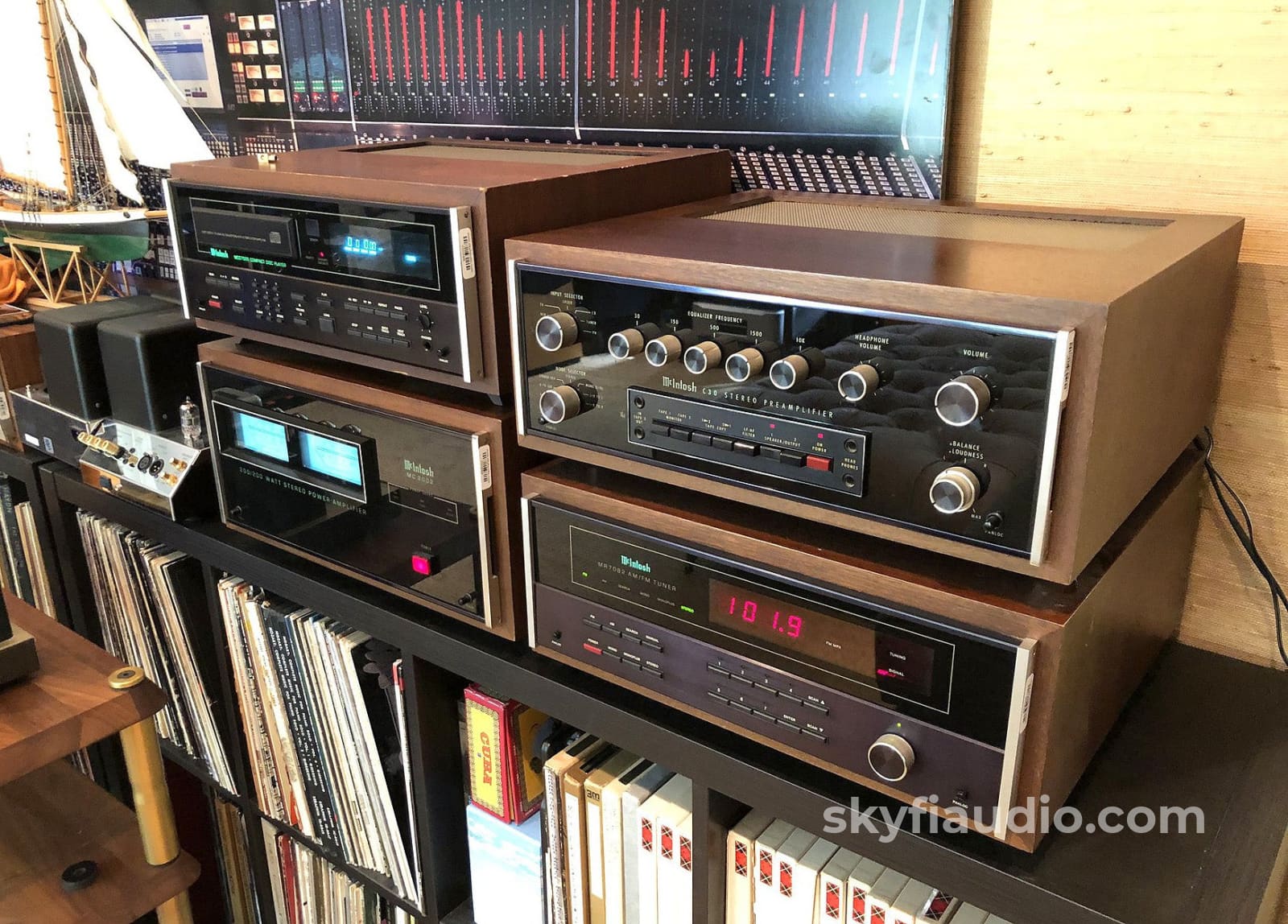

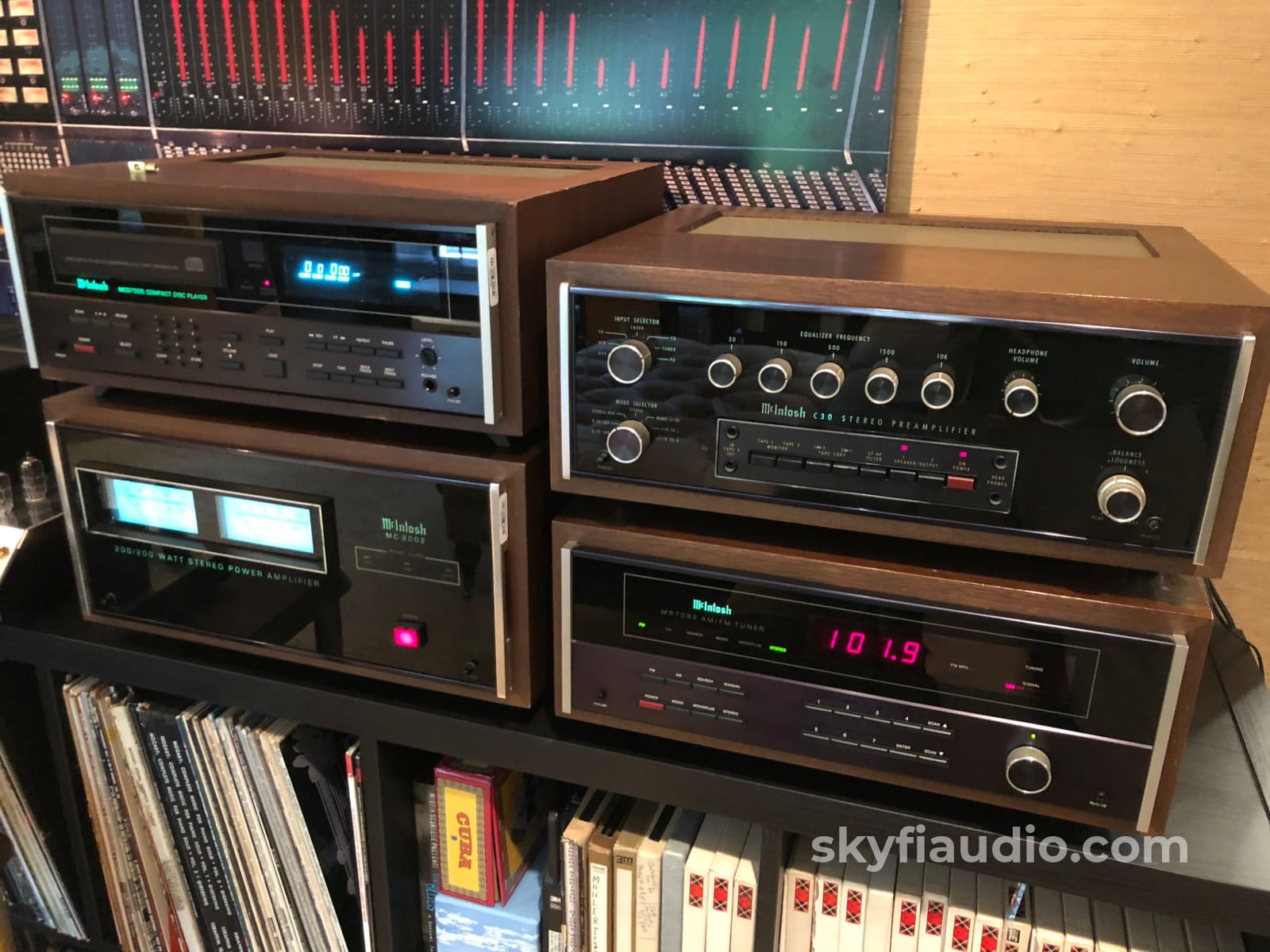

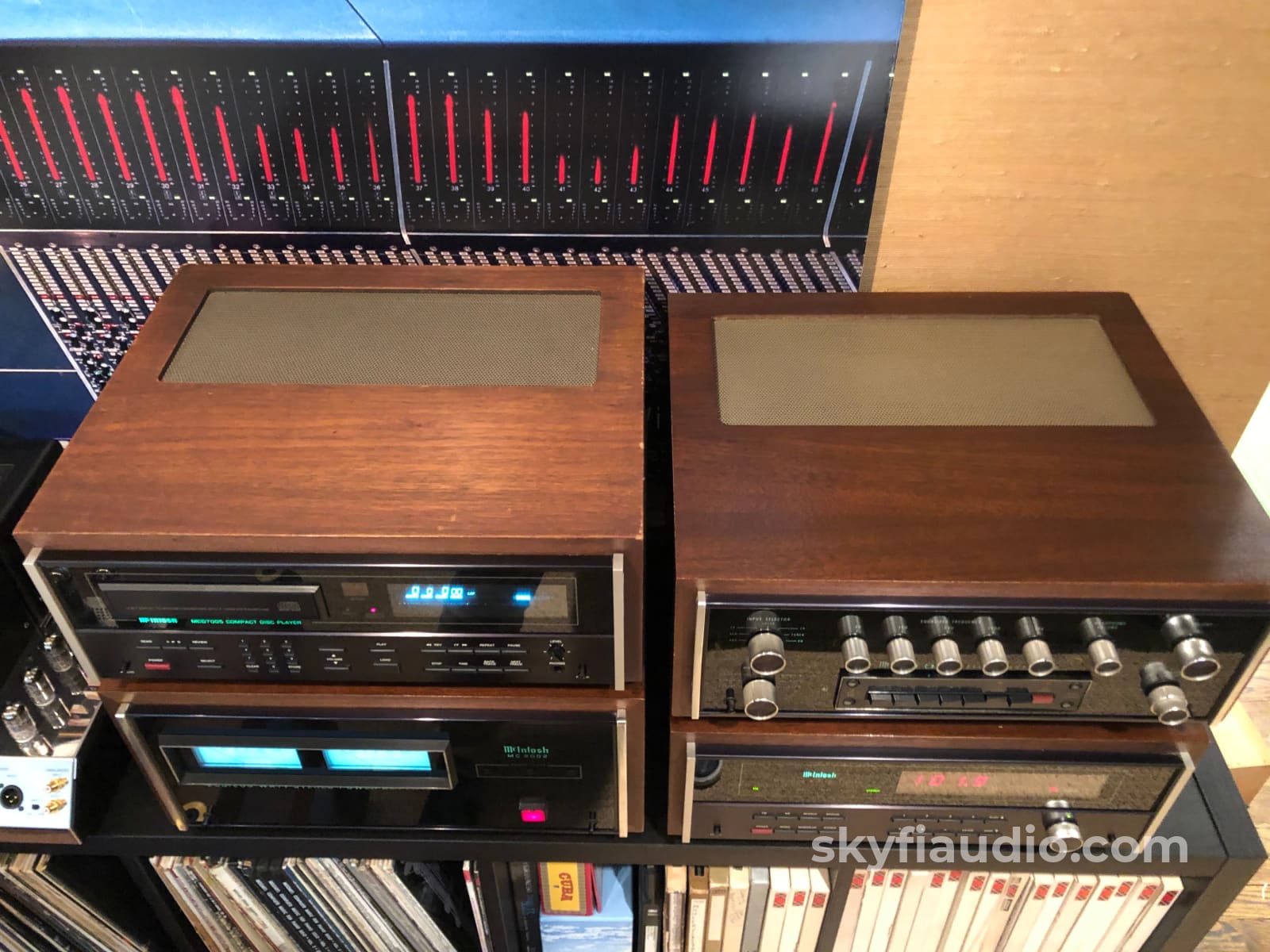

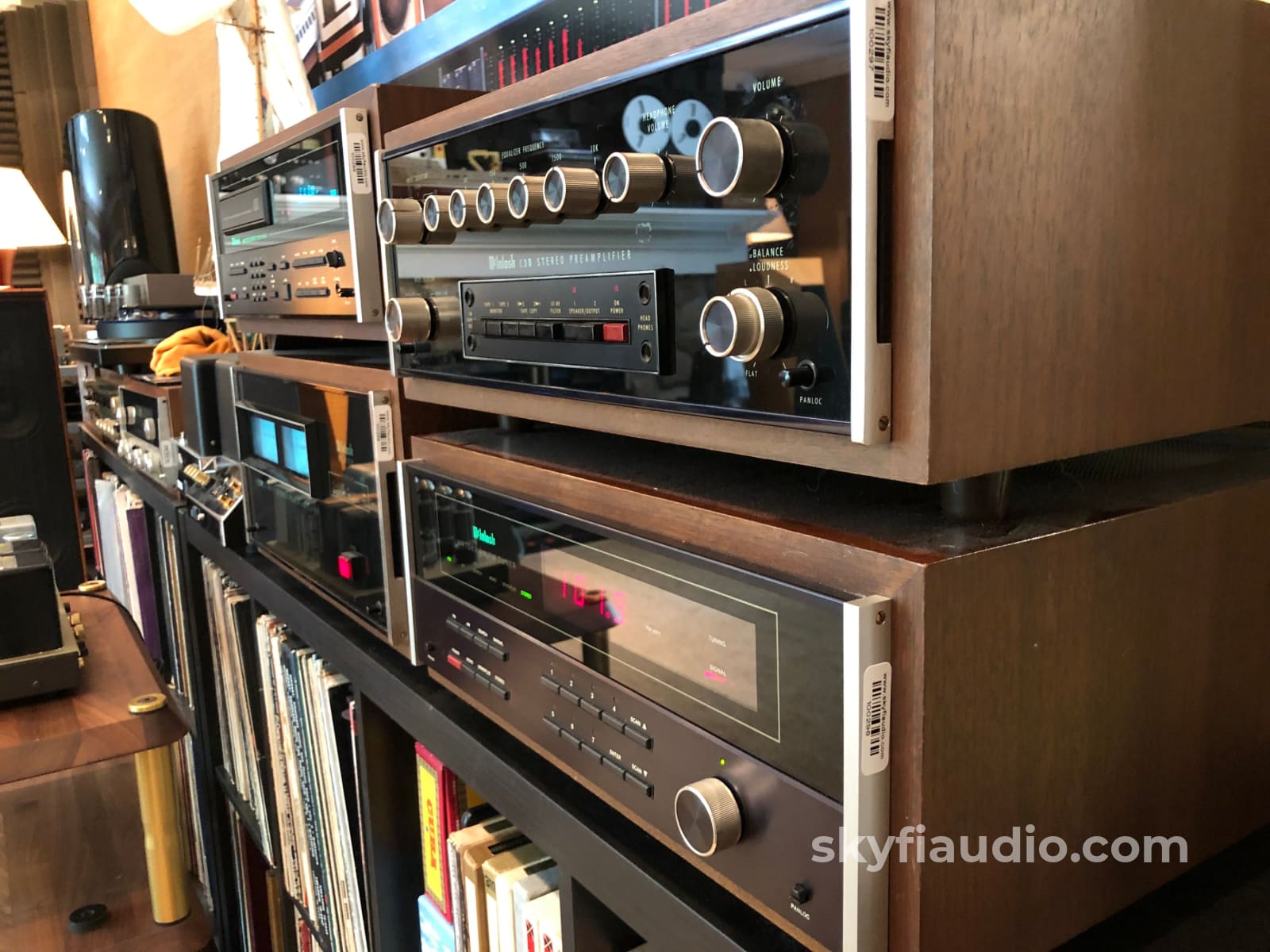

This listing includes the following McIntosh pieces, all in wood cases:
McIntosh MC2002 Stereo Solid State Amplifier
Click here for a PDF copy of the original MC2002 McIntosh Brochure
Click here for a MC2002 review from Audio Magazine, April 1985
McIntosh C30 Solid State Preamplifier
Click here for a PDF copy of the C30 Owner's Manual
McIntosh MR7082 Solid State Tuner
Click here for a PDF copy of the MR7082 Owner's Manual
McIntosh MCD7005 Solid State CD Player (w/Quad Oversampling and Dual Philips TDA1541A DAC's)
Click here for a PDF copy of the MCD7005 Owner's Manual
SPECIFICATIONS:

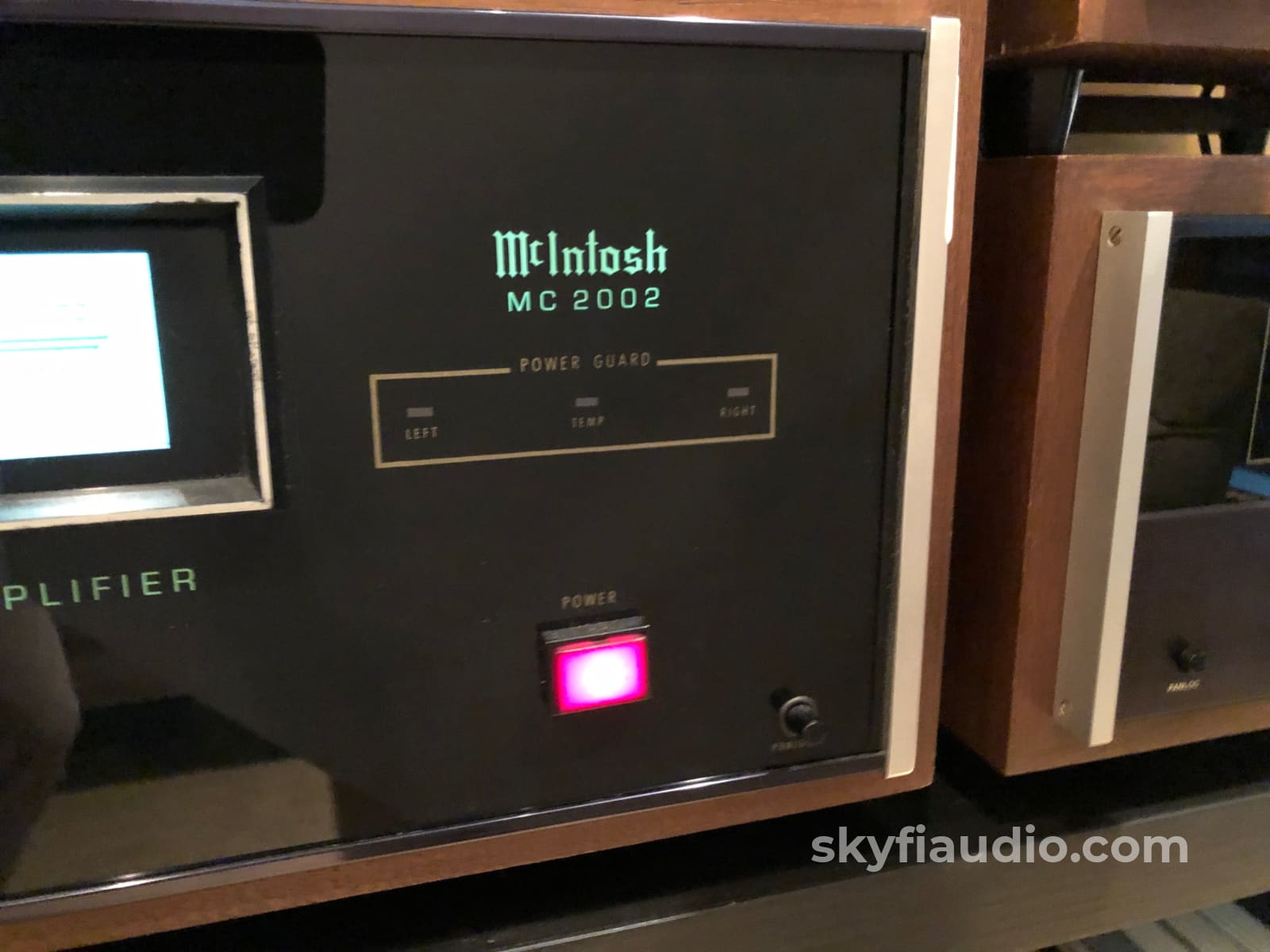

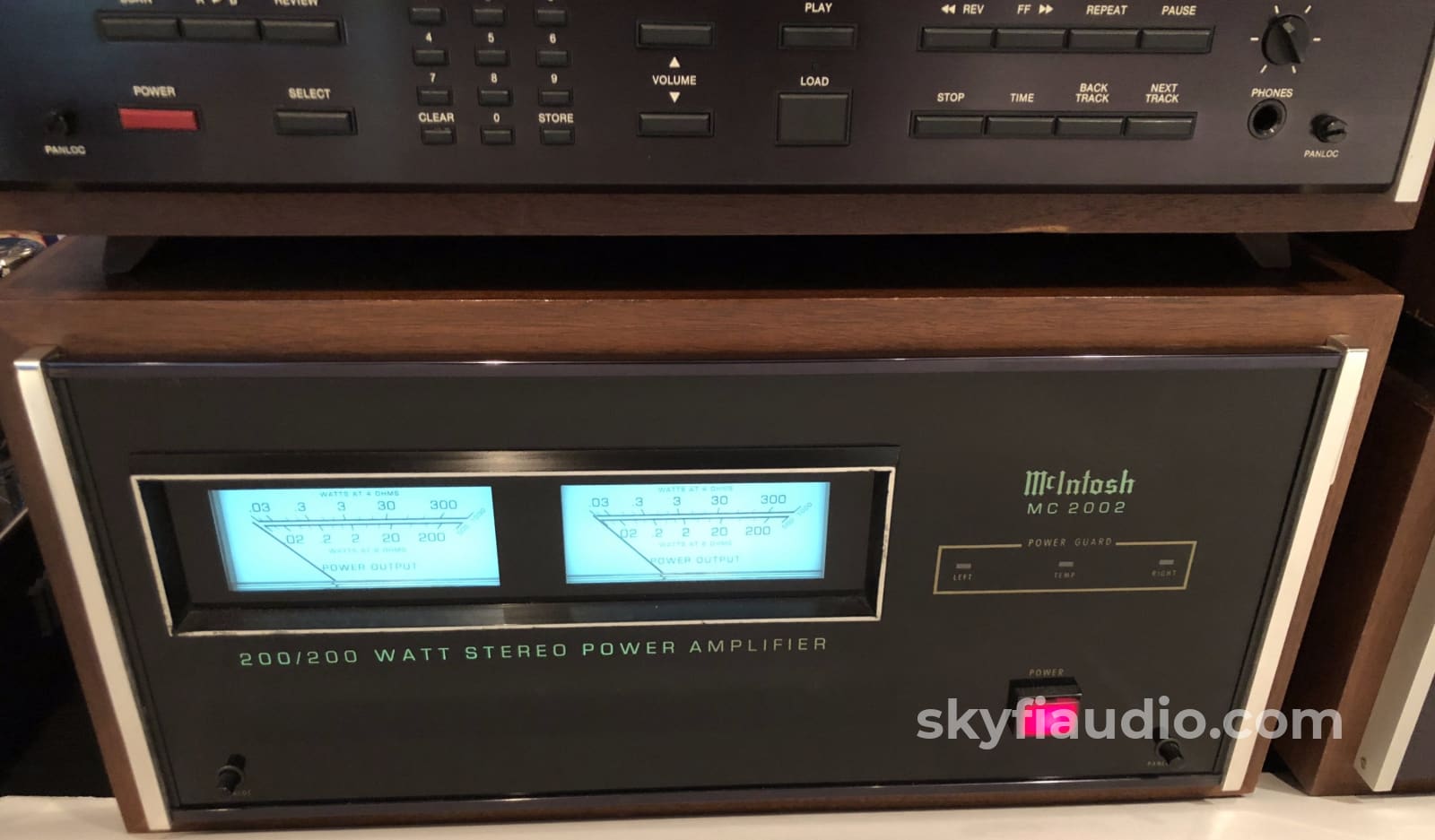

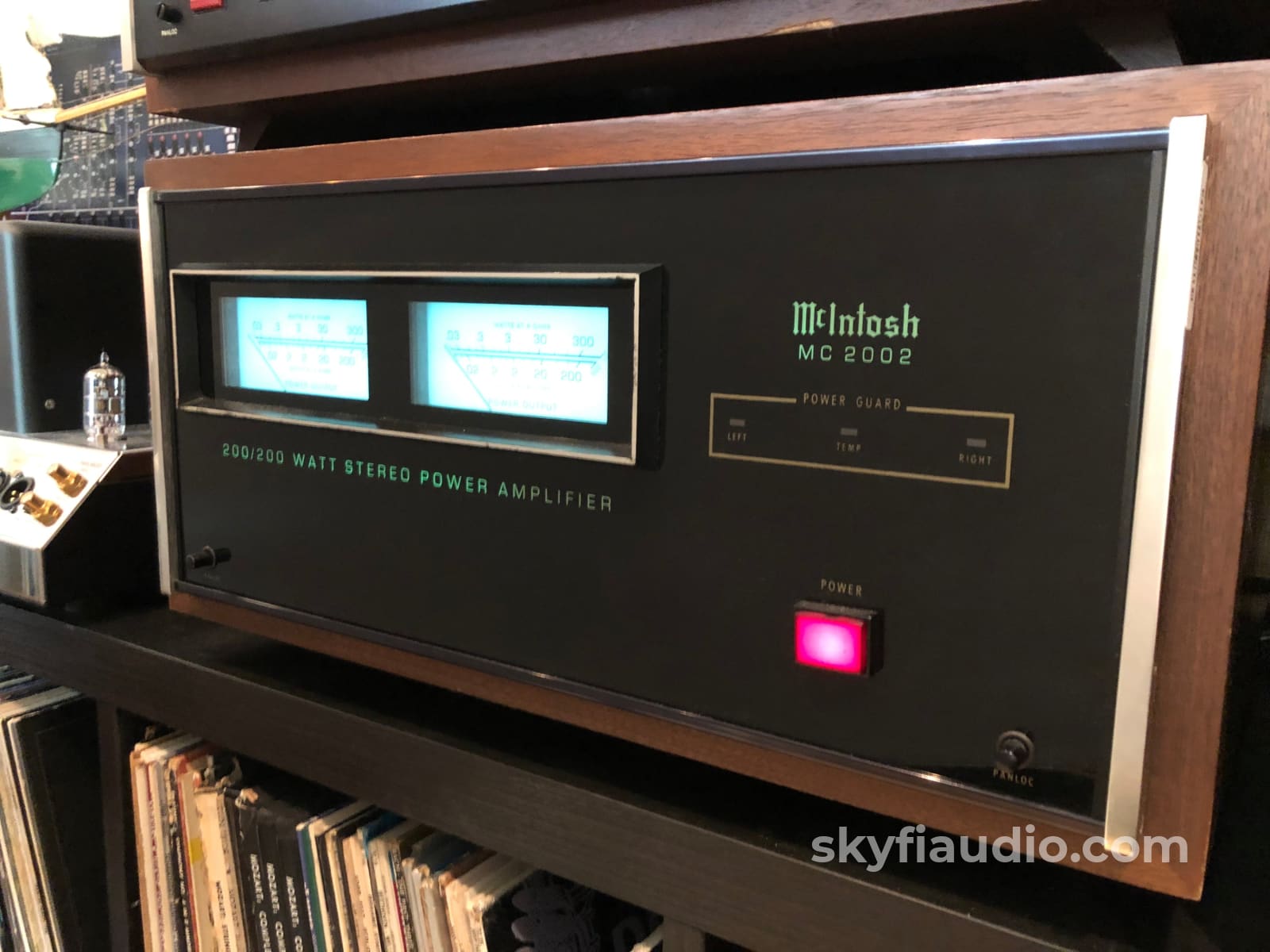

McIntosh MC2002 Stereo Solid State Amplifier
Power output: 200 watts per channel into 8Ω (stereo), 600W into 8Ω (mono)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.01%
Damping factor: 100
Input sensitivity: 1.4V
Signal to noise ratio: 100dB
Speaker load impedance: 4Ω to 8Ω

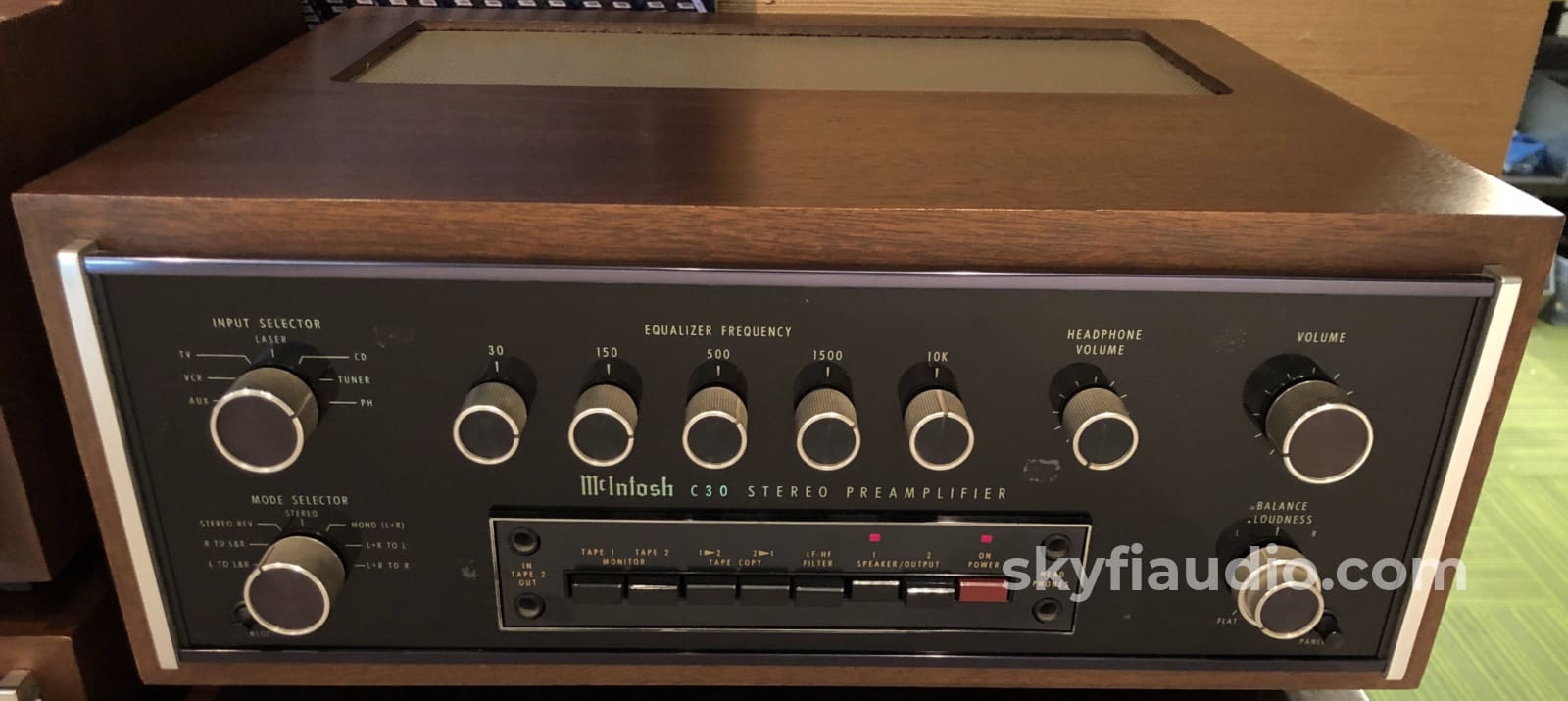

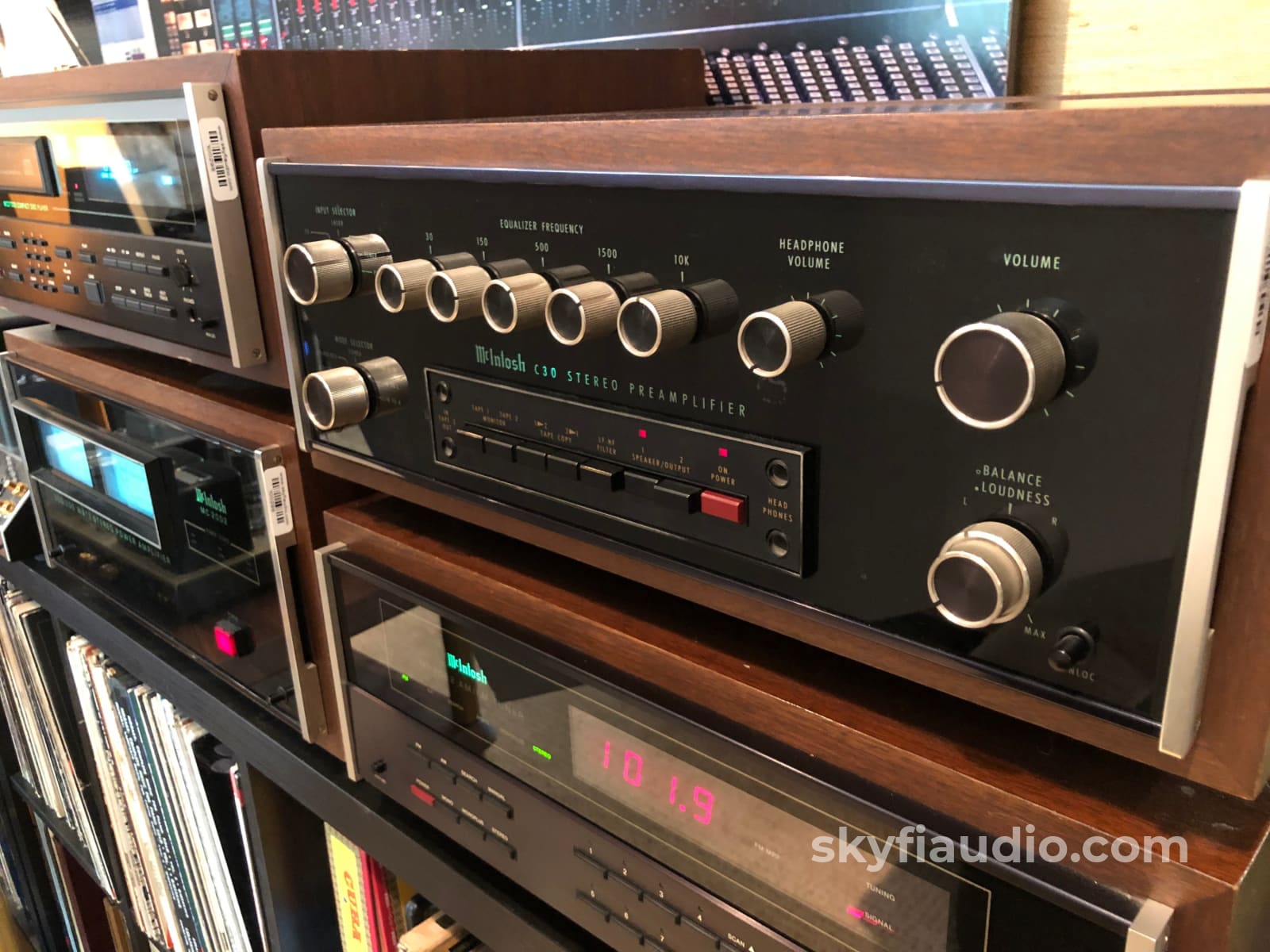

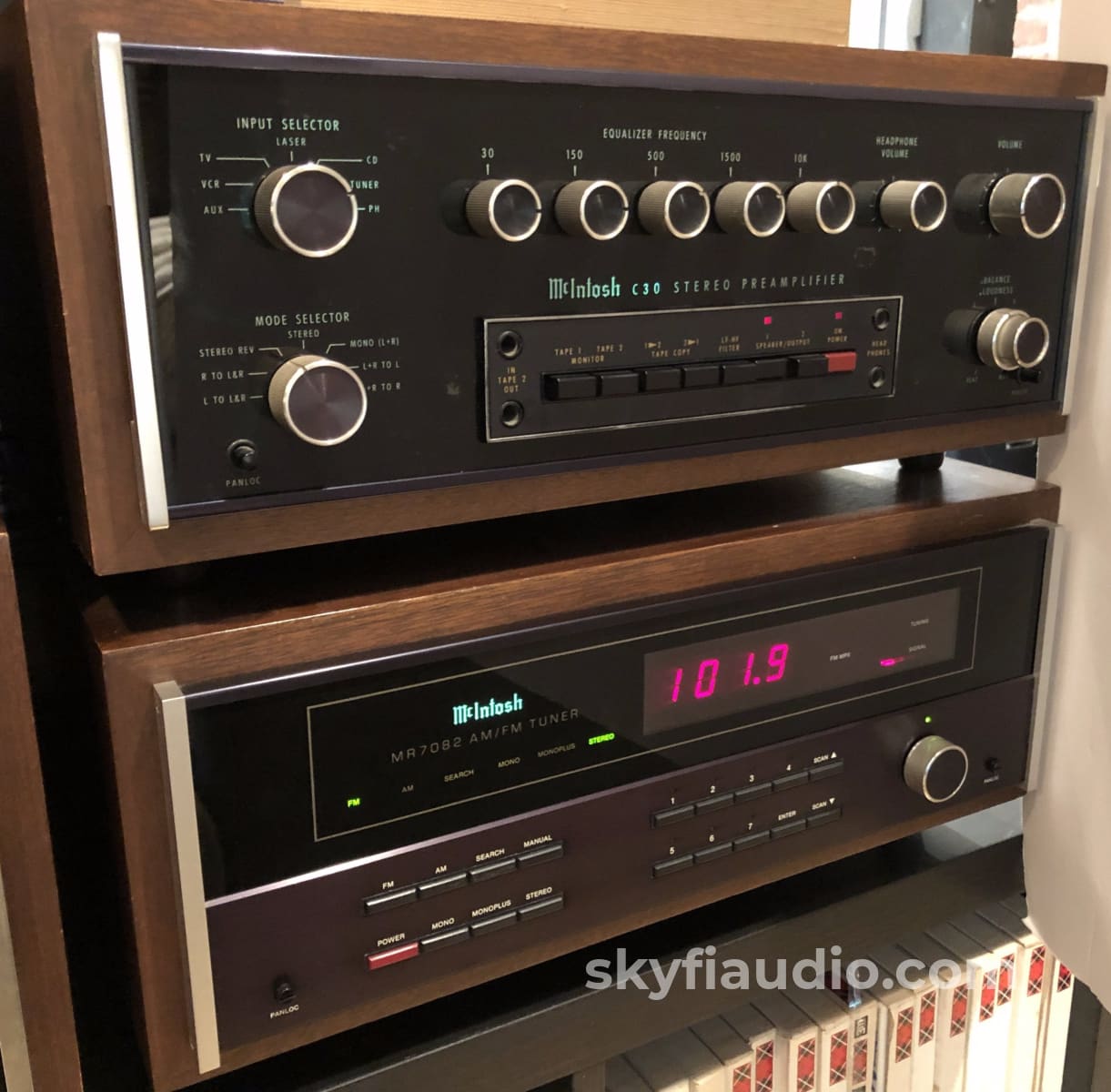

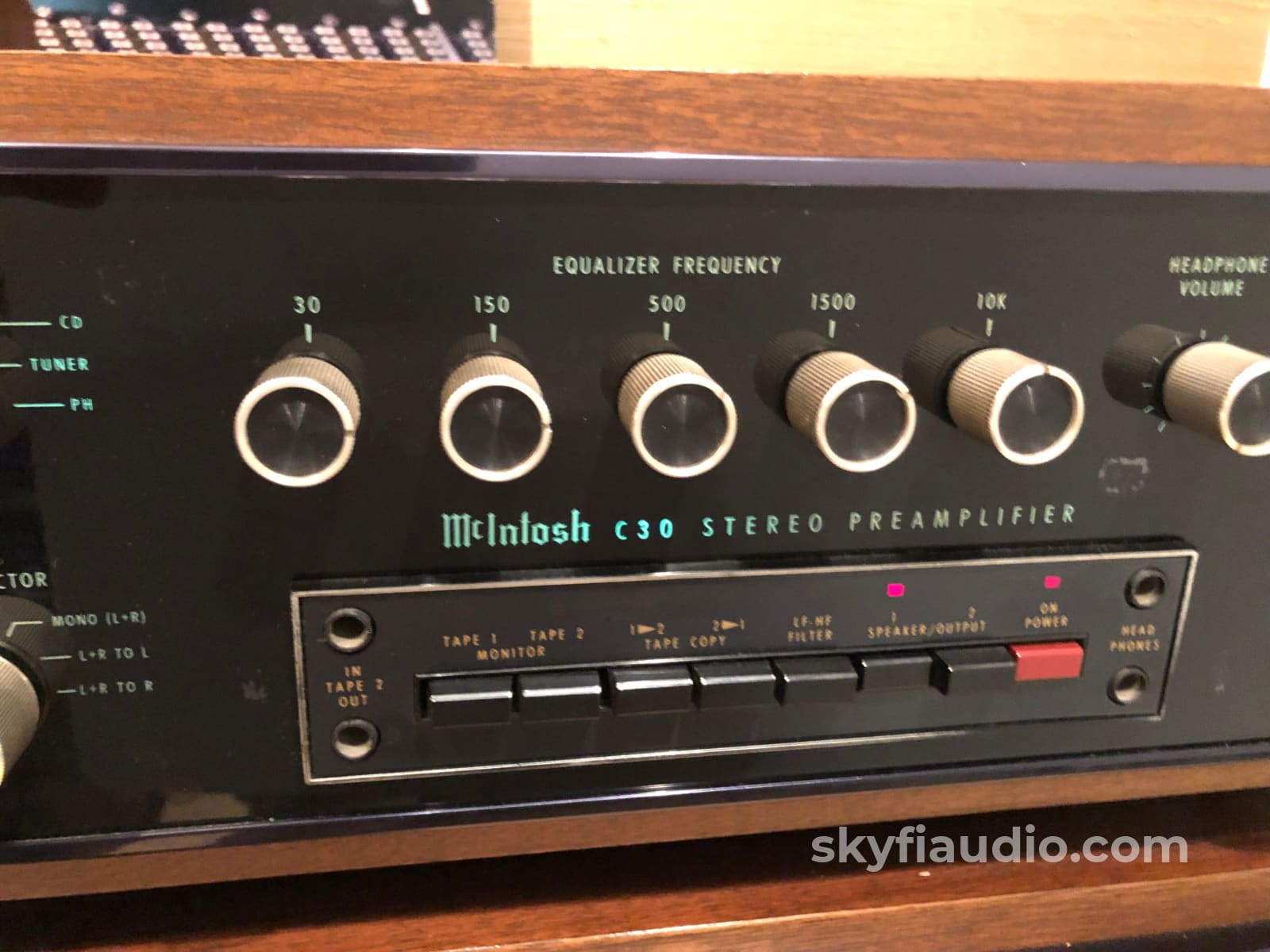

McIntosh C30 Solid State Preamplifier
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.007%
Gain: 62dB (MM), 22dB (line)
Input sensitivity: 2mV (MM), 200mV (line)
Signal to noise ratio: 90dB (MM), 100dB (line)
Semiconductors: 15 x IC, 66 x FET, 28 x transistors, 91 x diodes

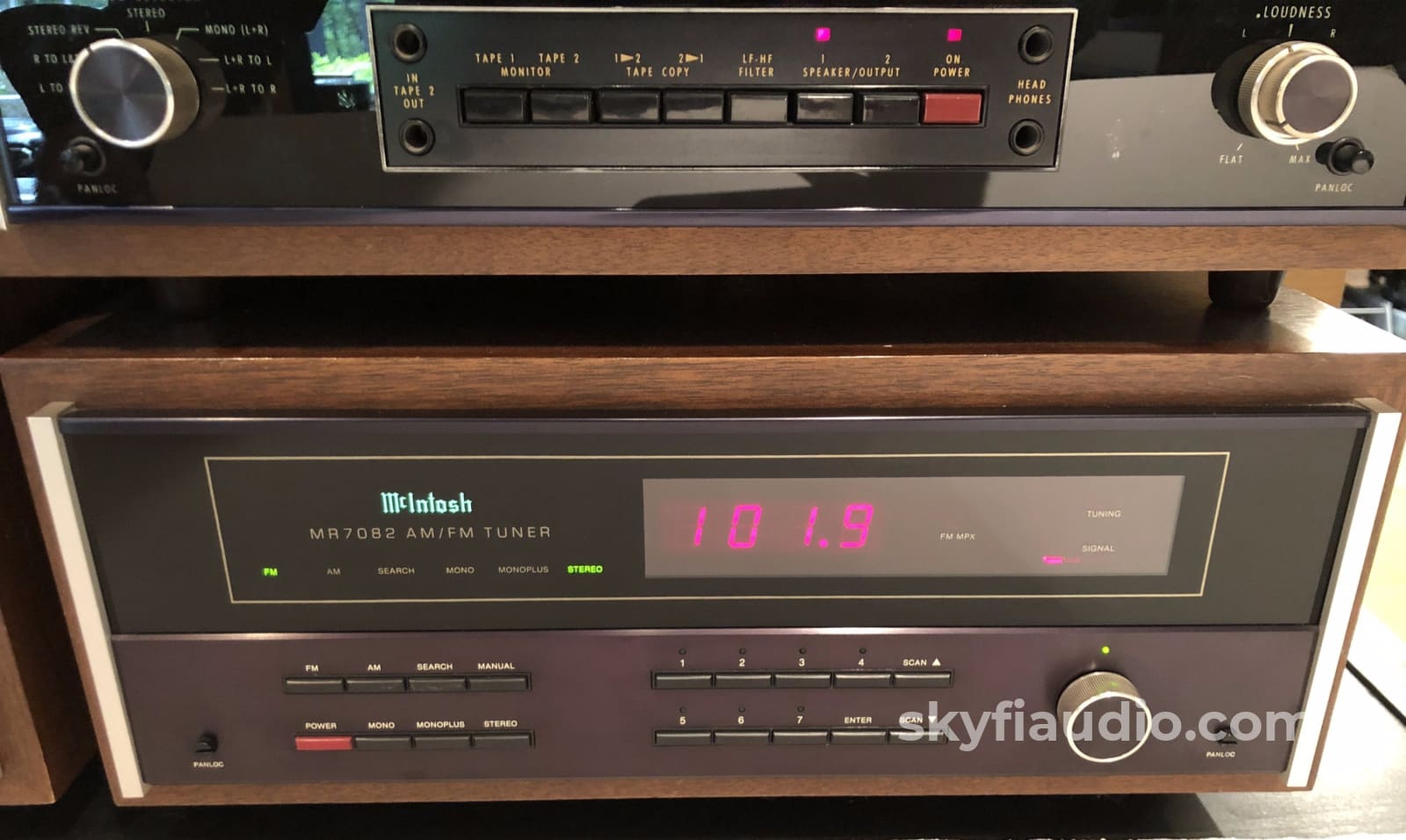

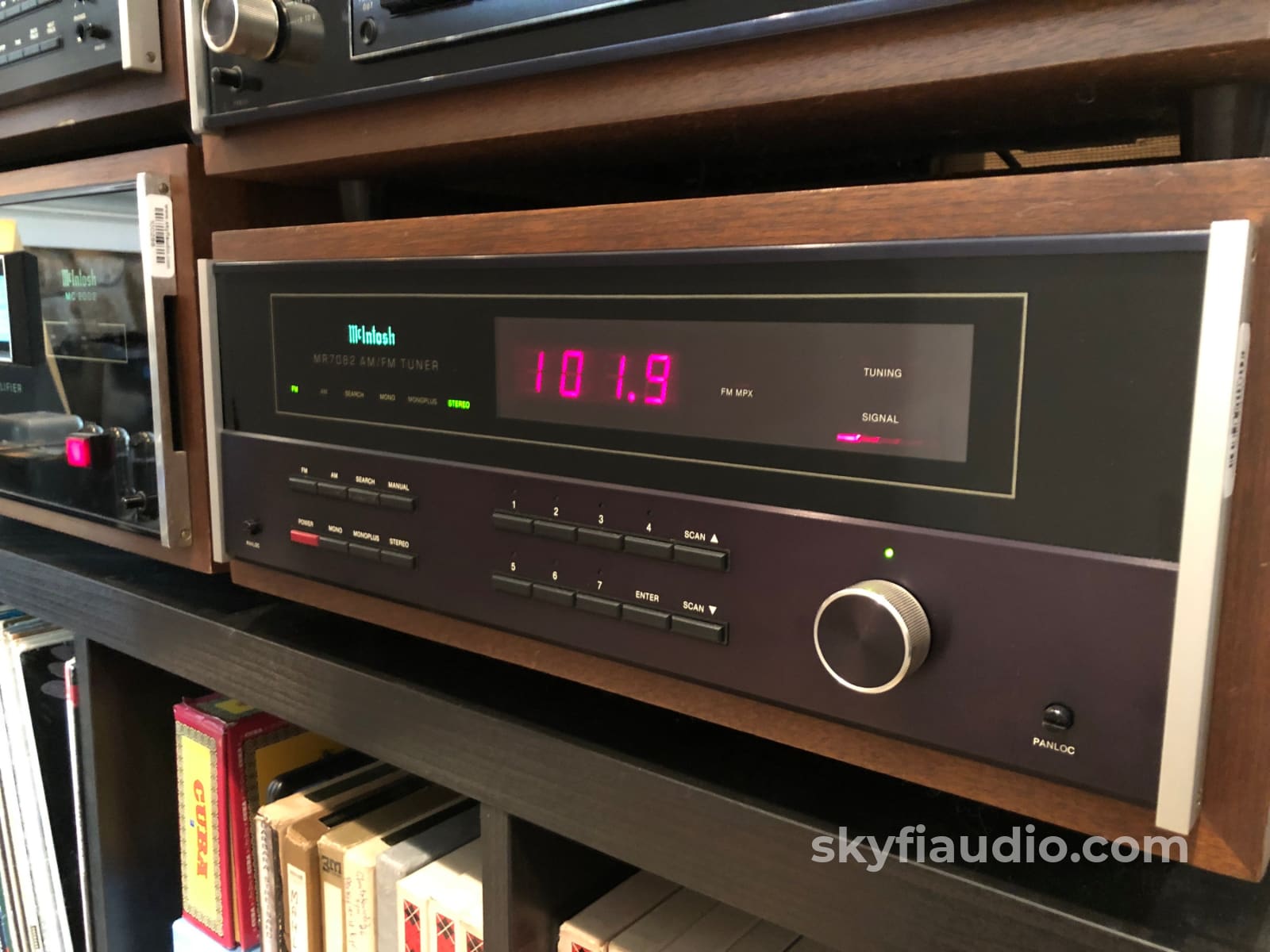

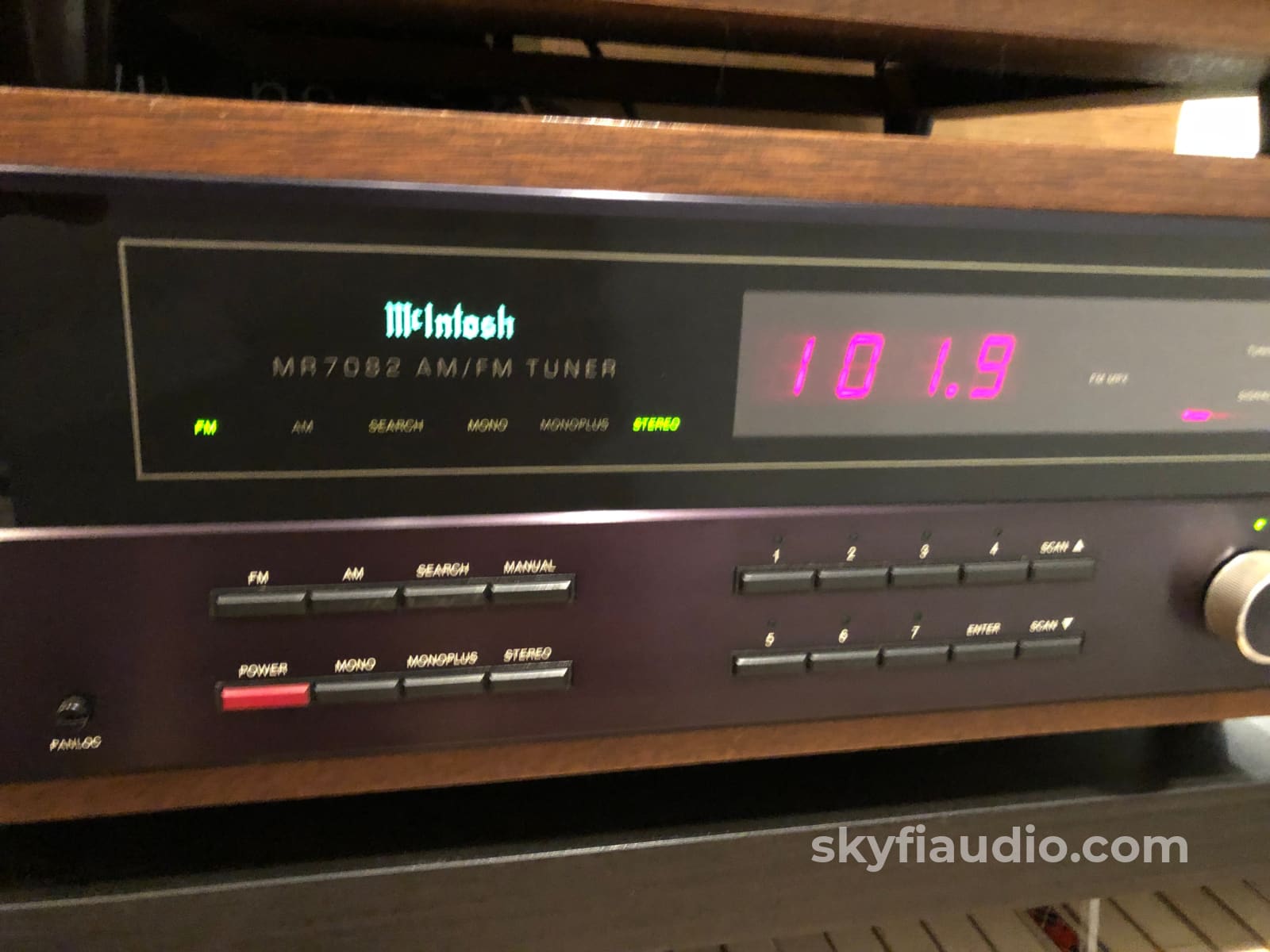

McIntosh MR7082 Solid State Tuner
FM SECTION: Sensitivity 13dBF or 1.22uV across 75 ohms. Stereo 50dB quieting sensitivity 37dBF or 20uV across 75 ohms. Response 20-15kHz (+0 -1dB). Distortion 0.08% in stereo. Capture ratio 1.5dB. Image rejection 90dB. S/N 75dB stereo. Alt channel selectivity 55dB. Spurious rejection 100dB. AM suppresion 60dB.
AM SECTION: Sensitivity 35uV. Response 20-4.5kHz (+0 -6dB). Distortion 0.3%. Adjacent channel selectivity 40dB. S/N 65dB. Image rejection 60dB.
FRONT PANEL: Glass panel top. Black anodized bottom. Push Buttons: AM, FM, Search, Manual, Power, Mono, Monoplus, Stereo, 7 presets, Scan up, Scan down, Enter. Tuning ctrl. LED indicators: tuning and signal.
BACK PANEL: Audio out fixed. Built-in ferrite loopstick. Ext am antenna. 15 pin remote control receptacle. 75 ohm fm cable input. Panloc mounting.

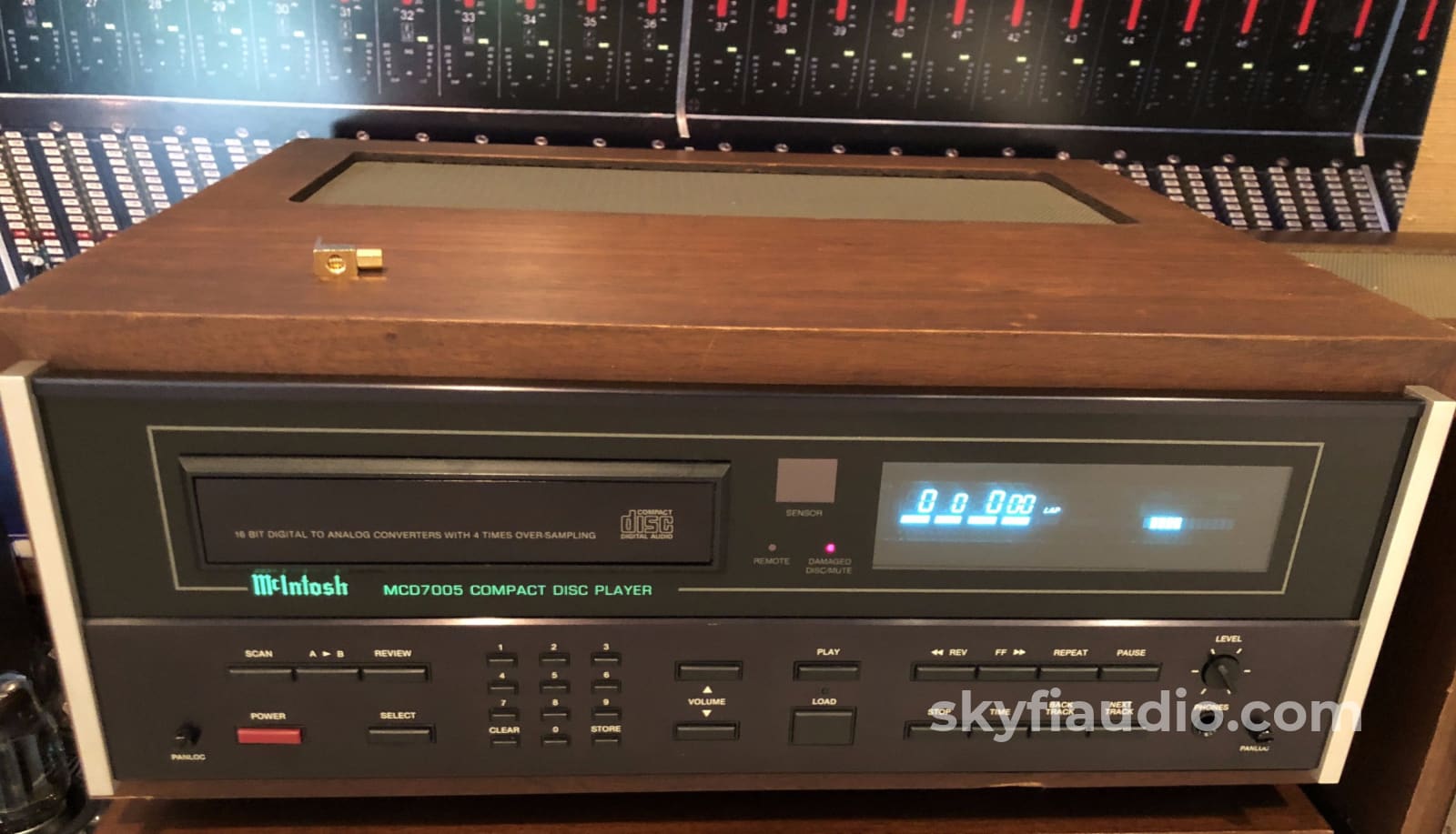

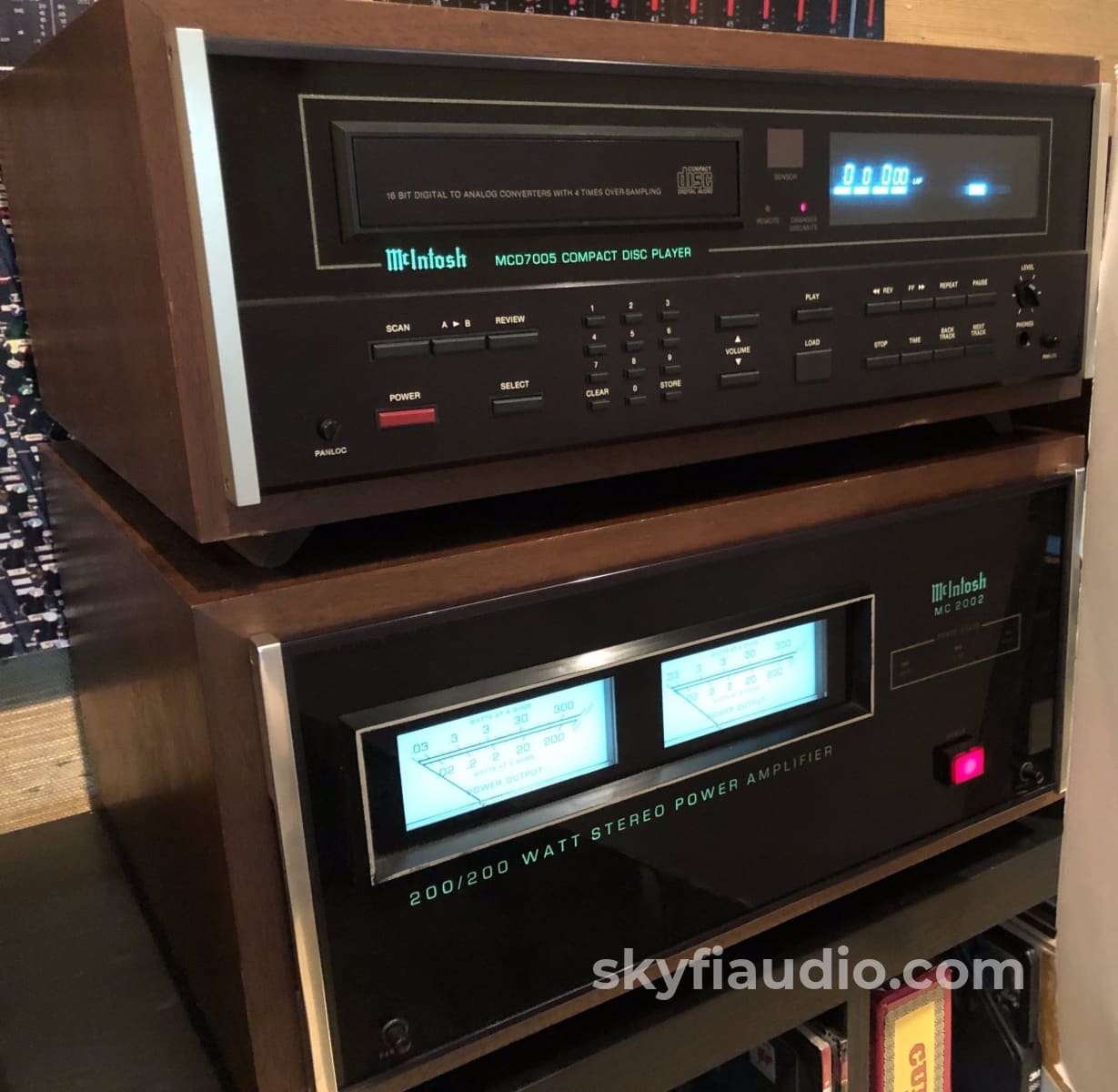

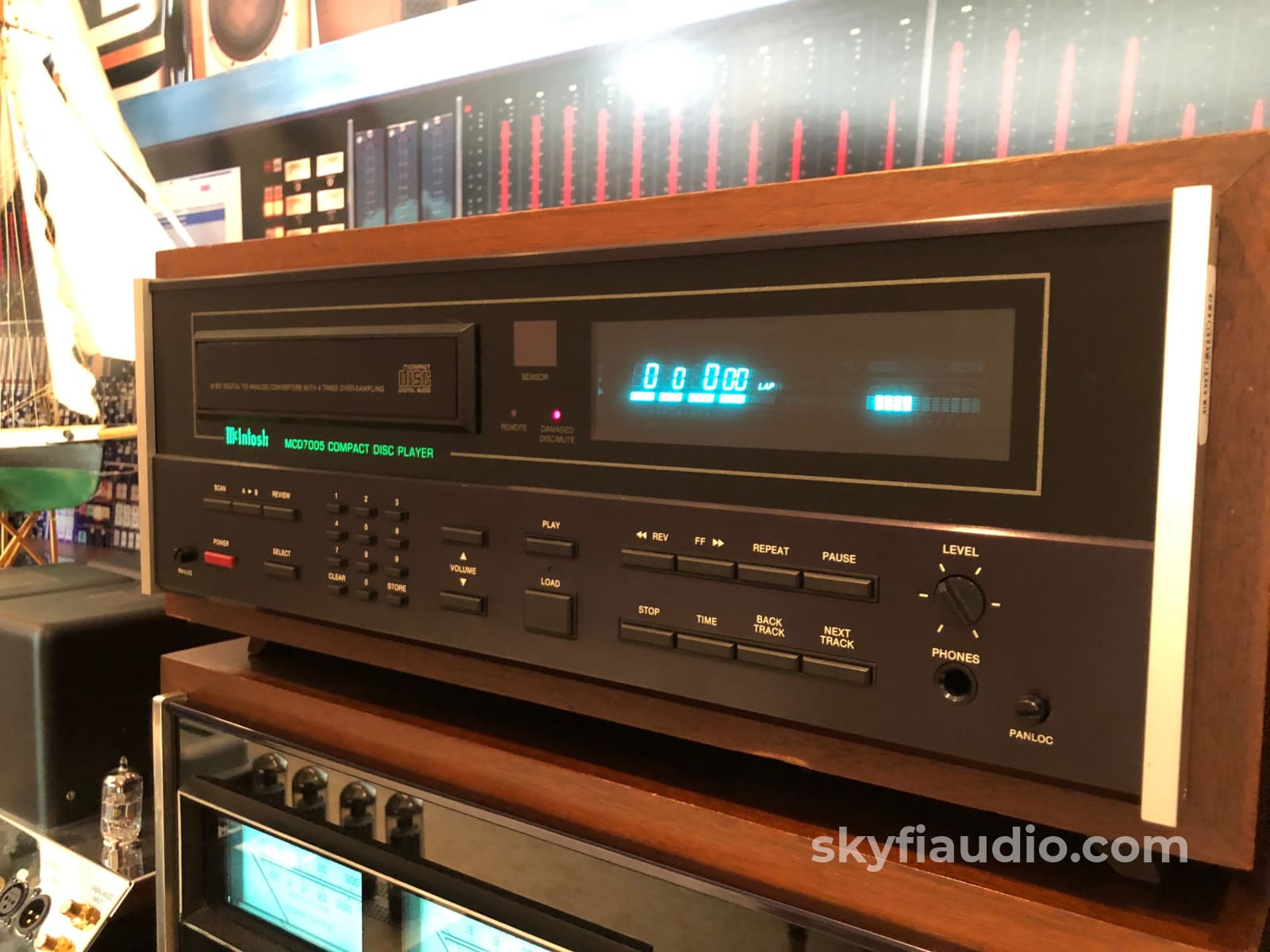

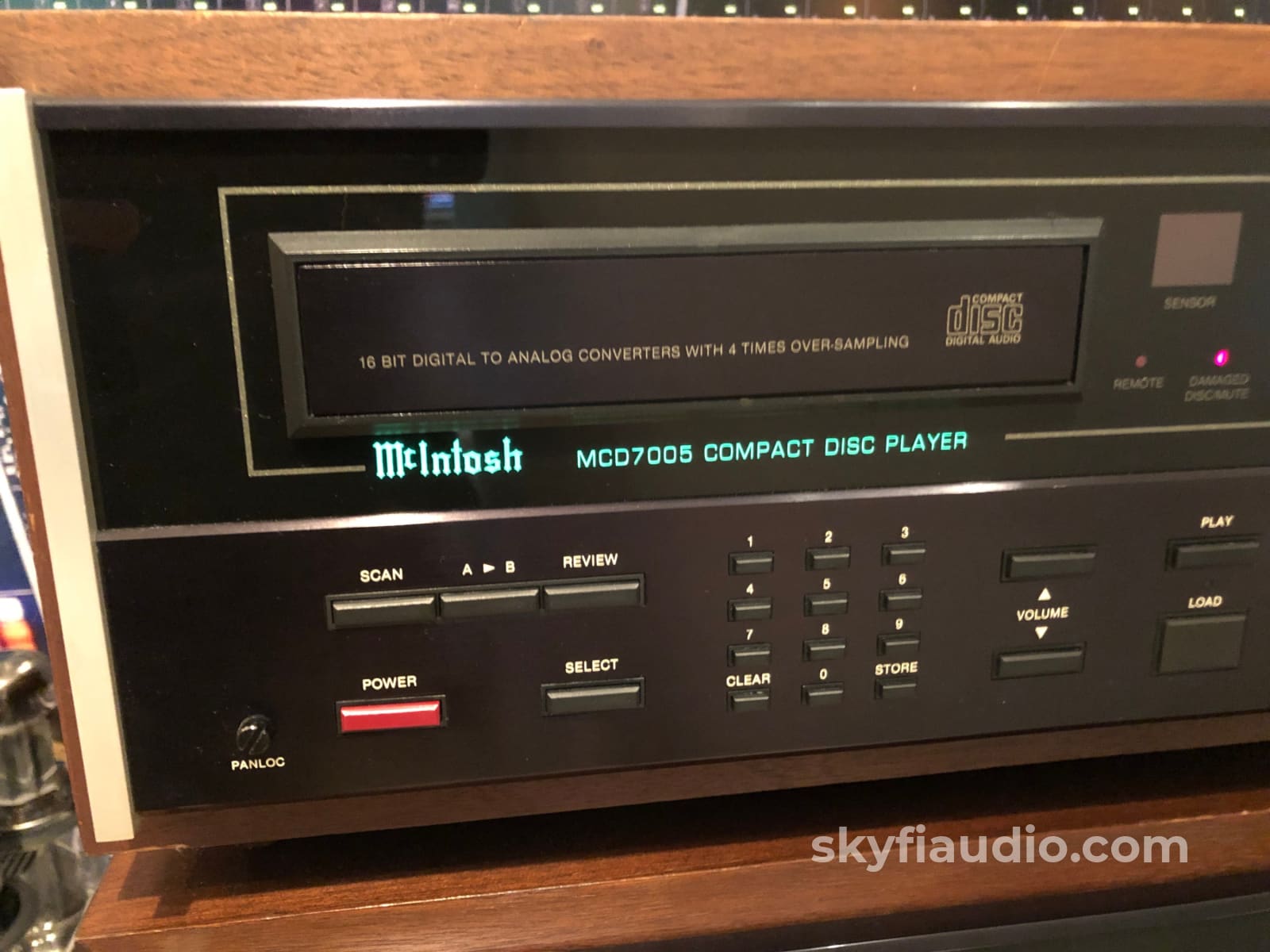

McIntosh MCD7005 Solid State CD Player
Disc format: CD
Digital converter: Philips TDA1541A, 16 bit, 4 x oversampling
CD Mechanism: CDM-1
Frequency response: 2Hz to 20kHz
Dynamic range: 96dB
Signal to Noise Ratio: 96dB
Channel separation: 94dB
Total harmonic distortion: 0.003%
Line output: 2.7V
Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.
For all 4 Pieces |
Included |
Original Box |
No |
Manual |
Online |
Remote |
Only for the CD Player |
Cables |
No |
Physical Condition |
8 |
Working Condition |
10 |
