Bowers & Wilkins ASW10CM Compact Subwoofer

Sale price$0.00
Free Shipping on *ALL* Electronics (Excluding Speakers, Contiguous 48 US States Only)

Pickup currently unavailable at SkyFi 479

Bowers & Wilkins Asw10Cm Compact Subwoofer Speakers

Bowers & Wilkins ASW10CM Compact Subwoofer

SkyFi 479

Pickup currently unavailable

479 South Broad Street
Glen Rock NJ 07452
United States

+12018790000

A perfect match for any Bowers CM series speaker.

Cosmetic Notes:

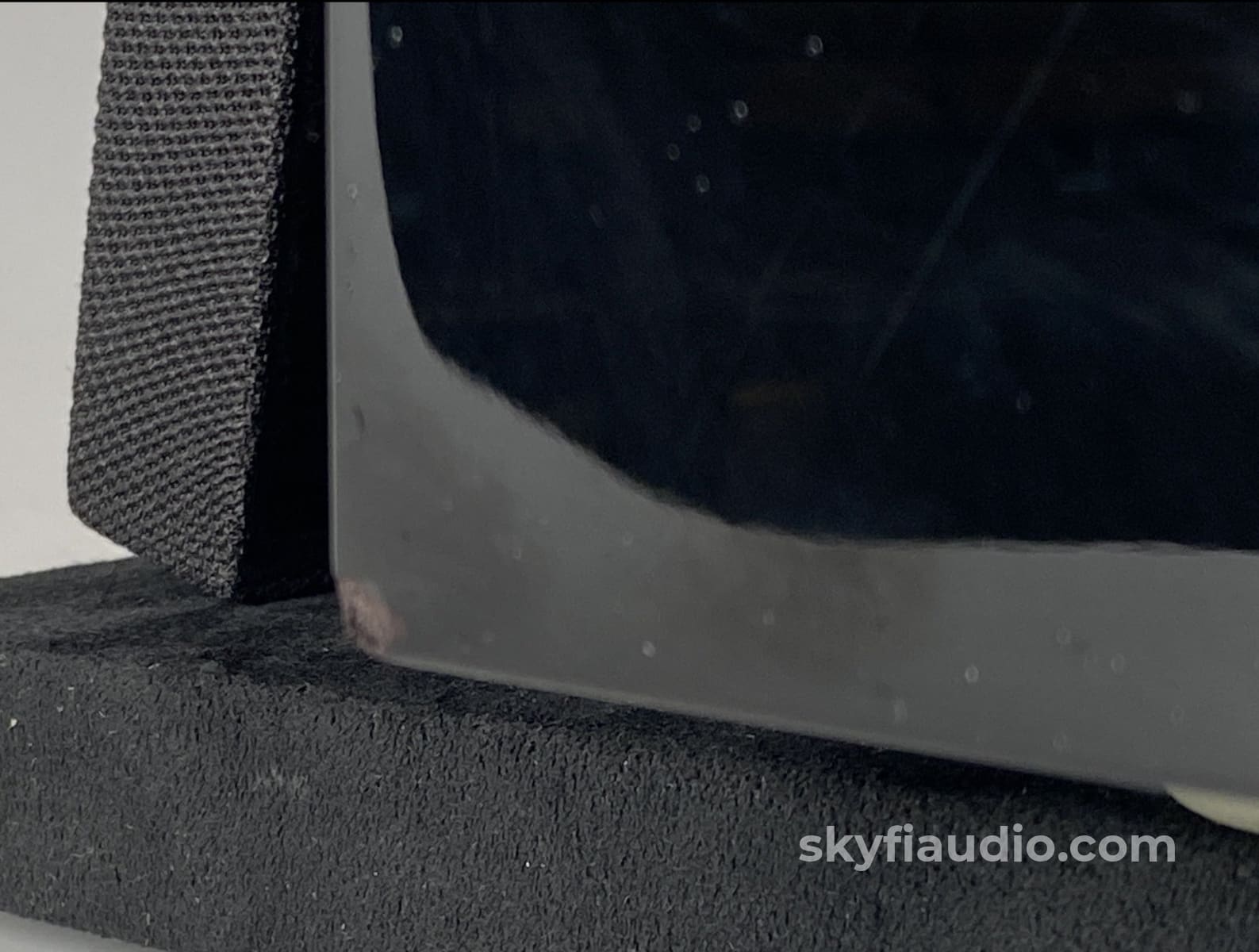

• Small chip on front bottom left corner
• Light swirls on gloss black surfaces (common with gloss finishes over time)

More from B&W:

This versatile subwoofer compliments the rest of the CM range with the powerful, deep bass that has come to be expected from B&W’s range of subwoofers.

Wrapped in an exquisitely veneered cabinet, the 10 inch dual voice coil paper/Kevlar® driver is driven and controlled by the mega efficient 500W audiophile standard Class D amplifier and switch mode power supply, delivering immense power when the signal demands.

This combination can move vast amounts of air yet not lose any of the control that is necessary for accurate low-frequency output.

Bowers & Wilkins ASW10CM Compact Subwoofer - Manual

Specifications:
Active closed-box subwoofer system

Drive unit
ø250mm (10 in) paper/Kevlar® cone long-throw 76mm (3 in) dia voice coil - dual suspension diecast chassis

Frequency range
-6dB at 18Hz and 25/140Hz adjustable (EQ at A)

Frequency response
±3dB 25Hz – 40/140Hz adjustable (EQ at A)

Base Extension
-6dB at 18Hz (position A)
-6dB at 23Hz (position B)
-6dB at 28Hz (position C)

Low-pass filter
Active 4th-order, variable cut-off frequency

Amplifier
Power output:
500W

Rated power consumption:
94W

Standby power consumption:
0.8W

Input impedance:
33kV

Signal / noise:
>80dB

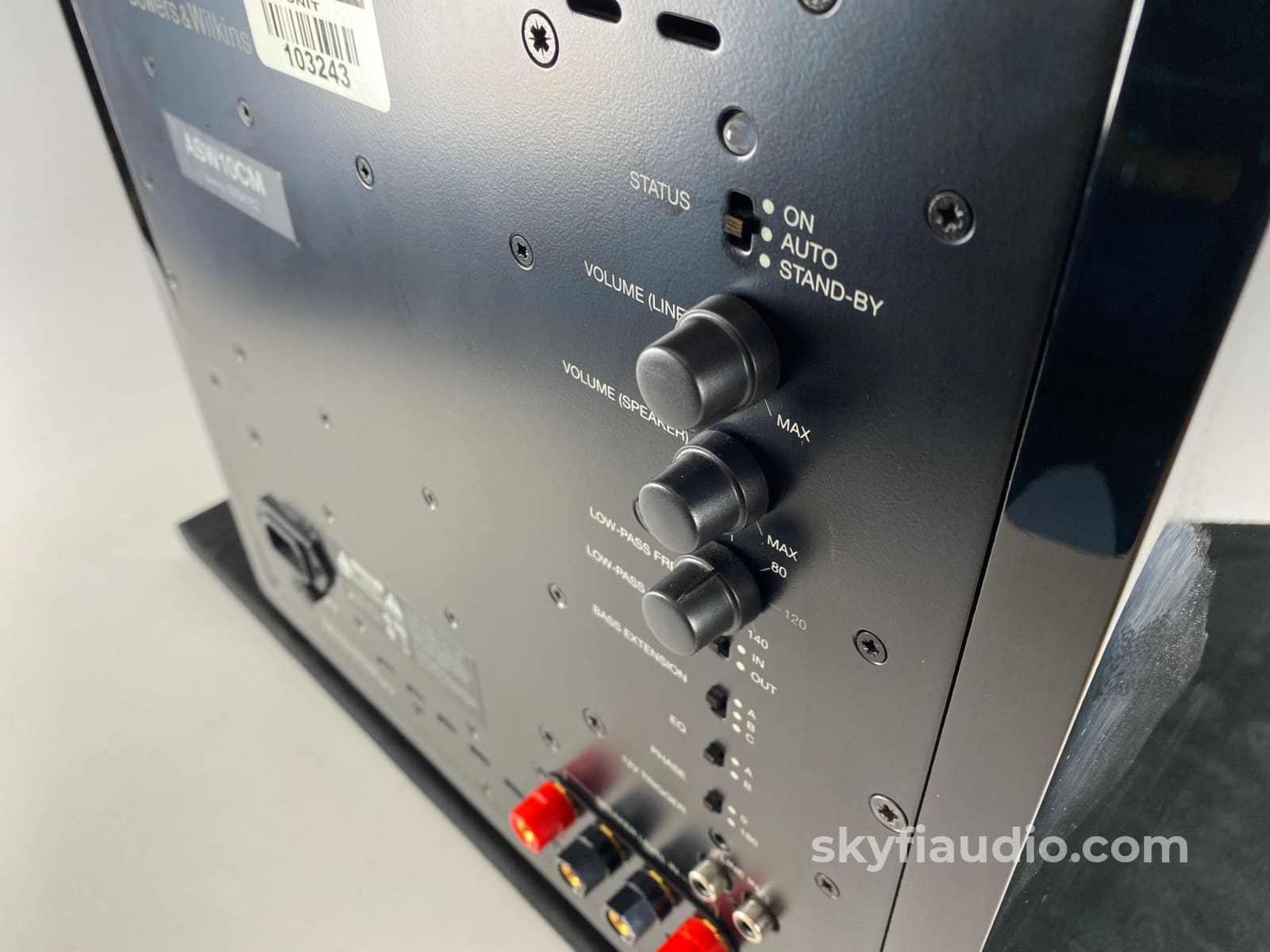

Functions:
Input level (line in)
Input level (speaker in)
Low-pass filter freuency
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on/standby
Phase switch

Inputs:
Line In (RCA Phono)
Speaker in (Binding post)
12V trigger (3.5mm jack)

Dimensions:
Height: 325mm (12.8 in) (not including feet)
Width: 325mm (12.8 in)
Depth: 362mm (14.3 in) (including grille and controls)

Net Weight:
15.5kg (34.4 lb)

Finishes:
Gloss Black

Please click here for detailed specifics regarding our specialized packing process that separates us from the rest.

Item

Included

Original Box

No

Manual

Online

Remote

Not Applicable

Cables

Yes - Power

Physical Condition

7

Working Condition

10

SKU: 103243
