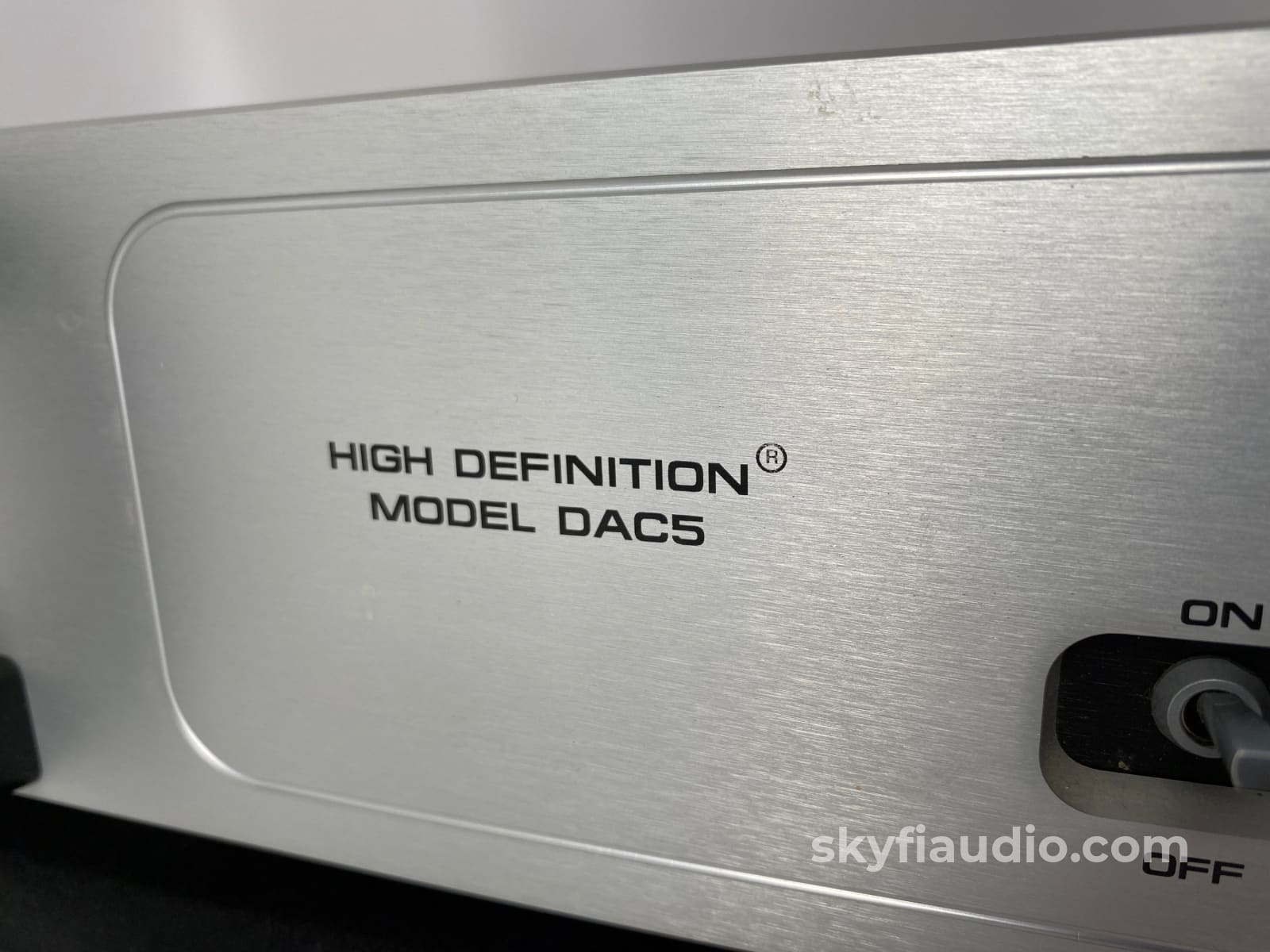

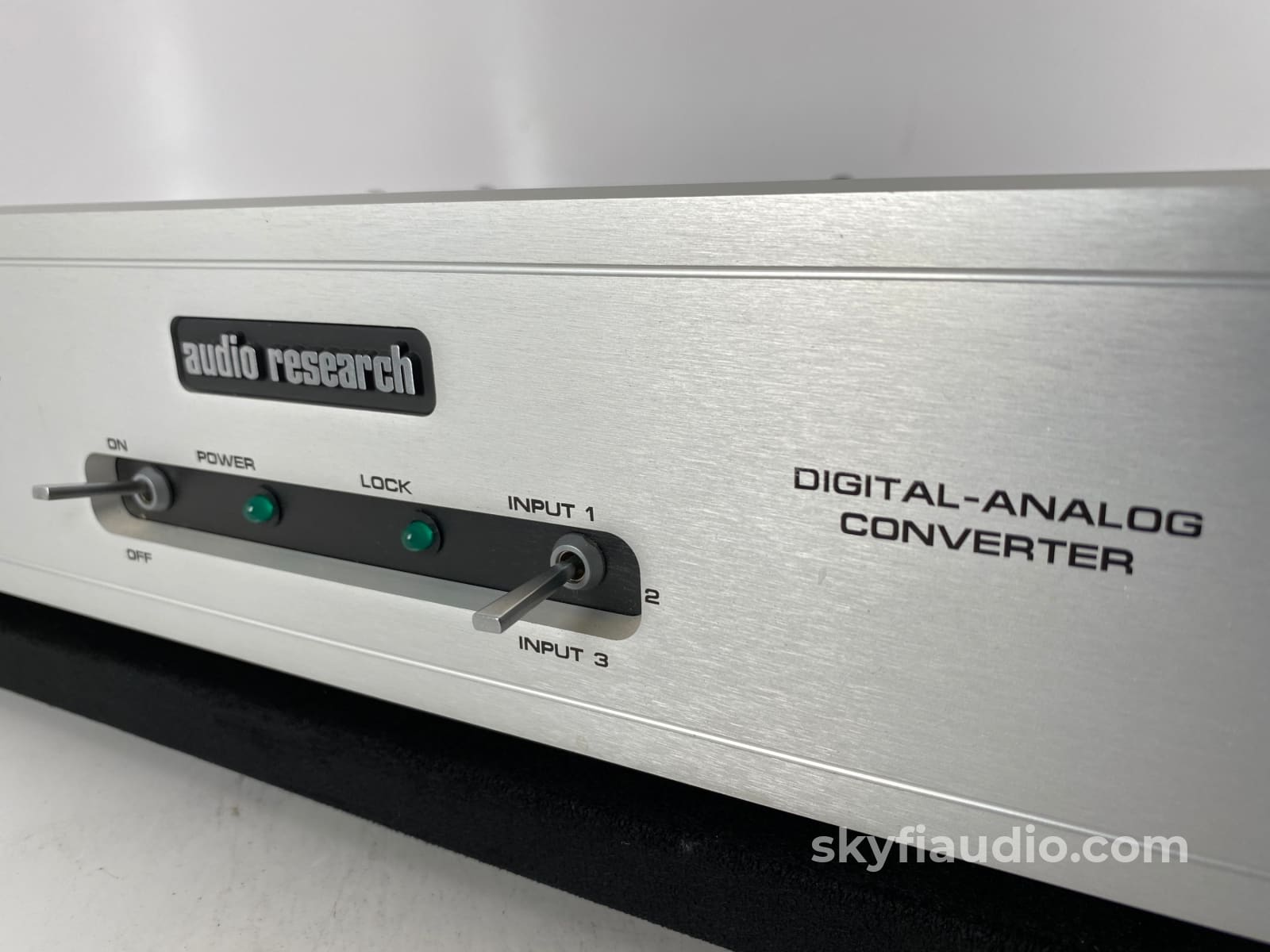

Audio Research Model DAC5, Digital to Analog Converter, 20-Bit Resolution

$0

I haven't seen an Audio Research DAC5 come up for sale in the USA for a few years now.

Must be because most audiophiles don't have much of a reason to replace them.

Sure, if you're into super High-Res or PC audio this is not the right tool for the job, but if Redbook CD is your thing this should be on your short list for a DAC under $2,500.

In perfect working condition with almost no signs of use.

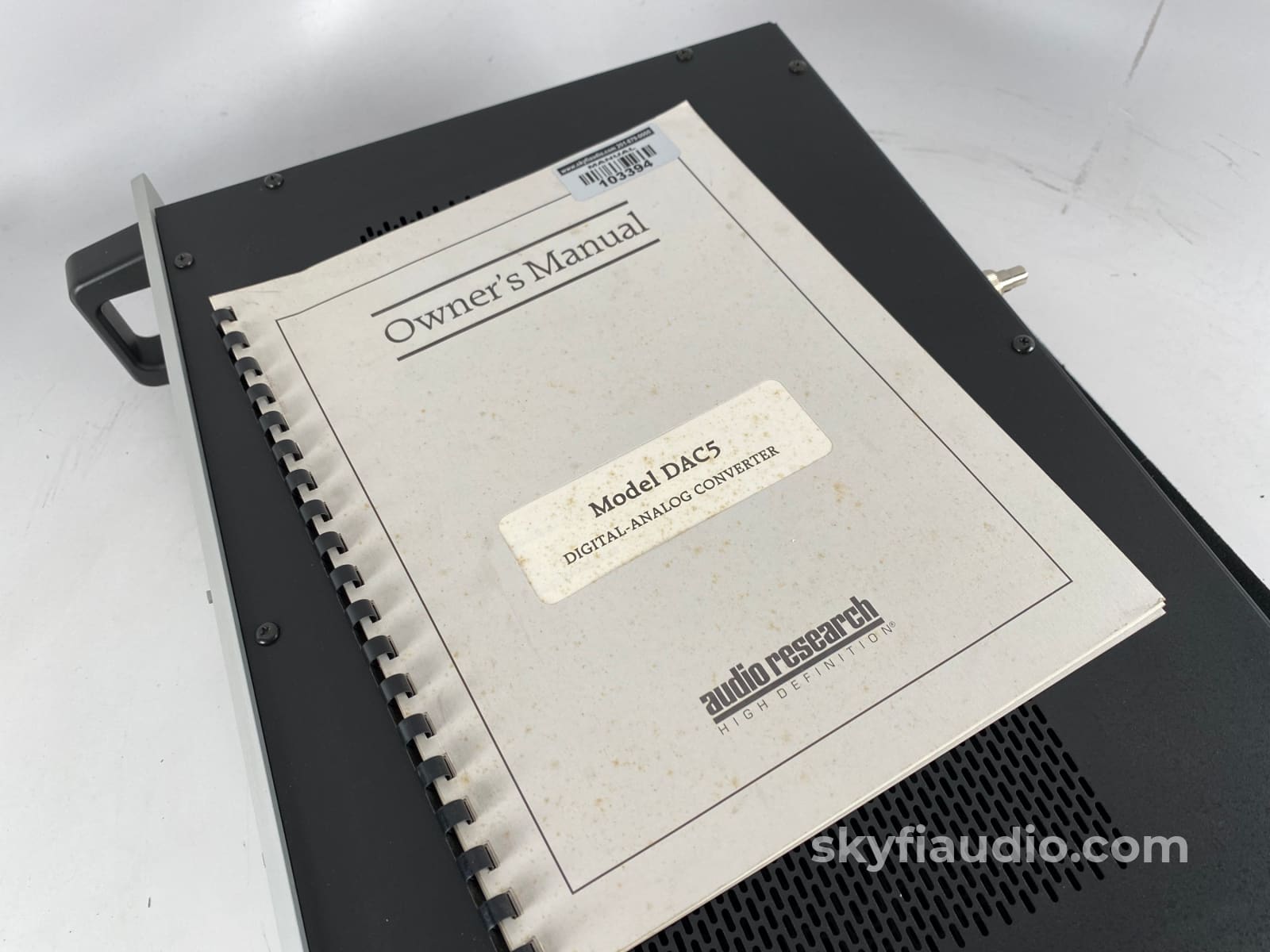

Audio Research Model DAC5 - Owner's Manual

Click below to add our recommended matching cables from Kimber Kable, all brand new as SkyFi is an official Kimber dealer.

Kimber Kable - RCA Interconnects

Kimber Kable - XLR Interconnects

Kimber Kable - Coaxial Digital Interconnect

Kimber Kable - Optical Digital Interconnect

Kimber Kable - Digital AES/EBU (XLR Connector) Interconnect

Kimber Kable - Power Cords

Technical Specifications
Solid-state dac

INTRODUCED
1996

MSRP (US NEW RETAIL)
$1,995 ($3,600 in 2021)

FREQUENCY RESPONSE
0.1-20,000 Hz, ±.25dB

DISTORTION
-94db (.0002%) 1kHz, Balanced

S/N RATIO
100dB (A weighted, Balanced 20-20,000 Hz)

PHASE LINEARITY
±0.5° (20-20,000 Hz)

CHANNEL SEPARATION
110 dB (1kHz) Balanced

RESOLUTION
Converter resolution:
20-bit bitstream with switched capacitor 1-bit DAC
Input resolution: 16 bits (maximum)

OUTPUT IMPEDANCE
200 Ohms unbalanced, 400 Ohms balanced.

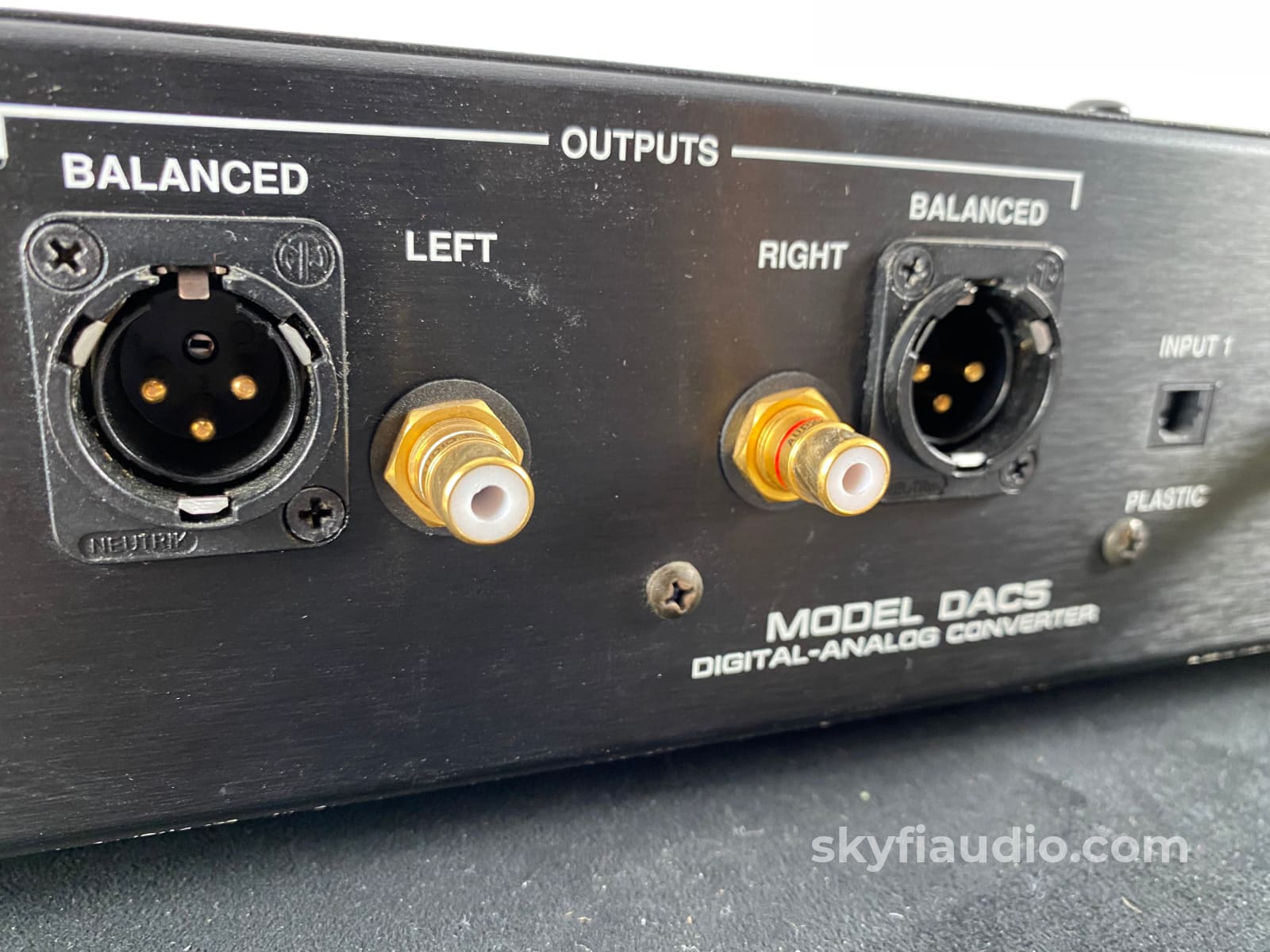

ANALOG OUTPUTS
2.0 Vrms (+6dbV full output) unbalanced RCA phono jacks 4.0 Vrms (+12 dbv) full output. Balanced XLR jacks.

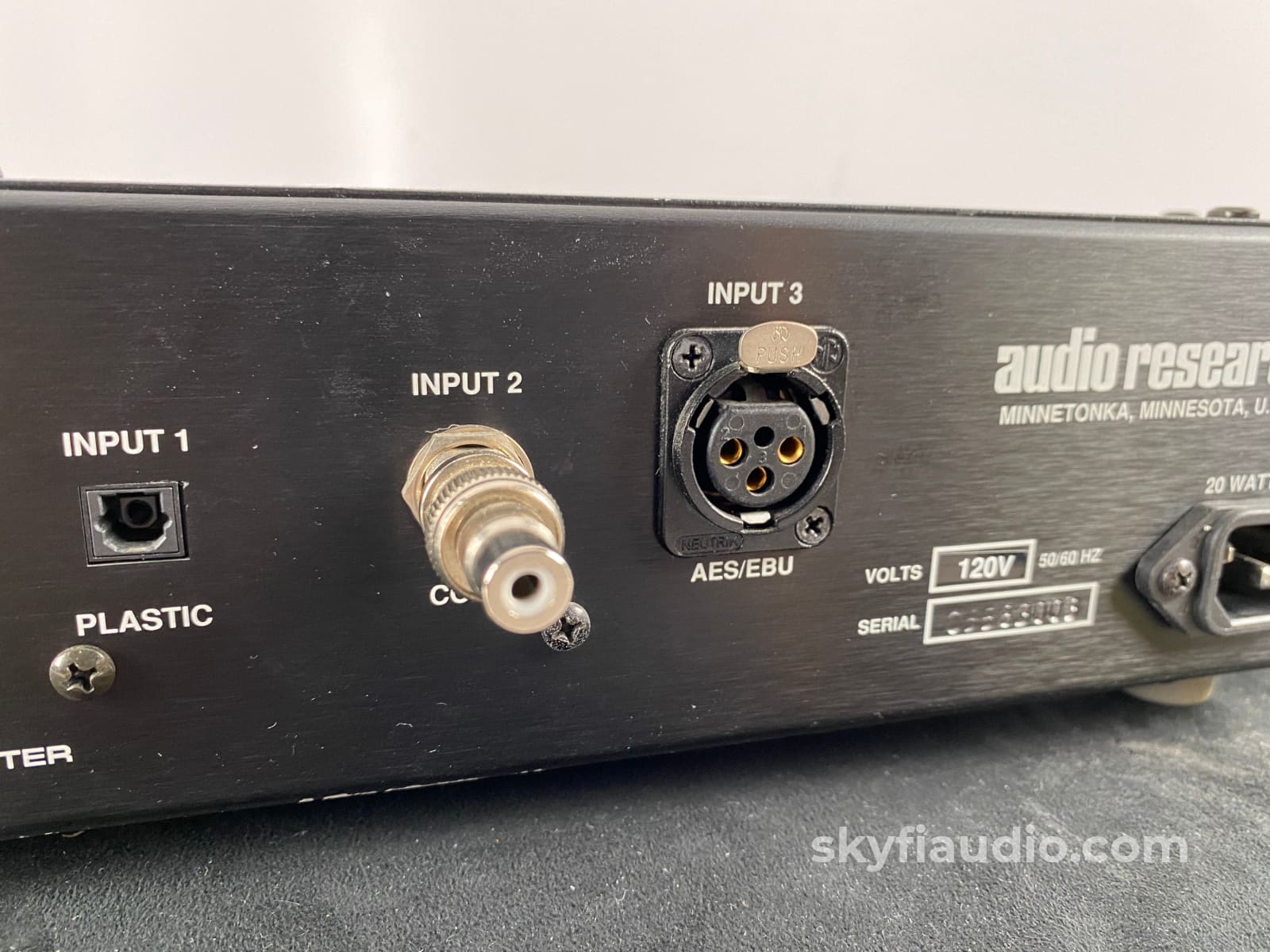

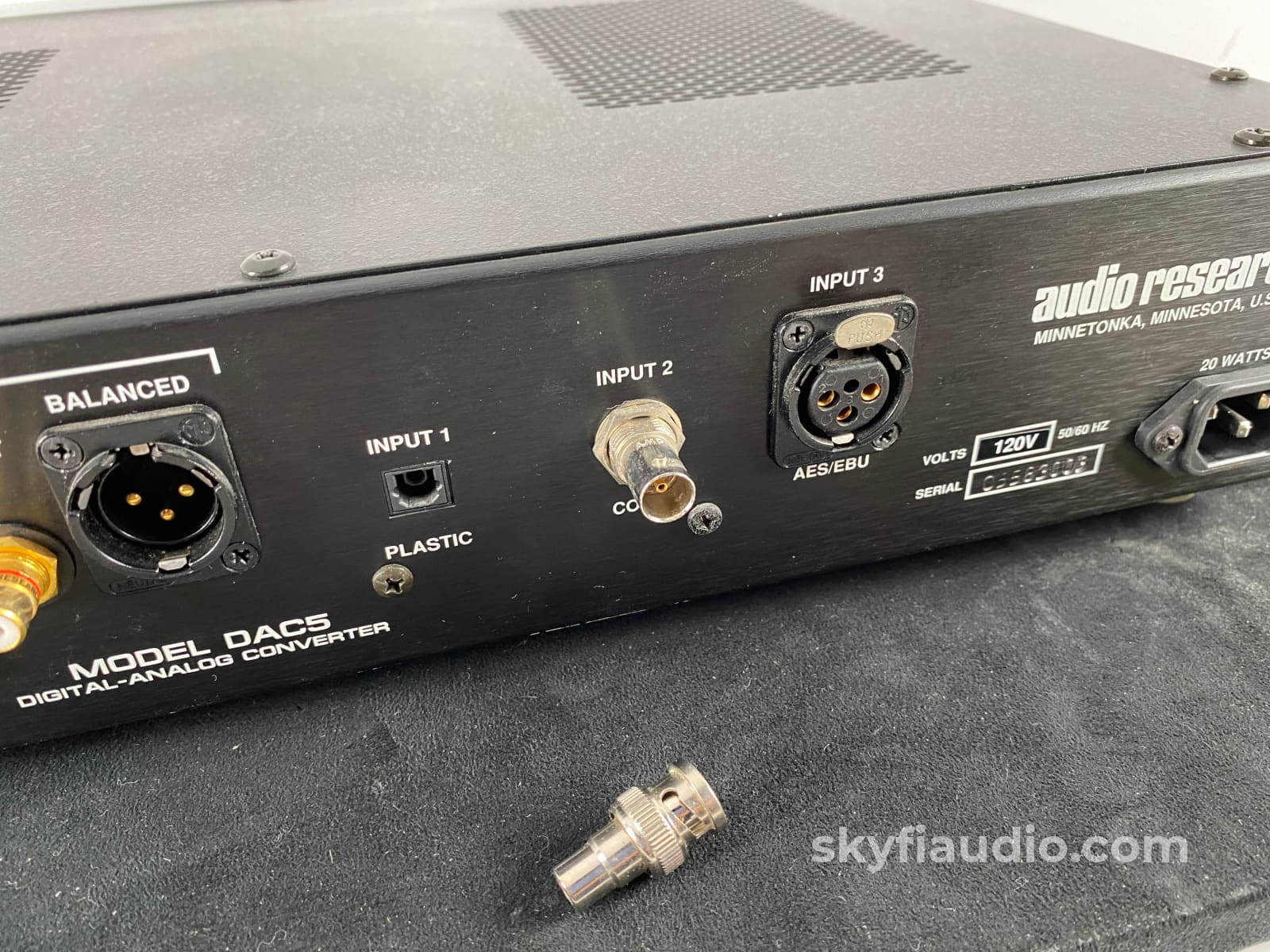

DIGITAL INPUTS
1. TOSLINK fiber optics 660nm
2. BNC Coax 75 ohm (SPDIF)
3. XLR Balanced 110 ohm AES/EBU

POWER REQUIREMENTS
95-135VAC 60Hz (190-270VAC 50/60Hz)
20 watts maximum

OTHER
Reclocking method: PLL
Inverting switch: Digital domain
Power supply: 1 transformer, 2 discrete regulators, 2 IC regulators
Line fuse: 1/2 AAGC (1/4 AAGC230V)

DIMENSIONS

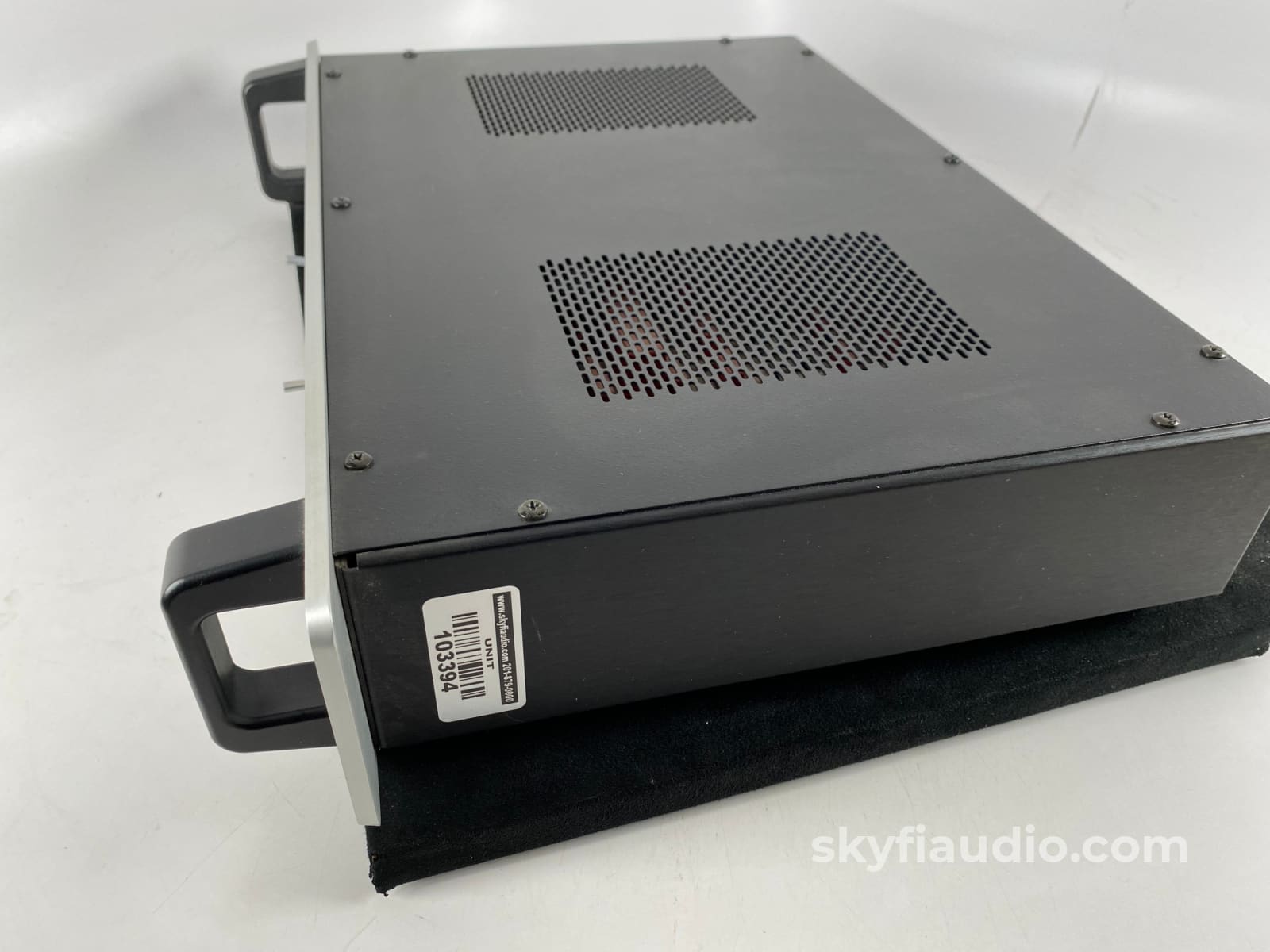

19" (48 cm) W x 3 ½" (8.9 cm) H (standard rack panel) x 11 ¾" (29.8 cm) D. Handles extend 1 ½" (3.8 cm) forward of the front panel. Rear connectors extend ¾" (2.2 cm).

WEIGHT
8.6 lbs. (3.9 kg) Net
19 lbs. (8.5 kg) Shipping

Item

Included

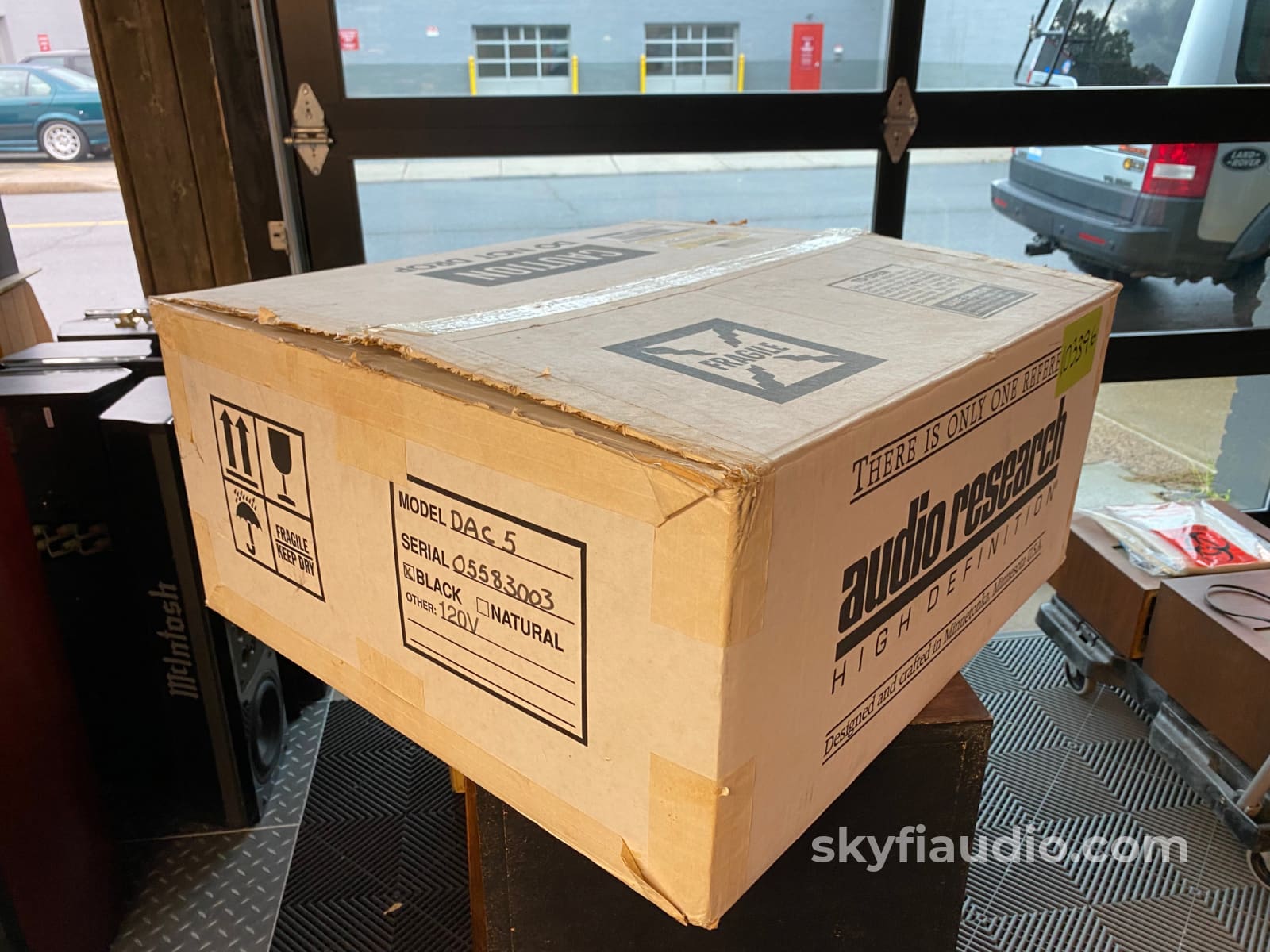

Original Box

Yes

Manual

Yes

Remote

Not Applicable

Cables

Yes - Power

Physical Condition

8

Working Condition

10
